NEC PlasmsSync PX-42XR4A User's Manual

Operation Manual
(Enhanced split screen Model)
Operation Manual
Manual de funcionamiento
NEC Solutions (America), Inc.
Mode d’emploi
Manual de operação
202
Operation Manual
(Enhanced split screen Model)
For the specifications of your plasma monitor, refer to “Model Information”.
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong.The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.
16. Damage Requiring Service - The appliance should be serviced by qualified service personnel when: A. The power supply cord or the plug has been damaged;
or
B. Objects have fallen, or liquid has been spilled into
the appliance; or
C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally
or exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure
damaged.
17. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.
Do not compromise these design standards by
applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.
Also, do not endanger yourself, or children, by placing
electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.
18. Wall Mounting - The appliance should be mounted to a wall only as recommended by the manufacturer.
19. Power Lines - An outdoor antenna should be located away from power lines.
20. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70- 1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna­discharge unit, connection to grounding electrodes and requirements for the grounding electrode.
21. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
En-2
Important Information
Precautions
Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPT ACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Warnings and Safety Precaution
This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section “Plasma monitor cleaning procedure”. The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:
1. Provide adequate space for ventilation to avoid internal heat build­up. Do not cover rear vents or install the unit in a closed cabinet or shelves. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.
2. Do not use this unit’s polarized plug with extension cords or outlets unless the prongs can be completely inserted.
3. Do not expose the unit to water or moisture.
4. Avoid damage to the power cord, and do not attempt to modify the power cord.
5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.
6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.
7. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.
8. This equipment shall be connected to a MAIN outlet with a protective earth-ground connection.
9. The outlet shall be installed near the equipment and shall be easily accessible.
To avoid damage and prolong operating life:
1. Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100-240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.
2. Handle the unit carefully when installing it and do not drop.
3. Set the unit away from heat, excessive dust, and direct sunlight.
4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.
5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.
6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.
7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.
8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.
9. Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.
10. Do not place the unit on its side, upside-down or with the screen facing up or down, to avoid combustion or electric shock.
Plasma monitor cleaning procedure:
1. Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.
2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.
3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.
Recommendations to avoid or minimize image retention:
Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to image retention under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in image retention if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image retention:
* Always enable and use your computer’s screen saver function
during use with a computer input source. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished using it.
If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of image retention:
* Lower the Brightness and Contrast levels as much as possible without
impairing image readability. * Display an image with many colors and color gradations (i.e.
photographic or photo-realistic images). * Create image content with minimal contrast between light and dark
areas, for example white characters on black backgrounds. Use
complementary or pastel color whenever possible. * Avoid displaying images with few colors and distinct, sharply defined
borders between colors.
Plasma monitor driving sound
The panel of the Plasma monitor is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may cause you to hear a buzz or electrical hum coming from the Plasma monitor. Also note that the rotation speed of the cooling fan motor increases when the ambient temperature of the Plasma monitor becomes high. You may hear the sound of the motor at that time.
Note:
The following items are not coverd by the warranty.
• Image retention
• Panel generated sound, examples: Fan motor noise, and electrical circuit humming /glass panel buzzing.
Contact your dealer for other recommended procedures that will best suit your particular application needs.
En-3
Contents
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment ................. En-2
Important Information.................................. En-3
Contents ...................................................... En-4
Contents of the Package ........................................ En-4
Options .............................................................. En-4

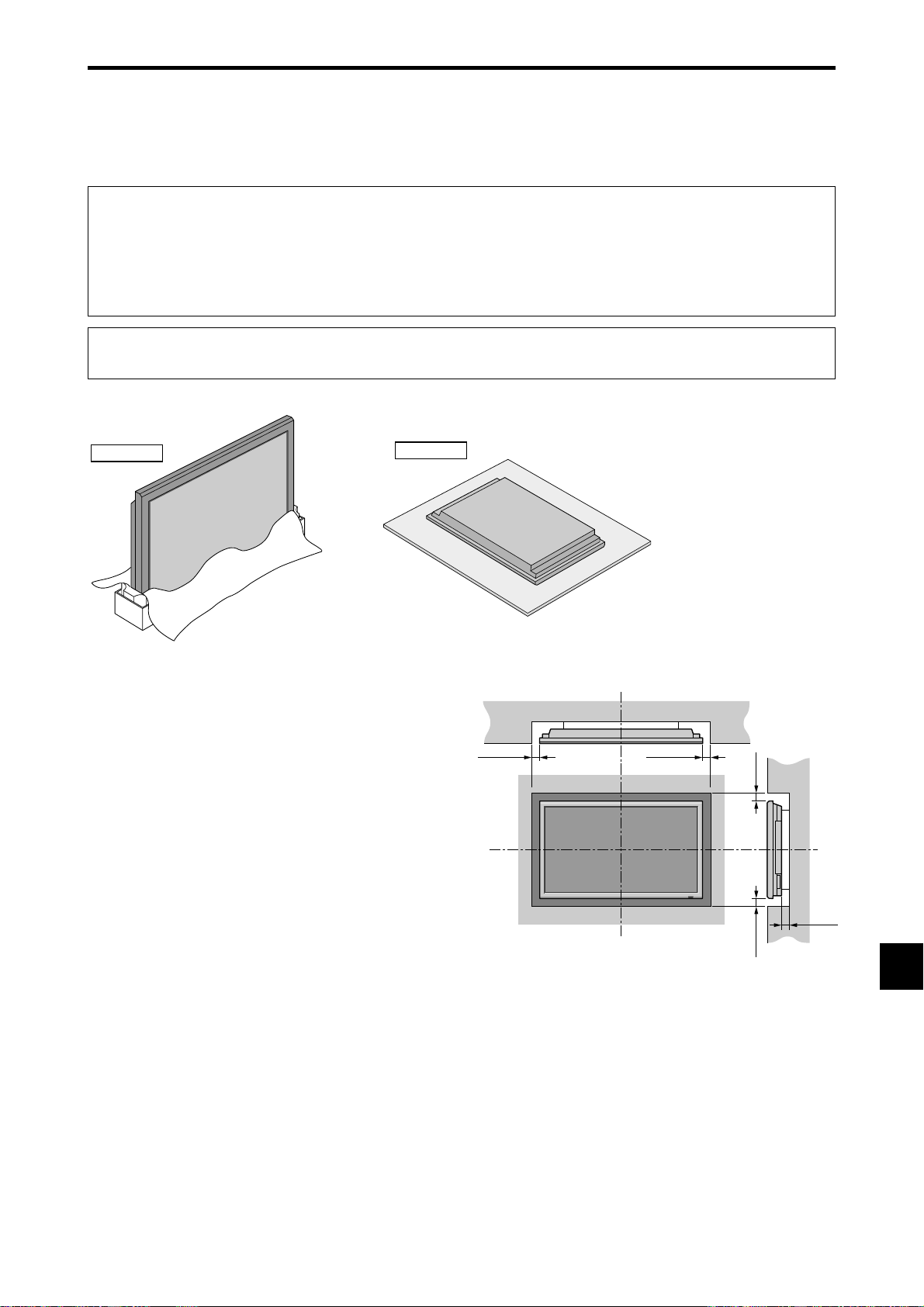

Installation .................................................. En-5

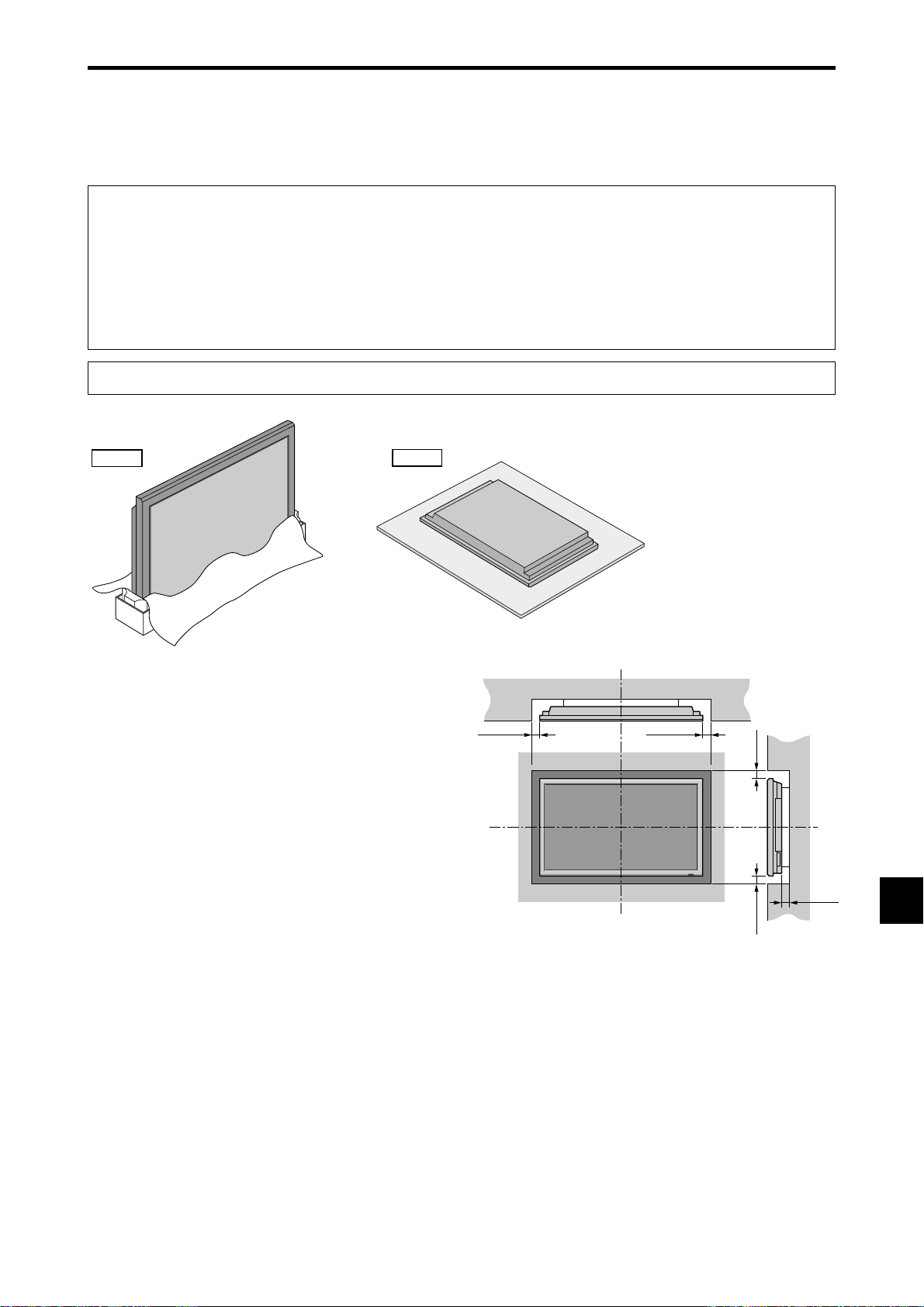

Ventilation Requirements for enclosure mounting ......En-5

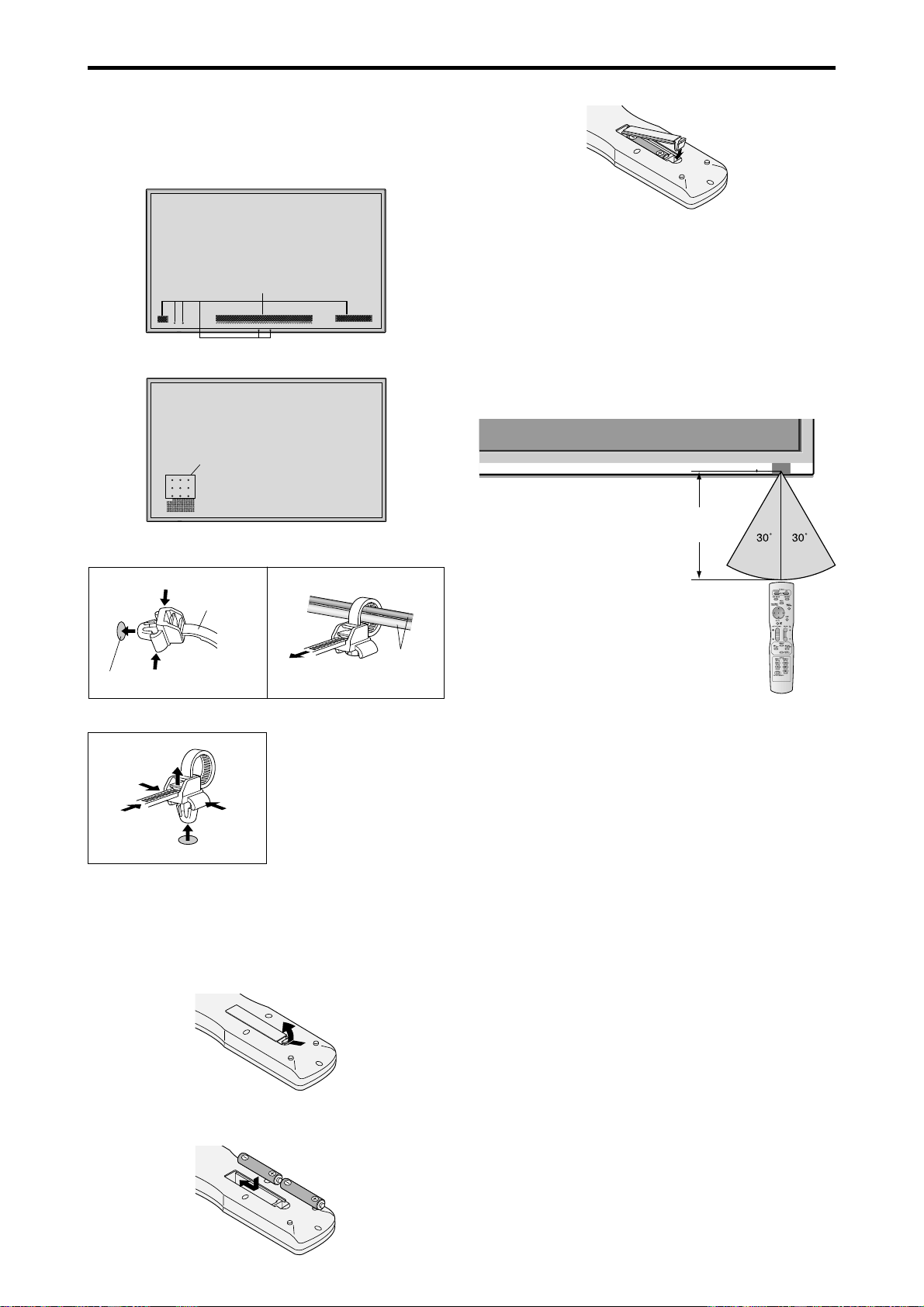

Cable Management.............................................. En-6
Using the remote control ....................................... En-6
Battery Installation and Replacement ..................... En-6
Operating Range .................................................... En-6
Handling the remote control................................... En-6
Part Names and Function .............................. En-7

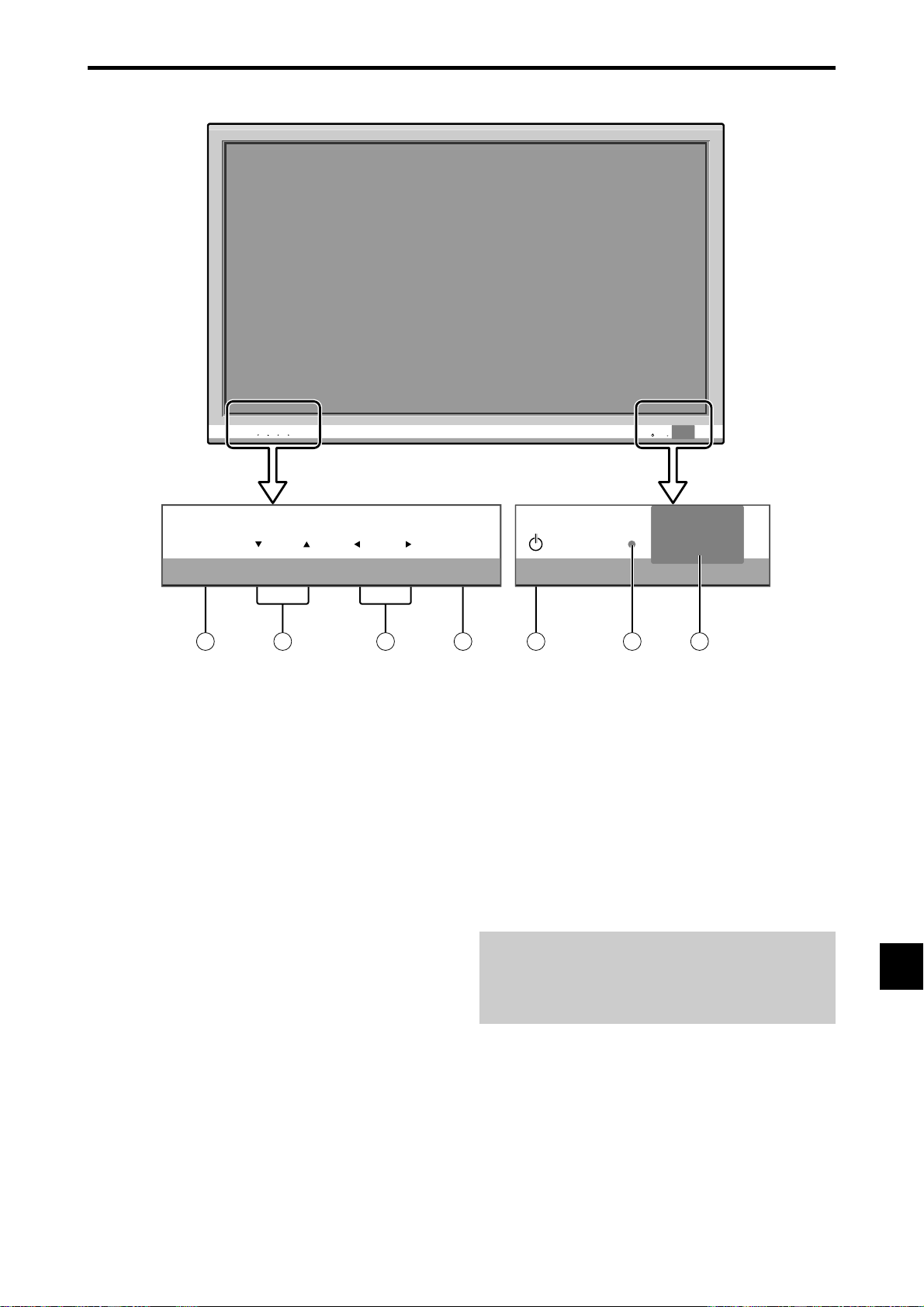

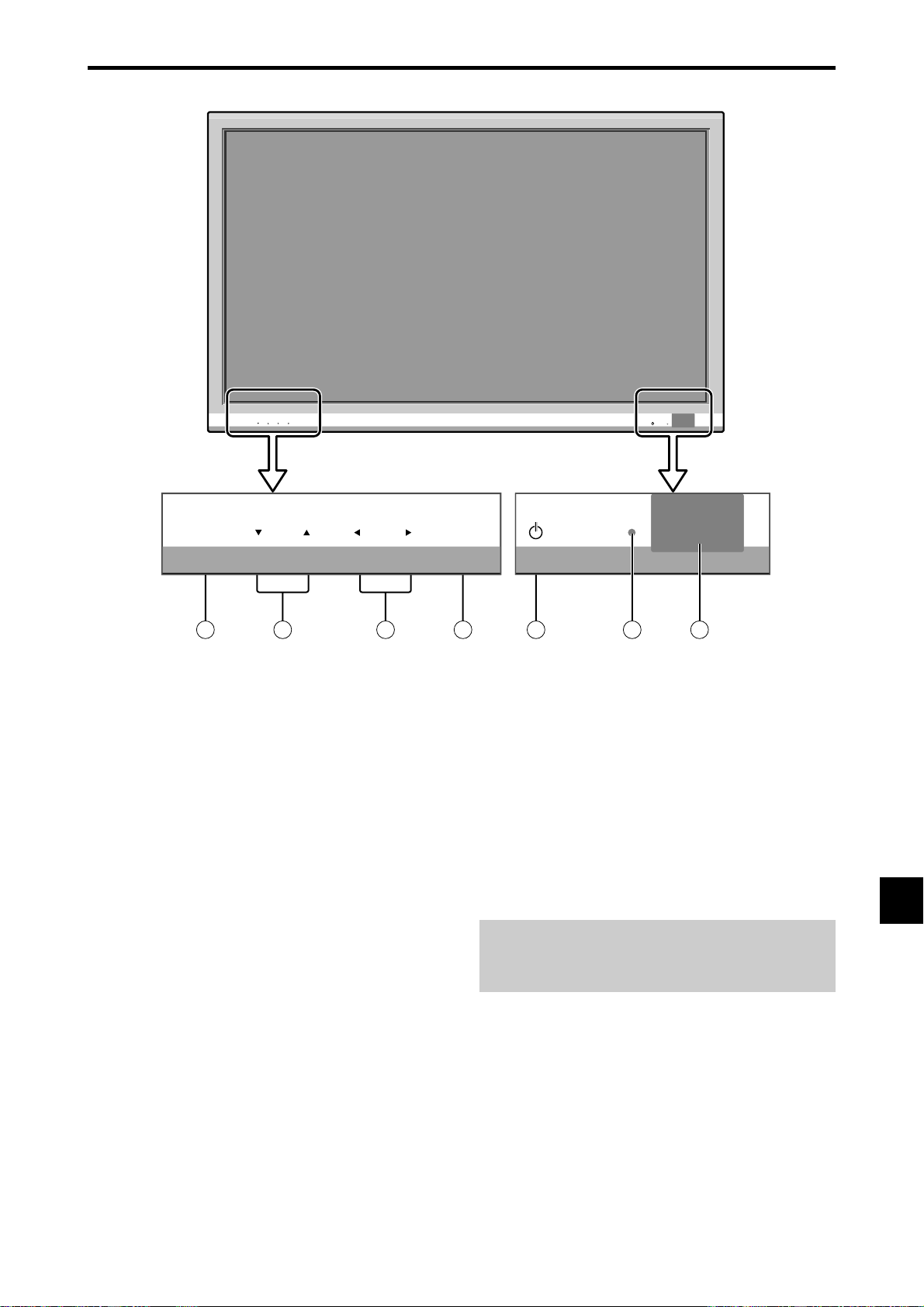

Front View .......................................................... En-7

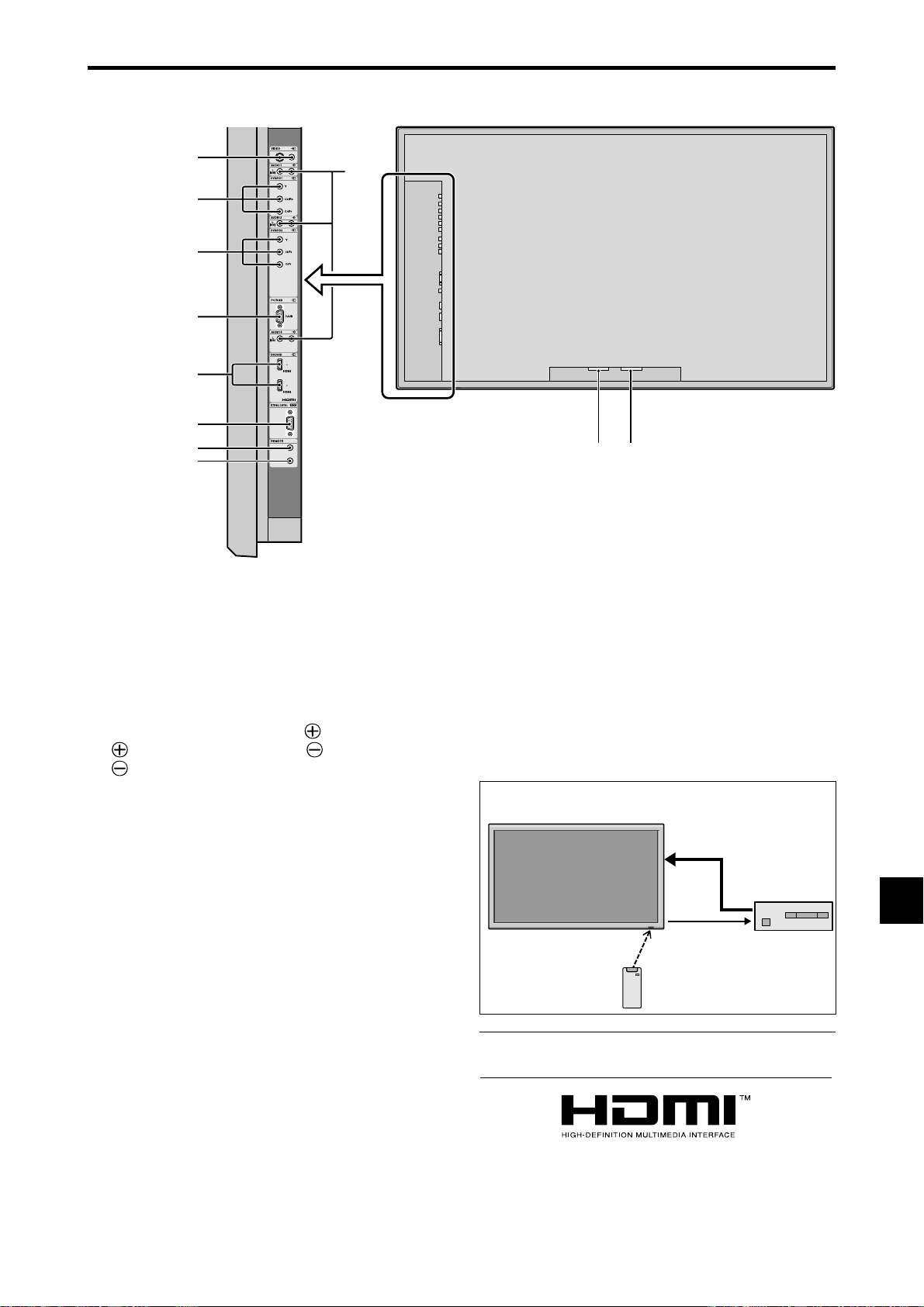

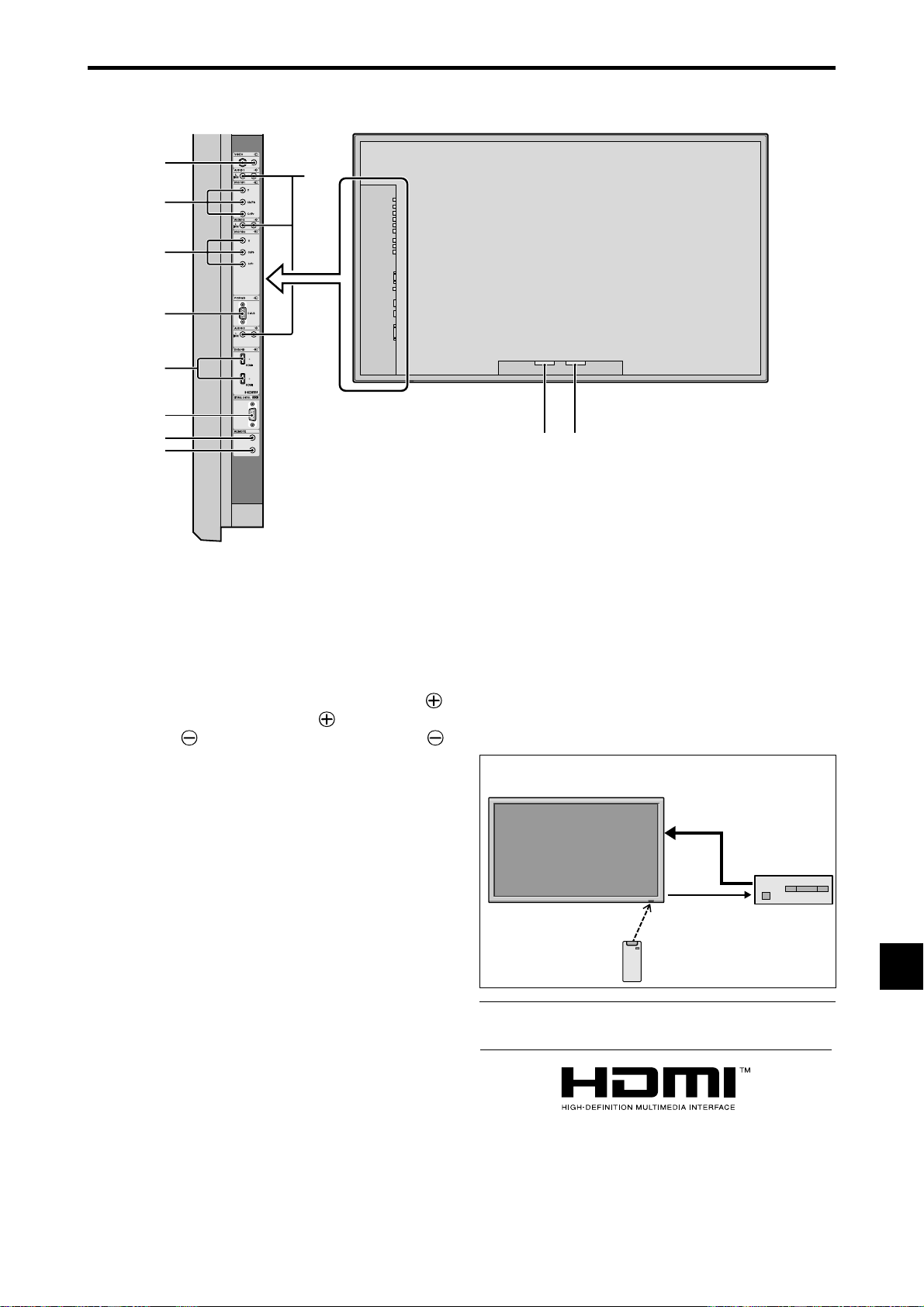

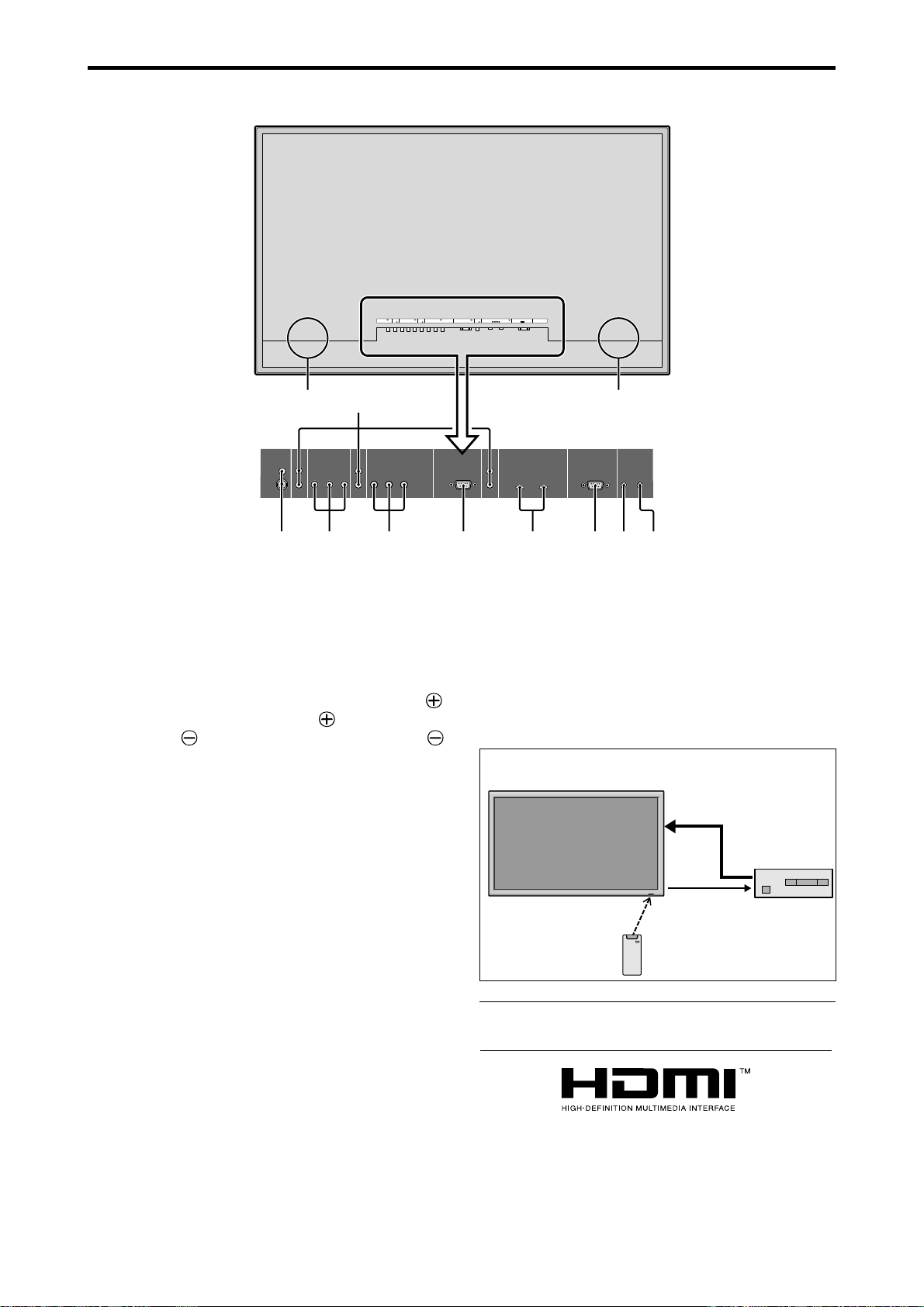

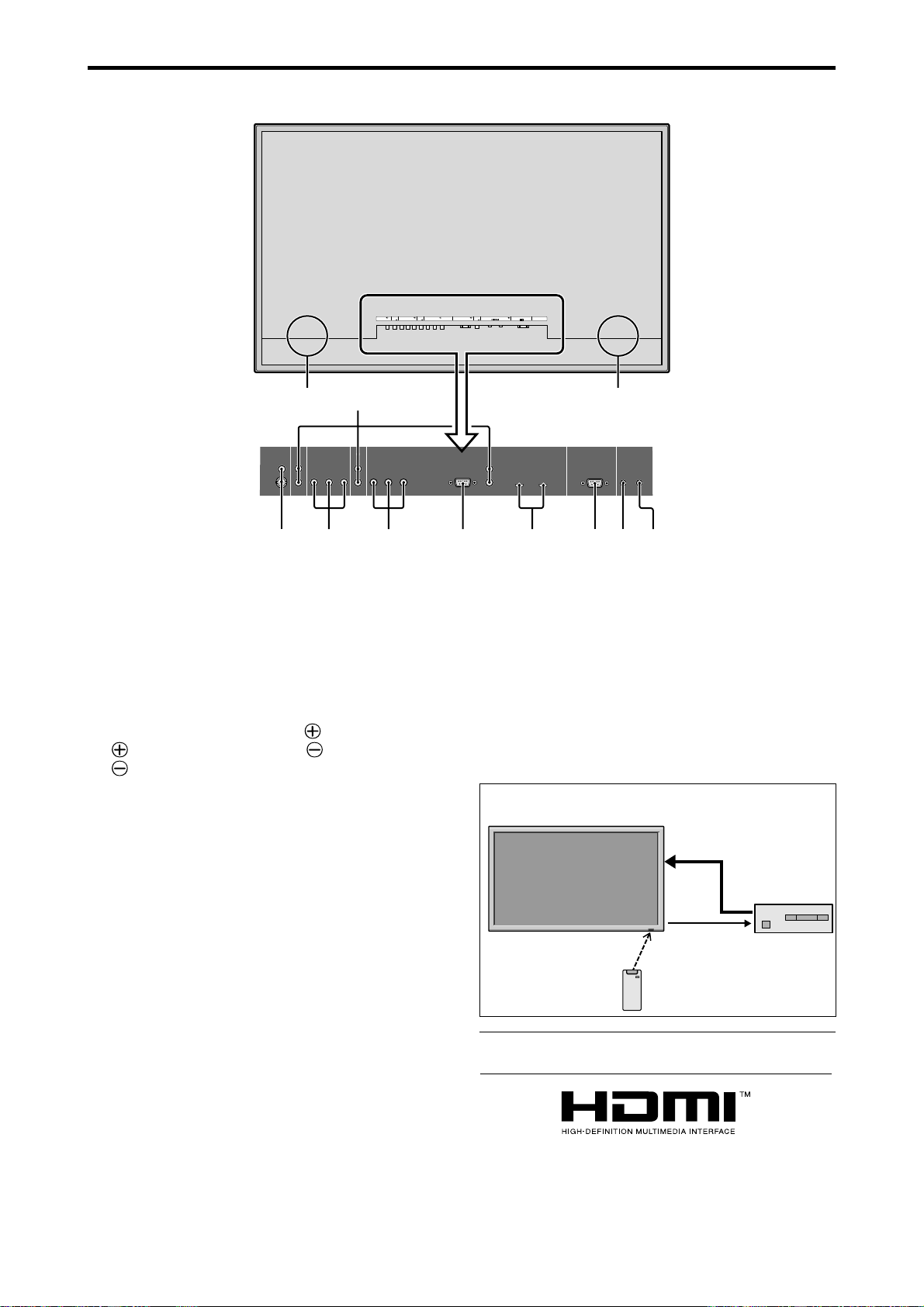

Rear View/ Terminal Board ...................................En-8

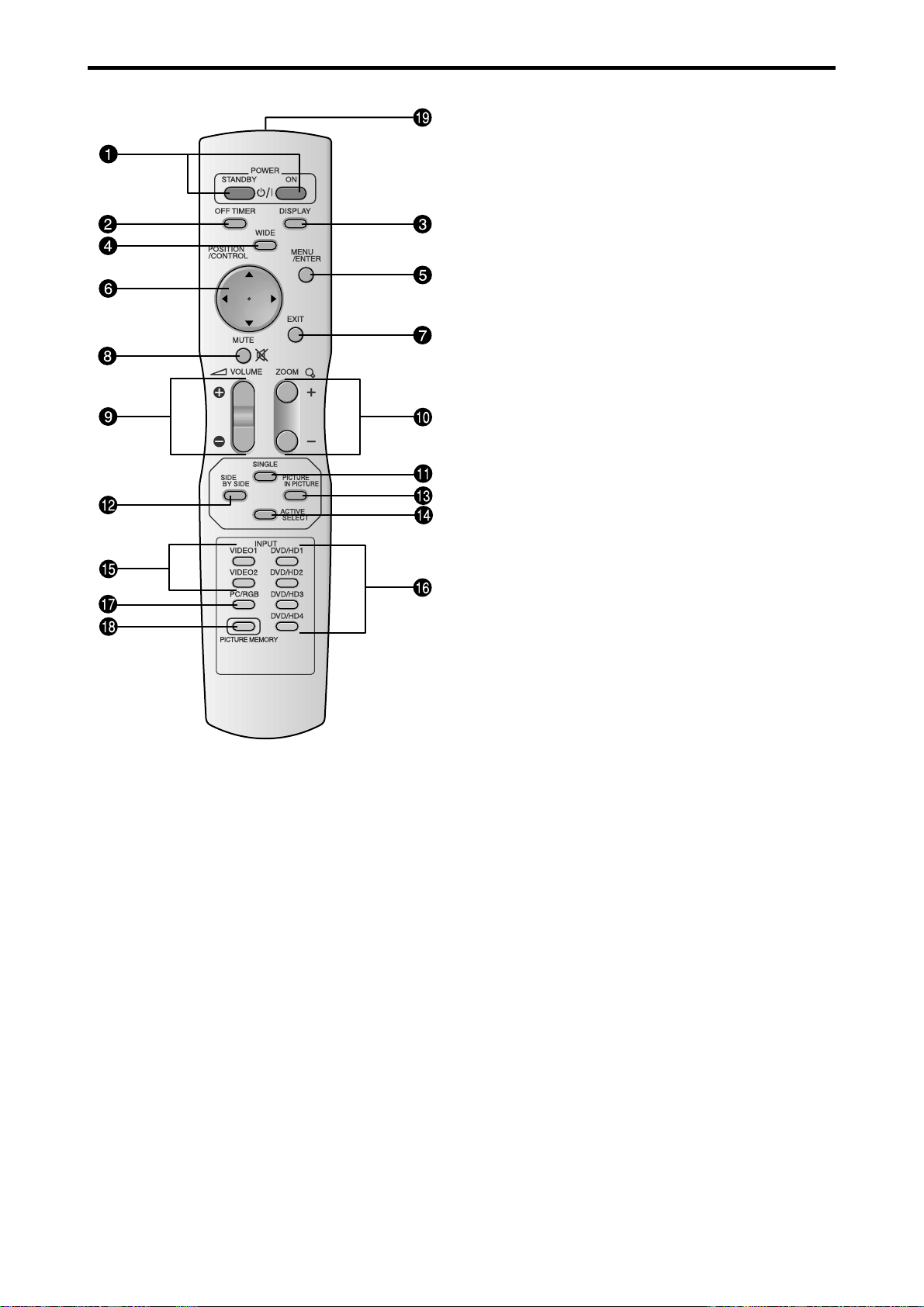

Remote Control .................................................. En-10
Basic Operations......................................... En-11
POWER ............................................................ En-11
To turn the unit ON and OFF: .............................. En-11
VOLUME .......................................................... En-11
To adjust the sound volume:................................. En-11
MUTE ............................................................... En-11
To mute the audio: ............................................... En-11
DISPLAY ............................................................En-11
To check the settings:........................................... En-11
DIGITAL ZOOM .................................................En-11
OFF TIMER ........................................................En-11
To set the of f timer:.............................................. En-11
To check the remaining time: ............................... En-11
To cancel the off timer: ........................................ En-11

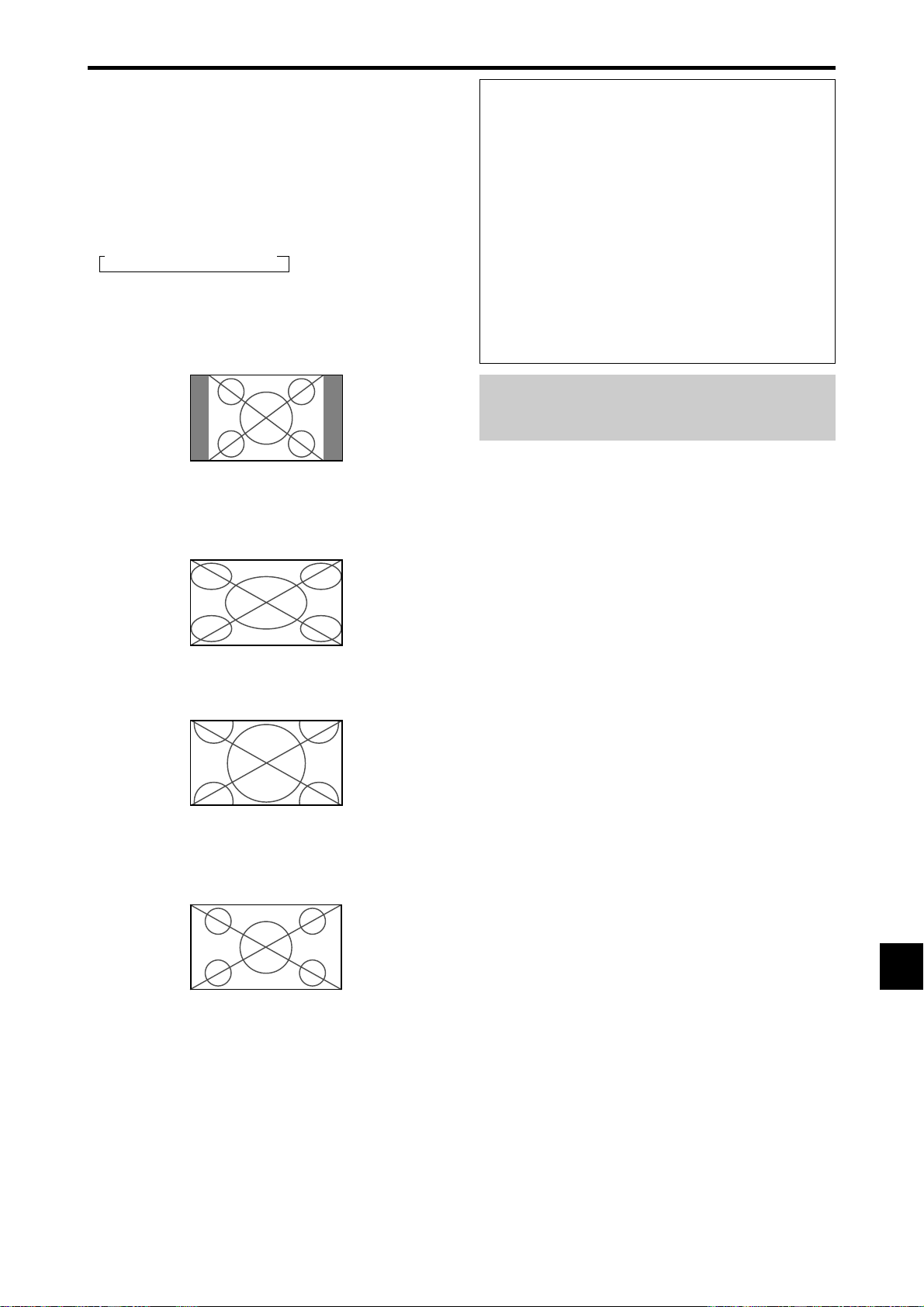

WIDE Operations......................................... En-12

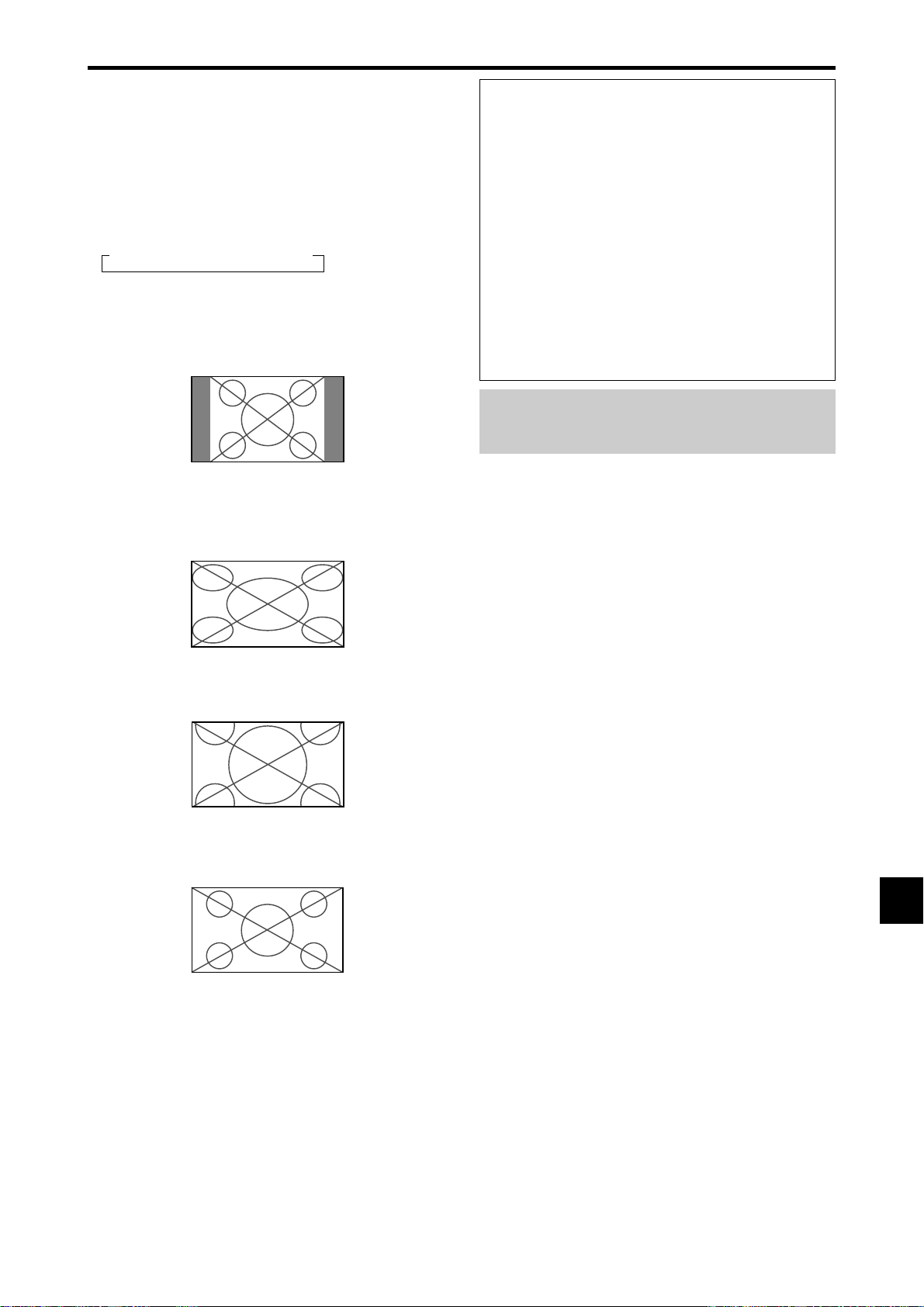

Wide Screen Operation (manual) ........................ En-12
When viewing videos or digital video discs ......... En-12

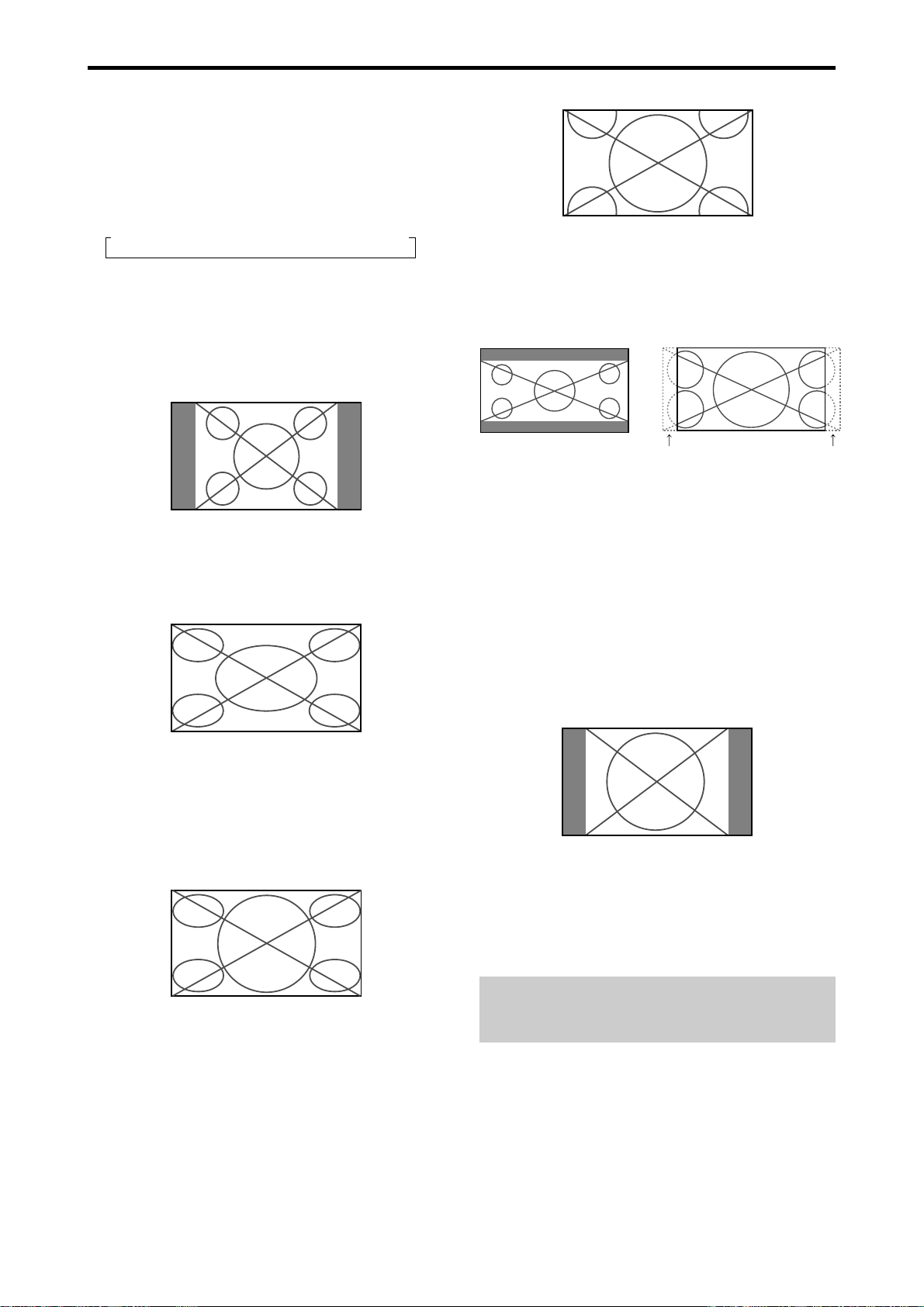

Wide Screen Operation with Computer Signals ..... En-13

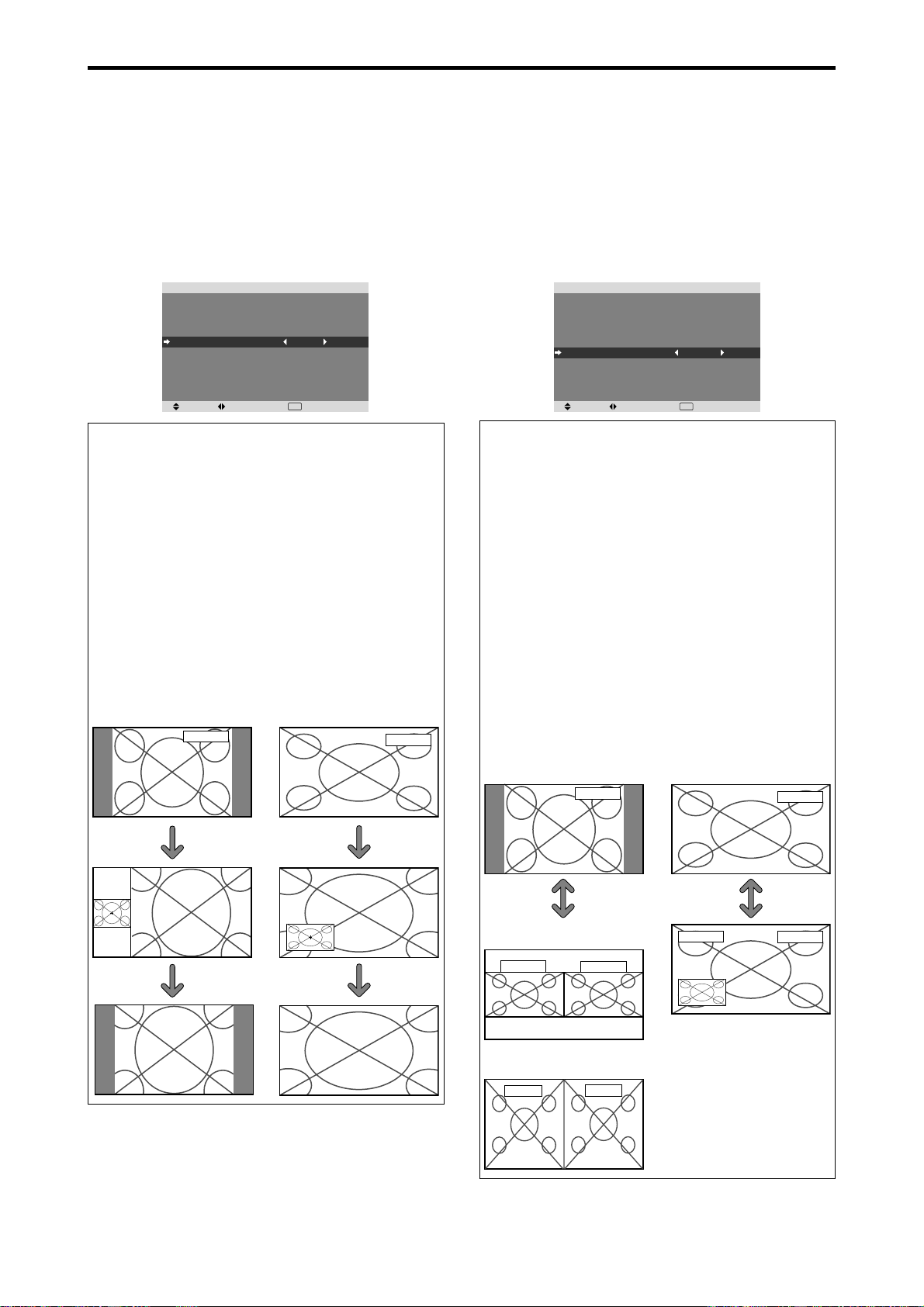

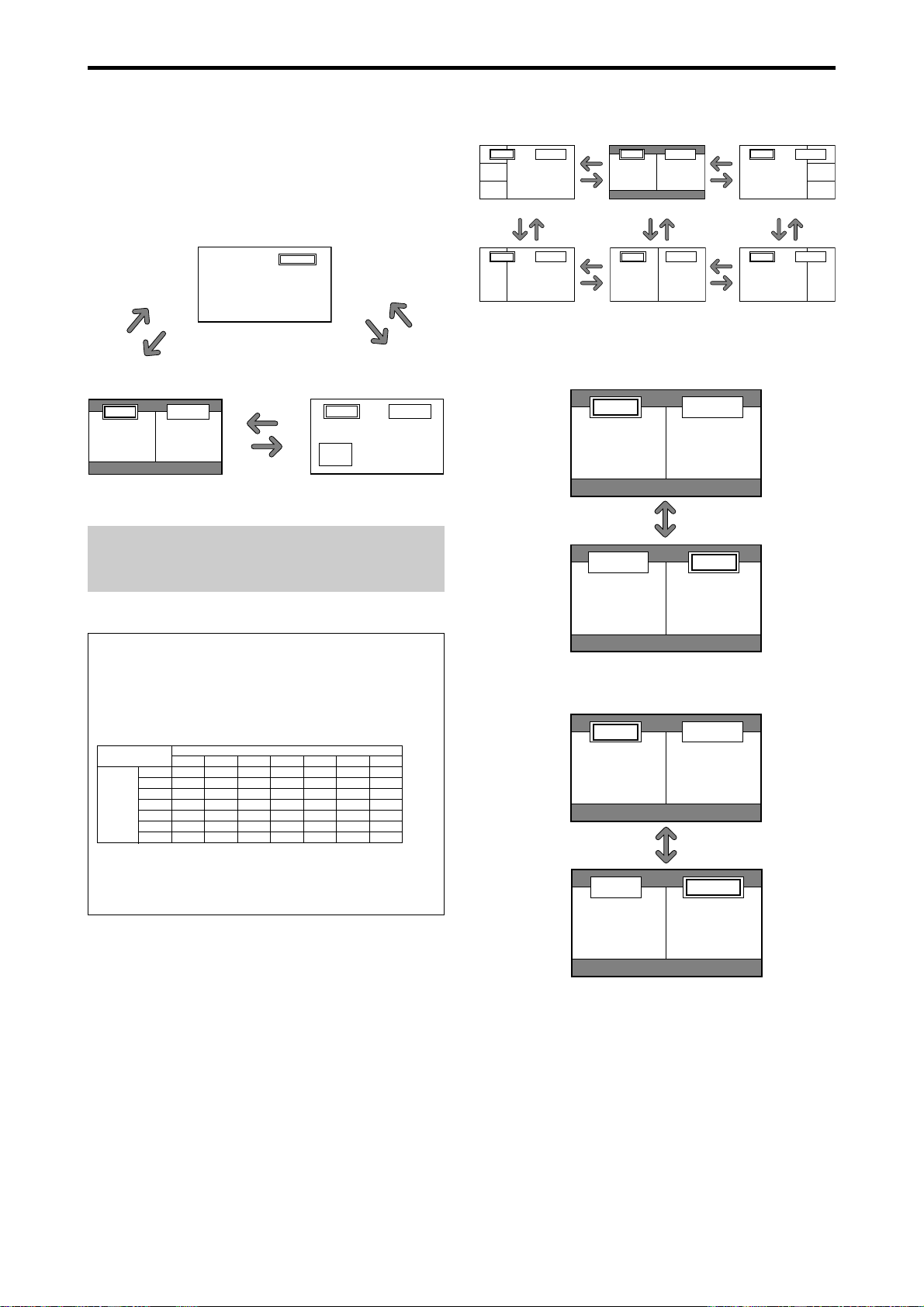

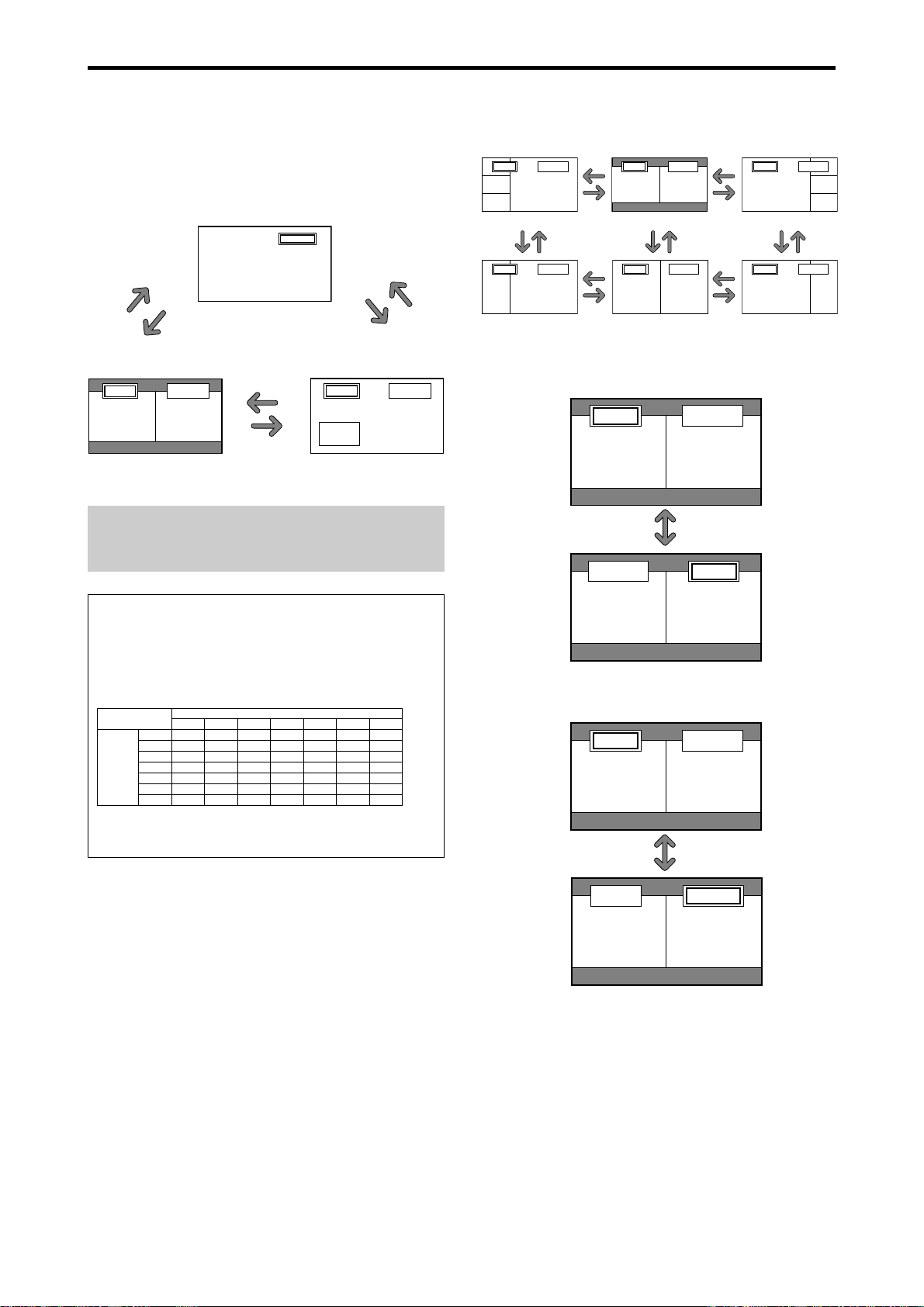

SPLIT SCREEN Operations ............................. En-14
Showing a couple of pictures on the screen at the same
time .............................................................. En-14
Operations in the Side-by-side mode.................... En-14
Operations in the Picture-in-picture mode ............ En-15
Selecting the input signals to be displayed ........... En-15
Zooming in on a specific input ............................. En-15
Adjusting the OSM controls................................. En-15

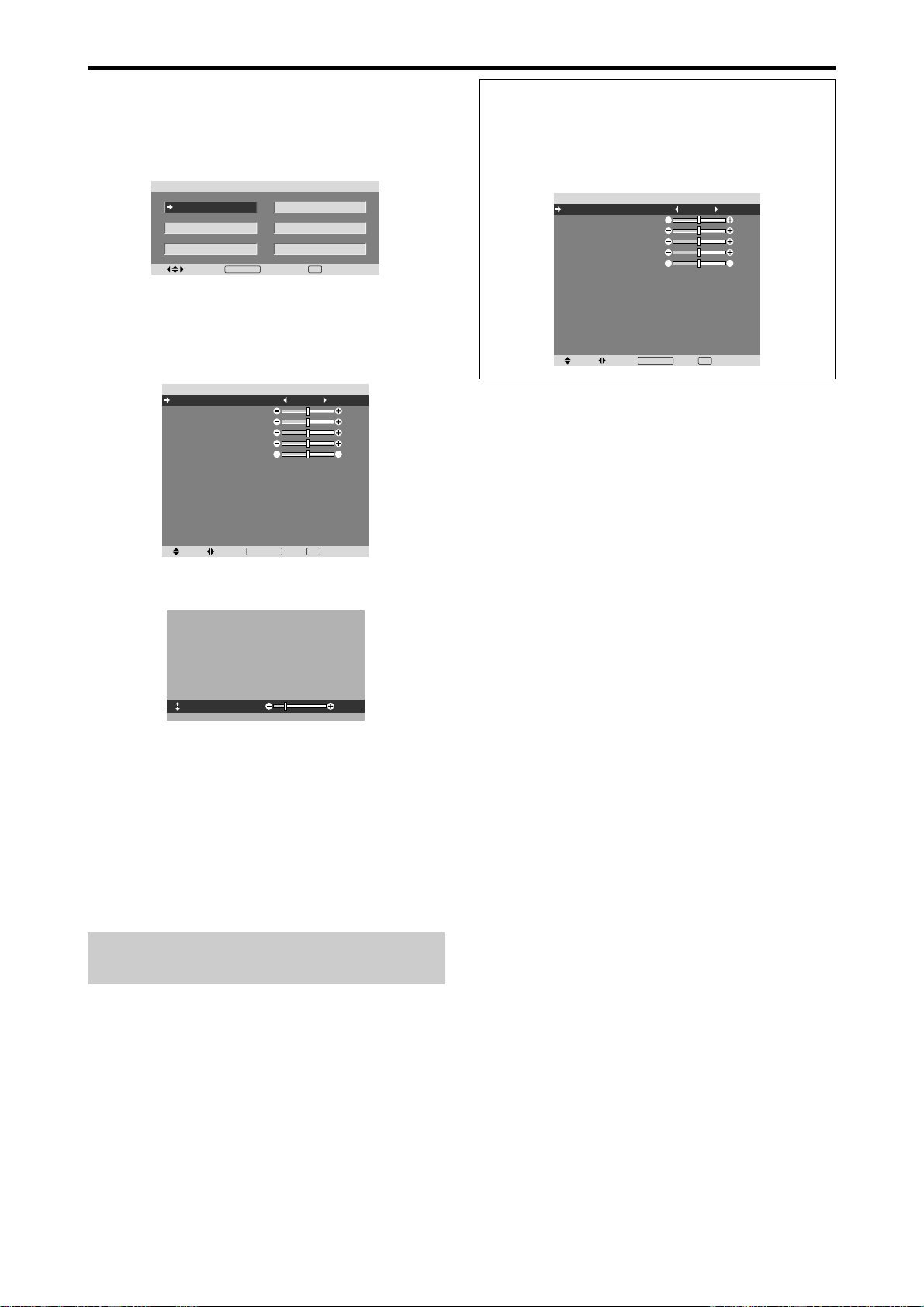

OSM (On Screen Menu) Controls ................... En-16
Menu Operations ............................................... En-16
Menu Tree ......................................................... En-17
Picture Settings Menu.......................................... En-19
Storing picture settings......................................... En-19
Adjusting the picture............................................ En-19
Reducing noise in the picture ............................... En-19
Setting the color temperature ............................... En-20
Adjusting the color to the desired level ................ En-20
Setting the picture to suit the movie ..................... En-20
Setting the picture mode according to the brightness of
the room ............................................................ En-20
Changing the Gamma Curve ................................ En-21
Making the Low T one adjustments ...................... En-21
Adjusting the pedestal level (black level) ............. En-21
Adjusting the colors ............................................. En-21
Audio Settings Menu .......................................... En-22
Adjusting the treble, bass and left/right balance and audio
input select ........................................................ En-22
Setting the allocation of the audio and DVD/HD
connectors ......................................................... En-22
Image Adjust Settings Menu ................................ En-22
Adjusting the Position, Size, Fine Picture,
Picture Adj ........................................................ En-22

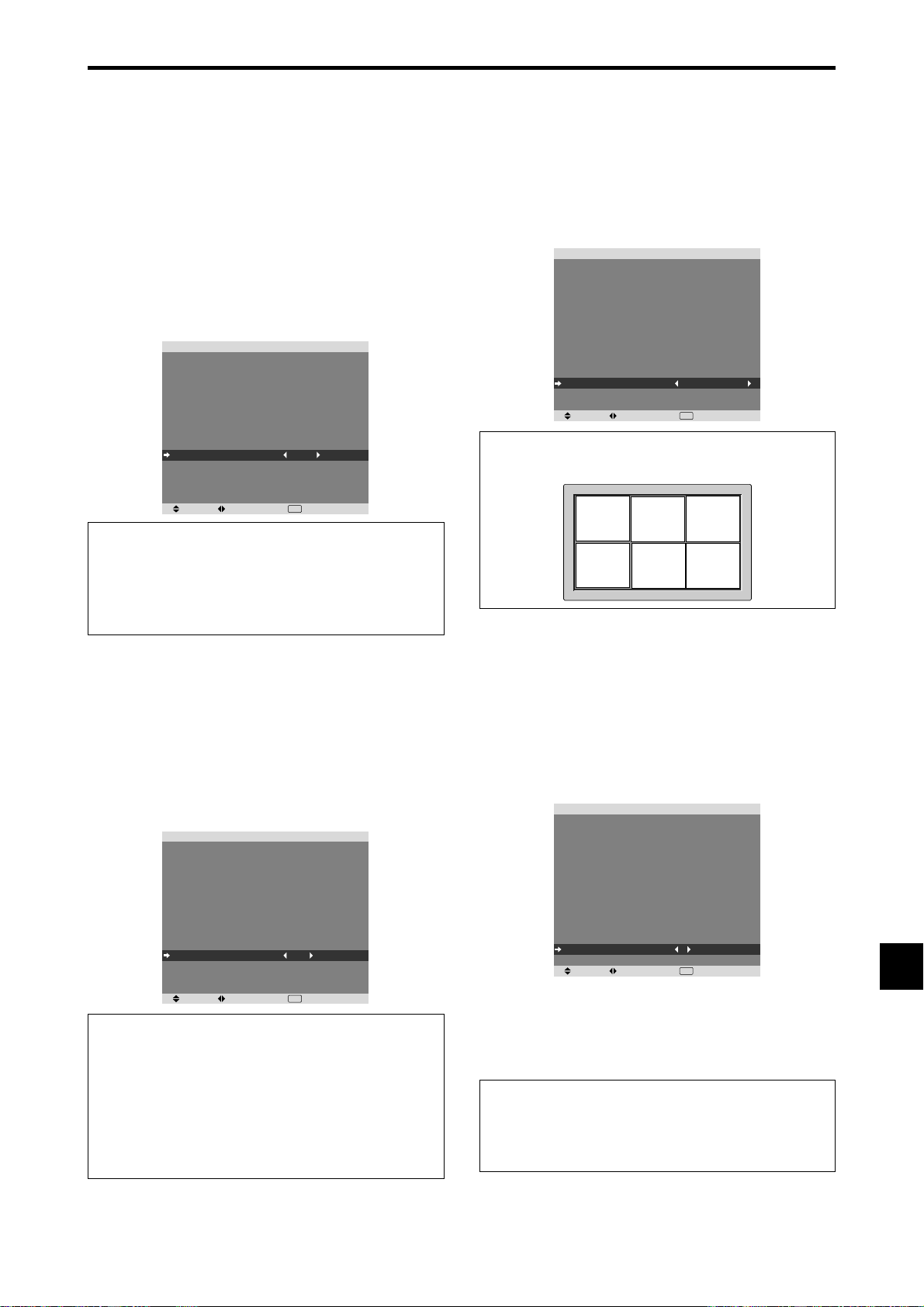

SET UP Settings Menu .........................................En-23
Setting the language for the menus....................... En-23
Checking the signal being transmitted to DVD/HD1
terminal ............................................................. En-23
Checking the signal being transmitted to PC/RGB
terminal ............................................................. En-23
Setting high definition images to the suitable screen
size .................................................................... En-23
Setting a computer image to the correct RGB select
screen ................................................................ En-23
Setting the black level for HDMI signal ............... En-24
Setting the video signal format............................. En-24
Setting the background color when no signal is being
input .................................................................. En-24
Setting the gray level for the sides of the screen ... En-25
Setting the screen size for S1/S2 video input........ En-25
Turning on/off the menu display .......................... En-25
Setting the position of the menu ........................... En-25
Remote ID ........................................................... En-26
Resetting to the default values.............................. En-26
Function Settings Menu ....................................... En-26
Setting the menu mode ........................................ En-26
Setting the power management for computer
images ............................................................... En-26
ON/ST ANDBY indicator ..................................... En-27
Setting the Input Skip........................................... En-27
Removing the sub screen area when there is no input
signal detected for the sub screen ...................... En-27
Displaying the entire image during DIGIT AL ZOOM
operations .......................................................... En-27
Displaying still images in the sub screen .............. En-27
Reducing image retention .................................... En-28
Setting Closed Caption ........................................ En-29
Reducing the brightness of Closed Caption .......... En-30
Setting the power on mode................................... En-30
Signal Information Menu ..................................... En-30
Checking the frequencies, polarities of input signals,
and resolution .................................................... En-30

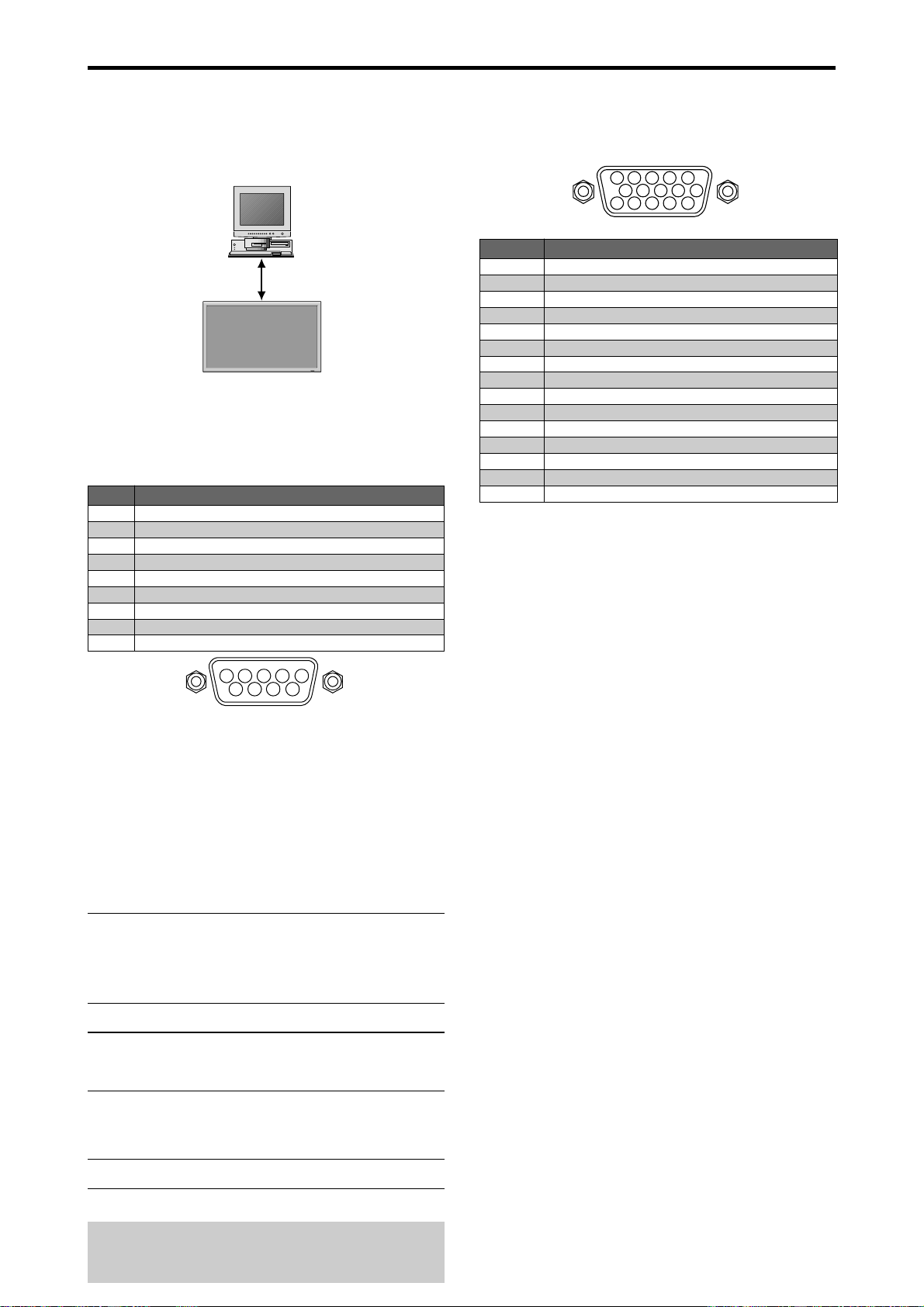

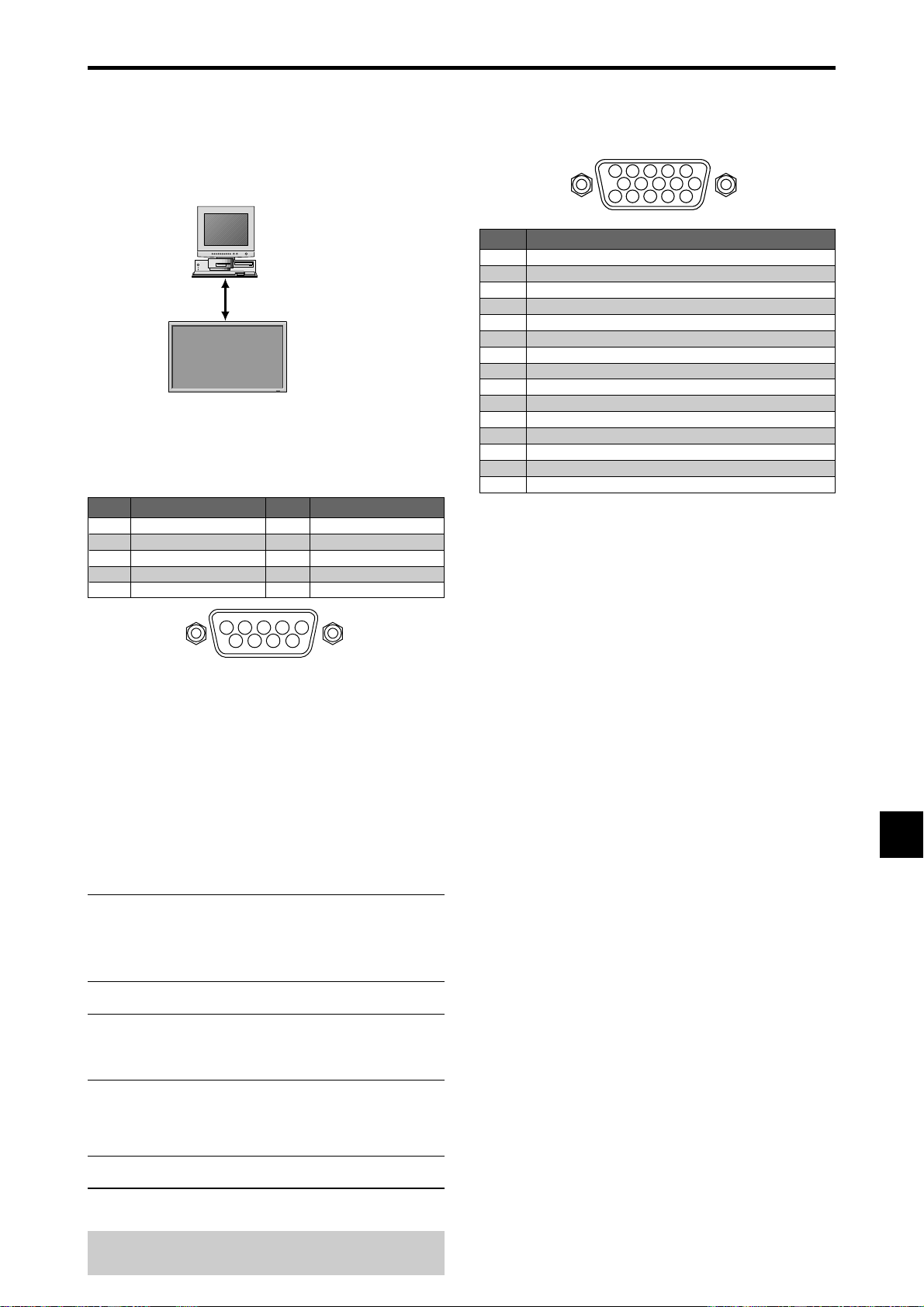

External Control ......................................... En-31
Application ....................................................... En-31
Connections ...................................................... En-31
Type of connector: D-Sub 9-pin male .................. En-31
Communication Parameters ................................. En-31
External Control Codes (Reference) ...................... En-31
Pin Assignments ......................................... En-31
mini D-Sub 15-pin connector (Analog) ................. En-31
Troubleshooting.......................................... En-32
Limited Warranty
Plasma Monitors ..................... En-33
Contents of the Package
Plasma monitor Power cord Remote control with two AAA Batteries Manuals (Model Information and Operation) Ferrite cores Cable clamps
Options
Wall mount unit
Ceiling mount unit
Tilt mount unit
Tabletop Stand
Attachable speakers
En-4
50mm (2")
50
mm
(2") 50
mm
(2")
Wall
Wall
50mm (2")
50mm (2")
Installation
You can attach your optional mounts or stand to the plasma monitor in one of the following two ways: * While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the
monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.
* Do not touch or hold the screen face when carrying the unit.
• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)
• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.
Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.
Product warranty does not cover damage caused by improper installation.
* Use only a mounting kit or stand recommended by the manufacturer and listed as an accessory.
Drawing A
Drawing B
Ventilation Requirements for enclosure mounting
T o allow heat to disperse, leave space between surrounding objects as shown on the diagram when installing.
En-5

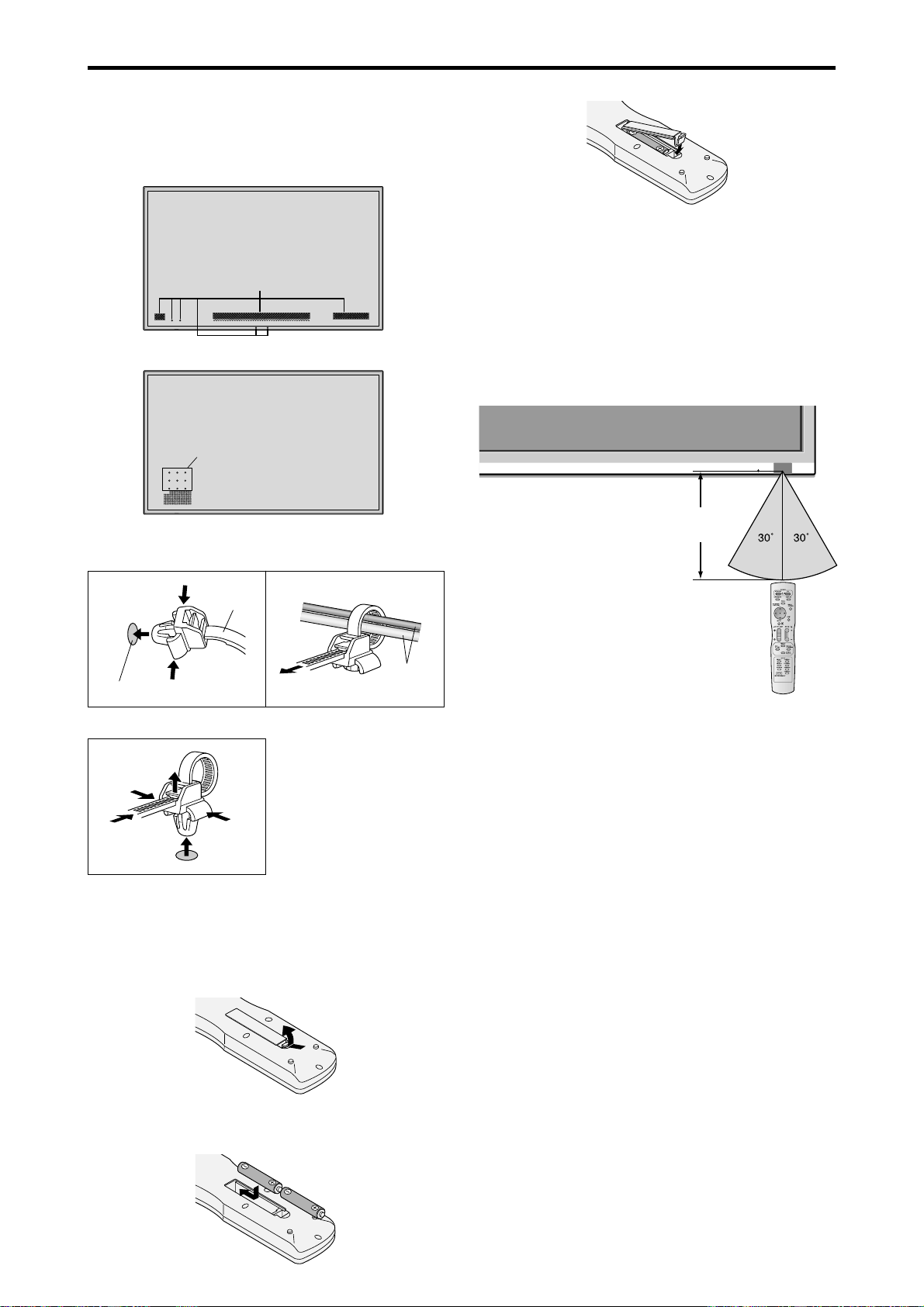

Cable Management
Using the cable clamps provided with the plasma display; Bundle the signal and audio cables at the back of the unit to connect to the display.
42 inch
Back of the unit
mounting holes
50-61 inch
Back of the unit
mounting holes
3.Replace the cover.
Operating Range
* Use the remote control within a distance of about 7 m/
23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.
* The remote control operation may not function if the
monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.
ON/STANDBY
To attach
1. 2.
clamp
cables
mounting hole
To detach
Using the remote control
Battery Installation and Replacement
Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.
1.Press and open the cover.
Approx.
7m/23ft
Handling the remote control
• Do not drop or mishandle the remote control.
• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When not using the remote control for a long period, remove the batteries.
• Do not use new and old batteries together, or use dif ferent types together.
• Do not take apart the batteries, heat them, or throw them into a fire.
2.Align the batteries according to the (+) and (–) indication inside the case.
En-6
Part Names and Function
Front View
MENU
MENU INPUT/EXITVOLUME
7
INPUT /EXITVOLUME
6
5
q Power
Turns the monitors power on and off.
w Remote sensor window
Receives the signals from the remote control.
e ON/STANDBY indicator
When the power is on ............................. Lights green.
When the power is in the standby mode ... Lights red.
r INPUT / EXIT
Switches the input. Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.
4
1
t and
Enlarges or reduces the image. Functions as the CURSOR ( (OSM) mode.
y VOLUME and
Adjusts the volume. Functions as the CURSOR (/) buttons in the On-Screen Menu (OSM) mode.
u MENU
Sets the On-Screen Menu (OSM) mode and displays the main menu.
ON/STANDBY
ON/STANDBY
3
/ ) buttons in the On-Screen Menu
2
WARNING
The Power on/off switch does not completely disconnect power from the display.
En-7
Rear View/ Terminal Board
42 inch
DBA
DVD/HD
1
Y Cb/Pb Cr/Pr
AUDIO
2
R
(
)
L
MONO
VIDEO AUDIO
1
2
1
R
(
)
MONO
L
CE F G H IJK
VIDEO AUDIO
DVD/HD
2
Y Cb/Pb Cr/Pr
1
DVD/HD1DVD/HD
Cb/Pb Cr/Pr L/R Y Cb/Pb Cr/PrL/R Y
DVD/HD3DVD/HD
AUDIO
2
2
PC/RGB
4
AUDIO
3
PC/RGB
L/R
AUDIO R
(
MONO
L
3
)
REMOTE
EXTERNAL CONTROL
IN OUT
DVD/HD3DVD/HD
HDMI
4
EXTERNAL CONTROL
HDMI
REMOTE
IN
OUT
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers (optional) here. Maintain the correct polarity. Connect the
(positive) speaker wire to the
EXT SPEAKER terminal and the (negative)
speaker wire to the
EXT SPEAKER terminal on both LEFT and RIGHT channels. Please refer to your speakers owners manual.
C VIDEO1, 2 (RCA, S-Video)
Connect VCRs, DVD’s or Video Cameras, etc. here.
D AUDIO1, AUDIO2, AUDIO3
These are audio input terminals. The input is selectable. Set which video image corresponds to the audio input from the audio menu screen.
E DVD/HD1
Connect DVDs, High Definition or Laser Discs, etc. here.
F DVD/HD2
Y ou can connect DVDs, High Definition sources, Laser Discs, etc. here.
H DVD/HD3, DVD/HD4 (HDMI)
Connect a digital signal from a source with a HDMI output. See Specifications on Model Information”.
I EXTERNAL CONTROL (D-Sub)
This terminal is used when operating and controlling the monitor externally with a control system (by RS­232C).
J REMOTE IN* (DC +5V) K REMOTE OUT* (C-MOS DC +5V)
Use these terminals to control external equipment.
Connection Example: Connecting a TV tuner
PLASMA DISPLAY
VIDEO IN
VIDEO OUT
REMOTE OUT
TV T uner Remote Control Carrier fHz: 38kHz
TV T uner
REMOTE IN
G PC/RGB (D-Sub)
Connect an analog RGB signal from a computer, etc. here.
* The 1/8 Stereo Mini cable must be purchased separately.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
En-8
G
Rear View/ Terminal Board
50/61 inch
C
E
F
H
K
D
3
4
I
J
AB
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers (optional) here. Maintain the correct polarity. Connect the
(positive) speaker wire to the
EXT SPEAKER terminal and the (negative)
speaker wire to the
EXT SPEAKER terminal on both LEFT and RIGHT channels. Please refer to your speakers owners manual.
C VIDEO1, 2 (RCA, S-Video)
Connect VCRs, DVD’s or Video Cameras, etc. here.
D AUDIO1, AUDIO2, AUDIO3
These are audio input terminals. The input is selectable. Set which video image corresponds to the audio input from the audio menu screen.
E DVD/HD1
Connect DVDs, High Definition or Laser Discs, etc. here.
F DVD/HD2
Y ou can connect DVDs, High Definition sources, Laser Discs, etc. here.
H DVD/HD3, DVD/HD4 (HDMI)
Connect a digital signal from a source with a HDMI output. See Specifications on Model Information”.
I EXTERNAL CONTROL (D-Sub)
This terminal is used when operating and controlling the monitor externally with a control system (by RS­232C).
J REMOTE IN* (DC +5V) K REMOTE OUT* (C-MOS DC +5V)
Use these terminals to control external equipment.
Connection Example: Connecting a TV tuner
PLASMA DISPLAY
VIDEO IN
VIDEO OUT
REMOTE OUT
TV T uner Remote Control Carrier fHz: 38kHz
TV T uner
REMOTE IN
G PC/RGB (D-Sub)
Connect an analog RGB signal from a computer, etc. here.
* The 1/8 Stereo Mini cable must be purchased separately.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
En-9
Remote Control
q POWER ON/STANDBY
Switches the power on/standby. (This does not operate when the ON/STANDBY indicator of the plasma is off.)
w OFF TIMER
Activates the off timer for the unit.
e DISPLAY
Displays the source settings on the screen.
r WIDE
Automatically detects the signal and sets the aspect ratio. Wide button is not active for all signals.
t MENU/ENTER
Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.
y CURSOR ( / /
Use these buttons to select items or settings and to adjust settings or switch the display patterns.
u EXIT
Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.
/ )
i MUTE
Mutes the audio.
o VOLUME (+ /–)
Adjusts the audio volume.
!0 ZOOM (+ /–)
Enlarges or reduces the image.
!1 SINGLE
Cancels the split screen mode.
!2 SIDE BY SIDE
Press this button to show a couple of pictures in the side-by-side mode.
!3 PICTURE IN PICTURE
Press this button to show a couple of pictures in the picture-in-picture mode.
!4 ACTIVE SELECT
Press this button to make the desired picture activate during split screen mode. When the PICTURE FREEZE function is operating, this button can be used to display still images on the sub screen.
!5 VIDEO1, 2
Press this button to select VIDEO as the source. VIDEO can also be selected using the INPUT/EXIT button on the monitor.
!6 DVD/HD1, 2, 3, 4
Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT/EXIT button on the monitor.
!7 PC/RGB
Press this button to select PC/RGB as the source. PC/RGB can also be selected using the INPUT/EXIT button on the monitor.
!8 PICTURE MEMORY
Switches sequentially between picture memory settings 1 to 6.
!9 Remote control signal transmitter
Transmits the remote control signals.
En-10
Basic Operations
POWER
To turn the unit ON and OFF:
1. Plug the power cord into an active AC power outlet.
2. Press the Power button (on the unit). The monitor’s ON/ST ANDBY indicator turns red and the standby mode is set.
3. Press the POWER ON button (on the remote control) to turn on the unit. The monitor’s ON/STANDBY indicator will light up (green) when the unit is on.
4. Press the POWER STANDBY button (on the remote control) or the Power button (on the unit) to turn off the unit. The monitor’s ON/ST ANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).
VOLUME
To adjust the sound volume:
1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.
2. Press and hold the VOLUME control or the unit) to decrease to the desired level.
button (on the remote
MUTE
To mute the audio:
Press the MUTE button on the remote control to mute the audio; press again to restore.
DISPLAY
To check the settings:
1. The screen changes each time the DISPLAY button is pressed.
2. If the button is not pressed for approximately three seconds, the menu turns off.
DIGITAL ZOOM
Digital zoom specifies the picture position and enlarges the picture.
1. (Be sure ZOOM NAV is of f.) Press the ZOOM (+ or -) button to display magnifying
glass. (
To change the size of the picture:
Press the ZOOM+ button and enlarge the picture. A press of the ZOOM- button will reduce the picture and return it to its original size.
To change the picture position:
Select the position with the ▲▼
2. Press the EXIT button to delete the pointer .
)
 
buttons.
OFF TIMER
To set the off timer:
The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.
1. Press the OFF TIMER button to start the timer at 30 minutes.
2. Press the OFF TIMER button to the desired time.
3. The timer starts when the menu turns off.
30 60 90 120 0
OFF TIMER 30
To check the remaining time:
1. Once the off timer has been set, press the OFF TIMER button once.
2. The remaining time is displayed, then turns off after a few seconds.
3. When five minutes remain the remaining time appears until it reaches zero.
OFF TIMER 28
To cancel the off timer:
1. Press the OFF TIMER button twice in a row.
2. The off timer is canceled.
OFF TIMER 0
Note:
After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the r oom or do not plan to use the system for a long period of time, turn off the power to the monitor.
En-11

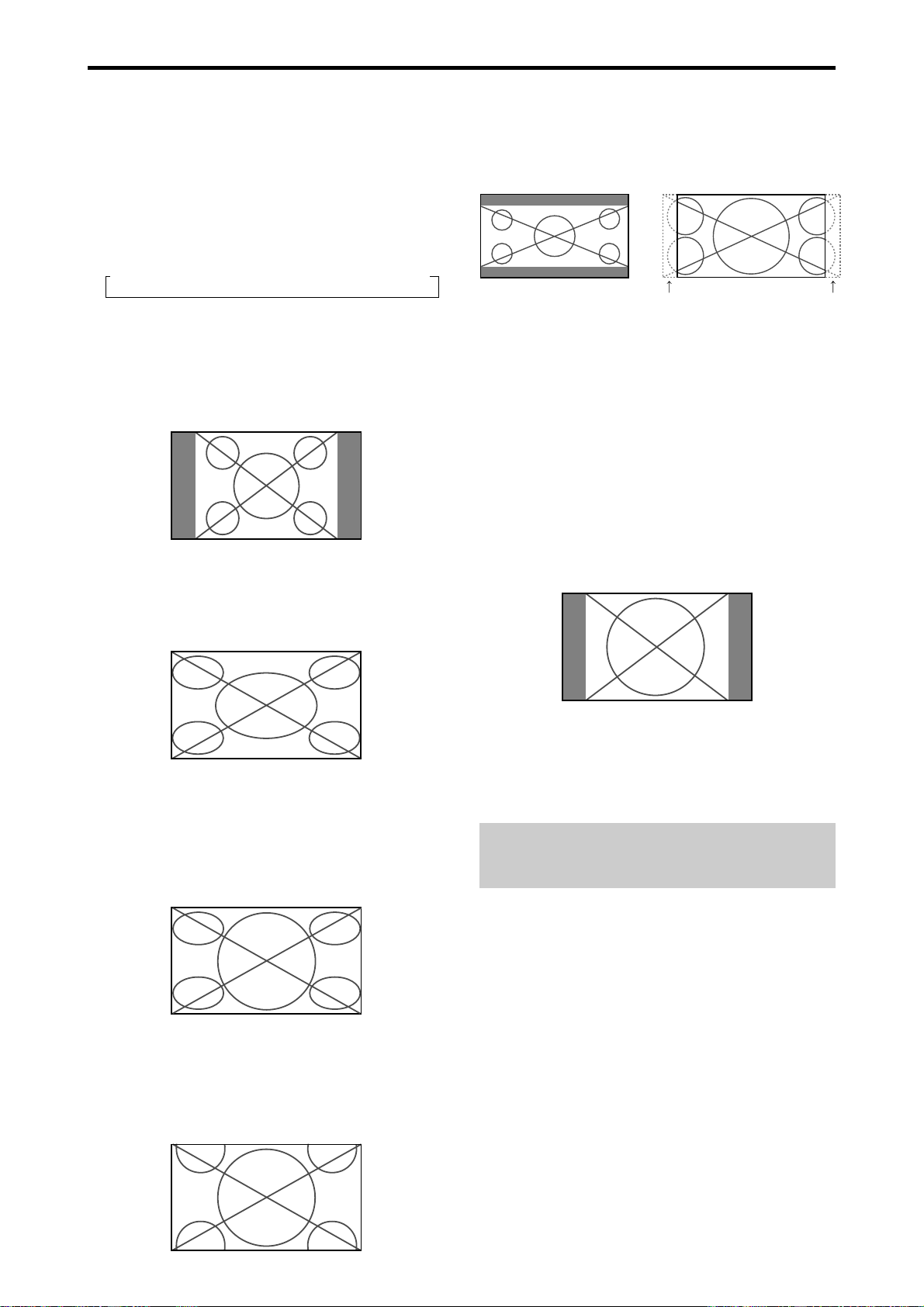

WIDE Operations
Wide Screen Operation
With this function, you can select one of six screen sizes.
(manual)
When viewing videos or digital video discs
1. Press the WIDE button on the remote control.
2. Within 3 seconds ... Press the WIDE button again. The screen size switches as follows:
NORMALANAMORPHICSTADIUM → ZOOM → 2.35:1 → 14:9
When a 720P or 1080I signal is input:
ANAMORPHIC 2.35:1
When displaying enhanced split screen:
NORMAL ANAMORPHIC
NORMAL size screen (4:3)
The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.
2.35:1 size screen
Original image
Information is lost on both sides.
The squeezed film image is expanded to fulfill the entire screen at a ratio of 2.35:1. Black bands do not appear at the top and bottom but information is lost on the left and right margins.
This feature is available when the input signal is video, component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB (525P or 625P signal from a scan converter).
* If black bands appear on the top and bottom in the full size
screen, select the 2.35:1 size screen to fill the screen and avoid image retention.
14:9 size screen
The normal size screen is displayed. * The picture has the same size as video pictures with a 4 : 3
aspect ratio.
ANAMORPHIC size screen
The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (squeezed
images) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)
STADIUM size screen
The image is displayed at a 14:9 aspect ratio. * This feature is available when the input signal is video,
component (480I, 480P , 576I, 576P) or RGB (525P or 625P signal from a scan converter).
Note:
Do not allow 4:3 content to be displayed for extended periods of time without using gray bars. This can cause image retention.
The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a
wide screen.
ZOOM size screen
En-12
Wide Screen Operation with Computer Signals
Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.
1.Press the WIDE button on the remote control.
2.Within 3 seconds ... Press the WIDE button again.
The screen size switches as follows:
NORMAL ANAMORPHIC → ZOOM
When displaying enhanced split screen:
NORMAL ANAMORPHIC
NORMAL size screen (4:3 or SXGA 5:4)
The picture has the same size as the normal computer image.
Information
Supported resolution
See page En-3 of Model Information for details on the display output of the various VESA signal standards supported by the monitor.
When 852 (848) dot 480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are in­put
Select an appropriate setting for RGB SELECT mode referring to theTable of Signals Supported on page En-3 of Model Information.
* VGA, SVGA and SXGA are registered
trademarks of IBM, Inc. of the United States.
Note:
Do not allow 4:3 content to be displayed for extended periods of time without using gray bars. This can cause image retention.
ANAMORPHIC size screen
The image is expanded in the horizontal direction.
ZOOM size screen
When wide signals are input.
ANAMORPHIC size screen
En-13
SPLIT SCREEN Operations
VIDEO1 RGB/PC
AB
VIDEO1
RGB/PC
BA
VIDEO1 RGB/PC
AB
VIDEO1
RGB/PC
AB
Showing a couple of pictures on the screen at the same time
* There may be some RGB-input signals that may not be
displayed as not all signals are supported.
1. Press the button to select a screen mode from among single
mode, side-by-side, and picture-in-picture.
VIDEO1
SINGLE button
SIDE BY SIDE button
VIDEO1 RGB/PC
AB
A
PICTURE IN PICTURE button
SIDE BY SIDE button
PICTURE IN PICTURE button
VIDEO1
Sub
screen
Note:
Picture A and B on the above screen ar e not always of the same height.
SINGLE button
RGB/PC
Main screen
Operations in the Side-by-side mode
B
button
B
To change the picture size, press the cursor   or button.
VIDEO1 RGB/PC
A
B
Side-by-Side2-R
button
VIDEO1 RGB/PC
A
B
Side-by-Side4-R
button
button
VIDEO1
button
Side-by-Side1 Side-by-Side2-L
button
button
VIDEO1 RGB/PC
button
Side-by-Side3 Side-by-Side4-L
RGB/PC
AB
AB
button
button
button
button
button
VIDEO1 RGB/PC
A
button
VIDEO1 RGB/PC
A
To swap the picture on the right and the left, press the
cursor
button.
button
Information
Split screen operations may not function depending on the combination of input signals. In the table below, means Yes, means No.
Pictures displayed on the right/main screen (Select1)
VIDEO1
VIDEO2
DVD/HD1
Pictures
displayed on
the left/sub
screen
(Select2)
VIDEO1
VIDEO2
DVD/HD1
DVD/HD2
HDMI1
HDMI2
RGB/PC
DVD/HD2
HDMI1
HDMI2
RGB/PC
Split screen operations may not function
depending on the frequency of the RGB signals.
To make the desired picture active, press the ACTIVE SELECT button.
ACTIVE SELECT button
En-14

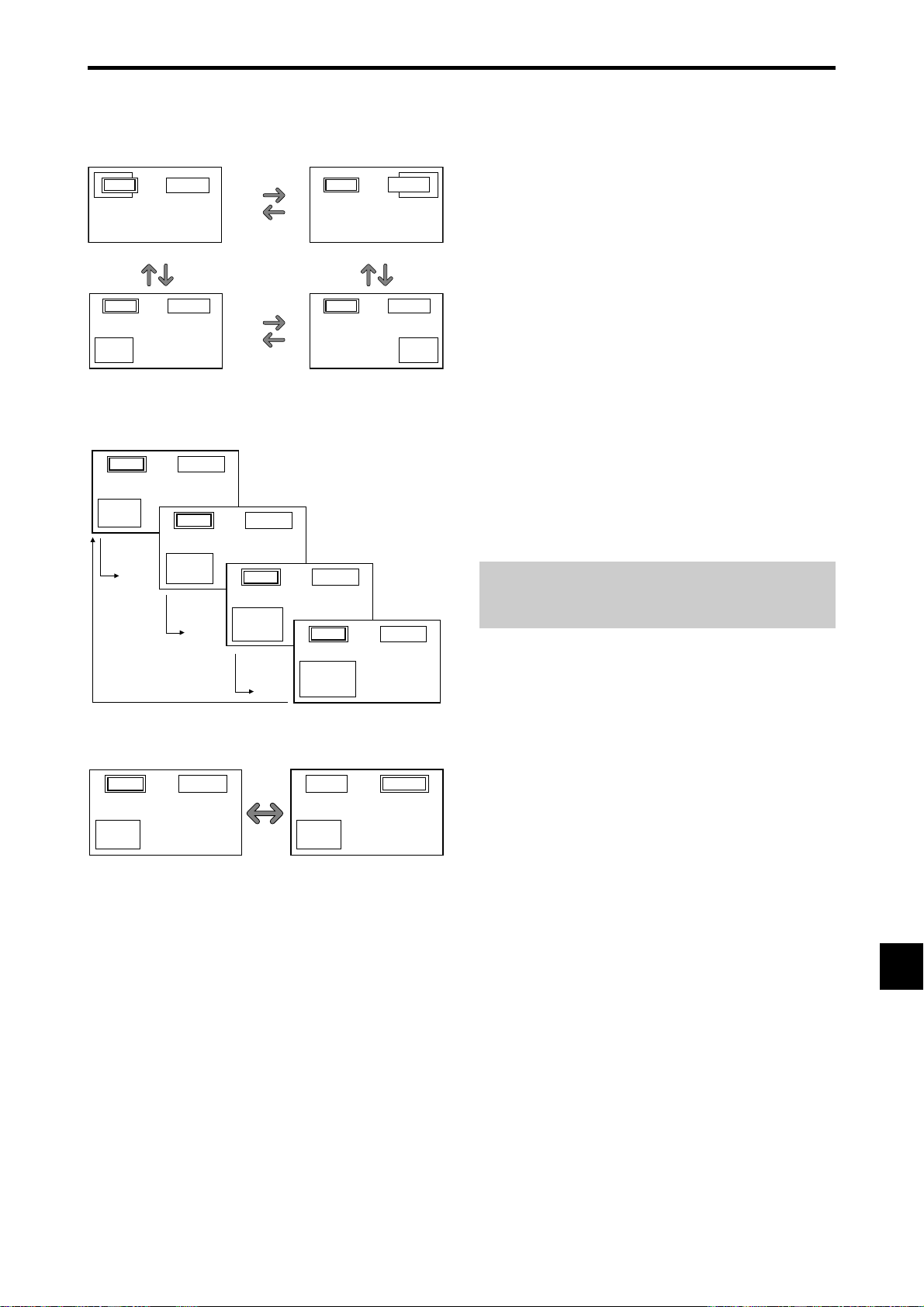

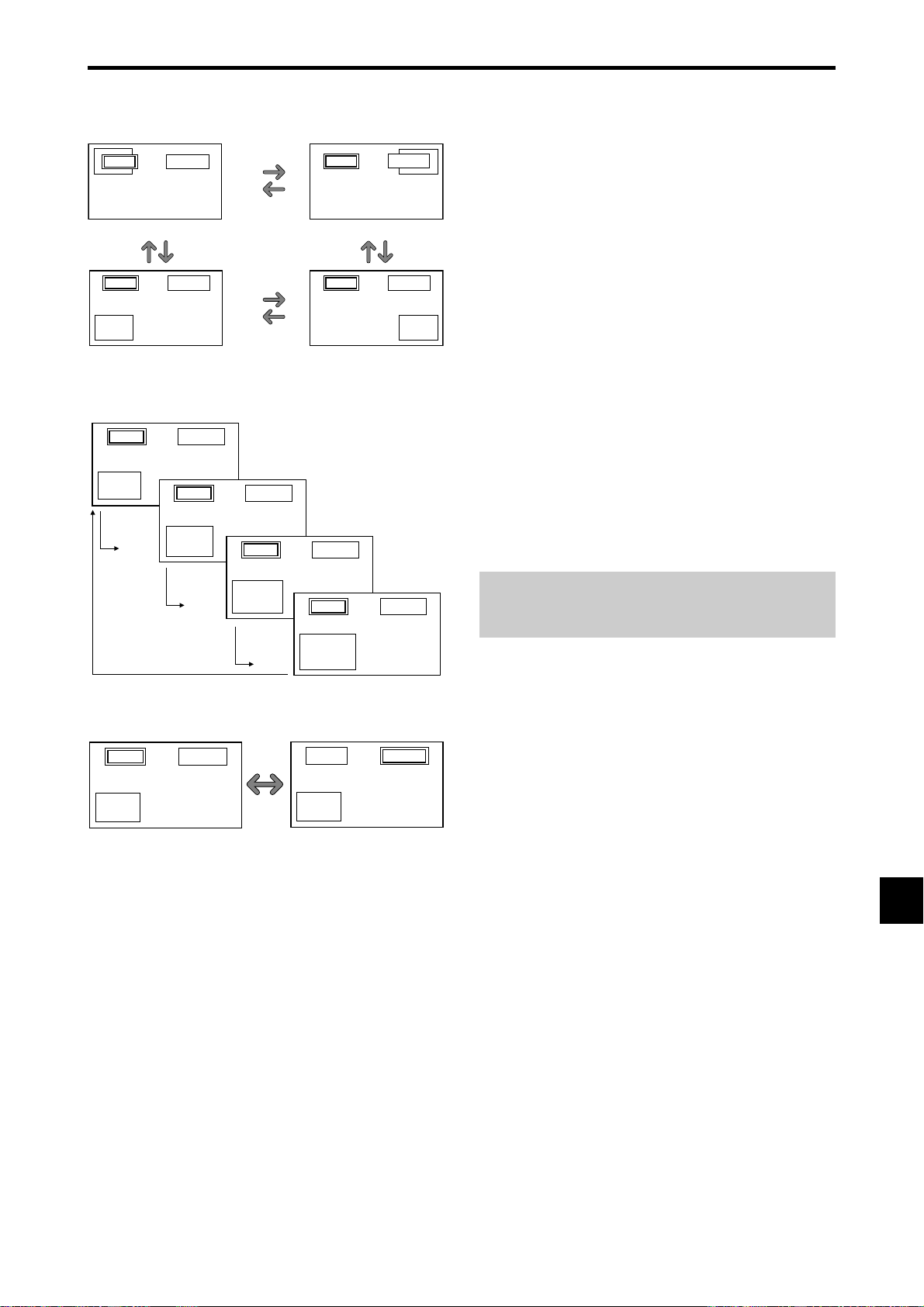

Operations in the Picture-in-picture mode
T o move the position of the sub screen, press the cursor or  button.
VIDEO1 RGB/PC
A
B
Top Left
button
VIDEO1
A
Bottom Left Bottom Right
B
button
RGB/PC
button
button
button
button
VIDEO1
button
VIDEO1 RGB/PC
To change the size of the sub screen, press the
VIDEO1 RGB/PC
B
Top Right
B
RGB/PC
A
button
A
button.
B
A
VIDEO1
RGB/PC
Selecting the input signals to be displayed
1. Press the ACTIVE SELECT button to make the desired picture active.
2. Press the PC/RGB, VIDEO1, 2 or DVD/HD1, 2, 3, 4 button to change the selection of the input signal. The INPUT/EXIT button on the monitor can also be used to change the selection.
Zooming in on a specific input
1. Press the ACTIVE SELECT button to make the desired picture active.
2. Use the ZOOM ( or ) button to enlage the picture. For details, see DIGITAL ZOOM on page En-11.
Adjusting the OSM controls
1. Press the ACTIVE SELECT button to make the desired picture active.
2. Press the MENU/ENTER button to display the MAIN MENU.
3. Adjust the setting to your preference. For details, see OSM (On Screen Menu) Controls on page En-16.
B
button
A
VIDEO1
RGB/PC
B
button
A
VIDEO1 RGB/PC
B
button
button
To make the desired picture active, press the ACTIVE SELECT button.
VIDEO1 RGB/PC
B
A
ACTIVE SELECT button
A
VIDEO1 RGB/PC
B
A
Note:
During enhanced split screen, some functions of OSM controls ar e not available.
En-15
OSM (On Screen Menu) Controls
Menu Operations
The following describes how to use the menus and the selected items.
1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.
MAIN MENU
AUDIO
IMAGE ADJ.
MENU/ENTER
SEL.
2. Press the cursor buttons ▲ ▼ on the remote control to highlight the menu you wish to enter.
3. Press the MENU/ENTER button on the remote control to select a sub menu or item.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE
SIGNAL INFO.
OK
: OFF
: OFF : MIDDLE : ON : NORMAL
SET UP
FUNCTION
EXIT
EXIT
: 52 : 32 : 16 : 32
GR
: 32
Information
Advanced menu mode
When “ADVANCED OSM” is set to “ON” in the FUNCTION menu, full menu items will be shown.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
: OFF
: OFF : MIDDLE : ON : NORMAL : 2.2 : AUTO : 0%
MENU/ENTER
OK
EXIT
: 52 : 32 : 16 : 32
GR
: 32
* The actual screen may be different from the ones
in this manual.
SEL. ADJ. RETURN
MENU/ENTER
OK
EXIT
4. Adjust the level or change the setting of the selected item by using the cursor buttons
CONTRAST
on the remote control.
:
10
5. The adjustments or settings are then stored in memory. The change is stored until another change is made.
6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.
* When adjusting using the bar at the bottom of the screen,
press the  or  button within 5 seconds. If not, the current setting is stored and the previous screen appears.
Note:
The main menu disappears by pressing the EXIT
button.
En-16
Menu Tree
: Shaded areas indicate the default value.
←→
: Press the
: Menu items in a ruled box are available when the ADVANCED OSM is set to ON.
or  button to adjust.
Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET
PICTURE PICTURE MEMORY OFF/MEMORY1-6 YES En-19
Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET
AUDIO BASS ←→ 01326 YES En-22
CONTRAST ←→ 05272 YES En-19 BRIGHTNESS ←→ 03264 YES En-19 SHARPNESS ←→ 01632 YES En-19 COLOR ←→ 03264 YES En-19 TINT R←→G 03264 YES En-19 NR OFF/NR-1/NR-2/NR-3 YES En-19 COLOR TEMP. LOW/MIDDLE LOW/MIDDLE/HIGH YES En-20 WHITE BALANCE GAIN RED ←→ 0←40→70 YES En-20
GAIN GREEN ←→ 04070 YES En-20 GAIN BLUE ←→ 04070 YES En-20 BIAS RED ←→ 04070 YES En-20 BIAS GREEN ←→ 04070 YES En-20 BIAS BLUE ←→ 04070 YES En-20 RESET OFF←→ON YES En-20
CINEMA MODE ON←→OFF YES En-20 PICTURE MODE DEFAULT/THEATER1/THEATER2/NORMAL/BRIGHT YES En-20 GAMMA 2.1←→2.2←→2.3←→2.4 YES En-21 LOW TONE * SET UP LEVEL 0%←→3.75%←→7.5% YES En-21 COLOR TUNE RED Y←→M0←32→64 YES En-21
TREBLE ←→ 01326 YES En-22 BALANCE L←→R -22←0→+22 YES En-22 AUDIO INPUT1 VIDEO 1-2 / DVD/HD 1-4 / RGB YES En-22 AUDIO INPUT2 VIDEO 1-2 / DVD/HD 1-4 / RGB YES En-22 AUDIO INPUT3 VIDEO 1-2 / DVD/HD 1-4 / RGB YES En-22 DVD/HD3 INPUT INPUT 1-3 / HDMI YES En-22 DVD/HD4 INPUT INPUT 1-3 / HDMI YES En-22
3
AUTO←→1…→3 YES En-21
GREEN C←→Y0←32→64 YES En-21 BLUE M←→C0←32→64 YES En-21 YELLOW G←→R0←3264 YES En-21 MAGENTA R←→B0←32→64 YES En-21 CYAN B←→G0←32→64 YES En-21 RESET OFF←→ON YES En-21
REFERENCE
REFERENCE
Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET
IMAGE ADJUST ASPECT MODE ZOOM/NORMAL/ANAMORPHIC/STADIUM/14:9/2.35:1 En-22
Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET
SET UP LANGUAGE ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/У/PORTUGUÊS NO En-23
V-POSITION ←→ -64←0→+64 YES En-22 H-POSITION ←→ -128←0→+127 YES En-22 V-HEIGHT ←→ 0←→64 YES En-22 H-WIDTH ←→ 0←→64 YES En-22 AUTO PICTURE ON←→OFF* FINE PICTURE* PICTURE ADJ.*
DVD/HD1 INPUT COMPONENT YES En-23 D-SUB INPUT RGB YES En-23 HD SELECT 1080I/1035I/540P NO En-23 RGB SELECT AUTO YES En-23 HDMI SET UP LOW←→HIGH NO En-24 COLOR SYSTEM AUTO/PAL/PAL-M/PAL-N/PAL 60/SECAM/4.43 NTSC/3.58NTSC NO En-24 BACK GROUND BLACK/GRAY YES En-24 GRAY LEVEL 0…→3←…→15 YES En-25 S1/S2 AUTO←→OFF YES En-25 DISPLAY OSM ON←→OFF YES En-25 OSM ADJ. TOP LEFT←→TOP CENTER←→TOP RIGHT←→BTM LEFT←→BTM CENTER←→BTM RIGHT YES En-25 REMOTE ID ALL←→1…→4 YES En-26 ALL RESET ON←→OFF En-26
1
←→*20←→64 YES En-22
1
←→*20←→128 YES En-22
2
NO En-22
REFERENCE
REFERENCE
En-17
Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET
FUNCTION ADVANCED OSM ON←→OFF YES En-26
POWER MGT. ON←→OFF YES En-26 INPUT SKIP ON←→OFF YES En-27 SUB. PICTURE SUB. P DETECT OFF←→AUTO YES En-27
DISPLAY FADE←→NORMAL YES En-27
SUB. P RATE 20%…→100% YES En-27 ZOOM NAV OFF←→S BY S←→BTM LEFT←→BTM RIGHT←→TOP RIGHT←→TOP LEFT YES En-27 PICTURE FREEZE OFF←→S BY S1←→S BY S2←→BTM LEFT←→BTM RIGHT←→TOP RIGHT←→TOP LEFT YES En-27 PDP SAVER MANUAL/AUTO PEAK BRIGHT 100%/75%/50%/25% YES En-28
ORBITER OFF/AUTO1/AUTO2 YES En-28 INVERSE/WHITE OFF/INVERSE/WHITE YES En-29 SCREEN WIPER ON/OFF YES En-29 SOFT FOCUS OFF/LEVEL1-4 YES En-29 OSM ORBITER ON/OFF YES En-29
OSM CONTRAST LOW/NORMAL YES En-29 CLOSED CAPTION OFF/CAPTION1-4/TEXT1-4 YES En-29 CAPTION CONT. LOW/NORMAL YES En-30 PWR. ON MODE INPUT LAST / VIDEO 1 / VIDEO 2 / DVD/HD 1-4 / RGB / MULTI YES En-30
VOLUME LAST←→0…→44 YES En-30
REFERENCE
Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET
SIGNAL INFO. En-30
REFERENCE
*1 Only when AUTO PICTURE is OFF. *2 RGB/PC only *3 LOW TONE is only for 50 and 61 inch types.
Information
Restoring the factory default settings
Select ALL RESET under the SET UP menu. Note that this also restores other settings to the factory defaults.
En-18

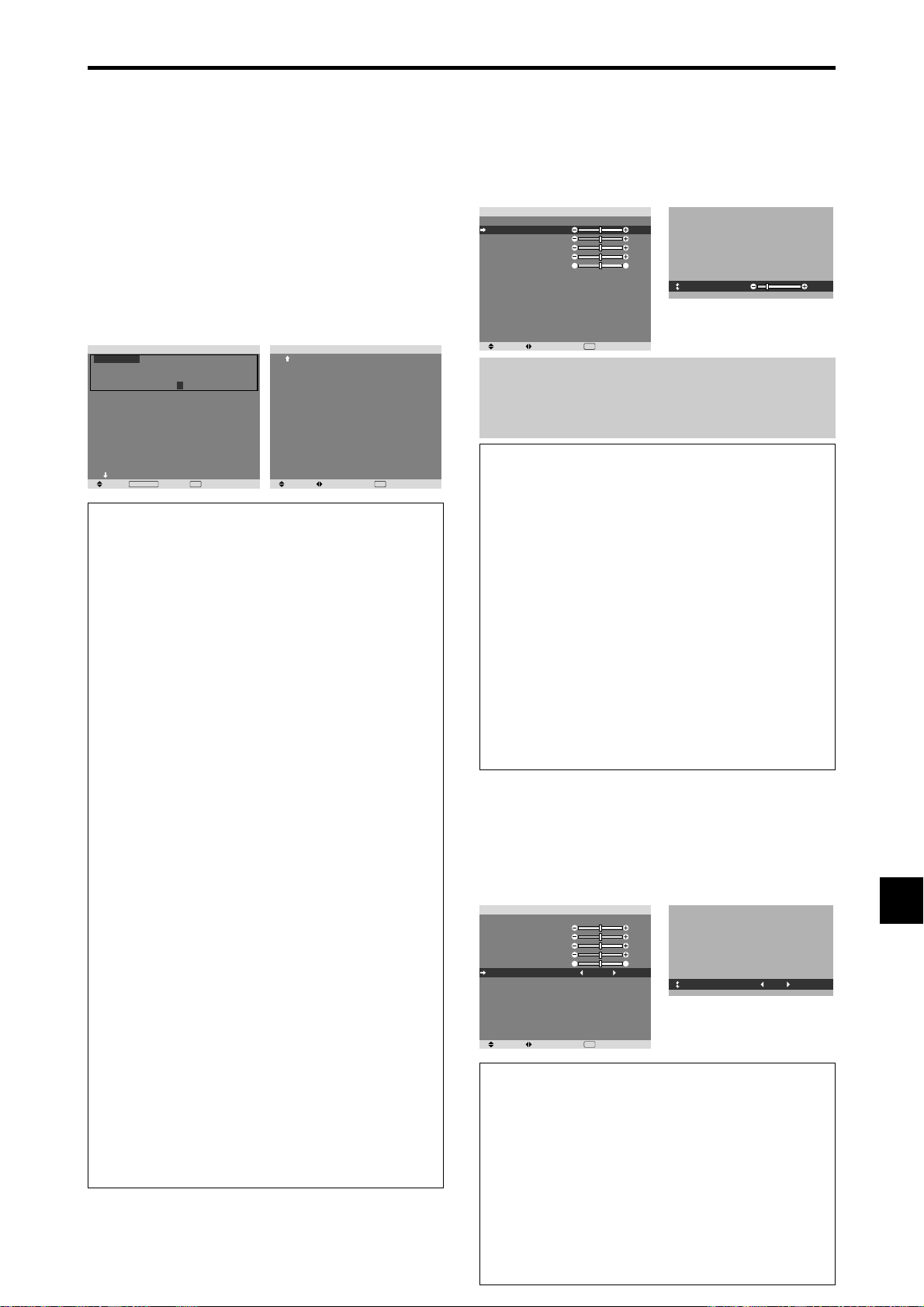

Picture Settings Menu
Storing picture settings
This function allows you to store in memory the current input signal and PICTURE menu settings and to recall these settings when necessary. There are six picture memories, and notes of up to 15 characters can be added to each.
Example: Storing picture settings at MEMORY1
On PICTURE MEMORY of PICTURE” menu, selectMEMOR Y1, then press the MENU/ENTER button.
The PICTURE MEMOR Y screen appears.
PICTURE MEMORY
MEMORY1 SET RESET
INPUT : DVD/HD1 SIGNAL : 480P NOTE : DVD/STAR WARS
MEMORY2
INPUT : — SIGNAL : — NOTE : —
MEMORY3
INPUT : — SIGNAL : — NOTE : —
NEXT PAGE
MENU/ENTER
SEL.
EXIT
RETURN
OK
1 / 2
PICTURE MEMORY
PREVIOUS PAGE
MEMORY4 SET RESET
INPUT : — SIGNAL : — NOTE : —
MEMORY5
INPUT : — SIGNAL : — NOTE : —
MEMORY6
INPUT : — SIGNAL : — NOTE : —
SEL.
ADJ. RETURN
EXIT
Information
PICTURE MEMORY Settings
OFF: Picture memory not used. MEMORY1 to 6: Picture memory with the specified
number used. Maximum memories are 6, not depending on inputs.
Setting the memory
Use the ▲ and button to select the desired memory
place, MEMORY1 to MEMORY6.
Use the
and  buttons to select SET, then press
the MENU/ENTER button.
If necessary, input a note.
Resetting the memory
Use the ▲ and ▼ button to select the desired memory place, MEMORY1 to MEMORY6, then use the
buttons to select RESET, and finally press the MENU/ENTER button. The memory is cleared, and “—” is displayed in the INPUT, SIGNAL and NOTE columns.
Inputting notes
Use the
and  buttons to select NOTE, then press
the MENU/ENTER button.
Input the note.
Use the ▲ and ▼ button to select the character.
Use the
and  buttons to move the cursor. Use the EXIT button to delete the character at the cursor position.
When you have finished inputting the note, press the MENU/ENTER button.
2 / 2
and

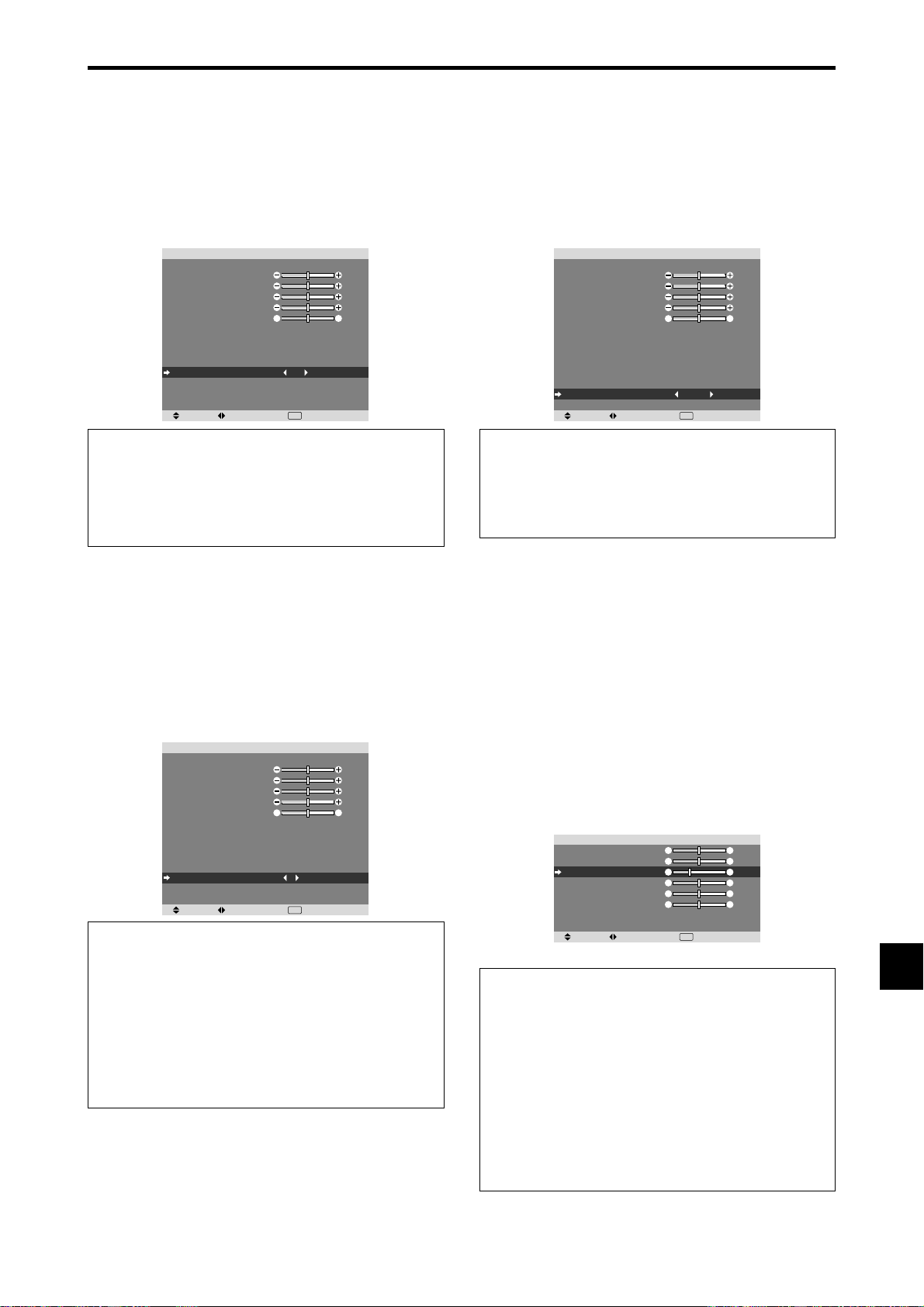

Adjusting the picture
The contrast, brightness, sharpness, color and tint can be adjusted as desired.

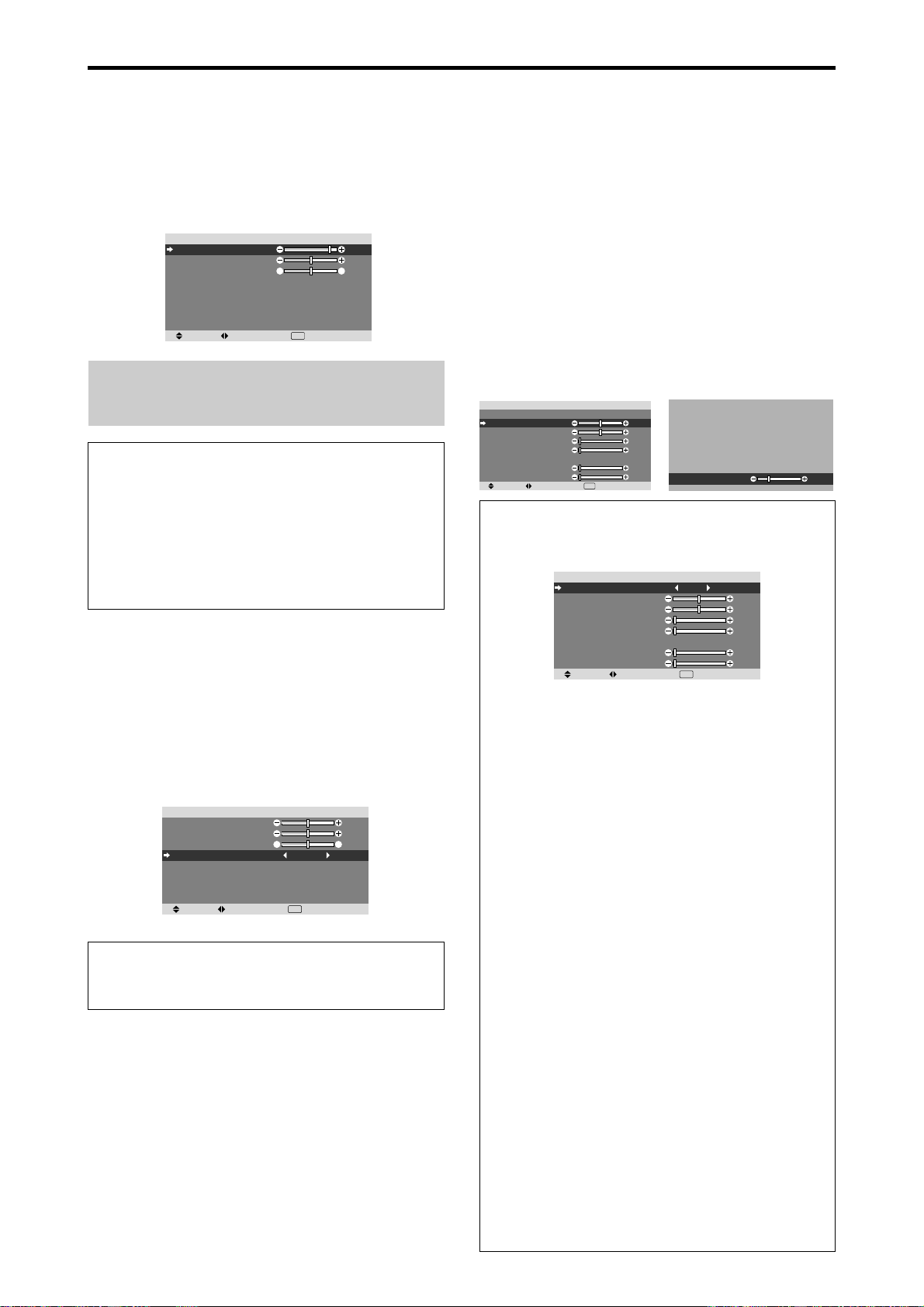

Example: Adjusting the contrast
On “CONTRAST of PICTURE menu, adjust the contrast.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
Note:
: OFF
: OFF : MIDDLE : ON : NORMAL : 2.2 : AUTO : 0%
EXIT
: 52 : 32 : 16 : 32
GR
: 32
CONTRAST
If “CAN NOT ADJUST” appears ...
:
10
When trying to enter the PICTURE submenu, make sure PICTURE MODE is not set to DEFAULT.
Information
Picture adjustment screen
CONTRAST: Changes the pictures white level. BRIGHTNESS: Changes the pictures black level. SHARPNESS: Changes the pictures sharpness.
Adjusts picture detail of VIDEO display.
COLOR: Changes the color density. TINT: Changes the pictures tint. Adjust for natural
colored skin, background, etc.
Adjusting the computer image
Only the contrast and brightness can be adjusted when a computer signal is connected.
Restoring the factory default settings
Select DEFAULT under the PICTURE MODE settings.
Reducing noise in the picture
Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.
Example: Setting “NR-3”
On NR of PICTURE menu, select “NR-3”.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
: OFF
: OFF : MIDDLE : ON : NORMAL : 2.2 : AUTO : 0%
EXIT
: 52 : 32 : 16 : 32
GR
: 32
:
NR
NR-3
Information
NR
* NR stands for Noise Reduction. * This function reduces noise in the picture.
Types of noise reduction
There are three types of noise reduction. Each has a different level of noise reduction. The effect becomes stronger as the number increases (in the order NR-1 NR-2 NR-3).
OFF: Turns the noise reduction function off.
En-19

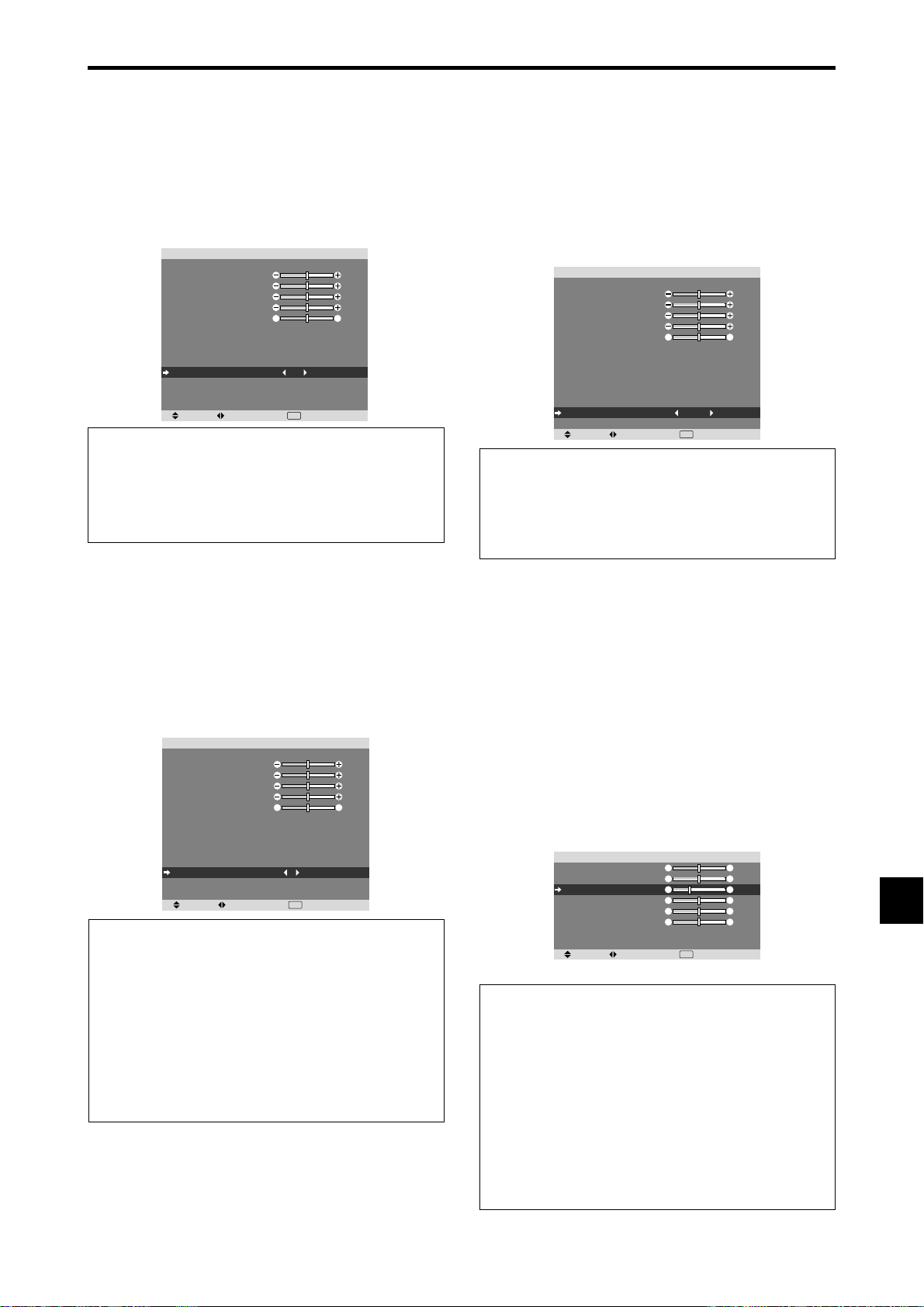

Setting the color temperature
Use this procedure to set color tone produced by the plasma display.
Example: Setting HIGH
On “COLOR TEMP . of PICTURE menu, select “HIGH”.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
: OFF
: OFF : HIGH : ON : NORMAL : 2.2 : AUTO : 0%
EXIT
: 52 : 32 : 16 : 32
GR
: 32
Information
Setting the color temperature
LOW: More red MIDDLE LOW: Slightly red MIDDLE: Standard (slightly bluer) HIGH: More blue
Adjusting the color to the desired level
Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.
Example: Adjusting the GAIN RED of HIGH color temperature
On “COLOR TEMP . of PICTURE menu, select “HIGH”, then press the MENU/ENTER button. The WHITE BALANCE screen appears.
On GAIN RED, adjust the white balance.
WHITE BALANCE
COLOR TEMP. HIGH
GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE RESET
SEL. ADJ. RETURN
: OFF
EXIT
: 20 : 40 : 40 : 40 : 40 : 40
GAIN RED
:
20
Information
Adjusting the white balance
GAIN R/G/B: White balance adjustment for white level BIAS R/G/B: White balance adjustment for black level RESET: Resets settings to the factory default values.
Use
and  buttons to select ON, then press the
MENU/ENTER button. Restoring the factory default settings Select RESET under the WHITE BALANCE menu.
Setting the picture to suit the movie
The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]
Example: Setting the CINEMA MODE to OFF
On “CINEMA MODE of PICTURE menu, select “OFF”.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
: OFF
: OFF : MIDDLE : OFF : NORMAL : 2.2 : AUTO : 0%
EXIT
: 52 : 32 : 16 : 32
GR
: 32
Information
CINEMA MODE
ON: Automatic discrimination of the image and projection in cinema mode. OFF: Cinema mode does not function.
Setting the picture mode according to the brightness of the room
There are four picture modes that can be used effectively according to the environment in which you are viewing the display.
Example: Setting the THEATER1 mode
On PICTURE MODE of PICTURE menu, selectTHEATER1”.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
: OFF
: OFF : MIDDLE : ON : NORMAL : 2.2 : AUTO : 0%
EXIT
: 52 : 32 : 16 : 32
GR
: 32
:
PICTURE MODE
THEATER1
Information
Types of picture modes
THEA TER1, 2: Set this mode when watching video in a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. For a darker image, select THEATER2. NORMAL: Set this mode when watching video in a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections. BRIGHT: This mode provides brighter pictures than NORMAL. DEFAULT : Use this to reset the picture to the factory default settings. ISF-DA Y and ISF-NIGHT : This mode is displayed only when an ISF dealer performs a maintenance. Please contact NEC Solutions (America), Inc. for details.
En-20
Changing the Gamma Curve
This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.
Example: Setting 2.3
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On GAMMA of PICTURE menu, select “2.3”.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
: OFF
: OFF : MIDDLE : ON : NORMAL : 2.3 : AUTO : 0%
EXIT
: 52 : 32 : 16 : 32
GR
: 32
Information
GAMMA settings
The picture becomes darker as the number increases (in the sequence of 2.1, 2.2, 2.3, 2.4).
* These values are approximate.
Making the Low Tone adjustments
This feature allows more detailed tone to be reproduced especially in the dark area. * This function is available only for 50 and 61 inches.
Example: Setting “2”
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On LOW TONE” of “PICTURE” menu, select “2”.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
: OFF
: OFF : MIDDLE : ON : NORMAL : 2.2 : 2 : 0%
EXIT
: 52 : 32 : 16 : 32
GR
: 32
Information
LOW TONE settings
AUTO: Will automatically appraise the picture and make adjustments.
1: W ill apply the dither method suitable for still pictures. 2: Will apply the dither method suitable for motion
pictures. 3: Will apply the error diffusion method.
Adjusting the pedestal level (black level)
This feature adjusts the video black level in a video image.
Example: Setting 3.75%
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On “SET UP LEVEL of PICTURE” menu, select 3.75%”.
PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. CINEMA MODE PICTURE MODE GAMMA LOW TONE SET UP LEVEL COLOR TUNE
SEL. ADJ. RETURN
: OFF
: OFF : MIDDLE : ON : NORMAL : 2.2 : AUTO : 3.75%
EXIT
: 52 : 32 : 16 : 32
GR
: 32
Information
SET UP LEVEL settings
0%: Normal status
3.75%: 3.75% lower than normal
7.5%: 7.5% lower than normal
Adjusting the colors
Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan without changing the white point. You can accentuate the green color of trees, the blue of the sky, etc.
Example: Adjusting the color tune for blue
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On PICTURE menu, select COLOR TUNE, then press the MENU/ENTER button. The COLOR TUNE screen appears.
On BLUE of COLOR TUNE, adjust the color tune.
COLOR TUNE
RED GREEN BLUE YELLOW MAGENTA CYAN RESET
SEL. ADJ. RETURN
Y C M G R B
: OFF
EXIT
M Y C R B G
: 32 : 32 : 20 : 32 : 32 : 32
Information
COLOR TUNE settings
RED: Adjusts hue of Red GREEN: Adjusts hue of Green BLUE: Adjusts hue of Blue YELLOW: Adjusts hue of Yellow MAGENTA: Adjusts hue of Magenta CYAN: Adjusts hue of Cyan RESET: Resets settings to the factory default value.
and  buttons to select ON, then press the
Use MENU/ENTER button.
En-21

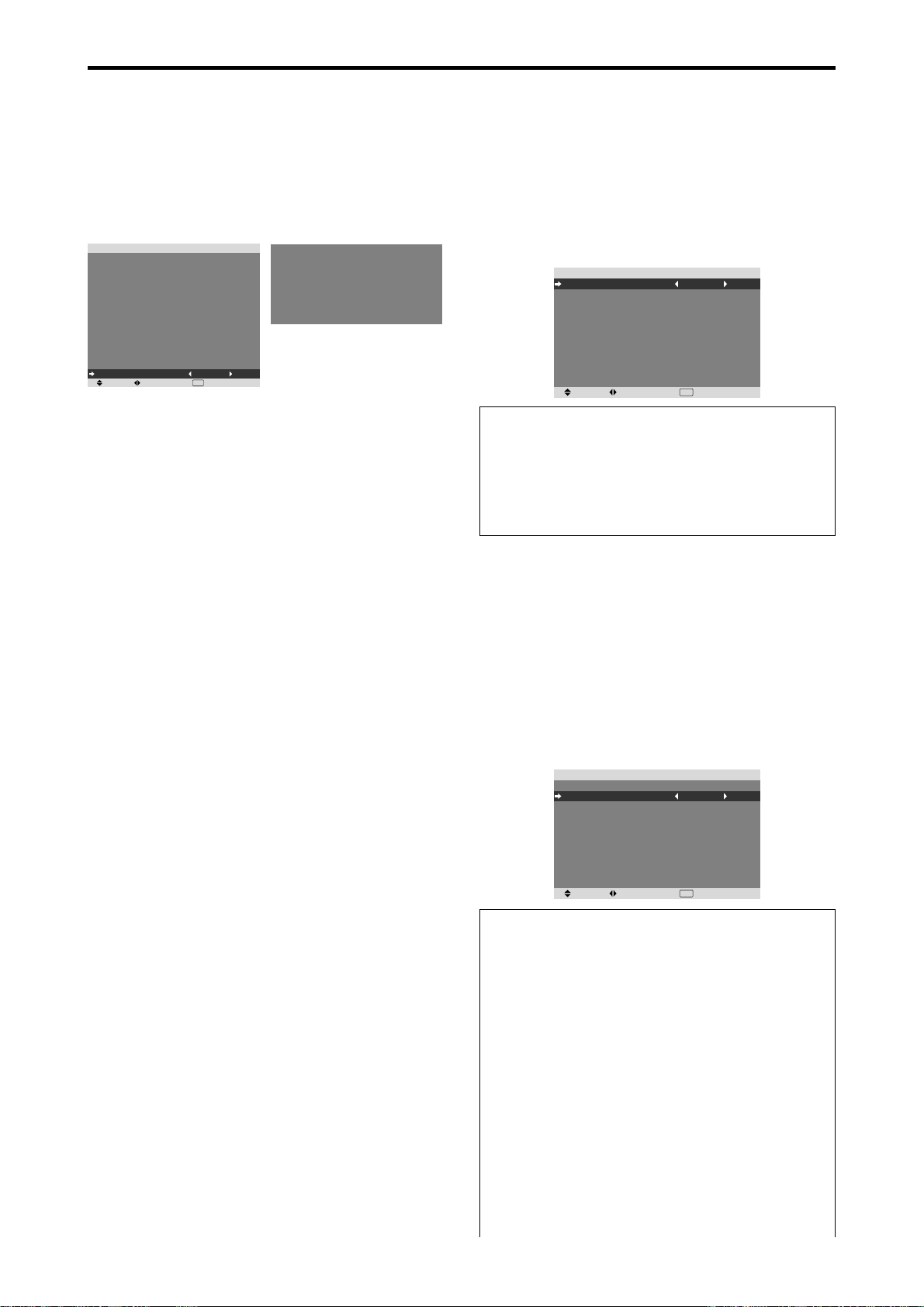

Audio Settings Menu
Adjusting the treble, bass and left/right balance and audio input select
The treble, bass and left/right balance can be adjusted to suit your tastes.
Example: Adjusting the bass
On “BASS” of “AUDIO” menu, adjust the bass.
AUDIO
: VIDEO1 : DVD/HD1 : RGB : HDMI : HDMI
EXIT
Note :
BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3 DVD/HD3 INPUT DVD/HD4 INPUT
SEL. ADJ. RETURN
If “CAN NOT ADJUST” appears...
Set “AUDIO INPUT” on the AUDIO menu correctly.
Information
Audio settings menu
BASS: Controls the level of low frequency sound. TREBLE: Controls the level of high frequency sound. BALANCE: Controls the balance of the left and right
channels.
Setting the allocation of the audio and DVD/ HD connectors
Setting the AUDIO1-3 and DVD/HD3-4 connectors to the desired input.
Example: Setting “AUDIO INPUT1” to “VIDEO 2”
On “AUDIO INPUT1” of “AUDIO” menu, select “VIDEO2”.
The available sources depend on the settings of input.
BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3 DVD/HD3 INPUT DVD/HD4 INPUT
SEL. ADJ. RETURN
AUDIO
: VIDEO2 : DVD/HD1 : RGB : HDMI : HDMI
EXIT
Information
An input cannot be selected as the channel for more than one input terminal.
: 23 : 13
RL
: 0
: 13 : 13
RL
: 0
Image Adjust Settings Menu
Adjusting the Position, Size, Fine Picture, Picture Adj
The position of the image can be adjusted and flickering of the image can be corrected.
Example: Adjusting the vertical position in the normal mode
On “V -POSITION” of “IMAGE ADJUST” menu, adjust the position.
The mode switches as follows each time the pressed:
NORMAL ANAMORPHIC
* The mode can also be switched by pressing the WIDE
button on the remote control.
* The settings on the IMAGE ADJUST menu are not preset
at the factory.
ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.
IMAGE ADJUST
: NORMAL
: OFF
SEL. ADJ. RETURN
EXIT
: 0 : 0 : 0 : 0
: 0 : 0
V-POSITION
Information
When “AUTO PICTURE” is “OFF”
ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.
IMAGE ADJUST
SEL. ADJ. RETURN
: ANAMORPHIC
: OFF
EXIT
When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.
Adjusting the Auto Picture
ON: The Picture ADJ., Fine Picture and Position adjustments are made automatically. Not available for digital ZOOM. OFF: The Picture ADJ., Fine Picture and Position adjustments are made manually.
* If FINE PICTURE can’t be adjusted, set Auto Picture
to OFF and adjust manually.
Adjusting the position of the image
V-POSITION: Adjusts the vertical position of the image. H-POSITION: Adjusts the horizontal position of the image. V-HEIGHT: Adjusts the vertical size of the image. (Not available for STADIUM mode) H-WIDTH: Adjusts the horizontal size of the image. (Not available for STADIUM mode)
FINE PICTURE*: Adjusts for flickering. PICTURE ADJ.*: Adjusts for striped patterns on the
image (i.e. vertical banding). * The Picture ADJ. and Fine Picture features are available
only when the “Auto Picture” is off.
* The AUTO PICTURE, FINE PICTURE and PICTURE
ADJ. are available only for RGB signals. But, these features are not available for moving pictures on VIDEO, DVD/HD or RGB.
or 䊳 button is
: 0 : 0 : 0 : 0
: 0 : 0
:
-30
En-22

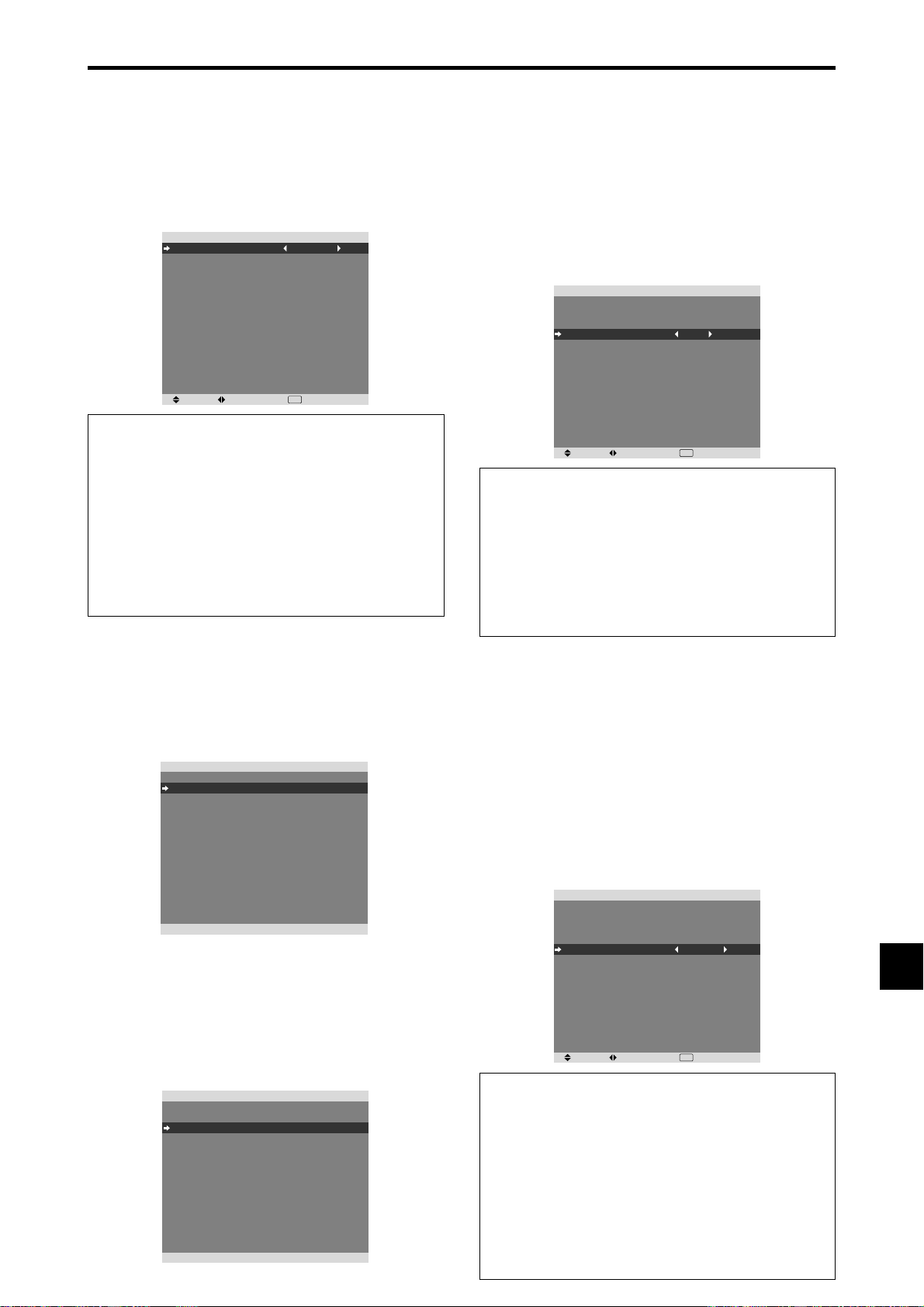

SET UP Settings Menu
Setting the language for the menus
The menu display can be set to one of eight languages.
Example: Setting the menu display to DEUTSCH
On “LANGUAGE of SET UP” menu, select DEUTSCH”.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: DEUTSCH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 3 : OFF : ON : TOP LEFT : ALL : OFF
EXIT
Checking the signal being transmitted to PC/ RGB terminal
Set “ADVANCED OSM” to ON in the FUNCTION menu.
Use this to confirm the signal being transmitted to the PC/ RGB terminal. It is set to RGB and can not be adjusted.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
CAN NOT ADJUST
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 3 : OFF : ON : TOP LEFT : ALL : OFF
Information
Language settings
ENGLISH ........English
DEUTSCH.......German
FRANÇAIS...... French
ESPAÑOL ....... Spanish
ITALIANO.......Italian
SVENSKA ......Swedish
У .......... Russian
PORTUGUÊS .....
Portuguese
Checking the signal being transmitted to DVD/HD1 terminal
Set “ADV ANCED OSM to ON in the FUNCTION menu.
Use this to confirm the signal being transmitted to DVD/ HD1 terminal.
It is set to COMPONENT and can not be adjusted.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
CAN NOT ADJUST
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 3 : OFF : ON : TOP LEFT : ALL : OFF
Setting high definition images to the suitable screen size
Use this procedure to set whether the number of vertical lines of the input high definition image is 1080I or 1035I or 540P.
Example: Setting the HD SELECT mode to 1035I
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On HD SELECT of SET UP menu, select “1035I”.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1035I : AUTO : HIGH : AUTO : GRAY : 3 : OFF : ON : TOP LEFT : ALL : OFF
EXIT
Information
HD SELECT modes
These 3 modes are not displayed in correct image automatically.
1080I: Standard digital broadcasts 1035I: Japanese High Vision signal format 540P: Special Digital broadcasts (for example :
DTC100)
Setting a computer image to the correct RGB select screen
With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.
Example: Setting the RGB SELECT mode to852480
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On “RGB SELECT of SET UP menu, select “852480”.
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : 852480 : HIGH : AUTO : GRAY : 3 : OFF : ON : TOP LEFT : ALL : OFF
EXIT
En-23
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
Information
RGB SELECT modes
AUTO: Select the suitable mode for the specifications of input signals as listed in the table Computer input signals supported by this system on page En-3 of Model Information. The others: The available resolutions are shown.
See page En-3 of Model Information for the details of the above settings.
Setting the black level for HDMI signal
Set the black level.
Example: Setting the HDMI SET UP mode to LOW
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On HDMI SET UP of SET UP menu, select “LOW”.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : LOW : AUTO : GRAY : 3 : OFF : ON : TOP LEFT : ALL : OFF
EXIT
Information
HDMI SET UP settings
LOW: When connected to the PC signal. HIGH: When connected to the SET TOP BOX, DVD
etc. Change HIGH into LOW if the black level appears gray.
Setting the video signal format
Use these operations to set the color systems of composite video signals or Y/C input signals.
Example: Setting the color system to 3.58 NTSC
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On COLOR SYSTEM of SET UP menu, select3.58NTSC”.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : 3.58NTSC : GRAY : 3 : OFF : ON : TOP LEFT : ALL : OFF
EXIT
Information
Video signal formats
Different countries use different formats for video signals. Set to the color system used in your current country . AUTO: The color systems are automatically identified and the format is set accordingly. PAL: This is the standard format used mainly in the United Kingdom and Germany. SECAM: This is the standard format used mainly in France and Russia.
4.43 NTSC, P AL60: This format is used for videos in countries using PAL and SECAM video signals.
3.58 NTSC: This is the standard format used mainly in the United States and Japan. PAL-M: This is the standard format used mainly in Brazil. PAL-N: This is the standard format used mainly in Argentina.
Setting the background color when no signal is being input
The color displayed on the background when there is no signal can be set to gray.
Example: Setting BACK GROUND to BLACK
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On BACK GROUND of SET UP menu, selectBLACK”.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : BLACK : 3 : OFF : ON : TOP LEFT : ALL : OFF
EXIT
Information
BACK GROUND Settings
BLACK: Sets the background color to black. GRAY: Sets the background color to gray.
Setting this makes it easier to see that there is no signal.
En-24
Setting the gray level for the sides of the screen
Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.
Example: Setting “GRAY LEVEL” to “5”
Set “ADV ANCED OSM” to “ON” in the FUNCTION menu.
On “GRAY LEVEL” of “SET UP” menu, select “5”.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 5 : OFF : ON : TOP LEFT : ALL : OFF
EXIT
Information
GRAY LEVEL settings
This adjusts the brightness of the black (the gray level) for the sides of the screen. The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).
Setting the screen size for S1/S2 video input
If the S-video signal contains screen size information, the image will be automatically adjusted to fit the screen when this S1/S2 is set to AUTO. This feature is available only when an S-video signal is input via the VIDEO2 terminal.
Example: Setting “S1/S2” to “AUTO”
Set “ADV ANCED OSM” to “ON” in the FUNCTION menu.
On “S1/S2” of “SET UP” menu, select “AUTO”.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 3 : AUTO : ON : TOP LEFT : ALL : OFF
EXIT
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 3 : OFF : OFF : TOP LEFT : ALL : OFF
EXIT
Information
DISPLAY OSM settings
ON: The informations on screen size, volume control, etc. will be shown. OFF: The informations on screen size, volume control, etc. will not be shown. The DISPLAY button on the remote control will not function either.
Setting the position of the menu
Adjusts the position of the menu when it appears on the screen.
Example: Set the position to “TOP CENTER”
Set “ADV ANCED OSM” to “ON” in the FUNCTION menu.
On “OSM ADJ.” of “SET UP” menu, select “TOP CENTER”.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 3 : OFF : ON : TOP CENTER : ALL : OFF
EXIT
Information
OSM ADJ. settings
TOP
LEFT
BTM
LEFT
TOP
CENTER
BTM
CENTER
TOP
RIGHT
BTM
RIGHT
Information
S1/S2 settings
AUTO: Adjusts the screen size automatically according to the S1/S2 video signal. OFF: Turns the S1/S2 function off.
T urning on/off the menu display
When this is set to OFF , the menu will not displayed even if you press the MENU/ENTER button.
Example: Turning the DISPLAY OSM off
Set “ADV ANCED OSM” to “ON” in the FUNCTION menu.
On “DISPLAY OSM” of “SET UP” menu, select “OFF”.
En-25
Remote ID
Set the remote code to adapt the plasma monitor to the remote control.
Example: Setting to “1”
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On REMOTE ID of SET UP menu, select “1.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 3 : OFF : ON : TOP LEFT : 1 : OFF
EXIT
Press and hold the POWER ON button, and release the button when the indication saying that the code is set is displayed. Or, press and hold the POWER STANDBY button, and release the button when the power is turned off.
Information
REMOTE ID setting
ALL: The remote code is not set. 1 to 4: The specified remote code is applied.
Resetting to the default values
Use these operations to restore all the settings (PICTURE, AUDIO, IMAGE ADJUST, SET UP, etc) to the factory default values.
Refer to page En-17 for items to be reset.
On ALL RESET of SET UP menu, select ON, then press the MENU/ENTER button.
LANGUAGE DVD/HD1 INPUT D-SUB INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY OSM OSM ADJ. REMOTE ID ALL RESET
SEL. ADJ. RETURN
SET UP
: ENGLISH : COMPONENT : RGB : 1080I : AUTO : HIGH : AUTO : GRAY : 3 : OFF : ON : TOP LEFT : ALL : ON
EXIT
ALL RESET
SETTING NOW
When the SETTING NOW screen disappears, then all the settings are restored to the default values.
Function Settings Menu
Setting the menu mode
This allows you to access the complete menu.
Example: Setting ON
On ADVANCED OSM of FUNCTION menu, selectON ”.
ADVANCED OSM POWER MGT. INPUT SKIP SUB. PICTURE ZOOM NAV PICTURE FREEZE PDP SAVER CLOSED CAPTION CAPTION CONT. PWR. ON MODE
SEL. ADJ. RETURN
Information
ADVANCED OSM settings
ON: All of the menu items are available for advanced users. OFF: Some of the menu items are not available (e.g.FUNCTION).
Setting the power management for computer images
This energy-saving (power management) function automatically reduces the monitors power consumption if no operation is performed for a certain amount of time.
Example:
Turning the power management function on
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On POWER MGT. of FUNCTION menu, select ON”.
ADVANCED OSM POWER MGT. INPUT SKIP SUB. PICTURE ZOOM NAV PICTURE FREEZE PDP SAVER CLOSED CAPTION CAPTION CONT. PWR. ON MODE
SEL. ADJ. RETURN
Information
Power management function
* The power management function automatically reduces
the monitors power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer.
* If the computers power is not turned on or if the
computer and selector tuner are not properly connected, the system is set to the off state.
* For instructions on using the computers power
management function, refer to the computers operating instructions.
Power management settings
ON: In this mode the power management function is turned on. OFF: In this mode the power management function is turned off.
Power management function and ON/ STANDBY indicator
The ON/ST ANDBY indicator indicates the status of the power management function. See En-27 for indicator status and description.
FUNCTION
: ON : OFF : OFF
: BTM LEFT : S BY S1 : MANUAL : OFF : LOW
FUNCTION
: OFF : ON : OFF
: BTM LEFT : S BY S1 : MANUAL : OFF : LOW
EXIT
EXIT
En-26
ON/STANDBY indicator
Power management mode
On
Off
ON/ STANDBY indicator
Green
Red
Power management operating status
Not activated.
Activated.
Description
Horizontal and vertical synchronizing signals are present from the computer.
Horizontal and/or vertical synchronizing signals are not sent from the computer.
Turning the picture back on
Picture already on.
Operate the keyboard or mouse. The picture reappears.
Setting the Input Skip
When this is ON, signals which are not present will be skipped over and only pictures whose signals are being transmitted will be displayed. This setting is valid only for the INPUT/EXIT button on the unit.
Example: Set to “ON”
Set “ADV ANCED OSM” to “ON” in the FUNCTION menu.
On “INPUT SKIP” of “FUNCTION” menu, select “ON”.
ADVANCED OSM POWER MGT. INPUT SKIP SUB. PICTURE ZOOM NAV PICTURE FREEZE PDP SAVER CLOSED CAPTION CAPTION CONT. PWR. ON MODE
SEL. ADJ. RETURN
FUNCTION
: OFF : OFF : ON
: BTM LEFT : S BY S1 : MANUAL : OFF : LOW
EXIT
Information
INPUT SKIP settings
OFF: Regardless of the presence of the signal, scan and display all signals. ON: If no input signal is present, skip that signal.
* “SETTING NOW” will appear during the input search.
Removing the sub screen area when there is no input signal detected for the sub screen
This function automatically removes the black frame of the sub screen when there is no sub screen input signal. This feature is available only when the picuture-in-picuture mode is selected.
Example: Setting “DISPLAY” to “FADE”
Set “ADV ANCED OSM” to “ON” in the FUNCTION menu.
On “SUB. PICTURE” of “FUNCTION” menu, press the MENU/ENTER button.
The “SUB. PICTURE” screen appears. Adjust the items.
OFF: Turns off the SUB. PICTURE function.
DISPLAY setting
NORMAL: The sub screen is displayed consistently. FADE: The sub screen fades in.
SUB. P RATE setting
Set the transparency of the sub screen.

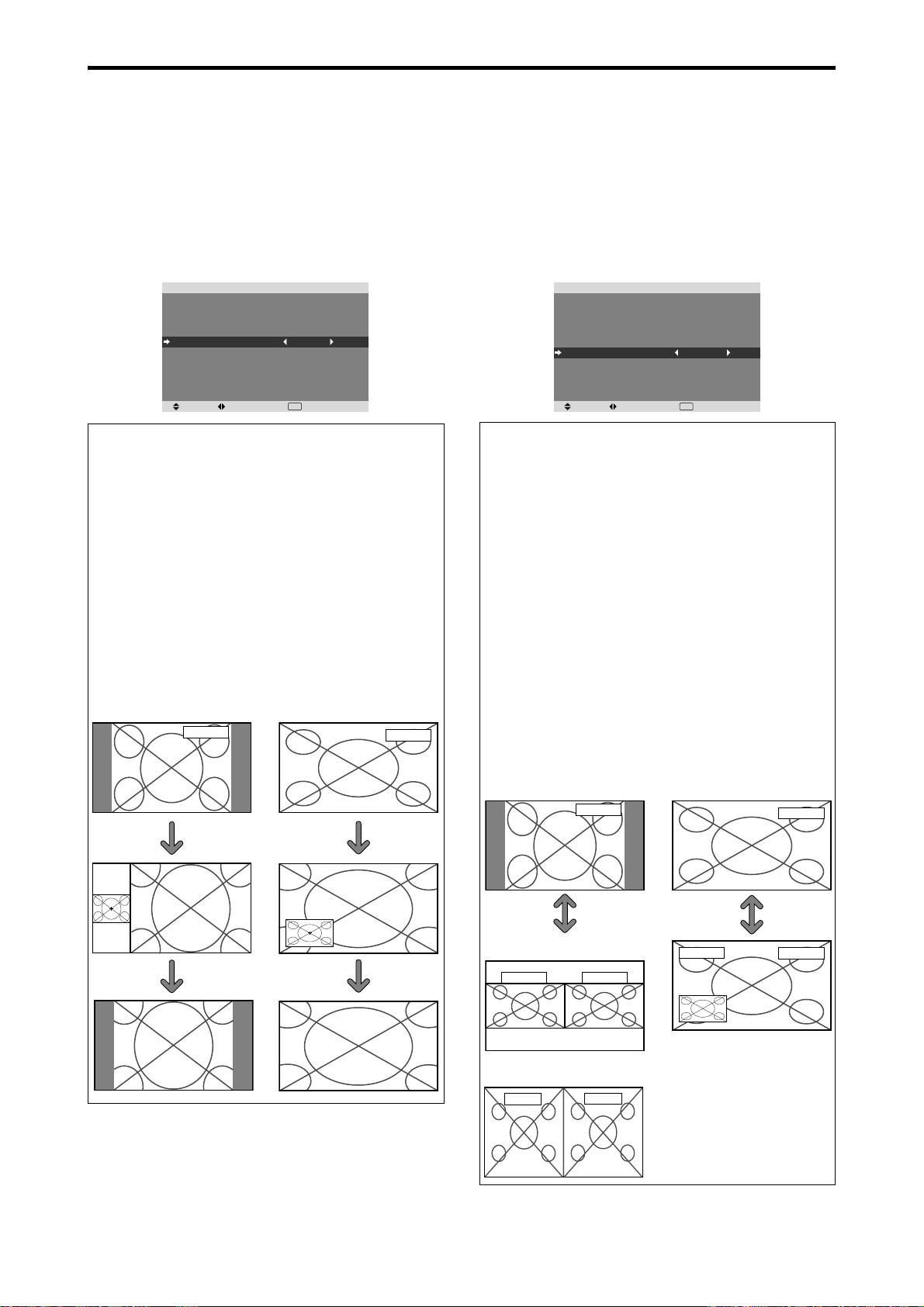

Displaying the entire image during DIGITAL ZOOM operations
Use this function to display the entire image within the sub screen together with an enlarged image on the main screen.
Example: Setting “ZOOM NAV” to “S BY S”
Set “ADV ANCED OSM” to “ON” in the FUNCTION menu.
On “ZOOM NAV” of “FUNCTION” menu, select “S BY S”.
ADVANCED OSM POWER MGT. INPUT SKIP SUB. PICTURE ZOOM NAV PICTURE FREEZE PDP SAVER CLOSED CAPTION CAPTION CONT. PWR. ON MODE
SEL. ADJ. RETURN
FUNCTION
: OFF : OFF : OFF
: S BY S : S BY S1 : MANUAL : OFF : LOW
EXIT
Information
ZOOM NAV Function
* This feature does not function during multi screen mode. * This feature does not function while PICTURE FREEZE
is operating.
* Providing a 2-screen display will cancel this function.
ZOOM NAV settings
OFF: Will not show the entire image on the sub screen. S BY S: Will show the entire image on the sub screen
of side-by-side mode. BTM LEFT~TOP LEFT: Will show the entire image on the sub screen of picture-in-picture mode.
Side-by-Side Picture-in-Picture
RGB/PC
Zoom+/- button
RGB/PC
SUB. P DETECT DISPLAY SUB. P RATE
SEL. ADJ. RETURN
SUB. PICTURE
: AUTO : FADE : 100%
EXIT
Information
SUB. PICTURE Function
* Loss of the input signal means a condition in which the
video signal and the sync signal are not present.
* Under conditions in which the sub screen has
disappeared, the ZOOM NA V and PICTURE FREEZE functions will not work. The WIDE button will not function either.
SUB. P DETECT setting
AUTO: The black frame disappears 3 seconds after the input signal is lost.
SINGLE button
Displaying still images in the sub screen
This feature enables display in the sub screen of still images captured by pressing the ACTIVE SELECT button.
Example: Setting “PICTURE FREEZE” to “BTM LEFT”
En-27
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On PICTURE FREEZE of FUNCTION menu, selectBTM LEFT”.
ADVANCED OSM POWER MGT. INPUT SKIP SUB. PICTURE ZOOM NAV PICTURE FREEZE PDP SAVER CLOSED CAPTION CAPTION CONT. PWR. ON MODE
SEL. ADJ. RETURN
FUNCTION
: OFF : OFF : OFF
: BTM LEFT : BTM LEFT : MANUAL : OFF : LOW
EXIT
Information
PICTURE FREEZE Function
* This feature does not function during multi screen mode. * Digital zoom is not available while this function is
operating.
* A further press of the ACTIVE SELECT button while
this function is operating will cancel this function.
* Providing a 2-screen display will cancel this function.
PICTURE FREEZE settings
OFF: Will not show the still image. S BY S1, 2: The still images captured by pressing the
ACTIVE SELECT button will be shown on the sub screen of side-by-side mode. BTM LEFT~TOP LEFT: The still images captured by pressing the ACTIVE SELECT button will be shown on the sub screen of picture-in-picture mode.
Side-by-Side Picture-in-Picture
RGB/PC
RGB/PC
PEAK BRIGHT ORBITER INVERSE/WHITE SCREEN WIPER SOFT FOCUS OSM ORBITER OSM CONTRAST
SEL. ADJ. RETURN
PDP SAVER
: 100% : AUTO1 : OFF : OFF : OFF : ON : LOW
EXIT
Information
When set to AUTO
Set automatically, as described below.
PEAK BRIGHT: 100% ORBITER: AUTO1 or AUTO2 INVERSE/WHITE: OFF SCREEN WIPER: OFF SOFT FOCUS: OFF OSM ORBITER: ON OSM CONTRAST: LOW
PEAK BRIGHT
Use this to activate the brightness limiter.
Example: Setting PEAK BRIGHT to 75%
On “PEAK BRIGHT of PDP SA VER menu, select 75%”.
PDP SAVER
PEAK BRIGHT ORBITER INVERSE/WHITE SCREEN WIPER SOFT FOCUS OSM ORBITER OSM CONTRAST
SEL. ADJ. RETURN
: 75% : AUTO1 : OFF : OFF : OFF : ON : LOW
EXIT
ACTIVE SELECT button
RGB/PC
RGB/PC
ACTIVE SELECT button
S BY S1
RGB/PC
RGB/PC
or
S BY S2
RGB/PC
RGB/PC
Reducing image retention
The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce image retention.
Set “ADVANCED OSM” to ON in the FUNCTION menu.
On PDP SAVER of FUNCTION menu, selectMANUAL, then press the MENU/ENTER button. The PDP SAVER screen appears.
Information
PEAK BRIGHT settings
100%: The brightness of the screen is adjusted automatically to suit the picture quality. 75%, 50%, 25%: Sets maximum brightness. The brightness level decreases in the order of 75%, 50%, 25%. 25% provides minimum brightness.
* These values are approximate.
ORBITER
Use this to set the picture shift.
Example: Setting ORBITER to AUTO2
On ORBITER” of PDP SAVER menu, select AUTO2”.
PDP SAVER
PEAK BRIGHT ORBITER INVERSE/WHITE SCREEN WIPER SOFT FOCUS OSM ORBITER OSM CONTRAST
SEL. ADJ. RETURN
: 100% : AUTO2 : OFF : OFF : OFF : ON : LOW
EXIT
Information
ORBITER settings
OFF: Orbiter mode does not function. This is the default setting when RGB is input. AUTO1: The picture moves around the screen intermittently, making the picture smaller. This is the default setting when a Video or a DVD/HD signal is input. Set to OFF when these signals are not used.
AUTO2: The picture moves around the screen
En-28
Loading...
+ 110 hidden pages
