NEC PlasmaSync PX-60XR5A Specification

PX-60XR5A

Model Information

NEC Corporation of America

Model Information

Informations modèle

Información del modelo

Informação do modelo

102

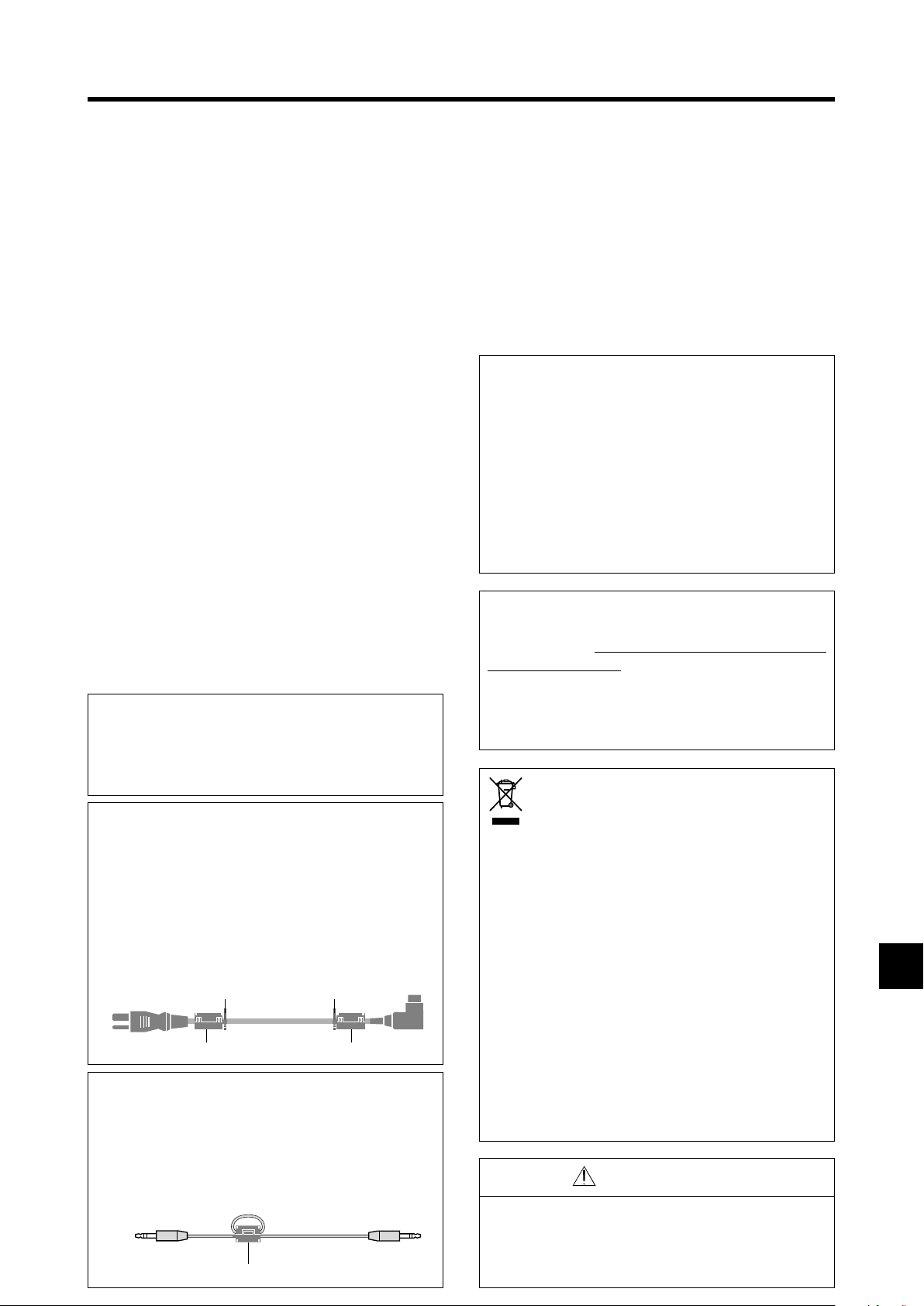

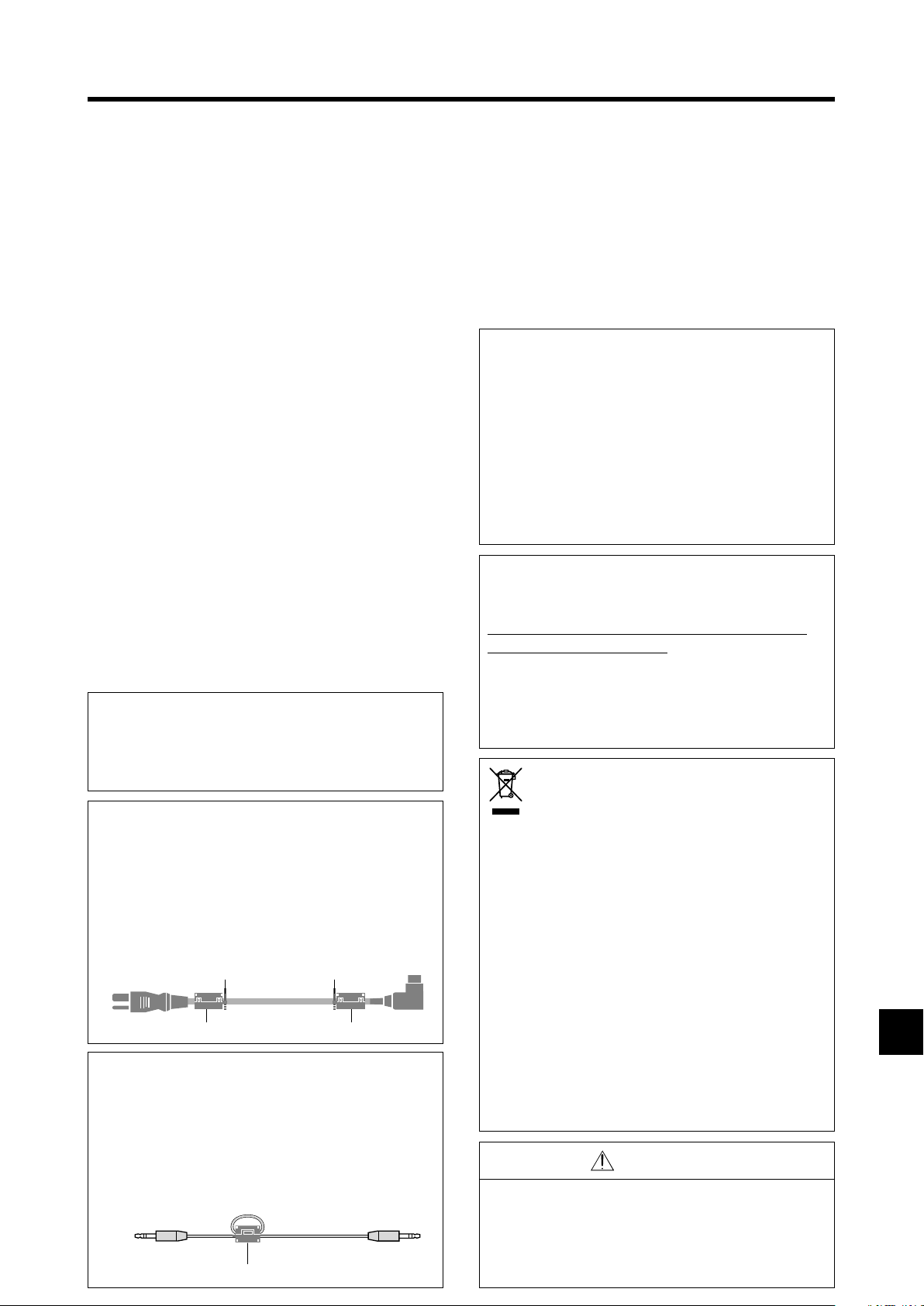

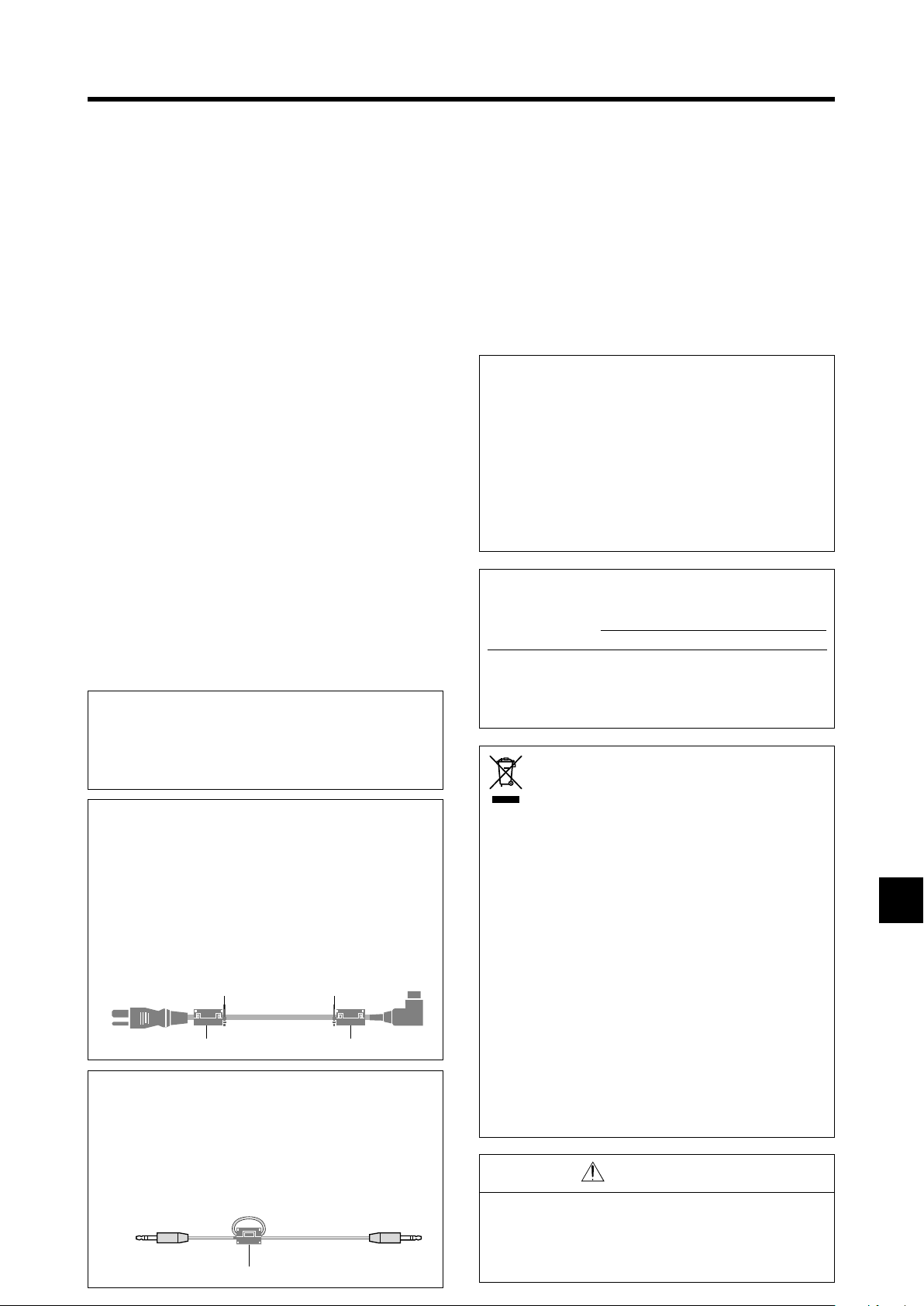

Important Information

dnd

Warning

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment ANSI/NFPA 75.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Caution

This model is for use with the following optional accessories. Use with other optional accessories is capable of resulting in instability causing possible injury.

Manufacturer’s name: NEC Corporation of America Speakers: PX-SP4U/B, PX-SP4U/S Stand: PX-61ST1U, PX-61ST2U

Please contact NEC Corporation of America for approved optional accessories.

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

Operating Environment

Operating environment temperature and humidity: 0 °C to +40 °C (+32 °F to +104 °F); less than 80 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

NOTE: When you use an RGB cable (not supplied), use an RGB cable including the ferrite core (not supplied) on both ends of the cable. If you do not this, this monitor will not conform to mandatory FCC standards.

NOTE: When you use the power cable (supplied), use the supplied ferrite cores. Set the ferrite cores (supplied) on both ends of the power cable (supplied), and then use the bands (supplied) to fasten the ferrite cores (supplied) to the power cable (supplied). If you do not this, this monitor will not conform to mandatory FCC standards.

wer

NOTE: When you use a remote cable (not supplied), use the supplied ferrite core. Wind the remote cable (not supplied) around the ferrite core (supplied) once, and then fasten the catch. If you do not this, this monitor will not conform to mandatory FCC standards.

Remote cable (not supplied)

supplie

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes plasma monitors and their electrical accessories. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product. After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact to the human health and the environment at the minimum level. The mark on the electrical and electronic products only applies to the current European Union Member States.

CAUTION

When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country/area.

To plasma monitor

core

En-1

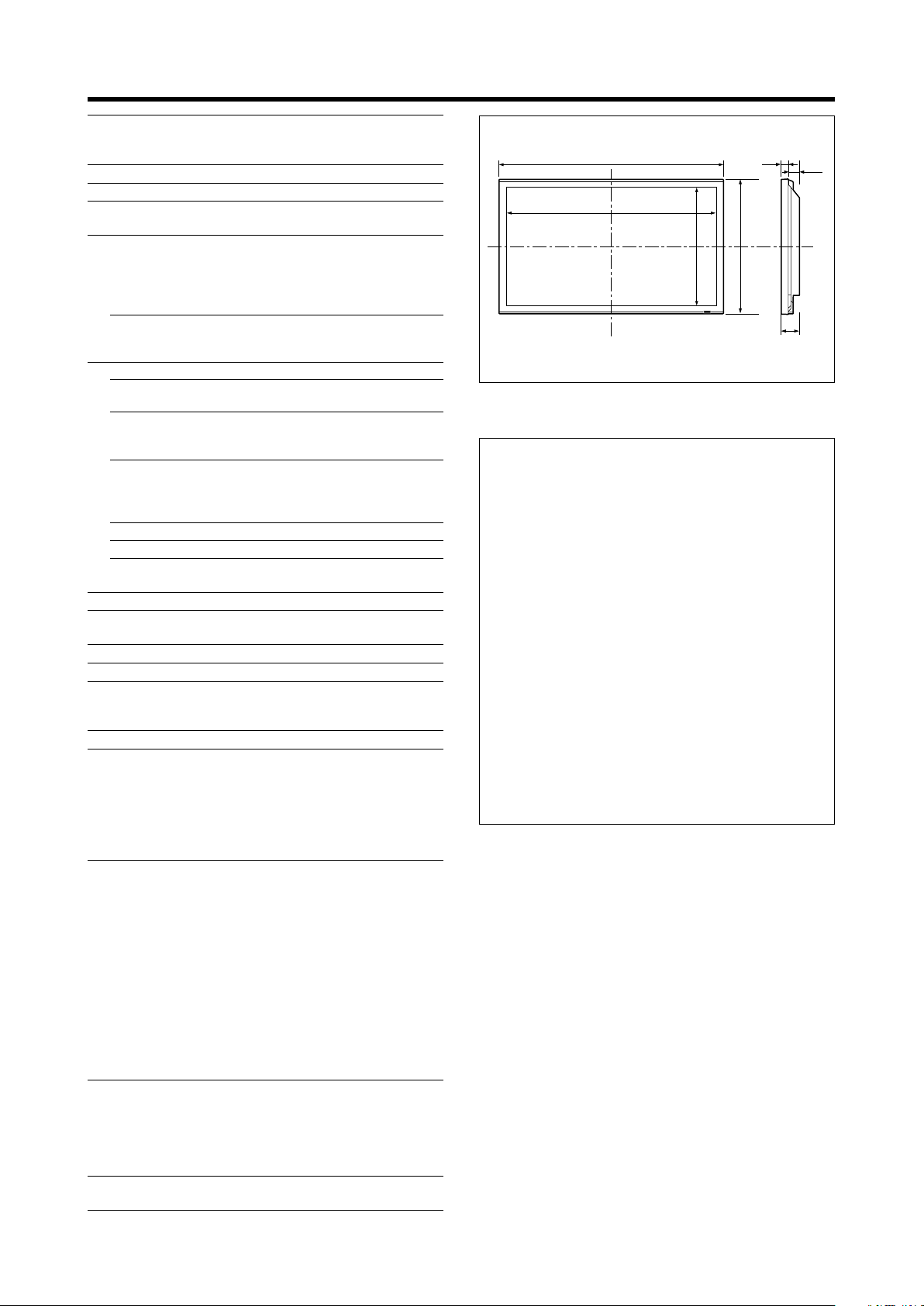

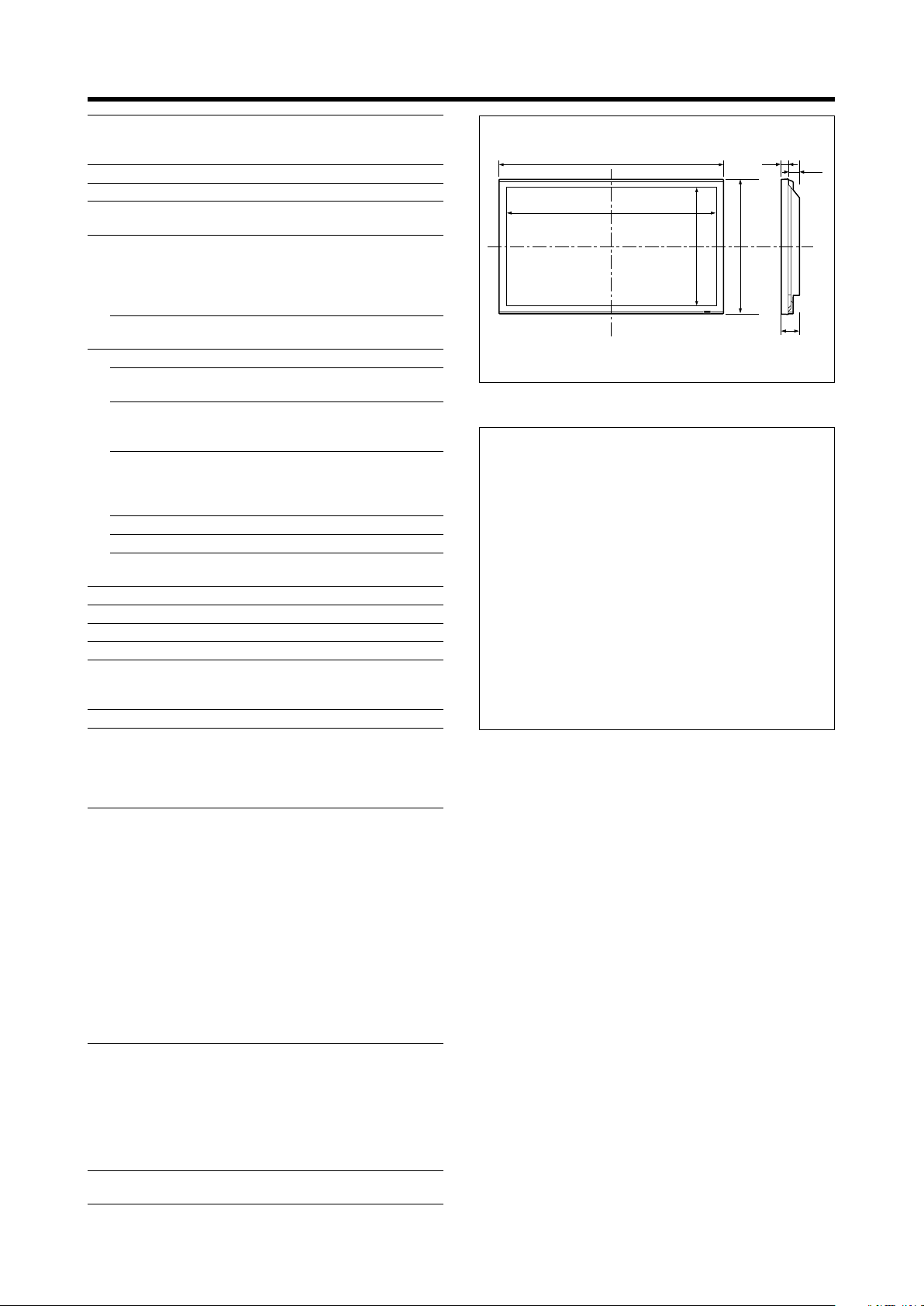

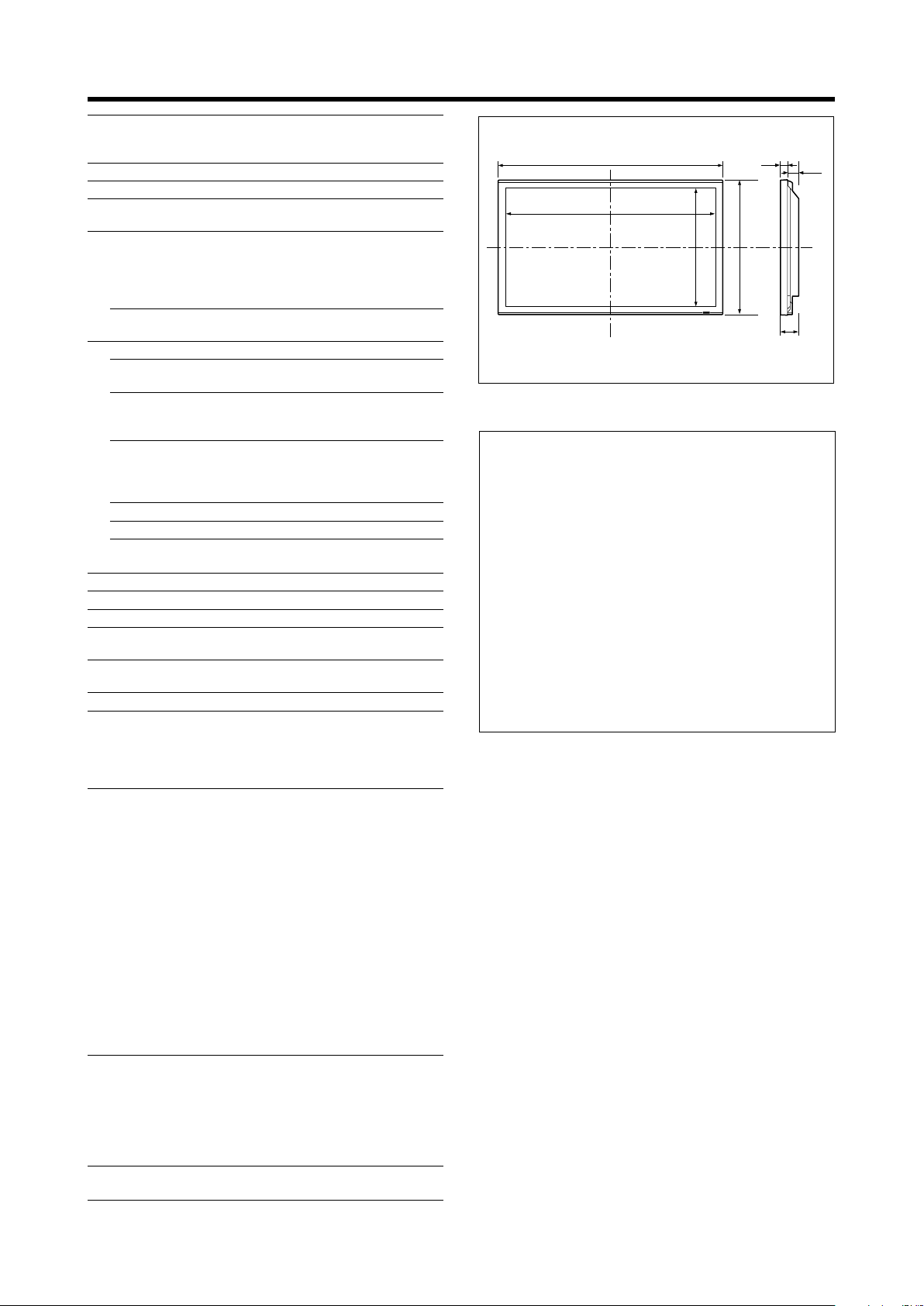

Specifications

For the operation of your plasma monitor, refer to “Operation Manual”.

Screen Size 51.9 inches(H)⳯29.2 inches(V)

1319 mm(H)⳯742 mm(V) diagonal 60 inches

Aspect Ratio 16 : 9 Resolution 1365 pixels(H)⳯768 pixels(V) Pixel Pitch 0.038 inches(H)⳯0.038 inches(V)

0.97 mm(H)⳯0.97 mm(V)

Signals

Synchronization Range Horizontal : 15.5 kHz to 110.0 kHz

(automatic : step scan) Vertical : 50.0 Hz to 120.0 Hz (automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

PAL60, SECAM, HD*

, DVD*

Input Terminals

PC/RGB

Visual 1 (Analog) mini D-sub 15-pin⳯1

Video

Visual 1 RCA⳯1 Visual 2 S-Video: DIN 4-pin⳯1

DVD/HD

Visual 1 RCA-pin (Y, Cb/Pb, Cr/Pr)⳯1* Visual 2 RCA-pin (Y, Cb/Pb, Cr/Pr)⳯1* HDMI HDMI connector⳯2*

Audio Stereo RCA⳯3 (Selectable) External Control D-sub 9-pin⳯1 (RS-232C) Remote In Mini jack⳯1

Remote Out Mini jack⳯1 Sound output 9 W+9 W at 6 ohm Power Supply AC100 V to 240 V 50 Hz/60 Hz Current Rating 7.0 A (maximum) Power Consumption 440 W (typical) Dimensions 58.1 inches(W)⳯34.7 inches(H)⳯5.0 inches(D)

1476 mm(W)⳯880 mm(H)⳯126 mm(D)

Weight 135.6 lbs / 61.5 kg (without stand) Environmental Considerations

Operating Temperature 0 °C to 40 °C / 32 °F to 104 °F

Humidity 20 % to 80 % (no condensation)

Storage Temperature -10 °C to 50 °C / 14 °F to 122 °F

Humidity 10 % to 90 % (no condensation)

Other Features Motion compensated 3D Scan Converter (NTSC,

PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60 Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zooming (100 % to 900 % Selectable), Self Diagnosis via RS232C, PDP Saver (PEAK BRIGHT, ORBITER, INVERSE, WHITE, SCREEN WIPER, SOFT FOCUS, etc.), Color Temperature Select (high/middle/middle low/low, user has 4 memories), Auto Picture Adjust, Input Skip, Color Tune, Gamma Correction (4 modes), Plug and play (DDC1, DDC2b, HDMI: E-DDC), Enhanced Split Screen, Protocol Set, etc.

Accessories Power cord (⳯1), Remote control (⳯1), AAA

batteries (⳯2), Manuals (Model Information and Operation), Ferrite cores for power cord (⳯2), bands for power code (⳯2), Cable clampers (⳯3), beads bands (⳯3), Ferrite core for remote cable (⳯2).

Regulations UL 60065, CAN/CSA-C22.2 No.60065-03,

FCC class B, ICES-003 class B

1.9"

3.0"

58.1" (1476)

51.9" (1319)

29.2" (742)

(49)

34.7" (880)

5.0"

(126)

Units are in inch

(77)

(mm)

The features and specifications may be subject to change without notice.

*1DVD/HD input signals supported on this system.

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 720P (50 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz) 1080P (50 Hz) 1080P (60 Hz)

HDMI input signals supported on this system.

Supported Signals

• 640ⴒ480P @ 59.94/60 Hz • 1920ⴒ1080I @ 50 Hz

• 1280ⴒ720P @ 59.94/60 Hz • 720ⴒ576P @ 50 Hz

• 1920ⴒ1080I @ 59.94/60 Hz • 1440 (720)ⴒ576I @ 50 Hz

• 720ⴒ480P @ 59.94/60 Hz • 1280ⴒ720P @ 50 Hz

• 1440 (720)ⴒ480I @ 59.94/60 Hz Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact NEC Corporation of America and also the manufacturer of the source equipment.

En-2

Table of Signals Supported

Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 1024 dots⳯768 lines signal. (Except for *

2, 3

)

• When the screen mode is ANAMORPHIC, each signal is converted to a 1365 dots⳯768 lines signal. (Except for *

Computer input signals supported by this system

– – – – – – – –

Screen mode

NORMAL

(4:3)

– – – –

YES YES YES YES YES YES

– – – – – –

YES YES YES YES YES YES

YES YES* YES* YES* YES* YES* YES*

YES

– – – – – – – – – –

YES

– – – – – –

YES* YES* YES* YES*

YES

– – YES YES YES YES YES

– –

YES YES

YES*

YES

– –

Model

Signal Type

NEC PC-9800

IBM PC/AT compatible computers

Apple Macintosh*

Dots ⳯ lines

640⳯400 720⳯400 640⳯480

720⳯400 848⳯480

852⳯480*

800⳯600

1024⳯768

1152⳯864

1280⳯768

1280⳯800*

1280⳯854 1280⳯960

1360⳯765 1360⳯768 1376⳯768

1280⳯1024

1400⳯1050*

1680⳯1050*

1600⳯1200

1920⳯1200*

1920⳯1200RB

640⳯480 832⳯624

1024⳯768

1152⳯870

1440⳯900*

Vertical frequency (Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

85.1

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

119.4

75.0

60.0

72.0

56.2

59.8

69.8

59.8

60.0

85.0

60.0

59.9

60.0

75.0

85.0

100.1

60.0

74.9

85.0

60.0

65.0

70.0

75.0

85.0

59.9

60.0

66.7

74.6

74.9

75.1

59.9

Horizontal frequency (kHz)

31.5

37.9

37.5

43.3

51.1

61.3

37.9

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

95.5

67.5

53.7

64.9

45.1

48.0

56.0

49.7

53.1

60.0

85.9

47.7

48.3

64.0

80.0

91.1

108.5

65.3

82.3

93.9

65.3

75.0

81.3

87.5

93.8

106.3

74.6

74.0

35.0

49.7

60.2

68.7

55.9

Sync Polarity

Horizontal

NEG NEG NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG NEG POS POS POS POS POS NEG NEG NEG POS POS POS POS NEG POS POS POS POS NEG NEG NEG NEG POS POS POS POS POS NEG NEG

Sync on G Sync on G Sync on G Sync on G

NEG

Vertical

NEG NEG NEG NEG NEG NEG NEG NEG POS POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG NEG POS NEG NEG POS NEG POS POS NEG POS POS POS POS POS POS POS POS POS POS POS POS POS POS POS POS POS POS POS POS

Sync on G Sync on G Sync on G Sync on G

POS

Presence

Horizontal

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – – – –

YES

Vertical

YES

)

ANAMORPHIC

(16:9)

YES* YES*

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

RGB

select*

– – 720⳯400 640⳯480

– –

848⳯480 852⳯480 800⳯600

– –

1024⳯768 1024⳯768 1024⳯768

– –

1152⳯864 1152⳯864

– –

1280⳯768 1280⳯768 1280⳯768 1280⳯800 1280⳯854

– –

1360⳯765

1360⳯768 1376⳯768 1280⳯1024

– –

1400⳯1050

– –

1680⳯1050 1600⳯1200

– –

1920⳯1200 1920⳯1200RB

– –

Memory

5 7 8

9 41 42 73 19 17 11 12 13 14 15 43 44 24 25 26 27 45 46 51 84 85 52 80 66 21 37 63 64 22 22 53 29 30 40 47

131

71 72 38 54 55 56 57 58 81 88

6 16 28 39 89

En-3

– – – – – – – – – – – –

Screen mode

(4:3)

YES* YES* YES*

YES

YES YES* YES* YES*

YES* YES*

ANAMORPHIC

(16:9)

YES*

NORMAL

YES YES YES YES YES YES YES YES

RGB

select*

1280⳯1024

1024⳯768 1280⳯1024

525P

– – – – – – – – – –

– –

Memory

29 48 59 60 61 30 62 29

31 32

Model

Signal Type

Work Station (EWS4800)

Work Station (HP) Work Station

(SUN)

Work Station (SGI)

IDC-3000G

PAL625P NTSC525P

Dots ⳯ lines

1280⳯1024

1152⳯900

1280⳯1024

1024⳯768

1280⳯1024

768⳯576 640⳯480

Vertical frequency (Hz)

60.0

71.2

72.0

66.0

76.0

76.1

60.0

50.0

59.9

Horizontal frequency (kHz)

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

Sync Polarity

Horizontal

NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Vertical

NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Presence

Horizontal

YES YES

– – – – – – – – – – – –

YES YES

Vertical

YES YES

*1 Only when using a graphic accelerator board that is capable of displaying 852⳯480. *2 The picture is displayed in the original resolution. *3 The aspect ratio is 5:4. This signal is converted to a 960 dots⳯768 lines signal. *4 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the

RGB mode prepared for the input signals listed in the table above. *5 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port. *6 Other screen modes (ZOOM and STADIUM) are available as well. *7 CVT standard compliant.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the

picture or the fine picture because of errors in synchronization of your computer.

• When a 1280 dots

• This monitor has a resolution of 1365 dots

⳯

1024 lines signal or 1600 dots⳯1200 lines signal is input to the monitor, the picture will be compressed.

⳯

768 lines. It is recommended that the input signal should be XGA, wide XGA, or

equivalent.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

•“IBM PC/AT” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.

•“Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

En-4
