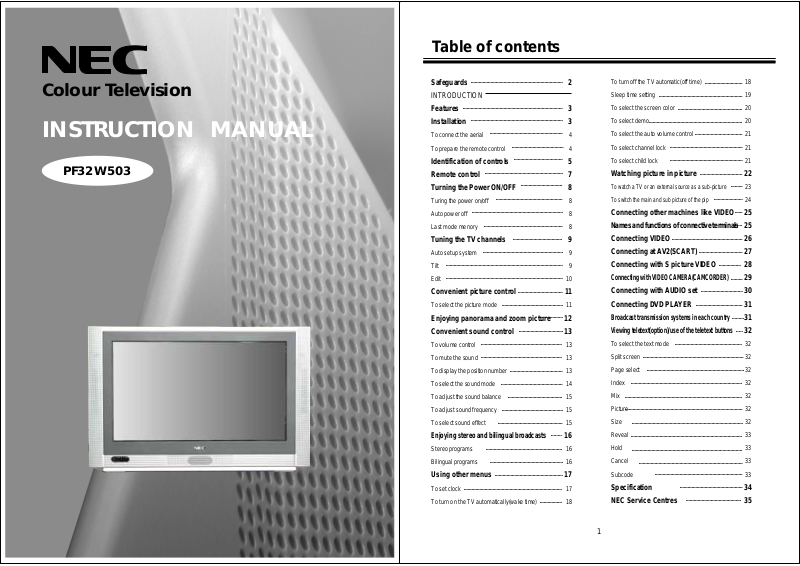

INSTRUCTION MANUAL

Colour Television

PF32W503

Table of contents

Safeguards 2

INTRODUCTION

Features 3 Installation 3

To connect the aerial 4 To prepare the remote control 4

Identification of controls 5 Remote control 7 Turning the Power ON/OFF 8

Turing the power on/off 8 Auto power off 8 Last mode menory 8

Tuning the TV channels 9

Auto setup system 9 Tilt 9 Edit 10

Convenient picture control 11

To select the picture mode 11

Enjoying panorama and zoom picture 12 Convenient sound control 13

To volume control 13 To mute the sound 13 To display the position number 13 To select the sound mode 14 To adjust the sound balance 15 To adjust sound frequency 15 To select sound effect 15

Enjoying stereo and bilingual broadcasts

Stereo programs 16 Bilingual programs 16

Using other menus 17

To set clock 17 To turn on the TV automatically(wake time) 18

To turn off the TV automatic(off time) 18 Sleep time setting 19 To select the screen color 20 To select demo 20 To select the auto volume control 21 To select channel lock 21 To select child lock 21

Watching picture in picture 22

To watch a TV or an external source as a sub-picture

To switch the main and sub picture of the pip

Connecting other machines like VIDEO 25 Names and functions of connective terminals 25 Connecting VIDEO 26 Connecting at AV2(SCART) 27 Connecting with S picture VIDEO 28 Connecting with VIDEO CAMERA(CAMCORDER)

29 Connecting with AUDIO set 30 Connecting DVD PLAYER 31 Broadcast transmission systems in each country

31 Viewing teletext(option)/use of the teletext buttons

To select the text mode 32 Split screen 32 Page select 32 Index 32 Mix 32 Picture 32 Size 32 Reveal 33 Hold 33 Cancel 33 Subcode 33

Specification 34 NEC Service Centres 35

SAFEGUARDS

To operate your receiver at the peak performance, please read this Instruction Manual carefully and retain it for the future reference.

M Water and Moisture : Never install the set in the following places : in the bathroom, in a wet basement(Dripping or

splashing water).

M Heat : Never place the set near sources(e.q. radiator). M Ventilation : Do not cover the ventilation opening in the cabinet. Accidental contact with high voltage components

could result in electric shock. Never place the set in a confined space such ac a bookcase or built-in cabinet, unless proper ventilation is provided when install the T.V set, make the gap at least 10cm from the wall.(at back, top, and side of T.V set)

M The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-

cloths, curtains, etc.

M No naked flame sources, such as candles, should be placed on the apparatus. M When mains switching off, the apparatus is not completely switched off from the mains. To disconnect it from the

mains, you have to unplug mains.

M Object Entry : Do not insert foreign objects, such as needles and coins, into the ventilation openings. M Lightning Striking : You should disconnect your set from the main and the aerial system during thunderstorms. M Cleaning : Unplug the set from the main before cleaning. Do not use liquid cleaners of aerosol cleaners. Use only a

lightly dampened soft cloth.

M Do not place liquids including flower vases and vessels filled with chemicals or water, etc. on the top of the unit.

Keep the inside of the unit free from foreign objects such as hairpin. If hazardous objects fall inside of the unit, unplug it immediately and call a qualified technician for removal.

M When you don’t use the set for an extended period during vacation or other occasions, always make sure of

switching off the MAIN POWER(ON/OFF) SWITCH of the TV set.

M Do not place this television equipment on an unstable cart, stand, or table.

The television equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Use only with a cart or stand recommend by the manufacture’s instructions, and should use a mounting kit approved by the manufacture.

M When replacement parts are required, be sure the service technician has used replacement parts specified by the

manufacture that have the same characteristics as the original parts. Unauthorized substitutions may result fire, electric shock, or other hazards.

M Upon completion of any service or repairs to the set, ask the service (as specified by the manufacture) to

determine that the set is in safe operating condition.

M If anything goes wrong, don’t try any fix it yourself, get a qualified service agent to look at it. M The appliance is not intended for use by young children or infirm persons without supervision. M Young children should be supervised to ensure that they do not play with the appliance.

NOTE

If the receiver is moved or placed in a different direction, the MAIN POWER (ON/OFF) SWITCH must be switched off for at least 15 minutes in order to take out a colour strain on the screen.

FEATURES

INTRODUCTION

Installation

Double Window

You can enjoy two programs simultaneously by splitting the screen in two.

16:9 screen

You can select a desired 4:3 screen mode as well as the 16:9 picture mode.

A variety of AV terminals for external equipment connection.

MTwo sets of video/audio inputs on the rear and one set on the right. MS-VIDEO terminals. MOne set of A/V output (TV signal) terminals. MOne set of SCART JACK input/output on the rear.

Selectable picture and selectable sound

Allows one-touch selection of your favorite picture quality and tone quality.

NICAM and German stereo/bilingual broadcasts receivable PIP (Picture-in-Picture)

The PIP function can show another picture on the main picture simultaneously.

Off-timer and Wake-timer

Turns off the TV automatically and will turn it back on at a preset time.

Curtain Effect

When the power on/off, the screen is displayed like a curtain and you can hear a beep.

Split screen

You can enjoy two programs simultaneously (Main picture & Teletext Picture).

Component Input

You can enjoy better DVD-Picture with use the Exclusive terminals of DVD (Cr & Cb).

M INSTALL the unit in a room where direct light will not fall upon the screen.

Total darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

M ALLOW enough space between the unit and the wall for proper ventilation. M AVOID excessively warm locations to prevent possible damage to the cabinet or components. M RATED VOLTAGE: 110-240V~, 50/60Hz.

Automatic degaussing

All colour television receivers are sensitive to magnetic influences usually caused by either moving the receiver from one place to another or using certain electrical appliances near the receiver. This residual magnetism, as it is called, sometimes causes distortion which gives rise to "blotchy" areas of colour in the picture. To avoid these effects, the receiver incorporates an automatic degaussing switch. This circuit removes any residual magnetism in the metal parts of the picture tube and ensures that each time the receiver is turned "ON" using the main switch, the purity of the colours displayed on the screen remains true and lifelike. If the unit is moved or made to face a different direction, the main switch must be off at least 30 minutes in order for the automatic degaussing circuit to operate properly.

INTRODUCTION

To connect the aerial

To prepare the remote control

INSTALLATION

Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The exact type and positioning of the aerial will depend upon your particular area.

Notes

M When using an outdoor aerial, disconnect the

leads of the indoor aerial, if connected, from the aerial terminal socket.

M It is recommended that the 75-ohm coaxial cable

be used to eliminate interference and noise which may occur due to radio wave conditions.

M The aerial cable should not be bundled with the

power cord and the like.

Using the ANT(attenuator) switch (See page 6) When visual interference occurs, set the ANT switch to ON using a small screwdriver.

Battery installation Tips for remote operation

Remove the battery cover.

Insert two size AA batteries matching the +/polarities of the battery to the +/- marks inside the battery compartment.

M When the remote control will not be used for a long

period of time or when the batteries are worn out, remove the batteries to prevent leakage.

M Do not throw the batteries into a fire. Dispose of

used batteries in the specified manner.

M Do not drop, dampen or disassemble the remote

control.

Effective range

S-VIDEO VIDEO (3)L - AUDIO - R

(3) VIDEO 3 input terminals

(S-VIDEO, VIDEO, AUDIO L, R)

Don’t attatch the ‘s-video cable’ & ‘composit video cable’ together. The picture becomes bad if the ‘s-video cable’ & ‘composit video cable’ are attatched together in VIDEO 3 input terminal.

IDENTIFICATION OF CONTROLS

The following describes the name of each part of the TV and remote control.

Main power switch

Infrared sensor POWER indicator

FRONT

SIDE

ON TIMER indicator

ON/OFF POWER TIMER

BACK

A/V OUTPUT TERMINAL

This always provides with TV signal output of the selected channel.

Video 1 input terminals or DVD input terminals

TOP

VIDEO 2(SCART JACK) input/output terminal (SCART does not supports S-VIDEO) A/V OUT OF SCART TERMINAL

will provide with TV signal output of the selected channel.

(2)

Under this button pressed once, TV goes to the state of STAND BY.

STANDBY/ON CH VOL MENU TV/AV

REMOTE CONTROL

TV/VIDEO/DVD

INPUT SELECT

TEXT

SOUND MUTE

PR DOWN(PAGE DOWN)

SLEEP TIME SELECT

CHANNEL LOCK

SELECTABLE SOUND

SYSTEM

STEREO/BILINGUAL

SELECT

VOLUME DOWN

POWER ON/OFF

RECALL

PR SELECT 0~9 (PAGE SELECTOR 0~9)

SELECTABLE PICTURE

WIDE/ZOOM SELECT

SOUND EFFECT PR UP(PAGE UP)

VOLUME UP

TURNING THE POWER ON/OFF

The following describes how to turn the TV on/off using the main switch and the remote control.

< To turn the power on/off >

1. Press the main power switch. The power indicator lit up red or amber. In displays the standby mode that the power indicator lit up red.

2. If no picture appears, press the “POWER ON/OFF, PR y/x, direct

select buttons(0~9)”. By pressing the number(one digit only) where the program you want to watch is preset, you can turn on the set program selection at the same time. When the TV is on, the power indicator will lit up amber.

M When the remote control is not at hand, you can turn on the set by

pressing the PR y/x and standby / on buttons on the TV set.

3. Adjust the sound volume with the C/B buttons in receiver or remote

control.

4. To switch to the standby mode, press the POWER ON/OFF button.

At the same time the power indicator is lit up red.

5. To turn off completely, press the main power switch. At the same time

the power indicator is turned off.

M If you don’t use the TV set for a long time, turn off completely by

using the main power switch on the TV set. You can decrease unnecessary power consumption.

M When you turn off completely by using the main power switch,

Sleep Time and Timer setting are cleared.

AUTO-POWER-OFF

If TV broadcast for a day is finished, the TV will automatically turn off after about 30 minutes. However, if the Off -time or Sleep time is operating, it takes precedence. This Auto-Power-Off feature does not operate in the VIDEO mode.

LAST-MODE-MEMORY

Settings of picture and sound conditions and preset programs are stored in the memory even after turning off the power, therefore, next time the power is turned on, the system will function in the last setting modes.

Turning the power on/off

TURNING THE POWER ON/OFF

MThe following describes how to turn the TV on/off using the main switch and the remote control.

VOLUME

AUTO SETUP SYSTEM

1. Press the MENU button to select to INSTALL.

2. Press the C/B buttons and then INSTALL SYSTEM.

3. Select AUTO SETUP with the PRy/x buttons and the C

buttons to start AUTO SETUP.

M NOTE

Press the C/B buttons and keep it pressing for 2seconds, the AUTO SETUP will be started.

4. Please wait until the EDIT menu appears.

M Warning

This television has been factory pretuned to channels 2, 7, 9, 10 and 28. If the auto search function is activated, these preset channels will be deleted and new channels tuned to 1, 2, 3 ETC..

TILT

When the TILT is selected, the screen will be tilted. If the picture is tilted, please adjust by using following steps.

1. Press the MENU button to select INSTALL.

2. Press the PRy/x buttons and then INSTALL SYSTEM.

3. Select TILT with PRy/x buttons and C/B buttons to change the TILT value.

TUNING THE TV CHANNELS

Auto setup system

EDIT

1. Press the menu button to select

INSTALL.

2. Press the C/B buttons and then

INSTALL SYSTEM.

3. Select EDIT with the PR y

buttons and press the C

buttons to start EDIT.

4. DELETE PROGRAM POSITION DATA.

Position the blue-line to the program to delete with the PR

x buttons and the DELETE

button.

5. CHANGING THE ORDER OF THE CHANNELS

Position the blue-line to a program to move with the PR y

buttons and the move button. Press the PR y/x buttons to position the blue-line to another program to exchange. By pressing the MOVE button again, selected two program will be exchanged.

6. ENTER A STATION NAME

Locate the cursor to below NAME with the C/B buttons. Using the PR y/x buttons, select the desired letter, number or blank. Press the B(right button) to select the next position.

7. SELECT THE PICTURE SYSTEM

Position the blue-line to the PICTURE to select with the C

buttons and change the picture (ex. PAL, SECAM, NTSC, ..) with the PR y/x buttons or you can select the PICTURE mode with the SYSTEM button on the remote controller.

8. SELECT THE SOUND SYSTEM

Position the blue-line to the SOUND to select with the C/B buttons and change the SOUND (ex. BG, DK, I, M, ..) with the PR y

buttons.

9. SKIPPING THE CHANNELS

You can select SKIP with the SKIP button in EDIT mode or locate in the cursor to below SKIP with the C/B buttons and then press the PR y/x buttons to skip the desired program. A program marked with skip “V” is skipped when changing channel using the program UP/DOWN(on normal operation). Press the NUMBER buttons 0~9 or the PR y/x buttons to select program number you want. The screen will change according to the selected program number.

TO SELECT THE PICTURE MODE

1. Press the SELECTABLE PICTURE

( ) button at remote control to select the desired picture quality.

Normal, Mild and Favourite can be selected cyclically.

2.Or press the MENU button to

select the PICTURE and then to be displayed on the right appearance. BY pressing the C/B buttons, the following three mode change cyclically.

3.You can select the BRIGHTNESS,

CONTRAST, COLOUR, and SHARPNESS with the PR y

buttons. Select the desired item with the PR y/x buttons and press with

the C/B buttons adjust the level.

CONVENIENT PICTURE CONTROL

You can select the picture quality instantly.

MODE Picture Quality NORMAL hard picture MILD soft picture FAVOURITE adjustable

Item

Pressing

BRIGHTNESS darker lighter CONTRAST weaker stronger COLOUR paler deeper SHARPNESS softer sharper

--:--

NORMAL

STEREO
