NEC NP-UM361 Users Manual

Projector

UM351W/UM301W/

UM361X/UM301X

User’s Manual

The UM301W and UM301X are not distributed in North America.

Model No.

NP-UM351W, NP-UM301W, NP-UM361X, NP-UM301X

ver. 3 11/15

Apple, Mac, Mac OS, OS X, MacBook, and iMac are trademarks of Apple Inc. registered in the U.S. and other countries.

iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

APP Store is a service mark of Apple Inc.

Microsoft, Windows, Windows Vista, Internet Explorer, .NET Framework and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO Brands in the U.S. and other countries.

Virtual Remote Tool uses WinI2C/DDC library, © Nicomsoft Ltd.

The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of the MHL, LLC.

Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

Wi-Fi®, Wi-Fi Alliance®, and Wi-Fi Protected Access (WPA, WPA2)® are registered trademarks of the Wi-Fi Alliance.

Blu-ray is a trademark of Blu-ray Disc Association

CRESTRON and ROOMVIEW are registered trademarks of Crestron Electronics, Inc.in the United States and other countries.

Ethernet is either a registered trademark or trademark of Fuji Xerox Co., Ltd.

Android and Google Play are trademarks of Google Inc.

Other product names and logos mentioned in this user’s manual may be the trademarks or registered trademarks of their respective holders.

GPL/LGPL Software Licenses

The product includes software licensed under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), and others.

For more information on each software, see “readme.pdf” inside the “about GPL&LGPL” folder on the supplied CDROM.

NOTES

(1)The contents of this user’s manual may not be reprinted in part or whole without permission.

(2)The contents of this user’s manual are subject to change without notice.

(3)Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us.

(4)Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

Important Information

Safety Cautions

Precautions

Please read this manual carefully before using your NEC projector and keep the manual handy for future reference.

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.

THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock.Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided.

The information should be read carefully to avoid problems.

WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

DO NOT USETHIS UNIT’S PLUGWITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALLTHE PRONGS CAN BE FULLY INSERTED.

DOC Compliance Notice (for Canada only)

This Class B digital apparatus complies with Canadian ICES-003.

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.

CAUTION

Avoid displaying stationary images for a prolonged period of time.

Doing so can result in these images being temporarily sustained on the surface of the LCD panel.

If this should happen, continue to use your projector. The static background from previous images will disappear.

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories or lamps.When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product.

After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact such as mercury contained in a lamp to the human health and the environment at the minimum level.

The mark on the electrical and electronic products only applies to the current European Union Member States.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.

According the EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service.

i

Important Information

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.WASH HANDS AFTER HANDLING.

RF Interference (for USA only)

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio / TV technician for help.

For UK only: In UK, a BS approved power cord with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

Do not place the projector in the following conditions:

-on an unstable cart, stand, or table.

-near water, baths, or damp rooms.

-in direct sunlight, near heaters, or heat radiating appliances.

-in a dusty, smoky or steamy environment.

-on a sheet of paper or cloth, rugs or carpets.

If you wish to have the projector installed on the ceiling:

-Do not attempt to install the projector yourself.

-The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

-In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.

-Please consult your dealer for more information.

Do not install and store the projector in the below circumstances. Failure to do so may cause of malfunction.

-In powerful magnetic fields

-In corrosive gas environment

-Outdoors

ii

Important Information

WARNING

Do not place any objects, which are easily affected by heat, in front of the projection window. Doing so could lead to the object melting from the heat that is emitted from the light output.

Do not use a spray containing flammable gas to get rid of accumulated dust and dirt on the filters and the projection window. It may cause of fire.

Place the projector in a horizontal position

The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.

10˚ -10˚

Fire and Shock Precautions

Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall.

Do not try to touch the exhaust vent as it can become heated while the projector is turned on and immediately after the projector is turned off. Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if the AC power supply is disconnected during normal projector operation.

Use caution when picking up the projector.

Prevent foreign objects such as paper clips and bits of paper from falling into your projector.Do not attempt to retrieve any objects that might fall into your projector.Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel.

Do not place any objects on top of the projector.

Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.

The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply fits this requirement before attempting to use your projector.

Do not look into the projection window while the projector is on. Serious damage to your eyes could result.

Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the projection window is extensive, therefore any kind of abnormal objects that can redirect light coming out of the projection window, can cause unpredictable outcome such as fire or injury to the eyes.

Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent.

Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the exhaust.

Do not splash water over the projector. Doing so can cause electrical shock or fire. If the projector gets wet, turn off the projector, unplug the power cord and have the projector serviced by a qualified service personnel.

iii

Important Information

Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or fire.

-Do not use any power cord other than the one supplied with the projector.

-Do not bend or tug the power cord excessively.

-Do not place the power cord under the projector, or any heavy object.

-Do not cover the power cord with other soft materials such as rugs.

-Do not heat the power cord.

-Do not handle the power plug with wet hands.

Turn off the projector, unplug the power cord and have the projector serviced by a qualified service personnel under the following conditions:

-When the power cord or plug is damaged or frayed.

-If liquid has been spilled into the projector, or if it has been exposed to rain or water.

-If the projector does not operate normally when you follow the instructions described in this user’s manual.

-If the projector has been dropped or the cabinet has been damaged.

-If the projector exhibits a distinct change in performance, indicating a need for service.

Disconnect the power cord and any other cables before carrying the projector.

Turn off the projector and unplug the power cord before cleaning the cabinet or replacing the lamp.

Turn off the projector and unplug the power cord if the projector is not to be used for an extended period of time.

When using a LAN cable (only models with the RJ-45 LAN port):

For safety, do not connect to the terminal for peripheral device wiring that might have excessive voltage.

CAUTION

Be sure to tighten the screws after attaching the cable cover.Failure to do so may cause the cable cover to come off and fall, resulting in injury or damage to the cable cover.

Do not put bundled cables in the cable cover. Doing so may damage the power cord, resulting in a fire.

Do not hold the cable cover while moving the projector or do not apply excessive force to the cable cover. Doing so may damage the cable cover, resulting in injury.

Do not use the feet for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector.

Do not send the projector in the soft case by parcel delivery service or cargo shipment.The projector inside the soft case could be damaged.

Select [HIGH] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select [SETUP] → [OPTIONS(1)] → [FAN MODE] → [HIGH].)

Do not turn off the AC power for 60 seconds after the lamp is turned on and while the POWER indicator is blinking blue. Doing so could cause premature lamp failure.

Remote Control Precautions

Handle the remote control carefully.

If the remote control gets wet, wipe it dry immediately.

Avoid excessive heat and humidity.

Do not short, heat, or take apart batteries.

Do not throw batteries into fire.

If you will not be using the remote control for a long time, remove the batteries.

Ensure that you have the batteries’ polarity (+/−) aligned correctly.

Do not use new and old batteries together, or use different types of batteries together.

Dispose of used batteries according to your local regulations.

Note for Canadian Environmental Protection Act, 1999

The lamp(s) in this product contains mercury. Please dispose according to your local authority law. FOR MORE INFORMATION, CONTACT:

NEC Display Solutions of America, Inc.

500 Park Boulevard, Suite 1100, Itasca, Illinois 60143-1248 TELEPHONE 800-836-0655

www.necdisplay.com

iv

Important Information

Note for US Residents

The lamp in this product contains mercury. Please dispose according to Local, State or Federal Laws.

Lamp Replacement

Use the specified lamp for safety and performance.

To replace the lamp, follow all instructions provided on page 125.

Be sure to replace the lamp and filter when the message [THE LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP AND FILTER.] appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury.

If this happens, contact your dealer for lamp replacement.

A Lamp Characteristic

The projector has a discharge lamp for special purposes as a light source.

A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the lamp on and off will increase the possibility of its lower brightness.

The actual lamp life may vary depending upon the individual lamp, the environmental conditions and usage.

CAUTION:

DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off and then disconnect the power cord. Allow at least one hour for the lamp to cool before handling.

When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out.

About High Altitude mode

Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1700 meters or higher.

Using the projector at altitudes approximately 5500 feet/1700 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the protector could shut down. If this happens, wait a couple minutes and turn on the projector.

Using the projector at altitudes less than approximately 5500 feet/1700 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO].

Using the projector at altitudes approximately 5500 feet/1700 meters or higher can shorten the life of optical components such as the lamp.

About Copyright of original projected pictures:

Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with the following functions may raise concern about the infringement of copyrights which are protected by copyright law.

[ASPECT RATIO], [KEYSTONE], Magnifying feature and other similar features.

Turkish RoHS information relevant for Turkish market

EEE Yonetmeliğine Uygundur.

This device is not intended for use in the direct field of view at visual display workplaces.To avoid incommoding reflections at visual display workplaces this device must not be placed in the direct field of view.

v

Important Information

Power management function

The projector has power management functions.To reduce power consumption, the power management functions (1 and 2) are factory preset as shown below. To control the projector from an external device via a LAN or serial cable connection, use the on-screen menu to change the settings for 1 and 2.

1.STANDBY MODE (Factory preset: NORMAL)

To control the projector from an external device, select [NETWORK STANDBY] for [STANDBY MODE].

NOTE:

When [NORMAL] is selected for [STANDBY MODE], the following connectors and functions will not work:

MONITOR OUT connector, AUDIO OUT connector, USB(PC) port, LAN functions, Mail Alert function, DDC/CI (Virtual Remote Tool). Please refer to page 96 about details.

2.AUTO POWER OFF (Factory preset: 1 hour)

To control the projector from an external device, select [OFF] for [AUTO POWER OFF].

NOTE:

When [1:00] is selected for [AUTO POWER OFF], you can enable the projector to automatically turn off in 60 minutes if there is no signal received by any input or if no operation is performed.

vi

Table of Contents

Important Information............................................................................................

i

1. Introduction...........................................................................................................

1

1 What’s in the Box?..........................................................................................................

1

Introduction to the Projector...........................................................................................

2

Features you’ll enjoy:................................................................................................

2

About this user’s manual..........................................................................................

3

Part Names of the Projector...........................................................................................

4

Top and Screen Side of Projector.............................................................................

4

Terminal Panel Side of Projector..............................................................................

4

Removing and Attaching the Cable Cover................................................................

5

Top Features.............................................................................................................

7

Terminal Panel Features...........................................................................................

8

Part Names of the Remote Control................................................................................

9

Battery Installation..................................................................................................

10

Remote Control Precautions..................................................................................

10

Operating Range for Wireless Remote Control......................................................

10

Software Included on CD-ROM....................................................................................

11

2. Projecting an Image (Basic Operation)...............................................

12

Flow of Projecting an Image.........................................................................................

12

Connecting Your Computer/Connecting the Power Cord.............................................

13

Turning on the Projector...............................................................................................

14

Note on Startup screen (Menu Language Select screen)......................................

15

Selecting a Source.......................................................................................................

16

Selecting the computer or video source.................................................................

16

Adjusting the Picture Size and Position........................................................................

17

Adjusting horizontal/vertical position......................................................................

18

Adjusting the focus (Focus ring).............................................................................

18

Adjusting the tilt (Tilt foot).......................................................................................

19

Adjusting the size [Digital Zoom]............................................................................

20

Correcting Keystone Distortion [KEYSTONE]..............................................................

21

Optimizing Computer Signal Automatically..................................................................

23

Adjusting the Image Using Auto Adjust..................................................................

23

Turning Up or Down Volume.........................................................................................

23

Turning off the Projector...............................................................................................

24

When Moving the Projector..........................................................................................

25

3. Convenient Features......................................................................................

26

1 Turning off the Image and Sound.................................................................................

26

2 Freezing a Picture........................................................................................................

26

Magnifying a Picture.....................................................................................................

26

Changing Eco Mode/Checking Energy-Saving Effect .................................................

27

Using Eco Mode [ECO MODE]...............................................................................

27

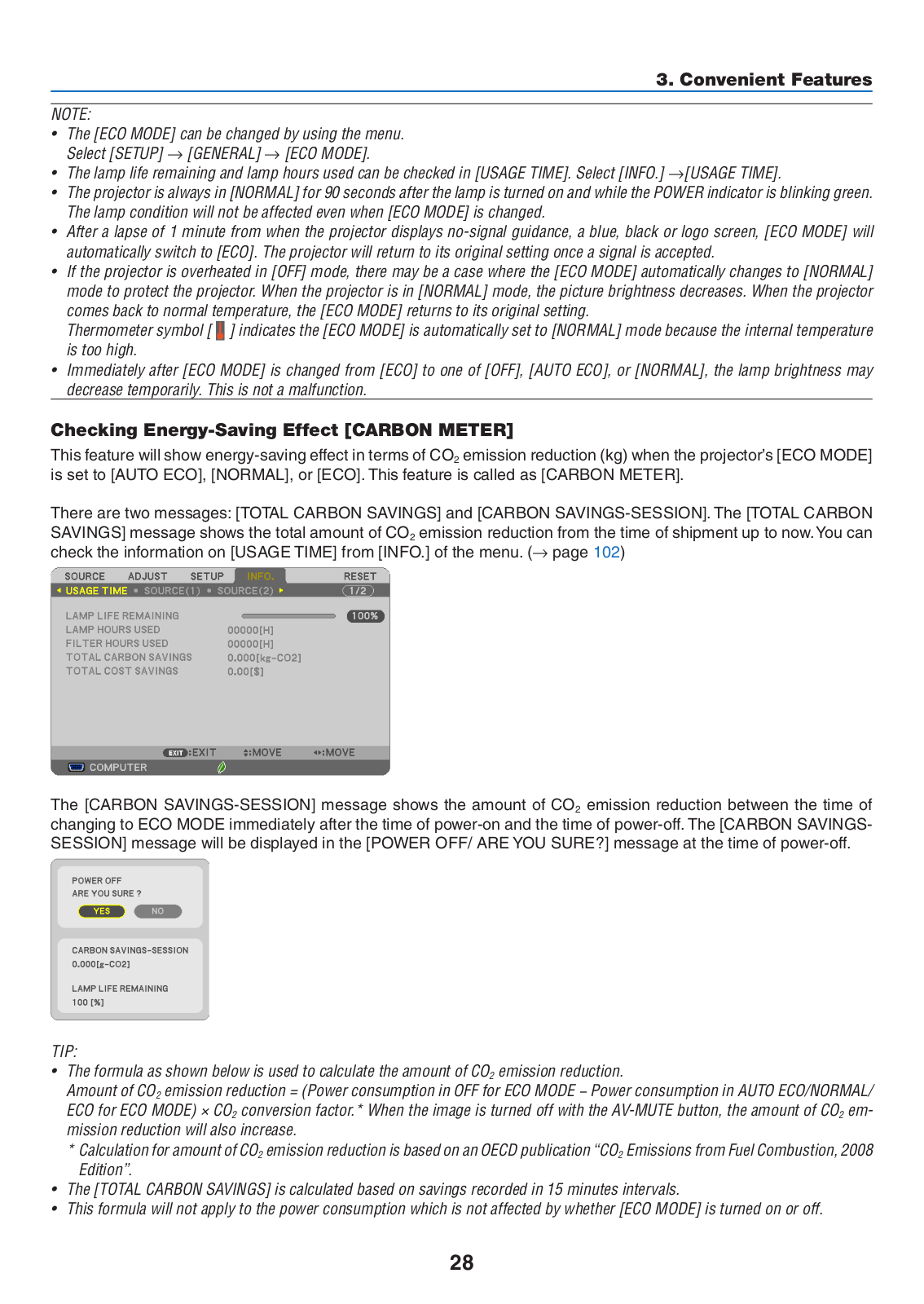

Checking Energy-Saving Effect [CARBON METER]..............................................

28

Using 4-Point Corner to Correct Keystone Distortion [CORNERSTONE]....................

29

Cornerstone............................................................................................................

29

vii

Table of Contents

Pincushion..............................................................................................................

31

Preventing the Unauthorized Use of the Projector [SECURITY].......................................

33

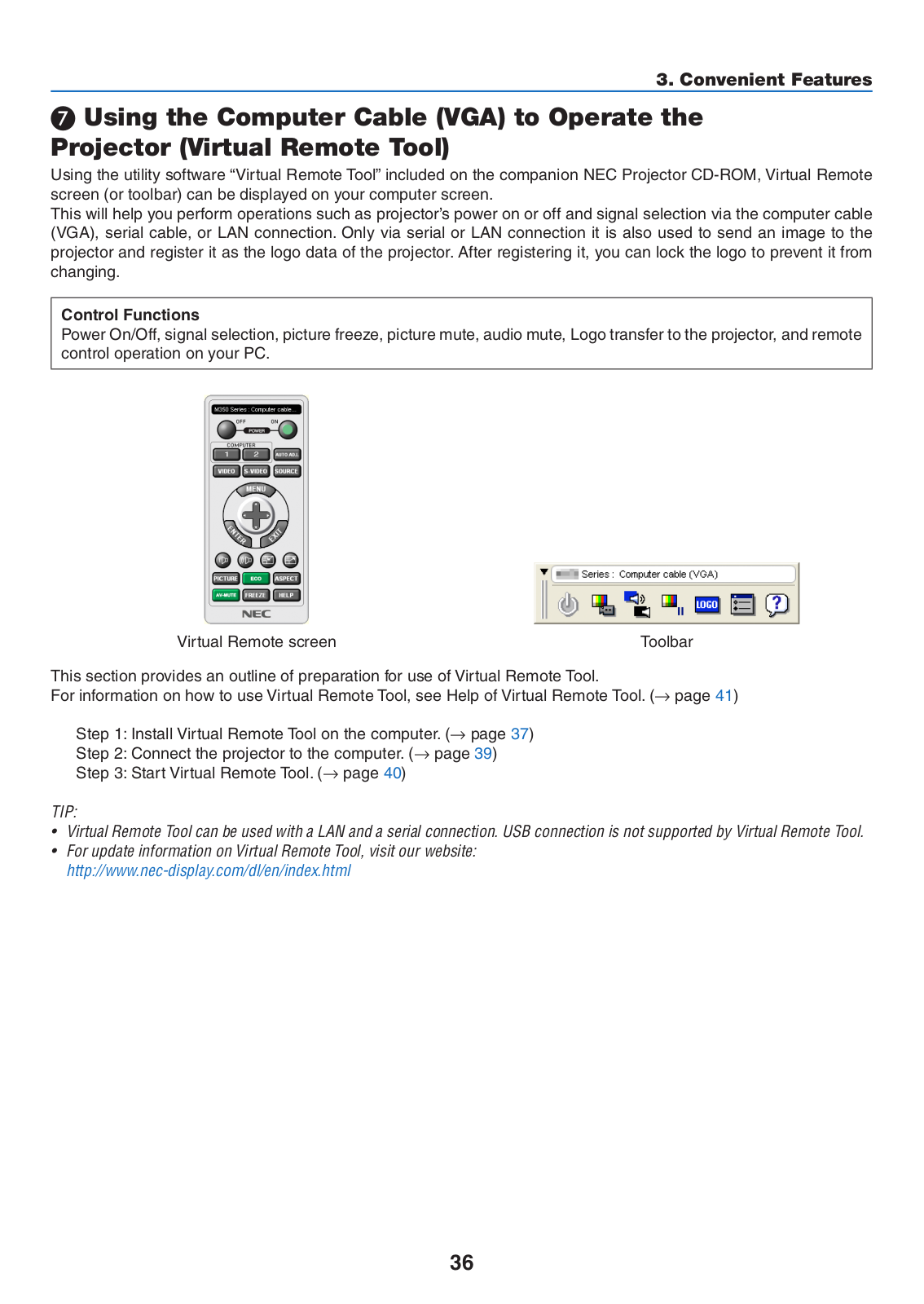

Using the Computer Cable (VGA) to Operate the Projector (Virtual Remote Tool)......

36

Operating Your Computer’s Mouse Functions from the Projector’s Remote Control



via the USB Cable (Remote Mouse Function)...........................................................

42

Projecting Your Computer’s Screen Image from the Projector via the USB Cable



(USB Display).........................................................................................................

43

Controlling the Projector by Using an HTTP Browser..................................................

45

Controlling the Projector over a LAN (PC Control Utility Pro 4/Pro 5).............................

52

Projecting Your Computer’s Screen Image from the Projector over a LAN (Image



Express Utility Lite).................................................................................................

56

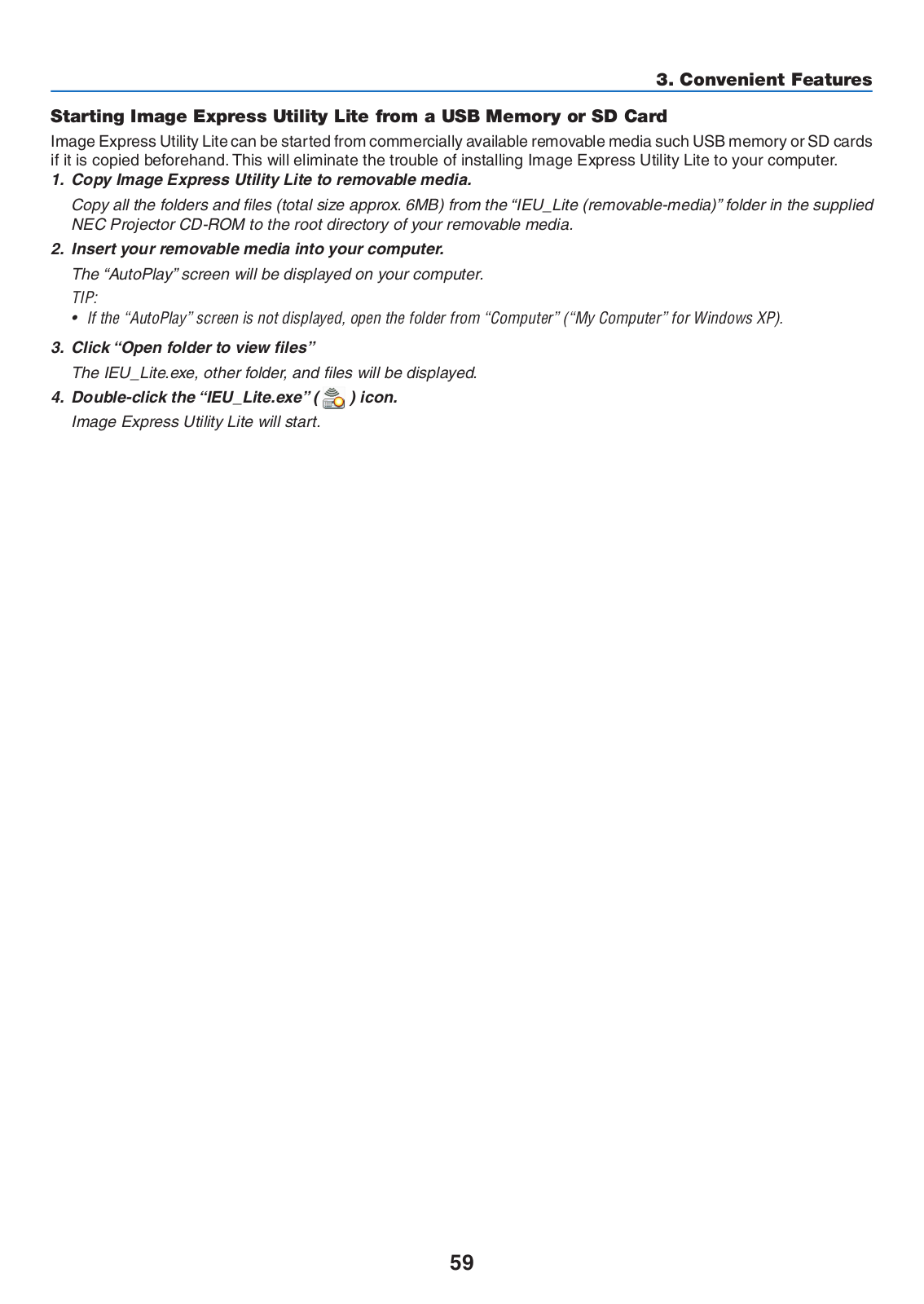

Starting Image Express Utility Lite from a USB Memory or SD Card.....................

59

Projecting an Image from an Angle (Geometric Correction Tool in Image Express



Utility Lite)...............................................................................................................

61

What you can do with GCT.....................................................................................

61

Projecting an Image from an Angle (GCT).............................................................

61

Connecting Your Microphone.......................................................................................

63

Projecting photos or documents saved on the smartphone over a wireless LAN



(Wireless Image Utility)...........................................................................................

64

Simultaneously project images received from multiple terminal units..........................

65

4. Using the Viewer..............................................................................................

66

What you can do with the Viewer.................................................................................

66

Projecting images stored in a USB memory device.....................................................

68

5. Using On-Screen Menu................................................................................

74

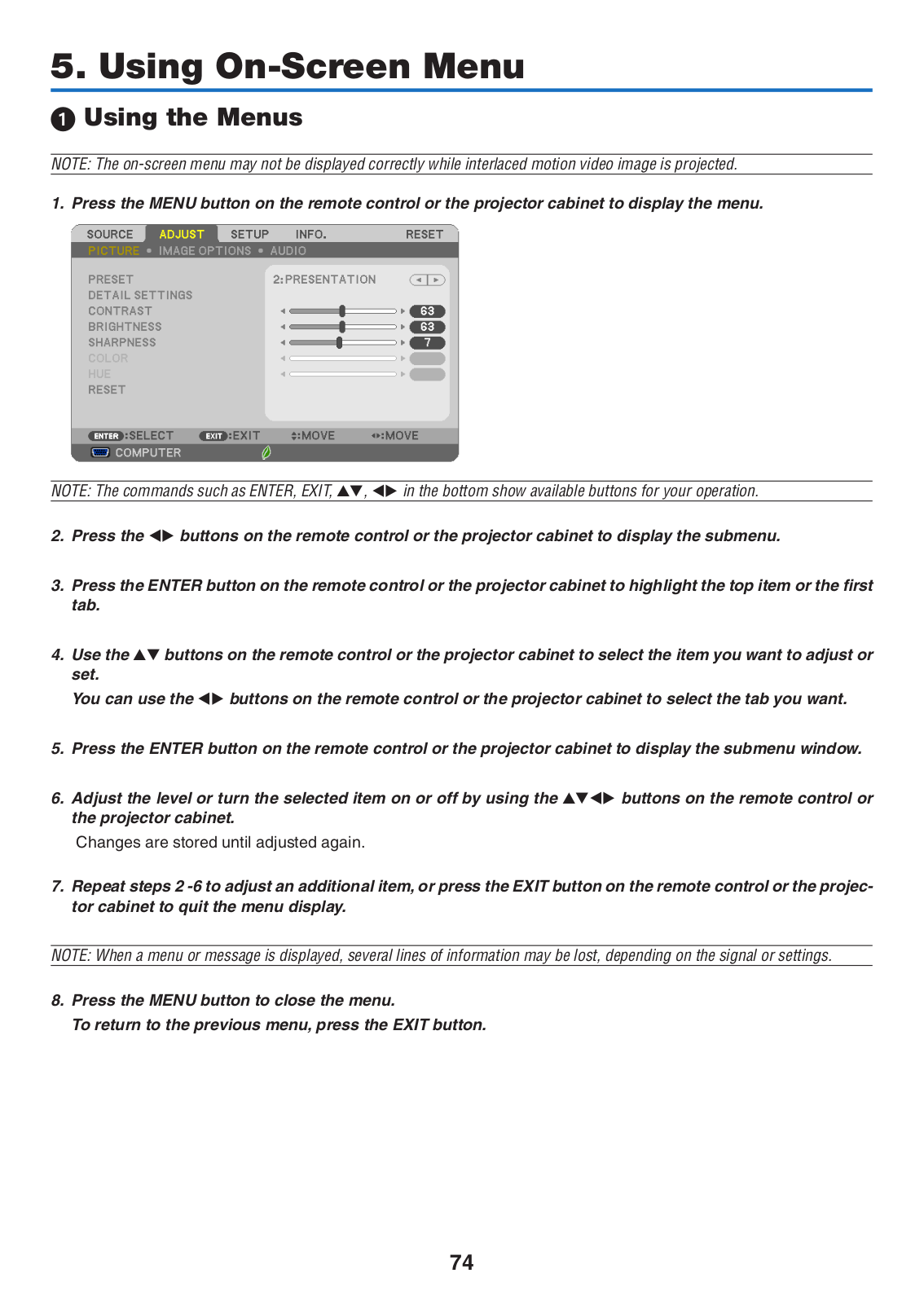

Using the Menus..........................................................................................................

74

2 Menu Elements............................................................................................................

75

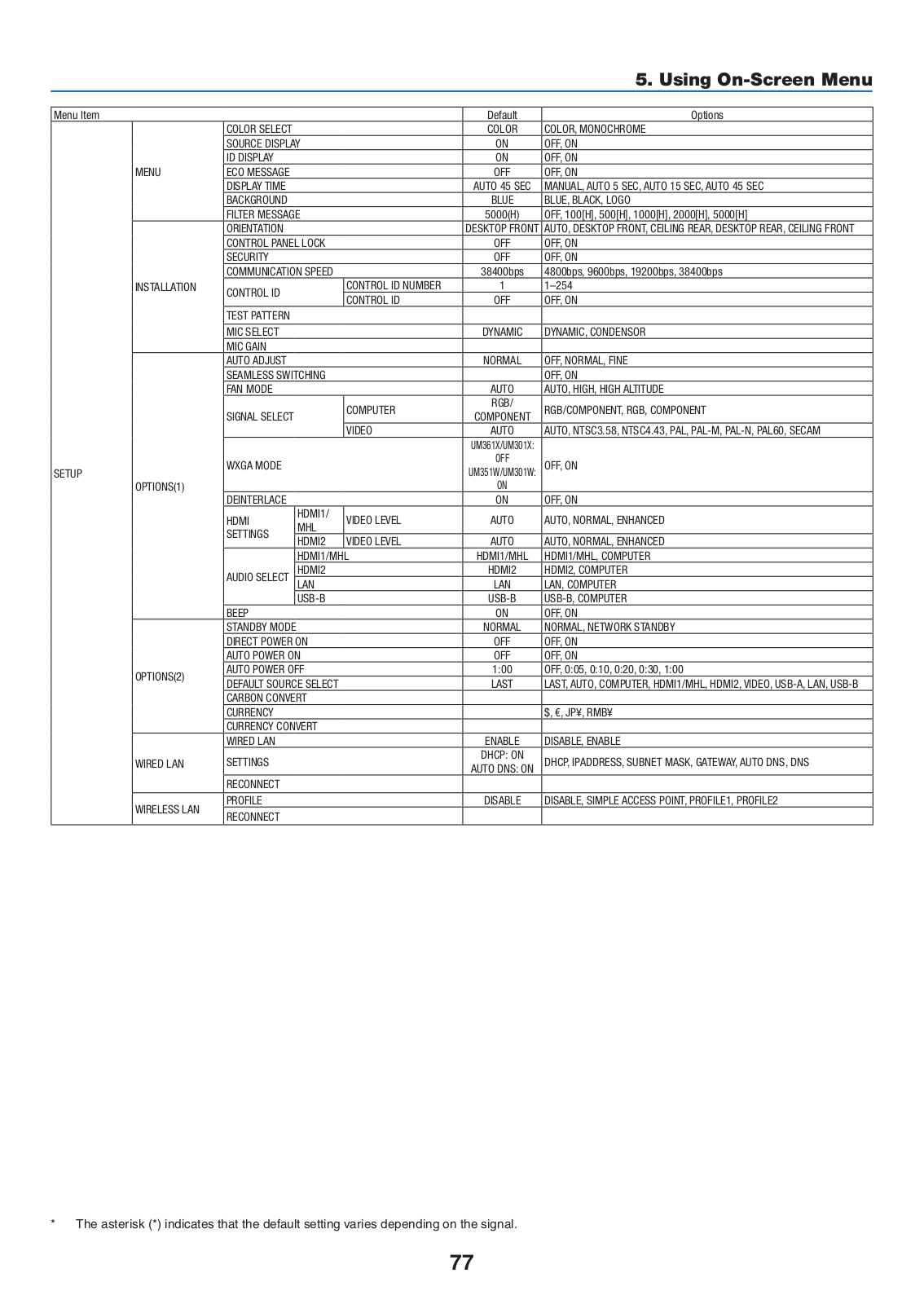

3 List of Menu Items........................................................................................................

76

4 Menu Descriptions & Functions [SOURCE].................................................................

79

COMPUTER...........................................................................................................

79

HDMI1/MHL and HDMI2.........................................................................................

79

VIDEO....................................................................................................................

79

USB-A.....................................................................................................................

79

LAN.........................................................................................................................

79

USB-B.....................................................................................................................

79

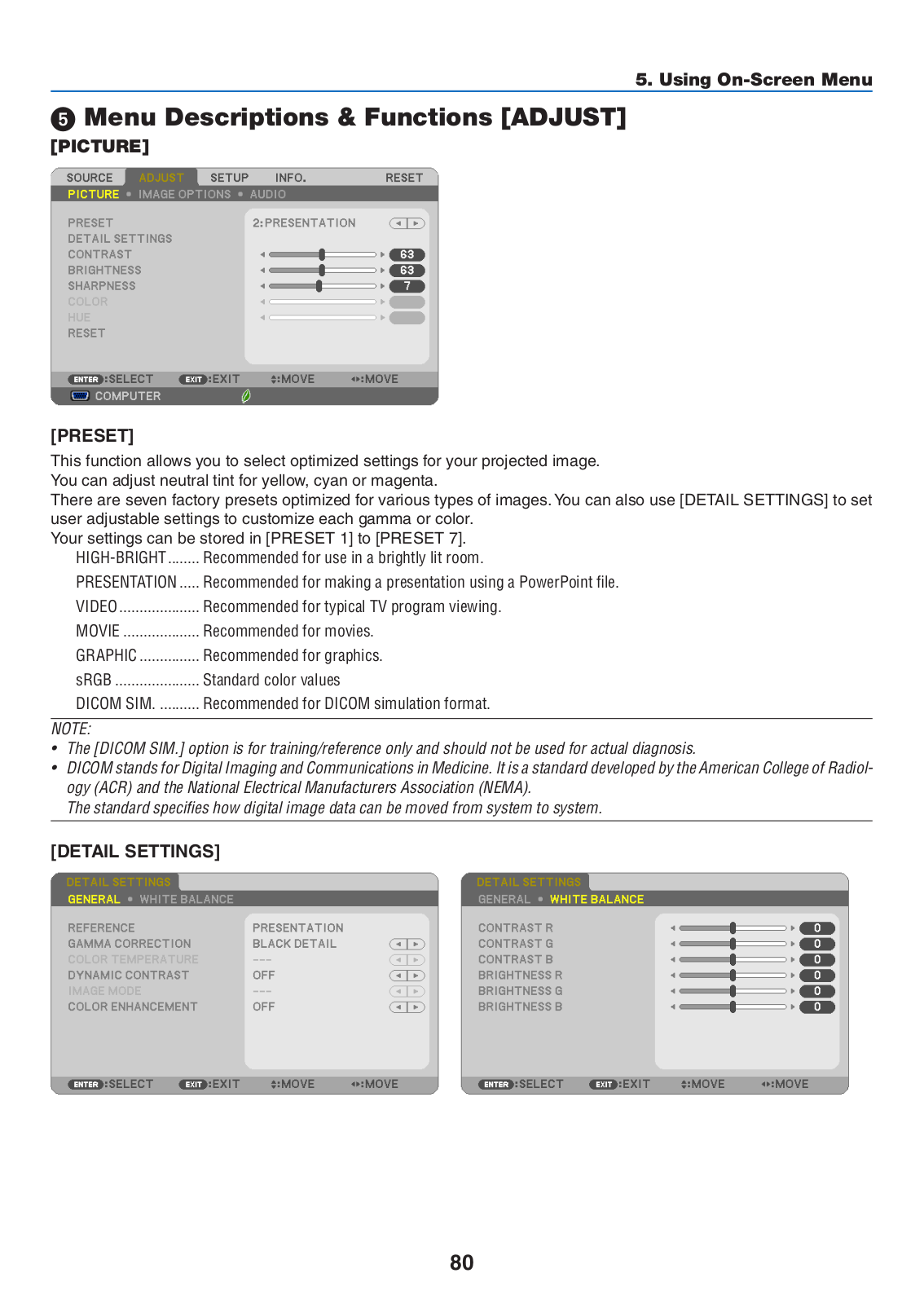

5 Menu Descriptions & Functions [ADJUST]..................................................................

80

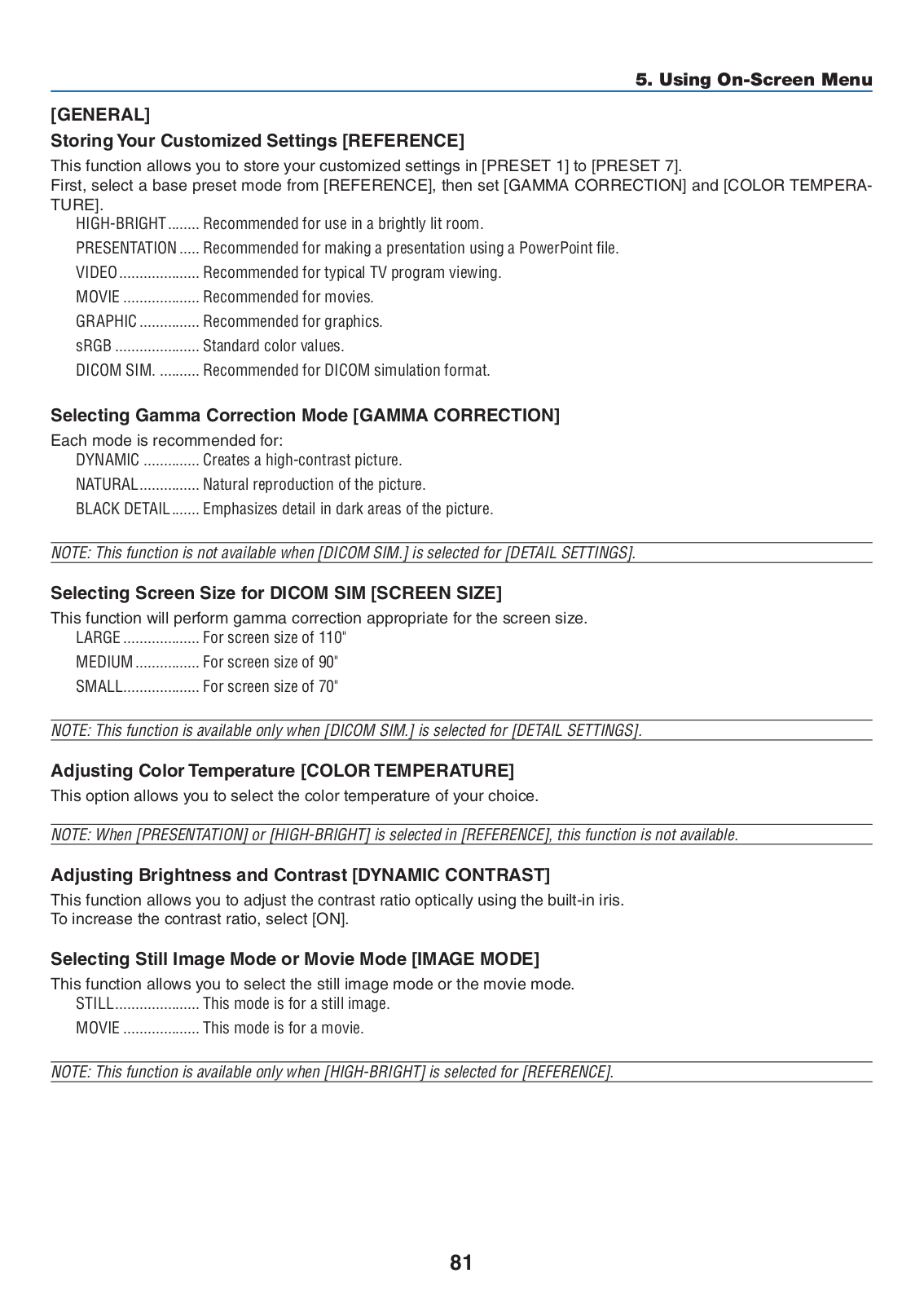

[PICTURE]..............................................................................................................

80

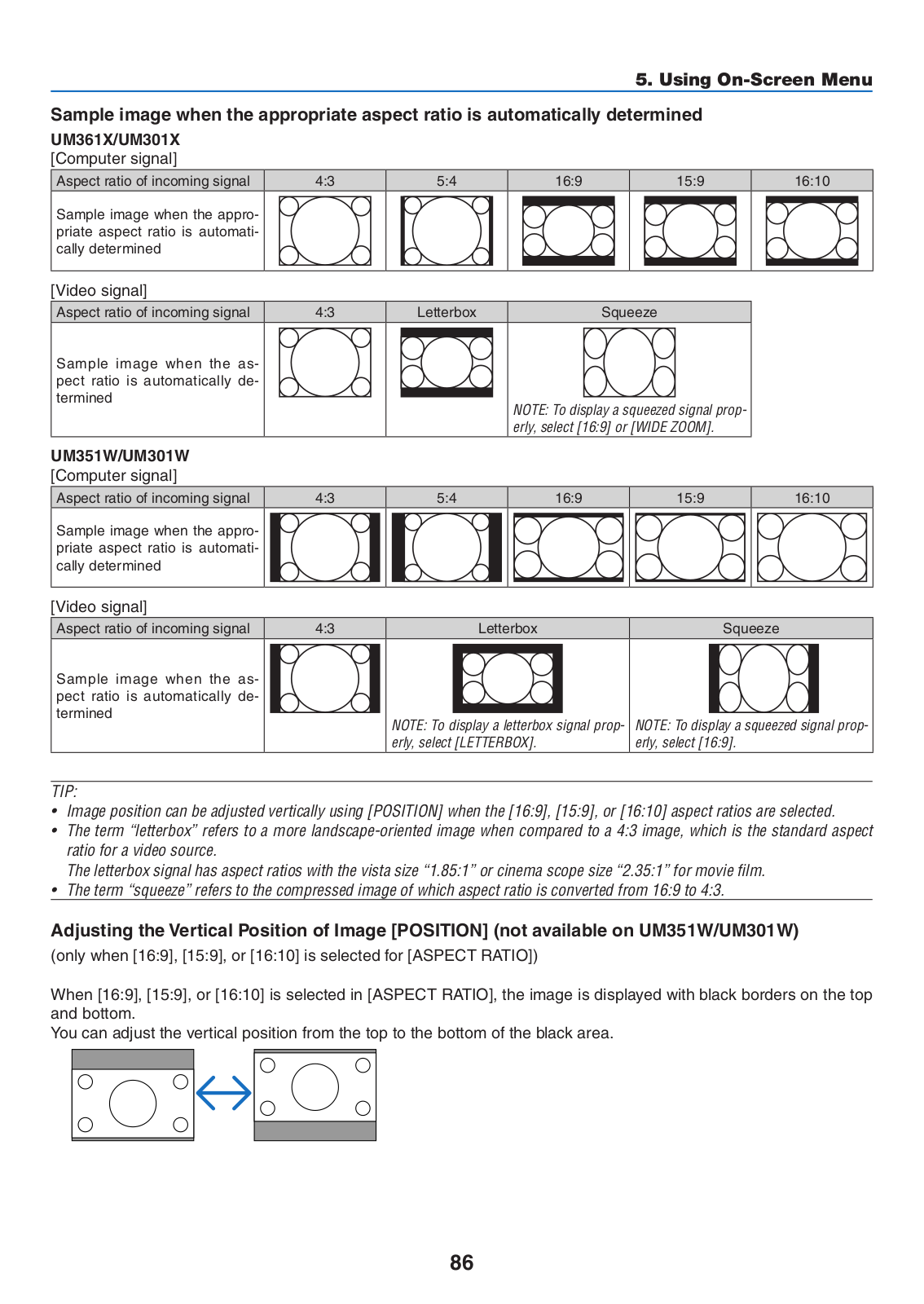

[IMAGE OPTIONS].................................................................................................

83

[AUDIO]..................................................................................................................

87

6 Menu Descriptions & Functions [SETUP]....................................................................

88

[GENERAL]............................................................................................................

88

[MENU]...................................................................................................................

90

[INSTALLATION].....................................................................................................

92

[OPTIONS(1)].........................................................................................................

94

[OPTIONS(2)].........................................................................................................

96

Setting up the Projector for a Wired LAN Connection [WIRED LAN].....................

99

viii

Table of Contents

Setting up the Projector for a Wireless LAN Connection (with the optional USB



Wireless LAN Unit equipped) [WIRLESS LAN]....................................................

100

7 Menu Descriptions & Functions [INFO.].....................................................................

102

[USAGE TIME]......................................................................................................

102

[SOURCE(1)]........................................................................................................

103

[SOURCE(2)]........................................................................................................

103

[WIRED LAN]........................................................................................................

103

[WIRELESS LAN].................................................................................................

104

[VERSION]...........................................................................................................

104

[OTHERS].............................................................................................................

104

8 Menu Descriptions & Functions [RESET]..................................................................

105

Returning to Factory Default [RESET]..................................................................

105

6. Installation and Connections..................................................................

106

Setting Up the Screen and the Projector....................................................................

106

Making Connections...................................................................................................

109

Connecting Your Computer...................................................................................

109

Connecting an External Monitor...........................................................................

111

Connecting Your DVD Player or Other AV Equipment..........................................

112

Connecting Component Input...............................................................................

113

Connecting HDMI Input........................................................................................

114

Connecting a smart phone and a tablet terminal..................................................

115

Connecting your document camera......................................................................

116

Table projection....................................................................................................

116

Connecting to a Wired LAN..................................................................................

117

Connecting to a Wireless LAN (Optional: NP05LM series)..................................

118

7. Maintenance.....................................................................................................

121

Cleaning the Filters....................................................................................................

121

2 Cleaning the Projection Window................................................................................

124

3 Cleaning the Cabinet..................................................................................................

124

4 Replacing the Lamp and the Filters...........................................................................

125

8. Appendix.............................................................................................................

131

Troubleshooting..........................................................................................................

131

Indicator Messages..............................................................................................

131

Common Problems & Solutions............................................................................

132

If there is no picture, or the picture is not displayed correctly...............................

133

Specifications.............................................................................................................

134

Cabinet Dimensions...................................................................................................

136

Pin Assignments of D-Sub COMPUTER Input Terminal............................................

137

Compatible Input Signal List......................................................................................

138

PC Control Codes and Cable Connection..................................................................

139

Troubleshooting Check List........................................................................................

140

TCO Certification........................................................................................................

142

REGISTER YOUR PROJECTOR! (for residents in the United States, Canada, and



Mexico).................................................................................................................

143

ix

1. Introduction

1 What’s in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector.

Projector

Cable cover (24FU2001)

(attached to the projector at the time of shipment page 5)

Remote control

Batteries (AAA × 2)

(7N901052)



Power cord

(US: 7N080240/7N080243)

(EU: 7N080027/7N080029)

Important Infomation (For North

America: 7N8N5233) (For Other countries than North America: 7N8N5233 and 7N8N5243)

Quick Setup Guide (7N8N5252)/

(7N8N5262)

Computer cable (VGA) (7N520089)

NEC Projector CD-ROM

User’s manual (PDF) and the utility software

(7N952073)

For North America only

Limited warranty

For customers in Europe:

You will find our current valid Guarantee Policy on our Web Site: www.nec-display-solutions.com

Unless otherwise described in the user’s manual, the drawings for the projector cabinet show examples of the

UM351W.

1

1. Introduction

Introduction to the Projector

This section introduces you to your new projector and describes the features and controls.

Features you’ll enjoy:

Ultra short throw distances

Ultra short focal lenses provide for a larger image using a shorter throw distance when compared to a typical projector lens.

UM361X/UM301X: Max 116.6" (UM351W/UM301W: Max 110"), throw distance: 51 cm/20 inches (The throw distance refers to the distance between the screen and the screen side of the projector)

Quick start (6 seconds*1), Quick Power Off, Direct Power Off

6 seconds*1 after turning on the power, the projector is ready to display PC or video images.

The projector can be put away immediately after the projector is powered down. No cool down period is required after the projector is turned off from the remote control or cabinet control panel.

The projector has a feature called “Direct Power Off”.This feature allows the projector to be turned off (even when projecting an image) by using the Main Power Switch or disconnecting the AC power supply.

To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker.

*1 The quick start time is only when [STANDBY MODE] is set to [NETWORK STANDBY] in the on-screen message.

0.22W(100-130 V AC)/0.39W (200-240 V AC) in standby condition with energy saving technology

Selecting [NORMAL] for [STANDBY MODE] from the menu can put the projector in power-saving mode that consumes only 0.22W(100-130 V AC)/0.39W (200-240 V AC).

Carbon Meter

This feature will show energy-saving effect in terms of CO2 emission reduction (kg) when the projector’s [ECO MODE] is set to [AUTO ECO], [NORMAL], or [ECO].

The amount of CO2 emission reduction will be displayed in the confirmation message at the time of power-off and in the INFO of the on-screen menu.

Lamp life up to 8000 hours*2

Using in Eco Mode (ECO) allows you to prolong the projector’s lamp life up to 8000 hours (up to 4000 hours in ECO MODE OFF).

*2 UM351W/UM361X: 6000 hours (up to 3800 hours in ECO MODE OFF)

Two HDMI inputs supports digital signals

The two HDMI inputs provide HDCP compatible digital signals.The HDMI input also supports audio signal.

Project the image on a smart phone and a tablet

Since the projector supports MHL (Mobile High-definition Link), it can project videos and photos on a smart phone and a tablet terminal by connection, and output their sound from the built-in speaker.

20 W built-in speaker for an integrated audio solution

Powerful 20 watt monaural speaker provides volume need for large rooms.

MIC Input provided

A MIC input jack for a commercially available dynamic microphone is useful for your presentation in a conference room or lecture in a classroom.

The optional interactive white board kit (NP04Wi, sold separately) and the projector can be used to convert your whiteboard into a virtual touchscreen.

By the optional stylus pen, it's able to directly write-into the projected image that realizes more effective presentation and lecture.

2

1. Introduction

Correspond to various installation

Besides installation on the wall, it can correspond various installation as projecting image up onto the ceiling , onto the table, and onto the floor, etc.

The supplied remote control allows you to assign a CONTROL ID to the projector

Multiple projectors can be operated separately and independently with the same single remote control by assigning an ID number to each projector.

USB Display

Using a commercially available USB cable (compatible with USB 2.0 specifications) to connect the computer with the projector allows you to send your computer screen image to the projector without the need of a traditional computer cable (VGA).

Integrated RJ-45 terminal for wired networking capability along with wireless networking capabilities

An RJ-45 terminal is standard. An optional USB Wireless LAN Unit is required for wireless LAN connection.

Software programs (User Supportware) contained in the supplied CD-ROM

The supplied NEC Projector includes three programs:Virtual RemoteTool, Image Express Utility Lite (forWindows/ Mac OS), and PC Control Utility Pro 4 (for Windows)/5 (for Mac OS).

Image Express Utility Lite (for Windows) can be started from a commercially available USB memory or SD card without the need of installing on your computer.

AUTO POWER ON and AUTO POWER OFF features

The DIRECT POWER ON, AUTO POWER ON, AUTO POWER OFF, and OFF TIMER features eliminate the need to always use the POWER button on the remote control or projector cabinet.

Preventing unauthorized use of the projector

Enhanced smart security settings for keyword protection, cabinet control panel lock, security slot, and security chain opening to help prevent unauthorized access, adjustments and theft deterrence.

High resolution up to WUXGA*3

High resolution display - up to WUXGA compatible, XGA (UM361X/UM301X)/WXGA (UM351W/UM301W) native resolution.

*3 When WXGA MODE is set to ON.

CRESTRON ROOMVIEW compatibility

The projector supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed and controlled from a computer or controller.

About this user’s manual

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user’s manual.This may save you time later on. At the beginning of each section of the manual you’ll find an overview. If the section doesn’t apply, you can skip it.

3

1. Introduction

Part Names of the Projector

Top and Screen Side of Projector

Projection Window

Monaural Speaker (20 W)

Focus Ring

(page 18)

Filter Cover/Intake Vent/Filter

(page 121, 128)

Spacer (Left/Right) To fine-adjust the height of the rear foot, remove the spacer and rotate the rear foot to the desired height.

(page 19)

Intake Vent/Filter

(page 121, 128)

Security chain opening

Attach an anti-theft device.

The security chain opening accepts security wires or chains up to 0.18 inch/4.6 mm in diameter.

Built-in Security Slot ( )*

Tilt Foot

(page 19)

* This security slot supports the MicroSaver® Security System.

Terminal Panel Side of Projector

Lamp Cover (page 126)

Exhaust Vent

AC Input

Connect the supplied power cord’s three-pin plug here, and plug the other end into an active wall outlet. (page 13)

Controls (page 7)

Remote Sensor (page 10)

Terminal Panel (page 8)

Screw Hole for Cable Cover (Left/

Right)

(page 6)

4

1. Introduction

Removing and Attaching the Cable Cover

After finishing connections, attach the supplied cable cover to properly hide the cables.

CAUTION:

Be sure to tighten the screws after attaching the cable cover. Failure to do so may cause the cable cover to come off and fall, resulting in injury or damage to the cable cover.

Do not put bundled cables in the cable cover. Doing so may damage the power cord, resulting in a fire.

Do not hold the cable cover while moving the projector or do not apply excessive force to the cable cover. Doing so may damage the cable cover, resulting in injury.

Removing the cable cover

Tool needed:

• Phillips screwdriver (plus-head) about 9 cm/4 inches in length

9 cm/4 inches

1.Loosen the cable cover screws until the Phillips screwdriver goes into a freewheeling condition.

• These screws remain to stay.

2. Remove the cable cover.

Push up the cable cover slightly and rotate it to release.

Pull the cable cover while pushing and holding the arrow part

If you find it to hard to release the cable cover, try holding it slightly up.

2

1

5

1. Introduction

Attaching the cable cover

1.Align four tabs of the cable cover with grooves of the projector and push the cable cover until you click it.

NOTE:

• Be careful not to get cables caught in between the cable cover and the projector.

2.Tighten the cable cover screws.

• Be sure to tighten the screws.

6

1. Introduction

Top Features

5

7

9

10

6

3

1, 2

4

8

11

1. (POWER) Button (→ page 14, 24)

2.POWER Indicator (→ page 13, 14, 24, 131)

3.STATUS Indicator (→ page 131)

4.LAMP Indicator (→ page 125, 131)

5.ECO Button (→ page 27)

6.SOURCE Button (→ page 16)

7.AUTO ADJ. Button (→ page 23)

8.MENU Button (→ page 74)

9./ Volume Buttons / Keystone Buttons

(→ page 15, 21, 23, 74)

10.ENTER Button (→ page 74)

11.EXIT Button (→ page 74)

7

1. Introduction

Terminal Panel Features

12 13

5

11

4

3









































































































1

2

14 7

6

8

9

10

1.COMPUTER IN/ Component Input Terminal (Mini D-Sub 15 Pin) (→ page 109, 113, 116)

2.COMPUTER AUDIO IN Mini Jack (Stereo Mini)

(→ page 109, 110, 113)

3.HDMI 1/MHL IN Terminal (Type A)

(→ page 109, 110, 114, 115)

4.HDMI 2 IN Terminal (Type A)

(→ page 109, 110, 114)

5.USB (PC) Port (Type B)

(→ page 42, 43, 109)

6.MONITOR OUT (COMPUTER)Terminal (Mini D-Sub 15 Pin) (→ page 111)

7.AUDIO OUT Mini Jack (Stereo Mini) (→ page

111)

8.VIDEO IN Terminal (RCA) (→ page 112, 116)

9.VIDEO/S-VIDEO AUDIO IN L/MONO, R (RCA)

(→ page 112)

10.MIC Input Jack (Monaural Mini)

(→ page 63)

11.LAN Port (RJ-45) (→ page 117)

12.USB (Wireless LAN) Port

(→ page 118)

13.USB Port (Type A) (→ page 68)

14.PC CONTROL [PC CONTROL] Port (D-Sub 9 Pin)

(→ page 139)

Use this port to connect a PC or control system. This enables you to control the projector using serial communication protocol. If you are writing your own program, typical PC control codes are on page 139.

8

1. Introduction

Part Names of the Remote Control



1

3







2

4



5

6



8

7



9

10



13



11



15

12



16

14



19

20



18

17



22

21



23

26



28







24

25



29



27



30







33

31





32

1.

Infrared Transmitter





(→ page 10)



2.POWER ON Button

(→ page 14)

3.POWER STANDBY Button

(→ page 24)

4.SOURCE Button

(→ page 16)

5.COMPUTER 1 Button

(→ page 16)

6.COMPUTER 2 Button

(This button does not work in this series of projectors)

7.AUTO ADJ. Button

(→ page 23)

8.HDMI 1/MHL Button

(→ page 16)

9.HDMI 2 Button

(→ page 16)

10.DisplayPort Button

(This button does not work in this series of projectors)

11.VIDEO Button (→ page 16)

12.USB-A Button (→ page 16, 68, 70)

13.USB-B Button (→ page 16, 109)

14.LAN Button (→ page 16)

15.ID SET Button

(→ page 93)

16.Numeric Keypad Button/CLEAR Button

(→ page 93)

17.FREEZE Button

(→ page 26)

18.AV-MUTE Button

(→ page 26)

19.MENU Button

(→ page 74)

20.EXIT Button (→ page 74)

21.Button (→ page 74)

22.ENTER Button (→ page 74)

23.D-ZOOM (+)(–) Button

(→ page 26, 27)

24.MOUSE L-CLICK Button*

(→ page 42)

25.MOUSE R-CLICK Button*

(→ page 42)

26.PAGE / Button

(→ page 42)

27.ECO Button (→ page 27)

28.KEYSTONE Button

(→ page 29)

29.PICTURE Button

(→ page 80, 82)

30.VOL. (+)(–) Button

(→ page 23)

31.ASPECT Button

(→ page 85)

32.FOCUS/ZOOM Button

The ZOOM button will display the DIGITAL ZOOM bar. (→ page 20, 88) The FOCUS button does not work on this series of projectors.

33.HELP Button

(→ page 102)

*The MOUSE L-CLICK and MOUSE R-CLICK buttons work only when a USB cable is connected with your computer.

9

1. Introduction

Battery Installation

1 Press firmly and slide the battery cover off.

Remote Control Precautions

2 Install new batteries (AAA).Ensure that you have the batteries’polarity (+/−) aligned correctly.

3Slip the cover back over the batteries until it snaps into place. Do not mix different types of batteries or new and old batteries.

Handle the remote control carefully.

If the remote control gets wet, wipe it dry immediately.

Avoid excessive heat and humidity.

Do not short, heat, or take apart batteries.

Do not throw batteries into fire.

If you will not be using the remote control for a long time, remove the batteries.

Ensure that you have the batteries’ polarity (+/−) aligned correctly.

Do not use new and old batteries together, or use different types of batteries together.

Dispose of used batteries according to your local regulations.

Operating Range for Wireless Remote Control









30°









Remote control









30°

Remote sensor on projector cabinet

















19.7 feet/6 m





feet/7

m

Remote control









22





















30°









30°

Remote sensor on projector cabinet







60°









The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of the remote sensor on the projector cabinet.

The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls on the sensor.Weak batteries will also prevent the remote control from properly operating the projector.

10

1. Introduction

Software Included on CD-ROM

Names and Features of Bundled Software Programs

Name of software program

Features

Virtual Remote Tool

This is a software program used to control the power ON/OFF and source selec-

(Windows only)

tion of the projector from your computer by using the supplied computer cable



(VGA) and others. (→ page 36)





Name of software program

Features







Image Express Utility Lite

This is a software program used to project your computer’s screen over the

Image Express Utility Lite for



USB cable or the wired/wireless network. The computer cable (VGA) is not

Mac OS



required. (→ page 56, 60)



This software program can be used to control the power ON/OFF and source





selection of the projector from your computer.



• The Geometric CorrectionTool (GCT) function allows you to correct distortion





of images projected on a curved wall. (→ page 61)



*

“USB Display” and “GCT” functions are not supported by Mac.









Name of software program

Features





PC Control Utility Pro 4

This is a software program used to operate the projector from the computer when

PC Control Utility Pro 5 (for Mac

the computer and the projector are connected with LAN (wired or wireless) or

OS)

a serial cable. (→ page 52)







NOTE:

• Image Express Utility Lite does not support “Meeting Mode” in Image Express Utility 2.0 supplied with our other models.

Download Service and Operating Environment

Please visit our website about operating environment and download service for each software: Visit URL: http://www.nec-display.com/dl/en/index.html

Download - Projector → Software & Driver

11

2. Projecting an Image (Basic Operation)

This section describes how to turn on the projector and to project a picture onto the screen.

Flow of Projecting an Image

Step 1

• Connecting your computer / Connecting the power cord (page 13)

Step 2

• Turning on the projector (page 14)

Step 3

• Selecting a source (page 16)

Step 4

Adjusting the picture size and position (page 17)

Correcting keystone distortion [KEYSTONE] (page 21)

Step 5

Adjusting a picture and sound

-Optimizing a computer signal automatically (page 23)

-Turning up or down volume (page 23)

Step 6

• Making a presentation

Step 7

• Turning off the projector (page 24)

Step 8

• When Moving the Projector (page 25)

12

2. Projecting an Image (Basic Operation)

Connecting Your Computer/Connecting the Power Cord

1.Connect your computer to the projector.

This section will show you a basic connection to a computer. For information about other connections, see “6.

Installation and Connections” on page 109.

Connect the computer cable (VGA) between the projector’s COMPUTER IN terminal and the computer’s port (mini

D-Sub 15 Pin). Turn two thumb screws of both terminals to fix the computer cable (VGA).

2.Connect the supplied power cord to the projector.

First connect the supplied power cord’s three-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cord in the wall outlet.

The projector’s power indicator will flash for a few seconds and then will light red* (standby mode).

* This will apply for both indicators when [NORMAL] is selected for [STANDBY MODE]. See the Power Indicator section.(page 131)

Make sure that the prongs are fully inserted into both the AC IN and the wall outlet.

To wall outlet

CAUTION:

Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if the AC power supply is disconnected during normal projector operation.

Be careful to handle the projector.

13

2. Projecting an Image (Basic Operation)

Turning on the Projector

Press the (POWER) button on the projector cabinet or the POWER ON button on the remote control.

The POWER indicator will blink and the projector will become ready to use.

TIP:

When the message “Projector is locked! Enter your password.” is displayed, it means that the [SECURITY] feature is turned on. (page 33)

After you turn on your projector, ensure that the computer or video source is turned on.

NOTE: When no input signal is present, the no-signal guidance is displayed (factory menu setting).

Standby

Blinking

Power On

Steady red light

Blinking blue light

Steady blue light

(→ page 131)

14

2. Projecting an Image (Basic Operation)

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup menu.This menu gives you the opportunity to select one of the 30 menu languages.

To select a menu language, follow these steps:

1.Use the , H, F or E button to select one of the 30 languages from the menu.

2. Press the ENTER button to execute the selection.

After this has been done, you can proceed to the menu operation.

If you want, you can select the menu language later. (→ [LANGUAGE] on page 76 and 90)

NOTE:

If the projector is shut off by DIRECT POWER OFF (pulling out the power cord) during projection, wait for 1 second at least for reconnect the power cord for turning on the projector.

Failing to do so could result in no power to the projector. (There will be no stand-by LED) Should this happen, unplug the power cord and plug it in again. Turn on the main power.

If one of the following things happens, the projector will not turn on.

-If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector’s internal components to cool down.

-When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.

-If the STATUS indicator lights orange with the power button pressed, it means that the [CONTROL PANEL LOCK] is turned on. Cancel the lock by turning it off. (page 92)

-If the lamp fails to light, and if the STATUS indicator flashes on and off in a cycle of six times, wait a full minute and then turn on the power.

While the POWER indicator is blinking blue in short cycles, the power cannot be turned off by using the power button.

Immediately after turning on the projector, screen flicker may occur. This is normal. Wait 3 to 5 minutes until the lamp lighting is stabilized.

When the projector is turned on, it may take some time before the lamp light becomes bright.

If you turn on the projector immediately after the lamp is turned off or when the lamp temperature is high, the fans run without displaying an image for some time and then the projector will display the image.

15

2. Projecting an Image (Basic Operation)

Selecting a Source

Selecting the computer or video source

NOTE: Turn on the computer or video source equipment connected to the projector.

Detecting the Signal Automatically

Press the SOURCE button once.The projector will search for the available input source and display it.The input source will change as follows:

COMPUTER → HDMI1/MHL → HDMI2 → VIDEO → USB-A → LAN →

USB-B

With the SOURCE screen displayed, you can press the SOURCE button a few times to select the input source.

TIP: If no input signal is present, the input will be skipped.

Using the Remote Control

Press any one of the COMPUTER 1, HDMI1/MHL, HDMI2,VIDEO, USB-

A, USB-B, or LAN buttons.

Selecting Default Source

You can so that it will be displayed each time the projector is turned on.

1.Press the MENU button.

The menu will be displayed.

2.Press the button twice to select [SETUP] and the H button or the ENTER button to select [GENERAL].

3.Press the button four times to select [OPTIONS(2)].

4.Press the H button five times to select [DEFAULT SOURCE SE-

LECT] and press the ENTER button.

The [DEFAULT SOURCE SELECT] screen will be displayed. (page 97)

5.Select a source as the default source, and press the ENTER button.

6.Press the EXIT button a few times to close the menu.

7.Restart the projector.

The source you selected in step 5 will be projected.

TIP:

When the projector is in Standby mode, applying a computer signal from a computer connected to the COMPUTER IN input will power on the projector and simultaneously project the computer’s image.

([AUTO POWER ON] page 97)

On Windows 7, a combination of the Windows and P keys allows you to set up external display easily and quickly.

16

NEC NP-UM361 Users Manual

2. Projecting an Image (Basic Operation)

Adjusting the Picture Size and Position

Use the adjustable tilt foot, the zoom function or the focus ring to adjust the picture size and position.

In this chapter drawings and cables are omitted for clarity.

Adjusting horizontal/vertical position

Adjusting the focus [Focus ring]

(→ page 18)

(→ page 18)

Finely adjusting the left and right tilt [Tilt Foot] (→ page 19)

Adjusting the size [Digital Zoom] (→ page 20)

Correcting the keystone distortion [Keystone]* (→ page 21)

* To perform keystone correction manually, see “6. Correcting Keystone Distortion [KEYSTONE]” on page 21.

17

2. Projecting an Image (Basic Operation)

Adjusting horizontal/vertical position

The throw distance can affect the size and the height of the projected image. Before installing the projector, decide the throw distance according to “Setting Up the Screen and the Projector” (→ page 106, 107)

It is recommended to display the test pattern while adjusting the image. (→ page 94)

1.Move the projector back and forth and left and right so that the image fits the screen width.

You can reduce the image size to 70% by using [DIGITAL ZOOM] from the menu.

2.Place the projector so that it is parallel with the screen.

If the top side of the image is not parallel with its bottom side, rotate the projector slightly to adjust it. If the side of the image shows outside the screen, move it to the center line of the screen.

Adjusting the focus (Focus ring)

• Rotate the focus ring until you obtain the best focus.

Focus ring

(view from the bottom)

18

2. Projecting an Image (Basic Operation)

Adjusting the tilt (Tilt foot)

Adjusting the left and right tilt.

1.Rotate the tilt foot to adjust the left and right tilt.

The tilt foot is equipped at the left and the right front bottom of the projector.

If the projected image is tilted, rotate one of the tilt foot to adjust the angle to project.

If keystone distortion is appeared, adjust it either by the button on the cabinet or keystone button on the remote control

NOTE:

Do not extend the tilt foot beyond its height limit (18 mm/0.7 inches). Doing so may cause the tilt foot to come out of the projector.

Do not use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector.

Up

Down

19

Loading...
+ 125 hidden pages
