Pure. Professional. Performance.
NEC P Series
Large Screen LCD 40” | 46” | 55” | 70”
Available with embedded
Windows PC or Jelly Bean
4.2.2 Digital Signage Player!
40” - 70” professional-grade, LED edge-lit displays for
the most harsh install environments
Quality is Never an Accident
Professional-grade display construction with proven thermal and
mechanical design ensures a flawless 24/7 operation in even the
harshest environments.
It’s Not Easy Being Green
Eco-friendly features are aplenty, with LED backlighting decreasing
energy consumption, lowering total cost of ownership and
contributing to environmental consciousness.
Beauty is in the Eye of the Beholder
Providing a first-class solution for digital signage applications
with bright, high-contrast, full high-definition panels across a
variety of product sizes.
Impact. Delivered.
Select NEC P Series displays’ thin bezel design, advanced
feature set, and enhanced video wall capabilities allow you to
expand your messaging options.
www.necdisplay.com
Page 2
Key Features
Quality is never an accident.
Meeting the requirements for rugged 24/7 use, the NEC P Series
professional-grade LCD displays deliver a perfect picture. Every time.
What’s more, this new generation of display supplies faster internal processing speeds, is
lighter and thinner than its predecessor, and supports customizable connectivity options.
P Series panel construction includes:
• Open Pluggable Specication and Interface Expansion slots offer the flexibility
customers require.
• Higher quality standards for components means each display is made of only the best
of the best.
• Integrated temperature sensors and fans maximize heat dissipation and the lifetime of
the display while a metal rear chassis protects your investment
• Reduced depth and weight means faster and easier installations
• Improved processing capabilities with faster start up and response times
• Browser control capabilities enable LAN and tablet display control
• -PC bundles available where the OPS slot is occupied by AMD Dual Core fusion based
OPS-PCAF-WS PC
• -DRD bundles available where the OPS slot is occupied by Jelly Bean 4.2.2 based
OPS-DRD Digital Signage Player
OPS
Interface Expansion
Beauty is in the eye of the beholder.
Display design delivers smooth video and crisp imagery. Bright, high-contrast, full high definition panels in concert with unrivaled control,
communication and accessory options deliver brilliant content to customers. Gorgeous signage is further simplified with some of the advanced
technologies integrated into the new P Series displays.
• 700 cd/m2 maximum brightness ensures display and
content are visible in the brightest of ambient lighting
environments
• Full high denition panel allows for the tiniest details to
be seen on screen
• Input switching speed can be set via the on screen
menu thereby minimizing any black screens during source
transitions
• Two port LAN hub simplifies installation and monitoring of
deployed displays
• Simple point and zoom feature allows presenters to
zoom in to parts of a presentation via the remote
• Enhanced Picture-in-Picture provides flexibility for
displaying two sources simultaneously
Page 3
It’s not easy being green.
LED backlighting delivers both environmental and economic impact. With a mercury-
free display, the NEC P series is easier to dispose when replacement is necessary. LED-
backlit displays consume less power which further reduce their impact on the environment.
Additionally, intelligent, built-in eco features allow display to measure and adjust to it ambient
environment, thereby efficiently using and ultimately reducing power consumption.
These include:
• LED edge-lit backlighting reduces power consumption and allows a slimmer cabinet
depth
• Ambient light sensor ensures consistent brightness no matter the lighting conditions,
while allowing the user to set the brightness level to a pre-determined lower level in
order to automatically compensate and reduce the brightness, thus decreasing power
consumption
• Carbon footprint meter helps track and calculate the conservation of green gas
emissions in real time
• Real-time clock/round-the-clock scheduling allows for advanced scheduling of monitor
powering up/down, increasing panel lifetime, reducing power consumption and saving the
time and expense of finding and purchasing a third-party scheduling solution
• Human sensor accessory allows for dynamic control of brightness, audio and source
input while saving operating costs
Impact delivered.
With a new chassis design, these displays deliver more than high quality images and durability.
These displays are designed to create impact with a host of new features to maximize usability and minimize costs.
• Built in NFC sensor reduces installation and maintenance cost
• Multiple programmable gammas enables superior display performance in a variety of ambient
lighting conditions
• Image Flip supported in the on screen menu to ease mirroring images for on-set displays
• Memo function can assist with both set up and support by directing the user to the most
appropriate contact
• Proof of play to show content that was paid for was shown
• Intelligent Wireless Data functionality enables read/write communications from a tablet that
supports near field communications (NFC) to ease installations and service
• Improved daisy chain capabilities for video and control signals (DisplayPort and LAN) which
reduce cabling requirements

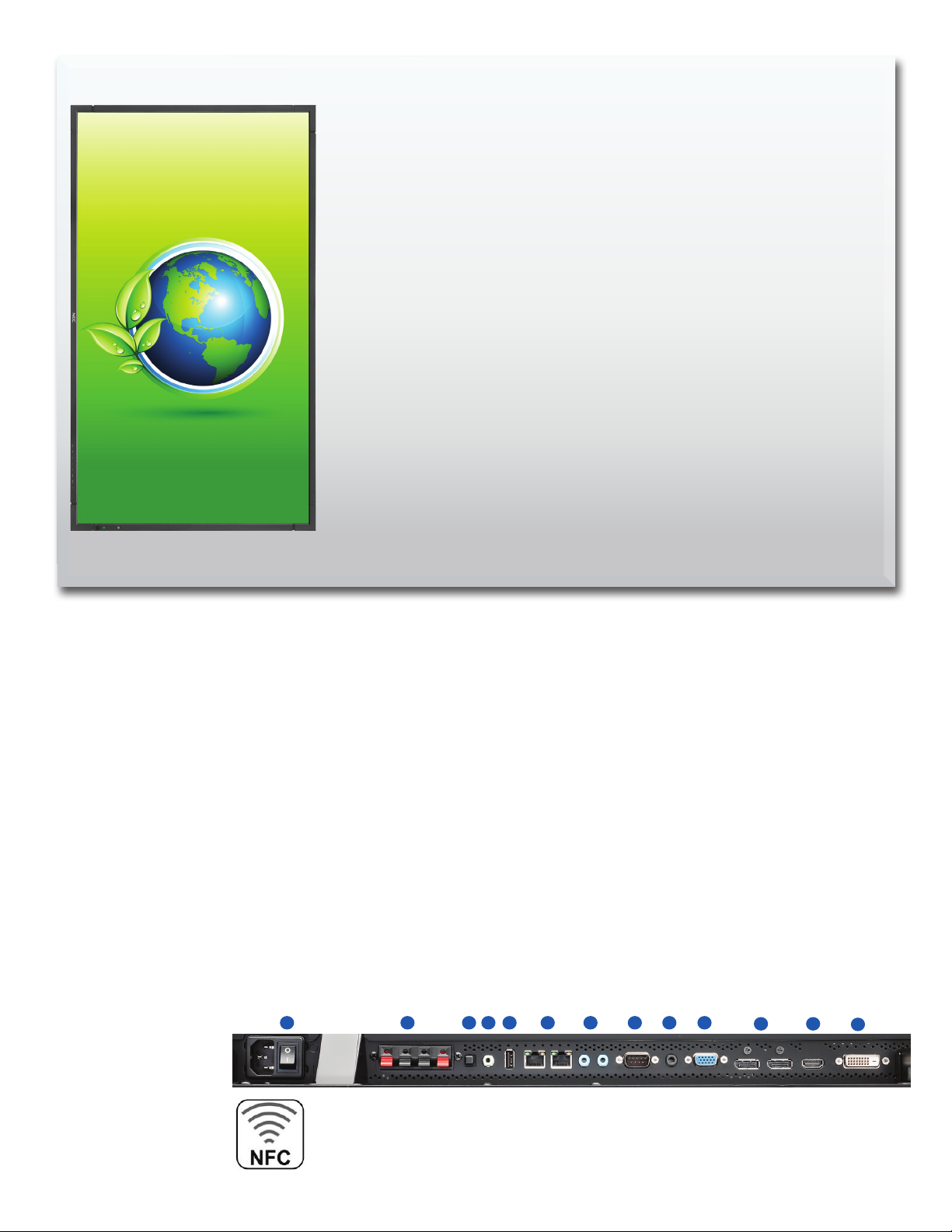

Input Panel
1. Vacation Switch
2. External Speaker Terminal
3. Internal/External speaker
switch
4. Audio Mini Jack Out
5. USB Service Port
6. LAN Ports
7. Audio Mini Jack In
8. RS-232C In
9. Remote In
10. VGA D-Sub In
11. DisplayPort In/Out
12. HDMI In
13. DVI-D In
1 2 3 4 5 6 7 8 109
11 12
13
Page 4
Specications for P403/P463/P553/P703
MODEL P403 P463 P553 P703
LCD MODULE
Panel Technology
Viewable Image Size
40” 46” 55” 70”
Native Resolution
Backlight Type
Brightness (Typical/Max)
Contrast Ratio (Typical)
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (G-to-G)
Aspect Ratio
Active Screen Area (W x H) 35.1 x 19.9 in. /
892.6 x 504.2mm
40.4 x 22.8 in. /
1025.4 x 578.6mm
Orientation
Displayable Colors
CONNECTIVITY
PC/Mac Signal Compatibility
Input Terminals
Digital
Analog
Audio
Audio Mini-Jack, DisplayPort Audio, HDMI Audio
External Control
Output Terminals
Digital
DisplayPort (DisplayPort, HDMI, DVI-D or Option Signals out of this port)
Analog
Audio
Audio Mini-Jack, External Speaker Jack (2), HDMI Audio (through DisplayPort Out), DisplayPort Audio
External Control
Digital Tuner
OPS Windows PC
OPS Digital Signage Player
P403-AVT P463-AVT P553-AVT P703-AVT
P403-PC P463-PC P553-PC P703-PC
P403-DRD P463-DRD P553-DRD P703-DRD
POWER CONSUMPTiON
On (Typical)
110 120 150 150
ECO Mode Standby
PHYSICAL SPECIFICATIONS
Bezel Width (L/R, T/B) 0.6in./0.6in., 0.6in./0.6in.
; 15.5mm/15.5mm,
15.5mm/15.5mm
Net Dimensions
(without stand; WxHxD)
36.2 x 21.0 x 2.6 in. /
920.6 x 532.2 x 66.5mm
0.6in./0.6in., 0.6in./0.6in.
; 16.5mm/16.5mm,
16.5mm/16.5mm
41.6 x 24.0 x 2.5 in. /
1055.4 x 608.6 x 64.5mm
Net Weight (without stand) 39.7 lbs. / 18 kg 46.3 lbs. / 21 kg 55.8 lbs. / 25.3 kg 103.6 lbs. / 47.0 kg
VESA Hole Configuration 300 x 300mm (4-hole) 400 x 400mm (4-hole)
ENVIRONMENTAL
CONDITIONS
Operating Temperature 32-122°F / 0-50°C
Operating Humidity
Operating Altitude
LIMITED WARRANTY
3 years parts and labor, including backlight*
ADDITIONAL FEATURES Advanced thermal capabilities; Ethernet Control and Communication; RS-232 Control and Communication; Landscape/portrait
capable; Carbon footprint meter; Scheduler (w/ real-time clock); Screen saver function; Ambient light sensor; Optional human sensor;
Intelligent Wireless Data (Near Field Communication); Second expansion slot; Expanded daisy chain (DP 1.2); 6-axis color adjustment;
Metal rear cabinet; POP/PIP/Side-by-Side; Handles; Variable picture modes; Fixed/Variable Audio Out; Input labeling; Backlight
adjust; Aspect ratio control; Built-in speakers; LED edge-lit backlighting; OPS/Expansion slot
SHIPS WITH Power cord; 1.8m DVI-D cable; Wireless remote control; Batteries; CD-ROM (user manual);
Option board slot cover; Screws; Thumbscrews
OPTIONAL ACCESSORIES Display Wall Calibrator Kit (KT-LFD-CC); Stand (ST-322 for P403/P463, ST-5220 for P553, ST-801 for P703), Wall mount (WMK-3257),
Slim wall mount (WMK-3255S for P403, P463 and P553), Video Wall kit (KT-TMX4C, KT-TMX9C)
* Warranty restrictions apply. Contact your representative for details.
SPVA (P-DID)
1920 x 1080
LED Edge-lit
550/700 cd/m
2
4000:1
8ms
16:9
47.9 x 27.1 in. /
1216.6 x 687.4mm
Landscape/Portrait
More than 16.7 million
Yes
DisplayPort, HDMI, DVI-D
VGA 15-pin D-sub
RS-232C, LAN, DDC/CI, IR
n/a
LAN
<0.5W
0.7in./0.7in., 0.7in./0.7in.
; 18.5mm/18.5mm,
18.5mm/18.5mm
49.2 x 28.4 x 2.5 in. /
1250.2 x 721 x 64.5mm
20 - 80%
9843 ft. / 3000m
60.6 x 34.1 in. /
1538.9 x 865.6mm
0.9in./0.9in., 0.9in./0.9in.
; 23.0mm/23.0mm,
23.0mm/23.0mm
62.5 x 36.2 x 3.4 in. /
1587 x 919.6 x 86.9mm
CableComp+, NaViSet, TileComp and TileMatrix are trademarks of NEC
Display Solutions. All other brand or product names are trademarks or
registered trademarks of their respective holders. Product specications
subject to change. ©2013 NEC Display Solutions of America, Inc. All rights
reserved.
25.NEC.80.GL.UN.153 rev. 8.19.14
www.necdisplay.com
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
