NEC NP500WS EDU, NP500 Specifications

LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors

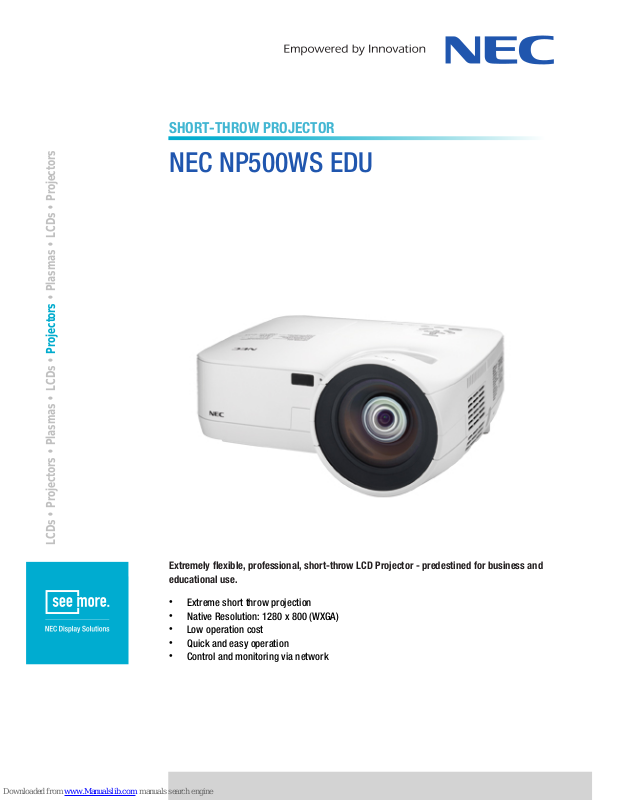

SHORT-THROW PROJECTOR

NEC NP500WS EDU

Extremely flexible, professional, short-throw LCD Projector - predestined for business and
educational use.

Extreme short throw projection

•

Native Resolution: 1280 x 800 (WXGA)

•

Low operation cost

•

Quick and easy operation

•

Control and monitoring via network

•

LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs

NEC NP500WS EDU

TECHNICAL SPECIFICATIONS

Display 3 x 1.5 cm (0.59") p-Si LCD Panel with MLA
Lamp 230 W AC (168 W AC Eco Mode)
Lamp Life [hrs] 4000 (5000 Eco Mode)

1

Brightness

2

2100 ANSI Lumens (approx. 70% in Eco Mode)

Contrast Ratio

2

500:1

Lens F= 3.0, f= 17.7–21.2 mm
Diagonal: min. / max. [cm] 144.78 (57") / 264.16 (104")
Projection Factor 0.74 : 1
Projection Angle [°] 29
Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz
Native Resolution 1280 x 800 (WXGA)
Supported Resolutions 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1600 x 1200 (UXGA); 1440 x 900 (WXGA+); 1400 x

1050 (SXGA+); 1280 x 1024 (SXGA); 1280 x 1024 (MAC 23"); 1280 x 960 (SXGA); 1280 x 800 (WXGA);
1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC
16"); 800 x 600 (SVGA); 720 x 576 (DVD progressive); 720 x 480 (SDTV 480p); 720 x 480 (DVD
progressive); 640 x 480 (VGA/MAC 13"); 1152 x 870 (MAC 21") compressed; 1280 x 1024 (Maximum
resolution of digital input)

ComputerAnalog Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Computer Digital Input: 1 x DVI-I (with HDCP)
Video Input: 1 x RCA
S-Video Input: 1 x Mini DIN 4-pin
Audio Input: 1 x RCA Stereo for Video and S-Video; Input: 2 x 3.5 mm Stereo Mini Jack for Computer analog and

digital;
Output: 1 x 3.5 mm Stereo Mini Jack (variable)

PC Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45
Video Signals PAL / PAL60 / NTSC / SECAM / NTSC 4.43 / PAL-N / PAL-M
Audio Functions [W] 1 x 7 (mono)
Zoom / Focus Adjustment Manual / Manual
Benefits Auto Power ON/OFF; Automatic and manual Keystone Correction (V= +/-20°); Colour Management; Control

and monitoring via network; Direct Power-Off Function; High Altitude Mode; Kensington security slot;
Keypad Lock; Magnify; Off-Timer; Optional User Logo; OSD with 21 languages; Password Security System;
Quick On/Off; RS-232 Control; Security Bar; Virtual Remote for direct PC control; Wall Colour Correction

Remote Control Aspect Ratio; Audio Control; Auto Adjust; Automatic Picture Adjustment; Freeze-function; Lamp Mode

Control; Magnify-function; Optional Presentation and Mouse Control; Picture Adjust; Picture Mode; Picture
Mute; Source Select

Dimensions (W x H x D) [mm] 308 x 130 x 292 (without lens and feet)
Weight [kg] 3.3
Power Supply 200-240 V AC; 50 - 60 Hz
Power Consumption [W] 325 Normal Mode; 170 Eco Mode; 11 Network Stand-by Mode; 3 Stand-by Mode
Fan Noise [dB (A)] 29 / 35 (Eco / Normal)
Safety and Ergonomics CE; TÜV GS; RoHS; Gost-R
Warranty Projector: 3 years pan-European Premium Service; Lamp: 3 years
Shipping Contents IR remote control; Mini D-SUB Signal Cable; Power Cord (4.5 m); DVI-VGA Adapter; Users Manual on CD-

ROM; Quick Setup Guide; Lens Cap

Optional Accessories Ceiling Mount Kit (NP08CM); Lamp (NP07LP); Mouse Receiver (NP01MR)

1

from August 2009 onwards

2

Compliance with ISO21118-2005
