NEC NP410 EDU Specifications
LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors

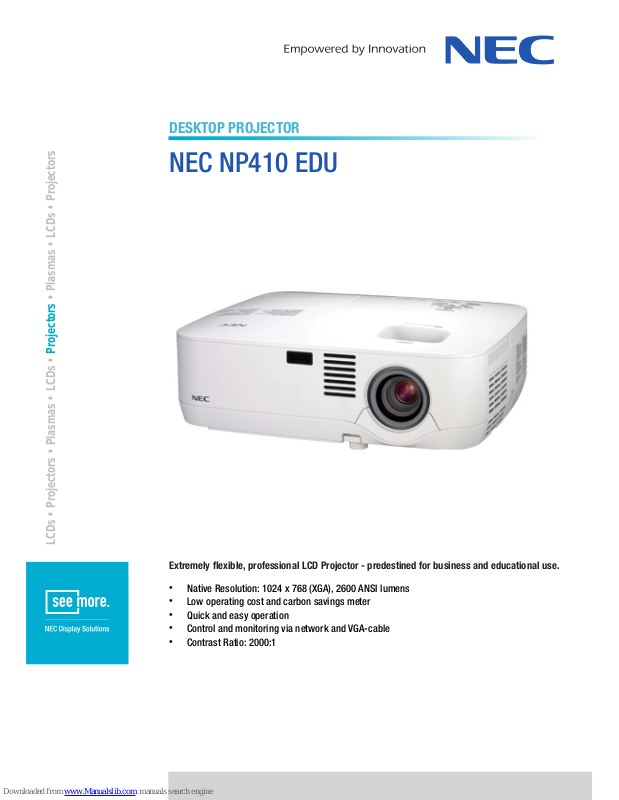

DESKTOP PROJECTOR
NEC NP410 EDU
Extremely flexible, professional LCD Projector - predestined for business and educational use.
Native Resolution: 1024 x 768 (XGA), 2600 ANSI lumens
•
Low operating cost and carbon savings meter
•
Quick and easy operation
•
Control and monitoring via network and VGA-cable
•
Contrast Ratio: 2000:1
•
LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs
NEC NP410 EDU
TECHNICAL SPECIFICATIONS
Display 3 x 1.6 cm (0.63") p-Si LCD Panel with MLA
Lamp 180 W AC (145 W AC Eco Mode)
Lamp Life [hrs] 4000 (5000 Eco Mode)
Brightness
1
2600 ANSI Lumens (approx. 80% in Eco Mode)
Contrast Ratio
1
2000:1
Lens F= 1.7–2.0, f= 19.8–23.7 mm
Diagonal: min. / max. [cm] 53 (21") / 762 (300")
Projection Distance [m] 0.7 – 11
Projection Factor 1.5 – 1.8 : 1
Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz
Native Resolution 1024 x 768 (XGA)
Supported Resolutions 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1600 x 1200 (UXGA); 1440 x 900 (WXGA+); 1400 x
1050 (SXGA+); 1280 x 1024 (MAC 23"); 1280 x 1024 (SXGA); 1280 x 960 (SXGA); 1280 x 800 (WXGA);
1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC
16"); 800 x 600 (SVGA); 720 x 576 (DVD progressive); 720 x 480 (SDTV 480p); 720 x 480 (DVD
progressive); 640 x 480 (VGA/MAC 13"); 1152 x 870 (MAC 21") compressed; 1280 x 1024 (Maximum
resolution of digital input)
ComputerAnalog Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr);
Output: 1 x Mini D-sub 15 pin
Computer Digital Input: 1 x DVI-I (with HDCP)
Video Input: 1 x RCA
S-Video Input: 1 x Mini DIN 4-pin
Audio Input: 1 x RCA Stereo for Video and S-Video; Input: 2 x 3.5 mm Stereo Mini Jack for Computer analog and
digital;
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
PC Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45
Video Signals PAL / PAL60 / NTSC / SECAM / NTSC 4.43 / PAL-N / PAL-M
Audio Functions [W] 1 x 7 (mono)
Zoom / Focus Adjustment Manual / Manual
Benefits Auto Power ON/OFF; Automatic and manual Keystone Correction (V= +/-30°); Carbon Savings Meter;
Colour Management; Control and administration via LAN; Direct Power-Off Function; High Altitude Mode;
Kensington security slot; Keypad Lock; Keystone Correction (H=±40°, V=±30°); Magnify; Off-Timer;
Optional User Logo; OSD with 21 languages; Password Security System; Quick On/Off; RS-232 Control;
Security Bar; Virtual Remote for direct PC control; Wall Colour Correction
Remote Control Aspect Ratio; Audio Control; Auto Adjust; Automatic Picture Adjustment; Freeze-function; Help-function;
Lamp Mode Control; Magnify-function; Optional Presentation and Mouse Control; Picture Adjust; Picture
Mode; Picture Mute; Source Select
Dimensions (W x H x D) [mm] 308 x 93.5 x 262 (without lens and feet)
Weight [kg] 2.99
Power Supply 200-240 V AC; 50 - 60 Hz
Power Consumption [W] 255 Normal Mode; 210 Eco Mode; 10 Network Stand-by Mode; 0.7 Stand-by Mode
Fan Noise [dB (A)] 29 / 35 (Eco / Normal)
Safety and Ergonomics CE; TÜV GS; RoHS; TCO; Gost-R
Warranty Projector: 3 years pan-European service; Lamp: 6 months, max. 1000 hrs
Shipping Contents IR Remote Control (RD-443E); Mini D-SUB Signal Cable; Power Cord (1.8 m); Security Sticker; Soft Case;
DVI-VGA Adapter; Users Manual on CD-ROM; Quick Setup Guide; Lens Cap
Optional Accessories Ceiling Mount Kit (NP08CM); Lamp (NP14LP); Mouse Receiver (NP01MR); Universal Ceiling Mounts
(NP01/02/03/04/05UCM)
1
Compliance with ISO21118-2005
All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All rights reserved. All specifications are subject to change without notice. 09/10
www.nec-display-solutions.com
NEC Display Solutions Europe GmbH
