NEC NC800C User Manual

Download

DLP Cinema® Projector

NC800C

User’s Manual

NEC Viewtechnology, Ltd.

Important Information

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

DOC compliance Notice

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Precautions: Please read this manual carefully before using your NC800C and keep the manual handy for future reference.

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CAUTION

• In order to reduce any interference with radio and television reception use a signal cable with ferrite core attached. Use of signal cables without a ferrite core attached may cause interference with radio and television reception.

• This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

E-1

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

1. Place the projector on a flat, level surface in a dry area away from dust and moisture. Tilting the front of the projector up or down from level could reduce lamp life. Do not put the projector on its side when the lamp is on. Doing so may cause damage to the projector.

2. Do not place the projector in direct sunlight, near heaters or heat radiating appliances.

3. Exposure to direct sunlight, smoke or steam could harm internal components.

4. Handle your projector carefully. Dropping or jarring your projector could damage internal components.

5. To carry the projector, a minimum of four persons are required. Do not hold the lens part and the anamorphic lens part with your hand. Otherwise the projector may tumble or drop, causing personal injury.

6. Do not place heavy objects on top of the projector.

7. If you wish to have the projector installed on the ceiling:

a Do not attempt to install the projector yourself. b The projector must be installed by qualified technicians

in order to ensure proper operation and reduce the risk of bodily injury.

c In addition, the ceiling must be strong enough to

support the projector and the installation must be in

accordance with any local building codes. d Please consult your dealer for more information. e Do not attempt to stack projectors on the ceiling.

Power Supply

1. The projector is so designed that it operates with the power supply voltage described below.

• 1.2kW (Max. 12A) AC100-120V 50/60Hz

• 1.7kW (Max. 8.5A) AC200-240V 50/60Hz Ensure that your power supply fits this requirement before attempting to use your projector.

2. Consult your dealer for installing the power cord to the projector. DO NOT install the power cord by yourself. Doing so may cause a fire or electric shock.

3. Handle the power cord carefully and avoid excessive bending. Do not place any heavy objects on the power cord. A damaged cord can cause electric shock or fire.

4. If the projector will not be used for an extended period of time, shut down AC power.

5. Placing the power cord and the signal cable closely to each other can cause beat noise. If this happens, keep the two separated so that beat noise is not generated. Beat noise is corruption of the picture often seen as a rolling band moving through the image.

6. Do not touch the projector during a thunder storm. Doing so can cause electrical shock or fire.

Important Information

Cleaning

1. Unplug the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent potentially dangerous concentrations of ozone and the build-up of heat inside your projector. Allow at least 8 inches (20cm) of space between your projector and a wall. Allow at least 20 inches (50cm) of space between the ventilation outlet and object.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service person.

3. Do not place any liquids on top of your projector. Refer servicing to qualified service personnel if liquid has been spilled.

4. Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

5. Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

6. When using a LAN cable: For safety, do not connect to the connector for peripheral device wiring that might have excessive Voltage.

CAUTION:

Lamp Caution: Please read before operation

Due to the lamp being sealed in a pressurized environment, there is a small risk of explosion, if not operated correctly. There is minimal risk involved, if the unit is in proper working order, but if damaged or operated beyond the recommended hours, the risk of explosion increases. Please note that there is a warning system built in, that displays following message when you reach a preset operating time “Over Time Bulb”. When you see this message please contact your dealer for a replacement. If the lamp does explode, smoke will be discharged from the vents located on the back of the unit. Do not stand in front of the vents during the operation. This smoke is comprised of glass in particulate form and Xenon gas, and will not cause harm if kept out of your eyes. If your eyes have been exposed to this gas, please flush your eyes out with water immediately and seek immediate medical attention. Do not rub your eyes! This could cause serious injury.

WARNING:

Do not look into the lens while the projector is on. Serious damage to your eyes could result.

High Pressure Lamp May Explode if Improperly Handled. Refer Servicing to Qualified Service Personnel.

CAUTION

Never unplug the projection head power plug from the outlet or disconnect the breaker under the following conditions. Doing so can damage the projector.

• While projecting images

• While cooling after the projector has been turned off. (The

POWER indicator blinks in orange while the fan is rotating, and the LCD screen is displaying “cooling…”. The cooling fan continues to work for 3 minutes.)

Remote Control Precautions

• Handle the remote control carefully.

• If the remote control gets wet, wipe it dry immediately.

• Avoid excessive heat and humidity.

• Do not heat, take apart, or throw batteries into fire.

• If you will not be using the remote control for a long time,

remove the batteries.

• Ensure that you have the batteries’ polarity (+/-) aligned correctly.

• Do not use new and old batteries together, or use different types of batteries together.

• Dispose of used batteries according to your local regulations.

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories or lamps. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product. After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact to the human health and the environment at the minimum level. The mark on the electrical and electronic products only applies to the current European Union Member States.

For questions relating to unclear points or repairs

Contact your dealer or the following support branches for questions relating to unclear points, malfunctions and repairs of the product.

In Europe

NEC Europe, Ltd. / European Technical Centre Address: Unit G, Stafford Park 12, Telford TF3 3BJ, U.K. Telephone: +44 1952 237000 Fax Line: +44 1952 237006

In North America

NEC Corporation of America Digital Cinema Division Address: 4111 West Alameda Avenue Suite 412 Burbank, CA 91505 Telephone: 818 557 2500 *If the above line is busy, please dial as below; Telephone: 866 632 6431

E-2

Important Information

Précaution: lire attentivement ce manuel avant d’utiliser le NC800C et le conserver à portée de main pour future

référence.

AVERTISSEMENT

POUR EVITER UN INCENDIE OU UN RISQUE D’ELECTROCUTION NE PAS EXPOSER CET ENSEMBLE A LA PLUIE OU A L’HUMIDITE; DE MEME, NE PAS BRANCHER LA PRISE POLAIRE AVEC UNE RALLONGE A MOINS QUE LES BROCHES DE LA PREMIERE NE S’Y INSERENT PLEINEMENT. EVITER D’OUVRIR LE COFFRET CAR IL Y A, A L’INTERIEUR DES COMPOSANTS SOUMIS A UNE HAUTE-TENSION; POUR LES REPARATIONS, S’ADRESSER A UN PERSONNEL QUALIFIE.

ATTENTION

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

ATTENTION

POUR EVITER LES RISQUES D’ELECTROCUTION, NE PAS OUVRIR LE COUVERCLE. AUCUN DES ELEMENTS INTERNES NE DOIT ETRE REPARE PAR L’UTILISATEUR. NE CONFIER L’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

L’éclair fléché dans un triangle équilatéral est destiné à avertir l’utilisateur de la présence, dans l’appareil, d’une zone non-isolée soumise à une haute-tension dont l’intensité èst suffisante pour constituer un risque d’électrocution.

Le point d’exclamation dans un triangle équilatéral est destiné à attirer l’attention de l’utilisateur sur la présence d’informations de fonctionnement et d’entretien importantes dans la brochure accompagnant l’appareil.

DOC avis de conformité

Cet appareil numérique de la classe A respecte toutes les exigences du Réglement sur le Matériel D’interférence du Canada.

Recommandations importantes

Ces instructions de sécurité ont pour but d’assurer une longue vie à votre projecteur et d’éviter un incendie ou une décharge électrique. Prière de les lire attentivement et de tenir compte de tous les avertissements.

Installation

1. Placer le projecteur sur une surface plane et de niveau, et dans un endroit sec et à l’abri des poussières et de l’humidité.

2. Ne pas exposer le projecteur aux rayons directs du soleil, ni le placer près d’un chauffage ou de dispositifs de radiation de chaleur.

3. L’exposition aux rayons directs du soleil, à la fumée ou à la vapeur pourrait endommager des composants internes.

4. Manipuler le projecteur avec précaution. La chute du le projecteur ou lui donner des chocs pourrait endommager des composants internes.

5. Le transport du projecteur doit être effectué par quatre personnes au minimum. Ne pas saisir le projecteur par son objectif ni par les des anamorphoseurs. Le cas échéant, le projecteur risque de se renverser ou de tomber et d’être à l’origine d’un accident corporel.

6. Ne pas poser d’objets lourds sur le dessus du projecteur.

7. Si vous voulez installer le projecteur au plafond:

a. N’essayez pas d’installer le projecteur vous-même. b. Le projecteur doit être installé par un technicien

qualifié pour garantir une installation réussie et réduire le risque d’éventuelles blessures corporelles.

c. De plus le plafond doit être suffisamment solide pour

supporter le projecteur et l’installation doit être conforme aux réglementations locales de construction.

d. Veuillez consulter votre revendeur pour de plus

amples informations.

e. Ne pas superposer les projecteurs accrochés au plafond.

Alimentation

1. Le projecteur est conçu pour fonctionner sous la tension d’alimentation ci-dessous.

• 1.2kW (Max. 12A) CA100-120V 50/60Hz

• 1.7kW (Max. 8.5A) CA200-240V 50/60Hz

S’assurer que la tension du secteur soit conforme à ces caractéristiques avant d’utiliser le projecteur.

2. Pour l’installation du cordon d’alimentation électrique sur le projecteur, voir le concessionnaire. NE PAS intaller le cordon d’alimentation électrique soi-même. Il y a risque d’incendie ou d’électrocution.

3. Manipuler le cordon d’alimentation avec précaution et éviter des flexions excessives. Ne placez pas d’objets lourds sur le cordon d’alimentation. Un cordon endommagé peut occasionner une décharge électrique ou un incendie.

4. Si le projecteur n’est pas utilisé pendant une longue période, coupez l’alimentation CA.

5. Placer le cordon d’alimentation et le câble de signal tout prés l’un de l’autre peut occasionner un bruit de battement. Si cela se produit, les maintenir séparés jusqu’à ce que le bruit de battement disparaisse.

6. Ne pas toucher le projecteur pendant un orage. Cela pourrait causer un choc électrique ou un incendie.

Nettoyage

1. Débrancher le projecteur avant de le nettoyer.

2. Nettoyer régulièrement le boîtier extérieur avec un chiffon humide. S’il est trés sale, utiliser un détergent doux. Ne jamais utiliser de détergent forts ou de solvants tels que de l’alcool ou du diluant.

3. Utiliser un souffleur ou du papier pour objectif pour nettoyer l’objectif, et veiller à ne pas rayer ou endommager l’objectif.

F-1

Important Information

Précautions contre l’incendie ou la décharge

1. S’assurer qu’il y ait une ventilation suffisante et que les ouvertures ne soient pas obstruées afin d’éviter des concentrations potentiellement dangereuses d’ozone et l’accumulation de chaleur à l’intérieur du projecteur. Laisser au moins 20 cm d’espace entre le projecteur et un mur.Veuillez laisser un espace libre d’au moins 50 cm (20 pouces) entre les orifices de ventilation

2. Empêcher tous cocps étrangers tels que des attaches trombones ou des morceaux de papier de tomber à l’intérieur du projecteur. Ne pas essayer de récuperer des objets qui seraient tombés dans le projecteur. Ne pas introduire d’objets métalliques tels que fil ou un tournevis dans le projecteur. En cas de chute d’objet dans le projecteur, le débrancher immédiatement et faire enlever l’objet par un technicien agréé.

3. Ne pas poser de liquides sur le dessus du projecteur. Confier la réparation à du personnel technique qualifié si du liquide a été renversé.

4. Maintenez tout ce qui s’apparente à une loupe en dehors du faisceau lumineux du projecteur. La lumière projetée par l’objectif est très puissante, de sorte que tout objet en opposition pourrait dévier le faisceau provenant de l’objectif, ce qui pourrait avoir des conséquences imprévues telles qu’un incendie ou une lésion occulaire.

5. Ne bouchez pas l’objectif avec son couvercle fourni lorsque le projecteur est allumé. Faire cela pourrait faire fondre le couvercle et peut-être brûler vos mains à cause de la châleur émise par le faisceau lumineux.

ATTENTION: La lampe à haute pression peut exploser si

elle est manipulée incorrectement. Confier l’entretien à du personnel d’entretien qualifié.

Précautions avec la lampe : lire avant l’utilisation

La lampe a été scellée dans un environnement sous pression, et il y a donc un petit risque d’explosion, si elle n’est pas utilisée correctement. Le risque est minime si l’appareil est en bon ordre de marche, mais s’il est endommagé ou utilisé au-delà du nombre d’heures recommandées, le risque d’explosion augmente alors. Il est à noter l’existence d’un systéme d’avertissement intégré, lequel affiche le message “Over Time Bulb” lorsqu’un temps de fonctionnement préréglé est atteint. Si la lampe explose, de la fumée peut étre produite par les fentes d’aération situées sur l’arrière de l’appareil. Ne vous tenez pas devant les évents pendant l’opération. Cette fumée est composée de verre sous forme de particules et de gaz de Xenon, et n’est pas nuisible si elle est maintenue à distance des yeux. Si les yeux sont exposés a ce gaz, les rincer immédiatement à l’eau courante et con sulter tout de suite un médecin. Ne pas se frotter les yeux ! Cela pourrait provoquer une grave blessure.

AVERTISSEMENT:

Ne pas regarder dans l’objectif lorsque le projecteur est allumé. De sérieux dommages aux yeux pourraient en résulter.

ATTENTION

Ne jamais débrancher la prise d’alimentation à tête de projection ni débrancher le disjoncteur dans les conditions suivantes. Cela pourrait endommager le projecteur.

• Lors de la projection d’images

• Pendant le refroidissement après que le projecteur ait été éteinte. (Le voyant POWER clignote en orange lorsque le

ventilateur fonctionne, et l’écran ACL affiche « cooling… ». le ventilateur du refroidissement continuent à tourner pendant 3 minutes.)

Précautions se rapportant á la télécommande

• Manipuler la télécommande avec précaution.

• Si la télécommande est mouillée, I’essuyer immédiatement.

• Evitar toute chaleur chaleur excessive et l’humidité.

• Ne pas chauffer, démonter ou jeter les piles au feu.

• Si la télécommande n’est pas utilisée pendant une longue

période, retirer les piles.

• S’assurer de respecter la polarité (+/–) des piles.

• Ne pas utiliser des piles neuves et des piles usagées en méme

temps et ne pas utiliser des piles de différents types ensemble.

• Mettre les piles usagées au redut d’parés la réglementation

locales.

Mise au rebut du produit usagé

La législation européenne, appliquée dans tous les Etats membres, exige que les produits électriques et électroniques portant la marque (à gauche) doivent être mis au rebut séparément des autres ordures ménagères. Ceci inclus les projecteurs et leurs accessoires électriques ou lampes. Lorsque vous mettez au rebut ces produits, veuillez suivre les recommandations des autorités locales et/ou demandez conseil au magasin qui vous a vendu le produit. Une fois ces produits mis au rebut, ils sont recyclés et de manière appropriée. Cet effort nous aidera à réduire les déchets et à maintenir au niveau minimum leurs conséquences négatives sur la santé humaine et sur l’environnement. La marque figurant sur les produits électriques et électroniques ne s’applique qu’aux Etats membres actuels de l’Union Européenne.

Si vous avez des questions concernant des points peu clairs ou des réparations

Contacter votre distributeur ou les branches d’assistance suivantes si vous avez des questions concernant des points à éclaircir, des défauts et des réparations du produit.

En Europe

NEC Europe, Ltd. / European Technical Centre Adresse : Unit G, Stafford Park 12, Telford TF3 3BJ, U.K. Téléphone : +44 1952 237000 Fax : +44 1952 237006

En Amérique du Nord

NEC Corporation of America Division Cinéma Numérique Adresse : 4111 West Alameda Avenue Suite 412 Burbank, CA 91505 Téléphone : 818 557 2500 *Si la ligne ci-dessus est occupée, essayer le numéro suivant ; Téléphone : 866 632 6431

F-2

Important Information

Maschinenlärminformations-Verordnung – 3. GPSGV,

Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäß EN ISO 7779.

WARNUNG

ZUR VERMEIDUNG VON FEUER UND ELEKTRISCHEN SCHLÄGEN DARF DAS GERÄT WEDER REGEN NOCH FEUCHTIGKEIT AUSGESETZT WERDEN. DER POLARISIERTE STECKER DIESES GERÄTES DARF NUR DANN IN EIN VERLÄNGERUNGSKABEL ODER IN EINE STECKDOSE EINGESTECKT WERDEN, WENN DIE STECKKONTAKTE VOLLSTÄNDIG EINGESTECKT WERDEN KONNEN. UNTERLASSEN SIE, DAS GERÄT ZU OFFNEN, DA DADURCH IM GERÄT FREILIEGENDE HOCHSPANNUNGSFÜHRENDE TEILE BERÜHRT WERDEN KÖNNEN. LASSEN SIE DEN KUNDENDIENST NUR VON HIERFÜR QUALIFIZIERTEN PERSONEN DURCHFÜHREN.

ACHTUNG

GEFAHR DURCH ELEKTRISCHEN

SCHLAG

NICHT ÖFFNEN

ACHTUNG

ZUR VERMEIDUNG EINES ELEKTRISCHEN SCHLAGES ÖFFNEN SIE NICHT DAS GEHÄUSE. INNERHALB DES GEHÄUSES BEFINDEN SICH KEINE FÜR DIE BEDIENUNG DES GERÄTES ERFORDERLICHEN TEILE. LASSEN SIE DEN KUNDENDIENST NUR VON HIERFÜR QUALIFIZIERTEN PERSONEN DURCHFÜHREN.

DIESES SYMBOL WARNT DEN BEDIENER, DASS INNERHALB DES GERÄTES UNISOLIERTE TEILE VORHANDEN SIND, DIE HOCHSPANNUNG FÜHREN UND DEREN BERÜHRUNG EINEN ELEKTRISCHEN SCHLAG VERURSACHEN KANN.

DIESES SYMBOL MACHT DEN BËDIENER DARAUF AUFMERKSAM, DASS WICHTIGE, DEN BETRIEB UND DIE WARTUNG DES GERÄTES BETREFFENDE SCHRIFTEN BEIGEFÜGT SIND. UM IRGENDWELCHE PROBLEME ZU VERMEIDEN, SOLLTEN DIESE BESCHREIBUNGEN SORGFÄLTIG GELESEN WERDEN.

Vorsichtsmaßnahmen: Lesen Sie sich dieses Handbuch bitte sorgfaltig durch, bevor Sie den NC800C benutzen, und bewahren Sie das Bedienungshandbuch in greifbarer Nahe als spatere Referenz auf.

Wichtige Sicherheitshinweise

Diese Sicherheitshinweise sollen eine lange Lebensdauer Ihres Projektors sicherstellen und vor Feuer und elektrischen Schlägen schützen. Lesen Sie diese Hinweise sorgfältig durch und beachten Sie alle Warnungen.

Installation

1. Stellen Sie den Projektor auf eine flache, waagerechte Fläche in einer trockenen Umgebung; frei von Staub und Feuchtigkeit.

2. Stellen Sie den Projektor weder in direktes Sonnenlicht noch in die Nähe einer Heizung oder sonstiger Hitze abstrahlender Einrichtungen.

3. Wenn das Gerät direktem Sonnenlicht, Rauch oder Dampf ausgesetzt wird, können interne Komponenten beschadigt werden.

4. Behandeln Sie Ihren Projektor vorsichtig. Fallenlassen oder starkes Schutteln kann interne Komponenten beschädigen.

5. Zum Tragen des Projektors werden mindestens vier Personen benötigt Den Projektor nicht am Linsenbereich ode den anamorphotischen Linsenwelle tragen. Beschädigungs und Verletzungsgefahr.

6. Legen Sie keine schweren Gegenstände auf den Projektor.

7. Wenn der Projektor an der Decke installiert werden soll:

a Versuchen Sie nicht, den Projektor selbst zu installieren. b Der Projektor muss von qualifizierten Technikern installiert

werden, um einen ordnungsgemäßen Betrieb sicherzustellen und die Verletzungsgefahr zu reduzieren.

c Die Decke muss für das Gewicht des Projektors

ausreichende Festigkeit aufweisen, und die Installation muss entsprechend den örtlichen Bauvorschriften ausgeführt werden.

Weitere Informationen erhalten Sie von Ihrem Fachhändler.

e Versuchen Sie nicht, mehrere Projektoren an der

Decke übereinander zu stapeln.

Spannungsversorgung

1. Der Projektor wurde so konzipiert, dass er mit der unten aufgeführten Netzspannung läuft.

• 1.2kW (Max. 12A) 100-120V Wechselstrom, 50/60Hz

• 1.7kW (Max. 8.5A) 200-240V Wechselstrom, 50/60Hz

Stellen Sie sicher, dass die vorhandene Spannungsversorgung diesen Vorgaben entspricht, bevor Sie versuchen, Ihren Projektor zu betreiben.

2. Zum Installieren des Netzkabels am Projektor wenden Sie sich bitte an Ihren Fachhändler. UNTER KEINEN UMSTÄNDEN versuchen, das Netzkabel selbst zu installieren. Brand- und Schlaggefahr.

3. Behandeln Sie das Netzkabel vorsichtig und vermeiden Sie Knicke. Legen Sie keine schweren Gegenständde das Netzkabel. Ein beschädigtes Netzkabel kann elektrische Schläge oder einen Brand verursachen.

4. Wenn der Projektor über eine längere Zeit nicht genutzt wird, schalten Sie die Stromversorgung ab.

5. Wenn Sie das Netzkabel und das Signalkabel in unmittelbarer Nähe zueinander platzieren, kann Überlagerungsrauschen auftreten. Vergrößern Sie in einem derartigen Fall den Abstand zwischen diesen beiden Kabeln.

6. Berühren Sie den Projektor auf keinen Fall während eines Gewitters. Wenn Sie dies nicht beachten, kann dies zu einem elektrischen Schlag oder einem Feuer führen.

Reinigung

1. Trennen Sie den Projektor vor der Reinigung von der Netzsteckdose ab.

Reinigen Sie das Gehäuse regelmäßig mit einem feuchten Tuch. Bei starker Verschmutzung verwenden Sie ein mildes Reinigungsmittel. Reinigen Sie das Gerät niemals mit starken Reinigungsoder Lösungs-mitteln wiez.B. Alkohol oder Verdünner.

3. Reinigen Sie die Linse mit einer Blaseinrichtung oder einem Linsentuch. Beachten Sie dabei, dass die Linsenoberfläche weder zerkratzt noch auf andere Weise beschädigt wird.

G-1

Important Information

Vorsichtsmasnahmen zur Vermeidung von Bränden und elektrischen Schlägen

1. Sorgen Sie für ausreichende Belüuftung und stellen Sie außerdem sicher, dass die Lüftungsschlitze frei bleiben, damit sich innerhalb des Projektors kein Hitzestau bilden kann. Lassen Sie mindestens 20 cm Abstand zwischen Ihrem Projektor und der Wand. Der Abstand zwischen den Belüftung und anderen Gegenständen sollte mindestens 50cm betragen.

2. Vermeiden Sie, dass Fremdgegenstande wie Büroklammern und Papierschnipsel in den Projektor fallen. Versuchen Sie nicht, in den Projektor gefallene Gegenstände selbst zu entfernen. Stecken Sie keine Metallgegenstände wie einen Draht oder Schraubendreher in Ihren Projektor. Wenn etwas in den Projektor gefallen ist, müssen Sie sofort den Netzstecker ziehen und den Gegenstand von qualifiziertem Servicepersonal entfernen lassen.

3. Stellen Sie keine mit Flüssigkeit gefüllten Gefäße auf Ihren Projektor. Überlassen Sie die Reparatur ausschließlich qualifiziertem Servicepersonal, wenn Flüssigkeit verschüttet worden ist.

4. Lichtkegel des Projektors fern. Da das von der Linse projizierte Licht umfassend ist, können alle abnormalen Gegenstände, die in der Lage sind, das aus der Linse austretende Licht umzulenken, unvorhersehbare Ereignisse wie z.B. einen Brand oder Augenverletzungen verursachen.

5. Bedecken Sie die Linse nicht mit der mitgelieferten Linsenkape o.ä. wärend der Projektor eingeschaltet ist. Dies kann ein Schmelzen der Kappe verursachen. Darüber hinaus würden Sie sich aufgrund der vom Lichtausgang abgestrahlten Hitze wahrscheinlich die Hände verbrennen.

VORSICHT: Bei unsachgemäßer Handhabung kann die

Hochdrucklampe explodieren. Überlassen Sie die Reparatur ausschließlich qualifiziertem Servicepersonal.

Vorsichtsmaßnahmen bezüglich der Lampe: Bitte vor dem Betrieb durchlesen

Aufgrund der unter Druck luftdicht verschlossenen Lampe besteht bei falscher Handhabung eine geringe Explosionsgefahr. Wenn sich das Gerät in einwandfreiem Zustand befindet, ist dieses Risiko minimal; die Explosionsgefahr erhöht sich jedoch im Falle einer Beschädigung oder bei einer Benutzung über die empfohlenen Betriebsstunden hinaus. Beachten Sie bitte, dass im Gerät ein Warnsystem integriert ist, das bei Erreichen der voreingestellten Betriebsdauer die nachfolgende Meldung anzeigt: “Over Time Bulb”. Im Falle einer Lampenexplosion tritt aus den Lüftungsschlitzen der Rückseite des Gerätes Rauch aus. Stehen Sie nicht vor den Entlüftungsöffnungen während des Betriebes. Dieser Rauch besteht aus einer ganz besonderen Form von Glas und aus Xenon-Gas. Solange dieser Rauch nicht in die Augen gelangt, bestehen keinerlei gesundheitliche Risiken. Wenn Ihre Augen dem Gas ausgesetzt worden sind, spülen Sie die Augen bitte sofort mit Wasser aus und konsultieren Sie einen Arzt. Reiben Sie die Augen nicht! Dies könnte ernsthafte Verletzungen zur Folge haben.

WARNUNG:

Schauen Sie nicht in die Linse, wenn der Projektor eingeschaltet ist. Dies könnte schwere Augenverletzungen zur Folge haben.

VORSICHT

Ziehen Sie den Projektor-Hauptnetzstecker nicht vom Ausgang ab, und trennen Sie den Unterbrecher, unter den folgenden Bedingungen nicht ab. Anderenfalls kann der Projektor beschädigt werden.

• Während der Projizierung von Bildern

• Während des Abkühlens, nach dem Projektor ausgeschaltet

worden ist. (Die POWER-Anzeige blinkt orange, während das Gebläse in Betrieb ist, und auf der LCD-Anzeige wird “cooling…” angezeigt. Das abkühlende fan fährt fort, für 3 Minuten zu arbeiten.)

Vorsichtsmaßnahmen zur Fernbedienung

• Behandeln Sie die Fernbedienung mit Sorgfalt.

• Wischen Sie die Fernbedienung sofort trocken, wenn sie

einmal nass geworden sein sollte.

• Vermeiden Sie übermäßige Hitze und Feuchtigkeit.

• Erhitzen Sie die Batterien nicht, nehmen Sie sie nicht

auseinander und werfen Sie sie nicht ins Feuer.

•

Nehmen Sie die Batterien heraus, wenn Sie beabsichtigen, die Fernbedienung über einen Iängeren Zeitraum hinweg nicht zu benutzen.

•

Stellen Sie sicher, dass die Batteriepole (+/-) richtig ausgerichtet sind.

• Verwenden Sie niemals verschiedene Batterietypen oder neue und alte Batterien zusammen.

• Entsorgen Sie leere Batterien entsprechen den an lhrem Wohnortgeltenden Bestimmungen

Entsorgung Ihres benutzten Gerätes

Die EU-weite Gesetzgebung, wie sie in jedem einzelnen Mitgliedstaat gilt, bestimmt, dass benutzte elektrische und elektronische Geräte mit dieser Markierung (links) getrennt vom normalen Haushaltsabfall entsorgt werden müssen. Dies schließt Projektoren und deren elektrisches Zubehör oder ihre Lampen mit ein. Folgen Sie beim Entsorgen eines solchen Gerätes bitte den Anweisungen Ihrer örtliche Behörde und/oder konsultieren Sie den Händler, bei dem Sie das Gerät erworben haben. Nach der Sammlung benutzter Geräte werden diese erneut verwendet und entsprechend den Umweltbestimmungen recycelt. Das trägt dazu bei, die Abfallmenge zu reduzieren sowie die negativen Auswirkungen auf die menschliche Gesundheit und die Umwelt möglichst gering zu halten. Die Markierung auf elektrischen und elektronischen Geräten gilt nur für die gegenwärtigen Mitgliedsstaaten der Europäischen Union.

Bei Fragen, die sich aus unklaren Punkten oder Reparaturarbeiten ergeben

Bei Fragen, die sich aus unklaren Punkten, Fehlfunktionen oder Reparaturarbeiten am Produkt ergeben, wenden Sie sich an Ihren Händler oder an eine der folgenden Niederlassungen.

In Europa

NEC Europe, Ltd. / European Technical Centre Addresse: Unit G, Stafford Park 12, Telford TF3 3BJ, U.K. Telefon: +44 1952 237000 Fax-Nummer: +44 1952 237006

In Nordamerika

NEC Corporation of America Digital-Cinema-Abteilung Adresse: 4111 West Alameda Avenue Suite 412 Burbank, CA 91505 Telefon: 818 557 2500 *Falls die oben aufgeführte Leitung besetzt sein sollte, wählen Sie bitte die folgende Nummer; Telefon: 866 632 6431

G-2

Important Information

(MEMO)

G-3

Table of Contents

Table of Contents ............................................................................ 1

1.What’s in the Box? and the Names of the Projector Parts............. 2

1-1. Features .................................................................................................................................................................... 2

1-2. What’s in the Box? ...................................................................................................................................................4

1-3. Names of the Projector Parts ..................................................................................................................................5

1-4. Names on the Remote Control .............................................................................................................................. 11

2.Installation and Connection ....................................................... 14

2-1. Steps for setting up and connecting ....................................................................................................................14

2-2. Connecting the image input terminals .................................................................................................................15

2-3. Connecting the various control terminal ............................................................................................................. 16

2-4. Connecting the power cord ................................................................................................................................... 17

3.Projection of Images (Basic Operation) ...................................... 18

3-1. Steps of projecting images ................................................................................................................................... 18

3-2. Turning your projector on ..................................................................................................................................... 19

3-3. Selecting the title of input signal ..........................................................................................................................21

3-4. Adjusting the position and the size of projected screen ....................................................................................22

3-5. Turning your projector off .....................................................................................................................................24

4.Using Menus .............................................................................. 25

4-1. Basic operation with adjustment menus ............................................................................................................. 25

4-2. Table of adjustment menus ................................................................................................................................... 29

4-3. Title Select .............................................................................................................................................................. 30

4-4. Configuration .......................................................................................................................................................... 31

4-5. Title Setup ...............................................................................................................................................................31

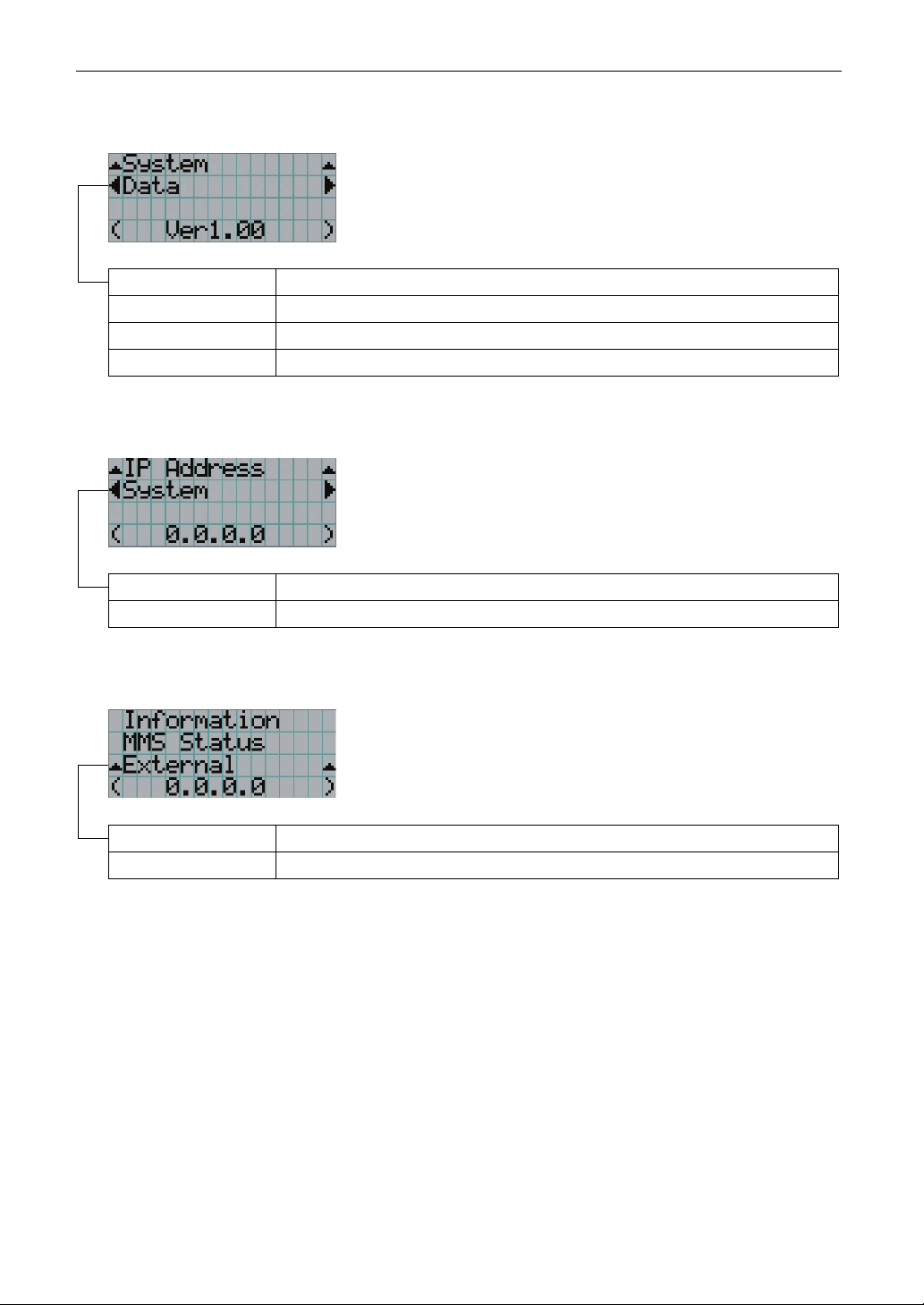

4-6. Information..............................................................................................................................................................32

5.Maintenance of Your Projector ................................................... 34

5-1. Cleaning the Cabinet ..............................................................................................................................................34

5-2. Cleaning the Lens .................................................................................................................................................. 34

6.Appendix .................................................................................... 35

6-1. Troubleshooting .....................................................................................................................................................35

6-2. Indicator display list...............................................................................................................................................37

6-3. Error code list .........................................................................................................................................................38

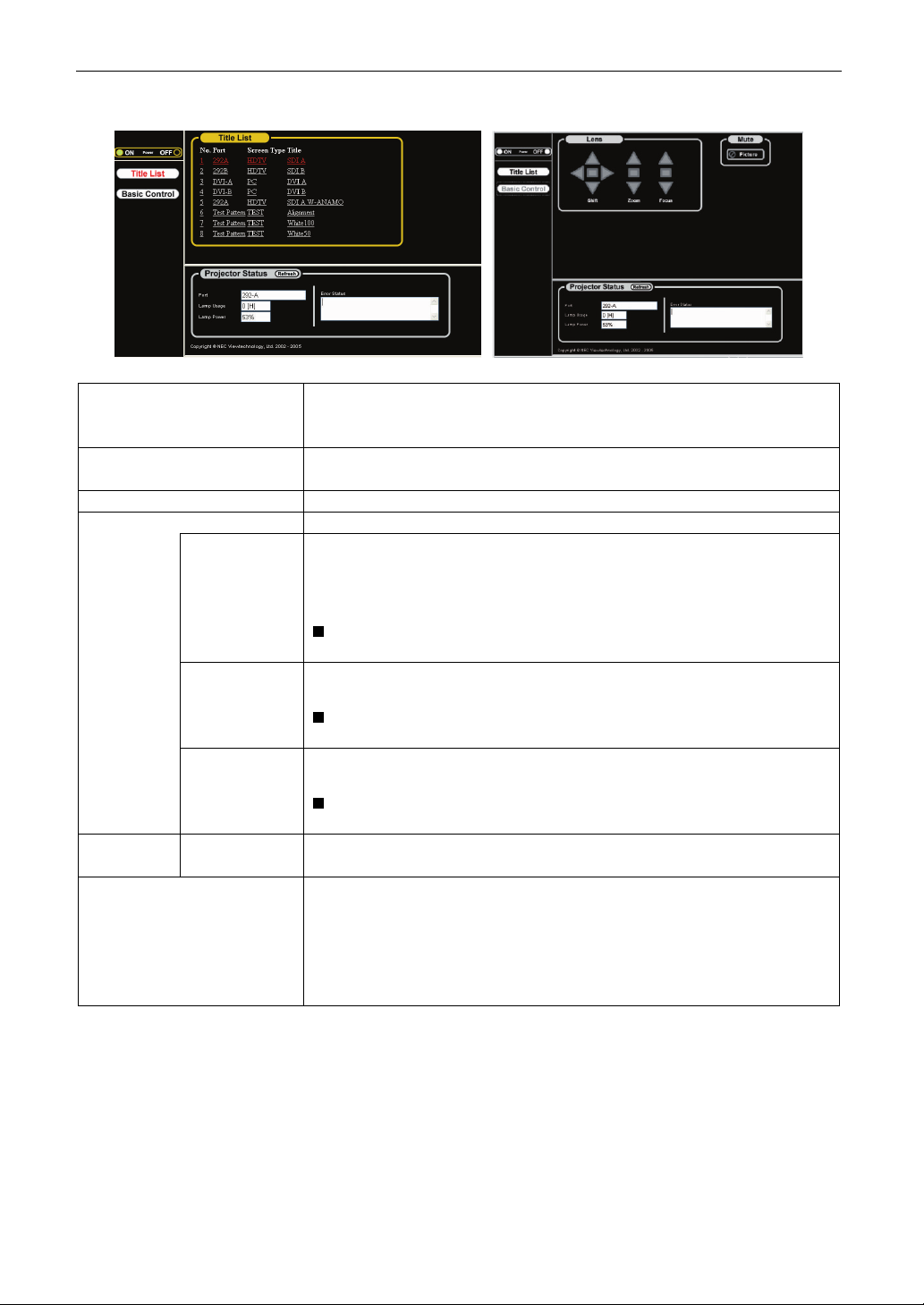

6-4. Operation using an HTTP browser ....................................................................................................................... 40

6-5. Outline Drawing ...................................................................................................................................................... 42

6-6. Specifications .........................................................................................................................................................43

6-7. Pin Assignment and Functions of Terminal ......................................................................................................... 46

6-8. Related products list .............................................................................................................................................. 51

What’s in the Box? and the Names of the Projector Parts

1-1. Features

• Compact projector for dedicated use with DLP Cinema

We have made the projector and the lamp console into one unit and achieved a quite compact projector exclusively used for DLP Cinema

• Various setups possible thanks to a variety of optional lens units and the facility for invertedinstallation

The DLP Cinema® projector is provided with a lens memory function for storing lens zoom positions and shift positions to set screens sizes for each input signal. It is also provided with a lamp power memory function for storing the brightness of the images on the screen for each input signal. Even if you are projecting multiple images that have different settings for image sizes and brightness, you can project them with the conditions pre-registered for each signal, simply by selecting the corresponding signal.

• Equipped with easy to use functions

(1) Lens memory function that can be operated with one touch, and lamp power memory function

(2) Equipped with a lamp output control function

(3) Registered signal selection buttons

The DLP Cinema set screens sizes for each input signal. It is also provided with a lamp power memory function for storing the brightness of the images on the screen for each input signal. Even if you are projecting multiple images that have different settings for image sizes and brightness, you can project them with the conditions pre-registered for each signal, simply by selecting the corresponding signal.

You can set to any brightness setting, from low brightness to high brightness. This function makes it possible to minimize the fluctuation (*) in brightness as brightness of the lamp decreases as a result of long-term lamp usage. * The time for maintaining fluctuations in brightness depends on the setting value for brightness.

The projector has been equipped with new 8 signal selection buttons that make it easy to select registered signals. Up to 8 signals can be selected.

projector is provided with a lens memory function for storing lens zoom positions and shift positions to

1. What’s in the Box? and the Names of the Projector Parts

• Up-to-date functions of DLP Cinema® available

This projector supports CineLinkTM, CineCanvasTM, CinePalletteTM and CineBlackTM which are the new functions for security, subtitles, etc., developed by Texas Instruments Incorporated. (1) CineLink

(2) CineCanvas

(3) CinePallette

(4) CineBlack

: Security management This function supports encryption of the local link between server and projector, adds a “watermark” to enable the tracing of pirated films (illegal copying), and provides other functions.

: Image management

This function enables insertion of subtitles and captions, correction of distortion, changing of resolution, etc.

: Color management

This function allows extension of color range, correction of color, etc.

: Contrast management

This function realizes a color tone scale from pitch black to pure white.

• DLP, DLP Cinema and their respective logos are trademarks or registered trademarks of Texas Instruments.

• CineLink, CineCanvas, CinePallette, and CineBlack are trademarks of Texas Instruments.

1. What’s in the Box? and the Names of the Projector Parts

1-2. What’s in the Box?

Check the content of the accessories.

NC800C projector

M M S S T A T U S

Remote control (RD-371E)

UM-3 AA size battery (for the remote control) x 2

Remote cable (4 m) x 1

Remote cable (16 m) x 1

Lens holder (NC-PH01)

Small iris x 1

Wire stopper x 1

Sheet of title labels (for 20 labels) x 2

User’s Manual (This document)

User’s Manual

Power cord (grounded)

Connect this projector to the power outlet. Three types of power cords are supplied with this projector: for Japan, for the U.S. and for European countries.

・ PowercordforEurope(

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TIP

• In the event that you did not receive all of the accessories outlined above, or some are damaged, contact

AC230V

) ・ PowercordforNorthAmerica(

AC120V

) ・ PowercordforJapan(

your dealer/distributor. Differs slightly from the drawings in this manual, but there is no problem in actual use.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

AC100V

)

1. What’s in the Box? and the Names of the Projector Parts

1-3. Names of the Projector Parts

1-3-1. Front of the projector

M M S

S T A T

2 3

1. Air inlet

Air is taken in here to provide cooling of the projector.

2. Control panel

On the control panel, power to your projector is turned on or off, signals are selected, and various adjustments are made of projected screen. (See page 9)

3. Connection terminals

Various image signal cables are to be connected here. (See page 7)

4. Feet (in four positions on the bottom)

In the ordinary installation, you can adjust the projector inclination at 4 positions.

5. Carrying handles

Hold the carrying handles when carrying your projector. There are a total of two carrying handles, a set of bottom ones on the front and the back of your projector.

6. Lens (optional)

Images are projected from the lens. Please contact your dealer/distributor to install or replace the lens.

NOTE

Do not cover the air inlet and outlet during operation. Inadequate air intake may lead to a rise in inside temperature, thus causing a fire or serious projector failure.

1. What’s in the Box? and the Names of the Projector Parts

1-3-2. Rear of the projector

1. Air inlet

Air is taken in here to provide cooling of the projector.

2. Air outlet

The heat of the lamp is vented here.

3. Power cord

Connect the power cord to an AC outlet.

4. Function ground

The function ground is used when you wish to establish a common ground potential between the projector and the imagesending device or other equipment. This is not a power supply ground terminal.

5. Main power switch

Connect the power cord to an AC outlet and set the main power switch to ON, then your projector will enter a standby state.

6. Lamp cover

The lamp house is accommodated. Mount and remove the lamps from here. For lamp mounting and removal, consult with your dealer.

NOTE

• Do not cover the air inlet and outlet during operation. Inadequate air intake may lead to a rise in inside temperature, thus causing a fire or serious projector failure.

• Do not touch the air outlet when your projector is operating. Otherwise, the high temperature may cause burns.

1-3-3. Connection terminals

2 53 4

1. What’s in the Box? and the Names of the Projector Parts

1. Remote control input terminal (REMOTE IN) (Stereo mini)

Connect the remote control of the projector, using the supplied remote control cable.

Memo

• The projector’s remote control can be used by connecting with the remote control cable. (See page 13)

2. PC control signal switch (CINEMA/SYSTEM)

Use this to set data on the projector.

3. PC control terminal (RS-232C) (D-Sub 9P)

This is used when the service personnel sets the data for the projector or operates the projector from PC via RS-232C. Use a commercially available RS-232C straight cable to connect the projector to the PC.

4. PC card slot

• Set a wireless LAN card, and you can control the projector from a PC, using a wireless LAN Please inquire your dealer/ distributor about a wireless LAN card that can be used.

• Use this slot when doing maintenance on your projector.

5. USB port (USB) (type A)

Use this port when doing maintenance on your projector.

6. HDSDI A input terminal (SDI-A) (BNC)

Connect a Video Server of Video source to this terminal. Use a 75Ω coaxial cable.

7. HDSDI B input terminal (SDI-B) (BNC)

Connect a Video Server or Video source to this terminal. Use a 75Ω coaxial cable.

8. DVI-D A input terminal (DVI-A) (DVI-D 24P)

Connect the DVI-D output terminal of a PC to this terminal. Use a commercially available DVI-D signal cable (Single Link).

1. What’s in the Box? and the Names of the Projector Parts

9. DVI-D B input terminal (DVI-B) (DVI-D 24P)

Connect the DVI-D output terminal of a PC to this terminal. Use a commercially available DVI-D signal cable (Single Link).

10. External control terminal (GP I/O) (D-Sub 37P)

Use this terminal when controlling your projector from an external switcher. (See page 48)

11. Ethernet port (LAN-A, LAN-B) (RJ-45)

Use this port when controlling your projector in LAN connection from a PC. Use a commercially available LAN cable (10Base-T/100Base-T) to connect the projector to the PC.

12. Ethernet port for the touch panel (TOUCH PANEL) (RJ-45)

This terminal is for future extensions.

1-3-4. Control panel

12 8 9

MMS

STATUS

1. What’s in the Box? and the Names of the Projector Parts

10 11 19 20

12 13 1816 17 5 6 71514

1. Remote control light reception unit

This receives signals from the remote control.

2. BACKLIGHT switch

Operate this switch to turn on/off the back light of the LCD screen and operation panel.

3. MMS STATUS indicator

This indicates the link status of the optional multi-media switcher (MMS).

Off Orange lighting Orange blinking Red blinking

When not using multi-media switcher. When linked to multi-media switcher. Preparing link with multimedia switcher. When a link error occurs.

4. LCD screen

The liquid crystal display screen shows menus and setting values for the operation of your projector.

5. POWER button

Press this button to turn on or off (standby) he power to your projector. Press this for more than three seconds. When turning on the power to the projector, first set the main power switch to the main unit to ON, thereby setting the projector in a standby state. (See page 19)

6. POWER indicator

Green lighting Green blinking Orange lighting Orange blinking

When power is on. When the douser is closed. When the power is off (in standby state). When the cooling fan(s) is running immediately after power-off.

7. STATUS indicator

Off Red blinking

When the projector is operating normally. When an error has occurred. An error code is displayed on the LCD screen.

8. CTL (MACRO) button

Press the CTL (MACRO) button together with MACRO SELECT 1 to 8 buttons. MACRO SELECT<1> to <8> button does not work individually.

1. What’s in the Box? and the Names of the Projector Parts

9. 1 to 8 buttons

Press the 1 to 8 buttons while depressing the CTL (MACRO) button to select titles (input signals) assigned to each button. To this projector, 100 titles at most can be registered (input signal registration). Among the registered titles, any 8 titles can be assigned to the buttons <1> to <8>. The indicator to the left of the buttons show the assigned/selected status of titles. Request your dealer/distributor for details on registering and changing titles.

Green lighting Orange lighting Off

When any title is assigned to the button. When title is selected. When any title is not assigned to the button.

10. CTL (LAMP) button

Press the CTL (LAMP) button together with the LAMP +/- buttons. <LAMP +/-> button does not work individually.

11. LAMP +/- buttons

Press the LAMP +/- buttons while depressing the CTL (LAMP) button to adjust the output (brightness) of the lamp. (See page 23)

12. MENU button

Press this button, and menus for various settings and adjustments will be displayed. (See page 26)

13. [MENU CTL] UP/DOWN/LEFT/RIGHT buttons

Press the [MENU CTL] UP/DOWN/LEFT/RIGHT buttons when the menu is displayed to select menu items.

14. CANCEL button

Press the CANCEL button to return to previous menu item.

15. ENTER button

Press the ENTER button, and the displayed menu item is actioned.

16. FOCUS +/- buttons

Press the FOCUS +/- buttons while depressing the CTL (LENS) button to adjust the focus of the projected image. (See page 23)

17. ZOOM +/- buttons

Press these buttons while depressing the CTL (LENS) button, for fine adjustment of the size of projected image. (See page 23)

18. [LENS CTL] UP/DOWN/LEFT/RIGHT buttons

Press the [LENS CTL] UP/DOWN/LEFT/RIGHT buttons while depressing the CTL (LENS) button to move (lens shift) the position of the projected image up, down, left and right. (See page 22)

19. CTL (LENS) button

Press the CTL (LENS) button together with the FOCUS +/- button, the ZOOM +/- button, the [LENS CTL] UP/DOWN/LEFT/ RIGHT button and the DOUSER button. The FOCUS +/-, ZOOM +/- [LENS CTL] UP/DOWN/LEFT/RIGHT and DOUSER buttons do not function when pressed alone.

20. DOUSER button

Press the DOUSER button while depressing the CTL (LENS) button to open and close the douser.

1. What’s in the Box? and the Names of the Projector Parts

1-4. Names on the Remote Control

1. POWER ON button

2 1

- -

Operate this button to turn on the power to your projector. Press it three seconds or longer. When turning on the power to your projector, first set the main power switch to the main unit to ON, which puts your projector on standby. (See page 19)

2. POWER OFF button

Operate this button to turn off (standby) the power to your projector. Press it three seconds or longer.

3. Numeric buttons (1 to 0 buttons)

Use these buttons to enter alphanumeric characters. (See page 28)

4. TEST button

• Press this button, and a test pattern will be displayed. Check the test pattern on the LCD screen by pressing the SELECT / button, then press ENTER to set your selection. To cancel the test pattern display, reselect the signal to project.

5. KEYSTONE / R button

Press the KEYSTONE(R) button while depressing the CTL button, then the red (R signal) of the test pattern will be turned off temporarily. Press this button again while depressing the CTL button, and the red (R signal) will be projected again.

6. AMPLITUDE / G button

Press the AMPLITUDE (G) button while depressing the CTL button, then the green (G signal) of the test pattern will be turned off temporarily. Press this button again while depressing the CTL button, and the green (G signal) will be projected again.

7. ENTRYLIST / B button

Press the ENTRYLIST (B) button while depressing the CTL button, then the blue (B signal) of the test pattern will be turned off temporarily. Press this button again while depressing the CTL button, and the blue (B signal) will be projected again.

8. POSI / LENS button

Press the POSI/LENS button while depressing the CTL button, to adjust the position of projected screen (Lens Shift Mode). (See page 22)

9. PICT / SHUT button

• Press this button to turn off image projection temporarily. Press it again, and the image will be projected again.

• Press the PICT / SHUT button while depressing the CTL button, then the douser sill operate to shut off the light for

projection. The POWER indicator blinks in green while the douser is operating. Press this button again while depressing the CTL button to cancel the operation of the douser.

NOTE

When GPIO Control is set to “Enable”, it is not possible to turn the power on/off and the douser function.

10. MENU button

Operate this button, and menus for various settings and adjustments will be displayed on the LCD screen. (See page 26)

1. What’s in the Box? and the Names of the Projector Parts

11. SELECT  buttons

• Press the SELECT / button when the menu is displayed, and a menu item can be selected.

• Press the SELECT  button when the menu is displayed, and a submenu will be displayed.

• Press the SELECT  button when the menu is displayed, and a menu one level above will be displayed.

• During character entry, press the SELECT  button while depressing the CTL button, then one character will be deleted.

12. ENTER button

Press the ENTER button, and the displayed menu item is actioned.

13. CANCEL button

Press the CANCEL button to return to the previous menu item.

14. FOCUS +/- buttons

Press the FOCUS +/- button while depressing the CTL button, to make lens focus adjustment. (See page 23)

15. ZOOM +/- buttons

Press the ZOOM +/- button while depressing the CTL button, to make lens zoom adjustment. (See page 23)

16. CTL button

The CTL button is a shift function used to access alternative functions on other buttons.

17. Back light switch

When this is set to [ON], the characters on the remote controller will light up.

• When using the remote control with infrared ray signals If the remote control device is not operated for 30 seconds after turning “ON” the back light switch, the back light switch will automatically extinguish itself. Thereafter, it will light again when the remote control buttons are operated.

• When using the remote control connected to the remote control cable The back light will constantly light when the power to the projector is turned on and when the projector is in standby status.

NOTE

• The following buttons cannot be used with this projector: WHITE BAL., ADJUST PICTURE, IMAGE, INFO., PIXEL., MUTE SOUND, MUTE OSD, HELP, AUTO, UNDO

Inserting the batteries

[1] Remove the battery case cover on the backside of the remote control. [2] Insert the UM-3 size AA batteries into the case. Be careful of the direction poles on the batteries. [3] Restore the cover.

NOTE

• When replacing the batteries, always purchase two of the same type of UM-3 size AA batteries.

Effective range of the remote control

To operate the remote control using infrared rays, and not using the remote control cable, point the remote control transmission unit toward the remote control reception unit on the projector. Signals from the remote control can generally be received within the range shown in the figure below.

Lens

[Range of reception in the horizontal direction]

30°

Remote control

Reception unit on projector

(Top view of the projector)

(Note) The effective range depicted in the figure may differ slightly in actual use.

1. What’s in the Box? and the Names of the Projector Parts

Using the remote control cable

Use the remote control cable when there are objects that interrupt or obstruct the space between the remote control reception unit on the projector and the remote control, or when you are using the remote control beyond its effective range. Note that the remote control cable is connected first to the remote control, then to the projector head.

Notes for use of the remote control

• Do not drop or handle the remote control in a careless manner.

• Do not allow the remote control to be splashed with water or any other liquid. If the remote control should get wet accidentally,

wipe the liquid off immediately.

• Be sure to use the remote control in a place free from heat or dampness as far as is practicable.

• The remote cable is connected first to the remote control, then to the projector head. The leading end of the remote cable is

the power supply unit, so be careful not to touch the other end of the remote cable to the projector head or other devices while only the remote cable is connected to the projector.

Installation and Connection

2-1. Steps for setting up and connecting

Use the following steps for setting up your projector:

• Step 1

Setup the screen and projector. (Contact your dealer to carry out the setup.)

• Step 2

Connect cables to the image input terminals. (See page 15) Connect cables to the various control terminals. (See page 16)

• Step 3

Connect the power cord. (See page 17)

2. Installation and Connection

2-2. Connecting the image input terminals

Your projector has four image input terminals, namely, the HDSDI A input terminal, the HDSDI B input terminal, the DVI-D A input terminal, and the DVI-D B input terminal.

• HDSDI A/B input terminal (SDI A/SDI B)................. Inputs serial digital images from a Video Server or Video source.

• DVI-D A/B input terminal (DVI A/DVI B) .................. Inputs digital RGB signals from a PC.

75Ω coaxial cable DVI-D signal cable

2. Installation and Connection

2-3. Connecting the various control terminal

For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).

• PC control terminal (PC CONTROL) .......... Use this terminal when controlling the projector in serial connection from a PC.

• Ethernet port (LAN 1/LAN 2) ...................... Use this port when controlling the projector in LAN connection from a PC.

RS-232C

Ethernet cable

2. Installation and Connection

2-4. Connecting the power cord

After making certain that the main power switch of your projector is OFF, connect the power cord to 100-120VAC or 200240VAC three-prong outlet (grounded).

CAUTION

• Please contact your dealer/distributor to perform the wiring for connection of the power cord to your projector.

• Be sure to ground the equipment to ensure safety. To avoid electric shocks, request a professional to carry out the grounding. Be sure to perform earth connection before inserting the power plug into the wall outlet.

S M

S M U T A T S

100-120 VAC or 200-240 VAC three-prong outlet

NOTE

• In the following instances, do not disconnect the power plug from the outlet. Otherwise, trouble may occur:

• When the fan is running after the power is turned off.

• When using a Flash Memory card or LAN card, the card may be damaged.

• Using the Power Cord Stopper

The Power cord wire stopper is provided on the projector so that the cord cannot be accidentally unplugged from the AC IN.

1. Lift up the wire stopper. 2. Plug the power cord into the AC IN.

Wire stopper

Power cord

3. Lift down the wire stopper to hold the power cord.

For North America

For Europe

Projection of Images (Basic Operation)

3-1. Steps of projecting images

• Step 1

Turn on the power to the projector. (See page 19)

• Step 2

Select the title of input signal. (See page 21)

• Step 3

Adjust the position and size of the projected screen. (See page 22)

• Step 4

Turn off the power to the projector. (See page 24)

3. Projection of Images (Basic Operation)

3-2. Turning your projector on

Preparation: Supply AC power to the projector head.

Please contact your dealer/distributor to connect the power cord.

• Turn off the main power switch to the projector head when supplying or cutting AC power to the projector.

NOTE

If power is supplied or cut while the main power switch is turned on, the projector will be damaged.

• Be sure to turn your projector on or off in two steps of operation with the “main power switch” and the “POWER button” (“POWER ON/OFF button” on the remote control).

• Turning power on (See this page)

[1] Turn the “main power switch” on the projector head to on.

Your projector is set in a standby state.

[2] Press the POWER button (POWER ON button on the remote control) three seconds or longer.

Your projector is turn on.

• Turning power off (See page 24)

[1] Press the POWER button (POWER OFF button on the remote control) three seconds or longer.

Your projector is set in a standby state.

[2] When the fan has stopped running, set the “main power switch” on the projector head to OFF.

Your projector is turned off.

Remove the lens cap.

Turn the main power switch on the side of your projector head to on.

The POWER indicator lights up orange (standby state).

3. Projection of Images (Basic Operation)

Press the POWER button on the control panel of your projector three seconds or longer.

Your projector is turn on, and the screen glows light about 30 seconds later. The POWER indicator of the projector lights up green.

• When controlling with the remote control, press the POWER ON button three seconds or longer.

• While your projector is on, be sure to have the lens cap removed from the lens.

NOTE

Otherwise, the lens cap may get deformed due to a heat buildup.

• In the following instances, the power to your projector cannot be turned on even if you press the POWER button.

• When the inside temperature is abnormally high. The protective function prevents power from turning on. Wait some time (until the projector inside cools down) and then turn on the power.

• When the STATUS indicator is blinking without the lamp lighting up after power-on. Your projector may be in trouble. Check the error display on the LCD screen and contact your dealer/distributor for instructions.

• Note that the image may sometimes flicker until the lamp has stabilized (5 to 10 minutes) after power-on. This is due to the characteristics of the lamp and is not trouble of your projector.

3. Projection of Images (Basic Operation)

3-3. Selecting the title of input signal

This projector allows you to select pre-registered signals using the signal selection buttons on the control panel (up to 8 signals). Request your dealer/distributor for details on registering and changing titles. This section explains the steps for selecting registered signals.

Turn on the power to the image devices connected to the projector.

Press the MENU button.

Press the [MENU CTL] LEFT/RIGHT button to display “Title Select” on the LCD screen.

At each press of the [MENU CTL] LEFT/RIGHT buttons, the display will cycle as “Title Select” ←→ “Configuration” ←→ “(Title Setup)” ←→ “Information.”

Press the [MENU CTL] DOWN button.

The title of the input signal is displayed.

• When you have made a wrong selection, press the [MENU CTL] UP button. A return will be made to the previous menu.

Press the [MENU CTL] LEFT/RIGHT buttons to display “Title of Signal to be Projected” on the LCD screen.

Press the ENTER button.

The title of the signal to be projected is selected.

• The (*) mark on the LCD indicates that this is the currently selected item.

3. Projection of Images (Basic Operation)

3-4. Adjusting the position and the size of projected screen

3-4-1. Displaying the test pattern

Press the TEST button on the remote control. Alternatively, select the test pattern from the signal selection button.

If you register the test patterns to the signal selection buttons (<1> to <8> buttons), select the test pattern according to “3-3. Selecting the title of input signal (See page 21)”. The mode for selecting the test pattern is set.

Press the SELECT / button.

The display of the test pattern name on the LCD switches.

Display on the LCD the name of the test pattern to be projected, then press the ENTER button.

The test pattern is displayed.

• To cancel the test pattern display, reselect the signal to be project.

3-4-2. Adjusting the position of the projected screen (Lens shift)

Press the [LENS CTL] UP/DOWN/LEFT/RIGHT buttons while depressing the CTL button, on the control panel of your projector as required.

The position of the projected screen will move upward, downward, left or right.

• When controlling with the remote control, press the POSI/LENS button while depressing the CTL (LENS) button.

3. Projection of Images (Basic Operation)

3-4-3. Fine adjustment of the size of the projected screen (Zoom)

Press the ZOOM +/- buttons while depressing the CTL (LENS) button on the control panel of your projector as required.

• When controlling with the remote control, press the ZOOM +/- button while depressing the CTL (LENS) button.

3-4-4. Focusing the projected screen (Focus)

Press the FOCUS +/- buttons while depressing the CTL (LENS) button, on the control panel of your projector as required.

• When controlling with the remote control, press the FOCUS +/- button while depressing the CTL (LENS) button.

3-4-5. Adjusting the brightness of the projected screen (Lamp output)

Press the LAMP +/- buttons while depressing the CTL (LAMP) button, on the control panel of your projector as required.

3. Projection of Images (Basic Operation)

3-5. Turning your projector off

Press the POWER button on the projector control panel for three seconds or longer.

The power to the projector is turned off. The POWER indicator will blink in orange (cooling state). The fan will continue to rotate while cooling, and the amount of time remaining for cooling is displayed on the LCD screen. The cooling-off time is 3 minutes. When cooling has ended, the POWER indicator lights in orange (Standby).

• When controlling with the remote control, press the POWER OFF button for three seconds or longer.

When the projector has entered the standby state, turn the main power switch on the projector head to off.

The projector POWER indicator will extinguish and the main power will turn off.

Turn off the AC power to the projector head.

• In the following instances, do not turn off the main power switch or disconnect the AC power. Doing so can

NOTE

damage the projector.

• While projecting images

• While the fan is running after the power is turned off (The cooling-off time is 3 minutes)

Using Menus

4-1. Basic operation with adjustment menus

To adjust the projector, display the menu on the LCD screen of the projector control panel.

4-1-1. Screen display

The menu display screen is composed of a menu display field (the upper two lines) and a setting item display field (the bottom two lines).

← Displays the main menu or submenus.

← Displays submenus or selection items.

← Displays settings and selection status.

← Displays settings, selected items and information on selected menus.

The meanings of symbols in the menu display screen are outlined below.

Indicates that there is a menu of a higher level.

Press the [MENU CTL] UP button to return to a menu one level above.

Indicates that there is a selected item or menu at the same level.

Press the [MENU CTL] LEFT/RIGHT button to display other selected items or menus.

Indicates that there is a menu of a lower level.

Press the [MENU CTL] DOWN button to display the menu one level below.

Indicates that there are setting items of a lower level.

Press the [MENU CTL] UP button to return to a menu one level above.

Press the [MENU CTL] DOWN button to display the setting item one level below.

4. Using Menus

When not displaying menus, the following screen is normally displayed.

When in standby

When the projector is in a standby state (the main power switch in on), the following is displayed.

When power is turned on

When the power is turned on, the following is displayed.

← Displays the hours of lamp bulb use.

← Displays the lamp output (%).

← Displays the selected title.

← Displays the selected port.

When the power is turned off

The amount of time remaining for cooling is displayed as shown below, when the power to the projector head is turned off.

4-1-2. Operating menus

Preparation: Turn your projector on. (See page 19)

Press the MENU button on the control panel of your projector .

The menu is displayed in the LCD screen.

Press the [MENU CTL] LEFT/RIGHT buttons to display “Information.”

At each press of the [MENU CTL] LEFT/RIGHT buttons, the display yp l cycle as “Title Select” ←→ “Configuration” ←→ “(Title Setup)” ←→ “Information.”

4. Using Menus

Press the [MENU CTL] DOWN button.

The submenu “Lamp” of “Information” is displayed. The menu item can be selected by pressing the ENTER button instead of the SELECT DOWN button To return to the previous state, press the [MENU CTL] UP button, or the CANCEL button.

Press the [MENU CTL] LEFT/RIGHT button to select the submenu “Version.”

At each press of the [MENU CTL] LEFT/RIGHT button, the display will cycle as “Lamp” ←→ “Macro Key” ←→ “Usage” ←→ “Error Code” ←→ “Version” ←→ “IP Address” ←→ “MMS Status.”

Press the [MENU CTL] DOWN button.

The submenu “BIOS” another rank lower than “System” is displayed.

Press the [MENU CTL] LEFT/RIGHT button to select the submenu “Data.”

At each press of the [MENU CTL] LEFT/RIGHT button, the display will cycle as “BIOS” ←→ “Firmware” ←→ “Data” ←→ “Serial No.,” and each version information is displayed.

Press the [MENU CTL] UP button several times.

At each press of the [MENU CTL] UP button, the display will return to a menu one level above.

4. Using Menus

4-1-3. How to enter alphanumeric characters

Alphanumeric characters are entered for items, such as the title of input signal. With this projector, the characters are inputted by pressing numeric buttons on the remote control.

Numeric buttons

By pressing the numeric buttons, the characters can be inputted as shown in the table below.

• To delete a character during entry, press the SELECT  button while depressing the CTL button.

[Example of Entry]

To enter “XGA” for example, use the following procedure: (1) Press the 8 button three times.

V → W → X (2) Press the SELECT  button. (3) Press the “3” button.

XG (4) Press the SELECT  button. (5) Press the “1” button.

XGA

Numeric

button

Press directly

A → B → C → 1 →

D → E → F → 2 →

G → H → I → 3 →

J → K → L → 4 →

M → N → O → 5 →

P → Q → R → 6 →

S → T → U → 7 →

V → W → X → 8 →

Y → Z → / → 9 →

* → . → . → 0 →

While depressing CTL button

a → b → c → ! →

d → e → f → î →

g → h → i → # →

j → k → l → $ →

m → n → o → % →

p → q → r → & →

s → t → u → í →

v → w → x → ( →

y → z → ? → ) →

; → : → + → _ →

NOTE

• To input characters using the remote control, only numbers can be entered with [password] and the security [keyword].

4-2. Table of adjustment menus

Menus in parentheses are menus for our service personnel. Normally, these menus cannot be used.

4. Using Menus

Main menu

Title Select

Configuration

(Title Setup) Information

Submenu

"Title Memory Name" TEST Pattern Lamp Setup

(Setup)

(Installation)

(Memory)

Macro Key Lamp Macro Key Usage

Error Code Version

IP Address

MMS Status

Adjust Feedback

Douser Mode

Ext. MMS Link Panel Key Lock

GPIO Port FactoryDefault

Image Orient

Lens Center MMS Select Baudrate

Date/Time Bulb Alignment Lamp Lens Macro Key No.1-8 Output Macro Key No.1-8

System Cinema

Description

Selects the title of the signal to be projected. Selects the test pattern to be projected. Adjusts lamp brightness. Sets the lamp brightness constant mode that uses a brightness sensor. Selects whether to use the douser (screen mute) when switching signals. Sets whether to connect the multi-media switcher (MMS). Locks the buttons on the projector's control panel so that they cannot be operated. Selects the target of GPIO port control. Returns the settings to their default values (only macro keys and titles, or all settings). Selects the projection method (desktop front / desktop rear / ceiling front / ceiling rear). Moves the lens shift position to the center. Selects the multi-media switcher (MMS) to connect. Sets the PC control connector (RS-232C) data transmission speed (bps). Sets the date and time on the projector. Sets the lamp bulb alignment. Saves the current lamp setting. Saves the current lens setting. Sets the titles to be assigned to the macro keys of 1 to 8. Displays the lamp output setting. Displays the titles assigned to the macro keys of 1 to 8. Displays the usage times of the projector, lamp bulb, lamp house and bulb warning. Displays the currently occurring error. Displays the version of the projector head. (BIOS, Firmware, Data, and Serial No.) Displays the SYSTEM IP address. Displays the CINEMA IP address. Displays the link-status of the connected multi-media switcher (MMS).

Reference

page

30 30 31 31

31 32 32 32

32 33

33 33 33

4. Using Menus

4-3. Title Select

4-3-1. Title select (Title Memory)

Selects the title of the signal to be projected. You can register up to 100 titles. You can also assign registered titles to the Macro keys of 1 to 8 on the projector’s control panel and call them up directly using those buttons. Request your dealer/distributor for details on registering and changing titles.

← Displays the currently selected item with asterisk (*).

← Selects the title to be projected.

4-3-2. Test Pattern

Selects the test pattern to be projected.

← Displays the currently selected item with asterisk (*).

← Selects the test pattern to be projected.

OFF, Alignment, Cross Hatch, Convergence, Red, Green, Blue, White, Black, White 50% [IRE], H-Ramp, Logo

4-4. Configuration

Please request your dealer/distributor to perform the settings.

4-4-1. Lamp Setup

Adjust

Adjusts the lamp output (brightness). Control the output at 30 to 34 W increments.

← Displays the lamp output (%) with regard to the setting. ← Adjusts the lamp brightness.

Feedback

Sets the lamp brightness constant mode that uses a brightness sensor.

← Displays the currently selected item with asterisk (*). ← Displays the setting.

4. Using Menus

Disable

Enable

Disables the lamp brightness constant mode.

Enables the lamp brightness constant mode.

4-5. Title Setup

Sets the titles to be assigned to the macro keys. Request your dealer/distributor to perform the settings.

4. Using Menus

4-6. Information

Displays the hours of lamp bulb use, the version information and error codes.

4-6-1. Lamp

Displays information relating to the lamp. (Such as lamp output and the utilization time of lamp bulb.)

Output

Displays the lamp brightness (output) setting.

← Displays the power consumption (W).

4-6-2. Macro Key

Displays the titles assigned to the macro keys of 1 to 8 on the projector’s control panel.

← Selects the macro key number whose contents you want to display.

← Displays the registered names of the assigned titles.

4-6-3. Usage

Projector and lamp bulb utilization times and the remaining usable time for the lamp bulb are displayed.

← Selects the item to display.

← Displays the hours of use (H).

Projector

Bulb

Remainig Time

Displays the hours of projector head use.

Displays the utilization time of the currently used lamp bulb (Lamp utilization time).

Displays the remaining usable time for the lamp bulb.

4-6-4. Error Code

Displays the error code when an error occurs. See the “Error Code List” in the Appendix for details on error codes.

← Displays the code of the error currently occurring.

← Displays the name of the error currently occurring.

When multiple errors occur, you can display them by pressing the [MENU CTL] LEFT/RIGHT buttons.

4-6-5. Version

Displays the versions of the projector head.

4. Using Menus

← Selects the item to display.

← Displays the version information.

BIOS

Firmware

Data

Serial No.

Displays the BIOS version of the projector head.

Displays the firmware version of the projector head.

Displays the data version of the projector head.

Displays the serial number of the projector head.

4-6-6. IP Address

Displays the IP address set in the projector head.

← Selects the item to display the IP address.

← Displays the IP address.

System

Cinema

Displays the IP address set for the projector head (System).

Displays the IP address set for the projector head (Cinema).

4-6-7. MMS Status

Indicates the link-status of the multi-media switcher (MMS) connected to your projector.

← Displays the status information of MMS linked operations. ← Displays the IP address.

External

Not Use

External multi-media switcher (MMS) is linked.

There is no link established.

Maintenance of Your Projector

NOTE

Please request your dealer to perform lamp replacement, filter replacement and cleaning of the projector inside.

5-1. Cleaning the Cabinet

Be sure to always check that the AC power supply of the projector head is disconnected before carrying out maintenance of your projector.

• Wipe with a dry, soft cloth without nap. When the cabinet is excessively dirty, wipe with cloth well wrung after being dampened with a neutral detergent diluted with water and then finish up with a dry cloth. When you use a chemical dust cloth, follow the instructions in the manual attached to it.

• Do not use a solvent, such as thinner or benzene. The coating may deteriorate or peel off.

• When removing dust on the ventilation opening, suck it off using an adapter with a brush on a vacuum cleaner. Never allow

the cleaner without an adapter to come into direct contact or use a nozzles adapter in cleaning.

• Clean the ventilation opening at regular intervals. Dust, if allowed to accumulate there, may cause heating inside, which leads to functional trouble. The interval, which can vary with the location of your projector, is about 100 hours.

• Do not damage the cabinet by scratching it or allowing hard objects to hit it. This can scratch the projector.

• Consult your dealer/distributor about cleaning the inside of the projector.

NOTE

Do not allow insecticide or other volatile liquid to splash on the cabinet, lens or screen. Also, do not allow any rubber or plastic object to remain in contact with the cabinet for a long time. The coating may deteriorate or peel off.

5-2. Cleaning the Lens

Clean the lens the same way as with camera lens (using a commercially available camera blower or cleaning paper for glasses). Take care not to damage the lens when cleaning.

Appendix

6-1. Troubleshooting

Before asking for repair, please check your connection, settings and operation once again. If the trouble cannot be corrected, please contact your dealer/distributor for instructions or repair.

6-1-1. Problems and where to check

Problem

The projector cannot be turned on.

The image cannot be projected.

The image is distorted. The image is blurred.

Video image is disturbed

Check these items Check to see if the power plug is properly connected to the outlet. Make certain that the main power switch is ON. Check to see whether the panel key lock function is activated. If so, the main unit's control buttons are locked and do not work, but the projector can be controlled using the remote control unit. Is the temperature inside the projector too high? When the inside temperature is too high, the protective function does not allow your projector to be turned on. Wait some time and then turn it on. Check to see if the connected input has been selected. Check to see if a cable is properly connected to the input terminal. Check to see whether the douser is closed. Check to see if the settings are all adjusted properly. Check to see if the protractor is properly set up. Make certain that the lens is properly focused. Check to see if the screen and a projector are installed at correct angles. The projection distance may be larger than the focusing range. See if the lens and other parts have condensation on them. If the projector is turned on in a warm place after storage in a cold place, the lens and other optical components inside may develop condensation. In such a case, please wait several minutes until the comdensation disappears. Check whether the signal cable connected to the projector is disconnected.

6. Appendix

Problem The projector cannot be operated with the remote control.

The STATUS indicator blinks in red. An error code is displayed.

Check these items Make sure the remote control transmission unit is facing the light reception unit on the projector. Check whether the batteries are still good. Replace with new batteries. Check whether there is any obstructing object between the remote control and the light reception unit on the projector. Check whether you are outside of the remote control's effective range (7m). Check whether the remote control cable has become disconnected, if you are using the remote control by connecting with the remote control cable. Your projector may have trouble. Please contact your dealer/distributor for instructions. See the "Error Code List" (page 38).

6. Appendix

6-2. Indicator display list

See the descriptions below when the blinking or lighting of the two indicators on the projector’s control panel is observed.

MMS STATUS indicator

MMS

STATUS

6-2-1. POWER indicator

POWER indicator

STATUS indicator

Indicator condition Off Blinking light

Steady light

Green

Orange Green Orange

6-2-2. STATUS indicator

Indicator condition Off Blinking light

Red

6-2-3. MMS STATUS indicator

Indicator condition Off Blinking light

Steady light

Red

Orange Orange

Projector condition The main power is off. The projector is getting ready to turn on. The douser is closed. The projector is cooling down. The projector is turned on. The projector is in standby.

Projector condition Normal. When an error has occurred.

Projector condition Multi-media switcher (MMS) not in use. Link error

Preparing link with Multi-media switcher (MMS). Multi-media switcher (MMS) is linked.

Note

Wait for a moment.

Note

An error message is displayed in the LCD screen. Check the content of the error.

Note

Link error. An error message is displayed in the LCD screen. Check the content of the error. Wait for a moment

6. Appendix

6-3. Error code list

Please inquire your dealer/distributor about action to be taken for each error code. Description is omitted for error codes 20 to 92.

Error code 1 2 3 4 5 8 9 10 11 12 15 16 17 18 19 20 21 22 23 24 25 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 60 61 62

Error message Lamp Cover Open Over Temp Lamp Fan Stop GPSU Fail Lamp Unlit Over Temp. LPSU Over Temp. In DLP PGOOD Fail DLP Comm. Fail E2PROM R Fail E2PROM W Fail Fan Stop Lamp Pump Stop Over Temp. DMD E2PROM D Fail System Fail Self Test Fail ARM Fail DSP Fail Interface FPGA Fail Processor FPGA Fail IB Diag Not Performed IB FPGA Code Invalid IB FPGA INITZ Fail IB FPGA No-Load Set IB FPGA DONE Fail IB FPGA Reg R/W Fail IB Framestore Test Fail IB ANC FIFO Test Fail IB RTC Serial # Fail IB UART0 Fail IB UART1 Fail IB IIC Fail IB Ethernet Fail IB Sync-Serial Fail IB File System Fail IB Formatter Fail IB Flash Protect Fail IB GPI Macro Fail IB A/D Macro Fail PB Diag Not Performed PB FPGA Code Invalid PB FPGA INITZ Fail

Desctiption Lamp cover is open. Temperature (lamp temperature) is abnoramal. DC fan stop. Power supply is abnormal. Lamp doesn’t light up. Temperature (in lamp power supply) is abnormal. Temperature (inside of projector) is abnormal. Engine power is abnormal. Cinema engine communication error. E2PROM data read error is detected. E2PROM data write error is detected. Stop of lamp cooling fan. Stopped for pump error. DMD temperature error alarm. E2PROM data failure.

6. Appendix

Error code 63 64 65 66 67 68 69 70 71 90 91 92 120 123 130

Error message PB McBSP XRDY Fail PB FPGA Done Fail PB FPGA Reg R/W Fail PB Serial-ID Chip Fail PB CLUT-SRAM Fail PB OvFS-SDRAM Fail PB Resizer FIR Fail PB Resizer FIFO Fail PB Other Fail FB Red RDRAM Signature Fail FB Green RDRAM Signature Fail FB Blue RDRAM Signature Fail DLP Ack Fail OverTime Bulb MMS Comm. Fail

Desctiption

Cinema block communication ACK error. Lamp bulb cumulative time is over. Multimedia switcher (MMS) link operation failure.

6. Appendix

6-4. Operation using an HTTP browser

6-4-1. Overview

The use of HTTP server functions will allow control of the projector from a web browser. Please be sure to use “ Microsoft Internet Explorer 4.x” or a higher version for the web browser. This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary depending on the version of the browser. Please refer to the help files and the other information provided in your software.

NOTE

The display’s or button’s response can be slowed down or operation may not be accepted depending on the settings of your network. Should this happen, consult your network administrator. The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and repeat. If you still cannot get any response, pull out and then reinsert the LAN card on the projector. Access is gained to the HTTP server functions by and specifying http://<the projector’s IP address>/index.html in the entry column of the URL.

6-4-2. Preparation before use

Make network connections and set up the projector and confirm that it is complete before engaging in browser operations. Operations with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed depending on the effectiveness of the cache, and the contents set from a browser not be reflected in operation. It is recommended that a proxy server not be used unless it is unavoidable.

6-4-3. Handling of the address for operation via a browser

Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector is via a browser, the host name can be used as it is with the host name corresponding to the IP address of the projector has been registered in the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been set in the “HOSTS” file of the computer being used.

(Example 1) When the host name of the projector has been set to “pj.nec.co.jp”

http://pj.nec.co.jp/index.html is specified for the address or the entry column of the URL to access HTTP server functions.

(Example 2) When the IP address of the projector is “192.168.10.10”

http://192.168.10.10/index.html is specified for the address or the entry column of the URL to access HTTP server functions.

6-4-4. Structure of the HTTP server

6. Appendix

Power

Title List

Basic Control Lens

Mute

Projector Status

Shift

Zoom

Focus


Controls the power to your projector.

• On: Turns the power on.

• Off: Turns the power off.

Displays titles set in the projector (such as input port, screen type, and title). Check, and the title will be changed. Displays the basic control items. Controls the lens operation.

 : Shifts the projected screen upward.  : Shifts the projected screen downward.  : Shifts the projected screen leftward.  : Shifts the projected screen rightward.

: Stops the shifting. Shifting can also be stopped by clicking the same button one more time.

 : Zooms up the lens.  : Zooms down the lens.

: Stops the zooming. Zooming the can also be stopped by clicking the same button one more time.

 : Focuses up the lens.  : Focuses down the lens.

: Stops the focusing. Focusing can also be stopped by clicking the same button one more time. Click and the douser closes and the projected picture disappears. Click once again and the picture will be projected again. Displays the condition of the projector.

• Port: Displays the input port of the selected title.

• Lamp Usage: Displays the hours of lamp use.

• Lamp Power: Displays lamp output (%).

• Error Status: Displays the status of errors occurring within the projector.

• Refresh: Updates the display of the following conditions.

6. Appendix

6-5. Outline Drawing

Units: mm (inch)

6-6. Specifications

6. Appendix

Model No. Projection method Panel resolution Lamp type Screen sizes Contrast ratio Lens adjustment function Signal input terminal

External Control

Power supply voltage

Input current Power consumption Cooling method Noise level Installation Dimensions Net weight Environment

Regulations

NC800C 3 chip DMD reflector method (DLP 2048 x 1080

1.25 kW xenon lamp 8 m (Width) (Depends on setup conditions) 200:1 or above Motorized lens shift (vertical/horizontal), motorized zoom, motorized focus, douser RGB DIGITAL (2) DVI-D 24pin（TMDS specification） SDI (2) BNC （SMPTE 292M） RS232C (1) D-sub 9 pin Remote control LAN port (RJ-45) x 2 USB port (type A) GPIO port (D-sub 37 pin) PC card slot (1) PCMCIA type II, card bus LAN port for the Touch Panel (Note) AC100 to 120V 50/60Hz, AC200 to 240V 50/60Hz 12A (100 - 120V), 8.5A (200 - 240V)

1.2kW to 1.44kW (100 - 120V), 1.7kW (200 - 240V) Cooling air system (includes dust filter) Less than 45dB (When set to minimum brightness mode) Orientation: Desktop/front, Desktop/rear, Ceiling/front, Ceiling/rear 670mm(W) x 826mm(D) x 423mm(H) (Does not include protruding portions Includes foot) 66 kg (Excluding lens) Operating temperature: 5 to 35˚C Operating humidity: 10 to 85% (non-condensing) Storage temperature: -10 to 50˚C Storage humidity: 10 to 85% (non-condensing)

<Safety> <EMC> USA UL60950-1 FCC Class A Canada CSA60950-1 ICES-003 Class A Europe EN60950-1 EN55022 Class A

Oceania IEC60950-1

AS/NZS CISPR. 22 Class A Japan J60950 VCCI Class A Asia IEC60950-1 CISPR. 22

method)

EN55024

(Note) This is the terminal for future expansions. * Note that these specifications and design can change without prior notice.

6. Appendix

Caracteristiques techniques

Numéro du modèle Mode de projection Résolution du panneau Type de lampe Tailles d'écran Rapport de contraste Fonction de réglage de l'objectif

Borne d'entrée des signaux

Commande extérieure

Alimentation électrique

Intensité d’entrée Puissance absorbée Mode de refroidissement Niveau de bruit Installation Dimensions

Poids net Environnement

Réglementations

NC800C Réflecteur DMD 3 matrices (DLP 2048 x 1080 Lampe xenon 1.25kW 8m (Largeur) (Dépend des conditions de configuration) Plus de 200 : 1 Commande du mouvement horizontal et vertical de l’objectif à moteur, Commande du zoom et de la mise au point à moteur, obturateur RGB NUMERIQUE (2) DVI-D 24fiches (Spécifications TMDS) SDI (2) BNC (SMPTE 292M Niveau C, 4:2:2) D-sub 9 fiches RS232C (1) Télécommande Port Ethernet (2) (RJ-45) Port USB (Type A) Port GPIO (D-sub 37 broches) Slot de carte PC (1) PCMCIA type II, bus de carte Port Ethernet pour le Toucher Panneau (Remarque) CA100-120V 50/60 Hz, CA200-240V 50/60 Hz 12A(100-120V), 8.5A(200-240V)

1.2kW to 1.44kW(100-120V), 1.7kW(200-240V) Système de refroidissement par air (comprend un filtre anti-poussière) Moins de 45dB (Lorsque réglé en mode de luminosité minimum) Bureau/Avant, Bureau/Arrière, Plafond/Avant, Plafond/Arrière 670mm(l) x 826mm(p) x 423mm(h) (Ne comprend pas les parties saillantes Comprend le pied) 66kg (sans objectif) Température de service : 5° à 35° C, Humidité : 10-85% (sans condensation) Température de magasinage: -10° à 50° C Humidité : 10-85% (sans condensation)

<Sécurité> <EMC> USA UL60950-1 FCC Classe A Canada CSA60950-1 ICES-003 Classe A Europe EN60950-1 EN55022 Classe A

Océanie IEC60950-1

AS/NZS CISPR. 22 Classe A Japon J60950 VCCI Classe A Asie IEC60950-1 CISPR. 22

method)

EN55024

(Remarque) C’est la borne pour de futures expansions. * Veuillez noter que l’apparence et les caractéristiques peuvent être modifiées sans avertissement préalable.

Technische Daten

6. Appendix

Modellnummer Projektionsverfahren Bildflächenauflösung Lampentyp Bildschirmgrößen Kontrastverhältnis Linsenbewegung Signaleingangsanschluss

Externe Steuerung

Spannungsversorgung

Eingangsstrom Leistungsaufnahme Abkühlverfahren Geräuschpegel Installation Abmessungen (B/T/H) Gewicht Umgebungsbedingungen

Verordnungen

NC800C 3 Chip DMD-Reflektorverfahren (DLP 2048 x 1080

1.25kW Xenon-Lampe 8m (Breite) (Ist abhängig von den Einrichtungsbedingungen) Mehr als 200 : 1 Servo in Horizontal- und Vertikalrichtung, Motorzoom und -fokus, Douser RGB DIGITAL (2) DVI-D 24-pol (TMDS-Spezifikation) SDI (2) BNC (SMPTE 292M Level C, 4:2:2) RS232C (1) D-sub 9-pol Fernbedienung Ethernet Port (2) (RJ-45) USB Port (Typ A) GPIO Port (D-Sub 37-pol.) PC-Kartensteckplatz (1) PCMCIA Typ II, Karten-Bus Ethernet Port für das Fingerspitzentablett (Hinweis) 100-120V Wechselstrom 50/60Hz, 200-240V Wechselstrom 50/60Hz 12A(100-120V), 8.5A(200-240V)

1.2kW to 1.44kW(100-120V), 1.7kW(200-240V) Luftabkühlsystem (einschließlich Staubfilter) Weniger als 45dB (Wenn es auf minimale Belichtung eingestellt ist) Ausrichtung: Desktop/Vorn, Desktop/Hinten, Decke/Vorn, Decke/Hinten 670mm(B) x 826mm(T) x 423mm(H) (Ohne hervorstehende Teile, einschließlich Fuß) 66kg (ohne Linse) Betriebstemperatur: 5°C bis 35° C Feuchtigkeit: 10-85% ohne Kondensatbildung Lagerungstemperatur: -10°C bis 50° C Feuchtigkeit : 10-85% ohne Kondensatbildung

<Sicherheit> <EMC> USA UL60950-1 FCC Klasse A Kanada CSA60950-1 ICES-003 Klasse A Europa EN60950-1 EN55022 Klasse A

Ozeanien IEC60950-1

AS/NZS CISPR. 22 Klasse A Japan J60950-1 VCCI Klasse A Asien IEC60950-1 CISPR. 22

-Verfahren)

EN55024

(Hinweis) Dieses ist der Anschluß für zukünftige Expansionen. * Beachten Sie, dass Änderungen der technischen Daten und des Designs jederzeit vorbehalten sind.

6. Appendix

6-7. Pin Assignment and Functions of Terminal

6-7-1. PC CONTROL connector (D-Sub 9 pin)

This is an RS-232C interface for controlling the projector head from a PC. The projector operates as a DCE (Data Communication Equipment), so use a straight cable when connecting to a PC.

6789

12345

RS-232C

No.

Signal Name

RXD

TXD

DTR

GND

DSR

RTS

CTS

Note 1: Do not use DTR and DSR signals when communicating. Note 2: Connector operations vary according to the PC control signal switch

(CINEMA/SYSTEM). (When in SYSTEM, do not use RTS and CTS signals.)

Functions as RS-232C

Carrier detection Reception data Transmission data Data Terminal ready (Note 1) Signal GND Data set ready (Note 1) Transmission request

Transmission available

Ring indicator

Projector Connector Operation

Not used (N.C.) Data transmission to an external device Data reception from an external device Connection to 6 pins Signal GND Connection to 4 pins SYSTEM (Note 2): Hi-Z (Not used) CINEMA (Note 2): Hi-Z (Used) SYSTEM (Note 2): Fixed at -6.5 V (Not used) CINEMA (Note 2): ± 10.5 V (Used: Depends on communication status) Not used (N.C.)

Internal Configuration Diagram of RS-232C Communication System

Projector NC800C

PC Control Signal Switch

CINEMA

SYSTEM

RS-232C

Connector

Cinema

Control Block

System

Control Block

6. Appendix

6-7-2. Remote control input connector (REMOTE IN) (Stereo mini)

Connected with the projector’s remote control the accessory remote cable. When the remote cable is connected to this connector, the remote cable connector operates with the following functions.

DC power supply unit for remote control

Remote signal unit

GND unit

The DC voltage supplied from the projector to the remote control is approximately +4.0 V.

NOTE

The remote control cable is connected first to the remote control, then to the projector head. The leading end of the remote control cable is the power supply unit, so be careful not to touch the other end of the remote cable to the projector head or other devices while only the remote control cable is connected to the projector.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TIP

Even if the remote cable power supply unit and GND unit (such as the projector head) should short, the protective function inside the projector will activate to prevent the shorted cable from damaging the projector.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

6-7-3. LAN port (LAN-A, LAN-B) (RJ-45)

Use Ethernet 10Base-T/100Base-TX UTP (Unshielded Twist Pair cable) to connect with a video server or a PC. A switching hub exists inside, so there are no functional differences of either the LAN-A or LAN-B ports.

Internal Configuration Diagram of LAN Port

Projector NC800C

• Video Server

• PC

• Video Server

• PC

LAN-A

LAN-B

LAN-C

Ethernet

Switching

Hub

LAN-D

Cinema

Control

Block

System Control

Block

6. Appendix

6-7-4. External control connector (GP I/O) (D-Sub 37 pin)

It is possible to control the projector with an external device and to control the external device from the projector using an external control connector (GP I/O: General Purpose I/O Ports). Each pin is electrically separated from the projector internal circuits by a photo-coupler. 8 port input and 8 port output are available. Please contact your dealer/distributor regarding how to use and to operate them.

19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19

Signal Name Ext_GPIN_1_P Ext_GPIN_2_P Ext_GPIN_3_P Ext_GPIN_4_P Ext_GPIN_5_P Ext_GPIN_6_P Ext_GPIN_7_P Ext_GPIN_8_P Ext_GPOUT_1_P Ext_GPOUT_2_P Ext_GPOUT_3_P Ext_GPOUT_4_P Ext_GPOUT_5_P Ext_GPOUT_6_P Ext_GPOUT_7_P Ext_PROJ_GOOD_P NC Reserve Reserve

I/O Input Input Input Input Input Input Input Input

Output Output Output Output Output Output Output Output

Pin view of female connector

Pin No.

Ext_GPIN_1_N

Ext_GPIN_2_N

Ext_GPIN_3_N

Ext_GPIN_4_N

Ext_GPIN_5_N

Ext_GPIN_6_N

Ext_GPIN_7_N

Ext_GPIN_8_N

Ext_GPOUT_1_N

Ext_GPOUT_2_N

Ext_GPOUT_3_N

Ext_GPOUT_4_N

Ext_GPOUT_5_N

Ext_GPOUT_6_N

Ext_GPOUT_7_N

Ext_PROJ_GOOD_N

Reserve

Signal Name

I/O Input Input Input Input Input Input Input Input

Output Output Output Output Output Output Output Output

Input Connector

Ext_GPIN_P

Pin No.: 1234567

Voltage applied across the pins of Ext_GPIN_P and Ext_GPIN_N should be in the range from 3.3 Vdc to 10 Vdc.

Recommended Operating Current: 5mA Absolute Maximum Rating: 23mA

6. Appendix

GP I/O Connector Inside Projector

Resist = 390 Ω

Ext_GPIN_N

Pin No.: 20 21 22 23 24 25 26827

Forward direction voltage: 1.1 V (@5 mA)

Photo-coupler

• Use with External Control Mode

You can use the GP I/O input port to turn the projector power on and off, to control video mute and to switch signals (switching the input connector and image adjusting data).

Pin No.

1-20

2-21

3-22

4-23 5-24 6-25

7-26 8-27

Photo-coupler ON / OFF OFF ON OFF ON OFF ON

6-25 OFF OFF OFF OFF

ON ON ON ON

5-24 OFF OFF

ON OFF OFF

4-23 OFF

OFF

Function External control mode OFF External control mode ON Power off Power on Image mute off Image mute on The following functions are used, depending on the combination of the input connectors. Selects title registered to MACRO 1. Selects title registered to MACRO 2. Selects title registered to MACRO 3. Selects title registered to MACRO 4. Selects title registered to MACRO 5. Selects title registered to MACRO 6. Selects title registered to MACRO 7. Selects title registered to MACRO 8. Used internally. Used internally.

NOTE

When in use in the External Control Mode, it is not possible to turn the power on and off from the remote control, operation panel or menus, to mute the video, or to switch titles.

Output Connector

GP I/O Connector Inside Projector

Ext_GPOUT_P Ext_PROJ_GOOD_P

Pin No.: 9 10 11 12 13 14 15 16

Absolute Maximum Rating: 50 mA

Ext_GPOUT_N Ext_PROJ_GOOD_N

Pin No.: 28 29 30 31 32 33 34 35

Photo-coupler

6. Appendix

6-7-5. SDI-A, SDI-B (HD-SDI input connector) (BNC)

This is a signal input connector (SMPTE 292/HDSDI) for CINEMA. The SMPTE 292/HD-SDI transfers HDTV signals with 1.5 GHz digital serial signals, so use a 75 É∂ coaxial cable having a thickness and characteristics higher than 5C-FB, and use a BNC for the connector.

Signal GND

6-7-6. DVI-A, DVI-B (DVI digital Input connector) (DVI-D 24 pin)

This is a single link DVI input connector that is compliant with hot plug detect (HPD). Use a single link cable. Noise may be generated in the video if you use a dual link cable. EDID is available even when the projector is switched off.

Pin view of female connector

1718192021222324

910111213141516 12345678

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12

Signal Name TMDS Data 2TMDS Data 2+ TMDS Data 2 Shield Unused Unused DDC Clock DDC Data Unused TMDS Data 1TMDS Data 1+ TMDS Data 1 Shield Unused

Pin No.

13 14 15 16 17 18 19 20 21 22 23 24

Signal Name unused +5V Power Ground Hot Plug Detect* TMDS Data 0TMDS Data 0+ TMDS Data 0 Shield unused unused TMDS Clock Shield TMDS Clock+ TMDS Clock-

6-8. Related products list

6. Appendix

Product name

Lens

Anamorphic lens Anamorphic lens manually operated turret Lamp house module (excluding lamp) Lamp Wireless LAN card

(Note) Please contact your dealer/distributor for details on product and model names .

Zoom Lens 1.45 to 1.8:1 Zoom Lens 1.8 to 2.4:1 Zoom Lens 2.2 to 3.0:1 Zoom Lens 3.0 to 4.3:1 Anamorphic lens 1.25 Anamorphic turret Lamp house module Lamp Wireless LAN Card NWL-100 Series

L2K-14ZM L2K-18ZM L2K-22ZM L2K-30ZM AL 1.25 AS 1.25 IS8LH-E IS8LP4-E (Note)

Model name

6. Appendix

(MEMO)

Ver.2 06/06

NC800C User’s Manual

Printed on recycled paper

7N8P6422
