WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This

symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause

electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations

according to

CAN/CSA C22.2 No. 950.

FCC Information

Use the attached specified cables with the LH-18S02-BK1) color monitor so as not to interfere with radio and television reception. (1)

Please use the supplied power cord or equivalent to ensure FCC compliance.

(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to

DVI cable or DVI-D to DVI-D cable.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

MultiSync LCD1850X

(LH-18S02-1 and

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

multisync(1850X) 01.4.2, 5:03 PM3

Contents

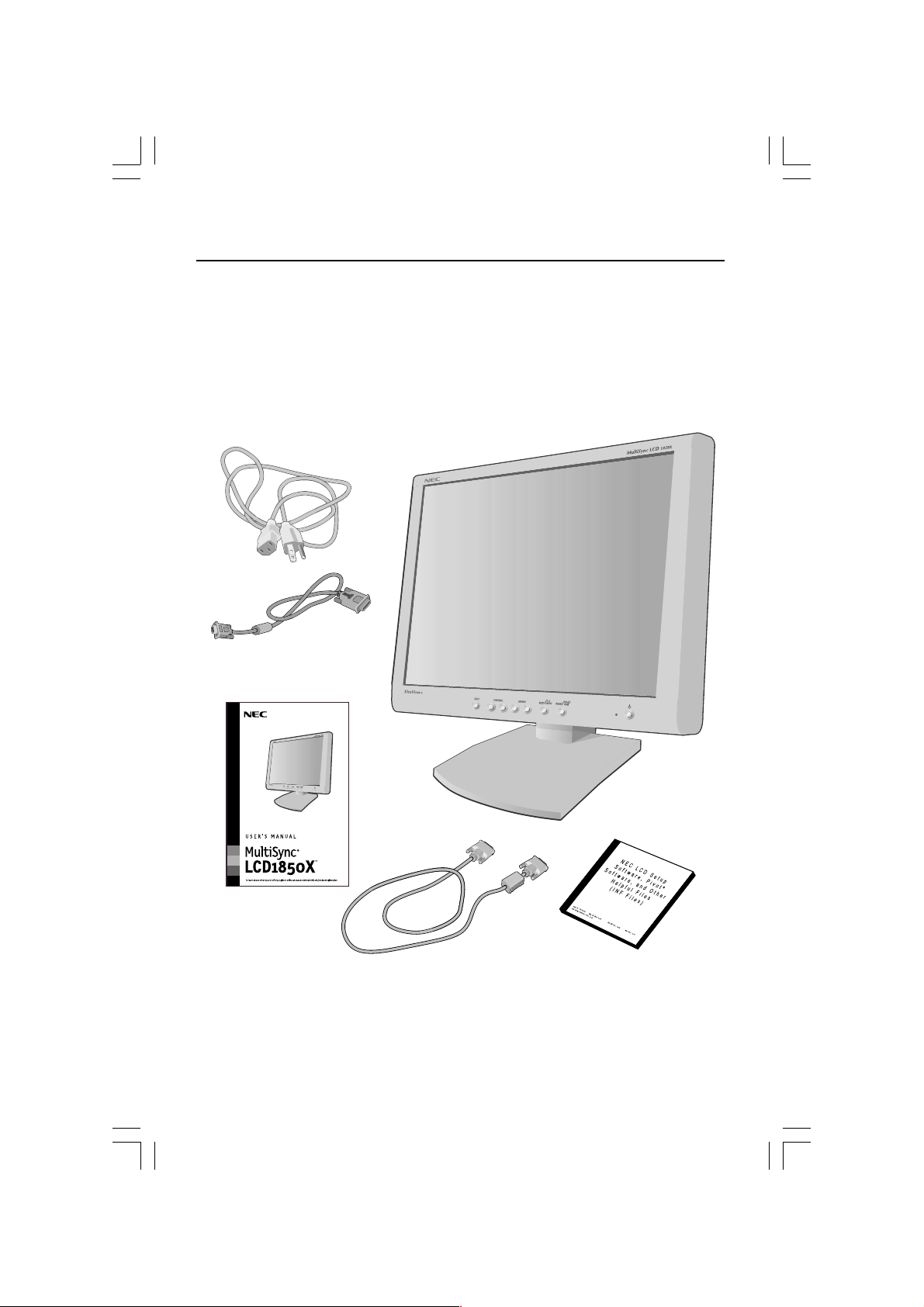

Your new NEC MultiSync® LCD monitor box* should contain the following:

• MultiSync LCD1850X™ monitor with tilt/swivel/pivot stand

• Power Cord

• Video Signal Cable (15-pin mini D-SUB male to DVI-A)

• Video Signal Cable (DVI-D to DVI-D)

• User’s Manual

• NEC LCD Setup Software, Pivot Software and other Helpful files

Power Cord

Video Signal Cable (15-pin mini D-SUB male to DVI-A)

Video Signal Cable (DVI-D to DVI-D)

User’s Manual

CD Software

*Remember to save your original box and packing material to transport or ship the monitor.

multisync(1850X) 01.4.2, 5:03 PM4

Quick Start

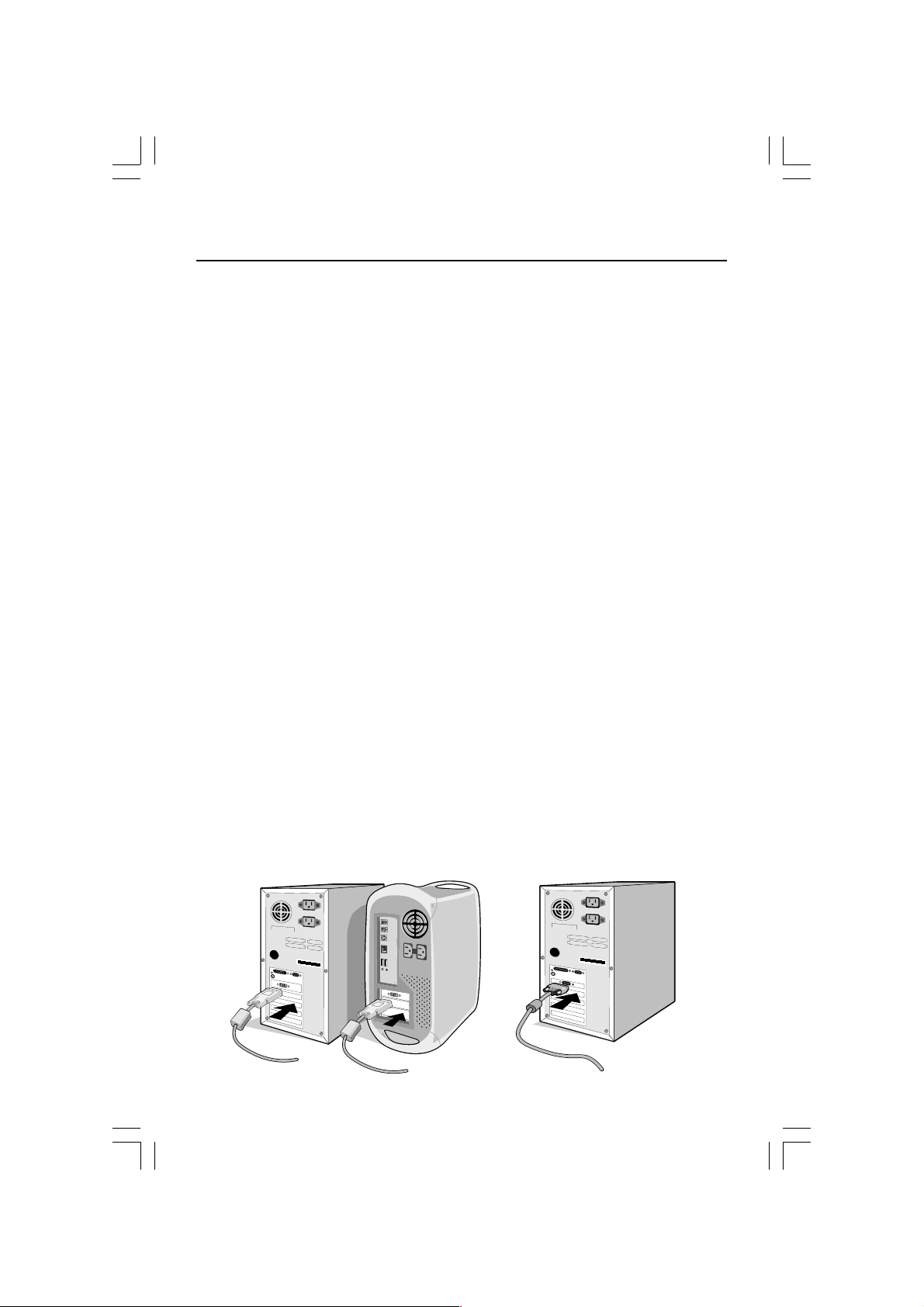

To attach the MultiSync® LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the

connector of the display card in your system (Figure A.1). Tighten all screws. For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to

the connector of the display card in your system (Figure A.2). For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the

15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).

NOTE: Some Macintosh systems do not require a Macintosh cable adapter. NOTE: To obtain the MultiSync Macintosh cable adapter call NEC-Mitsubishi Electronics Display of

America, Inc. at (800) 820-1230.

3. Remove connector cover. Connect the DVI signal cable to the connector on the back of

the monitor. Place the video signal cable (Figure C.1). Replace the connector cover.

NOTE: Incorrect cable connections may result in irregular operation, damage display quality/

components of LCD module and/or shorten the module’s life.

4. Connect one end of the power cord to the AC inlet on the back of the monitor and the

other end to the power outlet (Figure C.1).

NOTE: If you use this monitor at AC220-240V, please refer to Recommended Use

section of this manual for proper selection of AC power cord.

5. The Vacation Switch on the right side of the monitor must be turned on. Turn on the

monitor with the front power button (Figure D.1) and the computer.

NOTE:

The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

6. To complete the setup of your MultiSync LCD monitor, use the following OSM™ controls:

• Auto Adjust Contrast (Analog input only)

• Auto Adjust (Analog input only) Auto Adjust is activated when the monitor is turned on. Refer to the Controls section of

this User ’s Manual for a full description of these OSM controls.

NOTE: For download information on the Windows® 95/98/2000 INF file for your MultiSync

LCD1850X monitor, refer to the References section of this User’s Manual.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual. NOTE: Refer to User ’s Manual in the NEC LCD Setup Software CD case for installation and operation

of this software.

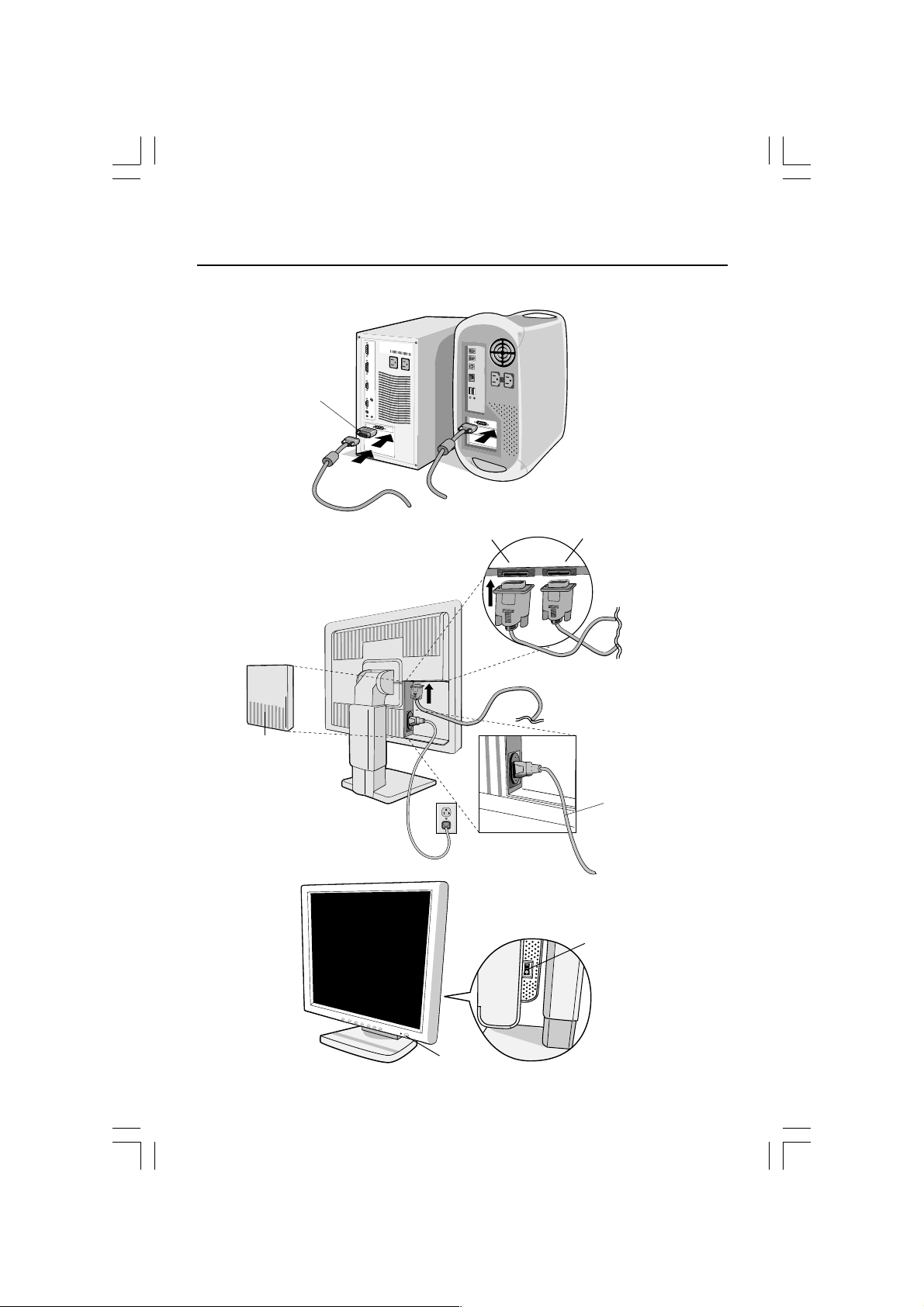

Figure A.1

multisync(1850X) 01.4.2, 5:03 PM5

Figure A.2

Quick Start –continued

Figure B.1

Macintosh Cable

Adapter

(not included)

Note: Some Macintosh systems do not require a Macintosh Cable Adapter

Connecter

Cover

Figure C.1

INPUT1

Figure D.1

INPUT2

Power

Cord

Vacation

Switch

multisync(1850X) 01.4.2, 5:03 PM6

Power Button

Quick Start –continued

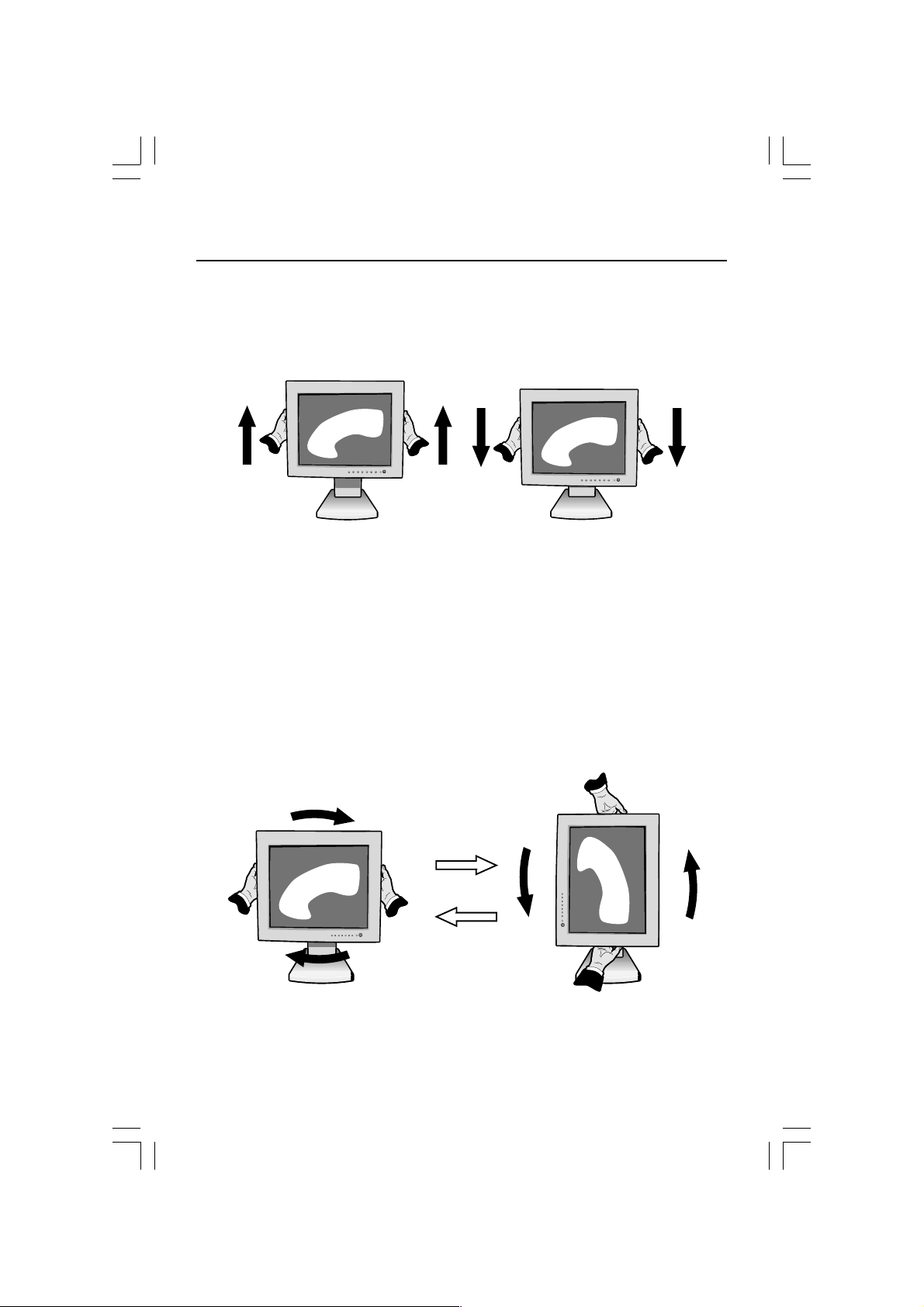

Raise and Lower Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

Figure RL.1

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching your fingers. To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counter-clockwise from Portrait to Landscape (Figure R.1).

To toggle the orientation of the OSM™ menu between Landscape and Portrait modes, press the RESET button while OSM menu is off.

multisync(1850X) 01.4.2, 5:03 PM7

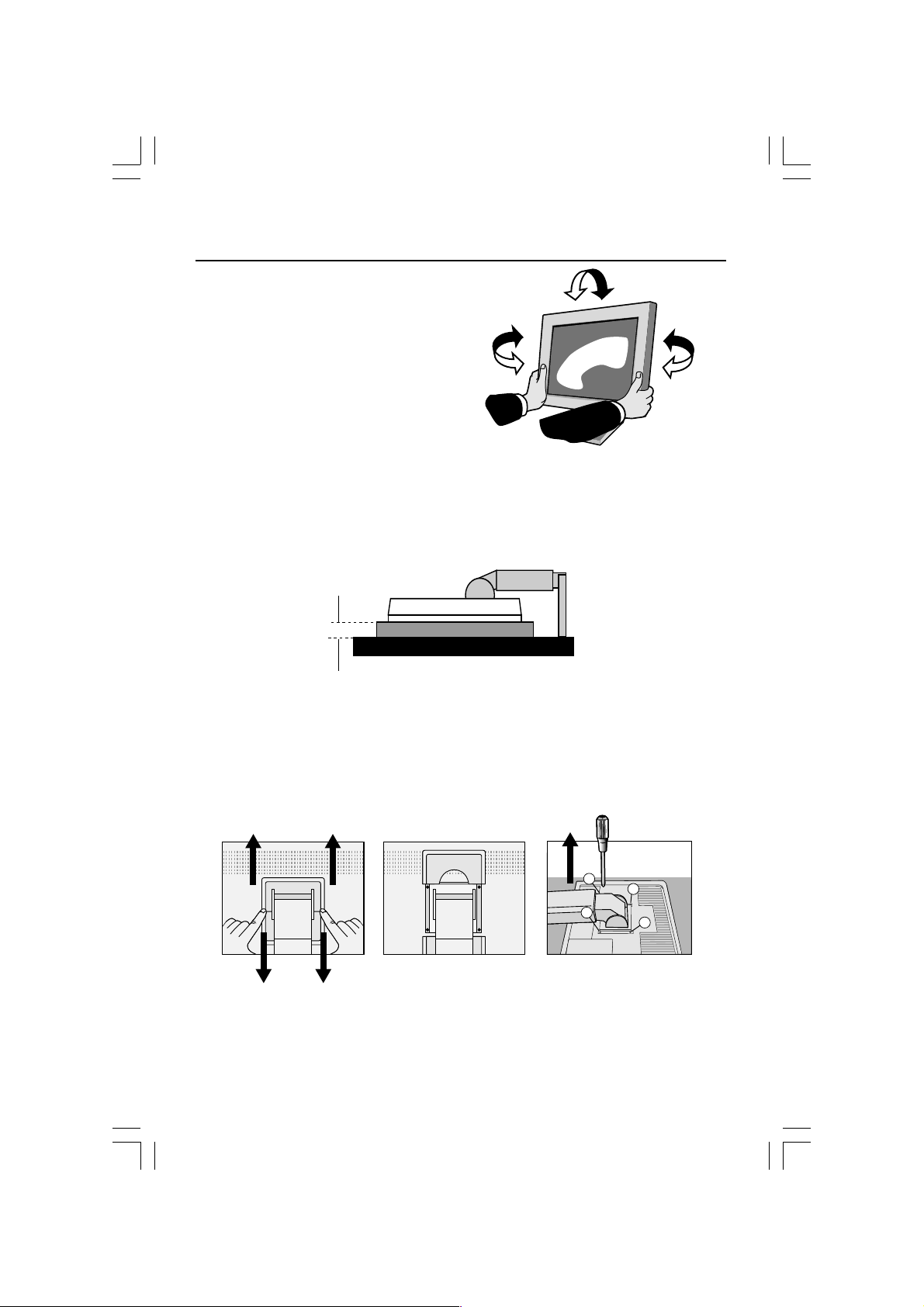

Figure R.1

Quick Start –continued

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of

the monitor and lift up to the highest position (Figure RL.1).

3. Place monitor face down on a non-abrasive surface. (Place the screen on

a 2-inch platform so that the stand is parallel with the surface.) (Figure S.1)

2-in

Figure S.1

Figure TS.1

4. Remove the stand cover by sliding the top/bottom pieces off the stand

(Figure S.2). Remove the 4 screws connecting the monitor to the stand and lift off the stand assembly (Figure S.3). The monitor is now ready for mounting in an alternate manner.

5. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

Figure S.2 and Figure S.3

Caution: Please use the attached screws (4 pcs) when mounting. To fulfil the safety requirements

multisync(1850X) 01.4.2, 5:03 PM8

the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor shall only be used with an approved arm

(e.g. GS mark).

Controls

OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons ( , , –, +). To change DVI/D-SUB signal input, press the NEXT button.

To rotate OSM between Landscape and Portrait modes, press the RESET button. NOTE:

EXIT Exits the OSM controls.

CONTROL / Moves the highlighted area left/right to select control menus.

ADJUST

NEXT RESET Resets the highlighted control menu to the factory setting.

OSM must be closed in order to change signal input and rotate.

Exits to the OSM main menu.

Moves the highlighted area up/down to select one of the controls.

–/+

Moves the bar left/right to increase or decrease the adjustment. Active Auto Adjust function. Enter the Sub Menu.

Moves the highlighted area of main menu right to select one of the controls.

Resets the highlighted control to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO

AUTO ADJUST

Adjusts the image displayed for non-standard video inputs.

(Analog input only)

Auto Adjust (Analog input only)

Automatically adjusts the Image Position and H. Size settings and Fine settings.

Position Controls (Analog input only)

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H.SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

will appear

multisync(1850X) 01.4.2, 5:03 PM9

Controls –continued

AccuColor® Control Systems

AccuColor® Control Systems: Six color presets select the desired color setting (sRGB and NATIVE color presets are standard and cannot be changed). Color temperature increases or decreases, in each preset. R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the color bars.

NATIVE: sRGB: sRGB mode dramatically improves the color fidelity in the desktop

environment by a single standard RGB color space. With this color supported environment, the operator could easily and confidently communicate color without further color management overhead in the most common situations.

Tools 1

SMOOTHING: Select one of three image sharpness settings. This function is only valid when the expanded display function (expansion function)is on.

EXPANSION MODE: Sets the zoom method.

VIDEO DETECT: Selects the method of video detection when more than one

computer is connected.

DVI SELECTION: This function selects the DVI input mode. When the DVI selection has been changed, you must restart your computer.

Original color presented by the LCD panel that is unadjustable.

TEXT MODE: Use this to display text clearly. NORMAL MODE: This sharpness is between TEXT and GRAPHIC MODE. GRAPHIC MODE: This mode is suited for images and photographs.

FULL : The image is expanded to 1280 x 1024, regardless of the resolution. ASPECT: The image is expanded without changing the aspect ratio. OFF: The image is not expanded. CUSTOM (DIGITAL INPUT & RESOLUTION OF 1280x1024 ONLY): Select

one of seven expansion rates. In this mode the resolution may be low and there may be blank areas. This mode is for use with special video cards.

FIRST DETECT: The video input has to be switched to “FIRST DETECT” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

LAST DETECT:

mode. and a new secondary source is supplied to the monitor, then the monitor will automatically switch to the new video source. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.

NONE: The Monitor will not search the other video input port unless the monitor is turned on.

DIGITAL: DVI digital input is available. ANALOG: DVI analog input is available.

The video input has to be switched to the “LAST DETECT”

When the monitor is displaying a signal from the current source

multisync(1850X) 01.4.2, 5:03 PM10

Controls –continued

Tools 2

LANGUAGE: OSM™ control menus are available in seven languages. OSM POSITION: You can choose where you would like the OSM control

image to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, down or up.

OSM TURN OFF: The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10, 20, 30, 45, 60 and 120 seconds.

OSM LOCK OUT: This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press , then simultaneously. To de-activate the OSM Lock Out, press , then and hold down simultaneously.

RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024.

FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

and hold down

Information

DISPLAY MODE: Provides information about the current resolution display and technical data including the preset timing being used and the horizontal and vertical frequencies. Increases or decreases the current resolution. (Analog input only)

MONITOR INFO: Indicates the model and serial numbers of your monitor.

multisync(1850X) 01.4.2, 5:03 PM11

™

OSM

Warning: OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear. RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu. OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the

Out Of Range menu will appear. CHECK CABLE: This function will advise you to check all Video Inputs on the

monitor and computer to make sure they are properly connected. NOTE: If “ CHANGE DVI SELECTION” is displayed switch to DVI SELECTION.

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC® LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and

opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous

voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause

shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor

may fall, causing serious damage to the monitor.

• When operating the MultiSync LCD monitor with its AC 220-240V power supply, use a

power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed

for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the flourescent tube located within the LCD monitor contains mercury.

Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• If glass is broken, handle with care.

• Do not cover vent on monitor.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle

with care.

• Allow adequate ventilation around the monitor so that heat can properly

dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system

CAUTION

from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

multisync(1850X) 01.4.2, 5:03 PM12

Recommended Use –continued

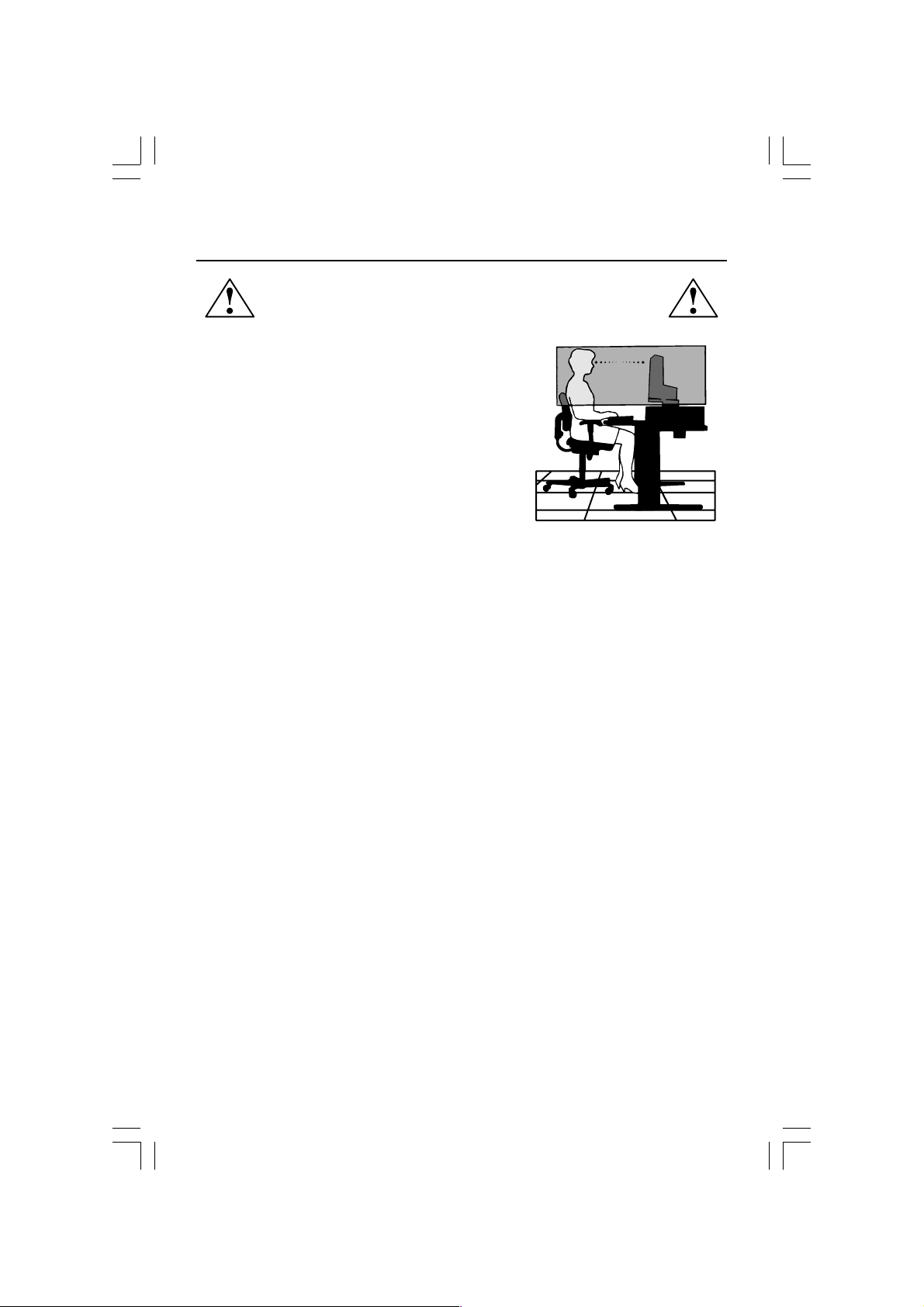

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for

warm-up.

• Adjust the monitor height so that the top of the

screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

•

Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 23 inches.

• Rest your eyes periodically by focusing on an

object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to

minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using

any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head while you are typing.

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid

image persistence (after-image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

•

Adjust the Brightness until the background raster disappears

•

Do not position the Contrast control to its maximum setting

•

Use the preset Size and Position controls with standard signals

•

Use the preset Color Setting

•

Use non-interlaced signals with a vertical refresh rate between 60-75Hz

•

Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC at (800) 820-1230, NEC FastFacts™ information at (800) 366-0476 and request document #900108 or write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

multisync(1850X) 01.4.2, 5:03 PM13

Specifications

Monitor MultiSync® LCD1850X

™

Notes

Specifications Monitor

LCD Module Diagonal: 18.1 inch Active matrix; thin film transistor (TFT)

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: TMDS

Display Colors Analog input: 16,777,216 Depends on display card used. Synchronization Horizontal: 31.0 kHz to 82 kHz Automatically

Range Vertical: 50.0 Hz to 85 Hz Automatically Resolutions Supported Landscape: 720 x 400*

Active Display Area Landscape : Horiz. :

Power Supply Current Rating 0.8 A @ 100 Dimensions Landscape:

Weight 8.5 kg

Environmental Considerations

Viewable Image Size: 18.1 inch liquid crystal display (LCD); 0.28 mm dot

Native Resolution (Pixel Count): Landscape: 1280x1024 pitch; 240cd/m

Portrait: 480 x 640*1 at 60 Hz to 85 Hz

Portrait : Horiz. :

Portrait:

Height Adjustment:

Operating Temperature: 5°C to 35°C/41°F to 95°F

Humidity: 30% to 80%

Storage Temperature: -10°C to 60°C/14°F to 140°F

Humidity: 10% to 85%

Portrait: 1024 x 1280 300:1 contrast ratio, typical

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative Vertical sync. Positive/Negative

Composite sync. Positive/Negative Sync on Green (Video 0.7p-p and Sync Negative 0.3V p-p)

640 x 480*1 at 60 Hz to 85 Hz 800 x 600*1 at 56 Hz to 85 Hz 832 x 624* 1024 x 768* 1152 x 870*1 at 75Hz 1280 x 1024

600 x 800*1 at 56 Hz to 85 Hz 624 x 832*1 at 75 Hz 768 x 1024* 870 x 1152*1 at 75Hz 1024 x 1280

359 mm/14.1 inches

Vert. :

287 mm/11.3 inches 287 mm/11.3 inches

Vert. :

359 mm/14.1 inches

AC 100 -

398 mm (W) x 445 mm (H) x 218 mm (D)

15.7 inches (W) x 17.5 inches (H) x 8.6 inches (D) 349mm (W) x 469.5 mm (H) x 218 mm (D)

13.7 inches (W) x 18.5inches (H) x 8.6 inches (D) 70mm

18.7 lbs

Feet: 0 to 10,000 Feet

Feet: 0 to 45,000 Feet

:VGA text

at 75 Hz

at 60 Hz to 85 Hz

at 60 Hz to 75 Hz .................

at 60 Hz to 85 Hz

at 60 Hz to 75 Hz .................

120 V/ 220-240 V

–

120 V, 0.35 A @ 220-240 V

@ 50/60 Hz

Some systems may not support all modes listed.

NEC-Mitsubishi Electronics Display cites recommended resolution at 60 Hz for optimal display performance.

Some systems may not support all modes listed.

NEC-Mitsubishi Electronics Display cites recommended resolution at 60 Hz for optimal display performance.

white luminence;

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is

normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

NOTE: Technical specifications are subject to change without notice.

multisync(1850X) 01.4.2, 5:03 PM14

Features

ambix™ Technology: Dual input technology allowing both analog and digital inputs off of one connector (DVI-I) as well as additional legacy analog support off of a traditional 15-pin mini D-SUB connector. Provides traditional MultiSync as well as TMDS™-based (Transition Minimized Differential Signaling) digital compatibility for digital inputs. TMDS-based digital interfaces include DVI-D,DFP and P&D.

DVI-I: The integrated interface ratified by the Digital Display Working Group (DDWG) that allows both digital and analog connectors off of one port. The “I” stands for integration for both digital and analog, The digital portion is TMDS-based.

DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between computers and displays. As a digital-only connector, analog support is not provided off a DVI-D connector. As a TMDS-based digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other TMDS-based digital connectors such as DFP and P&D.

DFP (Digital Flat Panel): An all-digital interface for flat panel monitors which is signal compatible with DVI. As a TMDS-based digital only connection, only a simple adapter is necessary for compatibility between DFP and other TMDS-based digital connectors such as DVI and P&D.

P&D (Plug and Display): The VESA standard for digital flat panel monitor interfaces. It is more robust than DFP since it allows for other options off a signal connector (options like USB, analog video and IEEE-1394-995). The VESA committe has recognized that DFP is a subset of P&D. As a TMDS-based connector (for the digital input pins), only a simple adapter is necessary for compatibility between P&D and other TMDS-based digital connector such as DVI and DFP.

Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their application, either Landscape orientation for wide documents, or portrait orientation for the ability to preview a full page on one screen at one time. The Portrait orientation is also perfect for full screen video conferencing.

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another.

AccuColor® Control Systems: Six color presets select the desired color setting (sRGB an NATIVE color presets are standard and cannot be changed). Color temperature increases or decreases, in each preset. R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the color bars. NATIVE:

Original color presented by the LCD panel that is unadjustable.

sRGB Color Control: A new optimized color management standard which allows for color matching on computer displays and other peripherals. The sRGB, which is based on the calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.

™

(On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements

OSM

of your screen image via simple to use on-screen menus.

ErgoDesign

Features: Enhance human ergonomics to improve the working environment,

protect the health of the user and save money. Examples include

technology compatibility for analog

OSM controls for quick

multisync(1850X) 01.4.2, 5:03 PM15

+ 33 hidden pages
