NEC MultiSync LCD1850DX User Manual

MultiSync LCD1850DX
User’s Manual
English-1
English
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNITS POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
CAUTION
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution:
When operating the MultiSync LCD1850DX (LH-18S02-2 and LH-18S02-BK2) with a 220-240V AC power source in Europe, use the power cord provided with the monitor.
In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.
When operating the MultiSync LCD1850DX with a 220-240V AC power source in Australia, use the power cord provided with the monitor.
For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
ENERGYSTA R is a U.S. trademark. As an ENERGYSTAR® Partner, NEC-Mitsubishi Electronics Display of America, Inc. has
determined that this product meets the ENERGYSTA R guidelines for energy efficiency. The ENERGYSTA R emblem does not represent EPA endorsement of any product or service.
IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of International Business Machines Corporation.
Apple and Macintosh are registered trademarks of Apple Computer Inc.
Microsoft and Windows are registered trademarks of the Microsoft Corporation.
NEC is a registered trademark of NEC Corporation.
All other trademarks or registered trademarks are property of their respective owners.
English-2
Declaration
Declaration of the Manufacturer
We hereby certify that the colour monitor
MultiSync LCD1850DX (LH-18S02-2) MultiSync LCD1850DX (LH-18S02-BK2)
is in compliance with
Council Directive 73/23/EEC:
– EN 60950
Council Directive 89/336/EEC:
EN 55022EN 61000-3-2EN 61000-3-3EN 55024
and marked with
NEC-Mitsubishi Electric Visual Systems, Corp.
MS Shibaura Bldg., 13-23,
Shibaura 4-chome,
Minato-Ku, Tokyo 108-0023, Japan
Power consumption of the monitor is less than 3 W when in power-saving mode.
English-3
English
For the Customer to use in U.S.A. or Canada
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouiller du Canada.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CSA C22.2 #950. Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 950.
FCC Information
1. Use the attached specified cables with the MultiSync LCD1850DX colour monitor so as not to interfere with radio and television reception.
(1)The power supply cord you use must have been approved by and
comply with the safety standards of U.S.A., and meet the following condition.
Power supply cord Non shield type, 3-conductor
Length 1.8 m
Plug shape
(2)Shielded video signal cable. Use of other cables and adapters
may cause interference with radio and television reception.
English-4
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.
Declaration of Conformity
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
U.S. Responsible party: NEC-Mitsubishi Electronics
Display of America, Inc.
Address: 1250 N. Arlington Heights Road
Itasca, Illinois 60143-1248
Tel. No.: (630)467-3000
Type of Product: Computer Monitor
Equipment Classification: Class B Peripheral
Models: MultiSync LCD1850DX
We hereby declare that the equipment specified above conforms to the
technical standards as specified in the FCC Rules.
English-5
English
Contents

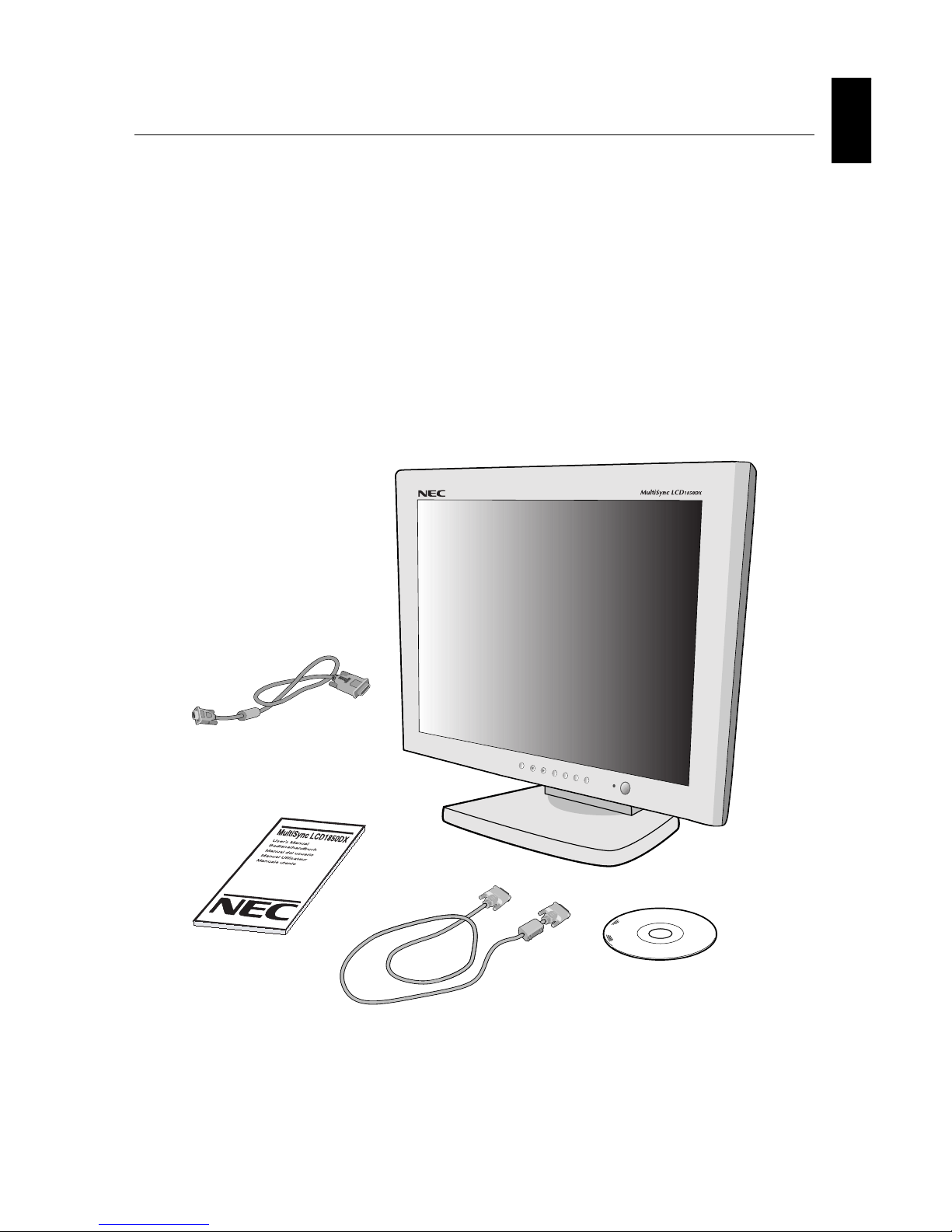

Your new NEC MultiSync LCD monitor box* should contain the following:
MultiSync LCD1850DX
monitor with tilt base
Power Cords
Video Signal Cable (15-pin mini D-SUB male to DVI)
Video Signal Cable (DVI-D to DVI-D Cable)
Users Manual
NEC LCD Setup Software, Pivot Software, Users Manual and other
helpful files. To see the Users Manual, Acrobat Reader 4.0 must be installed on your PC.
* Remember to save your original box and packing material to transport
or ship the monitor.
++
+
--
-
English-6
Quick Start
To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or Mac with DVI digital output: Connect the DVI-D to DVI-D signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI signal cable to the connector of the display card in your system (Figure A.2).
For the Mac: Connect the MultiSync Macintosh cable adapter to the computer (Figure B.1). Attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).
NOTE: Some Macintosh systems do not require a Macintosh cable
adapter.
3. Remove connector cover. Connect the DVI signal cable to the connector on the back of the monitor. Place the video signal cable (Figure C.1).
Replace connector cover.
NOTE: Incorrect cable connections may result in irregular operation,
damage display quality/components of LCD module and/or shorten the modules life.
4. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet (Figure D.1).
NOTE: Please refer to Caution section of this manual for proper
selection of AC power cord.
5. Check the Vacation Switch on the right hand side of the monitor is in the ON position. Turn on the monitor with the Power Button (Figure E.1) and the computer.
NOTE: There are two switches: one on the right side and one on the
front side of the monitor. DO NOT switch on/off quickly.
English-7
English
6. To complete the setup of your MultiSync LCD monitor, use the following OSM controls:
Auto Adjust Contrast (Analog input only)
Auto Adjust (Analog input only)
Refer to the Controls section of this Users Manual for a full description of these OSM controls.
NOTE: If you have any problems, please refer to the Troubleshooting
section of this Users Manual.
NOTE: Refer to Users Manual in the NEC LCD Setup Software CD
case for installation and operation of this software.
Figure B.1
Macintosh Cable Adapter (not included)
Macintosh G3 and G4 do not need a Macintosh cable adapter
Figure A.1
Figure A.2
English-8
Figure D.1
Figure E.1
Figure C.1
Input1 Input2
Vacation Switch
Power Button
English-9
English

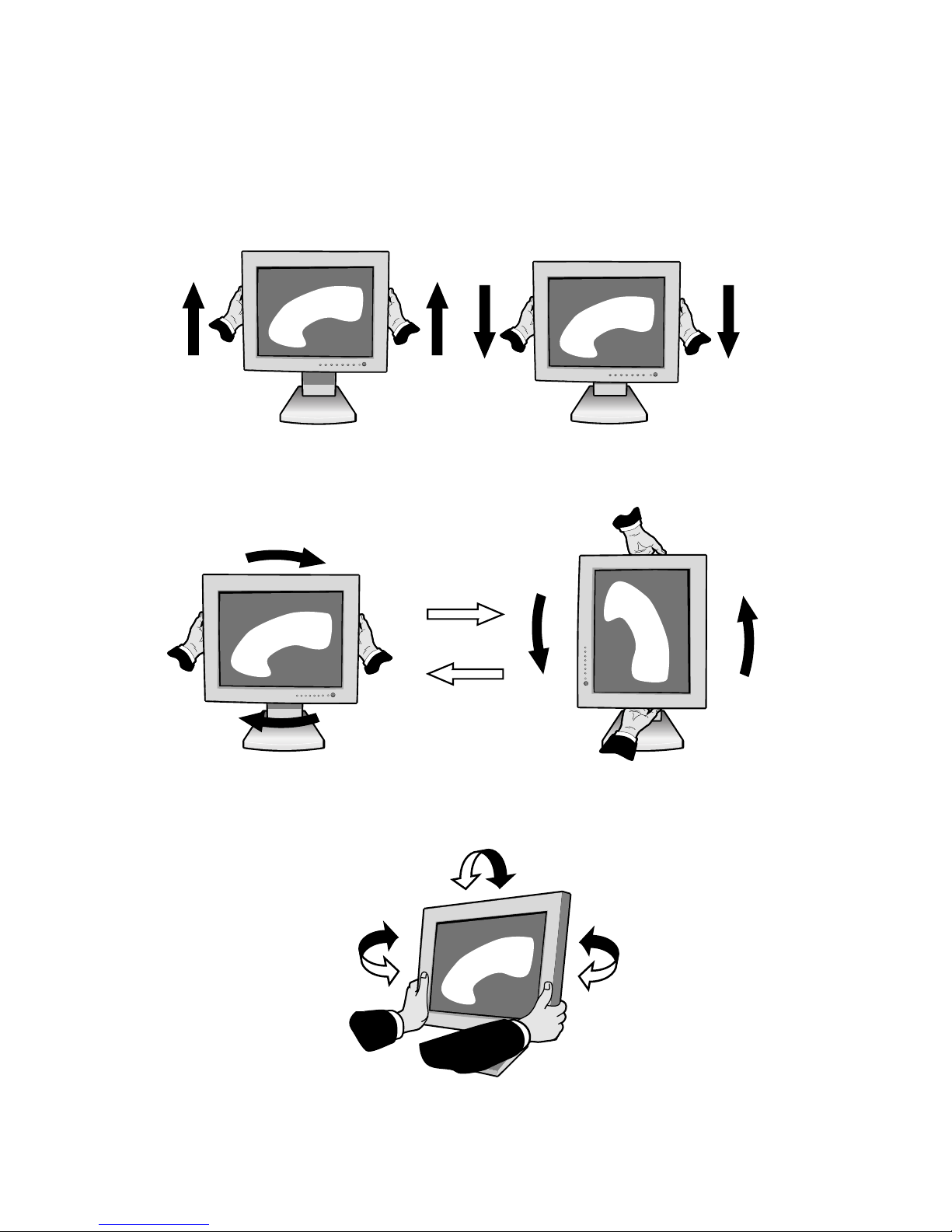

Raise and Lower Monitor Screen
The monitor may be raised or lowered in either Portrait or Landscape mode.
To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).
Screen Rotation
Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching your fingers.
To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).
To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counter-clockwise from Portrait to Landscape (Figure R.1).
To toggle the orientation of the OSM menu between Landscape and Portrait modes, press the RESET button while OSM menu is off.
Tilt and Swivel
Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position (Figure RL.1).
3. Place monitor face down on a non-abrasive surface (Place the screen on a 50 mm platform so that the stand is parallel with the surface.) (Figure S.1).
4. Press the
portion with your index finger and at the
same time slide the lower stand cover. (Figure S.2)
Next, lift up the stand, remove the lower stand cover, then go on to remove the upper stand cover. (Figure S.3)
Return the stand to its original position, remove the 4 screws that connect the monitor to the stand, and lift off the stand assembly. (Figure S.4)
English-10
Figure RL.1
Figure R.1
Figure TS.1
5. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
English-11
English
Caution: Please use the attached screws (4pcs) when mounting.
To fulfil the safety requirements the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor shall only be used with an approved arm (e.g. GS mark).
1
2
4
3
Figure S.1
Figure S.2 Figure S.3
Figure S.4
English-12
Menu
Exits the OSM controls. Exits to the OSM main menu.
Moves the highlighted area left/right to select control menus. Moves the highlighted area up/down to select one of the controls.
Moves the bar left/right to increase or decrease the adjustment. Activates Auto Adjust function. Enter the sub menu.
Moves the highlighted area of main menu right to select one of the controls.
Resets the highlighted control menu to the factory setting. Resets the highlighted control to the factory setting.
Controls
OSM (On-Screen-Manager) Controls
The OSM controls on the front of the monitor function as follows: To access OSM press any of the control buttons ( , , -, +). To change signal input, press the NEXT button. To rotate OSM between Landscape and Portrait modes, press the RESET button.
NOTE: OSM menu must be closed in order to change signal input and
to rotate.
NOTE: When RESET is pressed in the main and sub-menu, a warning
window will appear allowing you to cancel the RESET function by pressing the EXIT button.
Control
EXIT
CONTROL /
ADJUST -/+
NEXT
RESET
English-13
English
Brightness/Contrast Controls
BRIGHTNESS
Adjusts the overall image and background screen brightness.
CONTRAST
Adjusts the image brightness in relation to the background.
AUTO ADJUST (Analog input only)
Adjusts the image displayed for non-standard video inputs.
Auto Adjust (Analog input only)
Automatically adjusts the Image Position, the H. Size and Fine setting.
Position Controls (Analog input only)
LEFT/RIGHT
Controls Horizontal Image Position within the display area of the LCD.
DOWN/UP
Controls Vertical Image Position within the display area of the LCD.
H. SIZE
Adjusts the horizontal size by increasing or decreasing this setting.
FINE
Improves focus, clarity and image stability by increasing or decreasing this setting.
Color Control Systems
Six color presets select the desired color setting (sRGB and NATIVE color presets are standard and cannot be changed). Color temperature increases or decreases in each preset.
English-14
R,Y,G,C,B,M,S
Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the color bars.
sRGB
sRGB mode dramatically improves the color fidelity in the desktop environment by a single standard RGB color space. With this color supported environment, the operator could easily and confidently communicate colors without further color management overhead in the most common situations.
NATIVE
Original color presented by the LCD panel that is unadjustable.
Tools 1
SMOOTHING
Select one of three image sharpness settings. This function is only valid when the expanded display function (expansion function) is on.
TEXT MODE
Use this to display text clearly.
NORMAL MODE
This sharpness is between TEXT and GRAPHIC MODE.
GRAPHIC MODE
This mode is suited for images and photographs.
EXPANSION MODE
Sets the zoom method.
FULL
The image is expanded to 1280 x 1024, regardless of the resolution.
English-15
English
ASPECT
The image is expanded without changing the aspect ratio.
OFF
The image is not expanded.
CUSTOM (Digital input and Resolution of 1280 x 1024 only)
Select one of seven expansion rates.
In this mode the resolution may be low and there may be blank areas. This mode is for use with special video cards.
VIDEO DETECT
Selects the method of video detection when more than one computer is connected.
FIRST DETECT
The video input has to be switched to FIRST DETECT mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.
LAST DETECT
The video input has to be switched to the LAST DETECT mode. When the monitor is displaying a signal from the current source and a new secondary source is supplied to the monitor, then the monitor will automatically switch to the new video source. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.
NONE
The Monitor will not search the other video input port unless the monitor is turned on.
English-16
1 DVI SELECTION
This function selects the 1 DVI input mode. When the DVI selection has been changed, you must restart your computer.
DIGITAL
DVI digital input is available.
ANALOG
DVI analog input is available.
2 DVI SELECTION
This function selects the 2 DVI input mode. When the DVI selection has been changed, you must restart your computer.
DIGITAL
DVI digital input is available.
ANALOG
DVI analog input is available.
Tools 2
LANGUAGE
OSM control menus are available in seven languages.
OSM POSITION
You can choose where you would like the OSM control image to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, down or up.
OSM TURN OFF
The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10, 20, 30, 45, 60 and 120 seconds.
OSM LOCK OUT
This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out.
English-17
English
To activate the OSM Lock Out function, press , then and hold down simultaneously. To de-activate the OSM Lock Out, press
, then and hold down
simultaneously.
RESOLUTION NOTIFIER
This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024.
FACTORY PRESET
Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.
Information
DISPLAY MODE
Provides information about the current resolution display and technical data including the preset timing being used and the horizontal and vertical frequencies. Increases or decreases the current resolution. (Analog input only)
MONITOR INFO
Indicates the model and serial numbers of your monitor.
OSM Warning
OSM Warning menus disappear with Exit button.
NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear.
English-18
RESOLUTION NOTIFIER: This function gives a
warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesnt have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu.
OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesnt have proper timing, the Out Of Range menu will appear.
NOTE: If
CHANGE DVI SELECTION is displayed, switch to
DVI SELECTION.
English-19
English
Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE MULTISYNC LCD COLOR MONITOR:
DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
Do not spill any liquids into the cabinet or use your monitor near water.
Do not insert objects of any kind into the cabinet slots, as they may
touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
Do not place any objects onto the monitor and do not use the monitor outdoors.
The inside of the flourescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:
When the power supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the monitor.
If the monitor has been exposed to rain or water.
If the monitor has been dropped or the cabinet damaged.
If the monitor does not operate normally by following operating
instructions.
Do not bend power cord.
Do not use monitor in high temperatured, humid, dusty, or oily areas.
Do not cover vent on monitor.
If monitor is broken, do not come in contact with the liquid crystal.
If glass is broken. Handle with care.
English-20
CAUTION
Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
Handle with care when transporting. Save packaging for transporting.

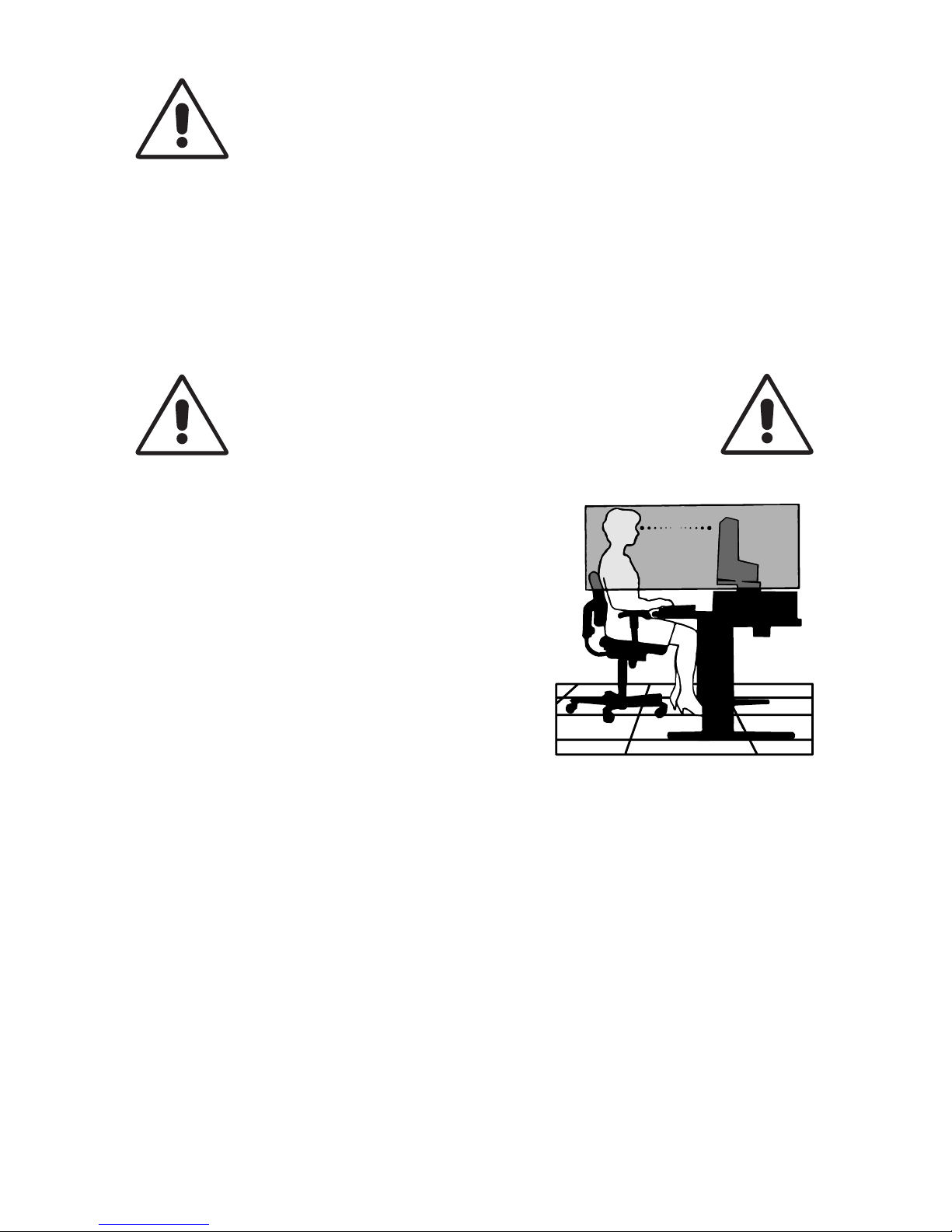

CORRECT PLACEMENT AND ADJUSTMENT OF
THE MONITOR CAN REDUCE EYE, SHOULDER
AND NECK FATIGUE. CHECK THE FOLLOWING
WHEN YOU POSITION THE MONITOR:
For optimum performance, allow 20 minutes for warm-up.
Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 58 cm.
Rest your eyes periodically by focusing on an object at least 6 m away. Blink often.
Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
If reflected light makes it hard for you to see your screen, use an antiglare filter.
Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!
Adjust the monitors brightness and contrast controls to enhance readability.
Use a document holder placed close to the screen.
Position whatever you are looking at most of the time (the screen or
reference material) directly in front of you to minimize turning your head while you are typing.
English-21
English
Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).
Get regular eye checkups.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
Adjust the Brightness until the background raster disappears
Do not position the Contrast control to its maximum setting
Use the preset Size and Position controls with standard signals
Use the preset Color Setting
Use non-interlaced signals with a vertical refresh rate between
60-75 Hz
Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast
English-22
16,777,216
31 kHz to 82 kHz 50 Hz to 85 Hz
720 x 400*1 : VGA text 640 x 480*1 at 60 Hz to 85 Hz 800 x 600*1 at 56 Hz to 85 Hz 832 x 624*1 at 75 Hz 1024 x 768*1 at 60 Hz to 85 Hz 1152 x 870*1 at 75 Hz 1280 x 1024*2 at 60 Hz to 75 Hz
480 x 640*1 at 60 Hz to 85 Hz 600 x 800*1 at 56 Hz to 85 Hz 624 x 832*1 at 75 Hz 768 x 1024*1 at 60 Hz to 85 Hz 870 x 1152*1 at 75 Hz 1024 x 1280*2 at 60 Hz to 75 Hz
359 mm/14.1 inches 287 mm/11.3 inches
AC 100-120 V/220-240 V 50/60 Hz
0.8 A @ 100-120 V, 0.35 A @ 220-240 V
Monitor Specifications
LCD Module Diagonal:
Viewable Image Size:
Native Resolution (Pixel Count):
Display Colours Analog input:
Synchronization Range Horizontal:
Vertical:
Resolutions Supported Landscape:
Portrait:
Active Display Horizontal: Area (Lanscape) Vertical:
Power Supply
Input Signal Video:
Sync:
Current Rating
MultiSync LCD1850DX Monitor
46 cm/18.1 inches 46 cm/18.1 inches 1280 x 1024
ANALOG 0.7 Vp-p/75 Ohms / Digital Input: TMDS Separate sync.TTL Level Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Compostite sync. Positive/Negative Sync on Green (Video 0.7 Vp-p and Sync 0.3 Vp-p)
Notes
Active matrix; thin film transistor (TFT) liquid crystal display (LCD);
0.28 mm dot pitch; 240cd/m2 white luminence, typical; 300:1 contrast ratio, typical
Depends on display card used.
Automatically Automatically
Some systems may not support all modes listed.
Dependent upon signal timing used, and does not include border area.
Specifications
Viewing Angle Left/Right:
Up/Down:
± 85° ± 85°
287 mm/11.3 inches 359 mm/14.1 inches
Active Display Horizontal: Area (Portrait) Vertical:
Dependent upon signal timing used, and does not include border area.
English-23
English
*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the
LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. *2 NEC-Mitsubishi Electronics Display cites recommended resolutions at 60 Hz for optimal display performance.
NOTE: Technical specifications are subject to change without notice.
398 mm (W) x 445 mm (H) x 218 mm (D)
15.7 inches (W) x 17.5 inches (H) x 8.6 inches (D) 349 mm (W) x 469.5 mm (H) x 218 mm (D)
13.7 inches (W) x 18.5 inches (H) x 8.6 inches (D)
5 °C to 35 °C 30% to 80% 0 to 3,050 m
-10 °C to +60 °C 10% to 85% 0 to 14,000 m
Monitor Specifications
Dimensions Landscape:
Portrait:
Weight
Environmental Considerations
Operating Temperature:
Humidity:
Altitude:
Storage Temperature:
Humidity:
Altitude:
MultiSync LCD1850DX Monitor Notes
8.5 kg (18.7 lbs)
English-24
Features
sRGB Color Control: A new optimized color management standard
which allows for color matching on computer displays and other peripherals. The sRGB, which is based on the calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.
Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitors small footprint and low weight allow it to be moved or transported easily from one location to another.
Color Control System: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards.
OSM (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.
ErgoDesign Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions.
Plug and Play: The Microsoft solution with the Windows 95/98/2000 operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.
IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.
Multiple Frequency Technology: Automatically adjusts monitor to the display cards scanning frequency, thus displaying the resolution required.
English-25
English
FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.
Wide Viewing Angle Technology: Allows the user to be able to see the monitor from any angle (170 degrees) from any orientation – Portrait or Landscape. Provides full 170° viewing angles either up, down, left or right.
VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to any VESA standard (100 mm pitch) third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.
DVI-I Technology: Dual input technology allowing both analog and digital inputs through one connector (DVI-I) as well as additional legacy analog support through a traditional 15-pin VGA connector. Provides traditional MultiSync technology compatibility for analog as well as TMDS (Transition Minimized Differential Signal) based digital compatibility for digital inputs. TMDS-based digital interfaces include DVI-D, DFP and P&D.
DVI-I: The integrated interface ratified by the Digital Display Working Group (DDWG) that allows both digital and analog connectors through one port. The “I” stands for integration for both digital and analog. The digital portion is TMDS based.
DVI-D: The digital only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between computers and displays. As a digital only connector, analog support is not provided for through a DVI-D connector. As a TMDS based digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other TMDS based digital connectors such as DFP and P&D.
P&D: Plug and Display - The VESA standard for digital flat panel monitor interfaces. It is more robust than DFP since it allows for other options through a single connector (options like USB, analog video and IEEE­1394-995). The VESA committee has recognized that DFP is a subset of P&D. As a TMDS based connector (for the digital input pins), only a simple adapter is necessary for compatibility between P&D and other TMDS based digital connectors such as DVI and DFP.
Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their application, either Landscape orientation for wide documents, or portrait orientation for the ability to preview a full page on one screen at one time. The Portrait orientation is also perfect for full screen video conferencing.
English-26
Troubleshooting
No picture
The signal cable should be completely connected to the display card/ computer.
The display card should be completely seated in its slot.
Check the Vacation Switch should be in the ON Position. Front power
Switch and computer power switch should be in the ON position.
Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)
Check the monitor and your display card with respect to compatibility and recommended settings.
Check the signal cable connector for bent or pushed-in pins.
Check the signal input, INPUT 1 or INPUT 2”.
Power Button does not respond
Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor, or simultaneously press the RESET and Power buttons.
Check the Vacation Switch on the right hand side of the monitor.
Image persistence
Image persistence is when a ghost of an image remains on the screen even after the monitor has been turned off. Unlike CRT monitors, LCD monitors image persistence is not permanent. To alleviate image persistence, turn the monitor off for as long as an image was displayed. If an image was on the monitor for one hour and a ghost of that image remains, the monitor should be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC-Mitsubishi Electronic
Displays recommends using a screen saver at regular intervals whenever the screen is idle.
English-27
English
Image is unstable, unfocused or swimming is apparent
Signal cable should be completely attached to the computer.
Use the OSM Image Adjust controls to focus and adjust display by
increasing or decreasing the fine total. When the display mode is changed, the OSM Image Adjust settings may need to be readjusted.
Check the monitor and your display card with respect to compatibility and recommended signal timings.
If your text is garbled, change the video mode to non-interlace and use 60 Hz refresh rate.
Message OUT OF RANGE is displayed (screen is either blank or shows rough images only)
Image is displayed only roughly (pixels are missing) and OSM warning OUT OF RANGE is displayed: Either signal clock or resolution is too high. Choose one of the supported modes.
OSM warning OUT OF RANGE is displayed on a blank screen: Signal frequency is out of range. Choose one of the supported modes.
LED on monitor is not lit (no green or amber color can be seen)
Power Switch should be in the ON position and power cord should be connected.
Display image is not sized properly
Use the OSM Image Adjust controls to increase or decrease the Coarse total.
Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)
No Video
If no video is present on the screen, turn the Power button off and on again.
Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).
English-28
TCO99
This is a translation of the original English TCO'99 document.
MultiSync LCD1850DX white Model (LH-18S02-2)
Congratulations! You have just purchased a TCO99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.
What does labelling involve?
This product meets the requirements for the TCO99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).
English-29
English
The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.
Environmental Requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.
TCO99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.
TCO99 requirement permits the inclusion of lead since no replacement has yet been developed.
English-30
Cadmium**
Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.
TCO99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses.
TCO99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.
CFCs (freons)
CFCs (freons)are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).
The relevant TCO99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.
* Bio-accumulative is defined as substances which accumulate within
living organisms.
** Lead, Cadmium and Mercury are heavy metals which are
Bioaccumulative.
To obtain complete information on the environmental criteria document, order from:
TCO Development Unit
SE-114 94 Stockholm SWEDEN FAX Number: +46 8 782 92 07
E-mail (Internet): development@tco.se
You may also obtain current information on TCO99 approved and labelled products by visiting their website at: http://www.tco-info.com/
English-31
English
TCO95
MultiSync LCD1850DX Black Model (LH-18S02-BK2)
Congratulations! You have just purchased a TCO95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.
What does labelling involve?
This product meets the requirements for the TCO95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).
The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.
English-32
The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.
TCO95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).
Environmental Requirements
Brominated flame retardants
Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.
TCO95 demand requires that plastic components weighing more than 25 grams must not contain organically bound chlorine and bromine.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.
TCO95 requirement permits the inclusion of lead since no replacement has yet been developed.
English-33
English
Cadmium**
Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.
TCO95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury damages the nervous system and is toxic in high doses.
TCO95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit, except the back-light system.
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).
The relevant TCO95 requirement; Neither CFCs nor HCFCs may be used during the manufacturing of the product or its packaging.
*Bio-accumulative is defined as substances which accumulate within living organisms.
**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
To obtain complete information on the environmental criteria document, order from:
TCO Development Unit
SE-114 94 Stockholm SWEDEN FAX Number: +46 8 782 92 07
E-mail (Internet): development@tco.se
You may also obtain current information on TCO95 approved and labelled products by visiting their website at: http://www.tco-info.com/
Loading...
