Nec MULTISYNC LCD1765, MULTISYNC LCD1565 user Manual
MultiSync® LCD1565/LCD1765 User's Manual
Index
Warning .................................................................................................................... 1
Contents ................................................................................................................. 2
Quick Start............................................................................................................. 3
Controls .................................................................................................................. 5
Recommended Use ................................................................................................ 9
Specifications ....................................................................................................... 11
Features .................................................................................................................13
Troubleshooting .................................................................................................. 14
References.............................................................................................................15
Limited Warranty .................................................................................................16
Avertissement ...................................................................................................... 18
Contenu ..................................................................................................................19
Mise en marche rapide ...................................................................................... 20
Commandes .......................................................................................................... 22
Usage recommandé ............................................................................................ 26
Fiche technique ................................................................................................... 28
Fonctions .............................................................................................................. 30
Dépannage .............................................................................................................31
Références ........................................................................................................... 32
Garantie limitée .................................................................................................. 33
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE
THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS
CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM
DOC: This Class B digital apparatus meets all requirements of the Canadian
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations
WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER
CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This
symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this
unit has been included. Therefore, it should be read carefully in order to avoid any problems.
Interference-Causing Equipment Regulations.
according to
CAN/CSA C22.2 No. 60950.
FCC Information
1.
Use the attached specified cables with the
LCD1765 (L172E6)
(1)
Please use the supplied power cord or equivalent to ensure FCC compliance.
color monitor so as not to interfere with radio and television reception.
(2) Please use the supplied shielded video signal cable.
Use of other cables and adapters may cause interference with radio and television
reception.
(3) Please use the supplied AC adapter.
MultiSync LCD1565 (L152E5) and MultiSync
2.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician
for additional suggestions. The user may find the following booklet, prepared by the Federal
Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference
Problems.“ This booklet is available from the U.S. Government Printing Office, Washington,
D.C., 20402, Stock No. 004-000-00345-4.
1
LCD15651765manual.p65 5/27/03, 8:31 AM1

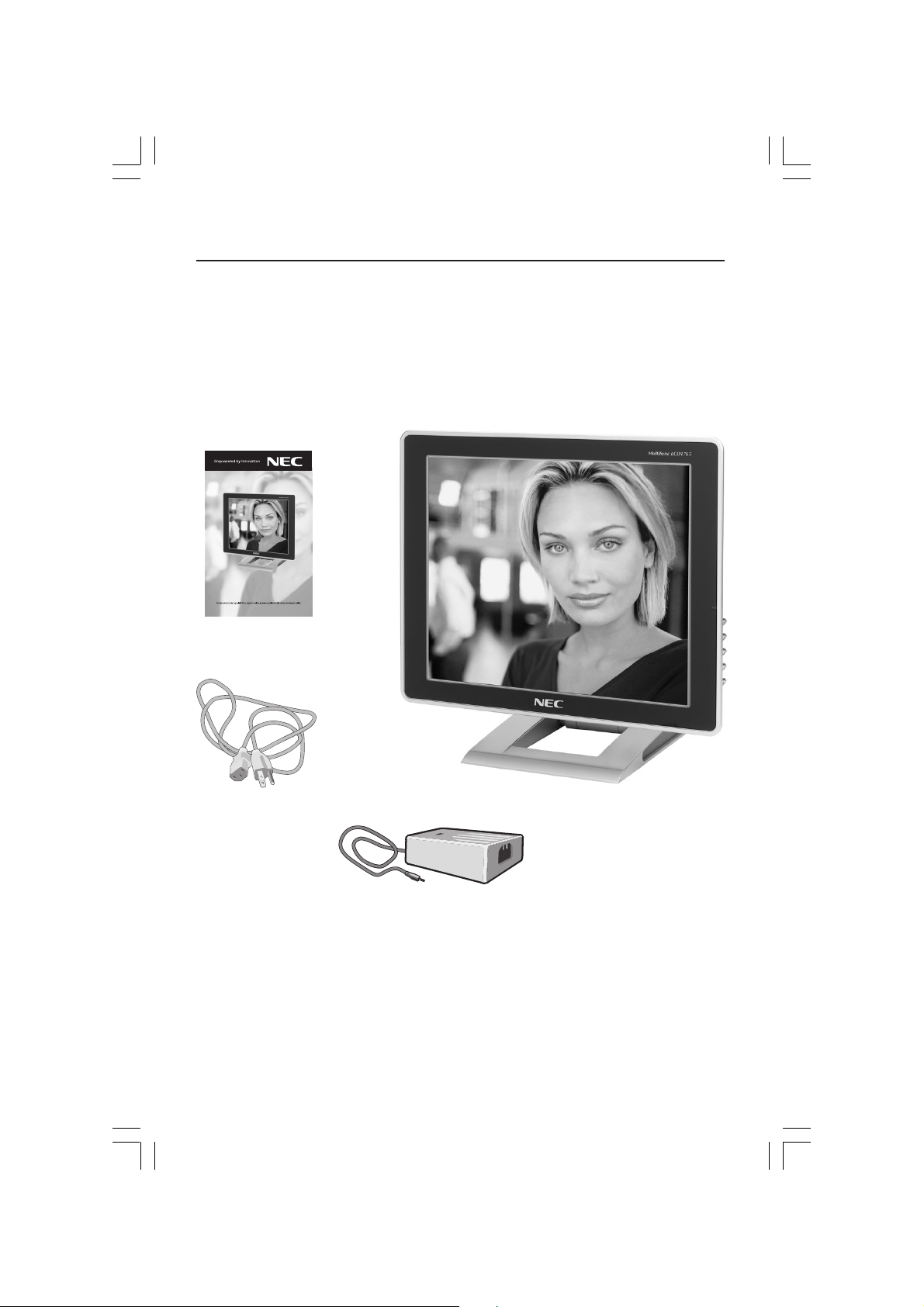

Contents
Your new NEC MultiSync® LCD monitor box* should contain the
following:
• MultiSync LCD monitor
• AC adapter
• Power cord
• User’s Manual
MultiSync® LCD1565/LCD1765 User's Manual
User’s Manual
Power Cord
AC adapter
*Remember to save your original box and packing material to transport or ship the monitor.
2
LCD15651765manual.p65 5/27/03, 8:31 AM2
Quick Start

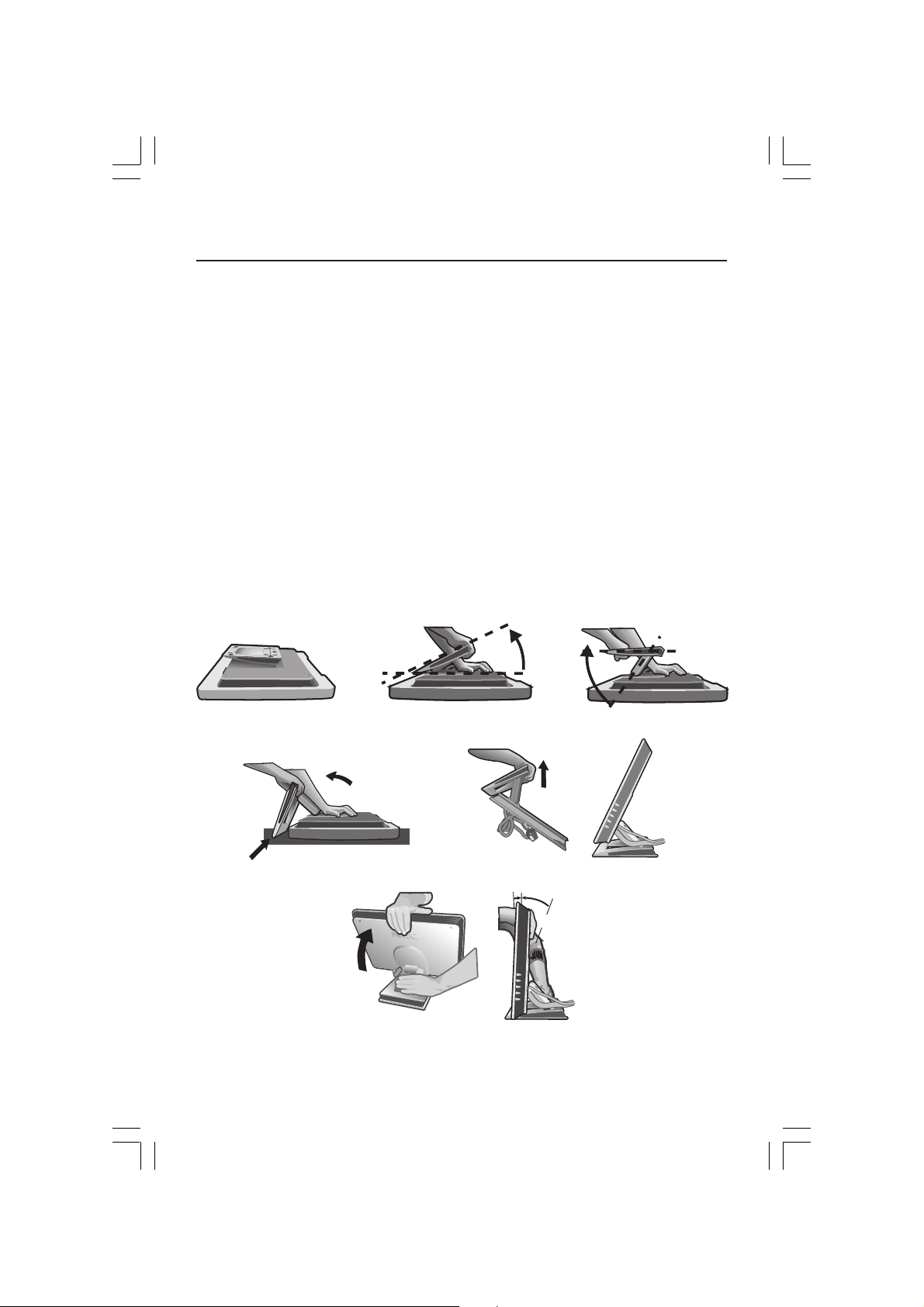

Instructions for Stand Setup
Step 1: After unpacking, using the original packing cushion, place the LCD monitor on a
flat surface.
Step 2: Pull the upper side of the stand.
Step 3: While avoiding the cables, pull the bottom side of the stand upward until it is
locked into position.
Step 4: While avoiding the cables, pull the upper side of the stand into the locked
position.
Step 5: Lift the LCD out of the packing cushion by the base into an upright and locked
position.
Step 6: Adjust the LCD monitor for preferred viewing angle. The working angle for the
hinge is 5 degrees forward and 20 degrees backward.
NOTE: Slowly adjust the LCD to avoid finger injury.
CAUTION: Gently place
stand on surface to avoid
scratching or damage to
the base.
CAUTION:
Avoid all cables
Step 4
Step 2Step 1
Step 6
Step 3
28°
50°
Step 5
5°
20°
LCD15651765manual.p65 5/27/03, 8:31 AM3
3
Quick Start –continued

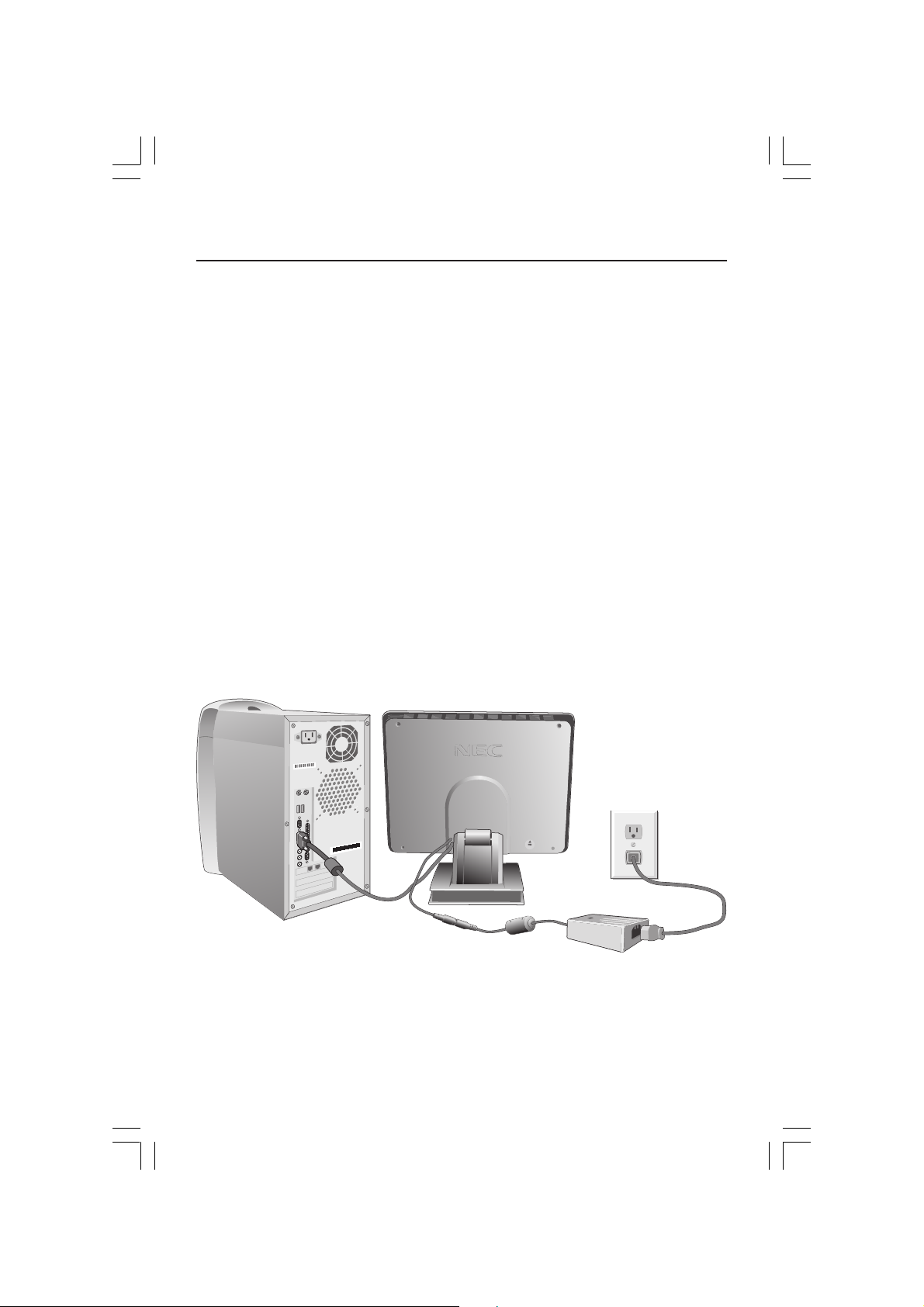

LCD Setup
To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Make sure the computer and the LCD monitor are both turned off.
2. Plug the end of the video signal cable of LCD monitor in the video signal connector of
the computer.
NOTE: To obtain the MultiSync Macintosh cable adapter, call NEC-Mitsubishi
Electronics Display of America, Inc. at (800) 632-4662.
3. Plug the captive power cord into the female end of the AC adapter and power cord
into the AC adapter.
4. Plug the power cord into a wall socket.
NOTE: If you use this monitor at AC125-240V, please refer to Recommended Use
section of this manual for proper selection of power cord.
NOTE: Please use the supplied AC adapter.
5. First, turn on the LCD monitor and then the computer.
6. Adjust the user controls to optimize your personal preference.
LCD15651765manual.p65 5/27/03, 8:31 AM4
4

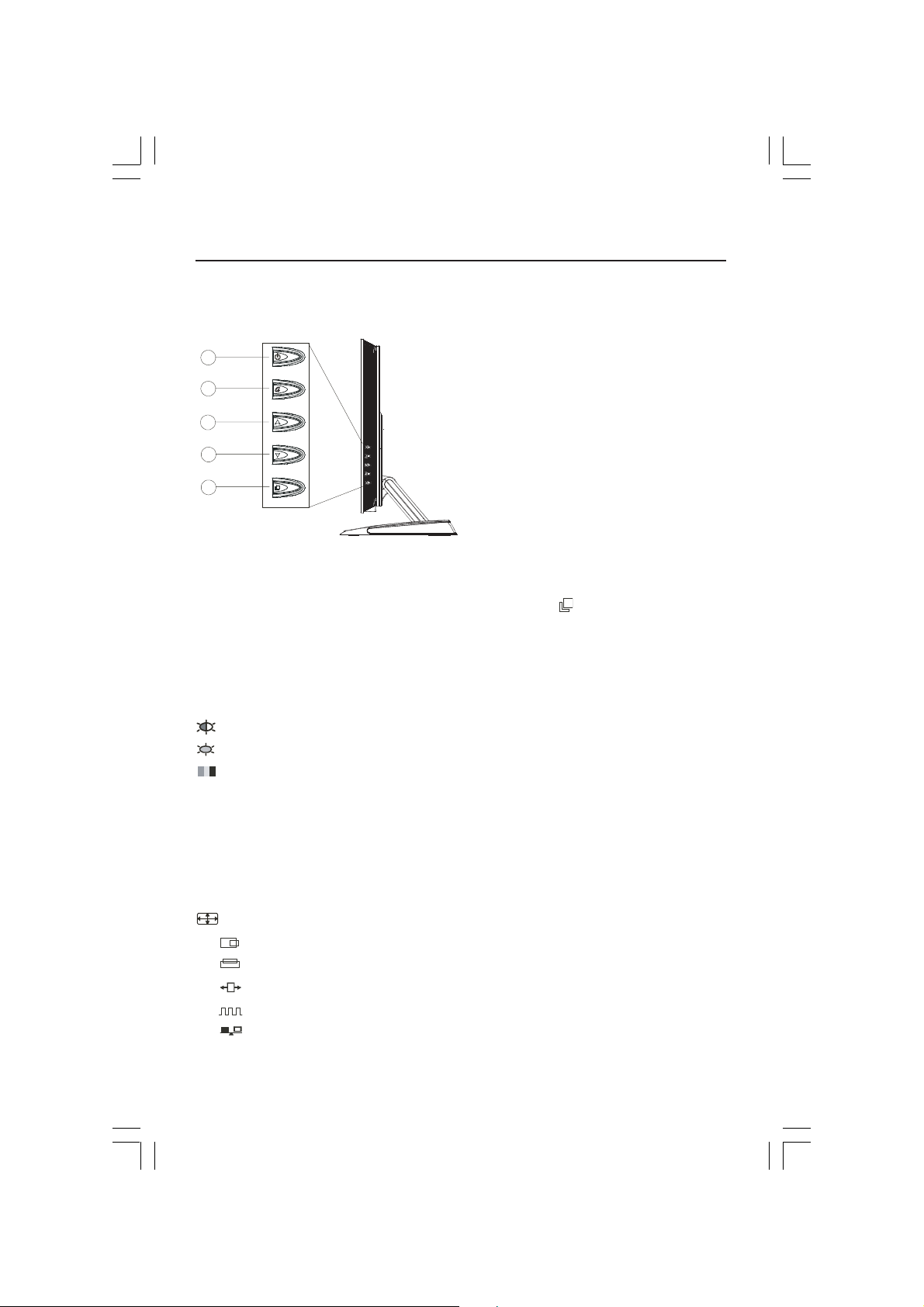

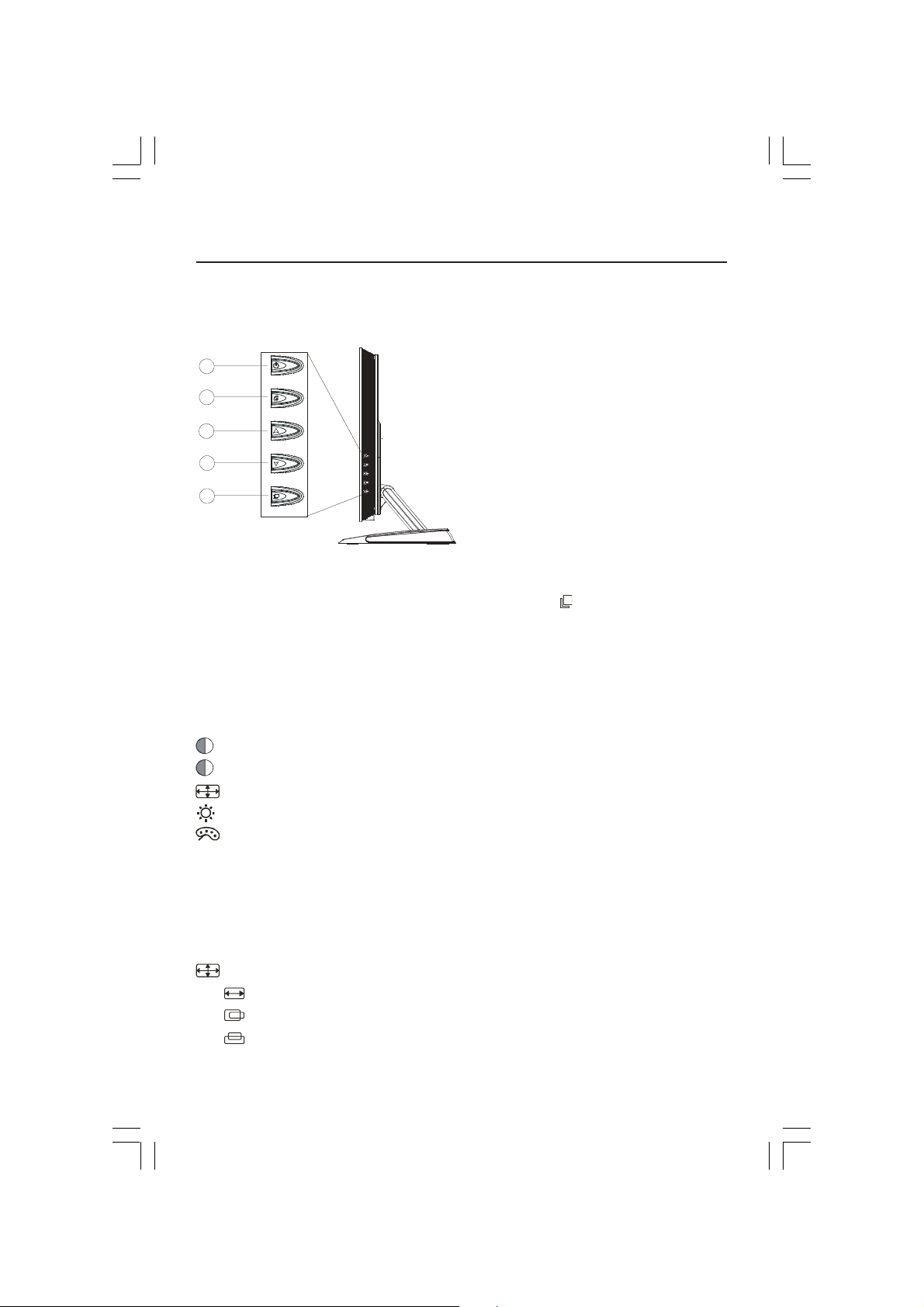

Controls –MultiSync LCD1565
OSD (On-Screen Display) control buttons on the right side of the
monitor function as follows:
1
2
3
4
5
OSD Main Menu
For screen adjustments, press the [ ] button to display the OSD (On-Screen Display)
Main Menu shown below. Press the [▲] or [▼] button to scroll up or down the menu to
your required options. The OSD will automatically turn off in 30 seconds without any
manipulation or by simply pressing [ ] the button for 2 seconds. Press the [a] button to
adjust the image for best performance.
CONTRAST: Adjusts the image brightness in relation to the background.
AUTO-CONTRAST: Automatically adjusts contrast level of a screen image.
AUTO-SYNC: Automatically adjusts the image to the best performance.
BRIGHTNESS: Adjusts the overall image and background screen brightness.
COLOR ADJUST: Two color presets select the desired color setting (NATIVE and
9300K color preset can not be changed). R,G,B: increases or decreases Red, Green
or Blue color depending on selection. The change in color will appear on screen and
the increase or decrease direction will be shown on the bars. NATIVE: original color
displayed by the LCD panel that is unadjustable.
1. Power switch
2. AUTO-SYNC
3. AUTO CONTRAST/Menu Scroll up/Moves
the bar left to decrease the adjustment
4. Menu scroll down/Moves the bar right to
increase the adjustment
5. Enters the OSD controls, OSD sub-menu,
and EXIT
MANUAL IMAGE ADJUST
H SIZE: Adjusts the width of the screen image.
H POSITION: Moves the screen image to the right or left.
V POSITION: Moves the screen image up or down.
FINE TUNE: Adjusts the image performance.
AUTO-SYNC: Automatically adjusts the image to the best performance.
LCD15651765manual.p65 5/27/03, 8:31 AM5
5
Controls –MultiSync LCD1565 continued
LANGUAGE SELECT: Selects preferred language used in the OSD menus.
ADVANCED MENU
OSD
OSD H. POSITION: Moves the OSD position on the screen to the right or left.
OSD V. POSITION: Moves the OSD position on the screen up or down.
SMOOTHING: Smooths the display text.
INVISIBLE: Makes the OSD background NON, FULL or SEMI transparent.
INFORMATION: Displays the timing mode (video signal input) coming from the
graphics card in the computer.
MEMORY RECALL: Returns the adjustments back to factory settings.
EXIT: Exits the OSD controls.
LCD15651765manual.p65 5/27/03, 8:31 AM6
6
Controls –MultiSync LCD1765
OSD (On-Screen Display) control buttons on the right side of the
monitor function as follows:
1
2
3
4
5
OSD Main Menu
For screen adjustments, press the [ ] button to display the OSD (On-Screen Display)
Main Menu shown below. Press the [▲] or [▼] button to scroll up or down the menu to
your required options. The OSD will automatically turn off in 30 seconds without any
manipulation. Press the [a] button to adjust the image for best performance.
Contrast: Adjusts the image brightness in relation to the background.
Brightness: Adjusts the overall image and background screen brightness.
Color Adjust: Five color presets select the desired color setting (9300K, 6500K,
5400K, 5000K and Native color preset can not be changed). User Color: increases
or decreases Red, Green or Blue color depending on selection. The change in color
will appear on screen and the increase or decrease direction will be shown on the
bars. Native: original color displayed by the LCD panel that is unadjustable.
1. Power switch
2. Auto-Sync
3. Opens Contrast & Brightness menu/Menu
Scroll up/Moves the bar left to decrease the
adjustment
4. Opens Contrast & Brightness menu/Menu
scroll down/Moves the bar right to
increase the adjustment
5. Enters the OSD controls, OSD sub-menu,
and EXIT
Manual Image Adjust
H. Position: Moves the screen image on the screen to the right or left.
V. Position: Moves the screen image on the screen up or down.
H. Size: Adjusts the width of the screen.
Fine Tune: Adjusts the image performance.
Sharpness: Adjusts the image sharpness.
Language Select: Selects preferred language used in the OSD menus.
7
LCD15651765manual.p65 5/27/03, 8:31 AM7
Controls –MultiSync LCD1765 continued
Advanced Menu
Scaling: Adjusts the image to the best performance.
OSD H. Position: Moves the OSD position on the screen to the right or left.
OSD V. Position: Moves the OSD position on the screen to the up or down.
Resolution Notice: The optimal resolution is 1280x1024. If ON is selected, a
message will appear in the screen after 30 second, notifying you that the
resolution is not optimal (1280x1024).
OSD Background: Makes the OSD background ON or OFF transparent.
OSD Time Out: Adjusts the setting of OSD timeout.
Information: Displays the timing mode (video signal input) coming from the
graphics card in the computer.
Memory Recall: Returns the adjustments back to factory settings.
Exit: Exits the OSD controls.
LCD15651765manual.p65 5/27/03, 8:31 AM8
8

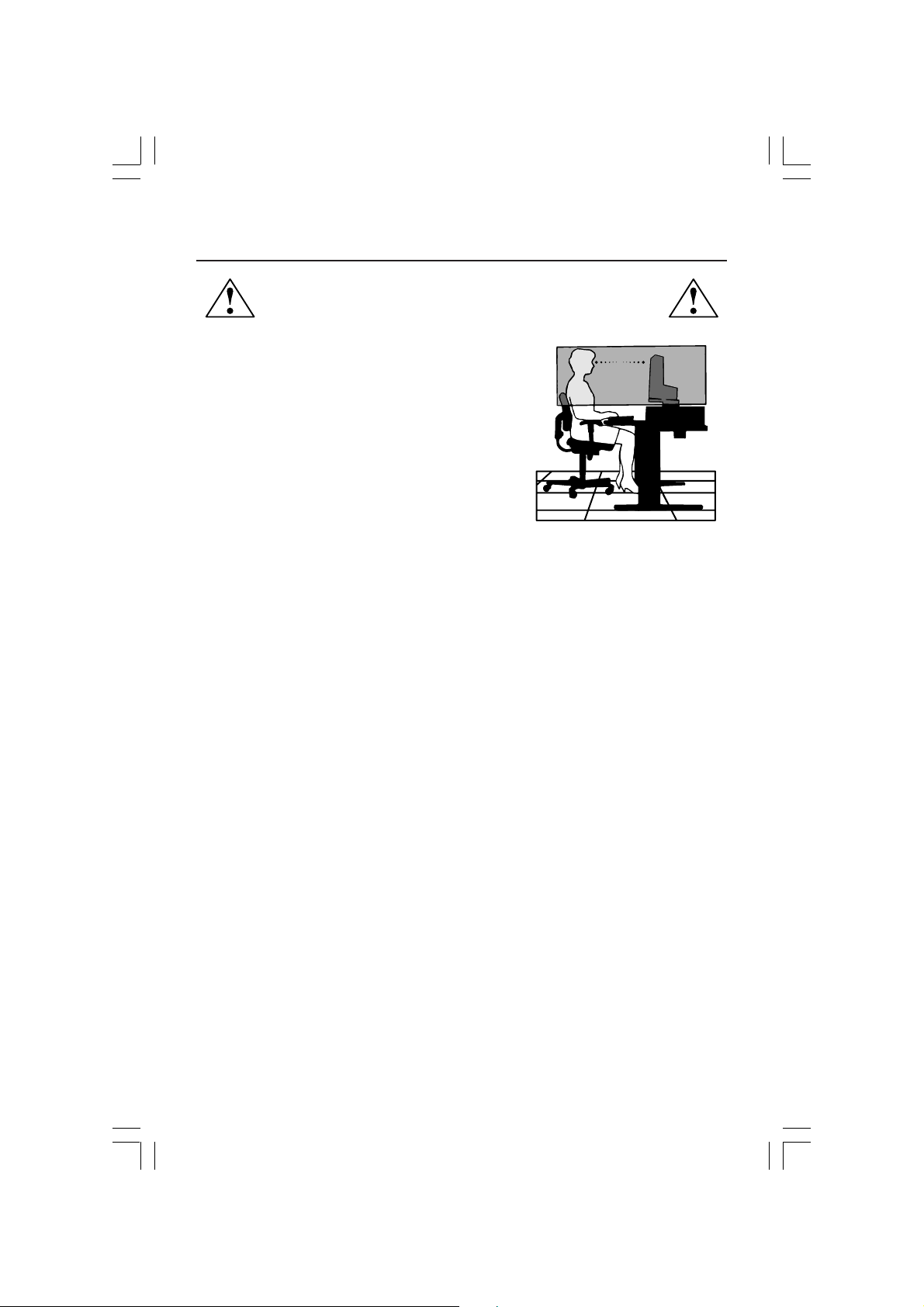

Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING
THE MULTISYNC® LCD COLOR MONITOR:
• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or
removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to
qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage
points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,
causing serious damage to the monitor.
• When operating the MultiSync LCD monitor with its AC 220-240V power supply, use a power
supply cord that matches the power supply voltage of the AC power outlet being used. The power
supply cord you use must have been approved by and comply with the safety standards of your
country. (Type H05VV-F should be used in Europe)
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use
with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.
• Use the supplied AC adapter. Do not place any objects onto the AC adapter and do not use the
AC adapter outdoors.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fluorescent tube located within the LCD monitor contains mercury.
Please follow the bylaws or rules of your municipality to dispose of the tube properly.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• Do not bend power cord.
• Do not use monitor in high temperatured, humid, dusty, or oily areas.
• If glass is broken, handle with care.
• Do not cover vent on monitor.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do
not block ventilated openings or place the monitor near a radiator or other heat
sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the
CAUTION
Image Persistence
Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen.
Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being
displayed for a long period of time should be avoided.
To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For
example, if an image was on the monitor for one hour and a residual image remains, the monitor should be
turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a moving
screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.
9
LCD15651765manual.p65 5/27/03, 8:31 AM9
Recommended Use –continued
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance, allow 20 minutes for warmup.
• Adjust the monitor height so that the top of the screen
is at or slightly below eye level. Your eyes should look
slightly downward when viewing the middle of the
screen.
•
Position your monitor no closer than 16 inches and no
further away than 28 inches from your eyes. The
optimal distance is 20 inches.
• Rest your eyes periodically by focusing on an object at
least 20 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize
glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your
screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any
cleaning solution or glass cleaner!
• Adjust the monitor’s brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or
reference material) directly in front of you to minimize turning your head
while you are typing.
• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image
persistence (after-image effects).
• Get regular eye checkups.
LCD Cleaning
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any
cleaning solution or glass cleaner! Removing the dust and other particles will prevent
your LCD panel from being scratched.
• Never pour or spray any liquid onto the LCD monitor.
• Do not apply pressure to the LCD panel.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
•
Use the preset Size and Position controls with standard signals
•
Use the preset Color Setting
•
Use non-interlaced signals with a vertical refresh rate between 60-75Hz
•
Do not use primary color blue on a dark background, as it is difficult to see and
may produce eye fatigue to insufficient contrast
For more detailed information on setting up a healthy work environment, write the
American National Standard for Human Factors Engineering of Visual Display Terminal
Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc.
P.O. Box 1369, Santa Monica, California 90406.
LCD15651765manual.p65 5/27/03, 8:31 AM10
10
Loading...
