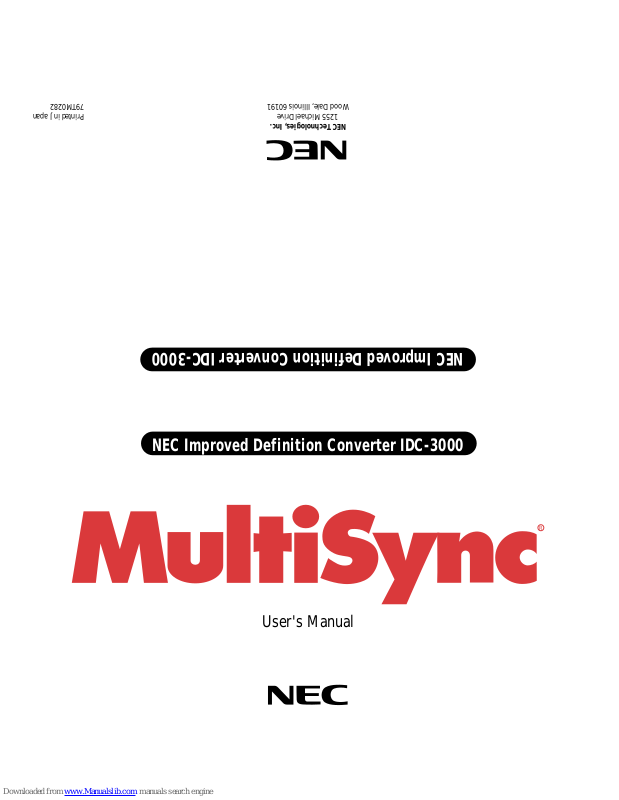

NEC Improved Definition Converter IDC-3000
R
User's Manual
Printed in Japan
79TM0282
NEC Technologies, Inc.
1255 Michael Drive
Wood Dale, Illinois 60191
NEC Improved Definition Converter IDC-3000
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG
WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING
THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
AVERTISSEMENT
AFIN D’EVITER TOUT RISQUE D’INCENDIE OU D’ELECTROCUTION, NE PAS
EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITE.
DE MEME, NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE
COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND SANS EN
LAISSER AUCUNE PARTIE A DECOUVERT. EVITER D’OUVRIR LE COFFRET,
CAR IL Y A, A L’INTERIEUR, DES COMPOSANTS SOUMIS A UNE HAUTE
TENSION. POUR LES REPARATIONS, S’ADRESSER A UN PERSONNEL QUALIFIE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION
RISQUE D’ELECTROCUTION
NE PAS OUVRIR
ATTENTION:
AFIN D’EVITER TOUT RISQUE D’ELECTROCUTION, NE
PAS ENLEVER LE COUVERCLE. AUCUN DES ELEMENTS
INTERNES NE DOIT ETRE REPARE PAR L’UTILISATEUR.
NE CONFIER L’ENTRETIEN QU’A UN PERSONNEL
QUALIFIE.
This symbol warns the user that uninsulated voltage
within the unit may have sufficient magnitude to cause
electric shock.
Therefore, it is dangerous to make any kind of contact
with any part inside of this unit.
La flèche symbolisant le tonnerre à l’intérieur du
triangle équilatéral a pour but de prévenir l’utilisateur
de la présence d’une tension dangereuse non isolée
se trouvant à l’intérieur du dispositif: elle est d’une
intensité suffisante pour constituer un risque
d’électrocution.
This symbol alerts the user that important literature
concerning the operation and maintenance of this unit
has been included.
Therefore, it should be read carefully in order to avoid
any problems.
Le point d’exclamation du triangle équilatéral a pour
but de prévenir l’utilisateur de la présence d’importantes
instructions concernant l’entretien et le fonctionnement,
indiquées dans la brochure accompagnant l’appareil.
Par conséquent, elles doivent être lues attentivement
afin d’éviter des problèmes.
DOC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
DOC avis de conformation
Cet appareil numérique de la classe B respecte toutes les exigences du
Réglement sur le Matériel Brouilleur du Canada.
• WARNING •
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocare the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CONTENTS
FEATURES.....................................................
1
WARNINGS AND PRECAUTION...................
2
PART NAMES AND FUNCTIONS..................
4
FRONT PANEL.........................................................
4
INDICATORS............................................................
6
REAR PANEL ...........................................................
8
REMOTE CONTROL ................................................
B
REMOTE CONTROL NOTES.........................
D
ADJUSTMENT................................................
F
ON-SCREEN DISPLAY ..................................
H
HOOK-UP EXAMPLES ..................................
P
Using the EXTERNAL CONTROL Connector...........
R
Using the PC-CONTROL Connector ........................
S
RACK MOUNTING .........................................
V
SPECIFICATIONS ..........................................
X
APPENDIX......................................................
Z
LIMITED WARRANTY....................................
`
The IDC-3000 converts NTSC video signals into scan-doubled signals.
This scan converter can be used with a multi-synchronous scan monitor or
projectors having a minimum of 31.5 kHz horizontal scanning capability to
provide high-quality images.
The IDC-3000 can be also connected to a document camera, conventional
VCR, video disc player, S-Video recorder, or video camera.
FEATURES
v Motion adaptive 3-dimensional Y/C separation circuit greatly reduces
cross talk (dot interference/cross color).
v Motion adaptive 3-dimensional scanning line interpolation circuit pro-
vides a reduction of line flicker and an increase of vertical resolution.
v Two-mode digital video noise reduction circuit greatly improves the
signal-to-noise ratio of the signal.
v Forced (non adaptive) still screen mode provides a still image without
erroneous operation of the operation detection circuit. (This is useful
with the images of document cameras, etc.)
v Equipped with a demonstration split function for processing artificial
interlace and switching off 3-dimensional Y/C separation processing
the right half of the screen.
v PC-CONTROL connector permits control of a personal computer.
1
Warnings and Safety Precaution
The NEC IDC-3000 is designed and manufactured to provide long, troublefree service. No maintenance other than cleaning is required. Use a soft cloth
and if necessary, mild detergent. Do not use commercial spray cleaners
which may damage the surface. In case of damage, arrange for repairs at an
authorized NEC Service Center.
For operating safety and to avoid damage to the unit, read carefully and
observe the following instructions.
To avoid shock and fire hazards:
1. Provide adequate space for ventilation to avoid internal heat build-up. If
you enclose the unit in a cabinet or rack, be sure there is adequate space
at the top of the unit to allow heated air to rise and escape.
2. Do not use the power cord polarized plug with extension cords or outlets
unless the prongs can be completely inserted.
3. Do not expose unit to rain or moisture.
4. Avoid damage to the power cord, and do not attempt to modify the power
cord.
5. Unplug unit during electrical storms or if unit will not be used over a long
period.
6. Do not open the cabinet which has potentially dangerous high voltage
components inside. If the unit is damaged in this way the warranty will be
void. Moreover, there is a serious risk of electric shock.
7. Do not attempt to service or repair the unit. NEC is not liable for any bodily
harm or damage caused if unqualified persons attempt service or open
the cabinet. Refer all service to authorized NEC Service Centers.
To avoid damage and prolong operating life:
1. Use only with 120V 60Hz AC power supply.
2. Handle the unit carefully when moving and do not drop.
3. Locate set away from heat, excessive dust, and direct sunlight.
4. Protect the inside of the unit from liquids and small metal objects. In
case of accident, unplug the unit and have it serviced by an authorized
NEC Service Center.
5. Unplug unit before cleaning. Use only a soft cloth and mild detergent.
Commercial household sprays and cleaners may damage the cabinet.
WARNING
Unqualified persons should under no circumstances remove the cabinet of
the unit to make internal adjustments. The warranty is void if the unit is
damaged in this way. Moreover, there is a serious risk of electric shock. If you
have service difficulties, call your dealer.
2
Mises en garde et précautions de sécurité
Le IDC-3000 NEC a été conçus et fabriqués pour assurer une longue durée de service
sans problèmes. Aucun entretien à l’exception du nettoyage n’est nécessaire. Utiliser
un chiffon doux et un détergent doux, si nécessaire. Ne pas utiliser des aérosols de
nettoyage du commerce qui risquent d’endommager la surface de cet appareil. Si
l’appareil est endommagé, confier les travaux de réparation à un centre de service
agréé NEC.
Pour un fonctionnement sûr et afin d’éviter d’endommager l’appareil, lire attentivement
et respecter les instructions suivantes.
Afin d’éviter tout risque d’électrocution et d’incendie:
1. Réserver un espace libre suffisant pour la ventilation afin d’éviter une accumulation
de chaleur interne. Si l’appareil est logé dans un coffret ou sur une étagère,
s’assurer qu’il y a un espace libre suffisant pour la dissipation de la chaleur.
2. Ne pas utiliser la fiche polarisée du cordon d’alimentation avec des prolongateurs
ou des prises de courant, sauf si les lames peuvent être insérées à fond.
3. Ne pas exposer à la pluie ou à l’humidité.
4. Eviter d’endommager le cordon d’alimentation, et ne pas modifier le cordon
d'alimentation.
5. Débrancher l’appareil pendant les tempêtes ou si l’appareil n’est pas utilisé pendant
une longue période.
6. Ne pas ouvrir le coffret. Des composants de haute tension se trouvent à l’intérieur.
Si l’appareil est endommagé de cette manière, la garantie devient caduque. De plus,
il y a risque d’électrocution.
7. Ne pas essayer de réparer ou entretenir l’appareil soi-même. NEC ne saura être tenu
pour responsable pour toute blessure ou dommage causé par des personnes non
qualifiées qui essayent de réparer ou d’ouvrir le coffret. Confier toute réparation à
un centre de service agréé NEC.
Pour éviter des dommages et prolonger la durée de service de l’appareil:
1. N’utiliser qu’une source d’alimentation de 120 V 60 Hz CA.
2. Manipuler l’appareil avec soin pendant son déplacement et ne pas le faire tomber.
3. Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.
4. Eviter que des liquides et des petits objets métalliques pénètrent à l’intérieur de
l’appareil. En cas d’accident, débrancher l’appareil et le confier à un centre de
service agréé NEC.
5. Débrancher l’appareil avant le nettoyage. Utiliser seulement un chiffon doux et un
détergent doux.
Des aérosols et produits de nettoyage disponibles dans le commerce risquent
d’endommager le coffret.
AVERTISSEMENT
Le coffret ne doit pas être enlevé par un personnel non qualifié pour faire les réglages
internes. La garantie devient caduque si l’appareil est endommagé de cette manière.
De plus, il y a risque d’électrocution. En cas de problèmes de réparation contacter votre
revendeur.
3
PART NAMES AND FUNCTIONS
REMOTE
EXT
POWER
STAND-BY
SCAN CONVERTER IDC-3000
VIDEO NTSC PAL
12 3 4 5
MONITOR
RGB
NOISE
REDUCTION
MOVIE STILL
MODE1 DOWN UP MODE2 NR MOVIE STILL
VIDEO1 VIDEO2 VIDEO3 VIDEO4 VIDEO5 MONITOR RGB
NORMALIZE
12 1 2 3
NORM. SET
3D
3D
678
FRONT PANEL
12 4 53
D
C
9
0AB
4
5 MODE 2 Button
Used to select the image system. Each time this button is pressed, mode
2 will change as follows:
→ SPLIT → MOVIE
• SPLIT .........
Selects the demonstration split mode function for processing the
artificial interlace and switching off the 3-dimensional Y/C
separation processing the right half of the screen.
NOTE: The demonstration split mode function is available for the NTSC
signal only.
NOTE: Even though the NTSC indicator may not illuminate for substandard NTSC signals such as poor quality video signals, the split screen
will sitill function. However, the demonstration split mode function has
less effect because the 3-dimensional Y/C separation processing is not
performed unless the NTSC indicator is lit.
• MOVIE.......
Selects the Y/C separation method and the image interpolation method.
Mode Y/C Separation Image Interpolation
Normal Motion adaptation Motion adaptation
Movie 1 Move mode Move mode
Movie 2 Move mode Motion adaptation
Movie 3 Motion adaptation Move mode
1 POWER Button
Press to turn the unit on when the power cord is connected to an active
AC power outlet.
NOTE: After the power cord is connected to an active power outlet, the
unit enters the standby mode, and the red STAND-BY indicator is
illuminated.
In this mode the unit can be turned on by pressing the POWER button.
The STAND-BY indicator changes to green to show that the unit is
turned on.
2 POWER / STAND-BY Indicator
Indicator LED is green when the unit is turned on. When the unit is
turned off, this indicator is red and the unit enters the standby mode.
During external control, the indicator is amber when the unit is turned
on.
3 MODE 1 Button
Selects image adjustment and audio adjustment. Each time this button
is pressed, mode 1 will change as follows:
→ COLOR → TINT → SHARPNESS → SOUND
4 DOWN and UP Buttons
Used to adjust the item selected with the MODE 1 or MODE 2 button.
5
VIDEO NTSC PAL
12 3 4 5
MONITOR
RGB
NOISE
REDUCTION
MOVIE STILL
12 1 2 3
INDICATORS
6 NR Button
Used when screen noise becomes annoying. Each time this button is
pressed, the NR function will change as follows:
→ OFF → NOISE REDUCTION1 → NOISE REDUCTION 2
(Noise is reduced) (Noise is further reduced)
7 MOVIE Button
Press to manually set the method of Y/C separation and image interpolation.
8 STILL Button
Press to display still images such as those from document cameras, etc.
The Y/C separation and image interpolation will be set for the still
screen mode.
E FG
6
LKJIH
9 NORM. SET Switch
This is an adjustment switch for service personnel.
0 NORMALIZE Button
Sets the various adjustments to the standard settings (which had been
set at the factory prior to shipping).
A RGB Button
Switches the unit to the RGB input mode.
7
B MONITOR Button
Switches the MONITOR OUT jack output at the time of RGB input.
Each time this button is pressed, the MONITOR OUT jack output will
change as follows:
→ VIDEO1 → VIDEO2 → VIDEO3 → VIDEO4 → VIDEO5 → OFF
C VIDEO 1 through 5 Button
Switches the video input mode.
D REMOTE Jack
For service personnel only.
E Remote Sensor Window
Receives the signal from the wireless remote control.
F VIDEO 1, 2, 3, 4, 5 Indicator
Lights when the unit is switched to the video input mode with the
VIDEO 1 through 5 buttons.
G NTSC Indicator
Lights when an NTSC standard signal is received. IDTV processing is
in operation when this indicator is lit.
H MONITOR Indicator
Lights when the MONITOR OUT output is selected at the time of RGB
input.
I RGB Indicator
Lights when the unit is switched to the RGB input mode with the RGB
button.
J NOISE REDUCTION 1 and 2 Indicators
Indicate the mode selected with the NR button.
K MOVIE 1, 2 and 3 Indicators
Indicate the mode selected with the MOVIE button.
L STILL Indicator
Lights when the STILL button is switched on.
VIDEO 1
S-VIDEO
AUDIO
L
R
VIDEO 2
S-VIDEO
AUDIO
L
R
VIDEO 3
AUDIO
L
R
VIDEO 4
AUDIO
L
R
VIDEO 5
AUDIO
L
R
INPUT
AUDIO
L
R
RGB (THROUGH)
MONITOR
VIDEO1•2
S ONLY
AUDIO
L
R
R
G
B
HORIZONTAL
VERTICAL
H/V
AUDIO
L
R
PC-CONTROL
EXTERNAL CONTROL
OUTPUT
HV
HV-POL.
PC-CONTROL
AC IN
VIDEO 1 VIDEO 2
BNC
S-VIDEO
TERMINATE
75
OPEN
DISPLAY
AUTO
POWER
Hi
Lo
422 232
SW
ON OFF
4 5678 90A
REAR PANEL
8
D3 2 1
B
C
1 AUTO POWER Switch
ON START ....The power is automatically switched on when the
power cord is connected to the power outlet.
(It is not necessary to press the front panel POWER
button.)
OFF START ...After connecting the power cord to the power outlet, a
press of the front panel POWER button will switch on
the power.
2 DISPLAY Switch
ON ( ) .........On-screen display will appear on the monitor.
OFF (
) ........On-screen display will not appear on the monitor.
3 TERMINATE Switch (VIDEO 1 and VIDEO 2)
Switches the terminating resistor of the BNC input jacks.
75Ω.................75Ω termination input
OPEN .............High impedance input
4 BNC/S-VIDEO Switch (VIDEO 1 and VIDEO 2)
BNC................Provides the appropriate switching when the signal is
input from the BNC input jacks.
S-VIDEO........Provides the appropriate switching when the signal is
input from the S-VIDEO input jack.
5 VIDEO 1 and VIDEO 2 Input Jacks (INPUT)
VIDEO 1 and 2 (BNC)..... Connected with the video output jacks of
the external equipment.
S-VIDEO.......................... Connected with the S-video output jack of
the external equipment.
AUDIO L and R (RCA) ... Connected with the audio output jacks of
the external equipment.
6 VIDEO 3, VIDEO 4, and VIDEO 5 Input Jacks (INPUT)
VIDEO 3, 4, and 5 (BNC)
.... Connected with the video output jacks of
the external equipment.
AUDIO L and R (RCA) ... Connected with the audio output jacks of
the external equipment.
7 RGB Input Connector (THROUGH)
RGB (D-sub 15 miniature) ....
Connected with the RGB output connector
of the external equipment. The input signal
is through-output from the RGB output
connector. See page A for pin assignment.
9
( )
(
)
8 MONITOR Output Jack (OUTPUT)
MONITOR (BNC) ........... Outputs the signals of the equipment con-
nected to VIDEO 1 through 5.
S-VIDEO.......................... Outputs an S video signal, (derived from
the signal of the equipment connected to
VIDEO 1 or VIDEO 2), which has been
divided to a luminance signal (Y) and a
chrominance signal (C).
AUDIO L and R (RCA) ... Outputs the signal of the equipment con-
nected to VIDEO input 1 through 5 and the
AUDIO L and R associated with the RGB
input connector.
The selected video signal is output when
RGB input has been selected and MONITOR button is switched on.
9 RGB Output Connector (OUTPUT)
RGB (BNC)...................... Connected to the RGB input jacks of a
monitor or projector having a 31.5 kHz
horizontal scanning function.
HORIZONTAL (BNC) .... Connected to the HORIZONTAL input
jack of a monitor or projector having a 31.5
kHz horizontal scanning function.
VERTICAL (BNC) .......... Connected to the VERTICAL input jack of
a monitor or projector having a 31.5 kHz
horizontal scanning function.
H/V (BNC) ....................... Connected to the H/V input jack of a moni-
tor or projector having a 31.5 kHz horizontal scanning function.
AUDIO L and R (RCA) ... Connected to the audio input jacks of RGB
equipment.
0 HV POL. Switch
Selects the polarity of the horizontal and vertical output signals.
H .............. Horizontal
V .............. Vertical
Hi............. Active high
Lo ............ Active low
A PC-CONTROL SW (Switch)
Selects the communications standard of the PC-CONTROL connector.
422........... RS-422 standard
232........... RS-232C standard
B AC IN Receptacle
Used to connect the supplied power cord.
C PC-CONTROL Connector (15-pin connector)
Connect to a personal computer or other control equipment.
0
A
D EXTERNAL CONTROL Connector
Connections are made to this connector when controlling this unit by
external control.
(See the “External Control Mode” section.)
NOTE :
• Use a signal conforming to the standard TV signal when connecting
an input source.
• Using poor quality video tape may cause distortion on the picture.
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Signal to be connected
Red input
Green input
Blue input
GND
GND
Red GND
Green GND
Blue GND
Open
Sync GND
GND
Open
H-Sync
V-Sync
Open
54321
10 9 8 7 6
15 14 13 12 11
RGB (D-Sub 15 mini) Connector Pin Assignment
REMOTE CONTROL
3
1
2
9
E
7
4
5
6
0
POWER
VIDEO1
RGB
SPLIT
VIDEO2 VIDEO3
NORMALIZE MODE1
VIDEO4
UP
MODE2 DOWN
REMOTE CONTROL UNIT RD-338E
MONITOR
VIDEO5
NOISE
REDUCTION
MOVIE STILL
D
C
8
B
A
F
B
1 POWER Button
Turns the power on or off.
2 VIDEO 1 Button
Switches the unit to the video 1 input mode.
3 VIDEO 2 Button
Switches the unit to the video 2 input mode.
4 VIDEO 3 Button
Switches the unit to the video 3 input mode.
5 VIDEO 4 Button
Switches the unit to the video 4 input mode.
6 VIDEO 5 Button
Switches the unit to the video 5 input mode.
7 RGB Button
Switches the unit to the RGB input mode.
8 MONITOR Button
Used to switch on the monitor mode at the time of RGB input.
9 SPLIT
Press to activate the demonstration split mode function for processing
the artificial interlace and switching off the 3-dimensional Y/C separation processing the right half of the screen.
This function is for use when the NTSC indicator is lit.
0 NOISE REDUCTION Button
Used when screen noise becomes annoying. Each time this button is
pressed, the NR function will change as follows:
→ OFF → NOISE REDUCTION 1 → NOISE REDUCTION 2
(Noise is reduced) (Noise is further reduced)
A MOVIE Button
Press to manually set the method of Y/C separation and image interpolation.
B STILL Button
Press to display still images such as those from document cameras, etc.
The Y/C separation and image interpolation will be set for the still
screen mode.
C NORMALIZE Button
Sets the various adjustments to the standard settings (which had been
set at the factory prior to shipping).
D MODE 1 Button
Selects image adjustment and audio adjustment. Each time this button
is pressed, mode 1 will change as follows:
→ COLOR → TINT → SHARPNESS → SOUND
E MODE 2 Button
Used to select the image system. Each time this button is pressed, mode
2 will change as follows:
→ SPLIT → MOVIE
• SPLIT..........Selects the demonstration split mode function for pro-
cessing the artificial interlace and switching off the 3dimensional Y/C separation processing the right half
of the screen.
This function is for use when the NTSC indicator is lit.
• MOVIE .......Selects the Y/C separation method and the image
interpolation method.
Mode Y/C Separation Image Interpolation
Normal Motion adaptation Motion adaptation
Movie 1 Move mode Move mode
Movie 2 Move mode Motion adaptation
Movie 3 Motion adaptation Move mode
F DOWN and UP Buttons
Used to adjust or activate the item selected with the MODE 1 or MODE
2 button.
C
REMOTE CONTROL NOTES
Remote Control Precautions
v The remote control system may not function when direct sunlight or
strong illumination strikes the remote sensor window of the main unit.
v Do not place in locations where there is a high temperature or high
humidity. Doing so will lead to breakdown.
v When remote control buttons are pressed and held, main unit operations
may not be possible.
Battery Precautions
v Do not use new and old batteries together.
v Do not use different kinds of batteries together.
v Do not short-circuit batteries, heat them, or throw them into a fire.
v Do not take apart the batteries.
v Remove the batteries from the remote control when the remote control
is not going to be used for a long period.
Installing the Batteries of the Remote Control
1 Press and open the cover in the direction of the arrow.
D
2 Install the batteries according to the + and - indications inside the case.
3 Close the cover.
NOTE :
Use two 1.5V “AA” batteries when replacing the batteries.
E
ADJUSTMENT
Adjustment of COLOR, TINT, SHARPNESS, and SOUND
(1) Press the MODE 1 button and select the mode to be adjusted.
Each press of the MODE 1 button will change the selection as follows:
→ COLOR → TINT → SHARPNESS → SOUND
(2) While the indicator is on, press and hold the UP or DOWN button and
adjust.
COLOR ............... Adjusts the density of the color.
TINT ...................Adjusts the tint.
SHARPNESS ......Adjusts the sharpness of the picture quality.
SOUND...............Adjusts the output level of the audio.
F
NOTE : Processing is done to a Y/C separated signal. For this reason,
Y/C separation mode is not effective when S-VIDEO input selected.
Adjustment of SPLIT and MOVIE
Press the MODE 2 button and select the mode to be adjusted.
Each press of the MODE 2 button will change the selection as follows:
→ SPLIT → MOVIE
While the indicator is on, press the UP or DOWN button and adjust.
SPLIT
Split on .................UP button or SPLIT button
Split off ................DOWN button or SPLIT button
SPLIT On
Sets the demonstration split mode function for processing the artificial
interlace and switching off the 3-dimensional Y/C separation processing
the right half of the screen.
This function is for use when the NTSC indicator is lit.
MOVIE
Use the UP and DOWN buttons to select the movie mode.
→ MOVIE 1 ↔ MOVIE 2 ↔ MOVIE 3 ←
UP button ............→ Changes clockwise
DOWN button .....← Changes counterclockwise
Y/C Separation Mode
Image Interpolation Mode
The MOVIE mode functions only when the MOVIE indicator of the
front panel is lit.
G
NOTE : Processing is done to a Y/C separated signal. For this reason,
Y/C separation mode is not effective when S-VIDEO input selected.
NOTE : Each adjustment is available only when the on-screen appears.
Motion Adaptive mode
Move mode
Motion Adaptive mode
Move mode
Movie 1
Movie 3 Movie 2
ON-SCREEN DISPLAY
Screen Display During Input Signal Selection
Screen Display During DVNR (Noise Reduction) Selection
Display characters during video 1 to 5 input signal selection
During video 1 input signal selection ..........SOURCE VIDEO 1
During video 1 S input signal selection .......SOURCE S-VIDEO 1
During video 2 input signal selection ..........SOURCE VIDEO 2
During video 2 S input signal selection .......SOURCE S-VIDEO 2
During video 3 input signal selection ..........SOURCE VIDEO 3
During video 4 input signal selection ..........SOURCE VIDEO 4
During video 5 input signal selection ..........SOURCE VIDEO 5
Display color .............................................. All yellow
Display characters during noise reduction selection
During Noise reduction 1 selection ............. DVNR 1
During Noise reduction 2 selection ............. DVNR 2
Display color ..............................................All cyan
SOURCE VIDEO 1
DVNR 1
H
Screen Display During STILL Mode Selection
STILL
Display characters during still mode selection
Display color
STILL ..........................................................cyan
I
During the NTSC COLOR Adjustment
Display characters during the color adjustment
During NTSC ...............................................COLOR
Display color
COLOR ........................................................Green
Bar Normal ..............................................Magenta
Max ...................................................Red
Min....................................................Blue
COLOR
– +
Screen Display During NORMALIZED Selection
NORMALIZED
A press of the “NORMALIZED” button returns the value set in “MODE 1”
to the initial setting value.
Display characters during normalize selection
Display color
NORMALIZED .............................................Magenta
K
Screen Display During Split Mode Selection Screen Display During MOVIE Mode Selection
SPLIT ON
MOVIE 1
Display characters during split mode selection in mode 2
During split selection ..................................SPLIT ON
When split is not selected ...........................SPLIT OFF
Display color
SPLIT ON ....................................................Cyan
SPLIT OFF ...................................................Cyan
Display characters during movie mode selection
During movie mode 1 selection...................MOVIE 1
During movie mode 2 selection...................MOVIE 2
During movie mode 3 selection...................MOVIE 3
Display color ..............................................All cyan
J
During the TINT (Center) Adjustment
TINT
R G
Display characters during the tint adjustment
Display color during the center adjustment
Tint..............................................................Green
R .................................................................Red
G .................................................................Green
.................................................................Red
.................................................................Green
During the TINT (R Direction) Adjustment
Display characters during the tint adjustment
Display color during the adjustment in the R direction
Tint..............................................................Green
R ................................................................. Red
G ................................................................. Green
..............................................................Red
L
TINT
R G
TINT
R G
SHARPNESS
– +
During the TINT (G Direction) Adjustment
Display characters during the tint adjustment
Display color during the adjustment in the G direction
Tint..............................................................Green
R .................................................................Red
G .................................................................Green
..............................................................Green
During the SHARPNESS Adjustment
Display characters during the sharpness adjustment
Display color
SHARPNESS ...............................................Green
Bar Normal ..............................................Magenta
Max ...................................................Red
Min....................................................Green
M
SOUND
– +
During the SOUND Adjustment
Display characters during the sound adjustment
Display color
SOUND........................................................Green
Bar Normal ..............................................Magenta
Max ...................................................Red
Min....................................................Blue
N
During the MOVIE Mode Selection
MOVIE 1
During the SPLIT Screen Selection
Display characters during the split mode selection
During split selection ..................................SPLIT ON
When split is not selected ...........................SPLIT OFF
Display color
SPLIT ON ....................................................Cyan
SPLIT OFF ...................................................Cyan
Screen Display During Mode 2 Adjustment
Each press of the “MODE 2” button changes the mode in a toggle
operation, and selection is made with the “UP” and “SPLIT” button.
→ SPLIT → MOVIE
Display characters during the movie mode selection
During movie mode 1..................................MOVIE 1
During movie mode 2..................................MOVIE 2
During movie mode 3..................................MOVIE 3
Display color ..............................................All Cyan
Screen Display During Mode 2 Adjustment
Each press of the “MODE 2” button changes the mode in a toggle
operation, and selection is made with the “UP” and “DOWN” button.
→ SPLIT → MOVIE
O
SPLIT ON
VIDEO 1
S-VIDEO
AUDIO
L
R
VIDEO 2
S-VIDEO
AUDIO
L
R
VIDEO 3
AUDIO
L
R
VIDEO 4
AUDIO
L
R
VIDEO 5
AUDIO
L
R
INPUT
AUDIO
L
R
RGB (THROUGH)
MONITOR
VIDEO1•2
S ONLY
AUDIO
L
R
R
G
B
HORIZONTAL
VERTICAL
H/V
AUDIO
L
R
PC-CONTROL
EXTERNAL CONTROL
OUTPUT
HV
HV-POL.
PC-CONTROL
VIDEO 1 VIDEO 2
BNC
S-VIDEO
TERMINATE
75
OPEN
DISPLAY
AUTO
POWER
Hi
Lo
422 232
SW
ON OFF
HOOK-UP EXAMPLES
Video equipment
Laser disc player or TV tuner
P
Q
Video camera or document camera equipped with a VIDEO output
or an S-VIDEO output.
Personal computer
Video input of an NEC MultiSync
monitor or an S-VIDEO input of a
monitor.
RGB inputs of projectors or monitors such as NEC MultiSync projector 9PG/6PG EXTRA, or PLUS,
and NEC MultiSync multimedia
monitor XP37/XM37 supporting a
minimum of 31.5kHz horizontal
scanning frequency.
Using the EXTERNAL CONTROL Connector
54321
10 9 8 7 6
15 14 13 12 11
Mini D-SUB 15 Pin
Function Table
Function Pin No.
External control ON
External control OFF
POWER ON
POWER OFF
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
VIDEO 5
RGB
14-15
SHORT
OPEN
5-15
SHORT
OPEN
8-15
SHORT
OPEN
SHORT
OPEN
SHORT
OPEN
3-15
SHORT
SHORT
OPEN
OPEN
SHORT
OPEN
9-15
SHORT
SHORT
SHORT
SHORT
OPEN
OPEN
4-15
Pin No. Function
3 Input switching
5 Power on/off
8 Input switching
9 Input switching
14 External control on/off
15 Ground
NOTE: Button operations of the main unit
and the remote control are not possible
during use of external control.
R
Using the PC-CONTROL Connector
54321
10 9 8 7 6
15 14 13 12 11
Mini D-SUB 15 Pin
PC-CONTROL Terminal
• Use the PC-CONTROL terminal when connecting to computers or other controllers.
Pin No. I/O Signal Name Function
1 I Receive Data+ Receiving data when using PC
6 I Receive Data2 O Transmit Data+ Sending data when using PC
7 O Transmit Data11 I Clear to Send+ Clearing to send when using PC
12 I Clear to Send-
3 O Request to Send+ Requesting to send when using PC
8 O Request to Send-
9,13 O Used inside the IDC-3000
4,5,10,14 No Connection Not used
15 Signal Ground Ground
NOTE: The communication mode of the PCCONTROL terminal can be selected between
RS-422 and RS-232C with the PC-CONTROL
SW on the rear panel.
When using RS-232C, only pins 6,7,8 and 12
are effected. Therefore, nothing should be
connected to pins 1,2,3 and 11. When using
with a projector, set the PC-CONTROL switch
to the 422 position.
PC is an abbreviation for personal computer.
S
Connection Examples for Personal Computer Control for the Two Variations.
1 RS-232C
IDC-3000
Personal
computer
RS-232C
PC-CONTROL
Terminal
1 When using the PC-CONTROL terminal as RS-232C:
Request to Send →
To Clear to Send of PC
Transmit Data →
To Receive Data of PC
Receive Data ←
From Transmit Data of PC
Clear to Send ←
From Request to Send of PC
Signal Ground
Signal Ground of PC
54321
10 9 8 7 6
15 14 13 12 11
T
2 RS-422
IDC-3000
Personal
computer
RS-422
PC-CONTROL
Terminal
Request to Send - →
To Clear to Send - of Converter or PC
Request to Send + →
To Clear to Send + of Converter or PC
Transmit Data + →
To Receive Data + of Converter or PC
Receive Data + ←
From Transmit Data + of Converter or PC
Receive Data - ←
From Transmit Data - of Converter or PC
Transmit Data - →
To Receive Data - of Converter or PC
Clear to Send + ←
From Request to Send + of Converter or PC
Clear to Send - ←
From Request to Send - of Converter or PC
Signal Ground
Signal Ground of Converter or PC
2 When using the PC-CONTROL terminal as RS-422:
54321
10 9 8 7 6
15 14 13 12 11
U
RACK MOUNTING
Use the accompanying rack mount bracket to mount the IDC-3000 to the
rack.
NOTE: This rack mount bracket is designed for used with EIA standard racks.
1 Remove the four (A) screws from the IDC-3000. 2 Use the screws removed in Step 1 to fasten the supplied rack mount
bracket (B) to the IDC-3000.
A
A
A
B
B
A
V
3 Mount the IDC-3000 to the rack and tighten the screws.
57.15mm
108.0mm
465.1mm
482.6mm
Rack mount bracket
W
SPECIFICATIONS
X
Input impedance: 75Ω 1.0 Vp-p
Y: Input impedance: 75Ω 1.0 Vp-p
C: Input impedance: 75Ω 0.28 Vp-p (Burst level)
Input impedance: 22 kΩ or greater 0.5 Vrms
Output impedance: 75Ω 1.0 ±0.1 Vp-p (with 75Ω termination)
Y: Output impedance: 75Ω 1.0 ±0.1 Vp-p (with 75Ω termination)
C: Output impedance: 75Ω 0.28 ±0.1 Vp-p (Burst level) (with 75Ω termination)
Output impedance: 1 kΩ or less 0.5 ±0.1 Vrms (with ATT 0 dB)
R,G, B, H and V : Through out
Input impedance 22 kΩ or greater 0.5 Vrms
R,G, and B: Output impedance of 75Ω
0.7 ±0.1 Vp-p Note that the maximum deviation between R, G, and B is 0.05 V
NOTE: From the blanking level to white peak (with 75Ω termination)
HORIZONTAL and VERTICAL: High impedance 3.5 Vp-p (2.7 to 5.25 V)
H/V: Output impedance of 75Ω 1.0 ±0.3 Vp-p
VIDEO 1 through 5
MONITOR OUT
RGB Input
RGB Output
BNC input
S input
Audio input L and R channels
BNC output
S output
Audio output L and R channels
BNC Input
Audio input L and R channels
BNC Output *
Rated ValuesJacks
When a phono pin plug is not connected to the right channel
audio input (output) jack, the left channel audio input (output) jack functions as a monaural audio input (output) jack.
* When a signal is input via the RGB (THROUGH) connec-
tor, the signal is looped-through out.
Resolution: 500 lines horizontal
450 lines vertical
Noise reduction: Approx. 4 dB in NR mode 1
Approx. 8 dB in NR mode 2
Power supply: 120 V AC, 60 Hz
Input current
: 0.6 A
Dimensions: 43.0 W212.0 H234.9 D (cm)
16 30/32 W24 23/32 H213 25/32 D (inch)
Weight: 6.1 kg / 13.45 lbs
Supplied accessories
: Remote control RD-338E, two AA size batteries, power
cord, rack mount brackets (L and R), Coaxial cable (RGB
H/V 5 conductor BNC/BNC)
• These specifications and contents are subject to change without notice.
• Dimension indications of the scan converter unit do not include protrusions
such as knobs and handles.
Y
High impedance 0.5 ±0.1 Vrms (with ATT 0 dß)
TTL level
TTL level
Audio output L and R channels
D-SUB 15 (mini) connector
D-SUB 15 (mini) connector
EXT CONTROL
PC CONTROL
APPENDIX
(IDC-3000 stand alone PC-CONTROL command reference)
You can control the main functions from external equipment such as
personal computer using the PC-CONTROL terminal. The following
sections explain the interface.
Interface Condition
• RS-232C or RS-422
• Baud rate ............................... 9600 bps
• Data length ............................ 8 bits
• Parity ..................................... Odd parity
• Stop bit.................................. 1 bit
• Communications mode ......... Full duplex
• Command 1 ........Code based on the command system
• UNIT ID .............Code allocated to each equipment
(Allocate 20H to the IDC-3000)
• Command 2 ........Code allocated to the main functions of the IDC-3000
• Data Length........Number of bytes of the data that is transmitted
• Data ....................Data that is transmitted
• Check Sum .........Lower eight digits of sum total of the first byte to the
byte just before the last
Control Data Format
8 bit
8 bit 8 bit 8 bit 8 bit 8 bit 8 bit
Check Sum
Data
Data length
Command 2
UNIT ID
Command 1
Z
8 bit
Command Communication Sequence
When external equipment such as a personal computer gives the command to
the IDC-3000, the IDC-3000 returns an ACK or NAK. So make sure that the
external equipment receives this ACK or NAK.
External equipment
(PC)
IDC-3000
→
←
ACK or NAK
(NAK only when accessing EEPROM)
Command sending/receiving sequence
Command
The IDC-3000 returns an ACK if it has received the command correctly.
If it has not received the command correctly due to data error, it will return a
nothing. Therefore, when the external equipment send a command, make sure
that it received the ACK.
The IDC-3000 returns a NAK only when a WRITE error has occurred during
EEPROM access commands.
[
PC CONTROL COMMAND LIST FOR USE WITH THE IDC-3000
COM2
4E
4F
47
COM1
9F
DF
Contents
Power On
Power Off
Input switching
Length
00
00
01
COM1
3F
COM2
4E
4F
47
Contents
Power On (ACK)
Power Off (ACK)
Input switching (ACK)
Length
00
00
00
\
PC → IDC-3000 IDC-3000 → PC
Example: Input switching (VIDEO 1) from the PC to the IDC-3000
(when the address selector equals 0)
COM1 UA COM2 Leng Data Sum
DF 20 47 01 01 48
VIDEO 2 : 02
VIDEO 3 : 03
VIDEO 4 : 04
VIDEO 5 : 05
RGB : 06
PC → IDC-3000
IDC-3000 → PC
COM1 UA COM2 Leng Sum
3F 20 47 00 A6
]
`
PROFESSIONAL GRAPHICS PRODUCTS
LIMITED W ARRANTY
NEC Technologies, Inc. (hereafter NECTECH) warrants this product to be
free from defects in material and workmanship under the following terms.
HOW LONG IS THE WARRANTY
Parts and labor are warranted for (1) One Year from the date of the first
customer purchase.
WHO IS PROTECTED
This warranty may be enforced only by the first purchaser.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except a specified below, this warranty covers all defects in material or
workmanship in this product. The following are not covered by the
warranty:
1. Any product with is not distributed in the U.S.A., Canada, and Mexico
by NECTECH or which is not purchased in the U.S.A., Canada, and
Mexico from an authorized NECTECH dealer.
Authorized NECTECH dealers can be identified by an NEC window
decal. Any dealer which does not display this decal may be an unauthorized dealer. If you are uncertain as to whether a dealer is authorized,
please contact NECTECH at (708)-238-7764.
2. Any product on which the serial number has been defaced, modified or
removed.
3. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, abuse, neglect, fire, water, lightning or other acts
of nature, unauthorized product modification, or failure to follow
instructions supplied with the products.
b. Repair or attempted repair by anyone not authorized by NECTECH.
c. Any shipment of the product (claims must be presented to the carrier)
d. Removal or installation of the product.
e. Any other cause which does not relate to a product defect.
f. Burns or residual images upon the phosphor of the tubes.
4. Cartons, carry cases, batteries, external cabinets, magnetic tapes, or any
accessories used in connection with the product.
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items, but we will not
pay for the following:
1. Removal or installation charges.
2. Costs of initial technical adjustments (set-up), including adjustment of
user controls. These costs are the responsibility of the NECTECH dealer
for whom the product was purchased.
3. Payment of shipping charges.
a
consequential damages, so the above limitations and exclusions may not
apply to you.
HOW STATE LAW RELATES TO THE WARRANTY
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
FOR ALL INFORMATION, TELEPHONE: 708-238-7764
NEC Technologies, Inc., 1255 Michael Drive
Wood Dale, IL 60191
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on your product, consult the dealer from whom you
purchased the product, or ship it prepaid to any authorized NECTECH
service center.
2. Whenever warranty service is required, the original dated invoice (or a
copy) must be presented as proof of warranty coverage, and should be
included in any shipment of the product.
Please also include in any mailing, your name, address and a description
of the problem(s).
3. For the name of the nearest NECTECH authorized service center,
contact your dealer or NECTECH.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness
for a particular purpose, are limited in duration to the length of this
warranty.
EXCLUSION OF DAMAGES
NECTECH’S liability for any defective product is limited to the repair or
replacement of the product at our option. NECTECH shall not be liable for:
1. Damage to other property caused by any defects in this product,
damages based upon inconvenience, loss of use of the product, loss of
time, commercial loss; or
2. Any other damages whether incidental, consequential or otherwise.
Some states do not allow limitation on how long an implied warranty
lasts and/or do not allow the exclusion or limitation of incidental or
b
• MEMO •
c
Loading...
