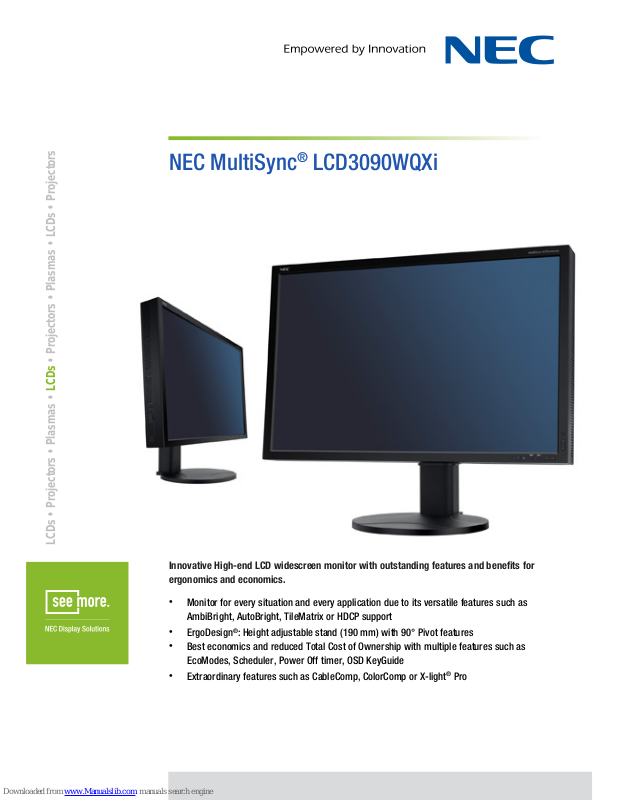

NEC MultiSync® LCD3090WQXi
Innovative High-end LCD widescreen monitor with outstanding features and benefits for
ergonomics and economics.
Monitor for every situation and every application due to its versatile features such as
AmbiBright, AutoBright, TileMatrix or HDCP support
•
ErgoDesign®: Height adjustable stand (190 mm) with 90° Pivot features
•
Best economics and reduced Total Cost of Ownership with multiple features such as
EcoModes, Scheduler, Power Off timer, OSD KeyGuide
•
Extraordinary features such as CableComp, ColorComp or X-light® Pro
•
LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs
NEC MultiSync® LCD3090WQXi
TECHNICAL SPECIFICATIONS
Panel Technology H-IPS (Horizontal IPS)
Screen Size [inch/cm] 29.8 / 75.6
Colour Gamuts (Size comparision, typ.) 102% NTSC
Pixel Pitch [mm] 0.251
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Contrast Ratio (typ.) 1000:1
Brightness (typ.) [cd/m²] 350
Response Time (typ.) [ms] 6 (grey-to-grey), 12 (6 white / black; 6 black / white)
Colours [Mio.] 16.77
Horizontal Frequency [kHz] 31.5 - 98.7 (digital) / 24.0 - 93.8 (analog)
Vertical Frequency [Hz] 50.0 - 85.0
Optimum Resolution 2560 x 1600 at 60 Hz
Supported Resolutions 2560 x 1600; 1920 x 1440; 1920 x 1200; 1920 x 1080; 1680 x 1050; 1600 x 1200; 1440 x 900;
1400 x 1050; 1280 x 1024; 1280 x 960; 1280 x 720; 1152 x 870; 1152 x 864; 1024 x 768; 832 x
624; 800 x 600; 720 x 480; 720 x 400; 640 x 480
Connectors Digital: 2 x DVI-D; Digital/ Analog: 2 x DVI-I
Plug & Play VESA DDC/CI; EDID Standard; VESA DDC2B
Adjust Functions Advanced NTAA (Advanced Non-Touch-Auto-Adjustment); Advanced User Menu; Auto Adjust; Black
Level; Brightness; Colour Temperature Control; Contrast; Expansion Mode; Fine Adjust (analog);
Hotkeys; Intelligent Power Management; Language Select; Monitor Information; OmniColor™: sRGB
and 6-axis-colour-control; On-Screen-Display (OSD) lock-out; Sharpness
Safety and Ergonomics CE; TCO 03; TÜV Ergonomics; TÜV GS; C-tick; GEEA/Energy Label; Energy Star; FCC Class B; PCT/
Gost; UL/C-UL or CSA; CCC; ISO 13406-2 (pixel failure class II); MPR II/ MPR III; PCBC/B-mark; PSB;
RoHS
Power Consumption on Mode [W] 143 (typ.); 117 (Eco Mode 1); 94 (Eco Mode 2)
Stand-by Mode [W] 1
Power Supply 100-120 V/220-240 V; 1.76 A/0.77 A; internal power supply
Ambient Temperature (operating) [°C] +5 to +35
Ambient Humidity (operating) [%] 30 to 80
VESA Mounting [mm] 200 x 100; 100 x 100
ErgoDesign®: Height adjustable Stand [mm] 190 (Landscape mode)
Screen Tilt / Swivel [°] -5 to +30 / -170 to +170
Dimensions (W x H x D) [mm] 687.3 x 478.6 - 668.6 x 342.8 (Landscape mode)
Bezel Width [mm] 22
Weight [kg] 19.1
Cable Management yes
Kensington Lock yes
Benefits 16:10 wide format; Adjustable power LED (colour and brightness); Advanced NTAA (Advanced Non-
Touch- Auto-Adjustment); AmbiBright; ambix³™; Auto Black Level; Auto Brightness; Auto Contrast;
AutoBright; CableComp with Sync Continuity Detection; ColorComp; DDC/CI compatible; Direct
Brightness and Contrast; EcoModes; GammaComp (12 bit Look Up Table) and 12 bit Gamma
Correction; NaViSet®and NaViSet®Administrator compatible; OmniColor™: sRGB and 6-Axis-ColourControl; Overdrive; Quick release Stand and Handle; Rapid Response Technology; RapidMotion; Real
Time Clock with Scheduler (Power-On and Power-Off Timer); Self Diagnostics; TileComp; TileMatrix;
TORO™ Design; Windows XP; X-Light® Pro (AutoLuminance, AutoColour)
Audio Functions Option: MultiSync® Soundbar 90
Colour Versions Silver Front Bezel; White Back Cabinet
Black Front Bezel, Black Back Cabinet
Shipping Content Monitor; Power Cable; Signal Cable DVI-D - DVI-D; Signal Cable DVI-A - VGA; CD-ROM; Sales Office
List; User Manual
Warranty 3 years warranty incl. backlight
