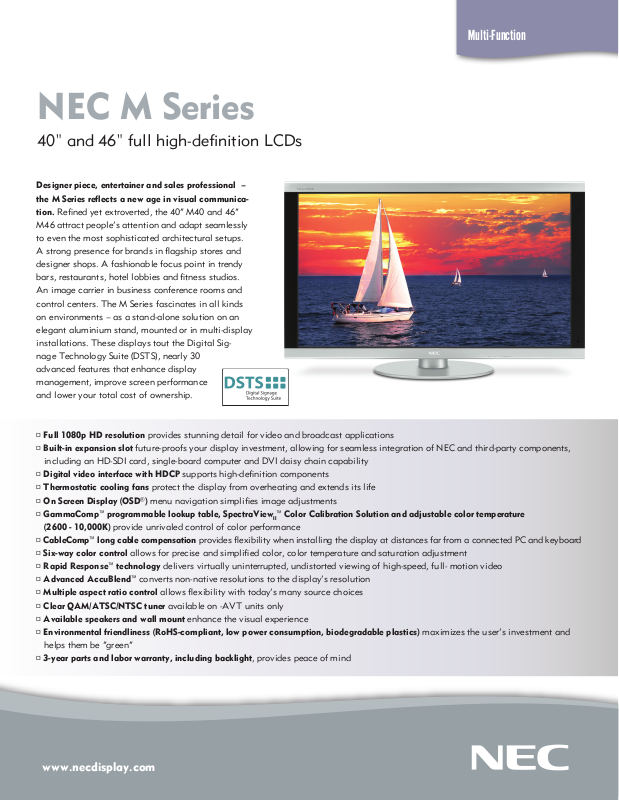

NEC M Series

40" and 46" full high-deﬁnition LCDs

Designer piece, entertainer and sales professional – the M Series reﬂects a new age in visual communication. Reﬁned yet extroverted, the 40” M40 and 46”

M46 attract people’s attention and adapt seamlessly to even the most sophisticated architectural setups. A strong presence for brands in ﬂagship stores and designer shops. A fashionable focus point in trendy bars, restaurants, hotel lobbies and ﬁtness studios. An image carrier in business conference rooms and control centers. The M Series fascinates in all kinds on environments – as a stand-alone solution on an elegant aluminium stand, mounted or in multi-display installations. These displays tout the Digital Signage Technology Suite (DSTS), nearly 30 advanced features that enhance display management, improve screen performance and lower your total cost of ownership.

Multi-Function

¤ Full 1080p HD resolution provides stunning detail for video and broadcast applications ¤ Built-in expansion slot future-proofs your display investment, allowing for seamless integration of NEC and third-party components,

including an HD-SDI card, single-board computer and DVI daisy chain capability

¤ Digital video interface with HDCP supports high-deﬁnition components ¤ Thermostatic cooling fans protect the display from overheating and extends its life ¤ On Screen Display (OSD®) menu navigation simpliﬁes image adjustments ¤ GammaComp™ programmable lookup table, SpectraViewII™ Color Calibration Solution and adjustable color temperature (2600 - 10,000K) provide unrivaled control of color performance ¤ CableComp™ long cable compensation provides ﬂexibility when installing the display at distances far from a connected PC and keyboard ¤ Six-way color control allows for precise and simpliﬁed color, color temperature and saturation adjustment ¤ Rapid Response™ technology delivers virtually uninterrupted, undistorted viewing of high-speed, full- motion video ¤ Advanced AccuBlend™ converts non-native resolutions to the display’s resolution ¤ Multiple aspect ratio control allows ﬂexibility with today’s many source choices ¤ Clear QAM/ATSC/NTSC tuner available on -AVT units only ¤ Available speakers and wall mount enhance the visual experience ¤ Environmental friendliness (RoHS-compliant, low power consumption, biodegradable plastics) maximizes the user’s investment and

helps them be “green”

¤ 3-year parts and labor warranty, including backlight, provides peace of mind

www.necdisplay.com

Speciﬁcations for M40/M46

MODEL LCD MODULE

Viewable Size (Diagonal) Panel Technology Native Resolution Pixel Pitch Brightness (Typical) Contrast Ratio (Typical) Active Screen Area (W x H)

CONNECTIVITY

Input Terminals

RGB1 (Digital) RGB2 (Analog) RGB3 (Analog) Video 1 Video 2

Video 3

Component Video 1 (DVD/HD) Audio

Output Terminals

RGB Video Audio

Audio Ampliﬁer External Control Digital Tuner

FEATURES

Additional Features

POWER

Power Requirements Power Consumption (Typical) Power Consumption (Standby Mode)

PHYSICAL SPECIFICATIONS

Bezel Width (L/R, T/B) Dimensions (with stand; WxHxD) Dimensions (without stand; WxHxD) Packaging Dimensions (WxHxD) Net Weight (with stand) Net Weight (without stand) Gross Weight (with box) VESA Hole Conﬁguration

ENVIRONMENTAL CONDITIONS

Operating Temperature Operating Humidity

ACCESSORIES

Included

Optional

WARRANTY/SERVICE

On-Site Limited Warranty

M40-2 (-AV, -AVT) M46-2 (-AV, -AVT)

40” 46”

0.641mm 0.53mm

34.9 x 19.6 in. / 885.6 x 498.2mm 40.1 x 22.5 in. / 1018.1 x 572.7mm

Composite (Shared RCA and BNC)

RCA (L/R) x 2: Stereo MiniJack + external speaker jacks

M40-2-AVT M46-2-AVT

Power management, Plug and Play (DDC/CI, DDC2B), PIP (remote), multi-level zoom, FullScan, 6-axis color, CableComp, TileMatrix, TileComp, screen saver, Rapid Response,video ready (tuner available), infrared remote control included, motion-adaptive 3D-Y/C comb ﬁlter, sRGB color, sleep timer, 24x7 scheduler

175W 235W

38.7 x 24.7 x 15.7in. / 981.8 x 627.4 x 400mm 43.8 x 27.7 x 15.7 in. / 1112.8 x 704.4 x 400mm

38.7 x 22.9 x 5.6 in. / 981.8 x 582.4 x 142.5mm 43.8 x 26 x 5.6 in. / 1112.8 x 659.4 x 142.5mm

45.2 x 30.7 x 21.3 in. / 1147 x 780 x 540mm 50.3 x 34.4 x 21.3 in. / 1278 x 875 x 540mm

External speakers (SP-M40), tilt wall mount kit (WMK3260-L), Digital Signage

Kit (DSK3260), black bezel (BB-M40), black speaker bezel (BBS-M40), Spec-

traViewII Color Calibration Solution (SVII-KIT), single board computer (MPD-

SBC-8/16-2), DVI daisychain (SB-L008WU), internal HD-SDI card (SB-L007KK)

71.9 lbs. 86.6 lbs.

64.8 lbs. 79.6 lbs.

92.4 lbs. 109.6 lbs.

Stand, power cord, 15-pin D-sub cable, user manual, setup sheet, wireless remote control, batteries, CD-ROM

Component BNC (Y,Cb/Pb, Cr/Pr)

RS-232 for multiple monitor control, IR, DDC/CI

AC 100-120V / AC 220-240V @ 50/60 Hz

1.8 in. / 1.6 in. , 46.6mm / 40.6mm

200 x 200mm (8 hole) / 200 x 100mm (6 hole)

3 years parts and labor, including backlight

SPVA

1920 x 1080

450 cd/m

3000:1

DVI-D 24 pin (HDCP)

15-pin D-sub

5 BNC (RGBHV)

S-Video

HDMI

Yes Yes Yes

15W Stereo

<4W

5-40°C / 41-104°F

10-80%

External speakers (SP-M46), tilt wall mount kit (WMK3260-L), Digital Signage

Kit (DSK3260), black bezel (BB-M46), black speaker bezel (BBS-M46), Spec-

traViewII Color Calibration Solution (SVII-KIT), single board computer (MPD-

SBC-8/16-2), DVI daisychain (SB-L008WU), internal HD-SDI card (SB-L007KK)

OSD is a registered trademark, and CableComp, GammaComp and SpectraViewII are trademarks of NEC Display Solutions. All other brand or product names are trademarks or registered trademarks of their respective holders. Product speciﬁcations subject to change. 10/08 ver. 3.
