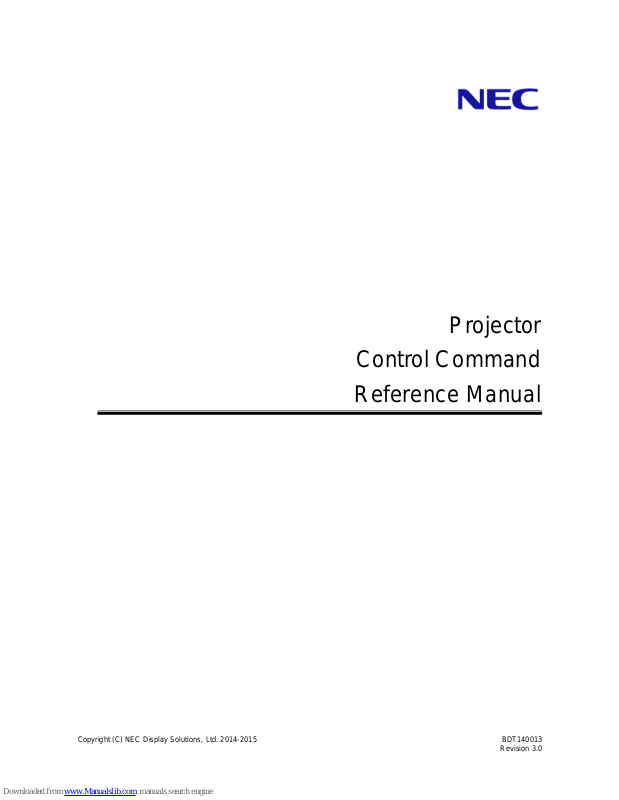

Copyright (C) NEC Display Solutions, Ltd. 2014-2015 BDT140013 Revision 3.0
Projector
Control Command
Reference Manual
Introduction
This manual describes the commands used to control an NEC-made projector from a PC or other external device. A projector can be controlled by exchanging commands with an external device connected via a serial port or network. The manual assumes basic knowledge of projectors. For information about the functions of the model in use and how to adjust the device, see the operation manual of the projector .For information about the connection between the projector and an external device, see "1 Connecting an External Device" (page 5). Connect an external device as appropriate for the usage environment of the projector.
Models for which the control commands are available
See the Appendix "Connecting an External Device".
Conventions
For information about how commands and responses are expressed in this manual, see "2.1 Understanding command details" (page 10).
NOTES
1. The contents of this reference manual may not be reprinted in part or whole without permission.
2. The contents of this reference manual are subject to change without notice.
3. Great care has been taken in the preparation of this reference manual; however, should you notice any questionable points, errors or omissions, please contact us.
4. Notwithstanding article 3. NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using this reference manual.
©NEC Display Solutions, Ltd. 2014-2015
Contents
Projector Control Command Reference Manual ........................................................................... 1
Introduction ................................................................................................................................................................................ 2
Contents ..................................................................................................................................................................................... 3
1. Connecting an External Device ............................................................................................... 5
1.1 Connection interface .................................................................................................................................................... 5
1.2 Communication conditions........................................................................................................................................... 7
2. Command List .......................................................................................................................... 8
2.1 Understanding command details ............................................................................................................................... 10
2.2 Parameters ................................................................................................................................................................. 10
2.3 Responses .................................................................................................................................................................. 11
2.4 Error code list ............................................................................................................................................................. 12
3. Command details ................................................................................................................... 13
3.1 [ 009. ERROR STATUS REQUEST ] ........................................................................................................................ 13
3.2 [ 015. POWER ON ] ................................................................................................................................................... 15
3.3 [ 016. POWER OFF ] ................................................................................................................................................. 16
3.4 [ 018. INPUT SW CHANGE ] ..................................................................................................................................... 17
3.5 [ 020. PICTURE MUTE ON ] ..................................................................................................................................... 19
3.6 [ 021. PICTURE MUTE OFF ] ................................................................................................................................... 20
3.7 [ 022. SOUND MUTE ON ] ........................................................................................................................................ 21
3.8 [ 023. SOUND MUTE OFF ] ...................................................................................................................................... 22
3.9 [ 024. ONSCREEN MUTE ON ] ................................................................................................................................ 23
3.10 [ 025. ONSCREEN MUTE OFF ] ............................................................................................................................... 24
3.11 [ 030-1. PICTURE ADJUST ] ..................................................................................................................................... 25
3.12 [ 030-2. VOLUME ADJUST ] ..................................................................................................................................... 27
3.13 [ 030-12. ASPECT ADJUST ]..................................................................................................................................... 29
3.14 [ 030-15. OTHER ADJUST ] ...................................................................................................................................... 30
3.15 [ 037. INFORMATION REQUEST ] ........................................................................................................................... 32
3.16 [ 037-3. FILTER USAGE INFORMATION REQUEST ] ............................................................................................ 33
3.17 [ 037-4. LAMP INFORMATION REQUEST 3 ] ......................................................................................................... 34
3.18 [ 037-6. CARBON SAVINGS INFORMATION REQUEST ] ..................................................................................... 36
3.19 [ 050. REMOTE KEY CODE ] .................................................................................................................................... 38
3.20 [ 053. LENS CONTROL ] ........................................................................................................................................... 40
3.21 [ 053-1. LENS CONTROL REQUEST ]..................................................................................................................... 42
3.22 [ 053-2. LENS CONTROL 2 ]..................................................................................................................................... 44
3.23 [ 053-3. LENS MEMORY CONTROL ] ...................................................................................................................... 46
3.24 [ 053-4. REFERENCE LENS MEMORY CONTROL ] .............................................................................................. 48
3.25 [ 053-5. LENS MEMORY OPTION REQUEST ] ....................................................................................................... 50
3.26 [ 053-6. LENS MEMORY OPTION SET ] ................................................................................................................. 51
3.27 [ 053-7. LENS INFORMATION REQUEST ] ............................................................................................................. 53
3.28 [ 053-10. LENS PROFILE SET ] ............................................................................................................................... 54
3.29 [ 053-11. LENS PROFILE REQUEST ] ..................................................................................................................... 55
3.30 [ 060-1. GAIN PARAMETER REQUEST 3 ] ............................................................................................................. 56
3.31 [ 078-1. SETTING REQUEST ] ................................................................................................................................. 58
3.32 [ 078-2. RUNNING STATUS REQUEST ] ................................................................................................................. 59
3.33 [ 078-3. INPUT STATUS REQUEST ] ....................................................................................................................... 60
3.34 [ 078-4. MUTE STATUS REQUEST ] ........................................................................................................................ 62
3.35 [ 078-5. MODEL NAME REQUEST ]......................................................................................................................... 64
3.36 [ 078-6. COVER STATUS REQUEST ] ..................................................................................................................... 65
3.37 [ 079. FREEZE CONTROL ] ...................................................................................................................................... 66
3.38 [ 084. INFORMATION STRING REQUEST ] ............................................................................................................ 67
3.39 [ 097-8. ECO MODE REQUEST ] ............................................................................................................................. 68
3.40 [ 097-45. LAN PROJECTOR NAME REQUEST ] .................................................................................................... 69
3.41 [ 097-155. LAN MAC ADDRESS STATUS REQUEST2 ] ........................................................................................ 70
3.42 [ 097-198. PIP/PICTURE BY PICTURE REQUEST ] .............................................................................................. 71
3.43 [ 097-243-1. EDGE BLENDING MODE REQUEST ] ............................................................................................... 73
3.44 [ 098-8. ECO MODE SET ] ........................................................................................................................................ 74
3.45 [ 098-45. LAN PROJECTOR NAME SET ] ............................................................................................................... 75
3.46 [ 098-198. PIP/PICTURE BY PICTURE SET ] ......................................................................................................... 76
3.47 [ 098-243-1. EDGE BLENDING MODE SET ] .......................................................................................................... 78
3.48 [ 305-1. BASE MODEL TYPE REQUEST ] ............................................................................................................... 79
3.49 [ 305-2. SERIAL NUMBER REQUEST ] ................................................................................................................... 80
3.50 [ 305-3. BASIC INFORMATION REQUEST ] ........................................................................................................... 81
3.51 [ 319-10. AUDIO SELECT SET ] ............................................................................................................................... 83
4. Revision History ..................................................................................................................... 85
1. Connecting an External Device
This chapter describes how to connect the projector to an external device and communication conditions.
1.1 Connection interface
The projector can be connected to a PC or other external device using the methods mentioned below. For information about the connection method supported by the model in use, see the Appendix "Connecting an External Device".
・Connection using a serial port ・Connection via a network
Connection using a serial port
This method connects a PC and the projector using a serial cable (cross cable). Connect the serial cable to the PC CONTROL port of the projector. The pin assignment of the serial cable is shown below.
<Connection between the PC CONTROL port (D-SUB 9P) and external device>
Pin number
Projector
External device
(Not used)
(Not used)
RxD
TxD 3 TxD
RxD
(Not used)
(Not used)
GND
GND
(Not used)
(Not used)
RTS
CTS
CTS
RTS
(Not used)
(Not used)
Connection via a network
Information
・ Before connecting an external device via a network, check with the network administrator. ・ Some models cannot receive commands in standby mode. See Appendix "Standby Mode setting for receiving
commands".
Connection using a wired LAN
This method connects a PC and the projector using a LAN cable. For information about the type of LAN cable to be used (straight or cross), contact the network administrator. The pin assignment of the LAN port is shown below.
<LAN port (RJ-45 8-pin connector)>
Pin number
Function
Description
TD+
Transmit Data (+)
TD-
Transmit Data (-)
RD+
Receive Data (+)
－
Not used
－
Not used
RD-
Receive Data (-)
－
Not used
－
Not used
Connection using a wireless LAN
This method connects a PC via a wireless LAN by connecting a wireless LAN unit to the projector. For information about the available wireless LAN units, see the operation manual of the model in use.
1.2 Communication conditions
For information about the connection methods available for the model in use, see the Appendix "Connecting an External Device".
Serial connection
The RS-232C-compliant communication method is supported. Specify the communication settings of the software used to send and receive commands, as shown below.
Item
Detail
Baud rate
115200/38400/19200/9600/4800 bps
Data length
8 bits
Parity bit
None
Stop bit
1 bit
Communication mode
Full duplex
LAN connection
Wired LAN
Item
Detail
Data rate
Auto switchable (10/100 Mbps)
Supported standard
IEEE802.3 (10BASE-T) IEEE802.3u (100BASE-TX, Auto-Negotiation)
Wireless LAN
See the operation manual of the wireless LAN unit to be used.
Port number
Use TCP port number "7142" for sending and receiving commands.
2. Command List
Command
Description
Page to
see
009. ERROR STATUS REQUEST
Gets information about errors occurring in the projector.
13
015. POWER ON
Turns on the power of the projector.
15
016. POWER OFF
Turns off the power of the projector.
16
018. INPUT SW CHANGE
Switches the input terminal or entry list.
17
020. PICTURE MUTE ON
Turns the picture mute on.
19
021. PICTURE MUTE OFF
Turns the picture mute off.
20
022. SOUND MUTE ON
Turns the sound mute on.
21
023. SOUND MUTE OFF
Turns the sound mute off.
22
024. ONSCREEN MUTE ON
Turns the onscreen mute on.
23
025. ONSCREEN MUTE OFF
Turns the onscreen mute off.
24
030-1. PICTURE ADJUST
Adjusts the picture.
25
030-2. VOLUME ADJUST
Adjusts the sound volume.
27
030-12. ASPECT ADJUST
Adjusts the aspect.
29
030-15. OTHER ADJUST
Adjusts the various gains.
30
037. INFORMATION REQUEST
Gets the information of the projector.
32
037-3. FILTER USAGE INFORMATION REQUEST
Gets filter usage information such as usage time.
33
037-4. LAMP INFORMATION REQUEST 3
Gets lamp information such as usage time and remaining life.
34
037-6. CARBON SAVINGS INFORMATION REQUEST
Gets the Carbon Saving values on the projector.
36
050. REMOTE KEY CODE
Sends the key code for remote control.
38
053. LENS CONTROL
Adjusts the lens position.
40
053-1. LENS CONTROL REQUEST
Gets adjusted values of the lens position.
42
053-2. LENS CONTROL 2
Adjusts the lens position.
44
053-3. LENS MEMORY CONTROL
Controls the lens memory.
46
053-4. REFERENCE LENS MEMORY CONTROL
Controls the reference lens memory.
48
053-5. LENS MEMORY OPTION REQUEST
Gets the value set for the lens memory.
50
053-6. LENS MEMORY OPTION SET
Sets the lens memory.
51
053-7. LENS INFORMATION REQUEST
Gets information about the lens of the projector.
53
053-10. LENS PROFILE SET
Selects the profile number of the reference lens memory.
54
053-11. LENS PROFILE REQUEST
Gets the selected profile number of the reference lens memory.
55
060-1. GAIN PARAMETER REQUEST 3
Gets adjusted values of the picture, volume, and backlight.
56
Command
Description
Page to
see
078-1. SETTING REQUEST
Gets information of the projector.
58
078-2. RUNNING STATUS REQUEST
Gets the information about the operation status of the projector.
59
078-3. INPUT STATUS REQUEST
Gets the information about the input signal status of the projector.
60
078-4. MUTE STATUS REQUEST
Gets the mute status of the projector.
62
078-5. MODEL NAME REQUEST
Gets the model name of the projector.
64
078-6. COVER STATUS REQUEST
Gets the status of the mirror cover or lens cover.
65
079. FREEZE CONTROL
Controls whether to turn the freeze function on or off.
66
084. INFORMATION STRING REQUEST
Gets information strings (English) displayed on the projector.
67
097-8. ECO MODE REQUEST
Gets the value set for the eco mode.
68
097-45. LAN PROJECTOR NAME REQUEST
Gets the projector name.
69
097-155. LAN MAC ADDRESS STATUS REQUEST2
Gets the MAC address of the projector.
70
097-198. PIP/PICTURE BY PICTURE REQUEST
Gets the value set for the picture in picture and picture by picture.
71
097-243-1. EDGE BLENDING MODE REQUEST
Gets the value set for the edge blending.
73
098-8. ECO MODE SET
Sets the eco mode.
74
098-45. LAN PROJECTOR NAME SET
Sets the projector name.
75
098-198. PIP/PICTURE BY PICTURE SET
Sets the picture in picture or picture by picture.
76
098-243-1. EDGE BLENDING MODE SET
Sets the edge blending.
78
305-1. BASE MODEL TYPE REQUEST
Gets the base model type of the projector.
79
305-2. SERIAL NUMBER REQUEST
Gets the serial number of the projector.
80
305-3. BASIC INFORMATION REQUEST
Gets the operation status of the projector.
81
319-10. AUDIO SELECT SET
Sets the audio select.
83
10
2.1 Understanding command details
In this manual, commands and responses are expressed as follows.
20h 88h <ID1> <ID2> 0Ch <DATA01> - <DATA12> <CKS>
Command/response
A series of strings enclosed in a frame represents a command or response (in hexadecimal notation).
Parameter
A character string in italic enclosed in brackets represents a parameter. For information about the parameters that are common to the control commands
(ID1, ID2, CKS, LEN, ERR1, and ERR2), see "2.2 Parameters" (page 10). For information about those parameters whose content varies from command to command (DATA), see the description of the relevant command.
2.2 Parameters
The parameters that are used in the control commands are listed below.
Parameter name
Description
ID1
Control ID
The value of the "control ID" set for the projector is used.
ID2
Model code
This varies depending on the model in use.
CKS
Checksum
The checksum is calculated as follows.
① Add all preceding bytes of data. ② Use the value of the low-order one byte (eight bits) of the addition
result obtained in ① as the checksum.
LEN
Data length
This indicates the data length of the data part (DATA??) following LEN (in bytes).
DATA??
Variable length data
This varies depending on the character string stored.
ERR1 ERR2
Response error
The cause of an error is represented by a combination of error codes. For information about error codes, see "2.4 Error code list" (page 12).
Example of checksum calculation
20h 81h 01h 60h 01h 00h <CKS>
① Add all the data preceding the checksum.
"20h + 81h + 01h + 60h + 01h + 00h = 103h"
② Use the low-order one byte "03h" of the addition result obtained in ① as the checksum.
11
2.3 Responses
After a command is sent to the projector, its result is returned as a response. How a response is returned differs depending on the execution result of the command.
When the execution of a command succeeds
When the command does not request data, a response is returned with no data part. When the command requests data, a response is returned with data added to data parts.
When the execution of a command fails
A response is returned with the cause of the failed command execution indicated in <ERR1> and <ERR2>.
(Example) POWER ON
Command
02h 00h 00h 00h 00h 02h
Response
A2h 00h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
12
2.4 Error code list
The following table lists the combinations of error codes (ERR1 and ERR2) and describes the error indicated by each combination.
ERR1
ERR2
Error description
00h
00h
The command cannot be recognized.
00h
01h
The command is not supported by the model in use.
01h
00h
The specified value is invalid.
01h
01h
The specified input terminal is invalid.
01h
02h
The specified language is invalid.
02h
00h
Memory allocation error
02h
02h
Memory in use
02h
03h
The specified value cannot be set.
02h
04h
Forced onscreen mute on
02h
06h
Viewer error
02h
07h
No signal
02h
08h
A test pattern or filer is displayed.
02h
09h
No PC card is inserted.
02h
0Ah
Memory operation error
02h
0Ch
An entry list is displayed.
02h
0Dh
The command cannot be accepted because the power is off.
02h
0Eh
The command execution failed.
02h
0Fh
There is no authority necessary for the operation.
03h
00h
The specified gain number is incorrect.
03h
01h
The specified gain is invalid.
03h
02h
Adjustment failed.
13
3. Command details
3.1 [ 009. ERROR STATUS REQUEST ]
Gets information about errors occurring in the projector.
Command
00h 88h 00h 00h 00h 88h
Response
When the command succeeds
20h 88h <ID1> <ID2> 0Ch <DATA01> - <DATA12> <CKS>
When the command fails
A0h 88h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
Data part
DATA1 - DATA12 .............. Error information is provided. A bit set to "0" indicates that the data is normal, and a bit
set to "1" indicates an error. For an error information list, see the next page.
14
<Error information list>
Item
Description
DATA01
Error status (1)
Bit0
Cover error
Bit4
Fan error
Bit1
Temperature error (bi-metallic strip)
Bit5
Power error
Bit2
None (fixed to 0)
Bit6
Lamp (or lamp 1) off or backlight off
Bit3
Fan error
Bit7
Lamp (or lamp 1) in a replacement moratorium
DATA02
Error status (2)
Bit0
Lamp (or lamp 1) usage time exceeded the limit
Bit4
None (fixed to 0) Bit1
Formatter error
Bit5
None (fixed to 0)
Bit2
Lamp 2 off
Bit6
None (fixed to 0)
Bit3
None (fixed to 0)
Bit7
Refer to the extend status.
DATA03
Error status (3)
Bit0
None (fixed to 0)
Bit4
Lamp (or lamp 1) data error
Bit1
FPGA error
Bit5
Mirror cover error
Bit2
Temperature error (temperature sensor)
Bit6
Lamp 2 in a replacement moratorium
Bit3
Lamp (or lamp 1) not present
Bit7
Lamp 2 usage time exceeded the limit
DATA04
Error status (4)
Bit0
Lamp 2 not present
Bit4
None (fixed to 0)
Bit1
Lamp 2 data error
Bit5
Ballast communication error
Bit2
Temperature error due to dust
Bit6
Iris calibration error
Bit3
Foreign matter sensor error
Bit7
The lens is not installed properly.
DATA05 - 08
Reserved for the system
DATA09
Extended status
Bit0
The portrait cover side is up
Bit4
None (fixed to 0)
Bit1
The interlock switch is open.
Bit5
None (fixed to 0)
Bit2
System error has occurred. (Slave CPU)
Bit6
None (fixed to 0)
Bit3
System error has occurred (Formatter)
Bit7
None (fixed to 0) DATA10 - 12
Reserved for the system
15
3.2 [ 015. POWER ON ]
Turns on the power of the projector.
Information
While this command is turning on the power, no other command can be accepted.
Command
02h 00h 00h 00h 00h 02h
Response
When the command succeeds
22h 00h <ID1> <ID2> 00h <CKS>
When the command fails
A2h 00h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
16
3.3 [ 016. POWER OFF ]
Turns off the power of the projector.
Information
While this command is turning off the power (including the cooling time), no other command can be accepted.
Command
02h 01h 00h 00h 00h 03h
Response
When the command succeeds
22h 01h <ID1> <ID2> 00h <CKS>
When the command fails
A2h 01h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
17
3.4 [ 018. INPUT SW CHANGE ]
Switches the input terminal or entry list.
Command
02h 03h 00h 00h 02h 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Input terminal
Information
For the values of input terminal, see the Appendix "Supplementary Information by Command".
Command example
The following command switches the input terminal to a video port (DATA01: 06h).
02h 03h 00h 00h 02h 01h 06h 0Eh
18
Response
When the command succeeds
22h 03h <ID1> <ID2> 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Execution result
00h
Ended successfully.
FFh
Ended with an error (no signal switch is made).
When the command fails
A2h 03h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
19
3.5 [ 020. PICTURE MUTE ON ]
Turns the picture mute on.
Information
If any of the following operations is done, the picture mute is turned off.
・ Input terminal switch ・ Video signal switch
Command
02h 10h 00h 00h 00h 12h
Response
When the command succeeds
22h 10h <ID1> <ID2> 00h <CKS>
When the command fails
A2h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
20
3.6 [ 021. PICTURE MUTE OFF ]
Turns the picture mute off.
Command
02h 11h 00h 00h 00h 13h
Response
When the command succeeds
22h 11h <ID1> <ID2> 00h <CKS>
When the command fails
A2h 11h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
21
3.7 [ 022. SOUND MUTE ON ]
Turns the sound mute on.
Information
If any of the following operations is done, the sound mute is turned off.
・ Input terminal switch ・ Video signal switch ・ Sound volume adjustment
Command
02h 12h 00h 00h 00h 14h
Response
When the command succeeds
22h 12h <ID1> <ID2> 00h <CKS>
When the command fails
A2h 12h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
22
3.8 [ 023. SOUND MUTE OFF ]
Turns the sound mute off.
Command
02h 13h 00h 00h 00h 15h
Response
When the command succeeds
22h 13h <ID1> <ID2> 00h <CKS>
When the command fails
A2h 13h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
23
3.9 [ 024. ONSCREEN MUTE ON ]
Turns the onscreen mute on.
Information
If any of the following operations is done, the onscreen mute is turned off.
・ Input terminal switch ・ Video signal switch
Command
02h 14h 00h 00h 00h 16h
Response
When the command succeeds
22h 14h <ID1> <ID2> 00h <CKS>
When the command fails
A2h 14h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
24
3.10 [ 025. ONSCREEN MUTE OFF ]
Turns the onscreen mute off.
Command
02h 15h 00h 00h 00h 17h
Response
When the command succeeds
22h 15h <ID1> <ID2> 00h <CKS>
When the command fails
A2h 15h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
25
3.11 [ 030-1. PICTURE ADJUST ]
Adjusts the picture.
Command
03h 10h 00h 00h 05h <DATA01> FFh <DATA02> - <DATA04> <CKS>
Data part
Item
Description
DATA01
Adjustment target
00h
Brightness
01h
Contrast
02h
Color
03h
Hue
04h
Sharpness
DATA02
Adjustment mode
00h
Specify an absolute value
01h
Specify a relative value
DATA03
Adjustment value (low-order 8 bits)
DATA04
Adjustment value (high-order 8 bits)
Command example
① The following command sets brightness to "10".
03h 10h 00h 00h 05h 00h FFh 00h 0Ah 00h 21h
② The following command sets brightness to "-10".
03h 10h 00h 00h 05h 00h FFh 00h F6h FFh 0Ch
26
Response
When the command succeeds
23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01 DATA02
Execution result
0000h
Ended successfully.
Other than 0000h
Ended with an error.
When the command fails
A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
27
3.12 [ 030-2. VOLUME ADJUST ]
Adjusts the sound volume.
Command
03h 10h 00h 00h 05h 05h 00h <DATA01> - <DATA03> <CKS>
Data part
Item
Description
DATA01
Adjustment mode
00h
Specify an absolute value
01h
Specify a relative value
DATA02
Adjustment value (low-order 8 bits)
DATA03
Adjustment value (high-order 8 bits)
Command example
The following command set the sound volume to "10".
03h 10h 00h 00h 05h 05h 00h 00h 0Ah 00h 27h
28
Response
When the command succeeds
23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01 DATA02
Execution result
0000h
Ended successfully.
Other than 0000h
Ended with an error.
When the command fails
A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
29
3.13 [ 030-12. ASPECT ADJUST ]
Adjusts the aspect.
Command
03h 10h 00h 00h 05h 18h 00h 00h <DATA01> 00h <CKS>
Data part
Item
Description
DATA01
Value set for the aspect
Information
For information about the values set for the aspect, see the Appendix "Supplementary Information by Command".
Response
When the command succeeds
23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01 DATA02
Execution result
0000h
Ended successfully.
Other than 0000h
Ended with an error.
When the command fails
A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
30
3.14 [ 030-15. OTHER ADJUST ]
Adjusts the various gains.
Command
03h 10h 00h 00h 05h <DATA01> - <DATA05> <CKS>
Data part
Item
Description
DATA01 DATA02
DATA01
DATA02
Adjustment target
96h
FFh
LAMP ADJUST / LIGHT ADJUST
DATA03
Adjustment mode
00h
Specify an absolute value
01h
Specify a relative value
DATA04
Adjustment value (low-order 8 bits)
DATA05
Adjustment value (high-order 8 bits)
31
Response
When the command succeeds
23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01 DATA02
Execution result
0000h
Ended successfully.
Other than 0000h
Ended with an error.
When the command fails
A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
32
3.15 [ 037. INFORMATION REQUEST ]
Gets the information of the projector.
Command
03h 95h 00h 00h 00h 98h
Response
When the command succeeds
23h 8Ah <ID1> <ID2> 62h <DATA01> - <DATA98> <CKS>
Data part
Item
Description
DATA01 - 49
Projector name (NUL: termination character string).
DATA50 - 82
Reserved for the system
DATA83 - 86
Lamp usage time (seconds)
DATA87 - 90
Filter usage time (seconds)
DATA91 - 98
Reserved for the system
When the command fails
A3h 8Ah <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
Response example
When the lamp usage time is18000 seconds (5 hours)
23h 8Ah <ID1> <ID2> 62h <DATA01> - <DATA82> 50h 46h 00h 00h <DATA87> - <DATA98> <CKS>
Lamp usage time (DATA83 – DATA86) = 18000 / 3600 = 5 hours
Information
While the usage time can be obtained in one-second units, the information is updated at one-minute intervals.
33
3.16 [ 037-3. FILTER USAGE INFORMATION REQUEST ]
Gets filter usage information such as usage time.
Command
03h 95h 00h 00h 00h 98h
Response
When the command succeeds
23h 95h <ID1> <ID2> 08h <DATA01> - <DATA08> <CKS>
Data part
Item
Description
DATA01 - 04
Filter usage time (seconds)
DATA05 - 08
Filter alarm start time (seconds)
Information
If no time is defined, "-1" is returned.
When the command fails
A3h 95h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
34
3.17 [ 037-4. LAMP INFORMATION REQUEST 3 ]
Gets lamp usage information such as usage time or remaining life. When the eco mode is enabled, the values in the obtained information reflect the eco mode.
Command
03h 96h 00h 00h 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
Lamp 1
01h
Lamp 2
DATA02
Content
01h
Lamp usage time (seconds)
04h
Lamp remaining life (%)
Information
"01h" (Lamp 2) in DATA01 is effective only for two-lamp projector models.
Command example
The following command gets the lamp usage time.
03h 96h 00h 00h 02h 00h 01h 9Ch
35
Response
When the command succeeds
23h 96h <ID1> <ID2> 06h <DATA01> - <DATA06> <CKS>
Data part
Item
Description
DATA01
Target
00h
Lamp 1
01h
Lamp 2
DATA02
Content
01h
Lamp usage time (seconds)
04h
Lamp remaining life (%)
DATA03 - 06
Obtained information
When the command fails
A3h 96h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
Response example
When the lamp usage time is18000 seconds (5 hours)
23h 96h <ID1> <ID2> 06h 00h 01h 50h 46h 00h 00h <CKS>
Lamp usage time (DATA03 - DATA06) = 18000 / 3600 = 5 hours
Information
・ While the lamp usage time can be obtained in one-second units, the information is updated at one-minute
intervals.
・ If the lamp replacement deadline is exceeded, a negative value is returned as the lamp remaining life (%).
36
3.18 [ 037-6. CARBON SAVINGS INFORMATION REQUEST ]
Gets the Carbon Saving values on the projector.
Command
03h 9Ah 00h 00h 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Target
00h
Total Carbon Savings
01h
Carbon Savings during operation
37
Response
When the command succeeds
23h 9Ah <ID1> <ID2> 09h <DATA01> - <DATA09> <CKS>
Data part
Item
Description
DATA01
Target
00h
Total Carbon Savings
01h
Carbon Savings during operation
DATA02 - 05
Carbon Savings (Kilogram Maximum: 99999[kg])
DATA06 - 09
Carbon Savings (Milligram Maximum:999999[mg])
When the command fails
A3h 9Ah <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
Response example
When the Carbon Savings value is 2460.06375[kg].
23h 9Ah <ID1> <ID2> 09h 00h 9Ch 90h 00h 00h 06h F9h 00h 00h <CKS>
38
3.19 [ 050. REMOTE KEY CODE ]
Sends the key code for remote control.
Command
02h 0Fh 00h 00h 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01 DATA02
Key code (WORD type) For the combinations of key codes, see Table "Key code list".
<Key code list>
Key code
DATA01
DATA02
Key name
02h
00h
POWER ON
03h
00h
POWER OFF
05h
00h
AUTO
06h
00h
MENU 7 07h
00h
UP 8 08h
00h
DOWN
09h
00h
RIGHT
10
0Ah
00h
LEFT
11
0Bh
00h
ENTER
12
0Ch
00h
EXIT
13
0Dh
00h
HELP
15
0Fh
00h
MAGNIFY UP
16
10h
00h
MAGNIFY DOWN
19
13h
00h
MUTE
41
29h
00h
75
4Bh
00h
COMPUTER1
76
4Ch
00h
COMPUTER2
79
4Fh
00h
VIDEO1
81
51h
00h
S-VIDEO1
132
84h
00h
VOLUME UP
133
85h
00h
VOLUME DOWN
138
8Ah
00h
FREEZE
163
A3h
00h
ASPECT
39
Key code
DATA01
DATA02
Key name
215
D7h
00h
SOURCE
238
EEh
00h
LAMP MODE/ECO
Command example
The following command sends the key code "AUTO".
02h 0Fh 00h 00h 02h 05h 00h 18h
Response
When the command succeeds
22h 0Fh <ID1> <ID2> 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Execution result
00h
Ended successfully.
FFh
Ended with an error.
When the command fails
A2h 0Fh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
40
3.20 [ 053. LENS CONTROL ]
Adjusts the lens position.
Command
02h 18h 00h 00h 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
Zoom
01h
Focus
02h
Lens Shift (H)
03h
Lens Shift (V)
DATA02
Content
00h
Stop
01h
Drives for 1 second in the direction of plus
02h
Drives for 0.5 second in the direction of plus
03h
Drives for 0.25 second in the direction of plus
7Fh
Drives in the direction of plus
81h
Drives in the direction of minus
FDh
Drives for 0.25 second in the direction of minus
FEh
Drives for 0.5 second in the direction of minus
FFh
Drives for 1 second in the direction of minus
Information
After sending "7Fh" (Drives in the direction of plus) or "81h" (Drives in the direction of minus) in DATA02, you can stop driving lens by sending "00h".
41
Response
When the command succeeds
22h 18h <ID1> <ID2> 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Execution result
00h
Ended successfully.
FFh
Ended with an error.
When the command fails
A2h 18h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
Information
While the lens is being driven, you can control the lens position without a stop by issuing the same command.
42
3.21 [ 053-1. LENS CONTROL REQUEST ]
Gets adjusted values of the lens position.
Command
02h 1Ch 00h 00h 02h <DATA01> 00h <CKS>
Data part
Item
Description
DATA01
Target
00h
Zoom
01h
Focus
02h
Lens Shift (H)
03h
Lens Shift (V)
43
Response
When the command succeeds
22h 1Ch <ID1> <ID2> 08h <DATA01> 00h <DATA02> - <DATA07> <CKS>
Data part
Item
Description
DATA01
Target
00h
Zoom
01h
Focus
02h
Lens Shift (H)
03h
Lens Shift (V)
DATA02
Upper limit of the adjustment range (low-order 8 bits)
DATA03
Upper limit of the adjustment range (high-order 8 bits)
DATA04
Lower limit of the adjustment range (low-order 8 bits)
DATA05
Lower limit of the adjustment range (high-order 8 bits)
DATA06
Current value (low-order 8 bits)
DATA07
Current value (high-order 8 bits)
When the command fails
A2h 1Ch <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
44
3.22 [ 053-2. LENS CONTROL 2 ]
Adjusts the lens position.
Command
02h 1Dh 00h 00h 04h <DATA01> - <DATA04> <CKS>
Data part
Item
Description
DATA01
Target
00h
Zoom
01h
Focus
02h
Lens Shift (H)
03h
Lens Shift (V)
FFh
Stop
DATA02
Adjustment mode
00h
Specify an absolute value
02h
Specify a relative value
DATA03
Adjustment value (low-order 8 bits)
DATA04
Adjustment value (high-order 8 bits)
Information
If specifying “Stop” in DATA01, the Adjustment mode and Adjustment value are not referenced.
45
Response
When the command succeeds
22h 1Dh <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
Zoom
01h
Focus
02h
Lens Shift (H)
03h
Lens Shift (V)
FFh
Stop
DATA02
Adjustment mode
00h
Specify an absolute value
02h
Specify a relative value
When the command fails
A2h 1Dh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
46
3.23 [ 053-3. LENS MEMORY CONTROL ]
Controls the lens memory.
Information
See [ 053-4. REFERENCE LENS MEMORY CONTROL ] for controlling the reference lens memory.
Command
02h 1Eh 00h 00h 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Operation
00h
STORE
01h
MOVE
02h
RESET
47
Response
When the command succeeds
22h 1Eh <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Operation
00h
STORE
01h
MOVE
02h
RESET
DATA02
Execution result
00h
Ended successfully.
FFh
Ended with an error.
When the command fails
A2h 1Eh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
48
3.24 [ 053-4. REFERENCE LENS MEMORY CONTROL ]
Controls the reference lens memory.
Information
・ See [ 053-3. LENS MEMORY CONTROL ] for controlling the lens memory. ・ This command controls the profile number specified in [053-10 LENS PROFILE SET ].
Command
02h 1Fh 00h 00h 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Operation
00h
STORE
01h
MOVE
02h
RESET
49
Response
When the command succeeds
22h 1Fh <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Operation
00h
STORE
01h
MOVE
02h
RESET
DATA02
Execution result
00h
Ended successfully.
FFh
Ended with an error.
When the command fails
A2h 1Fh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
50
3.25 [ 053-5. LENS MEMORY OPTION REQUEST ]
Gets the value set for the lens memory.
Command
02h 20h 00h 00h 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Target
00h
LOAD BY SIGNAL
01h
FORCED MUTE
Response
When the command succeeds
22h 20h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
LOAD BY SIGNAL
01h
FORCED MUTE
DATA02
Setting value
00h
OFF
01h
ON
When the command fails
A2h 20h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
51
3.26 [ 053-6. LENS MEMORY OPTION SET ]
Sets the lens memory.
Command
02h 21h 00h 00h 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Target
00h
LOAD BY SIGNAL
01h
FORCED MUTE
DATA02
Setting value
00h
OFF
01h
ON
52
Response
When the command succeeds
22h 21h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
LOAD BY SIGNAL
01h
FORCED MUTE
DATA02
Execution result
00h
Ended successfully.
01h
Ended with an error.
When the command fails
A2h 21h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
53
3.27 [ 053-7. LENS INFORMATION REQUEST ]
Gets information about the lens of the projector.
Command
02h 22h 00h 00h 01h 00h 25h
Response
When the command succeeds
22h 22h <ID1> <ID2> 02h 00h <DATA01> <CKS>
Data part
Item
Description
DATA01
Target
Bit0
Lens memory
Bit4
Lens Shift (V)
Stop 0 Stop
During operation
During operation
Bit1
Zoom
Bit5
Reserved for the system
Stop 1 During operation
Bit2
Focus
Bit6
Reserved for the system
Stop
During operation
Bit3
Lens Shift (H)
Bit7
Reserved for the system
Stop 1 During operation
When the command fails
A2h 22h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
54
3.28 [ 053-10. LENS PROFILE SET ]
Selects the profile number of the reference lens memory.
Command
02h 27h 00h 00h 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Profile number
00h
Profile 1
01h
Profile 2
Response
When the command succeeds
22h 27h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Profile number
00h
Profile 1
01h
Profile 2
DATA02
Execution result
00h
Ended successfully.
01h
Ended with an error.
When the command fails
A2h 27h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
55
3.29 [ 053-11. LENS PROFILE REQUEST ]
Gets the selected profile number of the reference lens memory.
Command
02h 28h 00h 00h 00h 2Ah
Response
When the command succeeds
22h 28h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Profile number
00h
Profile 1
01h
Profile 2
DATA02
Reserved for the system
When the command fails
A2h 28h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
56
3.30 [ 060-1. GAIN PARAMETER REQUEST 3 ]
Gets adjusted values of the picture, volume, and so on.
Command
03h 05h 00h 00h 03h <DATA01> 00h 00h <CKS>
Data part
Item
Description
DATA01
Adjusted value name
00h
PICTURE / BRIGHTNESS
01h
PICTURE / CONTRAST
02h
PICTURE / COLOR
03h
PICTURE / HUE
04h
PICTURE / SHARPNESS
05h
VOLUME
96h
LAMP ADJUST / LIGHT ADJUST
Command example
The following command gets the adjusted value of the picture (brightness).
03h 05h 00h 00h 03h 00h 00h 00h 0Bh
57
Response
When the command succeeds
23h 05h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS>
Data part
Item
Description
DATA01
Adjusted value status
00h
Display not possible
01h
Adjustment not possible
02h
Adjustment possible
FFh
The specified gain does not exist.
DATA02
Upper limit of the adjustment range (low-order 8 bits)
DATA03
Upper limit of the adjustment range (high-order 8 bits)
DATA04
Lower limit of the adjustment range (low-order 8 bits)
DATA05
Lower limit of the adjustment range (high-order 8 bits)
DATA06
Default value (low-order 8 bits)
DATA07
Default value (high-order 8 bits)
DATA08
Current value (low-order 8 bits)
DATA09
Current value (high-order 8 bits)
DATA10
Wide adjustment width (low-order 8 bits)
DATA11
Wide adjustment width (high-order 8 bits)
DATA12
Narrow adjustment width (low-order 8 bits)
DATA13
Narrow adjustment width (high-order 8 bits)
DATA14
Whether the default value is valid or invalid
00h
The default value is invalid.
01h
The default value is valid.
DATA15 DATA16
Reserved for the system
When the command fails
A3h 05h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
58
3.31 [ 078-1. SETTING REQUEST ]
Gets information of the projector.
Command
00h 85h 00h 00h 01h 00h 86h
Response
When the command succeeds
20h 85h <ID1> <ID2> 20h <DATA01> - <DATA32> <CKS>
Data part
Item
Description
DATA01 - 03
Base model type
DATA04
Sound function
00h
Not available
01h
Available
DATA05
Profile number
00h
Not available
01h
Clock function
02h
Sleep timer function
03h
Clock function and Sleep timer function
DATA06 - 32
Reserved for the system
Information
For the values of the base model types, see the Appendix "Supplementary Information by Command".
When the command fails
A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
59
3.32 [ 078-2. RUNNING STATUS REQUEST ]
Gets the information about the operation status of the projector.
Command
00h 85h 00h 00h 01h 01h 87h
Response
When the command succeeds
20h 85h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS>
Data part
Item
Description
DATA01 - 02
Reserved for the system
DATA03
Power status
00h
Standby
FFh
Not supported
01h
Power on
－
－
DATA04
Cooling process
00h
Not executed
FFh
Not supported
01h
During execution
－
－
DATA05
Power On/Off process
00h
Not executed
FFh
Not supported
01h
During execution
－
－
DATA06
Operation status
00h
Standby (Sleep)
0Fh
Standby (Power saving)
04h
Power on
10h
Network standby
05h
Cooling
FFh
Not supported
06h
Standby (error)
－
－
DATA07 - 16
Reserved for the system
When the command fails
A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
60
3.33 [ 078-3. INPUT STATUS REQUEST ]
Gets the information about the input signal status of the projector.
Command
00h 85h 00h 00h 01h 02h 88h
Response
When the command succeeds
20h 85h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS>
Data part
Item
Description
DATA01
Signal switch process
00h
Not executed
FFh
Not supported
01h
During execution
－
－
DATA02
Signal list number
00h –
C7h
Signal list number - 1
FFh
Not supported
DATA03
Selection signal type 1
01h 1 04h
02h 2 05h
03h
－
－
DATA04
Selection signal type 2
01h
COMPUTER
20h
DVI-D
02h
VIDEO
21h
HDMI
03h
S-VIDEO
22h
DisplayPort
04h
COMPONENT
23h
VIEWER(6-10)
05h
Reserved for the system
FFh
Not Source Input
07h
VIEWER(1-5)
―
－
61
Item
Description
DATA05
Signal list type
00h
Default
FFh
Not supported
01h
User
－
－
DATA06
Test pattern display
00h
Not displayed
FFh
Not supported
01h
Displayed
－
－
DATA07 - 08
Reserved for the system
DATA09
Content displayed
00h
Video signal displayed
03h
Test pattern displayed
01h
No signal
04h
LAN displayed
02h
Viewer displayed
FFh
Not supported
DATA10 - 16
Reserved for the system
Information
・ A value which is "1" smaller than a practical value will be returned as a signal list number. For finding out a
practical number, add "1" to the returned value.
・ For information about the Selection signal type, see the Appendix "Supplementary Information by
Command".
When the command fails
A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
Response example
When the signal list number is10.
20h 85h <ID1> <ID2> 10h <DATA01> 09h <DATA03> - <DATA16> <CKS>
62
3.34 [ 078-4. MUTE STATUS REQUEST ]
Gets the mute status of the projector.
Command
00h 85h 00h 00h 01h 03h 89h
Response
When the command succeeds
20h 85h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS>
Data part
Item
Description
DATA01
Picture mute
00h
Off
01h
On
FFh
Not supported
DATA02
Sound mute
00h
Off
01h
On
FFh
Not supported
DATA03
Onscreen mute
00h
Off
01h
On
FFh
Not supported
63
Item
Description
DATA04
Forced onscreen mute
00h
Off
01h
On
FFh
Not supported
DATA05
Onscreen display
00h
Not displayed
01h
Displayed
FFh
Not supported
DATA06 - 16
Reserved for the system
When the command fails
A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
64
3.35 [ 078-5. MODEL NAME REQUEST ]
Gets the model name of the projector.
Command
00h 85h 00h 00h 01h 04h 8Ah
Response
When the command succeeds
20h 85h <ID1> <ID2> 20h <DATA01> - <DATA32> <CKS>
Data part
Item
Description
DATA01 - 32
Model name (NUL: termination character string)
When the command fails
A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
65
3.36 [ 078-6. COVER STATUS REQUEST ]
Gets the status of the mirror cover or lens cover.
Command
00h 85h 00h 00h 01h 05h 8Bh
Response
When the command succeeds
20h 85h <ID1> <ID2> 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Status
00h
Normal (cover opened)
01h
Cover closed
When the command fails
A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
66
3.37 [ 079. FREEZE CONTROL ]
Controls whether to turn the freeze function on or off.
Command
01h 98h 00h 00h 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Operation
01h
Turns the freeze function on.
02h
Turns the freeze function off.
Response
When the command succeeds
21h 98h <ID1> <ID2> 01h <DATA01> <CKS>
Data part
Item
Description
DATA01
Execution result
00h
Ended successfully.
01h
Ended with an error.
When the command fails
A1h 98h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
67
3.38 [ 084. INFORMATION STRING REQUEST ]
Gets the information strings (English) displayed on the projector.
Command
00h D0h 00h 00h 03h 00h <DATA01> 01h <CKS>
Data part
Item
Description
DATA01
Information type
03h
Horizontal synchronous frequency
04h
Vertical synchronous frequency
Response
When the command succeeds
20h D0h <ID1> <ID2> LEN <DATA01> 01h <DATA02> - <DATA??> <CKS>
Data part
Item
Description
DATA01
Information type
03h
Horizontal synchronous frequency
04h
Vertical synchronous frequency
DATA02
Label/information string length (excluding NUL characters)
DATA03 - ??
Label/information strings (NUL: termination character string)
When the command fails
A0h D0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
68
3.39 [ 097-8. ECO MODE REQUEST ]
Gets the value set for the eco mode.
Information
Depending on the projector, the value for the "Light mode" or "Lamp mode" will be returned.
Command
03h B0h 00h 00h 01h 07h BBh
Response
When the command succeeds
23h B0h <ID1> <ID2> 02h 07h <DATA01> <CKS>
Data part
Item
Description
DATA01
Value set for the eco mode
Information
For information about the values set for the eco mode, see the Appendix "Supplementary Information by Command".
When the command fails
A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
69
3.40 [ 097-45. LAN PROJECTOR NAME REQUEST ]
Gets the projector name.
Command
03h B0h 00h 00h 01h 2Ch E0h
Response
When the command succeeds
23h B0h <ID1> <ID2> 12h 2Ch <DATA01> - <DATA17> <CKS>
Data part
Item
Description
DATA01 - 17
Projector name (NUL: termination character string)
When the command fails
A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
70
3.41 [ 097-155. LAN MAC ADDRESS STATUS REQUEST2 ]
Gets the MAC address of the projector.
Command
03h B0h 00h 00h 02h 9Ah 00h 4Fh
Response
When the command succeeds
23h B0h <ID1> <ID2> 08h 9Ah 00h <DATA01> - <DATA06> <CKS>
Data part
Item
Description
DATA01 - 06
MAC address
When the command fails
A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
Response example
When the MAC address of the projector is "01h-23h-45h-67h-89h-ABh", the following response is returned.
23h B0h <ID1> <ID2> 08h 9Ah 00h 01h 23h 45h 67h 89h ABh <CKS>
71
3.42 [ 097-198. PIP/PICTURE BY PICTURE REQUEST ]
Gets the value set for the picture in picture and picture by picture.
Command
03h B0h 00h 00h 02h C5h <DATA01> <CKS>
Data part
Item
Description
DATA01
Target
00h
MODE
01h
START POSITION
02h
SUB INPUT
72
Response
When the command succeeds
23h B0h <ID1> <ID2> 03h C5h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
MODE
01h
START POSITION
02h
SUB INPUT
DATA02
Setting value (when DATA01 is 00h "MODE")
00h
PIP
01h
PICTURE BY PICTURE
Setting value (when DATA01 is 01h "START POSITION")
00h
TOP-LEFT
01h
TOP-RIGHT
02h
BOTTOM-LEFT
03h
BOTTOM-RIGHT
Sub input setting value (when DATA01 is 02h "SUB INPUT")
Information
For the values of the Sub input setting value, see the Appendix "Supplementary Information by Command".
When the command fails
A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
73
3.43 [ 097-243-1. EDGE BLENDING MODE REQUEST ]
Gets the value set for the edge blending.
Command
03h B0h 00h 00h 02h DFh 00h 94h
Response
When the command succeeds
23h B0h <ID1> <ID2> 03h DFh 00h <DATA01> <CKS>
Data part
Item
Description
DATA01
Setting value
00h
OFF
01h
ON
When the command fails
A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
74
3.44 [ 098-8. ECO MODE SET ]
Sets the eco mode.
Information
Depending on the projector, the "Light mode" or "Lamp mode" will be set.
Command
03h B1h 00h 00h 02h 07h <DATA01> <CKS>
Item
Description
DATA01
Value set for the eco mode
Information
For information about the values set for the eco mode, see the Appendix "Supplementary Information by Command".
Response
When the command succeeds
23h B1h <ID1> <ID2> 02h 07h <DATA01> <CKS>
Data part
Item
Description
DATA01
Execution result
00h
Ended successfully.
01h
Ended with an error.
When the command fails
A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
75
3.45 [ 098-45. LAN PROJECTOR NAME SET ]
Sets the projector name.
Command
03h B1h 00h 00h 12h 2Ch <DATA01> - <DATA16> 00h <CKS>
Data part
Item
Description
DATA01 - 16
Projector name (up to 16 bytes)
Response
When the command succeeds
23h B1h <ID1> <ID2> 02h 2Ch <DATA01> <CKS>
Data part
Item
Description
DATA01
Execution result
00h
Ended successfully.
01h
Ended with an error.
When the command fails
A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
76
3.46 [ 098-198. PIP/PICTURE BY PICTURE SET ]
Sets the picture in picture or picture by picture.
Command
03h B1h 00h 00h 03h C5h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
MODE
01h
START POSITION
02h
SUB INPUT
DATA02
Setting value (when DATA01 is 00h "Mode")
00h
PIP
01h
PICTURE BY PICTURE
Setting value (when DATA01 is 01h "START POSITION")
00h
TOP-LEFT
01h
TOP-RIGHT
02h
BOTTOM-LEFT
03h
BOTTOM-RIGHT
Sub input setting value (when DATA01 is 02h "SUB INPUT")
Information
For the values of the Sub input setting value, see the Appendix "Supplementary Information by Command".
77
Response
When the command succeeds
23h B1h <ID1> <ID2> 03h C5h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
MODE
01h
START POSITION
02h
SUB INPUT
DATA02
Execution result
00h
Ended successfully.
01h
Ended with an error.
When the command fails
A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
78
3.47 [ 098-243-1. EDGE BLENDING MODE SET ]
Sets the edge blending.
Command
03h B1h 00h 00h 03h DFh 00h <DATA01> <CKS>
Data part
Item
Description
DATA01
Setting value
00h
00h
01h
01h
Response
When the command succeeds
23h B1h <ID1> <ID2> 03h DFh 00h <DATA01> <CKS>
Data part
Item
Description
DATA01
Execution result
00h
Ended successfully.
01h
Ended with an error.
When the command fails
A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
79
3.48 [ 305-1. BASE MODEL TYPE REQUEST ]
Gets the base model type of the projector.
Command
00h BFh 00h 00h 01h 00h C0h
Response
When the command succeeds
20h BFh <ID1> <ID2> 10h 00h <DATA01> - <DATA15> <CKS>
Data part
Item
Description
DATA01 DATA02
Base model type DATA03 - 11
Model name (NUL: termination character string)
DATA12 DATA13
Base model type
DATA14 DATA15
Reserved for the system
Information
For the values of the base model types, see the Appendix "Supplementary Information by Command".
When the command fails
A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
80
3.49 [ 305-2. SERIAL NUMBER REQUEST ]
Gets the serial number of the projector.
Command
00h BFh 00h 00h 02h 01h 06h C8h
Response
When the command succeeds
20h BFh <ID1> <ID2> 12h 01h 06h <DATA01> - <DATA16> <CKS>
Data part
Item
Description
DATA01 - 16
Serial number (NUL: termination character string)
When the command fails
A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
81
3.50 [ 305-3. BASIC INFORMATION REQUEST ]
Gets the basic information about the operation status of the projector.
Command
00h BFh 00h 00h 01h 02h C2h
Response
When the command succeeds
20h BFh <ID1> <ID2> 10h 02h <DATA01> - <DATA15> <CKS>
Data part
Item
Description
DATA01
Operation status
00h
Standby (Sleep)
06h
Standby (error)
04h
Power on
0Fh
Standby (Power saving)
05h
Cooling
10h
Network standby
DATA02
Content displayed
00h
Video signal displayed
04h
LAN displayed
01h
No signal
05h
Test pattern (user) displayed
02h
Viewer displayed
10h
Signal being switched
03h
Test pattern displayed
－
－
DATA03
Selection signal type 1
01h 1 04h
02h 2 05h
03h
－
－
82
Item
Description
DATA04
Selection signal type 2
01h
COMPUTER
20h
DVI-D
02h
VIDEO
21h
HDMI
03h
S-VIDEO
22h
DisplayPort
04h
COMPONENT
23h
VIEWER(6-10)
05h
Reserved for the system
FFh
Not Source Input
07h
VIEWER(1-5)
―
－
DATA05
Display signal type (effective only when DATA04 is 02h or 03h)
00h
NTSC3.58
09h
NTSC3.58 SQZ
01h
NTSC4.43
0Ah
COMPONENT(60Hz)
02h
PAL
0Bh
COMPONENT(50Hz)
03h
PAL60
0Ch
Unknown
04h
SECAM
0Dh
NTSC
05h
B/W60
0Eh
PAL-M
06h
B/W50
0Fh
PAL-L
07h
PALNM
FFh
Not Video Input
08h
NTSC3.58 LBX
―
－
DATA06 Video mute
00h
Off
01h
On
DATA07 Sound mute
00h
Off
01h
On
DATA08 Onscreen mute
00h
Off
01h
On
DATA09 Freeze status
00h
Off
01h
On
DATA10 - 15
Reserved for the system
Information
For information about which parameters are supported, see the Appendix "Supplementary Information by Command".
When the command fails
A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
83
3.51 [ 319-10. AUDIO SELECT SET ]
Sets the audio select.
Command
03h C9h 00h 00h 03h 09h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
HDMI1
03h
ETHRENET or HDBaseT
01h
HDMI2
04h
USB-A
02h
DisplayPort
05h
USB-B
DATA02
Setting value
00h
The terminal specified in DATA01
02h
COMPUTER
01h
BNC
－
－
84
Response
When the command succeeds
23h C9h <ID1> <ID2> 03h 09h <DATA01> <DATA02> <CKS>
Data part
Item
Description
DATA01
Target
00h
HDMI1
03h
ETHRENET or HDBaseT
01h
HDMI2
04h
USB-A
02h
DisplayPort
05h
USB-B
DATA02 Execution result
00h
Ended successfully.
01h
Ended with an error.
When the command fails
A3h C9h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>
85
4. Revision History
Revision
Date
Description
3.0
June 16, 2015
Added the supported command [030-15] Updated the supported command [060-1]
2.0
May 29, 2015
Added the supported commands [030-12], [037], [037-6], [053], [053-1], [053-2], [053-3], [053-4], [053-5], [053-6], [053-7],
[053-10], [053-11], [078-1], [078-2], [078-3], [078-4], [078-5], [097-198], [097-243-1], [098-8], [098-198], [098-243-1], [319-10]
Updated the supported command [009]
1.0
August 22, 2014
First version
The Appendixes provide supplementary information about the control commands.
No.BDT140014
Revision History
Projector Control Command Reference Manual Appendixes
2.0 May 29, 2015
Changed the supported models.
Added the supported commands.
2.0
NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352W S / NP-M302WS / NP-M332XS NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PH1202HL / PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / PX602WL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W
4.0 August 3, 2015
Added the supported models. Corrected [3. Supported Command List ] sheet. (NP-U321H : "024. ONSCREEN MUTE ON" command is not supported.)
3.0
NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M 303WS / NP-M403H / NP-M323H
NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352W S / NP-M302WS / NP-M332XS NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PH1202HL / PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / PX602WL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W
NP-V332X / NP-V332W / NP-V302X / NP-V302W / N P-V302H
5.0 August 7, 2015 Added the supported models. 3.0
NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M323W / NP-M333XS / NP-M353W S / NP-M303W S / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352W S / NP-M302WS / NP-M332XS NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PH1202HL / PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / PX602WL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H
Revision Date Description Reference Supported models
3.0 June 16, 2015 Added the supported command. 3.0 Same as Revision 2.0.
1
1. Connecting an External Device
2
2. Standby Mode setting for receiving commands 3
3. Supported Command List
4
4. Supplementary Information by Command
Input terminal 5
[018. INPUT SW CHANGE]
Aspect 6
[030-12. ASPECT ADJUST]
Eco mode 7
[097-8. ECO MODE REQUEST] [098-8. ECO MODE SET]
Base model type 8
[078-1. SETTING REQUEST] [305-1. BASE MODEL TYPE REQUEST]
Selection signal type 9
[078-3. INPUT STATUS REQUEST] [305-3. BASIC INFORMATION REQUEST]
Sub input 10
[097-198. PIP/PICTURE BY PICTURE REQUEST] [098-198. PIP/PICTURE BY PICTURE SET]
Copyright (C) NEC Display Solutions, Ltd. 2014-2015
Contents
1.0 August 22, 2014 First version 1.0
NP4100 / NP4100W NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X / NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260W S NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352W S / NP-M302WS / NP-M332XS NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W NP-ME360X / NP-ME310X / NP-ME270X NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X NP-P420X / NP-P350X / NP-P350W NP-PE401H NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U NP-PH1400U NP-PH1000U NP-PX750U / NP-PX700W / NP-PX800X NP-PX620X / NP-PX550W NP-U300X / NP-U250X / NP-U310W / NP-U260W NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W NP-V311W / NP-V281W / NP-V311X NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-V230 / NP-V260R NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280
2
1. Connecting an External Device
<Conventions>
○
: Supported
－
: Not supported
■
Projector
4800bps 9600bps 19200bps 38400bps 115200bps
NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP­M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS
○ ○ ○ ○ － ○ ○
NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS
○ ○ ○ ○ － ○ ○
NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X
○ ○ ○ ○ ○ ○ －
NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X
○ ○ ○ ○ ○ ○ ○
NP-PH1202HL / PH1002HL
○ ○ ○ ○ ○ ○ －
NP-PX651X / NP-PX581W
－ ○ ○ ○ － ○ －
NP-PX602UL / PX602WL
○ ○ ○ ○ ○ ○ －
NP-U321H
－ － － ○ － ○ －
NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W NP-UM352W
○ ○ ○ ○ － ○ ○
NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H
－ － － ○ － ○ －
Serial port
Wireless LAN unitLAN portModel name
3
2. Standby Mode setting for receiving commands
The Standby Mode setting that can receive commands is different depending on the model.
Please see the table below.
Target command: "015. POWER ON"
■
Projector
Model name When connected using a serial cable When connected using via a wired LAN
NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP­M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS /
NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS
NORMAL, NETWORK STANDBY NETWORK STANDBY
NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS
NORMAL, NETWORK STANDBY NETWORK STANDBY
NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X
NORMAL, HTBaseT STANDBY HTBaseT STANDBY
NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X
NORMAL, NETWORK STANDBY NETWORK STANDBY
NP-PH1202HL / PH1002HL
NORMAL, NETWORK STANDBY NETWORK STANDBY
NP-PX651X / NP-PX581W
NORMAL, NETWORK STANDBY NETWORK STANDBY
NP-PX602UL / PX602WL
NORMAL, NETWORK STANDBY NETWORK STANDBY
NP-U321H
NORMAL, NETWORK STANDBY NETWORK STANDBY
NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W NP-UM352W
NORMAL, NETWORK STANDBY NETWORK STANDBY
NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H
NORMAL, NETWORK STANDBY NETWORK STANDBY
Setting of the Standby Mode
4
3. Supported Command List
<Conventions>
○
: Supported
－ : Not supported
■
Projector
NP-M403X NP-M363X NP-M323X
NP-M283X NP-M403W NP-M363W NP-M323W
NP-M333XS NP-M353WS NP-M303WS
NP-M403H NP-M323H
NP-M353HS NP-M323HS NP-M303HS
NP-M402W NP-M362W
NP-M402X NP-M362X NP-M322X NP-M282X
NP-M322W NP-M352WS NP-M302WS
NP-M332XS
NP-PA622U NP-PA522U NP-PA672W NP-PA572W NP-PA722X NP-PA622X NP-PA621U NP-PA521U NP-PA671W NP-PA571W NP-PA721X NP-PA621X
NP-PH1202HL NP-PH1002HL
NP-PX651X
NP-PX581W
NP-PX602UL NP-PX602WL
NP-U321H NP-UM301X
NP-UM301W
NP-UM361X
NP-UM351W
NP-V332X
NP-V332W
NP-V302X NP-V302W NP-V302H
009. ERROR STATUS REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
015. POWER ON ○ ○ ○ ○ ○ ○ ○ ○ ○
016. POWER OFF ○ ○ ○ ○ ○ ○ ○ ○ ○
018. INPUT SW CHANGE ○ ○ ○ ○ ○ ○ ○ ○ ○
020. PICTURE MUTE ON ○ ○ ○ ○ ○ ○ ○ ○ ○
021. PICTURE MUTE OFF
○ ○ ○ ○ ○ ○ ○ ○ ○
022. SOUND MUTE ON ○ ○ ○ － － － ○ ○ ○
023. SOUND MUTE OFF ○ ○ ○ － － － ○ ○ ○
024. ONSCREEN MUTE ON ○ ○ ○ ○ － ○ ○ ○ －
025. ONSCREEN MUTE OFF ○ ○ ○ ○ － ○ － － －
030-1. PICTURE ADJUST ○ ○ ○ ○ ○ ○ ○ ○ ○
030-2. VOLUME ADJUST ○ ○ ○ － － － ○ ○ ○
030-12. ASPECT ADJUST ○ ○ ○ ○ ○ ○ ○ ○ ○
030-15. OTHER ADJU ST － － ○ ○ － ○ － － －
037. INFORMATION REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
037-3. FILTER USAGE INFORMATION REQ UEST － － ○ ○ ○ － ○ ○ －
037-4. LAMP INFORMATION REQUEST 3 ○ ○ ○ ○ ○ ○ ○ ○ ○
037-6. CARBON SAVINGS INFORMATION REQ UEST ○ ○ ○ ○ － ○ － ○ －
050. REMOTE KEY CODE ○ ○ ○ ○ ○ ○ ○ ○ ○
053. LENS CONTR OL － － － ○ ○ ○ － － －
053-1. LENS CONTR OL REQUEST － － － ○ － － － － －
053-2. LENS CONTR OL 2 － － － ○ － － － － －
053-3. LENS MEMORY CONTRO L － － － ○ － － － － －
053-4. REFERENCE LENS MEMORY CONTROL － － － ○ － － － － －
053-5. LENS MEMORY OPTION REQUEST － － － ○ － － － － －
053-6. LENS MEMORY OPTION SET － － － ○ － － － － －
053-7. LENS INFORMATION REQ UEST － － － ○ － － － － －
053-10. LENS PROFILE SET － － － ○ － － － － －
053-11. LENS PROFILE REQUEST － － － ○ － － － － －
060-1. GAIN PARAMETER REQUEST 3 － － ○ ○ － ○ － － －
078-1. SETTING REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
078-2. RUNNING STATUS REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
078-3. INPUT STATU S REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
078-4. MUTE STATUS R EQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
078-5. MODEL NAME REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
078-6. COVER STATUS R EQUEST ○ ○ － ○ － ○ － ○ －
079. FREEZE CONTROL ○ ○ ○ ○ ○ ○ ○ ○ ○
084. INFORMATION STRING R EQUEST ○ ○ ○ ○ － ○ － ○ －
097-8. ECO MODE REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
097-45. LAN PROJECT OR NAME REQUEST ○ ○ ○ ○ － ○ ○ ○ ○
097-155. LAN MAC ADDRESS STATUS REQ UEST2 ○ ○ ○ ○ ○ ○ ○ ○ ○
097-198. PIP/PICTURE BY PICTURE REQUEST － － ○ ○ － ○ － － －
097-243-1. EDGE BLENDING MODE REQUEST － － ○ ○ － ○ － － －
098-8. ECO MODE SET ○ ○ ○ ○ ○ ○ ○ ○ ○
098-45. LAN PROJECT OR NAME SET ○ ○ ○ ○ － ○ ○ ○ ○
098-198. PIP/PICTURE BY PICTURE SET － － ○ ○ － ○ － － －
098-243-1. EDGE BLENDING MODE SET － － ○ ○ － ○ － － －
305-1. BASE MODEL TYPE REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
305-2. SERIAL NUMBER REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
305-3. BASIC INFORMATION REQUEST ○ ○ ○ ○ ○ ○ ○ ○ ○
319-10. AUDIO SELECT SET － － ○ － － － － ○ －
Command
5
4. Supplementary Information by Command
018. INPUT SW CHANGE
■Input term inal
COMPUTER COMPUTER2 COMPUTER3 BNC VIDEO BNC(CV) S-VIDEO BNC(Y/C) Component HDMI HDMI2 DisplayPort SLOT USB-A LAN ET HERNET HDBaseT USB-B APPS
NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP­M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS
01h
－ － －
06h
－ － － －
A1h A2h
－ －
1Fh 20h
－ －
22h
－
NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS
01h
－ － －
06h
－ － － －
A1h A2h
－ －
1Fh 20h
－ －
22h
－
NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X
01h
－ －
02h
－
06h
－
0Bh
－
A1h A2h A6h
－ － － －
20h
－ －
NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X
01h
－ －
02h
－
06h
－
0Bh
－
A1h A2h A6h
－
1Fh
－
20h
－ － －
NP-PH1202HL / NP-PH1002HL 01h
－ －
02ｈ
－
06ｈ
－
0Bh
－
A1h
－
A6h ABh
－ － －
20h
－ －
NP-PX651X / NP-PX581W 01h 02h 9Ch
－ 06h －
0Bh
－
10h A1h
－ － － － － －
20h
－ －
NP-PX602UL / NP-PX602WL 01h
－ －
02ｈ
－
06ｈ
－
0Bh
－
A1h
－
A6h ABh
－ － －
20h
－ －
NP-U321H 01h － － － 06h － － － － A1h A2h － － － － － － － －
NP-UM352W 01h
－
－ － 06h － － － － A1h A2h － －
－ － － －
22h 23h
NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W 01h
－
－ － 06h － － － － A1h A2h － － 1Fh 20h
－ －
22h
－
NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H 01h － － － 06h － － － － A1h A2h － － － － － － － －
Model name
Input terminal
6
4. Supplementary Information by Command
030-12. ASPECT ADJUST
■Aspe ct
00h 01h 03h 04h 05h 07h 08h 0Bh 0Ch 0Dh 0Eh 0Fh
NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP­M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS
AUTO WIDE ZOOM NATIVE 4:3 15:9 LETTER BOX － － － － － －
NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS
AUTO WIDE ZOOM NATIVE 4:3 15:9 LETTER BOX － － － － － －
NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP- PA571W / NP-PA721X / NP-PA621X
4:3 (WINDOWS) LETTER BOX WIDE SCREEN 16:9 － － － ZOOM FULL － － 5:4 16:10 15:9 NATIVE AUT O
NP-PH1202HL / NP-PH1002HL 4:3 (WINDOWS) LETTER BOX WIDE SCREEN 16:9 － － － ZOOM FULL － － 5:4 16:10 15:9 NAT IVE AUTO
NP-PX651X / NP-PX581W 4:3 － 1.85:1 2.35:1 Auto － － 5:4 16:10 － Native Auto
NP-PX602UL / NP-PX602WL 4:3 (WINDOWS) LETTER BOX WIDE SCREEN 16:9 － － － ZOOM FULL － － 5:4 16:10 15:9 NATIVE AUTO
NP-U321H AUTO － NATIVE 4:3 15:9 － 5:4 － － － － －
NP-UM301X / NP-UM361X NP-UM301W / NP-UM351W / NP-UM352W
AUTO W IDE ZOOM CHINEMA 16:9 NATIVE 4 :3 15:9 LETTERBOX － － － － － －
NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H AUTO － NATIVE 4:3 15:9 － 5:4 － － － － －
16:9 16:10
16:9 16:10
Model name
DATA01
02h 06h
16:9 16:10
16:9 16:10
16:9 16:10
16:10
7
4. Supplementary Information by Command
097-8. ECO MODE REQUEST
098-8. ECO MODE SET
■Eco mode
00h 01h 02h 03h 04h
NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP­M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303W S / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS
OFF AUTO ECO NORMAL ECO
－
NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302W S / NP-M332XS
OFF AUTO ECO NORMAL ECO
－
NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X
OFF ON
－ － －
NP-PH1202HL / PH1002HL NORMAL
－ ECO1 ECO2 LONG LIFE
NP-PX651X / NP-PX581W NORMAL ECO
－ － －
NP-PX602UL / PX602WL NORMAL
－ ECO1 ECO2 －
NP-U321H OFF ECO － －
－
NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W NP-UM352W
OFF AUTO ECO NORMAL ECO
－
NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H OFF ECO － －
－
Model name
DATA01
8
4. Supplementary Information by Command
078-1. SETTING REQUEST
305-1. BASE MODEL TYPE REQUEST
■Base model type
DATA01 DATA02 DATA03
DATA01 DATA02 DATA12 DATA13
NP-M282X FFh 22h 03h 10h NP-M283X FFh 22h 03h 12h NP-M302WS FFh 22h 09h 10h NP-M303HS FFh 22H 04H 11H NP-M303WS FFh 22h 09h 12h NP-M322H FFh 22h 01h 11h NP-M322W FFh 22h 06h 10h NP-M322X FFh 22h 02h 10h NP-M323H FFh 22h 0Bh 12h NP-M323HS FFh 22H 03H 11H NP-M323W FFh 22h 06h 12h NP-M323X FFh 22h 02h 12h NP-M332XS FFh 22h 07h 10h NP-M333XS FFh 22h 07h 12h NP-M352WS FFh 22h 08h 10h NP-M353HS FFh 22H 02H 11H NP-M353WS FFh 22h 08h 12h NP-M362W FFh 22h 05h 10h NP-M362X FFh 22h 01h 10h NP-M363W FFh 22h 05h 12h NP-M363X FFh 22h 01h 12h NP-M402H FFh 22h 00h 11h NP-M402W FFh 22h 04h 10h NP-M402X FFh 22h 00h 10h NP-M403H FFh 22h 0Ah 12h NP-M403W FFh 22h 04h 12h NP-M403X FFh 22h 00h 12h NP-PA521U FFh 21h 01h 10h NP-PA522U FFh 21h 01h 11h NP-PA571W FFh 21h 03h 10h NP-PA572W FFh 21h 03h 11h NP-PA621U FFh 21h 00h 10h NP-PA621X FFh 21h 05h 10h NP-PA622U FFh 21h 00h 11h NP-PA622X FFh 21h 05h 11h NP-PA671W FFh 21h 02h 10h NP-PA672W FFh 21h 02h 11h NP-PA721X FFh 21h 04h 10h NP-PA722X FFh 21h 04h 11h NP-PH1002HL FFh 26h 01h 10h NP-PH1202HL FFh 26h 00h 10h NP-PX581 FFh 27h 01h 10h NP-PX602UL FFh 25h 00h 10h NP-PX602WL FFh 25h 01h 10h NP-PX651 FFh 27h 00h 10h NP-U321H FFh 28h 00h 10h NP-UM301W FFh 20h 02h 11h NP-UM301X FFh 20h 00h 11h NP-UM351W FFh 20h 03h 11h NP-UM352W FFh 20h 04h 11h NP-UM361X FFh 20h 01h 11h NP-V302H FFh 2Ah 04h 10h NP-V302W FFh 2Ah 03h 10h NP-V302X FFh 2Ah 02h 10h NP-V332W FFh 2Ah 01h 10h NP-V332X FFh 2Ah 00h 10h
Model name
078-1. SETTING REQUEST
305-1. BASE MODEL TYPE REQUEST
9
4. Supplementary Information by Command
078-3. INPUT STATUS REQUEST
305-3. BASIC INFORMATION REQUEST
■Select ion sig nal ty pe
－
－ － － LAN HDMI2NP-UM301X / NP-UM301W / NP-UM361X / N P-UM351W COMPUTER VIDEO －
－
USB-A HDMI1 － USB-B
－
－
NP-U321H COMPUTER
NP-UM352W COMPUTER VIDEO －
－ －
HDMI1 － － － －
－
HDMI2 USB-B APPS
－ － HDMI2(078-3) － HDMI2(305-3)
－ －
NP-PH1202HL / NP-PH1002HL COMPUTER BNC(CV) BNC(Y/C)
－ －
HDMI DiaplayPort SLOT BNC
－
HDBaseT
－ － －
SLOT BNC
－
HDBaseT
－
NP-PX602UL / NP-PX602WL COMPUTER
－ －
NP-PX651X / NP-PX581W Computer1 Video S-Video Component
－ －
Computer3 HDMI
－
Computer2
－
HDBaseT
－ －
－
BNC
－
ETHERNET HDMI2
NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X
COMPUTER
USB-B
－
NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X
COMPUTER BNC(CV) BNC(Y/C)
－ －
HDMI1 DiaplayPort
－
BNC
－
HDBaseT HDMI2
－ －
－ － －
LAN HDMI2
NP-M402W / NP-M362W / NP -M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352W S / NP-M302WS / NP-M332XS
COMPUTER
04h 05h
DATA04 01h 02h 03h 06h 07h 21h 22h 23h 01h 06h 07h 21h 07h 07h
01h
－ HDMI1(305-3) － －
DiaplayPort
VIDEO
－ －
USB-A HDMI1
－
HDMI1(305-3) －
BNC(CV) BNC(Y/C)
－ －
HDMI DiaplayPort
HDMI2(078-3) － HDMI2(305-3) －
Model name
DATA03 01h 01h 01h 01h 01h 01h
BNC(CV) BNC(Y/C)
－
USB-A HDMI1
01h 02h 02h 02h 02h
－ HDMI1(078-3)
－
NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP­M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303W S / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS
COMPUTER VIDEO
－ －
USB-A HDMI1
－ － － －
LAN HDMI2 USB-B
－
NP-V332X / NP-V332W / NP-V302X / NP-V 302W / NP-V302H COMPUTER VIDEO
VIDEO － HDMI1(078-3) －
－
10
4. Supplementary Information by Command
097-198. PIP/PICTURE BY PICTURE REQUEST
098-198. PIP/PICTURE BY PICTURE SET
■Sub input
00h 01h 02h 03h 04h 05h 06h 07h 08h 09h
NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X
OFF BNC(CV) BNC(Y/C) HDMI1 HDMI2 DisplayPort COMPUTER BNC ETHERNET USB-A
NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X
OFF BNC(CV) BNC(Y/C) HDMI1 HDMI2 DisplayPort COMPUTER BNC HDBaseT
―
NP-PH1202HL / NP-PH1002HL OFF BNC(CV) BNC(Y/C) HDMI SLOT DisplayPort COMPUTER BNC HDBaseT ―
NP-PX602UL / NP-PX602WL OFF BNC(CV) BNC(Y/C) HDMI SLOT DisplayPort COMPUTER BNC HDBaseT ―
モデル名
DATA02
11
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
