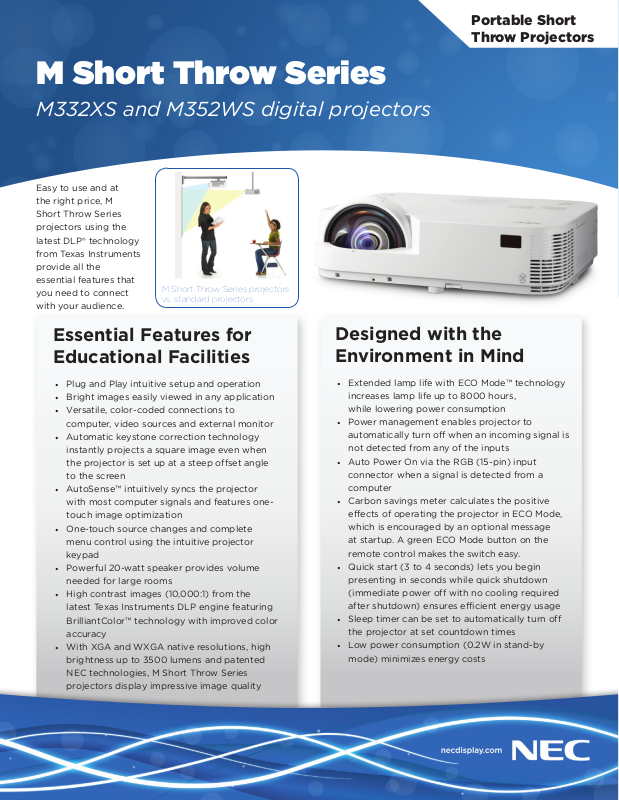

M Short Throw Series
M332XS and M352WS digital projectors
Easy to use and at
the right price, M
Short Throw Series
projectors using the
latest DLP® technology
from Texas Instruments
provide all the
essential features that
you need to connect
with your audience.
M Short Throw Series projectors
vs. standard projectors
Portable Short
Throw Projectors
Essential Features for
Educational Facilities
• Plug and Play intuitive setup and operation
• Bright images easily viewed in any application
• Versatile, color-coded connections to
computer, video sources and external monitor
• Automatic keystone correction technology
instantly projects a square image even when
the projector is set up at a steep offset angle
to the screen
• AutoSense™ intuitively syncs the projector
with most computer signals and features onetouch image optimization
• One-touch source changes and complete
menu control using the intuitive projector
keypad
• Powerful 20-watt speaker provides volume
needed for large rooms
• High contrast images (10,000:1) from the
latest Texas Instruments DLP engine featuring
BrilliantColor™ technology with improved color
accuracy
• With XGA and WXGA native resolutions, high
brightness up to 3500 lumens and patented
NEC technologies, M Short Throw Series
projectors display impressive image quality
Designed with the
Environment in Mind
• Extended lamp life with ECO Mode™ technology
increases lamp life up to 8000 hours,
while lowering power consumption
• Power management enables projector to
automatically turn off when an incoming signal is
not detected from any of the inputs
• Auto Power On via the RGB (15-pin) input
connector when a signal is detected from a
computer
• Carbon savings meter calculates the positive
effects of operating the projector in ECO Mode,
which is encouraged by an optional message
at startup. A green ECO Mode button on the
remote control makes the switch easy.
• Quick start (3 to 4 seconds) lets you begin
presenting in seconds while quick shutdown
(immediate power off with no cooling required
after shutdown) ensures efficient energy usage
• Sleep timer can be set to automatically turn off
the projector at set countdown times
• Low power consumption (0.2W in stand-by
mode) minimizes energy costs
Advanced Networking Capabilities
• Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
• Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
• PC CTL 4.0 controls the power switching input selection and other functions while managing lamp usage and
a variety of other vital information over the network. Email notification and projector scheduling for better
asset management is included with the software.
• PC CTL 5.0 for MAC users
• Control and receive important broadcast messages via Crestron Roomview™
• Wireless Image Utility (WIU) sends images directly from an iPad to the projector (requires wireless LAN
module NP02LM1)
• Simple Access Point Sending photos and documents have never been easier from a computer or iPad.
Image Express Lite
Dedicated projector software provides wired and wireless data
and audio transmission via peer-to-peer or over the network.
Wireless LAN
module (optional)
Advanced ECO Mode
ECO Mode
Lamp control selections with the ability to change power dependent on the ambient lighting conditions. With
a built-in ambient light sensor, automatic adjustment of the projectors lamp provides unprecedented brightness
control resulting in bright images for most environments.
Automatically dim the image with the new Auto-dim feature to control the brightness of static images and
extend lamp life.
Built-in wall color correction presets
These provide for adaptive color tone correction to display properly
on non-white surfaces.
On a
green wall...
BEFORE
auto wall correction
AFTER
auto wall correction
When combined with active shutter
glasses (NP02GL), 3D Ready M Series
Projectors use DLP Link™ technology,
developed by Texas Instruments, to
create 3D images from a computer. The
M332XS and M352WS are certified as a
display device for NVIDIA® 3D Vision™,
which allows you to view 3D images using
supported graphics boards or software.
HDMI 3D images can be viewed using a
3rd party 3D glass from XPAND or Volfoni.
Top cover lamp change
This feature provides for easy lamp changes without removal
of the projector from the mount.
Get Connected with a Wide Selection of Inputs
• Dual HDMI inputs ensure quick switching between presentations
• Four audio inputs (two mini stereo, R/L and HDMI™) make it easy to add sound to enhance your
presentations
Remote
control
Easy control
from remote
allows you to
adjust lamp
mode, aspect
ratio, volume
and image all
with the touch
of a button.
Dual HDMI inputs
Among the M Series’ wide selection
of inputs is an HDMI w/HDCP for
connecting to high-definition sources
such as Blu-ray players, cable boxes,
satellite receivers and personal
computers.
USB Viewer
In instances when you’d
prefer to leave your
laptop behind for a
presentation, M Series
projectors can deliver a
solution. Using the presentation
conversion software included
with your projector, simply
place your file onto a USB drive
and plug it into the projector’s
USB port. This allows you to
display images stored as .jpgs from
optional USB memory.
Variable audio-out
This input enables the
remote control to be used
to adjust volume of selfpowered external speakers
that are connected to the
projector. In stand-by mode,
the audio-out stays active,
allowing the last input used
to pass to the self-powered
external speakers.
USB input
Your connection options go even further with the
M Series. Connect your laptop or PC directly to the
projector using the USB port and a standard USB cable.
UNIQUE FEATURES
BrilliantColor advanced video processing
from Texas Instruments delivers more
vibrant and realistic colors and blacks rich
in detail.
DICOM Simulation enables users in medical
training environments to display accurate
diagnostic images
Advanced AccuBlend™ ensures detailed
images when non-native resolution sources
are connected to the projector
Filter Free with shielded engine eliminates
the hassle and time spent monitoring and /
or changing filters.
Built-in closed captioning enables
decoding and display of text information
from a video
64-step image magnification with location
control
Countdown sleep timer can be set to
automatically turn o the projector
WARRANTY
Registered owners receive a 2-year parts
and labor warranty including the first year
of InstaCare. The lamp is covered for one
year or 500 hours, whichever comes first.
InstaCare provides the original owner one
year of either limited 3 business day repair/
return or next business day exchange.
SHIPS WITH
Remote control, batteries, power cord, RGB
signal cable, lens cap, user’s manual on
CD-ROM, quick start guide, product
registration card and DisplayNote Presenter
License
ORDERING MODEL NUMBERS
NP-M332XS
NP-M352WS
Additional accessories are available, including screens, carts,
mount accessories and replacement cables. Visit
www.necdisplay.com for details.
Specifications for M332XS and M352WS
OPTICAL
Display Technology
Light Output (lumens)
Resolution
Native
Maximum
Contrast Ratio (up to)
Lamp Type
Lamp Life (up to)
Screen Size (diagonal)
Throw Ratio
Projection Distance
Projection Angle
Lens*
Zoom
Focus
F-#, f-#
Keystone Correction
M332XS: 0.55” DLP by Texas Instruments w/ BrilliantColor
M352WS: 0.65” DLP by Texas Instruments w/ BrilliantColor
M332XS: 3300
M352WS: 3500
M332XS: XGA 1024 x 768
M352WS: WXGA 1280 x 800
WUXGA 1920 x 1200
Up to 10,000:1
270W AC
3500 hours / 8000 hours eco
60 - 150 in., 1.5 - 3.1m
M332XS: 0.6:1
M352WS: 0.48:1
M332XS: 2.21 - 5.76 ft. / 0.675 - 1.757m
M352WS: 1.85 - 4.86 ft. / 0.565 - 1.482m
M332XS: 40.7° - 40.8°
M352WS: 40.7° - 40.9°
1.2
Manual
F=2.4, f=6.5mm
Vertical (Automatic/Manual) adjustment
SIGNAL COMPATIBILITY/
CON NECTIVITY
Scan Rate
Horizontal
Vertical
Supported Video Standards
SD/HD Video Signal Compatibility
PC Signal Compatibility
Macintosh Compatibility
Input/Output Terminals
RGB1 (analog)
RGB2 (digital)
RGB3 (digital)
RGB4 (digital)
Video
Audio 1
Audio 2
Audio 3
Audio Out
Monitor Out
Audio
External Control
Sync Compatibility
ELECTRICAL
Power Requirements
Input Current
Power Consumption (ECO Off/ECO Mode/
Standby/Standby-Power Saving)
MECHANICAL
Installation Orientation
Dimensions (WxDxH)
Net Weight
Fan Noise
Regulations
ENVIRONMENTAL
Operating Temperature
Humidity
Storage
ACCESSORIES
NP01MR
NP02LM1
SPKR30
ADP-CV1E
MP300CM
NP05WK1
NP01UCM
NP02GL
AEC006009
AEC012018
AEC0203
AEC0305
SCP200
NP30LP
RMT-PJ36
NECEW1-MP
NECEW2-MP
ADVEXON1-MP
ADVEXON2-MP
NECECO
PWRCRD-PJPX
RGBCBL-PJPX
15 – 100 kHz
50 – 120 Hz
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
1080i, 1080p, 720p, 576p, 576i, 480p, 480i,Y/Cb/Cr component (with
optional adapter – ADP-CV1E)
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Yes
VGA 15-pin D-sub
HDMI w/ HDCP
HDMI w/ HDCP
USB A Type
RCA
L/R RCA (shared by video sources)
1/8 in. stereo
1/8 in. stereo
mini stereo (variable audio out)
Yes
20W speaker
RS-232, IR, LAN, DDC/CI, USB, Wireless LAN (optional)
Separate Sync / Composite Sync / Sync on G
100 – 240V AC, 50/60Hz
3.9A / 1.6A
335W / 246W / 2.5W / 0.2W
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
14.5 x 11.5 x 5.3 in. / 368 x 286 x 134mm
8.2lbs. / 3.7kg
39 dB / 33 dB eco
UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B
41° – 104°F / 5° – 40°C
20-80% non-condensing
-14° – 122°F / -10° – 50°C
IR receiver enables PJ remote to control PC and MAC functions
802.11b/g/n wireless LAN adapter
Amplified 30-watt speaker
Component video to VGA adapter
Ceiling mount
Wall Mount
Universal ceiling mount for projectors weighing less than 40 pounds
Active shutter 3D glasses (PC only)
6 to 9 inch adjustable extension column for use with projector mount
12 to 18 inch adjustable extension column for use with projector mount
2 to 3 foot adjustable extension column for use with projector mount
3 to 5 foot adjustable extension column for use with projector mount
Adjustable suspended ceiling plate for use with ceiling mount
Replacement lamp
Replacement remote control
Extends term of parts and labor warranty to 3 years
Extends term of parts and labor warranty to 4 years
Extends term of InstaCare service program to 2 years
Extends term of InstaCare service program to 3 years
Projector recycling program, disposal certificate
Power cable
RGB cable
Advanced AccuBlend, ECO Mode and Virtual Remote are
trademarks of NEC Display Solutions. HDMI, the HDMI logo and
High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC. All other brand or product
names are trademarks or registered trademarks of their respective
holders. Product specifications subject to change.
©2013 NEC Display Solutions of America, Inc. All rights reserved.
rev. 4.22.2014
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
Loading...
