NEC LCD8205 User Manual

Download
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2

Contents:

Rear, Bottom & Left Side Dimensions Optional Fixed Wall Mount in Landscape Dimensions Optional Fixed Wall Mount in Portrait Dimensions Optional Tilt Wall Mount in Landscape Dimensions Optional Tilt Wall Mount in Portrait Control Codes Page 10

Product Description

Type: LCD Display Screen Surface: Anti-Reflective Resolution: 1920 x 1080 Dimensions: 75.8”(W) x 44.8”(H) x 5.9”(D) Aspect Ratio: 16:9 with protective glass: 75.8”(W) x 44.8”(H) x 6.3”(D) FCC: Class A Weight: 291.0 lbs Power Consumption: 680W (max) with protective glass: 346.1 lbs BTU’s: 2320 BTU/hour
Notes This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to
be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to
fill the screen using the menus (see “Aspect Modes” in menus and user manual). Distances are in inches, for millimeters multiply by 25.4. Distances may vary ±5%.

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in the landscape position only. Landscape 20deg
Page 1 Page 2
Page 4 Page 5 Page 6 Page 7 Page 8 Page 9
www.necdisplay.com
Max. 20 deg
LCD8205 Page 1 of 10
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2
Ventilation Requirements (all models)
Dimensions below are minimum required for proper ventilation.
WALL
0 to 40 degC
50mm
2”
50mm
2”
32 to 104 degF
WALL WALL
2”
50mm
2”
50mm
2”
NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the
opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for
50mm
design review and recommendations.
www.necdisplay.com
LCD8205 Page 2 of 10
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2

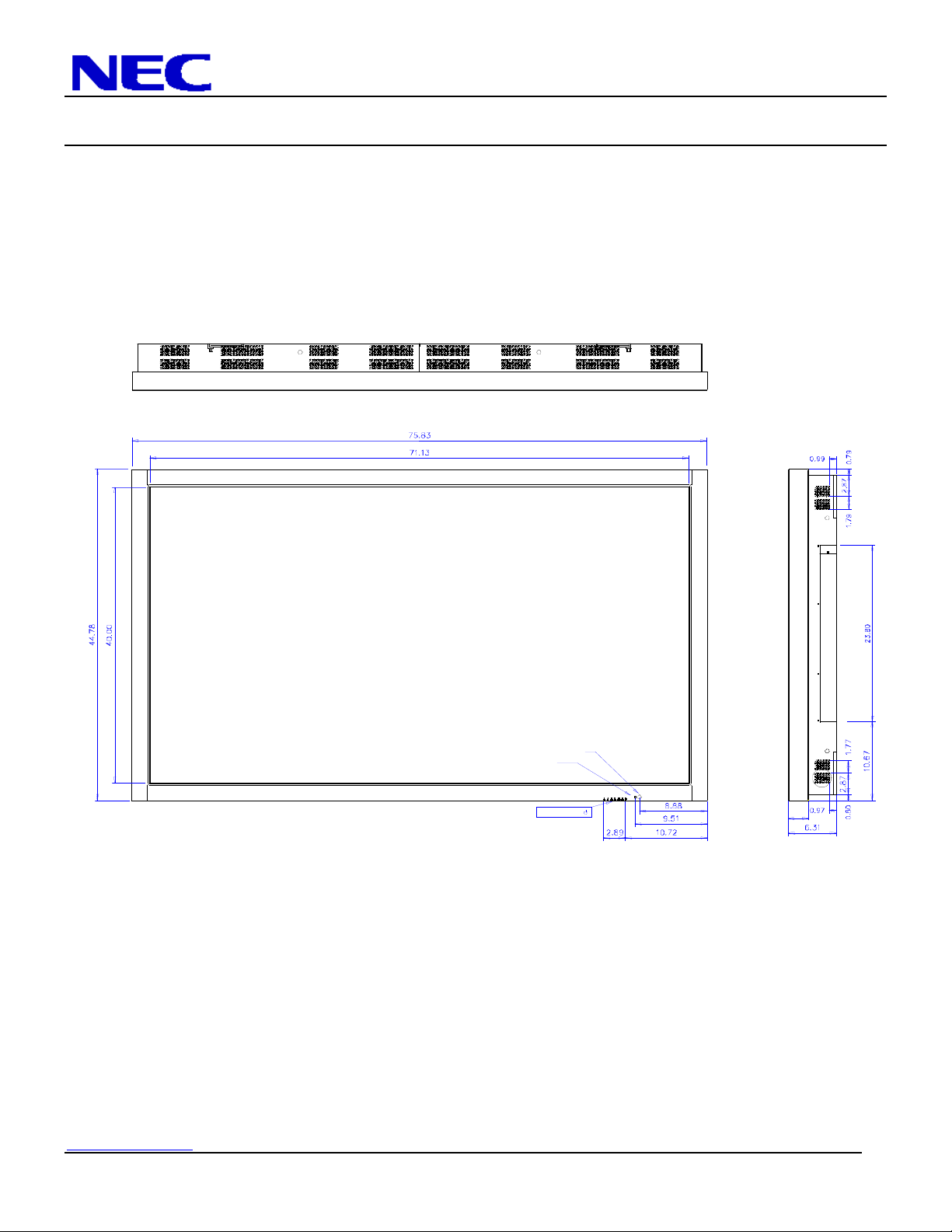

Display dimensions
(PANEL DISPLAY AREA)
(PANEL DISPLAY AREA)
IR
LED
+
-
n
MENU¢ºSELVOL+-CH CH VOL
2.14
5.99
www.necdisplay.com
LCD8205 Page 3 of 10
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2
Display dimensions (with protective glass)
(PANEL DISPLAY AREA)
www.necdisplay.com
LCD8205 Page 4 of 10
(PANEL DISPLAY AREA)
IR
LED
+
-
n
MENU¢ºSELVOL+-CH CH VOL
2.56
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2
Display dimensions (cont.)
A AAAAA
AC Inlet
AA
AAA
Ventilation Holes
A
400mm x 800mm MOUNTING HOLE PATTERN 8-M8 Depth 16
AA
www.necdisplay.com
LCD8205 Page 5 of 10
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2

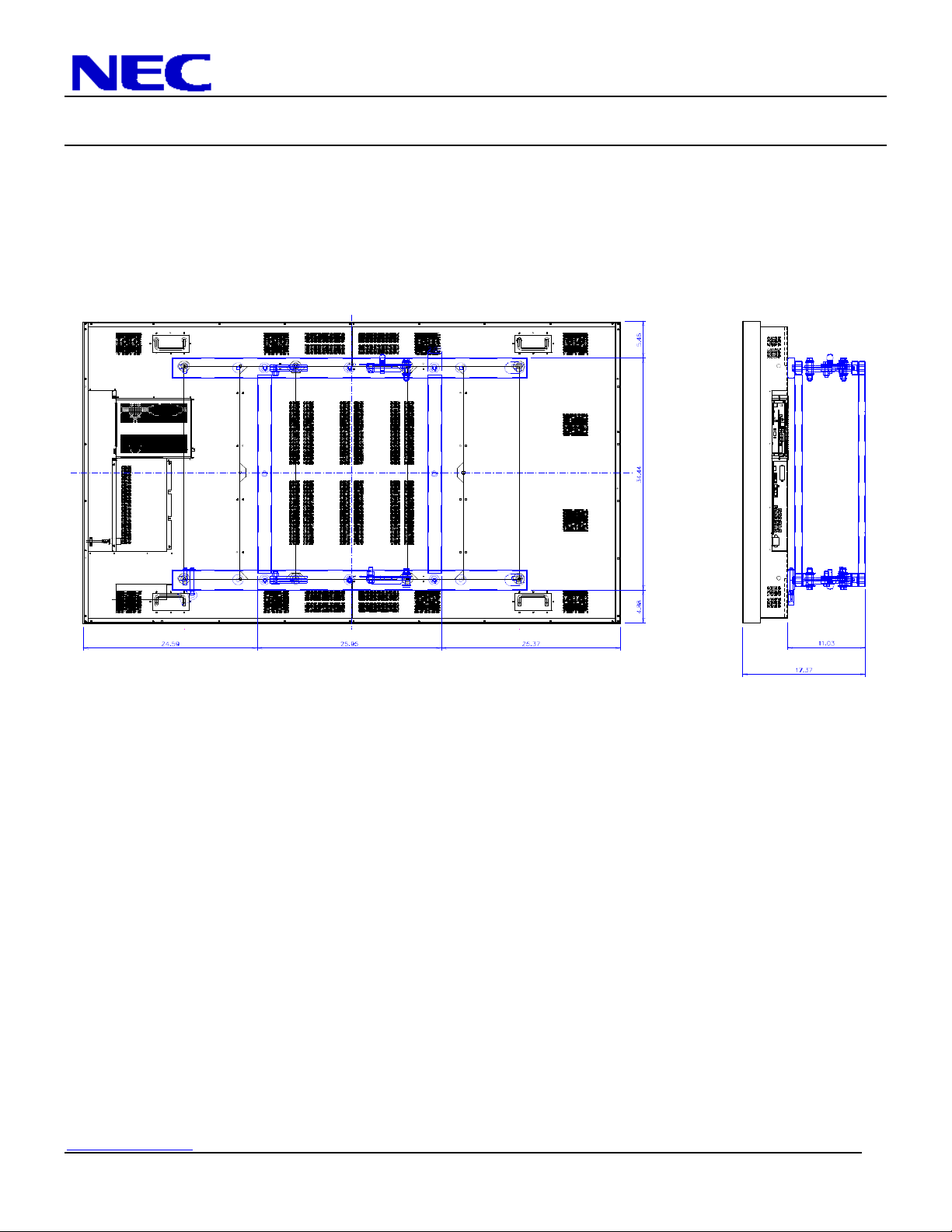

Dimensions with optional Fixed Wall Mount Kit (WM-82) in Landscape Mode
www.necdisplay.com
A AAAAA
AA
AAA
LCD8205 Page 6 of 10
A
AA
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2

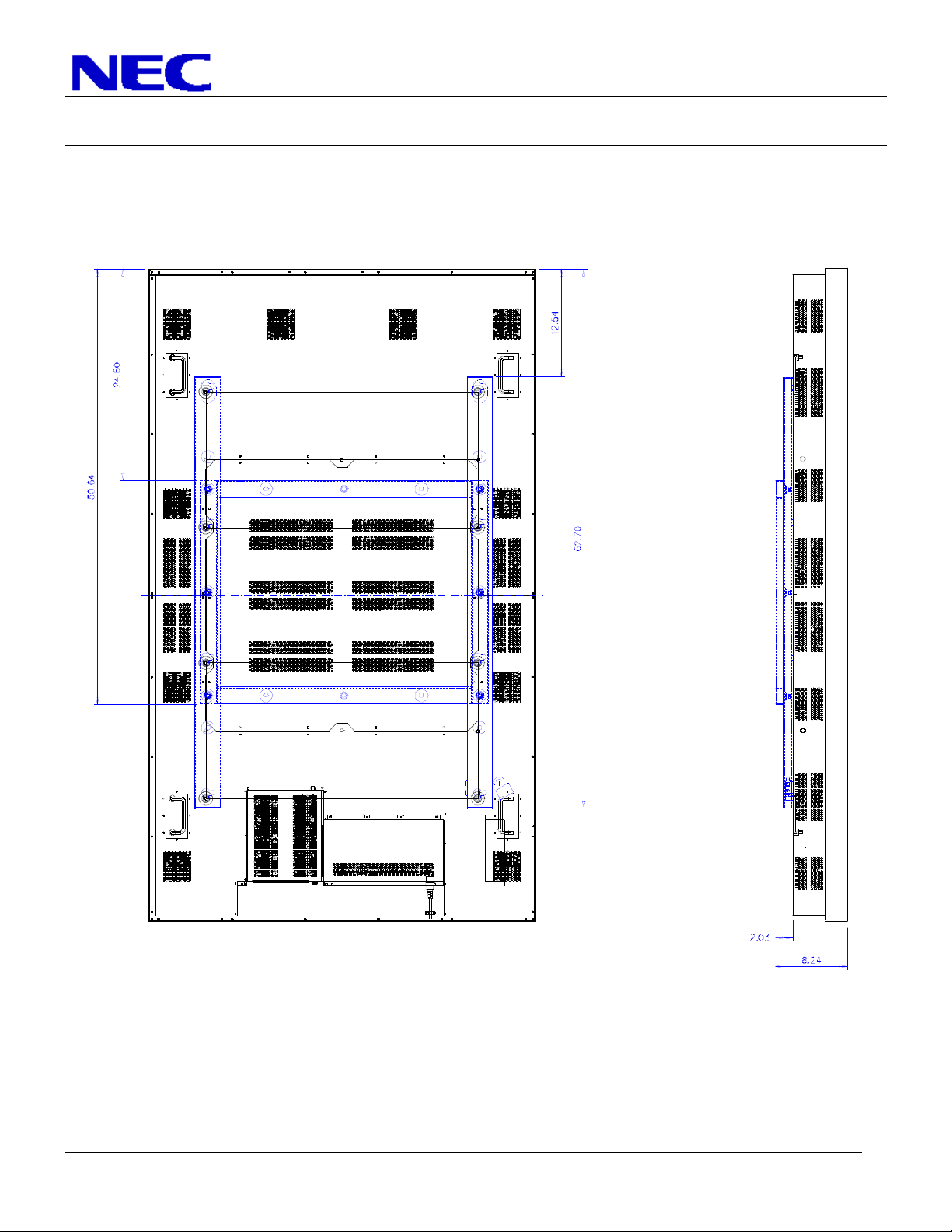

Dimensions with optional Fixed Wall Mount Kit (WM-82) in Portrait Mode
www.necdisplay.com
AA
A AAAAA
LCD8205 Page 7 of 10
AA
A
AAA
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2

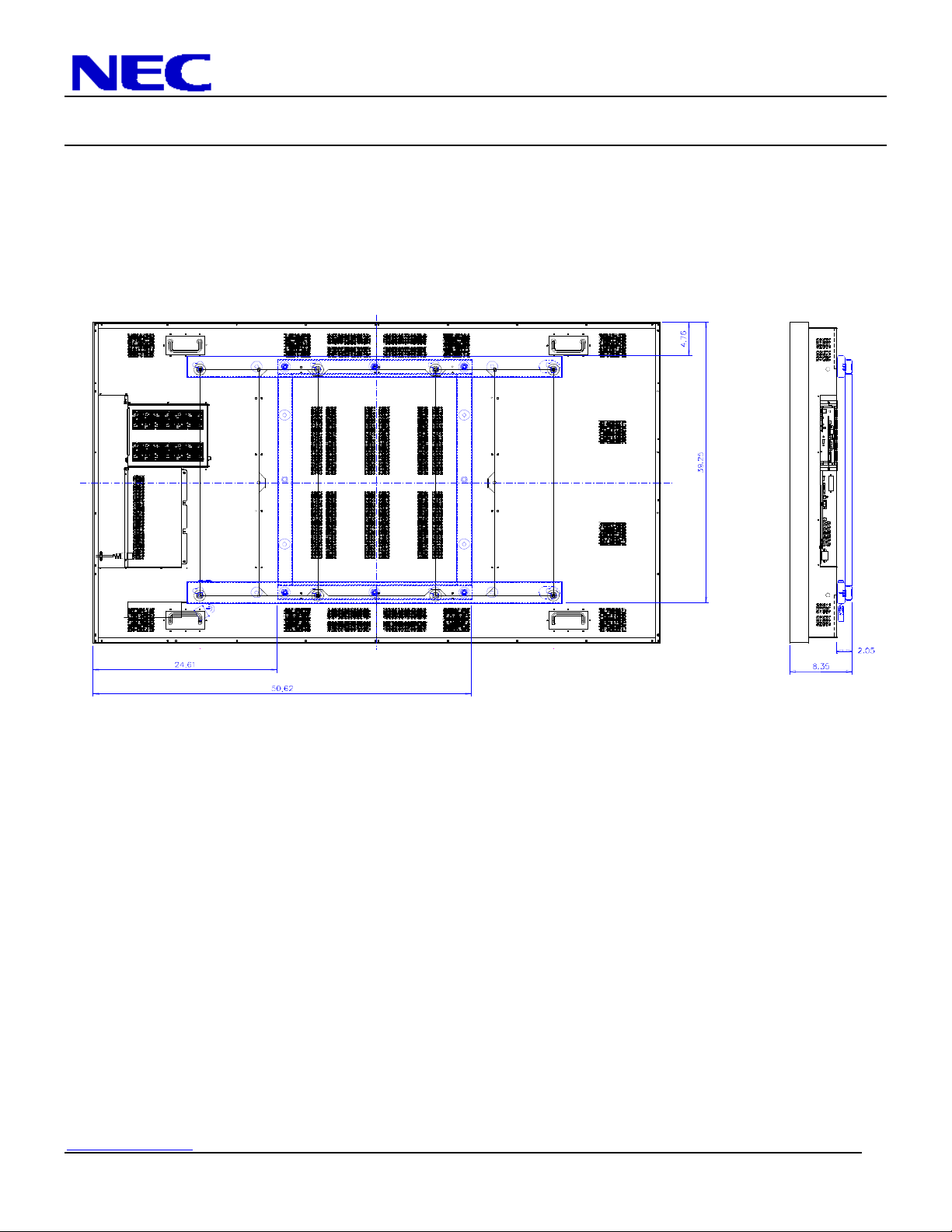

Dimensions with optional Tilt Wall Mount Kit (WM-82T) in Landscape Mode
www.necdisplay.com
A AAAAA
AA
AAA
LCD8205 Page 8 of 10
A
AA
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2
Dimensions with optional Tilt Wall Mount Kit (WM-82T) in Portrait Mode
www.necdisplay.com
AA
A AAAAA
LCD8205 Page 9 of 10
AA
A
AAA
NEC Display Solutions of America, Inc.
LCD8205 Installation Guide
82” LCD Display Rev 1.2
Control Codes

Function Code Data

OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D
INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D RGBHV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D DVI 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 33 03 71 0D HDMI__________ 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 34 03 76 0D VIDEO (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D DVD/HD 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D S-Video 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D TV (Analog) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 39 03 7B 0D TV (Digital) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 41 03 03 0D Option 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 44 03 06 0D AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D PICTURE MODE sRGB 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D HIBRIGHT 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D STANDARD 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D CINEMA 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0D
SCREEN MODE: NORMAL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D
FULL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D
WIDE 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D ZOOM 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D AUTO SETUP EXECUTE 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D
FILM MODE OFF 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 31 03 77 0D
AUTO 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 32 03 74 0D
NOTE: Contact your NEC rep for codes not listed. NOTE: Use a cross/reverse/null modem cable.
Cable Connection
Communication Protocol:
Interface: RS-232C Parity: None Communication: Asynchronous Stop Bit: 1 bit Baud Rate: 9600 bps Communication Code: He x Data Length: 8 bits
PC Control Connector (D-Sub 9P)

POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D

NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection. These connections are not required. The only connections required are pins 2 (RxD), 3 (TxD) and 5 (GND).
www.necdisplay.com
LCD8205 Page 10 of 10
