AccuSync LCD73VM
AccuSync LCD93VM

User’s Manual
Bedienerhandbuch
Manual del usuario
Manuel Utilisateur
Manuale utente

Руководство пользователя

00_Cover 16/5/06, 9:111

00_Cover 16/5/06, 9:112

TCO’03

Congratulations!

The display you have just purchased carries the TCO’03 Displays
label. This means that your display is designed, manufactured and
tested according to some of the strictest quality and environmental
requirements in the world. This makes for a high performance
product, designed with the user in focus that also minimizes the
impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for
the user and to reduce sight and strain problems. Important parameters are luminance,
contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment

• Electrical safety

Emissions

• Electromagnetic fields

• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified
environmental management system such as EMAS or ISO 14 001

• Restrictions on:

- chlorinated and brominated flame retardants and polymers

- heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation
with scientists, experts, users as well as manufacturers all over the world. Since the end of the
1980s TCO has been involved in influencing the development of IT equipment in a more user­friendly direction. Our labelling system started with displays in 1992 and is now requested by users
and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

00_Cover 16/5/06, 9:113

Manufacturer’s Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling
as one of the company’s top priorities in trying to minimize the burden placed on the environment.
We are engaged in developing environmentally-friendly products, and always strive to help define
and comply with the latest independent standards from agencies such as ISO (International
Organisation for Standardization) and TCO (Swedish Trades Union).

For more information, and for help in recycling your old NEC monitors, please visit our website at

http://www.nec-display-solutions.com (in Europe) or

http://www.nec-display.com (in Japan) or

http://www.necdisplay.com (in USA).

Country-specific recycling programmes can also be found at:

Sweden - http://www.el-retur.se

Germany - http://www.recyclingpartner.de/

Holland - http://www.mirec.nl/

Japan -http://www.diarcs.com/

Energy saving:

This monitor features an advanced energy saving capability. When a VESA Display Power
Management Signaling (DPMS) Standard signal is sent to the monitor, the Energy Saving mode is
activated. The monitor enters a single Energy Saving mode.

LCD73VM

Mode Power consumption LED colour

Normal Operation Approx. 39W Green

Energy Saving Mode Less than 2W Amber

Off Mode Less than 2W Unlit

LCD93VM

Mode Power consumption LED colour

Normal Operation Approx. 40W Green

Energy Saving Mode Less than 2W Amber

Off Mode Less than 2W Unlit

Disposing of your old NEC product

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that
waste electrical and electronic products carrying the mark (left) must be
disposed of separately from normal household waste. This includes
monitors and electrical accessories, such as signal cables or power cords.
When you need to dispose of your NEC display products, please follow
the guidance of your local authority, or ask the shop where you purchased
the product, or if applicable, follow any agreements made between
yourself and NEC.

The mark on electrical and electronic products only applies to the current
European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please
contact your local authority so as to comply with the correct disposal method.

00_Cover 16/5/06, 9:114

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S
POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK • DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage
within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any
kind of contact with any part inside this unit.

This symbol alerts the user that important literature
concerning the operation and maintenance of this
unit has been included. Therefore, it should be read
carefully in order to avoid any problems.

We hereby certify that the colour monitors AccuSync LCD73VM
(L175GZ)/AccuSync LCD93VM (L195GY) are in compliance with

Council Directive 73/23/EEC:

Council Directive 89/336/EEC:

Declaration of the Manufacturer

– EN 60950-1

– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024

and marked with

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Tokyo 108-0023, Japan

Minato-Ku

Contents

Your new NEC AccuSync LCD monitor box* should contain the
following:

• AccuSync LCD monitor with tilt base

User’s Manual

Power Cord

Audio
Cable

Base Stand

CD-ROM

Cable Holder AccuSync LCD monitor

Captive type (Video signal

cable is connected)

• Audio Cable

• Power Cord

• User’s Manual

• CD-ROM

• Base Stand

• Cable Holder

*

Remember to save your original box and packing material to
transport or ship the monitor.

English

Quick Start

Stand

Locking Tabs

Base

Figure A.1 Figure A.2

01_English 16/5/06, 9:111

Figure S.1

Macintosh Cable
Adapter (not included)

Figure B.1

Cable Holder

AUDIO INPUT

Cable holder

Connect to Computer
audio output

To attach the Base to the LCD Stand:

1. Insert the front of the LCD stand into the holes in the front of the

Base (Figure S.1).

2. Attach the Base to the Stand. The locking tab on the Base should

fit into the hole on the back of the Stand (Figure S.1).

To attach the Cable Holder:

1. Attach the Cable Holder on to the Base. Insert the hooks on the
Cable Holder into the holes at the back of the Stand and slide the
Cable Holder downward into place (Figure S.1).

NOTE: Please confirm that the tabs are completely secure.

To attach the AccuSync LCD monitor to your system, follow these
instructions:

1. Turn off the power to your computer.

2. For the PC with Analog output: Connect the 15-pin mini D-SUB
signal cable connected with the monitor to the connector of the
display card in your system (Figure A.1). Tighten all screws.

For the Mac: Connect the MultiSync Macintosh cable adapter
(not included) to the computer. Attach the 15-pin mini
D-SUB signal cable to the MultiSync Macintosh cable adapter
(Figure A.2). Tighten all screws.

NOTE: Some Macintosh systems do not require a Macintosh cable

adapter.

3. Connect the Audio Cable to the appropriate connector on the
back of the monitor (Figure B.1). Connect the Headphone
(not included) to the appropriate connector at the front of the
monitor (Figure C.1).

4. Connect the power cord to the power outlet. Place the Video
Signal Cable and power cord to the Cable holder (Figure B.1).

English-1

Headphone

Figure C.1

Non-abrasive surface

Figure R.1

100 mm

Specifications

4-SCREWS (M4)
(MAX depth: 8.5 mm)

Power Button

Figure TS.1

Figure R.2

Figure R.3

4 x 12 mm with lock washer and flat washer

Thickness of Bracket
(Arm) 2.0 ~ 3.2 mm

Tighten all screws

100 mm

Weight of LCD assembly: 3.9 kg - LCD73VM (MAX)

5.2 kg - LCD93VM (MAX)

NOTE: Adjust position of cable that place under the Cable holder to

avoid damage for cable or monitor.

NOTE: Please refer to Caution section of this manual for proper

selection of power cord.

5. Turn on the monitor with the front power button and the computer
(Figure C.1).

6. No-touch Auto Adjust automatically adjusts the monitor to optimal
settings upon initial setup for most timings.
For further adjustments, use the following OSM controls:

• Auto Adjust Contrast

• Auto Adjust

Refer to the Controls section of this User’s Manual for a full
description of these OSM controls.

NOTE: If you have any problem, please refer to the

Troubleshooting section of this User’s Manual.

Tilt

Grasp both sides of the monitor screen with your hands and adjust
the tilt as desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternative mounting purposes:

1. Disconnect all cables.

2. Place monitor face down on a non-abrasive surface (Figure R.1).

3. Remove the 2 screws connecting the monitor to the stand and
remove the stand as indicated (Figure R.2).
The monitor is now ready for mounting in an alternative manner.

4. Connect the AC cord to the back of the monitor (Figure R.3).

5. Reverse this process to re-attach stand.

NOTE: Use only VESA-compatible alternative mounting method.

NOTE: Handle with care when removing monitor stand.

Removing the Base

NOTE: Always remove the Base when shipping the LCD.

1. Place monitor face down on a non-abrasive
surface (Figure R.1).

2. While using your thumbs,
press the bottom tabs upward
to unlock.

3. Press the top tabs down to unlock
and pull off the stand.

Connecting a Flexible Arm

This LCD monitor is designed for use with a flexible arm.
Please use the attached screws (4pcs) as shown in the picture when
installing. To meet the safety requirements, the monitor must be
mounted to an arm which guaranties the necessary stability under
consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm
(e.g. GS mark).

English

Controls

OSM (On-Screen Manager) control buttons on the front of the monitor function as follows:

1. Basic function at pressing each key

Button

At No OSD
showing

At OSD showing

(Icon selection stage)

At OSD showing

(Adjustment stage)

SELECT

Showing OSM. Shortcut to Bright adjust

Go to Adjustment stage. Cursor goes to left. Cursor goes to right.

Go to Icon selection stage. Adjust value decrease or

01_English 16/5/06, 9:112

window.

Cursor for adjust goes to
left.

– +

Shortcut to Volume adjust
window.

Adjust value increase or
Cursor for adjust goes to
right.

English-2

AUTO/RESET

“Auto adjust” operate.

Reset operation.
Mute off/on switch on
Volume adjustment window.

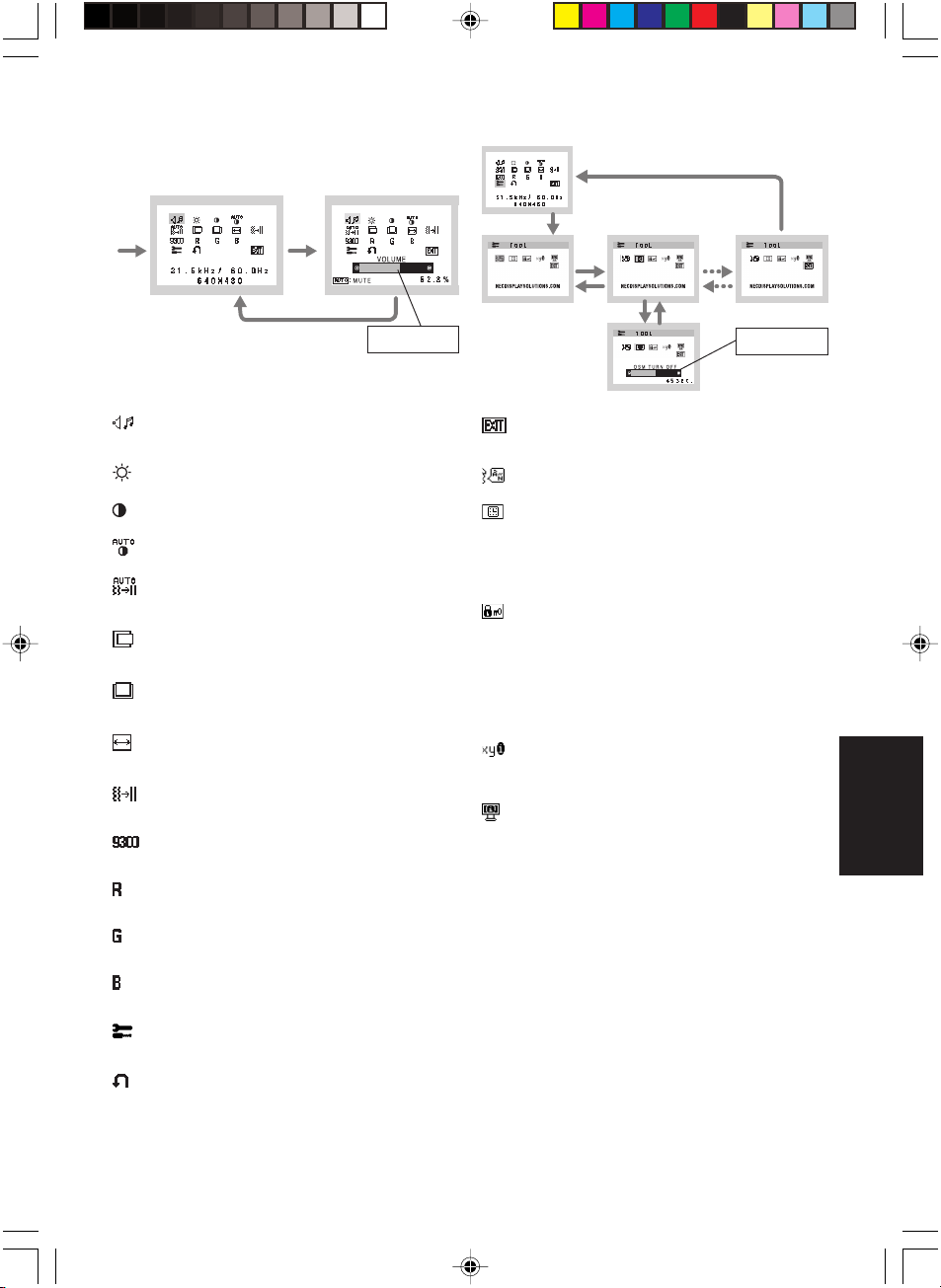

2. OSM structure

Example Tool:

Main Menu (Icon Select) Main Menu (Adjust)

Press

“SELECT”

key

AUDIO

Audio volume icon is chosen, depending on the volume
condition (AUTO/RESET).

Press

“SELECT”

key

Press “SELECT” key

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO CONTRAST

Adjusts the image displayed for non-standard video inputs.

AUTO ADJUST

Automatically adjusts the Image Position, the H. Size and
Fine setting.

LEFT/RIGHT

Controls Horizontal Image Position within the display area of
the LCD.

DOWN/UP

Controls Vertical Image Position within the display area of the
LCD.

H. SIZE

Adjusts the horizontal size by increasing or decreasing this
setting.

FINE

Improves focus, clarity and image stability by increasing or
decreasing this setting.

COLOUR CONTROL SYSTEMS

Four colour presets (9300/7500/6500/USER) select the
desired colour setting.

COLOUR RED

Increase or decreases Red. The change will appear on
screen.

COLOUR GREEN

Increase or decreases Green. The change will appear on
screen.

COLOUR BLUE

Increase or decreases Blue. The change will appear on
screen.

TOOL

Selecting TOOL allows you to get into the sub menu.

FACTORY PRESET

Selecting Factory Preset allows you to reset all OSM control
settings back to the factory settings. The RESET button will
need to be held down for several seconds to tage effect.
Individual settings can be reset by highlighting the control to
be reset and pressing the RESET button.

Adjust by using

“–” or “+”

Press “SELECT” key

Press “SELECT” key

Press
“–” or

“+”

Sub Menu

(Icon Select)

Sub Menu (Adjust)

EXIT

Selecting EXIT allows you exit OSM menu/ sub menu.

LANGUAGE

OSM control menus are available in eight languages.

OSM TURN OFF

The OSM control menu will stay on as long as it is in use.
In the OSM Turn OFF submenu, you can select how long the
monitor waits after the last touch of a button to shut off the
OSM control menu. The preset choices are 10 - 120 seconds
by 5 seconds step.

OSM LOCK OUT

This control completely locks out access to all OSM control
functions without Brightness and Contrast. When attempting
to activate OSM controls while in the Lock Out mode, a
screen will appear indicating the OSM are locked out. To
activate the OSM Lock Out function, press “AUTO/ RESET”,
then “+” key and hold down simultaneously. To de-activate the
OSM Lock Out, press “AUTO/ RESET”, then “+” key and hold
down simultaneously.

RESOLUTION NOTIFIER

If ON is selected, a message will appear on the screen after
30 seconds, notifying you that the resolution is not at optimal
resolution.

Press
“–” or

“+”

Press “SELECT” key

MONITOR INFO

Indicates the model and serial numbers of your monitor.

OSM Warning

OSM Warning menus disappear with SELECT button.
NO SIGNAL: This function gives a warning when there is no
signal present. After power is turned on or when there is a
change of input signal or video is inactive, the No Signal
window will appear.
RESOLUTION NOTIFIER: This function gives a warning of
use with optimized resolution. After power is turned on or
when there is a change of input signal or the video signal
doesn’t have proper resolution, the Resolution Notifier
window will open. This function can be disabled in the TOOL
menu.
OUT OF RANGE: This function gives a recommendation of
the optimized resolution and refresh rate. After the power is
turned on or there is a change of input signal or the video
signal doesn’t have proper timing, the Out Of Range menu
will appear.

Adjust by using

“–” or “+”

English

01_English 16/5/06, 9:113

English-3

WARNUNG

SETZEN SIE DAS GERÄT WEDER REGEN NOCH FEUCHTIGKEIT AUS, DA ES ANDERNFALLS ZU FEUER ODER STROMSCHLÄGEN KOMMEN
KANN. VERWENDEN SIE DEN NETZSTECKER DIESES GERÄTS KEINESFALLS MIT EINEM VERLÄNGERSKABEL ODER EINER
STECKDOSENLEISTE, WENN DIE STECKERSTIFTE NICHT VOLLSTÄNDIG EINGEFÜHRT WERDEN KÖNNEN.
ÖFFNEN SIE DAS GEHÄUSE NICHT, DA SICH IM INNEREN KOMPONENTEN BEFINDEN, DIE UNTER HOCHSPANNUNG STEHEN. LASSEN SIE
WARTUNGSARBEITEN VON QUALIFIZIERTEN WARTUNGSTECHNIKERN DURCHFÜHREN.

VORSICHT

STROMSCHLAGGEFAHR • NICHT ÖFFNEN

VORSICHT: ENTFERNEN SIE KEINESFALLS ABDECKUNG ODER

RÜCKSEITE, DAMIT ES NICHT ZU STROMSCHLÄGEN
KOMMT. IM INNEREN BEFINDEN SICH KEINE VOM
BENUTZER ZU WARTENDEN KOMPONENTEN. LASSEN
SIE WARTUNGSARBEITEN VON QUALIFIZIERTEN
WARTUNGSTECHNIKERN DURCHFÜHREN.

Dieses Symbol weist den Benutzer auf nicht isolierte
spannungsführende Komponenten im Gerät hin, die
Stromschläge verursachen können. Aus diesem Grund
dürfen Sie keinesfalls Kontakt mit einer Komponente im
Geräteinneren herstellen.

Dieses Symbol weist den Benutzer auf wichtige
Informationen zu Betrieb und Pflege dieses Geräts hin.
Die Informationen sollten sorgfältig gelesen werden, um
Probleme zu vermeiden.

Wir bestätigen hiermit, dass der Farbmonitor AccuSync LCD73VM
(L175GZ) und AccuSync LCD93VM (L195GY) den folgenden
Richtlinien entspricht:

EG-Direktive 73/23/EG:

EG-Direktive 89/336/EG:

Erklärung des Herstellers

– EN 60950-1

– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024

und mit folgendem Siegel
gekennzeichnet ist:

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

Inhalt der Verpackung

Der Karton* mit Ihrem neuen NEC AccuSync LCD-Monitor sollte
folgende Komponenten enthalten:

• AccuSync LCD-Monitor mit verstellbarem Fuß

• Audiokabel

• Netzkabel

• Bedienungsanleitung

• CD-ROM

• Standfuß

• Kabelhalter

Bewahren Sie den Originalkarton und das Verpackungsmaterial

*

für spätere Transporte des Monitors auf.

Bedienung-

sanleitung

Netzkabel

Audiokabel

Standfuß

CD-ROM

Kabelhalter AccuSync LCD-Monitor

mit montiertem

Videosignalkabel

Kurzanleitung

So befestigen Sie den Standfuß am Fuß des LCD-Monitors:

1. Setzen Sie die Vorderseite des LCD-Fußes in die Löcher auf der

Monitorfuß

Verriegelungen

Standfuß

Abbildung S.1

Abbildung A.1 Abbildung A.2

Macintosh­Kabeladapter
(nicht mitgeliefert)

Abbildung B.1

Kabelhalter

AUDIOEINGANG

Kabelhalter

An Audio-Ausgang des
Computers anschließen

Vorderseite des Standfußes (Abbildung S.1).

2. Befestigen Sie den Standfuß am Monitor. Der Schnappverschluss
des Standfußes muss in die Aussparung auf der Rückseite des
Monitorfußes einrasten (Abbildung S.1).

Gehen Sie folgendermaßen vor, um den Kabelhalter zu befestigen:

1. Befestigen Sie den Kabelhalter am Standfuß. Stecken Sie die Haken
des Kabelhalters in die Aussparungen auf der Rückseite des
Monitorfußes und schieben Sie den Kabelhalter nach unten in
Position (Abbildung S.1).

HINWEIS: Überprüfen Sie bitte, dass der Schnappverschluss richtig

eingerastet ist.

Gehen Sie folgendermaßen vor, um den AccuSync LCD-Monitor an
Ihr System anzuschließen:

1. Schalten Sie Ihren Computer aus.

2. PC mit analogem Ausgang: Verbinden Sie den Mini-D-SUB-
Stecker (15 Stifte) des am Monitor montierten Signalkabels mit
dem Anschluss der Grafikkarte in Ihrem System (Abbildung A.1).
Ziehen Sie die Schrauben fest.

Mac: Schließen Sie den MultiSync-Kabeladapter für Macintosh
(nicht mitgeliefert) an den Computer an. Stecken Sie den Mini-D­SUB-Stecker (15 Stifte) des Signalkabels in den Macintosh­Kabeladapter (Abbildung A.2). Ziehen Sie die Schrauben fest.

HINWEIS: Für einige Macintosh-Systeme ist kein Macintosh-

Kabeladapter erforderlich.

3. Verbinden Sie das Audiokabel mit dem entsprechenden Anschluss
auf der Rückseite des Monitors (Abbildung B.1). Stecken Sie den
Kopfhöhrer (nicht mitgeliefert) in die entsprechende Buchse auf
der Vorderseite des Monitors (Abbildung C.1).

4. Schließen Sie das Netzkabel an die Steckdose an. Führen Sie das
Signalkabel und Netzkabel durch den Kabelhalter (Abbildung B.1).

HINWEIS: Bringen Sie die Kabel so unter der Kabelabdeckung an, dass

Deutsch-1

weder Kabel noch Monitor beschädigt werden können.

Deutsch

02_German 16/5/06, 9:111
