NEC Express5800/T110j-S System Configuration Manual

NEC Express5800/T110j-S

System Configuration Guide

Introduction

This document contains product and configuration information that will enable you to configure your system. The guide will ensure fast and proper configuration of your NEC Express5800 server.

December 28, 2018 Revision 1.0 NEC Corporation

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 2

Contents

TECHNICAL SPECIFICATION ........................................................................................ 3

Specification .......................................................................................................................................... 3

EXTERNAL VIEWS ......................................................................................................... 6

Front View .............................................................................................................................................. 6

Rear Views ............................................................................................................................................. 7

Dimensions (mm) .................................................................................................................................. 8

CONFIGURATION DIAGRAM ....................................................................................... 12

Expansion Slots .................................................................................................................................. 13

SERVER CONFIGURATION ......................................................................................... 14

1 Base Models ................................................................................................................................. 14

2 Processor ..................................................................................................................................... 14

3 Memory ......................................................................................................................................... 14

4 Internal Hard Disk Drives ............................................................................................................ 16

4.1 Drive Cage ........................................................................................................................... 17

4.2 M.2 SATA SSD Installation Kit ............................................................................................. 17

4.3 RAID Configuration .............................................................................................................. 18

4.4 Internal Drives ..................................................................................................................... 19

5 Internal Optical Drive ................................................................................................................... 21

6 Flash FDD ..................................................................................................................................... 21

7 Internal RDX Drives ..................................................................................................................... 22

7.1 RDX Drive ............................................................................................................................ 22

7.2 RDX Data Cartridge ............................................................................................................. 22

8 PCI Card ........................................................................................................................................ 23

8.1 Network Interface Controller ................................................................................................ 23

8.2 SAS Controller ..................................................................................................................... 24

8.3 Serial Port Adapter .............................................................................................................. 24

8.4 NeoFace Accelarator ........................................................................................................... 24

9 Other Add-in Components .......................................................................................................... 25

9.1 Internal Battery Kit ............................................................................................................... 25

9.2 High Temperature Support Option ....................................................................................... 26

9.3 Additional FAN kit for PCI .................................................................................................... 26

10 Add-on Components .................................................................................................................. 26

10.1 Input Device ....................................................................................................................... 26

10.2 Server Management License ............................................................................................ 26

10.3 Dust Proof Kit .................................................................................................................... 27

10.4 Tamper Proof Power Button Covers .................................................................................. 27

10.5 Rack Conversion Kit .......................................................................................................... 27

REFERENCES............................................................................................................... 28

Server Management ............................................................................................................................ 28

OS Support Matrix for PCI Cards and Embedded Controllers ....................................................... 29

Supported PCI cards and Installable Slots....................................................................................... 29

Secure Boot Mode ............................................................................................................................... 30

Copyright Notice and Liability Disclaimer ........................................................................................ 31

REVISION HISTORY ..................................................................................................... 32

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 3

Technical Specification

Specification

(1 / 2)

Model

T110j-S

Part Number

N8100-2681F, N8100-2682F

Processor

Type

Intel® Pentium® processor G5400

Intel® Xeon® processor E2124

Intel® Xeon® processor E2124G

Clock speed

3.7 GHz

3.3 GHz

3.4 GHz

Number of Processors

Cache

4 MB 8MB

8MB Cores and Threads

2C / 4T

4C / 4T

Chipset

Intel® C246 Chipset

Memory

Type

DDR4-2666 ECC Unbuffered DIMM

Standard Capacity

0 GB Maximum Capacity

64 GB (4 x 16 GB)

Internal Storage

Standard Capacity

0 GB Maximum Capacity

28.8 TB (2 x 12 TB + 2x 2.4TB)

Disk Controller

SATA : 6 Gb/s (Integrated) SATA/SAS : 6/12 Gb/s (Optional)

RAID

SATA : RAID 0/1/10 (Standard

)

SATA/SAS : RAID 0/1/5/6/10/50/60 (Optional)

Hot Plug

Supported with hot plug drive bay

Optical Disk Drive

Optional

3.5-inch Media Bays

Disk Drive Bays

2 or 4 or 6

Expansion Slots

Total: 4 slots available 1 PCIe 3.0 x16 (x16 connector) 3 PCIe 3.0 x4 (x8 connector)

Video

Controller (VRAM)

Integrated in Server Management Controller (32MB)

Resolution / Color

1600 x 1200 / 16.7M 2

Interfaces

1 VGA (15-pin mini D-sub,1 rear) 1 to 2 Serial (9-pin mini D-sub, RS232-C, 1 to 2 rear) 4 USB 3.0 (2 front, 2 rear) (plus 1 internal USB 3.0) 2 USB 3.1 (2 rear) 2 1000BASE-T LAN connector (RJ-45, 2 rear) 1 1000BASE-T LAN connector for Management (RJ-45, 1 rear)

Server Management

Aspeed AST2500

System Fan

Standard

Power Supply

1 x 250 Watt 80 PLUS® Platinum certified non-hot plug PSU 2 x 460 Watt 80 PLUS® Platinum certified Hot plug PSU 100-240 VAC ± 10% 50 / 60 Hz ± 3 Hz

Power Consumption

(Max. Config, Idling)

129 VA / 128Watt

176 VA / 174Watt

198 VA / 197 Watt

Power Consumption

(Max. Config, Operating)

152 VA / 151 Watt

199 VA / 197 Watt

222 VA / 221 Watt

Acoustic Noise (Sound Pressure Level) 3

Minimum Config.

28.5 dB

Maximum Config.

37.0 dB

Dimensions (W x D x H )

Standard Bezel: 98.0 x 386.5 x 341.0 mm / 3.9 x 15.2 x 13.4 in Dust Proof Bezel: 98.0 x 415.7 x 341.0 mm / 3.9 x 16.3 x 13.4 in

Weight (Minimum / Maximum)

8 kg / 11.5 kg, 17.64 lbs. / 25.35 lbs.

Temperature, Relative Humidity (non-condensing)

Operating: 5° to 40° C / 41° to 104° F (Standard) or 5° to 48° C / 41° to 118° F (Optional), 10 to 85% Non-Operating: -10° to 55° C / 14° to 131° F, 10 to 85%

Regulatory and Safety

FCC, c-UL, CE, CB, RoHS, WEEE, BSMI, CCC

Operating Systems and Virtualization Software

Microsoft® Windows Server® 2016 Standard Microsoft® Windows Server® 2016 Datacenter

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 4

Embedded SATA RAID controller is supported only on limited operating systems.

Maximum resolution available via Aspeed AST2500 remote console is 1280 x 1024 / 65K colors.

Noise emission was measured in accordance with ISO 7779, at 25°C. The actual value may vary by the operating environment.

Support on Xeon processor systems only.

(2 / 2)

Model

T110j-S

Part Number

N8100-2681F, N8100-2682F

Processor

Type

Intel® Xeon ® processor E2126G

Intel® Xeon ® processor E2134

Intel® Xeon® processor E2146G

Intel® Xeon® processor E2174G

Clock speed

3.3 GHz

3.5 GHz

3.8 GHz

Number of Processors

Cache

12 MB

8MB

12MB

8MB

Cores and Threads

6C / 6T

4C / 8T

6C / 12T

4C / 8T

Chipset

Intel® C246 Chipset

Memory

Type

DDR4-2666 ECC Unbuffered DIMM

Standard Capacity

0 GB Maximum Capacity

64 GB (4 x 16 GB)

Internal Storage

Standard Capacity

0 GB Maximum Capacity

28.8 TB (2 x 12 TB + 2x 2.4TB)

Disk Controller

SATA : 6 Gb/s (Integrated) SATA/SAS : 6/12 Gb/s (Optional)

RAID

SATA : RAID 0/1/10 (Standard

)

SATA/SAS : RAID 0/1/5/6/10/50/60 (Optional)

Hot Plug

Supported with hot plug drive bay

Optical Disk Drive

Optional

3.5-inch Media Bays

Disk Drive Bays

2 or 4 or 6

Expansion Slots

Total: 4 slots available 1 PCIe 3.0 x16 (x16 connector) 3 PCIe 3.0 x4 (x8 connector)

Video

Controller (VRAM)

Integrated in Server Management Controller (32MB)

Resolution / Color

1600 x 1200 / 16.7M 2

Interfaces

Server Management

Aspeed AST2500

System Fan

Standard

Power Supply

1 x 250 Watt 80 PLUS® Platinum certified non-hot plug PSU 2 x 460 Watt 80 PLUS® Platinum certified Hot plug PSU 100-240 VAC ± 10% 50 / 60 Hz ± 3 Hz

Power Consumption

(Max. Config, Idling)

211 VA / 210 Watt

204 VA / 203 Watt

219 VA / 218 Watt

207 VA / 206 Watt

Power Consumption

(Max. Config, Operating)

236 VA / 235 Watt

229 VA / 228 Watt

245 VA / 244 Watt

232 VA / 230 Watt

Acoustic Noise (Sound Pressure Level) 3

Minimum Config.

28.5 dB

Maximum Config.

37.0 dB

Dimensions (W x D x H )

Standard Bezel: 98.0 x 386.5 x 341.0 mm / 3.9 x 15.2 x 13.4 in Dust Proof Bezel: 98.0 x 415.7 x 341.0 mm / 3.9 x 16.3 x 13.4 in

Weight (Minimum / Maximum)

8 kg / 11.5 kg, 17.64 lbs. / 25.35 lbs.

Temperature, Relative Humidity (non-condensing)

Operating: 5° to 40° C / 41° to 104° F (Standard) or 5° to 48° C / 41° to 118° F (Optional), 10 to 85% Non-Operating: -10° to 55° C / 14° to 131° F, 10 to 85%

Regulatory and Safety

FCC, c-UL, CE, CB, RoHS, WEEE, BSMI, CCC

Operating Systems and Virtualization Software

Microsoft® Windows Server® 2016 Standard Microsoft® Windows Server® 2016 Datacenter

Embedded SATA RAID controller is supported only on limited operating systems.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 5

Maximum resolution available via Aspeed AST2500 remote console is 1280 x 1024 / 65K colors.

Noise emission was measured in accordance with ISO 7779, at 25°C. The actual value may vary by the operating environment.

Support on Xeon processor systems only.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 6

External Views

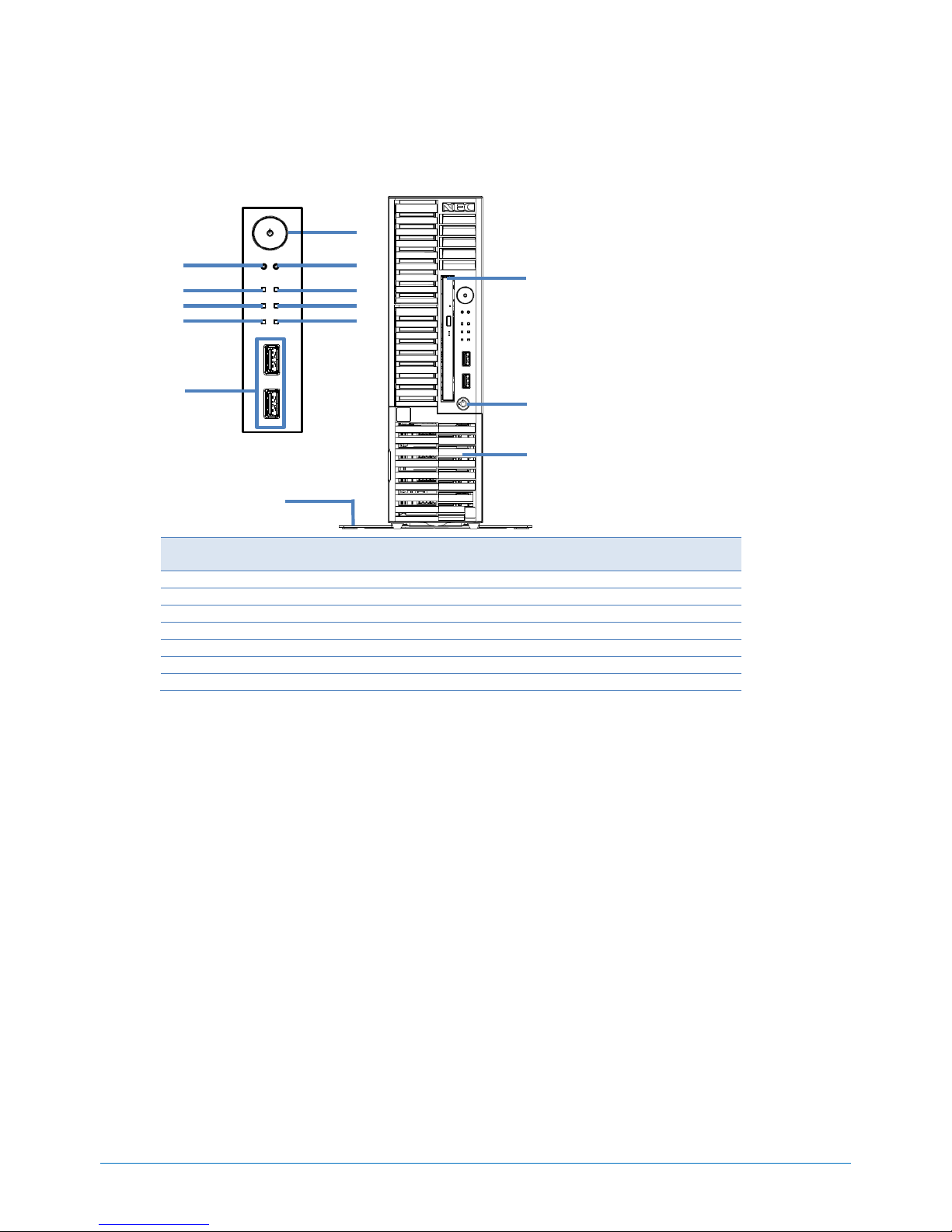

Front View

Legend

Power Button

Global LED 1

Dump (NMI) Button

Global LED 2

BMC Reset Button

USB 3.0 Connectors

Power LED

Optical Disk Drive

Power Capping LED

Cover Key (2.5 inch Drive Configuration)

STATUS LED 1

Drive Bay Cover

STATUS LED 2

Stabilizer

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 7

Rear Views

Fixed power supply model

Redundant power supply model

Legend

Serial Port Connector

Data LAN Connectors

VGA Connector

PCI Slots

USB Connectors

AC Inlet

Management LAN Connector

Power Supply Unit

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 8

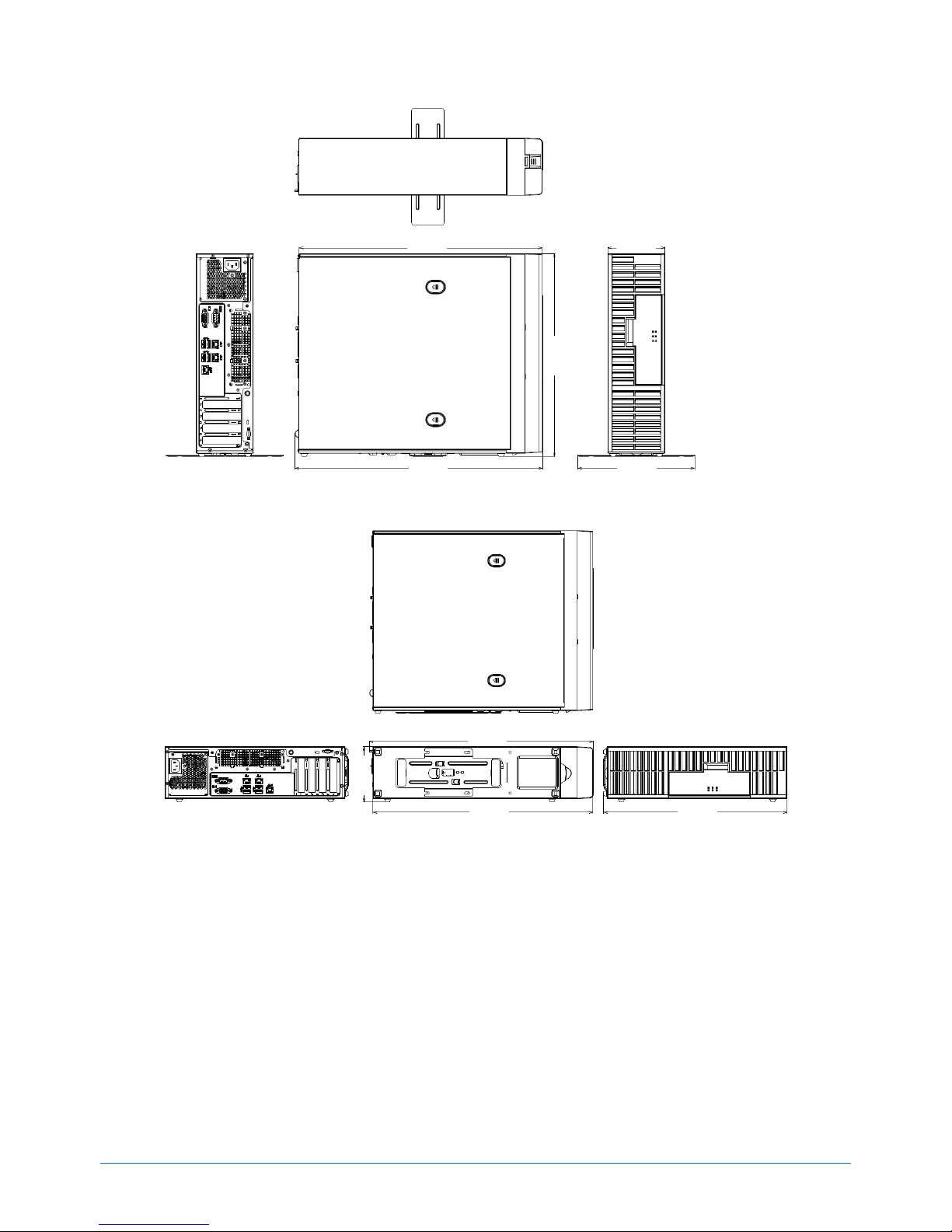

Dimensions (mm)

Standard Bezel Tower Orientation

Desktop Orientation

395.4

98.0

200.0

347.1

386.5

347.1

386.5

395.4

104.2

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 9

Tower Orientation (Redundant power supply)

Desktop Orientation (Redundant power supply)

Dust Proof Bezel Tower Orientation (Fixed power supply)

447.5

98.0

200.0

347.1

415.7

347.1

415.7

447.5

104.2

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 10

Desktop Orientation (Fixed power supply)

415.7

98.0

200.0

347.1

423.7

347.1

415.7

423.7

104.2

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 11

Tower Orientation (Redundant power supply)

Desktop Orientation (Redundant power supply)

447.5

98.0

200.0

347.1

415.7

347.1

415.7

447.5

104.2

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 12

Configuration Diagram

Fixed Power Supply Model

Legend: Standard Components Mandatory Components

Redundant Power Supply Model

Legend: Standard Components Mandatory Components

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 13

Expansion Slots

Legend

PCIe 3.0 x4, x8 connector, Low Profile, up to 168mm length

PCIe 3.0 x16, x16 connector, Low Profile, up to 168mm length

PCIe 3.0 x4, x8 connector, Low Profile, up to 168mm length

Slot #4

Slot #3

Slot #2

Slot #1

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 14

Server Configuration

1 Base Models

Product Name / Description

Part Number

Express5800/T110j-S

no Processor, no RAM, no Drive Cage, no HDD, no Optical Drive Including: 250 Watt non-hot plug power supply

N8100-2681F

Express5800/T110j-S

no Processor, no RAM, no Drive Cage, no HDD, no Optical Drive Including: 2x 460 Watt hot plug power supply

N8100-2682F

NOTE:

 The base model must be ordered with a processor kit, memory, a drive cage, and an optical drive.

2 Processor

Available sockets: 1

Category

Product Name / Description

Part Number

Processors

Required

Pentium G5400 Processor Kit

Intel® Pentium ® Processor G5400 (3.7 GHz, 2C/4T, 4 MB)

N8101-1465F

Xeon E-2124 Processor Kit

Intel® Xeon ® Processor E-2124 (3.3 GHz, 4C/4T, 8 MB)

N8101-1467F

Xeon E-2124G Processor Kit Intel® Xeon ® Processor E-2124G (3.4 GHz, 4C/4T, 8 MB)

N8101-1468F

Xeon E-2126G Processor Kit

Intel® Xeon ® Processor E-2126G (3.3 GHz, 6C/6T, 12 MB)

N8101-1469F

Xeon E-2134 Processor Kit

Intel® Xeon ® Processor E-2134 (3.5 GHz, 4C/8T, 8 MB)

N8101-1470F

Xeon E-2146G Processor Kit

Intel® Xeon ® Processor E-2146G (3.5 GHz, 6C/12T, 12 MB)

N8101-1472F

Xeon E-2174G Processor Kit

Intel® Xeon ® Processor E-2174G (3.8 GHz, 4C/8T, 8 MB)

N8101-1473F

NOTE:

 One processor kit from above must be installed.

3 Memory

Available slots: 4

Product Name / Description

Part Number

8GB DDR4-2666 UNB Memory Kit

8GB Unbuffered ECC DIMM, DDR4-2666

N8102-716F

16GB DDR4-2666 UNB Memory Kit

16GB Unbuffered ECC DIMM, DDR4-2666

N8102-717F

NOTE:

 Minimum one memory kit must be installed.  To install by double of memory kit is recommended in order to increase memory transfer speed by dual-channel symmetric

configuration.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 15

Maximum Available Memory

See the table below for the maximum memory size that you can actually use on your system.

Operating Systems

Maximum Memory Size Supported by Operating Systems

Maximum Available Memory

Microsoft Windows Server 2016 Standard 1 Microsoft Windows Server 2016 Datacenter 1

24TB

64GB

The maximum available memory size of Hyper-V systems is below:

- Windows Server 2016 : 24 TB

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 16

4 Internal Hard Disk Drives

Front Cage (Required to select)

Front Cage (Additional)

Chassis Internal (Optional Installation Kit)

4x 2.5-inch SAS/SATA drive

2x 2.5-inch SAS/SATA drive

2x M.2 SATA SSD

2x 3.5-inch SATA HDD

2x 2.5-inch SAS/SATA drive

2.5-inch Drive

 The 4x 2.5-inch drive cage can mount four 2.5-inch SAS / SATA drives as standard. For installing more drives, please add an

additional drive cage.

 One cables is attached in drive cage, for connection to maximum of four SAS / SATA drives.

3.5-inch Drive

 The 2x 3.5-inch drive cage can install two 3.5-inch SATA drives as standard. For installing more drives, please add an additional

drive cage(only 2.5-inch drive is available).

One cables is attached in drive cage, for connection to maximum of two SATA drives.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 17

4.1 Drive Cage

4.1.1 2.5-inch Drive

Category

Product Name / Description

Part Number

Cable

Internal SAS/SATA Cable

Mini-SAS to mini-SAS

(Attached in Cage)

Drive Cage

Required

2.5-inch Drive Cage

4 x 2.5-inch hot plug drive bays

N8154-82F

Optional Drive Cage

(more than 4 Drive)

2.5-Inch Hot Plug Drive Cage Kit

2x 2.5-inch hot plug drive bays Including 1x mini-SAS to 2x Single SATA cable

N8154-83F

NOTE:

 Up to two kinds of drives selected from SAS 10K HDDs (512n), SAS 10K HDDs (512e), SAS 15K HDDs, SATA HDDs, and

SSDs can be mixed in a system. However, SAS HDDs and SATA HDDs cannot be mixed in the same cage, and HDDs in the same cage must have the same rotational speed.

 Internal RDX drive cannot be installed in the redundant power supply model with optional 2.5-inch drive cage.  When N8154-83F 2.5-Inch Hot Plug Drive Cage Kit is installed, ambient temperature is up to 40 °C .N8181-140F High

Temperature Support Option is not supported.

4.1.2 3.5-inch Drive

Category

Product Name / Description

Part Number

Cable

Internal SAS/SATA Cable

miniSAS to 2x Single SATA

(Attached in Cage)

Drive Cage

Required

3.5-inch Drive Cage

2 x 3.5-inch non hot plug (fixed) drive bays

N8154-136F

Optional Drive Cage

(more than 2 Drive)

2.5-Inch Hot Plug Drive Cage Kit

2x 2.5-inch hot plug drive bays Including 1x mini-SAS to 2x Single SATA cable

N8154-83F

NOTE:

 2.5-inch drives installed in the optional cage must be identical.  Internal RDX drive cannot be installed in the redundant power supply model with optional 2.5-inch drive cage.  Hot plug insertion/removal of any drive is not supported when both 3.5-inch and 2.5-inch drives are installed.  When N8154-83F 2.5-Inch Hot Plug Drive Cage Kit is installed, ambient temperature is up to 40 °C .N8181-140F High

Temperature Support Option is not supported.

 Internal RDX drive cannot be installed in the redundant power supply model with optional 2.5-inch drive cage.  Up to two kinds of drives selected from SAS 10K HDDs (512n), SAS 10K HDDs (512e), SAS 15K HDDs, SATA HDDs, and

SSDs can be mixed in a system. However, SAS HDDs and SATA HDDs cannot be mixed in the same cage, and HDDs in the same cage must have the same rotational speed.

4.2 M.2 SATA SSD Installation Kit

The M.2 SATA SSD can be used for boot drive only.

Installation Kit

Product Name / Description

Part Number

Dual M.2 SATA Drive Installation Kit One installation kit is supported on a system

M.2 PCIe SSD adapter, 2 x M.2 socket

N8118-307

Internal SAS/SATA Cable

1x Mini SAS HD – 2x Single SATA. , 1set

K410-365(00)

NOTE:

 Even if no drive is installed, N8154-136F 3.5-inch Drive Cage or N8154-82F 2.5-inch Drive Cage is required.  Up to two M.2 SSDs can be mounted on M.2 installation kit, two M.2 SSDs are required the same capacity.  M.2 SATA SSD is for OS boot only.  Ambient temperature is up to 40 °C .N8181-146F High temperature resistant Kit- is not supported.  When installing M.2 SATA SSD, only N8103-205/-206/-210 is supported with VMware.  When installing M.2 SATA SSD, only Embedded SATA controller or N8103-205/-206/-210 is supported with Wondows.  Mixed installation of M.2 SATA SSD and SSD/HDD is supported on Embedded SATA controller

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 18

4.3 RAID Configuration

4.3.1 Embedded SATA non-RAID Controller

Category

Product Name / Description

Part Number

Storage Controller

Embedded SATA Controller

4x 6Gb/s SATA

(Standard)

NOTE:

 Embedded SATA RAID controller is supported only on limited OS. For more details, please see OS Support Matrix for PCI

Cards and Embedded Controllers.

 Hot plug insertion/removal is not supported with the embedded SATA non-RAID controller.  Up to four drives can be installed when you choose the Embedded SATA Non-RAID controller.  All drives within a RAID array should be of the same capacity and rotation speed.  Up to two kinds of drives selected from SAS 10K HDDs (512n), SAS 10K HDDs (512e), SAS 15K HDDs, SATA HDDs, and

SSDs can be mixed in a system. However, SAS HDDs and SATA HDDs cannot be mixed in the same cage, and HDDs in the same cage must have the same rotational speed.

4.3.2 Embedded SATA RAID Controller for 2.5-inch Drives

Category

Product Name / Description

Part Number

Storage Controller

Embedded SATA Controller

4x 6Gb/s SATA, RAID0/1/10 capable

(Standard)

Cable

Internal SATA Cable

Mini-SAS to mini-SAS, miniSAS – 2x Single SATA. For 2.5-inch drive

cage.

(Attached in Cage)

Internal SAS/SATA Cable

MiniSAS to 2x single SATA. For 3.5-inch drive cage.

(Attached in Cage)

NOTE:

 All hard drives within a RAID array should be of the same capacity and rotation speed.  Embedded SATA RAID controller is supported only on limited OS. For more details, please see OS Support Matrix for PCI

Cards and Embedded Controllers.

 Embedded SATA controller support on Windows only.  Up to two kinds of drives selected from SAS 10K HDDs (512n), SAS 10K HDDs (512e), SAS 15K HDDs, SATA HDDs, and

SSDs can be mixed in a system. However, SAS HDDs and SATA HDDs cannot be mixed in the same cage, and HDDs in the same cage must have the same rotational speed.

4.3.3 RAID Controller

Category

Product Name / Description

Part Number

Storage Controller

Required

RAID Controller (RAID 0/1)

Avago(LSI) MegaRAID SAS 944N-8i RAID0/1/10, no memory cache, Int. 8, PCIe 3.0(x8), SAS 12Gb/s, SATA 6Gb/s

N8103-205

RAID Controller (2GB, RAID 0/1, WT/WB)

Avago(LSI) MegaRAID SAS 946N-8i RAID 0/1, 2GB, Int. 8, PCIe 3.0 x8, SAS 12Gb/s, SATA 6Gb/s

N8103-206

RAID Controller (2GB, RAID 0/1/5/6, WT/WB)

Avago(LSI) MegaRAID SAS 946N-8i RAID0/1/5/6/10/50/60, 2GB, Int. 8, PCIe 3.0 x8, SAS 12Gb/s, SATA 6Gb/s

NOTE:

It can not be supported with N8118-307 Dual M.2 SATA Drive Installation Kit

N8103-207

RAID Controller (4GB, RAID 0/1/5/6, WT/WB)

LSI MegaRAID SAS 946N-8i RAID0/1/5/6/10/50/60, 4GB, Int. 8, PCIe 3.0(x8), SAS 12Gb/s, SATA 6Gb/s

NOTE:

It can not be supported with N8118-307 Dual M.2 SATA Drive Installation Kit

N8103-208

RAID Controller (2GB, RAID 0/1, WT)

Avago(LSI) MegaRAID SAS 945N-8i RAID 0/1, 2GB, Int. 8, PCIe 3.0 x8, SAS 12Gb/s, SATA 6Gb/s

N8103-210

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 19

RAID Controller (2GB, RAID 0/1/5/6, WT)

Avago(LSI) MegaRAID SAS 945N-8i RAID0/1/5/6/10/50/60, 2GB, Int. 8, PCIe 3.0 x8, SAS 12Gb/s, SATA 6Gb/s

NOTE:

It can not be supported with N8118-307 Dual M.2 SATA Drive Installation Kit

N8103-211

Flash Backup Recommended

Flash Buckup Unit

for LSI MegaRAID SAS 946N-8i 550mm Cable for Flash Backup Unit included

NOTE:

It can not be connected to N8103-205/-210/-211 RAID Controller

N8103-209

Cable

RAID LED Cable

LED cable for RAID controller

NOTE:

It is required when N8154-136F 3.5-inch drive cage or N8118-307 M.2 SATA SSD Installation kit is installed.

K410-444(00)

Internal SATA Cable

MiniSAS HD to miniSAS HD. For N8154-83F 2.5-inch drive cage.

NOTE:

It is required when 3.5-inch drive cage and N8154-83F 2.5-inch drive cage are both installed and OS is installed in 2.5-inch drive. Please connect K410-364(00) to Port 0-3 of the RAID card, and the internal SAS/SATA cable(attached in 3.5-inch drive cage) to Port 4-7 of the RAID card.

K410-364(00)

NOTE:

 Embedded SATA RAID controller is supported only on limited OS. For more details, please see エラー! 参照元が見つかりませ

ん。

 All drives within a RAID array should be of the same type, capacity and rotation speed.  When N8154-83F 2.5-Inch Hot Plug Drive Cage Kit is installed, ambient temperature is up to 40℃.N8181-140F High

Temperature Support Option is not supported.

 Up to one RAID Controller can be installed.  All drives within a RAID array should be of the same capacity and rotation speed.  Up to two kinds of drives selected from SAS 10K HDDs (512n), SAS 10K HDDs (512e), SAS 15K HDDs, SATA HDDs, and

SSDs can be mixed in a system. However, SAS HDDs and SATA HDDs cannot be mixed in the same cage, and HDDs in the same cage must have the same rotational speed.

 To configure a large-capacity RAID array, it is recommended to configure in RAID 6 or RAID 60 in order to minimize the risk of

becoming multiple hard drives failure during the RAID rebuilding process.

4.4 Internal Drives

4.4.1 2.5-inch SATA Drives

Category

Product Name / Description

Part Number

Drive

SATA HDD (512n)

1TB 7.2K Hot Plug 2.5-inch SATA HDD

1 x 1 TB SATA HDD, 2.5-inch, 6Gb/s, 7,200 rpm, 512n sector

N8150-489

2TB 7.2K Hot Plug 2.5-inch SATA HDD

1 x 2 TB SATA HDD, 2.5-inch, 6Gb/s, 7,200 rpm, 512n sector

N8150-527

SATA SSD (ME)

200GB Hot Plug 2.5-inch SATA SSD

1 x 200 GB SATA SSD, MLC, 2.5-inch, 6b/s, 512n sector, ME

N8150-1718

SATA SSD (VE)

800GB Hot Plug 2.5-inch SATA SSD

1 x 800 GB SATA SSD, MLC, 2.5-inch, 6b/s, 512n sector, VE

N8150-784

1.6TB Hot Plug 2.5-inch SATA SSD

1 x 1.6 TB SATA SSD, MLC, 2.5-inch, 6b/s, 512n sector, VE

N8150-785

240GB Hot Plug 2.5-inch SATA SSD

1 x 240 GB SATA SSD, MLC, 2.5-inch, 6b/s, 512n sector, VE

N8150-1721

480GB Hot Plug 2.5-inch SATA SSD

1 x 480 GB SATA SSD, MLC, 2.5-inch, 6b/s, 512n sector, VE

N8150-1722

NOTE:

 Hot plug insertion/removal is not supported with the embedded SATA Non-RAID controller.  All drives within a RAID array should be of the same type, capacity and rotation speed.  Up to two kinds of drives selected from SAS 10K HDDs, SAS 15K HDDs, SATA HDDs, SATA SSDs and SAS SSDs can be

mixed.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 20

 The warranty period of the SSD is the stated period of warranty or until the total bytes of written amount (PBW) exceeds the limit

value. Please regularly check with the Universal RAID Utility.

 To configure a large-capacity RAID array, it is recommended to configure in RAID 6 or RAID 60 in order to minimize the risk of

becoming multiple hard drives failure during the RAID rebuilding process.

4.4.2 2.5-inch SAS Drives

Category

Product Name / Description

Part Number

Drive

SAS HDD (512n)

300GB 10K Hot Plug 2.5-inch SAS HDD

1 x 300 GB SAS HDD, 2.5-inch, 12Gb/s, 10,000 rpm, 512n sector

N8150-479

450GB 10K Hot Plug 2.5-inch SAS HDD

1 x 450 GB SAS HDD, 2.5-inch, 12Gb/s, 10,000 rpm, 512n sector

N8150-480

600GB 10K Hot Plug 2.5-inch SAS HDD

1 x 600 GB SAS HDD, 2.5-inch, 12Gb/s, 10,000 rpm, 512n sector

N8150-481

900GB 10K Hot Plug 2.5-inch SAS HDD

1 x 900 GB SAS HDD, 2.5-inch, 12Gb/s, 10,000 rpm, 512n sector

N8150-482

1.2TB 10K Hot Plug 2.5-inch SAS HDD

1 x 1.2TB SAS HDD, 2.5-inch, 12Gb/s, 10,000 rpm, 512n sector

N8150-483

300GB 15K Hot Plug 2.5-inch SAS HDD

1 x 300 GB SAS HDD, 2.5-inch, 12Gb/s, 15,000 rpm, 512n sector

N8150-485

450GB 15K Hot Plug 2.5-inch SAS HDD

1 x 450 GB SAS HDD, 2.5-inch, 12Gb/s, 15,000 rpm, 512n sector

N8150-486

600GB 15K Hot Plug 2.5-inch SAS HDD

1 x 600 GB SAS HDD, 2.5-inch, 12Gb/s, 15,000 rpm, 512n sector

N8150-518

SAS HDD (512e)

1.8TB 10K Hot Plug 2.5-inch SAS HDD

1x 1.8TB SAS HDD, 2.5-inch, 12Gb/s, 10,000 rpm, 512e sector

N8150-541

2.4TB 10K Hot Plug 2.5-inch SAS HDD

1x 2.4 TB SAS HDD, 2.5-inch, 12Gb/s, 10,000 rpm, 512e sector

N8150-599

900GB 15K Hot Plug 2.5-inch SASHDD

1x 900 GB SAS HDD, 2.5-inch, 12Gb/s, 15,000 rpm, 512e sector

NOTE:

It can not be supported when install N8146-74 Dust Proof Bezel

N8150-586

SAS SSD (eMLC)

200GB Hot Plug 2.5-inch SAS SSD

1 x 200 GB SAS SSD, eMLC, 2.5-inch, 12Gb/s, 512n sector

N8150-721

400GB Hot Plug 2.5-inch SAS SSD

1 x 400 GB SAS SSD, eMLC, 2.5-inch, 12Gb/s, 512n sector

N8150-722

NOTE:

mixed.

 The warranty period of the SSD is the stated period of warranty or until the total bytes of written amount (PBW) exceeds the limit

value. Please regularly check with the Universal RAID Utility.

 To configure a large-capacity RAID array, it is recommended to configure in RAID 6 or RAID 60 in order to minimize the risk of

becoming multiple hard drives failure during the RAID rebuilding process.

4.4.3 3.5-inch SATA Drives

Category

Product Name / Description

Part Number

Drive

SATA HDD (512n)

1TB 7.2K non-Hot Plug 3.5-inch SATA HDD

1 x 1 TB SATA HDD, 3.5-inch, 6Gb/s, 7,200 rpm, 512n sector

N8150-514

2TB 7.2K non-Hot Plug 3.5-inch SATA HDD

1 x 2 TB SATA HDD, 3.5-inch, 6Gb/s, 7,200 rpm, 512n sector

N8150-515

3TB 7.2K non-Hot Plug 3.5-inch SATA HDD

1 x 3 TB SATA HDD, 3.5-inch, 6Gb/s, 7,200 rpm, 512n sector

N8150-516

4TB 7.2K non-Hot Plug 3.5-inch SATA HDD

1 x 4 TB SATA HDD, 3.5-inch, 6Gb/s, 7,200 rpm, 512n sector

N8150-517

SATA HDD (512e)

6TB 7.2K non-Hot Plug 3.5-inch SATA HDD

1 x 6 TB SATA HDD, 3.5-inch, 6Gb/s, 7,200 rpm, 512e sector

N8150-538

8TB 7.2K non-Hot Plug 3.5-inch SATA HDD

1 x8 TB SATA HDD, 3.5-inch, 6Gb/s, 7,200 rpm, 512e Sector

N8150-539

10TB 7.2K non-Hot Plug 3.5-inch SATA HDD

1 x10 TB SATA HDD, 3.5-inch, 6Gb/s, 7,200 rpm, 512e Sector

N8150-542

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 21

12TB 7.2K non-Hot Plug 3.5-inch SATA HDD

1 x12 TB SATA HDD, 3.5-inch, 6Gb/s, 7,200 rpm, 512e Sector

N8150-601

NOTE:

 All drives within a RAID array should be of the same type, capacity and rotation speed.  Up to two kinds of drives selected from SAS 10K HDDs, SAS 15K HDDs, SATA HDDs, SATA SSDs and SAS SSDs can be

mixed.

 To configure a large-capacity RAID array, it is recommended to configure in RAID 6 or RAID 60 in order to minimize the risk of

becoming multiple hard drives failure during the RAID rebuilding process.For 512e sector HDD, the supported operating systems of virtual machines on Hyper-V:

- Windows Server 2016

4.4.4 M.2 SATA SSD Drives

Category

Product Name / Description

Part Number

Drive

M.2 SATA SSD

120GB M.2 SATA SSD

1 x 120GB M.2 SATA SSD, 6Gb/s, 512n sector

N8150-736

240GB M.2 SATA SSD 1x 240 GB M.2 SATA SSD, 6Gb/s, 512n sector

N8150-1732

NOTE:

 M.2 SATA SSD is for OS boot only.  Ambient temperature is up to 40℃.N8181-146F High temperature resistant Kit is not supported.  When installing M.2 SATA SSD, only N8103-205/-206/-210 is supported with VMware.  When installing M.2 SATA SSD, only Embedded SATA controller or N8103-205/-206/-210 is supported with Windows.  Mixed installation of M.2 SATA SSD and SSD/HDD is supported on Embedded SATA controller  Up to two M.2 SSDs can be mounted on M.2 installation kit, two M.2 SSDs are required the same capacity.

5 Internal Optical Drive

Category

Product Name / Description

Part Number

Internal

Required

Internal Slim DVD-ROM Drive

Slim DVD-ROM drive

N8151-130

Internal DVD Super Multi Drive

Slim DVD Super Multi drive, not including writing software

NOTE:

- It’s not supported for VMware.

N8151-131F

Optical Drive Bay Cover

Blank panel

N8151-133

External

External DVD Dual drive

DVD Dual drive, Bus powered, 1.5A required, not including writing software

N8160-101F

NOTE:

 An optical drive is required for maintenance and OS installation.  Up to 1 optical drive can be connected.  N8151-133 Optical Drive Bay Cover must be installed when not installing any internal optical drives.

6 Flash FDD

Choose the Flash FDD if you need to prepare an alternative device for a floppy drive.

Product Name / Description

Part Number

Flash FDD

USB flash emulating USB floppy disk, Native capacity 1.44 MB

N8160-96

NOTE:

 Up to one derive can be connected  Not supported when VMware is running on the server.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 22

7 Internal RDX Drives

7.1 RDX Drive

Category

Product Name / Description

Part Number

Controller

Internal USB Controller

1 x USB port

(Standard)

Cable

Required

Internal USB cable

1x Internal USB3.0 to 1x USB 3.0 device

K410-352(00)

Drive

Up to 1 unit

Internal RDX (USB)

N8151-105

Note:

 Internal RDX is supported in 3.5-inch expansion bay(1) or 3.5-inch expansion bay(2).  When internal simple UPS is installed, internal RDX is supported in 3.5-inch expansion bay(1).  In redundant PSU model, internal RDX is supported in 3.5-inch expansion bay(1)  One of 2.5-inch Drive Cage or RDX is supported in 3.5-inch expansion bay(1).  Ambient temperature is up to 40 °C .N8181-140F High Temperature Support Option is not supported.  RDX is not supported for VMware.

7.2 RDX Data Cartridge

Category

Product Name

Drive supported

Part Number

RDX

HDD

RDX Cartridge (500GB)

N8151-105

N8153-02

RDX Cartridge (1TB)

N8151-105

N8153-03

RDX Cartridge (2TB)

N8151-105

N8153-09

RDX Cartridge (3TB)

N8151-105

N8153-10

RDX Cartridge (4TB)

N8151-105

N8153-11

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 23

8 PCI Card

8.1 Network Interface Controller

Category

Product Name / Description

Part Number

Adapter

GbE

1000BASE-T Adapter

Broadcom ® BCM5718 Gigabit Ethernet Controller PCIe 2.0 x1

NOTE:

- It can be installed up to four.

N8104-150

Dual Port 1000BASE-T Adapter

Broadcom ® BCM5718 Gigabit Ethernet Controller PCIe 2.0 x1

NOTE:

- It can be installed up to four.

N8104-151

10GbE

10GBASE SFP+ Adapter (SFP+/2ch)

Qlogic® NetXtreme II BCM57810 10G SFP+ Dual Port Network Interface Card PCIe 2.0 x8

NOTE:

- N8104-129 SFP+ Module is required to connect with an optical cable.

- Up to two SFP+ Modules can be installed.

- Up to two adapters can be installed from below: N8104-149

10GBASE SFP+ Adapter (SFP+/2ch) and N8104-157 Dual Port 10GBASE-T Adapter.

N8104-149

Dual Port 10GBASE-T Adapter

Intel® Ethernet Controller X550 PCIe 3.0 x4

NOTE:

- Up to two adapters can be installed from below: N8104-149

10GBASE SFP+ Adapter (SFP+/2ch) and N8104-157 Dual Port 10GBASE-T Adapter

N8104-157

SFP+ Module

SFP+ Module (10G-SR)

1 x SFP+ Module

N8104-129

NOTE:

 The system includes 2x 1000BASE-T LAN ports by default.

NIC Teaming feature – NIC Teaming and bonding features

The Express5800 server supports NIC teaming which is the ability to configure multiple NICs to virtual single network interface for dual path and load balancing to fault tolerance and load balancing Network Load Balanding.

See the table below for supported network interfaces and OS combinations. Windows Server 2016 support teaming with bonding function supported by OS.

Network Interface

Team

Operating Systems

1GbE NIC

Embedded 1GbE NIC and N8104-150/-151

Up to four teams per one system Up to four ports per one team

Windows Server 2016

10GbE NIC

N8104-149

Up to two teams per one system Up to two ports per one team

Windows Server 2016

10GbE NIC

N8104-157

Up to one teams per one system Up to two ports per one team

Windows Server 2016

NOTE:

 The Bonding function of 10GBASE is available got mode 1 (active-backup) and mode 4(802.3 ad)  NIC Teaming feature is not supported on iSCSI interfaces.  The network interfaces for each teaming must be the same.  When 10GbE and 1GbE NIC teams are mixed, the teams must be up to four per one system.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 24

Using iSCSI

See the table below for supported network interfaces and OS combinations.

Category

Network Interface

Operating Systems

1GbE

Embedded 1GbE NIC/ N8104-150/-151

Windows Server 2016

10GbE (10GBASE-SR)

N8104-149

Windows Server 2016

10GbE (10GBASE-T)

N8104-157

Windows Server 2016

NOTE:

 Teaming feature is not supported on iSCSI interfaces.

8.2 SAS Controller

Product Name / Description

Part Number

SAS Controller

LSI SAS9300-8e Host Bus Adapter 12Gb/s SAS, Ext. 8, SFF-8644 x2, PCIe 3.0 x8

N8103-184

NOTE:

 Please refer to the device’s System Configuration Guide for supported SAS cable.  Up to one SAS controller can be installed..

8.3 Serial Port Adapter

Product Name / Description

Part Number

Serial Port Adapter

Serial port fixed to PCI bracket

N8117-01A

NOTE:

 Up to one Serial Port Adapter can be installed.

8.4 NeoFace Accelarator

Product Name / Description

Part Number

NeoFace Accelerator

NeoFace Accelerator PCIe 3.0(x8), with cover

N8105-52

NOTE:

 Up to one NeoFace Accelerator can be installed.  N8181-172 Additional FAN kit for PCI is required for NeoFace Accelerator installation, PCI slot2 can’t be installed with any PCI

cards

 Only support on redundant PSU model.  Ambient temperature is up to 40℃.N8181-140F. High Temperature Support Option is not supported.  N8106-018 VMware ESXi Base Kit is not supported.  N8146-74 Dust Proof Bezel is not supported.  Only support for Windows Server 2016.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 25

9 Other Add-in Components

9.1 Internal Battery Kit

Product Name / Description

Part Number

Internal simple UPS Control Kit

Internal simple UPS controller

3.5-inch expansion bay(2) support

N8181-153

Internal simple uninterrupted power supply

Internal simple UPS unit

3.5-inch expansion bay(2) support

N8181-152

NOTE:

 Only support on fixed PSU model  Only support up to one unit per system  Ambient temperature is up to 40 °C.N8181-140F. High Temperature Support Option is not supported.  When internal simple UPS and N8154-82F 2.5-inch Drive Cage are installed, N8154-83F 2.5-Inch Hot Plug Drive Cage Kit is not

supported.

 When internal simple UPS is installed, HDD/SSD is only support up to 4.

System Power

Battery Discharging Time

50W

930 sec.

75W

620 sec.

100W

450 sec.

125W

330 sec.

150W

240 sec.

175W

210 sec.

200W

180 sec.

NOTE:

 The above discharging time is a reference value at full charge. Actual battery supply time varies by the operational environment

and load situation, so please fully verify and operate it with customers.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 26

9.2 High Temperature Support Option

Product Name / Description

Part Number

High temperature resistant Kit

Required for high temperature operation over 40°C (up to 48°C)

N8181-140F

System Configuration Condition for High Temperature Environment

When using this system in a high temperature environment, there are the following conditions in the system configuration.

Required System Configuration

 Some PCI cards must be installed in Slot # 4. For details, please refer to「Supported PCI cards and Installable Slots」  3.5-inch device bay(1) is not supported

Option that can’t be supported

 N8154-83 2.5-Inch Hot Plug Drive Cage Kit  N8151-105 Internal RDX  N8181-152 Internal simple uninterrupted power supply  N8181-153 Internal simple UPS control kit  N8118-307 Dual M.2 SATA mount kit  N8105-52 NeoFace Accelerator  N8105-172 Additional FAN kit for PCI

9.3 Additional FAN kit for PCI

Product Name / Description

Part Number

Additional FAN kit for PCI

4028 FAN and installation kit included It’s required for N8105-52 NeoFace Accelerator installation Only support on redundant PSU model

N8181-172

Note:

 This product is used for cooling of N8105-52 NeoFace Accelerator. In order to ensure sufficient cooling effect, cooling fan rotate

higher speed and it makes system acoustic noise become high.

 This is the specification of this product, and it doesn't influence system operation.  PCI slot2 can’t be installed with any PCI cards

Option that can’t be supported

 N8181-152 Internal simple uninterrupted power supply  N8181-153 Internal simple UPS control kit  N8181-140F High Temperature Support Option  N8146-74 Dust Proof Bezel

10 Add-on Components

10.1 Input Device

Product Name / Description

Part Number

Keyboard and Mouse Pack (US)

1 x 104-keys White USB keyboard, 1 x USB White Optical Wheel Mouse

(Standard)

10.2 Server Management License

The server integrates the EXPRESSSCOPE Engine 3 as standard. Refer to Server Management for the standard management features. For more extensive remote KVM and remote media features, choose the following kit.

Product Name / Description

Part Number

Remote KVM and Media License Kit

License for one server. Remote KVM and remote media are enabled regardless of OS status. Remote KVM:

- Displays a graphics console on the web browser of the remote terminal (PC/server).

- Controls keyboard and mouse via the remote terminals' web browser Remote media:

N8115-32

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 27

- Enables the user to use the CD / DVD / FD / Flash memory of the remote terminals (PC/server) as if accessing the local drives.

NOTE:

 Remote KVM and remote media features are not available for virtual machines.

10.3 Dust Proof Kit

Category

Product Name / Description

Part Number

Front Bezel

Dust Proof Bezel

Including 1 set of dust proof filter

N8146-74

Filter

Dust proof filter (5 pcs.)

For Dust Proof filter Removal capacity of particles : Up to 1 μm-sized

N8147-36

NOTE:

 When Dust Proof Bezel is installed, N8150-586 900GB 15K Hot Plug 2.5-inch SAS HDD can not be supported.  N8105-52 NeoFace Accelerator or N8181-172 Additional FAN kit for PCI can not be supported.

10.4 Tamper Proof Power Button Covers

Product Name / Description

Part Number

Tamper Proof Cover

For Standard Bezel Tamper proof cover to prevent erroneous operation of a power button

N8146-77

NOTE:

 The Tamper Proof Cover is not available for Dust Proof Bezel.

10.5 Rack Conversion Kit

Product Name / Description

Part Number

Rack Conversion Kit

Convert to 3U form factor

N8143-120

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 28

References

Server Management

Standard

With Remote

KVM and Media

License kit

Hardware monitoring

Temperature/hard drive3/fan/voltage/power consumption/ System LAN/degeneration/ (memory/hard drive3)



Hardware configuration information collection7



Hardware event log collection



Boot monitoring

BIOS/POST stall, Booting, OS stall, shutdown



Alerting

HW error, Boot error and OS panic (by SNMP, E-Mail)



Remote KVM (via LAN)

POST/BIOS setup, ROM utility





Panic screen, Boot screen





CUI-based screen (OS console)





GUI-based screen (OS console)



Remote control (via LAN)

Remote reset/power on-off/ dump



Remote Power Capping



BIOS/BMC FW update



OS shutdown



Remote media (CD/DVD/FD/USB)



CLP (Command Line Protocol) (DMTF compliant)



Remote control via Web browser (multi user login at the same time)



Remote batch (No UPS required、 ESMPRO/SM required)

6

Others

Set automatic IP address via DNS/DHCP



LDAP/Active Directory verification/user control



Clock synchronization of main unit and the RTC

5

Access log collection



IPv6 (Remote control via Web browser, DMTF compliant CLP only)



Industry Standard

IPMI support

2.0

The optional serial port is not available for the feature.

The feature is not supported on VMware systems.

The feature is not supported on non-hot plug 3.5-inch drive.

In VMware systems, only the direct console user interface is supported.

ESMPRO/ServerAgentService installation is required. Alternatively, enable NTP (Network Time Protocol) setting and synchronizen time with NTP server.

Power ON, power OFF and OS shutdown from ESMPRO/SM at the specified date and time are supported.

ESMPRO/ServerAgentService installation is required.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 29

OS Support Matrix for PCI Cards and Embedded Controllers

Part Number

Product Name

201

RHEL 7

Embedded SATA non-RAID Controller



Embedded SATA RAID Controller



- - Embedded 1GbE NIC



N8103-205

RAID Controller (2GB, RAID 0/1/5/6)





N8103-206

RAID Controller (2GB, RAID 0/1, WT/WB)





N8103-207

RAID Controller (2GB, RAID 0/1/5/6, WT/WB)





N8103-208

RAID Controller (4GB, RAID 0/1/5/6)





N8103-210

RAID Controller (2GB, RAID 0/1, WT)





N8103-211

RAID Controller (2GB, RAID 0/1/5/6, WT)





N8105-52

NeoFace Accelerator



-

N8104-157

Dual Port 10GBASE-T Adapter



N8104-149

10GBASE SFP+ Adapter (SFP+/2ch)



N8103-184

SAS Controller





N8104-151

Dual Port 1000BASE-T Adapter



N8104-150

1000BASE-T Adapter



Supported PCI cards and Installable Slots

Slots

Part Number

Product Name

N8103-205

RAID Controller (2GB, RAID 0/1/5/6)

- - -

(1)

N8103-206

RAID Controller (2GB, RAID 0/1, WT/WB)

- - -

(1)

N8103-207

RAID Controller (2GB, RAID 0/1/5/6, WT/WB)

- - -

(1)

N8103-208

RAID Controller (4GB, RAID 0/1/5/6)

- - -

(1)

N8103-210

RAID Controller (2GB, RAID 0/1, WT)

- - -

(1)

N8103-211

RAID Controller (2GB, RAID 0/1/5/6, WT)

- - -

(1)

N8105-52

NeoFace Accelerator

- - (1) - N8104-157

Dual Port 10GBASE-T Adapter

(4) 1

(3) 1

(1) 1

(2)

N8104-149

10GBASE SFP+ Adapter (SFP+/2ch)

(3) 1

(2) 1

(1)

N8103-184

SAS Controller

(1) 1

(2)

N8104-151

Dual Port 1000BASE-T Adapter

(2)

(4)

(1)

(3)

N8104-150

1000BASE-T Adapter

(2)

(4)

(1)

(3)

N8118-307

Dual M.2 SATA Drive Installation Kit

(1)

(2)

(3)

(4)

N8117-01A

Serial Port Adapter

(2)

(4)

(1)

(3)

Not installable when high temperature support option is applied.

NOTE:

 The number between parentheses shows the population priority (recommendation). For example, install N8103-206 in the slot

#4 and N8104-157 in the slot #2 when you have those cards.

 There are PCI slot limitations depending on the processor and operating system. Please refer to the following and be careful to

choose a processor and PCI cards.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 30

Secure Boot Mode

This server supports Secure Boot. It is supported with UEFI Boot mode and protects the security by only allowing software programs with digitaBroadcomgnature to run. The supported operating systems, software, and boot devices are below. The default setting of Secure Boot is disabled. Keep the setting disabled to use other operating systems and/or software

Supported OS and Software for Secure Boot Mode

Operating System

Supported Boot Mode

Secure Boot Mode

Windows Server 2016

UEFI



Software Related to Boot

Supported Boot Mode

Secure Boot Mode

System Diagnostics Utility

UEFI



EXPRESSBUILDER

UEFI



Supported Boot Device for Secure Boot Mode

Supported Boot Device

Part Number

RAID controller (RAID0/1)

N8103-205

RAID controller (2GB, RAID0/1)

N8103-206 N8103-210

RAID controller (2GB, RAID0/1/5/6)

N8103-207 N8103-211

RAID controller (4GB, RAID0/1/5/6)

N8103-208

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 31

The information contained herein is subject to change without notice.

Microsoft and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries

Intel, Xeon and Pentium are registered trademarks or trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Linux is a trademark of Linus Torvalds. Red Hat is a registered trademark of Red Hat, Inc. in the U.S.

All other products, brands, or trade names used in this document are trademarks or registered trademarks of their respective holders.

NEC shall not be liable for technical or editorial errors or omissions contained herein. For hard drive capacity measurements, 1 GB = 1 billion bytes. Actual formatted capacity is less. The USB interface is not guaranteed to work properly for all USB devices.

SYSTEM CONFIGRATION GUIDE – NEC Express5800/T110j-S

NEC Corporation Revision 1.0 – December 2018 32

Revision History

Revision

Date

Description

1.0

December 28, 2017

Initial release

NEC Express5800/T110j-S System Configuration Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
