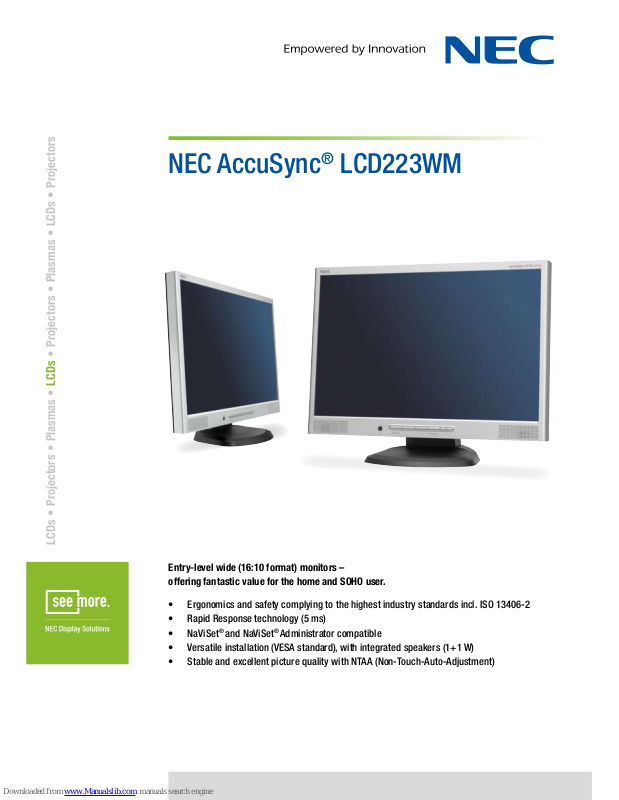

NEC AccuSync LCD223WM Specifications
Entry-level wide (16:10 format) monitors –
offering fantastic value for the home and SOHO user.
• Ergonomics and safety complying to the highest industry standards incl. ISO 13406-2
• Rapid Response technology (5 ms)
• NaViSet® and NaViSet® Administrator compatible
• Versatile installation (VESA standard), with integrated speakers (1+1 W)
• Stable and excellent picture quality with NTAA (Non-Touch-Auto-Adjustment)
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
NEC AccuSync
®
LCD223WM
www.nec-display-solutions.com
NEC Display Solutions Europe GmbH
TECHNICAL SPECIFICATIONS
Panel Technology
Screen Size [inch/cm]
Pixel Pitch [mm]
Viewing Angle
Contrast Ratio (typ.)
Brightness (typ.) [cd/m
2
]
Response Time (typ.) [ms]
Colours [Mio.]
Horizontal Frequency [kHz]
Vertical Frequency [Hz]
Optimum Resolution
Other Resolutions
Connectors
Plug & Play
Adjust Functions
Safety and Ergonomics
Power Requirements on Mode [W]
Power Requirements Power-saving Mode [W]
Power Supply
Ambient Temperature (operating) [°C]
Ambient Humidity (operating) [%]
VESA Mounting [mm]
Dimensions (W x H x D) [mm]
Screen Tilt [°]
Bezel Width [mm]
Cable Management
Kensington Lock
Weight [kg]
Specials
Audio Functions
Colour Versions
Shipping Content
Warranty
TN+ film TFT
22.0/55.9
0.282
160° horizontal / 160° vertical (typ. at contrast ratio 10:1)
176° horizontal / 176° vertical (typ. at contrast ratio 5:1)
1000:1
300
5 (1 white / black; 4 black / white)
16.7
31.5 - 82.3
56.0 - 75.0
1680 x 1050 at 60 Hz
1400 x 1050; 1440 x 900; 1360 x 768; 1280 x 1024; 1280 x 960; 1152 x 870; 1152 x 864;
1024 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480
Analog: 1 x mini D-sub 15 pin
VESA DDC/CI; DDC2B/2Bi; EDID Standard
Auto Adjust; Colour Temperature Control; Fine Adjust (analog); Brightness; Contrast;
Language Select; Monitor Information; NTAA (Non-Touch-Auto-Adjustment);
On-Screen-Manager (OSM) lock-out; Volume
CE; Energy Star; FCC Class B; ISO 13406-2 (pixel failure class II); PCT/Gost;
TCO 03; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; MPR II/ MPR III
55 (typ.)
2
100 - 120 V/220 - 240 V; 0.95 A/0.45 A; integrated power supply
5 to 35
30 to 80
100 x 100
508.0 x 398.0 x 196.0
-5 to +20
16.0
yes
yes
6.5
NaviSet® and NaviSet® Administrator compatible; Rapid Response technology
Integrated Speakers (1 + 1 W)
Silver Front Bezel; Black Back Cabinet
Monitor; Power Cable; Signal Cable VGA - VGA; Audio Cable; CD-ROM; Sales Office List;
User Manual
3 years warranty incl. backlight
LCD223WM-UK-06/07
NEC AccuSync
®
LCD223WM
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All rights reserved. All specifications are subject to change without notice. June 2007
