User's manual MobileNavigator
User's manual
MobileNavigator
BLUE Edition
as on October 2004
Impressum
NAVIGON GmbH
Berliner Platz 11
D-97080 Würzburg
Hotline (dtms-Service, 0,12 €/min): +49 180-5-NAVIGON (+49 180-5-6284466)
The information contained herein may be changed at any time without prior notification. This manual nor any
parts thereof may not be reproduced for any purpose whatsoever without the express written consent of
NAVIGON GmbH, nor transmitted in any form either electronically or mechanically, including photocopying and
recording.
Copyright 2004, NAVIGON GmbH
All rights reserved.
Table of contents
1 Introduction................................................................3
1.1 Important safety information............................................. 4
1.1.1 Safety information on navigation ............................. 4
1.1.2 Safety information on the GPS receiver ....................5
1.1.3 Safety information on the installation in the
vehicle................................................................. 5
1.2 Search facilities and conventions........................................ 6
1.3 Liability .......................................................................... 6
1.3.1 Support ...............................................................7
1.4 Trademarks ....................................................................7
2 Installation and quick-start guide ...............................9
2.1 Operating mode of your navigation system........................ 10
2.2 Installation of the navigation system ................................ 11
2.2.1 Inserting the memory card into the device .............. 11
2.2.2 Installing the navigation software .......................... 11
2.2.3 Software registration and activation ....................... 12
2.2.4 Installation in the vehicle...................................... 14
2.2.5 Fitting MobileNavigator on your bike ...................... 15
2.2.6 Starting navigation .............................................. 16
User's manual BLUE Edition
3 Operating the navigation software............................ 19
3.1 Starting MobileNavigator................................................. 20
3.1.1 Basic settings ..................................................... 21
3.2 User interface and basic functionality................................ 25
3.2.1 Icons ................................................................. 25
3.2.2 Hardware keys.................................................... 27
3.3 Indicating destinations.................................................... 29
3.3.1 Entering a destination manually............................. 30
3.3.2 Selecting a special destination............................... 32
3.3.3 Indicating destinations on the map ........................ 36
3.3.4 Saved destinations .............................................. 38
3.3.5 Recent destinations ............................................. 39
3.3.6 Save and use your home address .......................... 42
3.4 Working with the map .................................................... 44
3.4.1 Operating the map .............................................. 45
3.4.2 Representation of the map in navigation mode ........ 49
3.4.3 Displaying additional information on the map .......... 51
4 Navigation and Itinerary planning ............................53
4.1 General notes on navigation ............................................ 54
4.2 Navigating to a destination.............................................. 55
4.3 Navigating to several destinations (Itinerary planning)........ 57
4.3.1 Working on itineraries, storage and management..... 59
4.3.2 Simulating the route ............................................ 60
4.4 Functions which are useful for navigation .......................... 61
4.4.1 Displaying the route list........................................ 61
4.4.2 Adding a stage point during navigation................... 62
4.4.3 Blocking a route section ....................................... 63
User's manual Table of contents i
User's manual BLUE Edition
5 Appendix................................................................... 65
5.1 Configuration of MobileNavigator...................................... 66
5.1.1 Map information.................................................. 66
5.1.2 Route information................................................ 67
5.1.3 Volume .............................................................. 67
5.1.4 Representation.................................................... 68
5.1.5 Touch screen calibration....................................... 68
5.1.6 Auto mode ......................................................... 68
5.1.7 Speed profile ...................................................... 69
5.1.8 Itinerary ............................................................ 69
5.1.9 Time zone .......................................................... 69
5.1.10 Format............................................................... 69
5.1.11 Home address..................................................... 70
5.1.12 Radio-Mute......................................................... 70
6 Glossary .................................................................... 71
7 Index ........................................................................73
User's manual BLUE Edition
1 Introduction
Topics covered in this chapter:
1.1 Important safety information page 4
Safety information on navigation
Safety information on the GPS receiver
Safety information on the installation in the vehicle
1.2 Search facilities and conventions page 6
1.3 Liability page 6
Support
1.4 Trademarks page 7
Introduction - 3 -
User's manual BLUE Edition
1.1 Important safety information
Note In your own interest, read the following notices and safety
information carefully before starting up your navigation system.
1.1.1 Safety information on navigation
The use of MobileNavigator may only be effected at your own
risk.
Attention: To protect yourself and others from accidents please
do not operate the navigation system while driving!
Attention: You must not look at the display except when it is
absolutely safe to do so!
Attention: The road layout and the traffic signs are absolutely
prior to the instructions of the navigation system.
Attention: You must not follow the instructions of
MobileNavigator except when the circumstances and the road
traffic regulations allow doing so. MobileNavigator will guide
you to your destination even when you have left your planned
itinerary.
Notice: We recommend to effect route planning before beginning
the journey. If you are on the road and you want to establish a
new itinerary, please drive to the next parking site!
Notice: If you have not understood the instructions or if you are
not sure about what to do next you may quickly refer to the map
or arrow view of your navigation system.
Introduction - 4 -
1.1.2 Safety information on the GPS receiver
Attention: As it is not waterproof, don’t expose your GPS
receiver to water!
Attention: Do not install the cable next to security relevant
equipment and supply lines.
Attention: Please check the security relevant equipment when
you have installed the navigation system.
Attention: The GPS receiver should be disconnected from the
power supply while your car is parking. As it spends energy
permanently you might risk discharging the car battery.
Attention: The installation of the GPS receiver must not interfere
with the sure operation of your car.
Notice: Do not varnish the GPS receiver. Doing so might impede
the reception of GPS signals.
Notice: Do not use any harsh solvents for cleaning the GPS
receiver. A damp cloth is sufficient! You might damage the case
of the GPS receiver.
User's manual BLUE Edition
Notice: Do not unplug by pulling the cable. This might damage
the cable!
Notice: Do not fold the cable. Check that the cable may not be
damaged by any sharp object.
1.1.3 Safety information on the installation in the vehicle
Attention: Do not fix the holder within the deployment zone of
airbags.
Attention: When you install the holder, please check that it may
not constitute any safety risk, even in case of an accident.
Introduction - 5 -
1.2 Search facilities and conventions
User's manual BLUE Edition
Find information
quickly
Conventions The conventions on the fonts and symbols used in this manual
This manual offers the following search facilities:
In the footnote at the bottom of the page, you may check
which chapter and which section you are actually reading.
A glossary at the end of the manual contains explanations
on the technical terms used in this manual.
An index at the end of the manual allows precise search
for the information contained in this manual.
are explained in the two following tables:
Font Use
bold
bold italic Registered names and trademarks.
SMALL CAPITALS Window and dialogue box titles.
Symbol Use
Buttons, icons, names of entry fields,
and elements of the software’s user
interface. Also used for highlighting
warnings and notices.
Indicates hints and notices that may
ease the use of MobileNavigator.
Indicates additional information.
Warns against dangers that might cause
damage to objects and persons.
1.3 Liability
Limitation of liability The software and the manual are subject to change without
notice. NAVIGON GmbH may not be liable for the correctness of
the information contained in this manual nor for damages
resulting from the use of this manual.
To improve the quality of our products and our services, we
appreciate all suggestions for improvement and all error notices.
Introduction - 6 -
User's manual BLUE Edition
1.3.1 Support
You need help? Call our support staff for Telephone support:
Mondays to Fridays 9am to 6pm
+49 180-5-NAVIGON (0180-5-6284466)
(dtms-Service, 0,12 €/min)
Or call our Fax support:
+49 180-5-6284444
(dtms-Service, 0,12 €/min)
Further information may also be found on the web site of
NAVIGON GmbH (www.navigon.com
) in the Support section.
1.4 Trademarks
Registered
trademarks
Windows and ActiveSync are registered trademarks of the
All brands and trademarks mentioned in this document are
possibly registered by third party and subject to the current
legislation and to the rights of their respective owners without
reservation. All mentioned names of products, societies, or
brands may be registered trademarks of their respective owners.
Every right that is not explicitly accorded is reserved.
The absence of an explicit labelling of registered trademarks does
not allow the conclusion that this brand was not subject to the
rights of third party.
Microsoft Corporation.
Introduction - 7 -
User's manual BLUE Edition
2 Installation and quick-start
guide
Topics covered in this chapter:
2.1 Operating mode of your navigation system page 10
2.2 Installation of the navigation system page 11
Inserting the memory card into the device
Installing the navigation software
Software registration and activation
Installation in the vehicle
Fitting MobileNavigator on your bike
Starting navigation
Installation and quick-start guide - 9 -
User's manual BLUE Edition
2.1 Operating mode of your navigation system
MobileNavigator The time of complicated and frustrating inquiries on the right way
in folded maps is over. From now on MobileNavigator, your
navigation system, will guide you, based on satellite information,
quickly and safely to your destination.
GPS-based
navigation
Based on satellites the Global Positioning System (GPS)
determines your current geographical position. The GPS has
originally been developed as a weapon guidance system for the
American forces.
Operating mode of
the GPS
The GPS is based on 24 satellites, which are in orbit round the
earth. They are permanently emitting the time and their current
position. The GPS receiver receives this information and
calculates the longitude and the latitude of its own actual
position.
The signals of at least three satellites are needed to determine
the longitude and the latitude. With the signals of at least four
satellites the elevation may be calculated, too. The determination
has an accuracy of about 3 yards.
Installation and quick-start guide - 10 -
User's manual BLUE Edition
2.2 Installation of the navigation system
2.2.1 Inserting the memory card into the device
Insert the memory
card into the device…
Before using MobileNavigator you must insert the memory card
containing the cartographic data into the device.
1. Unpack the memory card carefully. Pay attention not to touch
contacts and not to make them dirty.
2. Hold the memory card
corner bottom right). Insert the memory card into the
respective slot
Notice: The memory card must stay inserted in the device while
you are using the navigation system. If you remove the card
while using the system, it executes a soft reset and prompts you
to insert the memory card.
at the left of the device. It should snap in.
as shown below (label up, cut
2.2.2 Installing the navigation software
Install the navigation
software...
The brand logo is being displayed for a short time. The
1. Take the stylus and push the main switch on the pack of the
device to the ON position.
installation procedure starts automatically. After a few
seconds, the system prompts you to enter the activation
Installation and quick-start guide - 11 -
User's manual BLUE Edition
code.
Notice: Depending on the battery charging state, it may happen
that you have to charge the device for a while before the
installation may be executed.
2.2.3 Software registration and activation
Activation code At the first start of MobileNavigator you will be prompted to
enter an activation code. You cannot start the software without
entering this code.
To obtain the activation code, you will need the serial number,
which is printed on the back of the MobileNavigator booklet and
the Hardware-ID, which is indicated at the first start of the
software.
With these two numbers you may obtain the activation code:
in the web on www.navigon.com
by SMS: simply send the serial number, device ID, your first
name surname and email address (separated by commas) to:
+49 (0) 176 – 888 333 88 or
by phone from our support staff:
+49 180-5-6284466 (dtms-Service, 0,12 €/min).
Installation and quick-start guide - 12 -
1. Tap the <please select> button.
CTIVATION CODE screen opens:
The A
2. Enter the activation code into the respective entry field.
3. Tap the OK button.
User's manual BLUE Edition
Notice: Keep the activation code at a safe place. You might need
it later, e.g. when you reinstall the software on your Pocket PC.
Installation and quick-start guide - 13 -
2.2.4 Installation in the vehicle
Attention: The mounted holder must not impede the driver’s
attention on the traffic. If this is not possible, mount the holder
somewhere else so that safe driving is granted.
Mounting the
holder...
1. Attach the cradle of the device to the swan-neck mount.
Notice: Take notice of the inscription on the swan-neck
mount. The arrow with the inscription close must show in
snap-on direction. The connection must snap on audibly.
2. Place the suction cup on the windscreen. Press the lever
firmly to the windscreen before switching it.
3. Insert the device into its holder. First place the bottom of the
device correctly, then push it backwards until it snaps into the
clip.
User's manual BLUE Edition
4. Insert the chinch jack
respective socket at the bottom of the device.
5. Insert the power jack
of the power supply cable into the
into the cigarette lighter.
Installation and quick-start guide - 14 -
2.2.5 Fitting MobileNavigator on your bike
Mount the fitting...
User's manual BLUE Edition
1. Connect the clamp
clamp round the handle bar as represented above (opening
up, plate towards the driver). Do not forget to put the rubber
band
bar and the clamp. The clamp is flexible, so you can open it
carefully, place it round the handle bar and close it.
2. Put the cradle of the device
Push the holder downwards until it snaps in noticeably. Please
note that there is only one correct position for the holder to
be fitted.
3. Fix the complete holder kit with the included screw
the screw only slightly for the moment.
which is included in the delivery between the handle
and the mounting plate . Pull the
onto the mounting plate .
. Fasten
4. Insert the device into its cradle. Verify that the clip snaps
noticeably!
5. Turn the holder until you may read the screen well while
Installation and quick-start guide - 15 -
sitting on the bike.
6. Fasten the screw.
2.2.6 Starting navigation
User's manual BLUE Edition
Use your navigation
system…
1. Turn on your MobileNavigator.
At the first start of MobileNavigator, the following message
appears:
2. Tap the I accept button. If you do not accept and if you tap
the I refuse button, the device turns off.
3. The M
AIN SCREEN appears.
4. Tap the One destination button to enter your destination.

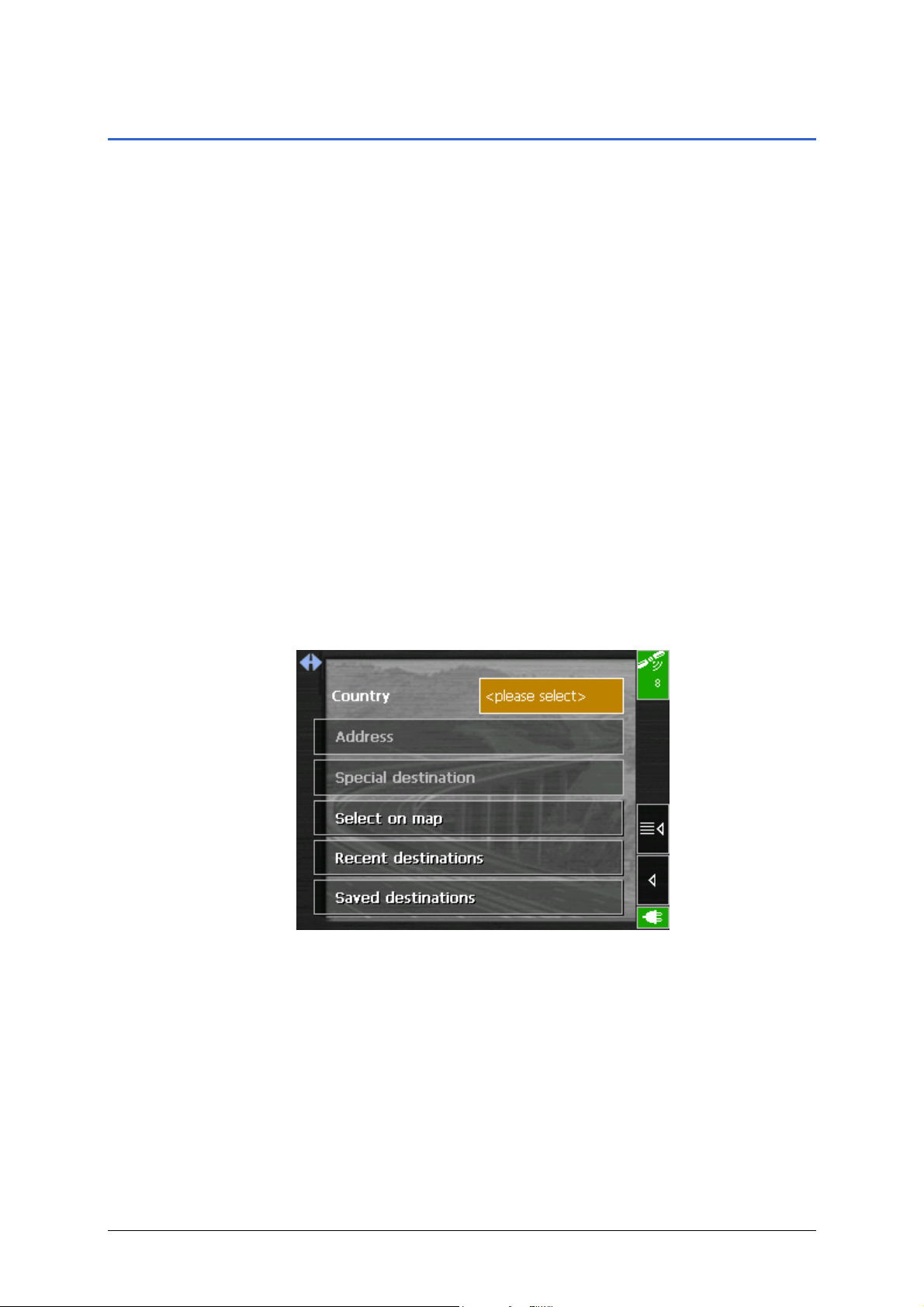

The D
ESTINATION screen opens:
Installation and quick-start guide - 16 -
5. Tap the Address button.
User's manual BLUE Edition
The A
DDRESS screen opens:
6. Enter the name of the destination town into the Town field.
7. Enter the name of the destination street into the Street field.
Enter the house number if possible.
8. Tap the Start navigation button.
For details on the functions of your navigation system, please
refer to “Operating the navigation software”, page 19, and to
“Navigation and Itinerary planning”, page 53.
Installation and quick-start guide - 17 -
User's manual BLUE Edition
3 Operating the navigation
software
Topics covered in this chapter:
3.1 Starting MobileNavigator page 20
Basic settings
3.2 User interface and basic functionality page 25
Icons
3.3 Indicating destinations page 29
Entering a destination manually
Selecting a special destination
Indicating destinations on the map
Saved destinations
Recent destinations
Save and use your home address
3.4 Working with the map page 44
Operating the map
Representation of the map
Displaying additional information on the map
Operating the navigation software - 19 -
User's manual BLUE Edition
3.1 Starting MobileNavigator
Precondition You have carried out installation and activation of
MobileNavigator as described in “Installation of the navigation
system”, page 11.
Starting the
navigation software…
Main screen
1. Turn MobileNavigator on.
The M
AIN SCREEN opens:
All functions of the program are accessible via the M
SCREEN
.
Notice: When you turn MobileNavigator on, it shows the
screen, which was displayed when MobileNavigator was turned
off. Nevertheless, you may access the Main screen from all other
screens by tapping
.
Indicate a
destination
Tap this button to indicate a destination for navigation (one
stage).
For details, please refer to “Indicating destinations”, page 29.
Navigating home Tap this button to navigate to your home address.
For details, please refer to “Save and use your home address”,
page 42.
Several destinations Tap this button for itinerary planning purposes.
AIN
Operating the navigation software - 20 -
User's manual BLUE Edition
For details, please refer to “Navigating to several destinations
(Itinerary planning)”, page 57.
Show map Tap this button to display the map currently in use.
Select map Tap this button to select another map, which is stored on your
device.
For details, please refer to “Working with the map”, page 44.
Settings Tap this button to modify the settings of MobileNavigator.
For details, please refer to “Configuration of MobileNavigator”,
page 66.
Quit Tap this button to quit MobileNavigator.
3.1.1 Basic settings
Basic settings Before working with MobileNavigator, we recommend
indicating the time zone of the region you are staying in
currently so that the system can indicate correct times of
arrival in navigation mode,
entering the home address. You may then navigate home
from anywhere.
Indicate the time
zone
1. On the M
AIN SCREEN, tap Configuration.
The C
2. Via the arrow buttons, select the T
ONFIGURATION screen opens.
IME ZONE screen.
Operating the navigation software - 21 -
3. Tap into the Time zone entry filed.
The SELECT THE TIME ZONE screen opens.
User's manual BLUE Edition
4. Select the time zone of the region you are currently staying
in.(GMT without daylight saving time). The indication of
capitals lying in the respective time zones makes the selection
easier.
5. Tap Ok.
6. If there is currently daylight saving time, tap the Daylight
saving time entry field. The entry switches to Yes.
Saving your home
address
1. On the M
The S
In MobileNavigator, you may save your home address to
quickly start navigation homewards from anywhere.
AIN SCREEN, tap Settings.
ETTINGS screen opens.
Operating the navigation software - 22 -
User's manual BLUE Edition
2. Via the arrow buttons, select the HOME ADDRESS screen.
3. Tap Enter your home address.
ESTINATION screen opens.
The D
4. Tap the Address button and enter your home address as
described in “Entering a destination manually”, page 30.
5. Tap the Set as home address button.
The address is indicated on the H
OME ADDRESS screen.
Operating the navigation software - 23 -
6. Tap Save.
User's manual BLUE Edition
Operating the navigation software - 24 -
User's manual BLUE Edition
3.2 User interface and basic functionality
Operation In order to offer a maximum of flexibility and convenience for the
operation of MobileNavigator there is three ways to make
entries:
tapping with the stylus,
tapping with your finger, or
via the hardware keys of your Pocket PC.
3.2.1 Icons
Icons The following buttons appear at the right of every
MobileNavigator screen:
Return
Tap this icon to return to the previous screen. This icon is not
available on the M
Main screen
Tap this icon to open the main screen. This icon is not available
on the M
AIN SCREEN.
AIN SCREEN.
Operating the navigation software - 25 -
GPS
User's manual BLUE Edition
The colour of this icon and the number displayed on it have the
following significance:
Colour/Number Significance
red
A GPS receiver is not connected or the
power supply is interrupted.
orange + number of
received satellites
A GPS receiver is connected, but the
received signals are not convenient
for navigation purposes (e.g. because
you are in a closed building).
green + number of
received satellites
The signals are convenient. Navigation
may begin.
Tap the GPS icon to display the current GPS status:
Entry Significance
GMT
Greenwich Mean Time
Time of London ignoring daylight saving
time.
Longitude /
Latitude
Current position:
Indication of east longitude and north
latitude.
Satellites
Number of received satellites. At least three
satellites must be received for navigation
purposes.
HDOP
Horizontal Dilution of Precision:
Indicates the quality of position
determination. Theoretically any value from 0
to 50 may occur. The smaller the value, the
more accurate is the position determination
(value 0 = no deviation from the real
position). Values up to 8 are convenient for
navigation purposes.
Speed Indicates your current speed.
Operating the navigation software - 26 -
User's manual BLUE Edition
Entry Significance
Position
Indicates the address of your current
position.
Save
Tap this button to add the current address to
the saved destinations list.
Quit Tap this button to quit the GPS screen.
Switching the GPS-receiver on / off
The GPS-receiver consumes energy. This is of significance when
the system is operated in battery mode, e.g. when you are on
your way on foot or by bike. Switch therefore the GPS-receiver
off when you don’t need it for a certain time.
1. Tap the Energy icon
on the lower right corner of any
screen.
NERGY screen opens:
The E
2. Tap the Off button to switch the GPS receiver off.
3. When the GPS-symbol in the upper right corner becomes red,
tap the Cancel button.
Notice: Switching the GPS-receiver on works the same way.
3.2.2 Hardware keys
Hardware keys On the upper right corner of your device, there are the following
hardware keys which allow to accede quickly the most important
functions:
On / Off
Turns the device on / off.
Configuration
Opens the C
ONFIGURATION screen.
Back
Opens the precedent screen.
Destination
Opens the D
ESTINATION screen.
Operating the navigation software - 27 -
User's manual BLUE Edition
Zoom out
Works only in map view mode.
Zoom in
Works only in map view mode.
Operating the navigation software - 28 -
3.3 Indicating destinations
User's manual BLUE Edition
Basic principle of
navigation
The indication of destinations is the basis of navigation
respectively of itinerary planning. In this chapter, you will learn
about the possibilities to indicate and manage destinations in
MobileNavigator.
For details on destination management, please refer to
“Navigation and Itinerary planning”, page 53.
Indicating a
destination
In MobileNavigator there are several possibilities to enter or to
select destinations:
Via a manual address entry, see page 30.
Via the Special destinations function, see page 32.
By indication on the map, see page 36.
By selection from the Saved destinations list, see page 38.
By selection from the Recent destinations list, see page 39.
Via the Home icon, see page 42.
Destination screen If you want to plan an itinerary or to navigate to a certain
destination, you have to indicate destinations. The D
ESTINATION
screen is the starting point for the indication or selection of a
destination:
Operating the navigation software - 29 -
User's manual BLUE Edition
3.3.1 Entering a destination manually
Database of places The data of all places covered by the currently loaded map is
stored in the database of places.
You need not enter the complete names of towns and streets as
MobileNavigator lists automatically all names that match with
your entry.
If you enter for example "bab" into the Town entry field you will
obtain a list of all towns beginning or having into their names
"bab" or "bab".
You may then select the correct entry or enter more letters to
shorten the results list.
Entries All entries may be done with the finger on the software keyboard.
You need not enter special characters when entering a
destination's city or street name. MobileNavigator replaces
these characters automatically. When you are looking for, e.g., a
town called "Würzburg", simply type "wurzburg".
Switching between
character and
number entry
Enter a space
character, delete a
single character
Tap the
icon to enter numbers, e.g. for a postcode.
Tap the
icon to return to the character entry mode.
Tap the key
to insert a space character.
Tap the key
to delete the character to the left of the insertion mark.
Operating the navigation software - 30 -
User's manual BLUE Edition
Special characters When you tap a key, a line above the software keyboard appears
which lists all characters that may be entered by this key. The
active character is highlighted.
If you want to type "ö", tap the "mno" key repeatedly until "ö" is
highlighted in the line above the software keyboard.
Indicating a
1. On the main screen tap One destination.
destination…
The D
ESTINATION screen opens.
2. Tap the Country entry field and select the destination
country.
3. Tap the Address entry field.
The A
DDRESS screen opens:
4. Enter the destination town into the Town entry field. Enter
either its name or its postcode.
5. Enter the destination street into the Street entry field. Enter
a house number into the field at the right hand side if
possible.
Notice: If the house numbers of the respective street are
stored in the database of places, you may tap the field
besides the Street field.
If no house numbers are stored, the respective field is
deactivated. The software navigates to the respective street.
6. Enter the name of a crossroad into the Intersection entry
field if you want to define an intersection as destination point
(e.g. because the house number is not available).
7. Tap the Save button if you want to navigate more often to
the entered destination. You may then quickly select it from
the Saved destinations list.
Operating the navigation software - 31 -
User's manual BLUE Edition
3.3.2 Selecting a special destination
Special destinations Special destinations, also known as POIs (Points of Interest), are
stored in the database of places and may be displayed on the
map. Ports, airports, restaurants, hotels, petrol stations, public
buildings, and others belong to the special destinations.
Indicate a special destination by selecting one
on the map, see “Indicating destinations on the map”,
page 36,
nearby,
of supraregional interest, or
in another town.
Selecting a special
destination...
1. On the D
button.
ESTINATION screen, tap the Special destination
The S
PECIAL DESTINATIONS screen opens:
Operating the navigation software - 32 -
Special destinations nearby
Notice: You may only display special destinations nearby when
the GPS receiver is turned on and when the GPS signal strength
is sufficient.
Selecting a special
destination nearby...
2. On the S
The S
User's manual BLUE Edition
PECIAL DESTINATIONS screen, tap the Nearby button.
PECIAL DESTINATIONS NEARBY screen opens:
3. Enter the radius around your current position within which
you want to search for special destinations into the Radius
entry field.
4. Select the main category of special destinations to search for
from the left one of the two Category list fields, e.g.
“Garages”. Only special destinations situated within the
indicated radius will be displayed.
5. Select the sub-category of special destinations to search for
into the right one of the two Category list fields, e.g. “BMW”,
“Ford”, “Volkswagen”.
Notice: If you leave the Sub-category field empty, all
special destinations matching with the selected main category
will be listed in the Special destination list field.
6. Select the correct destination from the Special destination
list field.
All special destinations matching your entries are listed,
including their linear distance from your current position:
Operating the navigation software - 33 -
User's manual BLUE Edition
7. Tap the Save button if you want to navigate more often to
the entered destination. You may then quickly select it from
the Saved destinations list.
Special destinations of superregional significance
Selecting a special
destination of
superregional
significance...
2. On the S
superregional significance button.
The S
screen opens:
PECIAL DESTINATIONS screen, tap the Of
PECIAL DESTINATIONS OF SUPERREGIONAL SIGNIFICANCE
3. Select the main category of special destinations to search for
from the Category list field, e.g. “Airports”.
4. Select the correct destination from the Special destination
list field.
5. Tap the Save button if you want to navigate more often to
the entered destination. You may then quickly select it from
the Saved destinations list.
Operating the navigation software - 34 -
Special destination in another town
User's manual BLUE Edition
Selecting a special
destination in
another town...
2. On the S
town button.
The S
PECIAL DESTINATIONS screen, tap the In another
PECIAL DESTINATIONS IN ANOTHER TOWN screen opens:
3. Enter the name of the town in which you want to search for
special destinations into the Town field.
4. Select the main category of special destinations to search for
from the left one of the two Category list fields, e.g.
“Nightlife”. Only special destinations matching your Town and
Category entries are listed.
5. Select the sub-category of special destinations to search for
into the right one of the two Category list fields, e.g. “Bar”,
“Cinema”, …
6. Select the correct destination from the Special destination
list field.
Notice: If you leave the Sub-category field empty, all
special destinations matching with the selected main category
will be listed in the Special destination list field.
If you leave both the Category and the Sub-category fields
empty, all special destinations situated in the selected town
will be listed in the Special destination list field.
7. Tap the Save button if you want to navigate more often to
the entered destination. You may then quickly select it from
the Saved destinations list.
Operating the navigation software - 35 -
User's manual BLUE Edition
3.3.3 Indicating destinations on the map
You may indicate a destination directly on the map. In addition to
towns and streets, you may also select special destinations
quickly..
Indicating a
destination on the
map...
1. On the main screen tap One destination.
ESTINATION screen opens.
The D
2. Tap the Indicate on map button.
The M
AP screen opens:
3. Tap on the place you want to determine as destination and
hold.
A circle of orange points appears round the selected place:
Operating the navigation software - 36 -
User's manual BLUE Edition
Database information on the respective place will be loaded
and displayed:
4. Tap the Task field.
The T
ASK screen opens where you may indicate how to
proceed:
5. Select Start navigation from the list to navigate to the
respective place.
Tap the Save button if you want to navigate more often to
the entered destination. You may then quickly select it from
the Saved destinations list.
The T
ASK screen closes and the task is indicated on a new
screen.
6. Tap the Execute button.
Operating the navigation software - 37 -
User's manual BLUE Edition
3.3.4 Saved destinations
Saved destinations All destinations you have saved by tapping the Save button are
listed on the S
may:
select destinations for navigation purposes,
rename destinations, and
delete destinations from the list.
AVED DESTINATIONS screen. . On this screen you
1. On the D
The S
AVED DESTINATIONS screen opens.
ESTINATION screen tap Saved destinations.
Take over 2. Tap the entry of the respective destination.
Notice: The list may be scrolled via the “up” and “down”
icons. You may as well enter the first letter of the respective
destination. The list will then automatically scroll to the first
destination matching your entry.
3. Tap OK.
The destination will be taken over. The address is entered into
the respective fields.
Operating the navigation software - 38 -
User's manual BLUE Edition
Renaming a
destination
1. Tap the Saved destinations button.
2. Tap the entry of the destination to be renamed.
3. Tap the Rename icon.
AVE AS… dialog box opens.
The S
4. Enter the new name.
5. Tap OK.
The destination is now renamed.
Deleting a
destination
1. Tap the Saved destinations button.
2. Tap the entry of the destination to be deleted.
3. Tap the Delete icon.
The destination is now deleted.
3.3.5 Recent destinations
Recent destinations All destinations you have navigated to recently are listed on the
ECENT DESTINATIONS screen. On this screen you may:
R
select destinations for navigation purposes,
Add destinations to the S
delete destinations from the list.
AVED DESTINATIONS list, and
Operating the navigation software - 39 -
User's manual BLUE Edition
Taking over 1. On the DESTINATION screen tap the Recent destinations
button.
ECENT DESTINATIONS screen opens.
The R
2. Tap the entry of the desired destination.
Notice: The list may be scrolled via the “up” and “down”
icons. You may as well enter the first letter of the town of the
desired destination. The list will then automatically scroll to
the first destination matching your entry.
3. Tap OK.
The destination will be taken over. The address is entered into
the respective fields.
Operating the navigation software - 40 -
User's manual BLUE Edition
Renaming a
destination
1. Tap the Recent destinations button.
2. Tap the entry of the destination you want to save.
3. Tap the Save icon.
The N
AME OF THE DESTINATION dialog box opens.
4. Enter a name for the destination.
5. Tap OK.
Deleting a
destination
The destination is now saved and will appear on the S
DESTINATIONS
list.
1. Tap the Recent destinations button.
2. Tap the entry of the destination to be deleted.
3. Tap the Delete icon.
The destination is now deleted.
AVED
Operating the navigation software - 41 -
User's manual BLUE Edition
3.3.6 Save and use your home address
Survey You may store your home address in MobileNavigator in order
to quickly start navigation home at any place.
Saving your home
address…
The S
2. Via the "Left" and "Right" icons, select Home address.
1. On the Main screen, tap the Settings button
ETTINGS screen opens.
3. Tap the Enter your home address button.
ESTINATION screen opens.
The D
Operating the navigation software - 42 -
4. Tap the Address button
and enter your address as described in “Entering a destination
manually”, page 30.
5. Tap the Set as home address button.
User's manual BLUE Edition
The address is taken over to the H
6. Tap the Save button.
Using your home
1. On the main screen, tap
address for
navigation...
.
OME ADDRESS screen.
The route is now being calculated and navigation starts. The
route options you have chosen for the last navigation are
applied.
Operating the navigation software - 43 -
User's manual BLUE Edition
3.4 Working with the map
Survey There are various pieces of information available on the MAP
screen. Learn in this chapter about the possibilities for working
with the map, which depend on whether you are in navigation
mode, or not.
Displaying the map On the main screen, tap the Show map button to open the M
screen.
Using the delivered
maps
There are two CDs (CD-ROM2 und CD-ROM3) with additional
maps included in the delivery. If you wish to use one of those
maps on your navigation system, transfer the desired map from
the respective CD to a memory card using a memory reader.
Proceed then as described in "Selecting a map" (see below).
Selecting a map To load another map which is available on the currently inserted
memory card, proceed as follows:
AP
Notice: If the desired map is on another memory card, remove
the card, which is currently inserted. MobileNavigator turns off.
Insert the card with the desired map. MobileNavigator turns on
again. Even if there is only one single map on the memory card,
you have to select it manually as described below.
1. On the main screen, tap the Choose map button.
The Available maps screen opens:
2. Tap the entry of the map you want to work with.
3. Tap OK.
The selected map is now loaded. The main screen opens.
Operating the navigation software - 44 -
User's manual BLUE Edition
3.4.1 Operating the map
Displaying the map You may display the map
while planning an itinerary,
in order to show destinations on the map, or
in order to select destinations on the map.
You may display the map via the Show map button on the main
screen or via the Show on map and Select on map buttons
which are available when you indicate a destination.
On the D
ESTINATION screen you may tap the SELECT ON MAP
button to display the map.
The map is being displayed automatically when you are
navigating.
Tapping the map The icons appear when you tap the map.
If you tap a place on the map and hold information on this place
will be displayed and you may, e.g., take over the data for
navigation purposes. For details, please refer to “Indicating
destinations on the map”, page 36.
Operating the navigation software - 45 -
User's manual BLUE Edition
Icons
The following icons are displayed on the map:
Zoom / Scroll Tap the Zoom/Scroll icon
(
or )
to switch between Zoom and Scroll mode.
Zoom
In Zoom mode (the icon appears white) you may scale the map
up or down. Zoom in by drawing a rectangle on the map,
beginning with the upper left corner. Zoom out by beginning with
the lower right corner.
Scrolling
In Scroll mode (the icon appears red) you may scroll the map.
Tap on the screen and drag to the desired direction.
Itinerary planning
This icon is active when a calculated itinerary is loaded. Tap the
Itinerary icon to display the whole itinerary. Tapping this icon
again will display the precedent representation of the map.
North orientation
Tap the Orientation icon to north orientate the map. (the icon
appears red). Tapping this icon again will orientate the map in
driving direction (the icon appears white).
Centre (GPS reception necessary)
Tap the Centre icon to centre your current position on the map.
3D view (GPS reception necessary)
Tap the 3D icon to display the map in 3D mode (bee flight view).
The icon becomes the 2D icon. Tap the 2D icon to return to the
2D mode (standard). The icon becomes the 3D icon.
Zoom in
Tap Zoom in to scale the map down.
Zoom bar Zoom bar
Drag the control to the left or to the right in order to modify the
scale of the map.
Zoom out
Tap Zoom out to scale the map up.
Operating the navigation software - 46 -
User's manual BLUE Edition
Auto mode (GPS reception necessary)
Tap the Auto icon to display the standard representation of the
map after you have modified the view. The settings of 3D view,
north orientation and autozoom mode will be applied. Your
current position will be centred. The icons will not be displayed.
For details please refer to "Auto mode", page 68.
Additional functions
Tap the Additional functions icon to display the A
FUNCTIONS
screen. The availability of some functions depends on
DDITIONAL
whether you are being in navigation mode or not.
DDITIONAL FUNCTIONS screen opens:
The A
Tap the Day icon to adapt the brightness of the screen to
daylight conditions.
Tap the Night icon to adapt the brightness of the screen to night
conditions.
Tap these icons to start / stop guidance by speech.
Show route list
This feature is only available in navigation mode or when a
calculated itinerary is loaded. Tap Show route list to display a
list of all important waypoints of the route. For details, please
refer to “Displaying the route list”, page 61.
Operating the navigation software - 47 -
Change preferences
User's manual BLUE Edition
Tap Change preferences to display the S
details, please refer to “Configuration of MobileNavigator”,
page 66.
Quit navigation
This function is only available in navigation mode. Tap Quit
navigation to exit navigation mode.
Block, Unblock, New block
These functions are only available in navigation mode.
For details, please refer to “Blocking a route section”, page 63.
Set interim destination
This function is only available in navigation mode. Tap Set
interim destination to add a new route point to your itinerary.
The route will be recalculated and the newly added route point
will be the first destination to navigate to. Navigation to the other
route points will be executed later.
For details, please refer to “Adding a stage point during
navigation”, page 62.
Change route options
ETTINGS screen. For
This function is only available in navigation mode. Tap Change
route options to modify them.
For details, please refer to “Navigating to a destination”, page 55.
Operating the navigation software - 48 -
User's manual BLUE Edition
3.4.2 Representation of the map in navigation mode
In navigation mode, there is some assistance for navigation,
some information on the itinerary and one more command button
being displayed:
Assistance for
navigation
The following assistance for navigation is being displayed at the
left and at the bottom of the map:
Field Information
If there is two manoeuvres to be executed quickly one
after the other, the small upper arrow field indicates
the next manoeuvre but one to be executed.
The red arrow indicates your current position on the
map. Since the displayed sector of the map changes
continually your current position is centred on the
map whenever possible (Moving Map).
The bigger arrow field indicates the next manoeuvre
to be executed.
The distance field indicates the distance to the next
manoeuvre. When you approach, the representations
changes into a distance bar:
The more yellow bars are displayed the nearer you
are to the place where the next manoeuvre must be
executed.
The upper street field indicates the name of the next
street to turn in.
The lower street field indicates the name of the street
you are currently in.
Operating the navigation software - 49 -
User's manual BLUE Edition
Information on the
itinerary
At the right of the map, the following information on the itinerary
is being displayed:
Field Information
This symbol means "stage". All information displayed
below refers to the next stage point.
ETA (Estimated time of arrival).
Remaining time to arrival (estimated).
Remaining distance to arrival (estimated).
Tap this icon to repeat the last spoken instruction. All available
information will be displayed.
The additional information will disappear after some seconds.
Operating the navigation software - 50 -
User's manual BLUE Edition
3.4.3 Displaying additional information on the map
In MobileNavigator you may determine which information is to
be displayed on the map. Modifying any configuration begins on
ETTINGS screen.
the S
Configuring the
display of additional
information…
1. On the main screen, tap Settings or tap the
icon on the map and select Settings.
ETTINGS screen opens.
The S
2. Select Map information using the arrow buttons:
Info bar 3. The Info bar at the bottom of the map displays the compass,
the current height above sea level, and the current speed.
Tap the respective command button to display (Yes) or not
(No) the Info bar.
Special destinations 4. Tap the respective command button to display (Yes) or not
(No) Special destinations on the map.
Street names 5. Tap the respective command button to display (Yes) or not
(No) Street names on the map.
6. Via the arrow buttons select Route information:
Operating the navigation software - 51 -
User's manual BLUE Edition
7. Tap the command buttons to display (Yes) or not (No) the
respective information on the map.
The desired information on the entire itinerary (upper section)
and on the current stage (lower sector) will be displayed at
the right hand side of the map.
Section Information
This symbol means "itinerary". All information
displayed below refers to the complete route.
This symbol means "stage". All information
displayed below refers to the next stage point. The
"stage" section is not displayed when only one
single destination has been indicated.
Line 2 ETA (Estimated time of arrival).
Line 3 Remaining time to arrival (estimated).
Line 4 Remaining distance to arrival (estimated).
8. Tap Save to save the modifications.
The modifications will be taken over and displayed on the
map.
Operating the navigation software - 52 -
User's manual BLUE Edition
4 Navigation and Itinerary
planning
Topics covered in this chapter:
4.1 General notes on navigation page 54
4.2 Navigating to a destination page 55
4.3 Navigating to several destinations (Itinerary planning) page 57
Working on itineraries, storage and management
4.4 Functions which are useful for navigation page 61
Displaying the route list
Adding a stage point during navigation
Blocking a route section
Navigation and Itinerary planning - 53 -
User's manual BLUE Edition
4.1 General notes on navigation
The use of MobileNavigator may only be effected at your own
risk.
Attention: To protect yourself and others from accidents please
do not operate the navigation system while driving!
Attention: You must not look at the display except when it is
absolutely safe to do so!
Attention: The road layout and the traffic signs are absolutely
prior to the instructions of the navigation system.
Attention: You must not follow the instructions of
MobileNavigator except when the circumstances and the road
traffic regulations allow doing so. MobileNavigator will guide
you to your destination even when you have left your planned
itinerary.
Obstructed GPS
reception
Quitting navigation
mode
Arriving at your
destination
When you turn off the GPS receiver or when the reception of
GPS-signals is obstructed MobileNavigator does not close but
navigation is interrupted.
As soon as the GPS receiver works again the navigation system
notices a possible change of your current position and
recalculates the route. You may simply continue navigation.
Notice: Navigation will always continue automatically when you
switch off your hardware without closing MobileNavigator
before.
When you quit navigation mode by command the main screen
appears. You may then indicate another destination or reassume
the by selecting the former destination from the Recent
destinations list.
When you have reached your destination the system pronounces
the message "You have reached your destination!"
The map is no more presented in navigation mode. A small red
arrow indicates your current position.
Navigation and Itinerary planning - 54 -
4.2 Navigating to a destination
User's manual BLUE Edition
Navigating to a
destination…
1. Enter your destination as described in “Indicating
destinations”, page 29.
2. Tap the Start navigation button.
The R
OUTE OPTIONS screen opens:
3. Tap the T
options:
Option Signification
Fast route The quickest route will be calculated.
Short route The shortest route will be calculated.
Pedestrian route
YPE OF ROUTING field and select one of the following
A route for pedestrians will be calculated.
One-way directives and prohibitions of
vehicular traffic will be disregarded.
Bike route
A route for bikes will be calculated. All
traffic rules concerning cars will be
regarded, but some kinds of roads as e.g.
motorways will be excluded from the
itinerary.
Navigation and Itinerary planning - 55 -
User's manual BLUE Edition
4. Tap the Motorways, Ferries, and Toll road fields
successively and select one of the following options:
Option Signification
Permitted
The respective kind of street will be
regarded for route calculation.
Avoid
The respective kind of street will be
avoided if reasonable.
Forbidden
The respective kind of street will be
disregarded for route calculation.
Notice: The Route options settings will be saved. You will no
more need to enter them except if you want to navigate using
modified options.
5. Tap Start navigation.
The route is now being calculated. The map is being displayed
in navigation mode.
Navigation and Itinerary planning - 56 -
User's manual BLUE Edition
4.3 Navigating to several destinations (Itinerary
planning)
Itinerary planning You may plan itineraries without receiving GPS-signals, e.g.
comfortably at home. Planned itineraries may be stored. Thus
you may plan as many itineraries as you want, e.g. for holidays.
Navigating to several
destinations…
1. On the main screen, tap Several destinations.
The I
2. Tap the Add destination icon to indicate the first stage
The Destination screen opens.
3. Indicate the destination as described in “Indicating
4. Tap the Add to itinerary icon.
TINERARY screen opens:
point.
destinations”, page 29.
The I
5. Repeat steps 2-4 for every stage point you want to add to the
Navigation and Itinerary planning - 57 -
TINERARY screen opens. The destination is added as
stage point 1.
itinerary.
User's manual BLUE Edition
6. Tap the entry of the stage point you want to navigate to first.
Notice: You have to select the stage point you want to
navigate to first. You may then continue navigation when it
was interrupted. You may as well navigate to only some of
the stage points of a stored itinerary.
7. Tap Start navigation.
The route is now being calculated. The map is being displayed
in navigation mode.
Continuing
navigation after the
arrival at a stage
point…
If you have planned an itinerary with several stages,
navigation to the next stage point starts automatically when
you have reached a stage point. For details, please refer to
“Itinerary”, page 69.
Navigation and Itinerary planning - 58 -
User's manual BLUE Edition
4.3.1 Working on itineraries, storage and management
Survey You may plan as much itineraries as you want, e.g. for holidays.
You may save them and use them later for navigation purposes.
At any moment, you may add stage points, modify the order of
the stages, or display the itinerary on the map.
The following commands are available:
One place up
One place down
Add stage
Delete stage
Tap the One place up icon to navigate to the respective stage
point earlier (example: stage 3 becomes stage 2).
Tap the One place down icon to navigate to the respective
stage point later (example: stage 2 becomes stage 3).
Tap the Add destination icon to add a stage point. The new
stage point will be added at the end of the list. You may shift it
forward using the One place up icon.
Tap the Delete destination icon to delete the respective stage
point.
Calculate the route
Tap the Calculate the route icon to calculate the distance and
the estimated duration of the entire itinerary. The information will
be displayed after you have entered (or confirmed) the route
options.
Furthermore, the distance and the estimated duration of each
stage will be indicated with the stage entries.
Load an itinerary
Tap the Load itinerary icon to load a saved itinerary, e.g. to
modify it or for navigation purposes. If you had already entered
stage points, the stage points of the loaded itinerary will be
inserted after the stage point which is currently selected.
Save the itinerary
Tap the Save itinerary icon to save the itinerary. Enter an name
for the itinerary into the S
AVE AS… dialog box.
Navigation and Itinerary planning - 59 -
User's manual BLUE Edition
Tap Show on map to display the entire itinerary on the map.
The route will be highlighted in blue:
4.3.2 Simulating the route
Simulation You may execute a simulated navigation along the itinerary when
the route has been calculated.
Notice: The reception of GPS-signals is not necessary for the
simulation.
Simulating the
route…
The route will be recalculated for simulation purposes
1. Tap the Show on map icon.
The itinerary is displayed on the map.
2. Tap the Additional functions icon.
3. Tap Start simulation.
and simulation starts when calculation is ready.
Stop simulation 1. To quit simulation tap the Additional functions icon.
2. Tap Quit navigation.
Navigation and Itinerary planning - 60 -
User's manual BLUE Edition
4.4 Functions which are useful for navigation
Survey In MobileNavigator the following functions are available in
navigation mode:
Displaying the route list, see below.
Adding a stage point during navigation, see page 61.
Blocking route sections, see page 62.
4.4.1 Displaying the route list
Route sections During navigation (or just after the calculation of the route) you
may display the route list, which informs about the distance and
duration from one way point to the next.
Displaying the route
list…
Precondition
1. Tap the Additional functions icon
: The map is being displayed.
.
2. Tap Show route list.
The R
The route list informs about the distance to the next turn, the
OUTE LIST screen opens.
type of the next maneuver, the name of the street in which
you are just before carrying out the described maneuver and
the name of the street into which you should turn next.
Navigation and Itinerary planning - 61 -
4.4.2 Adding a stage point during navigation
User's manual BLUE Edition
Adding a stage point
during navigation…
At any moment during navigation you may add a new stage point
to your itinerary. The route will be recalculated in order to make
the new stage point the next destination to navigate to. The
other remaining stage points will be navigated to after the new
one.
Adding a stage
Precondition
: The map is being displayed in navigation mode.
point…
1. Tap the Additional functions icon.
The D
2. Tap Set interim destination.
ESTINATION screen opens.
3. Indicate the new stage point as described in “Indicating
destinations”, page 29.
4. Tap the Set as route point button.
The route will be recalculated in order to make the new stage
point the next destination to navigate to.
Notice: You may as well select the new stage point directly on
the map, just as described in “Indicating destinations on the
map”, page 36. Tap the respective place and hold. From the
context menu, select Add to route.
Navigation and Itinerary planning - 62 -
4.4.3 Blocking a route section
User's manual BLUE Edition
Blocking a route
section manually
You may block a route section manually in order to evade it.
Manual blocking forces a recalculation of the route.
Presume that you are driving on a motorway and a radio
message announces a traffic jam of 4 miles near your current
position. With the “Block route sections” function you may
instruct the navigation system to evade the announced traffic
jam.
A manual blocking is only valid for the current navigation
process. The respective route section will be unblocked for the
next navigation or when you restart the software.
Blocking a route
section…
Precondition
the map is being displayed.
: The navigation system is in navigation mode and
1. Tap the Additional functions icon.
2. Tap Block road.
The B
LOCKING screen opens.
3. Enter how many miles (from your current position on) you
want to block.
4. Tap OK.
This forces a recalculation of the route. The indicated route
section will be evaded. On the map, it will be highlighted on
red.
Unblocking a route
1. Tap the Additional functions icon.
section
2. Tap Unblock.
The route section is now unblocked. The navigation system
uses the route, which had been calculated originally.
Navigation and Itinerary planning - 63 -
User's manual BLUE Edition
Navigation and Itinerary planning - 64 -
User's manual BLUE Edition
5 Appendix
Topics covered in this chapter:
5.1 Configuration of MobileNavigator page 66
Map information
Route information
Volume
Representation
Touch screen calibration
Auto mode
Speed profile
Itinerary
Time zone
Format
Home address
Radio-Mute
Appendix - 65 -
User's manual BLUE Edition
5.1 Configuration of MobileNavigator
Configuration In MobileNavigator, you may modify the following settings:
Map information, see below.
Route information, see page 67.
Volume, see page 67.
Representation, see page 68, see page 69.
Touch screen calibration, see page 68
Auto mode, see page 68.
Speed profile, see page 69.
Itinerary, see page 69.
Time zone, see page 69.
Itinerary, see page 69.
Format, see page 69.
Home address, see page 70.
Radio-Mute, see page 70
On the main screen, tap the Settings button to configure
MobileNavigator.
On the S
modifications if you have made some.
ETTINGS screen, tap the Save button to apply your
5.1.1 Map information
Info on the map On the INFO ON THE MAP screen, you may effect the following
modifications:
Element Signification
Info bar
The Info bar at the bottom of the map
displays the the compass, the current
height above sea level, and the current
speed.
Tap the respective command button to
display (Yes) or not (No) the Info bar.
Appendix - 66 -
Special
destinations
Street names
Tap the respective command button to
display (Yes) or not (No) Special
destinations on the map.
Tap the respective command button to
display (Yes) or not (No) Street names on
the map.
User's manual BLUE Edition
5.1.2 Route information
Route information On the ROUTE INFORMATION screen, you may effect the following
modifications:
Element Signification
Dist. to final dest.
Time to final dest.
ETA at final dest.
Remaining distance to the final destination
(estimated)
Remaining time to the final destination
(estimated).
ETA (Estimated time of arrival) at the final
destination.
Tap the respective command buttons to
display (Yes) or not (No) the respective
information on the map.
All information displayed below refers to
the final destination. This section is only
available if you have indicated more than
one destination to navigate to.
Dist. to next dest.
Time to next dest.
ETA at next dest.
Remaining distance to the next stage point
(estimated).
Remaining time to the next stage point
(estimated).
ETA (Estimated time of arrival) at the next
stage point.
Tap the respective command buttons to
display (Yes) or not (No) the respective
information on the map.
All information displayed below refers to
the next stage point.
5.1.3 Volume
Volume On the VOLUME screen, modify the volume of the spoken
indications of the navigation system.
Tap the Volume field and select another value.
Appendix - 67 -
User's manual BLUE Edition
5.1.4 Representation
Representation On the REPRESENTATION screen, you may effect the following
modifications:
Element Signification
Skin
Brightness day
Brightness night
Skins are made to personalise the user
interface of MobileNavigator.
Tap the Skin field.
Select one of the available skins and tap
OK.
Tap this entry field and select a brightness
degree (1 to 8) to adapt the brightness of
the screen to daylight conditions.
Tap this entry field and select a brightness
degree (1 to 8) to adapt the brightness of
the screen to night conditions.
5.1.5 Touch screen calibration
Touchscreen calibration
If you think that the touch screen does not perceive contact
positions correctly, MobileNavigator may calibrate it.
Tap the Start calibration button and follow the instructions on
the display.
5.1.6 Auto mode
Auto mode On the AUTO MODE screen, you may effect the following
modifications:
Element Signification
Autozoom
Map
Autozoom increases or reduces the scale of
the map, depending on your current speed.
Tap the Autozoom field.
Select
No autozoom if you don’t want the scale
to be modified in navigation mode.
Standard autozoom if you want the scale
to be modified continuously in navigation
mode.
Low autozoom if you want to increase the
scale quicker than with normal autozoom.
High autozoom if you want to reduce the
scale quicker than with normal autozoom.
Make your choice and tap OK.
Tap this button to orientate the map by
default to the north (Yes) or in driving
direction (No).
Appendix - 68 -
User's manual BLUE Edition
5.1.7 Speed profile
Speed profile On the SPEED PROFILE screen, indicate your speed profile. This
entry will have an effect on the calculation of the remaining time
and of the estimated time of arrival (ETA).
Tap the Speed profile button. Select one of the available profiles and tap OK.
5.1.8 Itinerary
Proceeding
automatically to the
next stage point…
On the I
navigate automatically to the next stage point after having
reached a stage point (Yes) or not (No).
Tap the Proceed automatically to next destination button to
toggle between Yes and No.
If you do not proceed automatically, you may proceed as follows:
On the map in navigation mode, tap the Additional functions
Select Next route point and tap OK.
5.1.9 Time zone
Calculation of arrival
times
On the TIME ZONE screen, select the time zone of the region you
are currently staying in. This is necessary for the system to
indicate correct times of arrival in navigation mode.
Element Signification
Time zone
Daylight saving
time
TINERARY screen, determine whether you want to
icon.
Tap this entry field to select the time zone
of the region you are currently staying in.
Tap this entry field to switch between
daylight saving time (yes) and standard
time (no).
5.1.10 Format
Units On the FORMAT screen, determine which units are to be used for
time and distance indications.
Appendix - 69 -
Element Signification
Time
Distance
Tap the Time field to toggle between
12 hours (AM/PM) and 24 hours time
format.
Tap the Distance field to toggle between
kilometres or miles distance units.
User's manual BLUE Edition
5.1.11 Home address
Home address On the HOME ADDRESS screen, you may save your home address
to quickly start navigation homewards from anywhere.
1. Tap Enter your home address.
ESTINATION screen opens.
The D
2. Tap the Address button and enter your home address as
described in “Entering a destination manually”, page 30.
3. Tap the Set as home address button.
The address is indicated on the H
OME ADDRESS screen.
5.1.12 Radio-Mute
Radio-Mute On the RADIO-MUTE screen, you may activate the radio-mute
function if your hands-free kit is connected to the RADIO-MUTE
jack of your car radio. Possible retardations of the hands-free kit
will then have no negative effects on the spoken indications of
the navigation system.
Appendix - 70 -
User's manual BLUE Edition
6 Glossary
COM-port A COM port is a connector to a communications interface, usually
the serial port. The ports are numbered by a number behind
“COM”. A communications interface is designed to connect
hardware like a mouse or a GPS receiver.
GMT GMT (Greenwich Mean Time) is the mean solar time at the Royal
Greenwich Observatory in Greenwich near London, England,
which by convention is at 0 degrees geographic longitude.
Theoretically, noon Greenwich Mean Time is the moment when
the Sun crosses the Greenwich meridian (and reaches its highest
point in the sky in Greenwich). Up to 1972, GMT was the global
time standard. Because of the Earth's uneven speed in its elliptic
orbit, GMT has been replaced by UTC (Universal Time
Coordinated) which is an ultra stable time standard based on
atomic clocks.
GPS The GPS (Global Positioning System) is based on 24 satellites,
which are in orbit round the earth. They are permanently
emitting the time and their current position. The GPS receiver
receives this information and calculates the longitude and the
latitude of its own current position.
The signals of at least three satellites are needed to determine
the longitude and the latitude. With the signals of at least four
satellites the elevation may be calculated, too. The determination
has an accuracy of about 3 yards.
HDOP The Horizontal Dilution of Precision (HDOP) indicates the quality
of position determination. Theoretically any value from 0 to 50 is
possible. The smaller the value is, the more accurate is the
position determination (value 0 = no deviation from the actual
position). Values up to 8 are convenient for street navigation.
POI Point of Interest (POI). See Special destination.
Special destination Special destinations, also called POI (Points of Interest), are
covered by the map and may be displayed on it. Harbours,
airports, restaurants, hotels, petrol stations, public buildings, and
others belong to the special destinations. You may determine
special destinations as itinerary points for navigation purposes.
Glossary - 71 -
7 Index
User's manual BLUE Edition
A
Activation code ............................... 12
Additional functions ......................... 47
Assistance for navigation.................. 49
Autozoom ...................................... 68
B
Bike route ...................................... 55
Blocking......................................... 63
C
Current position .............................. 49
D
Database of places .......................... 30
Destination
Delete.................................... 39, 41
Navigate to.................................. 55
Rename ...................................... 39
Save........................................... 41
E
ETA (Estimated Time of Arrival)......... 67
G
GMT .............................................. 26
GPS .............................................. 10
GPS icon ..................................... 26
Signals........................................ 10
GPS receiver................................... 54
GPS-receiver
On/Off ........................................ 27
I
Indication of destinations
Home address .............................. 43
Manually ..................................... 30
On the map ................................. 36
Recent destinations....................... 39
Saved destinations........................ 38
Special destination........................ 32
Info bar ....................................51, 66
Information
Itinerary...................................... 52
Stage..................................... 50, 52
Itinerary ...................................52, 69
Itinerary planning............................ 57
M
Main screen .................................... 20
Map
3D view....................................... 46
Active ......................................... 44
Auto mode................................... 47
Centre ........................................ 46
Display...................................21, 45
Info bar....................................... 51
Information ................................. 51
Itinerary...................................... 46
Orientation .................................. 46
Scroll .......................................... 46
Special destinations .................51, 66
Street names .......................... 51, 66
Zoom.......................................... 46
Zoom in ...................................... 46
Zoom out .................................... 46
MobileNavigator
Quit ............................................ 21
N
Navigation
H
Hardware keys................................ 27
HDOP ............................................ 26
Home address ......................22, 42, 70
Index - 73 -
Begin .......................................... 55
Next stage................................... 69
Proceed automatically ................... 69
Quit ............................................ 48
Navigation software
Start........................................... 20
Next stage...................................... 69
User's manual BLUE Edition
O
Orientation..................................... 68
P
POI ............................................... 32
Proceed automatically ...................... 69
R
Recent Destinations......................... 39
Remaining distance ......................... 67
Remaining time............................... 67
Route information ........................... 49
Route options ............................ 48, 55
Route point .................................... 48
Route section ................................. 61
Block .......................................... 63
Unblock....................................... 63
S
Route information......................... 67
Speed profile................................ 69
Volume ....................................... 67
Skins ............................................. 68
Special destination ............... 32, 51, 66
Special destinations
In another town ........................... 35
Nearby........................................ 33
Of superregional significance .......... 34
Speech guidance ............................. 47
Speed profile .................................. 69
Stage ............................................ 52
Stage point..................................... 62
Street names............................. 51, 66
Support ........................................... 7
T
Time of arrival ................................ 67
U
Units ............................................. 69
Saved destinations .......................... 38
Screen
Address ...................................... 31
Configuration ............................... 66
Destination.................................. 29
Itinerary ..................................... 57
Settings ...................................... 66
Special destination........................ 32
Search facilities................................. 6
Security information .......................... 4
Serial number................................. 12
Service ............................................ 7
Settings
Auto mode .................................. 68
Format........................................ 69
Home address.............................. 70
Info on the map ........................... 66
Itinerary ..................................... 69
Representation............................. 68
V
Voice Instruction ............................. 50
Volume .......................................... 67
W
Way list ......................................... 61
Waypoints ...................................... 47
Z
Zoom bar ....................................... 46
Index - 74 -
