Navigon 72xx User Manual
User’s manual
NAVIGON 72xx
English (United Kingdom)
August 2008
The crossed-out wheeled bin means that within the European Union
the product must be taken to separate collection at the product end-oflife. This applies to your device but also to any enhancements marked
with this symbol. Do not dispose of these products as unsorted
municipal waste.
Imprint
NAVIGON AG
Schottmüllerstraße 20A
D-20251 Hamburg
The information contained herein may be changed at any time without prior
notification. Neither this manual nor any parts thereof may be reproduced for any
purpose whatsoever without the express written consent of NAVIGON AG, nor may
they be transmitted in any form either electronically or mechanically, including
photocopying and recording. All technical specifications, drawings etc are subject to
copyright law.
© 2008, NAVIGON AG
All rights reserved.
User’s manual NAVIGON 72xx
Table of contents
1 Introduction.......................................................................................6
1.1 About this manual.....................................................................................6
1.1.1 Conventions.................................................................................6
1.1.2 Symbols.......................................................................................6
1.2 Legal notice ..............................................................................................6
1.2.1 Liability.........................................................................................6
1.2.2 Trademarks .................................................................................6
1.3 Questions about the product ....................................................................7
2 Before you begin...............................................................................7
2.1 Scope of Delivery .....................................................................................7
2.2 Description of the NAVIGON 72xx ...........................................................8
2.3 Important safety information.....................................................................8
2.3.1 Navigation safety information ......................................................8
2.3.2 Safety information for the navigation device................................9
2.3.3 Safety guidelines when installing the device in your car ...........10
2.4 Preparing the NAVIGON 72xx for use....................................................10
2.4.1 Installing the navigation system in the vehicle...........................10
2.4.2 TMC antenna.............................................................................13
2.4.3 Memory card..............................................................................13
2.5 Navigating with GPS ..............................................................................14
3 Switching on the NAVIGON 72xx...................................................14
3.1 Options ...................................................................................................15
4 Password Lock................................................................................15
4.1 Activating password protection...............................................................15
4.2 Changing a password.............................................................................16
4.3 Cancelling password protection .............................................................16
4.4 Forgotten your password?......................................................................16
5 Operating the NAVIGON 72xx........................................................16
5.1 Information .............................................................................................16
5.2 Software keyboard .................................................................................18
5.2.1 Special keys ..............................................................................19
5.2.2 Entering data .............................................................................20
5.3 Options ...................................................................................................20
5.4 Menus.....................................................................................................21
User’s manual Table of contents III
User’s manual NAVIGON 72xx
6 Navigation .......................................................................................21
6.1 Starting the navigation application .........................................................21
6.2 Specifying a destination .........................................................................23
6.2.1 Specifying the country in which the destination is situated........23
6.2.2 Entering a destination address ..................................................23
6.2.3 Selecting the destination address by voice command...............24
6.2.4 Points of interest........................................................................25
6.2.5 Information about the destination ..............................................28
6.2.6 Last Destinations .......................................................................29
6.2.7 Favourites..................................................................................29
6.2.8 Imported addresses...................................................................30
6.2.9 Navigating home........................................................................30
6.2.10 Selecting destinations on the map.............................................31
6.2.11 Starting navigation.....................................................................31
6.3 Managing destinations ...........................................................................32
6.3.1 Saving destinations ...................................................................33
6.3.2 Defining a destination as home address ...................................33
6.4 Multi-leg routes.......................................................................................33
6.4.1 Entering the starting point..........................................................34
6.4.2 Entering route points .................................................................34
6.4.3 Editing route points....................................................................35
6.4.4 Managing routes........................................................................35
6.4.5 Calculating and displaying routes..............................................36
6.4.6 Simulating routes.......................................................................36
6.4.7 Starting navigation.....................................................................36
6.5 Options ...................................................................................................37
6.6 Working with the map.............................................................................39
6.6.1 Selecting the navigation map ....................................................39

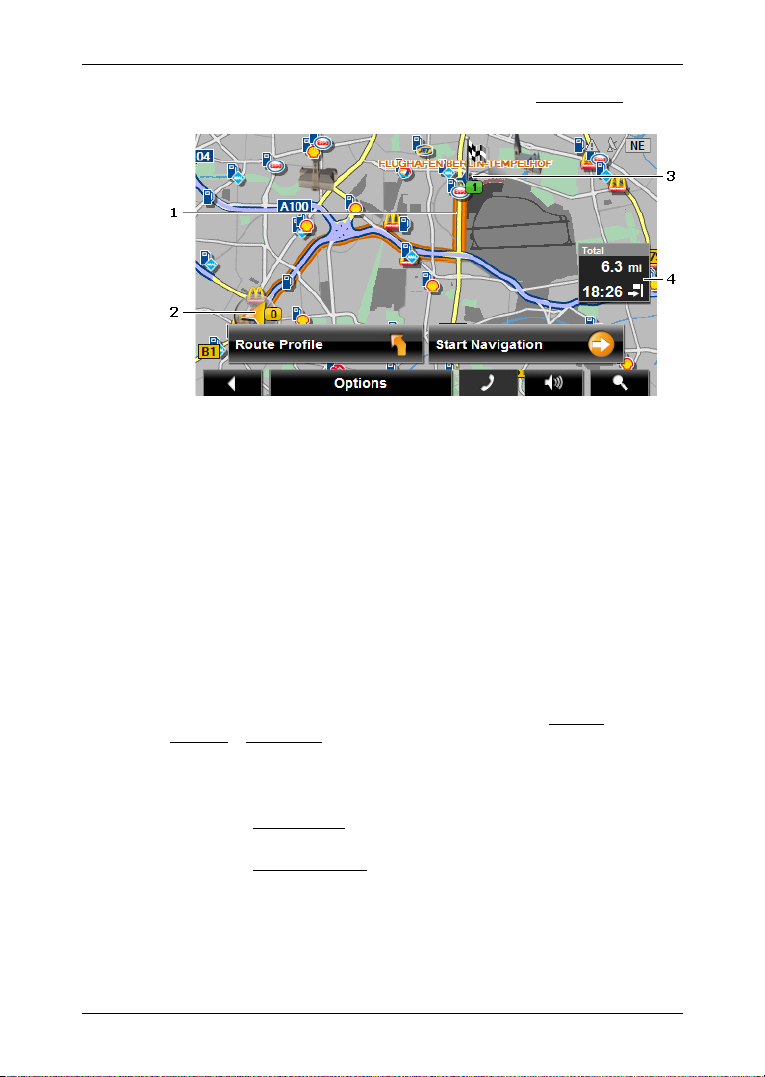

6.6.2 Map in Preview mode ................................................................39

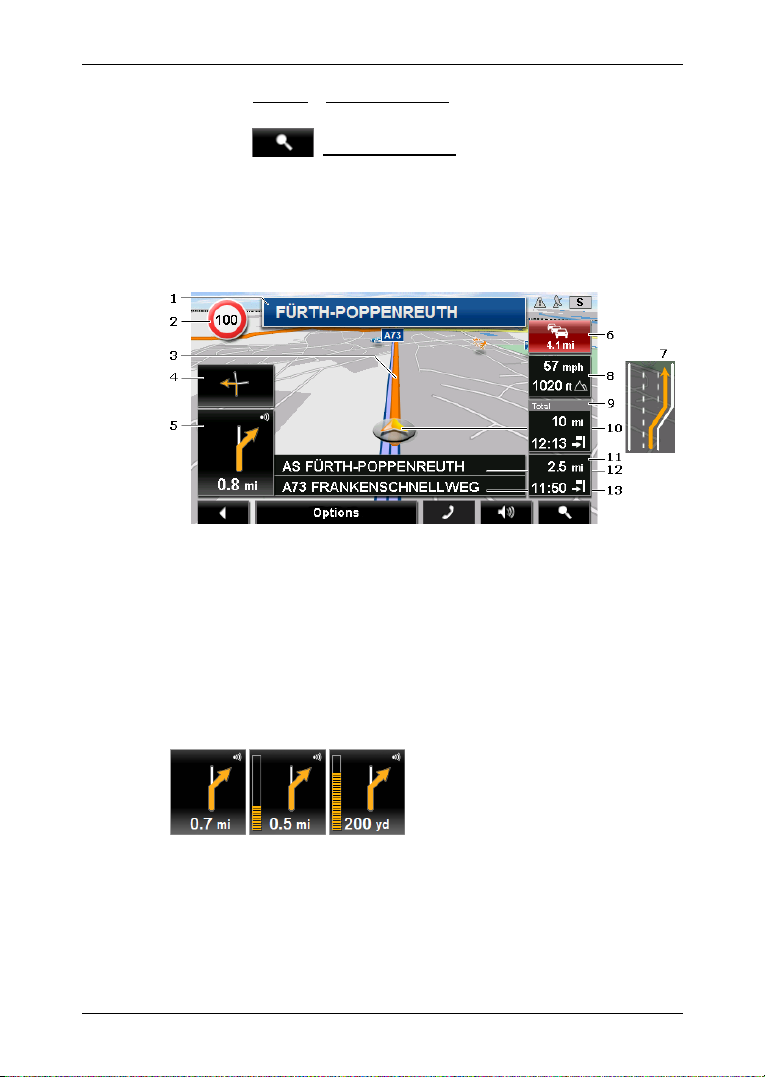

6.6.3 Map in Navigation mode............................................................41
6.6.4 Reality View PRO ......................................................................44
6.6.5 Map in Destination search mode ...............................................45
6.7 Useful functions......................................................................................46
6.7.1 Direct Help.................................................................................46
6.7.2 GPS Status, saving the current location....................................47
6.7.3 Block..........................................................................................48

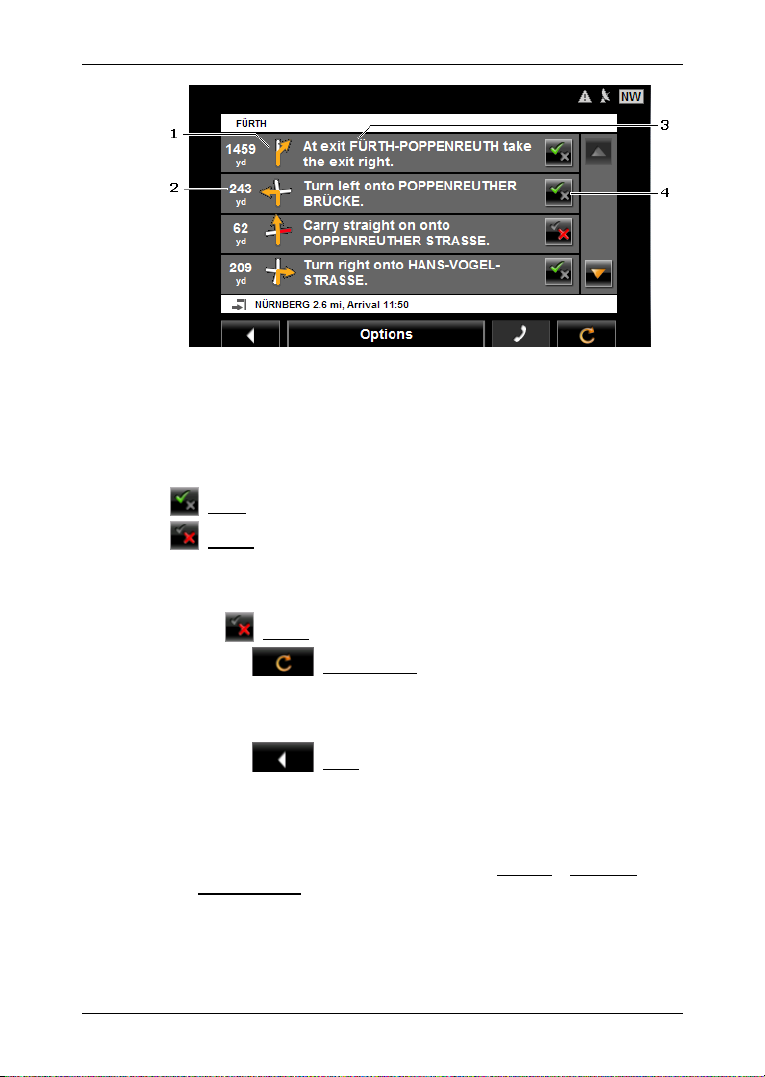

6.7.4 Turn-by-Turn List .......................................................................48

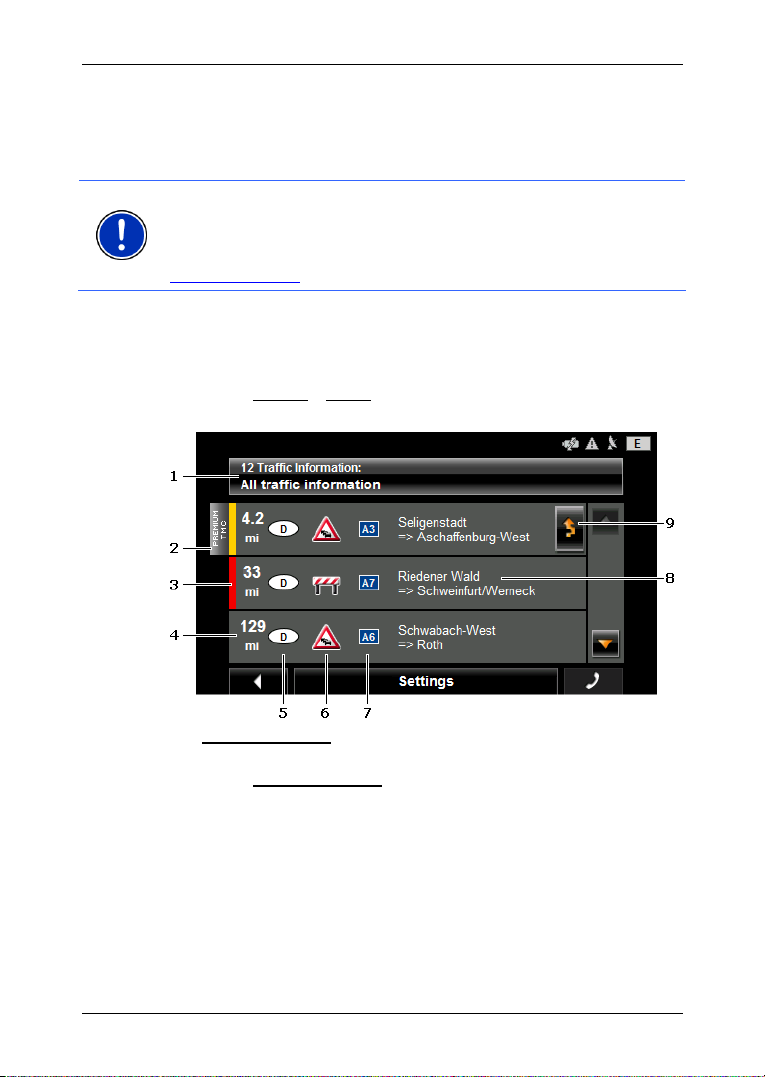

6.7.5 TMC (Traffic Information) ..........................................................50
6.7.6 Logbook.....................................................................................52
IV Table of contents User’s manual
User’s manual NAVIGON 72xx
7 Handsfree Module...........................................................................53
7.1 Connecting to a telephone .....................................................................53
7.2 Taking a call ...........................................................................................54
7.3 Making a call ..........................................................................................54
7.3.1 Dialling a telephone number......................................................54
7.3.2 Dialling a Speed Call number ....................................................54
7.3.3 Calling a contact from the phone book ......................................55
7.3.4 Calling most recently dialled, received or missed numbers.......55
7.3.5 Transferring a call from your mobile telephone .........................55
7.4 During a call ...........................................................................................55
7.4.1 Moving the navigation application to the foreground .................56
7.4.2 Entering numbers ......................................................................56
7.4.3 Transferring a call to the mobile phone .....................................56
7.4.4 Ending the call ...........................................................................56
7.5 Configuring the hands-free function .......................................................56
7.5.1 Preset ........................................................................................56
7.5.2 Handsfree Settings ....................................................................57
7.5.3 Bluetooth Function.....................................................................57
7.6 Connection with Mobile Phone...............................................................58
7.6.1 Establishing a connection from the navigation device............... 58
7.6.2 Establishing a connection from the mobile phone.....................59
7.6.3 Terminating the connection and deleting the connection
data............................................................................................
59
8 Configuring the NAVIGON 72xx.....................................................60
9 Appendix .........................................................................................62
9.1 Technical data ........................................................................................62
9.2 Identification and serial number .............................................................63
9.3 Declaration of conformity........................................................................63
10 Troubleshooting..............................................................................63
11 Index ................................................................................................65
User’s manual Table of contents V
User’s manual NAVIGON 72xx
1 Introduction
1.1 About this manual
1.1.1 Conventions
For better legibility and clarification, the following styles are used in this
manual:
Bold and italics: Product names.
S
MALL CAPITALS: Window and dialogue box titles.
Bold: Highlighting of important parts in the text.
Underlined
Underlined and italics
1.1.2 Symbols
: Names of buttons, input boxes and other elements
on the user interface.
: Names of control elements on the navigation
device.
The following symbols refer to specific passages of text:
Instructions and tips for operating the software
More detailed information and explanations
Warnings
1.2 Legal notice
1.2.1 Liability
The software and manual are subject to change without notice.
NAVIGON AG is not liable for the accuracy of the information contained
in this manual or for damages resulting from the use of this manual.
Suggestions for improvements and information regarding errors are
always welcome so that we can supply you with even better products in
the future.
1.2.2 Trademarks
All brand and trade marks mentioned in this document and registered
by third parties are subject without reservation to copyright law and the
- 6 - Introduction
proprietary rights of their respective owners. All trade marks, trade
names and company names used in this document are or may be trade
marks or registered trademarks of their respective owners. All rights
reserved except those explicitly granted.
If the registered trademarks used in this manual are not explicitly
identified as such, this does not imply that the name is not subject to the
rights of a third party.
► Microsoft, Outlook, Excel and Windows are registered trade marks
of the Microsoft Corporation.
► NAVIGON is a registered trade mark of NAVIGON AG.
1.3 Questions about the product
You have a question concerning your product? Then visit our webseite
www.navigon.com and click on "Support". There you will find an area
with frequently asked questions (FAQ Center) along with details of how
to contact us by phone or e-mail.
2 Before you begin
2.1 Scope of Delivery
Please check that the contents are complete. If anything is missing, get
in touch immediately with the dealer who sold you the product.
The purchased product includes the following:
► NAVIGON 72xx navigation device
► Car cradle (in parts, refer to "Assembling the cradle" on page 11)
► Car charger cable (10-24V adapter for the vehicle's cigarette lighter)
with integrated TMC antenna
► USB cable
► Leaflet with illustrated installation instructions
► DVD with the following contents:
► Manuals as PDF files
► NAVIGON Fresh, with which you can keep your navigation
system up to date at all times and use additional services
► NAVIGON Sync, with which you can transfer contact
addresses from Microsoft Outlook to your navigation system
► Information about useful accessories
User’s manual NAVIGON 72xx
Before you begin - 7 -
User’s manual NAVIGON 72xx
2.2 Description of the NAVIGON 72xx
Touch-screen
1
2
3
4
5
6
7
8
9
Slot for MicroSD memory card
Reset
LED
Mini USB socket for USB cable / car charger cable
Headset socket
Connection for external GPS antenna
Microphone
On/Off
2.3 Important safety information
In your own interest, please read the following safety information and
warnings carefully before starting up your navigation system.
2.3.1 Navigation safety information
Use the navigation system at your own risk.
Caution! To prevent accidents, do not operate the navigation system
while driving.
- 8 - Before you begin
User’s manual NAVIGON 72xx
Caution! Do not look at the display unless it is absolutely safe to do so!
Caution! Traffic regulations have priority over any instructions from the
navigation system.
Caution! Follow the instructions of the navigation system only when the
circumstances and the road traffic regulations allow you to do so! The
navigation system will still guide you to your destination even if you
deviate from the calculated route.
Caution! Check that the cradle is secured and adjusted properly before
each journey.
Note: If you have not understood the spoken instructions or are unsure
about what to do next, you can refer briefly to the map or schematic
view of your navigation system.
2.3.2 Safety information for the navigation device
Caution! Protect the device from moisture. The device is neither
waterproof nor protected against splash water.
Caution! Do not open the case of the navigation device under any
circumstances.
Caution! Do not expose the navigation device to extreme heat or cold.
This may damage the device or impair its function. (Refer to "
data" on page
Note: Do not kink the cable. Make sure that the cable cannot be
damaged by sharp-edged objects.
62.)
Technical
Note: Clean the navigation device only with a damp cloth.
Note: Do not unplug by pulling the cable. Doing so could damage the
cable!
Note: Create a backup of the data in the internal memory of your
navigation device. This is very easy to do with the NAVIGON Fresh
software which you will find on the enclosed DVD or can download free
of charge from our
Before you begin - 9 -
1www.navigon.com.
User’s manual NAVIGON 72xx
2.3.3 Safety guidelines when installing the device in your car
Caution! Fasten the cradle so that the navigation device is easy to see
and operate by the driver. Make sure that the driver's view of the traffic
is not impeded.
Caution! Do not attach the cradle within the working zone of any
airbags.
Caution! Do not fasten the cradle too close to the steering wheel or
other controls. The driver must not be obstructed in operating any car
functions.
Caution! When installing the cradle, make sure that it will not pose a
risk in the event of an accident.
Caution! Do not run cables directly next to safety-relevant devices and
power supplies.
Caution! Check that the cradle is secured and adjusted properly before
each journey. The suction cup may become loose after a while.
Caution! After installation, check all safety-relevant equipment in the
car.
Caution! Connect the car charger cable only to cigarette lighters with
an operating voltage of 10-24V.
Caution! Disconnect the car charger cable from the cigarette lighter
whenever you park the car. The integrated mains adapter always
consumes a small amount of energy and could drain the car battery.
2.4 Preparing the NAVIGON 72xx for use
2.4.1 Installing the navigation system in the vehicle
Caution! Be sure to refer to all the safety information in chapter
"
Important safety information" on page 8.
- 10 - Before you begin
User’s manual NAVIGON 72xx
Assembling the cradle
► Assemble the cradle as shown in the illustration. No tools are
needed for this.
Securing the cradle
1. Clean that part of the windscreen to which you want to secure the
cradle. The windscreen must be dry and free of dirt and grease.
2. Open the lever on the suction cup as far as possible.
3. Place the cradle suction cup against the windscreen.
4. Press the lever towards the windscreen.
Before you begin - 11 -
User’s manual NAVIGON 72xx
Inserting the navigation device into the cradle
On the back of the NAVIGON 72xx you will see a circle with two
recesses.
1. Hang the navigation device by the upper recess on the upper lug of
the cradle. (See illustration)
2. Then press it towards the cradle so that it latches in place.
Supplying power to the navigation device
Included in delivery of the NAVIGON 72xx is a car charger cable with
which power can be supplied to the navigation device via the vehicle's
cigarette lighter.
► Connect the car charger cable to the vehicle's cigarette lighter and
to the mini USB socket of the navigation device.
Note: Plug the USB connector into the navigation device swiftly as far it
will go! (Refer to "
Troubleshooting" on page 63.)
Caution! Connect the car charger cable only to cigarette lighters with
an operating voltage of 10-24V.
The LED on the bottom of the navigation device lights up orange during
charging.
As soon as the battery is fully charged, the LED lights up green.
Note: It takes approx. 4-5 hours to charge the device when the battery
is flat.
A fully charged battery enables 3 hours of use.
Removing the navigation device from the cradle
On the bottom of the plate in which you hung the navigation device is a
clip.
- 12 - Before you begin
1. Pull the clip towards yourself so that the device is released from the
clip.
2. Lift the device up and out of the cradle.
2.4.2 TMC antenna
The NAVIGON 72xx has an integrated TMC receiver. The TMC
antenna is integrated in the car charger cable. Once the car charger
cable is connected, the device can receive current traffic messages. If
required, it can change your route dynamically, e.g. in order to avoid a
traffic jam.
2.4.3 Memory card
A memory card with the software and card data is already inserted in
the navigation device.
You can copy these data to another memory card or save them on your
PC. Data backups, software updates and navigation map updates can
be carried out quickly and conveniently with NAVIGON Fresh, which
you will find on the enclosed DVD or can download free of charge from
the website
The following memory media can be used in the NAVIGON 72xx:
► MicroSD cards
Removing the memory card
1. Switch off the navigation device. To do so, press the
2. Press the memory card gently into the device until the lock
3. Let go of the memory card. It will now project slightly out of the
4. Pull the memory card out of the slot.
Inserting a memory card
1www.navigon.com.
key.
disengages.
device.
User’s manual NAVIGON 72xx
(On/Off)
Before you begin - 13 -
User’s manual NAVIGON 72xx
1. Insert the memory card into the device (see illustration).
2. Press the card into the device until it locks in place.
Note: The navigation application works only when the memory card
contains the navigation software and card data.
2.5 Navigating with GPS
GPS is based on a total of at least 24 satellites orbiting the Earth and
continuously transmitting signals of their position and time. The GPS
receiver receives this data and calculates its own geographical position
on the basis of the information transmitted by the various satellites.
Data from at least three satellites is required for positioning with an
acceptable degree of accuracy. With data from four or more satellites it
is possible in addition to determine the position's altitude above sea
level. Positioning is accurate to within three metres.
Once the navigation device has determined your position, this position
can be used as a starting point for calculating a route.
The map data on your navigation device includes the geographical
coordinates of all digitally recorded points of interest, streets and
places. This enables the device to calculate a route between a starting
point and a destination.
Calculation of the current position and its representation on the map
takes place once every second. In other words, your current position is
always shown on the map.
3 Switching on the NAVIGON 72xx
1. Press the (On/Off) key and keep it pressed until the device
switches on. (Approx. 2 seconds)
If password protection has been activated, the E
window opens.
2. Enter the password.
3. Tap on OK
The N
.
AVIGATION window opens.
Note: When you switch on the NAVIGON 72xx for the first time, you
will be asked to make the following settings:
► your preferred language for using for the software
► the unit of length for distances
► the time format
- 14 - Switching on the NAVIGON 72xx
NTER PASSWORD
User’s manual NAVIGON 72xx
Note: If you have not used the NAVIGON 72xx for a long time, the
battery may be flat.
In this case the device needs to be charged for approximately 3 minutes
before it can be switched on.
Forgotten your password?
If you forget your password, follow the procedure described in
"
Forgotten your password?" on page 16.
Switching off the navigation device
► Press the (On/Off) key and keep it pressed until the device
switches off. (Approx. 2 seconds)
Note: If, when switching off the device, you press the
and keep it pressed for a long time (longer than approx. 6 seconds), the
device will perform a software restart the next time you switch it on.
Your settings and your saved destinations and routes will be retained.
3.1 Options
Some windows offer options that lead to more functions.
A description of all available options can be found in the chapter
"
Options" on page 37.
4 Password Lock
You can protect your navigation system from unauthoriised use by
creating a password.
4.1 Activating password protection
1. In the NAVIGATION window tap on Options > Settings > Options >
Password Lock
The N
EW PASSWORD window opens.
2. Enter a password in the New password
3. Enter this password again in the Confirm new password
4. Tap on Activate
Note: The password must have exactly 4 digits.
.
box and tap on Next.
.
(On/Off) key
box.
Password Lock - 15 -
User’s manual NAVIGON 72xx
4.2 Changing a password
1. In the NAVIGATION window tap on Options > Settings > Options >
Password Lock
NTER PASSWORD window opens.
The E
2. Enter the currently valid password in the Enter password
3. Tap on Change password
EW PASSWORD window opens.
The N
4. Enter a password in the New password
5. Enter this password again in the Confirm new password
6. Tap on Activate
Note: The new password must have exactly 4 digits.
.
.
box and tap on Next.
.
4.3 Cancelling password protection
1. In the NAVIGATION window tap on Options > Settings > Options >
Password Lock
NTER PASSWORD window opens.
The E
2. Enter the currently valid password in the Enter password
3. Tap on Deactivate
.
.
4.4 Forgotten your password?
If you enter the password wrongly three times, a window will open with
instructions telling you what to do now.
► Follow the instructions on the screen.
box.
box.
box.
5 Operating the NAVIGON 72xx
5.1 Information
Various information symbols are located at the top of many windows.
GPS
The GPS symbol can indicate the following GPS reception states:
No GPS (No symbol): The built-in GPS receiver is not operational.
Contact customer service if the problem persists.
No Signal: Data is being received from less than three satellites.
Position cannot be calculated.
- 16 - Operating the NAVIGON 72xx
User’s manual NAVIGON 72xx
GPS Ready: Data is being received from at least three satellites.
Position can be calculated.
For details of the GPS status refer to chapter "
current location" on page
47.
GPS Status, saving the
Compass
The Compass symbol indicates in which direction you are currently
heading. It can indicate the following points of the compass: N, NE, E,
SE, S, SW, W, NW..
TMC (Traffic Information)
The NAVIGON 72xx has an integrated TMC receiver which provides
the navigation system with traffic information updates. If necessary it
can change your route dynamically, for example in order to avoid a
traffic jam.
Note: This function is only available if TMC traffic messages are being
transmitted in the country in which you are travelling. This is not the
case in all countries.
The TMC symbol can display the following TMC reception status:
Tuning: The TMC receiver is operational but cannot find a station that
is transmitting TMC signals. There are no active traffic messages.
Tuning: The TMC receiver is operational but cannot find a station that
is transmitting TMC signals. Traffic messages are active however. This
can be the case, for example, when travelling through a tunnel.
TMC on Standby: Traffic messages can be received.
Note: The TMC antenna is integrated in the car charger cable. The
Tuning symbol may still appear therefore when the car charger cable is
not connected to the NAVIGON 72xx.
For details of the TMC function refer to chapter "TMC (Traffic
Information)" on page
50.
Energy
The Energy symbol can indicate the following states of the integrated
battery:
The device is being supplied by an external power source. The battery
is fully charged.
Operating the NAVIGON 72xx - 17 -
User’s manual NAVIGON 72xx
The device is being supplied by an external power source. The battery
is being charged.
The device is being supplied by its internal battery. The battery charge
is sufficient.
The device is being supplied by its internal battery. The battery charge
is low.
Bluetooth / Phone
The NAVIGON 72xx has an integrated Bluetooth hands-free module.
This enables you to use the device as a hands-free kit for a mobile
phone with Bluetooth capability.
The Phone
symbol can display the following states of the hands-free
module:
No Bluetooth (No symbol): The Bluetooth function is deactivated.
Not connected (red mobile phone): The NAVIGON 72xx has no
Bluetooth connection to another device.
Connected (white mobile phone): The NAVIGON 72xx is connected to
a mobile phone and can be used as a hands-free car kit.
Call in Progress (green mobile phone): The hands-free module of the
NAVIGON 72xx is being used for a phone call.
Muting
The Muting symbol can indicate the following states:
No symbol: The navigation application is not muted.
Muting: The navigation application is muted. If the device is navigating
at the moment, you will not hear any driving instructions.
Note: This symbol indicates only the muted state of the navigation
instructions. It says nothing about the volume of the hands-free module.
5.2 Software keyboard
A software keyboard appears on the screen when text entries are
necessary.
All entries can be made on the software keyboard using your fingertips.
Only capital letters can be entered.
When entering town or street names you need not enter any special
characters or umlauts. The navigation system fills in these characters
- 18 - Operating the NAVIGON 72xx
for you automatically. For example, if you are looking for the town of
"Bärnau", then simply type in the word "BARNAU". Special characters
may be helpful however when naming saved destinations and routes.
5.2.1 Special keys
inserts a space.
deletes the character in front of the cursor.
opens the keyboard with numerals.
Latin, Cyrillic and Greek alphabet
opens the keyboard with the Latin alphabet.
opens the keyboard with the Cyrillic alphabet.
opens the keyboard with the Greek alphabet..
When you want to enter addresses, names or POIs, the keyboard with
the alphabet for the country in question will open automatically.
When you want to save a destination to Favourites or when you enter a
POI category or a country, the keyboard with the alphabet of the user
interface will open automatically.
You can also switch from the Cyrillic or Greek keyboard to the Latin
keyboard. Many addresses can then also be entered as transliterations
or in the language of the user interface.
Example: The language of the user interface is English. You want to
navigate to Moscow. You have the following options:
► "Москва" (Cyrillic)
► "Moskva" (transliterated)
► "Moscow" (English).
Note: Street names and place names can be entered only in the
language of the user interface if that is how they exist in the map's
database.
User’s manual NAVIGON 72xx
Note: The maximum number of keyboards is always 2.
Operating the NAVIGON 72xx - 19 -
User’s manual NAVIGON 72xx
Umlauts, accents and other letters
Another keyboard with special characters is available for each alphabet.
opens the keyboard with Latin special characters.
opens the keyboard with Cyrillic special characters.
opens the keyboard with Greek special characters.
As soon as you have entered a special character the letter keyboard
reappears.
5.2.2 Entering data
Often you can select an entry from a list. This is the case, for example,
when you enter a location.
As soon as you enter the first letter, the largest city in the given country
that begins with this letter appears.
Enter more letters and after each entry the first city which begins with
these letters will appear.
► When the correct location appears, tap on (OK) in order to
complete the entry.
You can open at any time a list containing all the locations which begin
with the letters or include the text already entered.
► Tap on (Open List) to call up this list.
You can use the
(Up) button and the (Down) button to
move through the list.
► Tap on an entry in the list to select it and transfer it to the input box.
The list closes once an entry has been selected.
► Tap on (Close List) in order to close the list without selecting
an entry.
Note: The list opens automatically as soon as it contains only 5 or less
entries.
5.3 Options
Some windows offer options that lead to more functions.
A description of all available options can be found in the chapter
"
Options" on page 37.
- 20 - Operating the NAVIGON 72xx
User’s manual NAVIGON 72xx
5.4 Menus
Some buttons have menus which open when activated.
► Tap on a menu point to execute its function.
If you would like to quit the options list without selecting a function, tap
on the button you used to open the menu.
6 Navigation
Use the navigation system at your own risk.
Caution! Be sure to refer to all the safety information in chapter
"
Important safety information" on page 8.
Impaired GPS reception
As soon as GPS reception is restored, the navigation system calculates
any change of position which has occurred in the meantime. You can
then simply continue navigating.
Arriving at your destination
When you have reached your selected destination, a message to this
effect will be displayed.
Only your current position (orange arrow) will now be shown on the
map.
6.1 Starting the navigation application
You have switched on the navigation device and, if necessary, entered
the password.
The following message appears:
"The navigation software on this device is designed to provide route
suggestions and does not replace the need for driver attentiveness or
the requirement to adhere to road traffic regulations, good driving
practice and legally posted directions. For safety, posted road signs
and directions should always take precedence over the directions of this
unit. Do not operate this unit while driving."
► After you have read and fully understood the message, tap on OK.
If you do not accept the content of the message, tap on Cancel
order to switch the navigation device off again.
in
Navigation - 21 -
