Here are a few basic tips that will aid in the assembly of the Nautilus® NS75X. By using these
principles, you can simplify each process and save yourself extra time and effort.
1. To make the assembly process go faster, gather the pieces you need for each step and
thoroughly read the assembly instructions for that step prior to starting assembly for the step.
2. When tightening a locknut on a bolt, use a combination wrench to grip the locknut and ensure
that it is fastened securely.
3. When attaching two pieces, gently lift and look through the bolt holes to help guide the bolt
through the holes.
4. As a general rule, and for all bolts and nuts on your NS75X Bench, turn bolts or nuts toward
the right to tighten and left to loosen. Or you can remember the mnemonic: “Righty tighty, lefty
loosey.”
Nautilus NS75X
3
PRODUCT SPECIFICATIONS
NOTE: All instructions in the manual are given with the orientation
• Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins.
6

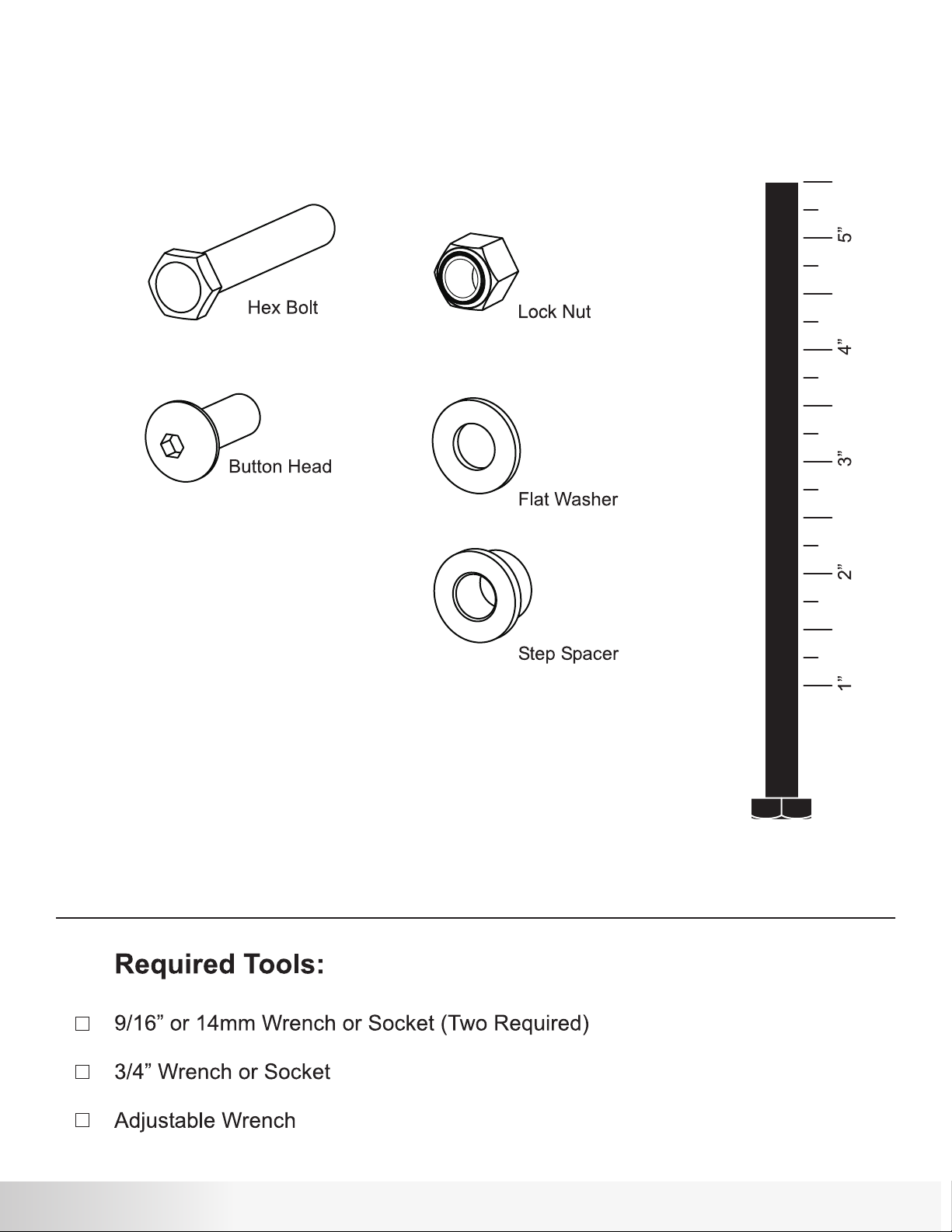

HARDWARE AND TOOLS
Nautilus NS75X
7
NS75X Leg Press attachment can be assembled in a right or left configuration for
use on the NS300X ,NS200X, NS600X and NS700X. You may also mount the Ab Crunch armon
either side to most efficiently use space.
8
STEP 1
A. Attach the Connecting Tube Assembly (2) to the gym
with hardware shown above. If using a NS200X,NS300X or NS600X
Attach the Connecting Tube Assembly (2) to the gym
A.
with hardware shown above. If using a NS200X,NS300X or NS600X
gym, remove the Cable Bracket and the rear bolt on the
gyms foot plate.
B. If using a NS200X,NS300X or NS600X attach the Vertical Pulley
Bracket (5) to the connecting Tube Assembly (2) using the hardware
shown above.
C. Tighten all hardware securely.
Nautilus NS75X
9
STEP 2
3/8" x 3"L
3/8" x 3"L
3/8" x 2 3/4"L
3/8" x 3 1/4"L
3/8" x 3 1/4"L
32
32
33
33
40
4
3
16
34
43
2
1
ASSEMBLY
10
Step 2 Components:
# Component Qty
1 Main Base Assembly 1
3 Seat Tube Assembly 1
4 Seat Handle 2
16 Seat Back Support Assembly 1
32 Hex Bolt - 3/8” x 3 1/4”L 6
33 Hex Bolt - 3/8” x 3”L 4
34 Hex Bolt - 3/8” x 2 3/4”L 1
40 3/8” Flat Washer 22
43 3/8” Lock Nut 11
Procedure:
Position the Seat Back Support Assembly (16) over the
A.
rear holes of the Main Base Assembly (1) and position
next to the Connecting Tube Assembly (2). Secure parts
with hardware shown above, but do not tighten.
B. Slide the Seat Tube Assembly (3) over the Seat Back
Support Assembly (16) and the Main Base Assembly (1).
Secure parts with hardware shown above, but do not
tighten.
C. Attach the Seat Handles (4) to the Seat Tube Assembly
(3) using the hardware shown above. After the cable is
routed in Step #6
D. Tighten all hardware securely.
STEP 3
3/8" x 3/4"L w/ THREAD LOCK
1/2" x 3"L
38
38
10
9
8
39
29
15
14
13
12
11
31
42
ASSEMBLY
Step 3 Components:
# Component Qty
8 Leg Press Top Link 1
9 Foot Plate Assembly 1
10 Leg Press Front Link Left 1
11 Leg Press Front Link Right 1
12 Leg Press Rear Link Left 1
13 Leg Press Rear Link Right 1
14 Leg Press Power Arm 1
15 Leg Press Power Link 1
29 Pivot Shaft 5
31 Hex Bolt - 1/2” x 3”L 2
38 Button Head Screw 3/8” x 3/4”L w/ Thread Lock 15
39 1/2” Flat Washer 4
42 1/2” lock Nut 2
Procedure:
Attach all the Pivot Shafts (29) to the Leg Press Front
A.
Link Right (11) and the Leg Press Rear Link Right (13)
using the hardware shown above.
B. Slide the shafts into position on the Main Base Assembly.
C. Slide the Leg Press Top Link (8) and the Leg Press
Power Arm (14) into position as shown above.
D. Position the Leg Press Front and Rear Link Left (10, 12)
over the shafts and attach with the hardware shown above.
E. Connect the Leg Press Power Arm (14) to the Leg Press
Top Link (8) using the Leg Press Power Link (15) and the
hardware shown above. Intsall short end of Leg Press
Power Link (15) up.
F. Attach the Foot Plate Assembly (9) to the Leg Press Top
Link (8) using the hardware shown above.
G. Tighten all hardware securely.
Nautilus NS75X
11
STEP 4
41
1/2" x 7"L
3/8" x 3"L
3/8" x 3"L
3/8" x 3"L
33
33
33
20
40
30
7
18
39
28
19
43
21
42
ASSEMBLY
Step 4 Components:
# Component Qty
7 Angled Pulley Bracket 1
18 Ab Crunch Support Arm 1
19 Ab Crunch Arm 1
20 Ab Crunch Handle 1
21 Ab Crunch Pad Support 1
28 Round Plastic Cap 1
30 Hex Bolt - 1/2” x 7”L 1
33 Hex Bolt - 3/8” x 3”L 6
39 1/2” Flat Washer 2
40 3/8” Flat Washer 12
41 Shim Washer 1
42 1/2” Lock Nut 1
43 3/8” Lock Nut 6
Procedure:
Attach the Angled Pulley Bracket (7) to the Connecting
A.
Tube Assembly using the hardware shown above.
B. Attach the Ab Crunch Support Arm (18) with preinstalled
Ab Crunch Arm (19) to the Seat Back Support Assembly
using the hardware shown above. (This can be done to
the right or left.)
C. Cover the hardware by snapping the Round Plastic Cap
(28) over the Shim Washer (41).
D. Attach the Ab Crunch Pad Support (21) to the Ab
Crunch Arm (19) using the hardware shown above.
E. Attach the Ab Crunch Handle (20) to the Ab Crunch Pad
Support (21) using the hardware shown above. Do not
over tighten the hardware as the handle may bind.
F. Tighten all hardware securely.
12
STEP 5
7
5
3
4
6
3/8" x 1"L
3/8" x 1"L
3/8" x 1"L
37
40
17
37
37
23
24
22
ASSEMBLY
Step 5 Components:
# Component Qty
17 Seat Back Adjuster 1
22 Ab Crunch Pad 1
23 Seat Pad 1
24 Seat Back Pad 1
37 Hex Bolt - 3/8” x 1”L 12
40 3/8” Flat Washer 12
Procedure:
Attach the Ab Crunch Pad (22) to the Ab Crunch Pad
A.
Support using the hardware shown above.
B. Attach the Seat Back Pad (24) to the Seat Back Adjuster
(17) using the hardware shown above. Slide the Seat
Back Adjuster in to the Seat Back Support Assembly and
secure with the Pop Pin.
C. Attach the Seat Pad (23) to the Seat Tube Assembly
using the hardware shown.
Attach the looped end of the Leg Press Cable (25) to the cable bracket
A.
located on the Seat Back Support Assembly using the hardware
shown above.
B. Place two 3 1/2” Pulleys in the Seat Back Support Assembly using the
hardware shown above. Pass the Leg Press Cable over the pulleys
and slide the cable through the Seat Tube Assembly out the front.
C. Run the cable over the 3 1/2” Pulleys and attach them to the Seat
Tube Assembly using the hardware shown.
D. Attach a 4 1/2” Pulley to the Leg Press Power Arm using the hardware
shown above. Pass the cable over the top of the pulley and then over
the top of the lower 3 1/2” pulley in step C.
E. Wrap the cable around a 4 1/2” Pulley and secure in place using the
hardware shown and the L Cable Retainer (6) to the Angled Pulley
Bracket (7).
F. Connect the Leg Press Cable Termination to the Gym Cable.
G. Adjust the cable tension using the adjustments located on the gym.
H. Attach leg press handles as shown in Step #2.
14
