ASSEMBLY MANUAL / OWNER’S MANUAL
TABLE OF CONTENTS
Important Safety Instructions - Assembly |
3 |
Safety Warning Labels / Serial Number |
5 |
Specifications |
6 |
Before Assembly |
6 |
Parts |
7 |
Hardware |
8 |
Tools |
8 |
Assembly |
9 |
Moving the Machine |
16 |
Leveling the Machine |
16 |
Features |
17 |
Console Features |
18 |
Bluetooth® Connectivity |
21 |
Remote Heart Rate Monitor |
22 |
Operations |
24 |
Adjustments |
24 |
Power Up / Idle Mode |
24 |

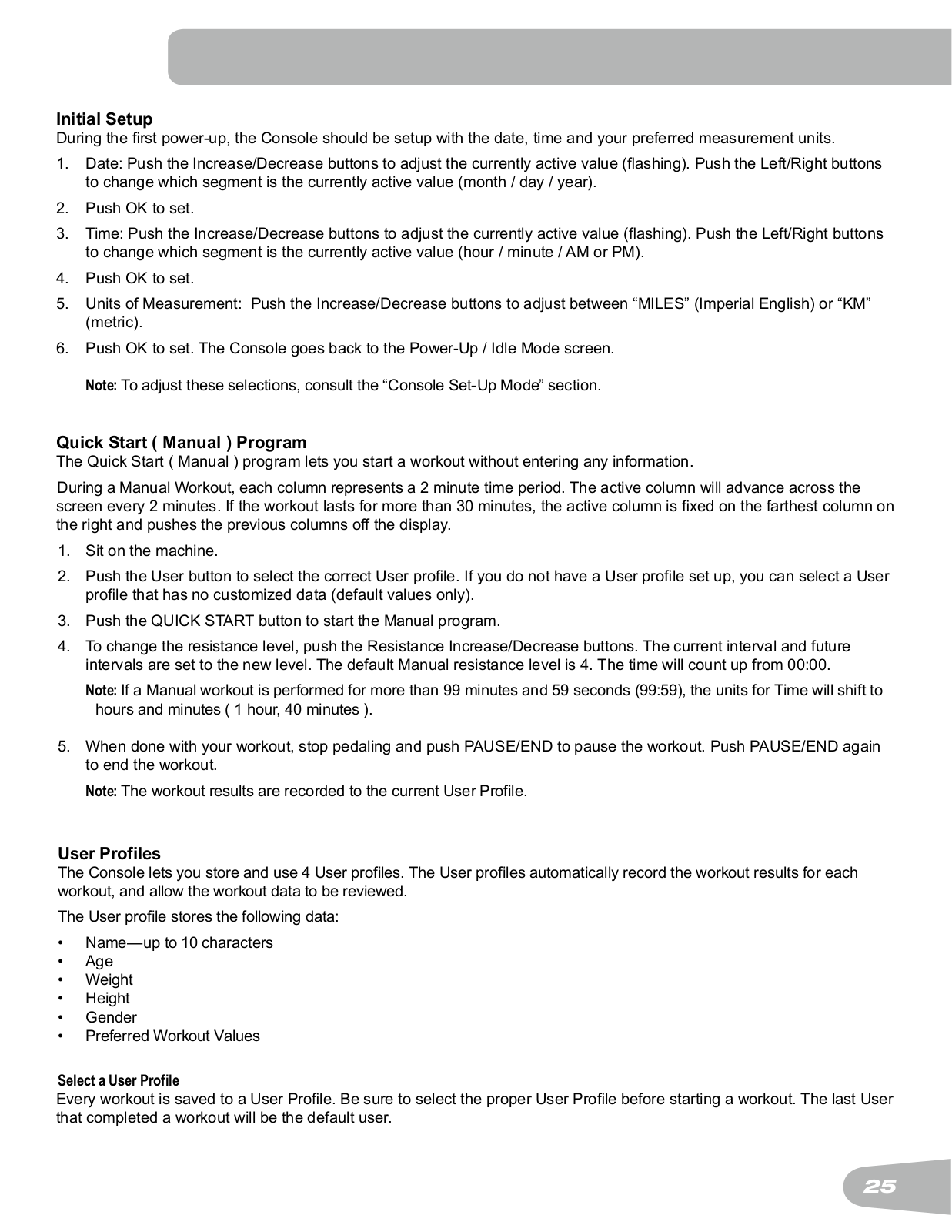

Initial Setup |
25 |
Quick Start Program |
25 |
User Profiles |
25 |
Profile Programs |
27 |

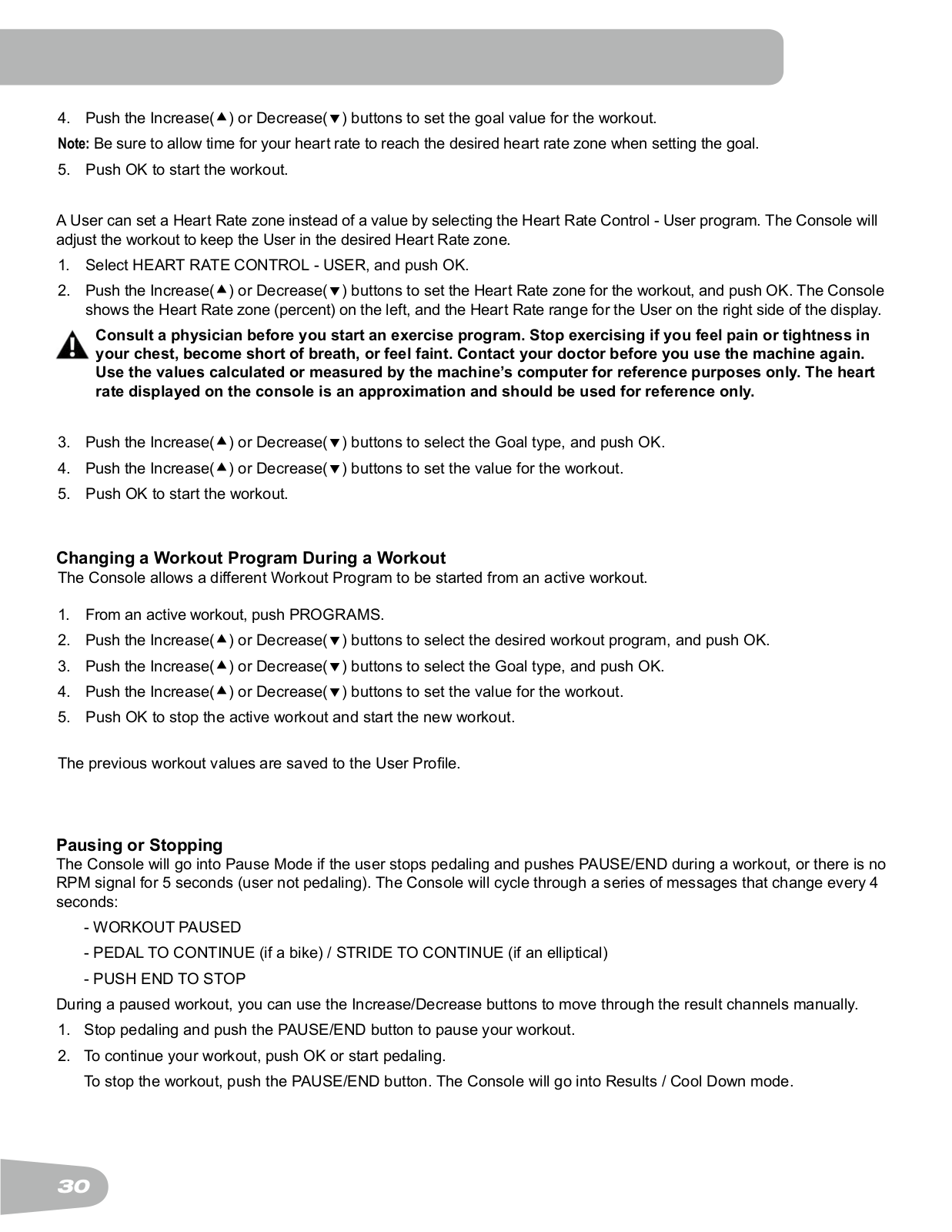

Pausing or Stopping |
30 |
Results / Cool Down Mode |
31 |
GOAL TRACK Statistics |
31 |

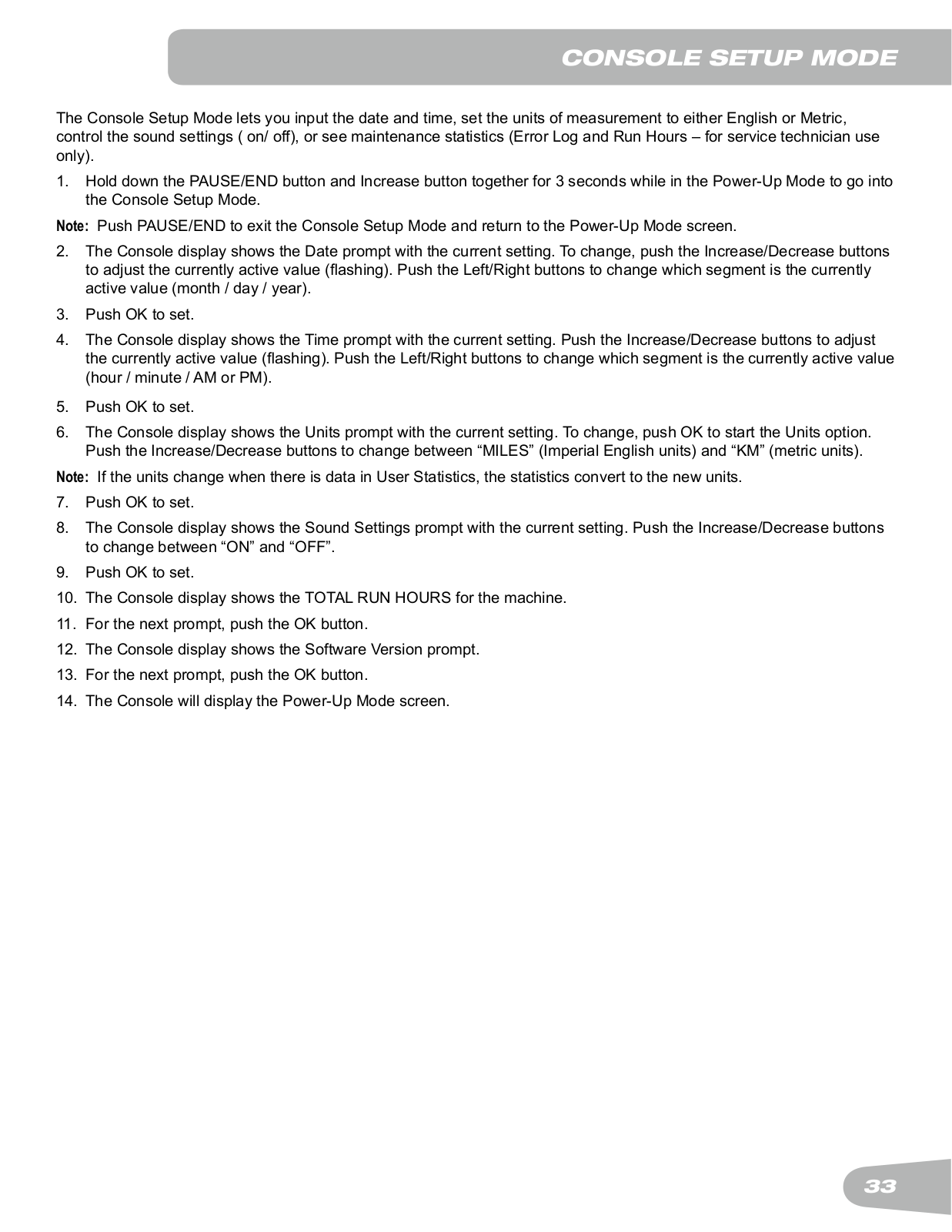

Console Service Mode |
33 |
Maintenance |
34 |
Maintenance Parts |
35 |

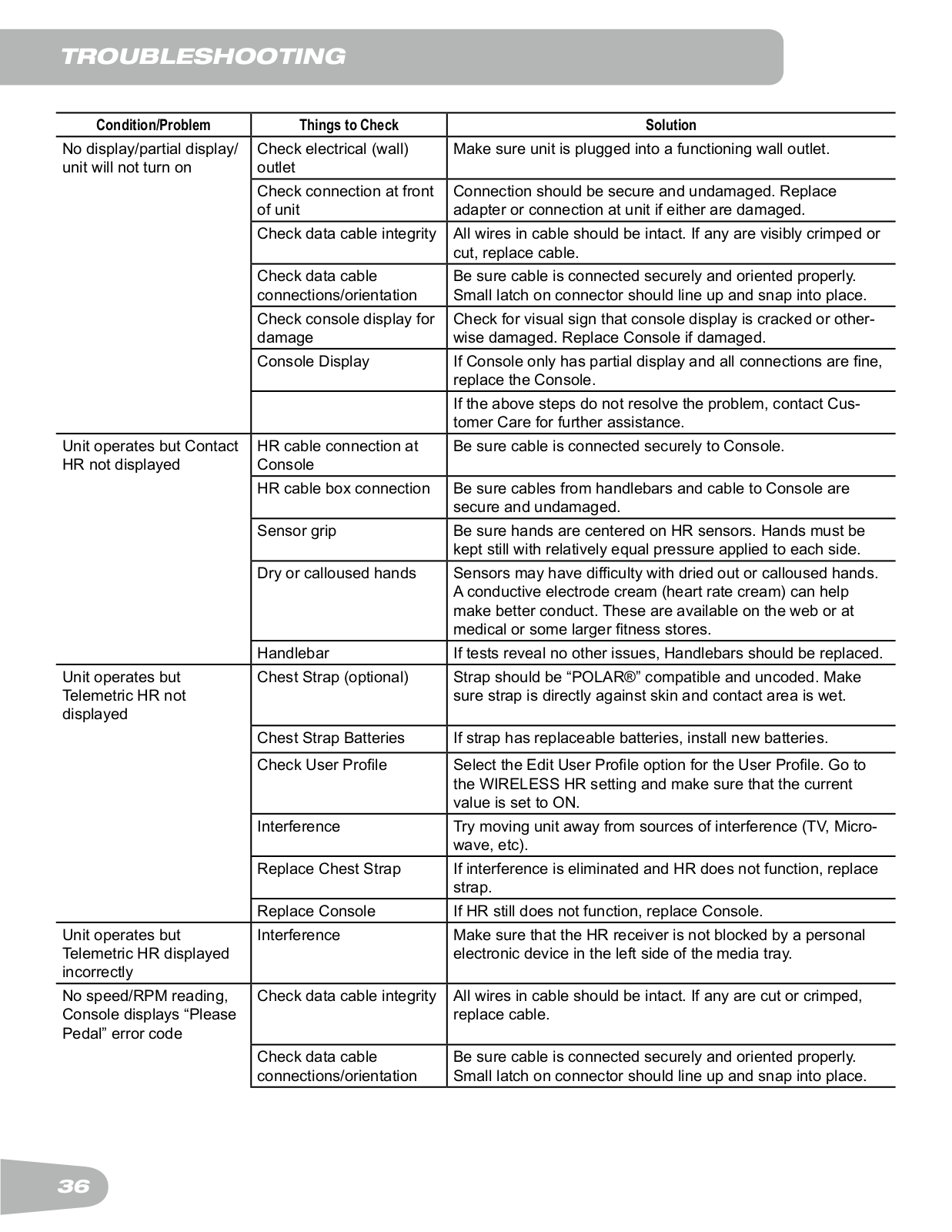

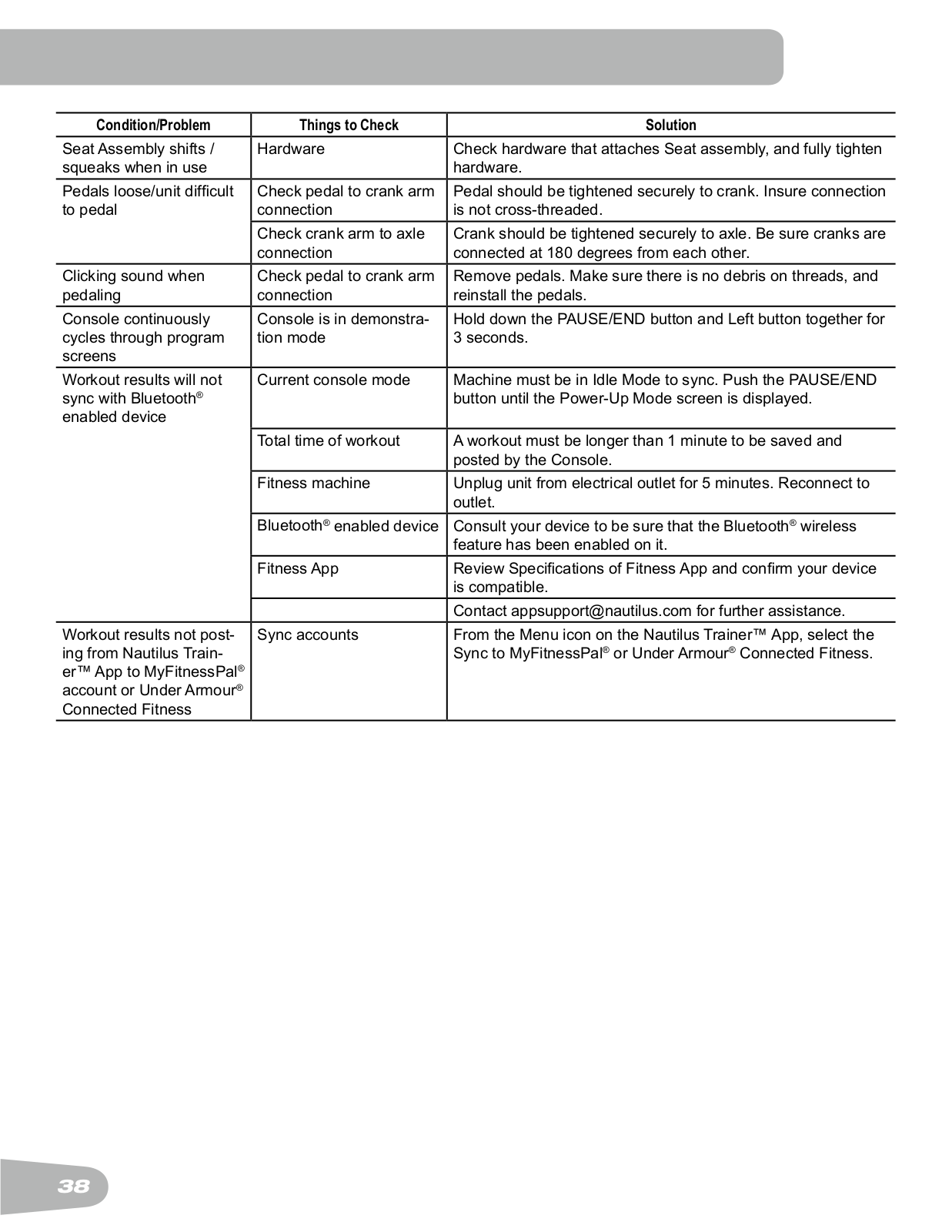

Troubleshooting |
36 |

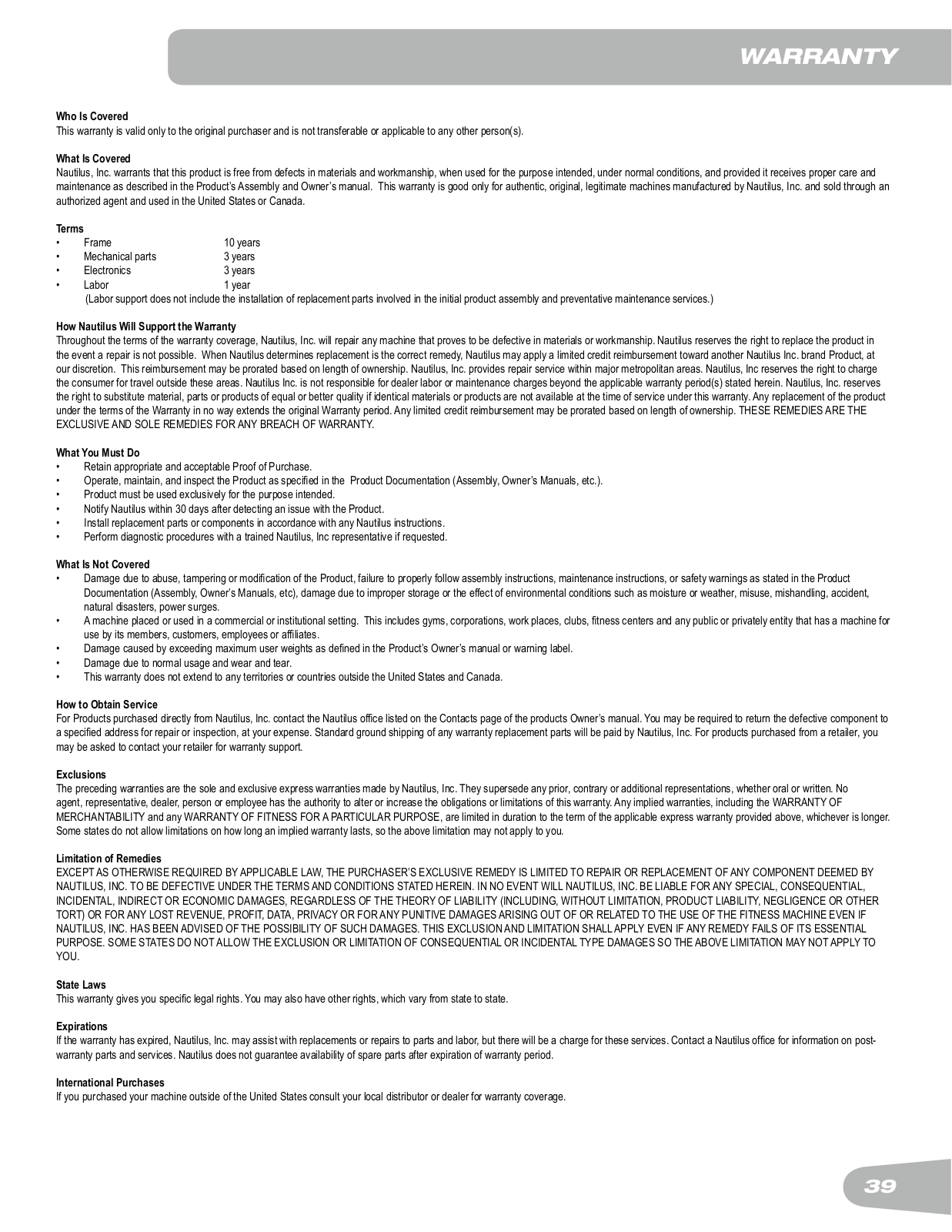

Warranty |
39 |
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty , go to: www.Nautilus.com/register Or call 1 (800) 605–3369.
If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458) Or go to: www.Nautilus.com
Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America (800) 605-3369, csnls@nautilus.com | outside U.S. www.nautilusinternational.com | © 2017 Nautilus, Inc. ® indicates trademarks registered in the United States. These marks may be registered in other nations or otherwise protected by common law. Nautilus, the Nautilus logo, Nautilus Trainer, Bowflex, Schwinn, and Universal are trademarks owned by or licensed to Nautilus, Inc. Polar®, OwnCode®, iTunes®, Google Play™, Under Armour® and MyFitnessPal® are trademarks of their respective owners. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Nautilus, Inc. is under license.
2
IMPORTANT SAFETY INSTRUCTIONS
!This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obey the following warnings:
!Read and understand all warnings on this machine. Carefully read and understand the Assembly instructions.
•Keep bystanders and children away from the product you are assembling at all times.
•Do not connect power supply to the machine until instructed to do so.
•Do not assemble this machine outdoors or in a wet or moist location.
•Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.
•Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
•Set up this machine on a solid, level, horizontal surface.
•Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and will void the warranty.
•If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the warranty.
•Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the Manual.
•Read and understand the complete Manual supplied with this machine before first use. Keep the Manual for future reference.
•Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.
Before using this equipment, obey the following warnings:
!Read and understand the complete Manual. Keep the Manual for future reference.
Read and understand all warnings on this machine. If at any time the Warning labels become loose, unreadable or dislodged, contact Nautilus Customer Service for replacement labels.
•Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous to children.
•Not intended for use by anyone under 13 years of age.
•Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calculated or measured by the machine’s computer for reference purposes only.
•Before each use, examine this machine for loose parts or signs of wear. Do not use if found in this condition.
Monitor the Seat, Pedals, and Crank Arms closely. Contact Nautilus Customer Service for repair information.
•Maximum user weight limit: 300 lbs. (136 kg). Do not use if you are over this weight.
•This machine is for home use only.
•Do not wear loose clothing or jewelry. This machine contains moving parts. Do not put fingers or other objects into moving parts of the exercise equipment.
•Set up and operate this machine on a solid, level, horizontal surface.
•Make the Pedals stable before you step on them. Use caution when you step on and off the machine.
•Disconnect all power before servicing this machine.
•Do not operate this machine outdoors or in moist or wet locations. Keep the foot pedals clean and dry.
3
•Keep at least 24” (0.6 m) on each side of the machine clear. This is the recommended safe distance for access and passage around and emergency dismounts from the machine. Keep third parties out of this space when machine is in use.
•Do not over exert yourself during exercise. Operate the machine in the manner described in this manual.
•Correctly adjust and safely engage all Positional Adjustment Devices. Make sure that the Adjustment Devices do not hit the user.
•Exercise on this machine requires coordination and balance. Be sure to anticipate that changes in speed and resistance level can occur during workouts, and be attentive in order to avoid loss of balance and possible injury.
•Prior to use, read and understand the owner’s manual. The appliance is not to be used by persons with functional limitations and impairments, reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
4
SAFETY WARNING LABELS AND SERIAL NUMBER
Serial Number
Product Specification
FCC Compliance
WARNING!
•Injury or death is possible if caution is not used while using this machine.
•Keep children and pets away.
•Read and follow all warnings on this machine.
•Refer to the Owner’s Manual for additional warnings and safety information.
•The heart rate displayed is an approximation and should be used for reference only.
•Not intended for use by anyone under 13 years of age.
•The maximum user weight for this machine is 300 lbs ( 136 kg ).
•This machine is for home use only.
!Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
The machine and power supply comply with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This machine and power supply have been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
5
SPECIFICATIONS
|
Maximum User Weight: |
300 lbs. (136 kg) |
|
Machine Weight: |
91.9 lbs. (41.7 kg) |
|
Power Requirements: |
|
49.6” |
Operational Voltage: |
9VDC |
(126 cm) |
Operating Current: |
1.5A |
|
AC Power Adapter: |
UL listed, Rated 100V-240V 50/60Hz Input, |
65.3” |
|
9VDC, 1500mA Output. Class 2. |
|
|
|
(165.9 cm) |
|
|
28.3” |
|
|
(71.8 cm) |
|
|
This product, its packaging, and components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. This Notice is provided in accordance with California’s Proposition 65. If you would like additional information, please refer to our website at www.nautilus.com/prop65.
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard, level surface. Allow a workout area of a minimum 77” x 114” (196 cm x 290 cm).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
•Read and understand the “Important Safety Instructions” before assembly.
•Collect all the pieces necessary for each assembly step.
•Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclockwise) to loosen, unless instructed otherwise.
•When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.
•The assembly can require 2 people.
6
PARTS
3
1
16
|
4 |
|
|
5 |
2 |
|
|
|
15 |
|
|
6 |
|
|
|
|
9 |
14 |
8 |
|
|
|
|
7 |
|
10 |
13 (R) |
|
|
17
11 (L)
12
Item |
Qty |
Description |
Item |
Qty |
Description |
1 |
1 |
Console |
10 |
1 |
Rear Stabilizer |
2 |
1 |
Water Bottle Holder |
11 |
1 |
Left Pedal |
3 |
1 |
Seat Back |
12 |
1 |
Front Stabilizer |
4 |
1 |
Seat Cover |
13 |
1 |
Right Pedal |
5 |
1 |
Seat Frame Assembly |
14 |
1 |
Top Shroud |
6 |
1 |
Seat Bottom |
15 |
1 |
Console Mast |
7 |
1 |
Seat Adjustment Handle |
16 |
1 |
Media Cable |
|
|
|
|
|
|
8 |
1 |
Frame |
17 |
1 |
AC Adapter |
9 |
1 |
Seat Rail End Cap |
|
|
|
7
HARDWARE / TOOLS
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
Item |
Qty |
Description |
|
|
Item |
Qty |
Description |
|
|
A |
8 |
Button Head Hex Screw, M8x16 |
F |
2 |
Phillips Head Screw, M5x12 |
||||
B |
10 |
Button Head Hex Screw, M6x12 |
G |
14 |
Lock Washer, M6 |
|
|||
C |
8 |
Flat Washer, M8 |
|
|
H |
4 |
Curved Washer, M6 |
|
|
D |
8 |
Lock Washer, M8 |
|
|
I |
4 |
Phillips Head Screw, M6x25 |
||
E |
10 |
Flat Washer, M6 |
|
|
|
|
|
|
|
Tools
Included Not Included
(recommended)
4 mm
6 mm
8
ASSEMBLY
1a. Attach Stabilizers to Frame
Note: Hardware(*) is pre-installed on the stabilizers and not on Hardware Card. Make sure transport wheels on the front stabilizer point forward.
|
|
6mm |
|
|
X2 |
6mm |
|
* |
|
|
|
|
X2 |
* |
* |
8 |
* |
|
|
|
* |
|
|
* |
|
|
10
12
1b. Attach the Seat Rail End Cap to the Frame Assembly
9
9
2. Attach the Seat Frame Assembly to the Seat Rail
NOTICE: Do not crimp the Heart Rate Cable. Once all hardware has been inserted, be sure to fully tighten it.
6mm
X4
A
D
C |
5 |
X2
B
G E
4mm
10
3. Attach Seat Pads to Seat Frame Assembly
3
6
X8
E
G
B
4mm
X4
H
G
I
#2
4. Attach Cover to Frame Assembly
4
11
5. Attach Seat Adjustment Handle to Frame Assembly
7
6. Connect the Cables and Attach the Console Mast to Frame Assembly
NOTICE: Do not crimp the cables.
15
14
X4
D |
C |
|
|
A |
|
6mm
12
