Nautilus NS 50X User Manual

Be Strong.

™

Assembly Manual

P/N: 001-7005 Rev A (10/04/2006)

NS 50X

Model: NS 50X

TABLE OF CONTENTS

Before You Assemble .................... 3

Product Specifications ..................4

Parts List / Box Contents ............. 5

Exploded View ............................... 6

Hardware and Tool List ................ 7

Assembly Guide ............................ 8

Warranty Information ................... 10

Contacting Nautilus ...................... 11

2

BEFORE YOU ASSEMBLE

BASIC ASSEMBLY PRINCIPLES

Here are a few basic tips that will aid in the assembly of the Nautilus® NS50X. By using these
principles, you can simplify each process and save yourself extra time and effort.

1. To make the assembly process go faster, gather the pieces you need for each step and
thoroughly read the assembly instructions for that step prior to starting assembly for the step.

2. When tightening a locknut on a bolt, use a combination wrench to grip the locknut and ensure
that it is fastened securely.

3. When attaching two pieces, gently lift and look through the bolt holes to help guide the bolt
through the holes.

4. As a general rule, and for all bolts and nuts on your NS50X Bench, turn bolts or nuts toward
the right to tighten and left to loosen. Or you can remember the mnemonic: “Righty tighty, lefty
loosey.”

Nautilus NS50X

3

PRODUCT SPECIFICATIONS

NOTE: All instructions in the manual are given with the orientation

of sitting on the machine ready to exercise.

User Weight Capacity: 300lbs / 136.1Kg

Dimensions:

Shipping Weight: 66.1 lbs / 32 kg

Net Weight: 60.2 lbs / 27.3 kg

18”w x 50”l x 19”h / 46 cm x127 cm x48cm

4

PARTS LIST / BOX CONTENTS

# DESCRIPTION QTY

1 Bench Frame assembly ..................... 1

2 Front Stablizer Assembly ..................1

3 Rear Stabilizer Assembly ..................1

4 Seat Frame Assembly ........................ 1

5 Back Frame Assembly ....................... 1

6 Seat Back ............................................ 1

7 Back Pad ............................................. 1

8 T-Handle Pop Pin ............................... 2

Hardware

9 Hex Bolt 1/2” x 4 1/2” .........................2

10 Hex Bolt 3/8” x 2 3/4” .........................4

11 Hex Bolt 3/8” x 2” ...............................2

12 Hex Bolt 3/8” x 1 3/4” .........................3

13 3/8” Flat Washer ................................ 13

14 3/8” Lock Nut ......................................4

15 1/2” Flat washer .................................4

16 1/2” Lock Nut ......................................2

Nautilus NS50X

5

EXPLODED VIEW

7

9

15

8

5

13

12

1

6

4

13

12

11

11

13

10

2

13

14

13

10

3

15

16

14

13

• Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins.

6

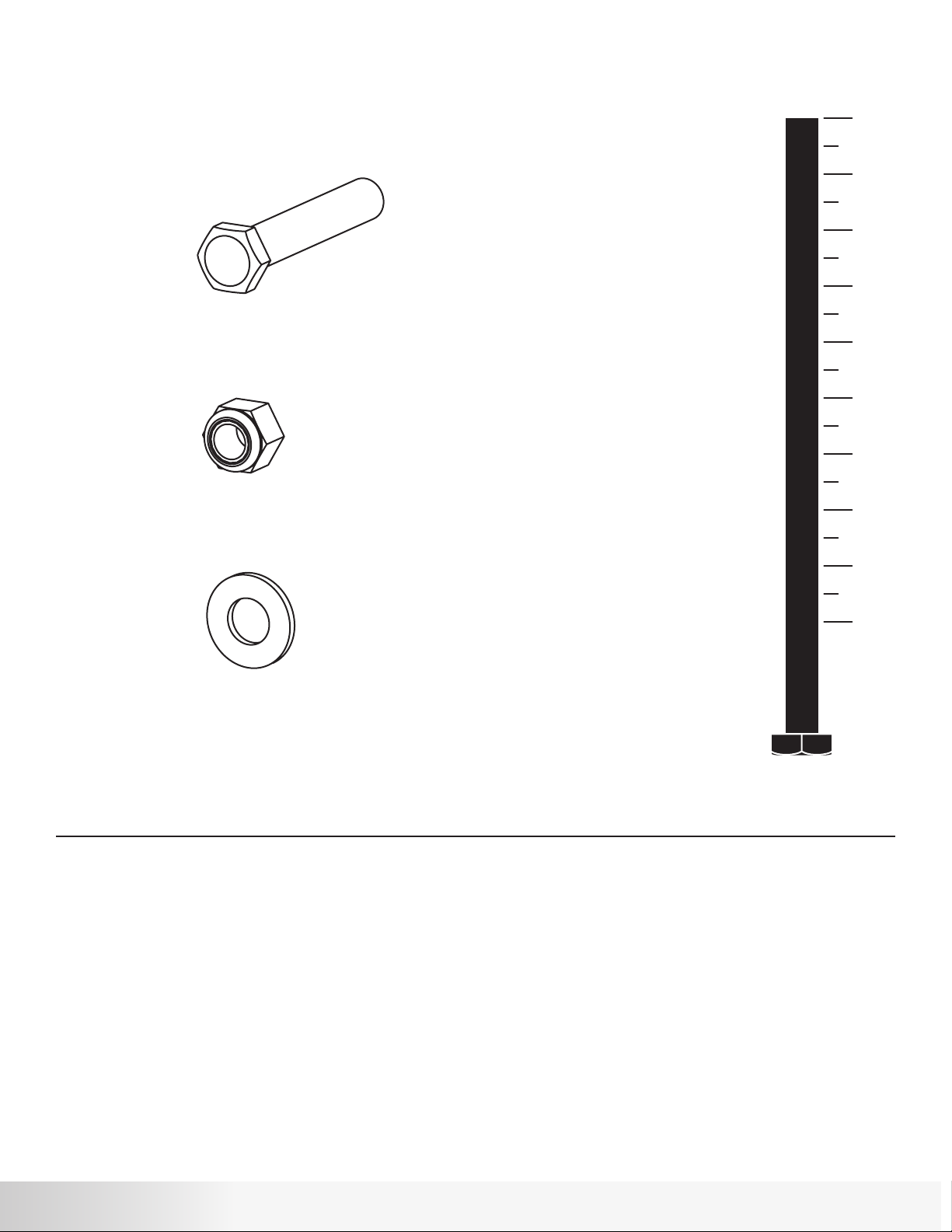

HARDWARE AND TOOLS

1”

2”

3”

4”

5”

Hex Bolt

Lock Nut

Flat Washer

Required Tools:

9/16” or 14mm Wrench or Socket (Two Required)

3/4” Wrench or Socket (Two Required)

Adjustable Wrench

Nautilus NS50X

7

STEP 1

8

1

3

13

10

14

13

2

13

14

13

10

2 3/4”L

2 3/4”L

ASSEMBLY

Step 1 Components:

# Component Qty

1 Bench Frame Assembly 1
2 Front Stabilizer Assembly 1
3 Rear Stabilizer Assembly 1
8 T-Handle Pop Pin 2
10 Hex Bolt - 3/8” x 2 3/4”L 4
13 3/8” Flat Washer 8
14 3/8” Lock Nut 4

8

Procedure:

A. Attach the Front Stabilizer Assembly (2) to the Bench Frame Assembly (1)
using the hardware shown above. Tighten hardware securely.
B. Attach the Rear Stabilizer Assembly (3) to the Bench Frame Assembly (1)
using the hardware shown above. Tighten hardware securely.
C. Thread the T-Handle Pop Pins (8) into the Bench Frame Assembly (1) and
then tighten securely.

STEP 2

6

9

15

7

13

12

5

15

16

4

12

11

11

13

4 ½ ”L

1 3 /4”L

2”L

2”L

1 3 /4”L

ASSEMBLY

Step 2 Components:

# Component Qty

4 Seat Frame Assembly 1
5 Back Frame Assembly 1
6 Seat Pad 1
7 Back Pad 1
9 Hex Bolt - ½” x 4 ½”L 2
11 Hex Bolt - 3/8” x 2”L 2
12 Hex Bolt - 3/8” x 1 3/4”L 3
13 3/8” Flat Washer 5
15 ½” Flat Washer 4
16 ½” Lock Nut 2

Procedure:

A. Attach the Seat Frame Assembly (4) to the Bench Frame Assembly (1) using the
hardware shown above. Be careful not to over-tighten the hardware and
cause the Seat Frame Assembly to bind.
B. Attach the Back Frame Assembly (5) to the Bench Frame Assembly (1) using the
hardware shown above. Be careful not to over-tighten the hardware and cause
the Back Frame Assembly to bind.
C. Attach the Seat Pad (6) to the Seat Frame Assembly (4) using the hardware
shown above. Tighten hardware securely.
D. Attach the Back Pad (7) to the Seat Frame Assembly (5) using the hardware
shown above. Tighten hardware securely.

Nautilus NS50X

9

WARRANTY INFORMATION

What Is Covered

Nautilus Fitness Products warrants to the original purchaser
of this Nautilus Home Gym to be free from defects in
materials or workmanship, with the exceptions stated below.
This warranty is not transferable or applicable to any person
other than the original purchaser.

Nautilus Home Gyms

The frame and welds of the Nautilus Home Gyms are
warrantied to the original purchaser for life from date of
original purchaser. Upholstery, pulleys, bushings and
bearings are warrantied for ten years to the original
purchaser from date of purchase. Cables, grips, and all other
parts are warrantied to the original purchaser for a period of
1 year from date of purchase.

Warranties Do Not Cover

• A machine purchased for commercial or institutional use.

• Damage due to use by persons who weigh more than 300

pounds.

• Damage due to abuse, misuse, accident or acts of God

(such as floods).

• Consequential or incidental damages.

What We Will Do

Nautilus Fitness Products will repair any product that proves
to be a defect in materials or workmanship. In the event repair
is not possible, Nautilus Fitness Products, at its option, will
either replace your Nautilus Home Gym or refund your
purchase price.

How To Get Service

To obtain service for a Nautilus Fitness Product, contact an
authorized Nautilus Fitness Retailer. You may also contact a
Nautilus company representative at 800-864-1270 to help you
locate a dealer in your area.

How State Law Applies

This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.

Some states do not allow the exclusion or limitation of inci­dental or consequential damages, so the above limitation or
exclusion may not apply to you.

10

IMPORTANT CONTACT NUMBERS

If you need assistance, please have both the serial number of your machine and the date of purchase available when you
contact the appropriate Nautilus office listed below.

WORLDWIDE CUSTOMER SERVICE

• NORTH AMERICA OFFICE

Nautilus, Inc.

World Headquarters
16400 S.E. Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (628-8458)
Fax: [phone]
e-mail: [e-mail]

• NAUTILUS INNOVATION CENTER

Nautilus, Inc.
1886 Prairie Way
Louisville, Colorado, USA 80027
Phone: [phone]
Fax: [phone]

• CORPORATE HEADQUARTERS

Nautilus, Inc.
World Headquarters
16400 S.E. Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS

INTERNATIONAL CUSTOMER SERVICE

• INTERNATIONAL OFFICE

Nautilus International S.A.

Rue Jean Prouvé 6
1762 Givisiez / Switzerland
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

INTERNATIONAL OFFICES:

• SWITZERLAND OFFICE

Nautilus Switzerland S.A.

Tel: [phone]
Fax: [phone]

• GERMANY and AUSTRIA OFFICE

Nautilus GmbH

Tel: [phone]
Fax: [phone]

• ITALY OFFICE

Nautilus Italy s.r.l.

Tel: [phone]
Fax: [phone]

• UNITED KINGDOM OFFICE

Nautilus UK Ltd.

Tel: [phone]
Fax: [phone]

• CHINA OFFICE

Nautilus Representative Office

Tel: [phone]
Fax: [phone]

Nautilus NS50X

11

12

Be Strong.

™

For more information about our Nautilus NS50X Bench or other Nautilus®

equipment for your home, visit w ww.Nautilus.com.
