Nady Systems SRM-10X User Manual 2
SRM-10X
10-CHANNEL STEREO MIC/LINE MIXER
OWNER’S MANUAL
MIXER
2
SRM-10X
10-Channel Stereo Mic/Line Mixer
Congratulations on your choice of mixers — you have
purchased one of the finest compact mixing consoles on the
market today. This unit was developed using the expertise of
professional sound engineers and working musicians. You
will find that your new NADY AUDIO SRM-10X has superior
performance and greater flexibility than any other mixer in its
price range. Please read this manual carefully to get the
most out of your new unit.
Thanks for selecting NADY AUDIO as your choice in mixing
consoles.
Date of Purchase
Dealer’s Name
City
State
Zip
Model #
Serial #
CONTENTS
WARNING ..........................................................................................................................................................3
FEATURES ...................................................................................................................................................... 4
INSTALLATION.................................................................................................................................................. 5
1. Inspection ...................................................................................................................................................... 5
2. Power Connection.......................................................................................................................................... 5
CONTROLS AND CONNECTIONS .................................................................................................................. 6

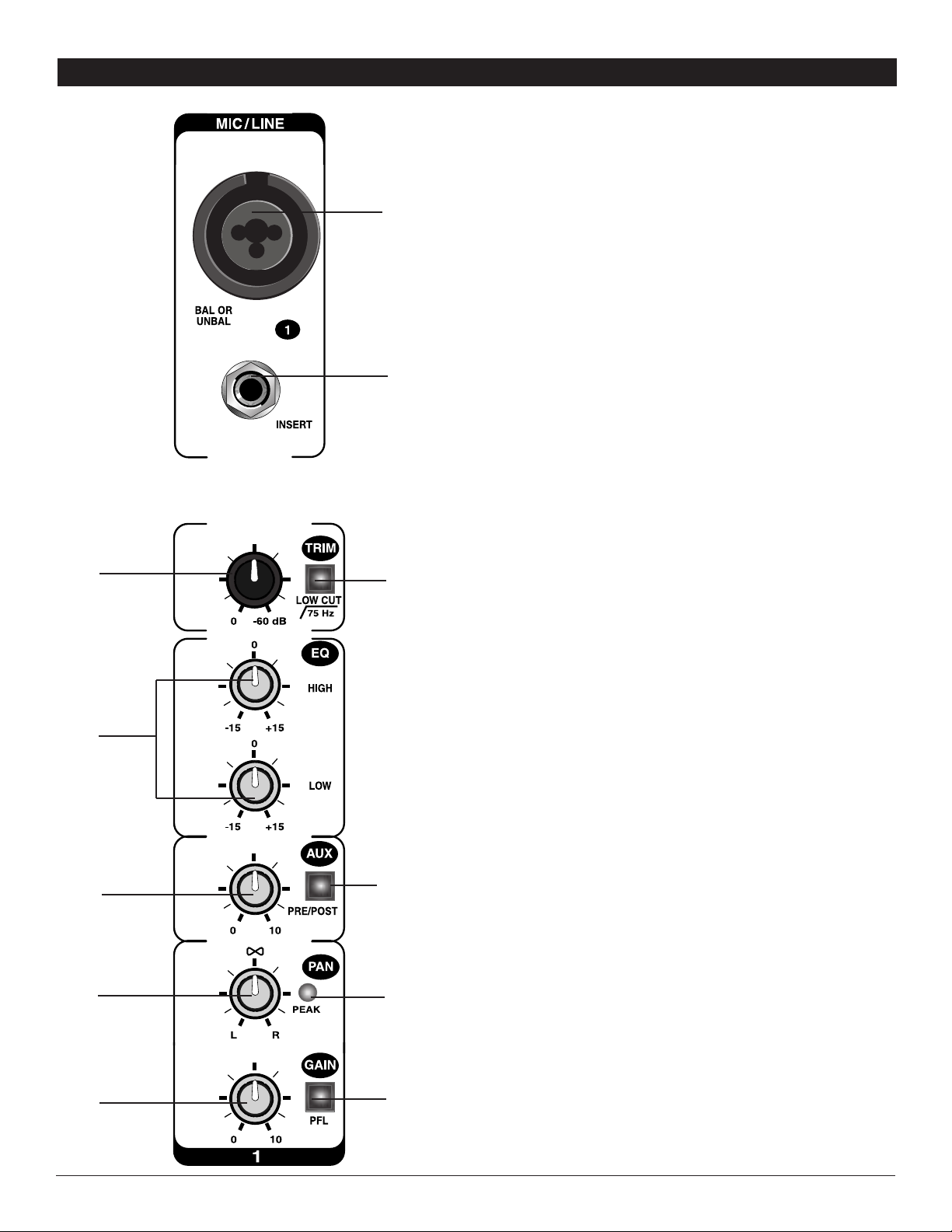

1. Mono Input Section ........................................................................................................................................6
2. Stereo Input Section........................................................................................................................................8
3. Master Section ................................................................................................................................................9
a. Aux Sends/Returns Function and Operation .......................................................................................... 9
b. Main Mix Function and Operation ............................................................................................................9
c. Monitor Function and Operation ............................................................................................................10
d. Power Switches ......................................................................................................................................10
4. Connections..................................................................................................................................................11
SPECIFICATIONS............................................................................................................................................ 12
BLOCK DIAGRAM ..........................................................................................................................................13
NOTES ..............................................................................................................................................................14
WARNING
3
IMPORTANT SAFETY INSTRUCTIONS
When using this electronic device, basic precautions should always be taken, including the following:
1. Read all instructions before using the product.
2. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a
swimming pool, etc.).
3. This product should be used only with a cart or stand that will keep it level and stable and prevent wobbling.
4. This product, in combination with headphones or speakers, may be capable of producing sound levels that
could cause permanent hearing loss. Do not operate for a long period of time at a high volume level or at a
level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an
audiologist.
5. The product should be positioned so that proper ventilation is maintained.
6. The product should be located away from heat sources such as radiators, heat vents, or other devices
(including amplifiers) that produce heat.
7. The product should be connected to a power supply only of the type described in the operating instructions or
as marked on the product. Replace the fuse only with one of the specified type, size, and correct rating.
8. The power supply cord should: (1) be undamaged, (2) never share an outlet or extension cord with other
devices so that the outlet’s or extension cord’s power rating is exceeded, and (3) never be left plugged into
the outlet when not being used for a long period of time.
9. Care should be taken so that objects do not fall into, and liquids are not spilled through, the enclosure’s
openings.
10. The product should be serviced by qualified service personnel if:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen into, or liquid has been spilled onto the product.
C. The product has been exposed to rain.
D. The product does not appear to operate normally or exhibits a marked change in performance.
E. The product has been dropped, or the enclosure damaged.
11. Do not attempt to service the product beyond what is described in the user maintenance instructions. All
other servicing should be referred to qualified service personnel.
ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
An equilateral triangle enclosing a lightening flash/arrowhead symbol is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure which may be of sufficient
magnitude to constitute a risk of electric shock.
An equilateral triangle enclosing an exclamation point is intended to alert
the user to the presence of important operating and service instructions in
the literature enclosed with this unit.
FEATURES
4
The SRM-10X is the ultimate value in compact professional stereo mic/line mixers. This high quality unit is perfect for
home and project studios, live club main and monitor mixing, video post-production studios, remote broadcasting —
in fact, anywhere superior performance, rugged reliability and ultra-versatility are needed in an audio mixer. With 10
channels (including 2 stereo AUX returns) and 2 tape inputs, the SRM-10X offers 12 total inputs in all. Features
include:
• Two mono channels with Trim, Bass, Treble, Aux Send,
Pan, and Level controls, Low Cut, Pre/Post, PFL switches,
and Inserts
• Four Stereo channels: two with Level controls, Bass/Treble,
Balance controls, Pre/Post Aux Send and PFL switches;
two with Level controls and PFL switches
• Tape In RCA jacks with level control and PFL switch
• Tape Record Out RCA jacks
• Individual channel Aux Send, Pre/Post selectable, and
Master control
• Left and Right Main unbalanced outputs with slider control
• Mono output with slider level control and AFL switch
• Dual 6-segment LED display bargraph meters
• Ultra-low noise mic preamps
• Full spectrum frequency response
• Wide dynamic range with superior headroom
• Separate Master Mix, Control Room and Headphone
Outputs
• Mic and Line Balanced inputs for optimum audio integrity
• 1/4” TRS Stereo Control Room and Headphone outputs
• Switchable global +48V phantom power on all mono inputs
• Input Trim control on each mono channel
• Pan pots on each mono channel and Balance pots on
each stereo input
• Peak LEDs on Mono channels
• High-quality pots for all controls with Pan/Balance and EQ
controls having center detents
• High-strength steel casing and superior construction with
only highest quality components for longest life and
maximum reliability
• External AC supply for optimum signal integrity and
superior transient response
5
INSTALLATION
To ensure years of enjoyment from your NADY AUDIO SRM-10X mixing console, please read and understand this manual
thoroughly before using the unit.
1. INSPECTION
Your NADY AUDIO SRM-10X was carefully packed at the factory in packaging designed to protect the units in shipment.
Before installing and using your unit, carefully examine the packaging and all contents for any signs of physical damage
that may have occurred in transit.
[Please note: Nady Systems is not responsible for shipping damage. If your unit is damaged, do not return to Nady, but
notify your dealer and the shipping company (if shipped to you) immediately to make a claim. Such claims must be made
by the consignee in a timely manner.]
2. POWER CONNECTION
The SRM-10X is designed to operate with the supplied external power supply unit (PSU). Please make sure that the
power unit supplied is marked for the correct voltage in your area (120VAC/60 Hz or 230VAC/50Hz). Power requirements
for electrical equipment differ from area to area. In new installations and portable sound systems, or any situation in which
the AC power is in question, it is wise to confirm the voltage and use the appropriate power supply unit before connecting
it to power sources.
Check to see that the unit is set to the voltage for your area by referring to the table below:
Europe (except UK): 230V, 50Hz
UK and Australia: 240V, 50Hz
USA and Canada: 120V, 60 Hz
For other areas, please check with local authorities.
Do not connect the PSU to the SRM-10X while the PSU is connected to the AC mains supply. Connect the switched-off
SRM-10X and PSU first before you connect the PSU to the mains supply. Lastly switch on the SRM-10X with the power
switch on the back panel. Use only the correct NADY power supply unit to connect the SRM-10X to the Mains AC power.
