Page 1
March 2014
MYDATA SMD Tower 5130
Specifi cation
Page 2
SPECIFICATION MYDATA SMD TOWER 5130
CAPABILITY
RANDOM ACCESS STORAGE SYSTEM FOR SMD REELS
Reel sizes 8 to 24 mm (4” / 100 mm reels)
8 to 24 mm (7” / 180 mm reels)
8 to 44 mm (13” / 330 mm reels)
Freely configurable and expandable
Access time 15 seconds
CAPACITY
CASSETTE CAPACITY
CASSETTE TYPE NUMBER
4” - 7“ 6
13“ 29
MAXIMUM REEL CAPACITY
REEL WIDTH CASSETTES / SMD TOWER REELS / CASSETTE NO OF REELS TOTAL
8 mm / 4” - 7“ 6 14 84
8 mm / 13“ 29 14 406
MAXIMUM TRAY CAPACITY
CASSETTE WIDTH CASSETTES / SMD TOWER TRAY BOXES / CASSETTE NO OF TRAY BOXES TOTAL
32 mm / 13“ 29 7 203 609
STANDARD CONFIGURATION
REEL WIDTH CASSETTES / SMD TOWER REELS / CASSETTE NO OF REELS TOTAL
8 mm / 4” - 7“ 2 14 28
8 mm / 13“ 6 14 84
12 mm / 4” - 7“ 2 12 24
12 mm / 13“ 6 12 72
16 mm / 4” - 7“ 1 10 10
16 mm / 13“ 6 10 60
24 mm / 4” - 7“ 1 8 8
24 mm / 13“ 5 8 40
32 mm / 13“ 4 7 28
44 mm / 13“ 2 5 10
56 mm / 13“ 0 4 0
490
364
CASSETTES
CASSETTES AVAILABLE
REEL WIDTH REEL DIAMETERS
4” - 7“ 13“
8 mm • •
12 mm • •
16 mm • •
24 mm • •
1)
•
32 mm
44 mm •
56 mm •
1)
32 mm cassettes can alternatively house tray boxes.
1 Tray Box = 3 Trays (JEDEC)
SOFTWARE
SOFTWARE FUNCTION
STANDARD MODE MYLABEL MODE
Component management •
Stock monitoring •
External communication protocol •
User Access System •
Traceability •
Job preparation •
Barcoding •
Data Import / Export Function •
Inventory Function •
Component allocation •
MYLabel integration
* Handled by MYLabel / MYPlan software.
*
*
•
•
•
*
*
*
*
•
ACCESSORY
DRY AIR UNIT FREY FND 3.0 F-DP
Flow rate, max (in) 24 m3/h, (out) 20 m3/h
Flow rate, typ. 3 m3/h
Air supply class 4 (ISO 8573-1) or better
Operating pressure 5 - 10 bar
Power supply 115 / 230 V, 50/60 Hz, 18W
Dimension (W x D x H) 330 mm x 270 mm x 840 mm (13,0“ x 10,6“ x 33,1“)
2)
Nitrogen possible on request.
Page 3
MISCELLANEOUS
INSTALLATION REQUIREMENTS
Weight 380 kg / 840 lbs
Power requirements Single phase AC 300 VA
Voltage 110 - 240 V 50/60 Hz
Ambient temperature +18 to +35 °C (65 to 95 °F), < 95% RH non condensing

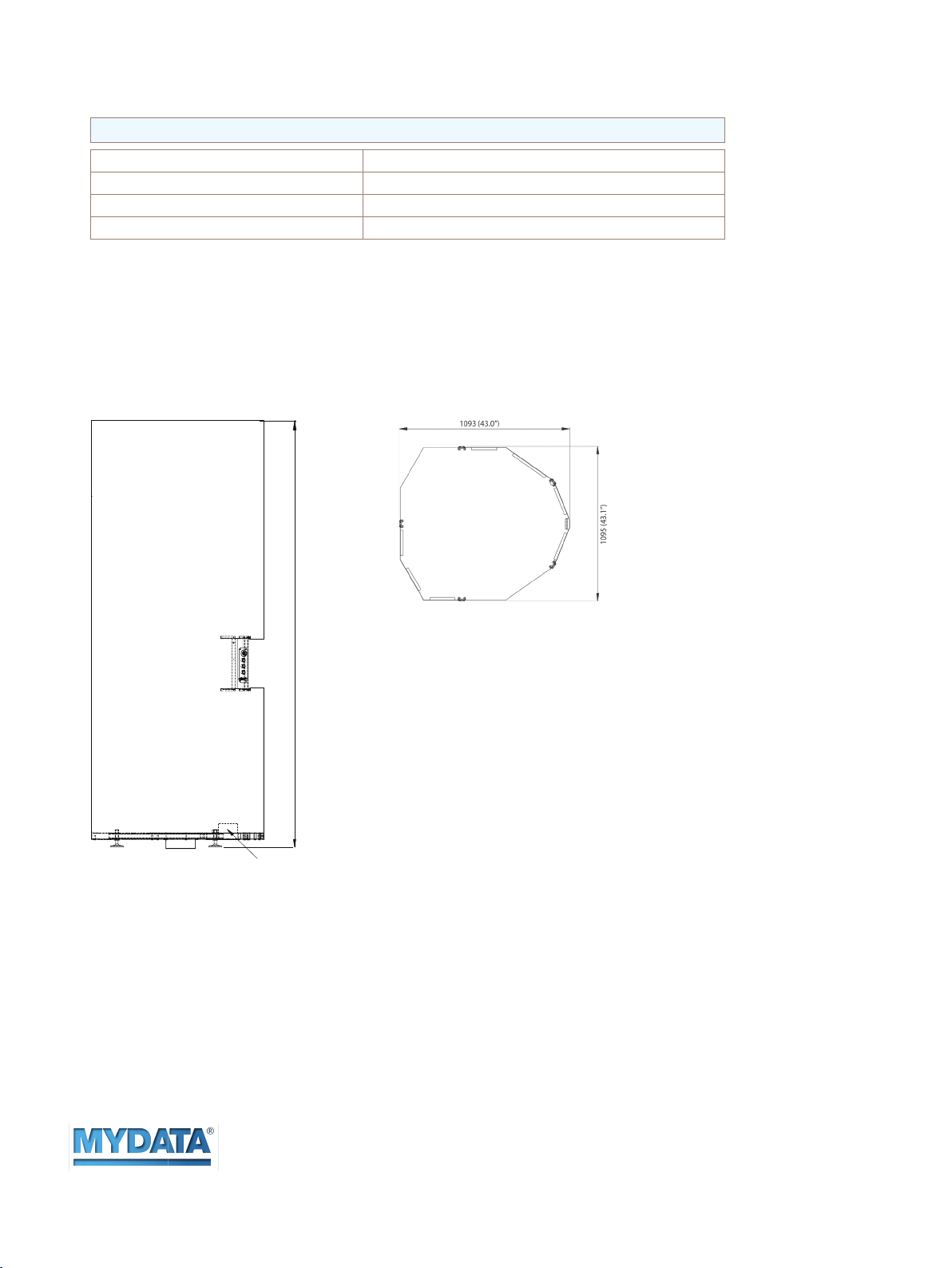

DIMENSIONS
in mm.
MYDATA SMD TOWER 5130
)
2650 (104.3"
Air and power connection
Micronic Mydata AB
PO Box 3141
SE-183 03 Täby
Sweden
www.mydata.com
[email protected]
Specifi cations are subject to change without notice.
