Page 1
April 2010
MY500 Jet Printer
Specification
Page 2
SPECIFICATION MY500 JET PRINTER
JET PRINTING SPEED AND ACCURACY
JET PRINTING SPEED AND ACCURACY – SOLDER PASTE
Rated speed (cph equivalent)
Reference board throughput
Single dot repeatability 3s (X, Y)
Single dot accuracy @ Cpk=1.33 (X, Y)
Deposit accuracy @ Cpk=1.33 (X, Y) QFP100C
Deposit accuracy @ Cpk=1.33 (X, Y) 0603
Deposit repeatability 3s (X, Y) QFP100C
Deposit repeatability 3s (X, Y) 0603
(1) Keeps pace with a P&P machine rated at 30 000 cph. Application dependent.
(2) For reference board information, see page 4.
(3) At default jetting height, 0.65 mm over the PCB.
(4) Calculated value from single dot accuracy.
DOT RANGE
DOT RANGE – SOLDER PASTE
Minimum dot diameter
Maximum dot diameter 0.47 mm (0,019”)
Minimum dot volume
Maximum dot volume 15 nl
Single dot volume repeatability (5 nl dots) 12%
Single dot volume repeatability (15 nl dots) 8%
Deposit volume repeatability, QFP100C
Deposit volume repeatability, 0603
(5) Dot diameter and dot volume required for 0.4 mm QFP, 0.5 mm BGA and 0201 components.
(6) Calculated value from single dot repeatability.
(1)
(2)
28 000 cph
(3)
(3)
(4)
(4)
(4)
(4)
(5)
(5)
(6)
(6)
30 000 cph
54 µm
80 µm
33 µm
40 µm
19 µm
24 µm
0.33 mm (0.013”)
5 nl
4,0%
3,5%
SYSTEM FEATURES
SYSTEM FEATURES MY500 JET PRINTER
Individual deposit programming – optimizing quality for every solder joint
Quick mode programming – automatch
Handling multi-level boards – editable jetting height
Automatic board stretch and board warpage compensation
Bad board mark handling
Automatic verification of paste type and due date
CAD / Gerber import, all common formats
On-the-spot revisions
No stencils required
Automatic conveyor width adjustment
Low paste waste
Closed system for solder paste – clean process
Operator independent quality
Page 3
BOARD HANDLING
MY500 BOARD HANDLING
Maximum board size 508 x 508 mm (20” x 20”)
Minimum board size 70 x 50 mm (2.7” x 2”)
Board thickness range 0.4 - 6.0 mm (0.016”- 0.24”)
Board edge clearance, top 3 mm (0.12”)
Board edge clearance, bottom 4 mm (0.16”)
Bottom side clearance 20 mm (0.79”)
Max board warp / bow/ twist
Max board weight 5 kg (11 lbs)
Board transport height Conforms to SMEMA standard for conveyor height; height
Operation mode Inline, manual, inline odd-board, right-to-left, left-to-right
(7) +/- 0.4 % of PCB diagonal or 2 mm, whichever is lowest.
(7)
+/- 2 mm (0.08”)
adjustable from 880-975 mm (34.6”- 38.4”)
SOFTWARE
OFFLINE SOFTWARE MODULES (OPTIONAL)
Line automation – FlowLine
Factory level programming software – MYCam
MYDATA P&P interface – MYCam Express
Advanced Gerber import – MYCenter
OPTIONAL FEATURES
SMT ADHESIVE
Reference board throughput
Dot diameter range 0.43 - 0.54 mm (0.017”- 0.021”)
INSPECT AND REPAIR
Inspection type Paste present
Active field of view 11 x 15 mm (0.43” x 0.59”)
Inspection speed 200 mm
Repair Auto / Manual
(2)
36 500 cph
2
/ s
Page 4
MISCELLANEOUS
1218 1388
878
1235
1300
1799
Power connection
Air connection
Network connection
1489
1848
INSTALLATION REQUIREMENTS
Power Requirements Single phase AC 1 700 VA
Power Consumption 1 200 W
Voltage 200 -240V +/-10%, 50/60 Hz, (100 -120V +/-10%, 50/60 Hz)
Air Supply 6 bar, 250 l/min
Ambient Temperature +18°C to +30°C, 30-80% RH non condensing
MACHINE WEIGHT
Weight 2 000 kg (4 400 lbs)

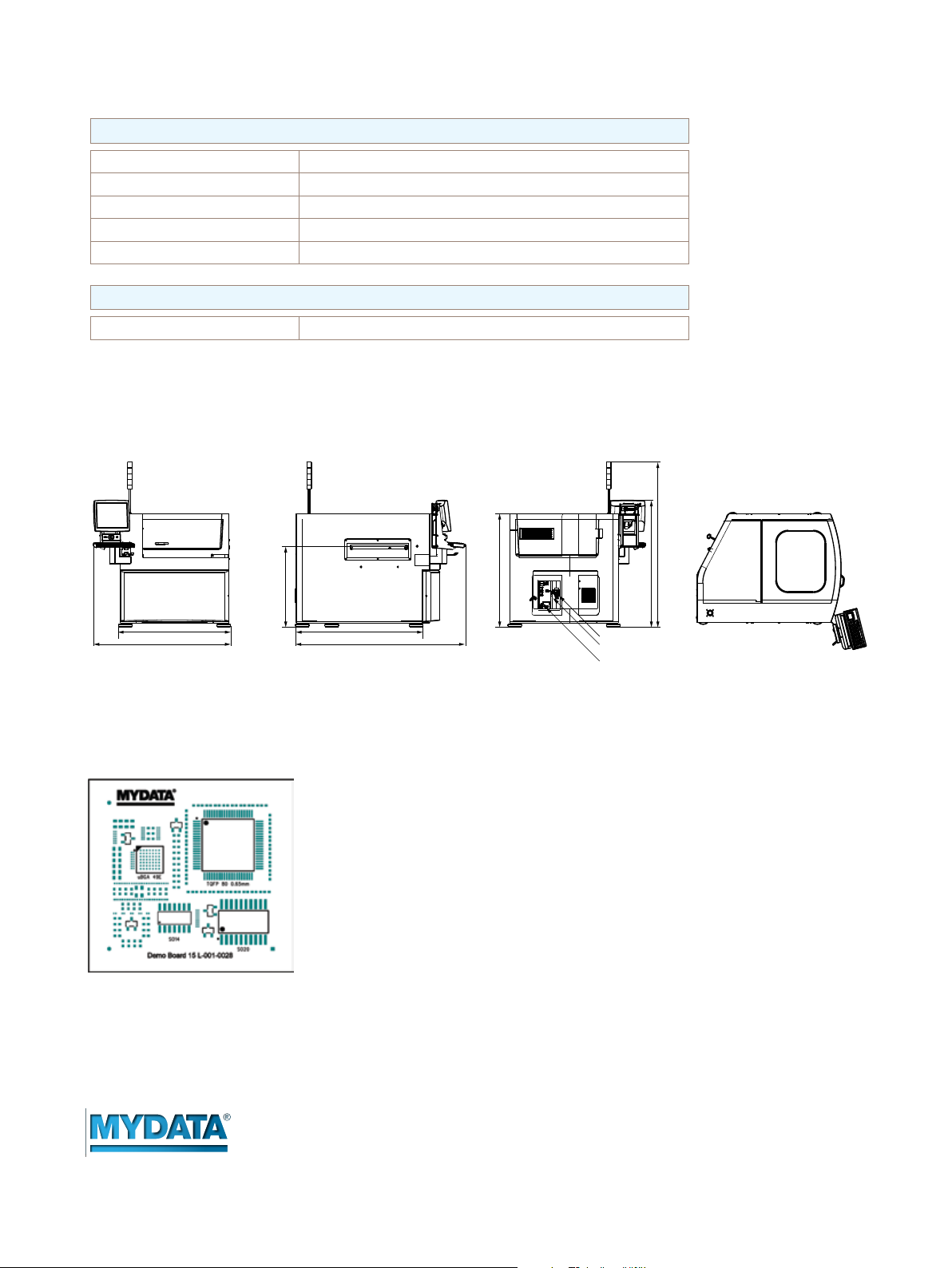

DIMENSIONS MY500 JET PRINTER
in mm.
REFERENCE BOARD
Panel of six PCBs. Reference board throughput includes board transfer,
fiducial search, height measurement and jet printing.
Component list
0201 65 pcs
0402 73 pcs
0603 12 pcs
SOT23 5 pcs
SO14 1 pcs
SO20 1 pcs
BGA49 1 pcs
QFP80 1 pcs
No. of pads 478
