Page 1
October 2011

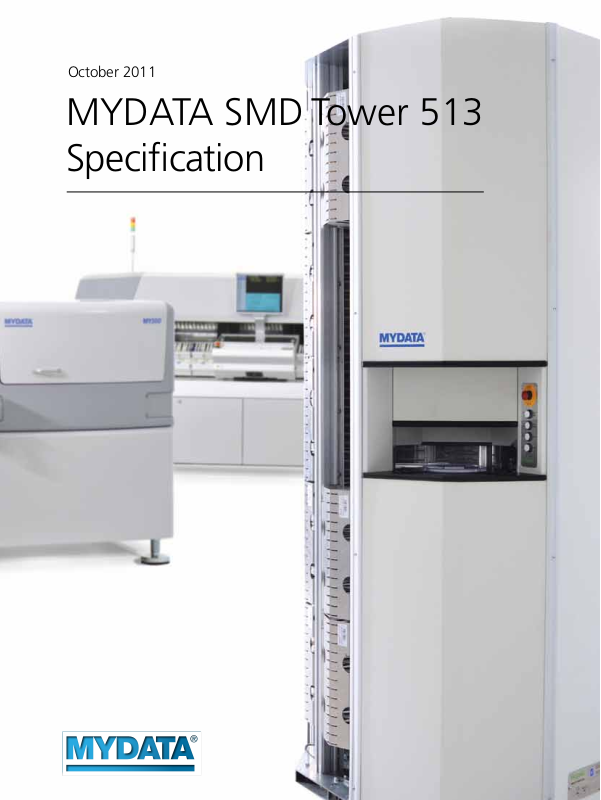

MYDATA SMD Tower 513
Specification
Page 2
SPECIFICATION MYDATA SMD TOWER 513
CAPABILITY
RANDOM ACCESS STORAGE SYSTEM FOR SMD REELS
Reel sizes 8 to 24 mm (4” / 100 mm reels)
8 to 24 mm (7” / 180 mm reels)
8 to 44 mm (13” / 330 mm reels)
Freely configurable and expandable
Access time 13 seconds
CAPACITY
CASSETTE CAPACITY
CASSETTE TYPE NUMBER
4” - 7“ 5
13“ 24
MAXIMUM REEL CAPACITY
REEL WIDTH CASSETTES / SMD TOWER REELS / CASSETTE NO OF REELS TOTAL
8 mm / 4” - 7“ 5 14 70
8 mm / 13“ 24 14 336
MAXIMUM TRAY CAPACITY
CASSETTE WIDTH CASSETTES / SMD TOWER TRAY BOXES / CASSETTE NO OF TRAY BOXES TOTAL
32 mm / 13“ 24 7 168 504
STANDARD CONFIGURATION
406
CASSETTES
CASSETTES AVAILABLE
REEL WIDTH REEL DIAMETERS
4” - 7“ 13“
8 mm • •
12 mm • •
16 mm • •
24 mm • •
1)
•
32 mm
44 mm •
1)
32 mm cassettes can alternatively house tray boxes.
1 Tray Box = 3 Trays (JEDEC)
Max. tray capacity = 504
SOFTWARE
SOFTWARE FUNCTION
STANDARD MODE MYLABEL MODE
Component management •
Stock monitoring •
External communication protocol •
User Access System •
Traceability •
Job preparation •
Barcoding •
Data Import / Export Function •
Inventory Function •
Component allocation •
MYLabel integration
* Handled by MYLabel / MYPlan software.
*
*
•
•
•
*
*
*
*
•
REEL WIDTH CASSETTES / SMD TOWER REELS / CASSETTE NO OF REELS TOTAL
8 mm / 4” - 7“ 1 14 14
8 mm / 13“ 5 14 70
12 mm / 4” - 7“ 2 12 24
12 mm / 13“ 5 12 60
16 mm / 4” - 7“ 1 10 10
16 mm / 13“ 5 10 50
24 mm / 4” - 7“ 1 8 8
24 mm / 13“ 4 8 32
32 mm / 13“ 3 7 21
44 mm / 13“ 2 5 10
299
ACCESSORY
DRY AIR UNIT 2000 SUPERPLUS DL25
Flow rate, max (in) 25 m3/h, (out) 19.75 m3/h
Flow rate, typ. 3 m3/h
Air supply class 4 (ISO 8573-1) or better
Operating overpressure (in) 6 - 16 bar
Medium temperature (in) 5 - 50°C
Power supply 110 / 230 V, 50/60 Hz, 7W
Dimension (W x D x H) 121 mm x 300 mm x 1377 mm (4,8“ x 11,8“ x 54,2“)
2)
Nitrogen possible on request.
2)
Page 3
MISCELLANEOUS
INSTALLATION REQUIREMENTS
Weight 350 kg / 770 lbs
Power requirements Single phase AC 300 VA
Voltage 110 - 240 V 50/60 Hz
Ambient temperature +18 to +35 °C (65 to 95 °F), < 95% RH non condensing

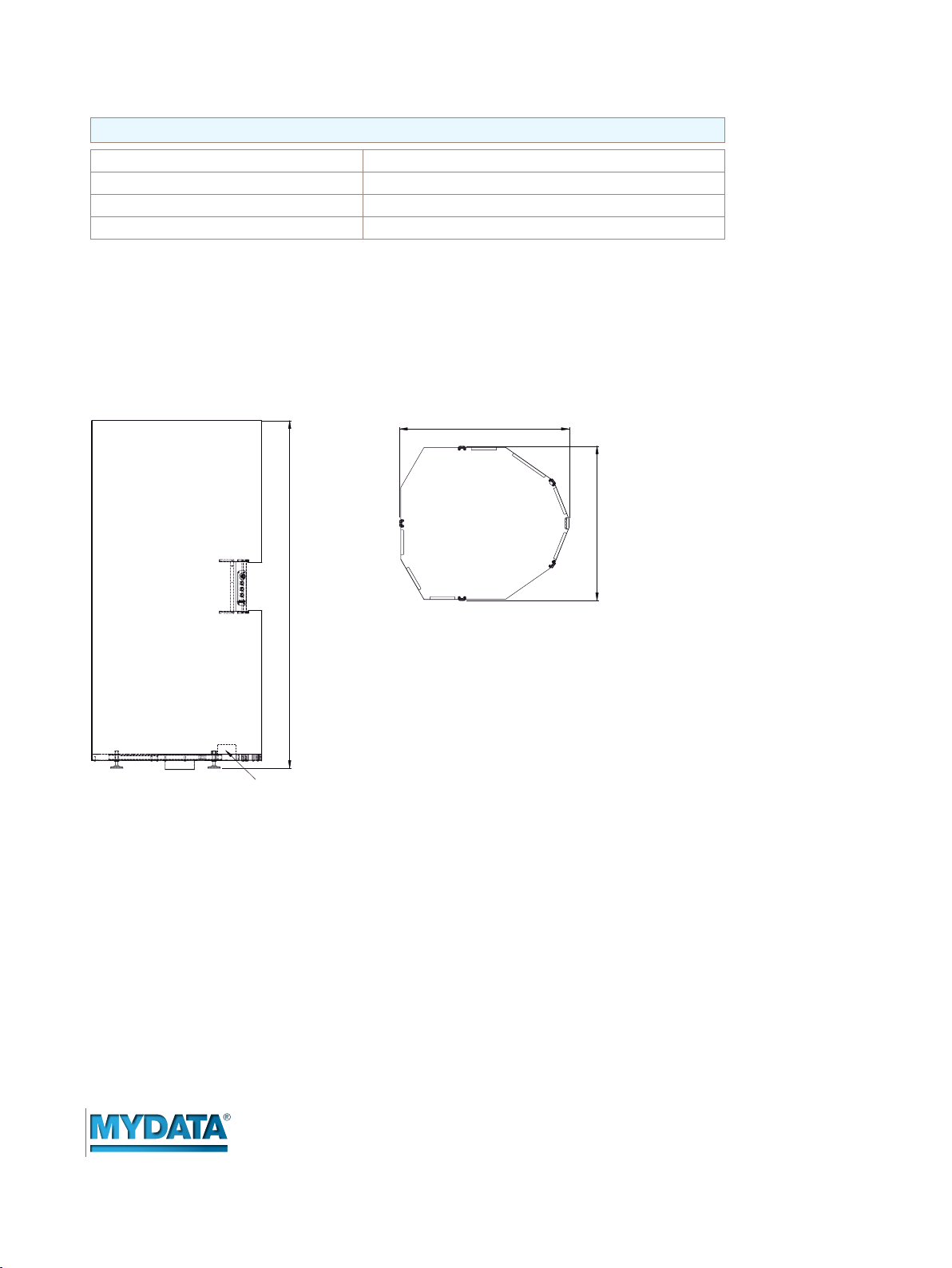

DIMENSIONS
in mm.
MYDATA SMD TOWER 513
1093 (43.0”)
1095 (43.1”)
)
2250 (88.6"
Air and power connection
Micronic Mydata AB
PO Box 3141
SE-183 03 Täby
Sweden
www.mydata.com
[email protected]
Specifications are subject to change without notice.
MYDATA , MYDATA automation and MY; MY100, MY100DX, MY100SX, MY100LX, MY100e, MY100HXe, MY100DXe, MY100SXe, MY100LXe, MY500 and MYSynergy; T3, T4, T5 and T6; HYDRA Speedmount, Midas, ISIC ; Agilis, Agilis Linear Magazine (ALM), Agilis Stick Magazine
(ASM), MYDATA Tray Exchanger (TEX), MYDATA Tape Magazine (TM), MYDATA Tray Wagon Magazine (TWM); MYDATA Dip Unit (DPU); MYDATA Standard Vision System (SVS), MYDATA Dual Vision System (DVS), MYDATA Linescan Vision System (LVS), MYDATA HYDRA Vision System
(HVS); MYDATA Assembly Process Management (APM) including; JPSys, TPSys, MYLabel, MYPlan, MYTrace, MYCam, FlowLine and CAD Conversion are registered trademarks or trademarks of MYDATA automation AB. MYDATA is ISO 9001:2008 certified.
Visit: Nytorpsvägen 9, Täby
Tel: +46 8 638 52 00
Fax: +46 8 638 52 90
MYDATA Asia
Tel: +65 6281 7997
Fax: +65 6281 7667
MYDATA Benelux
Tel: +31 402 62 06 67
Fax: +31 402 62 06 68
MYDATA China
Tel: +86 21 3252 3785/86
Fax: +86 21 3252 3780
MYDATA France
Tel: +33 1 6959 2434
Fax: +33 1 6928 7100
MYDATA Germany
Tel: +49 8102 749090
Fax: +49 8102 749098
MYDATA Japan
Tel: +81 42 354 1320
Fax: +81 42 354 1321
MYDATA UK
Tel: +44 1 202 723 585
Fax: +44 1 202 723 269
MYDATA USA
Tel: +1 978 948 6919
Fax: +1 978 948 6915
P-001-0251 / October 2011
