MYDATA SMD Tower 200
Specifi cation
May 2011
Page 2
SPECIFICATION MYDATA SMD TOWER 200
CAPABILITY
RANDOM ACCESS STORAGE SYSTEM FOR SMD REELS
Reel sizes 8 to 24 mm (4” / 100 mm reels)
8 to 24 mm (7” / 180 mm reels)
8 to 44 mm (13” / 330 mm reels)
Freely configurable and expandable
Access time 13 seconds
CAPACITY
CASSETTE CAPACITY
CASSETTE TYPE NUMBER
4” - 7“ 25
13“ 14
MAXIMUM REEL CAPACITY
REEL WIDTH CASSETTES / SMD TOWER REELS / CASSETTE NO OF REELS TOTAL
8 mm / 4” - 7“ 25 14 350
8 mm / 13“ 14 14 196
MAXIMUM TRAY CAPACITY
CASSETTE WIDTH CASSETTES / SMD TOWER TRAY BOXES / CASSETTE NO OF TRAYS TOTAL
32 mm / 13“ 14 7 98 294
STANDARD CONFIGURATION
546
CASSETTES
CASSETTES AVAILABLE
REEL WIDTH REEL DIAMETERS
4” - 7“ 13“
8 mm • •
12 mm • •
16 mm • •
24 mm • •
1)
•
32 mm
44 mm •
1)
32 mm cassettes can alternatively house tray boxes.
1 Tray Box = 3 Trays (JEDEC)
Max. tray capacity = 294
SOFTWARE
SOFTWARE FUNCTION
STANDARD MODE MYLABEL MODE
Component management •
Stock monitoring •
External communication protocol • •
User Access System • •
Traceability • •
Job preparation •
Barcoding •
Data Import / Export Function •
Inventory Function •
Component allocation •
MYLabel integration •
* Handled by MYLabel / MYPlan software.
*
*
*
*
*
*
REEL WIDTH CASSETTES / SMD TOWER REELS / CASSETTE NO OF REELS TOTAL
8 mm / 4” - 7“ 19 14 266
8 mm / 13“ 4 14 56
12 mm / 4” - 7“ 3 12 36
12 mm / 13“ 3 12 36
16 mm / 4” - 7“ 2 10 20
16 mm / 13“ 2 10 20
24 mm / 4” - 7“ 1 8 8
24 mm / 13“ 2 8 16
32 mm / 13“ 2 7 14
44 mm / 13“ 1 5 5
477
ACCESSORY
DRY AIR UNIT 2000 SUPERPLUS DL25
Flow rate, max (in) 25 m3/h, (out) 19.75 m3/h
Flow rate, typ. 3 m3/h
Air supply class 4 (ISO 8573-1) or better
Operating overpressure (in) 6 - 16 bar
Medium temperature (in) 5 - 50°C
Power supply 110 / 230 V, 50/60 Hz, 7W
Dimension (W x D x H) 121 mm x 300 mm x 1377 mm (4,8“ x 11,8“ x 54,2“)
2)
Nitrogen possible on request.
2)
Page 3
P-001-0208/rev May 2011
MYDATA SMD TOWER

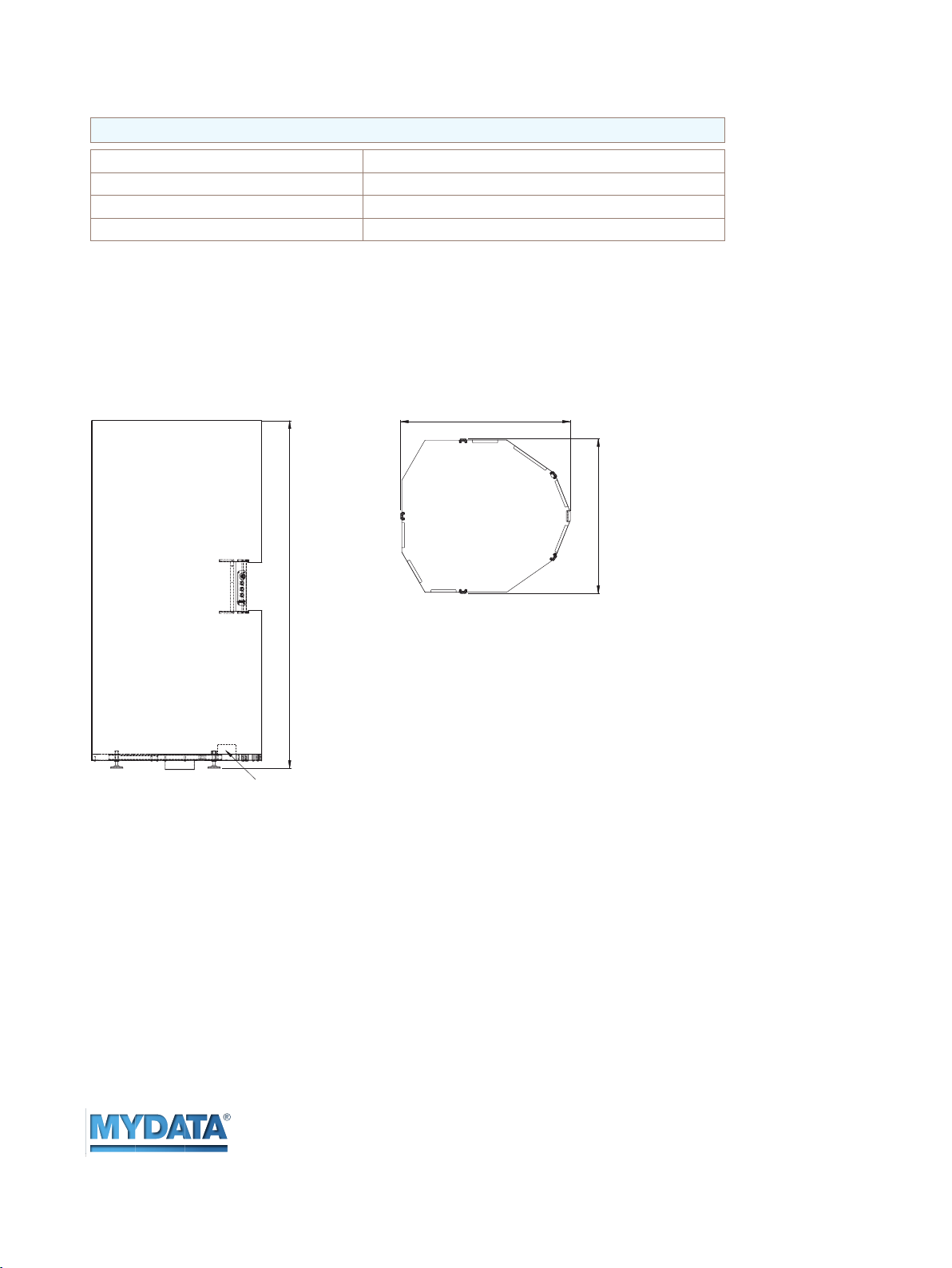

DIMENSIONS
in mm.
2218
±
15 (87.3”
± 0.6”)
Air and power connection
1087 (42.8”)
987 (38.9”)
INSTALLATION REQUIREMENTS
Weight 300 kg / 550 lbs
Power requirements Single phase AC 300 VA
Voltage 110 - 240 V 50/60 Hz
Ambient temperature +18 to +35 °C (65 to 95 °F), < 95% RH non condensing
MISCELLANEOUS
Micronic Mydata AB
PO Box 3141
SE-183 03 Täby
Sweden
Visit: Nytorpsvägen 9, Täby
Tel: +46 8 638 52 00
Fax: +46 8 638 52 90
MYDATA Asia
Tel: +65 6281 7997
Fax: +65 6281 7667
MYDATA Benelux
Tel: +31 402 62 06 67
Fax: +31 402 62 06 68
MYDATA China
Tel: +86 21 3252 3785/86
Fax: +86 21 3252 3780
MYDATA France
Tel: +33 1 6959 2434
Fax: +33 1 6928 7100
MYDATA Germany
Tel: +49 8102 749090
Fax: +49 8102 749098
MYDATA Japan
Tel: +81 42 354 1320
Fax: +81 42 354 1321
MYDATA UK
Tel: +44 1 202 723 585
Fax: +44 1 202 723 269
MYDATA USA
Tel: +1 978 948 6919
Fax: +1 978 948 6915
www.mydata.com
[email protected]
Specifi cations are subject to change without notice.
