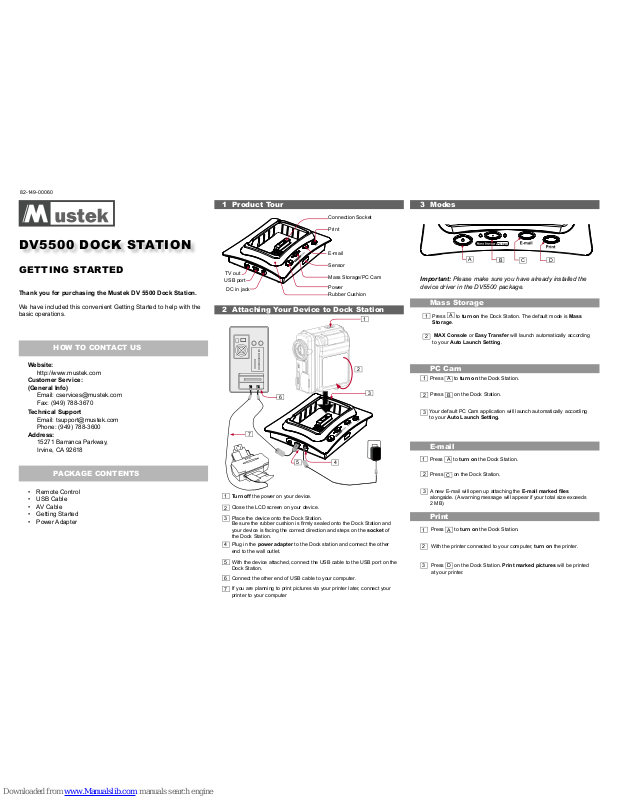

GETTING STARTED
1
4
2
Turn off the power on your device.
Place the device onto the Dock Station.
Be sure the rubber cushion is rmly sealed onto the Dock Station and
your device is facing the correct direction and steps on the socket of
the Dock Station.
3
Close the LCD screen on your device.
Mass Storage
1
Press A to turn on the Dock Station. The default mode is Mass
Storage.
MAX Console or Easy Transfer will launch automatically according
to your Auto Launch Setting.
PC Cam
1
Press A to turn on the Dock Station.
2
Press B on the Dock Station.
Your default PC Cam application will launch automatically according
to your Auto Launch Setting.
E-mail
1
Press A to turn on the Dock Station.
2
Press C on the Dock Station.
A new E-mail will open up attaching the E-mail marked les
alongside. (A warning message will appear if your total size exceeds
2 MB)
We have included this convenient Getting Started to help with the
basic operations.
Thank you for purchasing the Mustek DV 5500 Dock Station.
HOW TO CONTACT US
Website:
http://www.mustek.com
Customer Service:
(General Info)
Email: [email protected]
Fax: (949) 788-3670
Technical Support
Email: [email protected]
Phone: (949) 788-3600
Address:
15271 Barranca Parkway,
Irvine, CA 92618
USB
AV
Print
E-mail
Sensor
Mass Storage/PC Cam
Power
DC in jack
USB port
TV out

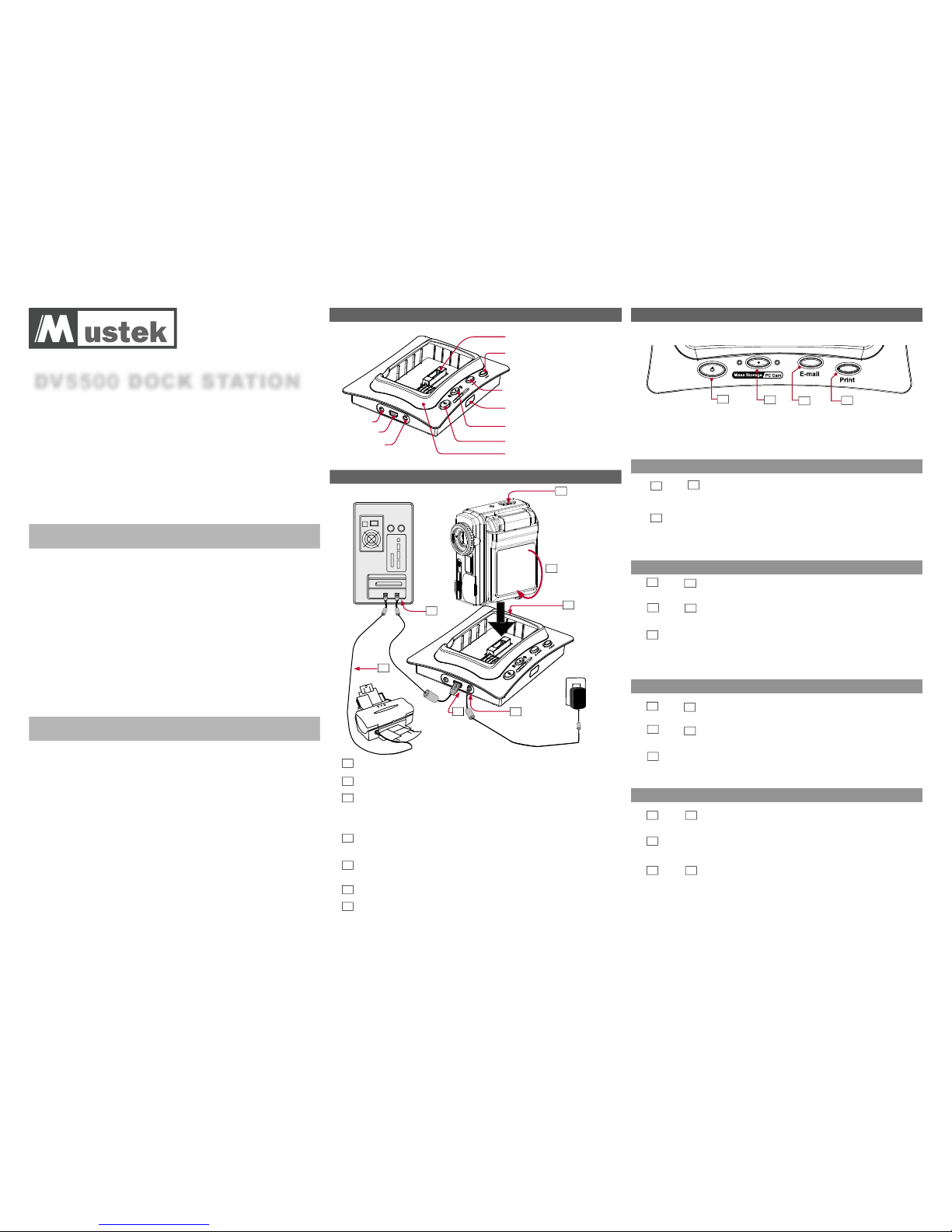

1 Product Tour
5
Plug in the power adapter to the Dock station and connect the other
end to the wall outlet.
DV5500 DOCK STATION
• Remote Control
• USB Cable
• AV Cable
• Getting Started
• Power Adapter
6
7
With the device attached, connect the USB cable to the USB port on the
Dock Station.
Connect the other end of USB cable to your computer.
PACKAGE CONTENTS
A
B
C
D
Connection Socket
82-149-00060
USB
AV
1
3
4
2
U�
S�
B�
U�
S�
B�
5
6
7
If you are planning to print pictures via your printer later, connect your
printer to your computer
1
3
2
With the printer connected to your computer,
turn on the printer.
Press
A
to
turn on
the Dock Station.
Press
D
on the Dock Station.
Print marked pictures will be printed
at your printer.
Print
2
3
3
Important:
Please make sure you have already installed the
device driver in the DV5500 package.
Rubber Cushion
2 Attaching Your Device to Dock Station
3 Modes
Page 2

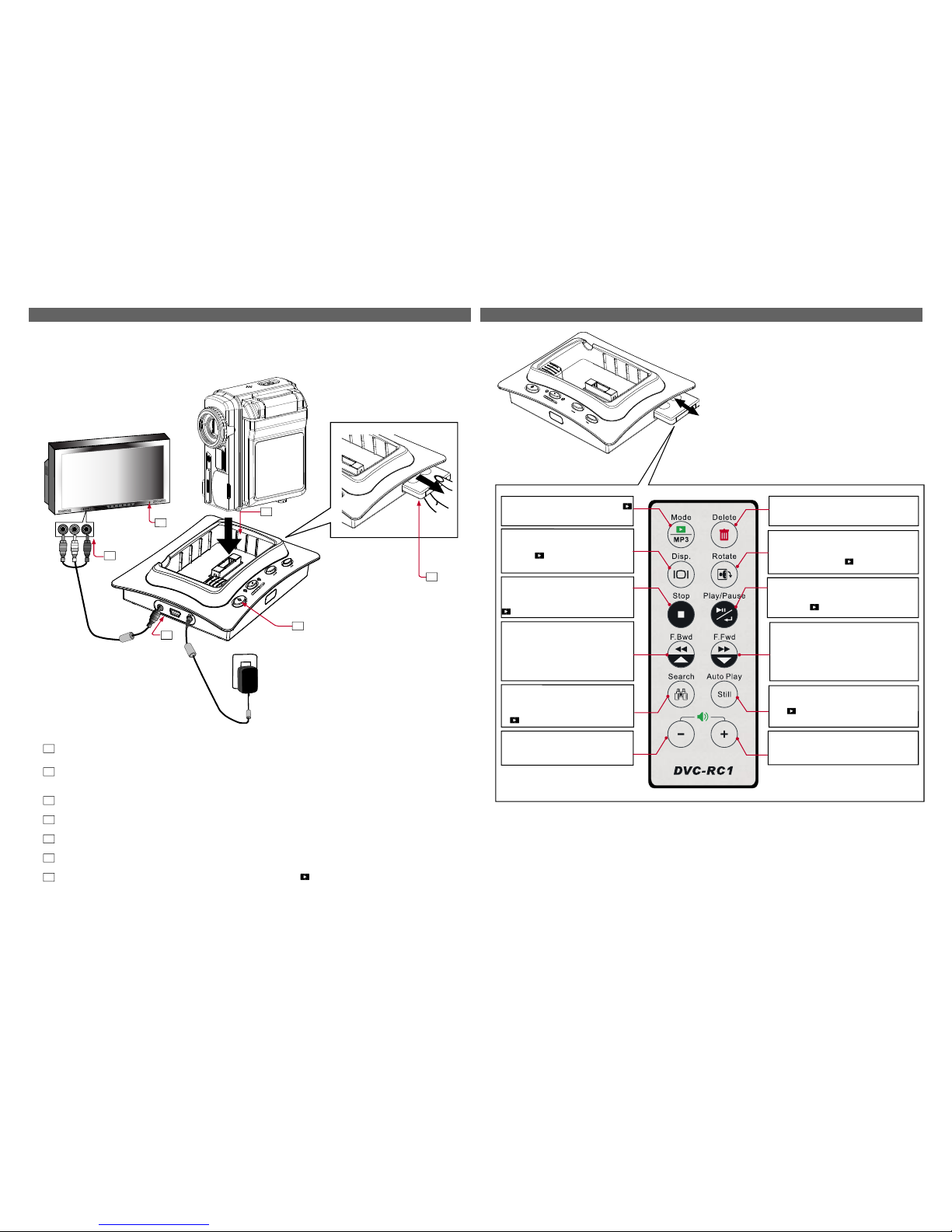

4 Playing Back Picture/Video/MP3
USB
AV
The Dock Station provides the option of playing back your pictures, videos, audio les and MP3 on your TV screen.
Follow the instructions below to setup your TV for playback.
1
3
2
With the device attached, connect the AV cable to the AV jack on the Dock Station.
Connect the Audio and Video (Red, White and Yellow) connectors to your TV. For more information on AV outputs of
your TV set, please refer to your TV’s user guide.
4
Turn on
your TV set.
5
6
Retrieve the
Remote Control
from the Dock Station.
7
Turn on
the power of the Dock Station.
Place the device onto the Dock Station.
Use the Remote Control to playback video, picture and audio les in
(Playback) and MP3 les in
MP3
mode.
5 Remote Control
Mode Switch:
To switch between
(Playback) mode or
MP3 mode.
Delete:
To delete all les or one le
(For
Both modes)
Display:
To switch screen on/off in
MP3 mode and switch le display
format in
to thumbnail/full size or
screen off.
(For Both modes)
Rotate:
Rotate pictures 90° closewise per
rotation. Press repeatedly to rotate to your
preferred angle.
(For
mode only)
Stop: To stop playing a song in
MP3
mode or stop playing a video,voice
recording, voice recorded picture in
mode.
(For Both modes)
Play/Pause:
To play/resume a MP3 le in
MP3 mode and play/resume a video or a
video le in
mode.
(For Both modes)
Fast Backward:
Go back to previ
ous le selection list in both modes.
Fast backward while playing a video,
voice recording or MP3.
(For Both
modes)
Fast Forward:
Skip to next le in the
selection list in both modes. Fast forward
while playing a video, voice recording or
MP3.
(For Both modes)
Search: Play the rst 10 seconds
of all MP3 les in
MP3 mode and 5
seconds for video & voice recordings
in
mode. (For Both modes)
Auto Play:
Play pictures in slide show.
(For
mode only)
Volume Control:
Decrease volume
while playing MP3, video or voice.
(For Both modes)
Volume Control:
Increase volume while
playing MP3, video or voice.
(For Both
modes)
1
2
3
4
5
6
