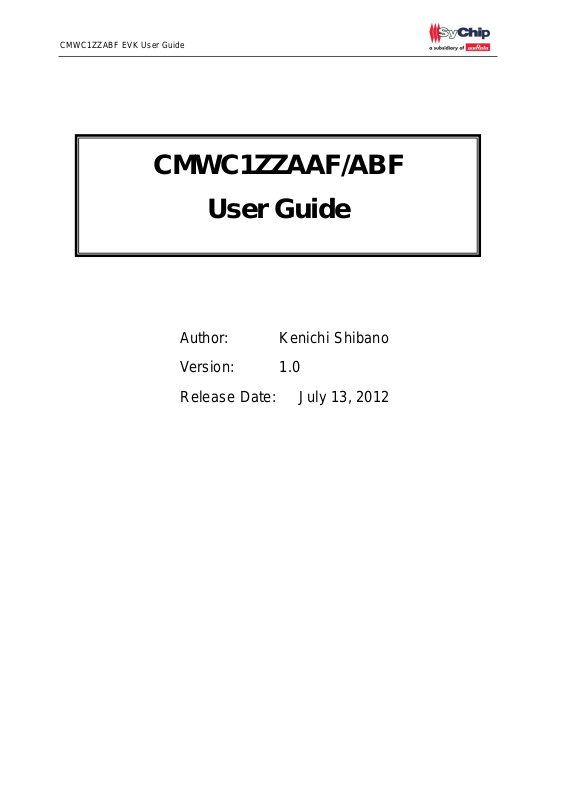

Murata ABF User Manual

CMWC1ZZABF EVK User Guide

CMWC1ZZAAF/ABF

User Guide

Author: Kenichi Shibano
Version: 1.0
Release Date: July 13, 2012

CMWC1ZZABF EVK User Guide

Version

Date

Remarks

Name

1.0

2012-7-13

Release V1.0;

Shibano

CHANGE HISTORY

CMWC1ZZABF EVK User Guide

Type AAF
UART WiFi module

UART-USB converter board

USB cable to PC

PC

This document explains how to control Murata CMWC1ZZAAF.

1. Module introduction

CMWC1ZZAAF, CMWC1ZZABF is a hostless wifi module which integrate wifi drvier and
TCP/IP stack.
The operation temperature is -20~+75degree.

2. Operation Manual

EVK set up is shown in figure1.

<Set up>

1. Connect EVK and PC through USB cable

Figure1

CMWC1ZZABF EVK User Guide

2. Install USB-UART converter driver (FTDI D2xx driver). Customer can download from below
website.

http://www.ftdichip.com/Drivers/D2XX.htm

3. Please open device manager. Customer can see USB Serial Port if driver install is succeeded.

4. Please open properties of USB serial port and change port setting as below.

CMWC1ZZABF EVK User Guide

CMWC1ZZABF EVK User Guide

5. Please open UART communication tool on PC such as hyper terminal. And use same port
setting as 4.

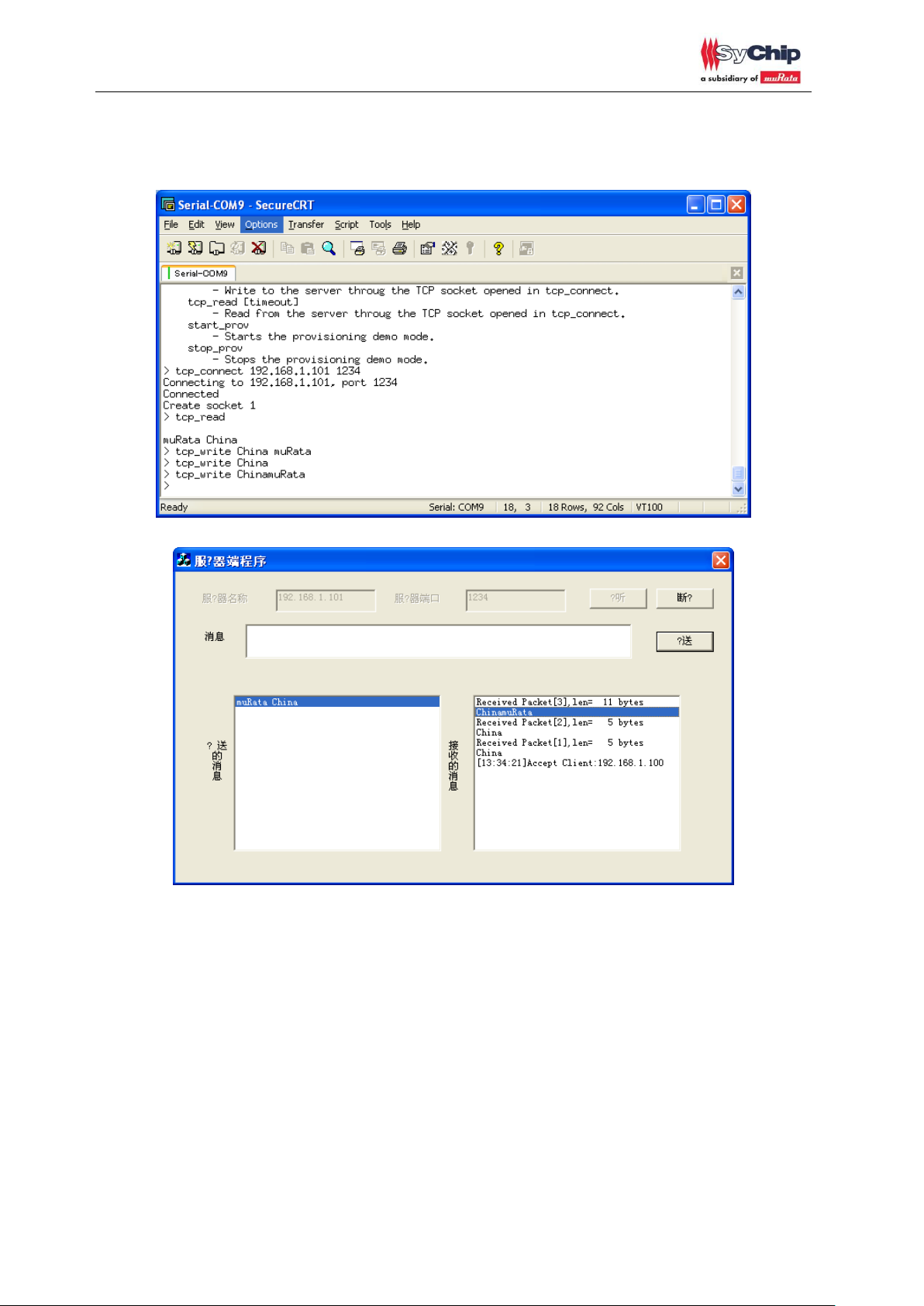

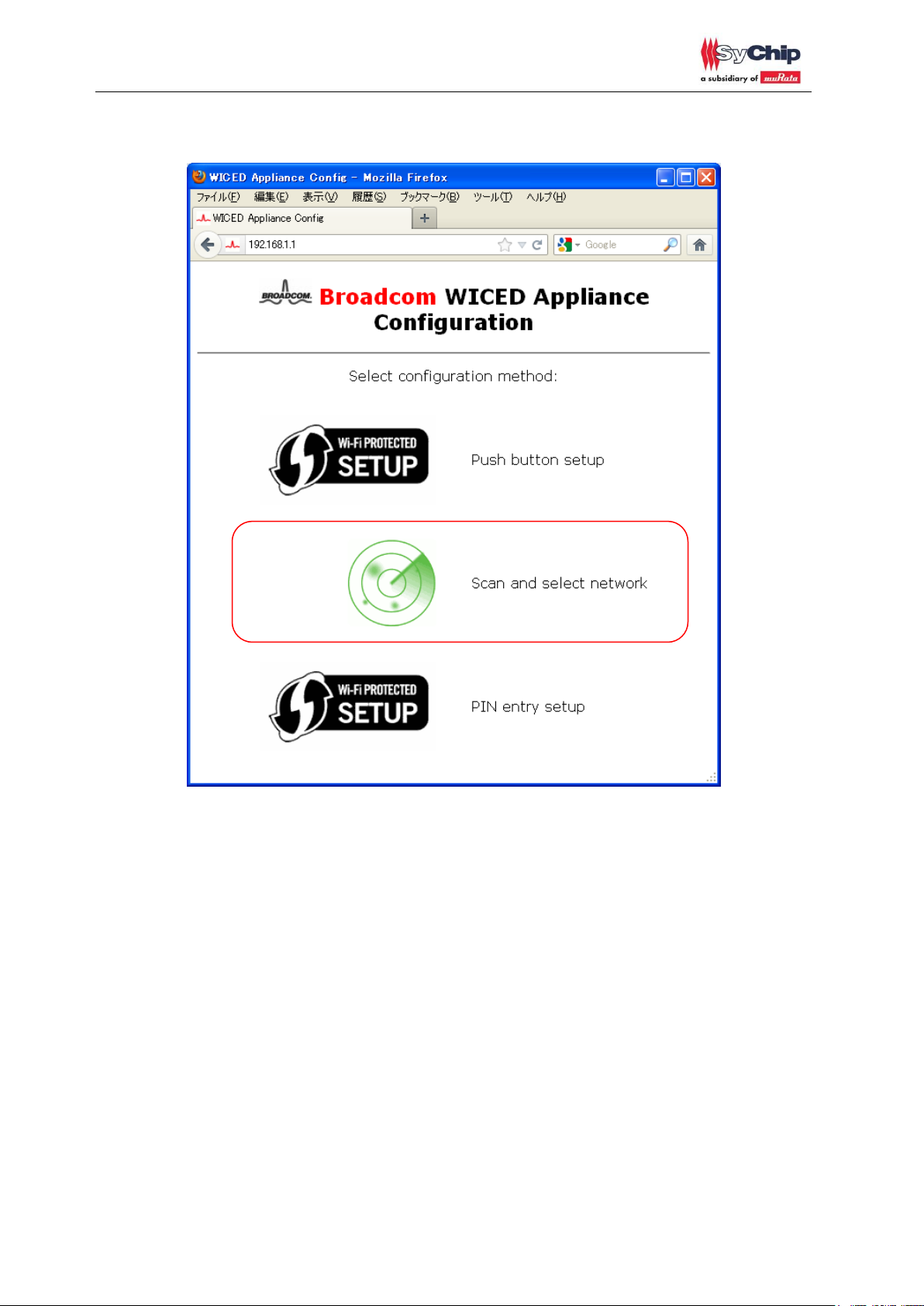

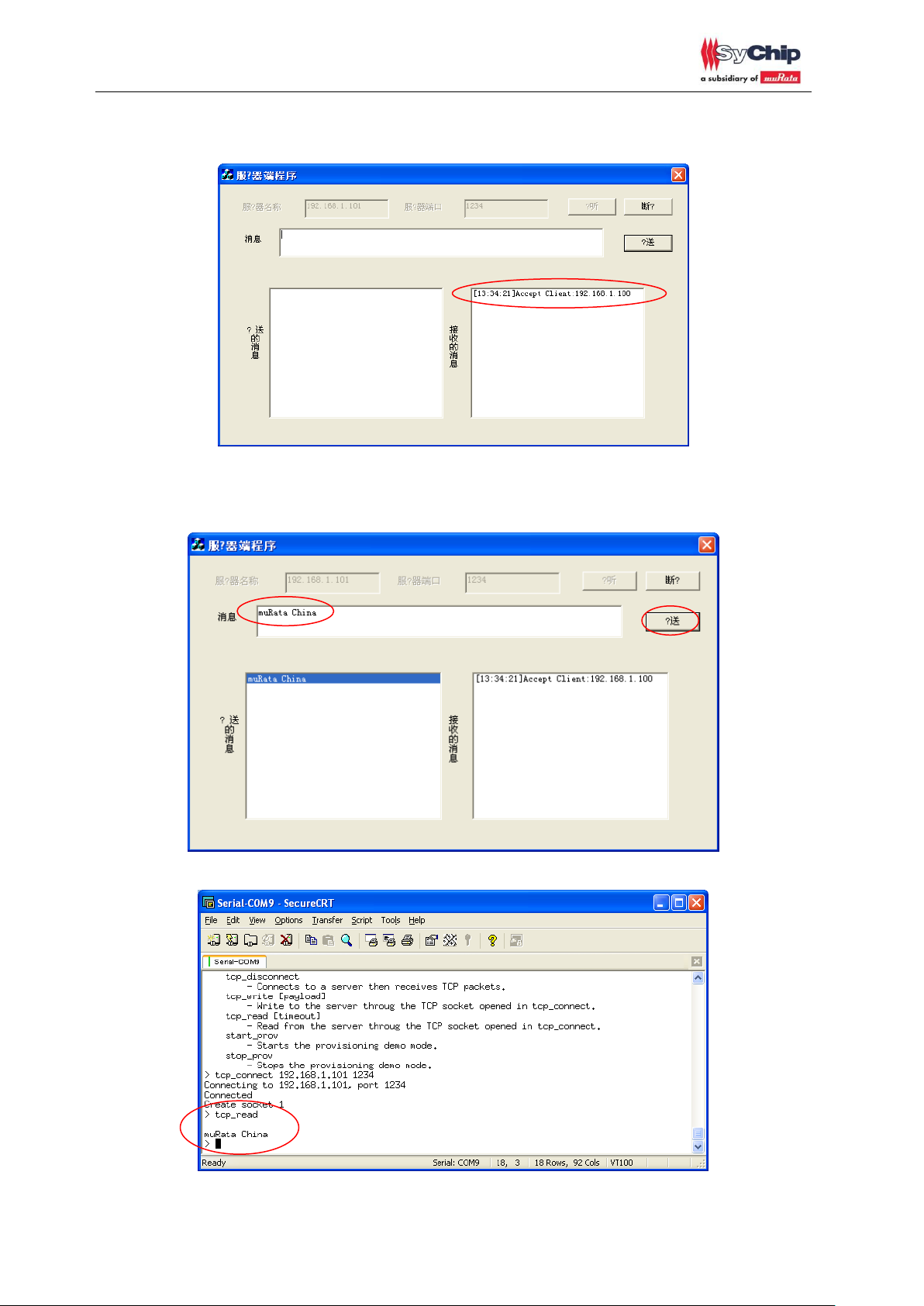

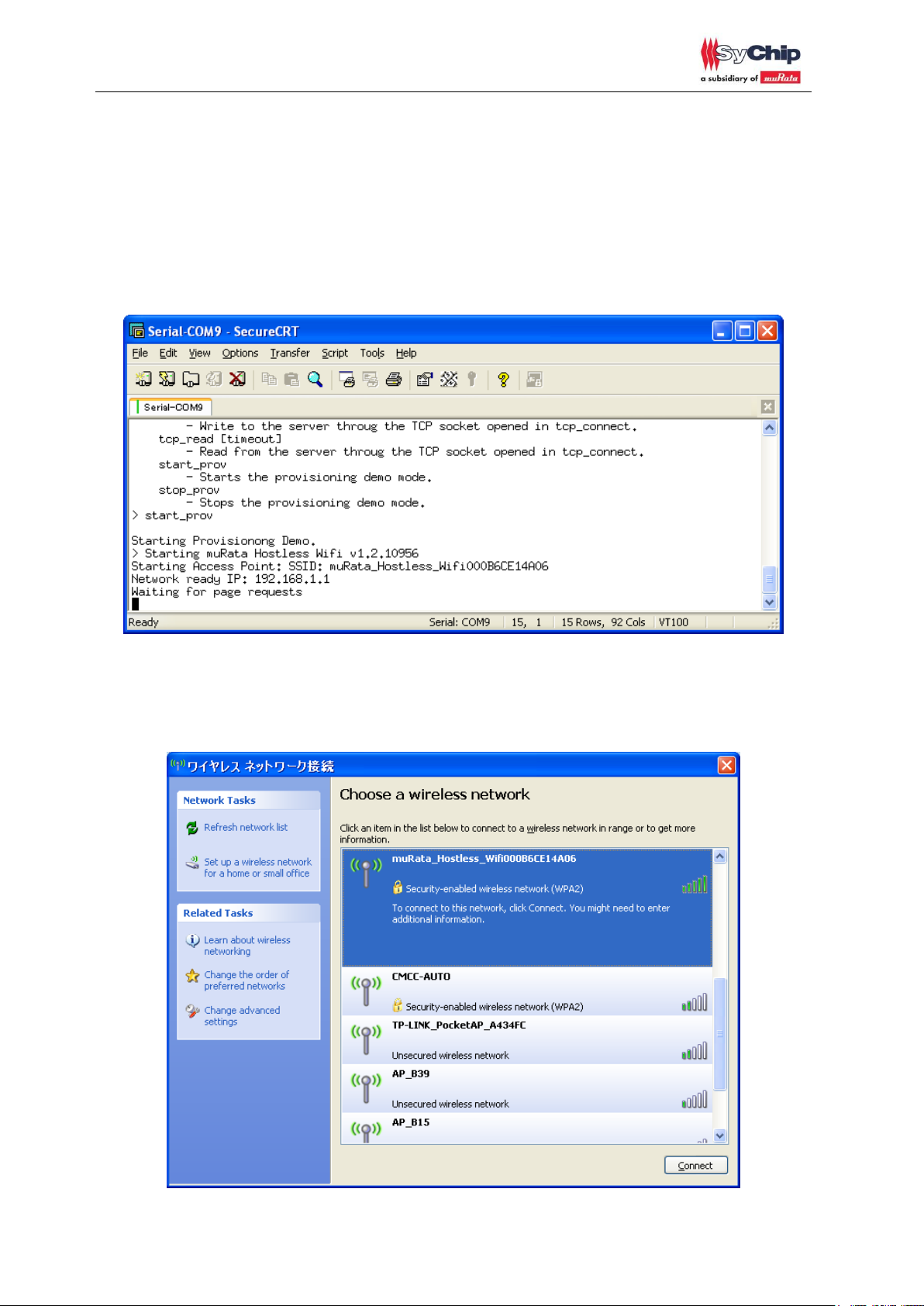

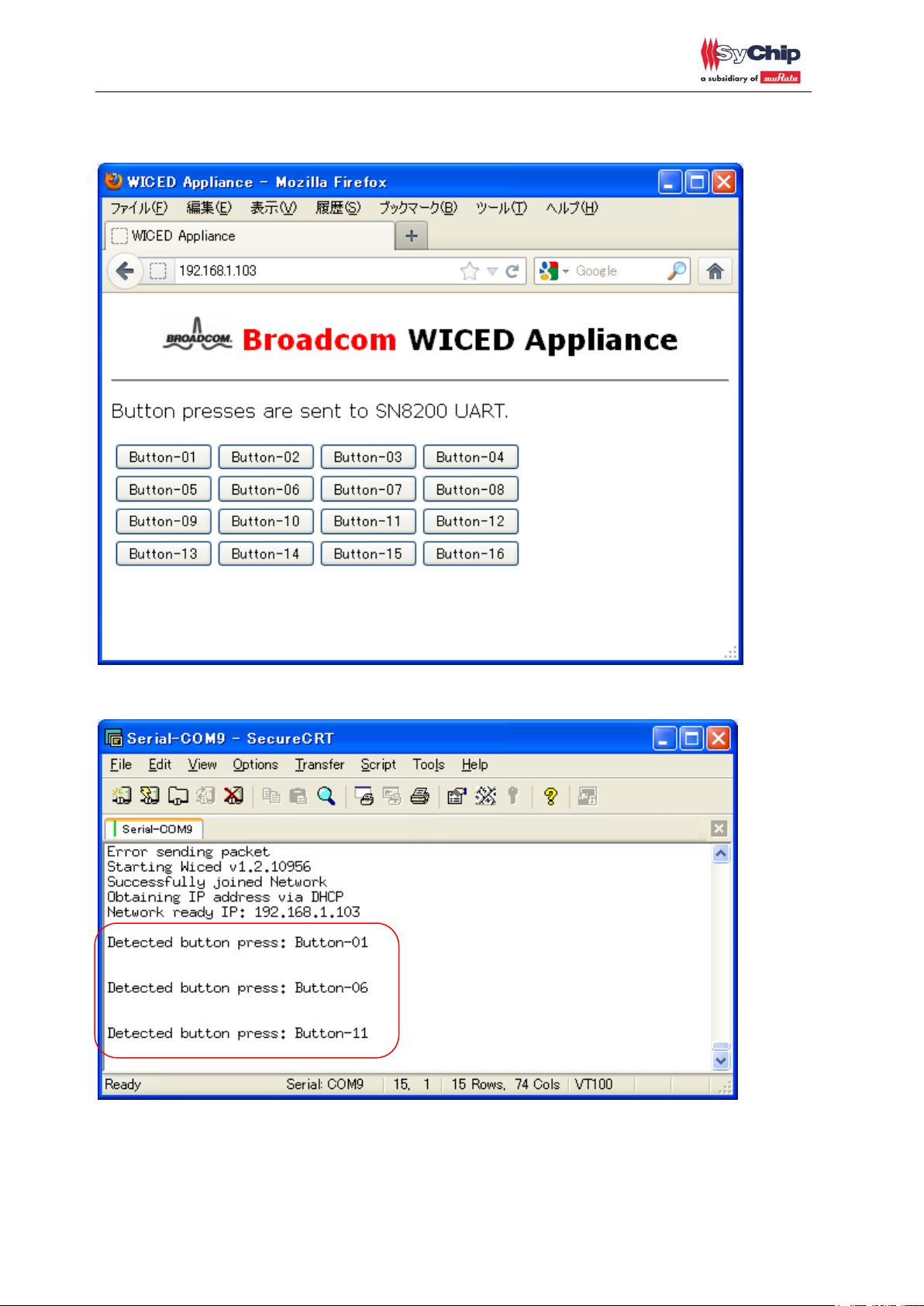

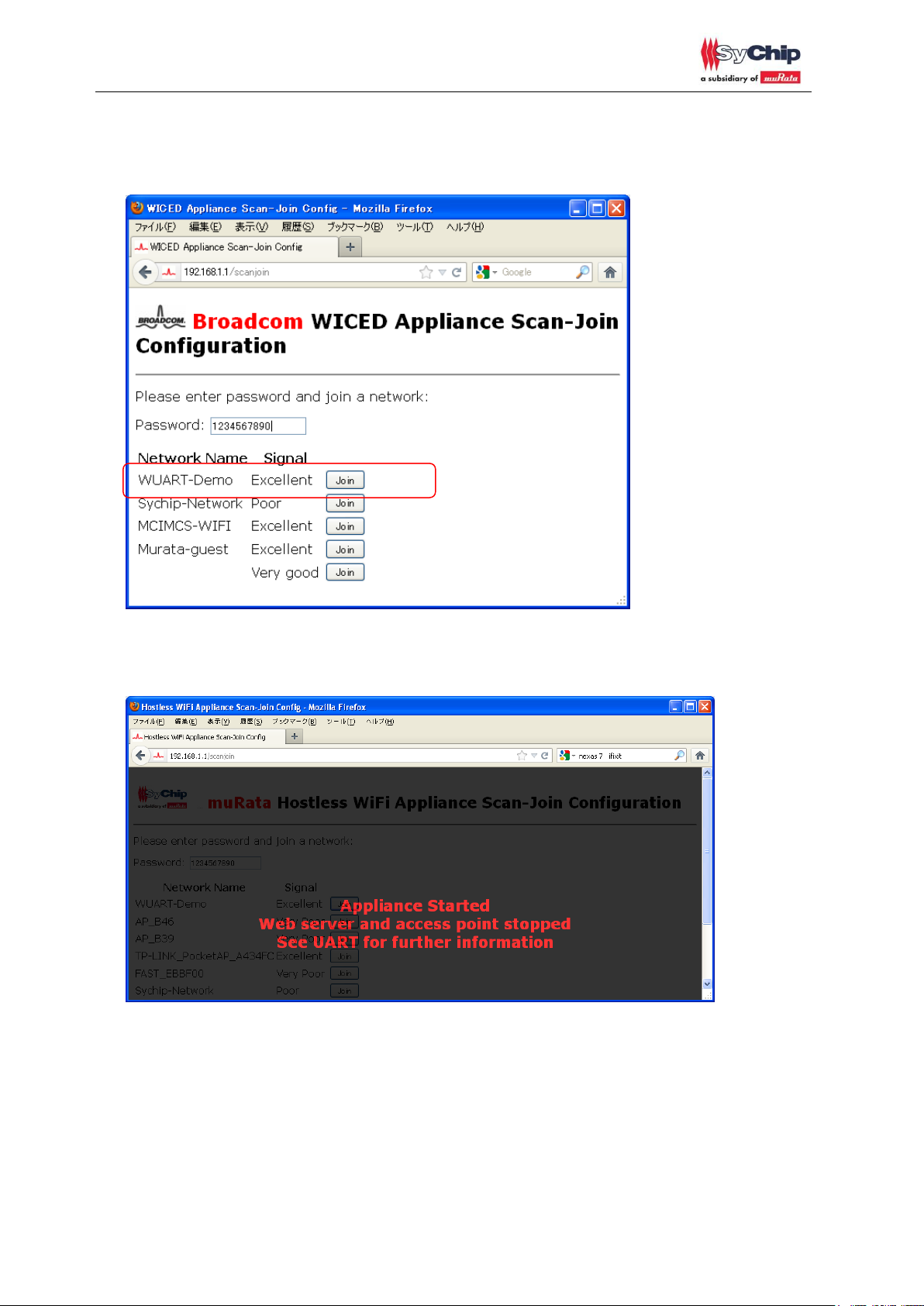

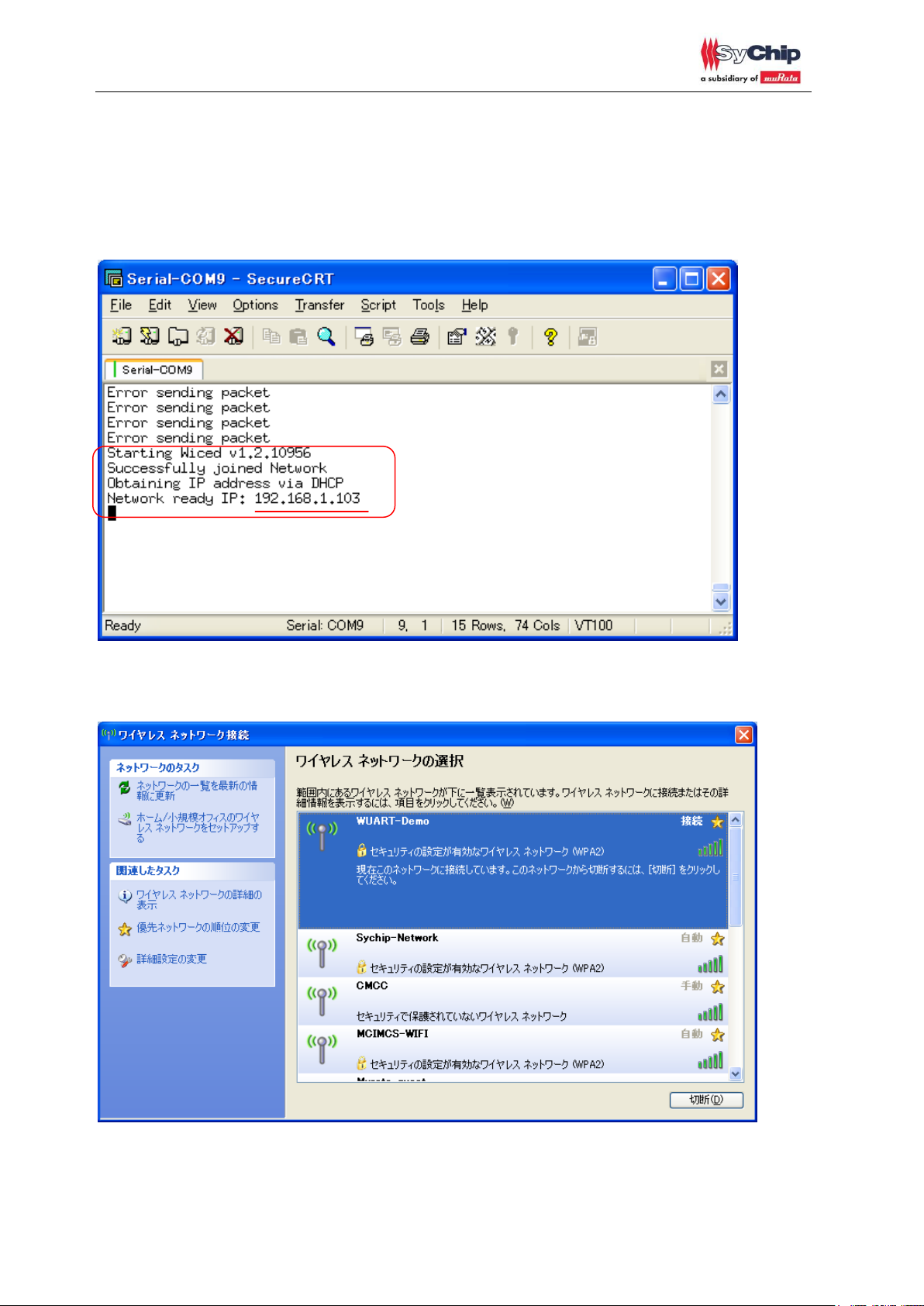

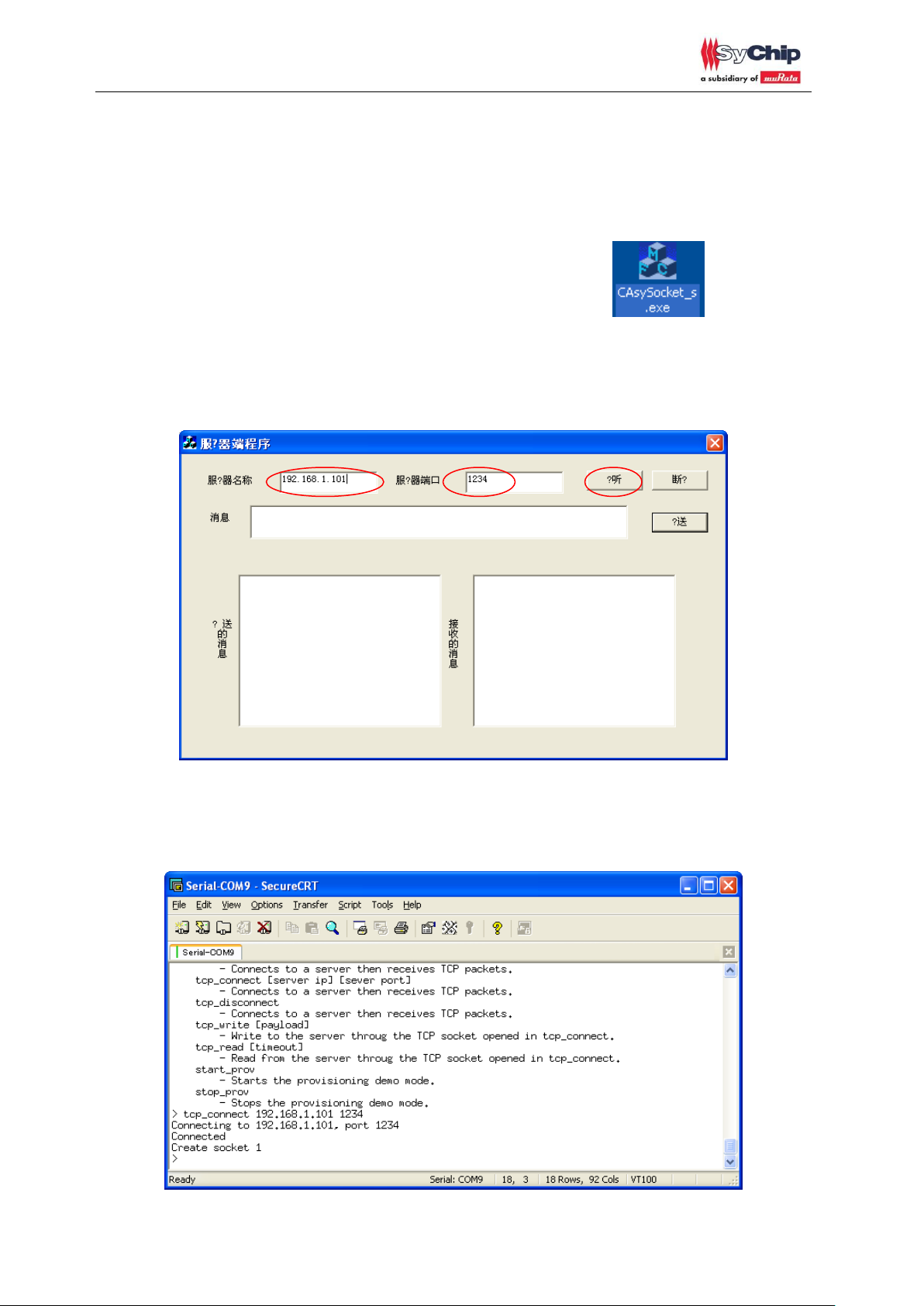

After connection is done, enter “help”, then module responds console command list. Customer can
refer to command list and change setting by themselves.

Page 6 of 17
