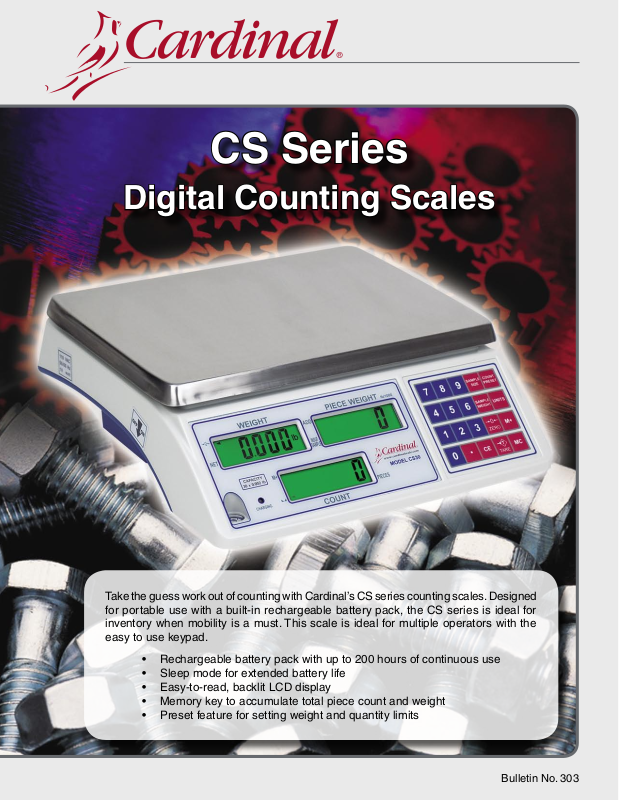

CS Series

Digital Counting Scales

Take the guess work out of counting with Cardinal’s CS series counting scales. Designed
for portable use with a built-in rechargeable battery pack, the CS series is ideal for
inventory when mobility is a must. This scale is ideal for multiple operators with the
easy to use keypad.

• Rechargeable battery pack with up to 200 hours of continuous use

• Sleep mode for extended battery life

• Easy-to-read, backlit LCD display

• Memory key to accumulate total piece count and weight

• Preset feature for setting weight and quantity limits

Bulletin No. 303

SIMPLE AND

memory was cleared. This feature is great for keeping
a running total on specific parts and products.

ECONOMICAL

Yet Tough and Portable

The built-in rechargeable battery pack with up to 200
hours of continuous use not only monitors the battery
life, but also recharges the battery while the scale is in
operation insuring no unexpected “down time."

The liquid crystal display is backlit to provide easy
viewing of weight, average piece weight, and count.
The color-coded keypad insures simple and accurate
operation.

Preset count and weight limits can be set to alert
the operator that a quantity or desired weight has been
achieved. The is an excellent feature for packaging of
parts and products.

With 15,000 weight divisions, the CS series is
capable of counting the smallest of parts. Available
in weight capacities of 6 lbs, 15 lbs, 30 lbs, or 65 lbs,
you can choose the counting scale best suited for your
application.

The CS series includes memory accumulators to
keep total piece count and weight from the last time the

The CS scale packaging can be re-used when storing
or transferring the scale. A vinyl dust and debris cover
protects the CS counting scale from all of the dirt that
can accumulate over long term use.

SPECIFICATIONS

Capacity:

CS-6: 6 lb x .0005 lb (3 kg x 0.2 g)
CS-15: 15 lb x .001 lb (7.5 kg x 0.5 g)
CS-30: 30 lb x .002 lb (15 kg x 1 g)
CS-65: 65 lb x .005 lb (30 kg x 2 g)
Display: 0.75" high LCD with backlight
Weight: 5 digits
Piece Weight: 5 digits
Count: 6 digits

Internal Resolution: 1 part in 300,000
Dimensions: 11.75" W x 12.63" D x 4.25" H

(30 cm W x 32 cm D x 11 cm H)
Platform Size: 11.38” W x 8.25” D
(29 cm x 21 cm)
Zero: Established on power up and
maintained by auto-zero circuitry
Power: Rechargeable battery pack or
115 VAC 50/60Hz or 230 VAC
50/60Hz

Tare: 100% of full scale capacity
Operating Temp.: 32° - 104° F (0° - 40° C)
Ship Weight: 13 lb (6 kg)

Cardinal Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.

Sold By:

©

Copyright 2004 Cardinal Scale Mfg. Co. • Printed in USA • CAR/0000/1204/303
