Multiquip STR36SP User Manual

OPERATION AND PARTS MANUAL

STR36SP

RIDE-ON POWER TROWEL

HONDA GX670TAF 24 HP ENGINE

Revision #0(09/16/11)

To find the latest revision of this publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

P/N 21827

PROPOSITION 65 WARNING

Engine exhaust and some of its constituents, and some dust created by power sanding, sawing, grinding, drillingand otherconstruction activities contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Some examples of these chemicals are:

Leadfromlead-based paints. Crystallinesilica from bricks. Cementand othermasonry products. Arsenicandchromiumfrom chemically treatedlumber.

Your risk from these exposures varies, dependingon howoften youdo thistype of work. To reduce your exposure to these chemicals: work in aALWAYS well ventilated area, and work with

approved safety equipment, such as

dust masks that are specially designed to filter out microscopic particles.

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 2

SILCOSIS/RESPIRATORY WARNINGS

WARNING

SILICOSIS WARNING RESPIRATORY HAZARDS

Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In addition, California and some other authorities have listed respirable crystalline silica as a substance known to cause cancer. When cutting such materials, always follow the respiratory precautions mentioned above.

WARNING

Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheet and/or consult your employer, the material manufacturer/supplier, governmental agencies such as OSHA and NIOSH and other sources on hazardous materials. California and some other authorities, for instance, have published lists of substances known to cause cancer, reproductive toxicity, or other harmful effects.

Control dust, mist and fumes at the source where possible. In this regard use good work practices and follow the recommendations of the manufacturers or suppliers, OSHA/NIOSH, and occupational and trade associations. Water should be used for dust suppression when wet cutting is feasible. When the hazards from inhalation of dust, mists and fumes cannot be eliminated, the operator and any bystanders should always wear a respirator approved by NIOSH/MSHA for the materials being used.

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 3

TABLE OF CONTENTS

STOW — STR36SP SERIES RIDE-ON POWER TROWEL

Proposition 65 Warning ............................................. 2

Silicosis/Respiratory Warnings .................................. 3

Table of Contents ...................................................... 4

Parts Ordering Procedures ....................................... 5

Training Checklist ...................................................... 6

Daily Pre-Operation Checklist ................................... 7

Safety Message Alert Symbols .............................. 8-9

Rules For Safe Operation .................................. 10-13

Operation And Safety Decals .................................. 14

Specifications .......................................................... 15

Engine Specifications .............................................. 16

General Information ................................................ 17

Controls and Indicators ...................................... 18-19

Basic Engine ........................................................... 20

New Machine Setup Instructions ............................ 21

Initial Start-Up ......................................................... 22

Operation ........................................................... 23-24

Maintenance ...................................................... 25-36

Engine Troubleshooting ...................................... 37-38

Troubleshooting (Trowel) ................................... 39-40

Explanation of Codes in Remarks Column ............. 42

Suggested Spare Parts ........................................... 43

HONDA GX-670-TAF ENGINE

Air Cleaner Assembly .........................................80-81

Camshaft Assembly ........................................... 82-83

Carburetor Assembly ......................................... 84-85

Control Assembly ............................................... 86-87

Control Box Assembly ........................................ 88-89

Crankcase Cover Assembly ............................... 90-91

Crankshaft Assembly .........................................92-93

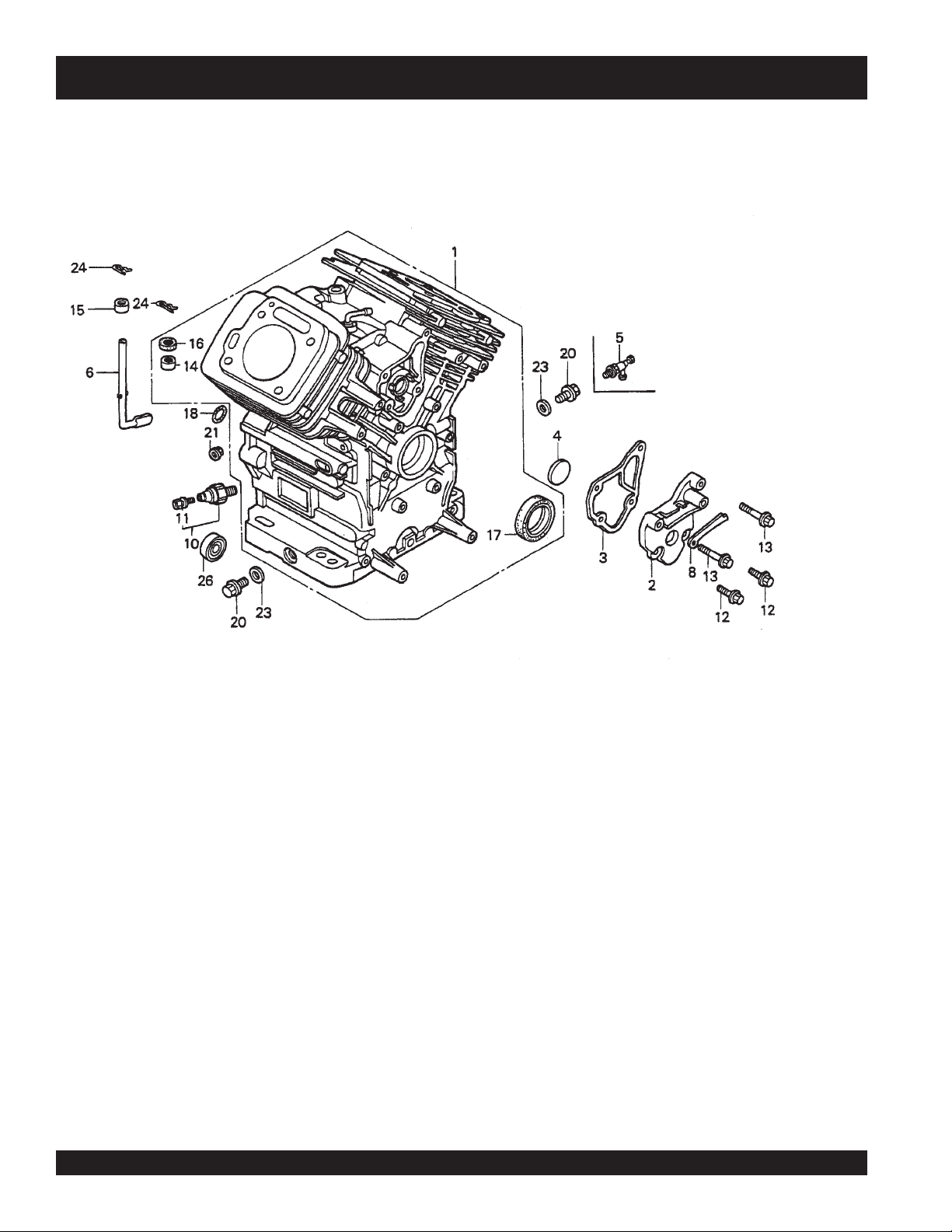

Cylinder Barrel Assembly ................................... 94-95

Cylinder Head Assembly .................................... 96-97

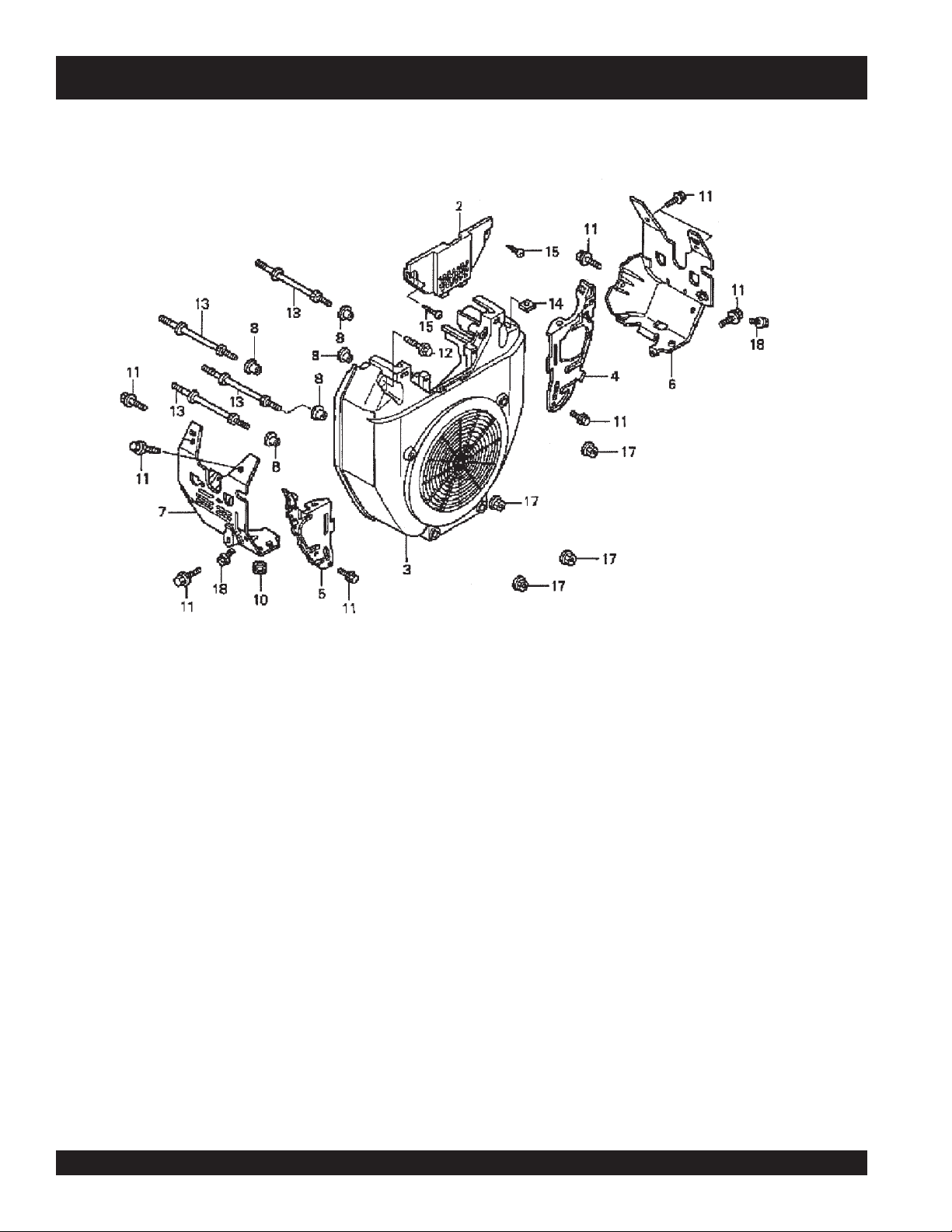

Fan Cover Assembly .......................................... 98-99

Flywheel Assembly ........................................ 100-101

Fuel Pump Assembly .....................................102-103

Ignition Coil Assembly .................................... 104-105

Labels Assembly ............................................ 106-107

Oil Cooler Assembly .......................................108-109

Piston and Connecting Rod Assembly ...........110-111

Starter Motor Assembly ................................. 112-113

Terms And Conditions Of Sale .............................. 114

Component Drawings

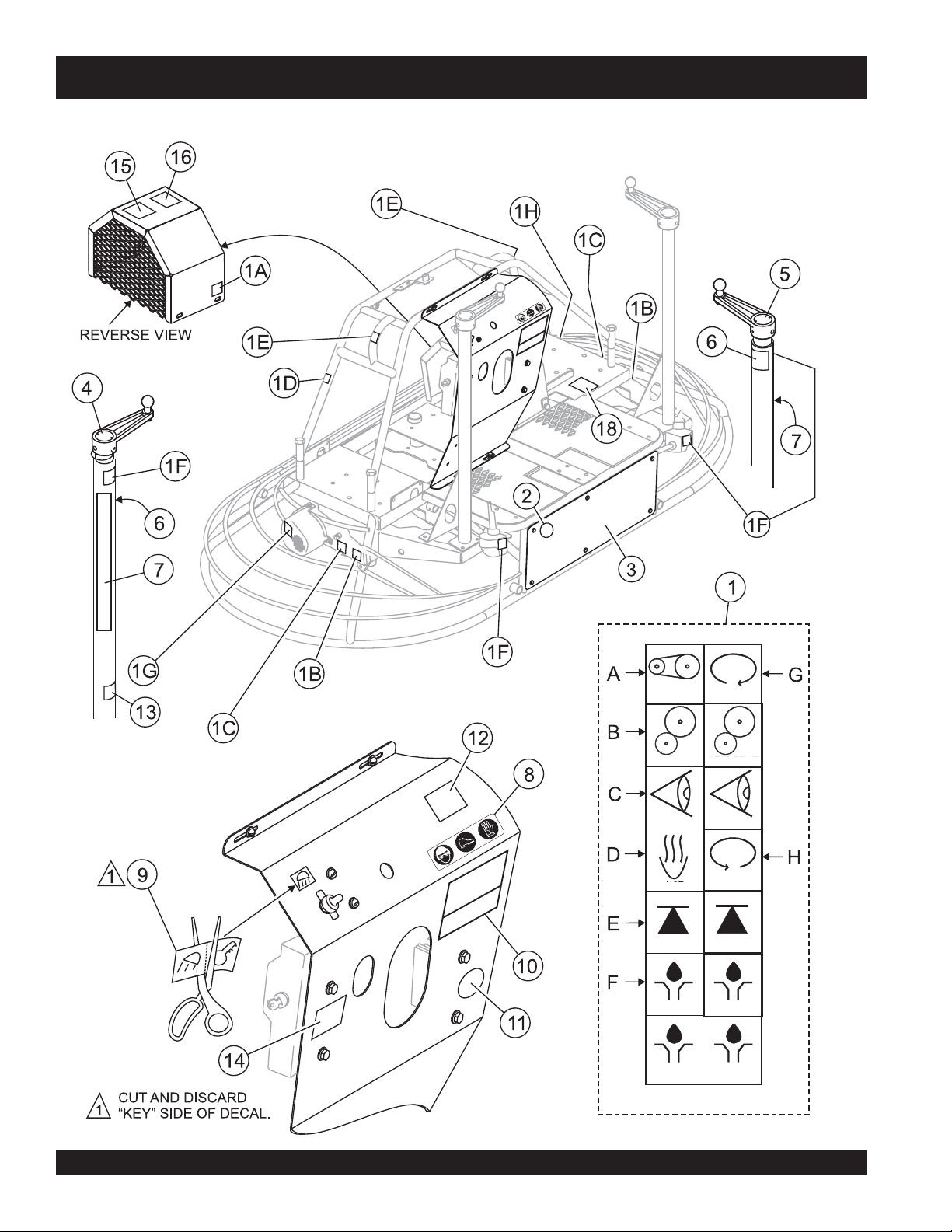

Decal Assembly ................................................. 44-45

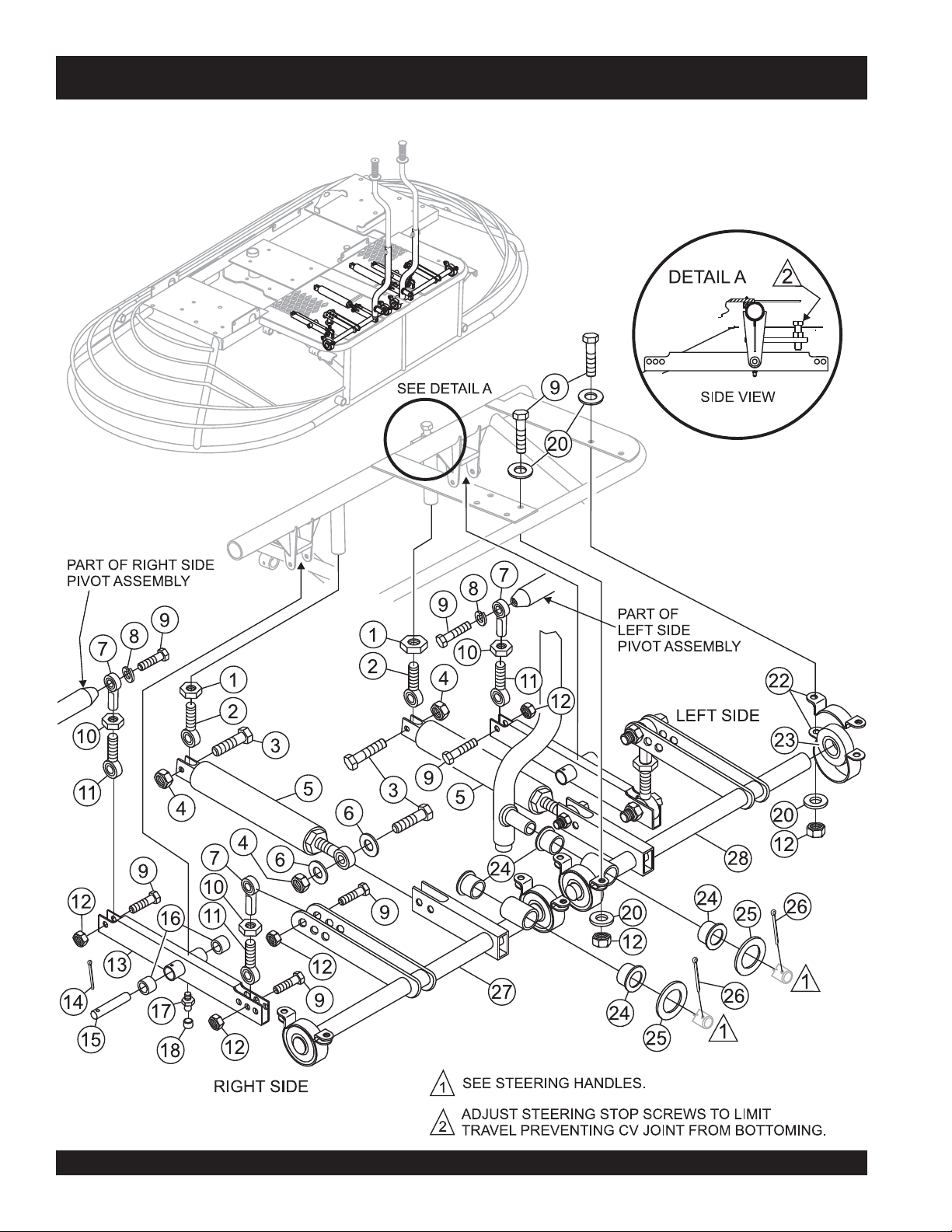

Pivot Assembly (Right/Left) ................................ 46-47

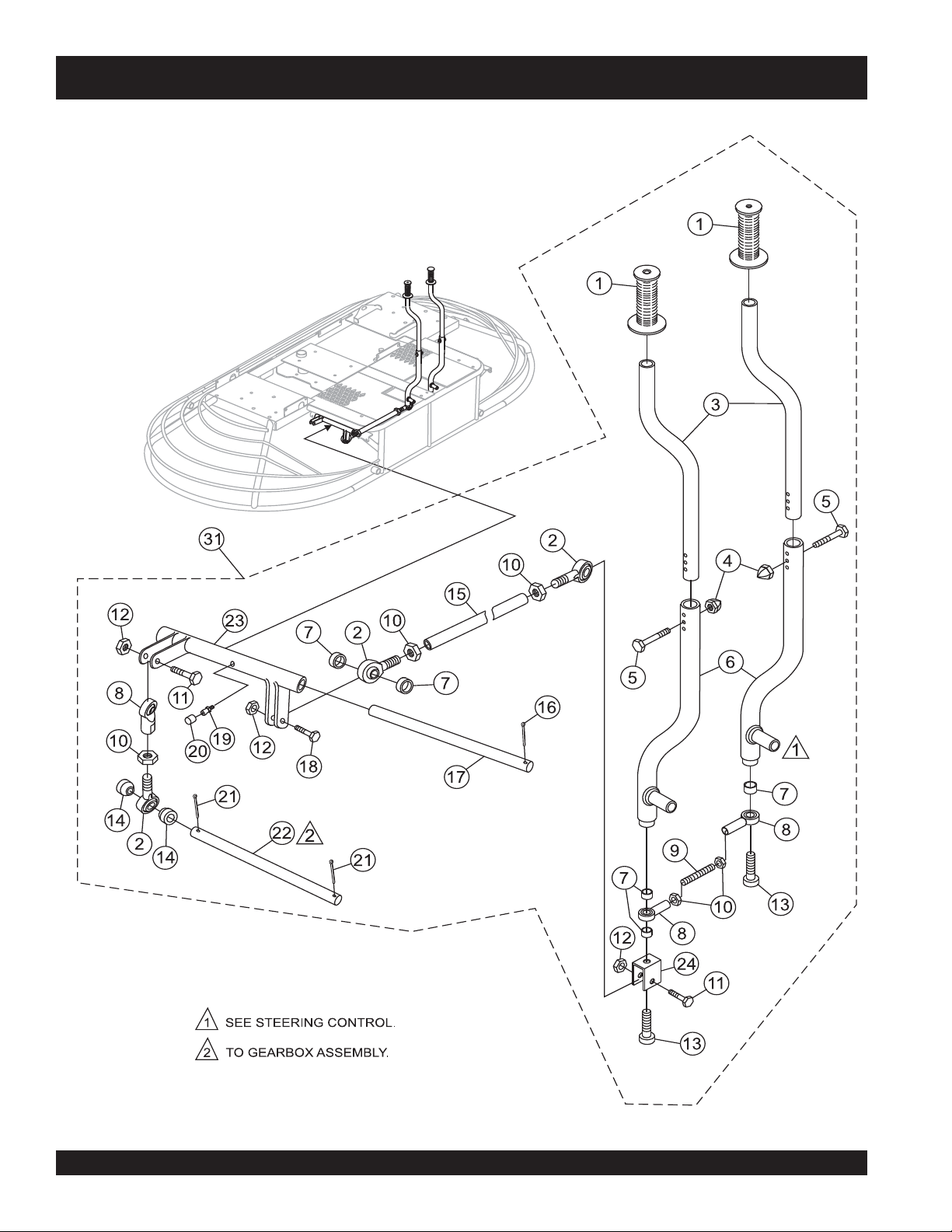

Steering Handles Assembly (Left and Right) ..... 48-49

Steering Control Assembly ................................ 50-51

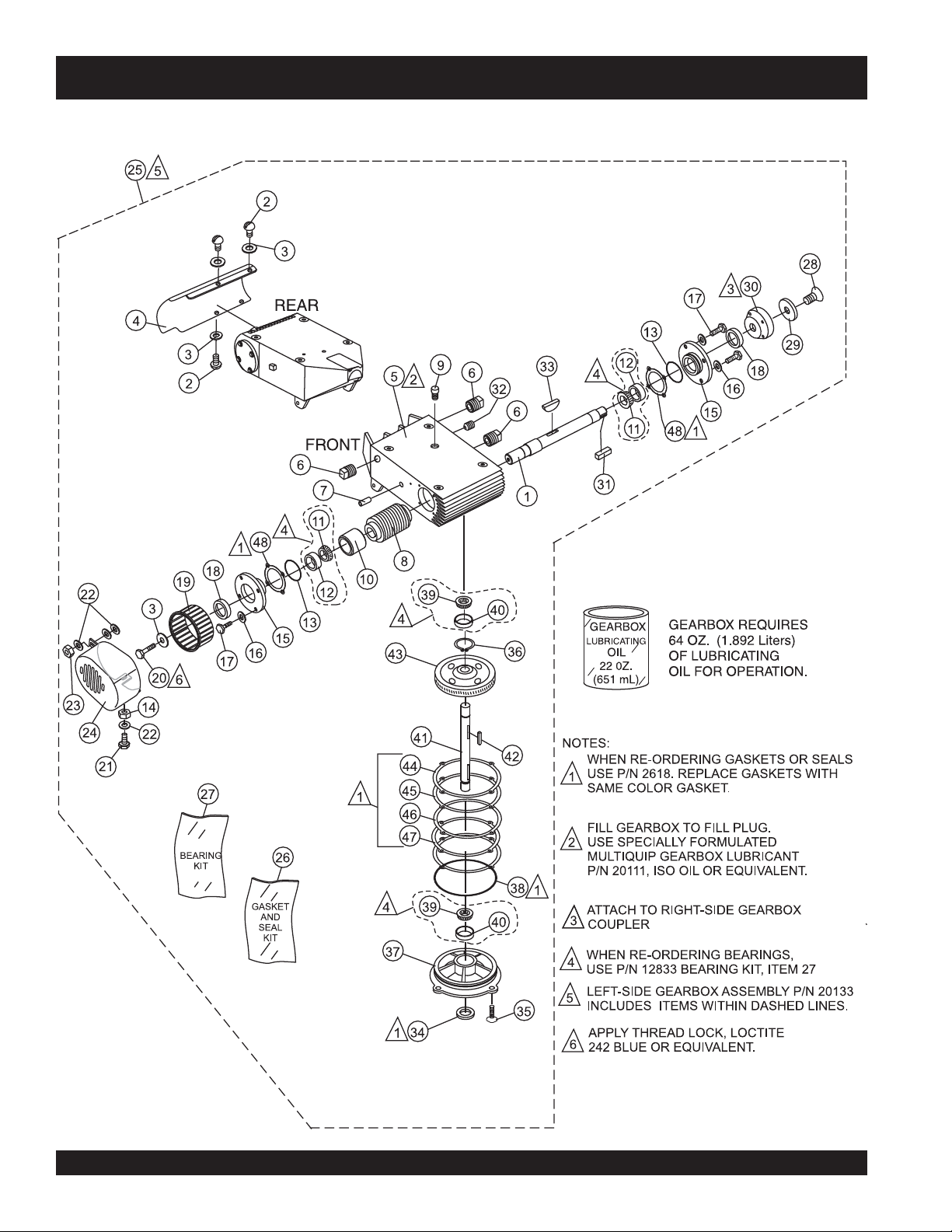

Gearbox Assembly (Right) ................................. 52-53

Gearbox Assembly (Left) ................................... 54-55

Single Pitch Handle Assembly (Left & Right) .....56-57

Drive Assembly .................................................. 58-59

Muffler/Belt Assembly ........................................ 60-61

Belt Guard Assembly ......................................... 62-63

Spider Assembly (Right) .................................... 64-65

Spider Assembly (Left)....................................... 66-67

Yoke Assembly ................................................... 68-69

Foot Pedals/Throttle Assembly .......................... 70-71

Control Panel Assembly ..................................... 72-73

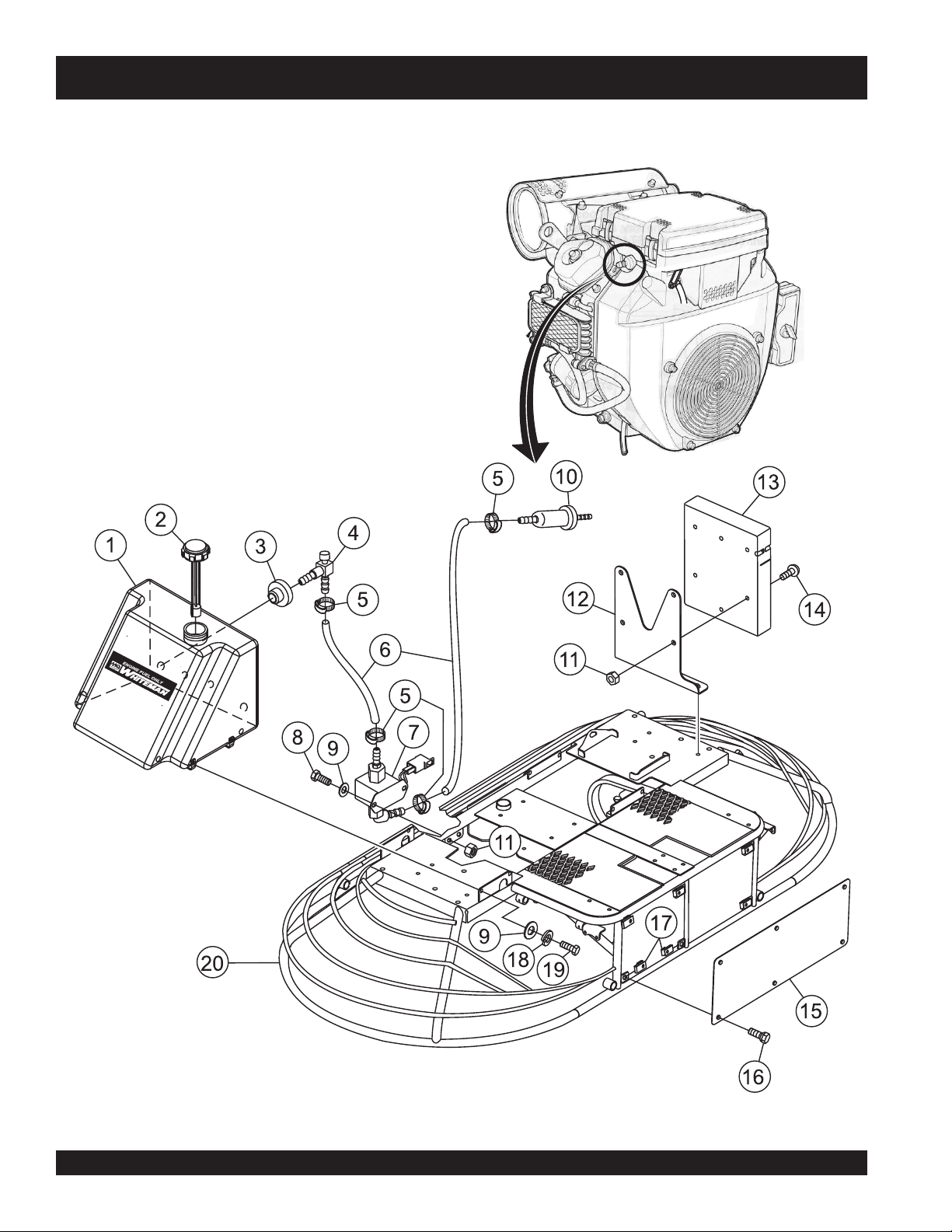

Frame/Fuel Assembly ........................................74-75

Battery Assembly ............................................... 76-77

Seat Frame Assembly ........................................ 78-79

NOTE

Specifications and part numbers are subject to change without notice.

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 4

PARTS ORDERING PROCEDURES

Ordering parts has never been easier!

Choose from three easy options:

January 1

Effective:

, 2006

Best Deal!

Order via Internet (Dealers Only):

Order parts on-line using Multiquip’s SmartEquip website!

N View Parts Diagrams

N Order Parts N Print Speciﬁcation Information

Goto www.multiquip.com and click on

Order Par ts

Order via Fax (Dealers Only):

All customers are welcome to order parts via Fax. Domestic (US) Customers dial: 1-800-6-PARTS-7 (800-672-7877)

Non-Dealer Customers: Contact your local Multiquip Dealer for parts or call 800-427-1244 for help in locating a dealer near you.

to log in and save!

Order via Phone:

If you have an MQ Account, to obtain a Username and Password, E-mail us at: parts@multiquip.

com.

To obtain an MQ Account, contact your District Sales Manager for more information.

Use the internet and qualify for a 5% Discount on Standard orders for all orders which include complete part numbers.*

Note: Discounts Are Subject To Change

Fax your order in and qualify for a 2% Discount on Standard orders for all orders which include complete part numbers.*

Note: Discounts Are Subject To Change

Domestic (US) Dealers Call:

1-800-427-1244

International Customers should contact their local Multiquip Representatives for Parts Ordering information.

When ordering parts, please supply:

R Dealer Account Number R Dealer Name and Address R Shipping Address (if different than billing address) R Return Fax Number R Applicable Model Number R Quantity, Part Number and Description of Each Part

NOTICE

All orders are treated as Standard Orders and will

ship the same day if received prior to 3PM PST.

R Specify Preferred Method of Shipment: UPS/Fed Ex DHL

N Priority One Tr uck  N Ground N Next Day N Second/Third Day

www.multiquip.com

WE ACCEPT ALL MAJOR CREDIT CARDS!

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 5

TRAINING CHECKLIST

This checklist lists some of the minimum requirements for machine operation. Please feel free to make copies for daily use. Use this checklist when training a new operator or use as a review for more experienced operators.

TSILKCEHCGNINIART

.ON NOITPIRCSED ?KO ETAD

1 .yletelpmoclaunaMs’rotarepOdaeR

3 .erudecorpgnileufer,metsysleuF

4 .sthgildnayarpsfonoitarepO

5 .)gninnurtonenihcam(slortnocfonoitarepO

6 .noitarepohctiwSpotSytefaS,slortnocytefaS

7 .serudecorppotsycnegremE

8 .enihcamfoputratS

9 .revohagniniatniaM

01 .gnirevuenaM

11 .gnihctiP

dnaenignefognikcehc,stnenopmocfonoitacol,tuoyalenihcaM

.sleveldiulf

ehtgnigagnesid,™hctiPniwTsrewotneewtebhctipedalbgnihctaM

).ylnonoitpo™hctiPniwThtiwsledoM(.egaknil

31 .seuqinhcetgnihsinifetercnoC

41 .enihcamfonwodtuhS

51 .)spooltfil(enihcamfognitfiL

61 .egarotsdnatropsnartenihcaM

Operator _________________________________________ Trainee __________________________________________

COMMENTS:

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 6

DAILY PRE-OPERATION CHECKLIST

TSILKCEHCNOITAREPO-ERPYLIAD

3 .leveLtnalooCrotaidaR

4 sedalBfonoitidnoC

5 .noitarepOhctiPedalB

6 .noitarepOhctiwSpotS-ytefaS

7 .noitarepOlortnoCgnireetS

8 .stleBfonoitidnoC

COMMENTS:

diulFxobraeGleveL

.leveLliOenignE

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 7

STR36SP-SERIES — SAFETY MESSAGE ALERT SYMBOLS

FOR YOUR SAFETY AND THE SAFETY OF OTHERS!

Safety precautions should be followed at all times when operating this equipment. Failure to read, understand and comply with the Safety Messages and Operating Instructions could result in injury to yourself and others.

This Operation Manual has been developed to provide instructions for the safe and efficient operation of the STR36SP

-Series Ride-On Trowel. For engine maintenance information, please refer to the engine manufacturer's instructions for data relative to its safe operation.

Before using this Ride-On Trowel, ensure that the operating individual has read, understands, and complies with all instructions in this manual.

SAFETY MESSAGE ALERT SYMBOLS

The three (3) Safety Messages shown below will inform you about potential hazards that could injure you or others. The Safety Messages specifically address the level of exposure to the operator, and are preceded by one of three words: DANGER,

WARNING, or CAUTION.

HAZARD SYMBOLS

Lethal Exhaust Gases

Engine exhaust gases contain poisonous carbon monoxide. This gas is colorless and odorless, and can cause death if inhaled. NEVER operate this equipment in a confined area or enclosed structure that does not provide ample free flow air.

Explosive Fuel

Gasoline is extremely flammable, and its vapors can cause an explosion if ignited. DO NOT start the engine near spilled fuel or combustible fluids. DO NOT fill the fuel tank while the engine is running or hot. DO NOT overfill tank, since spilled fuel could ignite if it comes into contact with hot engine parts or

sparks from the ignition system. Store fuel in approved containers, in well-ventilated areas and away from sparks and flames. NEVER use fuel as a cleaning agent.

DANGERDANGER

DANGER

DANGERDANGER

You WILL be if you DO NOT follow these directions.

WARNINGWARNING

WARNING

WARNINGWARNING

You CAN be KILLED or you DO NOT follow these directions.

CAUTICAUTI

CAUTION

CAUTICAUTI

You CAN be these directions.

Potential hazards associated with trowel operation will be referenced with Hazard Symbols which appear throughout this manual, and will be referenced in conjunction with Safety Message Alert Symbols.

KILLED

INJURED

SERIOUSLY INJURED

if you DO NOT follow

Burn Hazards

Engine components can generate extreme heat. To prevent burns, DO NOT touch these areas while the engine is running or immediately after operations. NEVER operate the engine with heat shields or heat guards removed.

Rotating Parts

NEVER operate equipment with covers, or

guards removed. Keep and

clothing

prevent injury.

away from all moving parts to

fingers, hands, hair

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 8

STR36SP-SERIES — SAFETY MESSAGE ALERT SYMBOLS

Accidental Starting Respiratory Hazard

Accidental starts can cause severe injury or death. ALWAYS place the ON/OFF switch in the OFF position. Disconnect and ground spark plug lead and disconnect negative battery cable from battery before servicing.

Over Speed Conditions

NEVER tamper with the factory settings of the

engine governor or settings. Personal injury and damage to the engine or equipment can result if operating in speed ranges above maximum allowable.

Other important messages are provided throughout this manual to help prevent damage to your trowel, other property, or the surrounding environment.

ALWAYS wear approved respiratory protection.

Sight and Hearing hazard

ALWAYS wear approved eye and hearing

protection.

Equipment Damage Messages

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

This

Ride-On trowel

surrounding environment could be damaged if you do not follow instructions.

, other property, or the

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 9

STR36SP-SERIES — RULES FOR SAFE OPERATION

■

RULES FOR SAFE OPERATION

WARNINGWARNING

WARNING

WARNINGWARNING

Failure to follow instructions in this manual may lead to serious injury or even death! This equipment is to be operated by trained and qualified personnel only! This equipment is for industrial use only.

The following safety guidelines should always be used when operating the STR36SP-SERIES Ride-On Trowel.

SAFETY

■

DO NOT operate or service this equipment before you read, understand, and comply with all safety messages in this manual. The manual must be kept available and accessible to the operator.

■

This equipment should not be operated by persons under the minimum statutory age limit.

■

NEVER use this machine for any purpose other than those described in this manual.

■

NEVER operate the trowel without proper protective clothing, shatterproof glasses, steel-toed boots and other protective devices required for the job.

NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.

■

NEVER operate the trowel under the influence of drugs or alcohol.

■

Replace nameplate, operation and safety decals when they become difficult to read.

■

ALWAYS check the trowel for loosened hardware such as nuts and bolts before starting.

■

NEVER touch the hot exhaust manifold, muffler or cylinder. Allow these parts to cool before servicing the trowel. Contact with components can cause serious burns.

■

The engine of this trowel requires an adequate free flow of cooling air. NEVER operate the trowel in any enclosed or

■

ALWAYS refuel in a well-ventilated area, away from sparks and open flames.

hot!

narrow area where free flow of the air is restricted. If the air flow is restricted it will cause serious damage to the engine and may cause injury to people. Remember the engine gives off

DEADLY

gas.

carbon monoxide

■

Topping-off to filler port is dangerous, as it tends to spill fuel.

■

NEVER use fuel as a cleaning agent.

■

ALWAYS use extreme caution when working with flammable liquids. When refueling, STOP the engine. Allow the engine to cool before adding fuel or performing service and maintenance functions.

■

NEVER operate the trowel in an

■

NEVER use accessories or attachments which are not recommended by the manufacturer for this equipment. Damage to the equipment and/or injury to user may result.

■

Manufacturer does not assume responsibility for any accident due to equipment modifications. Unauthorized equipment modification will void all warranties. Any modification which could lead to a change in the original characteristics of the machine should be made only by the manufacturer who shall confirm that the machine is in conformity with appropriate safety regulations.

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 10

explosive atmosphere where fumes are present, or near combustible materials. An explosion or fire could result in severe

death.

■

NEVER

Fire or explosion could result from

vapors

smoke

, or if fuel is spilled on a

bodily harm or even

around or near the machine.

fuel

hot!

engine.

STR36SP-SERIES — RULES FOR SAFE OPERATION

■

NEVER run engine without air filter. Severe engine damage

may occur. Service air filter frequently to prevent carburetor malfunction.

■

NEVER place your while starting or operating this equipment.

■

AVOID wearing jewelry or loose fitting clothing that may snag on the controls or moving parts as this can cause a serious injury.

■

ALWAYS keep clear of operating the trowel.

■

Moving Parts – Shut down the engine before performing service or maintenance functions. Contact with moving parts can cause serious injury.

■

ALWAYS check to make sure that the operating area is clear before starting the engine.

■

NEVER leave the machine

■

ALWAYS be sure the operator is familiar with proper safety

precautions and operations techniques before using trowel.

feet

rotating

hands

inside the guard rings

moving parts

unattended

while running.

while

Lifting the Ride-On Trowel

DANGERDANGER

DANGER

DANGERDANGER

Pay close attention to ventilation when operating the trowel in confined spaces such as tunnels, buildings or similar areas. The engine exhaust contains harmful elements. Ensure proper air flow to move engine exhaust away from the operator.

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

heavy

This ride-on trowel is very around. Use proper heavy lifting procedures and DO NOT attempt to lift the ride-on trowel by the guard rings.

and awkward to move

■

ALWAYS keep the work area well organized.

■

ALWAYS clear the work area of any debris, tools, etc. that would constitute a hazard while the trowel is in operation.

WARNINGWARNING

WARNING

WARNINGWARNING

ALWAYS check to make sure that the operating area is clear before starting the engine.

■

No one other than the operator is to be in the working area when the trowel is in operation.

■

NEVER allow passengers or riders on the trowel during operation.

■

Always observe all applicable compulsory regulations relevant to environmental protection, especially, fuel storage, the handling of hazardous substances, and the wearing of protective clothing and equipment. Instruct the user as necessary, or, as the user, request this information and training.

■

ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children.

The STR36SP-SERIES Ride-On Power Trowel is designed to be moved and handled several ways.

The easiest way to lift the trowel is to utilize the lift loops that are welded to the frame. These lift loops are located to the left and right sides of the operator’s seat.

A strap or chain can be attached to these lift loops, allowing a forklift or crane to lift the trowel up onto and off of a slab of concrete. The strap or chain should have a minimum 2,000 pounds (1000kg) lifting capacity and the lifting gear must be capable of lifting at least this amount.

DANGERDANGER

DANGER

DANGERDANGER

NEVER stand under or allow anyone else to stand under the trowel while it is being lifted.

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 11

STR36SP-SERIES — RULES FOR SAFE OPERATION

Transporting

■

ALWAYS shutdown engine before transporting.

■

Tighten fuel tank cap securely and close fuel petcock to prevent fuel from spilling.

■

Drain fuel when transporting trowel for long distances or over bad roads.

■

When placing the trowel on a truck-bed for transport, tie-down the trowel.

■

If the trowel is being transported via a trailer, make sure the trailer complies with all local and state safety transportation laws. Refer to the following " for basic towing techniques.

Towing Safety Precautions"

always

■

Use chock-blocks at each wheel when parked to prevent trailer from rolling.

Use the trailer's swivel jack to adjust the trailer height to a level position while parked.

Avoid sudden stops and starts. This can cause the trailer to skid or jack-knife. Smooth, gradual starts and stops will improve towing.

Avoid sharp turns.

Trailer should be adjusted to a level position at all times when towing.

Raise and lock trailer wheel stand in the "UP" position when transporting.

DOT requirements include the following:

Towing Safety Precautions

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

Conform to

Towing Regulations

roads.

To reduce the possibility of an accident while transporting the trowel on public roads, always make sure the trailer that supports the trowel and the towing vehicle are in good operating condition and both units are mechanically sound.

The following list of suggestions should be used when towing your trowel:

■

Make sure the hitch and coupling of the towing vehicle are rated equal to, or greater than the trailer "gross vehicle weight rating" (GVWR) of 6,000 lbs.

■

ALWAYS inspect the hitch and coupling for wear. NEVER

tow a trailer with defective hitches, couplings, chains, etc.

■

Check the tire air pressure on both towing vehicle and trailer.

Trailer tires should be inflated to 50 psi cold

the tire tread wear on both vehicles.

■

ALWAYS make sure the trailer is equipped with "Safety

Chains ".

■

ALWAYS attach trailer's safety chains to towing vehicle

properly.

■

ALWAYS make sure the vehicle and trailer directional,

backup, brake, and trailer lights are connected and working

■

DO NOT exceed the recommended highway speed when towing. Unless posted otherwise, do not exceed 45 MPH highway, and 10 MPH off-road.

Department of Transportation (DOT) Safety

before transporting trowel on public

. Also check

Connect and test electric brake operation.

Secure portable power cables in cable tray with tie wraps.

Battery

The battery contains acids that can cause injury to the eyes and skin. To avoid eye irritation, shielding. Use well insulated gloves when picking the battery up. Use the following guidelines when handling the battery.

■

DO NOT drop the battery. Any impact to the battery may cause it to explode.

■

DO NOT expose the battery to open flames, sparks, lit cigarettes etc. The battery contains combustible gases and liquids. If these gases and liquids come in contact with a flame or spark an explosion can occur.

■

ALWAYS keep the battery charged. If the

battery is not charged a buildup of combustible gas will occur.

■

ALWAYS keep battery cables in good working condition.

Repair or replace all worn cables.

■

ALWAYS disconnect the

performing service on the trowel.

■

ALWAYS recharge the battery in a vented air environment

to avoid risk of a dangerous concentration of combustible gases.

■

In case the battery liquid, (dilute sulfuric acid), comes in contact with with plenty of water.

■

In case the battery liquid, (dilute sulfuric acid), comes in contact with your then contact the nearest doctor or hospital and seek medical attention.

always

clothing or skin

eyes

, rinse eyes immediately with plenty of water,

, rinse skin or clothing immediately

wear safety glasses or face

negative battery terminal

before

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 12

STR36SP-SERIES — RULES FOR SAFE OPERATION

Maintenance Safety

■

ALWAYS shut down the engine and disconnect battery before

performing service or maintenance functions. Contact with moving parts can cause serious injury.

■

Securely support any trowel components that must be raised.

■

NEVER lubricate components or attempt service on a running trowel.

■

ALWAYS allow the trowel a proper amount of time to cool

before servicing.

■

Keep the trowel in proper running condition.

■

Make sure that there is no buildup of concrete, grease, oil or debris on the machine.

■

Repair damage to the trowel immediately and always replace broken parts.

■

Dispose of hazardous waste properly. Examples of potentially hazardous waste are used motor oil, fuel and fuel filters.

■

DO NOT use plastic food containers to dispose of hazardous waste.

■

DO NOT pour waste oil or fuel directly onto the ground, down a drain or into any water source.

Emergencies

■

ALWAYS know the location of

the nearest

ALWAYS know the location of the

nearest

Know the phone numbers of the nearest

ambulance, doctor

that a phone or radio is readily available at the jobsite. If this is not possible, know the location of the nearest phone. This information will be invaluable in the event of an emergency.

fire extinguisher

first aid kit

and

fire department

. Ensure

■

NEVER store trowel with fuel in the tank for any extended period of time. Always clean up spilled fuel immediately.

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 13

STR36SP-SERIES — OPERATION AND SAFETY DECALS

P/N35168

Machine Safety Decals

The STR36SP-SERIES Ride-On Power Trowel is equipped with a number of operation and safety decals. These decals are provided for operator safety and maintenance information. Should any of these decals become unreadable, replacements can be obtained from your dealer.

WARNING

To avoid injury, you MUST read and understand operator’s manual before using this machine.

This machine to be operated by qualified personnel only.

Ask for training as needed.

P/N 35137

P/N35137

P/N 11111 11” x 3”

P/N TBD

P/N 2814 (WHITE)

MODEL SERIAL NO.

CONTACT SERVICE DEPARTMENT

DANGER

DO NOT DISASSEMBLE

SPRING INSIDE IS

UNDER COMPRESSION

P/N 2634

CLOCKWISE

GEAR DRIVE

CHECK

COUNTER

CLOCKWISE

LIFTING POINTLIFTING POINT

LUBRICATION

WARNING

ROTATING BLADE

HAZARD

Keep hands and feet clear of guard rings. Stop engine before servicing.

P/N 35168

P/N35168

P/N: 21455

P/N 36099 (ISO Blue)

BELT DRIVE

GEAR DRIVE

CHECK

HOT

LUBRICATION

P/N 20953

Engine exhaust and some of its constituents,and somedust created by power sanding, sawing, grinding, drillingand otherconstructionactivities contains chemicals known to the State

of California to cause cancer, bir th

defects and other reproductive harm. Someexamples of thesechemicals are:

Leadfromlead-based paints. Crystallinesilica frombricks. Cementand othermasonryproducts. Arsenicandchromium fromchemically treatedlumber.

Yourrisk from these exposures varies,

dependingon howoftenyou dothistype

of work.To reduce your exposure to these chemicals: work in aALWAYS well ventilated area, and work with approved safety equipment, such as dust masksthat are specially designed

2634

to filterout microscopic particles.

P/N 20525

P/N 11811

DECAL ENGINE SPEED PLATE

HIGH

LUBRICATION

P/N: 11246

P/N: 13118

LUBRICATION

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 14

STR36SP-SERIES— SPECIFICATIONS (TROWEL)

Figure 1. STR36SP-SERIES Dimensions

)mc(.ni–htgneL–A )6.591(0.77

)mc(.ni–htdiW–B )99(0.93

c(.ni–thgieH–C

) )7.811(57.64

gnitarepO).sgk(.sbl–thgieW )5.023(507

gnippihS).sgk(.sbl–thgieW )72.204(588

)etercnoCyrD(MPR–rotoR 081

)mc(.ni–htdiWhtaP )191(57

noitarbiVmrA/dnaH

noitarbiVydoBelohW s/tfDBT

)dethgieW-A(erusserPdnuoS

NOTE:

1. The vibration level indicated is the maximum RMS (Root Mean Square) value obtained at the handle grip while operating the walk-behind trowel at full throttle on steel plate with blades partially pitched.

2. Sound pressure is a weighted measure. It is measured at the operator's ear position while the walk-behind trowel is operating at full throttle on concrete in a manner most often experienced in “ may vary depending upon the condition of the concrete.

snoitacificepS63RTS.1elbaT

normal

s/tf66.2

s/m(2)

)A(BdDBT

” circumstances. Sound pressure

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 15

STR36SP-SERIES— SPECIFICATIONS (ENGINE)

snoitacificepSenignE63RTS.2elbaT

ledoMenignEFAT076XGadnoH

epyT

tnemecalpsiDnotsiP)cc076

tuptuO.xaM)WK6.71(mpr0063/phb42

euqroT.xaMmpr0052tatf-fbl8.13

metsySgnilooCriAdecroF

enignE

oBraeG

leuF

yticapaCliO

knaTleuF)sretil32.91(.lag5

yticapaCliOx

metsySgnitratSoten

(.ni.uc9.04

)sretil6.1(.tq96.1

)tnemecalper

)046GVOSI

enilosagdedaelnU

eergeD09evlaVdaehrevO,ekortS4

.enigneenilosag,niwT-V

retliflio/wsretil9.1(.tq10.2

436HCSliboM()L140.2(.zo96

rehgihro68fognitarenatcO

gaMdezirotsisnarT/tratScirtcelE

epyTgulPkrapSlaunams'renwoenigneees

paGgulPkrapSlaunams'renwoenigneees

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 16

STR36SP-SERIES — GENERAL INFORMATION

STR36SP Series Ride-On PowerTrowel Familarazation

The STR36SP Series Ride-On Power Trowel is designed for the floating and finishing of concrete slabs.

Take a walk around your trowel. Take notice of all the major components (see Figures 2 and 3, pages 20 and 21) like the engine, blades, air cleaner, fuel system, fuel shut-off valve, ignition switch etc. Check that there is always oil in the engine, and gear oil in the gearbox assembly.

Read all the safety instructions carefully. Safety instructions will be found throughout this manual and on the machine. Keep all safety information in good, readable condition. Operators should be well trained on the operation and maintenance of the trowel.

Look at the operator control levers. Grab the control levers and move them around a bit. Look to see how moving the control levers causes the gearboxes and frame to move.

Notice the foot pedal which controls the engine speed. Also take a look at the main driveline of the trowel. Take note and reference how the belts look, this is the way the belts should look when adjusted properly.

Before using your trowel, test it on a flat watered down section of finished concrete. This trial test run will increase your confidence in using the trowel and at the same time it will familiarize you with the trowel’s controls and indicators. In addition you will understand how the trowel will handle under actual conditions.

Engine

This trowel is equipped with an air cooled 24 HP Honda gasoline engine. Refer to the engine owner’s manual for specific instructions regarding engine operation. This manual is included with the trowel at the time of shipping. Please contact your nearest STOW Dealer for a replacement should the original manual disappear.

Gearboxes

The STR36SP Series Ride-On Power Trowel uses two separate gearbox assemblies that are enclosed in rugged cast aluminum gear cases.

The gearbox casing has a large oil capacity allowing optimum lubrication to critical points.

Steering Assist

Dual control levers located in front of the operator's seat are provided for steering the trowel. The control levers are linked to two spring loaded cylinders.

Push the left control lever forward and pull the right control lever backward and the trowel will rotate clockwise on approximately a center axis. Pull the left control lever backward and push the right control lever forward and the trowel will rotate counterclockwise. See Table 4 on page 26 for a complete description on the control levers directional positioning.

Constant Velocity Joints (CV-Joints)

Constant velocity joints insure the efficient transfer of power to the drive shaft and maintain the timing of the gearboxes without any chance of slippage.

Training

For training, please use the “TRAINING CHECKLIST” located in the front of this manual (Page 8). This checklist is not intended to be a substitute for proper training but will provide an outline for an experienced operator to provide training to a new operator.

Blades

The blades of the trowel finish the concrete as they are swirled around the surface. Blades are classified as combination (10 or 8 inches wide) and finish (6 inches wide). This trowel is equipped with four blades per rotor equally spaced in a radial pattern and attached to a vertical rotating shaft by means of a

spider

assembly.

Figures 2 and 3 show the location of the controls, indicators and general maintenance parts. Each control may perform more than one function. The functions of each control or indicator are described on pages 20 and 21.

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 17

STR36SP-SERIES — CONTROLS AND INDICATORS

1. Seat – Engine will neither start nor run unless operator is

seated.

2. Steering Control Levers – Directs the unit forward, reverse, left, or right.

3. Retardant Spray Control Button – Sprays retardant through the nozzle at the front of the machine.

4. Pitch Control – Turn the crank as marked on its top surface to increase or decrease blade pitch.

Twin Pitch Control (Option) –Both pitch towers are linked together. One crank may be turned to adjust the blade pitch simultaneously or individually controlled for each set of blades.

5. Light Switch – Turns on three halogen lights. Two in front one in rear.

6. Ignition Switch – With key inserted, turn clockwise to start engine.

8. Choke Control Lever – In cold weather pull this lever to start engine. After engine warms push knob all the way in.

9. Fuel Gauge/Filler Cap – Indicates the amount of fuel in the fuel tank. Remove this cap to add fuel.

10. Fuel Tank – Holds 5 gallons of unleaded gasoline.

11. Left Foot Riser – Operator foot rest pedal.

12. Spray Nozzle – Spray nozzle for retardant.

13. Right Foot Pedal – Controls blade speed. Slow blade

speed is accomplished by slightly depressing the foot pedal. Maximum blade speed is accomplished by fully depressing the foot pedal.

14. EZ- Mover Boss – Front attachment point for EZ Mover. Used to move the trowel.

15. Dip Stick – Use to verify correct amount of engine oil.

16. Spark Plug – Access the spark plug through this cutout.

7. Hour Meter – Indicates number of hours the engine has

run.

I N

Figure 2. STR36SP-SERIES Controls and Indicators (Front)

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 18

STR36SP-SERIES — CONTROLS AND INDICATORS

17. Safety Stop Switch – Shuts down engine when seat is

26. Spiders (Left/Right) – Consists of trowel arms, blades,

empty.

18. Light Assembly (Option) – Optional 12 volt halogen lights are available, two forward and one aft.

19. Lift Loops – Located on both sides of the main frame.

27. Document Box – Contains all product documentation.

28. Battery – Provides +12V DC power to the electrical system.

29. Belt Guard – Encloses drive belt used in conjunction with

Used to lift the trowel.

20. Engine Air Filter – Protects the engine from dirt.

30. Engine Oil Fill – Remove this cap to add engine oil.

21. Oil Filter – Filters the engine oil.

22. Oil Drain – Remove the plug from end of hose to drain the

engine oil.

23. Retardant Spray Tank – Holds 5 gallons of retardant.

24. Retardant Spray Pump – Delivers retardant to the spray

nozzle.

25. EZ- Mover Boss – Rear attachment point for EZ Mover. Used to transport the trowel.

Read, understand, and comply with all safety messages and operating instructions in this manual before attempting to operate the trowel.

wear plate, and thrust collar.

clutch.

NOTE

Y L N

E N I

Figure 3. STR36SP-SERIES Controls and Indicators

(Rear)

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 19

STR36SP-SERIES — BASIC ENGINE

ENGINEFUEL ONLY

Figure 4. Engine Controls and Components

INITIAL SERVICING

The engine (Figure 4) must be checked for proper lubrication and filled with fuel prior to operation. Refer to the manufacturer's engine manual for instructions & details of operation and servicing. The engine shown above is a HONDA engine. Operation for other types of engines may vary somewhat.

1. Fuel Tank – Five gallon capacity; use unleaded gasoline.

2. Fuel Filler Cap – Remove this cap to add unleaded gasoline to the fuel tank. Make sure cap is tightened securely. DO NOT over fill.

3. Muffler – Used to reduce noise and emissions.

6. Engine ON/OFF Switch – "ON" position permits engine starting, "OFF" position stops engine operations.

7. Fuel Drain Valve – OPEN to let fuel flow, CLOSE to stop the flow of fuel.

8. Fuel Filter – Filters fuel for contaminants.

9. Oil Filter – Spin-on type, filters oil for contaminants.

10. Oil Cooler – Helps keep engine oil cooler for longer engine life.

11. Throttle Lever – Controlled by accelerator pedal, increases or decreases engine RPM.

12. Oil Filler Cap – Remove to add engine oil.

WARNINGWARNING

WARNING

WARNINGWARNING

Engine components can generate extreme heat. To prevent burns, DO NOT touch these areas while the engine is running or immediately after operating. NEVER operate the engine with the muffler removed.

4. Air Filter – Prevents dirt and other debris from entering the fuel system. Unsnap air filter cover to gain access to filter element.

5. Choke Knob – Used in the starting of a cold engine or in cold weather conditions. The choke enriches the fuel mixture.

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 20

13. Oil Dip Stick – Remove to check amount and condition of oil in crankcase.

14. Starter – Starts engine when ignition key is rotated to the "ON" position.

15. Oil Drain Plug – Remove to drain crankcase oil.

16. Spark Plug – Provides spark to the combustion chamber. See engine owner's manual for plug type and gap settings. Clean spark plug once a week.

STR36SP-SERIES — NEW MACHINE SETUP INSTRUCTIONS

Trowel Pre-Set Up Instructions

The purpose of this section is to assist the user in setting up a

NEW

trowel. If your trowel is already assembled, (seat, handles,

knobs and battery), this section can be skipped.

The new trowel cannot be put into service until the pre-setup installation

NOTE

Before packaging and shipping, this STR36SP SERIES RideOn Power Trowel was run and tested at the factory. If there are problems, please let us know.

Control Handle Assembly

The steering control handles are not attached to the trowel's two lower handles at the time of shipment. To attach the steering control handles to the two lower handle assemblies perform the following:

1. Remove the bolts from the plastic bag tied to the control towers.

instructions are completed. These pre-setup instructions only need to be performed at the time of

NEW

unpacking a

trowel.

Seat Assembly

The seat is not installed on the trowel for shipping purposes. To attach the seat perform the following:

NOTE

seat. H and S-series trowels have a seat that is mounted on tracks, similar to an automobile seat. This seat can be adjusted fore and aft via the control lever under the front of the seat.

1. Remove the seat from the protective wrapping.

2. Remove the bolts on the bottom of the seat, and place seat on the seat mounting plate, then insert the bolts through the holes or slots on the seat mounting plate and tighten.

Battery Setup

This trowel was shipped with a wet charged battery. This battery may need to be charged for a brief period of time as per the manufacturer instructions.

There are two types of seats, depending on what type of trowel you have. J and B series trowels have slots on the seat mounting plate that allow fore and aft adjustment of the

2. Remove all protective wrapping and straps from the control handles.

3. Slip the top (loose) piece into the base of the corresponding handle, making sure to line up the holes.

4. Install the bolt through the lined up holes and tighten the acorn nut onto the threaded end.

Some models are equipped with

NOTE

5. Pay close attention to any wires that may be inside the control handles. DO NOT pinch or cut any wires during installation.

6. Inside the plastic bag of parts are two knobs for the pitch control tower cranks. Install these two knobs onto the tower crank levers.

adjustable height handles. Adjust the height by placing the bolt through the set of holes that corresponds to the most comfortable height.

Use all safety precautions specified by the battery manufacturer when working with the battery. See further specific safety information on page 14 of this manual.

To install the battery on the trowel, make sure that the battery is well seated in the battery box. Connect the positive cable to the positive terminal on the battery first, then connect the negative cable to the negative terminal. Close the plastic battery box cover and secure the battery box.

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 21

STR36SP-SERIES — INITIAL START-UP

The following section is intended as a basic guide to the ride-on trowel operation, and is not to be considered a complete guide to concrete finishing. It is strongly suggested that all operators (experienced and novice) read “ the American Concrete Institute, Detroit Michigan.

DO NOT use your ride-on power trowel until this section is thoroughly understood.

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

Slabs on Grade

” published by

Table 3. Recommended Viscosity Grades

Failure to understand the operation of the STR36SP-SERIES trowel could result in severe damage to the machine or personal injury.

See Figures 2 and 3 (Pages 20 and 21) for the location of any control or indicator referenced in this manual.

Engine Oil Level

ALWAYS check engine oil BEFORE EACH USE.

1. Pull the engine oil dipstick (Item 2, Figure 5) from its holder.

2. Determine if engine oil is low (Figure 5).

3. If engine oil is low, remove oil filler cap (Item 1, Figure 5), and add correct amount of engine oil to bring oil level to a normal safe level. Use oil as recommeded in Table 3.

Gearbox Oil Level

1. Check the gearbox oil level in both gearboxes by removing the level plug and ensuring that the oil is at the correct level. See Figure 6.

2. Fill the gear box just to the level of the fill plug. (Figure 6) with 69 oz. (2.041 L) of STOW gearbox lubricant, p/n 20111, ISO or equivalent.

DRAIN

PLUG

FILL/LEVEL

CHECK PLUG

GEARBOX

VENT

Figure 6. Gearbox Oil Plugs/Sight Glass

Fuel

Determine if the engine fuel is low (Figure 7). If fuel level is low, remove the fuel filler cap and fill with unleaded gasoline.

DANGERDANGER

DANGER

DANGERDANGER

Figure 5. Engine Oil Dipstick

To prevent extensive engine wear or damage, always maintain the proper

NOTE

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 22

oil level in the crankcase. Never operate the engine with the oil level outside of marks on dipstick, (Items 3 and 4 in Figure 5.)

Handle fuel safely. Motor fuels are highly flammable and can be dangerous if mishandled. DO NOT smoke while refueling. DO NOT attempt to refuel the ride- on trowel if the engine is hot or running. DO NOT attempt to start the engine until the fuel residue has been completely wiped up and the area surrounding the engine is dry.

Figure 7. Fuel Gauge

Important Information Before You Start

FUEL

STR36SP-SERIES — OPERATION

5. When starting a cold engine, pull the choke knob, (Figure 9) out to the

closed

engine is warm, the unit can be started with choke halfway or completely

position. In warm weather or when the

open

1. This

switch"

ride-on trowel

. This switch is located beneath the seat assembly.

is equipped with a safety

"safety stop

Remember the engine will not start unless an operator is sitting in the operator’s seat. The weight of an operator depresses an electrical switch which will allow the engine to start.

WARNINGWARNING

WARNING

WARNINGWARNING

NEVER disable or disconnect the "safety stop switch". It is provided for the operator's safety and injury or death may result if it is disabled, disconnected or improperly

6. Keep your foot OFF the blade speed control pedal and in

all circumstances, start the engine at idle (without touching the pedal).

7. Insert the

maintained.

8. Turn the ignition key (Figure 10) clockwise and listen for

2. The safety stop switch should be used to stop the engine after every use. Doing this will verify the switch is working properly thus providing safety for the operator. Remember to turn the key to the “OFF” position after stopping the machine. Not doing so will drain the battery.

the engine to start. Once the engine starts release ignition key.

9. If the engine fails to start in this manner, consult the engine owner's manual supplied with the trowel.

10. Test the safety stop switch by standing up briefly. The switch under the seat should cause the engine to stop. If the switch

3. The right foot pedal (Figure 8) controls blade and engine speed. The position of the foot pedal determines the blade speed. Slow blade speed is obtained by slightly depressing

fails to shut down the engine. Turn off the engine with the key switch and repair the safety stop switch. See Table 6 (Troubleshooting ) for possible causes.

the pedal. Maximum blade speed is obtained by fully depressing the pedal.

Figure 9. Choke Knob

ignition key

into the ignition switch.

START

Figure 8. Blade Speed Control Foot Pedal

OFF

Starting the Engine

1. With one foot on the ground and the other foot placed on

Figure 10. Ignition Key

the trowel's platform, grab the frame near the seat and lift yourself onto the trowel. Sit in the operator's seat and ensure the control handles, foot pedal and control panel items can be comfortably accessed.

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 23

11. Let the engine idle for 3-5 minutes. If choke is applied, push the choke to the open position as soon as the engine will run smoothly.

STR36SP-SERIES — OPERATION

Steering

Two control levers located in front of the operator’s seat provide directional control for the STR36SP SERIES Ride-On Power Trowel. Table 4 illustrates the various directional positions of the joysticks and their effect on the ride-on trowel.

NOTE

1. Push both the left and right control levers forward. See Figure 11.

All directional references with respect to the steering control levers are from

operator’s

the

LEFT CONTROL LEVER

seat position.

5. Try adjusting the pitch of the blades. This can be done with the ride-on trowel stopped or while the trowel is moving, whatever feels comfortable. Test the operation of optional equipment like retardant spray and lights if equipped.

6. Pull both the left and right joysticks backward and repeat steps 3 through 6 while substituting the word reverse for forward.

FORWARD DIRECTION

RIGHT CONTROL LEVER

Figure 11. Left and Right Control Levers

2. With your right foot quickly depress the right foot pedal halfway. Notice that the ride-on power trowel begins to move in a forward direction. Return both joystick controls to their neutral position to stop forward movement, then remove your right foot from the right foot pedal.

3. Practice holding the machine in one place as you increase blade speed. When about 75% of maximum blade speed has been reached, the blades will be moving at proper finishing speed. The machine may be difficult to keep in one place. Trying to keep the ride-on trowel stationary is a good practice for operation.

4. Practice maneuvering the ride-on trowel using the information listed in Table 4. Try to practice controlled motions as if you were finishing a slab of concrete. Practice edging and covering a large area.

Trowel arms can be damaged by rough handling or by striking exposed plumbing or forms while in operation.

ALWAYS

to the trowel arms.

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

look-out for objects which might cause damage

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 24

STR36SP-SERIES — MAINTENANCE

Maintenance

When performing any maintenance on the trowel or engine, follow all safety messages and rules for safe operation stated at the beginning of this manual.

WARNING

Accidental starts can cause severe injury or death.

ALWAYS place the ON/OFF switch in the OFF position.

Disconnect and ground spark plug leads and disconnect negative battery cable from battery before servicing.

Maintenance Schedule

1. Check and retighten all fasteners as necessary.

Air Cleaner (Daily)

Thoroughly remove dirt and oil from the engine and control area. Clean or replace the air cleaner elements as necessary. Check and retighten all fasteners as necessary.

1. Release the four latch tabs (Figure 12) from the air cleaner cover, and remove the cover.

Daily (8-10 Hours)

1. Check the fluid levels in the engine and gearboxes, fill as necessary. Check Air Cleaner. See section on Air Cleaner servicing.

Weekly (30-40 Hours)

1. Relube arms, thrust collar and steering links.

2. Replace blades if necessary.

3. Check and clean or replace the engine air filter as necessary. (See following section on Air Filter Maintenance.)

4. Replace engine oil and filter as necessary. (See following section on Oil and Filter.)

Monthly (100-125 Hours)

1. Remove, clean, reinstall and relube the arms and thrust collar. Adjust the blade arms.

2. Replace gearbox lubricant after the first 100 hours of operation. Replace every 500-600 hours thereafter.

3. Check drive belt for excessive wear. (Refer to following section on Drive Belt maintenance.)

Yearly (500-600 Hours)

1. Check and replace if necessary the arm bushings, and thrust collar bushings, shaft seals and belts.

2. Check pitch control cables for wear.

2. Remove the foam filter from the cover.

3. Remove the paper filter from the air cleaner case.

4. Inspect both air filter elements, replace them if necessary.

5. To clean the paper air filter, tap the filter element several times on a hard surface to remove dirt, or blow compressed air (not to exceed 30 psi (207 kPa, 2.1 kgf/cm filter element from the air cleaner case side.

NEVER!

6. fibers. If the paper element is excessively dirt, replace element.

7. Clean the rinse and allow to dry thoroughly. Or clean with a nonflammable solvent and allow to dry. DO NOT pour any type of oil into the foam element.

8. Wipe dirt from the inside of the air cleaner body and cover, using a moist cloth. Be careful not to let any dirt or debris to enter the air chamber that leads to the carburetor.

9. Reinstall the foam air filter element to the air cleaner cover, then reinstall the paper air filter element and cover to the air cleaner case. Securely latch the four hook tabs on the air cleaner cover

Figure 12. Air Cleaner Components

) through the

try to brush off dirt; brushing will force dirt into the

foam air filter element

in warm soapy water,

3. Replace gearbox lubricant.

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 25

STR36SP-SERIES — MAINTENANCE

Oil And Fuel Lines

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

Operating the engine with a blocked grass screen, dirty or plugged cooling fins, and/or cooling shrouds removed, will cause engine damage due to overheating.

■

Check the oil and fuel lines and connections regularly for leaks or damage. Repair or replace as necessary.

■

Replace the oil and fuel lines every two years to maintain the line's performance and flexibility.

Changing Engine Oil (100 Hours)

1. Change the engine oil after the first 20 hours of use, then change every 6 months or 100 hours.

2. Remove the oil filler cap (Figure 5, Item 1), and fill engine crankcase with recommended type oil as listed in Table 4. Fill to the upper limit of dipstick.

3. Crankcase oil capacity is 1.69 qts. (1.60 liters) without oil filter replacement, with oil filter replacement 2.02 qts. (1.90 liters).

Oil Filter (200 Hours)

1. Replace the engine oil filter (Figure 13) every 200 hours.

Long Term Storage

■

Remove the battery.

■

Drain fuel from fuel tank, fuel line and carburetor.

■

Remove spark plug and pour a few drops of motor oil into cylinder. Crank engine 3 to 4 times so that oil reaches all internal parts.

■

Clean exterior with a cloth soaked in clean oil.

■

Store unit covered with plastic sheet in moisture and dustfree location out of direct sunlight.

Never store the ride-on trowel with fuel in the tank for any extended period of time. Always clean up spilled fuel immediately.

Engine Tune-Up

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

■

Figure 13. Oil FIlter

2. Be sure to coat the engine oil.

Fuel Filter (200 Hours)

1. Replace the engine fuel filter (Figure 14) every 200 hours.

Figure 14. Honda Fuel Filter

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 26

seal

of the new oil filter with clean

See your engine manual for specific information on tuning up your engine, checking and gaping the spark plugs, etc.

See the engine manual supplied with

NOTE

At the front of the book (Page 9) there is a “Daily Pre-Operation Checklist”. Make copies of this checklist and use it on a daily basis.

Disconnect spark plug wires and battery cables before attempting any service or maintenance on the ride-on trowel.

your machine for appropriate engine maintenance schedule and troubleshooting guide for problems.

STR36SP-SERIES — MAINTENANCE

Checking The Drive Belt

The drive belt needs to be replaced as soon as it starts to show signs of wear. Indications of excessive belt wear are fraying, squealing when in use, belts that emit smoke or a burning rubber smell when in use.

Under normal operating conditions, a drive belt may last approximately 150 hours. If your trowel is not reaching this kind of life span for drive belt wear, check the drive belt for proper pulley alignment and spacing.

To gain access to the drive belt, remove the drive belt guard cover (Item 1, Figure 16), then visually inspect the drive belt for signs of damage or excessive wear. If the drive belt is worn or damaged, replace the drive belt.

WARNINGWARNING

WARNING

WARNINGWARNING

DO NOT attempt to insert hands or tools into the belt area while the engine is running. NEVER run the engine with the safety guards removed. Keep fingers, hands, hair and clothing away from all moving parts to prevent bodily injury.

WARNINGWARNING

WARNING

WARNINGWARNING

1. Remove Drive Belt Guard Cover (Item 1, Figure 16).

2. Squeeze the drive belt as shown in Figure 17, and pull the V-belt upwards. This will spread open the faces of the drive pulley.

1 Drive Belt Guard Cover 2 Lower Pulley 3 Upper Pulley 4 Spare Drive Belt 5 Spare Drive Belt Holder

Figure 16. Drive Belt Guard Cover

lower

DO NOT remove the drive belt guard cover

until the muffler has cooled. Allow the entire trowel to cool down before performing this procedure.

Removing the Drive Belt





Leave the existing drive belt intact until instructed to cut it.





Leave the engine in place for this procedure. It is not



necessary to slide the engine to replace the drive belt.





Have a 3/4 X 1 X 3-1/4 inch wooden block available.



WOODEN BLOCK

LENGTH

HEIGHT

.75 IN.

Figure 15. Wooden Block For Spacer

3.25 IN.

WIDTH

1.00 IN.

1 Upper Pulley 2 Drive Belt 3 Lower Pulley Fixed Face 4 Lower Pulley Spread Apart 5 Lower Pulley Movable Face 6 Squeeze and Pull Up To Spread

Lower Pulley

Figure 17. Expanding Lower Drive Pulley

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 27

Insert

the 3/4" X 1" X 3-1/4" block between the moveable

face and the fixed face of the lower drive pulley. See Figure

18. This block will help keep the lower drive pulley faces open while installing the new drive belt.

Wooden Block

Figure 18. Holding Lower Pulley Open

4. If the belt is not being reused (recommended), drive belt. Ensure all belt remnants are removed from the pulleys.

CUT

the

STR36SP-SERIES— MAINTENANCE

In the event of a drive belt failure, the spare (replacement) drive belt can be used for quick replacement at the job site to continue trowel operation.

1. If necessary, refer to Removing Drive Belt Instructions. Ensure all remnants of old belt have been removed from pulleys.

2. To replace the drive belt with the spare drive belt, remove the 2 bolts that secure the drive belt carrier. (Figure 19) This will allow free movement of the belt for installation. Take care with to not contaminate the relplacement belt with grease or dirt.

3. With the 3/4 x 1 x 3-1/4 wood block holding the lower pulley open, place the replacement belt into the lower pulley first. Work the belt over the upper drive pulley into the pulley groove.

4. Squeeze the belt enough to remove the wood block. With the block removed, release the tension on the belt.

5. Reinstall the spare belt carrier and the drive belt guard.

6. Replace the spare belt before the next trowel use. See spare drive belt replacement procedures.

Installing the Drive Belt (Using Replacement Drive Belt)

The STR36SP-SERIES Ride-On Power Trowel is equipped with a replacement drive belt (spare) carrier, which is mounted on the inboard side of the fuel tank near the clutch. Make sure that there is ALWAYS a spare drive belt in the drive belt carrier before the trowel is placed on a slab to finish concrete.

Figure 19. Drive Belt Install

1 Bolt, Spare Drive Belt Carrier 2 Spare Drive Belt Holder 3 Wooden Block 4 CV-Joint 5 New Spare Drive Belt 6

Lower Drive Pulley

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 28

STR36SP-SERIES— MAINTENANCE

1 CV Joint 2 Bolt (Remove 3 places) 3 New Spare Drive Belt 4 Bolt, Spare Drive Belt Carrier 5 Spare Drive Belt Holder 6 Left Side Gearbox

Figure 20. Spare Drive Belt Replacement

Spare Drive Belt Replacement

It will be necessary to disconnect the CV-Joint from the left-side gearbox

NOTE

To replace a spare drive belt, be prepared to disconnect the CVjoint from the left-side gearbox. See Figure 20.

1. Place the trowel on suitable supports and observe all safety precautions.

2. Remove the three screws that secure the CV-joint to the left-side gearbox coupler.

coupler. This means the removal of the three screws that secure the CVJoint to the gearbox.

3. Once the CV-joint has been separated from the left-side gearbox, push the CV-joint inward so that a gap exists between the gearbox and the CV-joint (Figure 20). Slide the spare V-belt between the gearbox coupler and the CVjoint. Avoid contaminating the replacement belt with grease or oil when sliding it between the CV-Joint and gearbox coupler.

4. Place the spare drive belt inside the drive belt carrier, and secure the spare belt carrier to the inboard side of the left gearbox.

5. Install the three screws that secure the CV-joint to the leftside gearbox coupler.

STR36SP- SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 29

STR36SP-SERIES— MAINTENANCE

(

)

Drive System Theory of Operation

Centrifugal force pushes the roller arms against the ramp plate, forcing the moveable face toward fixed face squeezing the belt. (see

The STR36SP-SERIES Ride-On Power Trowel is equipped with a

Figure 23 below)

"Torque Converter" which supplies torque to both the left and right gearboxes.

The function of the torque converter is to automatically deliver the correct amount of torque required by the trowel under all load conditions. This enables the trowel to deliver the necessary torque

DISTANCE

MOVEABLE

FACE

TRAVELS

for float pan applications and the high rotor speeds required for burnishing concrete.

The torque converter used in the STR36SP SERIES Ride-On Power Trowel is a variable pitch pulley type (Figure 21) connected by a drive belt.

MOVABLE FACE IS

CONTROLLED BY

ROLLER WEIGHT ARMS

AND SPRINGS

The "Variable Pitch Pulleys" have one

. The

face

is controlled by roller weight arms and springs, which change position according to engine speed. The

is controlled by a spring and belt tension.

face

CENTRIFUGAL FORCE

DRIVE

PULLEY

LOW ENGINE RPM

HIGH ENGINE RPM

LOW OUTPUT

SPEED

DRIVEN PULLEY

DRIVE

PULLEY

MOVEABLE FACE IS CONTROLLED

BY A SPRING

AND BELT TENSION

HIGH OUTPUT

SPEED

DRIVEN PULLEY

Fig. 23. Pulley Interaction

fixed face

drive

pulley ( torque converter, Figure 24) moveable face

, and one

driven

pulley

moveable

Fig. 21. Torque Converter/Variable Pitch Pulley

Drive Pulley

The "Drive Pulley" uses centrifugal force (Figures 22 and 23) to create a belt squeeze force transmitted at the pulley faces.

ROLLER ARM

This condition functions as an automatic clutch and transmission.

VARIABLE

FACE

FORCE

BELT SQUEEZE

TORQUE CONVERTER

DRIVE PULLEY

FIXED

FACE

NEUTRAL LOW SPEED HIGH SPEED

Figure 22. Torque Converter (Centrifugal Force)

DRIVE PULLEY

BUSHING

SPRING

WEIGHT

Fig. 24. Variable Pitch Pulley

Figure 25. Pulley Conditions

RAMP PLATE

DRIVE PULLEY

DRIVEN PULLEY

STR36SP-SERIES • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #1 (09/16/11) — PAGE 30

+ 86 hidden pages
