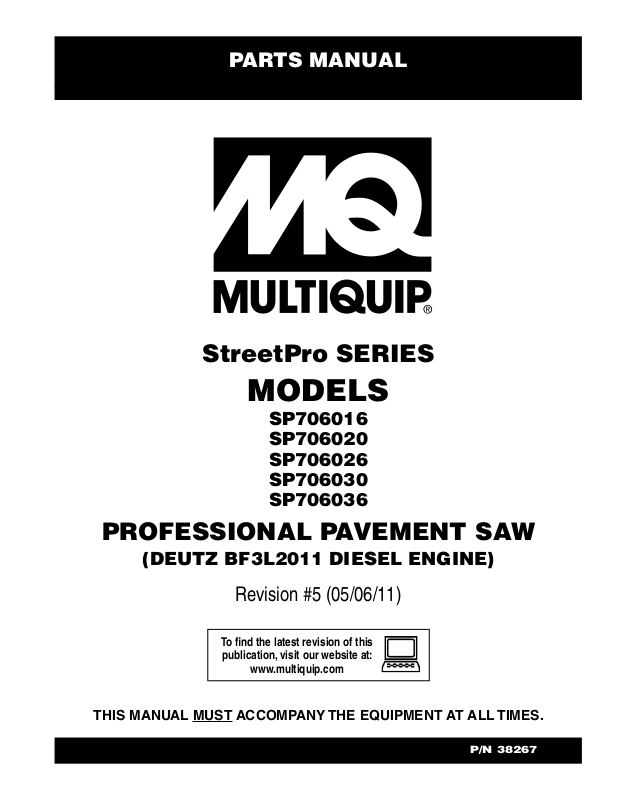

Multiquip SP706036, SP706012, SP706026 User Manual

PARTS MANUAL

StreetPro SERIES

MODELS

SP706016
SP706020
SP706026
SP706030
SP706036

PROFESSIONAL PAVEMENT SAW

(DEUTZ BF3L2011 DIESEL ENGINE)

Revision #5 (05/06/11)

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

P/N 38267

PROPOSITION 65 WARNING

Engine exhaust and some of
its constituents, and some dust created
by power sanding, sawing, grinding,
drillingandotherconstructionactivities
contains chemicals known to the State
of California to cause cancer, birth
defects and other reproductive harm.
Some examples of these chemicals are:

Leadfromlead-basedpaints.
Crystallinesilicafrombricks.
Cementandothermasonryproducts.
Arsenicandchromiumfrom chemically
treatedlumber.

Your risk from these exposures varies,
dependingonhowoftenyoudothistype
of work. To reduce your exposure to
these chemicals: work in aALWAYS
well ventilated area, and work with

approved safety equipment, such as

dust masks that are specially designed
to filter out microscopic particles.

PAGE 2 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

SILICOSIS/RESPIRATORY WARNINGS

WARNING

SILICOSIS WARNING RESPIRATORY HAZARDS

Grinding/cutting/drilling of masonry, concrete, metal and
other materials with silica in their composition may give
off dust or mists containing crystalline silica. Silica is a
basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Repeated and/or
substantial inhalation of airborne crystalline silica can
cause serious or fatal respiratory diseases, including
silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a
substance known to cause cancer. When cutting such
materials, always follow the respiratory precautions
mentioned above.

WARNING

Grinding/cutting/drilling of masonry, concrete, metal and
other materials can generate dust, mists and fumes
containing chemicals known to cause serious or fatal
injury or illness, such as respiratory disease, cancer,
birth defects or other reproductive harm. If you are
unfamiliar with the risks associated with the particular
process and/or material being cut or the composition of
the tool being used, review the material safety data
sheet and/or consult your employer, the material
manufacturer/supplier, governmental agencies such as
OSHA and NIOSH and other sources on hazardous
materials. California and some other authorities, for
instance, have published lists of substances known to
cause cancer, reproductive toxicity, or other harmful
effects.

Control dust, mist and fumes at the source where
possible. In this regard use good work practices and
follow the recommendations of the manufacturers or
suppliers, OSHA/NIOSH, and occupational and trade
associations. Water should be used for dust
suppression when wet cutting is feasible. When the
hazards from inhalation of dust, mists and fumes cannot
be eliminated, the operator and any bystanders should
always wear a respirator approved by NIOSH/MSHA for
the materials being used.

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 3

SP7060 StreetPro Series

Professional Pavement Saw

Proposition 65 Warning .................................................. 2

Silicosis/Respiratory Warnings ....................................... 3

Table of Contents ............................................................ 4

Parts Ordering Procedures ............................................. 5

Explanation of Code in Remarks Column ...................... 6

Suggested Spare Parts ..................................................7

Nameplates and Decals ..............................................8-9

Control Panel Decals ...............................................10-11

Electrical Control Assembly .....................................12-13

Console Mounts Assembly ......................................14-15

Rear Console Access Panel Assembly ...................16-17

Light Connector/Dash Access Assembly .................18-19

Belt and Engine Guards Assembly ..........................20-21

Depth Indicator/Stop Switch Assy. (Old Style) ......... 22-23

Depth Indicator/Stop Switch Assy. (New Style) ........24-25

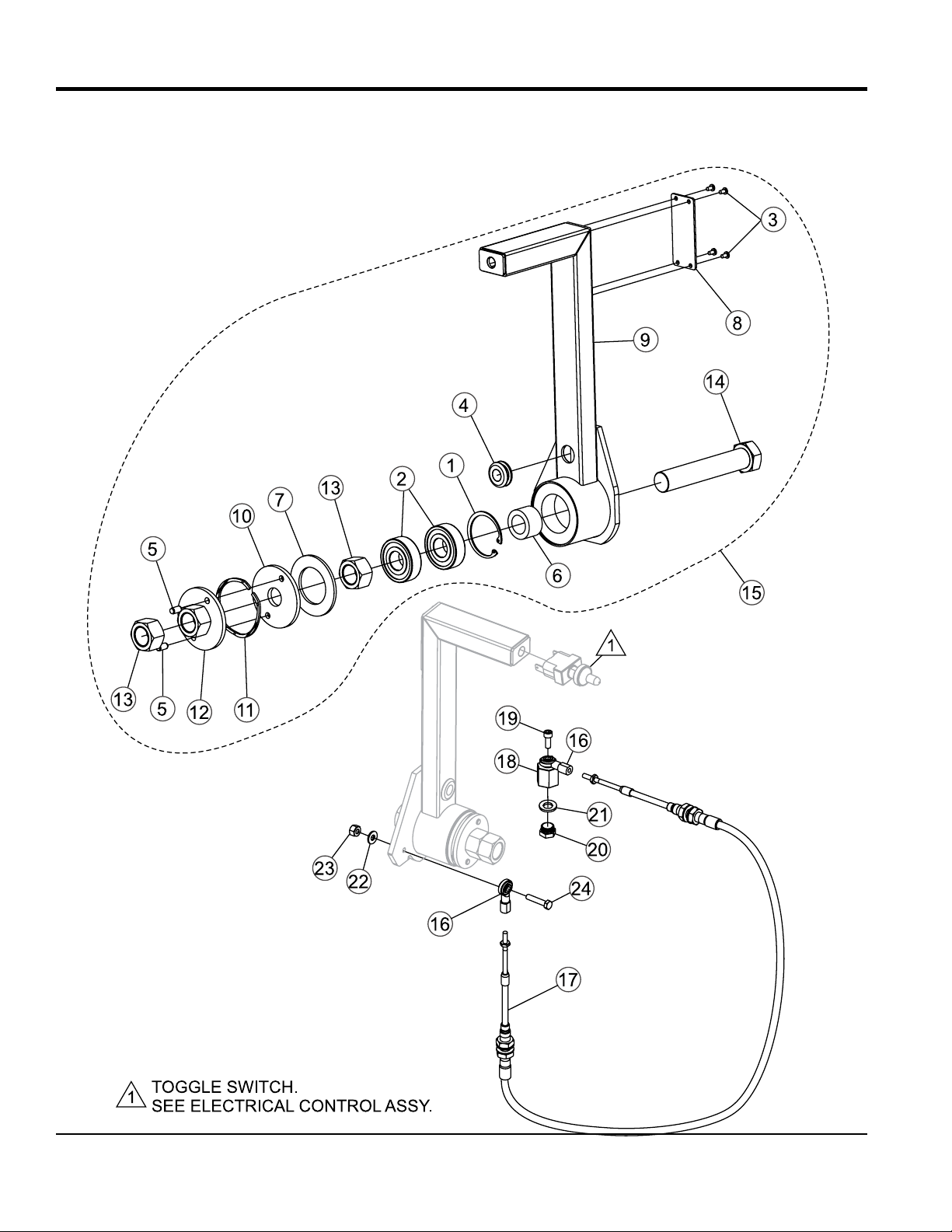

F-N-R Assembly ......................................................26-27

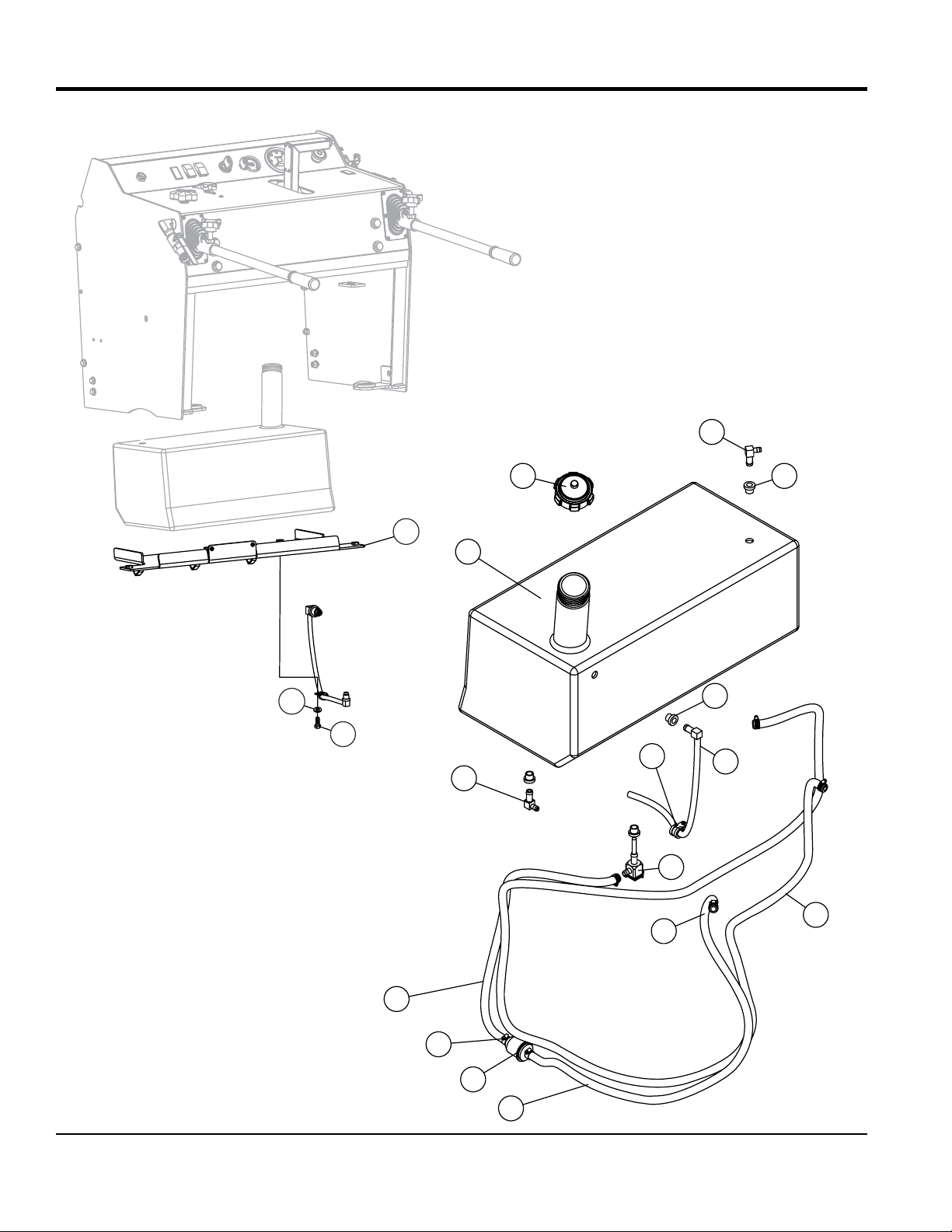

Fuel Assembly .........................................................28-29

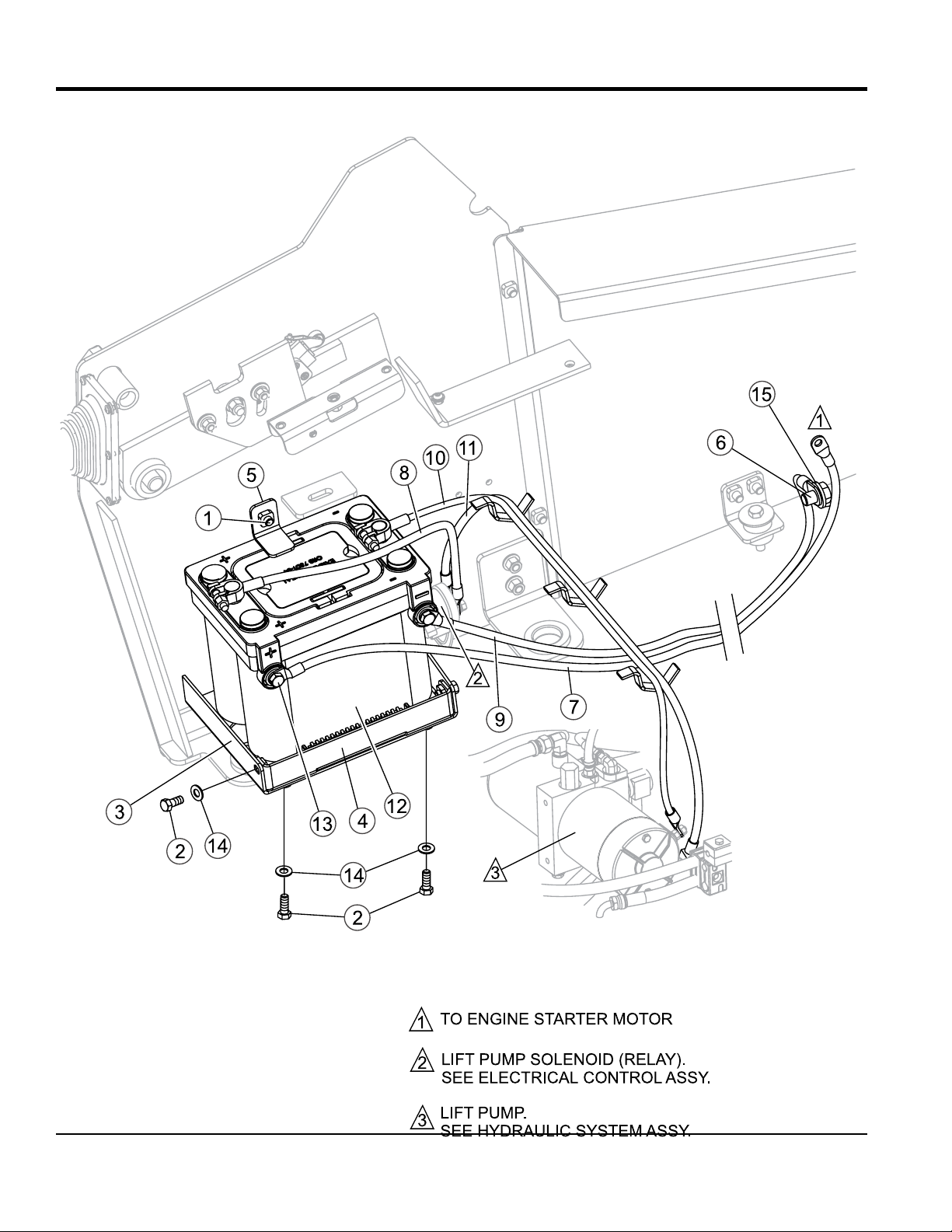

Battery Assembly.....................................................30-31

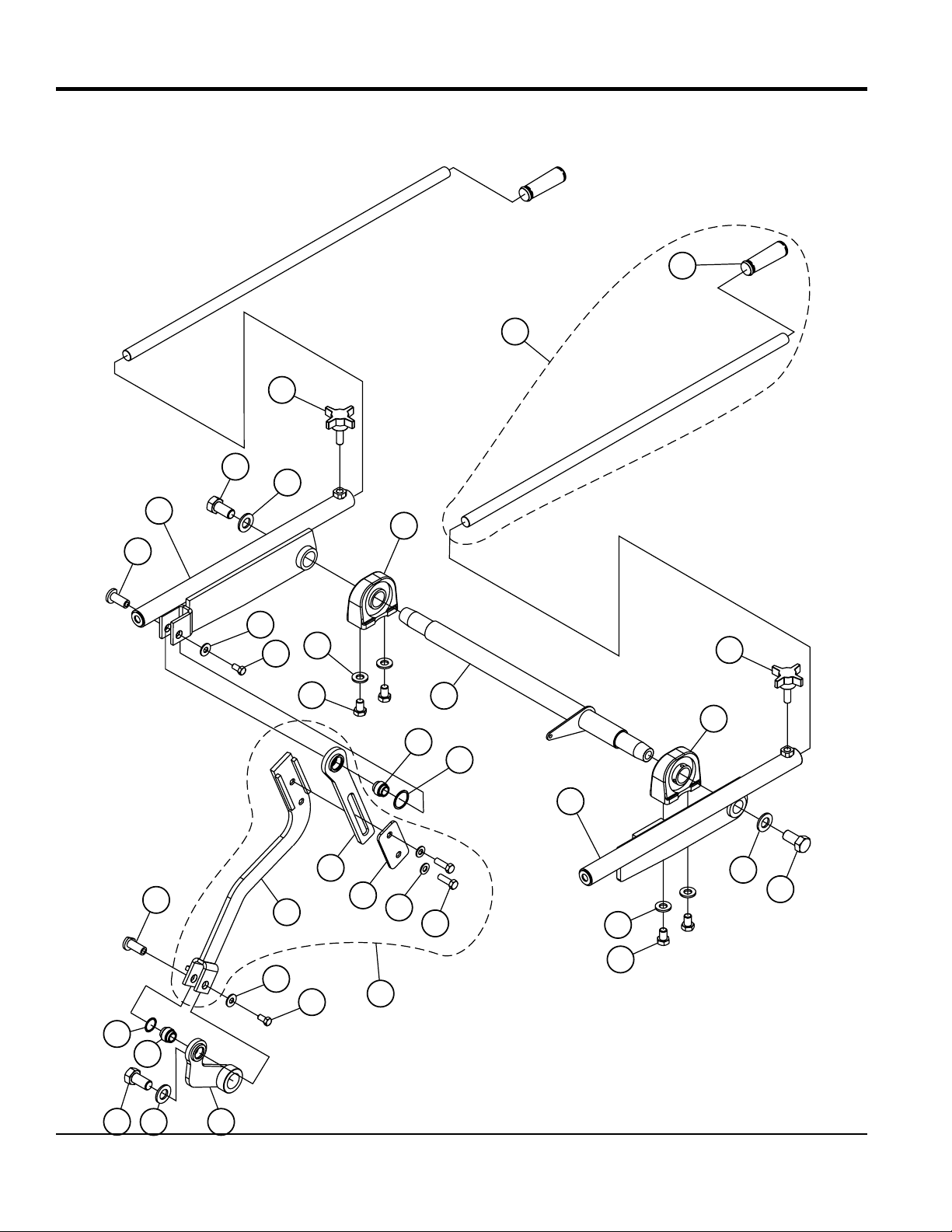

Stay-Level Handlebars Assembly ............................32-33

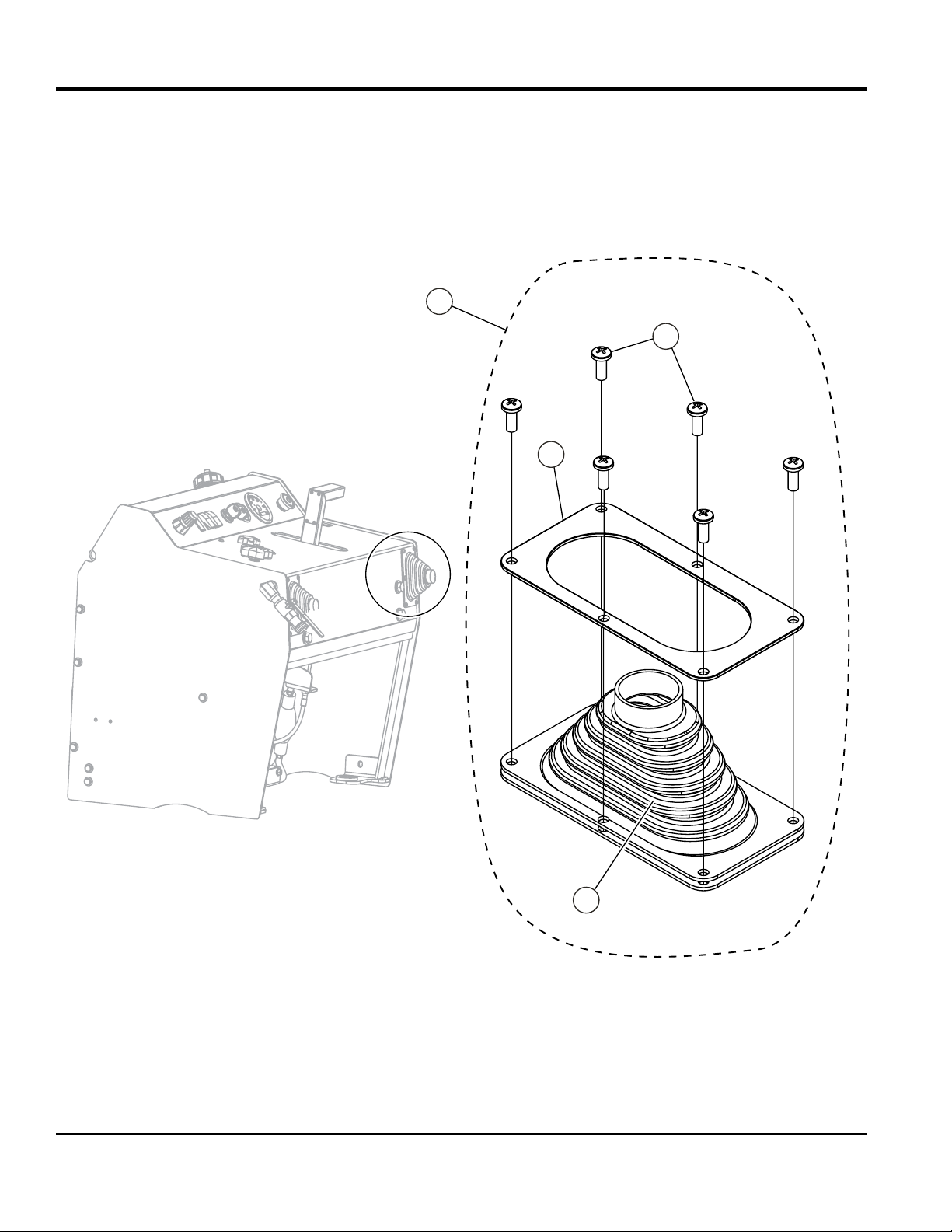

Handlebar Boot Assembly .......................................34-35

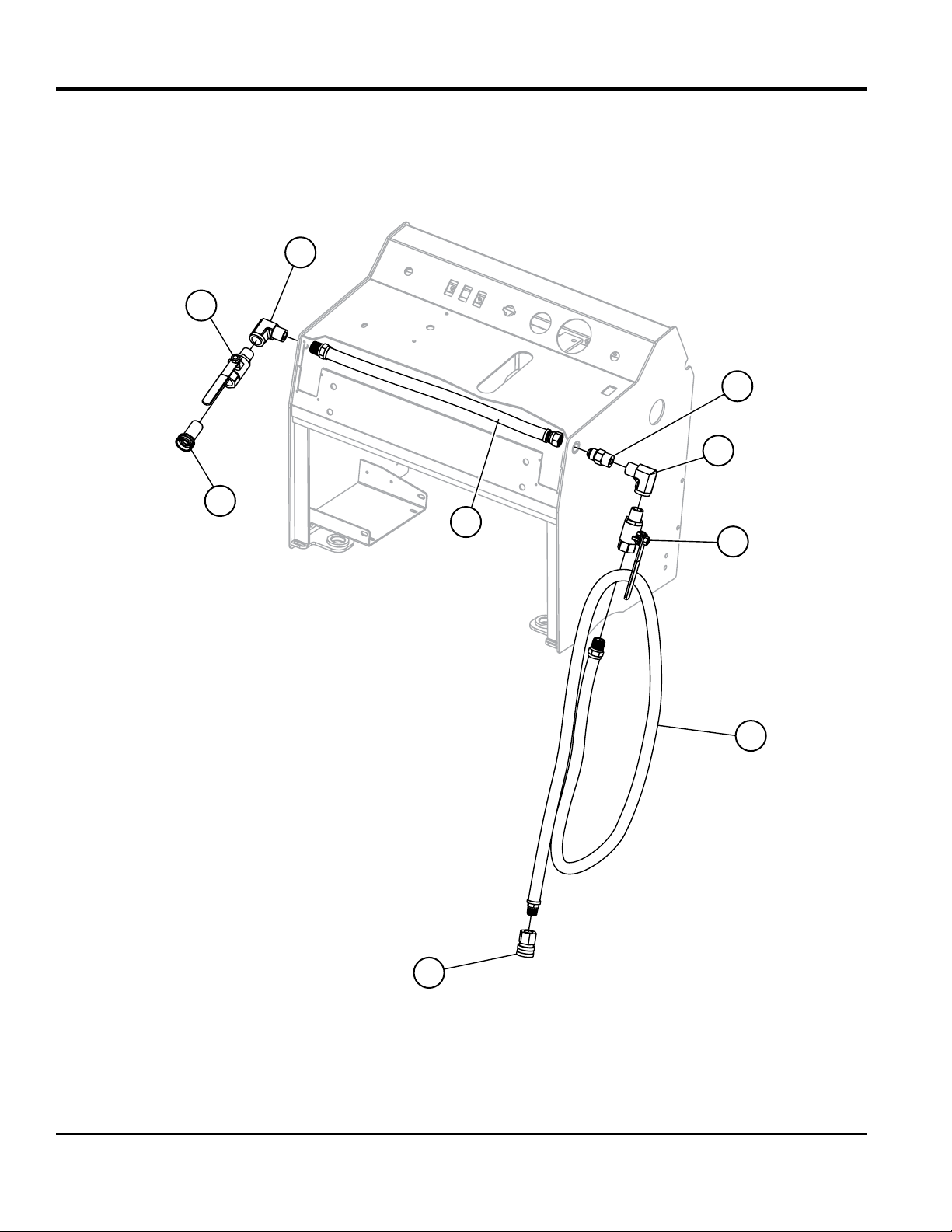

Water System Assembly ..........................................36-37

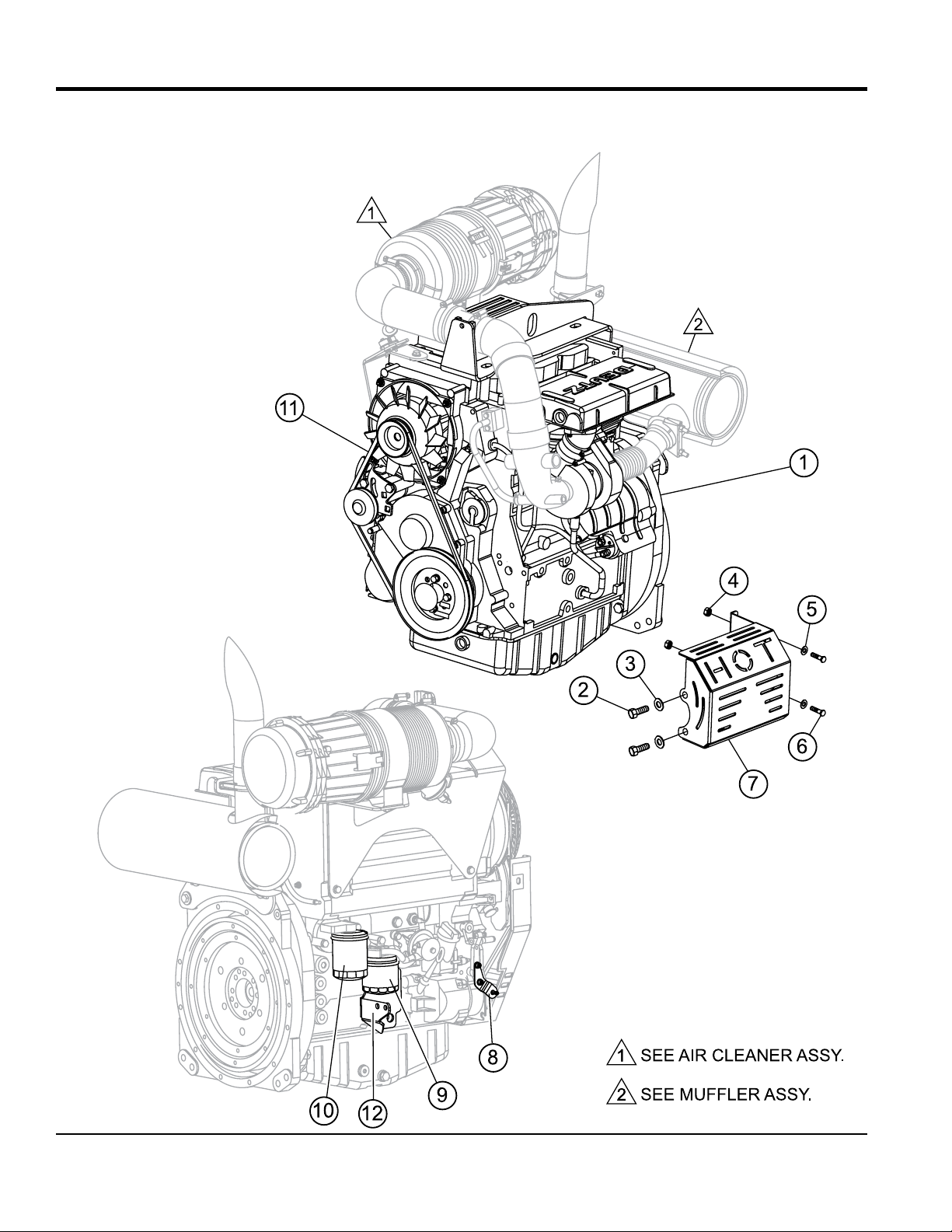

Engine Assembly .....................................................38-39

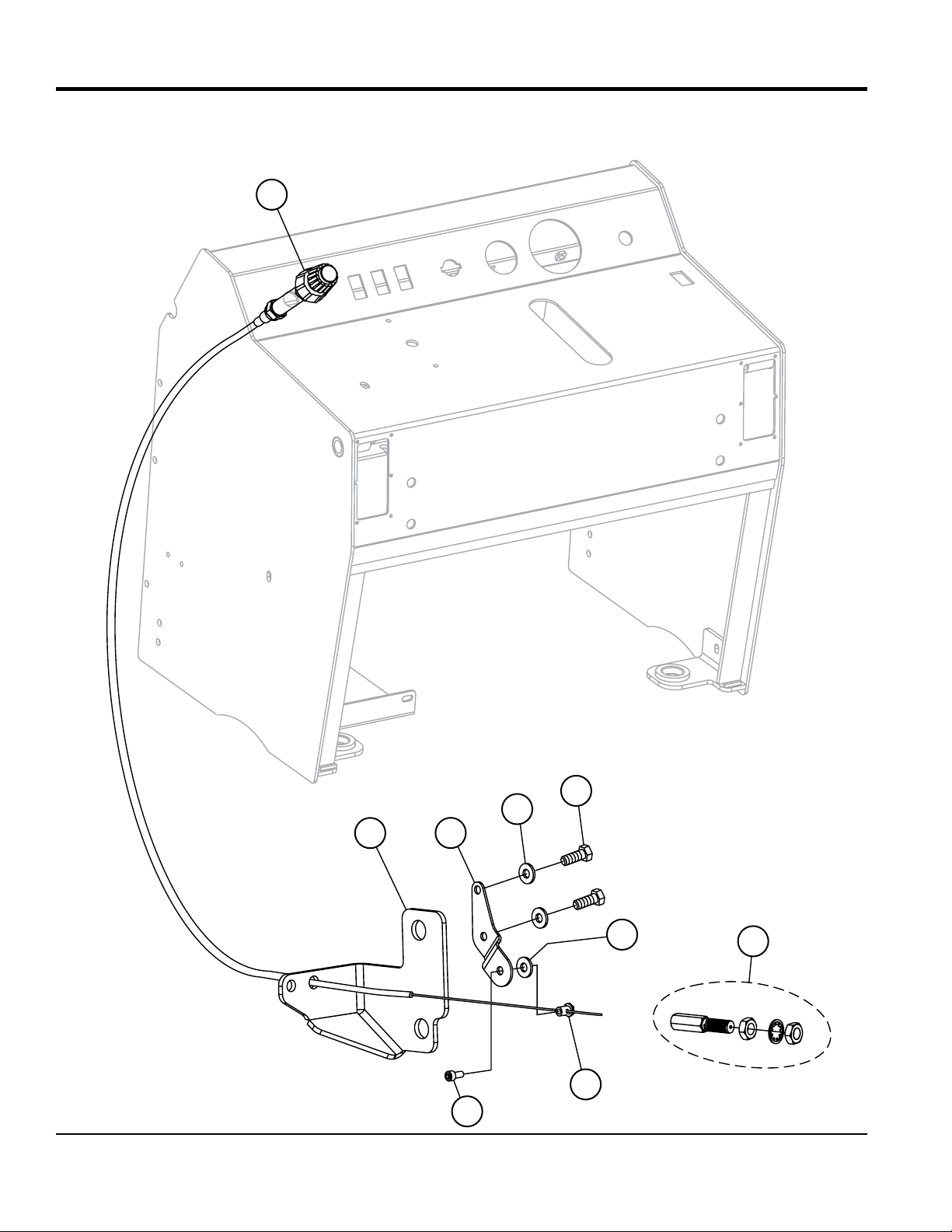

Throttle Control Assembly .......................................40-41

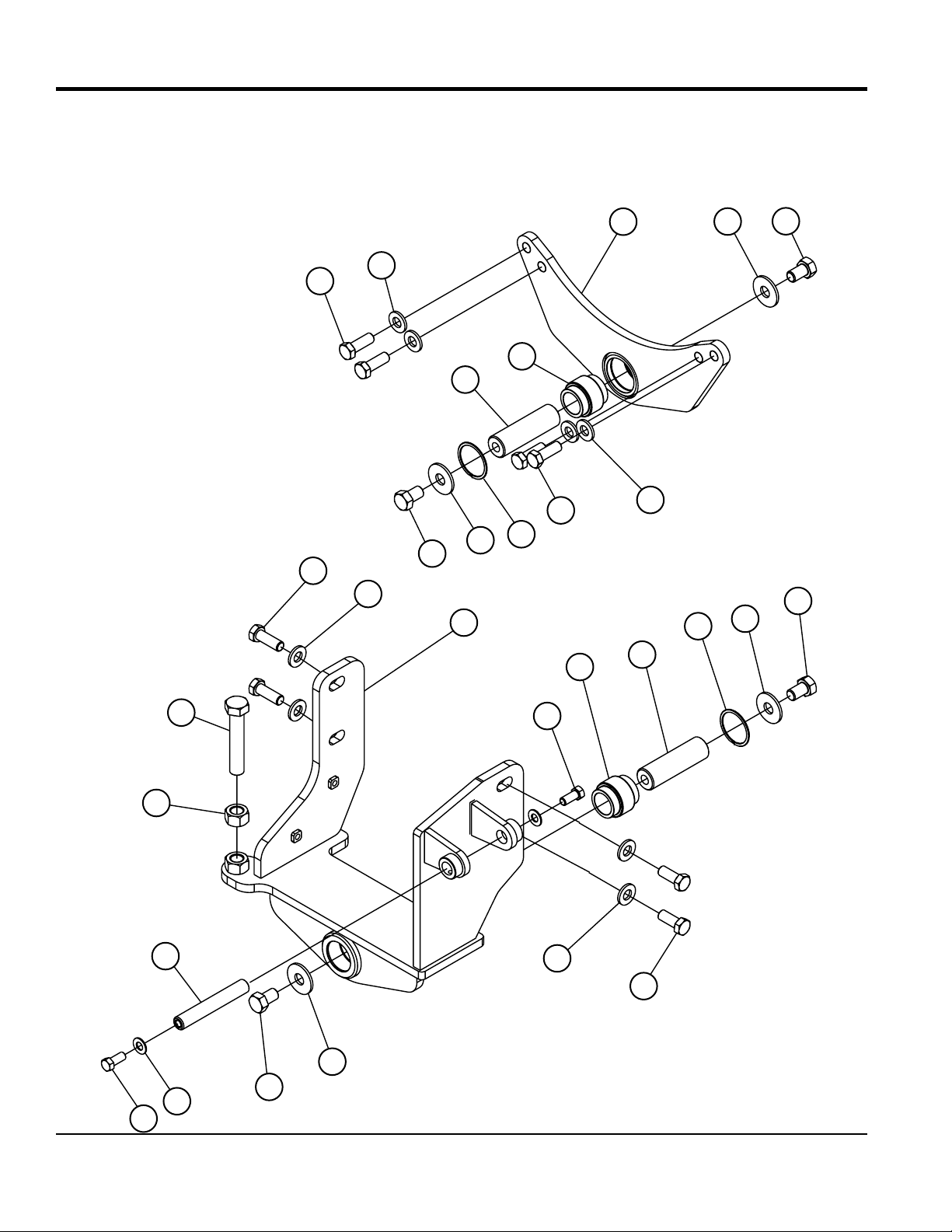

Engine Mounts Assembly ........................................42-43

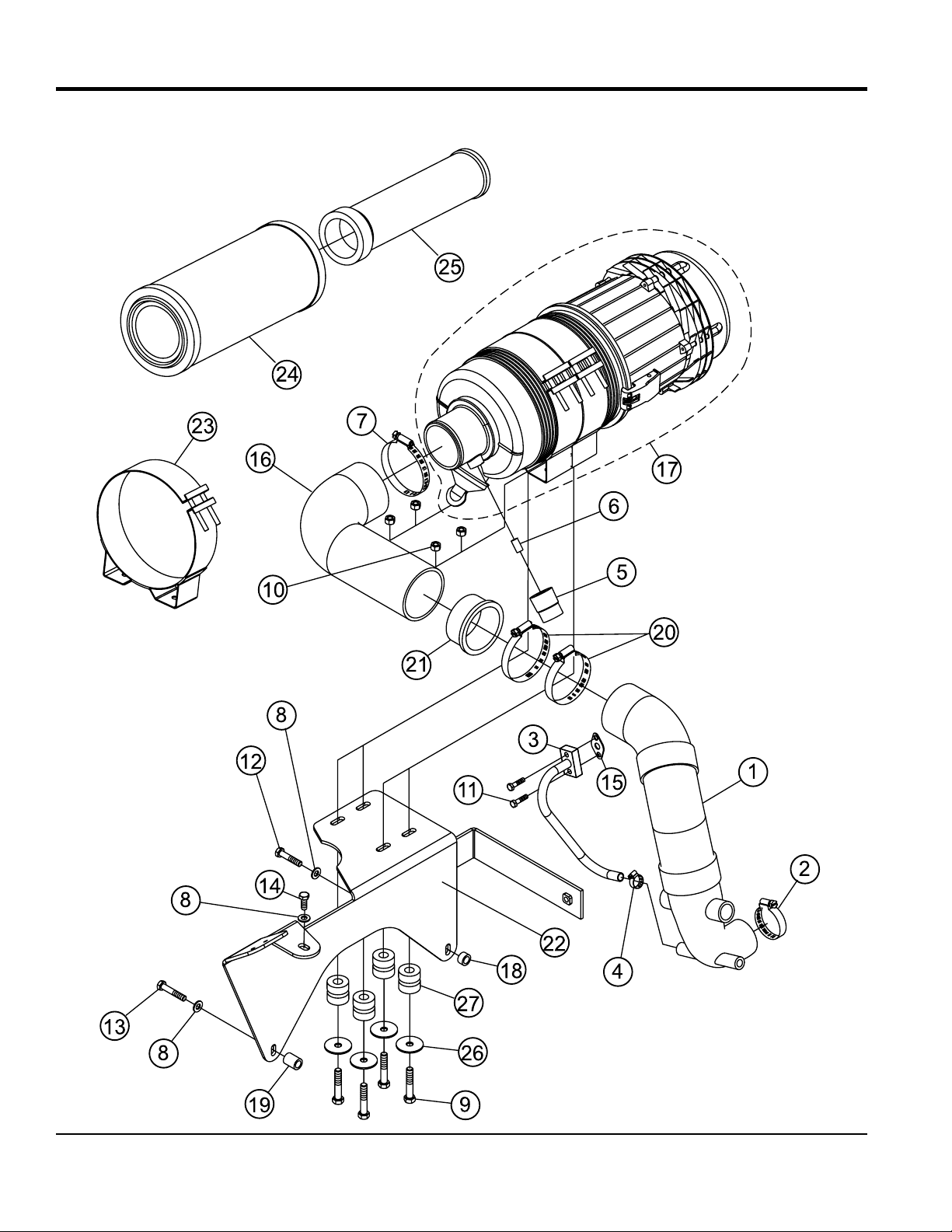

Air Cleaner Assembly ..............................................44-45

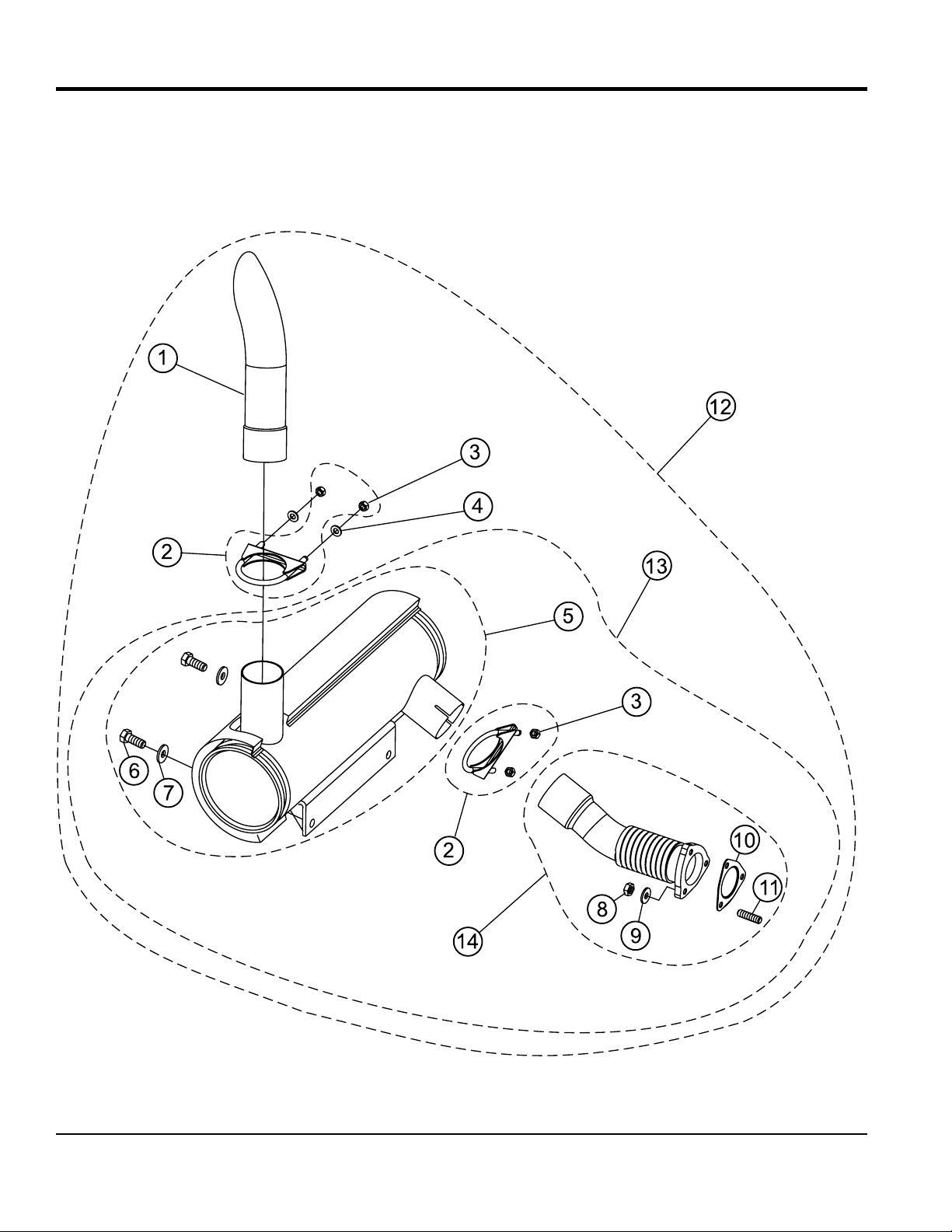

Muffler Assembly .....................................................46-47

Lift Bail Assembly ....................................................48-49

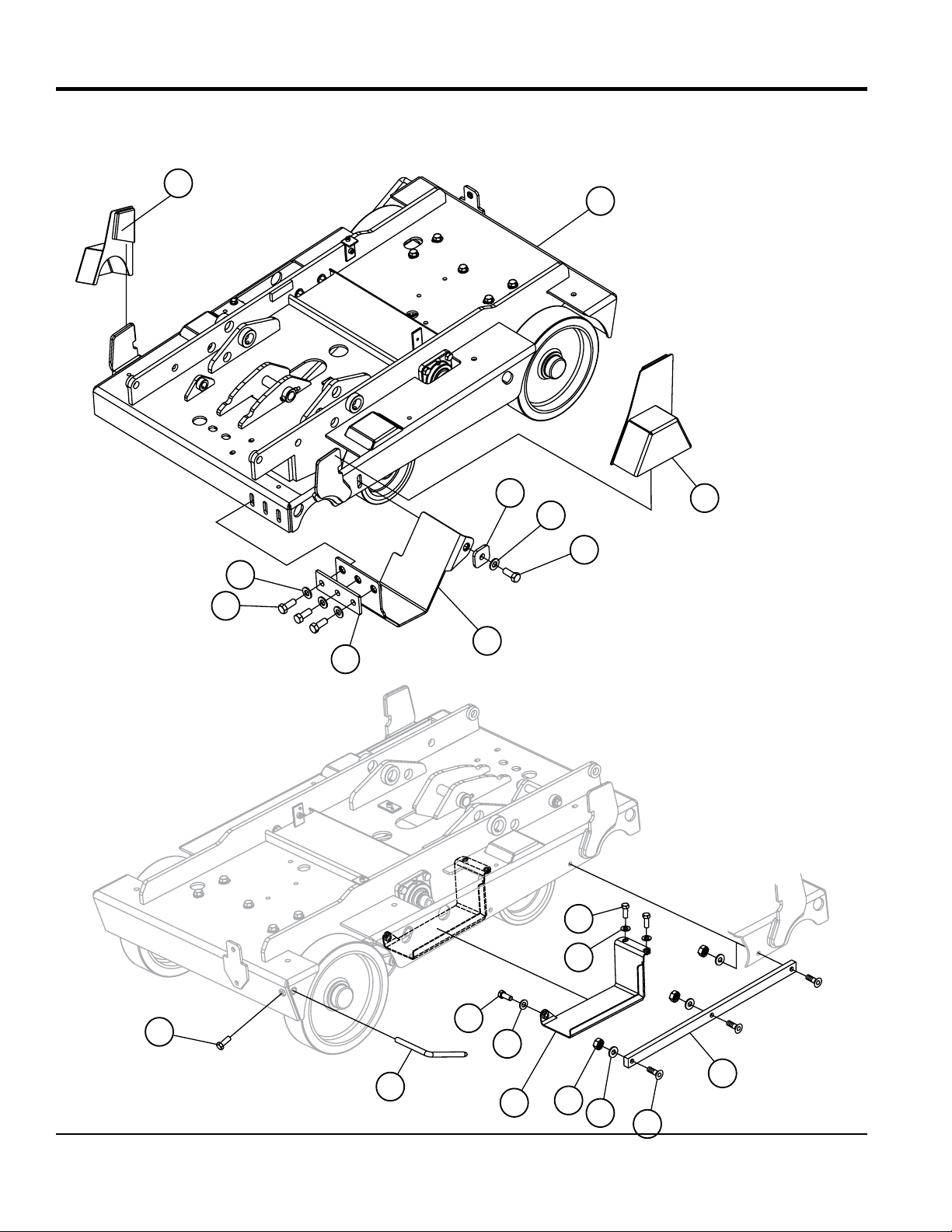

Platform Guards/Rear Pointer Assembly .................50-51

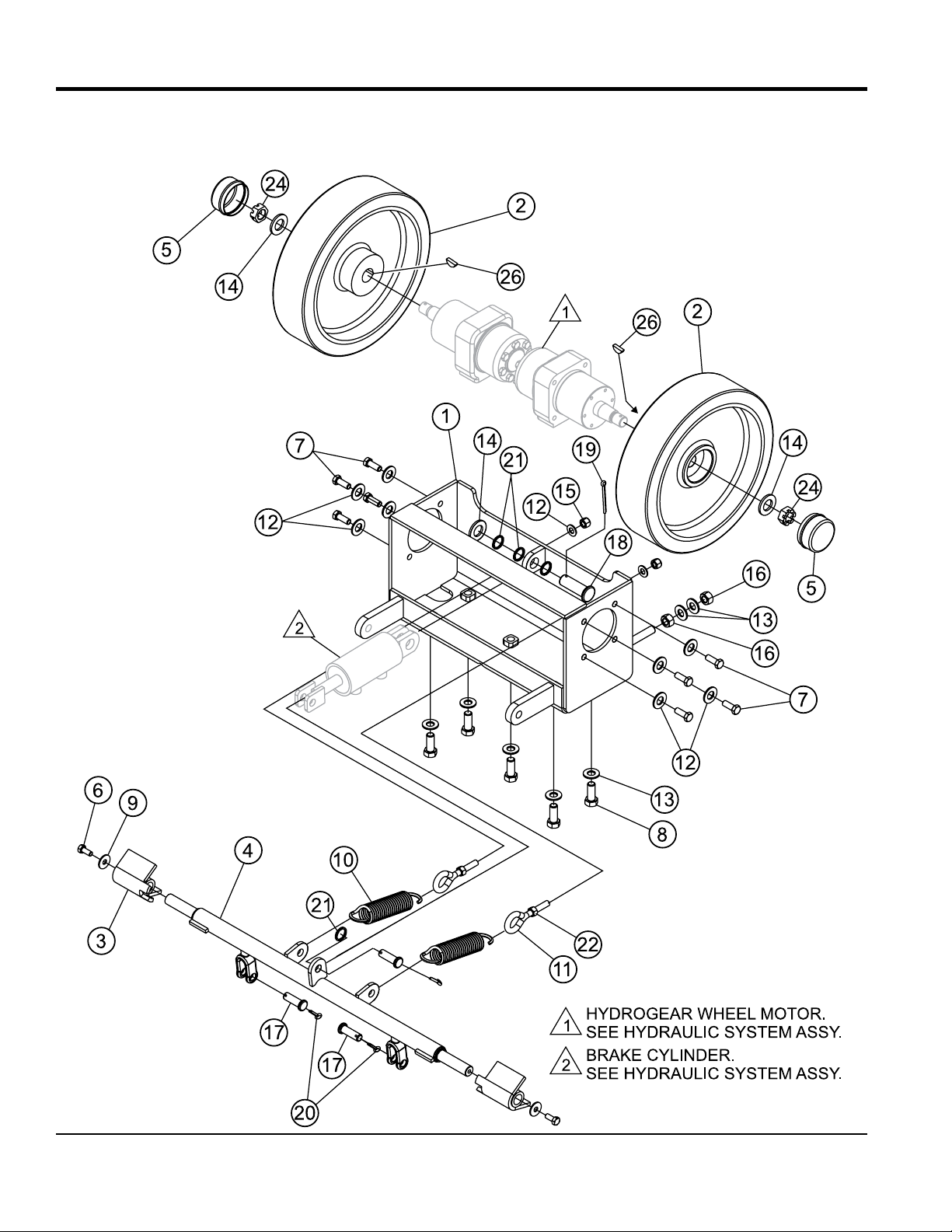

Wheel Drive Assembly ............................................52-53

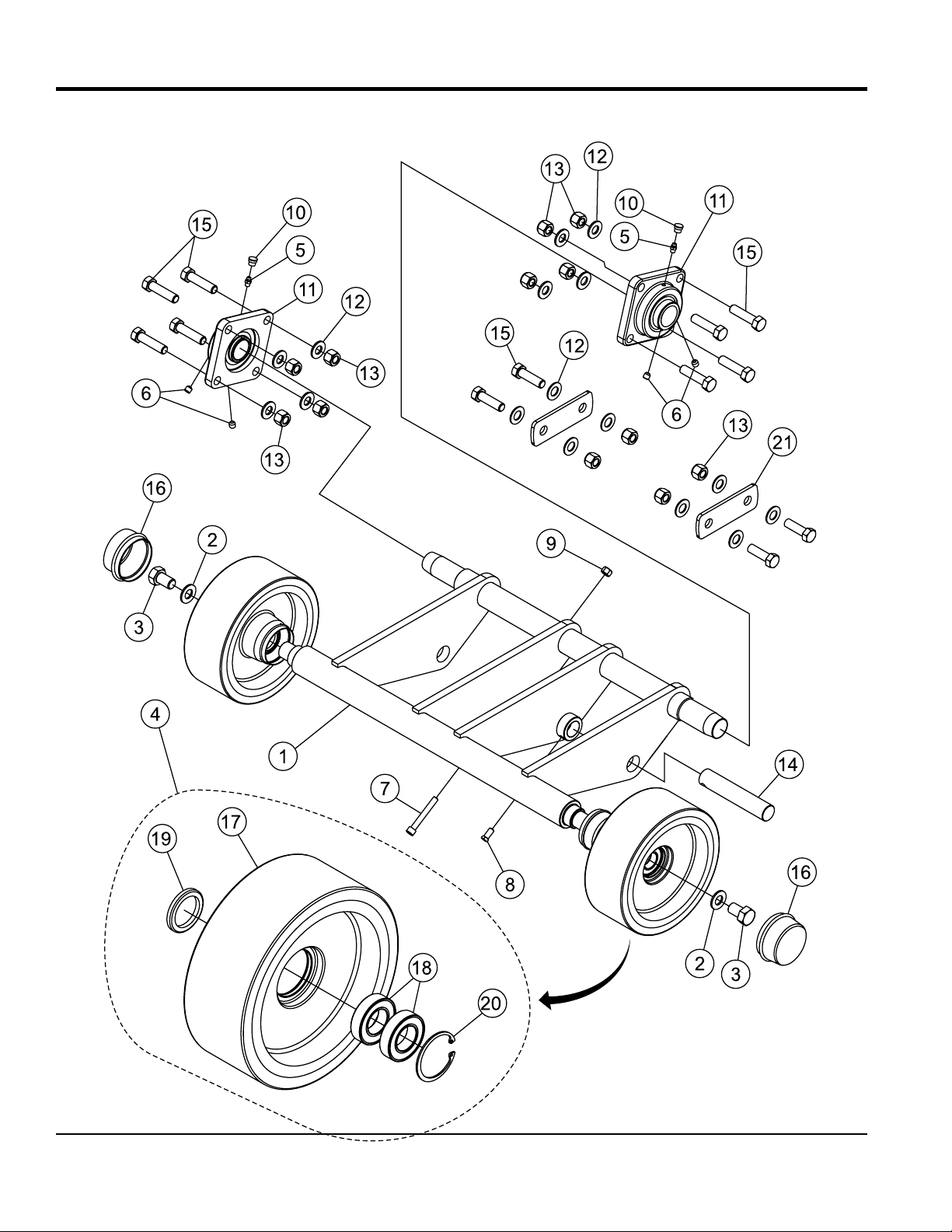

Front Axle Assembly ................................................54-55

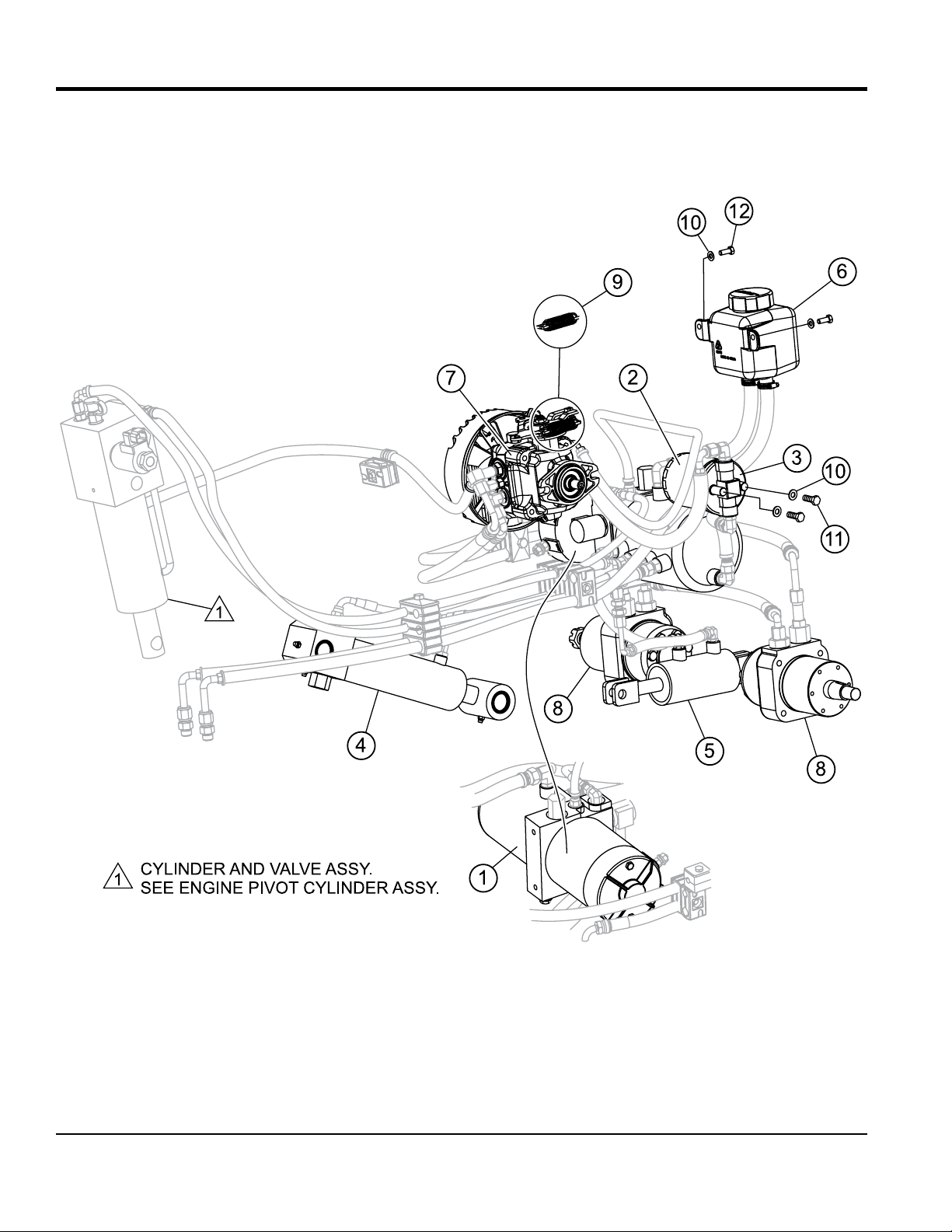

Hydraulic System Assembly ....................................56-57

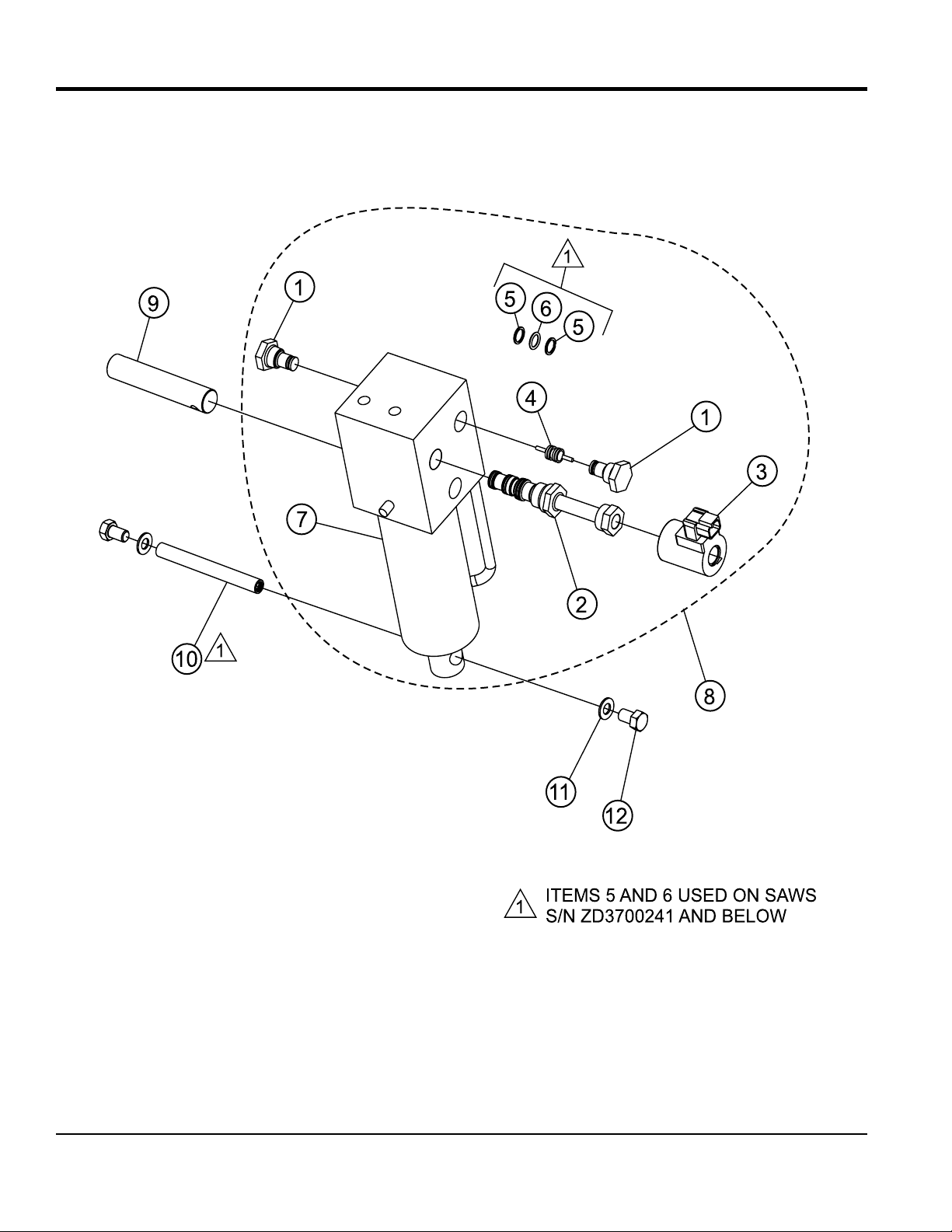

Engine Pivot Cylinder Assembly ..............................58-59

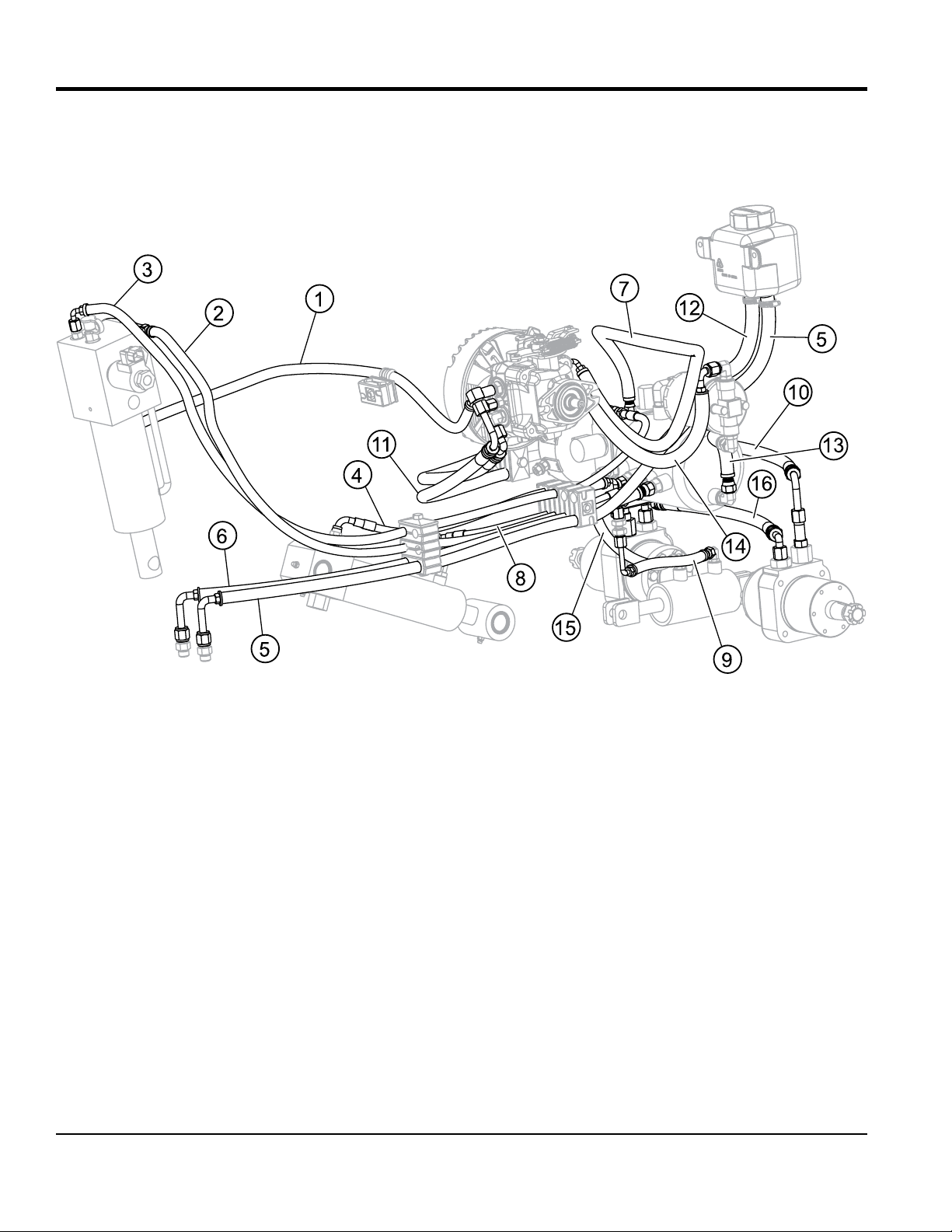

Hydraulic Hoses Assembly ......................................60-61

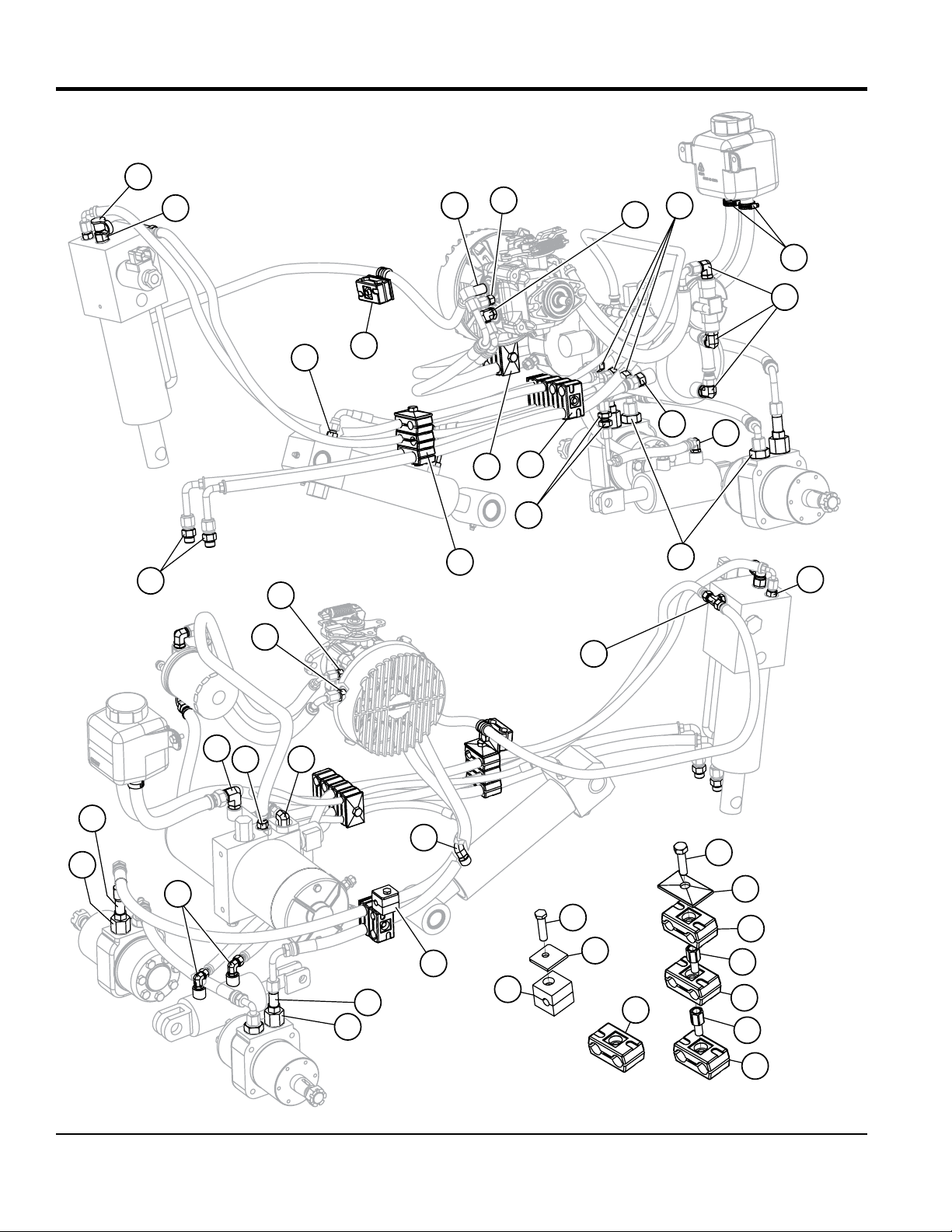

Hydraulic Fttings and Clamps Assembly .................62-63

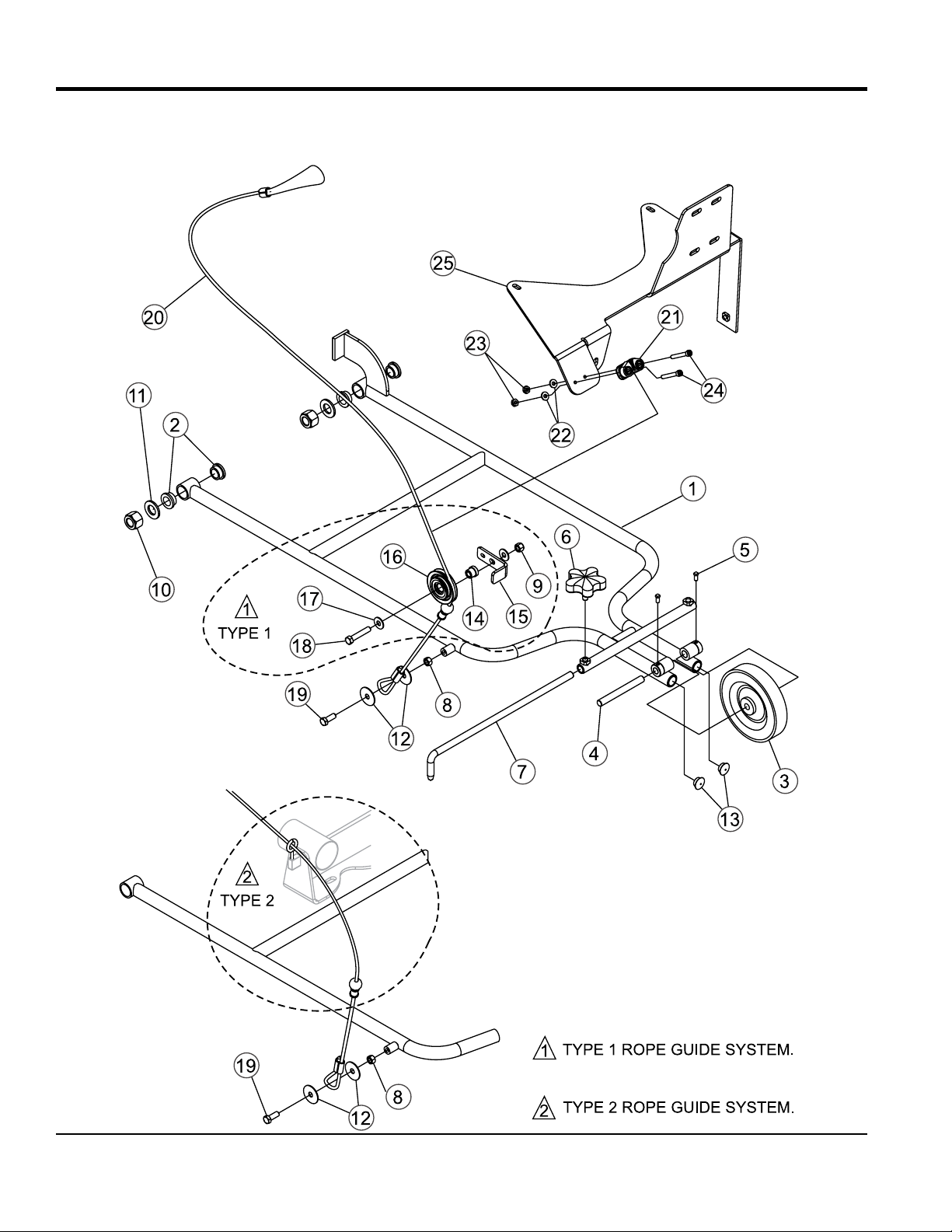

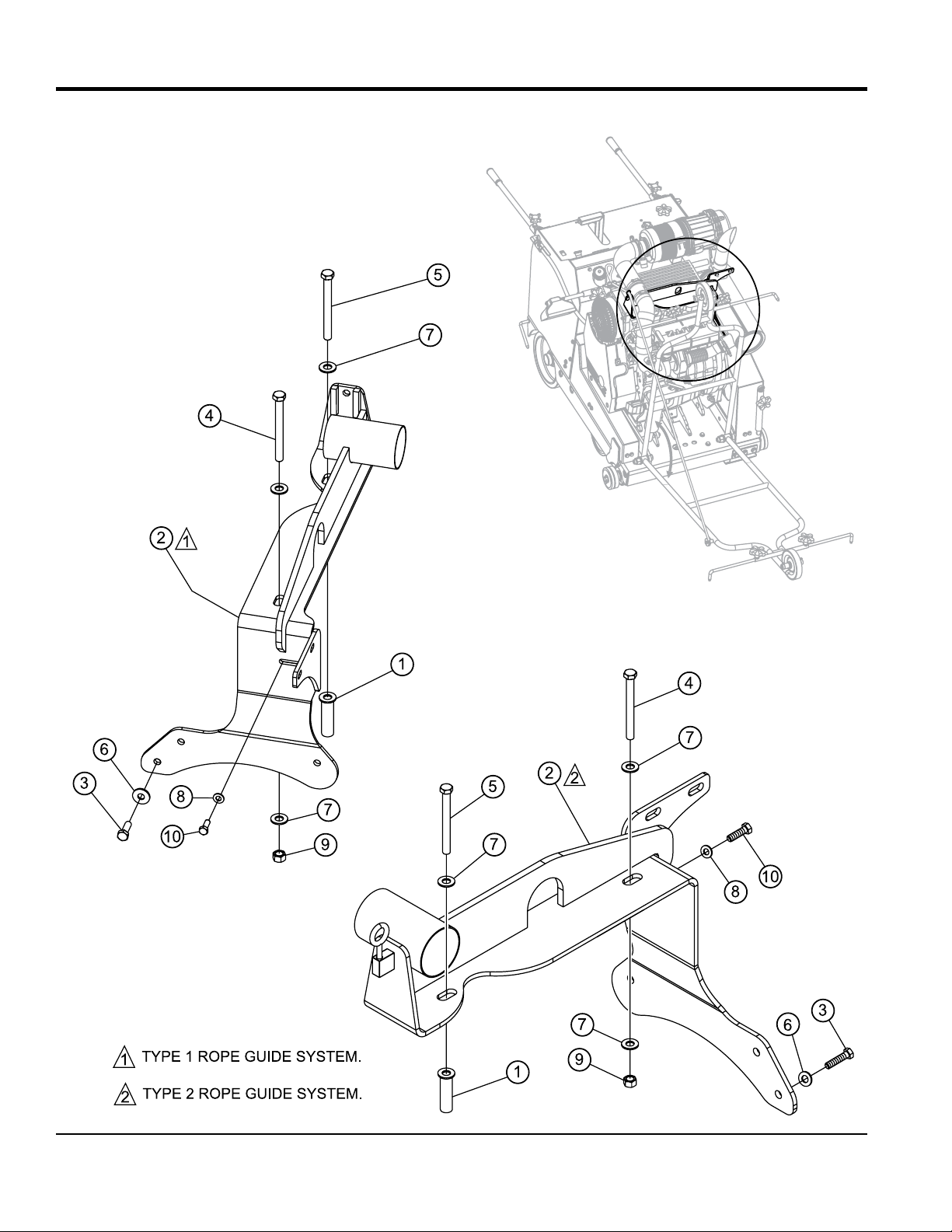

Front Pointer Assembly ............................................64-65

Belt Drive Assembly ................................................66-69

Drive Pulley Assembly .............................................70-71

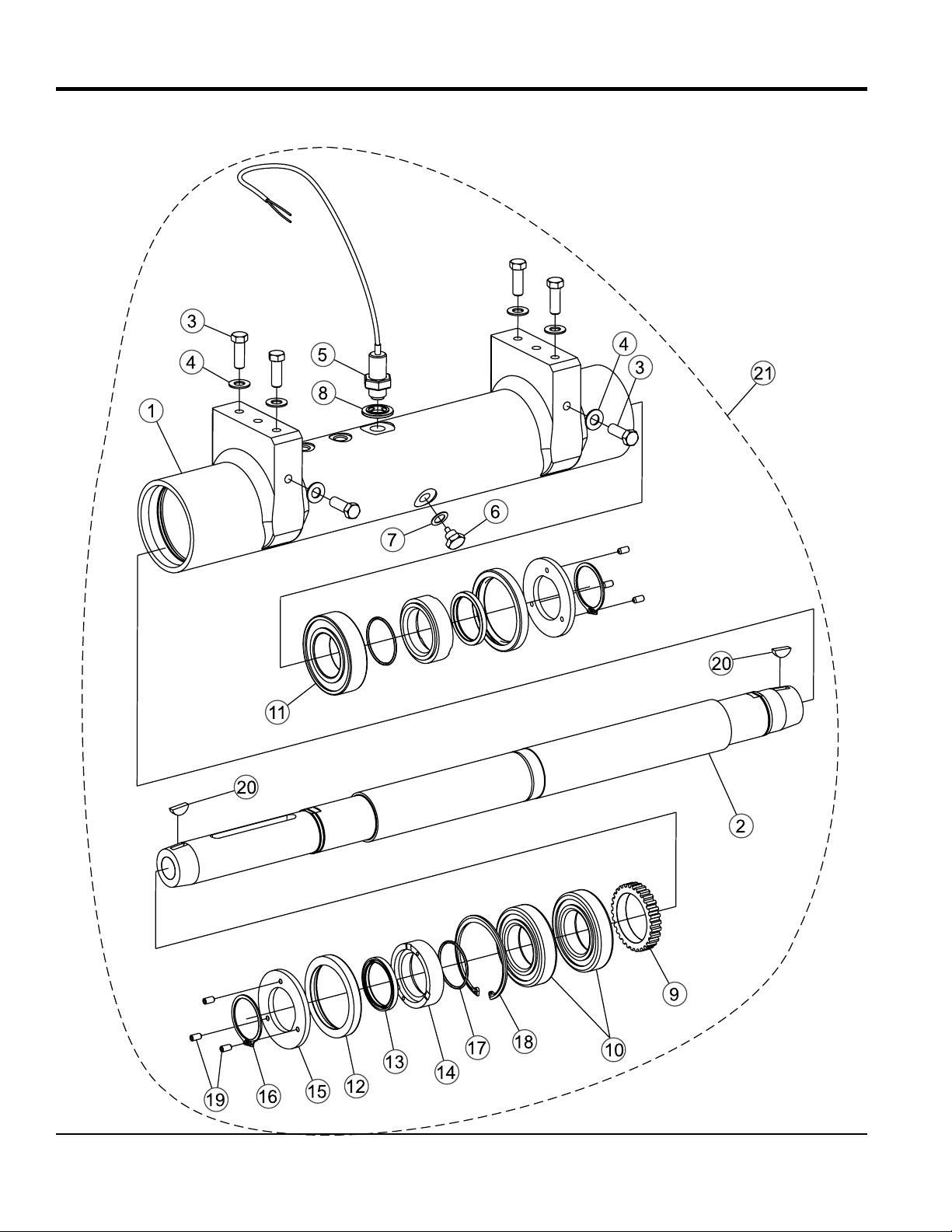

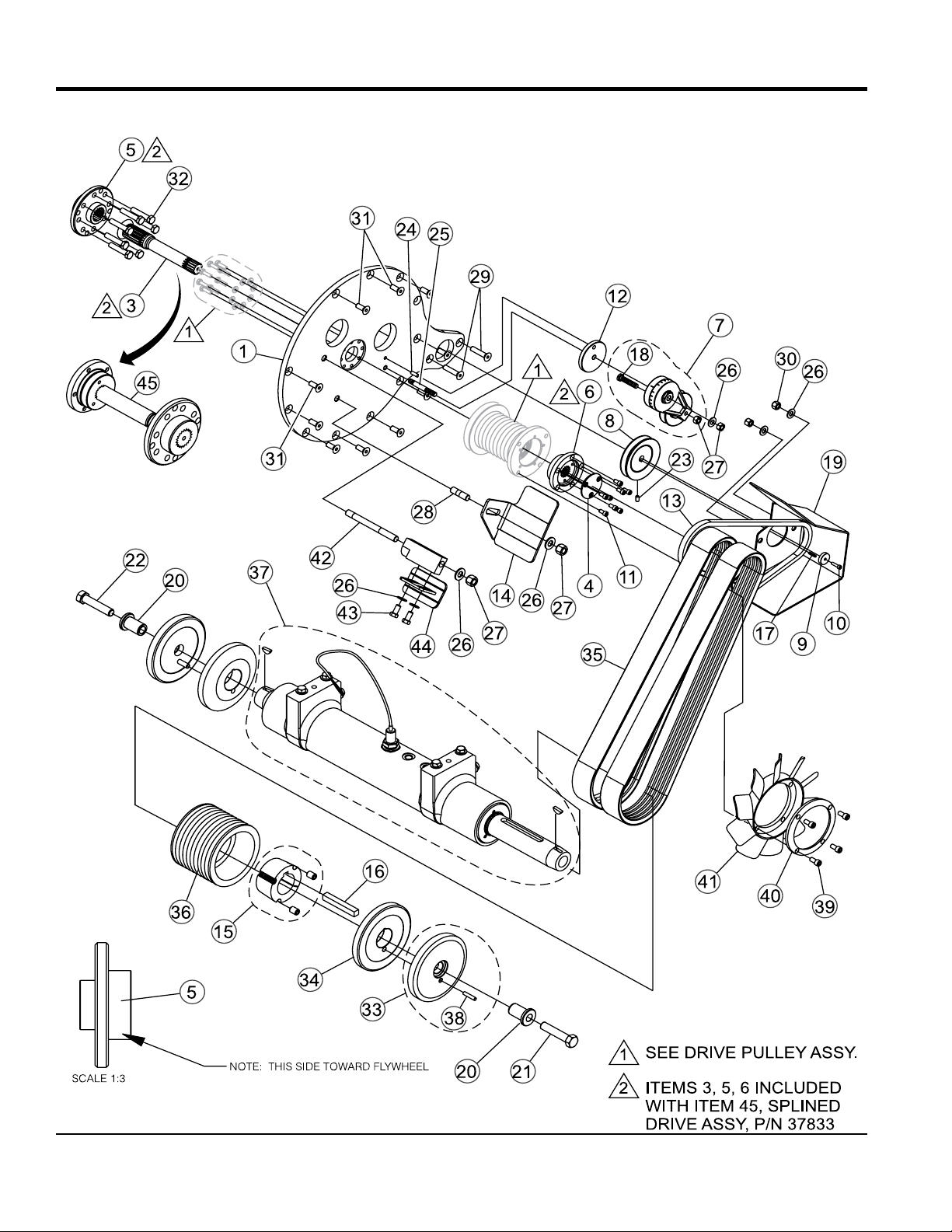

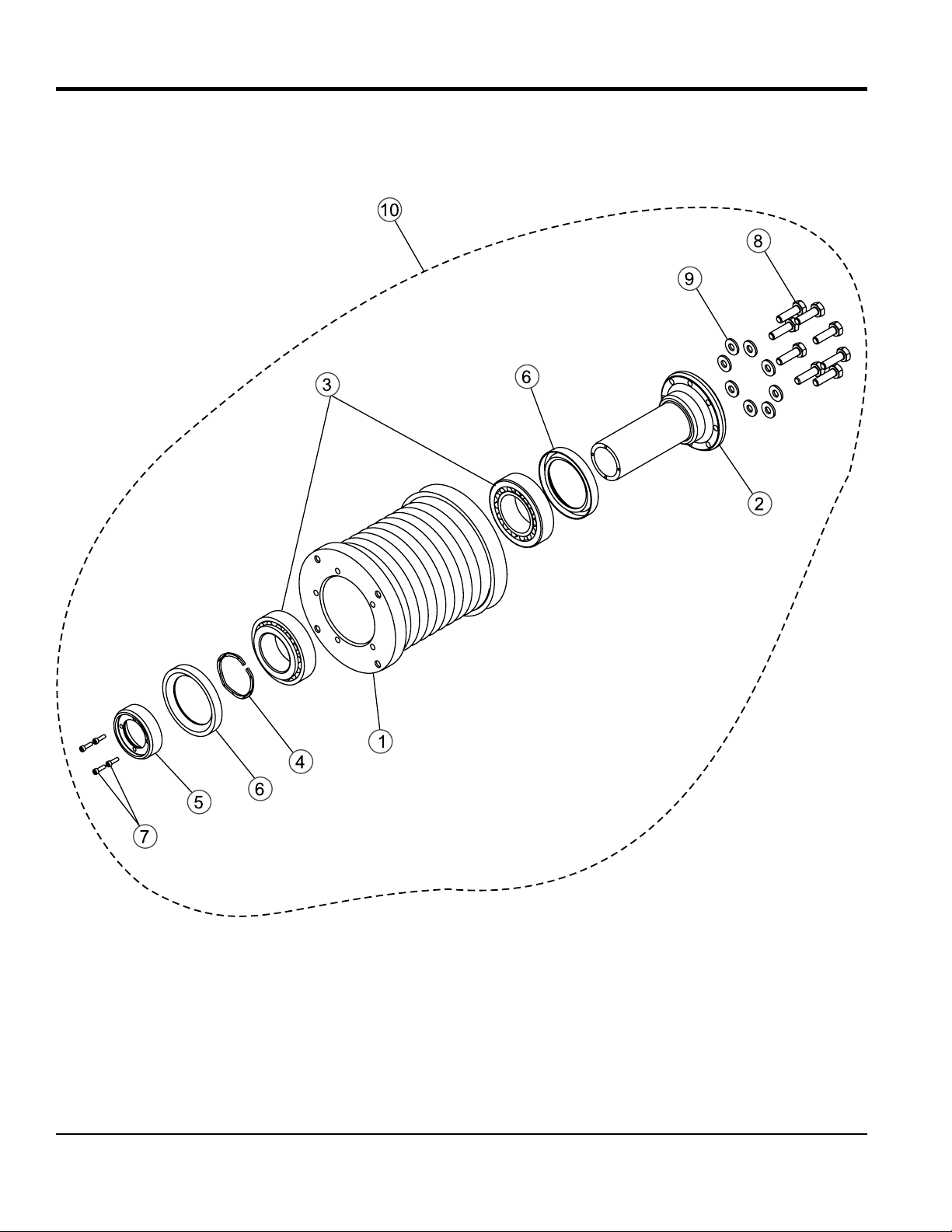

Bladeshaft Assembly ...............................................72-73

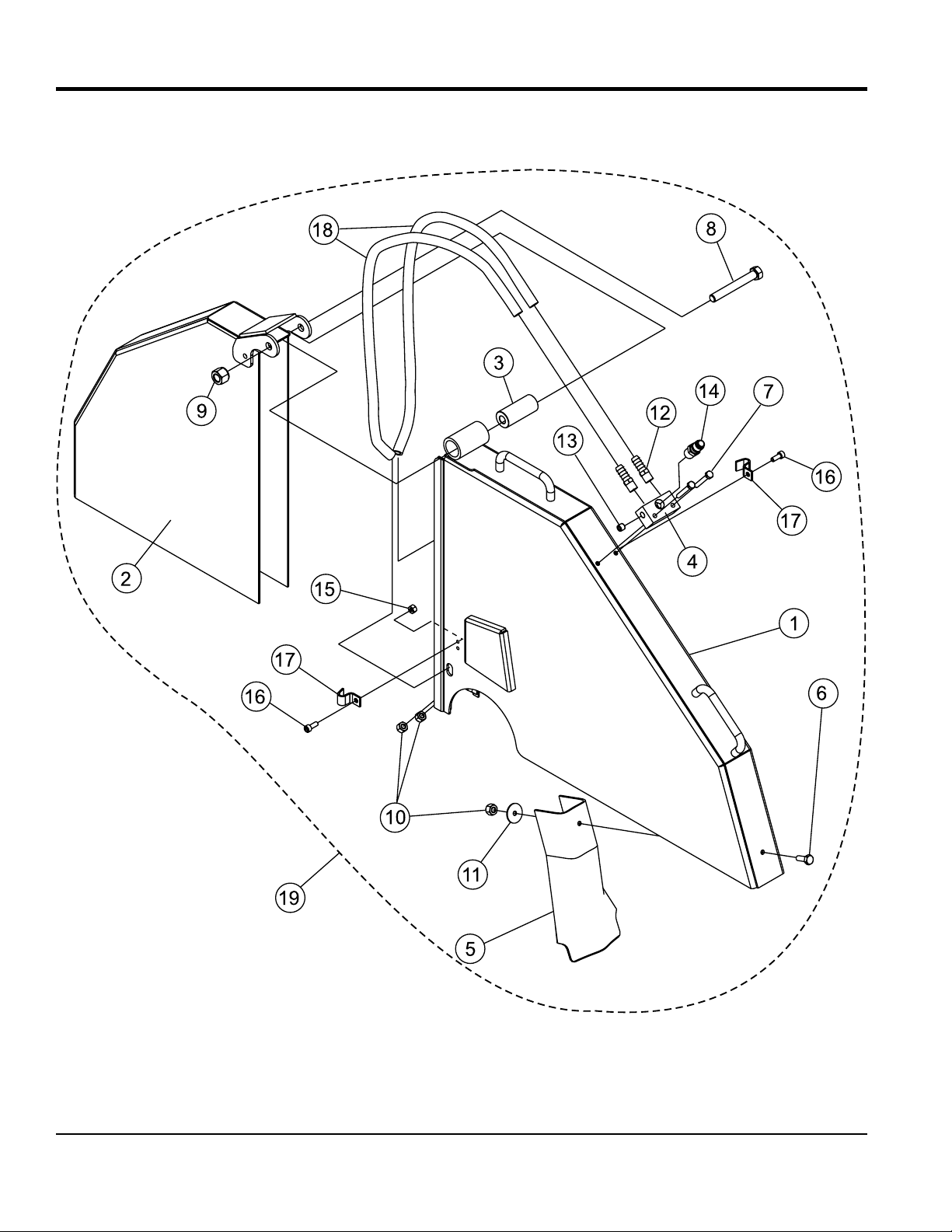

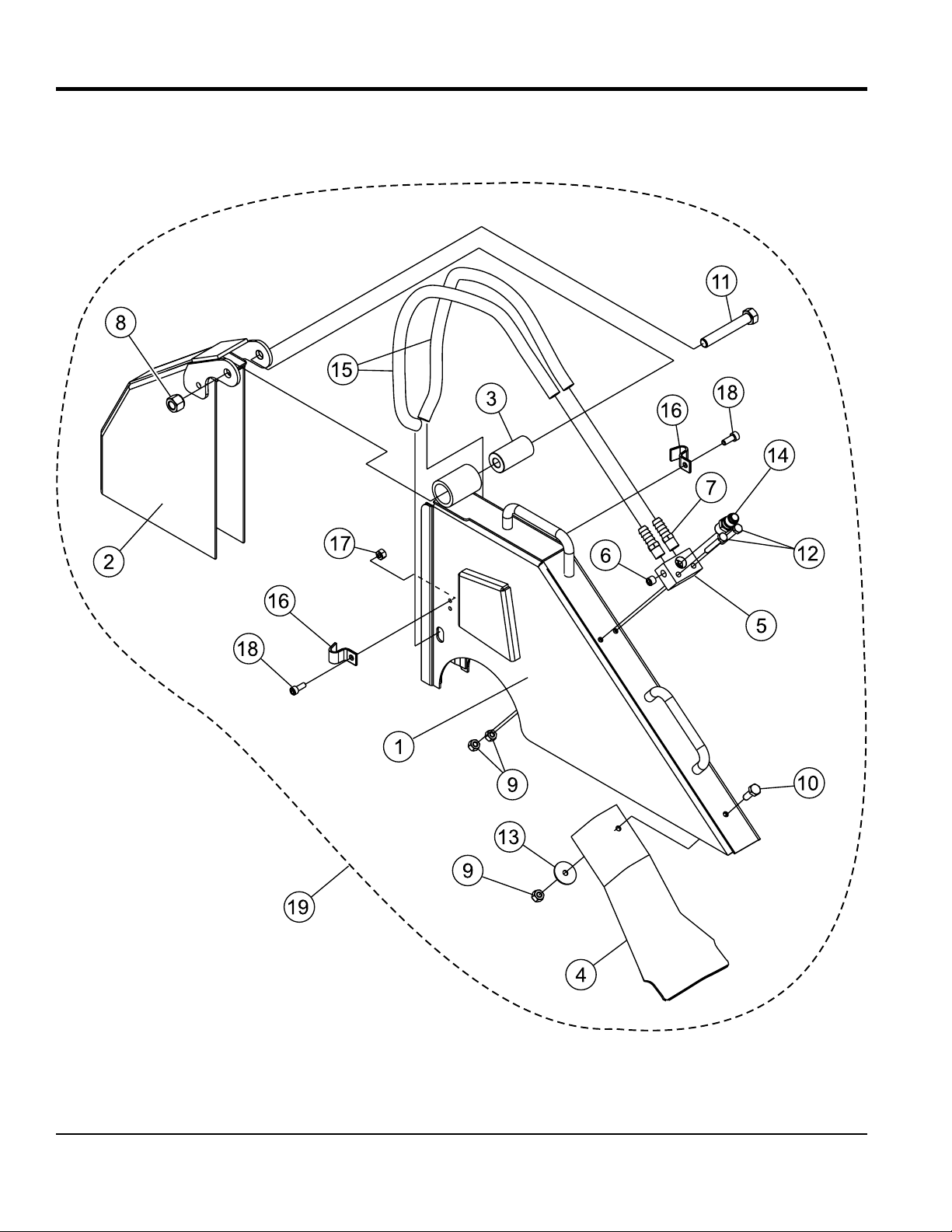

16", 20", 26" Bladeguard Assembly ........................74-75

30", 36" Bladeguard Assembly ...............................76-77

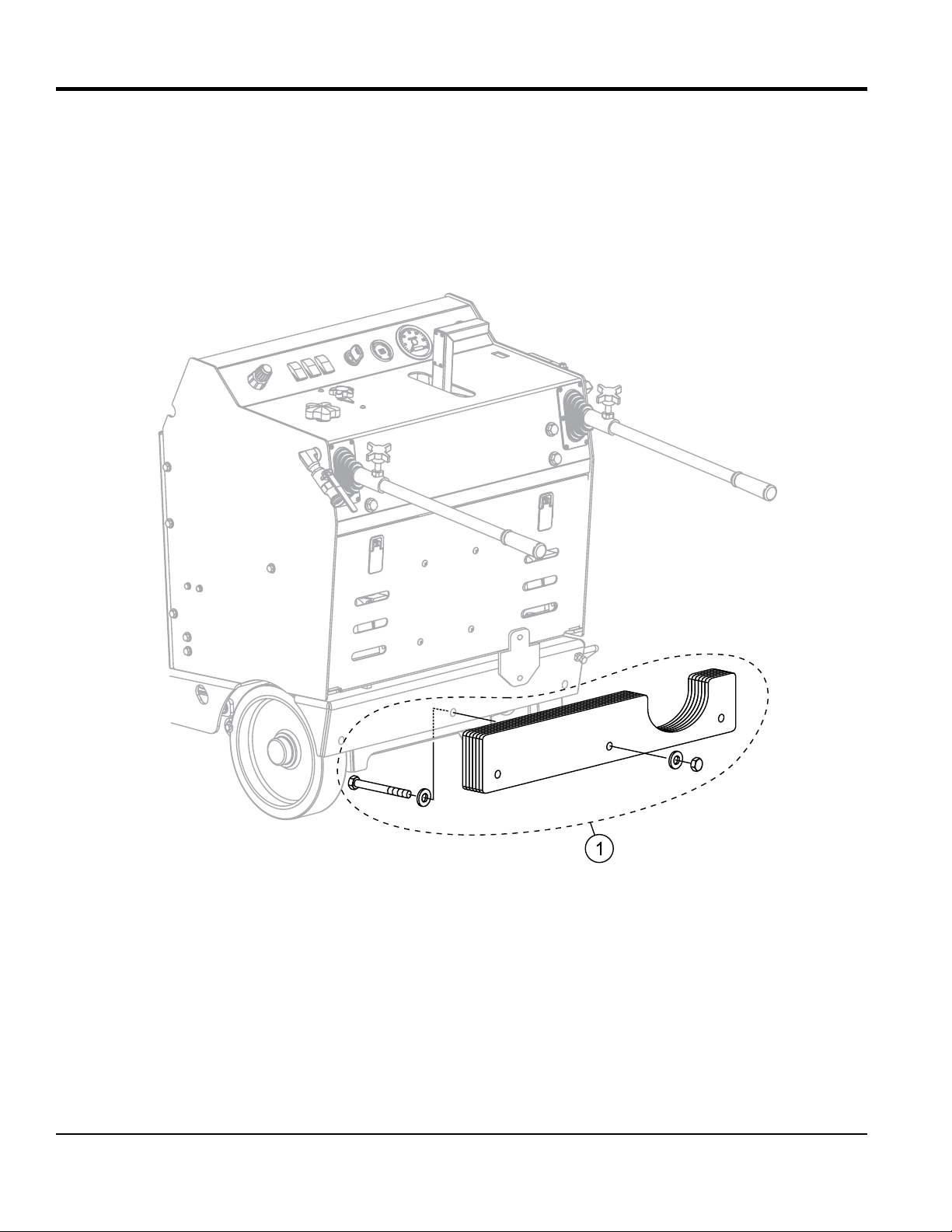

Optional Weight Kit Assembly ..................................78-79

TABLE OF CONTENTS

NOTICE

Specification and part number are subject to change
without notice

.

Terms and Conditions of Sale — Parts ......................... 80

PAGE 4 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

PARTS ORDERING PROCEDURES

Ordering parts has never been easier!

If you have an MQ Account, to obtain a Username

Effective:

Choose from three easy options:

January 1st, 2006

Best Deal!

Order via Internet (Dealers Only):

Order parts on-line using Multiquip’s SmartEquip website!

■ View Parts Diagrams

■ Order Parts

■ Print Specification Information

Goto www.multiquip.com and click on

Order Parts

to log in and save!

Order via Fax (Dealers Only):

All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)

Order via Phone:

Non-Dealer Customers:

Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.

and Password, E-mail us at: parts@multiquip.

com.

To ob tain an MQ Acc ou nt, co nt ac t yo ur
District Sales Manager for more information.

Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*

Fax your order in and qualify for a 2% Discount
on Standard orders for all orders which include
complete part numbers.*

Domestic (US) Dealers Call:

1-800-427-1244

International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.

Note: Discounts Are Subject To Change

Note: Discounts Are Subject To Change

❒ Dealer Account Number
❒ Dealer Name and Address
❒ Shipping Address (if different than billing address)
❒ Return Fax Number
❒ Applicable Model Number
❒ Quantity, Part Number and Description of Each Part

www.multiquip.com

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 5

When ordering parts, please supply:

❒ Specify Preferred Method of Shipment:
✓ UPS/Fed Ex ✓ DHL

■ Priority One ✓ Truck

■ Ground

■ Next Day

■ Second/Third Day

NOTICE

All orders are treated as Standard Orders and will

ship the same day if received prior to 3PM PST.

WE ACCEPT ALL MAJOR CREDIT CARDS!

EXPLANATION OF CODE IN REMARKS COLUMN

The following section explains the different symbols and

QTY. Column

— Item quantity can be indicated by a

A/R (As Required) is generally used for hoses or other

A blank entry generally indicates that the item is not sold
separately. Other entries will be clarified in the “Remarks”

Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed

same unique symbol will be included when this item is

— Used to list an effective serial

— Indicates that the part

part is NOT used on a specific model or model number

available items. Examples include battery cables, shims,

— Indicates that an item cannot
be purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available

remarks used in the Parts section of this manual. Use the
help numbers found on the back page of the manual if there
are any questions.

Numbers Used

number, a blank entry, or A/R.

NOTICE

The contents and part numbers listed in the parts
section are subject to change without notice. Multiquip
does not guarantee the availability of the parts listed.

SAMPLE PARTS LIST

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%

2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY

2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY

3 12348 HOSE ..................A/R ...MAKE LOCALLY

4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE

NO. Column

Unique Symbols — All items with same unique

symbol

(@, #, +, %, or >) in the number column belong to the
same assembly or kit, which is indicated by a note in the
“Remarks” column.

Duplicate Item Numbers — Duplicate numbers indicate
multiple part numbers, which are in effect for the same
general item, such as different size saw blade guards in
use or a part that has been updated on newer versions
of the same machine.

NOTICE

When ordering a part that has more than one item
number listed, check the remarks column for help in
determining the proper part to order.

parts that are sold in bulk and cut to length.

Column.

REMARKS Column

to describe the item can also be shown.

Assembly/Kit — All items on the parts list with the

purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

Serial Number Break

number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”

Specific Model Number Use

is used only with the specific model number or model
number variant listed. It can also be used to show a

variant.

Indicated by:

PART NO. Column

Numbers Used — Part numbers can be indicated by a

number, a blank entry, or TBD.

TBD (To Be Determined) is generally used to show a
part that has not been assigned a formal part number
at the time of publication.

A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will
be clarified in the “Remarks” Column.

PAGE 6 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

“XXXXX ONLY”
“NOT USED ON XXXX”

“Make/Obtain Locally” — Indicates that the part can
be purchased at any hardware shop or made out of

and certain washers and nuts.

“Not Sold Separately”

for sale through Multiquip.

SUGGESTED SPARE PARTS

SP7060 SAW

1 TO 3 UNITS WITH DEUTZ TURBO DIESEL ENGINE

Qty. P/N Description

1.........37094 ...................SWITCH, TOGGLE F-N-R

1.........37203 ...................SWITCH, ROLLER PLUNGER

2.........406000 .................SWITCH, ROCKER

2.........37132 ...................FRONT WHEEL ASSEMBLY

2.........37095 ...................REAR WHEEL

1.........29509 ...................CAP, FUEL TANK

2.........560017 .................GRIPS, HANDLEBAR

1.........H9406 ...................BULB, GE H9406

1.........15503 ...................KNOB, COMFORT

1.........37311 ...................BALL VALVE, WATER SYSTEM

2.........570005 .................CLAMP, MUFFLER

2.........37048 ...................SPRING, WHEEL DRIVE

2.........582012 .................BUSHING, QD

2.........915316 .................SCREW, 5/8 - 11 X 3 LH GR8

2.........915315 .................SCREW, 5/8 - 11 X 3 GR8

1.........574003 .................ROPE, POINTER

1.........37212 ...................THROTTLE ASSEMBLY

2.........200019 .................MUDFLAP, BLADEGUARD

FOR SAWS WITH 16", 20", AND 26" BLADEGUARDS

2 ........37168 ...................FLANGE, INNER 5.0"

2.........37169 ...................FLANGE ASSEMBLY, OUTER 5.0"

2.........926790 .................PIN, DOWEL

2.........362000 .................HOSE, WATER #6LP (16" BLADEGUARD)

2.........362005 .................HOSE, WATER #6LP (20" BLADEGUARD)

2.........362006 .................HOSE, WATER #6LP (26" BLADEGUARD)

ENGINE PARTS FOR DEUTZ TURBO DIESEL ENGINE

2.........1174416 ...............OIL FILTER, DEUTZ BF3L2012

2.........304010 .................FUEL FILTER, DEUTZ BF3L2011

2.........P772579 ...............PRIMARY AIR FILTER ELEMENT

2.........P775300 ...............SAFETY AIR FILTER, DEUTZ BF3L2014

2.........21004-003 ............FAN BELT, AX-35

2.........520007 .................DRIVE BELT, 5G 3VX-530

1.........406017 .................IGNITION SWITCH, W/KEY

2.........406017-1 ..............KEY, IGNITION

2.........306006 .................FILTER, TRANSMISSION

...........

FOR SAWS WITH 30" AND 36" BLADEGUARDS

2 ........37177 ...................FLANGE, INNER 6.0"

2.........37176 ...................FLANGE ASSEMBLY, OUTER 6.0"

2.........926790 .................PIN, DOWEL

2.........362007 .................HOSE, WATER #6LP (30" BLADEGUARD)

2.........362008 .................HOSE, WATER #6LP (36" BLADEGUARD)

NOTICE

Part numbers on this Suggested Spare Parts List may
supercede/replace the P/N's shown in the text pages of
this manual.

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 7

MODEL
SERIALNO.

KEEP HANDS

CLEAR

WARNING!

KEEP FEET

CLEAR

WARNING!

When Larger Bladeand Guard
is Installed, BeltDrive MUST
Be Changed toProper Size.
See Owners Manual.

S.M.I.MASONRY ANDCONCRETE
SAWMANUFACTURER’S INSTITUTE

CAUTION

FAILURETO COMPLYWITH THEC CAH
JADV EEEAV EEAOIEJGGVCBVVZ

R

O

T

A

T

I

O

N

DONOT OPERATESAW
WITHOUTPROPER TRAINING
&FULL UNDERSTANDING
OFTHE OWNERSMANUAL

HEARING
PROTECTION

KEEPALL
GUARDSIN
PLACE

EYEOR FACE
PROTECTION

HEAD
PROTECTION

RESPIRATOR

TOPREVENT SERIOUSINJURY

WHENOPERATING THISMACHINE

ALWAYSWEARSAFETY APPROVED

MASONRYAND CONCRETE

SAWMANUFACTURING INSTITUTE

SMI

WARNING

Engine exhaust and some of
itsconstituents,and somedustcreated

of California to cause cancer, birth

defects andother reproductive harm.

by power sanding, sawing, grinding,
drillingandotherconstruction activities
containschemicals knownto theState

Someexamplesof thesechemicalsare:

Leadfromlead-basedpaints.
Crystallinesilicafrombricks.
Cementandothermasonry products.
Arsenicandchromiumfromchemically
treatedlumber.

Yourrisk fromthese exposuresvaries,

dependingonhowoften youdothistype

ofwork. To reduce your exposure to
these chemicals: work in aALWAYS
well ventilated area, and work with
approved safety equipment, suchas
dustmasks thatarespecially designed
tofilter outmicroscopicparticles.

PATENT PENDING

WARNING

Onlyoperate machinein well­ventilatedareas.

Onlyqualified personnelshould
install,use, orservice thisequipment.

DONOT inhaleexhaust fumes.

Inhalingexhaust fumescan result
insevere injuryor death.

DANGEROUS

FUMES

P/N36090

P/N36092

DIESELFUEL cancause
fireor explosion.

Stopengine beforefueling

Keepcigarettes, sparks
andflame away.

WARNING

P/N37161

R

O

T

A

T

I

O

N

19

21

23

24

22

1

5

6

7

8

9

10

11

25

14

18

20

13

12

17

15

16

2

3

P/N37540

API SERVICECI- 4PLUS, CI- 4,CH- 4,
CG- 4,CF- 4,CF/SL/SJ

USE 15W-40 ENGINE OIL

4

NAMEPLATES AND DECALS

PAGE 8 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

NAMEPLATES AND DECALS

NO. PART NO. PART NAME QTY. REMARKS

1 37367 DECAL, STAY LEVEL HANDLE WHITE 2
2 38232 DECAL, MQ MULTIQUIP 5.93 X 7.45 2
3 38235 DECAL, MQ SP7060 2

4 SERIAL TAG ..............................................................1 ................... CONTACT PARTS DEPT.

5 M600002 DECAL, DIESEL FUEL ONLY 1
6 38213 DECAL, MQ LOGO 3.0 X 3.75 1

7 37161 DECAL, HOT ISO HI-TEMPERATURE .....................1 ................... SAFETY ITEM

8 13118 DECAL, POWDER COATED 1

9 20525 DECAL, WARNING "PROP 65" 3.25 X 4.25 .............1 ................... SAFETY ITEM

10 36092 DECAL, WARNING DIESEL FUEL 3.5 X 1.75 ..........1 ................... SAFETY ITEM

11 36090 DECAL, WARNING VENTILATION 2 X 4 ..................1 ................... SAFETY ITEM

12 11912 DECAL, PATENT PENDING 1
13 25282 DECAL, ATTENTION BATTERY DISCONNECTED 1

14 35137 DECAL, WARNING READ MANUAL .......................1 ................... SAFETY ITEM

15 36099 DECAL, PROTECTIVE CLOTHING ISO BLUE ........ 1 ................... SAFETY ITEM

16 37540 DECAL, HYDRAULIC RESERVOIR 1

17 21302 DECAL, WARNING KEEP GUARDS IN PLACE .......2 ................... SAFETY ITEM

18 22122-001 DECAL, WARNING RX-W ........................................2 ................... SAFETY ITEM

19 25249-001 DECAL, WARNING KEEP HANDS CLEAR ..............2 ................... SAFETY ITEM

20 25250-001 DECAL, WARNING KEEP FEET CLEAR .................2 ................... SAFETY ITEM

21 25678 DECAL, BLADE ROTATION CCW ............................1 ................... SAFETY ITEM

22 23330-001 DECAL, CAUTION BELT DRIVE 2

23 606004 DECAL, GUARD REMOVAL ..................................... 2 ................... SAFETY ITEM

24 25491 DECAL, BLADE ROTATION CW 1
25 38226 DECAL, CE 1

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 9

CONTROL PANEL DECALS

1

2

3

ENGINE

Airfilter: Replaceouter elementwhen theSYSTEMS

airfilter restriction lightcomes on.STATUS

Replaceinner element everyfourth outerelement.

Oil: Checkoil leveldaily, donot overfill.

SeeEngine Manual.

Oiltype:
OilService: Change oiland filterevery 125 hours

ofoperation.
Changefuel filter every250 hoursof operation.

FuelFilter:

THROTTLE

TURNKNOB COUNTERCLOCKWISE.

TOINCREASE ENGINESPEED:

TURNKNOB CLOCKWISE.

TOREDUCE ENGINESPEED:
FORQUICK THROTTLEACTION: DEPRESSRED BUTTONAND

PUSHOR PULLKNOB.

DEPTH STOPCONTROL

ToControl Depthof Cutwith Saw
Runningand BladeMounted:

Step1: Raisesaw abovedesired cuttingdepth.
Step2: Turndepth controlknob counterclockwise
untilsaw cannotbe loweredbypushing raise/lower
switchforward.
Step3: Holdraise/lower switchin thelowering
positionand rotatethe depthcontrolknob clockwise
untildesired cuttingdepth isachieved.The sawwill
repeatto thesame depthuntilre-adjusted.

ToRe-adjust forFull CuttingDepth:

Holdraise/lower switchin theloweringposition and
rotatethe depthcontrol knobclockwiseuntil sawis
fullylowered. Rotatedepthcontrol knobclockwise
additional1 turn.

WATER

FLOW

CONTROL

ADJUSTWATER FLOWVALVE
FORDESIRED WATERFLOW

HYDRAULICSYSTEM

OilLevel: Check reservoirdaily. Fillreservoir to

FULLCOLD.

linemarked

Oiltype:

15W-40premium gradeengine oil.
Changeoil and filterevery 500hours of

OilService:

operationor annually,whichever occursfirst.

Reservoir Reservoir islocated insideconsole. Remove

rearpanel foraccess.

Location:

LIGHTS

AUXILIARY

ON

ON

OFF

OFF

INDICATOR

DEPTH

6

7

5

150

175

4

125

100

3

75

2

50

25

1

0

MM

0

INCH

TOADJUST CUTDEPTH INDICATOR:
LOWERSAW UNTILBLADE CONTACTS
SURFACE,ADJUST DIALTO ZERO.

NEVEREXCEED BLADEMANUFACTURER'S RECOMMENDEDRPM'S

200

BLADESHAFT

DIS-ENGAGE

8

230

255

280

305

330

355

380

14

15

ENGAGE

9

13

MAINTENANCE INSTRUCTIONS

Note:
Wheeldrive propulsion system,lift pump,
andoil bath bladeshaftshare common
hydraulicoil reservoir,thus aremaintained
asa single system.

BLADESHAFTROTATIONDIS-ENGAGEMENT SYSTEM

Enginemust beat idlewhen engagingor
dis-engagingbladeshaft drive.

Tostop bladeshaftrotation:
Pushrocker switchlabeled BLADESHAFTforward.
Enginewill tiltforward, dis-engagingthe beltdrive.

10

Tostart bladeshaftrotation:

11

Pushrocker switchlabeled BLADESHAFTbackward.
Enginewill tiltback, engagingbelt drive.

12

WARNING

ENGINEMUST BESHUT OFF whenremoving orinstalling
bladeor bladeguardor performinganytype ofservice
tobladeshaft orany othercomponenton machine!

NEVER attempt toremove orinstallblade orbladeguard
withengine runningby dis-engagingthebelt drive!

NEVER attempt toservice anycomponentwith the
enginerunning!

NEVER leave sawunattended whileengineis running!

IGNITION SWITCH

START

ON

ENGINE
PRE-HEAT

OFF

FWD-NEUTRAL-REV

CONTROL

RAISE/LOWER

SWITCH

ENGINEPRE-HEAT
GLOWPLUG

Service:

Greaseevery 125 hrs.of operation.
Usepremium grade waterproof

Type:

EP(extreme pressure)grease.
Frontaxle pivot bearings(2), lift

Locations:

cylinderpins (2), enginetilt cylinder
pin(1).

BLADE SPEED

SYSTEMS STATUS

LUBRICATION

FORWARD

NEUTRAL

REVERSE

BeltTension:

ToAdjust
DriveBelt
Tension:

DRIVEBELTS

Bladeshaftdrive belttension is appliedhydraulically when
bladeshaftdrive isengaged.

Performfollowing procedure withsaw fullylowered.

Loosenjam nut onbelt tensionlimiting bolt.Turn belttension limitingbolt
counterclockwiseto create ½”minimum distancebetween endof boltand frame.
Startengine andengage beltdrive; increaseengine speedto fullthrottle positionfor
15seconds minimum. Slow enginespeed toidle andshut engineoff. Turn belt
tensionlimiting bolt clockwiseuntil boltlightly contactsframe. Tighten locknut.

TACHOMETER

OPERATINGINSTRUCTIONS

Checkall fluidlevels.Secure bladefirmly to

BEFORE

bladeshaft.Make sureallprotective guards

STARTING:

arein placeand properlymounted.Wear eye,
earprotection andprotective clothing.

Connectwater supplyto waterinlet.Move

WATER

waterON/OFF CONTROLto ONposition.

SUPPLY:

AdjustWATER FLOWCONTROLlever to
desiredposition. Drainwateringsystem in
coldweather toprevent damagedueto
freezing.

Alwaysfollow blademanufacturer's

BLADES:

recommendationsfor bladeselection,
speedand application.
NEVERexceed blademanufacturer's
maximumrated RPM.Seeoperator's manual
fordetailed blademounting instructions.

SetCONTROL HANDLEto NEUTRALposition.

STARTING

SetTHROTTLE toIDLE.Turn startswitch to

ENGINE:

ONposition. Waitforglow plugindicator light
togo out.Momentarilyturn switchto start
position;release switchas soonasengine
starts.Allow enginetowarm upfor several
minutesbefore increasingengine speed.Use
approveddiesel fuelonly.

Donot stopengine abruptlywhenhot! Reduce

STOPPING

THROTTLEto IDLEandallow engineto run1

ENGINE:

to2 minutesbefore turningignitionswitch off.
Damageto enginemay occurifnot allowedto
cooladequately.

Thepanel mountedhandle controls

FWD-

FORWARD,NEUTRAL andREVERSE

NEUTRAL-

operation.Neutral positionstops or holdssaw

REV

ina stationaryposition. Incremental

CONTROL:

movementin theFORWARD orREVERSE
directionwill increasespeed proportionate
toamount ofmovement.

RAISE-LOWERfunction iscontrolledby the

RAISE-

switchmounted atthe rightsideof the

LOWER

CONTROLHANDLE. Pushtoggleswitch

FUNCTION:

leverforward tolower saw.Pulltoggle switch
leverbackward toraise saw.

Thissaw isequipped withparkingbrakes.

BRAKES:

Brakesare appliedautomaticallywhen engine
isoff anddis-engaged whenengineis running.

ENGINEWILL NOTCRANK
ORSTART WHENE-STOP
BUTTONIS DEPRESSED

WATERPUMP

ON

OFF

ON

WATER

OFF

PAGE 10 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

CONTROL PANEL DECALS

NO. PART NO. PART NAME QTY. REMARKS

1 37361 DECAL, MAINTENANCE, 7000 SERIES 1
2 37354 DECAL, INSTRUMENT PANEL, 7000 SERIES 1
3 37353 DECAL, OPERATION CONSOLE PANEL 1

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 11

ELECTRICAL CONTROL ASSY.

PAGE 12 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

ELECTRICAL CONTROL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 406000 SWITCH, ROCKER CH# M-58031-01 2

2 4060 17 IGNITION SWITCH, WITH KEYS .............................1 ................... INCLUDES ITEMS W/

3 37198 EMERGENCY STOP SWITCH ................................. 1 ................... SAFETY ITEM

4 37094 SWITCH, TOGGLE SPDT MOMENTARY ON-ON 1
5 37203 SWITCH, SNAP ACTION ROLLER PLUNGER 1
6 37490 HARNESS, RELAYS AND CIRCUIT BREAKERS 1
7 406021 INDICATOR, ENGINE 1
8 37243 SWITCH, ROLLER ARM 1
9 933240 WASHER, FLAT SAE 1/4 GRD 9 YZ 3
10 405000 CONNECTOR, 4-WAY SOCKET 1
11 37368 TACHOMETER, ELECTRIC 0-3000 RPM 1
12 8381 BOOT, TOGGLE SWITCH 1
13 406020 BLANK, ROCKER SWITCH 2
14 973752 SCREW, BHHC 1/4 - 20 X 5/8 SS 3
15 37325 SCREW, SHC M5 - 0.8 X 30MM 2
16 37324 NUT, NYLOC M5 - 0.8 2
17 28922-058 WASHER, M5 2
18* 406017-1 KEY, IGNITION 1
19 25628 SOLENOID, LIFT PUMP 1

*

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 13

CONSOLE MOUNTS ASSY.

PAGE 14 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

CONSOLE MOUNTS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 20742 ISOLATOR, RB2 RING/BUSHING 4
2 20743 WASHER, ISO SNUB KROFUND DYN 148099-18 4
3 575001 RUBBER ISOLATOR, TPC# 60166-1 4
4 37231-353 MOUNT, ISOLATOR FRONT 2
5 37233-353 MOUNT, ISOLATOR SIDE 2
6 37227-353 MOUNT, CONSOLE ISOLATOR FRONT 2
7 12832 WASHER, SNUBBING 4
8 06503-026 SCREW, HHC 1/2 - 13 X 3-1/4 4
9 1665 SCREW, HHC 3/8 - 16 X 2 4
10 37116-353 CONSOLE W/A 1
11 933242 WASHER, FLAT SAE 3/9 GRD 9 Y 8
12 0205 SCREW, HHC 3/8-16 X 1 8
13 TBD SCREW 4
14 TBD WASHER 4

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 15

REAR CONSOLE ACCESS PANEL ASSY.

6

5

1

8

2

3

7

9

4

PAGE 16 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

REAR CONSOLE ACCESS PANEL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1* 10024 NUT, NYLOC 1/4 X 20 4
2* 10930 WASHER, FENDER 1/4 X 1-1/4 4
3* 12287 SCREW, THP 1/4 - 20 X 3/4 SS 4
4* 29057 DOCUMENT BOX 1
5 37219 STRIP, BACKING PLATE SAW CONSOLE 1
6 37220 STRIP, VERTICAL SAW CONSOLE 2
7* 37254-353 PANEL, REAR SAW ACCESS 1
8* 560020 LATCH, REAR SAW ACCESS PANEL 2

9 37253 PANEL ASSEMBLY, REAR SAW ACCESS ...............1 ................... INCLUDES ITEMS W/

*

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 17

LIGHT CONNECTOR/DASH ACCESS ASSY.

PAGE 18 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

LIGHT CONNECTOR/DASH ACCESS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0655 SCREW, HHC 5/16 - 18 X 3/4 8
2* 12171 SEAL, WEATHERPACK 16-18 GA,GREEN 2
3* 12176 CONNECTOR, WEATHERPACK 2 PIN MALE 1
4* 12179 TERMINAL, WEATHERPACK MALE 14-16 GA 2
5 13287 NUT, NYLOC 8-32 2

6 25865 HARNESS, LIGHT KIT ..............................................1 ................... INCLUDES ITEMS W/

7 37234-353 COVER W/A, CONSOLE DASH ACCESS 1
8 923114 SCREW, SHC 8-32 X 1/2 2
9 933241 WASHER, FLAT SAE 5/16 GRD 9YZ 8
10* 405000 CONNECTOR, 4-WAY SOCKET CHROME 1

+# 0161 C WASHER, LOCK 5/16 MED 2

11

+# 0161 D NUT, HEX 5/16 - 18 2

12

+# 0300 A SCREW, HHC 5/16 - 18 X 2 1

13

+ 2532 LIGHT ASSEMBLY .................................................... 1 ................... INCLUDES ITEMS W/#

14
15+ 15503 KNOB, COMFORT GRIP STAR 1

+ 120206 LIGHT BAR 1

16

+ 405001 CONNECTOR PLUG, 4-PIN FEMALE 1

17

+ 405002 CORD, LIGHT EXTENDABLE 1

18

+# H9406 BULB, GE H9406 1

19

20 M18004 LIGHT KIT, SAW ....................................................... 1 ................... INCLUDES ITEMS W/

21# 11963 BOLT, CARRIAGE 5/16 - 18 X 1 1

*

+

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 19

BELT AND ENGINE GUARDS ASSY.

PAGE 20 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

BELT AND ENGINE GUARDS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0166 SCREW, HHC 3/8 - 16 X 7/8 5
3 15503 KNOB, COMFORT 1

4 37202-353 GUARD, BELT DRIVE ............................................... 1 ................... SAFETY ITEM

5 37209-353 GUARD, ENGINE ...................................................... 1 ................... SAFETY ITEM

8 584011 WRENCH, 15/16 BLADE CLOSED END 1
9 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 5

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 21

DEPTH INDICATOR/STOP SWITCH ASSY. (OLD STYLE)

PAGE 22 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

DEPTH INDICATOR/STOP SWITCH ASSY. (OLD STYLE)

NO. PART NO. PART NAME QTY. REMARKS

1 10024 NUT, NYLOC 1/4 - 20 2
2 37155 PULLEY, CABLE .75 OD 1
3 37235 BASE, SAW DEPTH INDICATOR 1
4 37240 PULLEY, CABLE .75 OD 2
5 37241 SHAFT, DEPTH INDICATOR 1
6 37332 RING, 3/16 E-STYLE EXTERNAL 2
7 37401 SCREW, SH SHLDR 1/2-20, 5/16 OD X 1/4 L 1
8 37504 CABLE, NYLON COAT SS .049 1
9 110031 POINTER, CONCRETE SAW DEPTH 1
10 460019 FLANGE, BEARING 0.25 ID X 0.75 OD 1
11 560025 KNOB, SAW DEPTH INDICATOR 1
12 565005 SPRING, EXTENSION 1
13 583059 SHIM, 0.375 OD X 0.25 ID X .020 THK 5
14 584025 STUD, 1/4 - 20 X 1-3/4 NO PLT 1
15 933240 WASHER, FLAT SAE 1/4 GRD 9 YZ 1
16 973752 SCREW, BHSC 1/4 - 20 X 5/8 SS 2
17 37248 MOUNT, SWITCH PIVOT PLATE 1
18 37246 NUT, SWIVEL DEPTH STOP 1
19 37247 KNOB, DEPTH STOP CONTROL 1
20 37249 COLLAR, SHAFT THREADED 3/8 - 16 1
21 37250 WASHER, BELLEVIEW .317 X .625 2
22 19470 WASHER, FLAT 5/16 USS 2
23 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 1
24 5283 NUT, NYLOC 5/16 - 18 2
25 10133 NUT, NYLOC 3/8 - 16 1
26 37251 WASHER, BELLEVIEW .389 X .750 2
27 37375 STUD, 3/8 - 16 X 4 1
28 4001 WASHER, FLAT USS 3/8 PLD 3

NOTICE

Parts on this page are no longer available. See Depth
Indicator/Stop Switch Assy. (New Style).

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 23

DEPTH INDICATOR/STOP SWITCH ASSY. (NEW STYLE)

6

10

5

19

10

14

17

13

3

10

8

4

9

16

4

2

1

9

19

2

10

12

20

11

7

15

18

17

PAGE 24 — SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)

DEPTH INDICATOR/STOP SWITCH ASSY. (NEW STYLE)

NO. PART NO. PART NAME QTY. REMARKS

1 37544 SHAFT, DEPTH INDICATOR 1
2 37545 BUSHING, FLANGED 2
3 37547 SHAFT, IDLER PULLEY 2
4 37548 PULLEY, IDLER 2
5 110031 POINTER, CONCRETE SAW DEPTH 1
6 560025 KNOB, SAW DEPTH INDICATOR 1
7 37549 PULLEY, DUAL GROOVE 1
8 37550 BELT, INDICATOR DRIVE 1
9 0948 WASHER, FLAT SAE 1/4 3
10 37332 RING, 3/16 E-STYLE EXTERNAL 6
11 926149 SCREW, SHDLR 1/4D X 5/16L, 10-24 SCKT HD 1
12 37162 SPRING, EXTENSION 1
13 973752 SCREW, BHSC 1/4 - 20 X 5/8 SS 2
14 37551 HOUSING, DEPTH INDICATOR 1
15 37557 BRACKET, CABLE INDICATOR 1
16 2295 SCREW, HHC 1/4 - 20 X 7/8 1
17 10024 NUT, NYLOC 1/4 - 20 2
18 37401 SCREW, SH SHLDR 1/2-20, 5/16 OD X 1/4 L 1
19 37679 RING, SNAP SH 87 2
20 37678 CABLE ASSY., DEPTH INDICATOR 1

NOTICE

Parts on this page replace those listed on Depth Indica­tor/Stop Switch Assy. (Old Style)

SP7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #5 (05/06/11)— PAGE 25
