MTD AutoDrive 13AU604H402, AutoDrive 13AX604G402, Yard-Man 13AX604G402, Yard-Man 13AU604H402 Operator's Manual

YaRD'MaN)[(

OPERATOR'S MANUAL

/

_j

AutoDrive TM Lawn Tractor

Models

4,_ (13AX604G402)

-_e (13AU604H402)

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized

service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.

MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722

PRINTED IN U.S.A. FORM NO. 770-10236

(1/99)

SECTION 1: TABLE OF CONTENTS

PAGE

FINDING YOUR MODEL NUMBER ....................................................... 2

CALLING CUSTOMER SUPPORT ........................................................ 2

IMPORTANT SAFE OPERATION PRACTICES .............................................. 3

SAFETY LABLES FOUND ON YOUR UNIT ................................................. 5

SLOPE GAUGE ...................................................................... 6

ATTACHMENTS & ACCESSORIES ....................................................... 7

TRACTOR SET-UP .................................................................... 7

CONTROLS ......................................................................... 8

OPERATION ........................................................................ 11

ADJUSTMENTS ..................................................................... 14

MAINTENANCE ..................................................................... 17

LUBRICATION ...................................................................... 23

TROUBLESHOOTING GUIDE .......................................................... 24

PARTS LIST ........................................................................ 26

WARRANY INFORMATION ..................................................... Back Cover

SECTION 2: FINDING YOUR MODEL NUMBER

This Operator's Manual is an important part of your new rider. It will help you assemble, prepare and maintain

your rider. Please read and understand what it says.
Before you start to prepare your tractor for its first use, please locate the model plate and copy the information

from it in this Operator's Manual. The information on the model plate is very important if you need help from
your dealer or the MTD customer support department.

• Every tractor has a model plate. You can locate it by liftingthe seat and looking at the seat bracket.

• An example of what the model plate will look like is shown below.

This iswhere your model number will be.

This is where your serial number will be.

Copy the moder number here:

Copy the serial number here: _

OHIO 44136

SECTION 3: CALLING CUSTOMER SUPPORT

• LOCATE YOUR MODEL NUMBER AND SERIAL NUMBER -- Record this information in the space
provided. To find your unit's specific model number and serial number, see SECTION 2: FINDING
YOUR MODEL NUMBER.

• If you are having difficulty assembling this product or if you have any questions regarding the controls,

operation or maintenance of this unit, please call the Customer Support Department.

• Customer Support can be reached by dialing: 1- (330) 220-4MTD

(4683)

or

1- (800)-800-7310

• Please have your model number and serial number ready when you call.

• Although both numbers are important, you will be asked to enter only your serial number before your
call can be processed.

SECTION 4: IMPORTANT SAFE OPERATION PRACTICES

WARNING: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF

NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF

YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO OPERATE YOUR LAWN MOWER. FAILURE TO COMPLY WITH

THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. WHEN YOU SEE THIS SYMBOL,

HEED ITS WARNING.

WARNING: The Engine Exhaust from this product contains chemicals known to

the State of California to cause cancer, birth defects or other reproductive harm.

DANGER: Your lawn mower was built to be operated according to the rules for safe operation in

this manual. As with any type of power equipment, carelessness or error on the part of the operator
can result in serious injury. This lawn mower is capable of amputating hands and feet and throwing
objects. Failure to observe the following safety instructions could result in serious injury or death.

1. GENERAL OPERATION

• Read, understand, and follow all instructions in the
operator's manual and on the machine before
starting. Keep this manual in a safe place for future
and regular reference and for ordering replacement

parts.

• Only allow responsible individuals familiar with the
instructions to operate the machine. Know controls

and how to stop the machine quickly.

• Do not put hands or feet under cutting deck or near
rotating parts.

• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blade. A small object may have been overlooked

and could be accidentally thrown by the mower in

any direction and cause injury to you or a
bystander. To help avoid a thrown objects injury,
keep children, bystanders and helpers at least 75
feet from the mower while it is in operation. Always
wear safety glasses or safety goggles during
operation or while performing an adjustment or
repair, to protect eyes from foreign objects. Stop
the blade(s) when crossing gravel drives, walks or
roads.

• Be sure the area is clear of other people before
mowing. Stop machine if anyone enters the area.

• Never carry passengers.

• Disengage blade(s) before shifting into reverse and

backing up. Always look down and behind before

and while backing.

• Be aware of the mower and attachment discharge

direction and do not point it at anyone. Do not
operate the mower without either the entire grass
catcher or the chute guard in place.

• Slow down before turning. Operate the machine
smoothly. Avoid erratic operation and excessive

speed.

• Never leave a running machine unattended. Always
turn off blade(s), place transmission in neutral, set
park brake, stop engine and remove key before
dismounting.

• Turn off blade(s) when not mowing.

• Stop engine and wait until blade(s) comes to a
complete stop before (a) removing grass catcher or
unclogging chute, or (b) making any repairs,

adjusting or removing any grass or debris.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the
influence of alcohol or drugs.

• Watch for traffic when operating near or crossing
roadways.

• Use extra care when loading or unloading the
machine into a trailer or truck. This unit should not

be driven up or down a ramp onto a trailer or truck
under power, because the unit could tip over,
causing serious personal injury. The unit must be
pushed manually on a ramp to load or unload

properly.

• Never make a cutting height adjustment while
engine is running if operator must dismount to do

so.

• Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. Do not wear loose fitting
clothes or jewelry. They can be caught in moving
parts. Never operate a unit in bare feet, sandals, or

sneakers.

• Check overhead clearance carefully before driving
under power lines, wires, bridges or low hanging
tree branches, before entering or leaving buildings,
or in any other situation where the operator may be
struck or pulled from the unit, which could result in
serious injury.

3

• Disengage all attachment clutches, thoroughly
depress the brake pedal, and shift into neutral
before attempting to start engine.

• Your mower is designed to cut normal residential
grass of a height no more than 10". Do not attempt
to mow through unusually tall, dry grass (e.g.,
pasture) or piles of dry leaves. Debris may build up
on the mower deck or contact the engine exhaust
presenting a potential fire hazard.

2. SLOPE OPERATION

Slopes are a major factor related to loss of control and tip-

over accidents which can result in severe injury or death.
All slopes require extra caution. If you cannot back up the
slope or if you feel uneasy on it, do not mow it.

For your safety, use the slope gauge included as part of
this manual to measure slopes before operating this unit on

a sloped or hilly area. If the slope is greater than 15° as

shown on the slope gauge, do not operate this unit on that

area or serious injury could result.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, limbs, etc.

• Watch for holes, ruts or bumps. Uneven terrain
could overturn the machine. Tall grass can hide

obstacles.

• Use slow speed. Always keep machine in gear
when going down slopes to take advantage of
engine braking action.

• Follow the manufacturer's recommendations for
wheel weights or counterweights to improve

stability.

• Use extra care with grass catchers or other

attachments. These can change the stability of the
machine.

• Keep all movement on the slopes slow and

gradual. Do not make sudden changes in speed or
direction. Rapid engagement or braking could
cause the front of the machine to lift and rapidly flip
over backwards which could cause serious injury.

• Avoid starting or stopping on a slope. If tires lose
traction, disengage the blade(s) and proceed slowly
straight down the slope.

DO NOT:

• Do not turn on slopes unless necessary; then, turn
slowly and gradually downhill, if possible.

• Do not mow near drop-offs, ditches or
embankments. The mower could suddenly turn
over if a wheel is over the edge of a cliff or ditch, or

if an edge caves in.

• Do not mow on wet grass. Reduced traction could

cause sliding.

• Do not try to stabilize the machine by putting your

foot on the ground.

• Do not use grass catcher on steep slopes.

3. CHILDREN

Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that chil-
dren will remain where you last saw them.

• Keep children out of the mowing area and in
watchful care of an adult other than the operator.

• Be alert and turn machine off if children enter the
area.

• Before and when backing, look behind and down
for small children.

• Never carry children, even with the blades off. They

may fall off and be seriously injured or interfere with

the safe machine operation.

• Never allow children under 14 years old to operate
the machine. Children 14 years and over should

only operate machine under close parental
supervision and proper instruction.

• Remove key when machine is unattended to
prevent unauthorized operation.

• Use extra care when approaching blind corners,
shrubs, trees or other objects that may obscure

your vision of a child or other hazard.

4. SERVICE

• Use extreme care in handling gasoline and other
fuels. They are extremely flammable and the
vapors are explosive.

• Use only an approved container.

• Never remove fuel cap or add fuel with the engine

running. Allow engine to cool at least two minutes
before refueling.

• Replace fuel cap securely and wipe off any spilled

fuel before starting the engine as it may cause a
fire or explosion.

• Extinguish all cigarettes, cigars, pipes and other
sources of ignition.

• Never refuel the machine indoors because fuel
vaporswillaccumulate inthe area.

• Never store the fuel container or machine inside
where there is an open flame or spark, such as a

gas hot water heater, space heater or furnace.

• Never run a machine inside a closed area,

• To reduce fire hazard, keep the machine free of

grass, leaves or other debris build-up. Clean up oil
or fuel spillage. Allow machine to cool at least 5
minutes before storing.

• Before cleaning, repairing or inspecting, make
certain the blade and all moving parts have
stopped. Disconnect the spark plug wire, and keep
the wire away from the spark plug to prevent
accidental starting.

• Check the blade and engine mounting bolts at

frequent intervals for proper tightness. Also,
visually inspect blade for damage (e.g., excessive
wear, bent, cracked). Replace with blade which
meets original equipment specifications.

4

• Keep all nuts, bolts and screws tight to be sure the
equipment is in safe working condition.

• Never tamper with safety devices. Check their

proper operation regularly. Use all guards as
instructed in this manual.

• After striking a foreign object, stop the engine,

remove the wire from the spark plug and thoroughly
inspect the mower for any damage. Repair the
damage before restarting and operating the mower.

• Grass catcher components are subject to wear,
damage and deterioration, which could expose
moving parts or allow objects to be thrown. For
your safety protection, frequently check
components and replace with manufacturer's
recommended parts when necessary.

• Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves and use extra caution

when servicing blade(s).

• Check brake operation frequently. Adjust and

service as required.

• Muffler, engine and belt guards become hot during
operation and can cause a burn. Allow to cool
down before touching.

Do not change the engine governor settings or

overspeed the engine. Excessive engine speeds

are dangerous.

Observe proper disposal laws and regulations.

Improper disposal of fluids and materials can harm

the environment and the ecology.

Prior to disposal, determine the proper method to
dispose of waste from your local Environmental
Protection Agency. Recycling centers are
established to properly dispose of materials in an
environmentally safe fashion.

Use proper containers when draining fluids. Do not

use food or beverage containers that may mislead

someone into drinking from them. Properly dispose

of the containers immediately following the draining
of fluids.

DO NOT pour oil or other fluids into the ground,
clown a drain or into a stream, pond, lake or other
body of water. Observe Environmental Protection
Agency regulations when disposing of oil, fuel,
coolant, brake fluid, filters, batteries, tires and other
harmful waste.

,_ WARNING - YOUR RESPONSIBILITY: Restrict the use of this power machine to persons

who read, understand and follow the warnings and instructions in this manual and on the machine.

ASSEMBLE CHUTE DEFLECTOR

TO THIS UNIT

BEFORE OPERATING MACHINE.

DANGER

Figure 1 Safety Labels found on your unit

8,

(5

8.

O

m

,-..,,= THIS PAGE AS A GUIDE TO DETERMINE SLOPE_, ..HERE YOU MAY NOT OPERATE SAFELY.

SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

I

15°

_k WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower
could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain

your footing and you could slip, resulting in serious injury.
Operate RIDING mowers up and down slopes, never across the face of slopes.

SECTION 5: ATTACHMENTS & ACCESSORIES

MODEL NUMBER

OEM-190-601
OEM-190-602

OEM-190-112

OEM-190-118
OEM-190-603
OEM-190-604

OEM-190-822

OEM-190-823

DESCRIPTION

FastAttach: Twin Ba_r-Grass Collector (-For-42--inch_Decks Only i

FastAttach '°Twin Bagger Grass Collector (For 46-inch Decks Only)

Mulch Kit (For 42-inch Decks Only)

Mulch Kit (For 46-inch Decks Only)
FastAttach'- Front Bumper Kit

TracPac" Storage Container (mounts on rear of tractor)

FastAt_ach'=46-inch Front Dozer Blade
42-inch Two-stage Snow Thrower

SECTION 6: TRACTOR SET-UP

ATTACHING THE BATTERY CABLES GAS AND OIL FILL-UP

NOTE: The positive battery terminal is marked

Pos. (+). The negative battery terminal is marked

Neg. (-).

• The positive cable (heavy red wire) is secured
to the positive battery terminal (+) with a hex
bolt and hex nut at the factory. Make certain

that the rubber boot covers the terminal to
help protect it from corrosion.

• Remove the hex bolt and wing nut from the

negative cable. Attach the negative cable
(heavy black wire) to the negative battery

terminal (-) with the bolt and wing nut.

Service the engine with gasoline and oil as

instructed in the separate engine manual packed

with your tractor. Read instructions carefully,

IMPORTANT: Your tractor is shipped with oil;

however, you MUST check the oil level before oper-
ating. Be careful not to overfill. Overfilling with oil

may cause the engine to smoke. This will result in

poor engine performance and could cause perma-

nent engine damage.

• Place the hold-down strap in position over the

The gasoline tank is located under the hood and has
a capacity of approximately two gallons. Do not

overfill.

WARNING: Gasoline produces noxious

battery to secure it in place. See Figure 2.

Rubber i_

Terminal _ : _

Positive Boot

P f

Negative Hold-down !

_minel Bolt

Figure 2

NOTE: If battery is put into service after date

shown on top of battery, charge for minimum of one

hour at 6-10 amps. Refer to the MAINTENANCE

section of this manual for more detailed instructions

regarding proper battery charging procedure.

fumes. Never fill fuel tank indoors. Always
fill the fuel tank in a well ventilated area to

avoid inhalation of gasoline fumes.

WARNING: Never smoke while fueling

your tractor or fill the fuel tank while engine
is running or while engine is hot.

WARNING: Do not fill closer than 1/2
inch from the top of the fuel tank to prevent

spills and to allow for fuel expansion. If
gasoline is accidently spilled, move tractor

away from area of spill. Avoid creating any
source of ignition until gasoline vapors

have disappeared.

INSTALLING THE MULCH KIT

On units equipped with a 42-inch deck, the mulch kit
is installed at the factory. To remove it, unfasten the

wing knob found on the top of the cutting deck and
carefully pull the mulch plug out from the discharge

area of the deck.
On units equipped with a 46-inch deck, the mulch kit

is packaged separately within the crate.

7

SECTION 7: CONTROLS

D

\

C

F

\

B

I

M

A

H

G

J

E

L

K

Figure 3

NOTE: Steering Wheel not shown for clarity.

A Ignition Switch H Brake Pedal

B Throttle Control Lever I Parking Brake Button

C PTO (Power Take-Off) Knob J Shift Lever
D Indicator Monitor/Hour Meter K Seat Adjustment Lever

E Lift Lever L Cup Holder
F Choke Control (if so equipped) M Cruise Control Button
G AutoDrive- Pedal

NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.

IGNITION SWITCH

To start the engine, insert key into the ignition switch

and turn clockwise to the START position. Release
key to the ON position once engine has fired. See

Figure 4. Refer to STARTING THE ENGINE in the

OPERATION section of this manual for detailed

starting instructions. The ignition switch is also used
to operate the headlights. Refer to OPERATING
THE HEADLIGHTS in the OPERATION section of

this manual for detailed instructions

WARNING: Remove the key from the

tractor when the tractor is not in use to
prevent accidental starting.

Off

-- On/Lights

t " - On

---- -- Start

Figure 4

THROTTLE CONTROL LEVER

The throttle lever is located on the right side of the
tractor's dash panel. This lever controls the speed of
the engine, and on some units the choke control

also. When set in a given position, the throttle will

maintain a uniform engine speed. See Figure 5.

Throttle
Symbol

Choke

Position _

Fast

Position

Slow

Position

Throttle
Symbol

Fast

Position

Slow

Position

Figure 5

IMPORTANT: When using PTO operated

equipment such as the cutting deck or other
attachments, always operate the tractor with the

throttle lever in the FAST (rabbit) position.

CHOKE CONTROL

On some units, moving the
throttle lever all the way
forward activates the engine's

choke control. On atl other
units, the choke control can be

found on the left side of the

dash panel and is activated by
pulling the knob outward. Activating the choke
control closes the choke plate on the carburetor and
aids in starting the engine. Refer to STARTING THE

ENGINE in the OPERATION section of this manual
for detailed starting instructions.

INDICATOR MONITOR / HOUR METER

Your tractor is equipped with four indicator lights and
an hour meter located on the left side of the dash

panel. See Figure 6.

BatterY

Hour

Meter

_f

.f

PTO

1/10

,-.

Oil

Brake

Figure 6

If a light illuminates when attempting to start the unit,
proceed as follows:
BRAKE-- Depress the brake pedal.
PTO -- Move PTO switch into the disengaged

(OFF) position.

OIL-- Check the crankcase oil level, and add

oil as required.
The BATTERY indicator light will illuminate any time
the ignition key is the On position and the engine is

not running. If it illuminate's while the engine is
running, it indicates that the battery is in need of a

charge. Refer to the MAINTENANCE section of this

manual for the proper battery charging procedure.

The hour meter operates whenever the ignition key

is in the On or On/Lights position and records the
actual hours of tractor operation.

LIFT LEVER

The lift lever is used to change the operating position

(height) of the cutting deck. To operate, move the
lever to the left, then place in the notch best suited

for your application.

ELECTRIC PTO

(POWER TAKE-OFF) KNOB / _

To engage the power to the cutting
deck or other attachments, pull
outward on the PTO knob. Push the

PTO knob inward to disengage the
power to the attachments.

NOTE: The PTO knob must be in the disengaged

(OFF) position when starting the engine, when
shifting into reverse and if the operator leaves the
seat.

AUTODRIVE'-PEDAL

The AutoDrive'- pedal is located below the brake

pedal on the right front side of the tractor along the
running board. Depress the AutoDrive'- pedal with
your right foot when the tractor shift lever is in either

forward or reverse to cause the tractor to move.
Ground speed is also controlled with the AutoDrive-

pedal. The further down the pedal is depressed, the
faster the tractor will travel. The pedal will return to

its original position when it's not depressed.

IMPORTANT: Always set the parking brake

when leaving the tractor unattended.

BRAKE PEDAL

The brake pedal is located on the right front side of

the tractor above the AutoDrive.- pedal along the
running board. The brake pedal can be used for

sudden stops or setting the parking brake.

NOTE: The brake pedal must be fully depressed to

activate the safety interlock switch when starting the

tractor.

PARKING BRAKE BUTTON

To set the parking brake, fully depress
the brake pedal and push the parking

brake button in. Hold the button in

while taking your foot off the brake

pedal. Both the parking button and
the brake pedal will then stay
depressed. To release the parking
brake, depress the brake pedal
slightly. The parking brake button will
then return to its original position.

NOTE: The parking brake must be set if the

operator leaves the seat with the engine running or
the engine will automatically shut off.

IMPORTANT: Always set the parking brake

when leaving the tractor unattended.

SHIFT LEVER

The shift lever is located
on the left side of the

fender and has three
positions, FORWARD,

NEUTRAL and REVERSE.

The brake pedal must be
depressed and the tractor

must not be in motion
when the moving shift

lever.

IMPORTANT: Never

force the shift lever. Doing

so may result in serious
damage to the tractor's

transmission.

iF

N

k

Shift

Knob

10

CRUISE CONTROLBUTTON

The cruise control button is located on
the tractor dash panel to the left of the

ignition switch. Push the cruise control
button while traveling forward at a
desired speed. While holding the

button in, release pressure from the
AutoDrive r-pedal. This will engage the

cruise control and allow the tractor to

remain at that speed without applying
pressure to the AutoDrive r- pedal.
Depress the brake pedal or the
AutoDrive.- pedal to deactivate cruise

SEAT ADJUSTMENT LEVER

To adjust the seat forward or backward, slide the
seat adjustment lever to the left and reposition the
seat to the desired position. Once a comfortable
position is found, release the seat adjustment lever
to lock the seat in place. Refer to the

ADJUSTMENTS section of this manual for more

detailed instructions.

CUP HOLDER

The tractor's cup holder is located on the fender to
the left of the seat, just to the rear of the shift lever.

control. Refer to the OPERATION section of this

AlL

manual for detailed instructions regarding the cruise ,_J_,
control feature.

WARNING: Never operate the tractor

under the influence of alcoholic beverages
or drugs of any kind. Doing so can result in
serious personal injury or death.

SECTION 8: OPERATION

SAFETY INTERLOCK SWITCHES

This tractor is equipped with a safety interlock
system for the protection of the operator. If the
interlock system should ever malfunction, do not
operate the tractor. Contact an authorized MTD

Service Dealer in your area. The safety interlock

system prevents the engine from cranking or starting
unless the brake pedal is fully depressed, and the

PTO switch is in the disengaged (OFF) position.

• The safety interlock system will automatically
shut off the engine if the operator leaves the

seat before engaging the brake lock.

• The safety interlock system will automatically

shut off the engine if the operator leaves the
seat with the PTO switch in the engaged (ON)
position, regardless of whether the brake lock
is engaged. The PTO switch must be in the
disengaged (OFF) position to restart the
engine.

• The safety interlock system will automatically
shut off the PTO if the PTO switch is moved

into the engaged (ON) position with the shift

lever in the REVERSE position.

&,

WARNING: Do NOT attempt to bypass

or disconnect the tractor's safety interlock.

Doing so could result in serious personal
injury or death.

IMPORTANT: Tampering with or attempting to

bypass the tractors Safety Interlock Switches in any
way WILL void your warranty.

WARNING

AVOID SERIOUS INJURY OR DEATH

• GO UPAND DOWN SLOPES, NOT ACROSS.

• AVOID SUDDEN TURNS,

• DO NOT OPERATE THE UNIT WHERE IT COULD SLIP OR TIR

• IF MACHINE STOPS GOING UPHILL, STOP BLADE(S) AND BACK
DOWNHILL SLOWLY.

• DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.

• NEVER CARRY CHILDREN,

• LOOK DOWN AND BEHIND BEFORE AND WHILE BACKING.

• KEEP SAFETY DEVICES (GUARDS, SHIELDS, AND SWITCHES) IN
PLACE AND WORKING

• REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADE(S).

• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.

• BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE PLAC-
ING HANDS OR FEET NEAR BLADE(S).

• BEFORE LEAVING OPERATOR'S POSITION, DISENGAGE
BLADE(S), PLACE THE SHIFT LEVER IN NEUTRAL, ENGAGE

BRAKE LOCK, SHUT ENGINE OFF AND REMOVE KEY.

READ OPERATOR'S MANUAL

11

SETTING THE CUTTING HEIGHT

Select the height position of the cutting deck by
placing the deck lift lever in any of the six different
cutting height notches on the right side of the fender.
Then adjust the deck wheels so that they are at least

1/4 inch to 1/2 inch above the ground when the

tractor is on a smooth, flat surface such as a
driveway.

dl_ WARNING: Keep hands and feet away

from the discharge chute opening of the
cutting deck.

NOTE: The deck wheels are an anti-scalp feature

of the deck and are not designed to support the

weight of the cutting deck.

Refer to the ADJUSTMENTS section of this manual
for more detailed instructions regarding various deck

adjustments.

STARTING THE ENGINE

NOTE: Refer to the TRACTOR SET-UP section of

this manual for Gasoline and Oil fill-up instructions.

• Insert the tractor key into the ignition switch.

• Place the PTO switch in the disengaged

(OFF) position.

• Depress the brake pedal and set the parking
brake.

• Place the shift lever in the NEUTRAL position.

• Move the throttle control lever into the FAST
(or CHOKE, if so equipped) position.

• Pull out the choke control knob, if so equipped
(a warm engine may not require choking).

• Turn the ignition key clockwise to the START
position. After the engine starts, release the

key. It will return to the ON position.

IMPORTANT: Do NOT hold the key in the START

position for longer than ten seconds at a time. Doing
so may cause damage to your engine's starter.

NOTE: If starting problems are encountered, refer
to the TROUBLESHOOTING section of this manual.

After the engine starts, slowly release the brake

pedal. As the engine warms up, gradually push the
choke control knob inward (or move the throttle

control lever out of the CHOKE position into the
FAST position) to open up the choke plate on the
engine's carburetor.

NOTE: Do NOT leave the choke control out while

operating the tractor. Doing so will result in a "rich"
fuel mixture and cause the engine to run poorly.

STOPPING THE ENGINE

• Place the PTO switch in the disengaged
(OFF) position

• Move the throttle control into the SLOW
(turtle) position and allow the engine to "idle

down" for ten seconds. Failure to do so may
result in an engine afterfire.

• Turn the ignition key counterclockwise to the
OFF position.

• Remove the key from the ignition switch to

prevent accidental starting.

IMPORTANT: If you think you've struck a foreign

object, stop the engine immediately. Remove the
wire(s) from the spark plug(s), thoroughly inspect the
unit for any damage, and repair the damage before
restarting and operating the tractor.

DRIVING THE TRACTOR

,_ WARNING: Avoid sudden starts,

excessive speed and sudden stops.

WARNING: Do not leave the seat of the

tractor without first placing the PTO switch
in the disengaged (OFF) position,
depressing the brake pedal and engaging
the parking brake. If leaving the tractor

unattended, also turn the ignition key off

and remove the key.

• Depress the brake pedal to release the
parking brake and let the pedal up. Move the

throttle lever into the FAST (rabbit) position.

IMPORTANT: Do NOT use the shift lever to

change the direction of travel when the tractor is in
motion. Always use the brake pedal to bring the
tractor to a complete stop before shifting.

• To move forward, place the shift lever in the

FORWARD position, then slowly depress the
AuteDrive'- pedal until the desired speed is

achieved.

• To move in reverse, place the shift lever in the

REVERSE position, check that the area
behind is clear then slowly depress the
AutoDrive- pedal.

SE'I-rlNG THE CRUISE CONTROL

NOTE: The cruise control feature should only be

utilized in the forward direction.

• Place the shift lever in the FORWARD
position, then slowly depress the AutoDrive TM

pedal until the desired speed is achieved.

• Lightly depress the cruise control button.

12

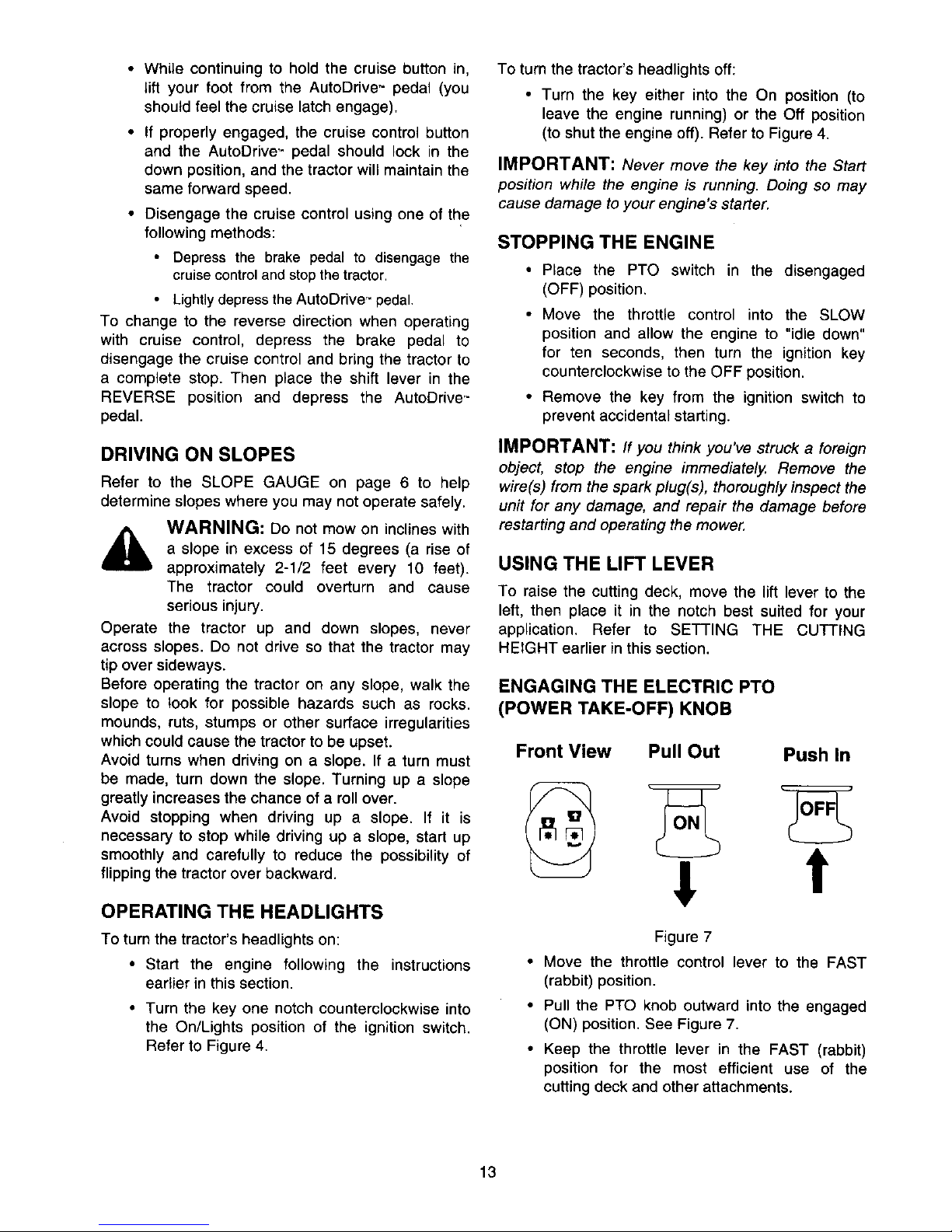

• Whilecontinuingto holdthecruisebuttonin,
liftyourfootfromtheAutoDrive_pedal(you
shouldfeelthecruiselatchengage).

• If properlyengaged,thecruisecontrolbutton
andtheAutoDrive'-pedalshouldlockin the
downposition,andthetractorwillmaintainthe
sameforwardspeed.

• Disengagethecruisecontrolusingoneofthe
followingmethods:

Depressthebrakepedalto disengagethe
cruisecontrolandstopthetractor.

LightlydepresstheAutoDrive"pedal.

Tochangetothe reversedirectionwhenoperating

with cruise control,depressthe brakepedalto
disengagethecruisecontrolandbringthetractorto
a completestop.Thenplacetheshiftleverin the
REVERSEpositionand depressthe AutoDrive.-
pedal.

DRIVING ON SLOPES

Refer to the SLOPE GAUGE on page 6 to help
determine slopes where you may not operate safely.

WARNING: Do not mow on inclines with

a slope in excess of 15 degrees (a rise of
approximately 2-1/2 feet every 10 feet).

The tractor could overturn and cause
serious injury.

Operate the tractor up and down slopes, never
across slopes. Do not drive so that the tractor may
tip over sideways.
Before operating the tractor on any slope, walk the
slope to look for possible hazards such as rocks.
mounds, ruts, stumps or other surface irregularities
which could cause the tractor to be upset.
Avoid turns when driving on a slope. If a turn must
be made, turn down the slope. Turning up a slope
greatly increases the chance of a roll over.
Avoid stopping when driving up a slope. If it is

necessary to stop while driving up a slope, start up
smoothly and carefully to reduce the possibility of

flipping the tractor over backward.

OPERATING THE HEADLIGHTS

To turn the tractor's headlights on:

• Start the engine following the instructions
earlier in this section.

• Turn the key one notch counterclockwise into
the On/Lights position of the ignition switch.

Refer to Figure 4.

To turn the tractor's headlights off:

• Turn the key either into the On position (to
leave the engine running) or the Off position
(to shut the engine off). Refer to Figure 4.

IMPORTANT: Never move the key into the Start

position while the engine is running. Doing so may
cause damage to your engine's starter.

STOPPING THE ENGINE

• Place the PTO switch in the disengaged

(OFF) position.

• Move the throttle control into the SLOW
position and allow the engine to "idle down"

for ten seconds, then turn the ignition key
counterclockwise to the OFF position.

• Remove the key from the ignition switch to
prevent accidental starting.

IMPORTANT: If you think you've struck a foreign

object, stop the engine immediately. Remove the

wire(s) from the spark plug(s), thoroughly inspect the
unit for any damage, and repair the damage before
restarting and operating the mower.

USING THE LIFT LEVER

To raise the cutting deck, move the lift lever to the
left, then place it in the notch best suited for your

application. Refer to SETTING THE CUTTING
HEIGHT earlier in this section.

ENGAGING THE ELECTRIC PTO
(POWER TAKE-OFF) KNOB

Front View Pull Out Push In

t

Figure 7

• Move the throttle control lever to the FAST
(rabbit) position.

• Pull the PTO knob outward into the engaged
(ON) position. See Figure 7.

• Keep the throttle lever in the FAST (rabbit)
position for the most efficient use of the
cutting deck and other attachments.

13

• The operator must remain in the tractor seat
at all times. If the operator should leave the
seat without pushing the PTO knob inward
into the disengaged (OFF) position, the

tractor's engine will shut off.

IMPORTANT: The PTO knob cannot be in the

engaged (ON) position when the tractor is driving in
the reverse direction, The PTO knob must be in the

disengaged (OFF) position when the shift/ever is in

REVERSE or the PTO will automatically shut off.
Refer to SAFETY INTERLOCK SWITCHES in this

section.

MOWING

This tractor is equipped with one of MTLTs high
quality cutting decks. The following information will
be helpful when using the cutting deck with your

tractor.

WARNING: To avoid possible injury, do

not allow anyone in the area of the tractor
while mowing. Even if the area to be

mowed has been cleared of foreign
objects, small objects may be picked up
and discharged by the mower,

WARNING: Never direct the discharge

of material toward bystanders or allow

anyone near the machine while in

operation.

For best results it is recommended that the

first two laps be cut with the discharge thrown

towards the center. After the first two laps,
reverse the direction to throw the discharge to
the outside for the balance of cutting. This will
give a better appearance to the lawn.

Do not cut the grass too short. Short grass
invites weed growth and yellows quickly in dry

weather.

• Mowing should always be done with the
engine at full throttle.

• Do not mow at high ground speed, especially

if a mulch kit or grass collector is installed.

• Under heavier conditions it may be necessary
to go back over the cut area a second time to

get a clean cut.

• Do NOT attempt to mow heavy brush and
weeds and extremely tall grass. Your tractor is

designed to mow lawns, NOT clear brush.

• Keep the blades sharp and replace the blades
when worn. Refer to the MAINTENANCE

section of this manual for proper blade
sharpening instructions.

SECTION 9: ADJUSTMENTS

LEVELING THE DECK

_, WARNING: Cutting blades are sharp.

Always protect hands by wearing heavy

leather work gloves to grasp blades.

NOTE: Check the tractor's tire pressure before

performing any deck leveling adjustments. Refer to

TIRES in the maintenance section of this rnanua/ for

further information regarding tire pressure.

Front to Rear

The front of the cutting deck is supported by a stabi-

lizer bar that can adjusted to level the deck from front

to rear. The front of the deck should be 1/4" to 3/8"

lower than the rear of the deck. Adjust if necessary
as follows:

WARNING: Turn the tractor's engine
off, remove the key from the ignition switch

and apply the tractor's parking brake before
making any adjustments to the cutting

deck.

• With the tractor parked on a firm, level

surface, place the lift lever in the top notch
(highest position) and rotate the blade nearest

the discharge chute so that it is parallel with
the tractor.

• Measure the distance from the front of the
blade tip to the ground and the rear of the

blade tip to the ground. The first measurement

taken should be between 1/4" and 3/8" less
than the second measurement. Determine the

approximate distance necessary for proper
adjustment and proceed, if necessary, to the
next step.

• Loosen the two jam nuts on the rear side of
the deck stabilizer bracket. See Figure 8A.

• Locate the two lock nuts on the opposite side
of the stabilizer bracket. See Figure 8A.
Tighten the lock nuts to raise the front of the

deck; loosen the lock nuts to lower the front of
the deck.

• Retighten the two jam nuts loosened earlier

when proper adjustment is achieved.

14

Side to Side

if the cutting deck appears to be mowing unevenly, a side to side adjustment can be performed. Adjust if

necessary as follows:

,_ WARNING: Turn the tractor's engine off, remove the key from the ignition switch and apply the

tractor's parking brake before making any adjustments to the cutting deck.

• With the tractor parked on a firm, level surface, place the lift lever in the top notch (highest position) and
rotate the both blades so that they are perpendicular with the tractor.

• Measure the distance from the outside of the left blade tip to the ground and the distance from the
outside of the right blade tip to the ground. Both measurements taken should be equal. If they're not,

proceed to the next step.

• Loosen, but do NOT remove, the hex cap screw on the left deck hanger bracket. See Figure 8B.

• Balance the deck so that both blade tip measurements taken earlier are equal.

• Retighten the hex cap screw on the left deck hanger bracket when proper adjustment is achieve_.

A

Stabilizer \

Bracket

, J

/

Deck ,/

\ Jam

\ Nuts

\\

i¸ /

,i Hex Cap Screw

I

DeckHanger Bracket

Front to Rear

Side to Side

Figure 8

SEAT ADJUSTMENT

To adjust the position of the seat, move the seat
adjustment lever (located under the seat) to the left

and slide the seat forward or backwards. See Figure

9. Make sure seat is locked into one of the six
adjustment positions before operating the tractor.

Seat

Seat Adjustment Lever

Figure 9

STEERING ADJUSTMENT

if the tractor turns tighter in one direction than the
other, or if the ball joints are being replaced due to

damage or wear, the steering drag links may need to
be adjusted.

Hex Nut and Zerk Fittting Pivot Bar

Lock W_

_ _ cr2_

Axle

Ball J_am _ Hu: rag Link

Figure 10

15

Adjustthe drag links so that equal lengthsare
threadedintotheballjointon theleftsideandthe

balljointontherightside:

• Loosenthejamnutfoundonthedraglinkat
therearoftheballjoint.SeeFigure10.

• Removethe hexnutandlockwasheronthe
topofballjoint.SeeFigure10.

• Thread the ball joint toward the jam nut to

shorten the drag link. Thread the ball joint
away from the jam nut to lengthen the drag

link.

• Replace hex nut and lock washer and
retighten the jam nut after proper adjustment
is achieved.

NOTE: Threading the ball joints too far onto the

drag links will cause the front tires to "toe-in" too far.

Proper toe-in is between 1/16" and 5/16".

Front tire toe-in can be measured as follows:

Insert Dowel

Here

Support

Plate

NOTE: View shown from beneath tractor.

• Place the steering wheel in position for
straight ahead travel. Insert a 1/4" dowel up
through aligning holes in both the steering
gear and support plate. See Figure 11.

o o o

.Steering Gear

• II_ _ Steering

Shaft

Figure 11

• In front of the axle, measure the distance
horizontally from the inside of the left rim to

the inside of the right rim. Note the distance.

• Behind the axle, measure the distance

horizontally from the inside of the left rim to
the inside of the right rim. Note the distance.

• The measurement taken in front of the axle

should be between 1/16" and 5/16" less than
the measurement taken behind the axle.

• Adjust if necessary.

• Remove the dowel inserted earlier before
attempting to operate the tractor.

CARBURETOR ADJUSTMENT

WARNING: If any adjustments are

made to the engine while the engine is

running (e.g. carburetor), disengage all

clutches and blades. Keep clear of all

moving parts. Be careful of heated

surfaces and muffler.

NOTE: A dirty air cleaner will cause an engine to

run rough. Be certain it is clean and properly
attached before adjusting carburetor. Refer to
separate engine manual packed with your unit for
information regarding air cleaner maintenance.

Refer to separate engine manual packed with your
unit for carburetor adjustment information or see an

authorized engine service dealer.

BRAKE ADJUSTMENT

If the tractor does not come to a complete stop when
the brake pedal is completely depressed, or if the
tractor's rear wheels can roll with the parking brake
applied, the brake is in need of adjustment. The
brake disc can be found on the right side of the
transmission in the rear of the tractor. Adjust if
necessary as follows:

• Looking at the transmission from the right side
of the tractor, locate the compression spring

and brake disc. See Figure 12.

SetGap _-I _ _'.,_// _)

at,011"/ __k_l_ )

Brake Disc/ Co_en_iOn [

NOTE: View shown from beneath tractor. Transmission

Figure 12

• Loosen, but do NOT remove, the hex nut
found on the right side of the brake assembly.

See Figure 12.

• Using a feeler gauge, set the gap between the

brake disc and the brake puck at .011 ".

• Re-tighten the hex nut loosened earlier.

16

SECTION 10: MAINTENANCE

A

WARNING: Disconnect the spark plug

wire(s) and ground against the engine

before performing any adjustments, repairs
or maintenance.

ENGINE

Refer to the separate engine manual for engine
maintenance instructions.

Check engine oil level before each use as

instructed in the separate engine manual packed

with your unit. Read and follow instructions

carefully.
Changing Engine Oil

• Unscrew oil fill cap and remove dipstick from
the oil fill tube. See Figure 13.

Oil Fill Cap ProtectiveCap

Drain Hose

Oil Fill Tube

Oil Drain Valve

OII Drain Port

NOTE: Single-cylinder engine shown.

Valve location will vary with engine style.

Figure 13

• Pop open the protective cap on the end of the
oil drain valve to expose the oil drain port. See

Figure 13.

• Push oil drain hose (packed with unit) onto the
oil drain port. Route the opposite end of the

hose into an appropriate oil collection

container with a capacity great enough to
collect the used oil.

IMPORTANT: Refill the engine with the proper

capacity and weight of motor oil as instructed in the
separate engine manual

Service air cleaner every 25 hours under normal
conditions. Clean every few hours under extremely
dusty condition. To service the air cleaner, refer to
the separate engine manual packed with your unit.

The spark plug(s) should be cleaned and the gap
reset once a season. Spark plug replacement is

recommended at the start of each mowing season;
check engine manual for correct plug type and gap

specifications.

CLEANING THE ENGINE AND DECK

Any fuel or oil spilled on the machine should be
wiped off promptly. Do NOT allow grass, leaves, and

dirt to accumulate around the cooling fins of the
engine or on any other part of the machine,
especially the pulleys and other moving parts.
Clean the underside of the deck with a wisk broom,

putty knife or forced air after each mowing.

IMPORTANT: Do NOT use a garden hose to
clean the cutting deck. The ball bearings in the blade

spindles are sealed at the factory and cannot be re-
lubricated. Spraying water near the spindles can

significantly reduce the life of the bearings.

CUTTING DECK REMOVAL

WARNING: Before performing any

maintenance, move the PTO switch into

the disengaged (OFF) position, engage the

parking brake, turn the ignition key to the

OFF position and remove the key from the
switch to avoid accidental starting.

Several attachments are available for your tractor.
To mount some of these attachments and in order to

perform certain maintenance procedures, the deck
must be removed from the tractor. To properly

remove the cutting deck, proceed as follows:

• Push the oil drain valve in slightly, then rotate
counterclockwise and pull outward to begin

draining oil. See Figure 13.

• Service the oil filter (if so equipped) as

instructed in the separate engine manual
packed with your unit.

Perform the above steps in the opposite order after

oil has finished draining.

• Refill the engine with new motor oil.

WARNING: Do NOT remove deck

immediately after operating the tractor.
Allow the engine and other moving parts
ample time to cool down.

• Move the PTO switch into the disengaged
(OFF) position and engage the parking brake.

• Lower the deck by moving the lift lever into the
bottom notch on the rightfender.

17

• GraspthePTOidlerpulleybracketandpivotit
towardthedischargechutetorelievetension

on the belt.Removethedeckbertfromthe
bottomportionof theenginepulleyandfrom

aroundthePTOidlerpulley.

NOTE: On units equipped with a 46-inch deck, the

bottommost belt on the deck does NOT need to be
removed in order to remove the deck.

• Looking at the cutting deck from the right side
of the tractor, locate the deck support pin on
the rear right side of the deck.

• Pull the deck support pin outward to release
the deck from the deck lift arm. See Figure 14.

• Rotate the pin slightly toward the rear of the
tractor and release the pin into the hole

provided.

\

To Lift Assembly

Repeat the above steps on the left side of the
tractor.

Move the lift lever into the top notch on the
right fender to raise the deck lift arms out of

the way.
Gently slide the cutting deck toward the front

of the tractor allowing the hooks on the deck

to release themselves from the deck stabilizer

rod. Do NOT let the deck fall to the ground•
Gently slide the cutting deck (from the right

side) out from underneath the tractor.

NOTE: To properly remount the cutting deck,

perform the above steps in reverse order. Having a
second person assist you will ease this procedure.

Deck Lift Arms

PTO Idler Pulley

PTO Belt

Electric PTO Clutch

Deck

Stabilizer

Bracket

/

,/

•Hooks

PTO Idler Pulley Bracket Deck Stabilizer Rod

(mounted on tractor)

NOTE: Beltcoversandother tractorcomponentsnotshownforclarity.42-inchdeckshown

Figure 14

Front of Tractor

"x

CHANGING THE DECK BELT(S)
All belts on your tractor are subject to wear and should be replaced if any signs of cracking, shredding or

rotting are present,

IMPORTANT: The V-belts found on your tractor are specially designed to engage and disengage safely. A

substitute (non-OEM) V-belt can be dangerous by not disengaging completely. For a proper working machine,
use factory approved belts.

To change or replace the deck belt(s) on your tractor, proceed as follows:

NOTE: Removing the deck from the tractor as instructed earlier in this section will ease the following steps,

but is not necessary.

42-inch decks

• Lower the deck by moving the lift lever into the bottom notch on the right fender.

• Remove the belt guards by removing the self-tapping screws that fasten them to the deck surface.

• Grasp the PTO idler pulley bracket and pivot it toward the discharge chute to relieve tension on the belt.

18

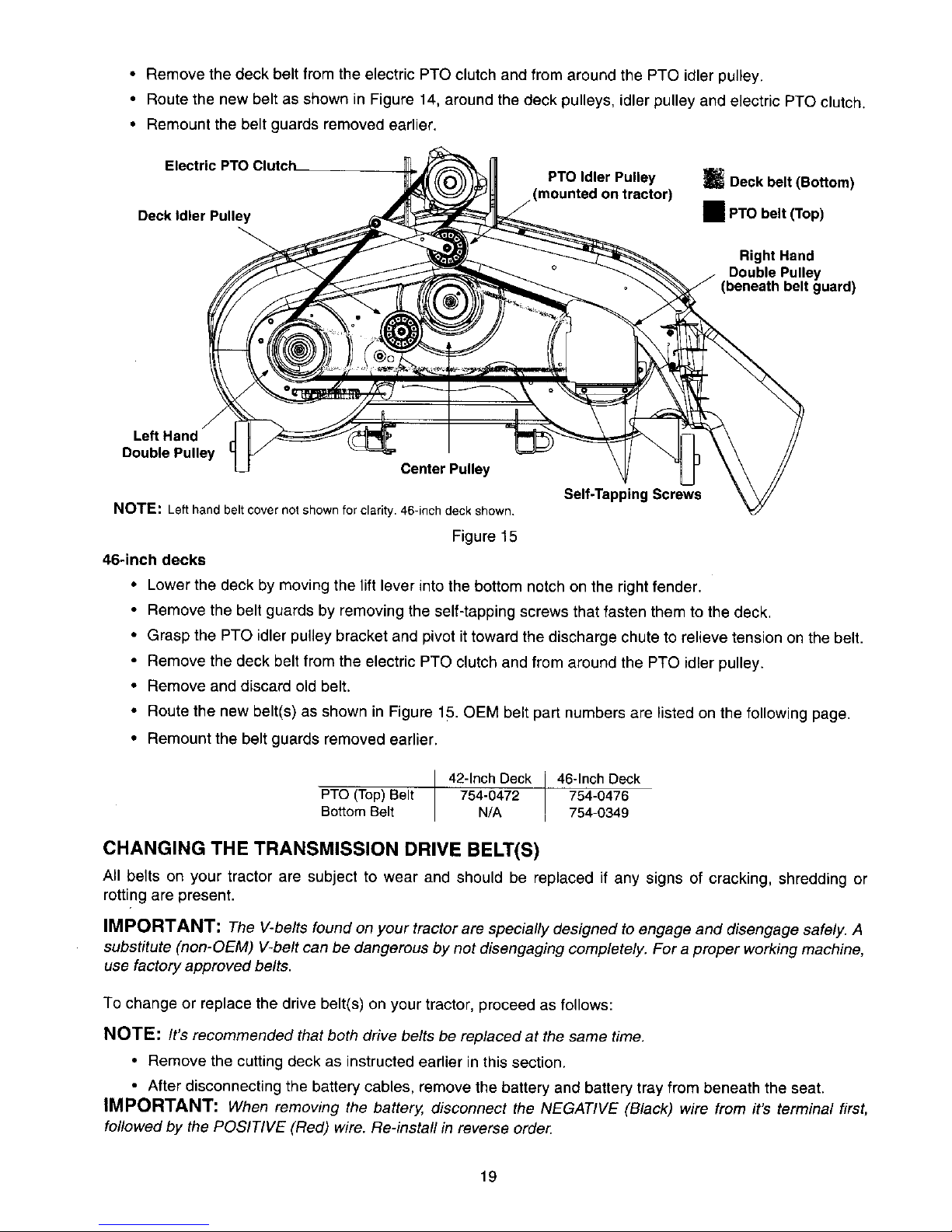

• Remove the deck belt from the electric PTO clutch and from around the PTO idler pulley.

• Route the new belt as shown in Figure 14, around the deck pulleys, idler pulley and electric PTO clutch.

• Remount the belt guards removed earlier.

Electric PTO Clutch

DeckIdler Pulley

PTO Idler Pulley

E Deckbelt (Bottom)

• PTObelt (Top)

Right Hand

Double Pulley

(beneath belt guard)

Left Hand

Double Pulley

Center Pulley

Self-Tapping Screws

NOTE: Lefthandbeltcovernotshownforclarity. 46-inchdeckshown.

Figure 15

46-inch decks

• Lower the deck by moving the lift lever into the bottom notch on the right fender.

• Remove the belt guards by removing the self-tapping screws that fasten them to the deck.

• Grasp the PTO idler pulley bracket and pivot it toward the discharge chute to relieve tension on the belt.

• Remove the deck belt from the electric PTO clutch and from around the PTO idler pulley.

• Remove and discard old belt.

• Route the new belt(s) as shown in Figure 15. OEM belt part numbers are listed on the following page.

• Remount the belt guards removed earlier.

PTO (Top) Belt
Bottom Belt

42-Inch Deck 46-Inch Deck

754-0472 754-0476

N/A 754-0349

CHANGING THE TRANSMISSION DRIVE BELT(S)

All belts on your tractor are subject to wear and should be replaced if any signs of cracking, shredding or

rotting are present.

IMPORTANT: The V-belts found on your tractor are specially designed to engage and disengage safely. A

substitute (non-OEM) V-belt can be dangerous by not disengaging completely. For aproper working machine,
use factory approved belts.

To change or replace the drive belt(s) on your tractor, proceed as follows:

NOTE: It's recommended that both drive belts be replaced at the same time.

• Remove the cutting deck as instructed earlier in this section.

• After disconnecting the battery cables, remove the battery and battery tray from beneath the seat.

IMPORTANT: When removing the battery, disconnect the NEGATIVE (Black) wire from it's terminal first,

followed by the POSITIVE (Red) wire. Re-install in reverse order.

19

Variable-speed

Pulley.

/

II

\

\

"\

Battery Tray

Opening

Shift Lever

• Drive belt (Lower)

Rear Idler Pulley • Drive belt (Upper)

.... -_2 ZZZZ21.2__h_'

=rontIdler Pulley ,,

Engine Pulley

cll'l

III

till

I101

_111

III

Electric PTO Clutch

Transmission Transmission Pulley

NOTE: View shownfromabovetractor.

Upper Drive Belt

Front of Tractor

Figure 16

• Locate the transmission idler pulley on the upper drive belt by looking through the battery tray opening.

See Figure 16.

• Grasp the bracket and pivot the transmission idler pulley toward the rear of the tractor to release
tension on the upper drive belt.

• Remove the belt from around the transmission idler pulley.

• Remove the upper drive belt from around the transmission pulley and the variable-speed pulley.

NOTE: Slowly rotate the pulley counterclockwise to roll the belt off of it.

• Remove the upper drive I_eltby pulling it up through the battery tray opening.

• Reroute the new upper drive belt as shown in Figure 16.

Lower Drive Belt

NOTE: Proper removal of the lower drive belt requires the removal of several tractor components. Read

through the following procedure prior to attempting it to determine if you feel you could successfully complete
it. If you don't, see an authorized MTD service dealer to have the belt changed.

IMPORTANT: Note the routing of the lower drive belt around both the pulleys and the belt keepers

BEFORE performing the following steps.

• Locate the variable-speed pulley by looking through the battery tray opening. See Figure 16,

• Remove the variable-speed pulley by loosening the hex bolt that affixes it to the transmission. Use a

second wrench to hold the hex nut on the bottom side of the pulley.

20

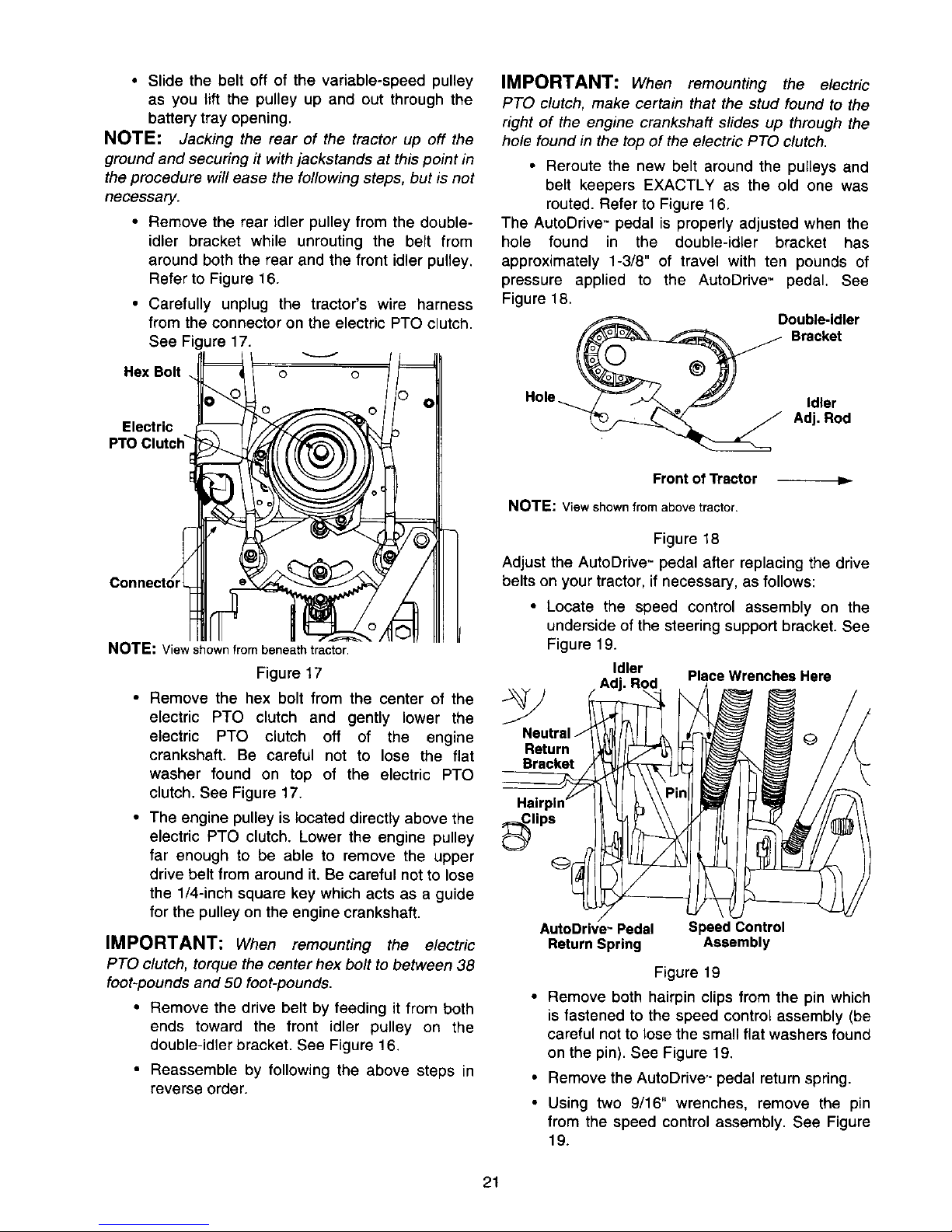

• Slidethebeltoffofthevariable-speedpulley
asyouliftthepulleyup andoutthroughthe

batterytrayopening.

NOTE; Jacking the rear of the tractor up off the

ground and securing it with jackstands at this point in

the procedure will ease the following steps, but is not
necessary.

• Remove the rear idler pulley from the double-
idler bracket while unrouting the belt from
around both the rear and the front idler pulley.

Refer to Figure 16.

• Carefully unplug the tractor's wire harness
from the connector on the electric PTO clutch.

See Figure 17.

Hex Bolt O

Electric

PTOClutch

NOTE: Viewshownfrombeneathtractor.

Figure 17

• Remove the hex bolt from the center of the
electric PTO clutch and gently lower the
electric PTO clutch oft of the engine

crankshaft. Be careful not to lose the flat

washer found on top of the electric PTO
clutch, See Figure 17.

• The engine pulley is located directly above the

electric PTO clutch. Lower the engine pulley
far enough to be able to remove the upper

drive belt from around it. Be careful not to lose
the 1/4-inch square key which acts as a guide

for the pulley on the engine crankshaft.

IMPORTANT: When remounting the electric

PTO clutch, torque the center hex bolt to between 38

foot-pounds and 50 foot-pounds.

• Remove the drive belt by feeding it from both
ends toward the front idler pulley on the

double-idler bracket. See Figure 16.

• Reassemble by following the above steps in

reverse order.

IMPORTANT: When remounting the electric

PTO clutch, make certain that the stud found to the
right of the engine crankshaft slides up through the

hole found in the top of the electric PTO clutch.

Hole

• Reroute the new belt around the pulleys and
belt keepers EXACTLY as the old one was

routed. Refer to Figure 16.

The AutoDrive'- pedal is properly adjusted when the

hole found in the double-idler bracket has
approximately 1-3/8" ot travel with ten pounds of

pressure applied to the AutoDrive" pedal. See

Figure 18.

Double-idler

Bracket

Idler

Adj. Rod

Front of _actor

NOTE: Viewshownfromabove tractor.

Figure 18

Adjust the AutoDrive- pedal after replacing the drive
belts on your tractor, if necessary, as follows:

• Locate the speed control assembly on the
underside of the steering support bracket. See
Figure 19.

Idler Place Wrenches Here

Return

Bracket

Hair

lips

AutoDrive- Pedal

Return Spring

Speed Control

Assembly

Figure 19

Remove both hairpin clips from the pin which
is fastened to the speed control assembly (be

careful not to lose the small flat washers found
on the pin). See Figure 19.

Remove the AutoDrive'- pedal return spring.

Using two 9/16" wrenches, remove the pin

from the speed control assembly. See Figure

19.

21

Threadtheidleradjustmentrodinwardor outward to

lengthen or shorten the travel of the double-idler

bracket until proper adjustment is achieved.

• Reassemble by following the above steps in
reverse order.

CUTTING BLADES

WARNING: Cutting blades are sharp.

Always protect hands by wearing heavy
leather work gloves to grasp blades.

The blades may be removed for sharpening or
replacement as follows.

• Remove the deck from beneath the tractor,
(refer to DECK REMOVAL earlier in this

section for detailed instructions) then gently
flip the deck over to expose its underside.

• Place a block of wood between the center
deck housing baffle and the cutting blade to

act as a stabilizer. See Figure 20.

• Use a 15/16" wrench to remove the hex flange
nut that secures the blade to the spindle

assembly. See Figure 20.

NOTE: The hex flange nut has a right-handed

thread pattern. Do NOT attempt to force the nut in
the incorrect direction. Doing so may damage the

nut and create a safety hazard.

Figure 20

To properly sharpen the cutting blades, remove
equal amounts of metal from both ends of the blades

along the cutting edges. See Figure 21.
Sharpen the cutting edge straight across, parallel to

the trailing edge, at a 25° to 30° angle. See Figure

21.

IMPORTANT: If the cutting edge of the blade has

already been sharpened to within 5/8" of the wind
wing radius, or if any metal separation is present,
replace the blades with new ones. See Figure 21.

Worn Blade Edge

Blade Separation Wind Wing

Figure 21

It is extremely important that each cutting blade

edge be ground equally to maintain proper blade

balance. An unbalanced blade will cause excessive
vibration when rotating at high speeds, may cause
damage to the tractor and result in personal injury.

The blade can be tested by balancing it on a round

shaft screwdriver. Grind metal from the heavy side

until it balances evenly.

When replacing the blade, be sure to install the

blade with the side of the blade marked "Bottom" (or

with a part number stamped in it) facing the ground

when the mower is in the operating position.

IMPORTANT: use a torque wrench to tighten the

blade spindle hex flange nut to between 70 foot-

pounds and 90 foot-pounds.

BATTERY

The battery is sealed and is maintenance-free. Acid

levels cannot be checked.

• Always keep the battery cables and terminals
clean and free of corrosive build-up.

• After cleaning the battery and terminals, apply
a light coat of petroleum jelly or grease to the

terminals and over the positive terminal boot.

• Always keep the boot positioned over the
positive terminal to prevent shorting.

IMPORTANT: If removing the battery for any

reason, disconnect the NEGATIVE (Black) wire from
it's terminal first, followed by the POSITIVE (Red)

wire. When re-installing the battery, always connect
the NEGATIVE (Black) wire its terminal first, followed

by the POSITIVE (Red) wire. Be certain that the

wires are connected to the correct terminals.
reversing them could change the polarity and cause

damage to your engine's alternating system.

22

Charging
If the unit has not been put into use for an extended

period of time, charge the battery with an
automotive-type 12-volt charger for a minimum of
one hour at six amps.

WARNING: Batteries give off an

explosive gas during and for some time
after charging. Charge battery in a well
ventilated area and do not allow a spark or

an open flame near the battery.

TIRES

The recommended operating tire pressure is

approximately 10 psi for the rear tires and 14 psi for

the front tires. Refer to the tire sidewall for exact tire

manufacturer's recommended psi. Do not
overinflate. Uneven tire pressure could cause the

cutting deck to mow unevenly.

FUSE

A fuse is installed in your tractor's wiring harness to
protect the tractor's electrical system from damage
caused by excessive amperage. Always use the
same capacity fuse for replacement. If the electrical

system does not function, or your tractor's engine

will not crank, first check to be certain that the fuse

has not blown. It can be found under the hood
mounted behind the top of dash panel on the

support bar. Pull the fuse out and compare it with

Figure 22 to determine if it is good or bad.

GOOD BAD

Figure 22

SECTION 11" LUBRICATION

d_i WARNING: Always stop the engine and disconnect the spark plug wire(s) and ground against the

engine before performing any maintenance.

ENGINE

Lubricate the engine with motor oil as instructed in the separate engine manual packed with your unit.

PIVOT POINTS
Lubricate all pivot points (AutoDrive- pedal, brake pedal, etc.) at least once a season with lightoil.

LINKAGE
Lubricate all the pivot points on the drive, brake and lift linkage at least once a season with SAE 30 engine oil,

STEERING GEAR
Lubricate the teeth of the steering gear with an all-purpose automotive grease every 25 hours of operation or

once a season.

WHEELS

Both the front wheels and the rear wheels should be removed from the axles once a season. Lubricate the
axles and the rims well with an all-purpose automotive grease before re-installing them.

FRONT AXLES

Your tractor may be equipped with zerk fittings on the ends of the front pivot bar. See Figure 10. Lubricate
both the left and the right front axles with a grease gun at least once a season.

23

SECTION 12: TROUBLESHOOTING GUIDE

Trouble Corrective Action

Engine will
not crank

Engine
cranks but
will not start

Possible

Cause(s)

Safety switch
button not

depressed.

Battery installed

incorrectly.

Battery is dead

or weak.

Blown fuse

Throttle or choke

not in starting

)osition.

No fuel to the

carburetor.

Nospark to

spark plug(s).

There is one safety switch in the starting circuit of your unit: the brake pedal switch.

Make certain the actuator is fully depressing the button on this switch. The Operator
must be seated on the tractor in order to start the engine, also.

The battery must be installed with negative terminal attached to black ground wire.

Negative terminal is identified at the post by "NEG", "N" or "-". The positive terminal,
identified by "POS", "P" or "+", must be attached to the thick red wire which goes to the

solenoid.
Charge at six amps with a 12-volt automotive-type battery charger for one hour or until

fully charged.

Refer to operator's manual for fuse location. Replace fuse with automotive type fuse

of the proper amperage. Fuses seldom fail without a reason. The problem must be
corrected. Check for loose connections in the fuse holder. Replace fuse holder if nec-
essary. A dead short may be in the cranking or charging circuit where the insulation

may have rubbed through and exposed the bare wire. Replace the wire or repair with

electrician's tape if the wire strands have not been damaged.

Note: Look for a wire pinched between body panels, burned by the exhaust pipe or
muffler or rubbed against a moving part.
Refer to the OPERATION section of this manual for the correct position of the throttle

control and choke for starting.

Gasoline tank empty. Fill.

Fuel line or in-line fuel filter plugged. Remove and clean fuel line. Replace fuel filter
(if so equipped) if necessary.

Spark plug lead disconnected. Connect lead. Using a spark tester, check for spark. If
no spark is present, have engine's magneto serviced by an authorized engine dealer.

Dirty aircleaner. If the air cleaner isdirty, the engine may not start. Refer to the engine manual packed

with your unit.
Engine Engine oil has Check oil level.
smokes been overfilled.

Engine loses Dipstick not seated or broken. Replace defective part.

crankcase Engine breather defective. Replace.
vacuum.

Excessive Bent blade or Stop engine immediately. Check all pulleys, blade adapters, keys and bolts for
vibration damaged pulley, tightness and spindle damage. Tighten or replace any loose or damaged parts.

Always replace damaged blade. Only use original equipment blades.
Mower Engine speed Throttle must be set at full throttle.

won't low.
discharge Speed selection. Use lower ground speed. The slower your ground speed, the better the quality of cut.

grass or Cutting height Raise deck.
leaves set too low.

uncut strips Blades dull. Sharpen or replace blades (uncut strip problem only).

24

25

Model 604

7

9

[]-

15

14

2

11

/ /

5

REF

NO

1

2
3
4
5
6
7
8
9

10

11
12

13

14

15
16

PART

NO.

625-0051
725-1739

725-1649

629-0928
629-0126

710-0599
712-3006

725-1426
725-1657A
725-1741

725-1743
725-1745

725-1744
725-1747
736-0222
736-0329
725-1752
783-0462

DESCRIPTION

Bulb/Socket Headlight Assembly

Bulb Only
Socket Only
Wiring Harness

Alternator Adapter (for Intek engines)
Self Tapping Screw, 1/4-20 x .5

Hex Nut, 1/4-20
Solenoid, 12-volt, 100 Amp

Snap Mount Safety Interlock Switch

Ignition Switch

Indicator Monitor / Hour Meter

Ignition Key (w/plastic cover, shown)

Ignition Key
Safety Plunger Switch

External Lock Washer, 1/4

Lock Washer, 1/4

Electric PTO Switch

Retainer Bracket

_629-0889 _ Alternator Adapter (for Kohler engines)

26

35

I REF,

!NO.

1

I 2

3

4

5
6

7

6

Electrical System/Tractor Body

28
24

23

25

37

13

21

PART

71o_o%

710-0599
710-0751

710-0895
710-0924
710-0528
712-0292
712-3004A

9 712-3027
10 725-1649
11 731-1978
12 731-1979
13 731-1980

14 ,731-1981
15 731-1982

16 731-1995
17 731-1996
18 736-0173

19 1736-3078

20 1747-1132
21 1783-0808

22 710-0604A

4

2

1

6 •

I
I

2

32

I

L

v

22 _

I

22

DESCRIPTION

Self Tapping Screw, 1/4-20 x 1.0

Self Tapping Screw, 1/4-20 x .5
Hex Cap Screw, 1/4-20 x .62
Self Tapping Screw, 1/4-15 x .75
Pan Phillips Screw, 1/4-20 x .75
Hex Cap Screw, 5/16-18 x 1.25
U-type Speed Nut, 1/4-20

iFlange Lock Nut, 5/16-18

Hex Flange Lock Nut, 1/4-20
Head Lamp Socket
RH Head Light Lens
LH Head Light Lens
Hood, 4-style (Yellow)

LH Side Panel, 4-style (Yellow)
RH Side Panel, 4-style (Yellow)
LH Head Light Reflector

RId Head Light Reflector
Flat Washer, .28 x .74 x .063
Flat Washer, .349 x 1.0 x .063
Hood Support Rod
Heat Shield, 4-style

Self Tapping Screw, 5/16-18 x .625

REE

NO.

23

24
25
26
27

28
29
30
31

32

33

34

35
36

37
38

39

I 3

38

4

PART

NO.

710-1017
710-3217
712-0142
731-0071
731-0072

731-1857
731-2106

;747-1155

749-1087
731-2232

731-2234
751-0603

751-0649
75!-0659
751-0658
725-1745

746-1085

746-1088

725-1752
731-2264
731-2263

20

27

8

19

9

18

39

12

16

2

DESCRIPTION

_orxSelf Tapping Screw, 1/4-14 x .625

Torx Screw, #8-32 x .375
Hex Nut, 8-32

Dash Panel, 4-style

Parking Brake Button
Throttle Control Lever
Cruise Control Button

Brake/Cruise Pivot Rod

Dash Support Tube

Intake Bellow (Kohler)

Intake Bellow (Intek Twin)

'Fuel Cap (For Two Gallon Tank, Shown)

Fuel Cap (For Three Gallon Tank)

Fuel Tank (Two Gallon, Shown)

Fuel Tank (Three Gallon)

Ignition Key

Choke Cable (Intek Twin)

Choke Cable (Kohler)

Electric PTO Switch

RH Grille Heat Shield

LH Grille Heat Shield

Model 604

49

45.
41

39

,_ • •46

6

_45

.36

47

16

28

• 35
_32

28

11\..

50

I
I

"l

51

17 j

22 j

10 j

20

16

28

REF.

NO.

1

2
3
4

5
6
7
8
9

10
11

12
13

14
15

16
17

18

19
2O
21
22
23

24
25

26

PART

NO.

647-0040
683-0197
711-0332
712-0206
712-0431
712-3004A
712-3083

714-0104
714-0111
716-0106

720-0311
732-0874
732-0934

736-0275
736-0921
736-3019
736-3084
738-0138
738-0380
741-0225
741-0715
746-0968
747-1111
756-1154
783-0678
783-0720

Lift Assembly

REF. PART

DESCRIPTION NO. NO.

Deck Stabilizer Rod 27 710-0260
LiftShaft Assembly 28 710-0604
Clevis Pin, .5 x .78 29 710-0895
Hex Nut, 1/2-13 30 731-1990
Flange Lock Nut, 3/8-16 31 731-2104
Flange Lock Nut, 5/16-18 32 738-0155
Hex Nut, 1/2-13 33 783-0677
Internal Cotter Pin 34 783-0685
Cotter Pin 35 783-0716

E-ring 36 710-1268
Handle Grip 37 712-3027

Torsion Spring 38 720-0309A
Lift-assist Spring, 1.16 x 5.99 39 731-1989

Found on Units w/46-inch Decks Only) 40 732-0499

Flat Washer, 5/16 41 736-0175
Lock Washer, 1/2 42 736-0204

Flat Washer, .31 x 1.062 x .134 43 738-0137A
Flat Washer, .51 x 1.12 x .06 44 738-1007

Hex Cap Screw, 5/16-18 x .62 45 783-0611
Shoulder Screw, .5 x .27, 3/8-16 46 783-0738

Hex Flange Bearing 47 783-0739
Snap Flange Bearing 48 783-0753

LiftCable, 16.16 49 757-0365

!Lift Handle 757-0372

Roller Pulley 50 735-0657
Arm Lift 51 735-0656
Deck Stabilizer Bracket 726-3046

DESCRIPTION

Carriage Bolt, 5/16-18 x .62

Self Tapping Screw, 5/16-18 x .625

Self Tapping Screw, 1/4-15 x .75

LiftLever Cover
Shift Lever Cover w/Cup Holder

Shoulder Screw, .437 x 1.62
LiftAdjustment Bracket

Fender
Seat Mounting Bracket

Screw, #10-16 x .375
Hex Flange Lock Nut, 1/4-20

Seat Adjuster Grip
Spacer

Compression Spring, .41 x 1.5
Spring Washer, .265 x .562 x .025
Flat Washer, .344 x .62 x .03
Shoulder Screw, .340 x .285,1/4-20
Shoulder Screw, .50 x .50, 3/8-16
Seat Stop

Seat Pivot Bracket
Seat Adjustment lever

Seat Adjustment Selector
Seat, Radiant Yellow
Seat, Radiant Yellow w/Drain Holes

LH Foot Pad
RH Foot Pad

Foot Pad Clips (Not Shown)

NOTE: For painted parts, please refer to
the list of color codes below. Please add

the applicable color code, wherever

needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Yard-Man
Green, the part number to order would be

700-xxxx-0665.

Yard-Man Green: 0665

Yard-Man Yellow: 0674

Powder Black: 0637

29

Model 604

24

43

42

23

19

41

2

4

,_,

38

21

14

18

44

11

45

3

20 22
13

•20

34

7

Q

_ _J

9

16

26

L

29

33
31

25

30

REF.

NO.

1

2
3

PART

NO.

683-0263

710-0604

783-0726

Steering Assembly

DESCRIPTION i NO. NO. DESCRIPTION

Lower Frame Assembly 27 68-3_ _ ---

iSelf-tapping Screw, 16-18 x .625 26 712-0431 Flange Lock Nut, 3/8-16

I

!RH P=votSupport Bracket 29 714-6470 Cotter Pin
!LH Pivot Support Bracket 36 726-0214 Push Cap, 6/8

4

5
6

7
8

9

10

11
12
13
14
15
16
17
18
19

20
21
22
23
24

25

26

783-0727

783-0728

710-0514
711-1409
711-1408

712-0240
712-0241
712-0431
712-0459
712-3004A
717-1550
717-1554
723-0448A
736-0169
736-3084
738-1001
741-0475

741-0656
748-0416

731-1869
731-1904

638-0019
638-0021
638-0020

638-0022

IPivot Bar Bracket

I

IHex Cap Screw, 3/8-16 x 1 (Grade 5)
[LH Drag Link

RH Drag Link
Jam Nut, 7/16-20 (Grade 2)

Hex Nut, 3/8-24 (Grade 2)
Flange Lock Nut, 3/8-16

Flange Lock Nut, 7/16-20
Flange Lock Nut, 5/16-18

Steering Gear, 11/90 Ratio
Steering Pinion Gear

Ball Joint, 7/16-20
Lock Washer, 3/8
Flat Washer, .51 x 1.12 x .06

Steering Shaft, .625 OD x 24.4
Plastic Bushing, .38 ID
Hex Flange Bearing, 5/8
Shoulder Spacer, .38 ID
Steering Wheel, .625 Spline

Steering Wheel Cap w/Logo
LH Axle Assembly, .625 Diameter

LH Axle Assembly, .625 / .750 Diameter
RH Axle Assembly, .625 Diameter
RH Axle Assembly, .625 / .750 Diameter

31
32

33
34
35

36

37

38
39
4O
41
42
43
44
45

726-0341
736-0162
736-0187
736-0316

1736-0285

738-1011
741-0659

741-0660

634-0105A

634-0172
734-0255

i734-1731

741-0487A

741-0706

734-1787A

!727-0425A

783-0653
738-1020
736-0331

738-0140

736-0242
710-0643
737-3000
710-0525

Push Cap, 3/4
Flat Washer, .64 x 1.0 x .12
Flat Washer, .64 x 1.24 x .06
Flat Washer, .78 x 1.59 x .06
Flat Washer, .635 x 1.589 x .06
Shoulder Screw, .5 x 2.2, 3/8-16

Flange Bearing, .632 ID x .937 OD
Flange Bearing, .760 ID x .937 OD
Wheel Assembly Complete, 15 x 6 x 6
Rim Only
Air Valve (Not Shown)
Tire Only, Square Shoulder

Plastic Flange (Net Shown)
Plastic Flange w/Fitting (Not Shown)
Hub Cap, Yellow w/Sprig Logo

Spring Clip (Not Shown)
Steering Support Bracket

Shoulder Screw, .625 x .50, 7/16-20
Bell Washer, .39 x 1.13 x .062

IShoulder Screw, .435 x .178, 5/16 x .56
IBell Washer, .34 x .872

Hex Bolt, 5/16-18 X 1
Grease Fittting (if so equipped)

Cast ron Pivot Bar (if so equipped)

NOTE: Units equipped with a 42-inch deck have axles with a .625 diameter.

Units equipped with a 46-inch deck have axles with a .625 / ,750 diameter.

F

NOTE: For painted parts, please refer to
the list of color codes below. Please add

the applicable color code, wherever
needed, to the part number to order a

replacement part. For instance, if a part
numbered 7O0-xxxx is painted Yard-Man

Green, the part number to order would be
700-xxxx-0666.

Yard-Man Green: 6665
Yard-Man Yellow: 0674

Powder Black: 0637

31

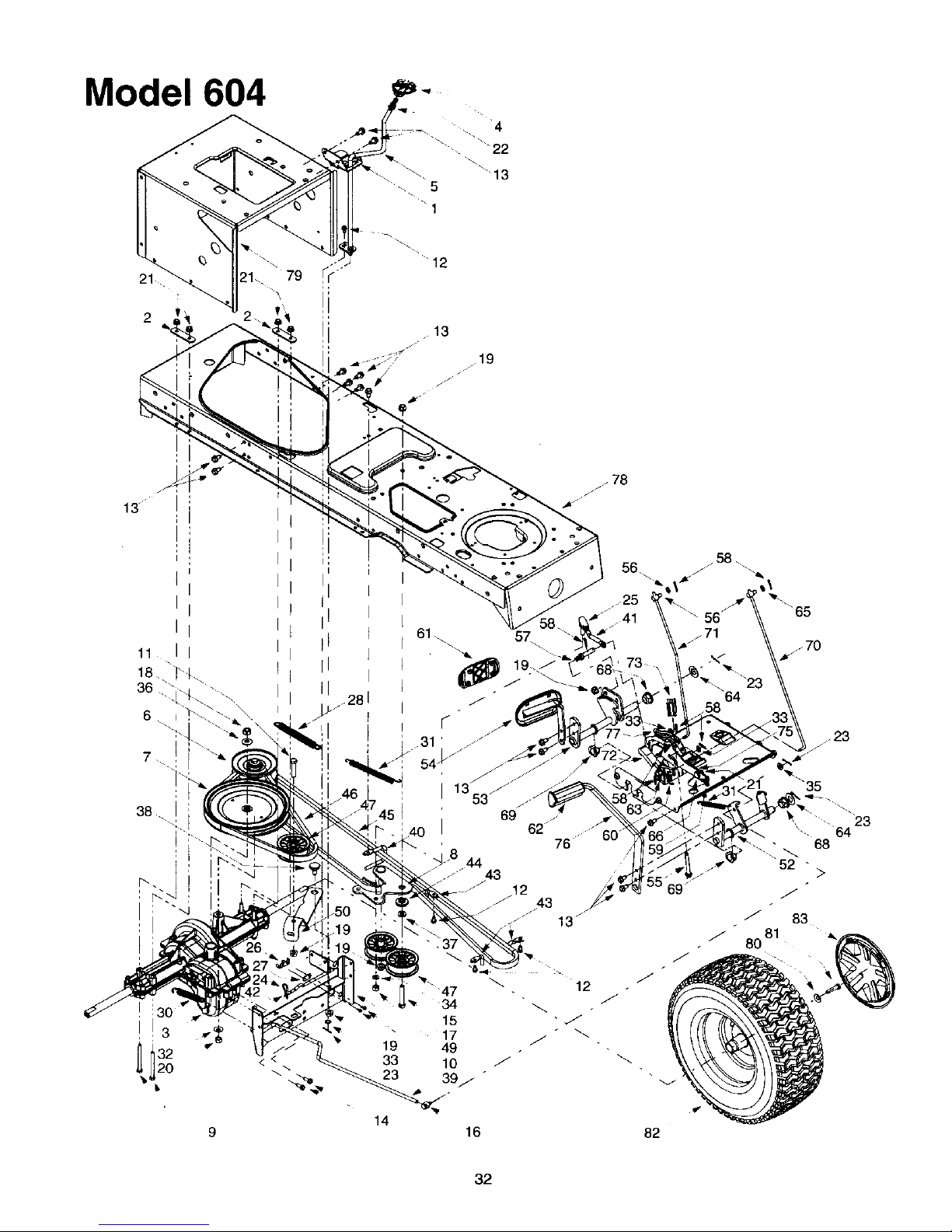

7!

38

I

!30 '

9

<

40

._ 8 44

69

J

62 _

76

12

p_

15
17

19 49
33 10

23 39_ "

14

16

82

J

J 83

81

8O

32

REF.

NO.

1
2
3
4
5
6
7

8
9

10
11
12
13
14
15

16
17
18
19

20
21
22

23

24

25
26
27
28

29
3O
31

32
33

34
35

36
37

38
39

40

41
42

43
44

PART

NO.

17839

17840
618-0386
631-0009
647-0041
656-0O48
656-0051
683-0251
710-0189
710-0227
710-0347
710-0599
710-0604
710-0642
710-3011
711-0677
712-0241

712-0378
712-0431

712-0798
712-3004A

712-3008
714-0111

714-0149B
723-0156
725-1644
726-0320
732-0384
732-0525
732-0716
732-0963

736-0105

736-0140
736-0169
736*0275
736-0407

736-3010
738-0322
747-1122
747-1123
747-1127
747-1156
747-1160
748-0416

DESCRIPTION

Shift Lever Bracket
Transaxle Mounting Bracket

Single-speed Transmission Assembly
Shifter Knob

Shift Lever
Variable-speed Pulley Assembly

Transmission Pulley, 8.5 x .5-36

Double-idler Bracket
Hex Cap Screw, 5/16-18 x 3

Self Tapping Screw, #8-18 x .5
Hex Cap Screw, 3/8-16 x 1.75
Self Tapping Screw, 1/4-20 x .5
Self Tapping Screw, 5/16-18 x .625
Self Tapping Screw, 1/4-20 x .75
Hex Cap Screw, 3/8-18 x 2.25

Ferrule, 5/16-18
Hex Nut, 3/8-24

Hex Nut, 7/16-20

Flange Lock Nut, 3/6-16

Hex Nut, 3/8-16

Flange Lock Nut, 5/16-18

Jam Nut, 3/8-16
Cotter Pin

internal Cotter Pin
Ball Joint, 3/8-24
Short Spring Switch

Insulator Nut Plate
Extension Spring, .62 Dia. x 6.12

Compression Spring Clip
Extension Spring, .59 OD x 4
Extension Spring, .50 Dia. x 6.37
(hooks to flange, 783-0650, in frame)

Bell Washer, .401 x .87 x .063
Flat Washer, .385 x .62 x .063
Lock Washer, 3/8
Flat Washer, 5/16
Bell Washer, .45 x 1.0 x .602
Fiat Washer, .407 x .812 x .135
Shoulder Screw, .625 x .217
Brake Rod

Belt Guard
Idler Adjustment Rod, 3/8

Shift Rod
Belt Guard Rod
Shoulder Spacer, .38 ID

-REFT I PART

NO. NO.
45-754-0467

46 754-0468

47 756-0981

48 783-0637
49 783-0667

50 783-0669

51 783-0714
52 647-0031
53 647-0032
54 683-0266
55 710-1135
58 711-0736
57 711-1363
58 714-0104

732-0437
732-0955

735-0662
735-3049
736-0140

736-0187
736-0204

738-0155
738-0507B

741-0225

741-3065A
747-1137

747-1138

746-0413

748-0415
783-0653
783-0732
783-0773
783-0780
683-0263
783-0668
736-0242
710-0627
634-0177

1634-0104

634-0077
734-0255

734-1873

1734-1730

83 1734-1788A

_727-0425A

Drive System

DESCRIPTION

Variable-speed Belt

Drive Belt
Flat Idler, 2.75 OD

Shift Lever Support

Transmission Torque Bracket

Idler Bracket
Adjustable Shift Bracket

Brake Control Assembly

Speed Control Assembly

AuteDrive" Pedal Assembly

Self Tapping Screw, 5/16-18 x 2.5
Ferrule, 1/4-20

Pin, 3/6-16 x 2.43

Cotter Pin
Compression Spring, .34 OD x 1.0

Extension Spring, .50 OD x 1.41

AutoDrive- Pedal Pad
Brake Pedal Pad

Flat Washer, .281 x .5 x .0625
Flat Washer, .64 x 1.24 x .06

Flat Washer, .344 x .062 x .03

Shoulder Screw, .437 x 1.62
Shoulder Screw, .5 x .434
Hex Flange Bearing

Split Hex Flange Bearing
Cruise Control Rod

Brake Lock Control Rod
Cruise Latch

Spacer, 5/16 x 1.54
Stearing Support Bracket

AutoDrive'- Lockout Bracket
Brake Pedal

Neutral Return Bracket
Lower Frame Assembly

Hitch Plate
Bell Washer, .34 x .872

Hex Cap Screw, 5/1 6-24 x .75

Wheel Assembly Complete, 20 x 10 x 8
Wheel Assembly Complete, 20 x 8 x 8

Rim Only

Air Valve (Not Shown)
Tire Only, 20 x 10 x 8, Square Shoulder
Tire Only, 20 x 8 x 8, Square Shoulder

Hub Cap, Yellow w/Sprig Logo

Spring Clip (Not Shown)

33

Model 604

5

12
11

13
10

20 40

14

15

38

34

[REF.

NO.

!2
!3

4

6
7
8

9
10
11
12
13
14
15
16
17

18
19
20
21

Power Take-off System

PART tREE- PART ..... _"

NO. : DESCR PTION NO. NO. DESCRIPTION

712-0431 Flange Lock Nut, 3/8-16 .... 22 711-0640 1Stud, 3/8-i5 x2168

732-0735 Compression Spring, 1.318 x 2.37 23 712-3010 Hex Nut, 5/16-18

783-0733 Spacer Cup, 1.50D 24 '710-3180 iHex Cap Screw, 5/16-18 x 1.75 (Grade 5)
732-0956 Compression Spring, .66 OD x 1.5 25 732-0978 Extension Spring, 1.20D x 3.638

710-0604A

710-0751

712-0271
712-3044

725-1706
738-1014
738-1020
736-0407

723-0444
783-0668

725-1747
736-0222

725-1426
710-0599
712-0459
683-0263A
756-0639

Self Tapping Screw, 5/16-18 x .625

Hex Cap Screw, 1/4-20 x .62
IHex Sems Nut, 1/4-20

IWing Nut, 1/4-20
!12-volt Battery, 270 CCA

Shoulder Screw, .5 x 1.25, 3/8-16
iShoulder Screw, .625 x .5, 7/16-20

Bell Washer, 45 x 1 0 x .062

IBattery Strap

Hitch Plate
Safety Interlock Plunger Switch

Lock Washer, 1/4
Solenoid, 12-Volt, 100 Amp
Self Tapping Screw, 1/4-20 x .5
Flange Lock Nut, 7/16-20

Lower Frame Assembly

Engine Pulley, 3.56 OD

26 714-0118
27 736-0277
28 712-3004A
29 783-0653A
3O _683-0293

683-0197

31 _738-3056
32 ,717-1708

33 _738--0785

736-0171

3534!710-3157

i

36 1710-3011
37 756-0627

38 754-0472

754-0476

i 39 783-0349
i 40 783-0891

Square Key, 1/4 x 1.5

!Flat Washer, 1.03 x 1.62 x .095
'Flange Lock Nut, 5/16-18

Steering Support Bracket

!Idler Bracket Assembly (42-inch decks)

Idler Bracket Assembly (46-inch decks)

IShoulder Screw, 1/2 D ameter x 2 5
iElectric PTO Clutch

Shoulder Spacer, 1.38 x .445 x .36
Lock Washer, 7/16

IHex Cap Screw, 7/16-20 x 3.25 (Grade 5)

Hex Cap Screw, 3/8-16 x 2.25 (Grade 5)

Flat Idler Pulley, 3.50D

IPTO Belt (42- nch Decks)

PTO Belt (46-inch Decks)
Battery Tray

!Deck Stop

NOTE: For painted parts, please refer to
the list of color codes below. Please add

the applicable color code, wherever
needed, to the part number to order a

replacement part. For instance, if a part

numbered 7O0-xxxx is painted Yard-Man
Green, the part number to order would be
700-xxxx-0665.

Yard-Man Green: 0665

Yard-Man Yellow: 0674

Powder Black: 0637

35

Model 604

46-inch Deck

10

10

38

33.

18

14
16

26

28

." 35

-25

_26

11

41

12

49

17

13

17

42

49

36

REF,

NO.

1

2

4
5

6
7

8
9

10
11

12
13

14

15
16

17

18
19
20
21
22
23
24
25
26
27
28
29
30

PART

NO.

17982

618-6240

i756-0959

518-0241

756-0603
663-0254
683-0265
710-0167

710-0347
710-0514
710-0528
710-0599
710-0650
710-0751
710-1260A
712-3288
712-0241
712-0291
712-0417A
712-0431
712-3027
714-0104
717-1553
731-1032A
732-0306
732-0594A
734-0973
736-0105
736-0119
738-0347
738-0373
742-0611

Cutting Decks

DESCRIPTION

Reinforcement Spindle Plate
Spindle Assembly, 5 Dia.
Pulley Only
Double Pulley Spindle Assembly
Double Pulley Only
Deck Adjustment Bracket w/Weld Nut

46-inch Deck Shell

Carriage Screw, 1/4-20 x .5

iHex Cap Screw, 3/8-16 x 1.75
iHex Cap Screw, 3/8-16 x 1.0

Hex Cap Screw, 5/16-18 x 1.25
Self Tapping Screw, I/4-20 x .5
Self Tapping Screw, 5/16-18 x .875
Hex Cap Screw, 1/4-20 x .62
Self Tapping Screw, 5/16-18 x .75
Hex Cap Screw, 1/4-20 x 1.62
Hex Nut, 3/8-24
Center Lock Nut, 1/4-20
Hex Flange Nut, 5/8-18
Flange Lock Nut, 3/8-16
Hex Flange Lock Nut, 1/4-20
Internal Cotter Pin, .072 x 1.12
Deck Adjustment Gear
Side Discharge Chute Assembly
Compression Spring, .406 x .531 x 1.75
Extension Spring, .91 x 7.33
Deck Wheel, 5 x 1.38
Bell Washer, .401 x .87 x .063
Lock Washer, 5/16
Shoulder Spacer, .625 x. 169

'Shoulder Spacer, .498 x 1.53

Three- n-one Bade, Star Center, 16.28

RER f PART

NO. NO.

31 742-0612
32 747-1116
33 754-O349
34 756-0627
35 783-0139
36 783-0141
37 783-0142
38 783-0747
39 !783-0805
40 ;16606
41 !618-0324

1756-1151

42 683-0198
43 710-0604

44 712-0181
45 712-0271

46 712-3006
47 731-2231
48 736-0270
49 742-0616

50 731-1636
51 1731-1643A

52 _712-3087
53 1712-0291
54 i710-0106

55 1710-0578
56 736-0173

57 753-0852

58 753-0851

DESCRIPTION

Three-in-one Blade, Star Center, 14.88
Deck Release Pin

Deck Belt
Flat Idler Pulley, 3.50D

Idler Bracket
Center Deck Skirt
RH Deck Skirt
LH Belt Cover

RH Belt Cover
Retainer Hook

Spindle Assembly, 5.75 Dia
Pulley Only

42-inch Deck Shell
Self Tapping Screw, 5/16-18 x .625

Top Lock Jam Nut, 3/8-16

Hex Sems Nut, 1/4-20
Hex Nut, 1/4-20
Belt Cover
Bell Washer, .265 x .75 x .062

Three-in-one Blade, Star Center, 21.23

Mulch Plug, 46-inch Decks

Mulch Plug, 42-inch Decks
Wing Nut, 1/4-20
Center Lock Nut, 1/4-20

Hex Cap Screw, 1/4-20 x 1.25

Screw, 1/4-20 x 1.5

Flat Washer, .28 x .74 x .063
46-inch Deck Assembly Complete

(w/o mulch kit)
42-inch Deck Assembly Complete

(w/o mulch kit)

NOTE: For painted parts, please refer to

the list of color codes below. Please add
the applicable color code, wherever

needed, to the part number to order a
replacement part. For instance, if a part
numbered 70O-xxxx is painted Yard-Man

Green, the part number to order would be
700-xxxx-0665.

Yard-Man Green: 0665
Yard-Man Yellow: 0674

"Powder Black: 0637

37

Model 604

11

(for choke)

9 7

'_ 13

Briggs & Stratton _ 9

Intek Twin !_ _P__ _ 22

(forthr°ttle)14 ,r- !_'_ _ ,,_ 21

6 _ _ 10

Kohler

11 (forchoke)

20

3

Single-cylinder _;/

26

21

23

2

i

27

21

4

28

14 (deflector must

face forward)

38

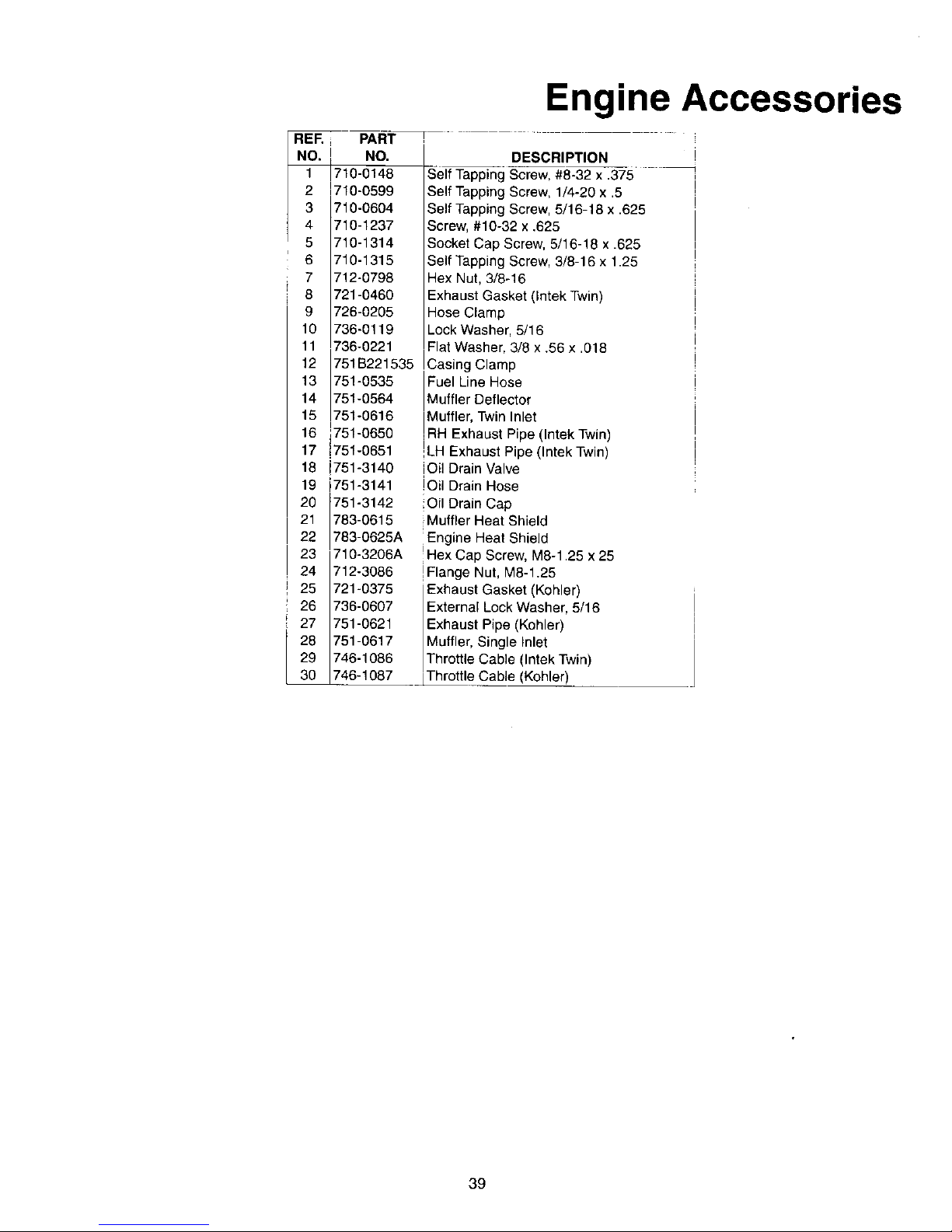

REE_ PART

NO. NO

1 1710-0148

2 710-0599
3 710-0604

4 710-1237
5 710-1314

6 710-1315
7 712-0796
8 721-0460
9 726-0205

10 736-0119
11 736-0221
12 751B221535
13 751-0535

14 751-0564
15 751-0616
16 751-0650
17 751-0651
18 751-3140
19 751-3141

20 751-3142
21 783-0615

22 783-0625A
23 710-3206A
24 712-3086
25 721-0375
26 736-0607

27 751-0621
28 751-0617
29 746-1086

30 746-1087

Engine Accessories

DESCRIPTION

Self Tapping Screw, #8-32 x .375
Self Tapping Screw, 1/4-20 x .5
Self Tapping Screw, 5/16-18 x .625

Screw, #10-32 x .625
Socket Cap Screw, 5/16-18 x .625

Self Tapping Screw, 3/8-16 x 1.25
Hex Nut, 3/8-16

Exhaust Gasket (Intek Twin)
Hose Clamp

Lock Washer, 5/16
Flat Washer, 3/8 x .56 x .018

Casing Clamp
Fuel Line Hose

IMuffler Deflector

Muffler, Twin Inlet

IRH Exhaust Pipe (Intek Twin)
!LH Exhaust Pipe (Intek Twin)

iOil Drain Valve
iOil Drain Hose

Oil Drain Cap
Muffler Heat Shield

Engine Heat Shield

!Hex Cap Screw, M8-1.25 x 25
IFlange Nut, M8-1.25

Exhaust Gasket (Kohler)
External Lock Washer, 5/16
Exhaust Pipe (Kohler)
Muffler, Single Inlet

IThrottle Cable (Intek Twin)

LThrottle Cable (Kohler)

39

MANUFACTURER'S LIMITED WARRANTY FOR:

YaRD'MaN

For TWO YEARS from the date of retail purchase
within the United States of America, its possessions

and territories, MTD PRODUCTS INC will, at its
option, repair or replace, for the original purchaser,

free of charge, any part or parts found to be

defective in material or workmanship. This warranty

covers units which have been operated and

maintained in accordance with the operating
instructions furnished with the unit, and which have

not been subject to misuse, abuse, commercial use,
neglect, accident, improper maintenance or

alteration.

Units exported out of the United States: MTD
PRODUCTS INC does not extend any warranty for

products sold or exported outside of the United
States of America, its possessions and territories,
except those sold through MTD PRODUCTS INC's

authorized channels of export distribution.
Other Warranties:

1,

2,

Normal wear parts or components thereof are

subject to separate terms as noted below in the "No

Fault Ninety Day Consumer Warranty" clause. 3.

All normal wear part failures will be covered on this

product for a period of 90 days regardless of cause.

After 90 days, but within the two year period, normal 4.
wear parts failures will be covered ONLY IF caused

by defects in material or workmanship of OTHER
component parts. Normal wear parts are defined as

batteries*, belts, blades, blade adapters, grass bags, 5.

rider deck wheels, seats, snow thrower skid shoes,

shave plates and tires.
How to obtain service: Warranty service is

available, with proof of purchase, through your local

authorized service dealer. To locate the dealer in
your area, please check the yellow pages or contact

the Customer Support Department of MTD

PRODUCTS INC, P. O. Box 368022, Cleveland,

Ohio 44136-9722.

Phone [phone]. The return of a complete

unit will not be accepted by the factory unless prior
written permission has been extended by the

Customer Support Department of MTD PRODUCTS

INC.

Transportation charges: Transportation charges
for the movement of any power equipment unit or

attachment are the responsibility of the purchaser.

The engine or component parts thereof carry
separate warranties from their manufacturers.

Please refer to the applicable manufacturer's

warranty on these items.
*Batteries are covered by a 90-day replacement

warranty.

Log splitter pumps, valves and cylinders or

component parts thereof are covered by a one
year warranty.

All other warranties, express or implied,
including any implied warranty of merchantability
or fitness for a particular purpose, are hereby
expressly disclaimed in their entirety.

The provisions as set forth in this warranty
provide the sole and exclusive remedy of MTD

PRODUCTS INC's obligations arising from the

sales of its products. MTD PRODUCTS INC will
not be liable for incidental or consequential loss

or damage.

How state law relates to this warranty: This

limited warranty gives you specific legal rights, and

you may also have other rights which vary from state
to state. Certain disclaimers are not allowed in some

states and therefore they may not apply to you

under all circumstances.

NOTE: This warranty does not cover routine

maintenance items such as lubricants, filters, blade
sharpening and tune-ups, or adjustments such as
brake adjustments, clutch adjustments or deck
adjustments. Nor does this warranty cover normal

deterioration of the exterior finish due to use or
exposure.
