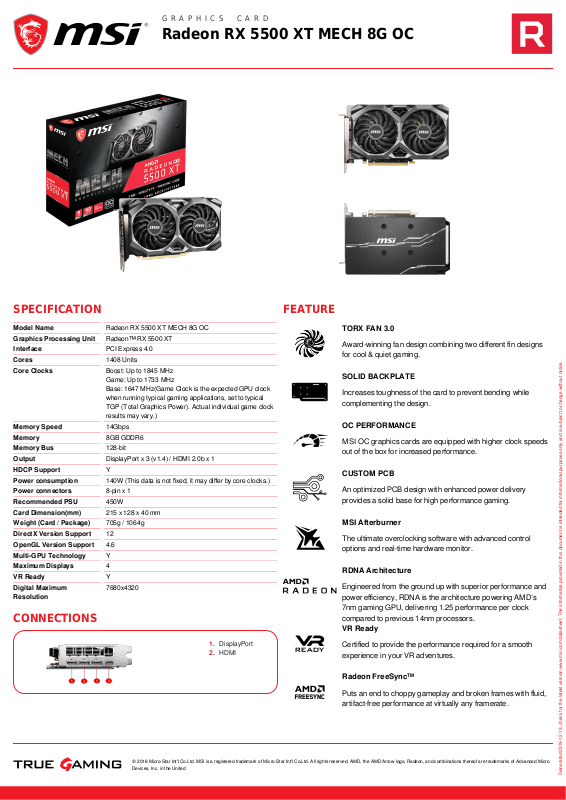

MSI RX 5500 XT Mech 8G OC Service Manual

GRAPHICS CARD

GRAPHICS CARD

Radeon RX 5500 XT MECH 8G OC

Radeon RX 5500 XT MECH 8G OC

SPECIFICATION

Model Name Radeon RX 5500 XT MECH 8G OC

Graphics Processing Unit Radeon™ RX 5500 XT

Interface PCI Express 4.0

Cores 1408 Units

Core Clocks Boost: Up to 1845 MHz

Memory Speed 14Gbps

Memory 8GB GDDR6

Memory Bus 128-bit

Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1

HDCP Support Y

Power consumption 140W (This data is not fixed, it may differ by core clocks.)

Power connectors 8-pin x 1

Recommended PSU 450W

Card Dimension(mm) 215 x 128 x 40 mm

Weight (Card / Package) 705g / 1064g

DirectX Version Support 12

OpenGL Version Support 4.6

Multi-GPU Technology Y

Maximum Displays 4

VR Ready Y

Digital Maximum
Resolution

Game: Up to 1733 MHz
Base: 1647 MHz(Game Clock is the expected GPU clock
when running typical gaming applications, set to typical
TGP (Total Graphics Power). Actual individual game clock
results may vary.)

7680x4320

CONNECTIONS

DisplayPort1.
HDMI2.

FEATURE

TORX FAN 3.0

Award-winning fan design combining two different fin designs
for cool & quiet gaming.

SOLID BACKPLATE

Increases toughness of the card to prevent bending while
complementing the design.

OC PERFORMANCE

MSI OC graphics cards are equipped with higher clock speeds
out of the box for increased performance.

CUSTOM PCB

An optimized PCB design with enhanced power delivery
provides a solid base for high performance gaming.

MSI Afterburner

The ultimate overclocking software with advanced control
options and real-time hardware monitor.

RDNA Architecture

Engineered from the ground up with superior performance and
power efficiency, RDNA is the architecture powering AMD’s
7nm gaming GPU, delivering 1.25 performance per clock
compared to previous 14nm processors.

VR Ready

Certified to provide the performance required for a smooth
experience in your VR adventures.

Radeon FreeSync™

Puts an end to choppy gameplay and broken frames with fluid,
artifact-free performance at virtually any framerate.
