RTX 2060 SUPER Ventus OCV1
GRAPHICS CARD

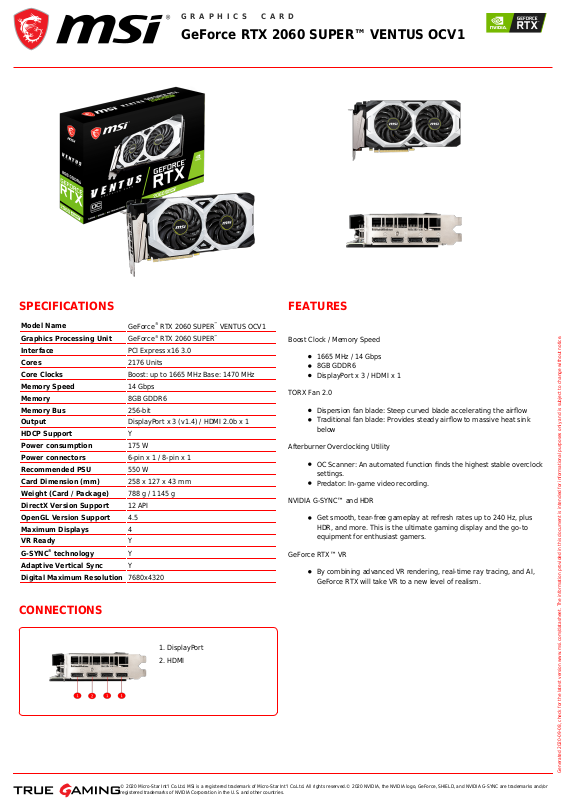

GeForce RTX 2060 SUPER™ VENTUS OCV1
© 2020 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.© 2020 NVIDIA, the NVIDIA logo, GeForce, SHIELD, and NVIDIA G-SYNC are trademarks and/or
registered trademarks of NVIDIA Corporation in the U.S. and other countries.
SPECIFICATIONS
Model Name
GeForce
®
RTX 2060 SUPER
™
VENTUS OCV1
Graphics Processing Unit
GeForce
®
RTX 2060 SUPER
™
Interface PCI Express x16 3.0
Cores 2176 Units
Core Clocks Boost: up to 1665 MHz Base: 1470 MHz
Memory Speed 14 Gbps
Memory 8GB GDDR6
Memory Bus 256-bit
Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
HDCP Support Y
Power consumption 175 W
Power connectors 6-pin x 1 / 8-pin x 1
Recommended PSU 550 W
Card Dimension (mm) 258 x 127 x 43 mm
Weight (Card / Package) 788 g / 1145 g
DirectX Version Support 12 API
OpenGL Version Support 4.5
Maximum Displays 4
VR Ready Y
G-SYNC
®
technology
Y
Adaptive Vertical Sync Y
Digital Maximum Resolution 7680x4320
CONNECTIONS
1. DisplayPort
2. HDMI
FEATURES
Boost Clock / Memory Speed
1665 MHz / 14 Gbps
8GB GDDR6
DisplayPort x 3 / HDMI x 1
TORX Fan 2.0
Dispersion fan blade: Steep curved blade accelerating the airflow
Traditional fan blade: Provides steady airflow to massive heat sink
below
Afterburner Overclocking Utility
OC Scanner: An automated function finds the highest stable overclock
settings.
Predator: In-game video recording.
NVIDIA G-SYNC™ and HDR
Get smooth, tear-free gameplay at refresh rates up to 240 Hz, plus
HDR, and more. This is the ultimate gaming display and the go-to
equipment for enthusiast gamers.
GeForce RTX™ VR
By combining advanced VR rendering, real-time ray tracing, and AI,
GeForce RTX will take VR to a new level of realism.
Generated 2020-09-08, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
