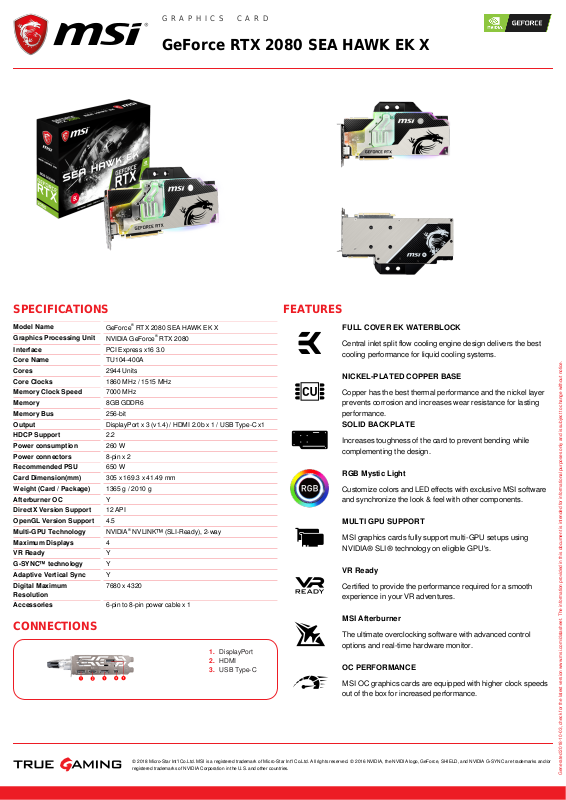

MSI RTX 2080 Sea Hawk EK X Service Manual
GRAPHICS CARD
GRAPHICS CARD
GeForce RTX 2080 SEA HAWK EK X
GeForce RTX 2080 SEA HAWK EK X
SPECIFICATIONS
Model Name
Graphics Processing Unit
Interface PCI Express x16 3.0
Core Name TU104-400A
Cores 2944 Units
Core Clocks 1860 MHz / 1515 MHz
Memory Clock Speed 7000 MHz
Memory 8GB GDDR6
Memory Bus 256-bit
Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 / USB Type-C x1
HDCP Support 2.2
Power consumption 260 W
Power connectors 8-pin x 2
Recommended PSU 650 W
Card Dimension(mm) 305 x 169.3 x 41.49 mm
Weight (Card / Package) 1365 g / 2010 g
Afterburner OC Y
DirectX Version Support 12 API
OpenGL Version Support 4.5
Multi-GPU Technology
Maximum Displays 4
VR Ready Y
G-SYNC™ technology Y
Adaptive Vertical Sync Y
Digital Maximum
Resolution
Accessories 6-pin to 8-pin power cable x 1
GeForce® RTX 2080 SEA HAWK EK X
NVIDIA GeForce® RTX 2080
NVIDIA® NVLINK™ (SLI-Ready), 2-way
7680 x 4320
CONNECTIONS
DisplayPort1.
HDMI2.
USB Type-C3.
FEATURES
FULL COVER EK WATERBLOCK
Central inlet split flow cooling engine design delivers the best
cooling performance for liquid cooling systems.
NICKEL-PLATED COPPER BASE
Copper has the best thermal performance and the nickel layer
prevents corrosion and increases wear resistance for lasting
performance.
SOLID BACKPLATE
Increases toughness of the card to prevent bending while
complementing the design.
RGB Mystic Light
Customize colors and LED effects with exclusive MSI software
and synchronize the look & feel with other components.
MULTI GPU SUPPORT
MSI graphics cards fully support multi-GPU setups using
NVIDIA® SLI® technology on eligible GPU's.
VR Ready
Certified to provide the performance required for a smooth
experience in your VR adventures.
MSI Afterburner
The ultimate overclocking software with advanced control
options and real-time hardware monitor.
OC PERFORMANCE
MSI OC graphics cards are equipped with higher clock speeds
out of the box for increased performance.
© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved. © 2016 NVIDIA, the NVIDIA logo, GeForce, SHIELD, and NVIDIA G-SYNC are trademarks and/or
© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved. © 2016 NVIDIA, the NVIDIA logo, GeForce, SHIELD, and NVIDIA G-SYNC are trademarks and/or
registered trademarks of NVIDIA Corporation in the U.S. and other countries.
registered trademarks of NVIDIA Corporation in the U.S. and other countries.
Generated 2018-10-03, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
