MSI RS480M2 User Manual
RS480M2/RX480M2
MS-7093 (v1.X) M-ATX Mainboard
English Version
G52-M7093X8
i
Manual Rev: 1.6
Release Date: April 2005
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.
Micro-Star International
MS-7093
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
ii
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no
guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered trade-
marks of AMD Corporation.
Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 95/98/2000/2003/NT/XP are registered trademarks of Microsoft Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.
Revision History
Revision Revision History Date
V1.6 removing overclocking function, April 2005
adding ATI RAID settings & Surroundview
TM
Technical Support
If a problem arises with your system and no solution can be obtained from the user’ s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance.
Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates,
and other information: http://www.msi.com.tw/program/service/faq/
faq/esc_faq_list.php
Contact our technical staff at: support@msi.com.tw
iii
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electrical
shock.
11. If any of the following situations arises, get the equipment checked by a service
personnel:
† The power cord or plug is damaged.
† Liquid has penetrated into the equipment.
† The equipment has been exposed to moisture.
† The equipment has not work well or you can not get it work according to
User’s Manual.
† The equipment has dropped and damaged.
† The equipment has obvious sign of breakage.
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F), IT MAY DAMAGE THE EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
iv
CONTENTS
FCC-B Radio Frequency Interference Statement..........................................................ii
Revision History...............................................................................................................iii
Technical Support............................................................................................................iii
Safety Instructions.........................................................................................................iv
Chapter 1. Getting Started.....................................................................................1-1
Mainboard Specifications....................................................................................1-2
Mainboard Layout................................................................................................1-5
Packing Checklist..................................................................................................1-6
Chapter 2. Hardware Setup...................................................................................2-1
Quick Components Guide....................................................................................2-2
Central Processing Unit: CPU...............................................................................2-3
CPU Installation Procedures for Socket 939...............................................2-4
Installing AMD Athlon64 CPU Cooler Set......................................................2-5
Memory.................................................................................................................2-7
DIMM Module Combination............................................................................2-7
Installing DDR Modules.................................................................................2-8
Power Supply.......................................................................................................2-9
ATX 24-Pin Power Connector: ATX1...........................................................2-9
ATX 12V Power Connector: JPW1.............................................................2-9
Back Panel...........................................................................................................2-11
Connectors..........................................................................................................2-11
Floppy Disk Drive Connector: FDD1............................................................2-11
Fan Power Connectors: CFAN1 / SFAN1..................................................2-11
ATA133 Hard Disk Connectors: IDE1 & IDE2.............................................2-12
Serial ATA Connectors: SATA1~SATA4....................................................2-13
CD-In Connector: JCD1..............................................................................2-14
Aux Line-In Connector: JAUX1.................................................................2-14
Front Panel Audio Connector: JAUD1.......................................................2-14
IEEE 1394 Connectors: J1394_1 (Optional)..............................................2-15
Serial Port Header: COM1 (Optional).........................................................2-15
Front Panel Connectors: JFP1...................................................................2-16
Front USB Connectors: JUSB1 / JUSB2...................................................2-16
Jumpers..............................................................................................................2-17
Clear BIOS Password Jumper: JPWD1.....................................................2-17
Clear CMOS Jumper: JCMOS1...................................................................2-17
Slots....................................................................................................................2-18
PCI Express Slots.......................................................................................2-18
v
PCI (Peripheral Component Interconnect) Slots.......................................2-18
PCI Interrupt Request Routing....................................................................2-18
Chapter 3. BIOS Setup.............................................................................................3-1
Entering Setup......................................................................................................3-2
Control Keys.................................................................................................3-2
Getting Help..................................................................................................3-3
The Main Menu.....................................................................................................3-4
Standard CMOS Features...................................................................................3-6
Advanced BIOS Features...................................................................................3-8
Advanced Chipset Features..............................................................................3-11
Integrated Peripherals........................................................................................3-14

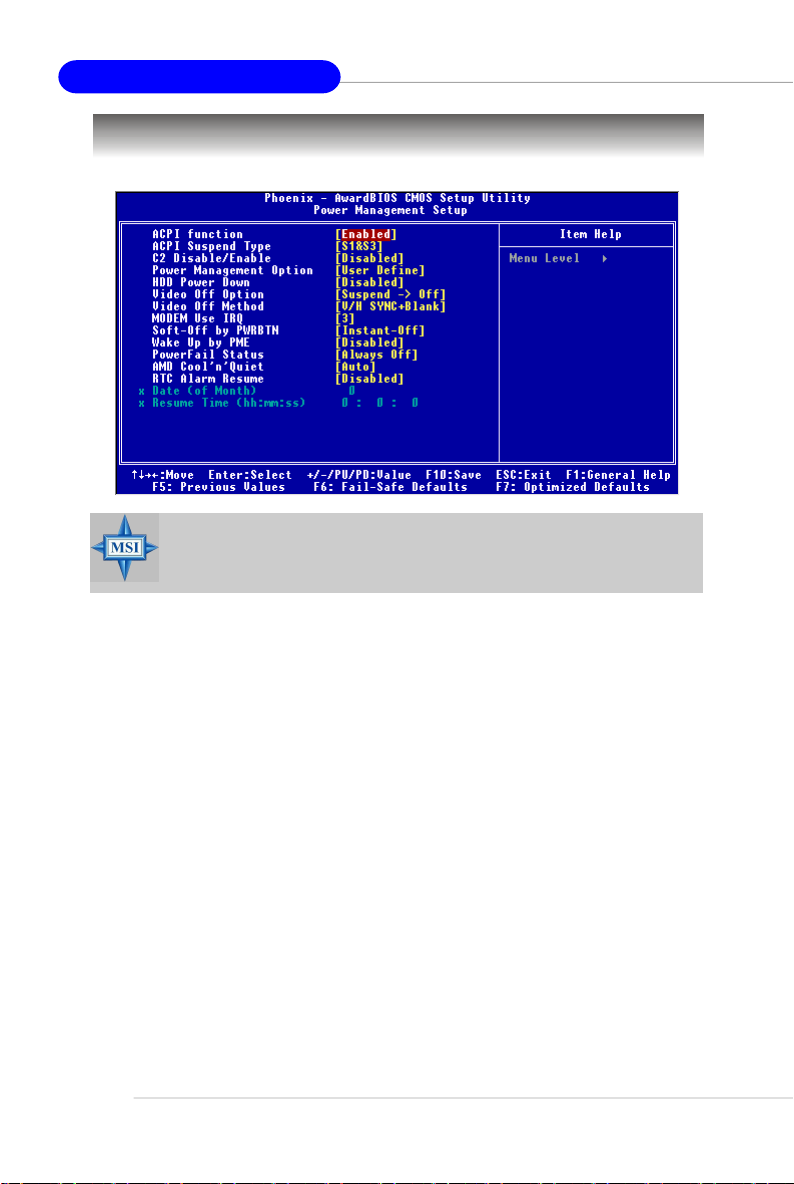

Power Management Setup................................................................................3-18
PNP/PCI Configurations......................................................................................3-21
PC Health Status................................................................................................3-23
Load Fail-Safe/Optimized Defaults....................................................................3-24
Set Supervisor/User Password........................................................................3-25
Chapter 4. Introduction to DigiCell......................................................................4-1
Introduction to DigiCell..........................................................................................4-1
Main......................................................................................................................4-2
Introduction:..................................................................................................4-2
H/W Diagnostic.....................................................................................................4-4
Communication.....................................................................................................4-5
Software Access Point.......................................................................................4-6
Terminology..................................................................................................4-6
Access Point Mode......................................................................................4-7
WLAN Card Mode.........................................................................................4-8
Live Update..........................................................................................................4-9
MEGA STICK.......................................................................................................4-10
Basic Function............................................................................................4-10
Non-Unicode programs supported............................................................4-12
Audio Speaker Setting.......................................................................................4-14
Power on Agent.................................................................................................4-16
Power On...................................................................................................4-16
Power Off / Restart...................................................................................4-17
Auto Login..................................................................................................4-18
Appendix A: Using 2-, 4- & 6-Channel Audio Function....................................A-1
Installing the Audio Driver....................................................................................A-2
Installation for Windows 98SE/ME/2000/XP...............................................A-2
vi
Software Configuration.......................................................................................A-4
Sound Effect................................................................................................A-4
Equalizer.......................................................................................................A-6
Speaker Configuration.................................................................................A-7
Speaker Test................................................................................................A-8
S/PDIF-Out....................................................................................................A-9
HRTF Demo.................................................................................................A-10
Microphone Effect......................................................................................A-11
General.......................................................................................................A-12
Using 2-, 4- & 6- Channel Audio Function........................................................A-13
Appendix B: ATI SATA RAID Setup Guide............................................................B-1
SATA RAID Features............................................................................................B-2
Disk Striping (RAID 0)...................................................................................B-2
Disk Mirroring (RAID 1).................................................................................B-3
Creating RAID Sets...............................................................................................B-4
BIOS RAID Utility Screen Description...........................................................B-5
Description of RAID Setup Operations........................................................B-5
Installing RAID Drivers (for Windows 2000/XP only).........................................B-8
Installing RAID Drivers during OS Install......................................................B-8
Updating Previously Installed RAID Drivers.................................................B-8
Installing SATARaid Utility..................................................................................B-11
SATARaid GUI.............................................................................................B-13
Configuring RAID 0 Set(s) with Windows Disk Manager.................................B-24
Appendix C: ATI SURROUNDVIEW
TM
.......................................................................................................... C-1
Getting Started.....................................................................................................C-2
System Requirements.................................................................................C-3
Installing a Graphics Card....................................................................................C-4
Before You Begin.........................................................................................C-4
Basic Graphics Card Installation..................................................................C-4
Enabling SURROUNDVIEW
TM
........................................................................................................................C-6
Enabling the Integrated Graphics Processor..............................................C-6
Enabling SURROUNDVIEW™ .......................................................................C-6
Frequently Asked Questions.......................................................................C-7
Using Multiple Displays.........................................................................................C-8
Setting Up Multiple Displays.........................................................................C-8
Using SURROUNDVIEW
TM
............................................................................................................................C-10
Business Applications...............................................................................C-10
Games.........................................................................................................C-12
vii
Getting Started
Chapter 1. Getting
Started
Getting Started
Thank you for choosing the RS480M2/RX480M2 Series (MS7093 v1.X) Micro ATX mainboard. The RS480M2/RX480M2 Series
mainboards are based on ATi® RS480/RX480 & ATi® SB400 chipsets
for optimal system efficiency. Designed to fit the advanced AMD® K8
Athlon 64 FX processor, the RS480M2/RX480M2 Series deliver a
high performance and professional desktop platform solution.
1-1
MS-7093 M-ATX Mainboard
Mainboard Specifications
CPU
† Supports 64-bit AMD® Athlon 64 and Athlon 64 FX processor (Socket 939)
† Supports up to 3500+, 3800+ Athlon 64 FX 53, or higher CPU
(For the latest information about CPU, please visit http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php)
Chipset
† ATI® RS480/RX480 Chipset
- HyperTransportTM connection to AMD K8 Athlon64 processor
- 8 or 16 bit control/address/data transfer both directions
- 1000/800/600/400/200 MHz “Double Data Rate” operation both direction
- Compliant with PCI Express 1.0a specifications (one x16 graphics interface,
which can be divided into two smaller links for use by other devices)
- Graphic integrated (RS480)
† ATI® SB400 Chipset
- Supports dual channel native SATA controller up to 150MB/s with RAID 0 or 1
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI & PC2001 compliant enhanced power management
- Supports USB2.0 up to 8 ports
Main Memory
† Supports dual channel, eight memory banks DDR 333/400, using four 184-pin
DDR DIMMs
† Supports a maximum memory size up to 4GB without ECC
† Supports 2.5v DDR SDRAM DIMM
(For the updated supporting memory modules, please visit http://www.msi.com.
tw/program/products/mainboard/mbd/pro_mbd_trp_list.php.)
Slots
† One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)
† Three 32-bit Master 3.3V/5V PCI Bus slots
Onboard IDE
† An IDE controller on the ATI® SB400 chipset provides IDE HDD/CD-ROM with PIO,
Bus Master and Ultra DMA 133/100/66 operation modes
† Can connect up to 4 IDE devices
Onboard Serial ATA
† Supports 4 SATA ports with up to 150MB/s transfer rate
1-2
MSI Reminds You...
1.Please note that users cannot install OS, either WinME or Win98,
in their SATA hard drives. Under these two OSs, SATA can only be
used as an ordinary storage device.
2.To create a bootable RAID volume for a Windows 2000 environment,
Microsoft’s Windows 2000 Service Pack 4 (SP4) is required. As
the end user cannot boot without SP4, a combination installation
CD must be created before attempting to install the operating system onto the bootable RAID volume.
To create the combination installation CD, please refer to the following website:
http://www.microsoft.com/windows2000/downloads/
servicepacks/sp4/HFdeploy.htm
USB Interface
† 8 USB ports
- 4 ports in the rear I/O, 4 ports via the external bracket
LAN
† Realtek® 8100C 10/100 LAN chip
- Integrated Fast Ethernet MAC and PHY in one chip
- Supports 10Mb/s and 100Mb/s
- Compliance with PCI v2.2
- Supports ACPI Power Management
Getting Started
IEEE 1394 (Optional)
† VIA® 6307 IEEE 1394 controller
- Supports up to two 1394 ports (rear panel x 1, pinheader x 1).
- Transfer rate is up to 400Mbps
Audio
† RealTek ALC658C 6-channel software audio codec
- Compliance with AC97 v2.3 Spec.
- Meets PC2001 audio performance requirement.
On-Board Peripherals
† On-Board Peripherals include:
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port (optional)
- 1 VGA port (only for RS480)
- 1 composite TV-Out connector (only for RS480)
- 1 S-Video connector (only for RS480)
- 1 SPDIF-Out connector
- 1 parallel port supporting SPP/EPP/ECP mode
1-3
MS-7093 M-ATX Mainboard
- 8 USB2.0 ports (Rear*4/Front*4)
- 1 Audio (Line-In/Line-Out/MIC) port
- 1 RJ-45 LAN Jack
- 2 IDE ports support 4 IDE devices
- 4 serial ATA ports
- 2 IEEE1394s (Rear * 1 / Front * 1) (Optional)
BIOS
† The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral
devices and expansion cards of the board automatically.
† The mainboard provides a Desktop Management Interface (DMI) function which
records your mainboard specifications.
† Supports boot from LAN, USB Device 1.1 & 2.0, and SATA HDD.
Dimension
† Micro-ATX Form Factor: 24.4cm X 24.4cm
Mounting
† 8 mounting holes
1-4
1394 GUID address
Label (optional)
MSI Reminds You...
1. Each board will be given a unique 1394 GUID from the
manufacturer’s default settings in the system BIOS.
2. Use the flash utility or Live Update from MSI’s website for BIOS
update. The 1394 GUID address is burnt in the BIOS core. If the 1394
GUID address is lost due to an unpredictable event, such as replacing a new BIOS chip, users can use the utility from MSI’s website by
entering the 1394 GUID address to recover its original one.
Mainboard Layout
SATA1
SATA2
SATA3
SATA4
LPC47M997-NR
BATT+ATI
SB400
RS/RX480
ATX
1
IDE 1
(optional)
JPWD1
BIO
S
J1394_1
(optional)
PCIE16X1
JAUX1
Getting Started
Top: Mouse
Bottom: Keyboard
RS480
(for )
Line-Out
Realtek
8100C
VIA
VT6307
(optional)
ALC658
Codec
COM1
RS480
for RS480
(optional)
JCD1
SFAN1
Top:
Parallel Port
Bottom:
Composite TV-Out
(for )
S-Video
VGA Port ()
T: 1394 Port
B: USB Ports
T: LAN Jack
B: USB Ports
SPDIF-Out
T:
Line-In
M:
B:
Mic
JAUD1
JPW1
ATI
PCI 1
PCI 2
PCI 3
CFAN1
SMSC
1
3
2
4
M
M
M
M
M
M
M
M
I
I
I
I
D
D
D
D
JCOMS1
JUSB2JUSB1
JFP1
RS480M2/RX480M2 (MS-7093 v1.X) M-ATX Mainboard
1
D
D
F
2
E
D
I
1-5
MS-7093 M-ATX Mainboard
Packing Checklist
MSI motherboard
Power Cable
1394 Bracket (Optional) USB Bracket (Optional)
MSI Driver/Utility CD
Standard Cable for
Floppy Disk
* The pictures are for reference only. Your packing
contents may vary depending on the model you
purchased.
SATA Cable (Optional)
Standard Cable for
IDE Devices
Back IO Shield
1-6
User’ s Guide
Hardware Setup
Chapter 2. Hardware
Setup
Hardware Setup
This chapter tells you how to install the CPU, memory modules,
and expansion cards, as well as how to setup the jumpers on the
mainboard. Also, it provides the instructions on connecting the peripheral devices, such as the mouse, keyboard, etc.
While doing the installation, be careful in holding the components and follow the installation procedures.
2-1
MS-7093 M-ATX Mainboard
BATT
Quick Components Guide
COM1, p.2-15
Back Panel
I/O, p.2-10
PCI Express
Slot, p.2-18
PCI Slots,
JPW1, p.2-9
SFAN1, p.2-11
p.2-18
JAUD1, p.2-14 JCD1, p.2-14
JAUX1, p.2-14
CPU, p.2-3
+
J1394_1, p.2-15
DDR DIMMs, p.2-7
CFAN1, p.2-11
JCMOS1,
p.2-17
JUSB1, JUSB2, p.2-16
ATX1, p.2-9
FDD1, p.2-11
IDE1/2, p.2-12
SATA1~4,
p.2-13
JPWD1,p.2-17
JFP1, p.2-16
2-2
Hardware Setup
Central Processing Unit: CPU
The mainboard supports AMD® Athlon64 processor. The mainboard uses a
CPU socket called Socket-939 for easy CPU installation. When you are installing the
CPU, make sure the CPU has a heat sink and a cooling fan attached on the
top to prevent overheating. If you do not have the heat sink and cooling fan,
contact your dealer to purchase and install them before turning on the computer.
For the latest information about CPU, please visit http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php.
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, always make
sure the cooling fan can work properly to protect the CPU from
overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power supply or
unplug the power supply’s power cord from grounded outlet first to
ensure the safety of CPU.
2-3
MS-7093 M-ATX Mainboard
Gold arrow
Gold arrow
Gold arrow
Correct CPU placement
O
CPU Installation Procedures for Socket 939
1.Please turn off the power and
unplug the power cord before
installing the CPU.
2.Pull the lever sideways away
from the socket. Make sure to
raise the lever up to a 90-degree angle.
3.Look for the gold arrow of the
CPU. The gold arrow should point
as shown in the picture. The CPU
can only fit in the correct
orientation.
4.If the CPU is correctly installed,
the pins should be completely
embedded into the socket and
can not be seen. Please note
that any violation of the correct
installation procedures may
cause permanent damages to
your mainboard.
Sliding
Plate
Open Lever
90 degree
5. Press the CPU down firmly into
2-4
the socket and close the lever.
As the CPU is likely to move while
the lever is being closed, always close the lever with your
fingers pressing tightly on top of
the CPU to make sure the CPU is
properly and completely embedded into the socket.
Hardware Setup
Installing AMD Athlon64 CPU Cooler Set
When you are installing the CPU, make sure the CPU has a heat sink and
a cooling fan attached on the top to prevent overheating. If you do not have
the heat sink and cooling fan, contact your dealer to purchase and install them before
turning on the computer.
MSI Reminds You...
Mainboard photos shown in this section are for demonstration of the
cooler installation for Socket 939 CPUs only. The appearance of
your mainboard may vary depending on the model you purchase.
1.Detach the shield off the backplate’s
paster.
2.Turn over the mainboard, and install
the backplate to the proper position.
3.Turn over the mainboard again, and
place the mainboard on the flat
surface. Locate the two screw holes
of the mainboard.
4.Align the retention mechanism and
the backplate.
Fix the retention mechanism and the
backplate with two screws.
retention mechanism
2-5
MS-7093 M-ATX Mainboard
5.Position the cooling set onto the retention mechanism.
Hook one end of the clip to hook
first, and then press down the other
end of the clip to fasten the cooling
set on the top of the retention
mechanism.
6.Locate the Fix Lever, Safety Hook
and the Fixed Bolt.
Lift up the intensive fixed lever.
Safety Hook
7.Fasten down the lever.
8.Make sure the safety hook completely
clasps the fixed bolt of the retention
mechanism.
9.Attach the CPU Fan cable to the CPU
fan connector on the mainboard.
2-6
Fixed Lever
MSI Reminds You...
While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook
is disconnected from the fixed bolt, the fixed lever will spring back
instantly.
Fixed Bolt
Hardware Setup
Memory
The mainboard provides 4 slots for 184-pin DDR DIMM (Double In-Line Memory
Module) modules and supports the memory size up to 4GB. You can install DDR 333/
400 modules on the DDR DIMM slots (DIMM 1~4).
DIMM1~DIMM4
(from left to right)
DIMM Module Combination
Install at least one DIMM module on the slots. Each DIMM slot supports up to a
maximum size of 1GB. Users can install either single- or double-sided modules to
meet their own needs. Users may install memory modules of different type and
density on different-channel DDR DIMMs. However, memory modules of the same
type and density are required while using dual-channel DDR, or instability may
happen.
BLUE Slots BLACK Slots
DIMM1 (CH A) DIMM2 (CH B) DIMM3 (CH A)DIMM4 (CH B) Mode
128MB~1GB Single Channel
128MB~1GB Single Channel
128MB~1GB 128MB~1GB Single Channel
128MB~1GB 128MB~1GB Dual Channel
128MB~1GB 128MB~1GB Dual Channel
128MB~1GB 128MB~1GB 128MB~1GB 128MB~1GB Dual Channel
MSI Reminds You...
- The system operates ONLY when the DDR modules are installed in
accordance with the above-mentioned memory population rules.
- In dual-channel mode, make sure that you install memory modules
of the same type and density on DDR DIMMs.
- To enable successful system boot-up, always insert the memory
modules into the Channel A slots (DIMM1 or DIMM3) first.
- This mainboard DO NOT support the memory module installed
with more than 18 pieces of IC (integrated circuit).
- Do not support three memory modules.
2-7
MS-7093 M-ATX Mainboard
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will
only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in
until the golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt
Notch
2-8
Hardware Setup
Power Supply
The mainboard supports ATX power supply for the power system. Before
inserting the power supply connector, always make sure that all components are
installed properly to ensure that no damage will be caused.
ATX 24-Pin Power Connector: ATX1
This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power
supply is inserted in the proper orientation and the pins are aligned.
Then push down the power supply firmly into the connector.
You may use the 20-pin ATX power supply as you like. If
you’d like to use the 20-pin ATX power supply, please plug your
power supply along with pin 1 & pin 13 (refer to the image at the
right hand). There is also a foolproof design on pin 11, 12, 23 & 24
to avoid wrong installation.
Pin Definition
13
ATX1
24
1
PIN SIGNAL
1 +3.3V
2 +3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 PWR OK
9 5VSB
10 +12V
12
11 +12V
12 NC
PIN SIGNAL
13 +3.3V
14 -12V
15 GND
16 PS-ON#
17 GND
18 GND
19 GND
20 Res
21 +5V
22 +5V
23 +5V
24 GND
pin 13
pin 12
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
JPW1
2
1
34
MSI Reminds You...
1. These two connectors connect to the ATX power supply and have to
work together to ensure stable operation of the mainboard.
2. Power supply of 350 watts (and above) is highly recommended for
system stability.
3. ATX 12V power connection should be greater than 18A.
JPW1 Pin Definition
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
2-9
MS-7093 M-ATX Mainboard
Mouse
Parallel
Back Panel
1394 Port
(Optional)
L-In
LAN
Keyboard
Composite
TV-Out
(for RS480)
S-Video
(for RS480)
VGA Port
(for RS480)
Mouse/Keyboard Connector USB Ports
Pin5
Pin6 NC
Pin2 NC
Mouse/KBD Clock
Pin3 GNDPin4 VCC
Pin1
Mouse/KBD
DATA
S-Video
IEEE 1394 Port
PIN SIGNAL
1
1 PWR
2 GND
3 TPB4 TPB+
5 TPA6 TPA+
PIN SIGNAL
1 RED
2 GREEN
3 BLUE
4 N/C
5 GND
6 GND
7 GND
8 GND
9 +5V
10 GND
11 N/C
12 SDA
13 Horizontal Sync
14 Vertical Sync
15 SCL
RJ-45 LAN Jack
12345
VGA Port
5
15
6
11
PIN SIGNAL
1 VCC
2 -Data
3 +Data
4 GND
8 1
SPDIF-Out
Pin4 Y-TV
Pin2 GND
USB Ports
1 2 3 4
Pin3 C-TV
Pin1 GND
10/100 LAN
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
L-Out
Mic
2-10
Hardware Setup
Connectors
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
FDD1
Fan Power Connectors: CFAN1 / SFAN1
The fan power connectors support system cooling fan with +12V. When
connecting the wire to the connectors, always take note that the red wire is the
positive and should be connected to the +12V, the black wire is Ground and should
be connected to GND. If the mainboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage
of the CPU fan control.
SENSOR
+12V
GND
CFAN1
SENSOR
+12V
GND
SFAN1
MSI Reminds You...
Please refer to the recommended CPU fans at AMD® official website
or consult the vendors for proper CPU cooling fan.
2-11
MS-7093 M-ATX Mainboard
ATA133 Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 66/100/133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 66/100/133 function.
You can connect up to four hard disk drives, CD-ROM and other IDE devices.
The Ultra ATA133 interface boosts data transfer rates between the computer
and the hard drive up to 133 megabytes (MB) per second. The new interface is onethird faster than earlier record-breaking Ultra ATA/100 technology and is backwards
compatible with the existing Ultra ATA interface.
IDE1IDE2
IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can connect a Master
and a Slave drive. You must configure second hard drive to Slave mode by setting the
jumper accordingly.
IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting instructions.
2-12
Hardware Setup
Serial ATA Connectors: SATA1~SATA4
The ATI SB400 SouthBridge supports four serial ATA connectors SATA1~SATA4.
SATA1~SATA4 are high-speed Serial ATA interface ports. Each supports 1st generation serial ATA data rates of 150MB/s and is fully compliant with Serial ATA 1.0
specifications. Each Serial ATA connector can connect to 1 hard disk device.
SATA1
SATA2
SATA3
SATA1~ SATA4 Pin Definition
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND
SATA4
71
Serial ATA cable
Take out the dust cover and
connect to the hard disk
devices
Connect to SATA1/2/3/4
MSI Reminds You...
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
2-13
MS-7093 M-ATX Mainboard
CD-In Connector: JCD1
This connector is provided for CD-ROM audio.
Aux Line-In Connector: JAUX1
The connector is for DVD add-on card with Line-in connector.
JCD1
R
GND
L
JAUX1
R
GND
L
Front Panel Audio Connector: JAUD1
The JAUD1 front panel audio connector allows you to connect to the front
panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.
JAUD1
2
1
PIN SIGNAL DESCRIPTION
1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KEY No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel
10
9
Pin Definition
2-14
MSI Reminds You...
If you don’t want to connect to the front audio header,
pins 5 & 6, 9 & 10 have to be jumpered in order to have
signal output directed to the rear audio ports. Otherwise,
the Line-Out connector on the back panel will not
function.
6
10
5
9
Hardware Setup
Serial Port Header: COM1 (Optional)
The mainboard offers one 9-pin header as serial port. The port is a 16550A
high speed communication port that sends/receives 16 bytes FIFOs. You can attach
a serial mouse or other serial device directly to it.
Pin Definition
COM1
156
9
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
IEEE 1394 Connectors: J1394_1 (Optional)
The mainboard provides one 1394 pin header that allows you to connect IEEE
1394 ports via an external IEEE1394 bracket (optional).
Pin Definition
2
1
J1394_1
Connected to J1394_1
10
9
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA3 Ground 4 Ground
5 TPB+ 6 TPB7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
Foolproof
design
IEEE1394 Bracket (Optional)
2-15
MS-7093 M-ATX Mainboard
Front Panel Connectors: JFP1
The mainboard provides one front panel connector for electrical connection to
the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O
Connectivity Design Guide.
JFP1 Pin Definition
PIN SIGNAL DESCRIPTION
1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
10
9
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.
JFP1
Power
LED
2
1
HDD
LED
Power
Switch
Reset
Switch
Front USB Connectors: JUSB1 / JUSB2
The mainboard provides two standard USB 2.0 pin headers JUSB1 & JUSB2 .
USB 2.0 technology increases data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting highspeed USB interface peripherals such as USB HDD, digital cameras, MP3 players,
printers, modems and the like.
2 10
1
JUSB1, JUSB2
9
(USB 2.0)
JUSB1 & JUSB2 Pin Definition
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB15 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 USBOC
Connected to JUSB1 or JUSB2
MSI Reminds You...
Note that the pins of VCC and GND must be connected correctly to
avoid possible damage.
2-16
USB 2.0 Bracket
(Optional)
Hardware Setup
Jumpers
The motherboard provides the following jumpers for you to set the computer’s
function. This section will explain how to change your motherboard’s function through
the use of jumpers.
Clear BIOS Password Jumper: JPWD1
The jumper is used to clear the BIOS password. To clear the password, open
the jumper and restart your computer.
JPWD1
NormalClear
Clear CMOS Jumper: JCMOS1
There is a CMOS RAM onboard that has a power supply from external battery
to keep the data of system configuration. With the CMOS RAM, the system can
automatically boot OS every time it is turned on. If you want to clear the system
configuration, set the JCMOS1 (Clear CMOS Jumper ) to clear data.
1
JCMOS1
1
3
Keep Data
1
3
Clear Data
MSI Reminds You...
To clear CMOS you should:
1. switch off the system and short 2-3 pin of the JCMOS1;
2. switch on the system again and the message “CMOS checksum
error” should appear;
3. switch off the system and return to 1-2 pin (Keep Data) position;
4. switch on again for operation.
Please avoid clearing CMOS while the system is on; it will damage
the mainboard.
2-17
