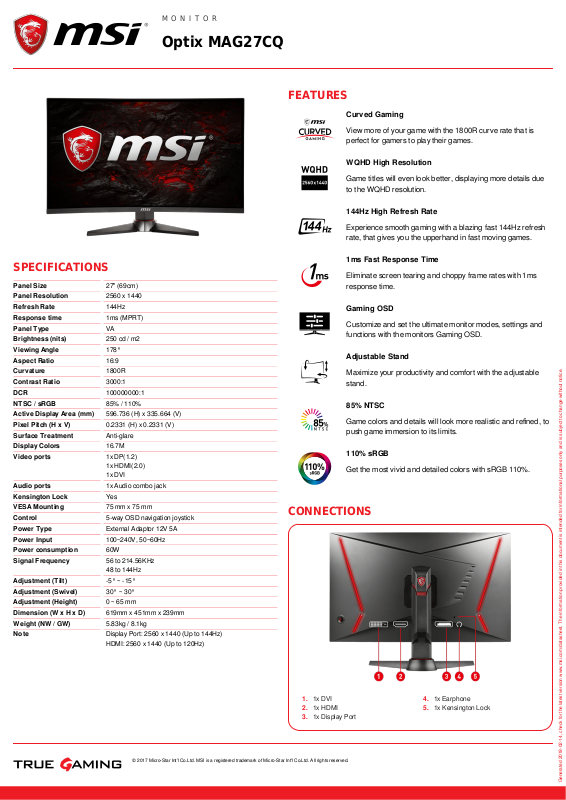

MSI OPTIX MAG27CQ Specification Sheet

MONITOR

Optix MAG27CQ

FEATURES

Curved Gaming

View more of your game with the 1800R curve rate that is perfect for gamers to play their games.

WQHD High Resolution

Game titles will even look better, displaying more details due to the WQHD resolution.

144Hz High Refresh Rate

Experience smooth gaming with a blazing fast 144Hz refresh rate, that gives you the upperhand in fast moving games.

SPECIFICATIONS

Panel Size 27" (69cm)

Panel Resolution 2560 x 1440

Refresh Rate 144Hz

Response time 1ms (MPRT)

Panel Type VA

Brightness (nits) 250 cd / m2

Viewing Angle 178°

Aspect Ratio 16:9

Curvature 1800R

Contrast Ratio 3000:1

DCR 100000000:1

NTSC / sRGB 85% / 110%

Active Display Area (mm) 596.736 (H) x 335.664 (V)

Pixel Pitch (H x V) 0.2331 (H) x 0.2331 (V)

Surface Treatment Anti-glare

Display Colors 16.7M

Video ports 1x DP(1.2)

1x HDMI(2.0) 1x DVI

Audio ports 1x Audio combo jack

Kensington Lock Yes

VESA Mounting 75 mm x 75 mm

Control 5-way OSD navigation joystick

Power Type External Adaptor 12V 5A

Power Input 100~240V, 50~60Hz

Power consumption 60W

Signal Frequency 56 to 214.56KHz

48 to 144Hz

Adjustment (Tilt) -5° ~ -15°

Adjustment (Swivel) 30° ~ 30°

Adjustment (Height) 0 ~ 65 mm

Dimension (W x H x D) 619mm x 451mm x 239mm

Weight (NW / GW) 5.83kg / 8.1kg

Note Display Port: 2560 x 1440 (Up to 144Hz)

HDMI: 2560 x 1440 (Up to 120Hz)

1ms Fast Response Time

Eliminate screen tearing and choppy frame rates with 1ms response time.

Gaming OSD

Customize and set the ultimate monitor modes, settings and functions with the monitors Gaming OSD.

Adjustable Stand

Maximize your productivity and comfort with the adjustable stand.

85% NTSC

Game colors and details will look more realistic and reﬁned, to push game immersion to its limits.

110% sRGB

Get the most vivid and detailed colors with sRGB 110%.

CONNECTIONS

1x DVI1. 1x HDMI2. 1x Display Port3.

1x Earphone4. 1x Kensington Lock5.

Generated 2018-02-14, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
