MSI MS-9A69B1 User’s Manual

MS-9A69B1

Industrial Data Machine

▍ Preface

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

Revision

Revision Date

V1.2 2020/12

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please visit the MSI website for technical guide, BIOS updates, driver

updates and other information, or contact our technical sta󰘯 via https://www.msi.

com/support/

Safety Instructions

￭ Always read the safety instructions carefully. ￭ Keep this User’s Manual for future reference. ￭ Keep this equipment away from humidity. ￭ Lay this equipment on a reliable at surface before setting it up. ￭ The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

￭ Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

￭ Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

￭ Always Unplug the Power Cord before inserting any add-on card or mod-

ule.

￭ All cautions and warnings on the equipment should be noted. ￭ Never pour any liquid into the opening that could damage or cause elec-

trical shock.

￭ If any of the following situations arises, get the equipment checked by ser-

vice personnel:

◯ The power cord or plug is damaged. ◯ Liquid has penetrated into the equipment. ◯ The equipment has been exposed to moisture. ◯ The equipment does not work well or you can not get it work according

to User’s Manual.

◯ The equipment has dropped and damaged. ◯ The equipment has obvious sign of breakage.

￭ DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCON-

DITIONED, STORAGE TEMPERATURE ABOVE 60oC (140oF), IT MAY DAMAGE THE EQUIPMENT.

MS-9A69

警告使用者: 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情

況下，使用者會被要求採取某些適當的對策。

iii

▍ Preface

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the

Council), MSI provides the information of chemical substances in products at: https://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.

For further information please visit: https://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

MS-9A69

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

NOTICE 1

The changes or modi󰘰cations not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTICE 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2002/96/EC, which takes e󰘯ect on

August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

▍ Preface

CONTENTS

Trademarks .........................................................................................ii

Revision ..............................................................................................ii

Technical Support ...............................................................................ii

Safety Instructions ............................................................................. iii

Chemical Substances Information ..................................................... iv

Battery Information .............................................................................iv

CE Conformity .....................................................................................v

FCC Radio Frequency Interference Statement ...................................v

WEEE Statement ................................................................................v

1 Overview.............................................................................................. 1-1

Packing Contents ............................................................................ 1-2

System Overview ............................................................................ 1-3

System Specications ..................................................................... 1-7

Motherboard Jumper ....................................................................... 1-9

2 System Setup ...................................................................................... 2-1

Installation Tools.............................................................................. 2-2

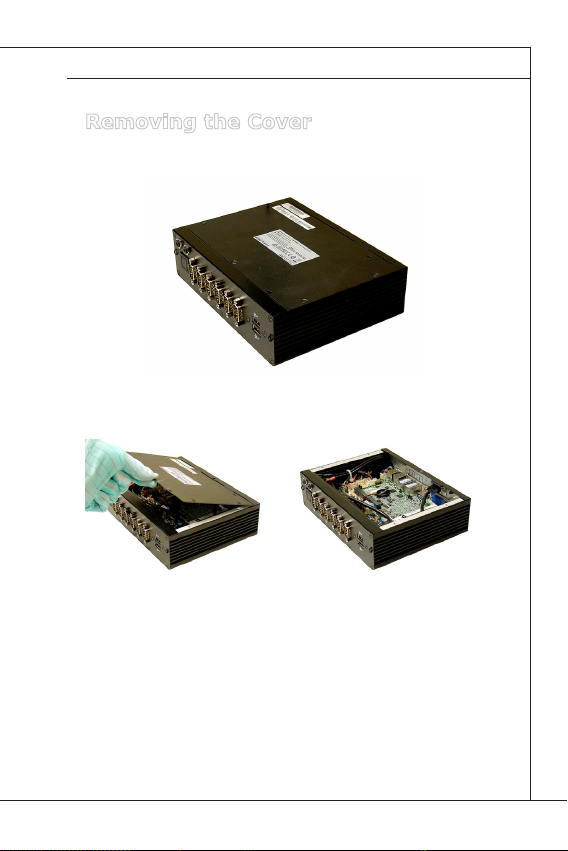

Removing the Cover ....................................................................... 2-3

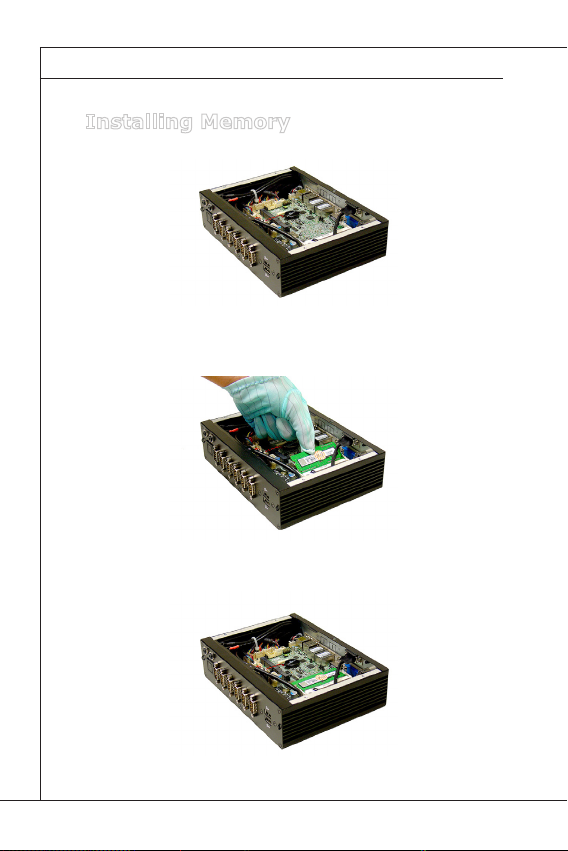

Installing Memory ............................................................................ 2-4

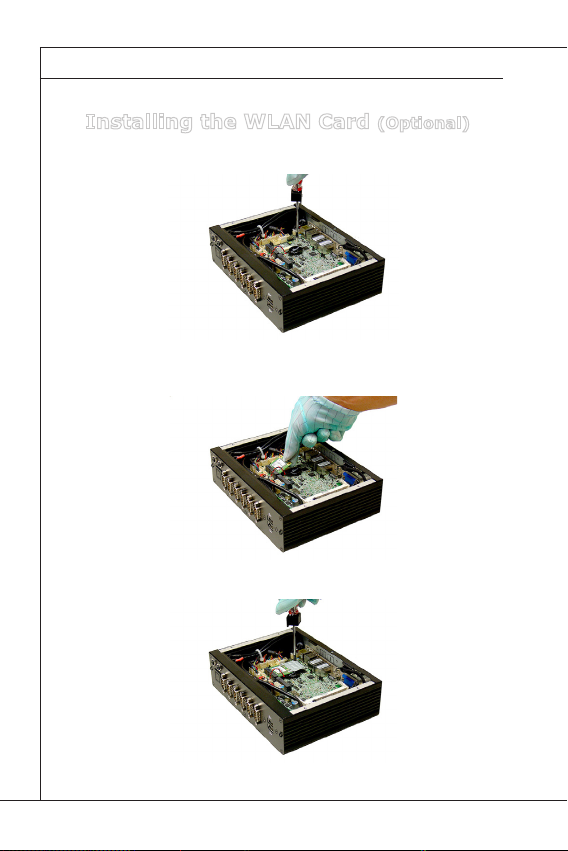

Installing the WLAN Card (Optional) ..............................2-6

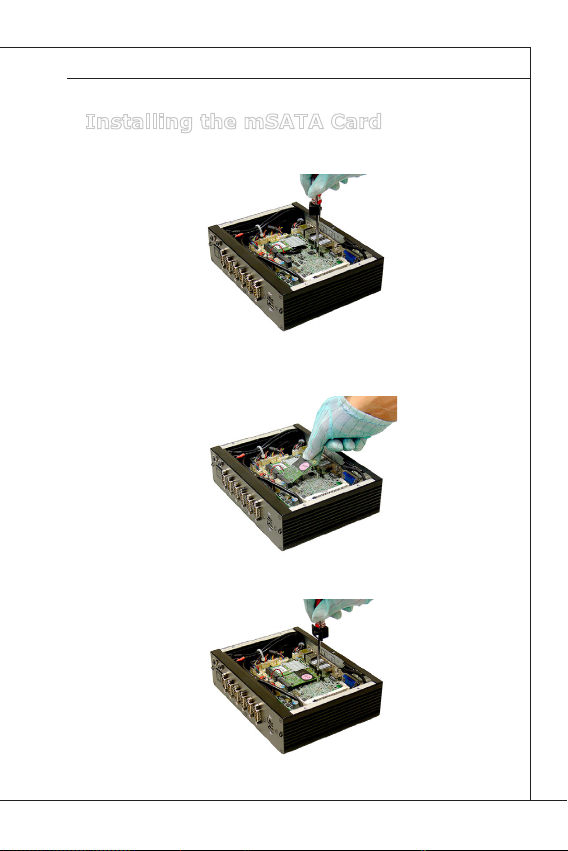

Installing the mSATA Card .............................................................. 2-7

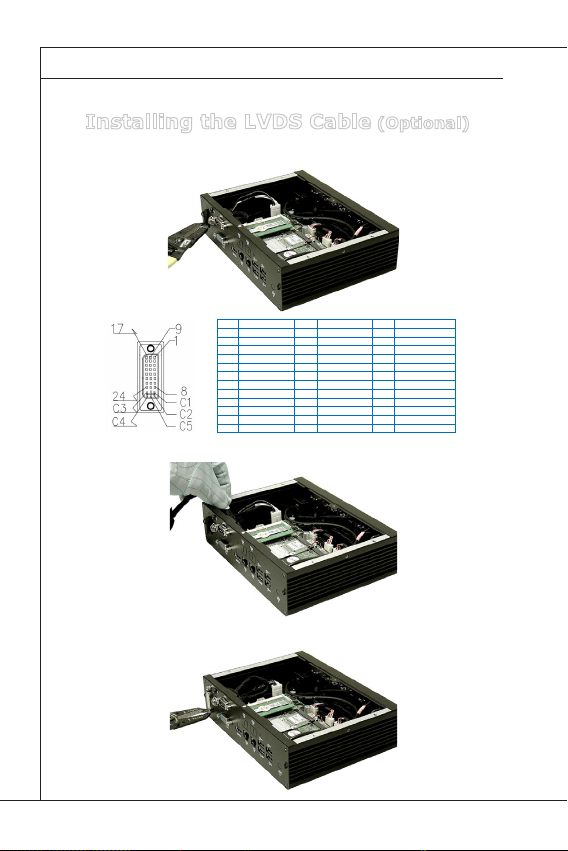

Installing the LVDS Cable (Optional) ..............................2-8

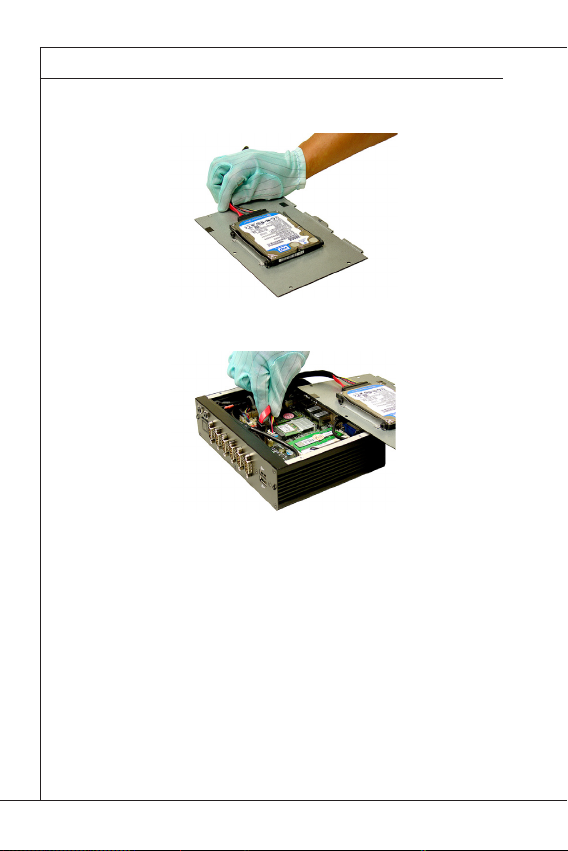

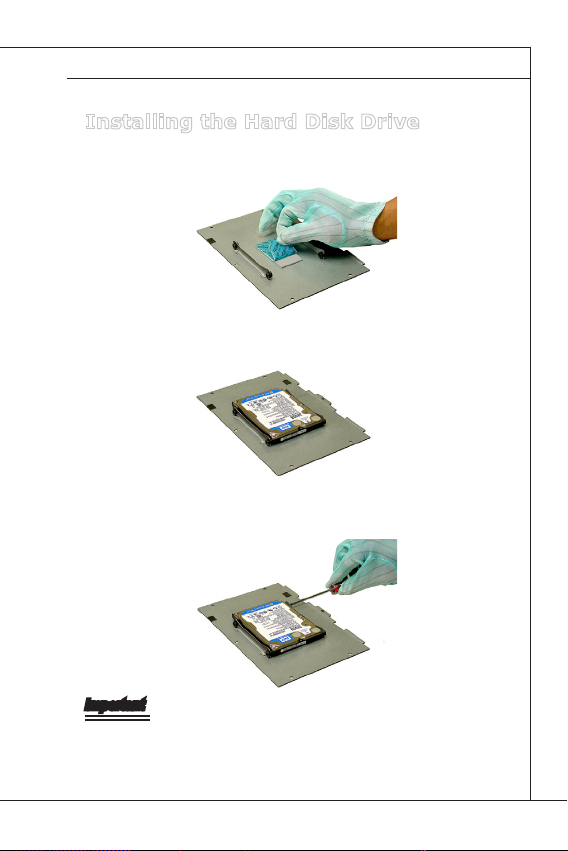

Installing the Hard Disk Drive .......................................................... 2-9

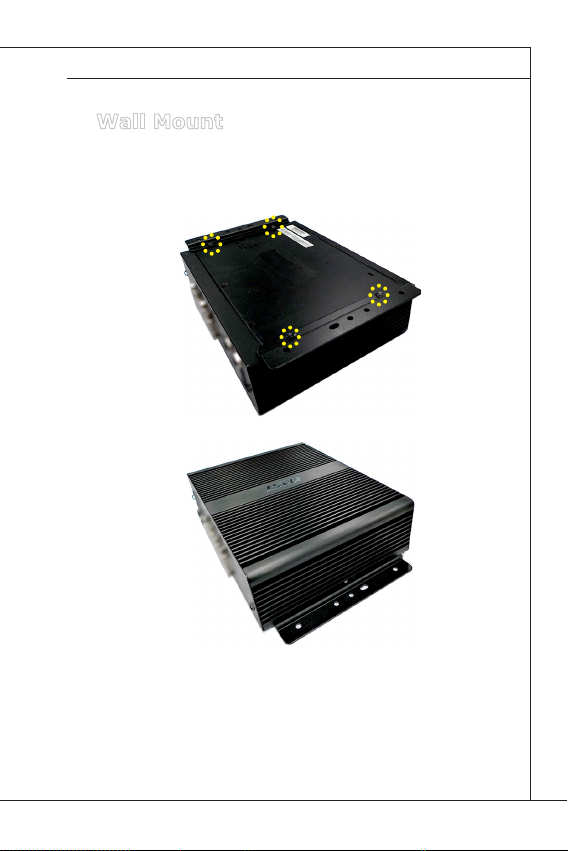

Wall Mount .....................................................................................2-11

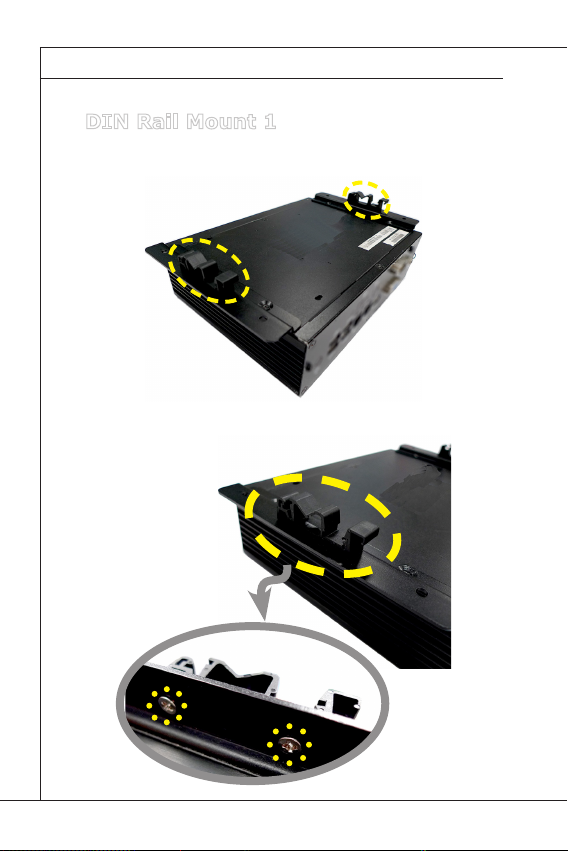

DIN Rail Mount 1 ........................................................................... 2-12

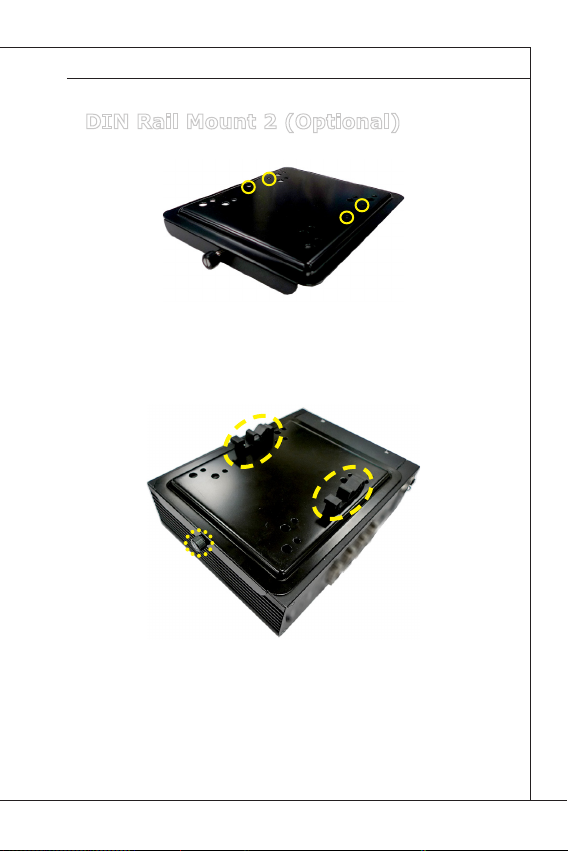

DIN Rail Mount 2 (Optional) .......................................................... 2-13

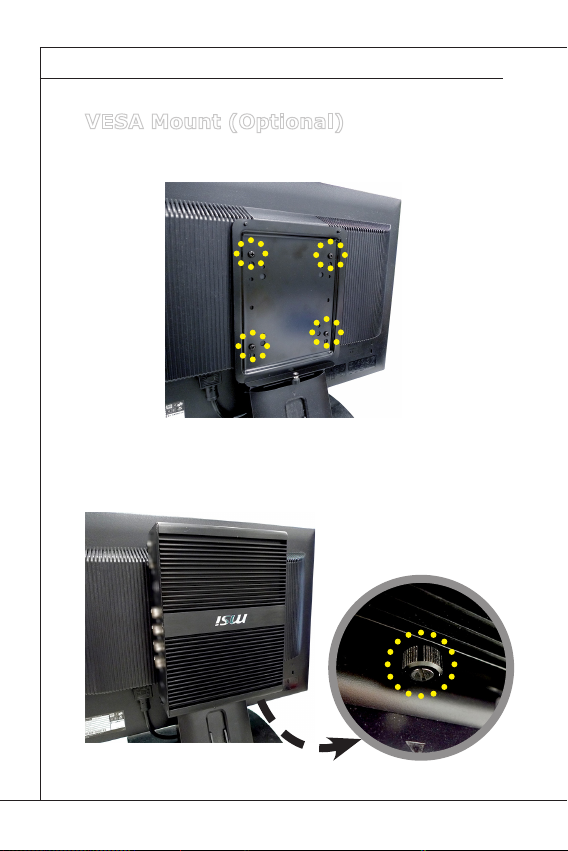

VESA Mount (Optional) ................................................................. 2-14

3 BIOS Setup .......................................................................................... 3-1

Entering Setup ................................................................................ 3-2

MS-9A69

The Menu Bar ................................................................................. 3-4

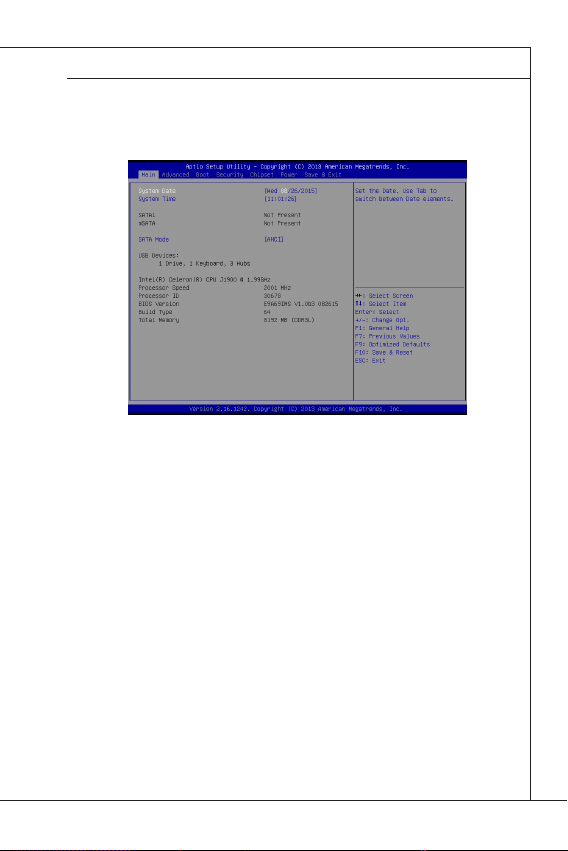

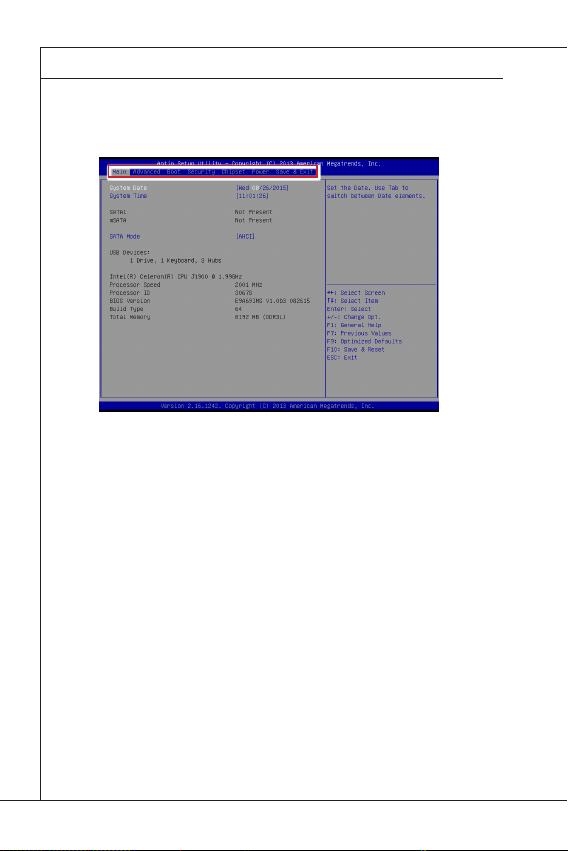

Main ................................................................................................ 3-5

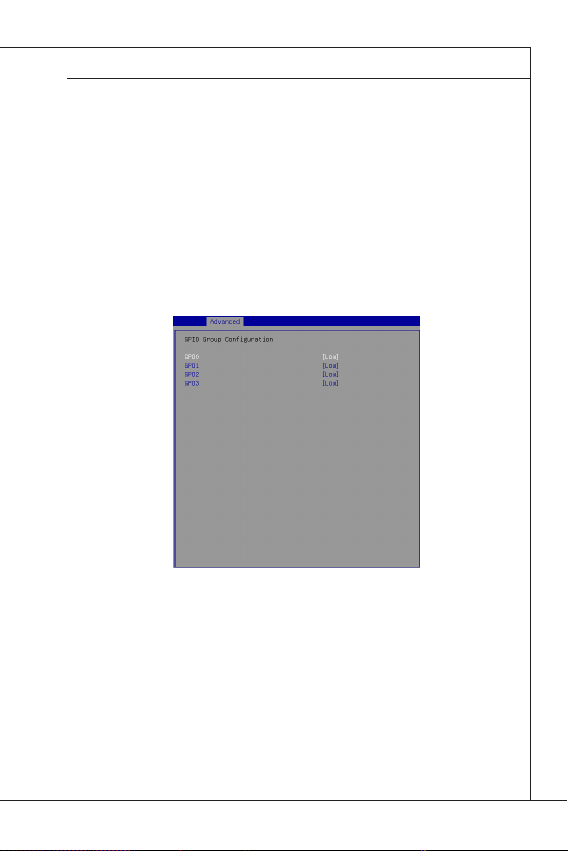

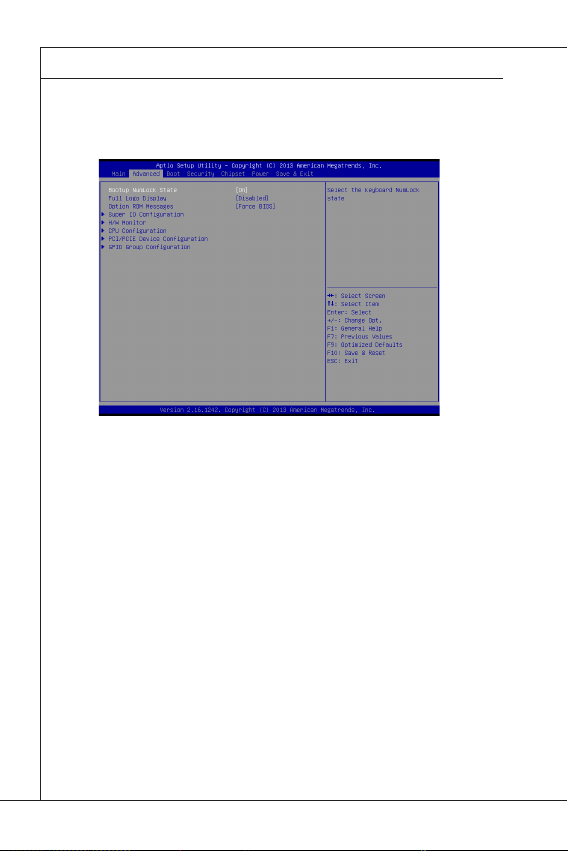

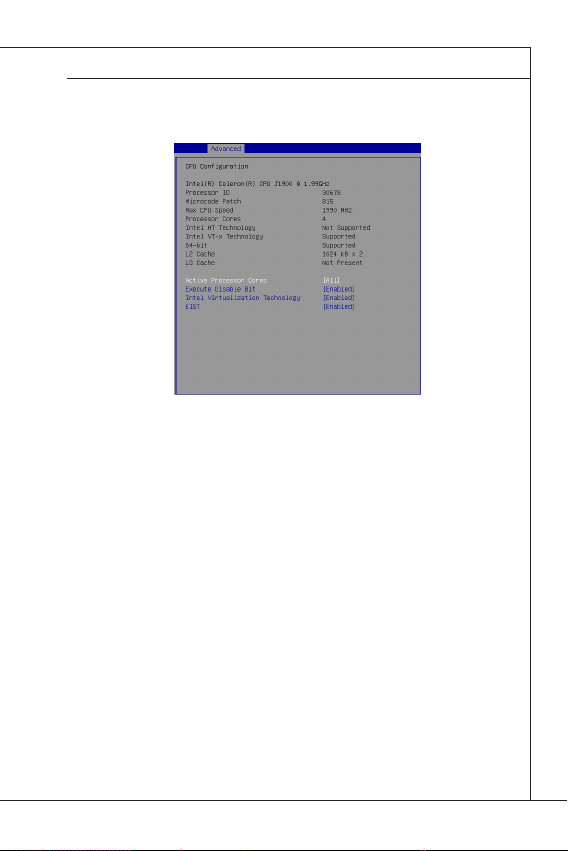

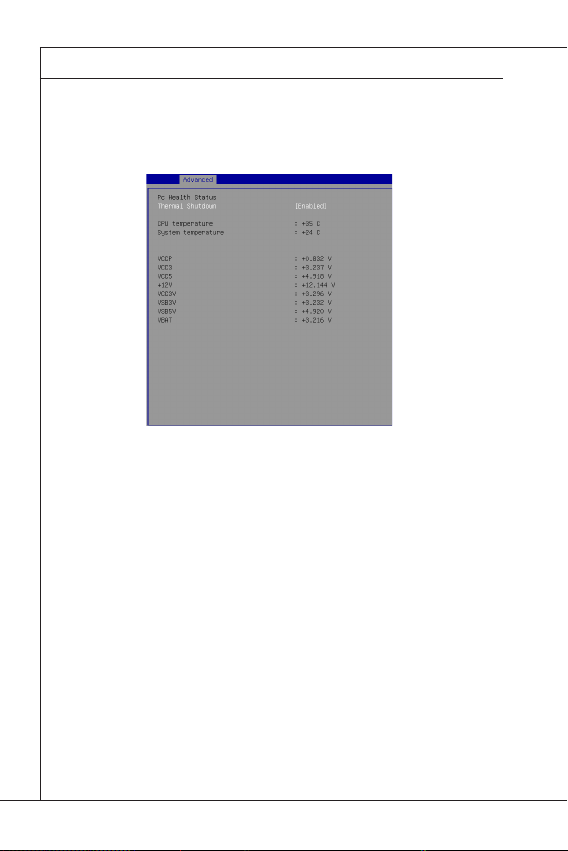

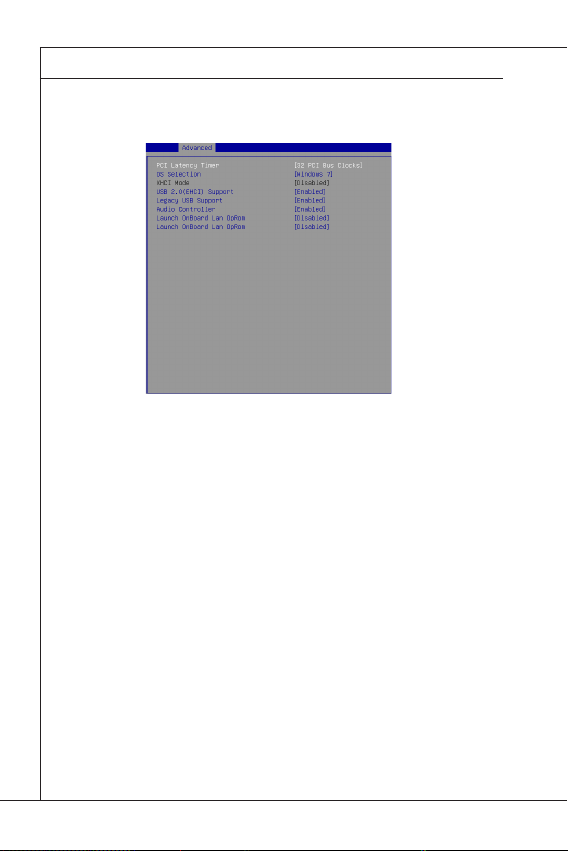

Advanced ........................................................................................ 3-6

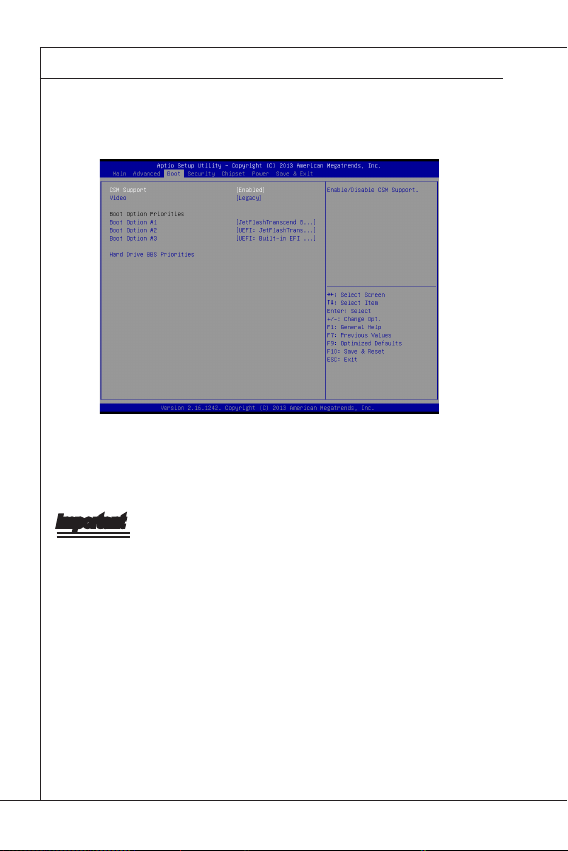

Boot ............................................................................................... 3-12

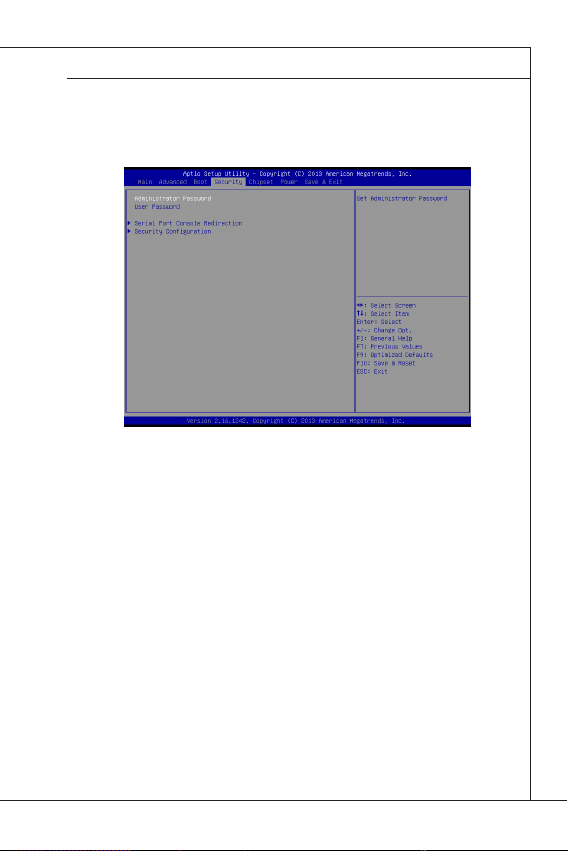

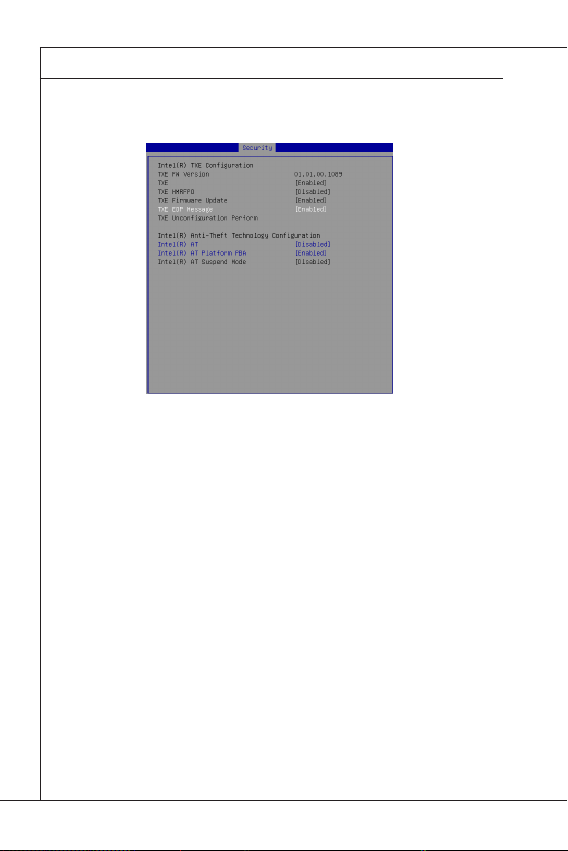

Security ......................................................................................... 3-13

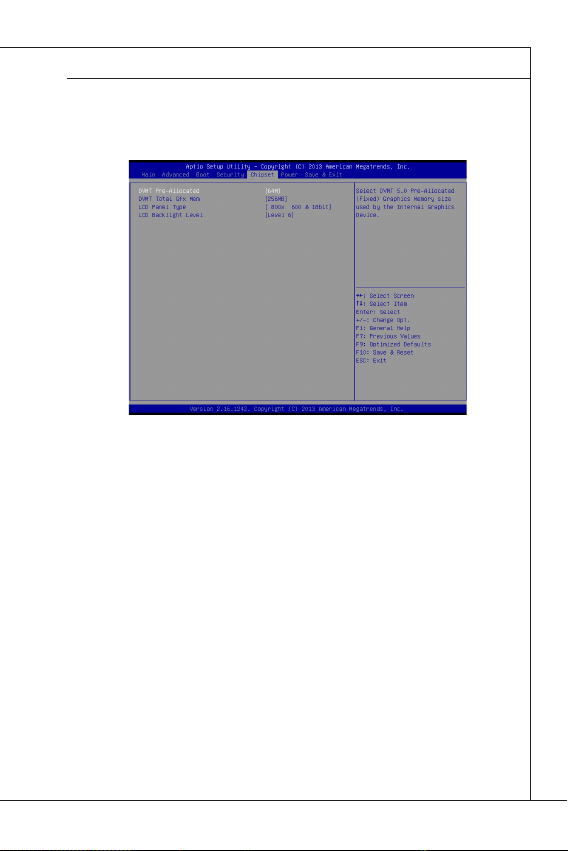

Chipset .......................................................................................... 3-17

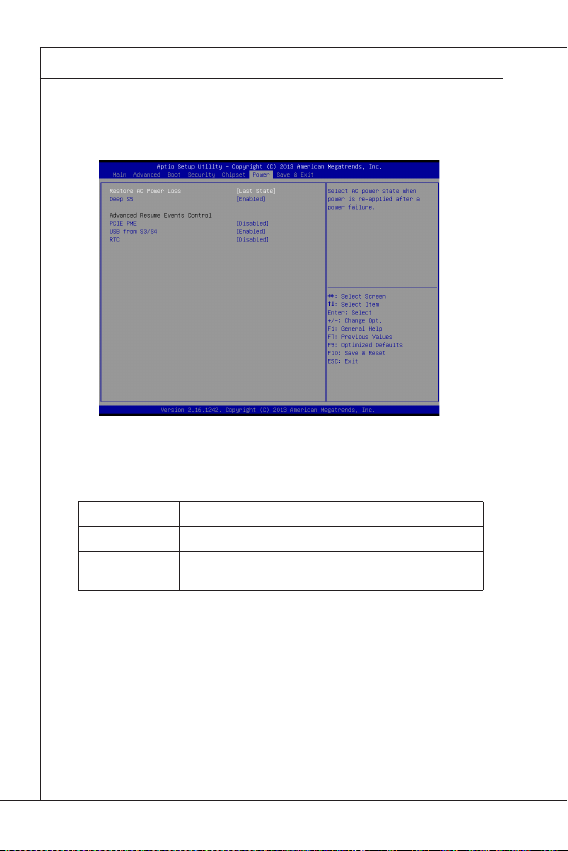

Power ............................................................................................ 3-18

Save & Exit ................................................................................... 3-20

Appendix WDT & GPIO .........................................................................A-1

WDT Sample Code .........................................................................A-2

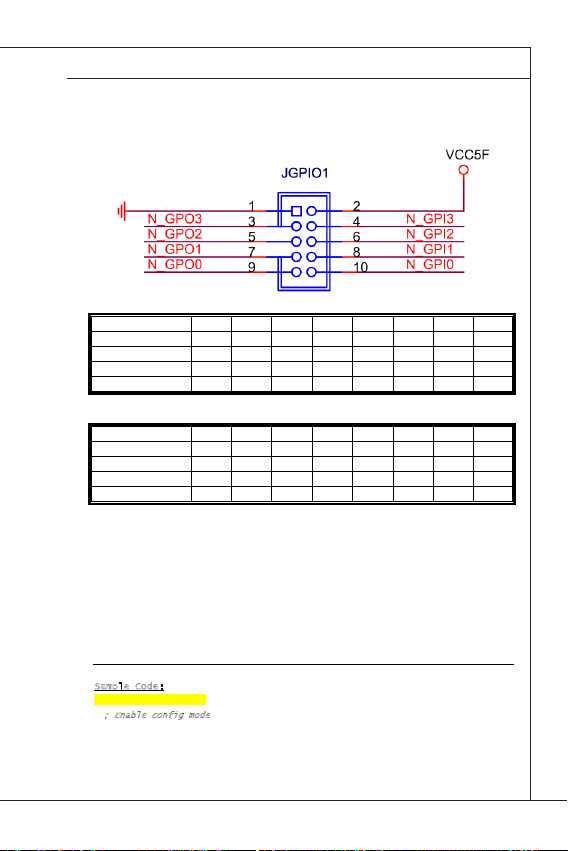

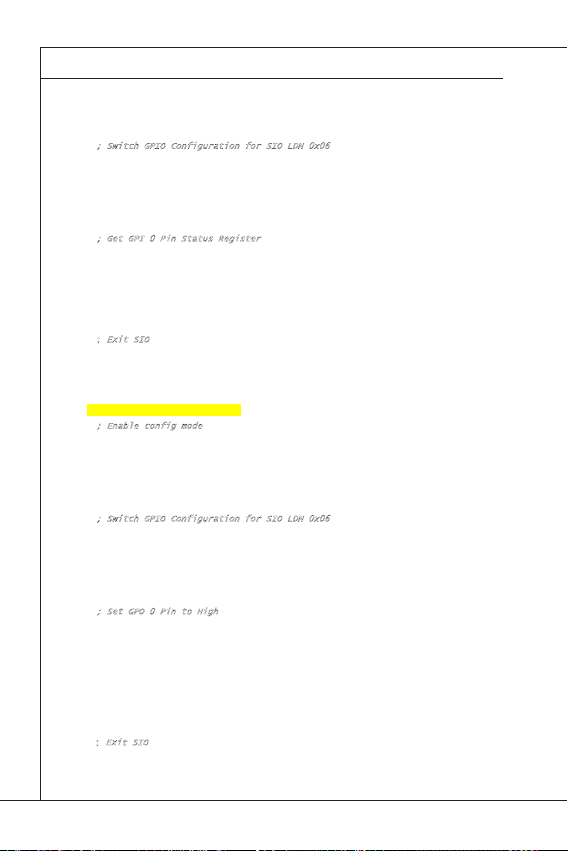

GPIO Sample Code ........................................................................A-3

vii

Chapter 1 Overview

Thank you for choosing the 9A69, an excellent industrial data machine from MSI.

The MS-9A69 eliminates the noise and the risk of fan’s failure by wide heatsink as fanless solution. Furthermore, it supports VESA wall-mount interface for various scenarios like digital signage, kiosk, industrial control, and POS with a󰀨ordable expenditure, which

not only meets the demand of Industrial applications

but also fullls the needs of companies, governments, and institutes for general applications.

▍ Overview

Packing Contents

MS-9A69 Industrial Data Machine

Power Adapter

Power Cord

Mounting Brackets

User’s Manual

(Optional)

■ Please contact us immediately if any of the item is damaged or missing.

■ The picture is for your reference only and your packing contents may slightly

vary depending on the model you purchased.

1-2

SATA Power &

Signal Cable

Driver/Utility Disc

System Overview

h Top View

h Front View

MS-9A69

1 2

USB 2.0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices.

RS232 Serial Port: COM2 ~ COM6

The serial port is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector.

1-3

▍ Overview

RS232/422/485 Serial Port: COM1

The serial port is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector.

Power Button

Press the power button to turn the system on or o󰘯.

Microphone

This connector is provided for for microphones.

Line-Out Jack

This connector is provided for headphones or speakers.

h Rear View

9 6

5 1

Mode Pin Signal

1 TX-B

2 RX-A

RS422

3 TX-A

4 RX-B

1 DATA-B

RS485

3 DATA-A

1-4

54 6 11

789

WLAN Antenna Connector (Optional)

This connector allows you to connect an external antenna for wireless LAN.

USB 2.0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices.

USB 3.0 Port

The USB 3.0 port is backward-compatible with USB 2.0 devices and supports data transfer rate up to 5 Gbit/s (SuperSpeed).

Gigabit LAN Jack

The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You can connect a network cable to it.

HDMI Port

The High-De󰘰nition Multimedia Interface (HDMI) is an all-digital audio/video

interface capable of transmitting uncompressed streams. HDMI supports

all TV format, including standard, enhanced, or high-de󰘰nition video, plus

multi-channel digital audio on a single cable.

VGA Port

The DB15-pin female connector is provided for monitor.

DIO Port

This port is provided for the General-Purpose Input/Output (GPIO) peripheral module.

9 6

5 1

PIN SIGNAL

1 GPO0

2 GPO1

3 GPO2

4 GPO3

5 GPI0

6 GPI1

7 GPI2

8 GPI3

9 VCC5

Shell GND

MS-9A69

1-5

▍ Overview

Power Jack

The power adapter converts AC power to DC power for this jack.Power supplied through this jack supplies power to the system.To prevent damage to the system, always use the supplied power adapter.

Grounding Point

The connector is provided for connecting a grounding wire.

LVDS (Optional)

The LVDS (Low Voltage Di󰘯erential Signal) connector provides a digital interface typically used with 󰘱at panels. After connecting an LVDS interface 󰘱at

panel to the JLVDS1, be sure to check the panel datasheet and set the LVDS jumper to proper power voltage.

1-6

System Specications

MS-9A69

CPU

Memory

LAN

Storage

Audio

Graphics

Front Panel Input/Output

Rear Panel Input/Output

Power Supply

■ Intel Bay Trail-D J1900, QC 2.0GHz

■ 1 DDR3L 1333MHz Non-ECC SO-DIMM slot

■ Supports the maximum of 8GB

■ 2 Gigabit Fast Ethernet by Intel I210-ATcontroller

■ 1 SATA 3Gb/s port

■ 2 Mini PCIe slots

■ HDA Codec by ALC887-VD2-CG / ALC888S

■ Compliant with Azalia 1.0 specs

■ Integrated in CPU

• LVDS 18/24-bit Dual Channel, resolution up to

1920 x 1200

• VGA port, resolution up to 2560 x 1600

• HDMI port, resolution up to 1920 x 1080

■ 2 USB 2.0 ports

■ 1 Line-Out audio jack

■ 1 Microphone jack

■ 6 Serial ports

■ 1 Power button

■ 1 D-sub VGA port

■ 1 DIO

■ 1 HDMI port

■ 2 Gigabit LAN jacks

■ 3 USB 2.0 ports

■ 1 USB 3.0 port

■ 1 DC power jack

■ 2 Wireless LAN antenna connectors (Optional)

■ 1 LVDS (Optional)

■ 65 watt switching power adapter

■ Input: 100~240Vac, 1.5A, 50~60Hz

■ Output: 19Vdc, 3.42A

■ No power consumption for COM1~6

Important

- Before powering on the system, recheck the adapt-

er to ensure safety

1-7

▍ Overview

Dimension & Weight

Regulatory Compliance

Environmental

■ 200mm x 150mm x 55mm

■ 1.38Kg

■ Safety: BSMI

■ EMI: FCC Class A, CE, RCM, BSMI, VCCI

■ RoHS Compliant

■ Operating Temperature:

• -10 ~ 45°C (HDD)

• -10 ~ 55°C (SSD or mSATA)

■ Storage Temperature: -20oC to 80oC

■ Humidity: 10% ~ 90% RH, non-condensing

1-8

MS-9A69

Motherboard Jumper

Important

Avoid adjusting jumpers when the system is on; it will damage the motherboard.

JINVT1

JVDD1

JME1

JLAN1

JLAN2

JCMOS1

JATX1

JCOMP3

JCOMP2

JCOMP1

1-9

▍ Overview

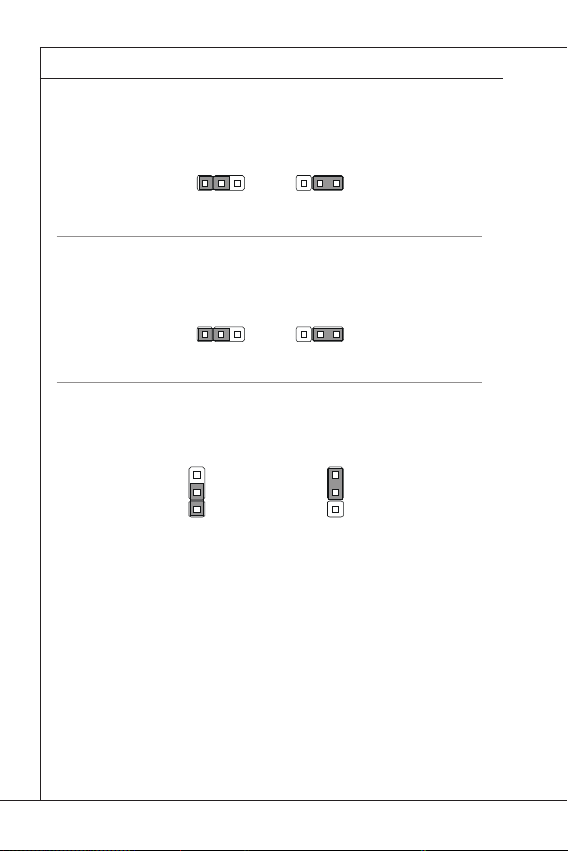

Clear CMOS Jumper: JCMOS1

There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system conguration. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system conguration, set the jumper to clear data.

1 1

Normal Clear CMOS

Important

You can clear CMOS by shorting 2-3 pin while the system is o. Then return to

1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the motherboard.

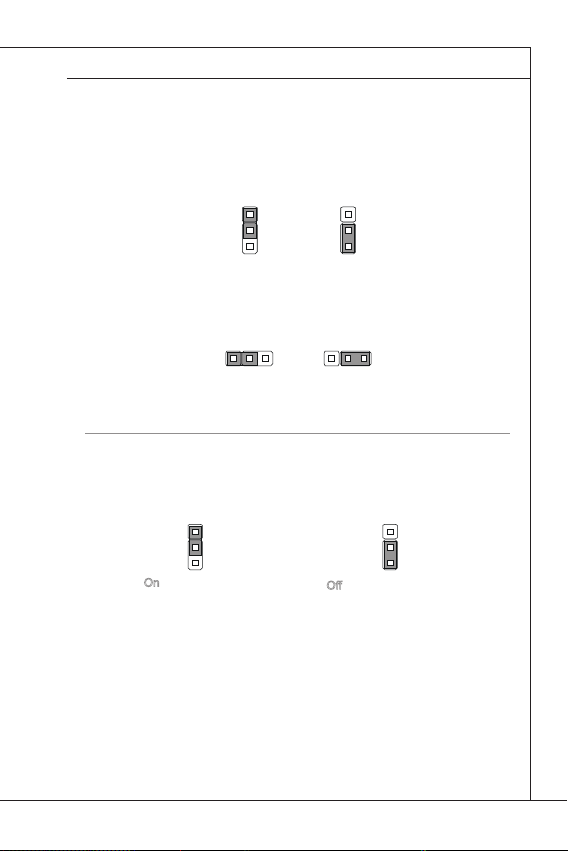

AT/ATX Select Jumper: JATX1

This jumper allows users to select between AT and ATX power.

1 1

ATX AT

1-10

Serial Port Power Jumper: JCOMP1~3

This jumper species the operation voltage of the COM serial port.

JCOMP1~2

MS-9A69

+5V

JCOMP3

+5V +12V

LAN Congure Jumper: JLAN1~2

Use this jumper to specify the operation for LAN.

On: Enable security

and the INVM lock.

JLAN1

(for LAN1)

JLAN2

(for LAN2)

O󰀨: Disable security and

+12V

the INVM lock.

(non-secure mode)

1-11

▍ Overview

LVDS Power Jumper: JVDD1

Use this jumper to specify the operation voltage of the LVDS interface at panel.

3V 5V

LVDS Inverter Power Jumper: JINV1

Use this jumper to specify the operation voltage of the interver interface at panel.

5V 12V

TXE F/W Jumper: JME1

This jumper is used to enable/disable the Intel TXE F/W.

1 1

Normal ME disable

1-12

Chapter 2 System Setup

This chapter provides you with the information on hardware setup procedures. While doing the installation, be careful in holding the components

and follow the installation procedures. For some

components, if you install in the wrong orientation, the

components will not work properly.

Use a grounded wrist strap before handling data machine components. Static electricity may damage

the components.

Important

• Always unplug the power cord before installing any components.

• When the operating temperature reaches 40oC or higher, please replace your HDD with SSD (SolidState Drive) or other types of heat-resistant HDD to protect your HDD from being damaged by high temperature.

▍ System Setup

Installation Tools

A Phillips (crosshead) screwdriver and a athead screwdriver, can be used to do most of the installation. Choose one with a magnetic head would be better.

Pliers, can be used as an auxiliary tool to connect some

connectors or cables.

Forceps, can be used to pick up tiny screws or set up the jumpers.

Rubber gloves, can prevent yourself from being incised and su󰀨ering the static charge.

2-2

MS-9A69

Removing the Cover

1. Place the system horizontally on a at and steady surface. Locate and remove the screws that secure the system cover.

2. Slide the cover carefully sidewards and remove it from the system.

2-3

▍ System Setup

Installing Memory

1. Locate the memory slot.

2. Align the notch on the memory with the key on the slot and insert the memory into the slot at a 45-degree angle.

3. Push the memory gently downwards until the slot clips click and lock

the memory in place.

2-4

MS-9A69

Important

• You can barely see the golden nger if the DIMM is properly inserted

in the DIMM slot.

• To uninstall the DIMM, ip the slot clips outwards and the DIMM will be

released instantly.

2-5

▍ System Setup

Installing the WLAN Card (Optional)

1. Locate the Mini PCIe slot. Remove the Mini PCIe card screw prein-

stalled on the motherboard.

2. Insert the wireless LAN card into the slot at a 45-degree angle.

3. Push the card gently downwards and fasten it with a screw.

2-6

MS-9A69

Installing the mSATA Card

1. Locate the Mini PCIe slot. Remove the screw preinstalled on the moth-

erboard.

2. Insert the mSATA card into the slot at a 45-degree angle.

3. Push the card gently downwards and fasten it with a screw.

2-7

▍ System Setup

Pin Signal Pin Signal Pin Signal

12 LVDSA_CLK# 24 LVDSB_CLK#

Installing the LVDS Cable (Optional)

1. Remove the screw and LVDS brackets with a pliers.

1 L_BKLT_CTRL# 13 LCD_VDD C1 +12V 2 LVDS_BLON 14 LCD_VDD C2 LVDS_DETECT#_C 3 LVDSA_DATA0 15 LVDSB_DATA0 C3 +12V 4 LVDSA_DATA#0 16 LVDSB_DATA#0 C4 GND 5 LVDSA_DATA1 17 LVDSB_DATA1 C5 GND 6 LVDSA_DATA#1 18 LVDSB_DATA#1 7 LVDSA_DATA2 19 LVDSB_DATA2 8 LVDSA_DATA#2 20 LVDSB_DATA#2

9 LVDSA_DATA3 21 LVDSB_DATA3 10 LVDSA_DATA#3 22 LVDSB_DATA#3 11 LVDSA_CLK 23 LVDSB_CLK

2. Connect the LVDS cable to LVDS connector on the motherboard.

3. Fix the other connector with two hexagonal screws.

2-8

MS-9A69

Installing the Hard Disk Drive

1. Flip over the system cover and locate the HDD bracket. Remove the sticker lm to uncover the thermal paste.

2. Insert the HDD into the HDD bracket with screw holes aligned.

3. Tighten the screws to x the HDD to the bracket.

Important

Please make sure the HDD is properly and completely xed to the bracket.

2-9

▍ System Setup

4. Connect the SATA signal & power cable to the HDD.

5. Connect the SATA signal & power cable to the motherboard to complete

the installation.

2-10

Wall Mount

1. Flip over the system and locate the bracket screw holes.

2. Place the brackets along the sides with screw holes aligned.

3. Fasten the screws to x the brackets.

MS-9A69

2-11

▍ System Setup

DIN Rail Mount 1

1. Check the accessory box for the DIN rails.

2. Put the DIN rails on the wall mount brackets with the hooks aligned.

3. Insert screws through the wall mount brackets into the DIN rails and tighten until each DIN rail is secure.

2-12

MS-9A69

DIN Rail Mount 2 (Optional)

1. Check the VESA mount plate for the DIN rail screw holes.

2. Put the DIN rails on the VESA mount plate with screw holes aligned.

3. Insert screws through the VESA mount plate into the DIN rails and tighten until each DIN rail is secure.

4. Mount the VESA mount plate onto the system and tighten the thumscrew of the VESA mount plate.

2-13

▍ System Setup

VESA Mount (Optional)

1. Locate the VESA mount screw holes on the intended device.

2. Fasten the VESA mount plate to the device with the supplied screws.

3. Mount the system onto the VESA mount plate.

4. Tighten the thumbscrew at the bottom of the VESA mount plate to

secure the system.

2-14

Chapter 3 BIOS Setup

This chapter provides information on the BIOS Setup program and allows you to congure the system for

optimum use.

You may need to run the Setup program when:

■ An error message appears on the screen

during the system booting up, and requests you to run SETUP.

■ You want to change the default settings for

customized features.

Important

• Please note that BIOS update assumes technician-

level experience.

• As the system BIOS is under continuous update for better system performance, the illustrations in this chapter should be held for reference only.

▍ BIOS Setup

Entering Setup

Power on the data machine and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> or <F2> key to enter Setup.

Press <DEL> or <F2> to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Important

The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly dierent from the latest BIOS and should be held for reference only.

3-2

MS-9A69

Control Keys

← → Select Screen

↑ ↓ Select Item

Enter Select

+ - Change Option

F1 General Help

F7 Previous Values

F9 Optimized Defaults

F10 Save & Exit

Esc Exit

Getting Help

After entering the Setup menu, the rst menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted

setup function is displayed at the bottom of the screen.

Sub-Menu

If you nd a right pointer symbol appears to the left of certain elds that means a sub-menu can be launched from this eld. A sub-menu contains additional options for a eld parameter. You can use arrow keys ( ↑↓ ) to highlight the eld and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from eld to eld within a sub-menu. If you want to return to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.

3-3

▍ BIOS Setup

The Menu Bar

▶ Main

Use this menu for basic system congurations, such as time, date, etc.

▶ Advanced

Use this menu to set up the items of special enhanced features.

▶ Boot

Use this menu to specify the priority of boot devices.

▶ Security

Use this menu to set supervisor and user passwords.

▶ Chipset

This menu controls the advanced features of the onboard chipsets.

▶ Power

Use this menu to specify your settings for power management.

▶ Save & Exit

This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes.

3-4

MS-9A69

Main

▶ System Date

This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>.

▶ System Time

This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>.

▶ SATA Mode

This setting species the SATA controller mode.

3-5

▍ BIOS Setup

Advanced

▶ Bootup NumLock State

This setting is to set the Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. Setting to [O󰀨] will allow users to use the arrow keys on the numeric keypad.

▶ Full Logo Display

This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo.

When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.

When it is disabled, the BIOS will display the normal POST messages, instead of the full-screen logo.

Please note that enabling this BIOS feature often adds 2-3 seconds of delay to the booting sequence. This delay ensures that the logo is displayed for a su󰀩cient amount of time. Therefore, it is recommended that you disable this BIOS feature for a faster boot-up time.

▶ Option ROM Messages

This item is used to determine the display mode when an optional ROM is initialized during POST. When set to [Force BIOS], the display mode used by AMI BIOS is used. Select [Keep Current] if you want to use the display mode of optional ROM.

3-6

MS-9A69

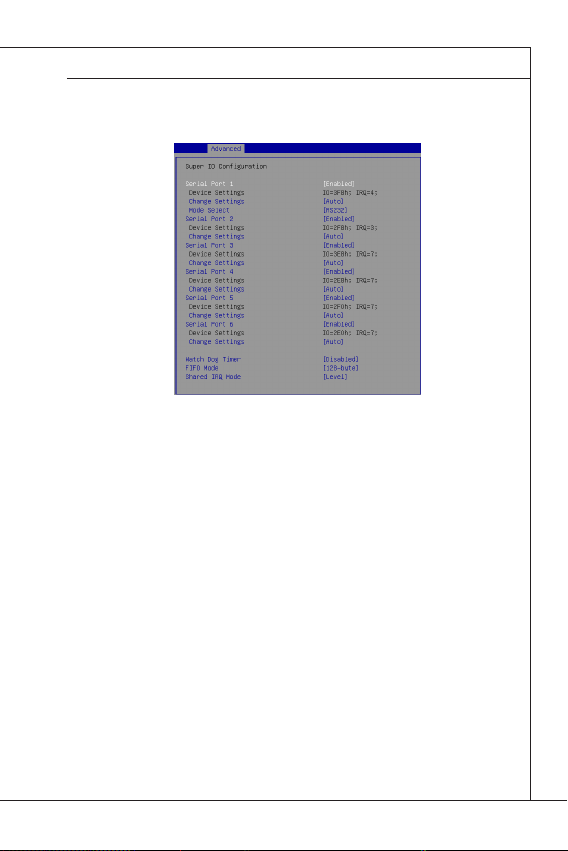

▶ Super IO Conguration

▶ Serial Port 1/ 2/ 3/ 4/ 5/ 6

This setting enables/disables the specied serial port.

▶ Change Settings

This setting is used to change the address & IRQ settings of the specied

serial port.

▶ Mode Select

Select an operation mode for the specied serial port.

▶ Watch Dog Timer

You can enable the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it.

▶ FIFO Mode

This setting controls the FIFO data transfer mode.

▶ Shared IRQ Mode

This setting provides the system with the ability to share interrupts among

its serial ports.

3-7

▍ BIOS Setup

▶ H/W Monitor

These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds.

▶ Thermal Shutdown

This setting enables/disables the thermal shutdown function for system ther-

mal protection.

3-8

MS-9A69

▶ CPU Conguration

▶ Active Processor Cores

This item allows you to select the number of active processor cores.

▶ Execute Disable Bit

Intel’s Execute Disable Bit functionality can prevent certain classes of malicious “bu󰀨er overow” attacks when combined with a supporting operating

system. This functionality allows the processor to classify areas in memory

by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the bu󰀨er, the processor disables code execution, preventing damage or worm propagation.

▶ Intel Virtualization Technology

Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple “Virtual” systems.

▶ EIST

EIST (Enhanced Intel SpeedStep Technology) allows the system to dynamically adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat

production.

When disabled, the processor will return the actual maximum CPUID input value of the processor when queried.

3-9

▍ BIOS Setup

▶ PCI/PCIE Device Conguration

▶ PCI Latency Timer

This item controls how long each PCI device can hold the bus before another takes over. When set to higher values, every PCI device can conduct transactions for a longer time and thus improve the e󰀨ective PCI bandwidth. For better PCI performance, you should set the item to higher values.

▶ OS Selection

Allows you to select the OS version. [Windows 8] For Windows 8.X [Windows 7] For Windows 7

▶ XHCI Mode

This setting disables/enables the USB XHCI controller. The eXtensible Host Controller Interface (XHCI) is a computer interface specication that denes a register-level description of a Host Controller for Universal Serial bus (USB), which is capable of interfacing to USB 1.0, 2.0, and 3.0 compatible devices. The specication is also referred to as the USB 3.0 Host Controller specication.

▶ USB 2.0 (EHCI) Support

This setting disables/enables the USB EHCI controller. The Enhanced Host Controller Interface (EHCI) specication describes the register-level interface for a Host Controller for the Universal Serial Bus (USB) Revision 2.0.

3-10

MS-9A69

▶ Legacy USB Support

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix.

▶ Audio Controller

This setting enables/disables the onboard audio controller.

▶ Launch OnBoard LAN OpROM

These settings enable/disable the initialization of the onboard/onchip LAN Boot ROM during bootup. Selecting [Disabled] will speed up the boot pro-

cess.

▶ GPIO Group Conguration

▶ GPO0 ~ GPO3

These settings control the operation mode of the specied GPIO.

3-11

▍ BIOS Setup

Boot

▶ CSM Support

This setting enables/disables the support for Compatibility Support Module, a part of the Intel Platform Innovation Framework for EFI providing the capability to support legacy BIOS interfaces.

Important

If the Operating System is going to boot in UEFI mode, disable CSM Support to speed up the boot process.

▶ Video

Allows you to select the OS mode. [EFI Mode OS] For UEFI mode. [Legacy Mode OS] For Legacy mode.

▶ Boot Option Priorities

This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system.

▶ Hard Drive BBS Priorities

This setting allows users to set the priority of the specied devices. First press <Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to select the desired device, then press <+>, <-> or <PageUp>, <PageDown> key to move it up/down in the priority list.

3-12

MS-9A69

Security

▶ Administrator Password

Administrator Password controls access to the BIOS Setup utility.

▶ User Password

User Password controls access to the system at boot and to the BIOS Setup

utility.

3-13

▍ BIOS Setup

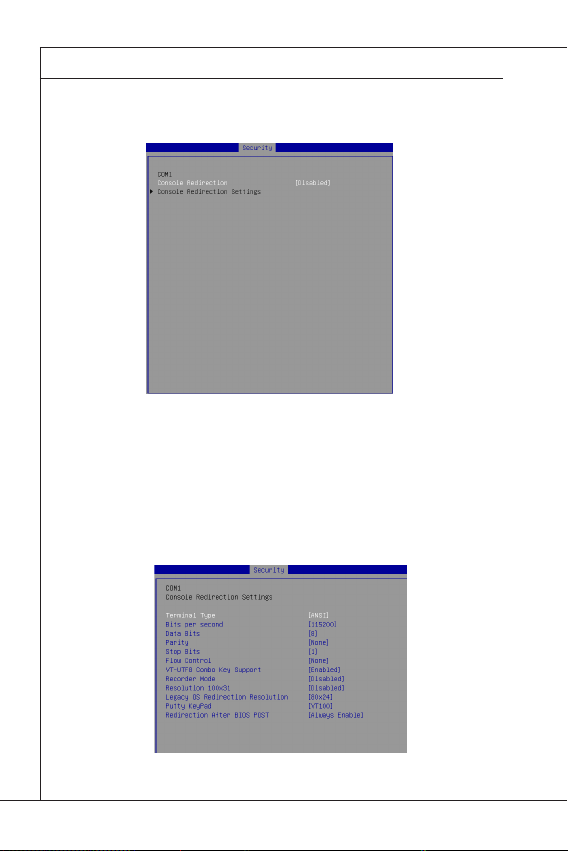

▶ Serial Port Console Redirection

▶ Console Redirection

Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables/disables the operation of console redirection. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen. Besides, all data received from the serial port is inter-

preted as keystrokes from a local keyboard.

▶ Console Redirection Settings

3-14

MS-9A69

▶ Terminal Type

To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). This setting species the type of terminal device for console redirection.

▶ Bits per second, Data Bits, Parity, Stop Bits

This setting species the transfer rate (bits per second, data bits, parity, stop bits) of Console Redirection.

▶ Flow Control

Flow control is the process of managing the rate of data transmission between two nodes. It’s the process of adjusting the ow of data from one device to another to ensure that the receiving device can handle all of the incoming data. This is particularly important where the sending device is capable of sending data much faster than the receiving device can receive it.

▶ VT-UTF8 Combo Key Support

This setting enables/disables the VT-UTF8 combination key support for ANSI/VT100 terminals.

▶ Recorder Mode, Resolution 100x31

These settings enable/disable the recorder mode and the resolution 100x31.

▶ Legacy OS Redirection Resolution

This setting species the redirection resolution of legacy OS.

▶ Putty Keypad

PuTTY is a terminal emulator for Windows. This setting controls the numeric keypad for use in PuTTY.

▶ Redirection After BIOS POST

This setting determines whether or not to keep terminals?console redirection running after the BIOS POST has booted.

3-15

▍ BIOS Setup

▶ Security Conguration

▶ Intel(R) TXE Conguration

Intel Trusted Execution Technology provides highly scalable platform security in physical and virtual infrastructures.

▶ Intel(R) Anti-Theft Technology Conguration

Intel Anti-Theft Technology is hardware-based technology that can lock a lost or stolen system so that personal condential information is protected and inaccessible by unauthorized users.

3-16

MS-9A69

Chipset

▶ DVMT Pre-Allocated

This setting denes the DVMT pre-allocated memory. Pre-allocated memory is the small amount of system memory made available at boot time by the system BIOS for video. Pre-allocated memory is also known as locked memory. This is because it is "locked" for video use only and as such, is invisible and unable to be used by the operating system.

▶ DVMT Total Gfx Mem

This setting species the memory size for DVMT.

▶ LCD Panel Type

This setting allows you to set the resolution of the LCD display.

▶ LCD Backlight Level

This setting allows you to set the LCD backlight level.

3-17

▍ BIOS Setup

Power

▶ Restore AC Power Loss

This setting species whether your system will reboot after a power failure or interrupt occurs. Available settings are:

[Power O󰀨] Leaves the computer in the power o󰀨 state.

[Power On] Leaves the computer in the power on state.

[Last State] Restores the system to the previous status before pow-

▶ Deep S5

The setting enables/disables the Deep S5 power saving mode. S5 is almost the same as G3 Mechanical O󰀨, except that the PSU still supplies power, at a minimum, to the power button to allow return to S0. A full reboot is required. No previous content is retained. Other components may remain powered so the computer can “wake” on input from the keyboard, clock, modem, LAN, or USB device.

er failure or interrupt occurred.

3-18

MS-9A69

** Advanced Resume Events Control **

▶ PCIE PME

This eld species whether the system will be awakened from power saving modes when activity or input signal of onboard PCIE PME is detected.

▶ USB from S3/S4

The item allows the activity of the USB device to wake up the system from S3/ S4 sleep state.

▶ RTC

When [Enabled], your can set the date and time at which the RTC (real-time

clock) alarm awakens the system from suspend mode.

3-19

▍ BIOS Setup

Save & Exit

▶ Save Changes and Reset

Save changes to CMOS and reset the system.

▶ Discard Changes and Exit

Abandon all changes and exit the Setup Utility.

▶ Discard Changes

Abandon all changes.

▶ Restore Defaults

Use this menu to load the default values set by the motherboard manufacturer specically for optimal performance of the motherboard.

▶ Save as User Defaults

Save changes as the user’s default prole.

▶ Restore User Defaults

Restore the user’s default prole.

▶ Launch EFI Shell from lesystem device

This setting helps to launch the EFI Shell application from one of the available le system devices.

3-20

Appendix

WDT & GPIO

This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).

▍ WDT & GPIO

SIO_INDEX_Port equ 04Eh

60h=second, 68h=minute, 40h=Disabled Watchdog time r

WDT Sample Code

SIO_DATA_Port equ 04Fh SIO_UnLock_Value equ 087h SIO_Lock_Value equ 0AAh WatchDog_LDN equ 007h WDT_UNIT equ 60h ; WDT_Timer equ 30 ;ex. 30 seconds

Sample code: ;Enable config mode mov dx, SIO_INDEX_Port mov al, SIO_UnLock_Value out dx, al jmp short $+2 ;Io_delay jmp short $+2 ;Io_delay out dx, al ;Change to WDT mov dx, SIO_INDEX_Port mov al, 07h out dx, al mov dx, SIO_DATA_Port mov al, WatchDog_LDN out dx, al ;Acive WDT mov dx, SIO_INDEX_Port mov al, 30h out dx, al mov dx, SIO_DATA_Port in al, dx or al, 01h out dx, al ;set timer mov dx, SIO_INDEX_Port mov al, 0F6h out dx, al mov dx, SIO_DATA_Port

ov al, WDT_Timer

out dx, al ;set UINT mov dx, SIO_INDEX_Port mov al, 0F5h out dx, al mov dx, SIO_DATA_Port

ov al, WDT_UNIT

out dx, al ;enable reset mov dx, SIO_INDEX_Port mov al, 0FAh out dx, al mov dx, SIO_DATA_Port in al, dx or al, 01h out dx, al ;close config mode mov dx, SIO_INDEX_Port mov al, SIO_Lock_Value out dx, al

A-2

GPIO Sample Code

mov al, SIO_UnLock_Value

MS-9A69

 GPI 0 ~ GPI 3

GPI 0 GPI 1 GPI 2 GPI 3

IO Address

SIO GPIO Register 82h 82h 82h 82h

Bit 0 1 2 3

Sample code #1

 GPO 0 ~ GPO 3

GPO 0 GPO 1 GPO 2 GPO 3

IO Address

SIO GPIO Register 81h 81h 81h 81h

Bit 4 5 6 7

Sample code #2

SIO_INDEX_Port equ 04Eh

SIO_DATA_Port equ 04Fh

SIO_UnLock_Value equ 087h

SIO_Lock_Value equ 0AAh

SIO_LDN_GPIO equ 06h

GPI_REG equ 082h

GPO_REG equ 081h

GPI_ADD equ 000h

GPO_ADD equ 000h

GPO_0 equ 00010000b

Sample Code:

#1 : Get GPI 0 status

;

Enable config mode

mov dx, SIO_INDEX_Port

A-3

▍ WDT & GPIO

out dx, al

or al, GPO_0

out dx, al

mov dx, SIO_INDEX_Port

mov al, SIO_Lock_Value

out dx, al

jmp short $+2 ;Io_delay jmp short $+2 ;Io_delay out dx, al

; Switch GPIO Configuration for SIO LDN 0x06

mov dx, SIO_INDEX_Port mov al, 07h

out dx, al mov dx, SIO_DATA_Port mov al, SIO_LDN_GPIO

out dx, al

; Get GPI 0 Pin Status Register

mov dx, SIO_INDEX_Port

mov al, GPI_REG

out dx, al

mov dx, SIO_DATA_Port

in al, dx

;al bit0 = GPI 0 status

;

Exit SIO

mov dx, SIO_INDEX_Port

mov al, SIO_Lock_Value

out dx, al

#2 : Set GPO 0 status to high

; Enable config mode

mov dx, SIO_INDEX_Port

mov al, SIO_UnLock_Value

out dx, al jmp short $+2 ;Io_delay

jmp short $+2 ;Io_delay out dx, al

; Switch GPIO Configuration for SIO LDN 0x06

mov dx, SIO_INDEX_Port mov al, 07h

out dx, al mov dx, SIO_DATA_Port mov al, SIO_LDN_GPIO

out dx, al

; Set GPO 0 Pin to High

mov dx, SIO_INDEX_Port

mov al, GPO_REG

out dx, al

mov dx, SIO_DATA_Port

in al, dx

;al bit4 = GPO 0 status

;

A-4

Exit SIO

MSI MS-9A69B1 User’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright Notice

Trademarks

Revision

Technical Support

Safety Instructions

Chemical Substances Information

Battery Information

CE Conformity

FCC Radio Frequency Interference Statement

WEEE Statement

Chapter 1

Overview

Packing Contents

System Overview

Motherboard Jumper

Chapter 2

System Setup

Installation Tools

Removing the Cover

Installing Memory

Installing the WLAN Card (Optional)

Installing the mSATA Card

Installing the LVDS Cable (Optional)

Installing the Hard Disk Drive

Wall Mount

DIN Rail Mount 1

DIN Rail Mount 2 (Optional)

VESA Mount (Optional)

Chapter 3

BIOS Setup

Entering Setup

The Menu Bar

Main

Advanced

Boot

Security

Chipset

Power

Save & Exit

Appendix

WDT & GPIO

WDT Sample Code

GPIO Sample Code
