MSI MS-9A29 User Manual

MS-9A29

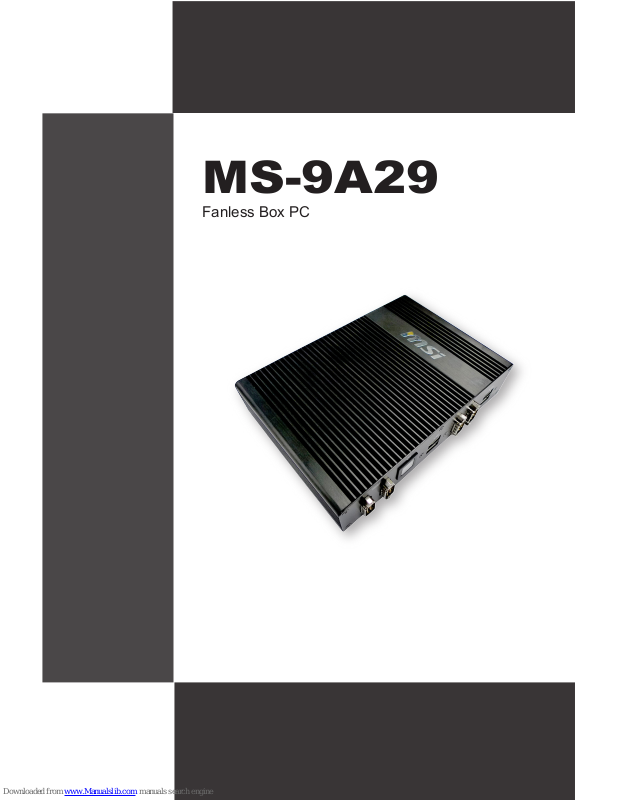

Fanless Box PC

ii

Preface

▍

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.

Trademarks

All trademarks are the properties of their respective owners.

MSI® is a registered trademark of Micro-Star Int’l Co.,Ltd.
NVIDIA® is a registered trademark of NVIDIA Corporation.
ATI® and AMD® are registered trademarks of AMD Corporation.
Intel® is a registered trademark of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.
AMI® is a registered trademark of Advanced Micro Devices, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.

Revision

Revision Date
V1.0 2013/07

Technical Support

If a problem arises with your system and no solution can be obtained from
the user’s manual, please contact your place of purchase or local distributor.
Alternatively, please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS updates, driver up­dates, and other information:

http://www.msi.com/service/download/

Contact our technical staff at:

http://support.msi.com/

￭
￭
￭
￭
￭
￭
￭

￭
￭

iii

MS-9A29

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU
REACH Regulation (Regulation EC No. 1907/2006 of the European Par­liament and the Council), MSI provides the information of chemical sub­stances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:
Batteries, battery packs, and accumulators should

not be disposed of as unsorted household waste.
Please use the public collection system to return,
recycle, or treat them in compliance with the local
regulations.

Taiwan:
For better environmental protection, waste batter-

ies should be collected separately for recycling or
special disposal.

California, USA:
The button cell battery may contain perchlorate material and requires

special handling when recycled or disposed of in California.
For further information please visit:
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.

iv

Preface

▍

Safety Instructions

Always read the safety instructions carefully.

Keep this User’s Manual for future reference.

Keep this equipment away from humidity.

Lay this equipment on a reliable at surface before setting it up.

The openings on the enclosure are for air convection hence protects
the equipment from overheating. DO NOT COVER THE OPEN­INGS.

Make sure the voltage of the power source and adjust properly
110/220V before connecting the equipment to the power inlet.

Place the power cord such a way that people can not step on it. Do
not place anything over the power cord.

Always Unplug the Power Cord before inserting any add-on card or
module.

All cautions and warnings on the equipment should be noted.

Never pour any liquid into the opening that could damage or cause
electrical shock.

If any of the following situations arises, get the equipment checked
by service personnel:

The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work ac-

cording to User’s Manual.
The equipment has dropped and damaged.
The equipment has obvious sign of breakage.

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UN­CONDITIONED, STORAGE TEMPERATURE ABOVE 60oC (140oF),
IT MAY DAMAGE THE EQUIPMENT.

警告使用者:
這是甲類資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在這

種情況下，使用者會被要求採取某些適當的對策。

￭
￭
￭
￭
￭

￭
￭
￭
￭

￭
￭

◯
◯
◯
◯

◯
◯

￭

v

MS-9A29

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this de­vice is in compliance with the essential safety requirements and
other relevant provisions set out in the European Directive.

FCC Radio Frequency Interference
Statement

This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communica­tions. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference
at his own expense.

NOTICE 1

The changes or modi󰘰cations not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE 2

Shielded interface cables and AC power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

this device may not cause harmful interference, and
this device must accept any interference received, including interference

that may cause undesired operation.

1.

2.

vi

Preface

▍

WEEE Statement

ENGLISH

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment,
Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and
electronic equipment” cannot be discarded as municipal waste anymore and manufactur­ers of covered electronic equipment will be obligated to take back such products at the
end of their useful life.

DEUTSCH

Gemäß der Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte dürfen Elektro­und Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden. Wir haben
europaweit verschiedene Sammel- und Recyclingunternehmen beauftragt, die in die Eu­ropäische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zurück­zunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen Zeitpunkt ausschliesslich
an einer lokalen Altgerätesammelstelle in Ihrer Nähe.

FRANÇAIS

Au sujet de la directive européenne (EU) relative aux déchets des équipement électriques
et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005, que les produits élec­triques et électroniques ne peuvent être déposés dans les décharges ou tout simplement
mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains

produits en n de vie. Par conséquent vous pouvez retourner localement ces matériels

dans les points de collecte.

РУССКИЙ

В соответствии с директивой Европейского Союза (ЕС) по предотвращению
загрязнения окружающей среды использованным электрическим и электронным
оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13 августа 2005
года, изделия, относящиеся к электрическому и электронному оборудованию, не могут
рассматриваться как бытовой мусор, поэтому производители вышеперечисленного
электронного оборудования обязаны принимать его для переработки по окончании
срока службы.

ESPAÑOL

Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o equipos

electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasicados

como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores
habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a
hacerse cargo de dichos productos al termino de su período de vida.

vii

MS-9A29

NEDERLANDS

De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en
Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen
niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden
verplicht om producten retour te nemen aan het eind van hun levenscyclus.

SRPSKI

Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Di­rektiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju

pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i
proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog
uobičajenog veka trajanja.

POLSKI

Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów elektry­cznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia
2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być trak­towane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani
do odbierania ich w momencie gdy produkt jest wycofywany z użycia.

TÜRKÇE

Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/EC Kara­rnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve
elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların
üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla yükümlü
olacaktır.

ČESKY

Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků

2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické

výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se
tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich
životnosti.

MAGYAR

Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektron­ikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és

elektronikus berendezések többé nem kezelhetőek lakossági hulladékként, és az ilyen
elektronikus berendezések gyártói kötelessé válnak az ilyen termékek visszavételére

azok hasznos élettartama végén.

ITALIANO

In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici
ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti
alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati come

riuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla
ne del suo ciclo di vita.

viii

Preface

▍

Contents

Copyright Notice ..............................................................................ii

Trademarks ......................................................................................ii

Revision ...........................................................................................ii

Technical Support ............................................................................ii

Chemical Substances Information ..................................................iii

Battery Information ..........................................................................iii

Safety Instructions ..........................................................................iv

CE Conformity ................................................................................. v

FCC Radio Frequency Interference Statement ............................... v

WEEE Statement ............................................................................vi

Chapter 1 Overview ����������������������������������������������������������������������������1-1

Packing Contents ......................................................................... 1-2

System Overview ......................................................................... 1-3

System Specications .................................................................. 1-6

Motherboard Jumper ....................................................................1-8

Chapter 2 System Setup �������������������������������������������������������������������� 2-1

Installation Tools........................................................................... 2-2

Removing the Cover ....................................................................2-3

Installing Memory ......................................................................... 2-4

Installing the Wireless LAN Card (Optional) ................................2-6

Installing the mSATA Card (Optional) ...........................................2-7

Installing the Hard Disk Drive .......................................................2-8

Installing Mounting Brackets ...................................................... 2-10

Chapter 3 BIOS Setup ������������������������������������������������������������������������ 3-1

Entering Setup .............................................................................3-2

The Menu Bar ..............................................................................3-4

Main .............................................................................................3-5

Advanced ..................................................................................... 3-6

Boot ............................................................................................ 3-11

Security ...................................................................................... 3-12

Chipset ....................................................................................... 3-15

ix

MS-9A29

Power ......................................................................................... 3-16

Save & Exit ................................................................................3-18

Appendix WDT & GPIO ��������������������������������������������������������������������� A-1

WDT Sample Code ......................................................................A-2

GPIO Sample Code .....................................................................A-3

NOTE

Thank you for choosing the 9A29, an excellent indus­trial computer system from MSI.

The MS-9A29 eliminates the noise and the risk of
fan’s failure by wide heatsink as fanless solution. Fur­thermore, it supports VESA wall-mount interface for
various scenarios like digital signage, kiosk, industrial
control, and POS with affordable expenditure, which
not only meets the demand of Industrial applications

but also fullls the needs of companies, governments,

and institutes for general applications.

Chapter 1

Overview

1-2

Overview

▍

MS-9A29

Packing Contents

MS-9A29 System

Power Adapter

Power Cord

Mounting Brackets

SATA Power &

Signal Cable

User’s Manual

(Optional)

Driver/Utility Disc

Please contact us immediately if any of the item is damaged or missing.
The picture is for your reference only and your packing contents may slightly
vary depending on the model you purchased.

■

■

MS-9A29

1-3

MS-9A29

Rear View

1

1

2

3

4

6

7

5



1

WLAN Antenna Connector (Optional)

This connector allows you to connect an external antenna for wireless LAN.

Top View

System Overview

1-4

Overview

▍

MS-9A29

2

Line-Out Jack

This connector is provided for headphones or speakers.

3

Power Jack

The power adapter converts AC power to DC power for this jack.Power sup­plied through this jack supplies power to the system.To prevent damage to
the system, always use the supplied power adapter.

4

USB 2�0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as
keyboard, mouse, or other USB-compatible devices.

5

Gigabit LAN Jack

The standard RJ-45 LAN jack is for connection to the Local Area Network
(LAN). You can connect a network cable to it.

6

HDMI Port

The High-De󰘰nition Multimedia Interface (HDMI) is an all-digital audio/video
interface capable of transmitting uncompressed streams. HDMI supports all
TV format, including standard, enhanced, or high-de󰘰nition video, plus multi­channel digital audio on a single cable.

7

VGA Port

The DB15-pin female connector is provided for monitor.

MS-9A29

1-5

MS-9A29

Front View

2

1

1

3 3



1

Serial Port

The serial port is a 16550A high speed communications port that sends/ re­ceives 16 bytes FIFOs. You can attach a serial mouse or other serial devices
directly to the connector.

2

Power Button

Press the power button to turn the system on or o󰘯.

3

USB 2�0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as
keyboard, mouse, or other USB-compatible devices.

1-6

Overview

▍

MS-9A29

System Specications

CPU

Intel Cedarview-D D2550■

Chipset

Intel NM10 chipset■

Memory

1 DDR3 800 / 1066MHz Non-ECC SO-DIMM slot
Supports the maximum of 4GB

■

■

LAN

2 Gigabit Fast Ethernet by Intel 82583V controller■

Storage

1 SATA 3Gb/s port
1 mSATA slot

■

■

Audio

HDA Codec by Realtek ALC887
Compliant with Azalia 1.0 specs

■

■

Graphics

Intel 3650 series integrated Graphics Engine

LVDS1 18-bit single channel, resolution up to
1366 x 768 pixels
LVDS2 24-bit dual channel, resolution up to
1920 x 1200 pixels
VGA port, resolution up to 1920 x 1200 pixels

■

-

-

-

Left Panel
Input/Output

1 D-sub VGA port
1 HDMI port
2 Gigabit LAN jacks
2 USB 2.0 ports
1 Line-Out audio jack
1 DC power jack
2 Wireless LAN antenna connectors (Optional)

■

■

■

■

■

■

■

Right Panel
Input/Output

4 USB 2.0 ports
4 Serial ports
1 Power button

■

■

■

Power
Supply

36 watt switching power adapter
Input: 100~240Vac, 1.5A, 50~60Hz
Output: 12Vdc, 3A

■

■

■

Dimension &
Weight

196mm x 136mm x 43mm

1.20 kg

■

■

MS-9A29

1-7

MS-9A29

Regulatory
Compliance

FCC Class A, CE, C-Tick, BSMI, RoHS compliant■

Environm­ental

Operating Temperature: 0oC to 40oC
Storage Temperature: 0oC to 50oC
Humidity: 10% ~ 90% RH, non-condensing

■

■

■

1-8

Overview

▍

MS-9A29

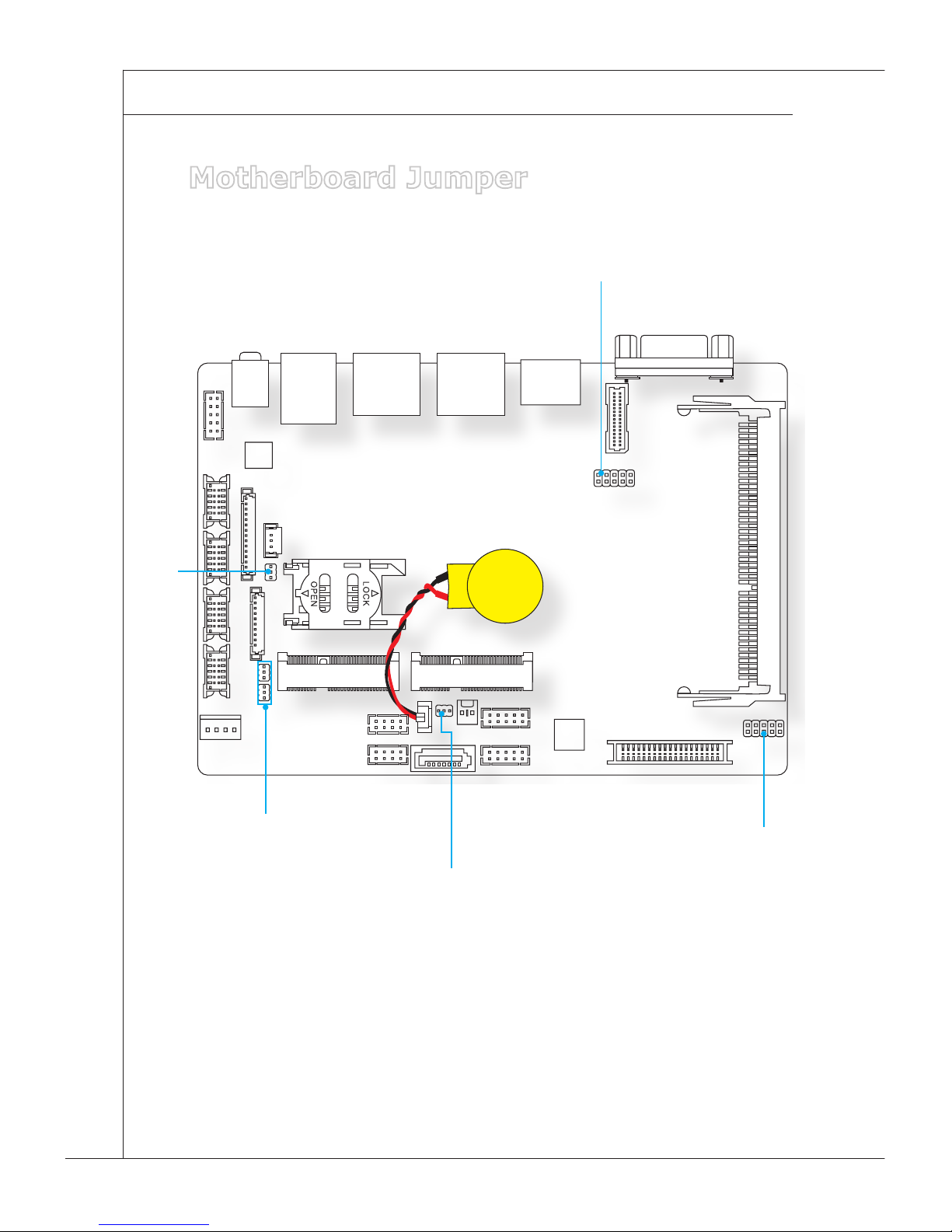

Motherboard Jumper

JVDD1

JVDD2

JAT

JBAT1

JCOMP1/2

MS-9A29

1-9

MS-9A29

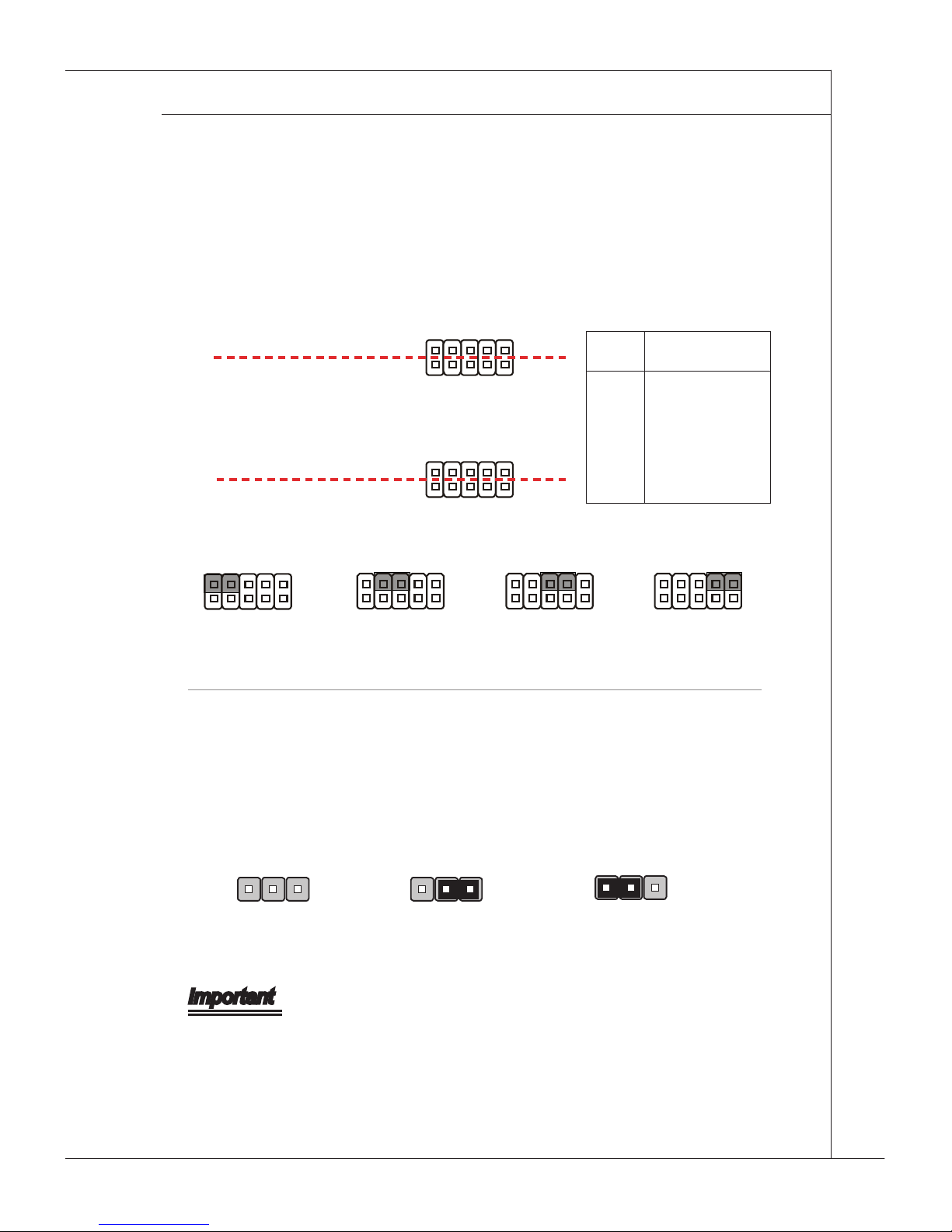

Backlight Pinheader & LVDS Power Jumper: JVDD1,
JVDD2

The backlight connector is provided for LCD backlight options while the
LVDS power jumper allows users to select the operation voltage of the

LVDS at panel.

+12VVCC3VCC5

1

2

9

10

1

2

9

10

1

2

9

1012

9

10

VCC3

PIN SIGNAL

1
3
5
7
9

VCC5
L_BKLTCTL
INV_ON
GND
+12V

1

2

9

10

JVDD1

Backlight Connector

LVDS Power Jumper

Backlight Connector

LVDS Power Jumper

1
2

9

10

JVDD2

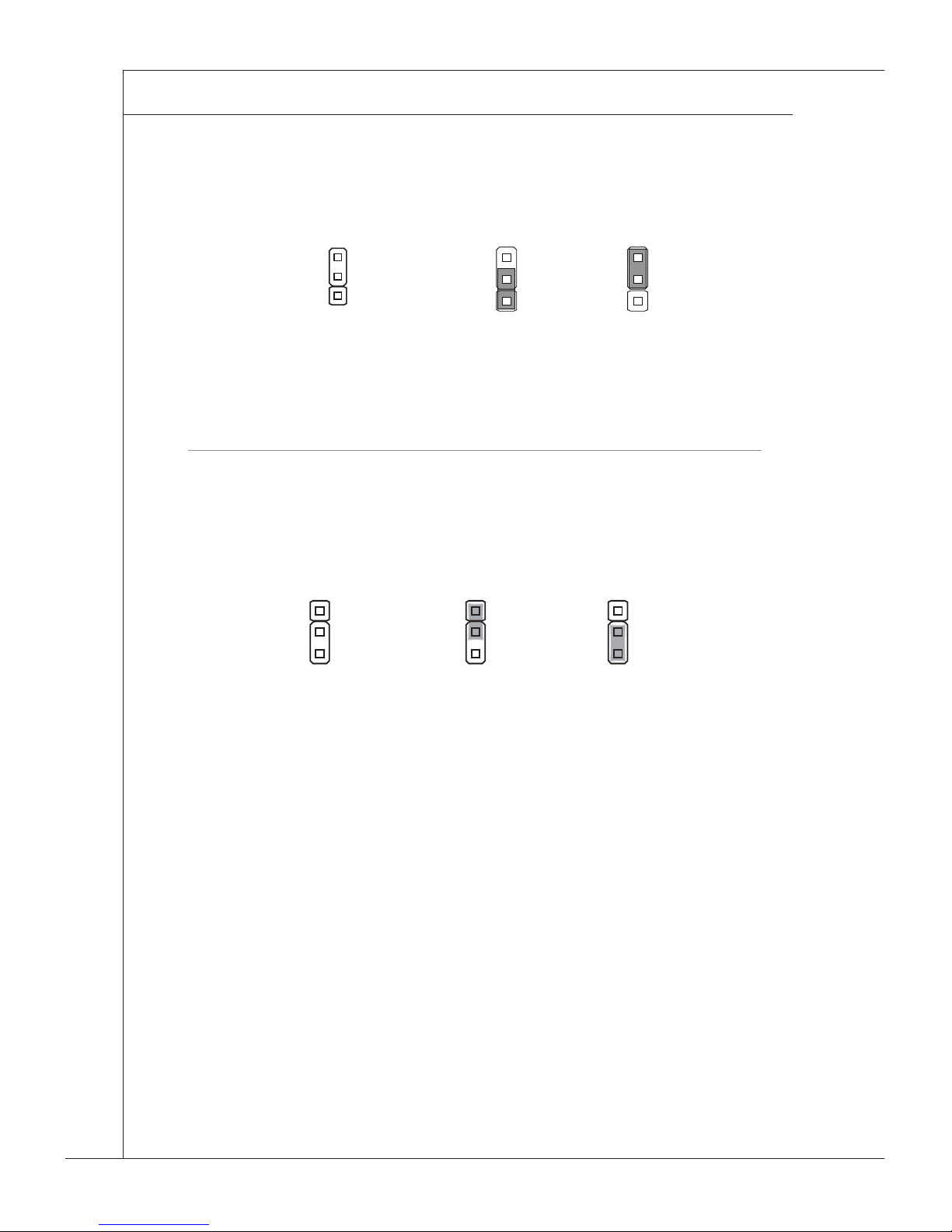

Clear CMOS Jumper: JBAT1

There is a CMOS RAM onboard that has a power supply from an external

battery to keep the data of system conguration. With the CMOS RAM, the

system can automatically boot OS every time it is turned on. If you want to

clear the system conguration, set the jumper to clear data.

JBAT1

Normal Clear CMOS

1

11

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return
to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will
damage the motherboard.

1-10

Overview

▍

Serial Port Power Jumper: JCOMP1, JCOMP2

These jumpers specify the operation voltage of the onboard serial ports.

JCOMP1/2

(for COM1/2)

1 11

+5V +12V

AT/ATX Select Jumper: JAT1

This jumper allows users to select between AT and ATX power.

JAT1

1 1

ATX

(Default)

AT

1

Chapter 2

System Setup

This chapter provides you with the information on
hardware setup procedures. While doing the installa­tion, be careful in holding the components and follow
the installation procedures. For some components, if
you install in the wrong orientation, the components
will not work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the com­ponents.

Important

Always unplug the power cord before installing
any components.

When the operating temperature reaches 40oC or
higher, please replace your HDD with SSD (Solid­State Drive) or other types of heat-resistant HDD
to protect your HDD from being damaged by high
temperature.

•

•

2-2

System Setup

▍

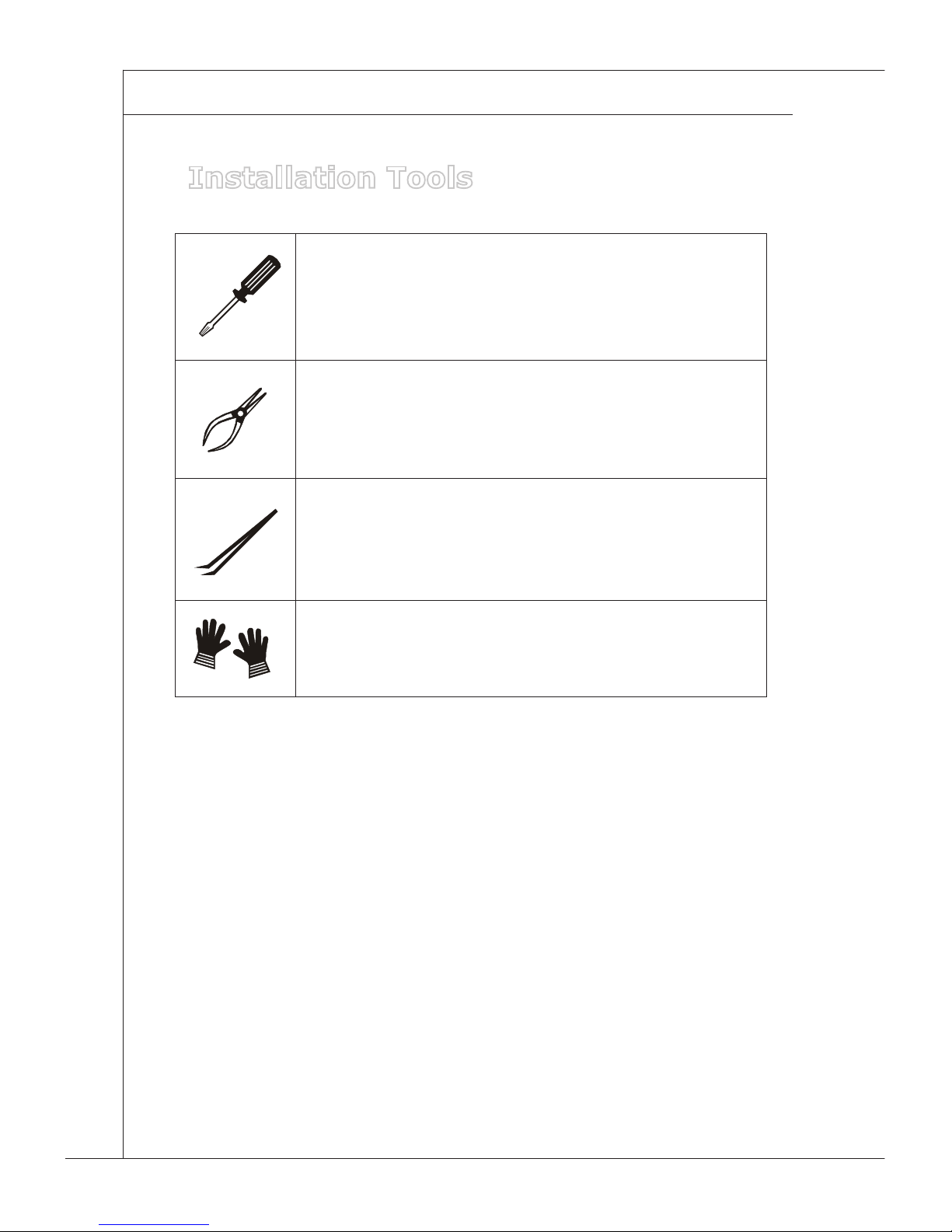

Installation Tools

A Phillips (crosshead) screwdriver and a athead screw­driver, can be used to do most of the installation. Choose
one with a magnetic head would be better.

Pliers, can be used as an auxiliary tool to connect some
connectors or cables.

Forceps, can be used to pick up tiny screws or set up
the jumpers.

Rubber gloves, can prevent yourself from being incised
and suffering the static charge.

2-3

MS-9A29

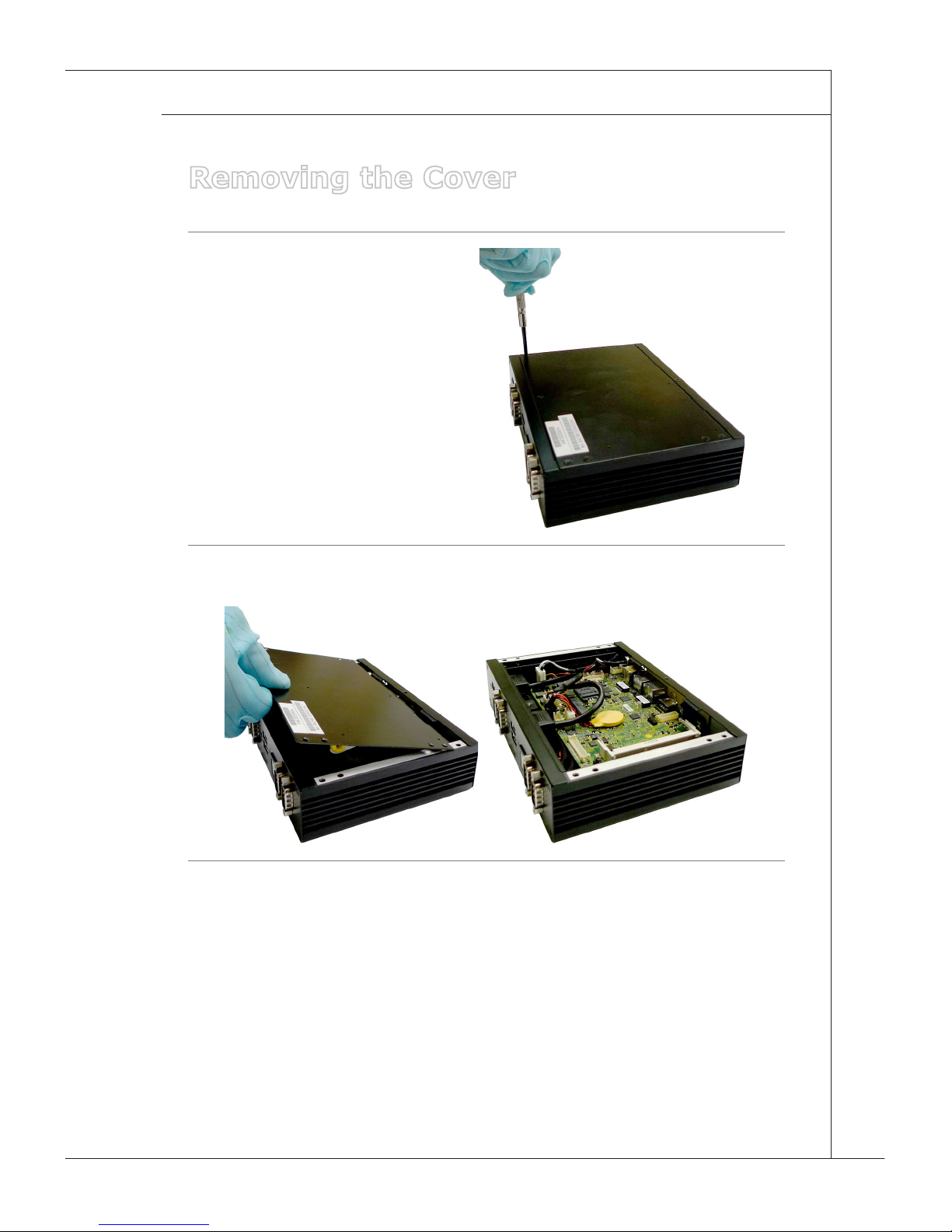

Removing the Cover

1. Place the system

horizontally on a at and

steady surface. Locate
and remove the screws
that secure the system
cover.

2. Slide the cover carefully sidewards and remove it from the system.

2-4

System Setup

▍

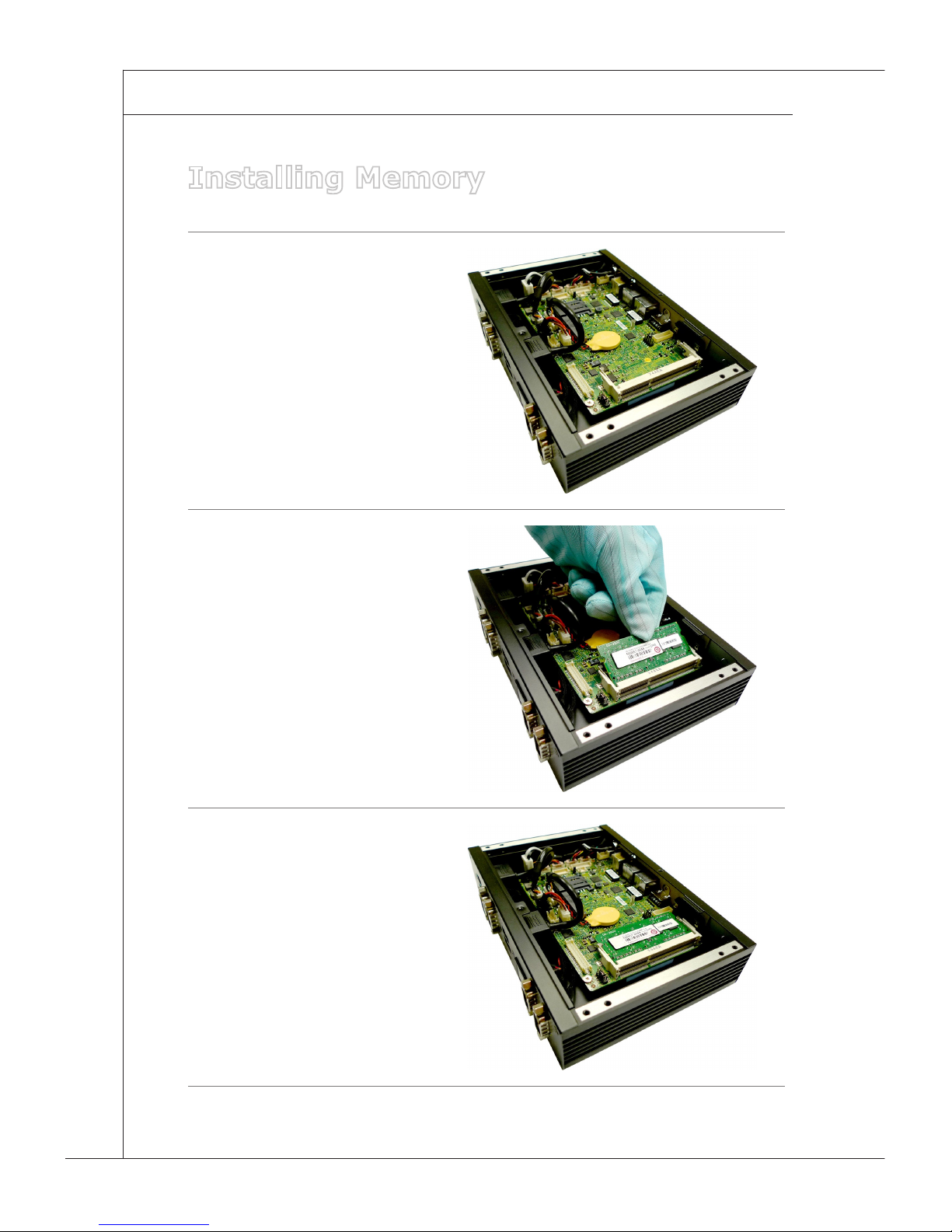

Installing Memory

1. Locate the memory slot.

2. Align the notch on the
memory with the key on
the slot and insert the
memory into the slot at a
45-degree angle.

3. Push the memory gently
downwards until the slot
clips click and lock the
memory in place.

2-5

MS-9A29

Important

You can barely see the golden nger if the DIMM is properly inserted in

the DIMM slot.

To uninstall the DIMM, ip the slot clips outwards and the DIMM will be
released instantly.

•

•

2-6

System Setup

▍

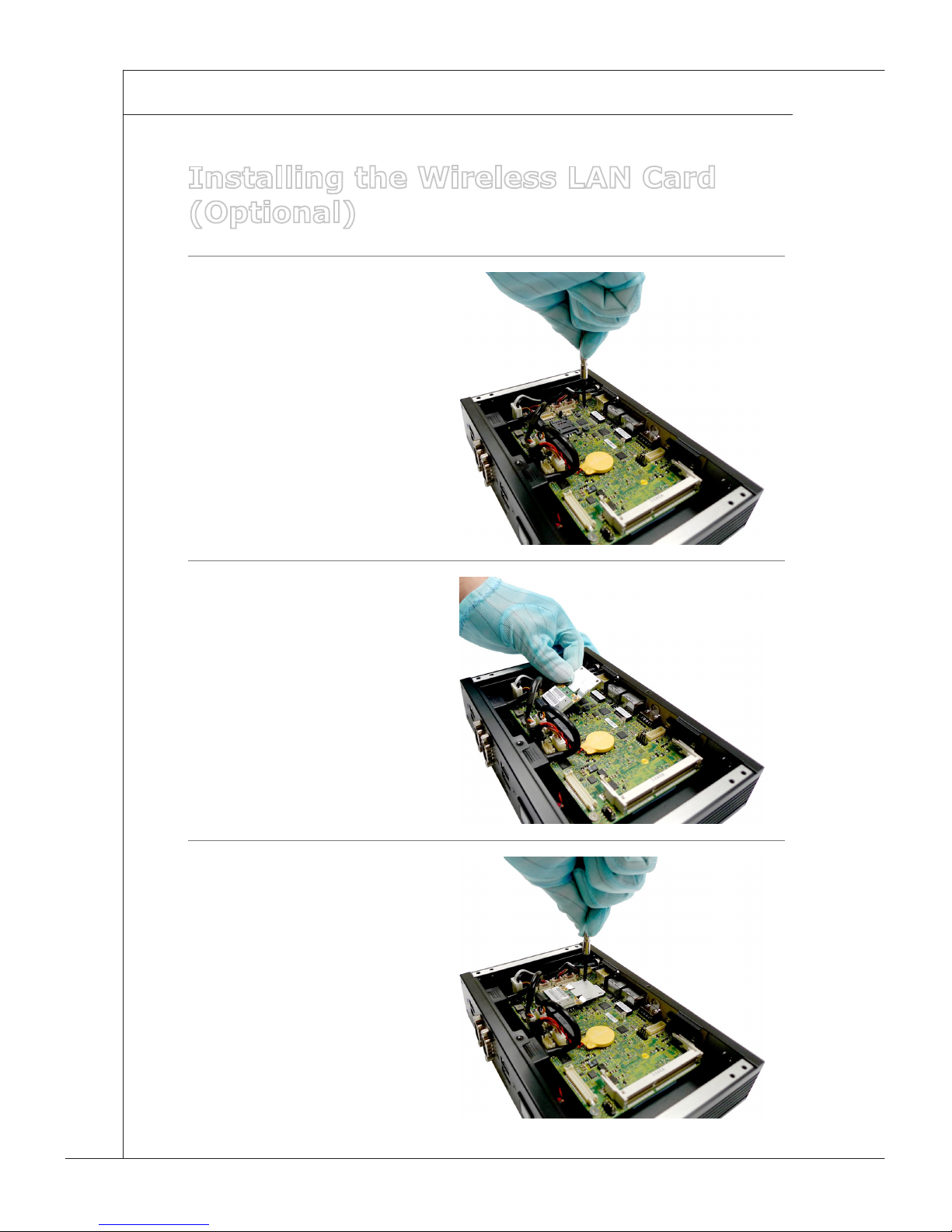

Installing the Wireless LAN Card
(Optional)

1. Locate the Mini PCIe
slot. Remove the
Mini PCIe card screw
preinstalled on the
motherboard.

2. Insert the wireless LAN
card into the slot at a
45-degree angle.

3. Push the card gently
downwards and fasten it
with a screw.

2-7

MS-9A29

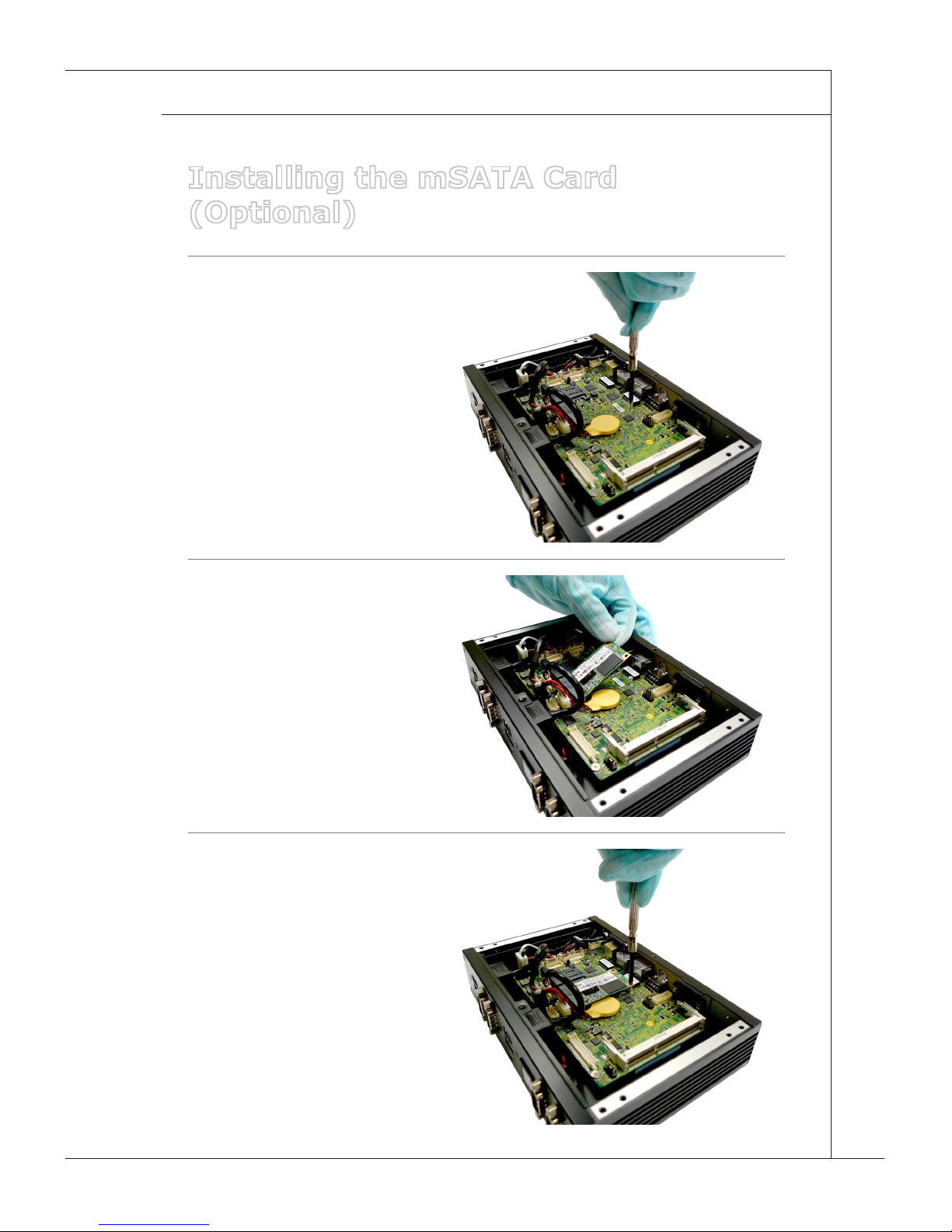

Installing the mSATA Card
(Optional)

1. Locate the mSATA slot.
Remove the mSATA card
screw preinstalled on the
motherboard.

2. Insert the mSATA card
into the slot at a 45­degree angle.

3. Push the card gently
downwards and fasten it
with a screw.

2-8

System Setup

▍

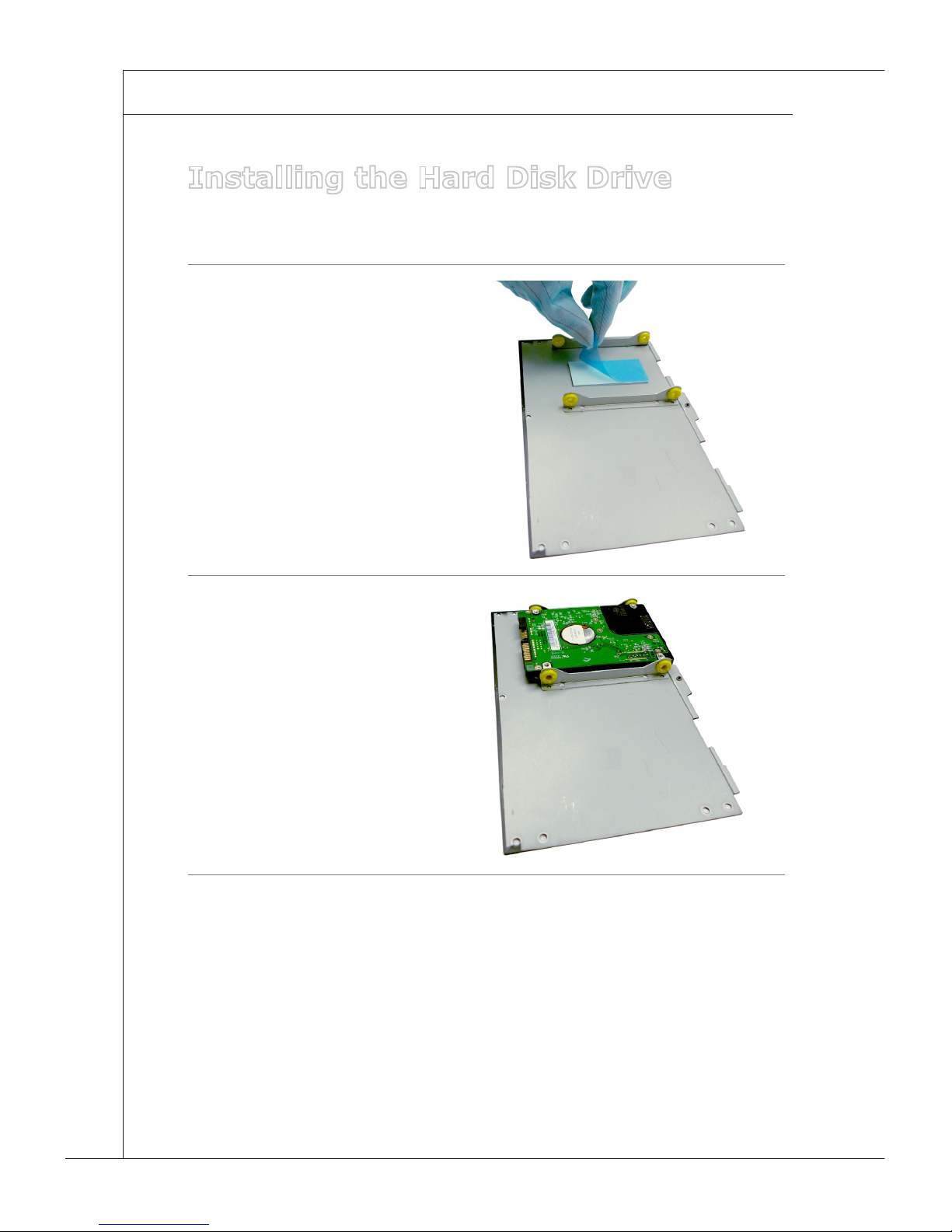

Installing the Hard Disk Drive

1. Flip over the system cov­er and locate the HDD
bracket. Remove the

sticker lm to uncover

the thermal paste.

2. Insert the HDD into the
HDD bracket with screw
holes aligned.

2-9

MS-9A29

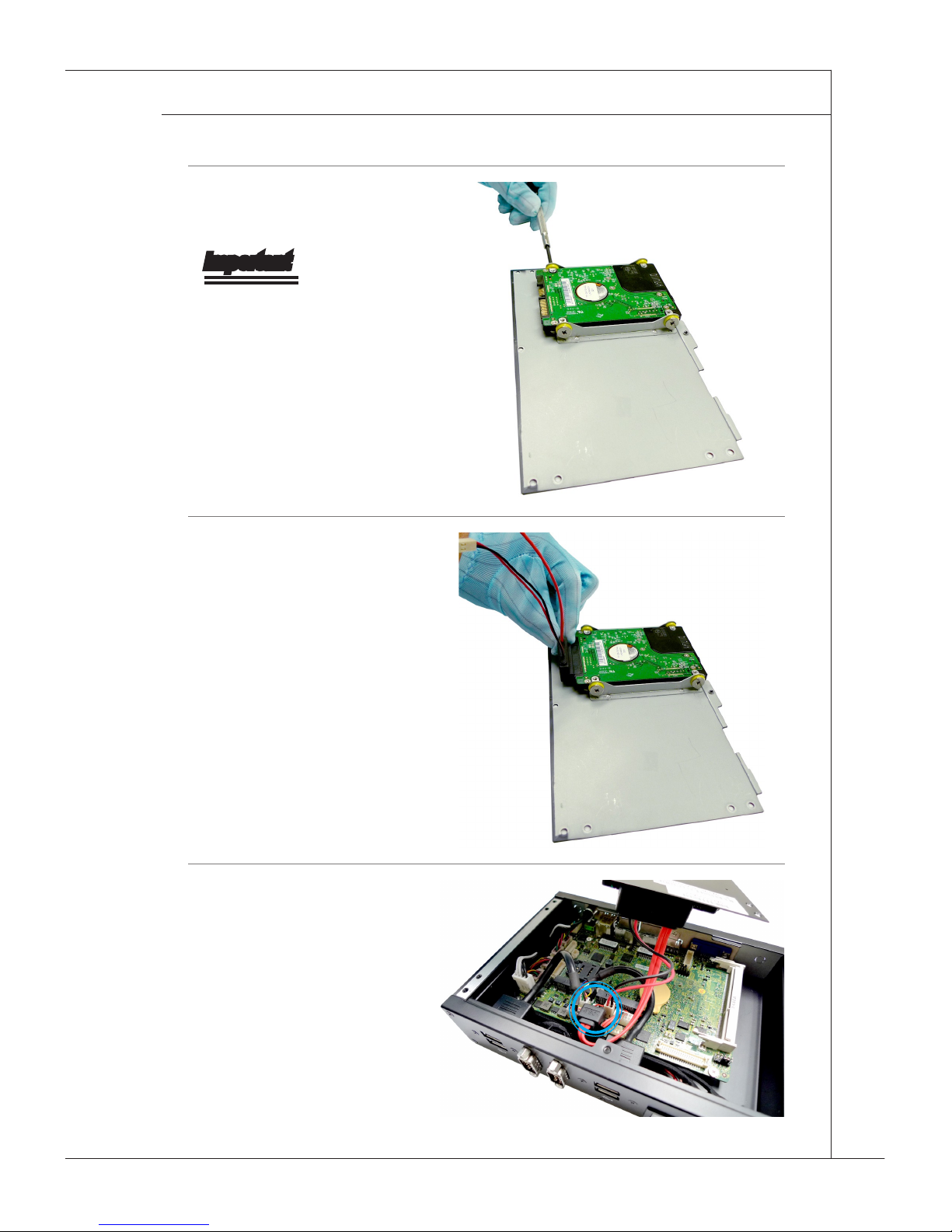

3. Tighten the screws to x

the HDD to the bracket.

Important

Please make sure the HDD
is properly and completely

xed to the bracket.

4. Connect the SATA signal
& power cable to the
HDD.

5. Connect the SATA signal
& power cable to the
motherboard to complete
the installation.

2-10

System Setup

▍

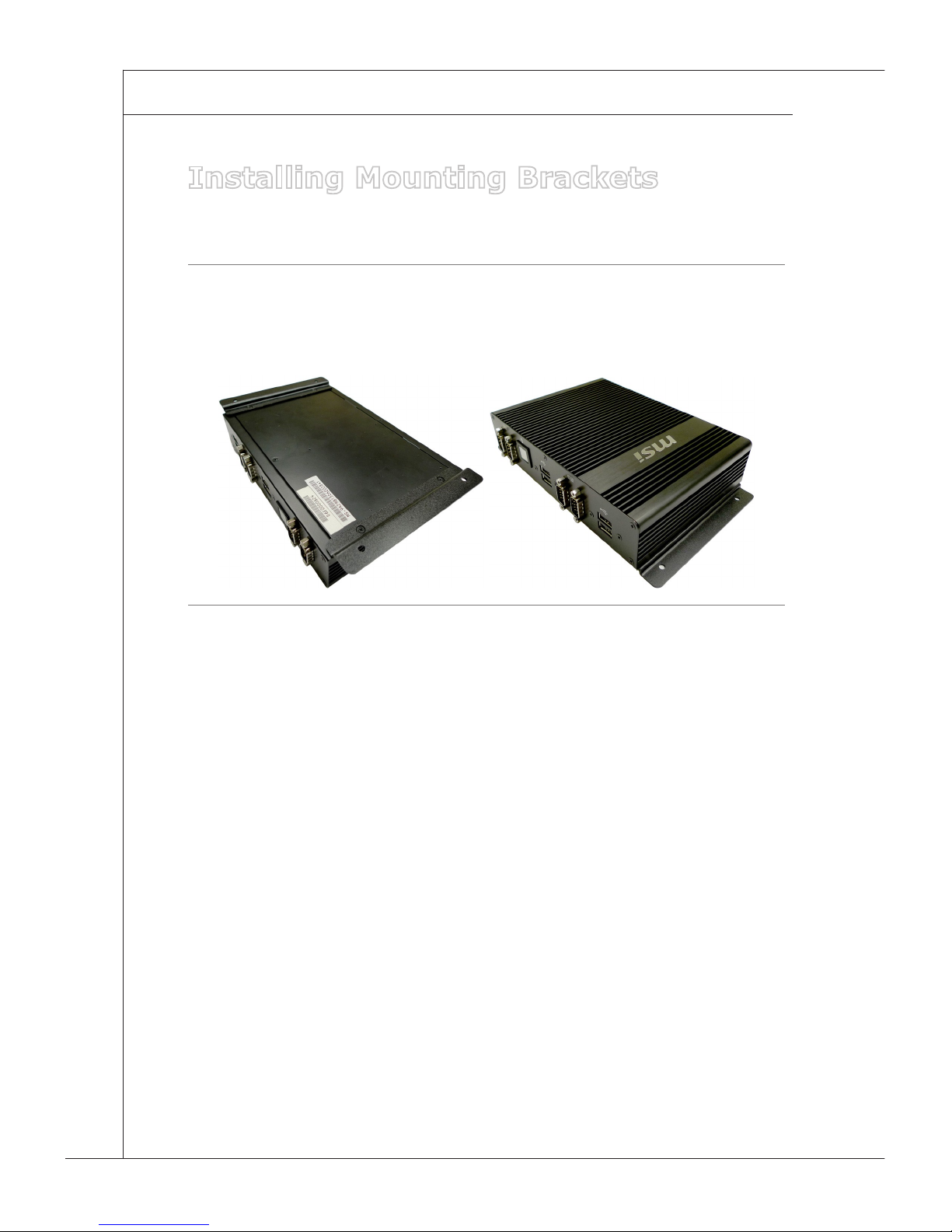

Installing Mounting Brackets

1. Flip over the system and locate the bracket screw holes.

2. Place the brackets along the sides with screw holes aligned.

3. Fasten the screws to x the brackets.

This chapter provides information on the BIOS Setup

program and allows you to congure the system for

optimum use.
You may need to run the Setup program when:

An error message appears on the screen
during the system booting up, and requests
you to run SETUP.

You want to change the default settings for
customized features.

Important

Please note that BIOS update assumes technician-

level experience.

As the system BIOS is under continuous update for
better system performance, the illustrations in this
chapter should be held for reference only.

■

■

•

•

Chapter 3

BIOS Setup

3-2

BIOS Setup

▍

Entering Setup

Power on the computer and the system will start POST (Power On Self Test)
process. When the message below appears on the screen, press <DEL> or
<F2> key to enter Setup.

Press <DEL> or <F2> to enter SETUP

If the message disappears before you respond and you still wish to enter
Setup, restart the system by turning it OFF and On or pressing the RESET
button. You may also restart the system by simultaneously pressing <Ctrl>,
<Alt>, and <Delete> keys.

Important

The items under each BIOS category described in this chapter are under
continuous update for better system performance. Therefore, the descrip­tion may be slightly different from the latest BIOS and should be held for
reference only.

3-3

MS-9A29

Control Keys

← → Select Screen

↑ ↓ Select Item

Enter Select

+ - Change Option

F1 General Help

F7 Previous Values

F9 Optimized Defaults

F10 Save & Exit

Esc Exit

Getting Help

After entering the Setup menu, the rst menu you will see is the Main

Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can

use the arrow keys ( ↑↓ ) to select the item. The on-line description of the

highlighted setup function is displayed at the bottom of the screen.

Sub-Menu

If you nd a right pointer symbol appears to the left of certain elds that
means a sub-menu can be launched from this eld. A sub-menu contains
additional options for a eld parameter. You can use arrow keys ( ↑↓ ) to
highlight the eld and press <Enter> to call up the sub-menu. Then you can
use the control keys to enter values and move from eld to eld within a

sub-menu. If you want to return to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up
this screen from any menu by simply pressing <F1>. The Help screen lists
the appropriate keys to use and the possible selections for the highlighted
item. Press <Esc> to exit the Help screen.

3-4

BIOS Setup

▍

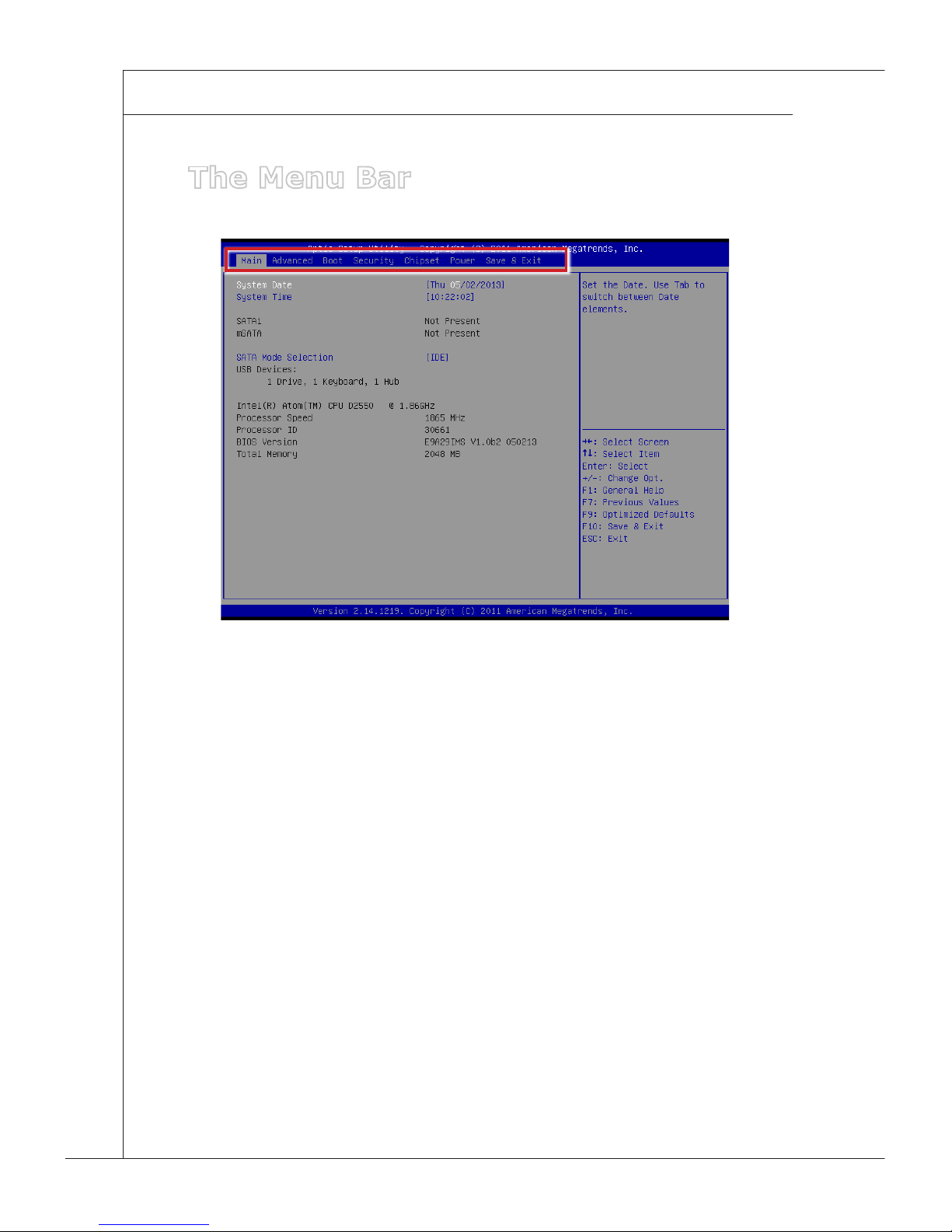

The Menu Bar

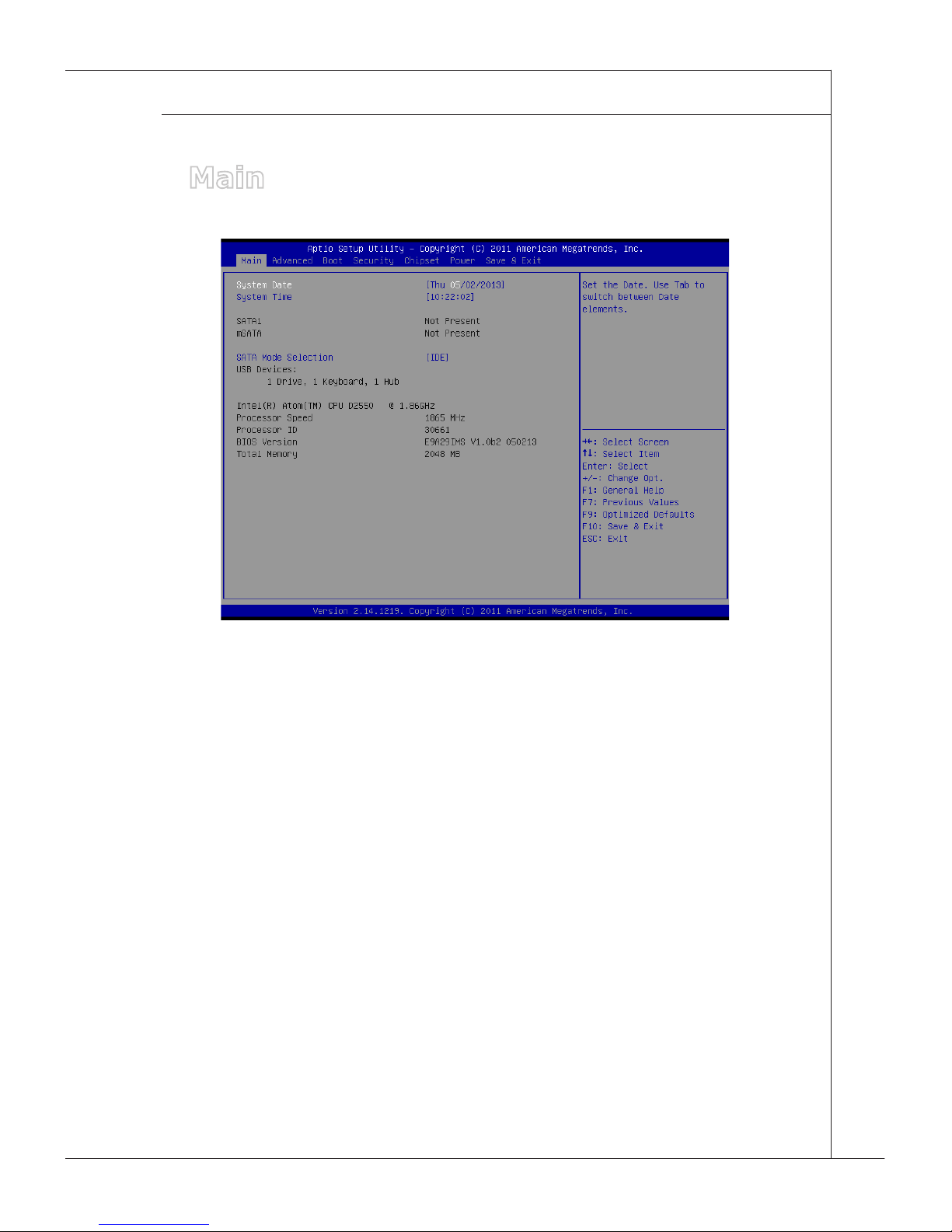

Main

Use this menu for basic system congurations, such as time, date, etc.

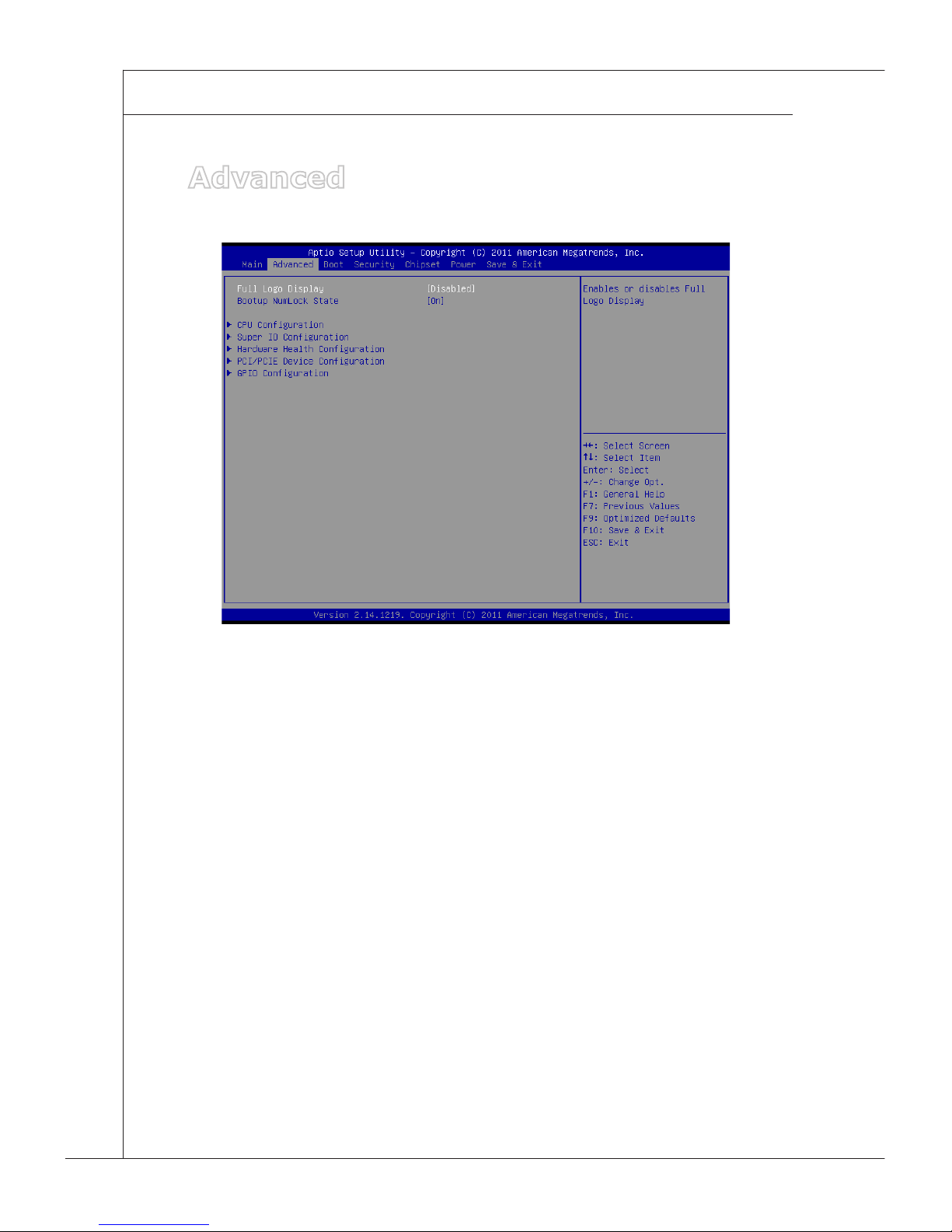

Advanced

Use this menu to set up the items of special enhanced features.

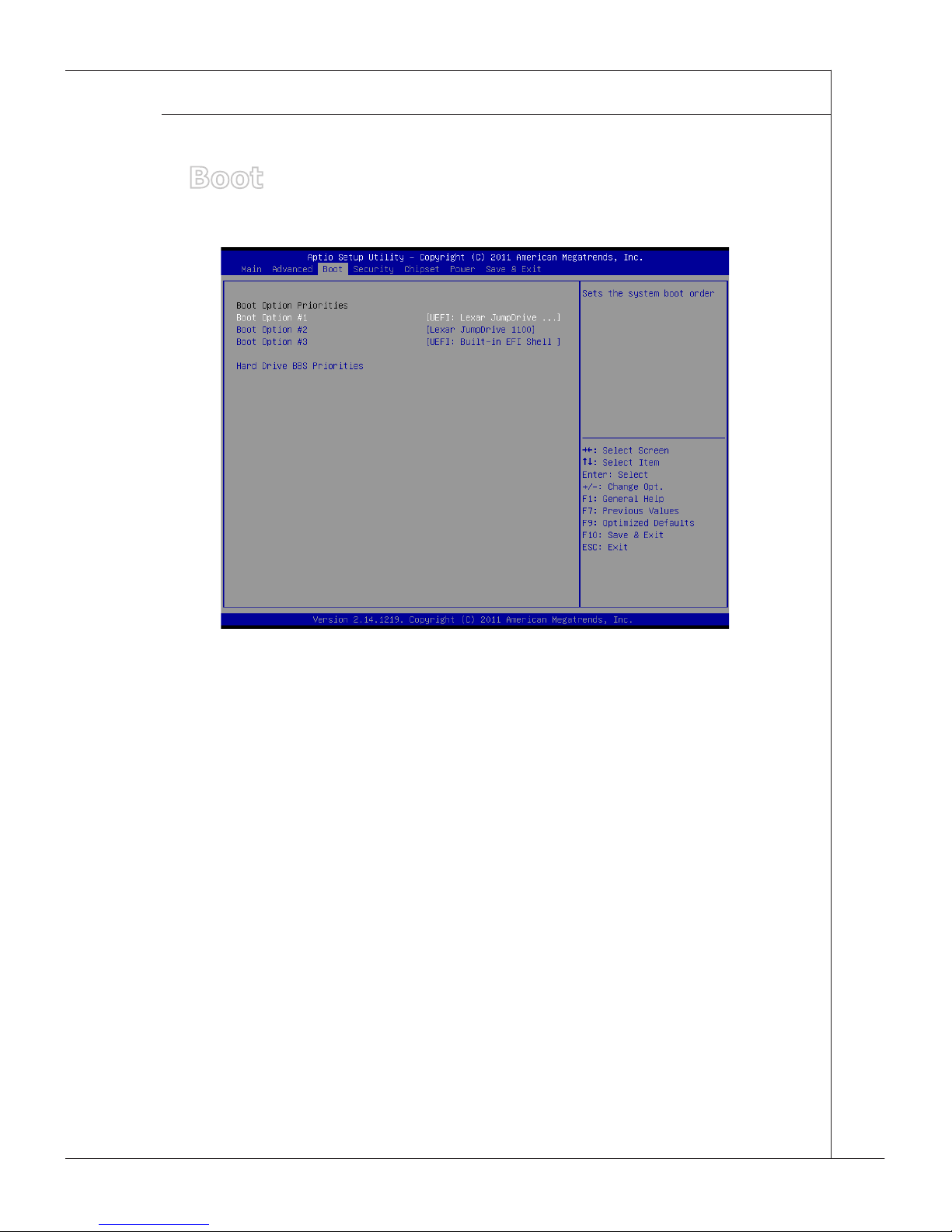

Boot

Use this menu to specify the priority of boot devices.

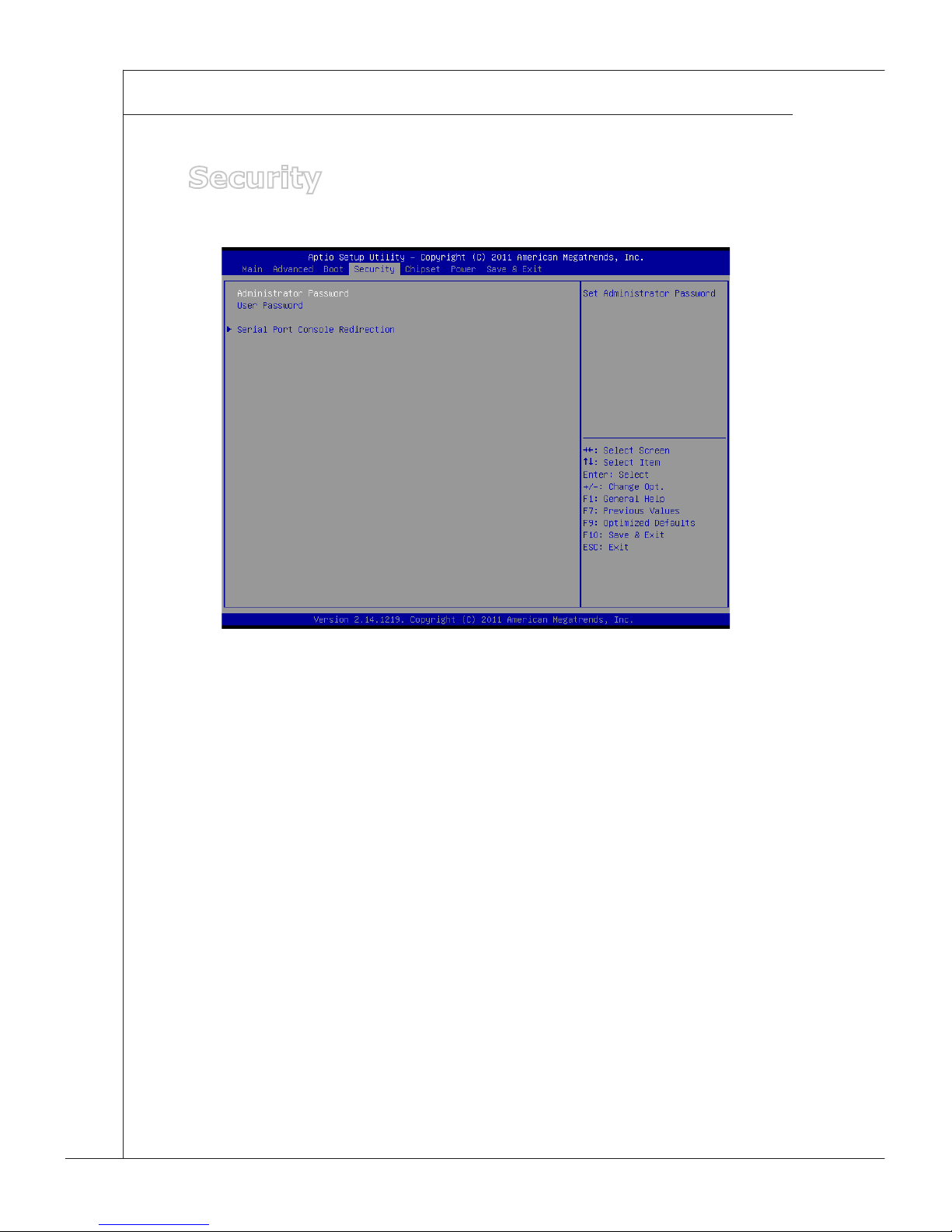

Security

Use this menu to set supervisor and user passwords.

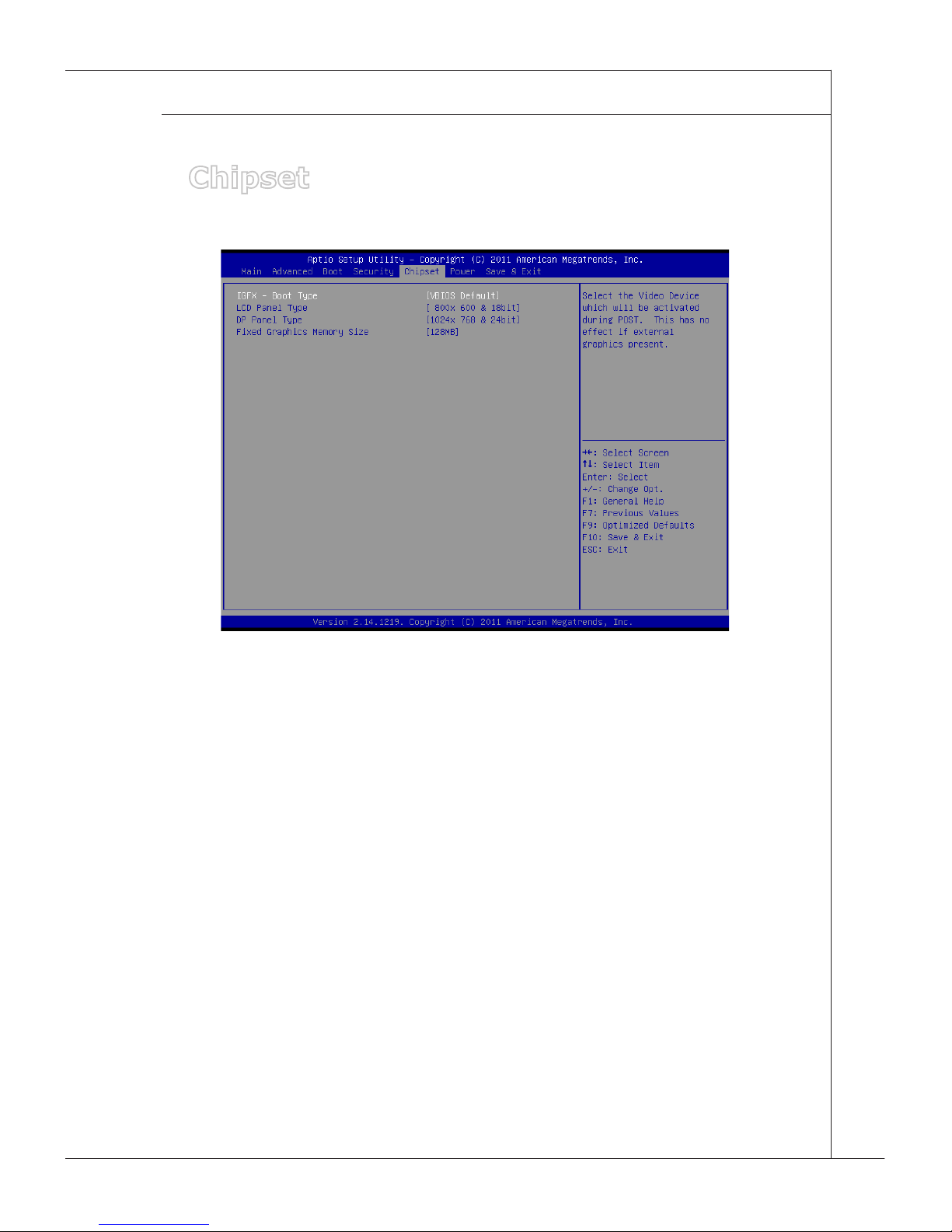

Chipset

This menu controls the advanced features of the onboard chipsets.

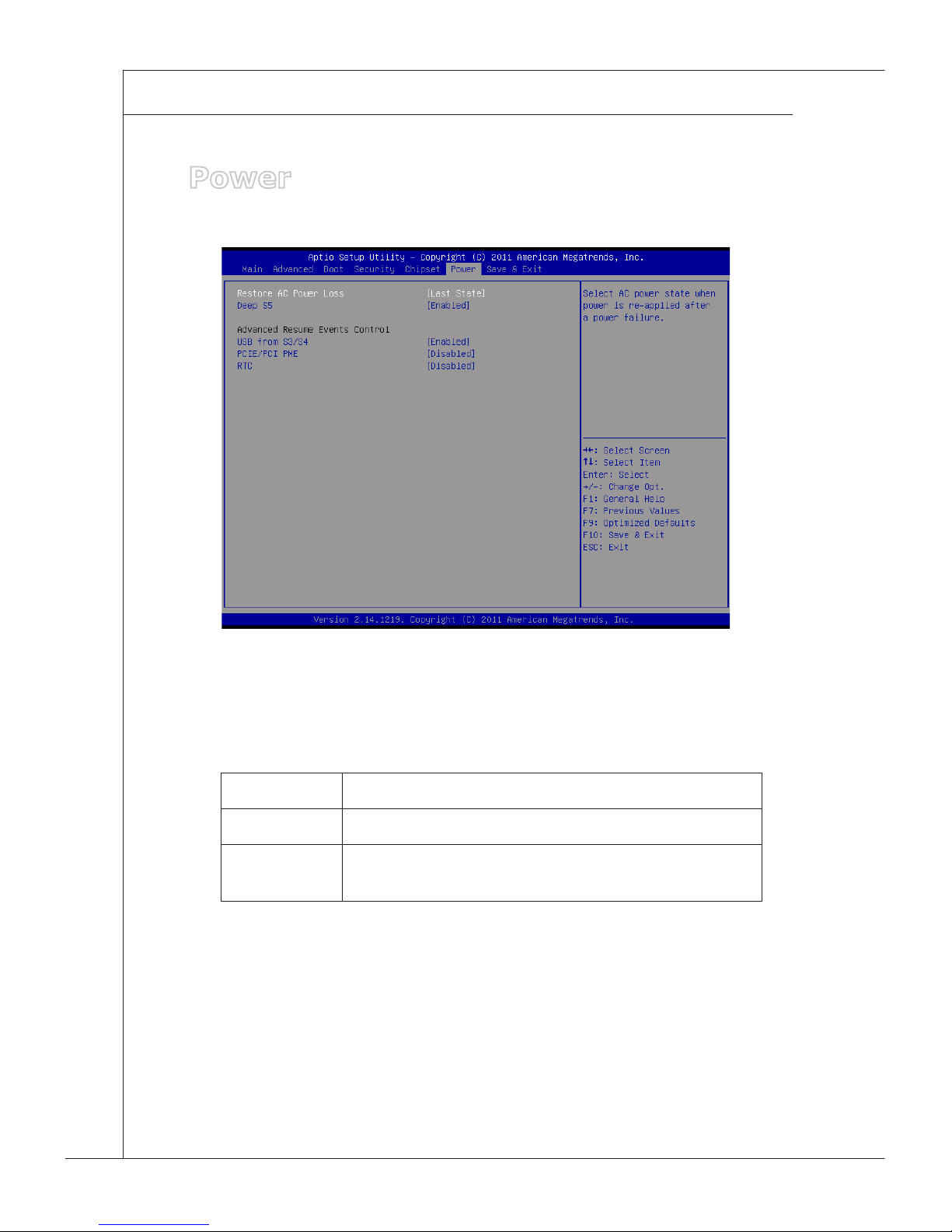

Power

Use this menu to specify your settings for power management.

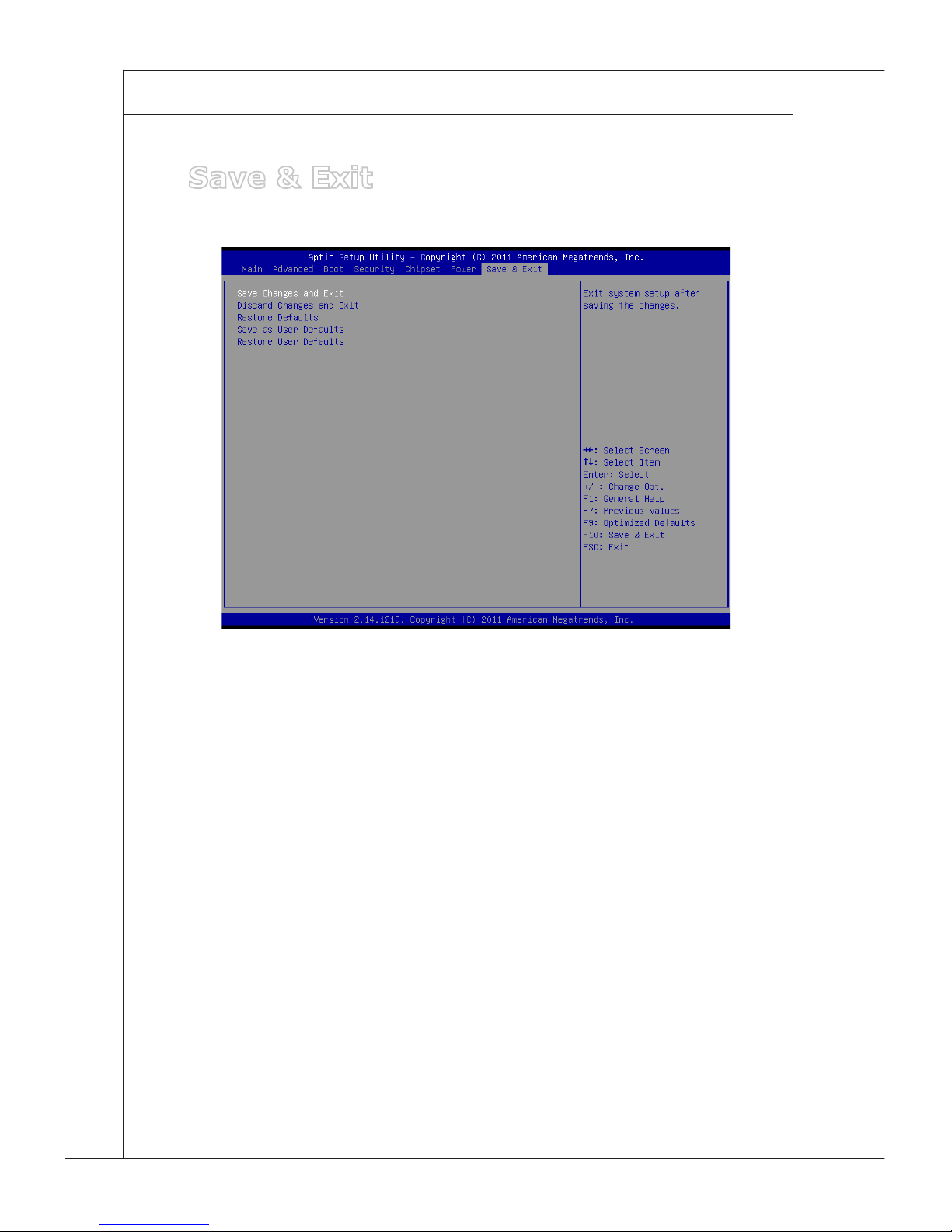

Save & Exit

This menu allows you to load the BIOS default values or factory default set­tings into the BIOS and exit the BIOS setup utility with or without changes.

▶

▶

▶

▶

▶

▶

▶

3-5

MS-9A29

Main

System Date

This setting allows you to set the system date. The date format is <Day>,
<Month> <Date> <Year>.

System Time

This setting allows you to set the system time. The time format is <Hour>
<Minute> <Second>.

SATA Mode Selection

This setting species the SATA controller mode.

▶

▶

▶

3-6

BIOS Setup

▍

Advanced

Full Screen Logo Display

This BIOS feature determines if the BIOS should hide the normal POST
messages with the motherboard or system manufacturer’s full-screen logo.

When it is enabled, the BIOS will display the full-screen logo during the
boot-up sequence, hiding normal POST messages.

When it is disabled, the BIOS will display the normal POST messages,
instead of the full-screen logo.

Please note that enabling this BIOS feature often adds 2-3 seconds of delay
to the booting sequence. This delay ensures that the logo is displayed for a

sufcient amount of time. Therefore, it is recommended that you disable this

BIOS feature for a faster boot-up time.

Bootup NumLock State

This setting is to set the Num Lock status when the system is powered on.
Setting to [On] will turn on the Num Lock key when the system is powered
on. Setting to [Off] will allow users to use the arrow keys on the numeric
keypad.

▶

▶

3-7

MS-9A29

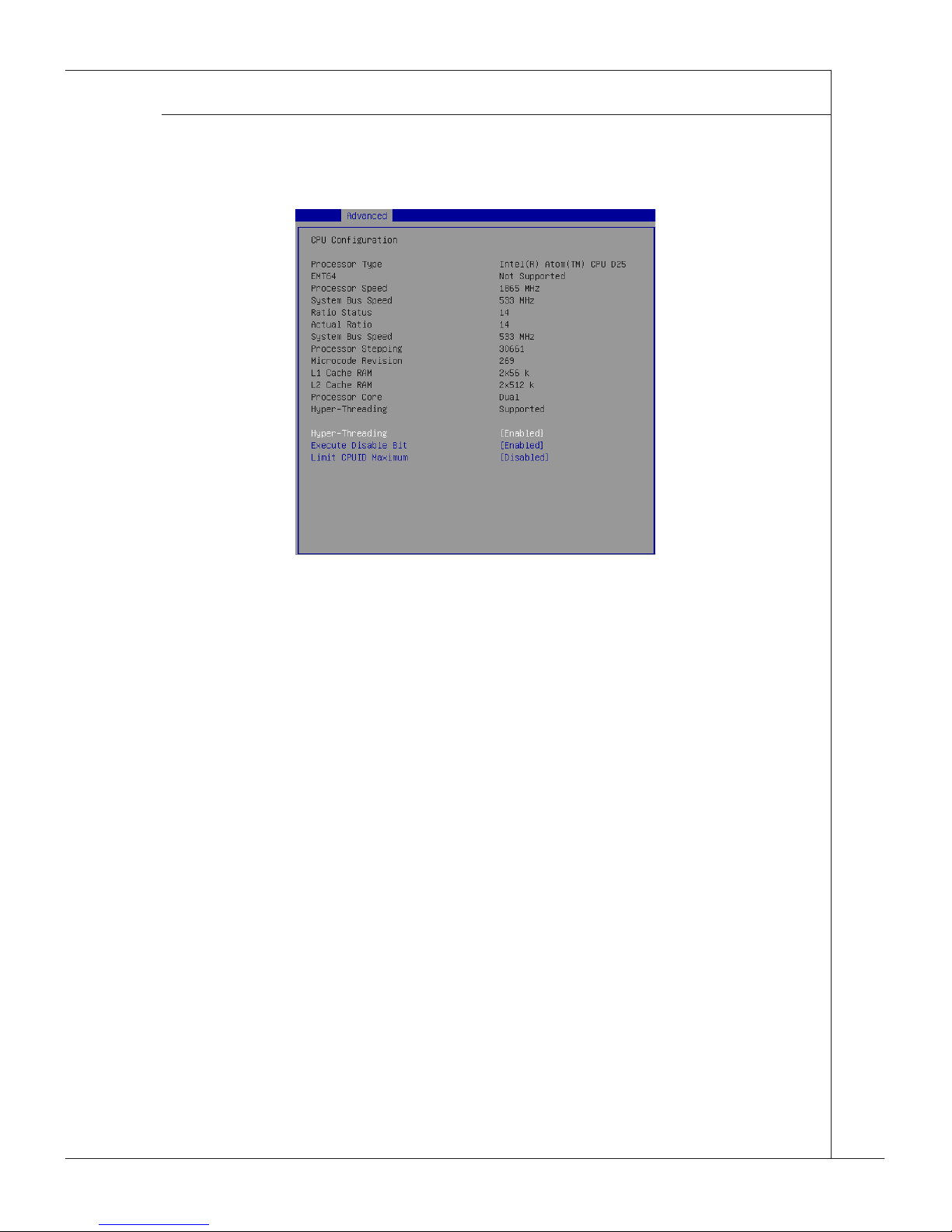

CPU Conguration

Hyper-Threading

The processor uses Hyper-Threading technology to increase transac­tion rates and reduces end-user response times. The technology treats
the two cores inside the processor as two logical processors that can
execute instructions simultaneously. In this way, the system perfor­mance is highly improved. If you disable the function, the processor will
use only one core to execute the instructions. Please disable this item if
your operating system doesn’t support HT Function, or unreliability and
instability may occur.

Execute Disable Bit

Intel’s Execute Disable Bit functionality can prevent certain classes of

malicious “buffer overow” attacks when combined with a supporting

operating system. This functionality allows the processor to classify
areas in memory by where application code can execute and where it
cannot. When a malicious worm attempts to insert code in the buffer,
the processor disables code execution, preventing damage or worm
propagation.

Limit CPUID Maximum

This feature allows you to circumvent problems with older operating
systems that do not support the Intel Pentium 4 processor with Hy­per-Threading Technology. When enabled, the processor will limit the
maximum CPUID input value to 03h when queried, even if the proces­sor supports a higher CPUID input value. When disabled, the proces­sor will return the actual maximum CPUID input value of the processor
when queried.

▶

▶

▶

▶

3-8

BIOS Setup

▍

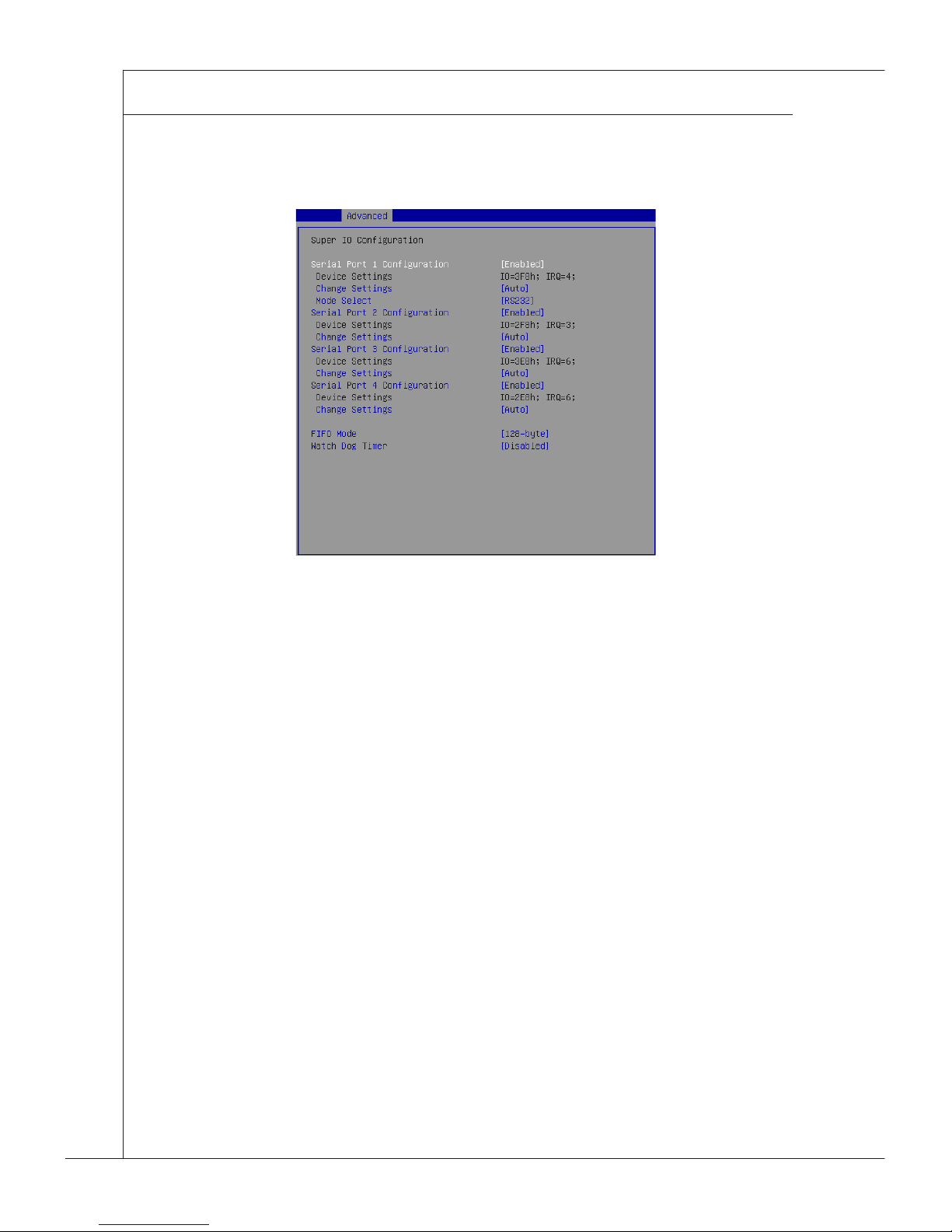

Super IO Conguration

Serial Port 1/ 2/ 3/ 4 Conguration

This setting enables/disables the specied serial port.

Change Settings

This setting is used to change the address & IRQ settings of the

specied serial port.

Mode Select

Select an operation mode for the serial port 1.

FIFO Mode

This setting controls the FIFO data transfer mode.

Watch Dog Timer

You can enable the system watch-dog timer, a hardware timer that gen­erates a reset when the software that it monitors does not respond as
expected each time the watch dog polls it.

▶

▶

▶

▶

▶

▶

3-9

MS-9A29

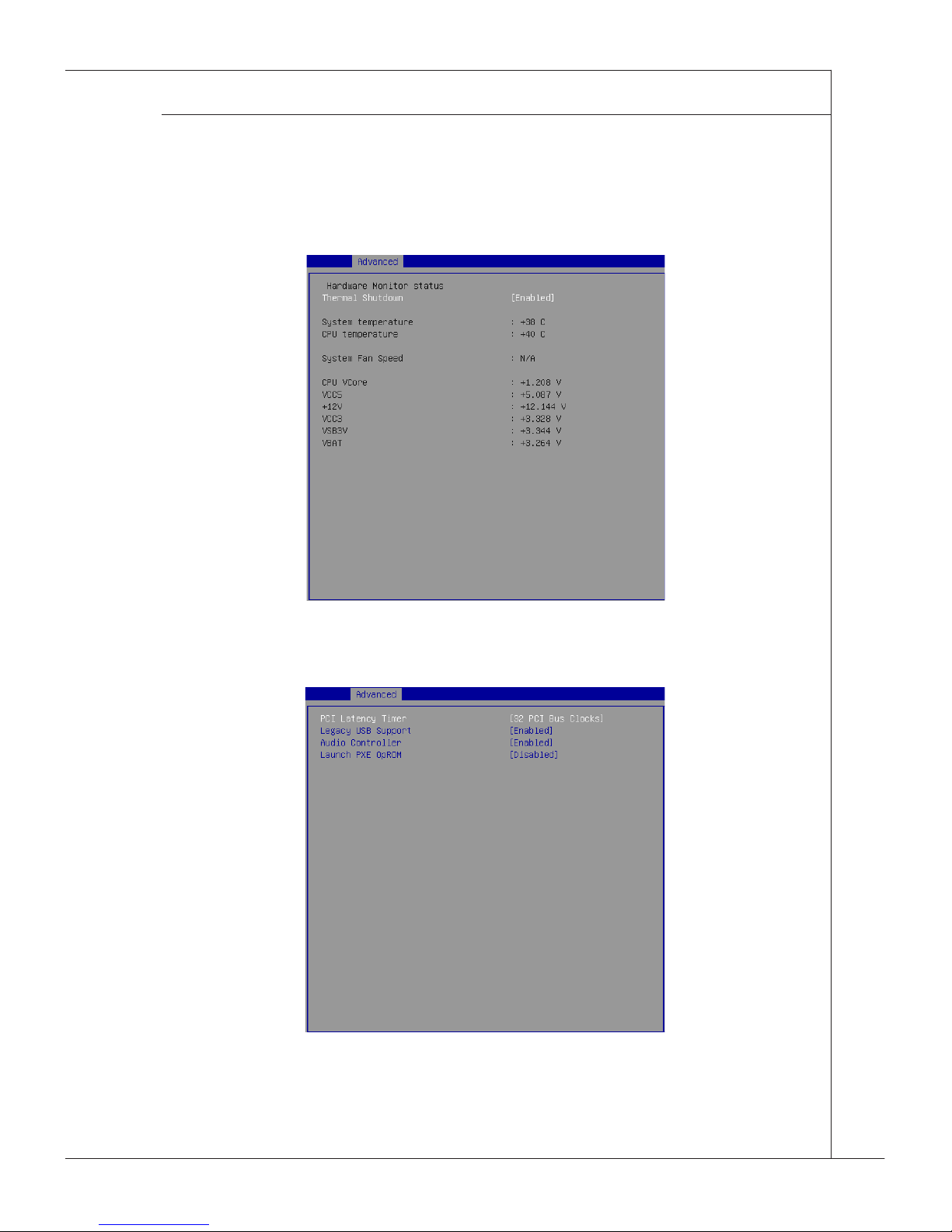

Hardware Health Conguration

These items display the current status of all monitored hardware devices/com­ponents such as voltages, temperatures and all fans’ speeds.

PCI/PCIE Device Conguration

PCI Latency Timer

This item controls how long each PCI device can hold the bus before
another takes over. When set to higher values, every PCI device can con-

▶

▶

▶

3-10

BIOS Setup

▍

duct transactions for a longer time and thus improve the effective
PCI bandwidth. For better PCI performance, you should set the item
to higher values.

Legacy USB Support

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the op­erating system that does not support or have any USB 1.1/2.0 driver
installed, such as DOS and SCO Unix.

Audio Controller

This setting enables/disables the onboard audio controller.

Launch PXE OpROM

This setting enables/disables the initialization of the onboard LAN
Boot ROM during bootup. Selecting [Disabled] will speed up the boot
process.

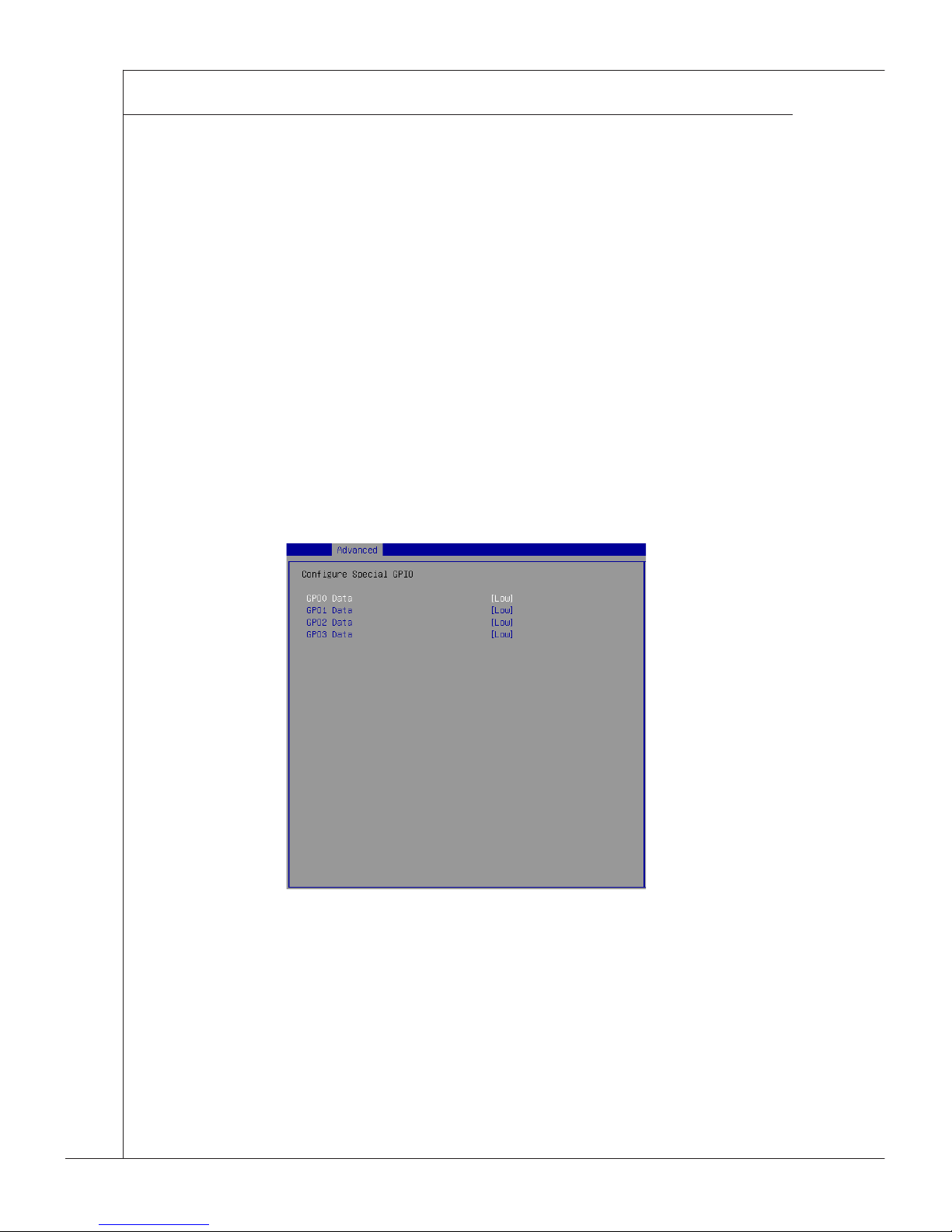

GPIO Conguration

GPO0~3 Data

This setting controls the operation mode of the specied GPIO.

▶

▶

▶

▶

▶

3-11

MS-9A29

Boot

Boot Option #1 / #2 / #3

This setting allows users to set the sequence of boot devices where BIOS
attempts to load the disk operating system.

Hard Drive BBS Priorities

This setting allows users to set the priority of the specied devices. First
press <Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑
↓ ) to select the desired device, then press <+>, <-> or <PageUp>, <Page-

Down> key to move it up/down in the priority list.

▶

▶

3-12

BIOS Setup

▍

Security

Administrator Password

Administrator Password controls access to the BIOS Setup utility.

User Password

User Password controls access to the system at boot and to the BIOS Setup
utility.

▶

▶

3-13

MS-9A29

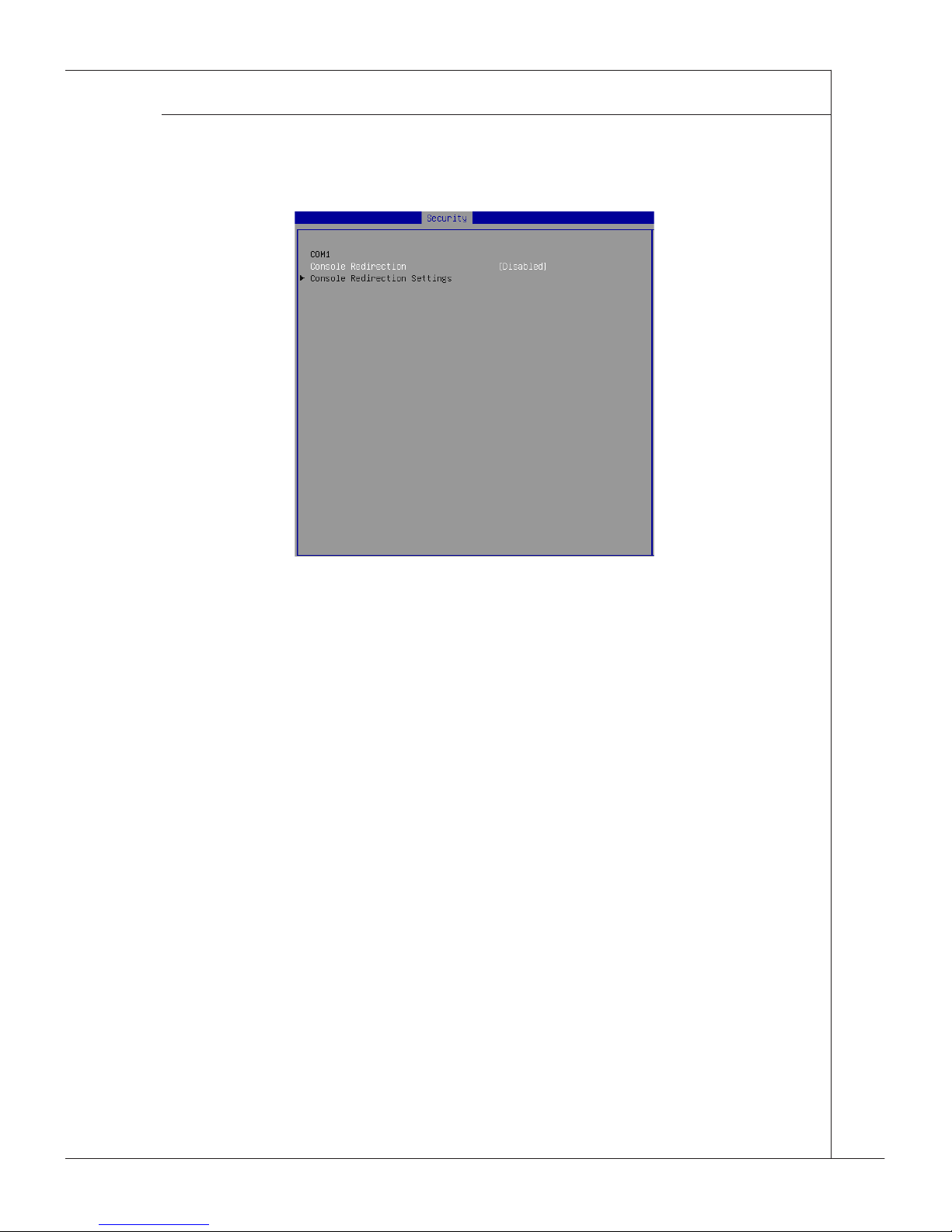

Serial Port Console Redirection

Console Redirection

Console Redirection operates in host systems that do not have a moni­tor and keyboard attached. This setting enables/disables the opera­tion of console redirection. When set to [Enabled], BIOS redirects and
sends all contents that should be displayed on the screen to the serial
COM port for display on the terminal screen. Besides, all data received
from the serial port is interpreted as keystrokes from a local keyboard.

Console Redirection Settings

Press <Enter> to enter the sub-menu.

Terminal Type

To operate the system’s console redirection, you need a terminal
supporting ANSI terminal protocol and a RS-232 null modem cable
connected between the host system and terminal(s). This setting

species the type of terminal device for console redirection.

Bits per second, Data Bits, Parity, Stop Bits

This setting species the transfer rate (bits per second, data bits,

parity, stop bits) of Console Redirection.

Flow Control

Flow control is the process of managing the rate of data transmis-

sion between two nodes. It’s the process of adjusting the ow of

data from one device to another to ensure that the receiving device
can handle all of the incoming data. This is particularly important

▶

▶

▶

▶

▶

▶

3-14

BIOS Setup

▍

where the sending device is capable of sending data much faster
than the receiving device can receive it.

VT-UTF8 Combo Key Support

This setting enables/disables VT-UTF8 Combo Key Support.

Recorder Mode, Resolution 100x31

These settings enable/disable the recorder mode and the resolu­tion 100x31.

Legacy OS Redirection Resolution

This setting species the redirection resolution of legacy OS.

Putty KeyPad

This setting species the type of Putty KeyPad.

Redirection After BIOS POST

This setting species the Redirection conguration after BIOS

POST.

[Disable] Turn off the redirection after POST

[Boot Loader] Set the Redirection to be active during

POST and Boot Loader

[Always Enable] Set the Redirection to be always active

▶

▶

▶

▶

▶

3-15

MS-9A29

Chipset

IGFX - Boot Type

Use the eld to select the type of device you want to use as the boot display

of the system.

LCD Panel Type

This setting allows you to set the resolution of the LCD panel.

DP Panel Type

This setting allows you to set the resolution of the DP panel.

Fixed Graphics Memory Size

This setting species the size of system memory allocated for video mem­ory.

▶

▶

▶

▶

3-16

BIOS Setup

▍

Power

Restore AC Power Loss

This setting species whether your system will reboot after a power failure

or interrupt occurs. Available settings are:

[Power Off] Leaves the computer in the power off state.

[Power On] Leaves the computer in the power on state.

[Last State] Restores the system to the previous status before

power failure or interrupt occurred.

Deep S5

The setting enables/disables the Deep S5 power saving mode. S5 is almost
the same as G3 Mechanical Off, except that the PSU still supplies power,
at a minimum, to the power button to allow return to S0. A full reboot is
required. No previous content is retained. Other components may remain
powered so the computer can “wake” on input from the keyboard, clock,
modem, LAN, or USB device.

▶

▶

3-17

MS-9A29

** Advanced Resume Events Control **

USB from S3/S4

The item allows the activity of the USB device to wake up the system from
S3/S4 sleep state.

PCIE/PCI PME

This eld species whether the system will be awakened from power saving

modes when activity or input signal of onboard PCIE/PCI PME is detected.

RTC

When [Enabled], your can set the date and time at which the RTC (real-time
clock) alarm awakens the system from suspend mode.

▶

▶

▶

3-18

BIOS Setup

▍

Save & Exit

Save Changes and Exit

Save changes to CMOS and exit the Setup Utility.

Discard Changes and Exit

Abandon all changes and exit the Setup Utility.

Restore Defaults

Restore the factory defaults.

Save as User Defaults

Save all changes as the user defaults.

Restore User Defaults

Restore the preset user defaults.

▶

▶

▶

▶

▶

This appendix provides the sample codes of WDT
(Watch Dog Timer) and GPIO (General Purpose Input/
Output).

Appendix

WDT & GPIO

A-2

WDT & GPIO

▍

WDT Sample Code

SIO_INDEX_Port equ 04Eh
SIO_DATA_Port equ 04Fh
SIO_UnLock_Value equ 087h
SIO_Lock_Value equ 0AAh
WatchDog_LDN equ 007h
WDT_UNIT equ 60h ;60h=second, 68h=minute, 40h=Disabled Watchdog timer
WDT_Timer equ 30 ;ex. 30 seconds

Sample code:
;Enable config mode
mov dx, SIO_INDEX_Port
mov al, SIO_UnLock_Value
out dx, al
jmp short $+2 ;Io_delay
jmp short $+2 ;Io_delay
out dx, al
;Change to WDT
mov dx, SIO_INDEX_Port
mov al, 07h
out dx, al
mov dx, SIO_DATA_Port
mov al, WatchDog_LDN
out dx, al
;Acive WDT
mov dx, SIO_INDEX_Port
mov al, 30h
out dx, al
mov dx, SIO_DATA_Port
in al, dx
or al, 01h
out dx, al
;set timer
mov dx, SIO_INDEX_Port
mov al, 0F6h
out dx, al
mov dx, SIO_DATA_Port
mov al, WDT_Timer
out dx, al
;set UINT
mov dx, SIO_INDEX_Port
mov al, 0F5h
out dx, al
mov dx, SIO_DATA_Port
mov al, WDT_UNIT
out dx, al
;enable reset
mov dx, SIO_INDEX_Port
mov al, 0FAh
out dx, al
mov dx, SIO_DATA_Port
in al, dx
or al, 01h
out dx, al
;close config mode
mov dx, SIO_INDEX_Port
mov al, SIO_Lock_Value
out dx, al

A-3

MS-9A29

GPIO Sample Code

 GPI 0 ~ GPI 3

GPI 0

GPI 1

GPI 2

GPI 3

IO Address

50Ch

50Ch

50Ch

50Ch

SIO GPIO Register

Bit

24

26

27

28

Sample code

#1

#1

#1

#1

 GPO 0 ~ GPO 3

GPO 0

GPO 1

GPO 2

GPO 3

IO Address

538h

538h

538h

538h

SIO GPIO Register

Bit 1 2 6 7

Sample code

#2

#2

#2

#2

GPO_0 equ 00000010b

GPO_1 equ 00000100b

GPO_2 equ 01000000b

GPO_3 equ 10000000b

Sample Code:

#1 : Get GPI 0 status

; Get GPI 0/1/2/3 Pin Status Register

mov dx, 50Ch

in eax, dx

;eax bit24 = GPI 0 status

;eax bit26 = GPI 1 status

;eax bit27 = GPI 2 status

;eax bit28 = GPI 3 status

#2 : Set GPO 0/1/2/3 status to high

; Set GPO 0/1/2/3 Status to high(1).

mov dx, 538h

in eax, dx

or eax, GPO_0 + GPO_1 + GPO_2 + GPO_3

out dx,eax
