MSI MS-98E2 User Manual

i

MS-98E2

(v1.x) Industrial Computer Board

ii

Preface MS-98E2

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no
guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

Revision History

Revision Date

V1.0 2017/03

Technical Support

If a problem arises with your system and no solution can be obtained from
the user’s manual, please contact your place of purchase or local distributor.
Alternatively, please visit the MSI website for technical guide, BIOS updates,

driver updates and other information, or contact our technical sta󰘯 via http://www.

msi.com/support/

iii

Safety Instructions

￭ Always read the safety instructions carefully.
￭ Keep this User’s Manual for future reference.
￭ Keep this equipment away from humidity.
￭ Lay this equipment on a reliable at surface before setting it up.
￭ The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

￭ Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

￭ Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

￭ Always Unplug the Power Cord before inserting any add-on card or mod-

ule.

￭ All cautions and warnings on the equipment should be noted.
￭ Never pour any liquid into the opening that could damage or cause electrical

shock.

￭ If any of the following situations arises, get the equipment checked by ser-

vice personnel:

◯ The power cord or plug is damaged.
◯ Liquid has penetrated into the equipment.
◯ The equipment has been exposed to moisture.
◯ The equipment does not work well or you can not get it work according

to User’s Manual.

◯ The equipment has dropped and damaged.
◯ The equipment has obvious sign of breakage.

￭ DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDI-

TIONED, STORAGE TEMPERATURE ABOVE 60oC (140oF), IT MAY DAM­AGE THE EQUIPMENT.

iv

Preface MS-98E2

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No. 1907/2006 of the European Parliament and the

Council), MSI provides the information of chemical substances in products at:
http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be
disposed of as unsorted household waste. Please use the
public collection system to return, recycle, or treat them in
compliance with the local regulations.

廢電池請回收

Taiwan:

For better environmental protection, waste batteries should
be collected separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material
and requires special handling when recycled or disposed
of in California.

For further information please visit:
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer.

v

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device
is in compliance with the essential safety requirements and other
relevant provisions set out in the European Directive.

FCC-B Radio Frequency
Interference Statement

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o󰘯 and on, the user is encouraged
to try to correct the interference by one or more of the measures listed below:

￭ Reorient or relocate the receiving antenna.
￭ Increase the separation between the equipment and receiver.
￭ Connect the equipment into an outlet on a circuit di󰘯erent from that to

which the receiver is connected.

￭ Consult the dealer or an experienced radio/television technician for

help.

Notice 1

The changes or modi󰘰cations not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to
comply with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference that

may cause undesired operation.

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2002/96/EC, which takes e󰘯ect on

August 13, 2005, products of “electrical and electronic equipment”
cannot be discarded as municipal waste anymore and manufacturers of covered
electronic equipment will be obligated to take back such products at the end of
their useful life.

vi

Preface MS-98E2

CONTENTS

Copyright Notice ............................................................................................ ii

Trademarks ................................................................................................... ii

Revision History ............................................................................................ ii

Technical Support .......................................................................................... ii

Safety Instructions .........................................................................................iii

Chemical Substances Information ............................................................... iv

Battery Information ....................................................................................... iv

CE Conformity ............................................................................................... v

FCC-B Radio Frequency Interference Statement ......................................... v

WEEE Statement .......................................................................................... v

1 Overview.......................................................................................1-1

Motherboard Specications ........................................................................1-2

Motherboard Layout ................................................................................... 1-5

2 Hardware Setup ...........................................................................2-1

CPU (Central Processing Unit) ..................................................................2-4

Memory ......................................................................................................2-6

Power Supply ............................................................................................. 2-7

Rear Panel I/O ...........................................................................................2-8

Connector ................................................................................................. 2-11

Jumper .....................................................................................................2-18

Slot ........................................................................................................... 2-20

3 BIOS Setup ...................................................................................3-1

Entering Setup ...........................................................................................3-2

The Menu Bar ............................................................................................3-4

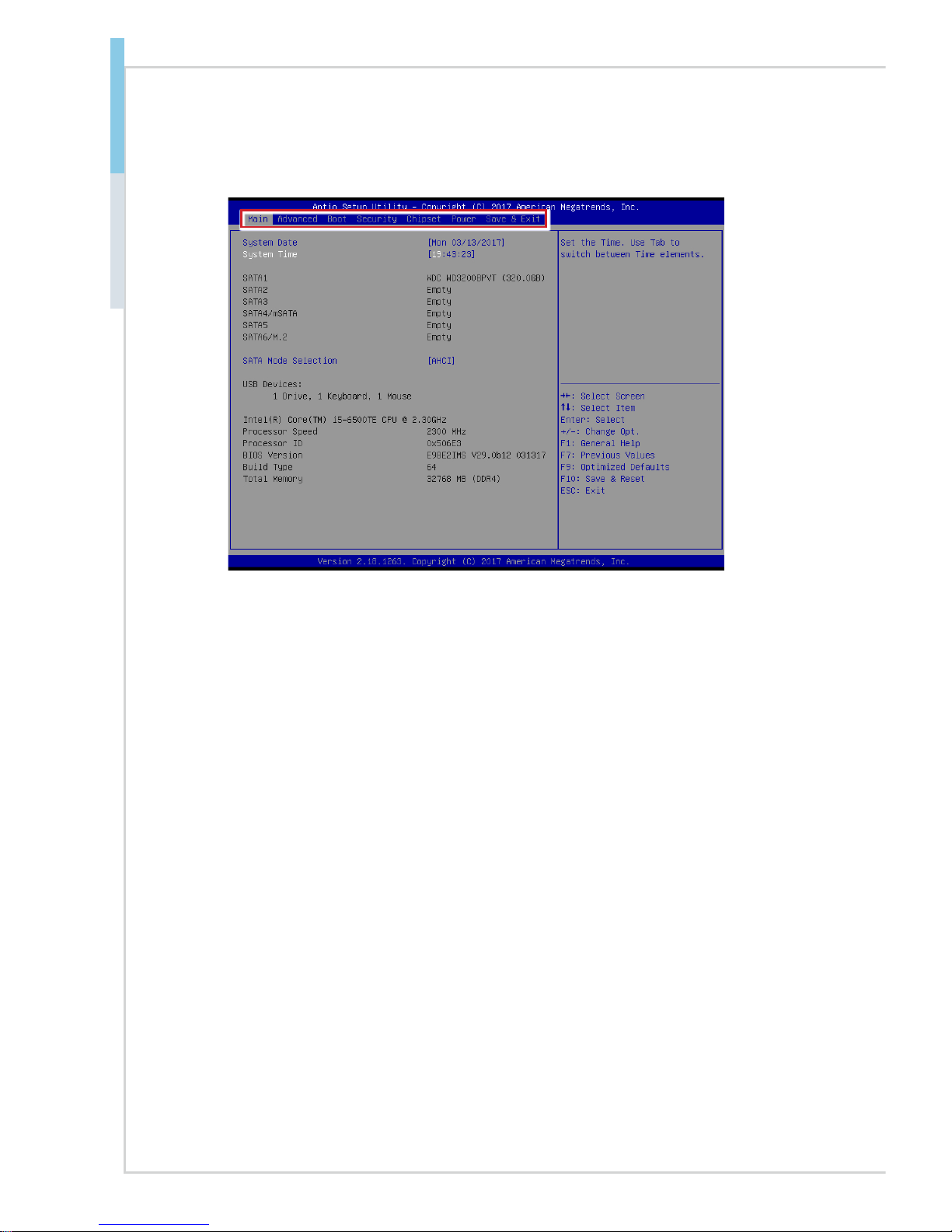

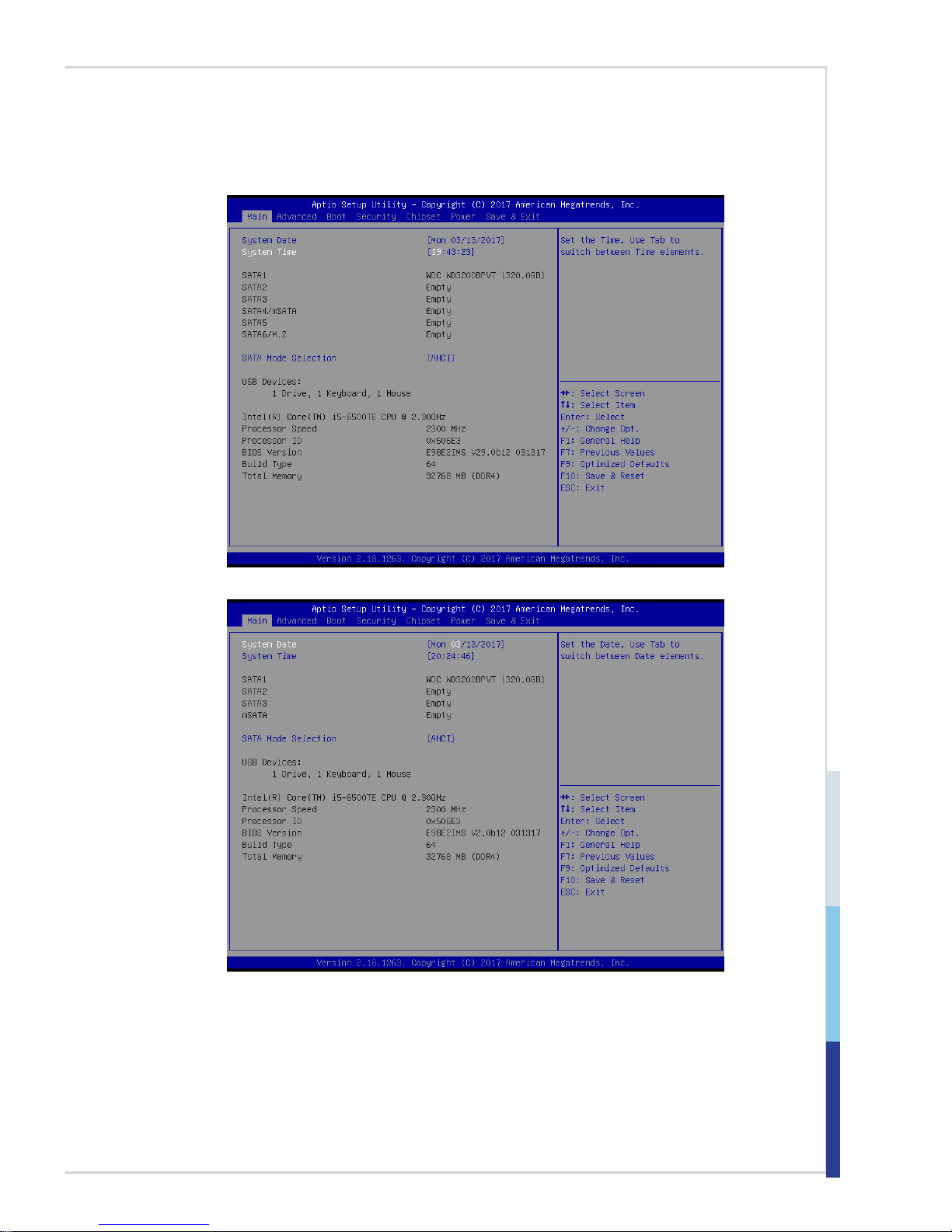

Main ...........................................................................................................3-5

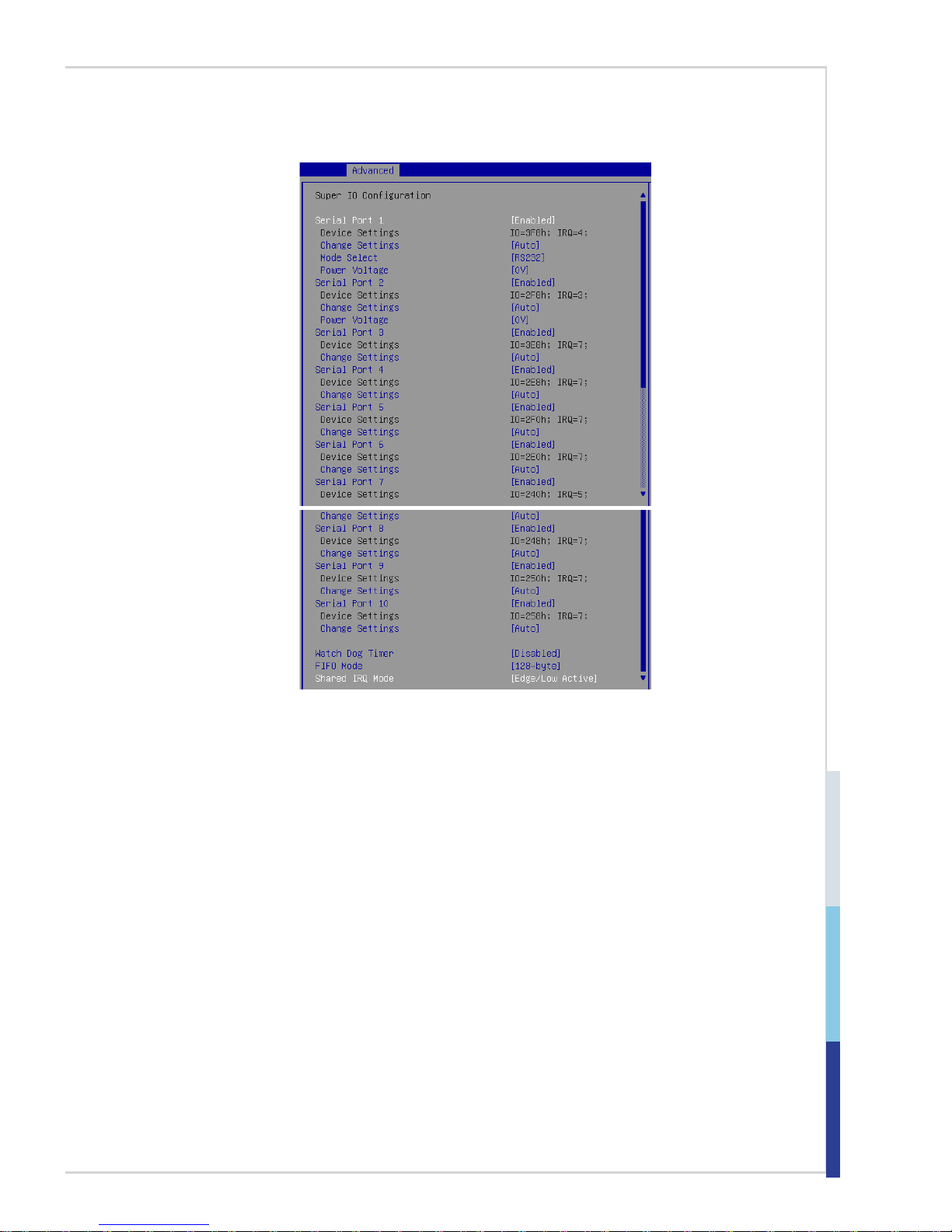

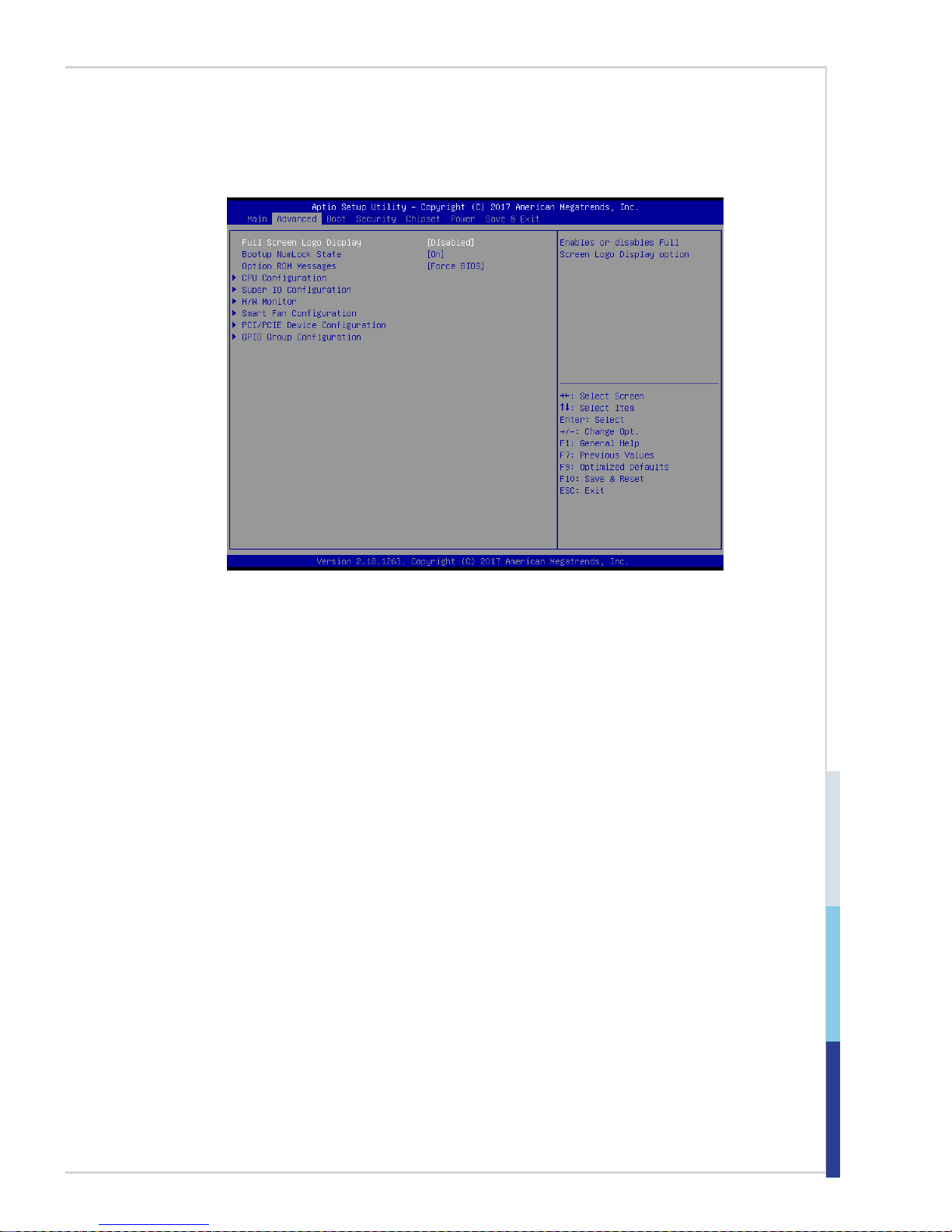

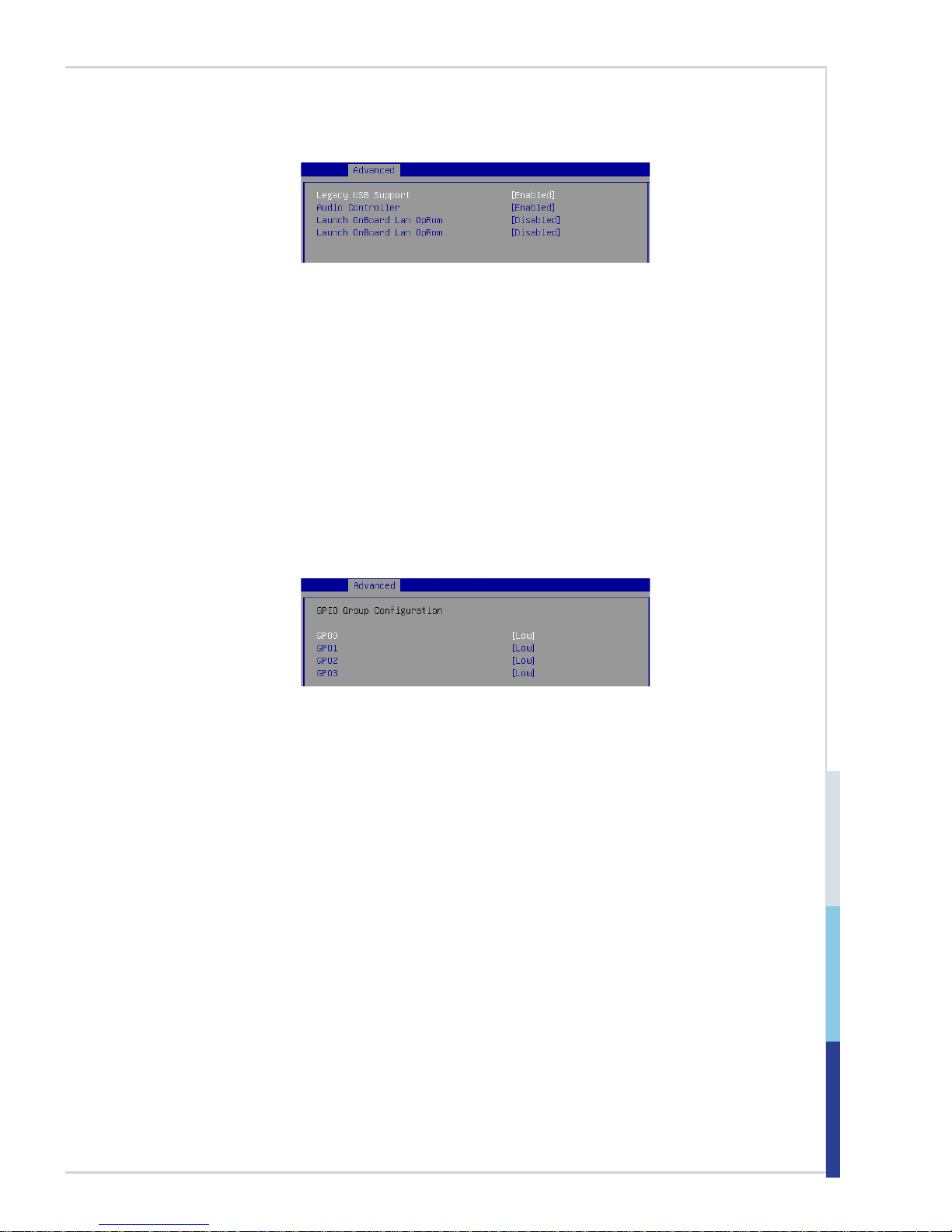

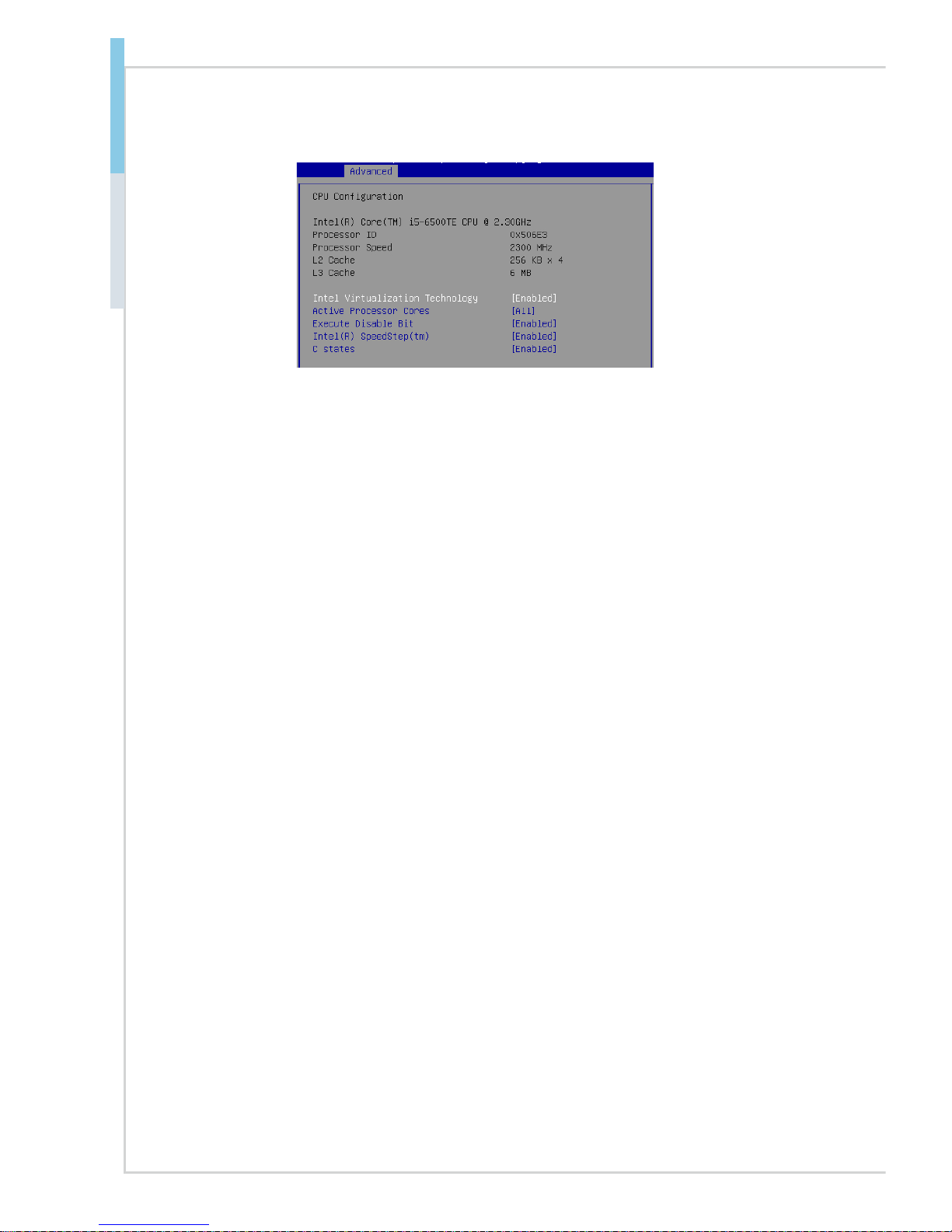

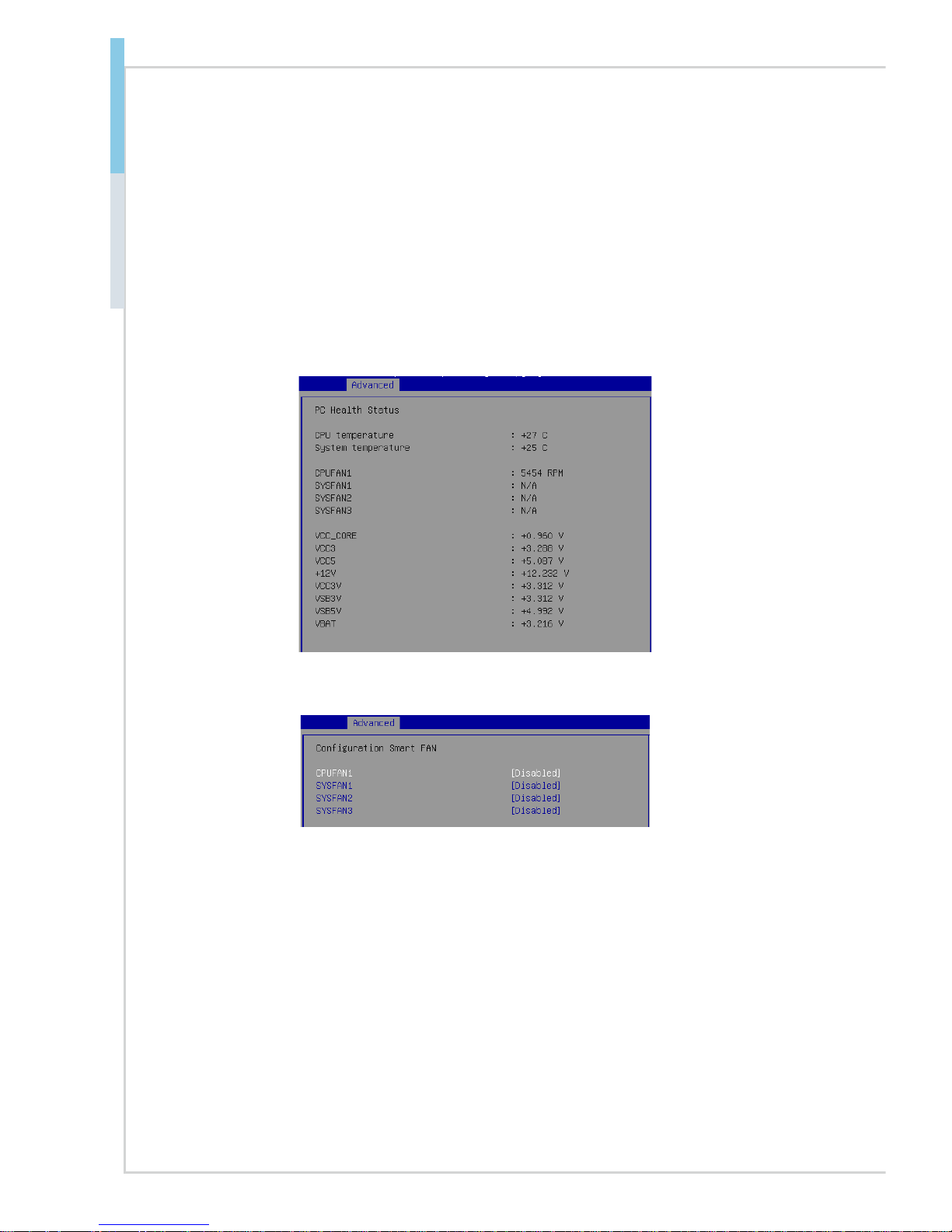

Advanced ...................................................................................................3-7

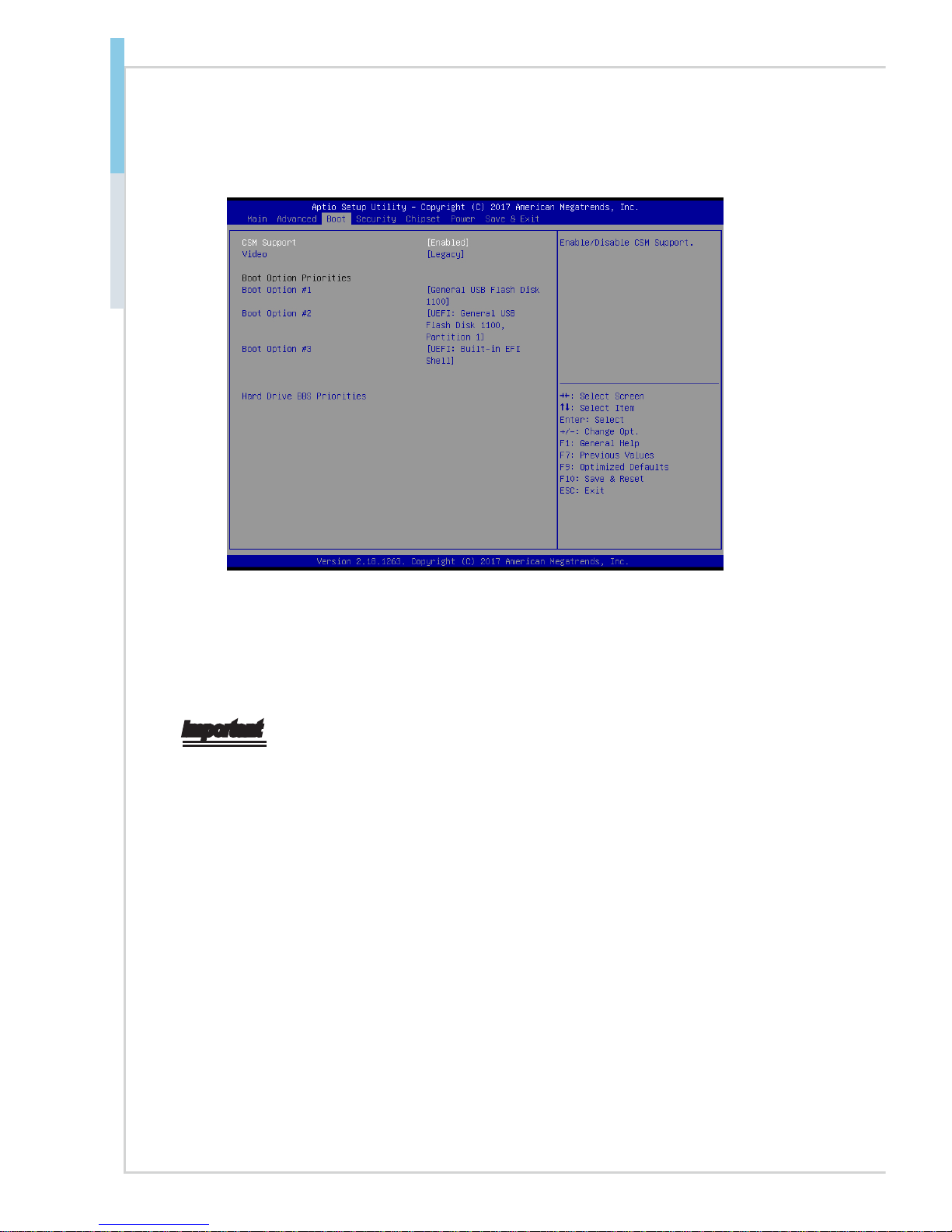

Boot .......................................................................................................... 3-12

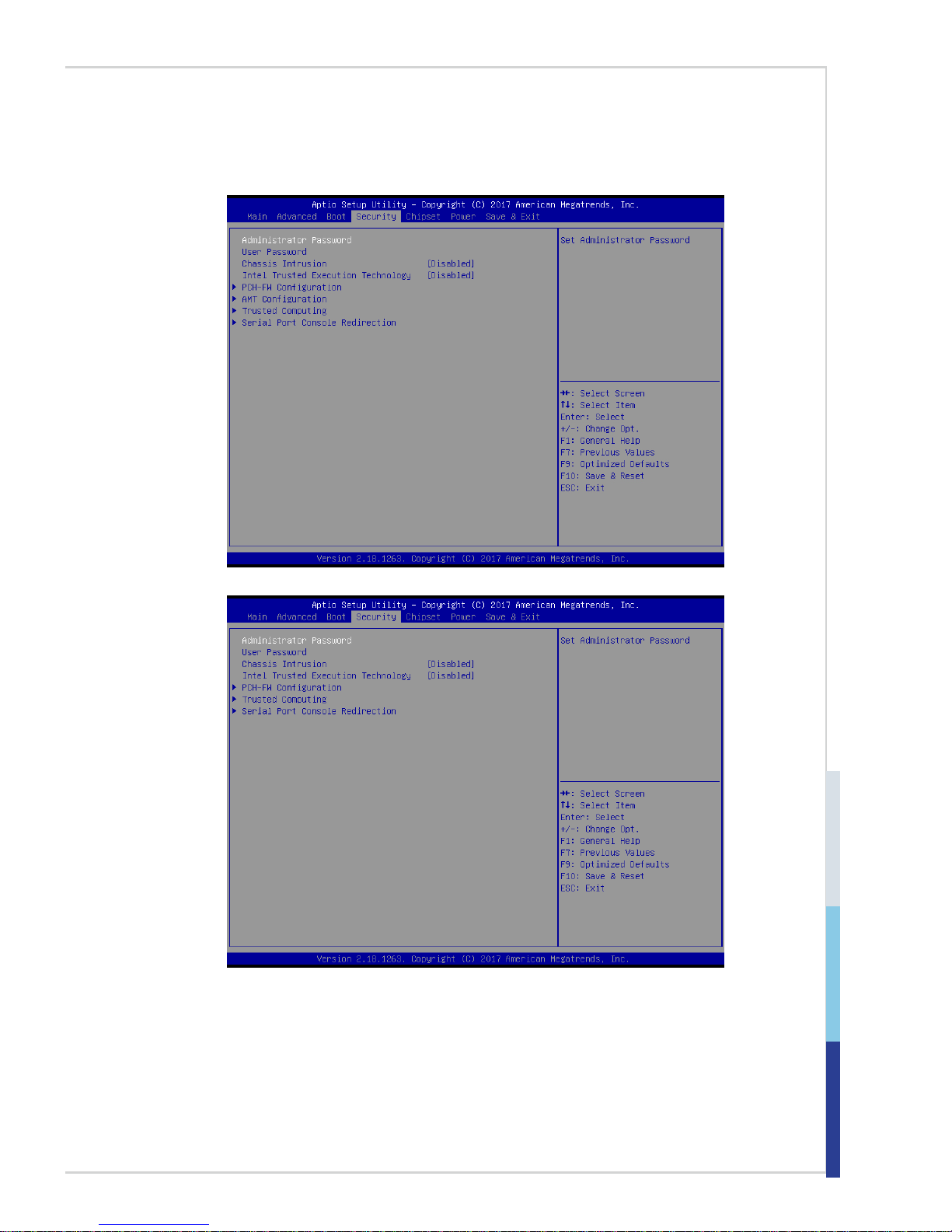

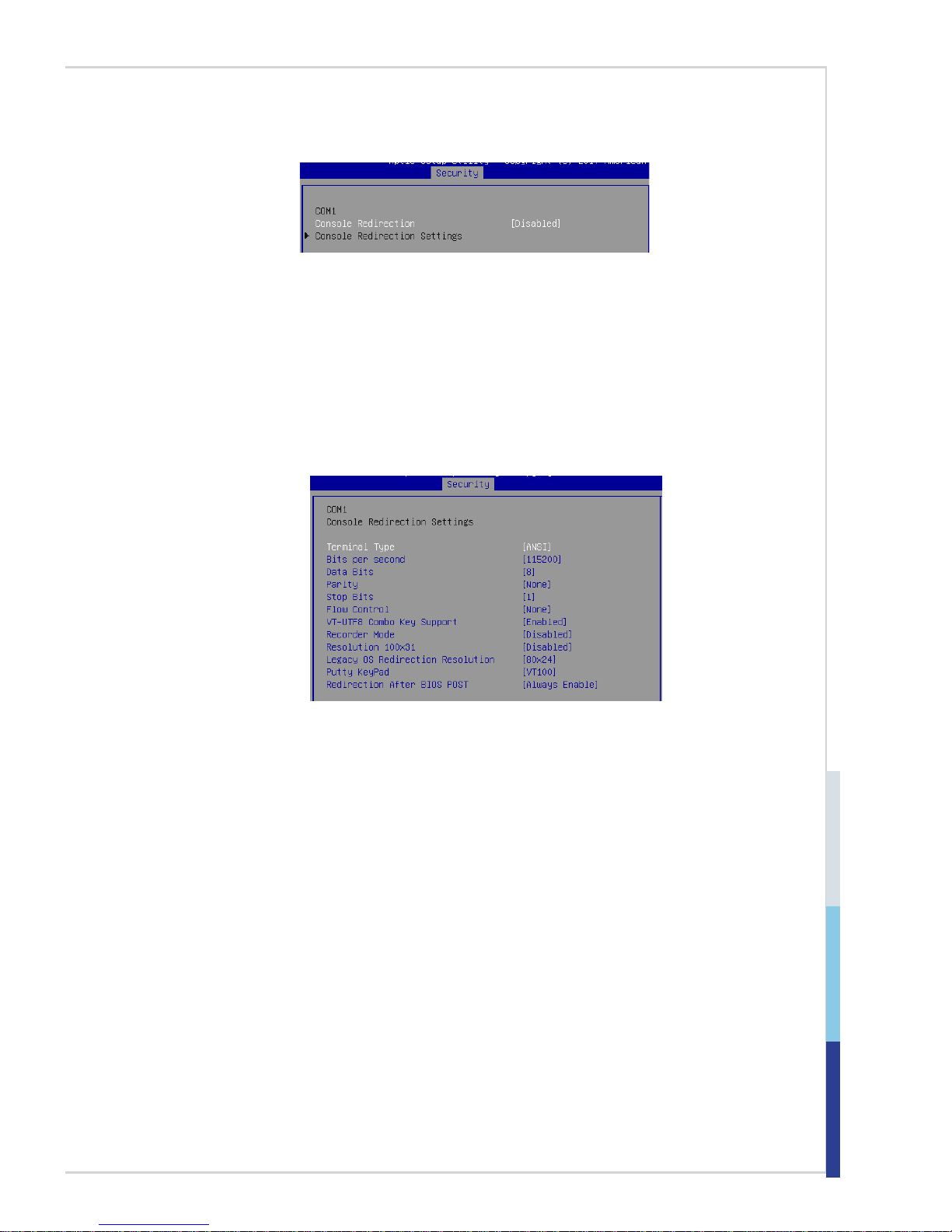

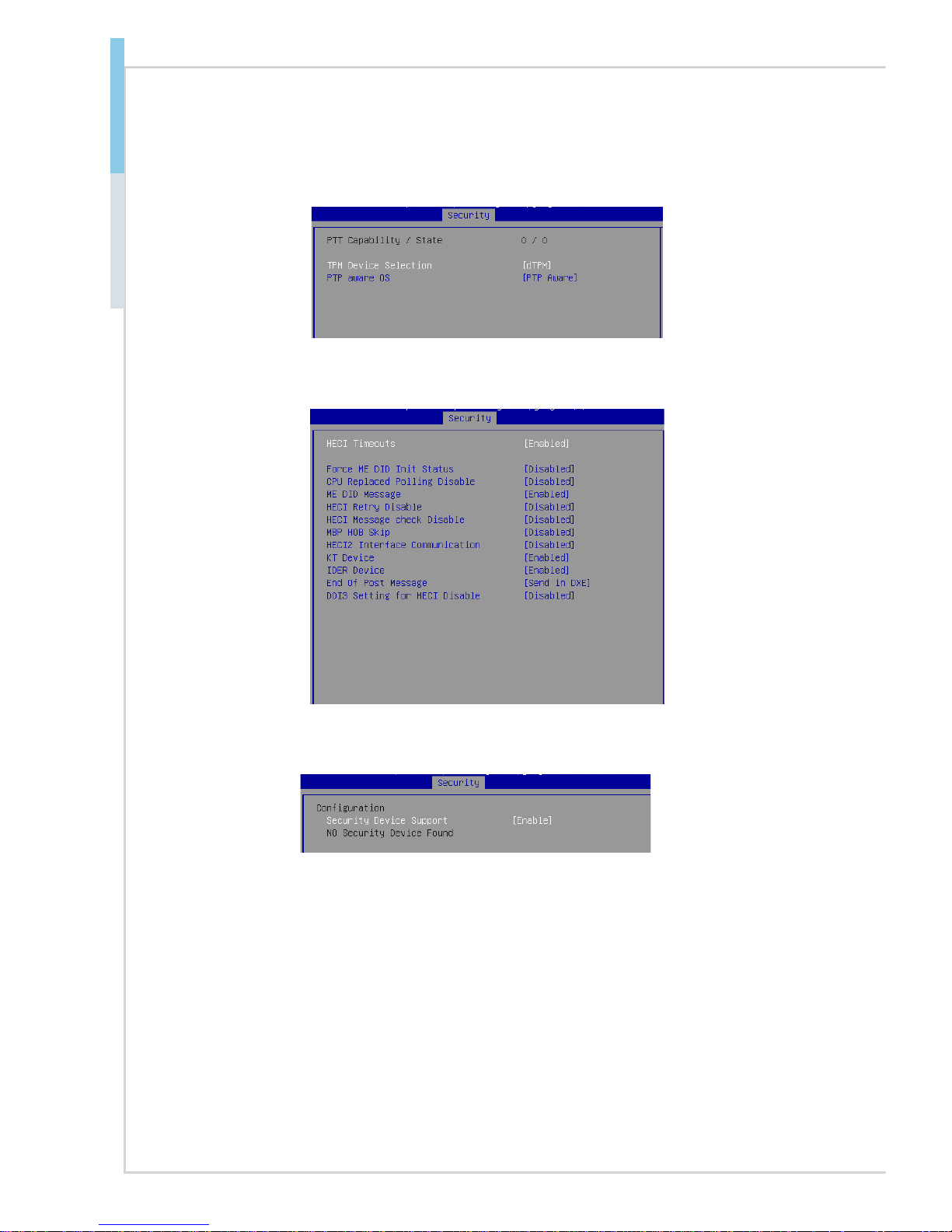

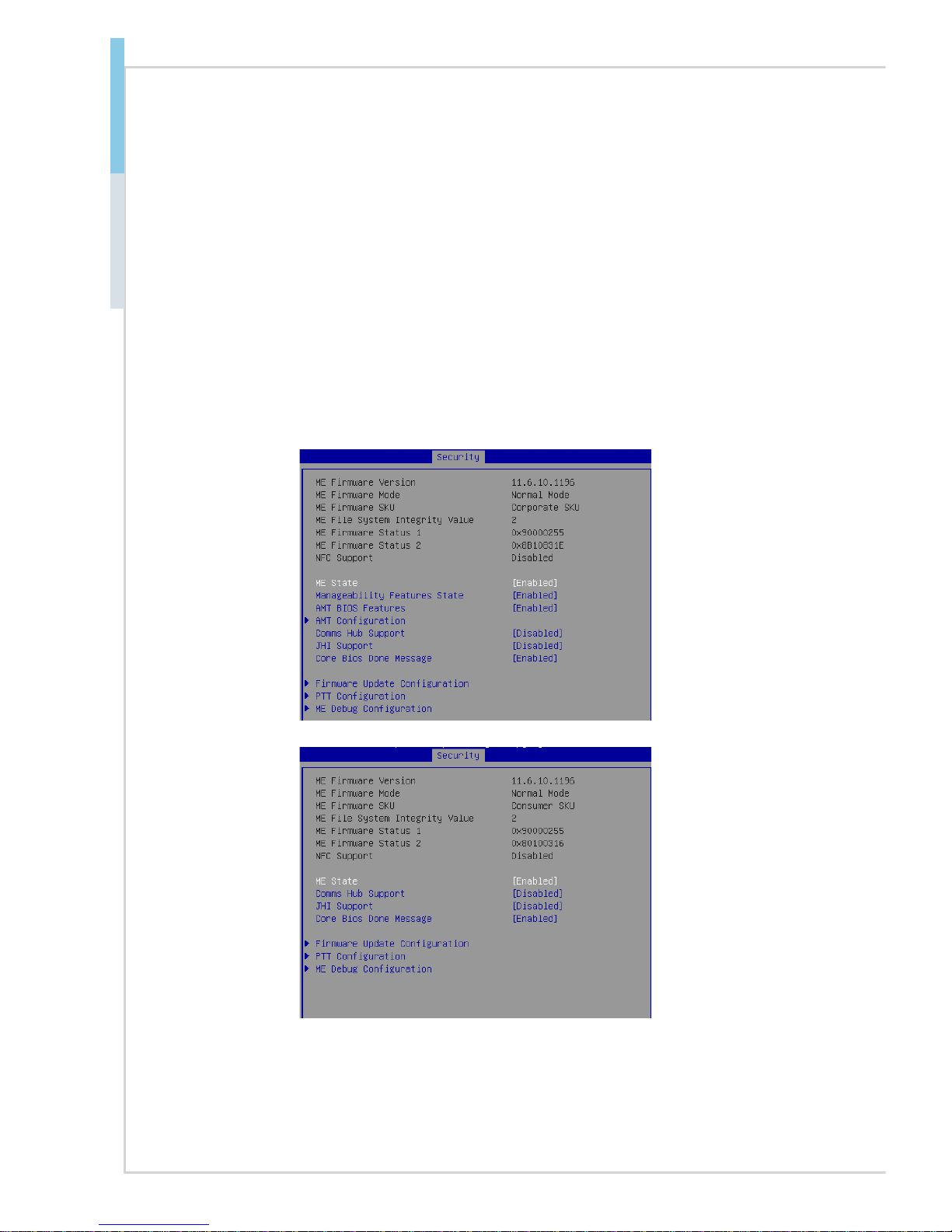

Security ....................................................................................................3-13

Chipset ..................................................................................................... 3-19

Power ....................................................................................................... 3-21

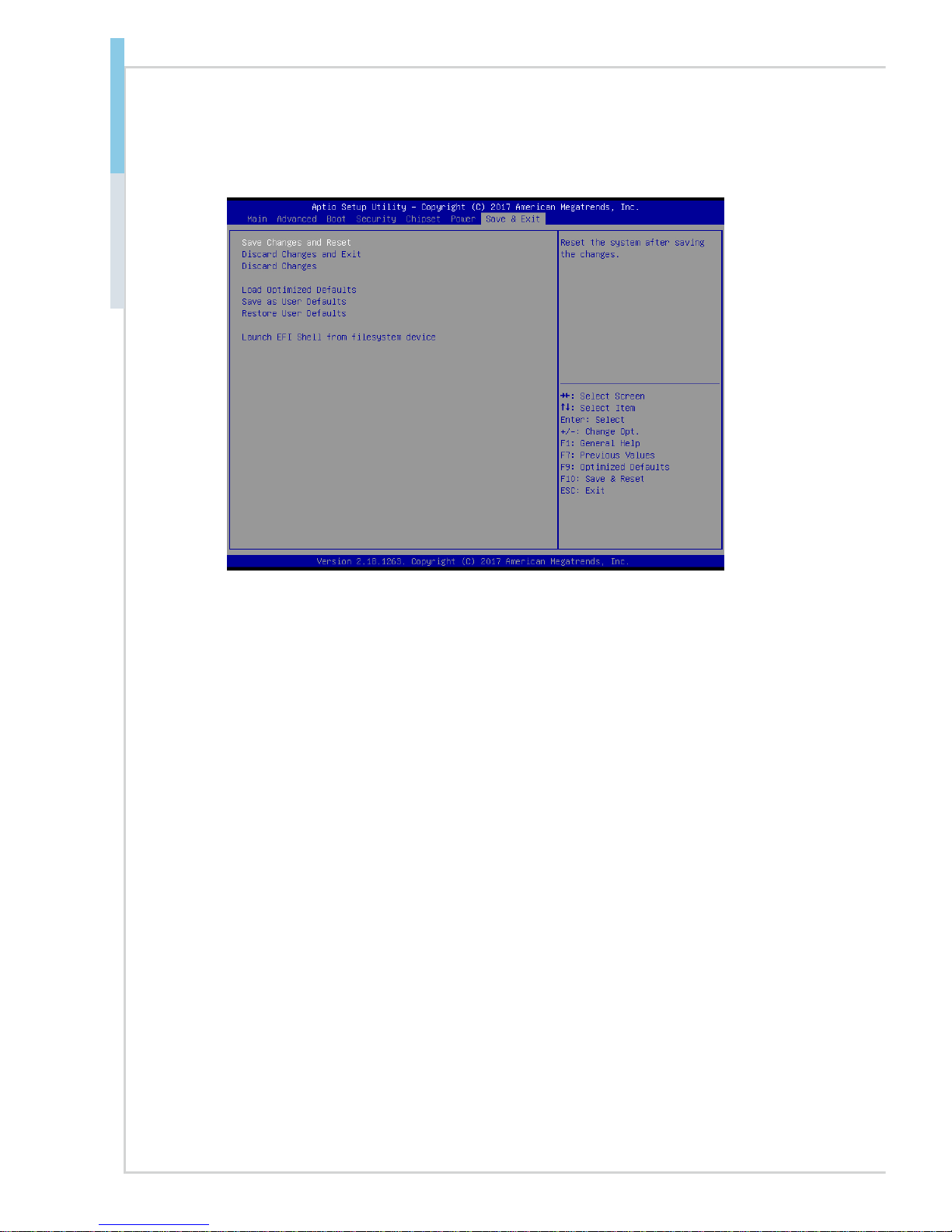

Save & Exit ...............................................................................................3-22

Appendix WDT & GPIO ................................................................... A-1

WDT Sample Code ................................................................................... A-2

GPIO Sample Code .................................................................................. A-3

1-1-1

Thank you for choosing the MS-98E2, an excellent industrial computer

board.

Based on the innovative Intel® C236 / H110 chipset for optimal system
e󰀩ciency, the MS-98E2 accommodates the Intel® Desktop Kaby Lake-S/
Skylake-S processor and supports up to 4 / 2 DDR4 2133MHz / 2400MHz
(7th Gen) U-DIMM slots to provide the maximum of 64 / 32GB memory

capacity.

Designed to withstand harsh industrial conditions, the MS-98E2 is
engineered to provide reliable performance for a wide variety of industrial

applications.

1 Overview

1-2

Overview

Motherboard Specications

Processor

■ 7th/6th Gen Intel® Desktop Kaby Lake-S/Skylake-S Core™ i7/i5/i3/Penti-

um® /Celeron® Series Processor, Max 95W

Chipset

■ SKU1: Intel® C236

■ SKU2: Intel® H110

Memory

■ Dual channel DDR4, up to 2133MHz / 2400MHz (7th Gen)

■ SKU1: 4 x U-DIMM slots, up to 64GB, ECC

■ SKU2: 2 x U-DIMM slots, up to 32GB, Non ECC

Network

■ 1 x Intel® I210-AT GbE LAN (Co-lay I211-AT)

■ 1 x Intel® I219-LM GbE LAN PHY

Storage

■ SKU1:C236

- 6 x SATA 6Gb/s (RAID 0, 1, 5, 10)

- 1 x mSATA

- 1 x M.2

■ SKU2:H110

- 3 x SATA 6Gb/s

- 1 x mSATA

Expansion Slot

■ SKU1:C236

- 1 x PCIe x16 slot

- 1 x PCIe x1 slot

- 1 x PCIe x8 slot (signal x4)

- 1 x PCI slot

- 1 x M.2 slot (M Key, PCIe x4, SATA 6Gb/s)

- 1 x full-size Mini-PCIe slot (Support PCIe, SATA 6Gb/s, USB2.0)

■ SKU2:H110

- 1 x PCIe x16 slot

- 1 x PCIe x1 slot

- 1 x PCIe x8 slot (signal x1)

- 1 x PCI slot

- 1 x full-size Mini-PCIe slot (SATA 6Gb/s)

1-3

MS-98E2

Internal I/O

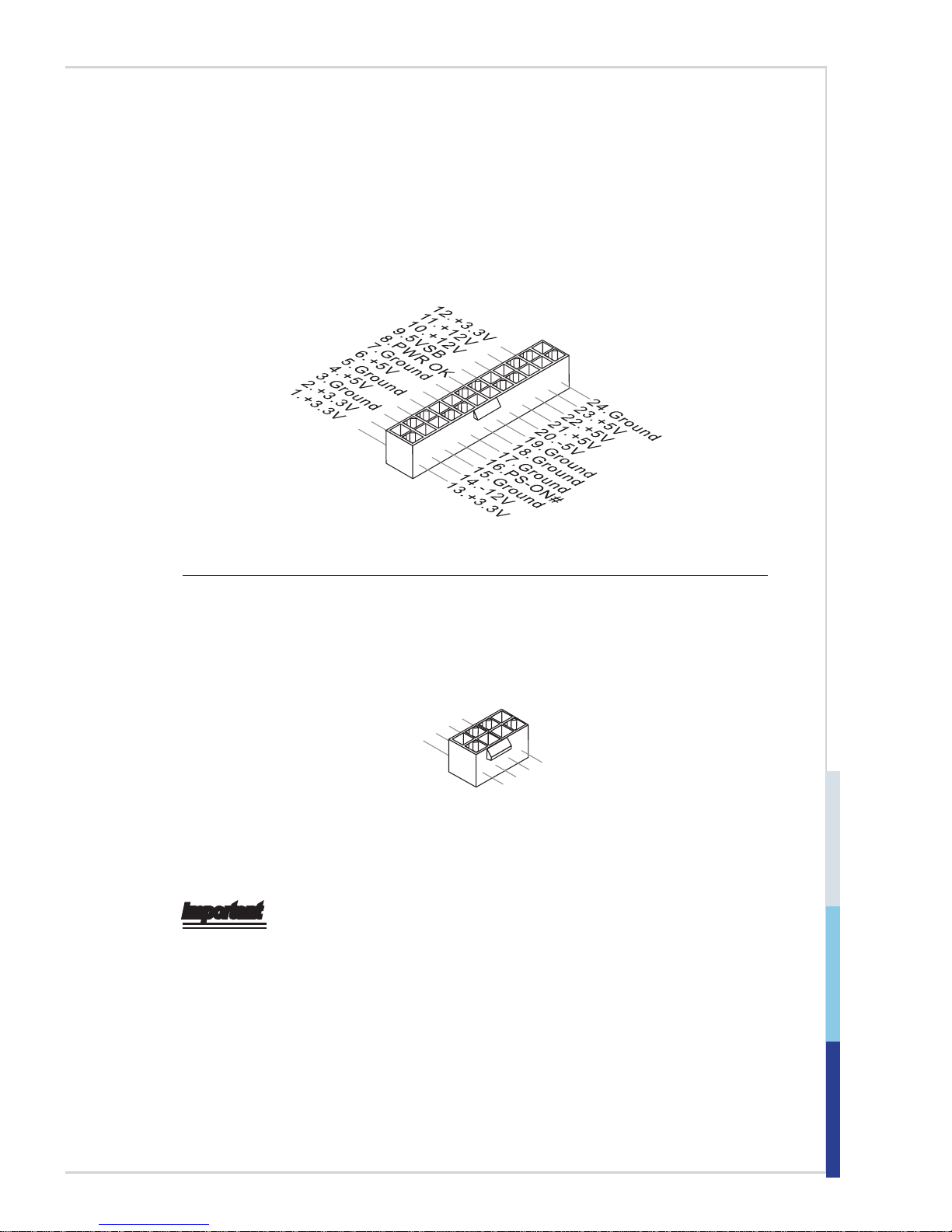

■ 1 x 8-pin power connector

■ 1 x 24-pin power connector

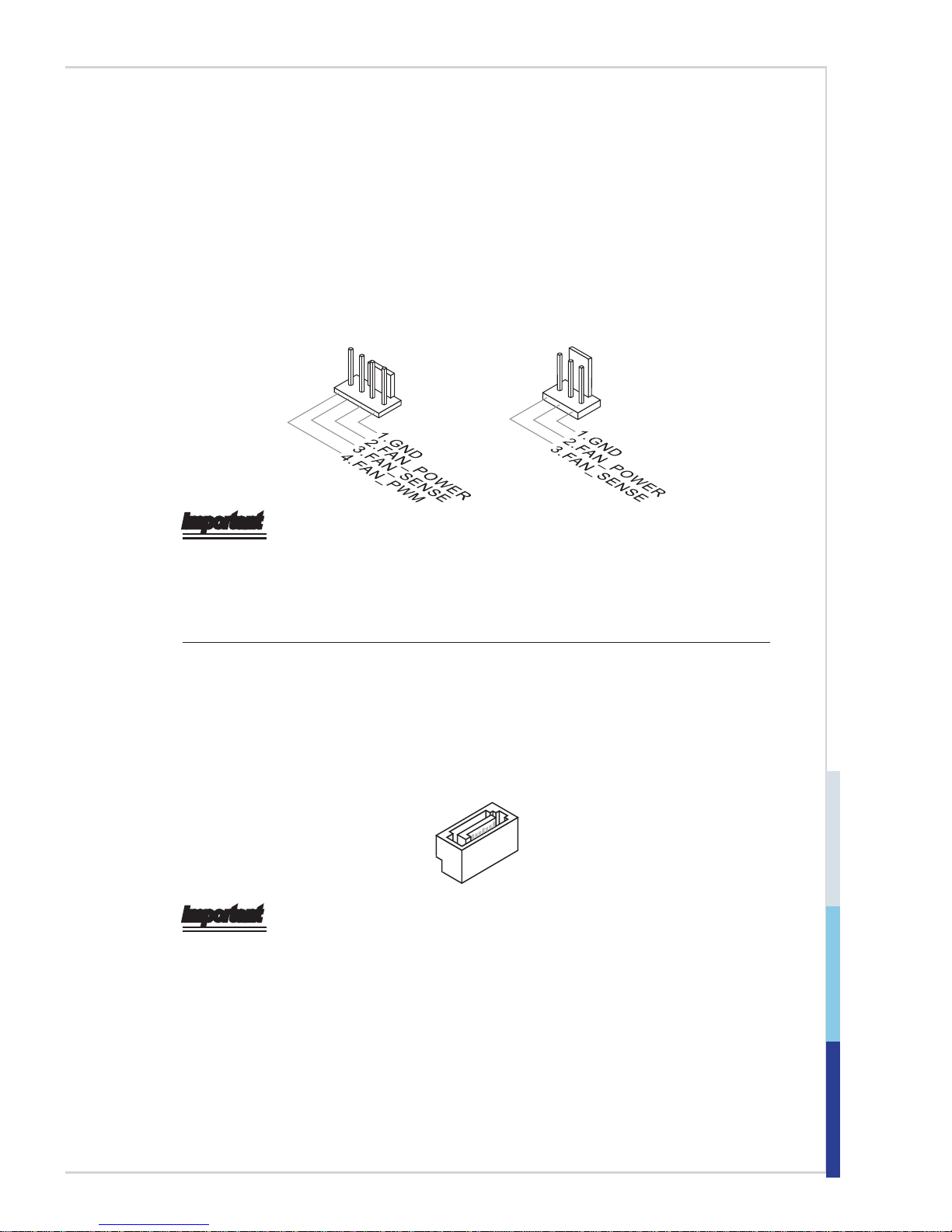

■ 3 x System fan connectors

■ 1 x CPU fan connector

■ 2 x USB2.0 connectors (4 ports)

■ 1 x USB3.0 port (2 ports) (SKU1:C236)

■ 5 x RS-232 COM port connectors (0V/5V/12V)(COM2~COM6)

■ 1 x RS-232 COM port header (COM7~COM10) (SKU1:C236)

■ 5 x COM port jumpers

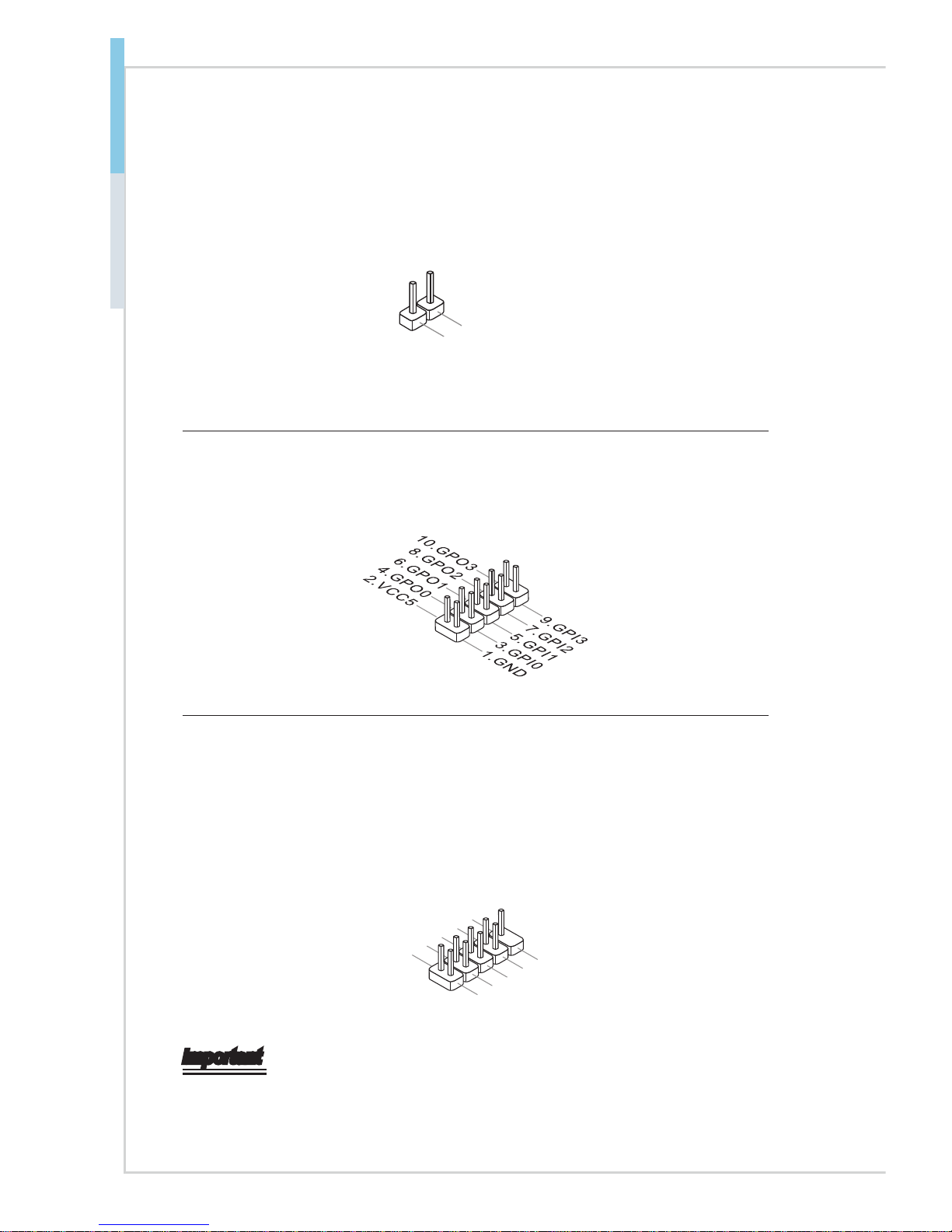

■ 1 x GPIO header

■ 1 x Front panel header

■ 1 x S/PDIF connector

■ 1 x Amplier header

■ 1 x TPM header

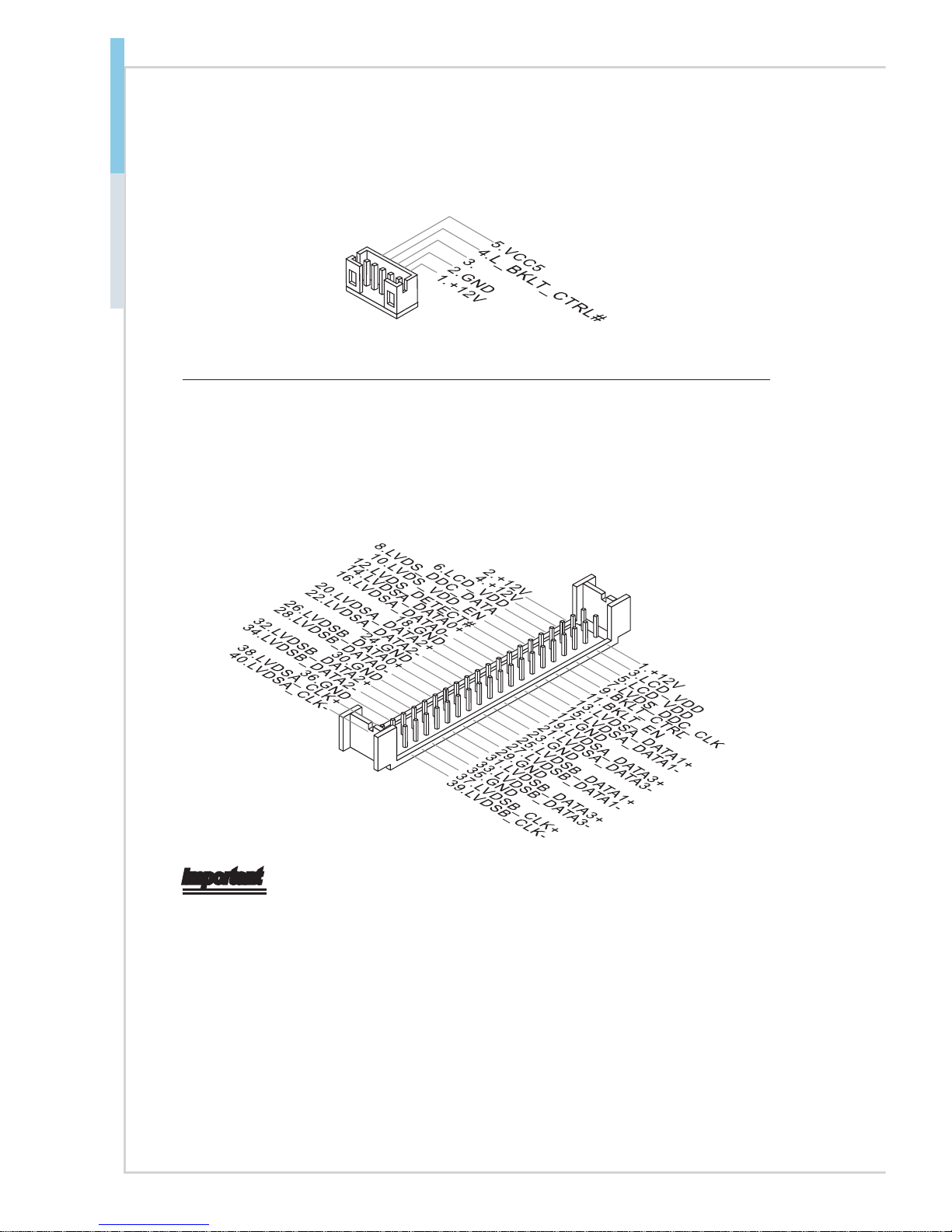

■ 1 x LVDS connector (SKU1:C236)

■ 1 x LVDS inverter connector (SKU1:C236)

■ 1 x LVDS power jumpers (SKU1:C236)

■ 1 x PCI power jumper

■ 1 x Front audio header

■ 1 x Chassis intrusion header

■ 1 x Clear CMOS jumper

■ 1 x AT/ATX select jumper

■ 1 x ME jumper

■ 1 x LAN congure jumper

■ 1 x SMBus connector

■ 1 x Buzzer header

Rear I/O

■ 1 x PS/2 mouse/keyboard combo port

■ 2 x USB2.0 ports

■ 1 x RS-232/422/485 serial port (0V/5V/12V)

■ 1 x DisplayPort

■ 1 x VGA port

■ 1 x DVI-D port

■ 2 x RJ45 GbE LAN ports

■ 4 x USB3.0 ports

■ 3 x Audio jacks (Line-In, Line-Out, Mic-In)

1-4

Overview

Graphics

■ Integrated Intel® HD Graphics

- 1 x VGA (Max resolution 1920 x 1200)

- 1 x DVI-D (Max resolution 1920 x 1200)

- 1 x DisplayPort (Max resolution 3840 x 2160)

- 1 x LVDS (18/24 bit, Dual Channel)(SKU1:C236)

■ SKU1 C236: Up to 3 independent displays (VGA+DVI-D+DP, VGA+D-

VI-D+LVDS, DVI-D+DP+LVDS)

■ SKU2 H110: Up to 2 independent displays (VGA+DVI-D, VGA+DP, DVI-

D+DP)

Audio

■ Realtek® ALC887/888S HD Audio Codec

■ 1 x Amplier header

■ 1 x Front audio header

■ 1 x S/PDIF connector

■ 3 x Audio jacks (Line-In, Line-Out, Mic-In)

Environment

■ Operating Temperature: -10 ~ 60oC

■ Storage Temperature: -20 ~ 80oC

■ Humidity: 5 ~ 95% RH, non-condensing

Form Factor

■ Micro-ATX: 244mmx244mm

Certication

■ CE, FCC, BSMI, VCCI, RCM

SKU Comparison

SKUs

Features

SKU1:C236 SKU2:H110

PCH C236 H110

Memory DDR4, support ECC DDR4, non-ECC

SATA 6 x SATA 6Gb/s 3 x SATA 6Gb/s

M.2 Yes No

1-5

MS-98E2

Motherboard Layout

SKU1:C236

System Fan

Connector

Clear CMOS

Jumper

AT/ATX
Jumper

Chassis

Intrusion Header

USB 3.0
Connector

SATA
Ports

GPIO
Header

COM Port

Connector/

Jumper

PCIe Slot

Amplier

Header

TPM Header

Front Panel
Header

COM Port

Header

U-DIMM
Slots

Mini-PCIe
Slot

M.2 Slot

LVDS

Connector

ME
Jumper

LVDS Inverter

Connector

COM Port

Power Jumper

S/PDIF

Connector

CPU Power

Connector

Power
Connector

System Fan

Connector

SMBus

Connector

CPU Fan

Connector

Rear I/O

PCI Slot

System Fan
Connector

USB 2.0

Connector

NVM LAN

Jumper

Front Audio

Connector

LVDS Inverter

Jumper

PCI Slot

Jumper

Serial Port

Mouse/

Keyboard

Combo

Port

USB2.0

Port

DisplayPort

VGA Port

USB3.0

Port

RJ45 GbE

LAN Port

DVI-D Port

Line-In

Line-Out

Mic-In

RJ45 GbE

LAN Port

USB3.0

Port

1-6

Overview

SKU2:H110

System Fan

Connector

Clear CMOS

Jumper

AT/ATX
Jumper

Chassis

Intrusion Header

SATA
Ports

GPIO
Header

COM Port

Connector/

Jumper

PCIe Slot

Amplier

Header

TPM Header

Front Panel
Header

U-DIMM
Slots

Mini-PCIe
Slot

ME
Jumper

COM Port

Power Jumper

S/PDIF

Connector

CPU Power

Connector

Power
Connector

System Fan

Connector

SMBus

Connector

CPU Fan

Connector

Rear I/O

PCI Slot

System Fan
Connector

USB 2.0

Connector

NVM LAN

Jumper

Front Audio

Connector

PCI Slot

Jumper

Serial Port

Mouse/

Keyboard

Combo

Port

USB2.0

Port

DisplayPort

VGA Port

USB3.0

Port

RJ45 GbE

LAN Port

DVI-D Port

Line-In

Line-Out

Mic-In

RJ45 GbE

LAN Port

USB3.0

Port

2-2-1

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the com­ponents and follow the installation procedures. For some components, if
you install in the wrong orientation, the components will not work prop-

erly.

Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

2 Hardware Setup

2-2

Hardware Setup MS-98E2

Components Reference Guide

CPU (Central Processing Unit) ........................................................2-4

Introduction to LGA 115x CPU ...................................................................2-4

CPU Installation .........................................................................................2-5

Memory ..............................................................................................2-6

Dual-Channel Mode ...................................................................................2-6

Recommended Memory Population ........................................................... 2-6

Installing Memory Modules ........................................................................2-6

Power Supply ....................................................................................2-7

System Power Connector: PWRCONN1 ...................................................2-7

CPU Power Connector: JPWR1 .................................................................2-7

Rear Panel I/O ...................................................................................2-8

Connector ........................................................................................2-11

Fan Power Connector: CPUFAN1, SYSFAN1~3 ..................................... 2-11

Serial ATA Connector: SATA1~6 (SATA 6Gb/s for SKU1:C236) .............. 2-11

Serial ATA Connector: SATA1~3 (SATA 6Gb/s for SKU2:H110) ............... 2-11

Chassis Intrusion Header: J4 ................................................................... 2-12

GPIO Connector: JGPIO1 ........................................................................ 2-12

USB2.0 Connector: JUSB1, JUSB4 (SKU1:C236) ..................................2-12

USB2.0 Connector: JUSB6, JUSB7 (SKU2:H110) ................................... 2-12

Audio Amplier Connector: JAMP1 ..........................................................2-13

Front Panel Header: JFP1 .......................................................................2-13

I2C Bus Connector: JSMB1 .....................................................................2-13

LVDS Inverter Connector: JINVT1 (SKU1:C236) ..................................... 2-14

LVDS Connector: JLVDS1 (SKU1:C236) .................................................2-14

RS-232 COM Port Header: COM7~COM10 (SKU1:C236) ...................... 2-15

LPC Debug Port Connector: JTPM1 (With TPM Support) .....................2-15

RS232 Serial Port Connector: JCOM2~JCOM6 ......................................2-16

USB 3.0 Connector: JUSB3 (SKU1:C236) ...............................................2-16

Front Audio Connector: JAUD1 ................................................................2-17

S/PDIF Pinheader: JSPDI1 ...................................................................... 2-17

2-3

Jumper.............................................................................................2-18

NVM LAN Jumper: JNVM1 ......................................................................2-18

Clear CMOS Jumper: J_CMOS1 .............................................................2-18

AT/ATX Select Jumper: JAT1 ................................................................... 2-18

COM Port Power Jumper: JCOMP7 (for JCOM1), JCOMP3~6 (for JCOM3~6)

�����������������������������������������������������������������������������������������������������������������2-19

LVDS Power Jumper: JVDD1 (SKU1:C236) ............................................ 2-19

PCI Slot Power Jumper: JVDD2 ..............................................................2-19

ME Jumper: ME_DIS1 .............................................................................2-19

Slot ...................................................................................................2-20

PCIe (Peripheral Component Interconnect Express) Slot ........................ 2-20

Mini-PCIe (Peripheral Component Interconnect Express) Slot ................ 2-20

M.2 Slot (SKU1:C236) ..............................................................................2-20

PCI (Peripheral Component Interconnect) Slot ........................................ 2-21

2-4

Hardware Setup MS-98E2

CPU (Central Processing Unit)

When installing the CPU, make sure that you install the cooler to prevent over­heating. If you do not have the CPU cooler, consult your dealer before turning on

the computer.

Important

Overheating

Overheating will seriously damage the CPU and system� Always make sure the
cooling fan can work properly to protect the CPU from overheating� Make sure
that you apply an even layer of thermal paste (or thermal tape) between the CPU
and the heatsink to enhance heat dissipation�

Replacing the CPU

While replacing the CPU, always turn o the power supply or unplug the power
supply’s power cord from the grounded outlet rst to ensure the safety of CPU.

Introduction to LGA 115x CPU

The surface of LGA 115x CPU. Remember to apply some thermal paste on it for

better heat dispersion.

Alignment Key

Yellow triangle is the
Pin 1 indicator

Alignment Key

2-5

CPU Installation

When you are installing the CPU, make sure the CPU has a cooler attached on
the top to prevent overheating. Meanwhile, do not forget to apply some thermal
paste on CPU before installing the heat sink/cooler fan for better heat dispersion.

1. Open the load lever and remove the
plastic cap.

2. Lift the load lever up to fully open
position.

3. After con󰘰rming the CPU direction for

correct mating, put down the CPU in
the socket housing frame. Be sure to
grasp on the edge of the CPU base.
Note that the alignment keys are
matched.

4. Engage the load lever while pressing
down lightly onto the load plate.

Alignment Key

Important

Visually inspect if the CPU is seated well into the socket� If not, take out the CPU with
pure vertical motion and reinstall�

2-6

Hardware Setup MS-98E2

Memory

Dual-Channel Mode

In Dual-Channel mode, make sure that you install memory modules of the same
type and density in di󰀨erent channel DIMM slots.

Recommended Memory Population

SKU1:C236

Number of DIMMs installed 1 2 3 4

DIMM1 (ch A) V V V V

DIMM2 (ch A) V V

DIMM3 (ch B) V V V

DIMM4 (ch B) V

SKU2:H110

Number of DIMMs installed 1 2

DIMM1 (ch A) V V

DIMM3 (ch B) V

Important

• "V" indicates a populated DIMM slot�

• Paired memory installation for Max performance�

• Populate the same DIMM type in each channel, specically: 1. Use the same

DIMM size; 2� Use the same number of ranks per DIMM�

Installing Memory Modules

1. Unlock the DIMM slot by ipping open its side clips.

2. Vertically insert the DIMM into the slot. The DIMM has an o󰀨-center notch at
the bottom that will only allow it to t one way into the slot. Push the DIMM

deeply into the slot. The side clips of the slot will automatically close when

the DIMM is properly seated and an audible click should be heard.

3. Manually check if the DIMM has been locked in place by the slot’s side clips.

Important

You can barely see the golden 󰘰nger if the DIMM is properly inserted in the DIMM

slot.
