MSI MS-98B5 User Manual

MS-98B5

(v1.x) Industrial Computer Board

i

ii

Preface MS-98B5

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

MSI® is a registered trademark of Micro-Star Int’l Co.,Ltd.

￭

NVIDIA® is a registered trademark of NVIDIA Corporation.

￭

AMD® is a registered trademark of AMD Corporation.

￭

Intel® is a registered trademark of Intel Corporation.

￭

Windows

￭

AMI® is a registered trademark of Advanced Micro Devices, Inc.

￭

Award® is a registered trademark of Phoenix Technologies Ltd.

￭

Realtek® is a registered trademark of Realtek Semiconductor Corporation.

￭

®

is a registered trademark of Microsoft Corporation.

Revision History

Revision Date

V1.0 2014/02

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS updates, driver updates, and other information:

http://www.msi.com/service/download/

Contact our technical sta󰘯 at:

http://support.msi.com/

Safety Instructions

Always read the safety instructions carefully.

￭

Keep this User’s Manual for future reference.

￭

Keep this equipment away from humidity.

￭

Lay this equipment on a reliable flat surface before setting it up.

￭

The openings on the enclosure are for air convection hence protects the

￭

equipment from overheating. DO NOT COVER THE OPENINGS.

Make sure the voltage of the power source and adjust properly 110/220V

￭

before connecting the equipment to the power inlet.

Place the power cord such a way that people can not step on it. Do not place

￭

anything over the power cord.

Always Unplug the Power Cord before inserting any add-on card or mod

￭

ule.

All cautions and warnings on the equipment should be noted.

￭

Never pour any liquid into the opening that could damage or cause electrical

￭

shock.

If any of the following situations arises, get the equipment checked by ser

￭

vice personnel:

The power cord or plug is damaged.

◯

Liquid has penetrated into the equipment.

◯

The equipment has been exposed to moisture.

◯

The equipment does not work well or you can not get it work according

◯

to User’s Manual.

The equipment has dropped and damaged.

◯

The equipment has obvious sign of breakage.

◯

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDI-

￭

TIONED, STORAGE TEMPERATURE ABOVE 60oC (140oF), IT MAY DAMAGE THE EQUIPMENT.

-

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

警告使用者: 這是甲類資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在這種情

況下，使用者會被要求採取某些適當的對策。

iii

iv

Preface MS-98B5

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.

For further information please visit:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

FCC-A Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and

1)

this device must accept any interference received, including interference that

2) may cause undesired operation.

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back require ments at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

v

-

vi

Preface MS-98B5

Contents

Copyright Notice ............................................................................................ ii

Trademarks ................................................................................................... ii

Revision History

Technical Support

Safety Instructions

Chemical Substances Information

Battery Information

CE Conformity

FCC-A Radio Frequency Interference Statement

WEEE Statement .......................................................................................... v

1. Overview.......................................................................................1-1

Mainboard Specifications ...........................................................................1-2

Mainboard Layout

2. Hardware Setup ...........................................................................2-1

CPU (Central Processing Unit) ..................................................................2-3

Memory ......................................................................................................2-6

Power Supply .............................................................................................2-8

Rear Panel I/O ...........................................................................................2-9

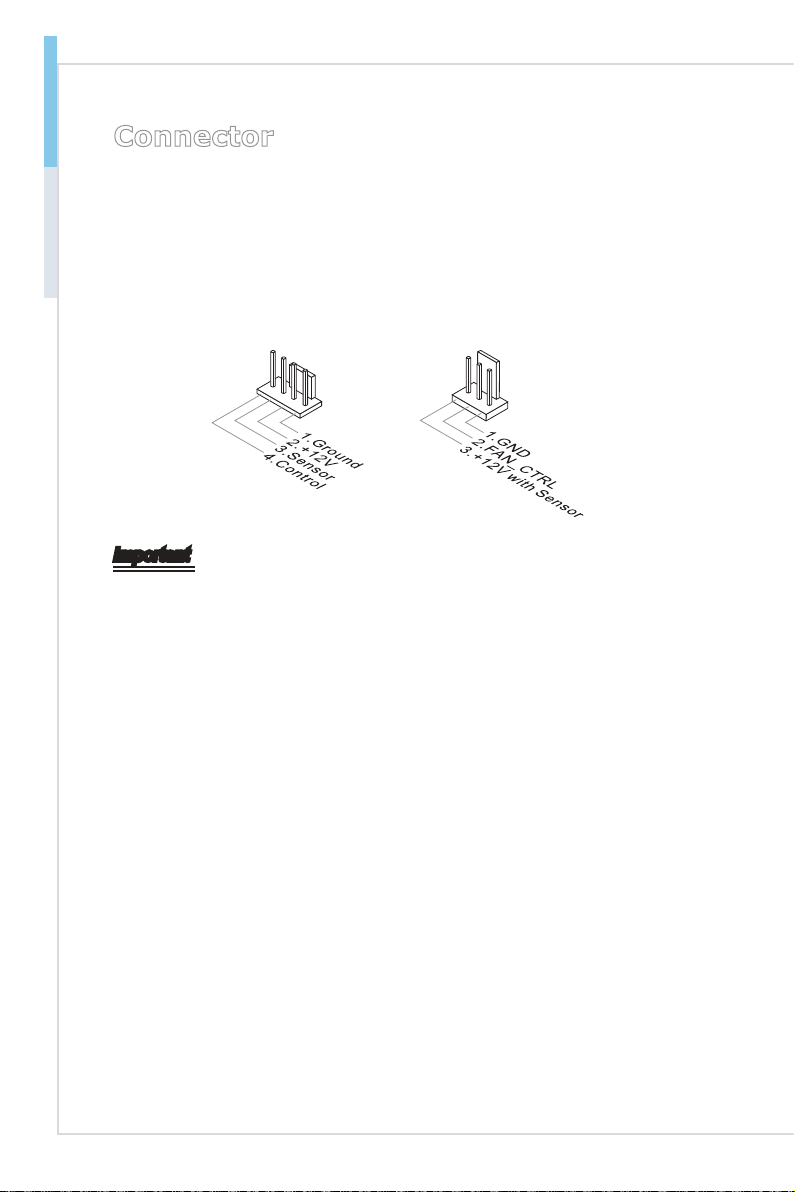

Connector .................................................................................................2-12

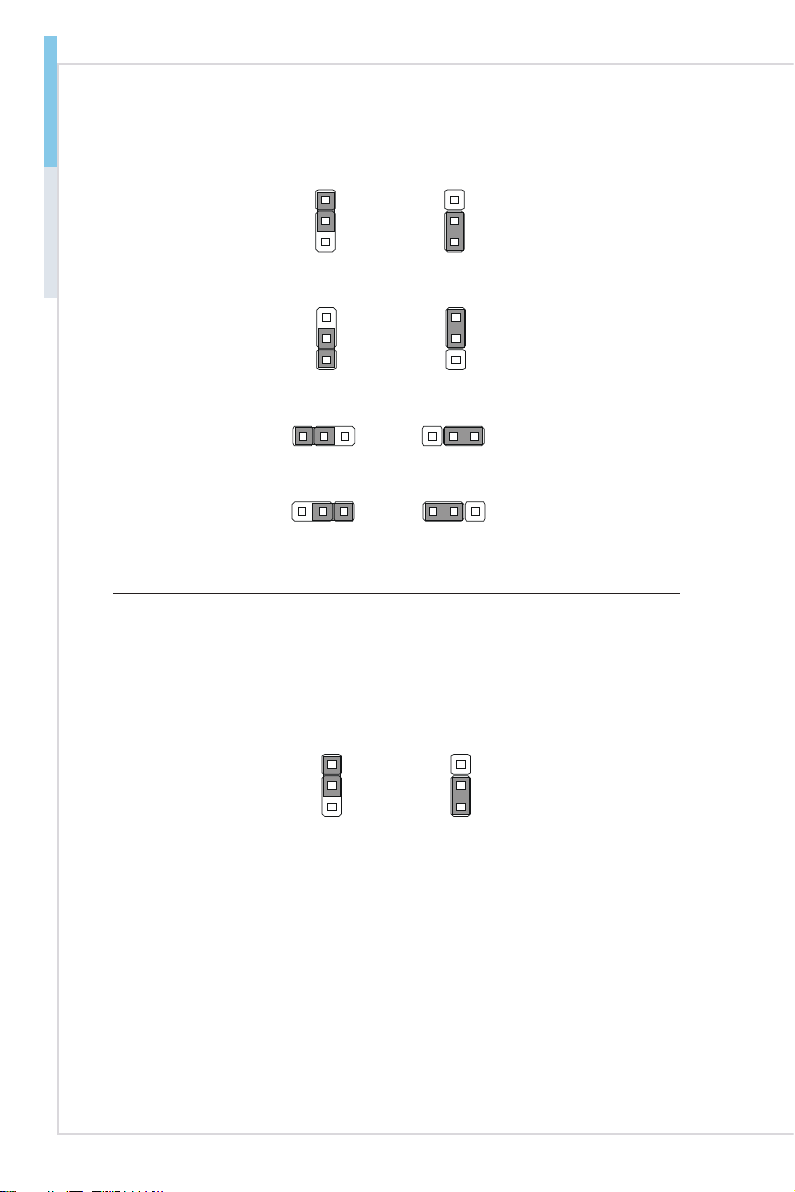

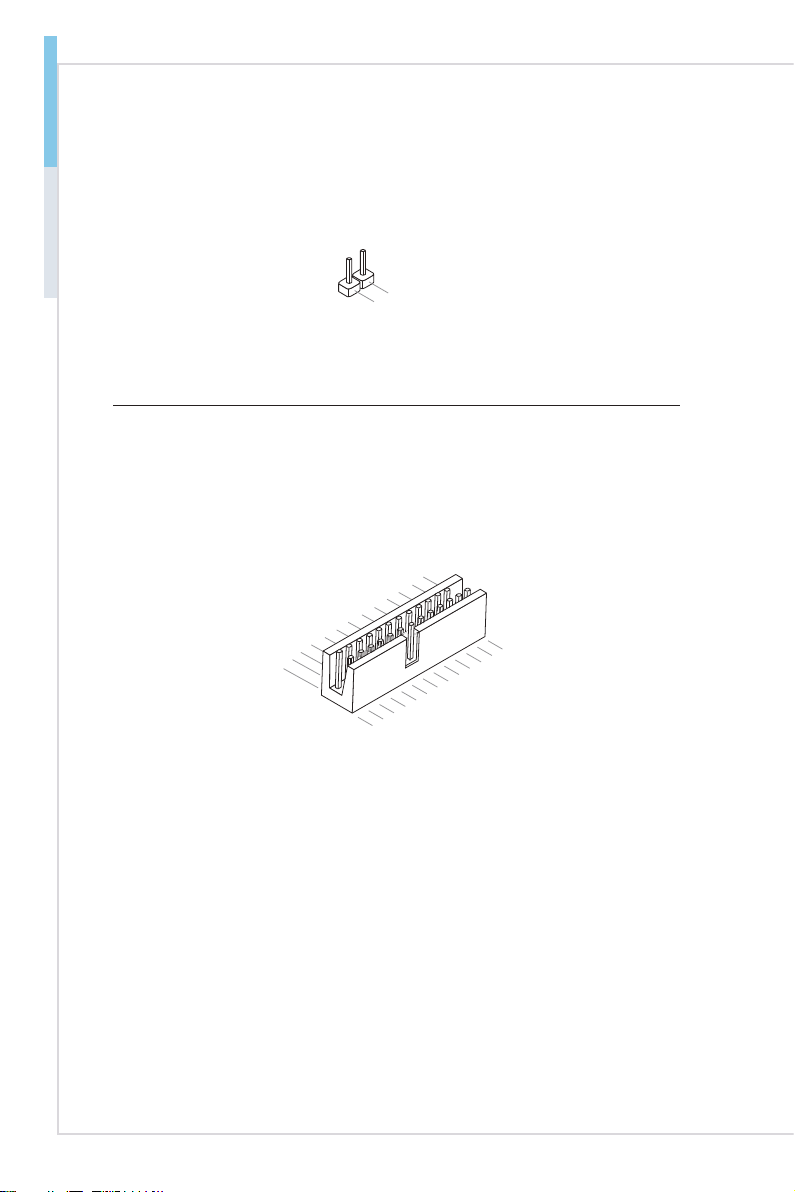

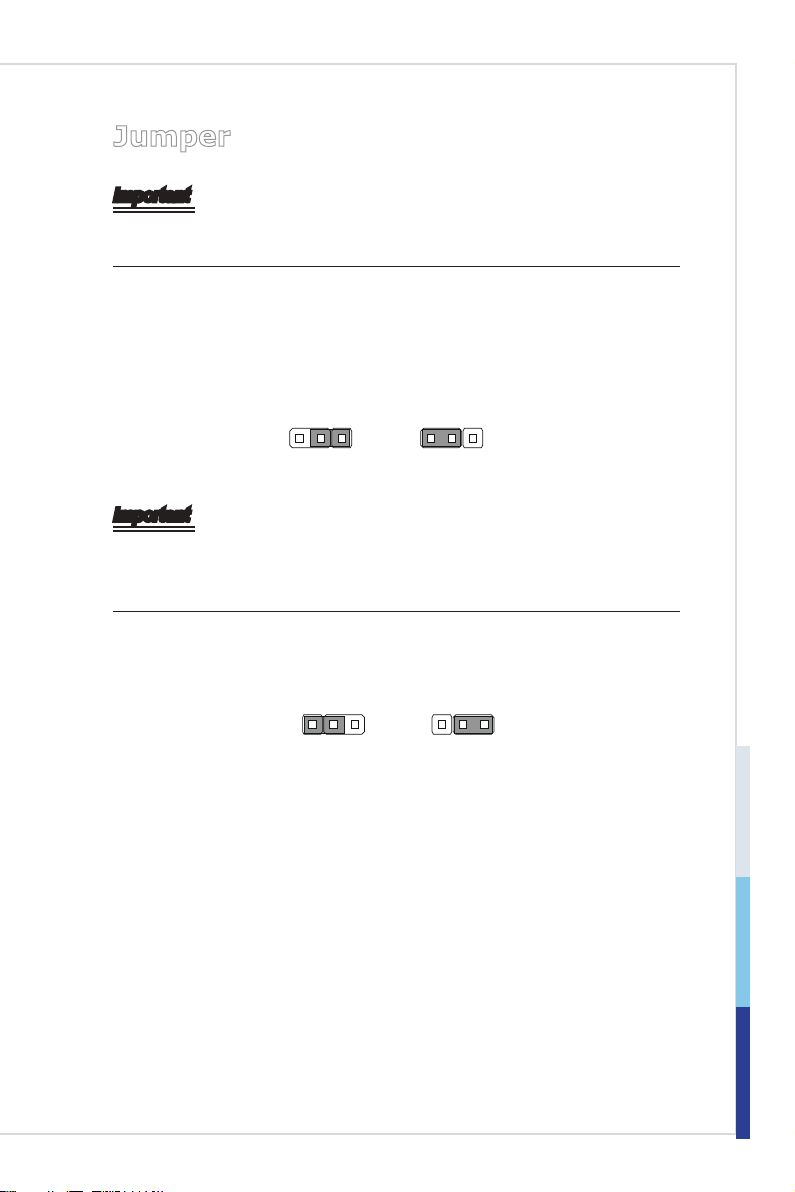

Jumper .....................................................................................................2-19

Slot ...........................................................................................................2-21

3. BIOS Setup ...................................................................................3-1

Entering Setup ...........................................................................................3-2

MS-98B5 Q87 SKU ....................................................................................3-4

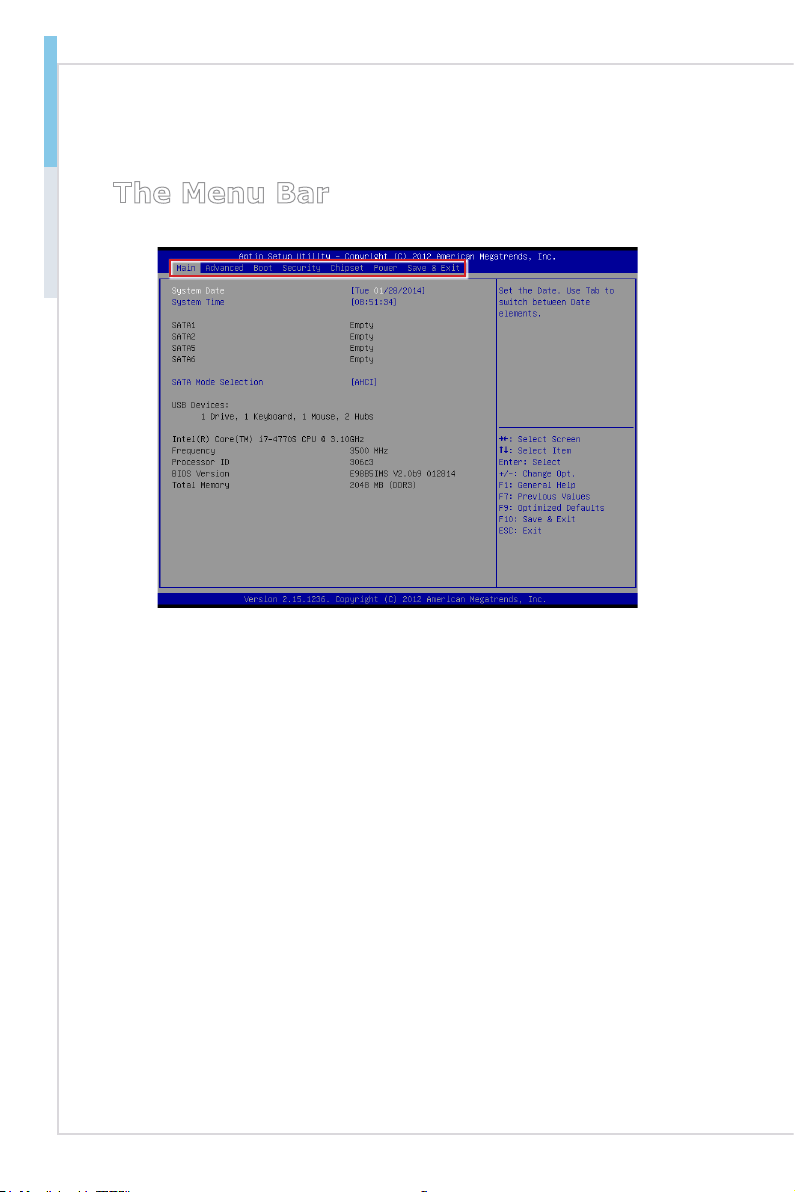

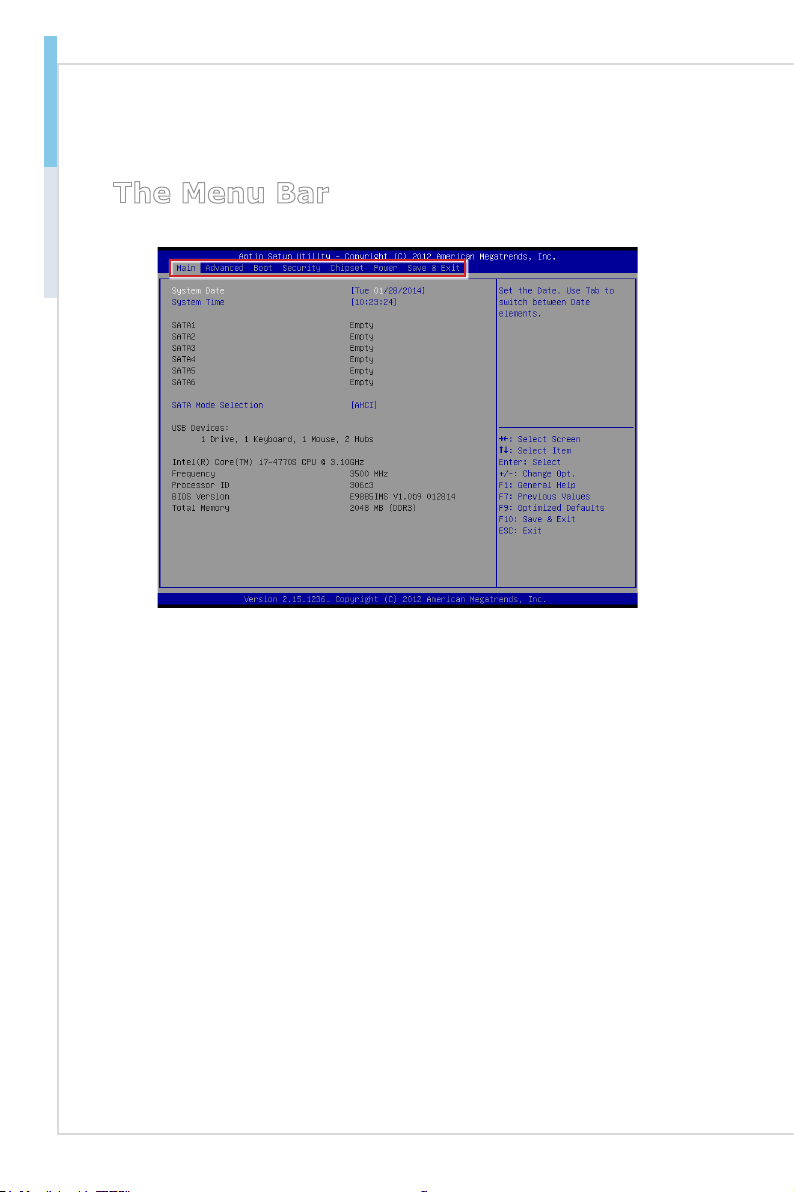

The Menu Bar ............................................................................................3-4

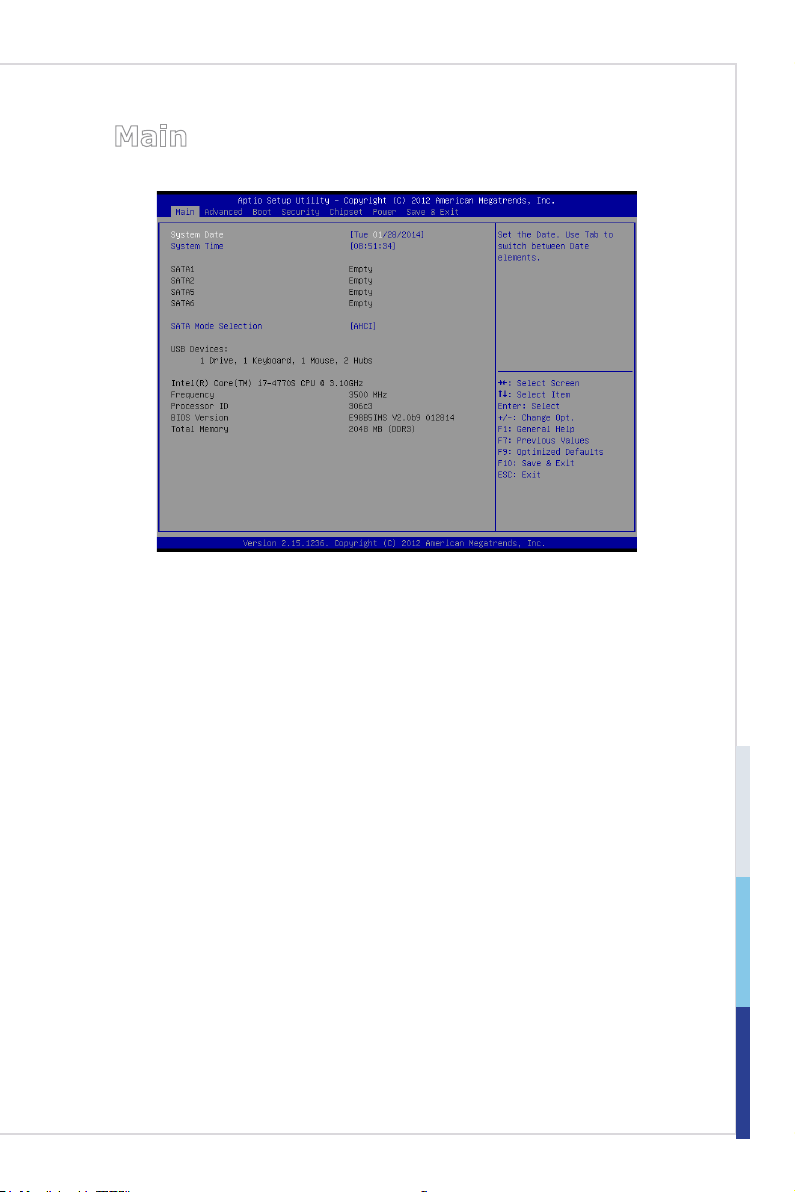

Main

...........................................................................................................3-5

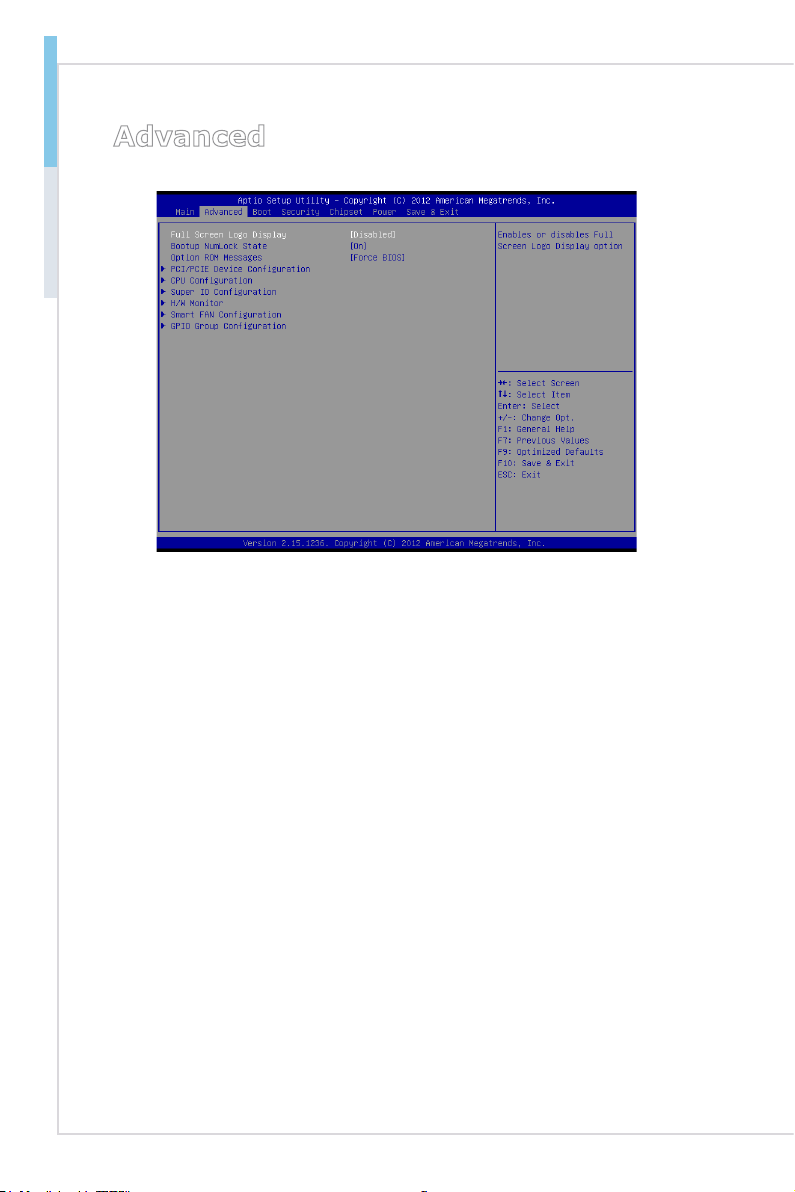

Advanced ...................................................................................................3-6

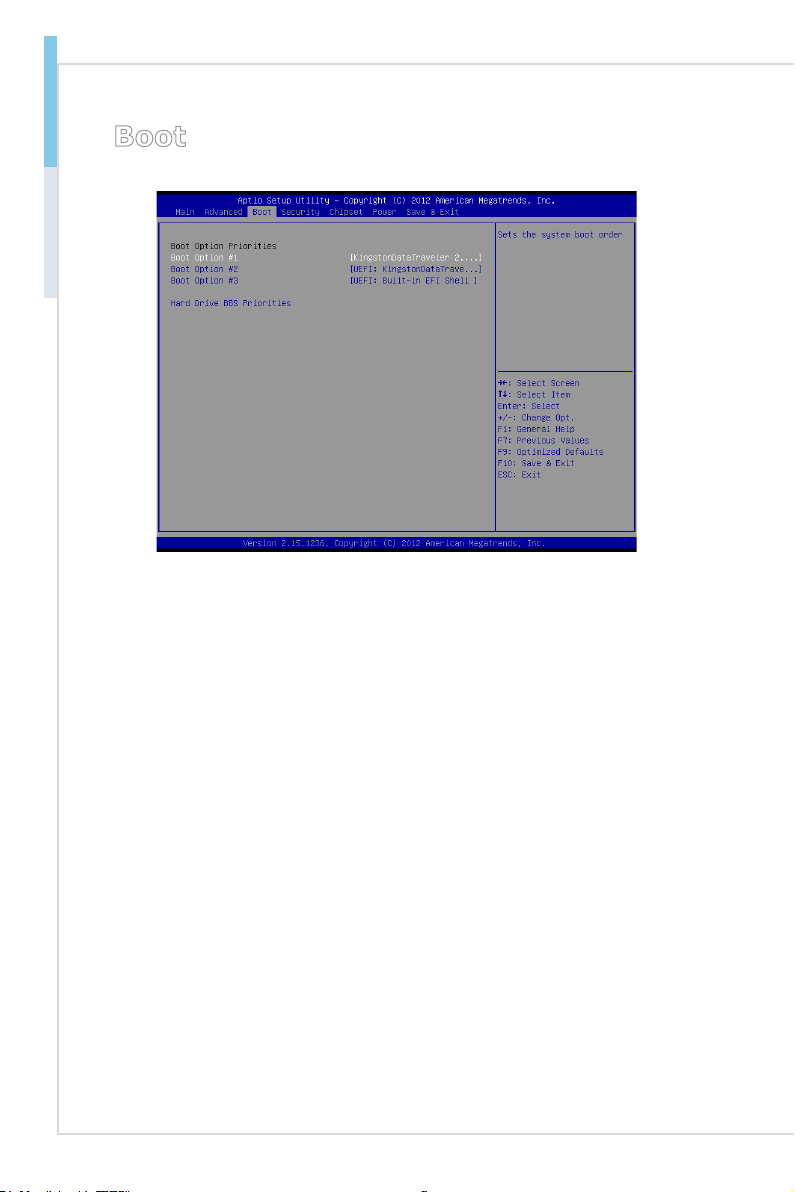

Boot .......................................................................................................... 3-12

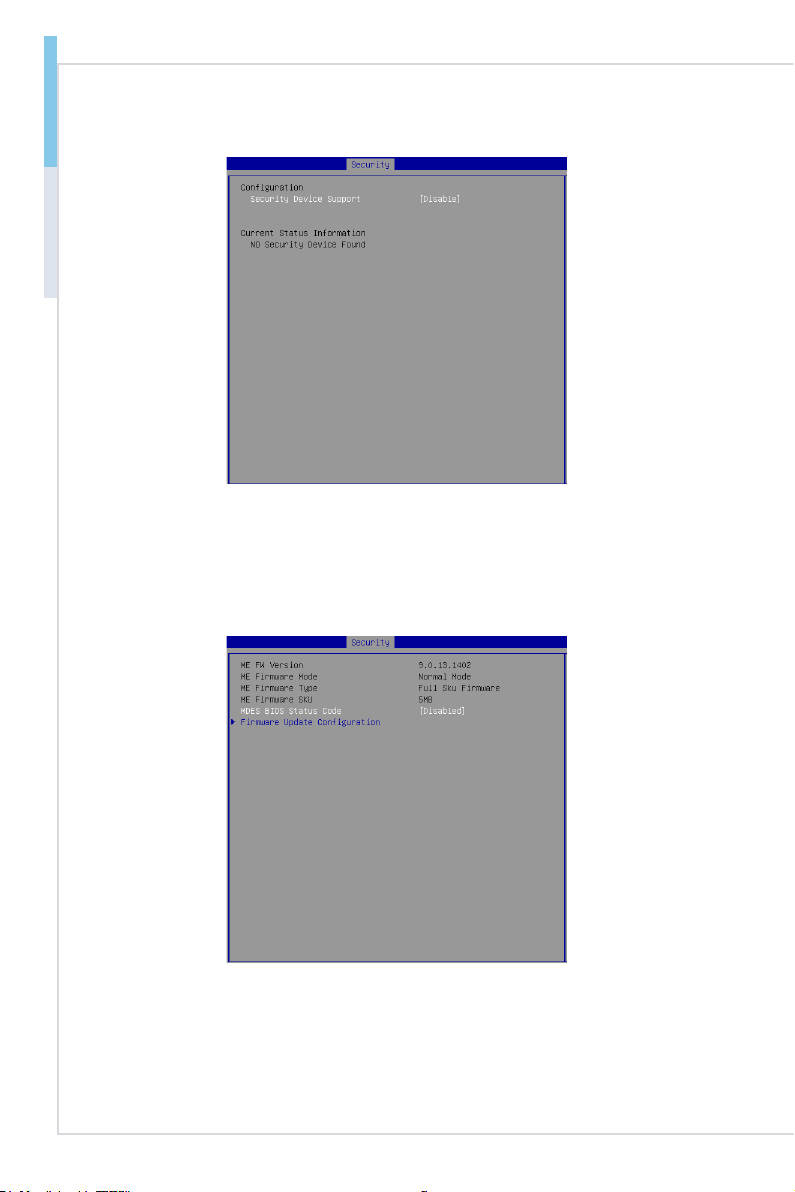

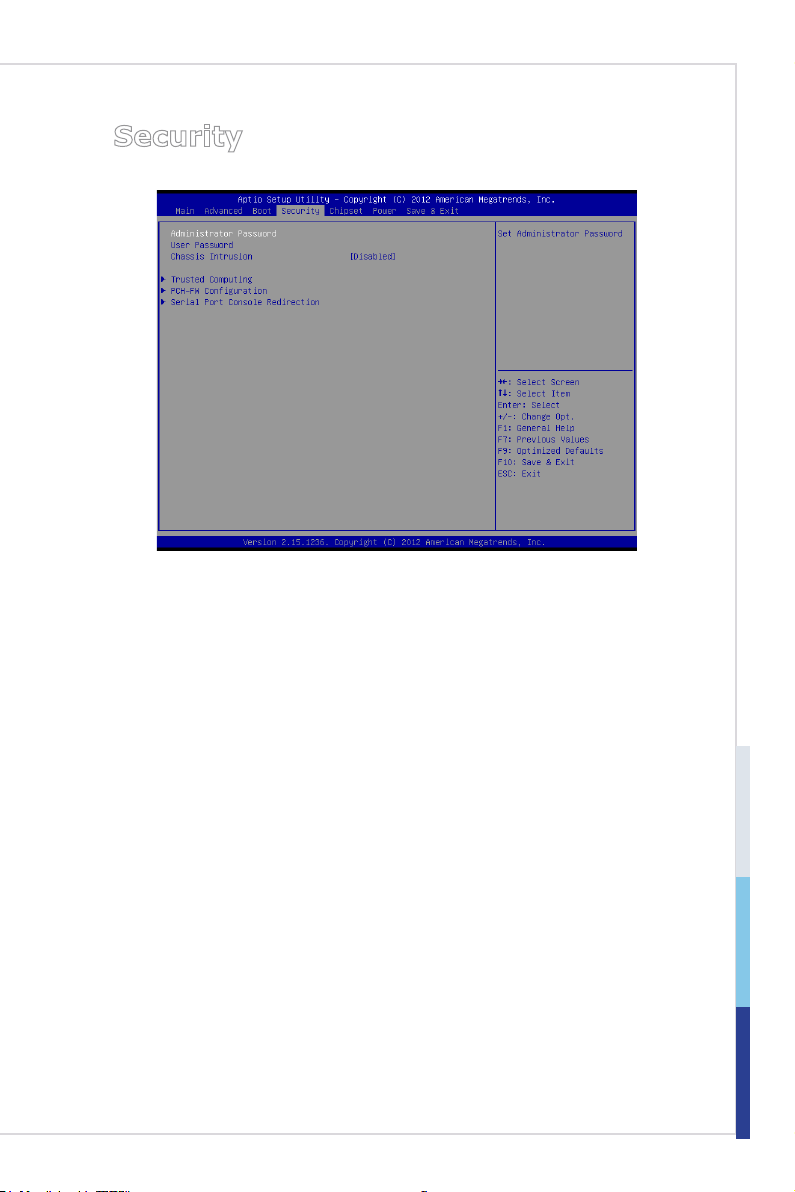

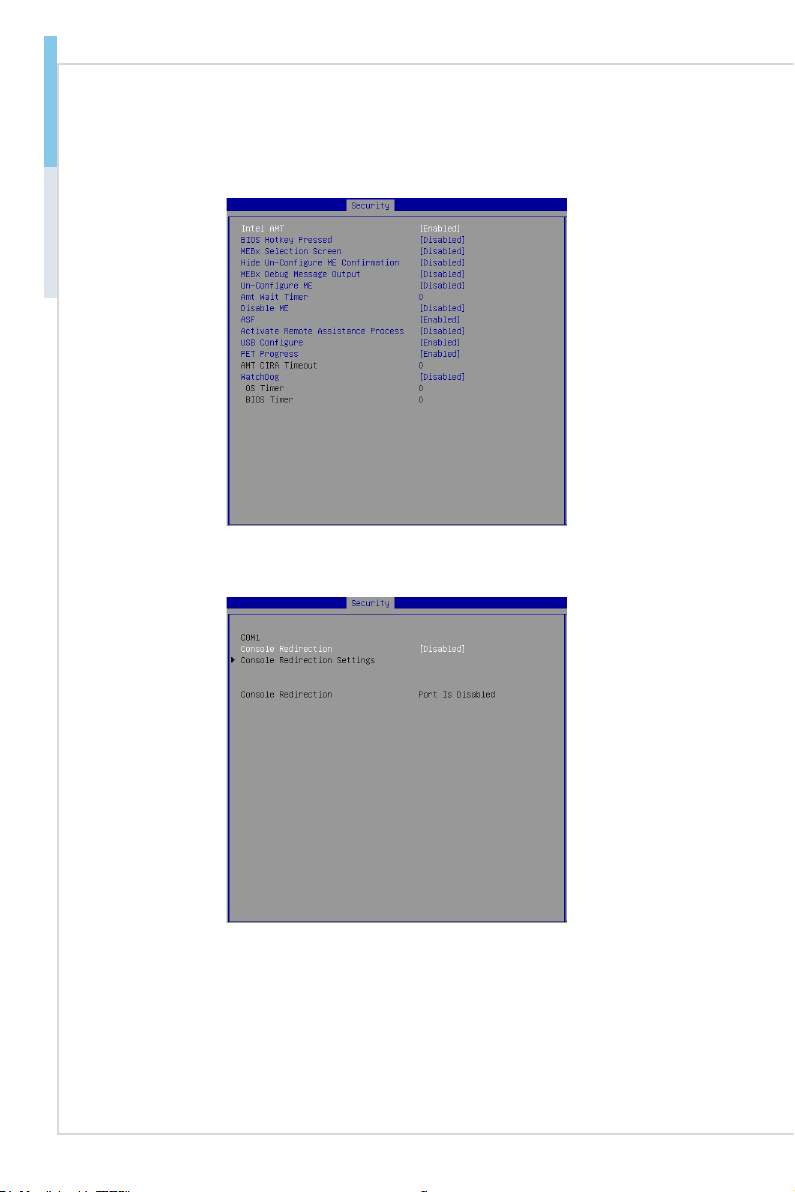

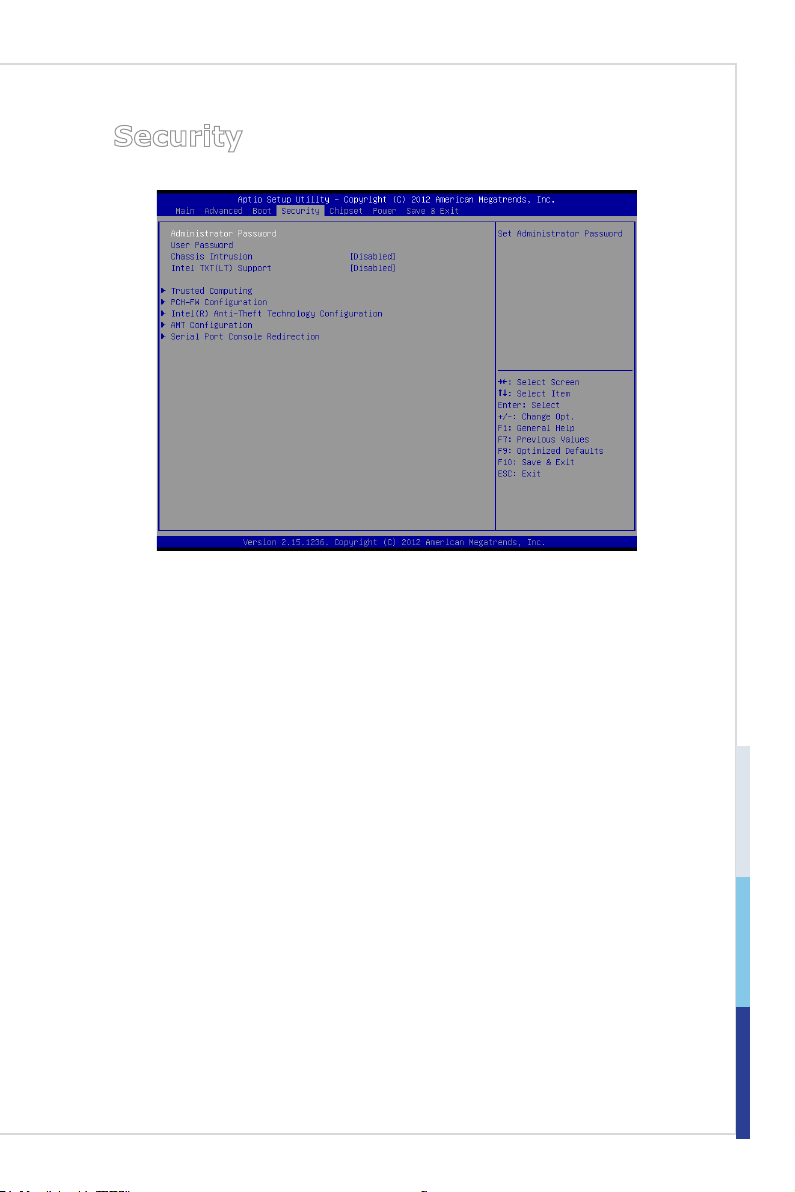

Security

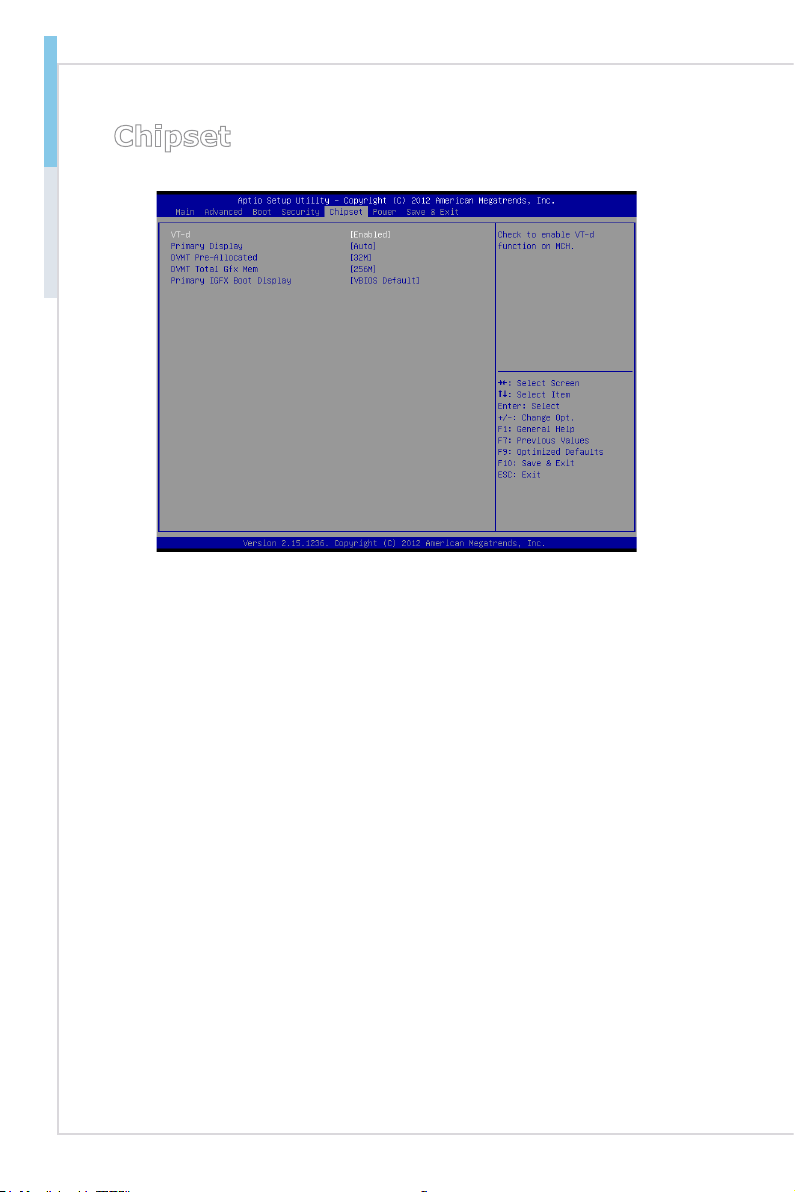

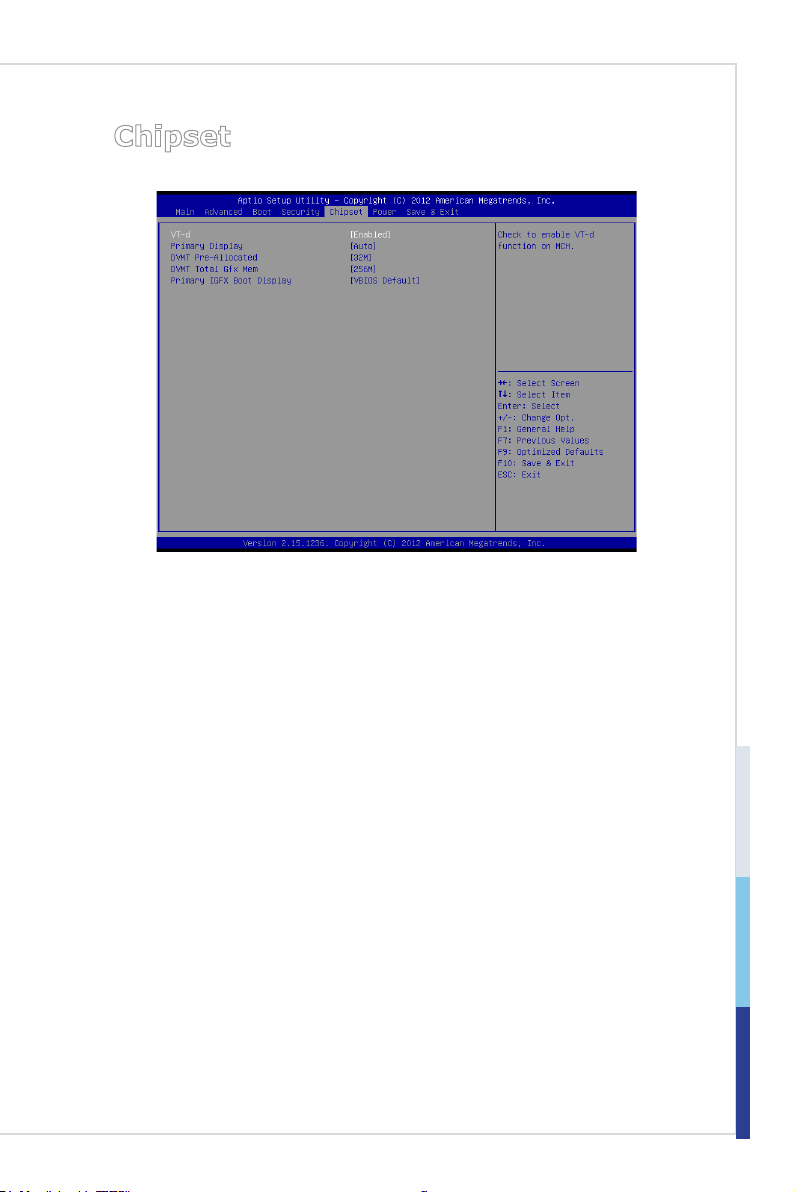

Chipset

.....................................................................................................3-18

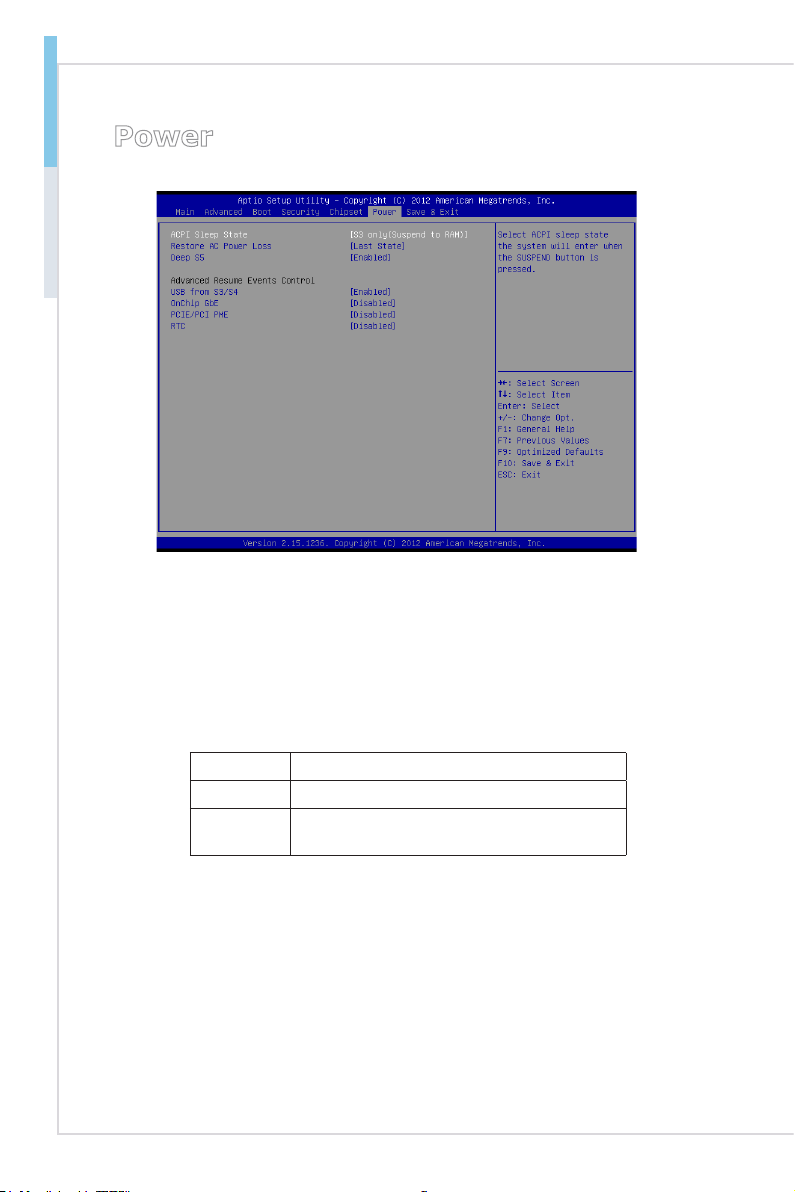

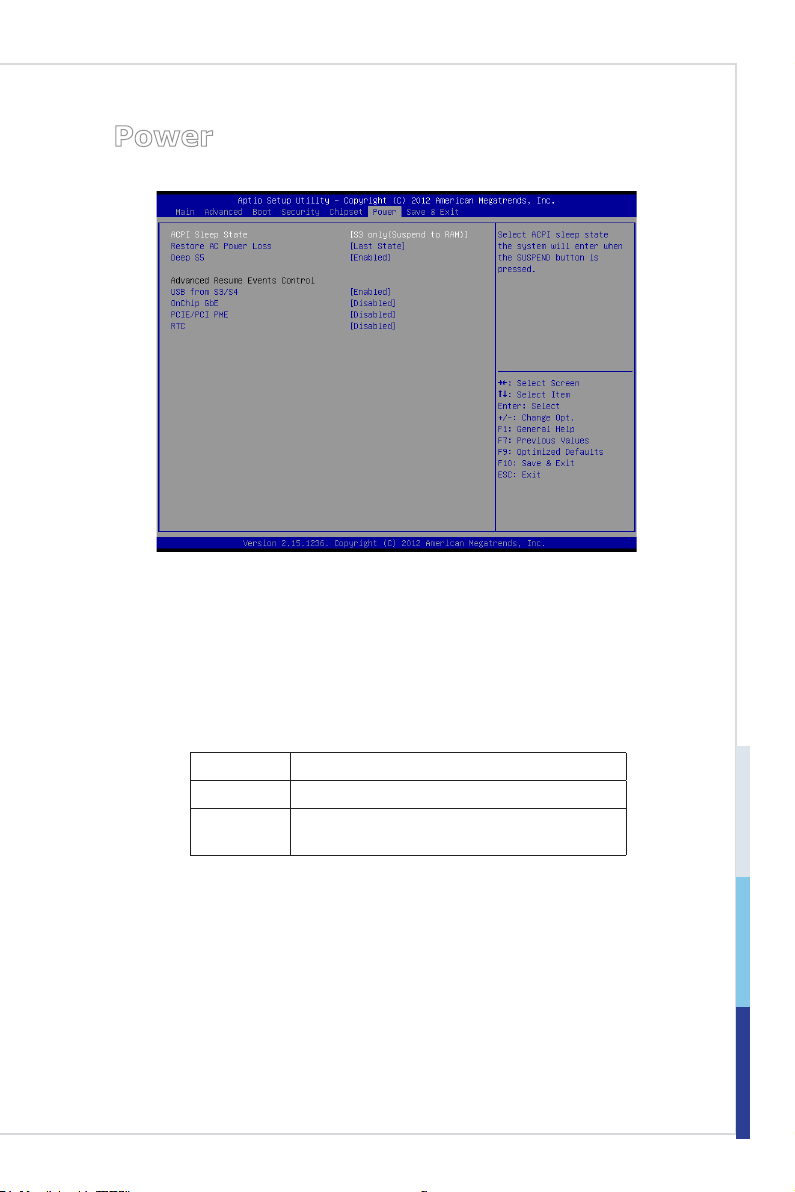

Power .......................................................................................................3-19

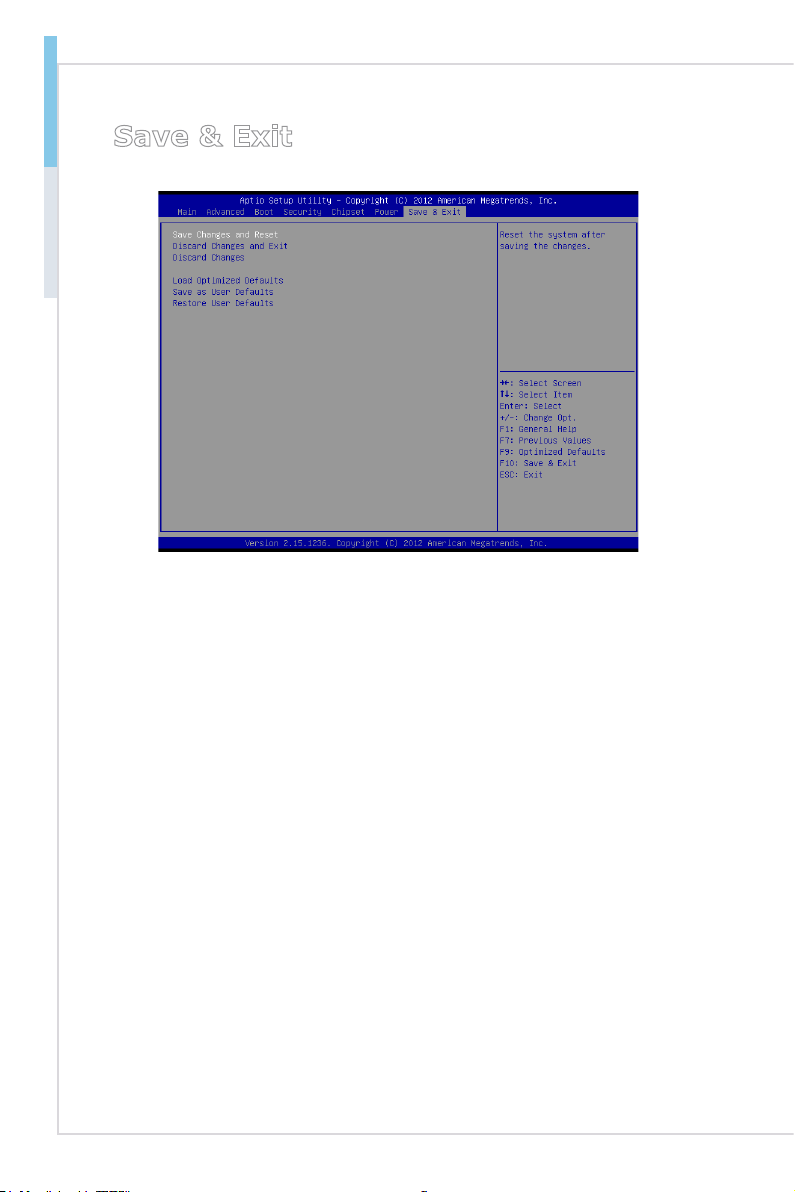

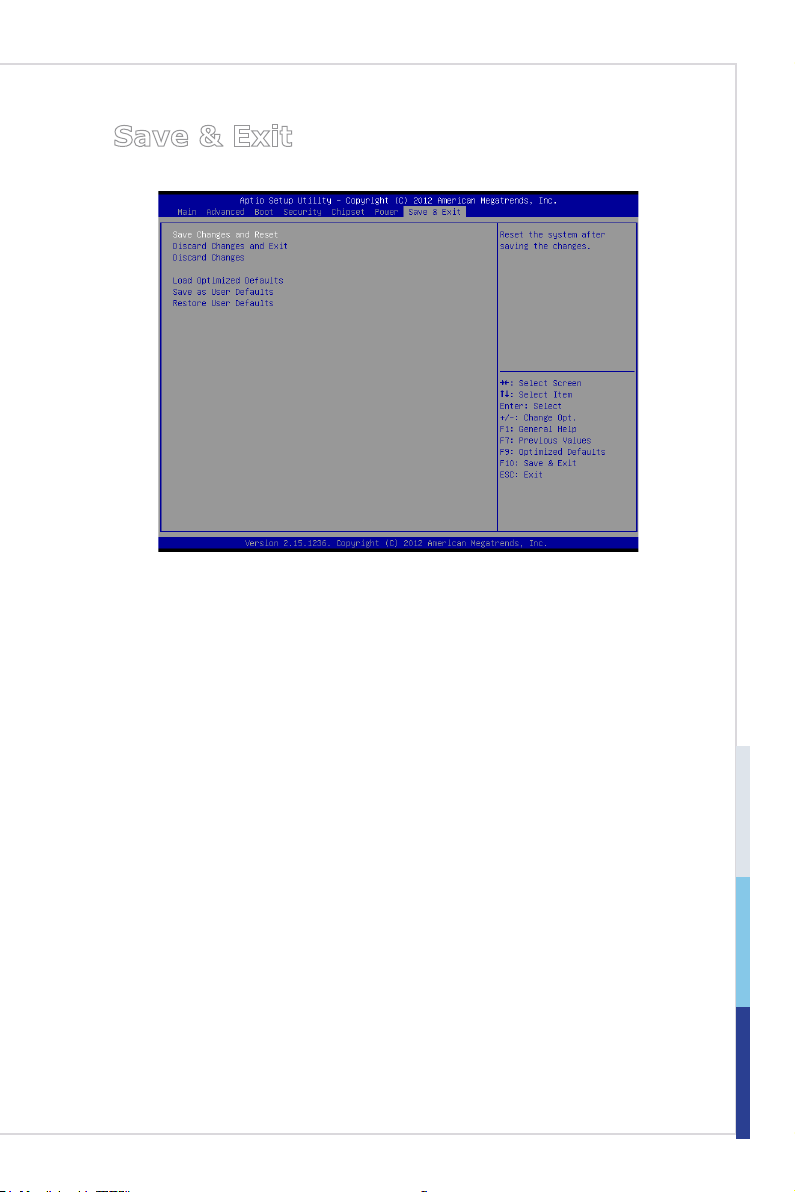

Save & Exit

............................................................................................ ii

.......................................................................................... ii

.........................................................................................iii

............................................................... iv

....................................................................................... iv

............................................................................................... v

......................................... v

......................................................................................1-5

....................................................................................................3-13

...............................................................................................3-21

MS-98B5 H81 SKU ..................................................................................3-22

The Menu Bar ..........................................................................................3-22

Main

.........................................................................................................3-23

Advanced .................................................................................................3-24

Boot .......................................................................................................... 3-30

Security

....................................................................................................3-31

Chipset

.....................................................................................................3-35

Power .......................................................................................................3-36

Save & Exit

...............................................................................................3-38

Appendix WDT & GPIO ...................................................................A-1

WDT Sample Code ................................................................................... A-2

GPIO Sample Code .................................................................................. A-3

vii

1 Overview

Thank you for choosing the MS-98B5, an excellent industrial computer board.

Based on the innovative Intel efficiency, the MS-98B5 accommodates the Intel® Haswell processor and supports up to 4 DDR3/DDR3L 1333/1600 UDIMM slots to provide the maximum of 32GB memory capacity.

In the advanced-level and mid-range market segment, MS-98B5 provides a high-performance solution for today’s front-end and general purpose workstation, as well as in the future.

®

H81/ Q87 chipset for optimal system

1-1-1

1-2

Overview MS-98B5

Mainboard Specications

Processor

4th generation Intel Core i3/ i5/ i7 processor (LGA1150)■

Chipset

Q87 SKU

■

Intel Q87 chipset

-

H81 SKU

■

Intel H81 chipset

-

Memory

Q87 SKU

■

4 DDR3/DDR3L 1333/1600 UDIMM slots

-

Supports the maximum of 32GB

-

Supports dual-channel mode

-

H81 SKU

■

2 DDR3/DDR3L 1333/1600 UDIMM slots

-

Supports the maximum of 16GB

-

Supports dual-channel mode

-

LAN

Intel I217-LM Gigabit Fast Ethernet controller (LAN1)

■

Intel I210-AT Gigabit Fast Ethernet controller (LAN2)

■

SATA

Q87 SKU

■

6 SATA 6Gb/s ports (SATA1, SATA2, SATA3, SATA4, SATA5_3,

-

SATA6_4)

H81 SKU

■

2 SATA 6Gb/s ports (SATA1, SATA2)

-

2 SATA 3Gb/s ports (SATA5_3, SATA6_4)

-

Audio

Realtek ALC887 audio codec

■

3 audio jacks

■

Graphics

Graphics integrated in Intel processor■

Rear Panel I/O

Q87 SKU

■

1 PS/2 mouse/keyboard combo port

-

2 RS-232/422/485 serial ports

-

2 Gigabit LAN jacks

-

4 USB 3.0 ports

-

2 USB 2.0 ports

-

1 DVI-I port

-

1 DisplayPort

-

3 flexible audio ports

-

H81 SKU

■

1 PS/2 mouse/keyboard combo port

-

2 RS-232/422/485 serial ports

-

2 Gigabit LAN jacks

-

2 USB 3.0 ports

-

4 USB 2.0 ports

-

1 DVI-I port

-

1 DisplayPort

-

3 flexible audio ports

-

Onboard Pin Headers/ Connectors/ Jumpers

Q87 SKU

■

6 SATA 6Gb/s ports

-

3 USB 2.0 connectors (6 ports)

-

4 RS-232 serial port connectors

-

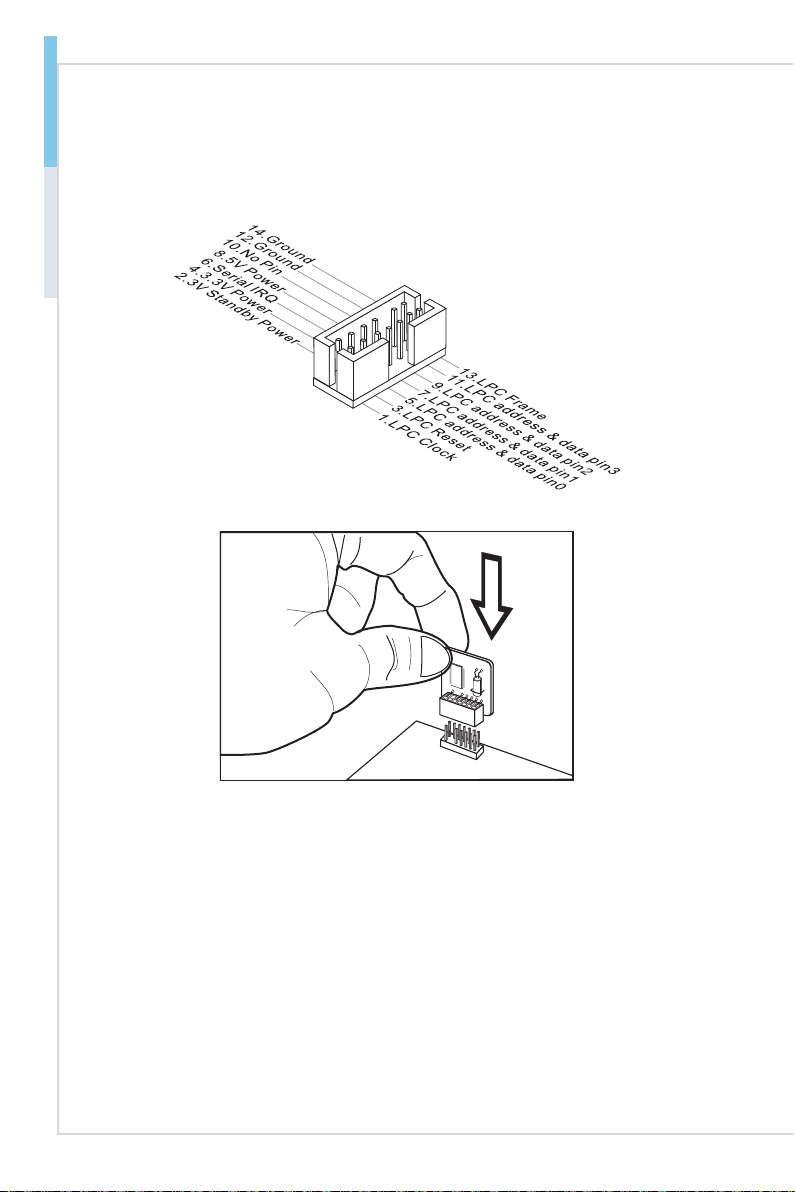

1 TPM connector

-

1 parallel port connector

-

1 front panel connector

-

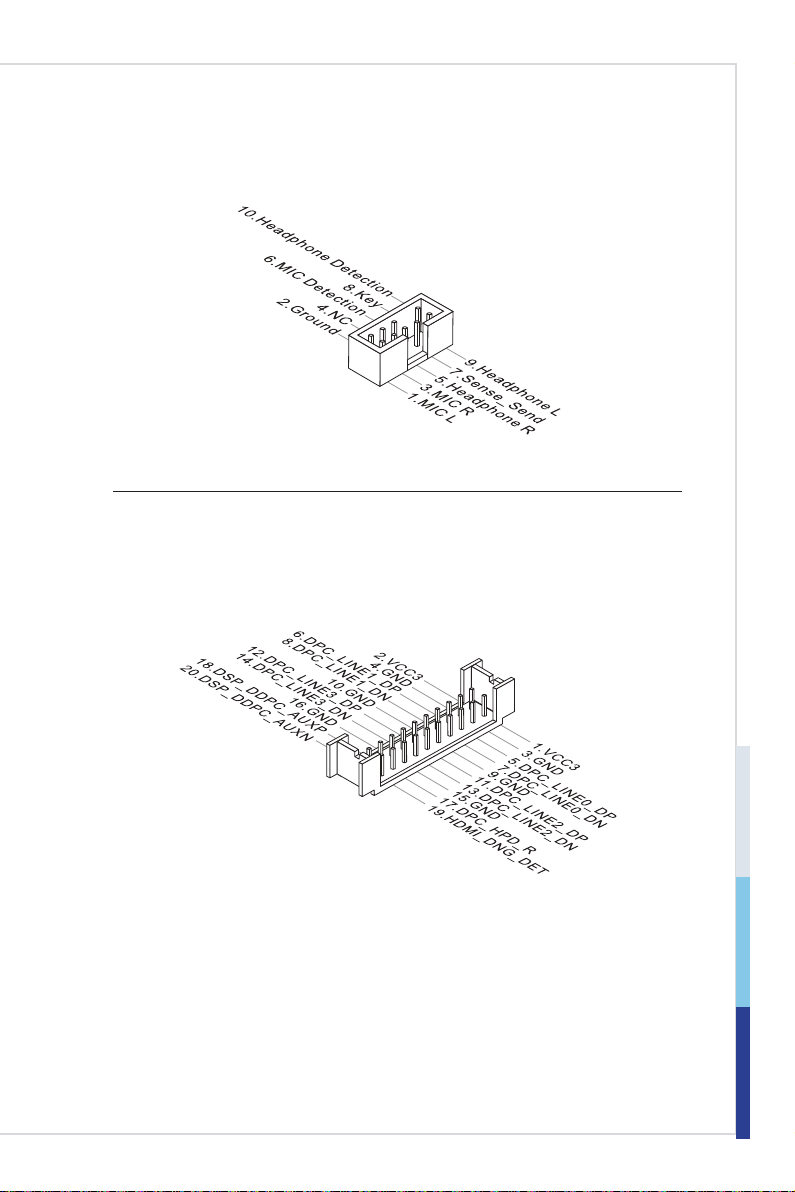

1 front audio connector

-

1 GPIO pin header

-

1 SMBus connector

-

1 DisplayPort connector

-

1 chassis intrusion pin header

1 clear CMOS jumper

-

6 serial port power jumpers

1 AT/ATX select jumper

-

1 non-volatile memory jumper

-

H81 SKU

■

2 SATA 6Gb/s ports

-

2 SATA 3Gb/s ports

-

2 USB 2.0 connectors (4 ports)

-

4 RS-232 serial port connectors

-

1 TPM connector

-

1 parallel port connector

-

1 front panel connector

-

1 front audio connector

-

1 GPIO pin header

-

1 SMBus connector

-

1 DisplayPort connector

-

1 chassis intrusion pin header

1 clear CMOS jumper

-

6 serial port power jumpers

1 AT/ATX select jumper

-

1 non-volatile memory jumper

-

1-3

1-4

Overview MS-98B5

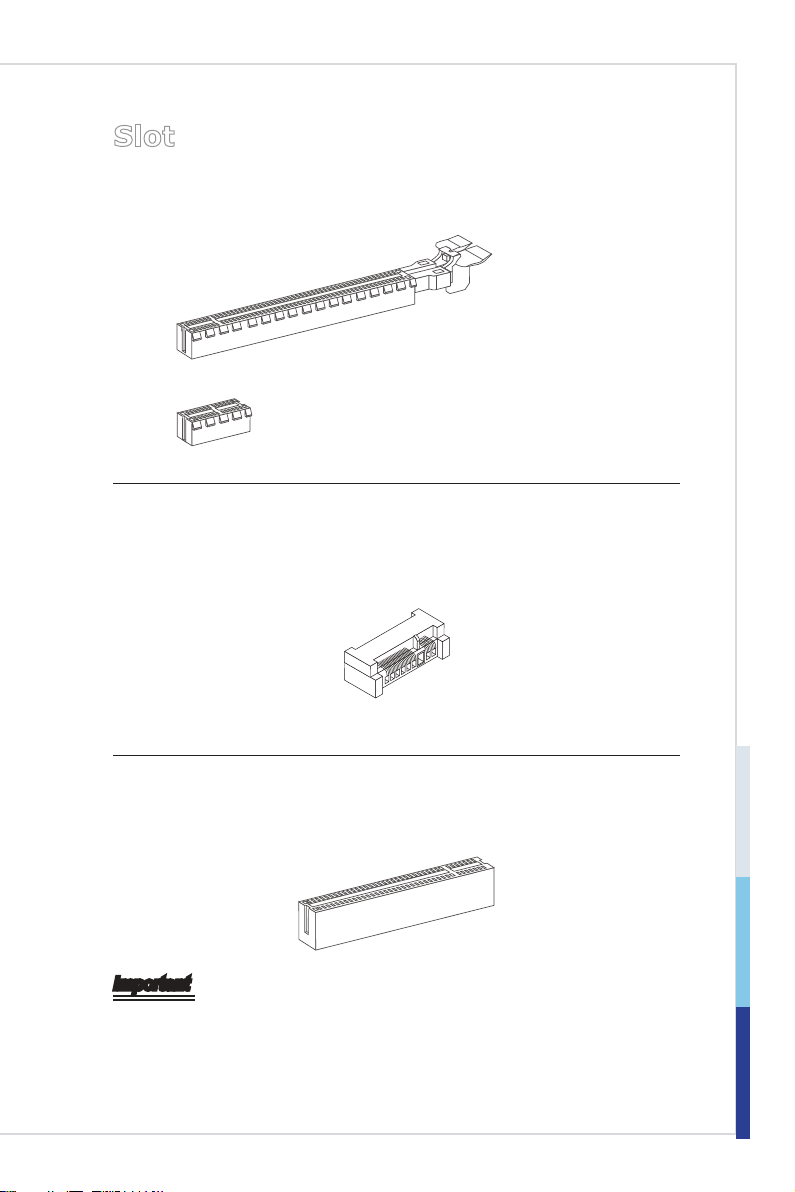

Slot

Q87 SKU

■

1 PCIe x16 slot (Gen 3)

-

3 PCIe x1 slots

-

2 full-size Mini-PCIe slots

-

3 PCI slots

-

H81 SKU

■

1 PCIe x16 slot (Gen 2)

-

3 PCIe x1 slots

-

3 PCI slots

-

Form Factor

ATX form factor: 12” x 9.6”■

Environmental

Operating Temperature: 0oC ~ 60oC

■

Storage Temperature: -20oC ~ 80oC

■

Humidity: 5% ~ 90% RH, Non-Condensing

■

SKU Comparison

SKUs

Features

PCH Q87 H81

DIMM slot 4 2

SATA 6 G/bs qty 6 2

SATA 3 G/bs qty 0 2

Rear panel USB

Onboard USB pin header

Mini-PCIe slot 2 0

Q87 SKU H81 SKU

4 USB 3.0

2 USB 2.0

3 USB 2.0 (6 Ports) 2 USB 2.0 (4 Ports)

2 USB 3.0

4 USB 2.0

Mainboard Layout

MS-98B5 Q87 SKU

Back Panel

PCIe Slot

COM Port Jumper

System Fan

DisplayPort Connector

NVM Jumper

Connector

CPU Socket

CPU Fan Connector

Power Connector

DIMM Slots

System Fan Connector

Power Connector

Front Audio

Connector

PCI Slot

AT/ATX Jumper

Chassis Intru-

sion Pin Header

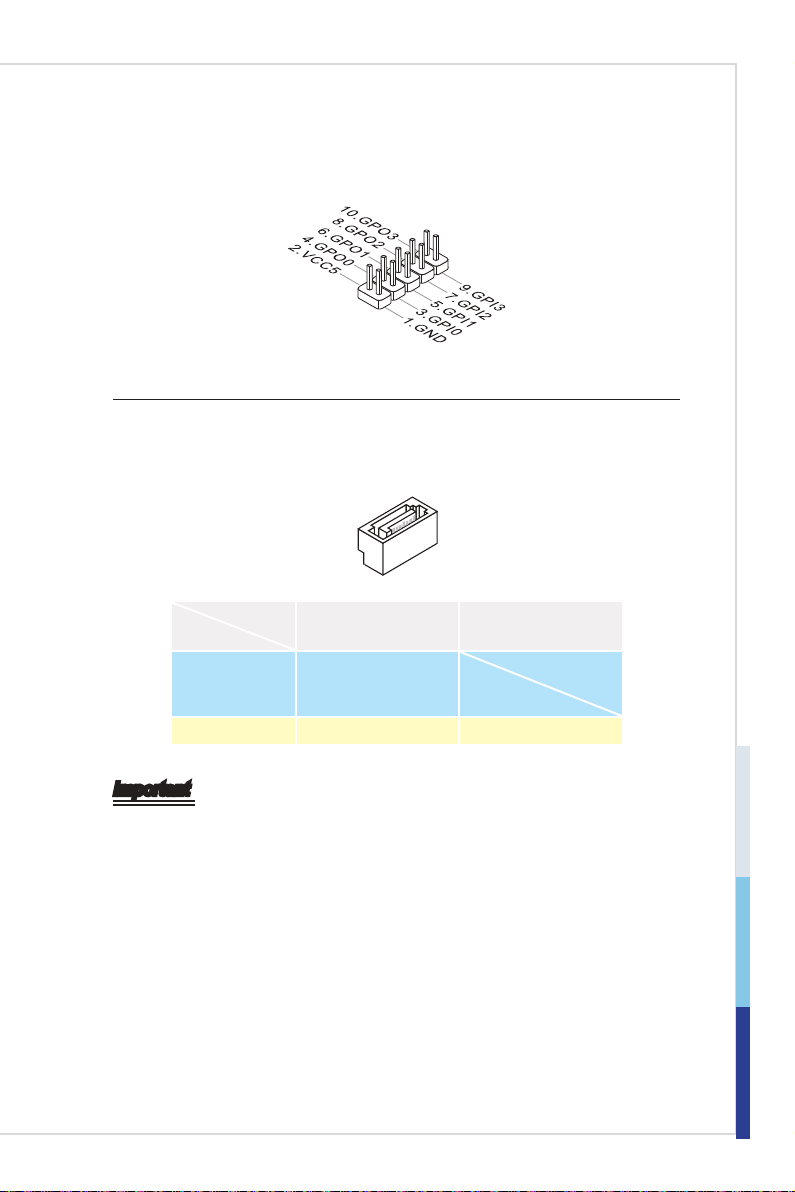

GPIO Pin Header

PCIe Slot

Front Panel

Connector

Mouse/

Keyboard

Combo

USB 2.0

Parallel Port Connector

Port

LAN Port

USB 3.0

Port

COM Port Connector/Jumper

LAN Port

Port

TPM Connector

Serial Port

Serial Port USB 3.0

USB 2.0 Pin Header

DVI-I Port

DisplayPort

Clear CMOS Jumper

SATA Port

SMBus Connector

System Fan Connector

Mini-PCIe Slot

Line-In

Line-Out

Mic-In

1-5

Overview MS-98B5

MS-98B5 H81 SKU

Back Panel

PCIe Slot

Front Audio

Connector

PCI Slot

AT/ATX Jumper

Chassis Intru-

sion Pin Header

GPIO Pin Header

PCIe Slot

Front Panel

Connector

COM Port Jumper

System Fan

Connector

Parallel Port Connector

DisplayPort Connector

NVM Jumper

TPM Connector

CPU Socket

Power Connector

COM Port Connector/Jumper

System Fan ConnectorCPU Fan Connector

DIMM Slots

USB 2.0 Pin Header

Power Connector

Clear CMOS Jumper

SATA Port

SMBus Connector

System Fan Connector

1-6

Mouse/

Keyboard

Combo

Port

USB 2.0

Port

Serial Port

Serial Port USB 2.0

LAN

Port

USB 3.0

Port

LAN Port

Port

DVI-I Port

DisplayPort

Line-In

Line-Out

Mic-In

2 Hardware Setup

This chapter provides you with the information about hardware setup procedures. While doing the installation, be careful in holding the com ponents and follow the installation procedures. For some components, if you install in the wrong orientation, the components will not work properly. Use a grounded wrist strap before handling computer components. Static electricity may damage the components.

-

2-2-1

2-2

Hardware Setup MS-98B5

Components Reference Guide

CPU (Central Processing Unit) ........................................................2-3

Memory ..............................................................................................2-6

Power Supply ....................................................................................2-8

System Power Connector: JPWR1 ............................................................2-8

CPU Power Connector: JPWR2 .................................................................2-8

Rear Panel I/O ...................................................................................2-9

Connector ........................................................................................2-12

Fan Power Connector: CPUFAN1, SYSFAN1 ~ SYSFAN3 ..................... 2-12

GPIO Pin Header: JGPIO1

Serial ATA Connector: SATA1 ~ SATA6

I2C Bus Connector: JSMB1 .....................................................................2-14

Front Panel Connector: JFP1 ...................................................................2-14

USB 2.0 Connector: JUSB1, JUSB2, JUSB3 ...........................................2-15

RS-232 Serial Port Connector: JCOM3 ~ JCOM6

TPM Module Connector: JTPM1 .............................................................. 2-16

Front Audio Connector: JAUD1

DisplayPort Connector: JDP1

Chassis Intrusion Pin Header: JCI1

Parallel Port Connector: JLPT1 ................................................................2-18

Jumper.............................................................................................2-19

Clear CMOS Jumper: JBAT1 ...................................................................2-19

AT/ATX Select Jumper: JAT1 ................................................................... 2-19

Serial Port Power Jumper: JCOMP1 ~ JCOMP6

Non-Volatile Memory Jumper: JNVM1

Slot ...................................................................................................2-21

PCIe (Peripheral Component Interconnect Express) Slot ........................ 2-21

Mini-PCIe (Peripheral Component Interconnect Express) Slot

PCI (Peripheral Component Interconnect) Slot

......................................................................2-13

...................................................2-13

...................................2-15

................................................................ 2-17

..................................................................2-17

.........................................................2-18

.....................................2-20

.....................................................2-20

................2-21

........................................ 2-21

CPU (Central Processing Unit)

When installing the CPU, make sure that you install the cooler to prevent overheating. If you do not have the CPU cooler, consult your dealer before turning on the computer.

Important

Overheating

Overheating will seriously damage the CPU and system. Always make sure the cooling fan can work properly to protect the CPU from overheating. Make sure that you apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.

Replacing the CPU

While replacing the CPU, always turn off the power supply or unplug the power supply’s power cord from the grounded outlet first to ensure the safety of CPU.

Introduction to LGA 115x CPU

The surface of LGA 115x CPU. Remember to apply some thermal paste on it for better heat dispersion.

Alignment Key

Yellow triangle is the Pin 1 indicator

Alignment Key

2-3

2-4

Hardware Setup MS-98B5

CPU Installation

When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion.

Open the load lever and remove the

1. Lift the load lever up to fully open plastic cap.

After con󰘰rming the CPU direction for

3. Engage the load lever while pressing correct mating, put down the CPU in the socket housing frame. Be sure to grasp on the edge of the CPU base. Note that the alignment keys are matched.

2. position.

4. down lightly onto the load plate.

Alignment Key

Important

Visually inspect if the CPU is seated well into the socket. If not, take out the CPU with pure vertical motion and reinstall.

Secure the load lever with the hook

5. Make sure the four hooks are in proper under the retention tab.

Press the four hooks down to fasten

7. Finally, attach the CPU Fan cable the cooler. Turn over the motherboard to con󰘰rm that the clip-ends are correctly inserted.

6. position before you install the cooler. Align the holes on the motherboard with the cooler. Push down the cooler until its four clips get wedged into the holes of the motherboard.

8. to the CPU fan connector on the motherboard.

Important

Confirm if your CPU cooler is firmly installed before turning on your system.

•

Do not touch the CPU socket pins to avoid damage.

•

Whenever CPU is not installed, always protect your CPU socket pins with the plastic

•

cap covered. Please refer to the documentation in the CPU cooler package for more details about

•

the CPU cooler installation. Read the CPU status in BIOS.

•

2-5

2-6

Hardware Setup MS-98B5

Memory

Dual-Channel Mode

In Dual-Channel mode, make sure that you install memory modules of the same type and density in different channel DIMM slots.

Q87 SKU

DIMM1 (Channel A) DIMM2 (Channel A) DIMM3 (Channel B) DIMM4 (Channel B)

H81 SKU

DIMM1 (Channel A)

DIMM3 (Channel B)

Recommended Memory Population

Q87 SKU

Number of DIMMs installed 1 2 3 4

DIMM1 (ch A) V V V V

DIMM2 (ch A) V V

DIMM3 (ch B) V V V

DIMM4 (ch B) V

H81 SKU

Number of DIMMs installed 1 2

DIMM1 (ch A) V V

DIMM3 (ch B) V

Important

"V" indicates a populated DIMM slot.

•

Paired memory installation for Max performance.

•

Populate the same DIMM type in each channel, specifically: 1. Use the same

•

DIMM size; 2. Use the same number of ranks per DIMM.

Installing Memory Modules

The memory module has only one notch on the center and will only 󰘰t in the

1. right orientation.

Insert the memory module vertically into the DIMM slot. Then push it in until

2. the golden 󰘰nger on the memory module is deeply inserted in the DIMM slot. The plastic clip at each side of the DIMM slot will automatically close when the memory module is properly seated.

Manually check if the memory module has been locked in place by the DIMM

3. slot clips at the sides.

Notch

Volt

Important

You can barely see the golden finger if the memory module is properly inserted

•

in the DIMM slot. To enable successful system bootup, always insert the memory module into

•

the DIMM1 first.

2-7

2-8

Hardware Setup MS-98B5

13 .+ 3. 3

V

1. +3 .3

V

14 .- 12 V

2. +3 .3

V

15 .G ro un d

3

.G ro un d

16 .P S- ON #

4. +5 V

17 .G ro un d

5

.G ro un d

18 .G ro un d

6. +5 V

19 .G ro un d

7

.G ro un d

22 .+ 5

V

10 .+ 12 V

20 .- 5

V

8. PW R O

K

23 .+ 5

V

11

.+ 12 V

21 .+ 5

V

9. 5V SB

24 .G ro un d

12 .+ 3. 3

V

4. +1 2V

2

.G ro un d

3. +1 2V

1

.G ro un d

Power Supply

System Power Connector: JPWR1

This connector allows you to connect a power supply. To connect to the power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.

CPU Power Connector: JPWR2

This connector is used to provide power to the CPU.

Important

Make sure that all power connectors are connected to the power supply to ensure stable operation of the motherboard.

Rear Panel I/O

Q87 SKU

Mouse/

Keyboard

Combo

Port

Serial Port

LAN

Port

LAN Port

DVI-I Port

Line-In

Line-Out

USB 2.0

Port

Serial Port USB 3.0

USB 3.0

Port

DisplayPort

Mic-In

H81 SKU

Mouse/

Keyboard

Combo

Port

USB 2.0

Port

Keyboard / Mouse Combo Port



Serial Port

Serial Port USB 2.0

The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/keyboard.

USB 2.0 Port



The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices.

USB 3.0 Port



The USB 3.0 port is backward-compatible with USB 2.0 devices and supports data transfer rate up to 5 Gbit/s (SuperSpeed).

LAN Port

USB 3.0

Port

LAN Port

Port

DVI-I Port

DisplayPort

Line-In

Line-Out

Mic-In

2-9

2-10

Hardware Setup MS-98B5

RS-232/422/485 Serial Port



The serial port is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector.

RS-232

PIN SIGNAL DESCRIPTION

1 2 3 4 5 6 7 8 9

DCD RXD TXD DTR GND DSR RTS CTS VCC_COM1

Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request To Send Clear To Send Voltage select setting by jumper

RS-422

PIN SIGNAL DESCRIPTION

1 2 3 4 5 6 7 8 9

422 TXD422 RXD+ 422 TXD+ 422 RXDGND NC NC NC NC

Transmit Data, Negative Receive Data, Positive Transmit Data, Positive Receive Data, Negative Signal Ground No Connection No Connection No Connection No Connection

RS-485

PIN SIGNAL DESCRIPTION

1

485 TXD-

2

NC

3

485 TXD+

4

NC

5

GND

6

NC

7

NC

8

NC

9

NC

Transmit Data, Negative No Connection Transmit Data, Positive No Connection Signal Ground No Connection No Connection No Connection No Connection

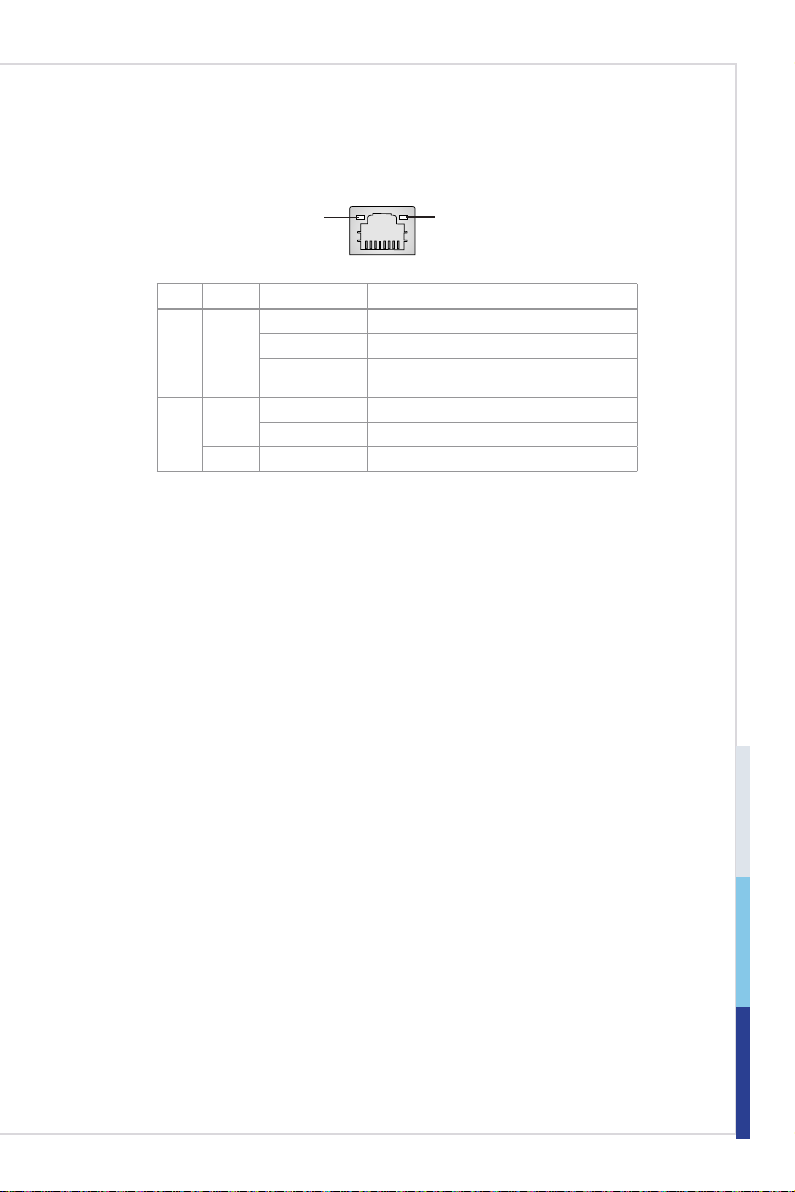

LAN Jack



The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You can connect a network cable to it.

Yellow Green/ Orange

LED Color LED State Condition

Left Yellow Off LAN link is not established.

On (steady state) LAN link is established.

On (blinking) The computer is communicating with another

Right

Green Off 10 Mbit/sec data rate is selected.

On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

computer on the LAN.

DVI-I Port



The DVI-I (Digital Visual Interface-Integrated) connector allows you to connect an LCD monitor. It provides a high-speed digital interconnection between the computer and its display device. To connect an LCD monitor, simply plug your monitor cable into the DVI connector, and make sure that the other end of the cable is properly connected to your monitor (refer to your monitor manual for more information.)

DisplayPort



DisplayPort is a digital display interface standard. This connector is used to connect a monitor with DisplayPort inputs.

Audio Ports



These audio connectors are used for audio devices. It is easy to differentiate between audio effects according to the color of audio jacks.

Line-In (Blue) - Line In, is used for external CD player, tapeplayer or other

■

audio devices. Line-Out (Green) - Line Out, is a connector for speakers or headphones.

■

Mic (Pink) - Mic, is a connector for microphones.

■

2-11

2-12

Hardware Setup MS-98B5

Connector

Fan Power Connector: CPUFAN1, SYSFAN1 ~ SYSFAN3

The fan power connectors support system cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the motherboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

Important

Please refer to the recommended CPU fans at processor’s official website or

•

consult the vendors for proper CPU cooling fan. Fan cooler sets with 3- or 4-pin power connector are both available.

•

GPIO Pin Header: JGPIO1

This connector is provided for the General-Purpose Input/Output (GPIO) peripheral module.

Serial ATA Connector: SATA1 ~ SATA6

This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device.

Speed

SKU

Q87 SKU

H81 SKU SATA1, SATA2 SATA5_3, SATA6_4

SATA 6 Gb/s SATA 3 Gb/s

SATA1, SATA2, SATA3, SATA4,

SATA5_3, SATA6_4

Important

Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission.

2-13

2-14

Hardware Setup MS-98B5

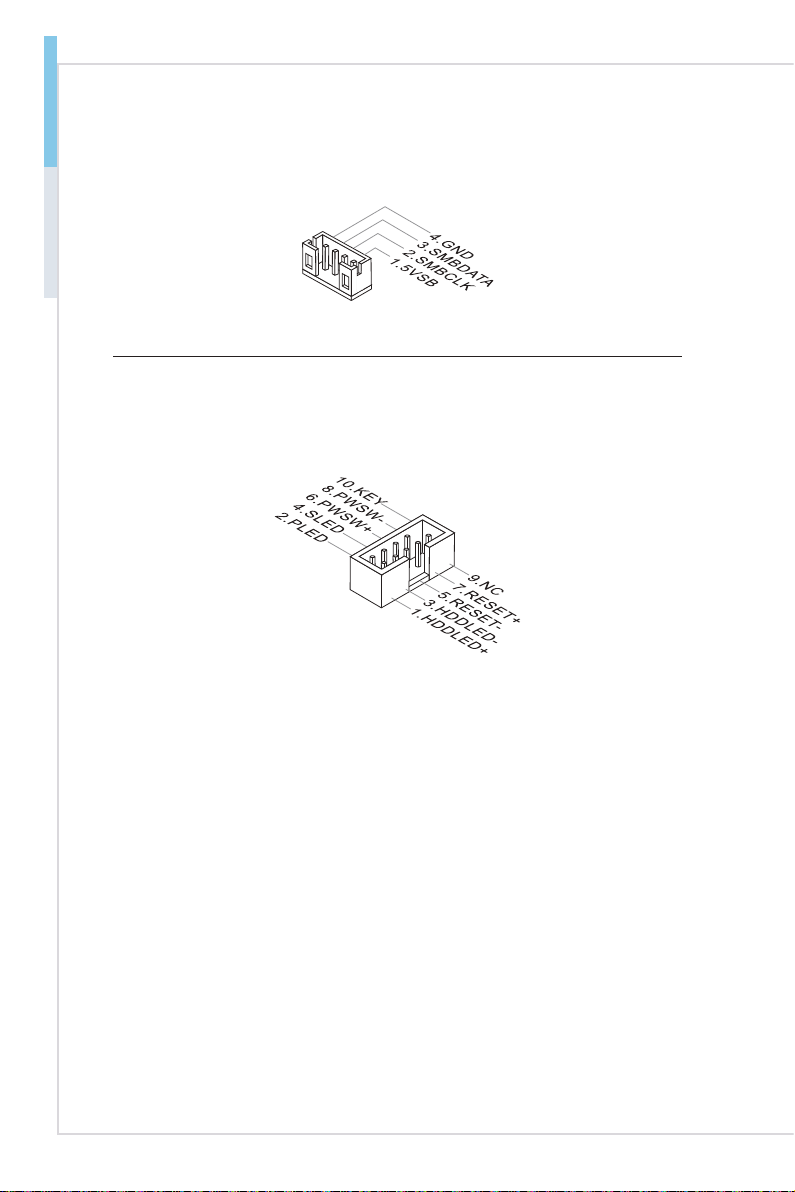

I2C Bus Connector: JSMB1

This connector, known as I2C, is for users to connect System Management Bus (SMBus) interface.

Front Panel Connector: JFP1

This front panel connector is provided for electrical connection to the front panel switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design Guide.

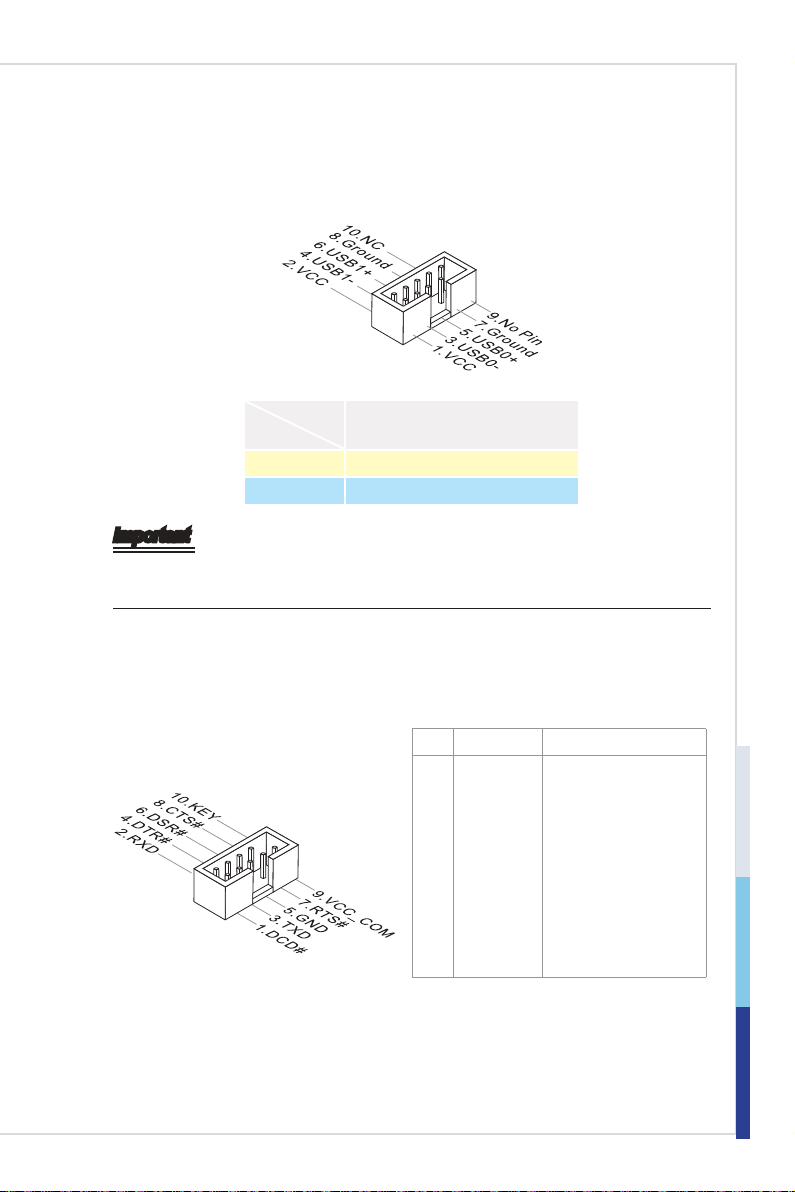

USB 2.0 Connector: JUSB1, JUSB2, JUSB3

This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

Speed

SKU

USB 2.0

Q87 SKU JUSB1, JUSB2, JUSB3 H81 SKU JUSB1, JUSB2

Important

Note that the pins of VCC and GND must be connected correctly to avoid possible damage.

RS-232 Serial Port Connector: JCOM3 ~ JCOM6

This connector is a 16550A high speed communications port that sends/receives 16 bytes FIFOs. You can attach a serial device to it.

PIN SIGNAL DESCRIPTION

1

DCD

2

RXD

3

TXD

4

DTR

5

GND

6

DSR

7

RTS

8

CTS

9

VCC_COM

Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request To Send Clear To Send 12V or 5V power output,

selected by jumper

2-15

2-16

Hardware Setup MS-98B5

TPM Module Connector: JTPM1

This connector connects to a TPM (Trusted Platform Module) module (optional). Please refer to the TPM security platform manual for more details.

Front Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with Intel Front Panel I/O Connectivity Design Guide.

DisplayPort Connector: JDP1

DisplayPort is a digital display interface standard. This connector is used to connect a monitor with DisplayPort inputs.

2-17

2-18

Hardware Setup MS-98B5

1

.

C

I

N

T

R

U

2

.

G

r

o

u

n

d

1.RSTB

#

3.PRND0

5.PRND1

7.PRND2

9.PRND3

11

.PRND4

13.PRND 5

15.PRND 6

17.PRND 7

19.ACK#

21.BUSY

23.PE

25.SLCT

10.Grou nd

14.Grou nd

8.LPT_S LI N

#

12.Grou nd

6.PINIT #

4.ERR#

2.AFD#

24.Grou nd

22.Grou nd

26.No

Pi

n

20.Grou nd

18.Grou nd

16.Grou nd

Chassis Intrusion Pin Header: JCI1

This connector connects to the chassis intrusion switch cable. If the computer case is opened, the chassis intrusion mechanism will be activated. The system will record this intrusion and a warning message will flash on screen. To clear the warning, you must enter the BIOS utility and clear the record.

Parallel Port Connector: JLPT1

The mainboard provides a 26-pin header for connection to an optional parallel port bracket. The parallel port is a standard printer port that supports Enhanced Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.

Jumper

Important

Avoid adjusting jumpers when the system is on; it will damage the motherboard.

Clear CMOS Jumper: JBAT1

There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system configuration. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, set the jumper to clear data.

11

Normal Clear CMOS

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the motherboard.

AT/ATX Select Jumper: JAT1

This jumper allows users to select between AT and ATX power.

11

ATX AT

2-19

2-20

Hardware Setup MS-98B5

Serial Port Power Jumper: JCOMP1 ~ JCOMP6

These jumpers specify the operation voltage of the onboard serial ports.

1 1

+5V +12V

1 1

+5V +12V

11

+5V +12V

11

+5V +12V

Non-Volatile Memory Jumper: JNVM1

This jumper is used to enable/disable the BIOS flash. When you intend to update the BIOS code, short connect pin#2-3 first. Under normal operation, we suggest that you enable the BIOS flash protection by short connecting pin#1-2 to protect the system BIOS from virus infection.

1 1

Flash Security

Enable

Flash Security

Disable

Slot

PCIe (Peripheral Component Interconnect Express) Slot

The PCI Express slot supports PCIe interface expansion cards.

PCIe x16 slot

PCIe x1 slot

Mini-PCIe (Peripheral Component Interconnect Express) Slot (Q87 SKU only)

The Mini-PCIe slot is provided for wireless LAN cards, TV tuner cards, Robson NAND Flash cards and other Mini-PCIe cards.

PCI (Peripheral Component Interconnect) Slot

The PCI slot supports PCI interface expansion cards.

Important

When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.

2-21

3 BIOS Setup

This chapter provides information on the BIOS Setup program and allows users to configure the system for optimal use.

Users may need to run the Setup program when:

An error message appears on the screen at system startup and re-

■

quests users to run SETUP. Users want to change the default settings for customized features.

■

Important

Please note that BIOS update assumes technician-level experience.

• As the system BIOS is under continuous update for better system

• performance, the illustrations in this chapter should be held for reference only.

2-3-1

3-2

BIOS Setup MS-98B5

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> or <F2> key to enter Setup.

Press <DEL> or <F2> to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Important

The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.

Control Keys

← → Select Screen

↑ ↓ Select Item

Enter Select

+ - Change Option

F1

F7 Previous Values

F9 Optimized Defaults

F10 Save & Exit

Esc Exit

General Help

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use

the arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted

setup function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol appears to the left of certain fields that means a sub-menu can be launched from this field. A sub-menu contains additional op-

tions for a field parameter. You can use arrow keys ( ↑↓ ) to highlight the field

and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.

3-3

3-4

BIOS Setup MS-98B5

MS-98B5 Q87 SKU

The Menu Bar

Main

▶

Use this menu for basic system configurations, such as time, date, etc.

Advanced

▶

Use this menu to set up the items of special enhanced features.

Boot

▶

Use this menu to specify the priority of boot devices.

Security

▶

Use this menu to set supervisor and user passwords.

Chipset

▶

This menu controls the advanced features of the onboard chipsets.

Power

▶

Use this menu to specify your settings for power management.

Save & Exit

▶

This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes.

Main

System Date

▶

This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>.

System Time

▶

This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>.

SATA Mode Selection

▶

This setting specifies the SATA controller mode.

3-5

3-6

BIOS Setup MS-98B5

Advanced

Full Screen Logo Display

▶

This BIOS feature determines if the BIOS should hide the normal POST mes sages with the motherboard or system manufacturer’s full-screen logo.

When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.

When it is disabled, the BIOS will display the normal POST messages, instead of the full-screen logo.

Please note that enabling this BIOS feature often adds 2-3 seconds of delay to the booting sequence. This delay ensures that the logo is displayed for a suf ficient amount of time. Therefore, it is recommended that you disable this BIOS feature for a faster boot-up time.

Bootup NumLock State

▶

This setting is to set the Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. Setting to [Off] will allow users to use the arrow keys on the numeric keypad.

Option ROM Messages

▶

This item is used to determine the display mode when an optional ROM is ini tialized during POST. When set to [Force BIOS], the display mode used by AMI BIOS is used. Select [Keep Current] if you want to use the display mode of op tional ROM.

-

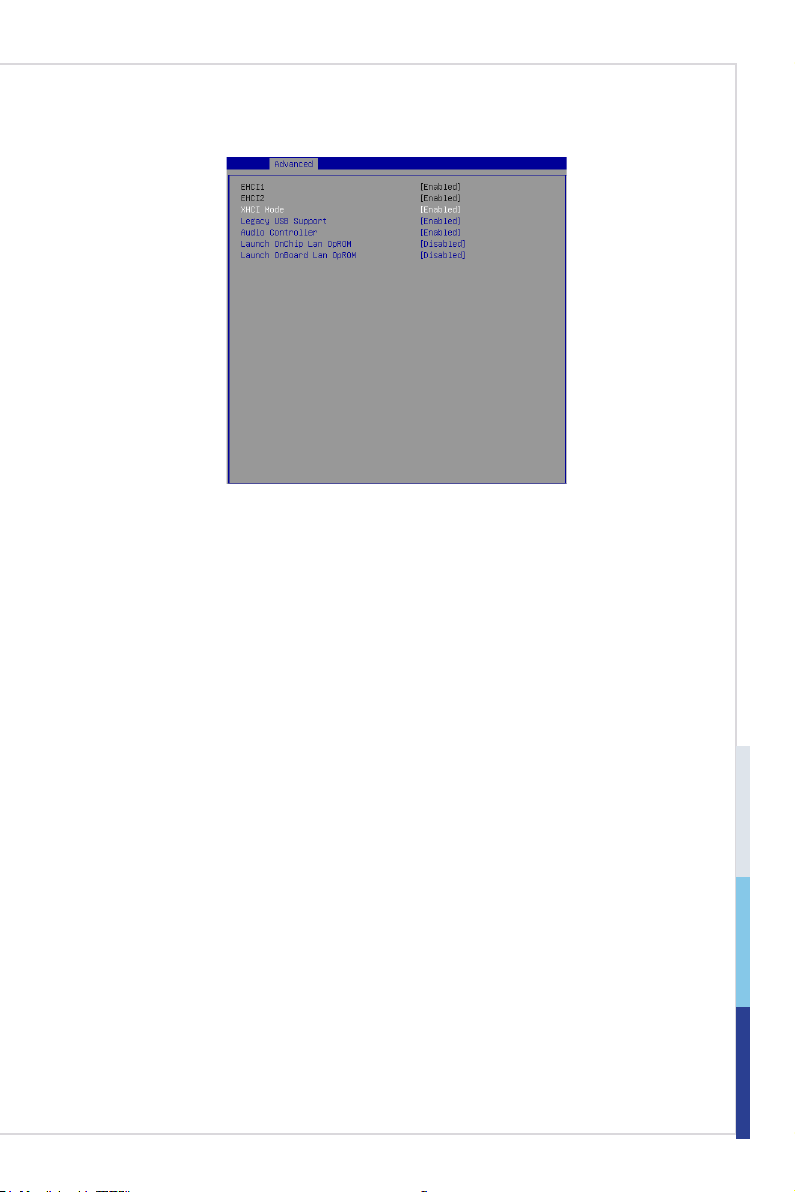

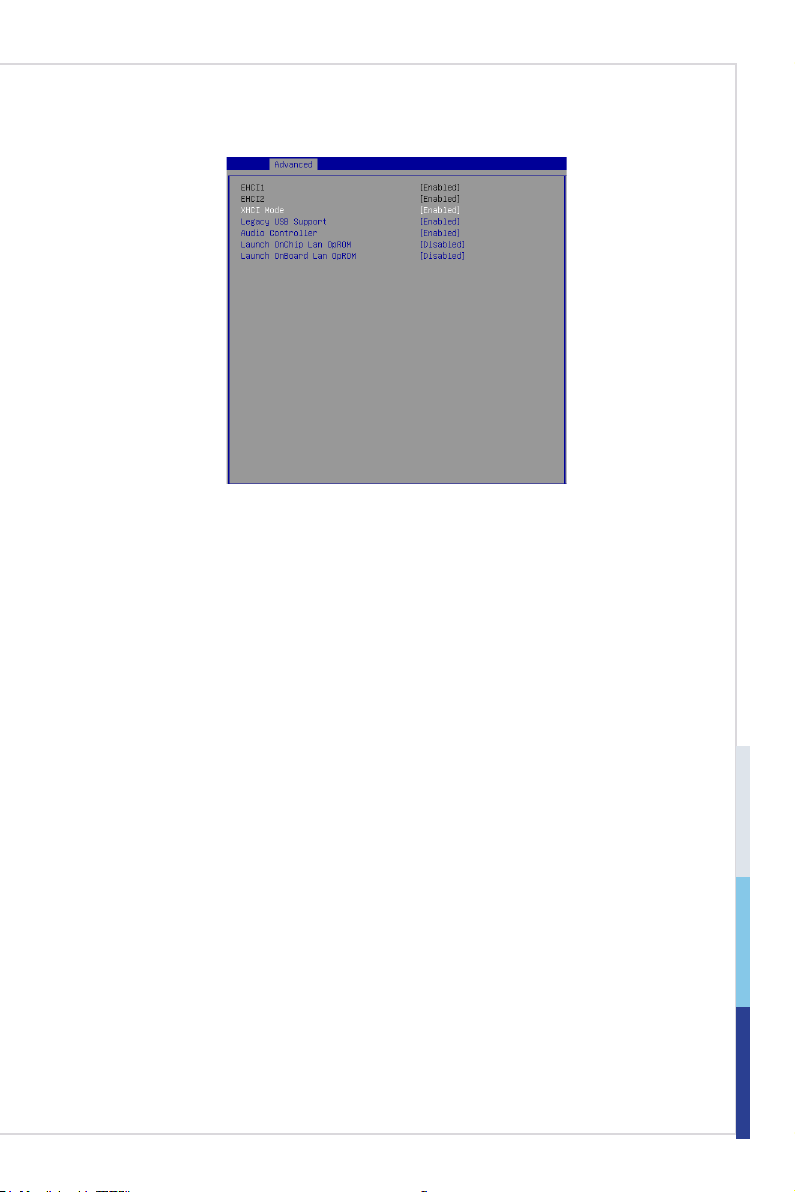

PCI/PCIE Device Configuration

▶

EHCI1, EHCI2

▶

This setting disables/enables the USB EHCI controller. The Enhanced Host Controller Interface (EHCI) specification describes the register-level interface for a Host Controller for the Universal Serial Bus (USB) Revision 2.0.

XHCI Mode

▶

This setting disables/enables the USB XHCI controller. The eXtensible Host Controller Interface (XHCI) is a computer interface specification that defines a register-level description of a Host Controller for Universal Serial bus (USB), which is capable of interfacing to USB 1.0, 2.0, and 3.0 compatible devices. The specification is also referred to as the USB 3.0 Host Controller specifica tion.

Legacy USB Support

▶

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix.

Audio Controller

▶

This setting enables/disables the onboard audio controller.

Launch OnChip/OnBoard LAN OpROM

▶

These settings enable/disable the initialization of the onboard/onchip LAN Boot ROM during bootup. Selecting [Disabled] will speed up the boot pro cess.

-

3-7

3-8

BIOS Setup MS-98B5

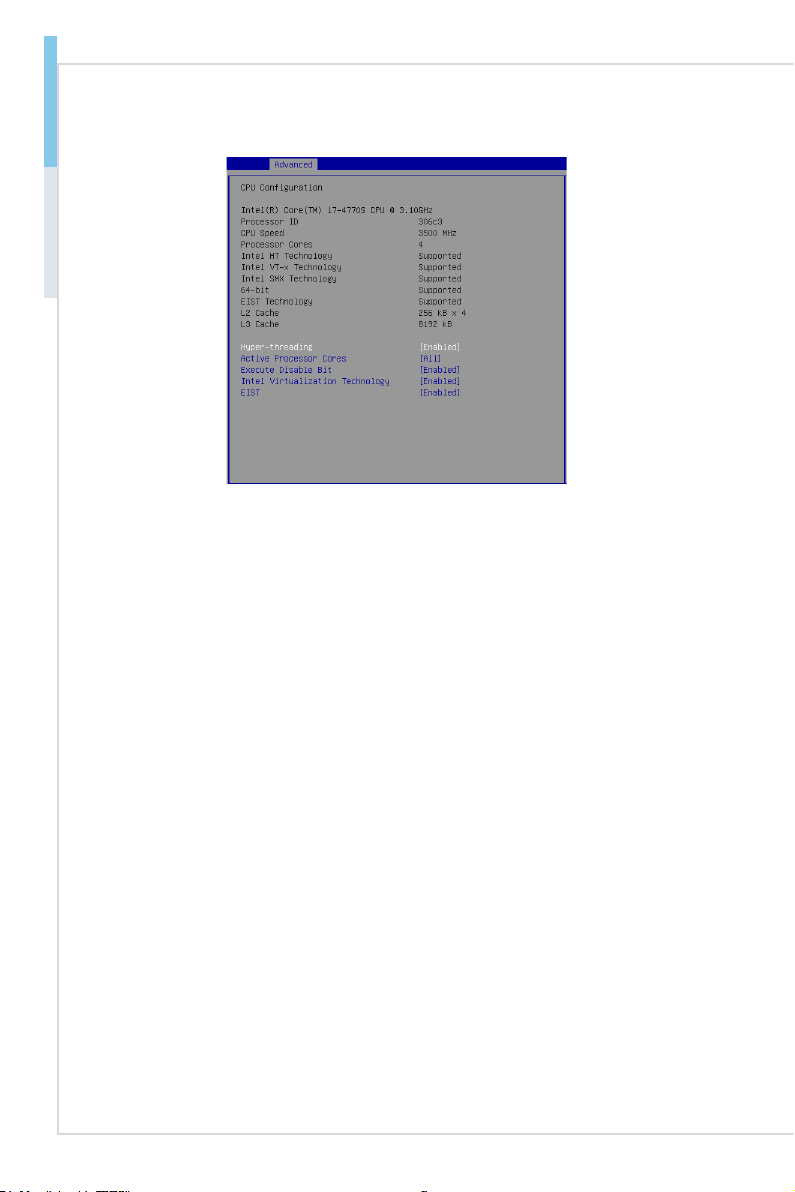

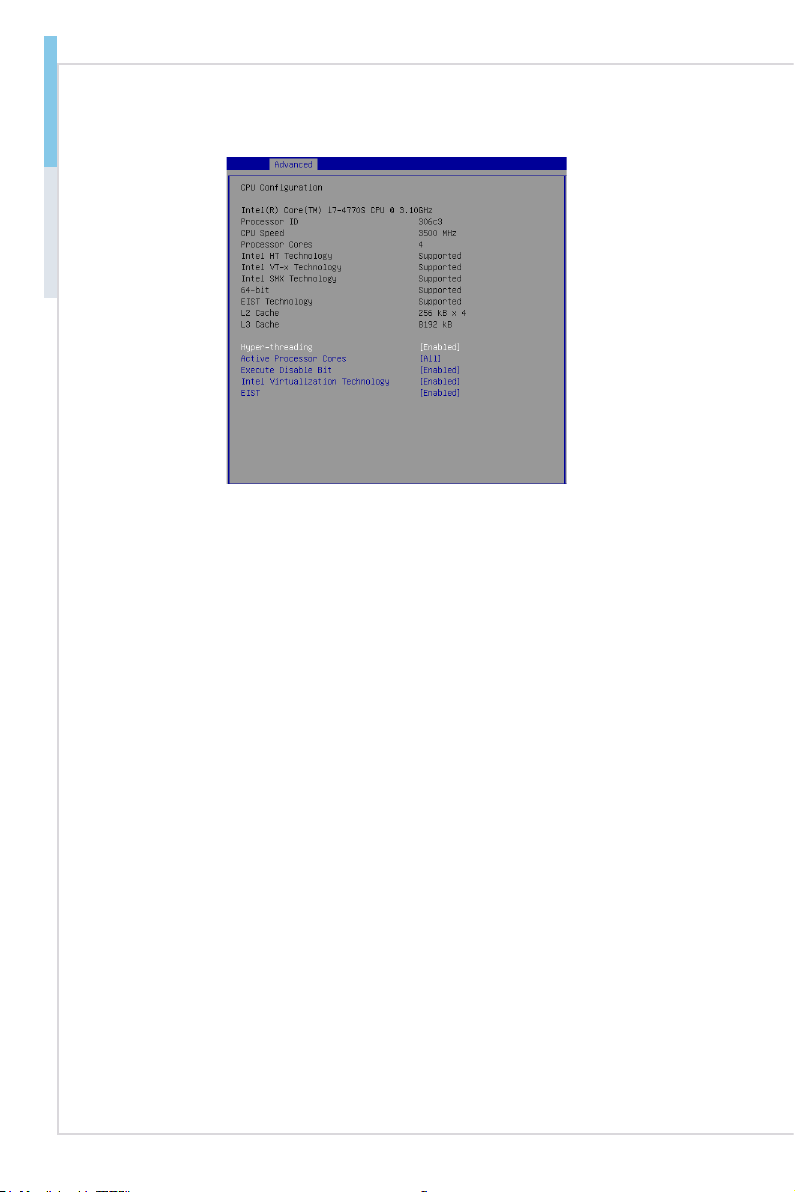

CPU Configuration

▶

Hyper-Threading

▶

The processor uses Hyper-Threading technology to increase transaction rates and reduces end-user response times. The technology treats the two cores inside the processor as two logical processors that can execute instruc tions simultaneously. In this way, the system performance is highly improved. If you disable the function, the processor will use only one core to execute the instructions. Please disable this item if your operating system doesn’t support HT Function, or unreliability and instability may occur.

Active Processor Cores

▶

This setting specifies the number of active processor cores.

Execute Disable Bit

▶

Intel’s Execute Disable Bit functionality can prevent certain classes of mali cious “buffer overflow” attacks when combined with a supporting operating system. This functionality allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation.

Intel Virtualization Technology

▶

Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple “Virtual” systems.

EIST

▶

EIST (Enhanced Intel SpeedStep Technology) allows the system to dynami cally adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat production. When disabled, the processor will return the actual maximum CPUID input value of the processor when queried.

-

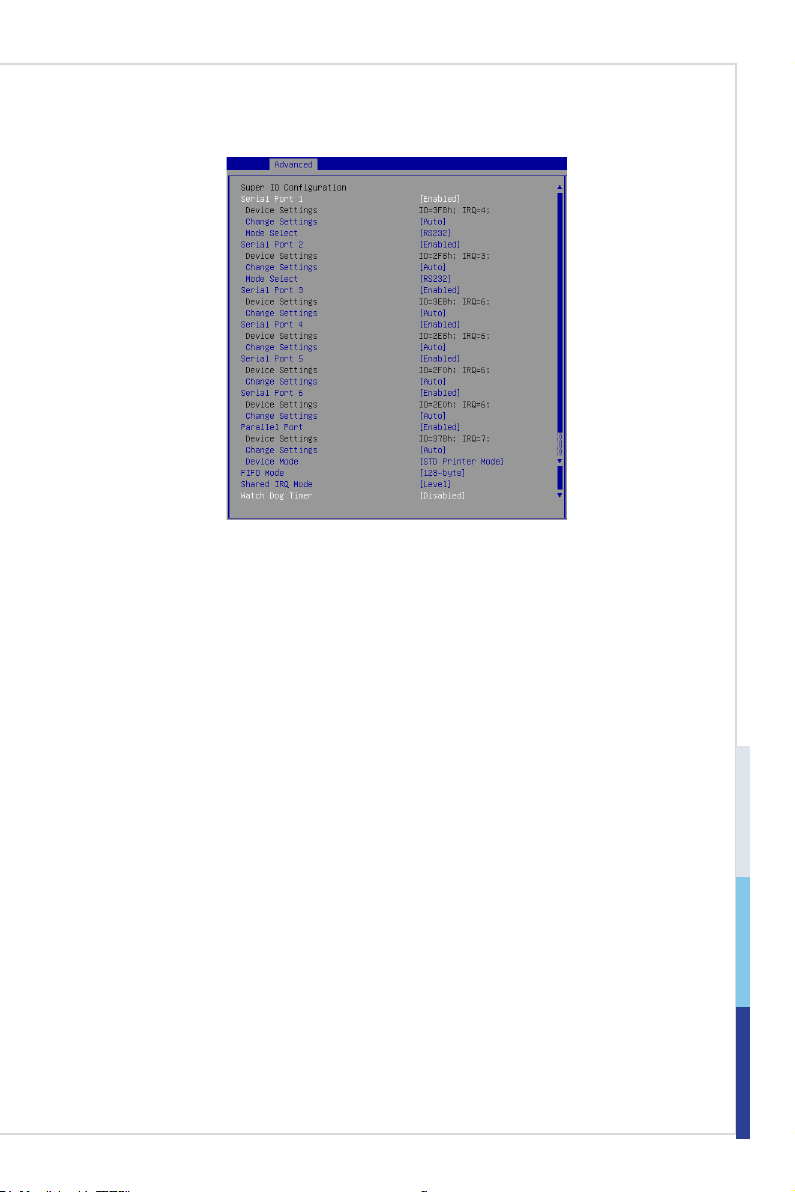

Super IO Configuration

▶

Serial Port 1/ 2/ 3/ 4/ 5/ 6

▶

This setting enables/disables the specified serial port.

Change Settings

▶

This setting is used to change the address & IRQ settings of the specified serial port.

Mode Select

▶

Select an operation mode for the serial port 1 and 2.

Parallel Port

▶

This setting enables/disables the parallel port.

Change Settings

▶

This setting is used to change the address & IRQ settings of the parallel port.

Device Mode

▶

Select an operation mode for the parallel port.

FIFO Mode

▶

This setting controls the FIFO data transfer mode.

Shared IRQ Mode

▶

This setting provides the system with the ability to share interrupts among its serial ports.

Watch Dog Timer

▶

You can enable the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it.

3-9

3-10

BIOS Setup MS-98B5

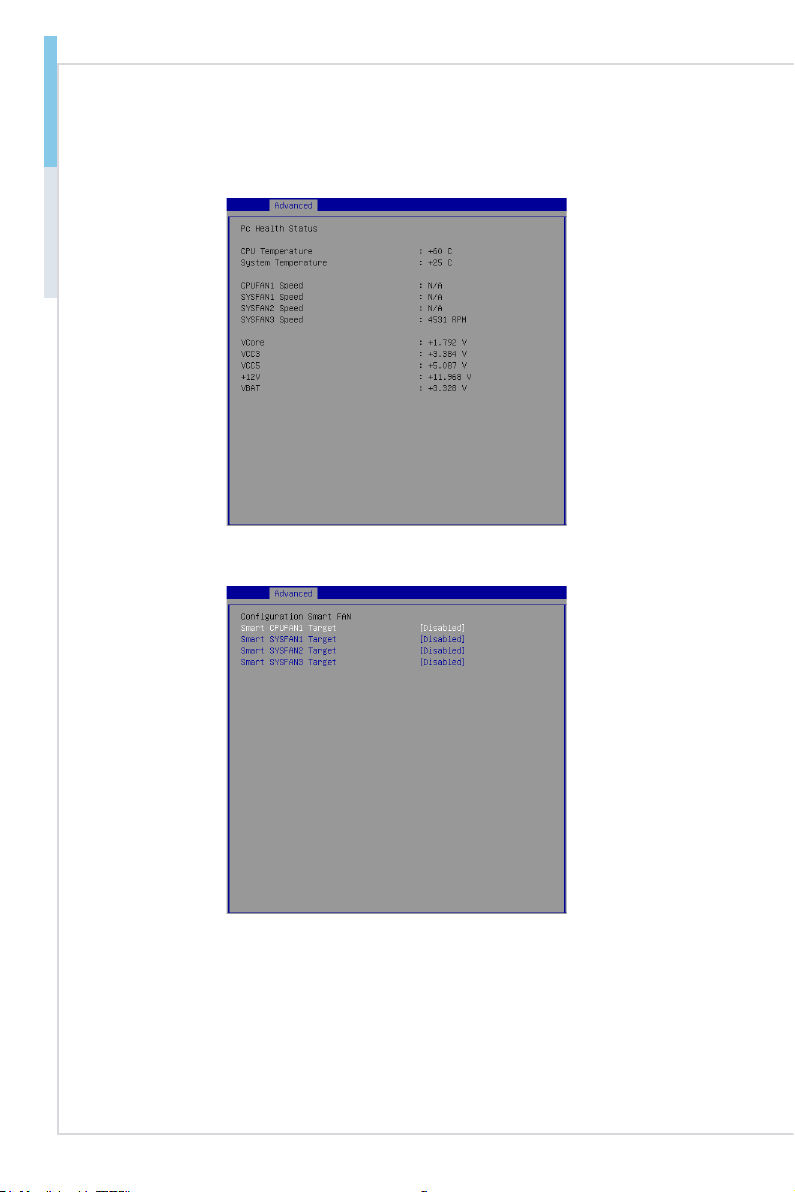

H/W Monitor

▶

These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds.

Smart Fan Configuration

▶

Smart CPUFAN1, SYSFAN1, SYSFAN2, SYSFAN3 Target

▶

These settings enable/disable the Smart Fan function. Smart Fan is an excel lent feature which will adjust the CPU/system fan speed automatically de pending on the current CPU/system temperature, avoiding the overheating to damage your system.

-

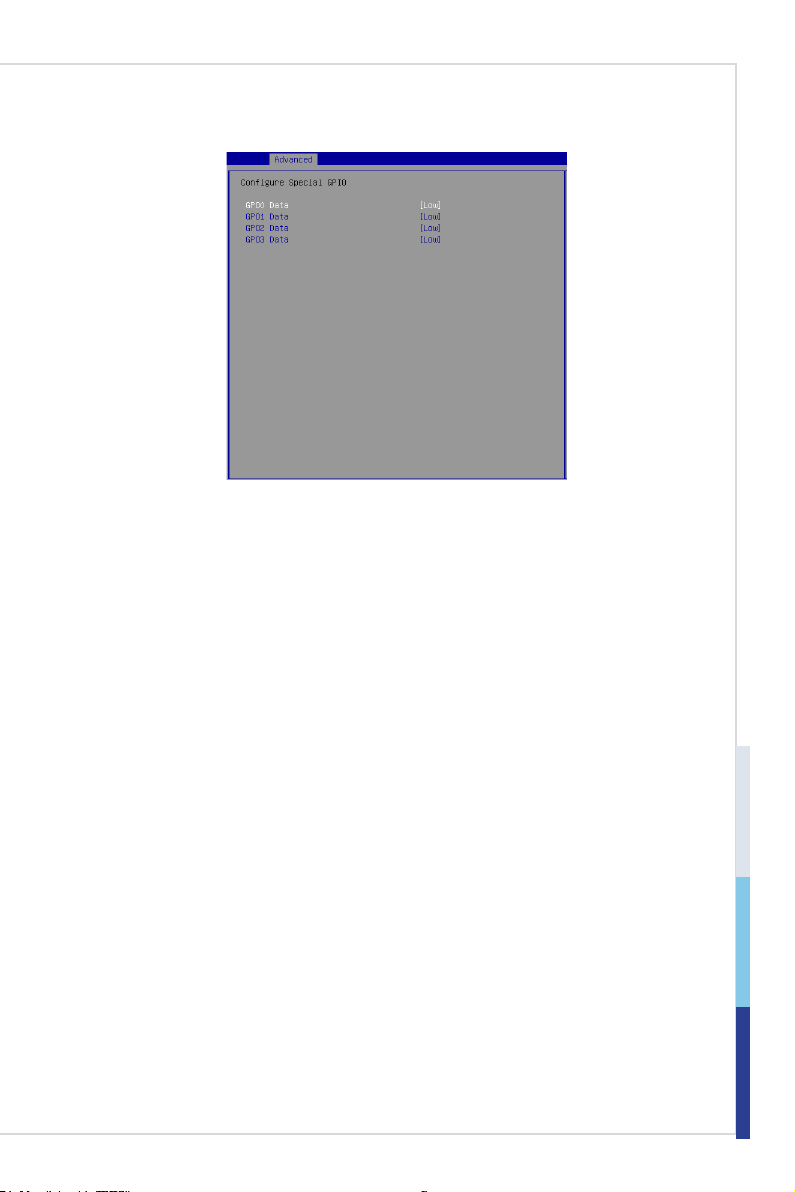

GPIO Group Configuration

▶

GPO0 ~ GPO3 Data

▶

These settings control the operation mode of the specified GPIO.

3-11

3-12

BIOS Setup MS-98B5

Boot

Boot Option Priorities

▶

This setting allows users to set the sequence of boot devices where BIOS at tempts to load the disk operating system.

Hard Drive BBS Priorities

▶

This setting allows users to set the priority of the specified devices. First press

<Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to select

the desired device, then press <+>, <-> or <PageUp>, <PageDown> key to move it up/down in the priority list.

-

Security

Administrator Password

▶

Administrator Password controls access to the BIOS Setup utility.

User Password

▶

User Password controls access to the system at boot and to the BIOS Setup utility.

Chassis Intrusion

▶

The field enables or disables the feature of recording the chassis intrusion status and issuing a warning message if the chassis is once opened.

Intel TXT(LT) Support

▶

Intel TXT (Trusted Execution Technology) can only be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior to TXT.

3-13

3-14

BIOS Setup MS-98B5

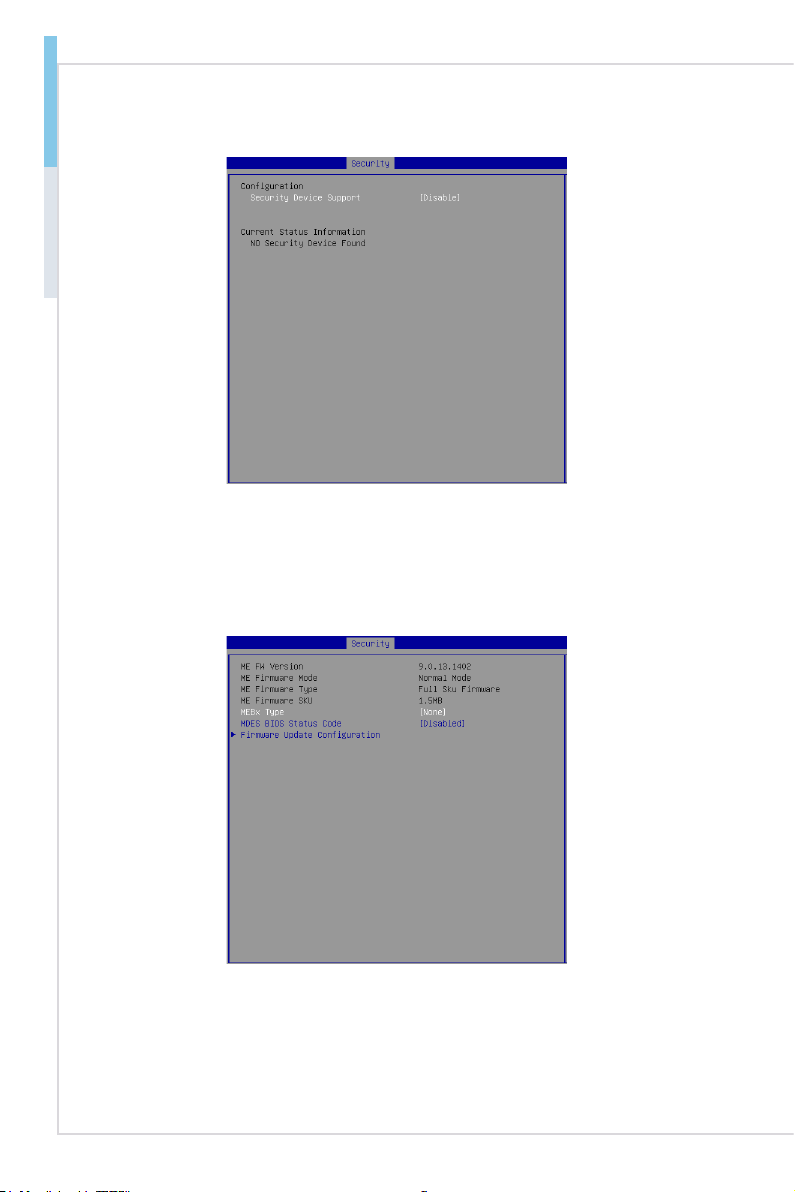

Trusted Computing

▶

Security Device Support

▶

This setting enables/disables BIOS support for security device. When set to [Disable], the OS will not show security device. TCG EFI protocol and INT1A interface will not be available.

PCH-FW Configuration

▶

ME FW Version, ME Firmware Mode/ Type/ SKU

▶

These settings show the firmware information of the Intel ME (Management Engine).

MDES BIOS Status Code

▶

This setting enables/disables the MDES BIOS status code.

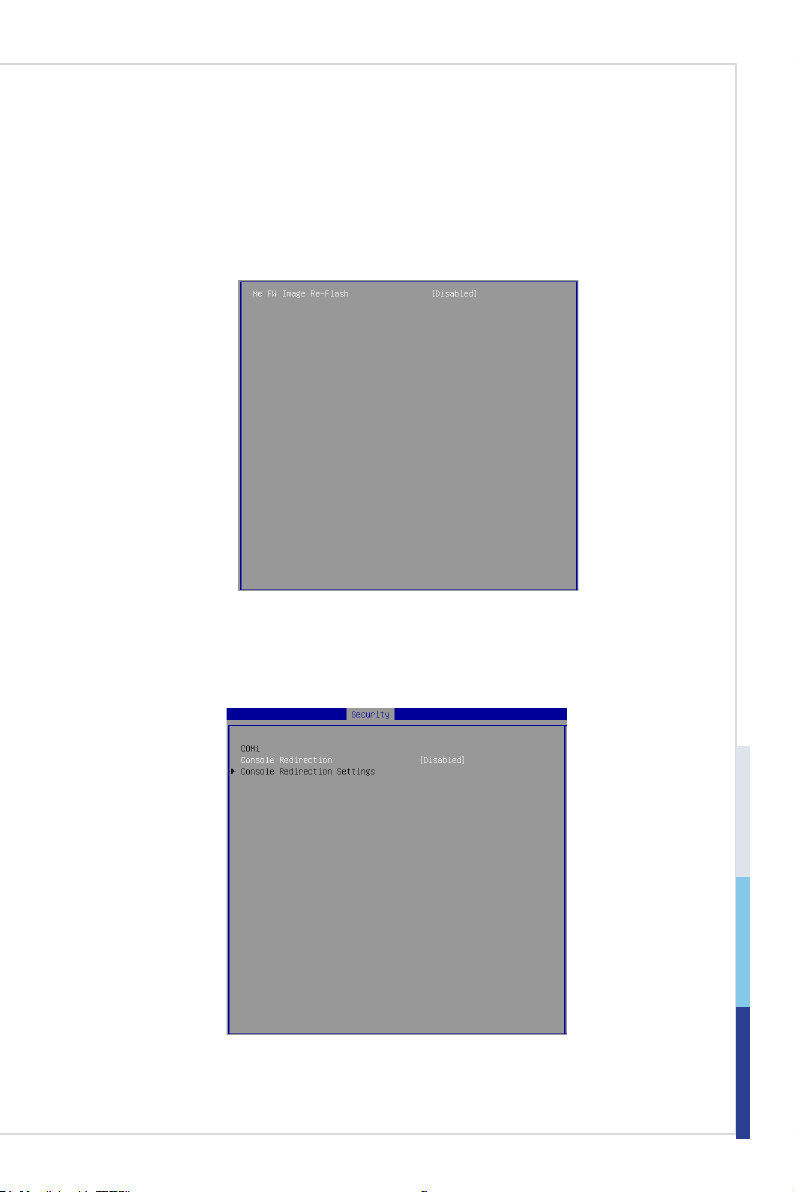

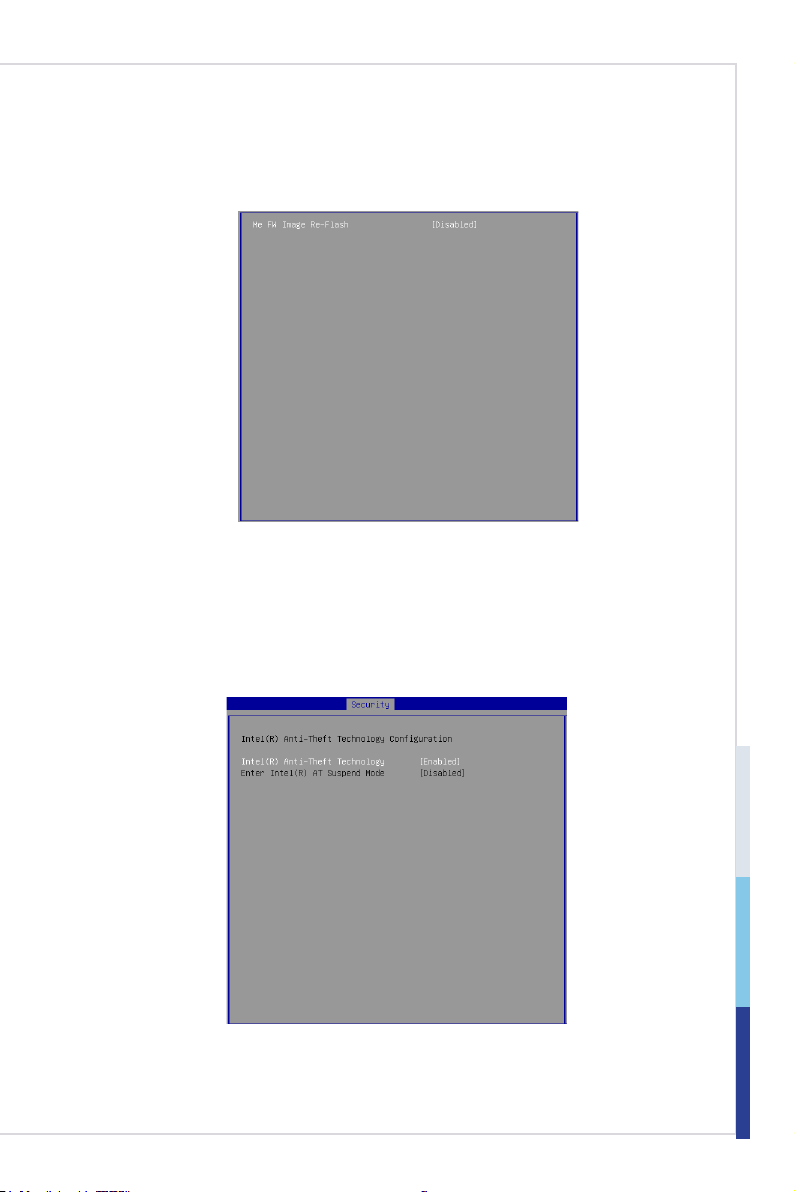

Firmware Update Configuration

▶

ME FW Image Re-Flash

▶

This setting enables/disables the ME FW image reflash.

Intel(R) Anti-Theft Technology Configuration

▶

Intel Anti-Theft Technology is hardware-based technology that can lock a lost or stolen system so that personal confidential information is protected and inacces sible by unauthorized users.

-

3-15

3-16

BIOS Setup MS-98B5

AMT Configuration

▶

Intel Active Management Technology (AMT) is hardware-based technology for remotely managing and securing PCs out-of-band.

Serial Port Console Redirection

▶

Console Redirection

▶

Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables/disables the operation of console re direction. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen. Besides, all data received from the serial port is interpreted as keystrokes from a local keyboard.

-

Console Redirection Settings

▶

Terminal Type

▶

To operate the system’s console redirection, you need a terminal support ing ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). This setting specifies the type of terminal device for console redirection.

Bits per second, Data Bits, Parity, Stop Bits

▶

This setting specifies the transfer rate (bits per second, data bits, parity, stop bits) of Console Redirection.

Flow Control

▶

Flow control is the process of managing the rate of data transmission be tween two nodes. It’s the process of adjusting the flow of data from one device to another to ensure that the receiving device can handle all of the incoming data. This is particularly important where the sending device is capable of sending data much faster than the receiving device can receive it.

VT-UTF8 Combo Key Support

▶

This setting enables/disables the VT-UTF8 combination key support for ANSI/VT100 terminals.

Recorder Mode, Resolution 100x31

▶

These settings enable/disable the recorder mode and the resolution 100x31.

Legacy OS Redirection Resolution

▶

This setting specifies the redirection resolution of legacy OS.

Putty Keypad

▶

PuTTY is a terminal emulator for Windows. This setting controls the nu meric keypad for use in PuTTY.

-

3-17

3-18

BIOS Setup MS-98B5

Chipset

VT-d

▶

Intel Virtualization Technology for Directed I/O (Intel VT-d) provides the capability to ensure improved isolation of I/O resources for greater reliability, security, and availability.

Primary Display

▶

This setting specifies which is your primary graphics adapter.

DVMT Pre-Allocated

▶

This setting defines the DVMT pre-allocated memory. Pre-allocated memory is the small amount of system memory made available at boot time by the system BIOS for video. Pre-allocated memory is also known as locked memory. This is because it is "locked" for video use only and as such, is invisible and unable to be used by the operating system.

DVMT Total Gfx Mem

▶

This setting specifies the memory size for DVMT.

Primary IGFX Boot Display

▶

Use the field to select the type of device you want to use as the display(s) of the system.

Power

ACPI Sleep State

▶

This item specifies the power saving modes for ACPI function. If your operating system supports ACPI, you can choose to enter the Standby mode in S1 (POS) or S3 (STR) fashion through the setting of this field.

Restore AC Power Loss

▶

This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are:

[Power Off] Leaves the computer in the power off state.

[Power On] Leaves the computer in the power on state.

[Last State] Restores the system to the previous status

before power failure or interrupt occurred.

Deep S5

▶

The setting enables/disables the Deep S5 power saving mode. S5 is almost the same as G3 Mechanical Off, except that the PSU still supplies power, at a minimum, to the power button to allow return to S0. A full reboot is required. No previous content is retained. Other components may remain powered so the computer can “wake” on input from the keyboard, clock, modem, LAN, or USB device.

3-19

3-20

BIOS Setup MS-98B5

** Advanced Resume Events Control **

USB from S3/S4

▶

The item allows the activity of the USB device to wake up the system from S3/S4 sleep state.

OnChip GbE

▶

This field specifies whether the system will be awakened from power saving modes when activity or input signal of onchip LAN is detected.

PCIE/PCI PME

▶

This field specifies whether the system will be awakened from power saving modes when activity or input signal of onboard PCIE/PCI PME is detected.

RTC

▶

When [Enabled], your can set the date and time at which the RTC (real-time clock) alarm awakens the system from suspend mode.

Save & Exit

Save Changes and Reset

▶

Save changes to CMOS and reset the system.

Discard Changes and Exit

▶

Abandon all changes and exit the Setup Utility.

Discard Changes

▶

Abandon all changes.

Load Optimized Defaults

▶

Use this menu to load the default values set by the motherboard manufacturer specifically for optimal performance of the motherboard.

Save as User Defaults

▶

Save changes as the user’s default profile.

Restore User Defaults

▶

Restore the user’s default profile.

3-21

3-22

BIOS Setup MS-98B5

MS-98B5 H81 SKU

The Menu Bar

Main

▶

Use this menu for basic system configurations, such as time, date, etc.

Advanced

▶

Use this menu to set up the items of special enhanced features.

Boot

▶

Use this menu to specify the priority of boot devices.

Security

▶

Use this menu to set supervisor and user passwords.

Chipset

▶

This menu controls the advanced features of the onboard chipsets.

Power

▶

Use this menu to specify your settings for power management.

Save & Exit

▶

This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes.

Main

System Date

▶

This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>.

System Time

▶

This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>.

SATA Mode Selection

▶

This setting specifies the SATA controller mode.

3-23

3-24

BIOS Setup MS-98B5

Advanced

Full Screen Logo Display

▶

This BIOS feature determines if the BIOS should hide the normal POST mes sages with the motherboard or system manufacturer’s full-screen logo.

When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.

When it is disabled, the BIOS will display the normal POST messages, instead of the full-screen logo.

Please note that enabling this BIOS feature often adds 2-3 seconds of delay to the booting sequence. This delay ensures that the logo is displayed for a suf ficient amount of time. Therefore, it is recommended that you disable this BIOS feature for a faster boot-up time.

Bootup NumLock State

▶

This setting is to set the Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. Setting to [Off] will allow users to use the arrow keys on the numeric keypad.

Option ROM Messages

▶

This item is used to determine the display mode when an optional ROM is ini tialized during POST. When set to [Force BIOS], the display mode used by AMI BIOS is used. Select [Keep Current] if you want to use the display mode of op tional ROM.

-

PCI/PCIE Device Configuration

▶

EHCI1, EHCI2

▶

This setting disables/enables the USB EHCI controller. The Enhanced Host Controller Interface (EHCI) specification describes the register-level interface for a Host Controller for the Universal Serial Bus (USB) Revision 2.0.

XHCI Mode

▶

This setting disables/enables the USB XHCI controller. The eXtensible Host Controller Interface (XHCI) is a computer interface specification that defines a register-level description of a Host Controller for Universal Serial bus (USB), which is capable of interfacing to USB 1.0, 2.0, and 3.0 compatible devices. The specification is also referred to as the USB 3.0 Host Controller specifica tion.

Legacy USB Support

▶

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix.

Audio Controller

▶

This setting enables/disables the onboard audio controller.

Launch OnChip/OnBoard LAN OpROM

▶

These settings enable/disable the initialization of the onboard/onchip LAN Boot ROM during bootup. Selecting [Disabled] will speed up the boot proc ess.

-

3-25

3-26

BIOS Setup MS-98B5

CPU Configuration

▶

Hyper-Threading

▶

The processor uses Hyper-Threading technology to increase transaction rates and reduces end-user response times. The technology treats the two cores inside the processor as two logical processors that can execute instruc tions simultaneously. In this way, the system performance is highly improved. If you disable the function, the processor will use only one core to execute the instructions. Please disable this item if your operating system doesn’t support HT Function, or unreliability and instability may occur.

Active Processor Cores

▶

This setting specifies the number of active processor cores.

Execute Disable Bit

▶

Intel’s Execute Disable Bit functionality can prevent certain classes of mali cious “buffer overflow” attacks when combined with a supporting operating system. This functionality allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation.

Intel Virtualization Technology

▶

Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple “Virtual” systems.

EIST

▶

EIST (Enhanced Intel SpeedStep Technology) allows the system to dynami cally adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat production. When disabled, the processor will return the actual maximum CPUID input value of the processor when queried.

-

Super IO Configuration

▶

Serial Port 1/ 2/ 3/ 4/ 5/ 6

▶

This setting enables/disables the specified serial port.

Change Settings

▶

This setting is used to change the address & IRQ settings of the specified serial port.

Mode Select

▶

Select an operation mode for the serial port 1 and 2.

Parallel Port

▶

This setting enables/disables the parallel port.

Change Settings

▶

This setting is used to change the address & IRQ settings of the parallel port.

Device Mode

▶

Select an operation mode for the parallel port.

FIFO Mode

▶

This setting controls the FIFO data transfer mode.

Shared IRQ Mode

▶

This setting provides the system with the ability to share interrupts among its serial ports.

Watch Dog Timer

▶

You can enable the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it.

3-27

3-28

BIOS Setup MS-98B5

H/W Monitor

▶

These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds.

Smart Fan Configuration

▶

Smart CPUFAN1, SYSFAN1, SYSFAN2, SYSFAN3 Target

▶

These settings enable/disable the Smart Fan function. Smart Fan is an excel lent feature which will adjust the CPU/system fan speed automatically de pending on the current CPU/system temperature, avoiding the overheating to damage your system.

-

GPIO Group Configuration

▶

GPO0 ~ GPO3 Data

▶

These settings control the operation mode of the specified GPIO.

3-29

3-30

BIOS Setup MS-98B5

Boot

Boot Option Priorities

▶

This setting allows users to set the sequence of boot devices where BIOS at tempts to load the disk operating system.

Hard Drive BBS Priorities

▶

This setting allows users to set the priority of the specified devices. First press

<Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to select

the desired device, then press <+>, <-> or <PageUp>, <PageDown> key to move it up/down in the priority list.

-

Security

Administrator Password

▶

Administrator Password controls access to the BIOS Setup utility.

User Password

▶

User Password controls access to the system at boot and to the BIOS Setup utility.

Chassis Intrusion

▶

The field enables or disables the feature of recording the chassis intrusion status and issuing a warning message if the chassis is once opened.

3-31

3-32

BIOS Setup MS-98B5

Trusted Computing

▶

Security Device Support

▶

This setting enables/disables BIOS support for security device. When set to [Disable], the OS will not show security device. TCG EFI protocol and INT1A interface will not be available.

PCH-FW Configuration

▶

ME FW Version, ME Firmware Mode/ Type/ SKU

▶

These settings show the firmware information of the Intel ME (Management Engine).

MEBx Type

▶

This setting specifies the Intel Management Engine BIOS Extension (MEBx) type.

MDES BIOS Status Code

▶

This setting enables/disables the MDES BIOS status code.

Firmware Update Configuration

▶

ME FW Image Re-Flash

▶

This setting enables/disables the ME FW image reflash.

Serial Port Console Redirection

▶

Console Redirection

▶

Console Redirection operates in host systems that do not have a monitor and

3-33

3-34

BIOS Setup MS-98B5

keyboard attached. This setting enables/disables the operation of console redirection. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen. Besides, all data received from the serial port is interpreted as keystrokes from a local keyboard.

Console Redirection Settings

▶

Terminal Type

▶

To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). This setting specifies the type of terminal device for console redirection.

Bits per second, Data Bits, Parity, Stop Bits

▶

This setting specifies the transfer rate (bits per second, data bits, parity, stop bits) of Console Redirection.

Flow Control

▶

Flow control is the process of managing the rate of data transmission be tween two nodes. It’s the process of adjusting the flow of data from one device to another to ensure that the receiving device can handle all of the incoming data. This is particularly important where the sending device is capable of sending data much faster than the receiving device can receive it.

VT-UTF8 Combo Key Support

▶

This setting enables/disables the VT-UTF8 combination key support for ANSI/VT100 terminals.

Recorder Mode, Resolution 100x31

▶

These settings enable/disable the recorder mode and the resolution 100x31.

Legacy OS Redirection Resolution

▶

This setting specifies the redirection resolution of legacy OS.

Putty Keypad

▶

PuTTY is a terminal emulator for Windows. This setting controls the nu meric keypad for use in PuTTY.

-

Chipset

VT-d

▶

Intel Virtualization Technology for Directed I/O (Intel VT-d) provides the capability to ensure improved isolation of I/O resources for greater reliability, security, and availability.

Primary Display

▶

This setting specifies which is your primary graphics adapter.

DVMT Pre-Allocated

▶

This setting defines the DVMT pre-allocated memory. Pre-allocated memory is the small amount of system memory made available at boot time by the system BIOS for video. Pre-allocated memory is also known as locked memory. This is because it is "locked" for video use only and as such, is invisible and unable to be used by the operating system.

DVMT Total Gfx Mem

▶

This setting specifies the memory size for DVMT.

Primary IGFX Boot Display

▶

Use the field to select the type of device you want to use as the display(s) of the system.

3-35

3-36

BIOS Setup MS-98B5

Power

ACPI Sleep State

▶

This item specifies the power saving modes for ACPI function. If your operating system supports ACPI, you can choose to enter the Standby mode in S1 (POS) or S3 (STR) fashion through the setting of this field.

Restore AC Power Loss

▶

This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are:

[Power Off] Leaves the computer in the power off state.

[Power On] Leaves the computer in the power on state.

[Last State] Restores the system to the previous status

before power failure or interrupt occurred.

Deep S5

▶

The setting enables/disables the Deep S5 power saving mode. S5 is almost the same as G3 Mechanical Off, except that the PSU still supplies power, at a minimum, to the power button to allow return to S0. A full reboot is required. No previous content is retained. Other components may remain powered so the computer can “wake” on input from the keyboard, clock, modem, LAN, or USB device.

** Advanced Resume Events Control **

USB from S3/S4

▶

The item allows the activity of the USB device to wake up the system from S3/S4 sleep state.

OnChip GbE

▶

This field specifies whether the system will be awakened from power saving modes when activity or input signal of onchip LAN is detected.

PCIE/PCI PME

▶

This field specifies whether the system will be awakened from power saving modes when activity or input signal of onboard PCIE/PCI PME is detected.

RTC

▶

When [Enabled], your can set the date and time at which the RTC (real-time clock) alarm awakens the system from suspend mode.

3-37

BIOS Setup MS-98B5

Save & Exit

Save Changes and Reset

▶

Save changes to CMOS and reset the system.

Discard Changes and Exit

▶

Abandon all changes and exit the Setup Utility.

Discard Changes

▶

Abandon all changes.

Load Optimized Defaults

▶

Use this menu to load the default values set by the motherboard manufacturer specifically for optimal performance of the motherboard.

Save as User Defaults

▶

Save changes as the user’s default profile.

Restore User Defaults

▶

Restore the user’s default profile.

3-38

Appendix

WDT & GPIO

This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).

2-A-1

A-2

WDT & GPIO MS-98B5

SIO_INDEX_Port equ 04Eh SIO_DATA_Port equ 04Fh SIO_UnLock_Value equ 087h SIO_Lock_Value equ 0AAh WatchDog_LDN equ 007h WDT_UNIT equ 60h ;60h=second, 68h=minute, 40h=Disabled Watchdog timer WDT_Timer equ 30 ;ex. 30 seconds

Sample code: ;Enable config mode mov dx, SIO_INDEX_Port mov al, SIO_UnLock_Value out dx, al jmp short $+2 ;Io_delay jmp short $+2 ;Io_delay out dx, al ;Change to WDT mov dx, SIO_INDEX_Port mov al, 07h out dx, al mov dx, SIO_DATA_Port mov al, WatchDog_LDN out dx, al ;Acive WDT mov dx, SIO_INDEX_Port mov al, 30h out dx, al mov dx, SIO_DATA_Port in al, dx or al, 01h out dx, al ;set timer mov dx, SIO_INDEX_Port mov al, 0F6h out dx, al mov dx, SIO_DATA_Port

mov al, WDT_Timer

out dx, al ;set UINT mov dx, SIO_INDEX_Port mov al, 0F5h out dx, al mov dx, SIO_DATA_Port

mov al, WDT_UNIT

out dx, al ;enable reset mov dx, SIO_INDEX_Port mov al, 0FAh out dx, al mov dx, SIO_DATA_Port in al, dx or al, 01h out dx, al ;close config mode mov dx, SIO_INDEX_Port mov al, SIO_Lock_Value out dx, al

WDT Sample Code

GPIO Sample Code

z GPI 0 ~ GPI 3

GPI 0 GPI 1 GPI 2 GPI 3

IO Address 53Ah 50Eh 538h 538h

SIO GPIO Register

Bit 0 6 2 3

Sample code #1 #1 #1 #1

z GPO 0 ~ GPO 3

GPO 0 GPO 1 GPO 2 GPO 3

IO Address 50Ch 50Ch 50Ch 50Eh

SIO GPIO Register

Bit 1 6 7 1

Sample code #2 #2 #2 #2

GPI_ADD equ 50Eh

GPI_ADD 1 equ 538h

GPI_ADD 2 equ 53Ah

GPO_ADD equ 50Ch

GPO_ADD1 equ 50Eh

GPO_0 equ 00000010b

Sample Code:

#1 : Get GPI 0 status

in al, GPI_ADD2

;al bit0 = GPI 3 status

#2 : Set GPO 0 to high status

mov dx, GPO_ADD in al, dx and al, Not GPO_0 or al, GPO_0 out dx, al

A-3

MSI MS-98B5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright Notice

Trademarks

Revision History

Technical Support

Safety Instructions

Chemical Substances Information

Battery Information

CE Conformity

FCC-A Radio Frequency Interference Statement

WEEE Statement

1 Overview

Mainboard Layout

2 Hardware Setup

CPU (Central Processing Unit)

Memory

Power Supply

System Power Connector: JPWR1

CPU Power Connector: JPWR2

Rear Panel I/O

Connector

Fan Power Connector: CPUFAN1, SYSFAN1 ~ SYSFAN3

GPIO Pin Header: JGPIO1

Serial ATA Connector: SATA1 ~ SATA6

I2C Bus Connector: JSMB1

Front Panel Connector: JFP1

USB 2.0 Connector: JUSB1, JUSB2, JUSB3

RS-232 Serial Port Connector: JCOM3 ~ JCOM6

TPM Module Connector: JTPM1

Front Audio Connector: JAUD1

DisplayPort Connector: JDP1

Chassis Intrusion Pin Header: JCI1

Parallel Port Connector: JLPT1

Jumper

Clear CMOS Jumper: JBAT1

AT/ATX Select Jumper: JAT1

Serial Port Power Jumper: JCOMP1 ~ JCOMP6

Non-Volatile Memory Jumper: JNVM1

Slot

PCIe (Peripheral Component Interconnect Express) Slot

Mini-PCIe (Peripheral Component Interconnect Express) Slot (Q87 SKU only)

PCI (Peripheral Component Interconnect) Slot

3 BIOS Setup

Entering Setup

MS-98B5 Q87 SKU

The Menu Bar

Main

Advanced

Boot

Security

Chipset

Power

Save & Exit

MS-98B5 H81 SKU

The Menu Bar

Main

Advanced

Boot

Security

Chipset

Power

Save & Exit

Appendix

WDT & GPIO

WDT Sample Code

GPIO Sample Code
