MSI MS-9802, Fuzzy CX700, Fuzzy CX700D User Manual

Fuzzy CX700/CX700D

MS-9802 (V1.X) Mainboard

G52-98021X1

i

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no

guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.
Intel® and Pentium® are registered trademarks of Intel Corporation.

AMD, Athlon™, Athlon™ XP, Thoroughbred ™, and Duron™ are registered trade­marks of AMD Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trade­marks of NVIDIA Corporation in the United States and/or other countries.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 95/98/2000/NT/XP are registered trademarks of Microsoft Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

V1.0 First release February 2007

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance.

Visit the MSI website at http://www.msi.com.tw/program/service/faq/

faq/esc_faq_list.php for FAQ, technical guide, BIOS updates, driver

updates, and other information.

Contact our technical staff at http://support.msi.com.tw/.

ii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equip­ment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V be­fore connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10.Never pour any liquid into the opening that could damage or cause electrical
shock.

11. If any of the following situations arises, get the equipment checked by service
personnel:

† The power cord or plug is damaged.
† Liquid has penetrated into the equipment.
† The equipment has been exposed to moisture.
† The equipment does not work well or you can not get it work according to

User’s Manual.

† The equipment has dropped and damaged.
† The equipment has obvious sign of breakage.

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STOR­AGE TEMPERATURE ABOVE 600 C (1400F), IT MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

iii

FCC-B Radio Frequency Interference Statement

This equipment has been
tested and found to comply
with the limits for a Class B
digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accor­dance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the measures listed
below.

† Reorient or relocate the receiving antenna.
† Increase the separation between the equipment and receiver.
† Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

† Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’ INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-9802

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

iv

WEEE (Waste Electrical and Electronic Equipment) Statement

v

vi

vii

CONTENTS

Copyright Notice....................................................................................................iii

Trademarks............................................................................................................iii

Revision History....................................................................................................iii

Technical Support.................................................................................................iii

Safety Instructions................................................................................................iii

FCC-B Radio Frequency Interference Statement....................................................v

WEEE (Waste Electrical and Electronic Equipment) Statement................................v

Chapter 1 Product Overview..........................................................................1-1

Mainboard Layout........................................................................................1-2

Chapter 2 Product Specifications..................................................................2-1

Mainboard Specifications.............................................................................2-2

Safety Compliance & MTBF..........................................................................2-5

Block Diagram...............................................................................................2-5

Board Dimension..........................................................................................2-7

I/O Shield Drawing.......................................................................................2-7

Chapter 3 Electrical Specifications...............................................................3-1

Power Consumption....................................................................................3-2

General Purpose I/O Lines...........................................................................3-2

Onboard Connector Part Number.................................................................3-4

Chapter 4 Hardware Setup.............................................................................4-1

Quick Components Guide.............................................................................4-2

Memory.......................................................................................................4-3

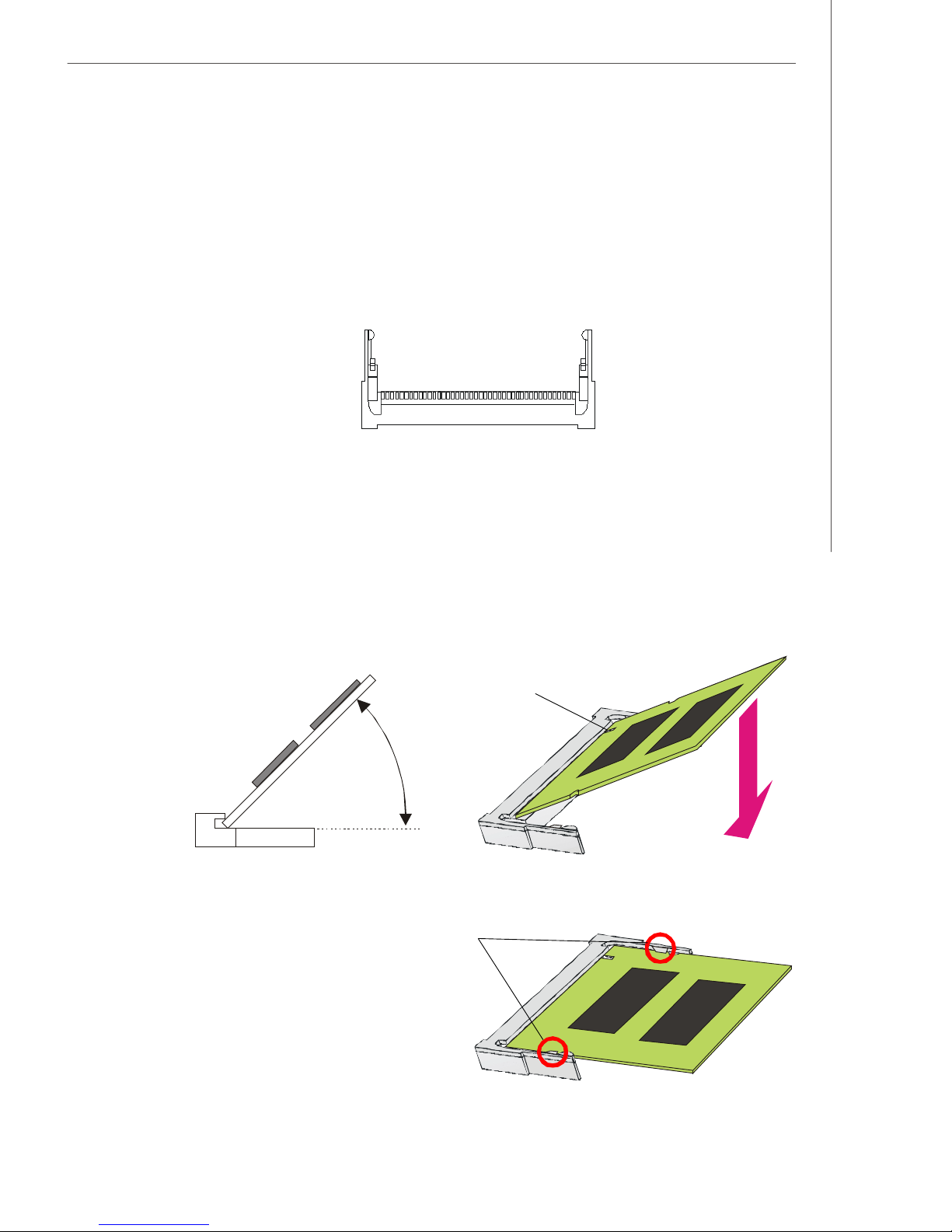

Installing DDR2 Modules........................................................................4-3

Power Supply..............................................................................................4-4

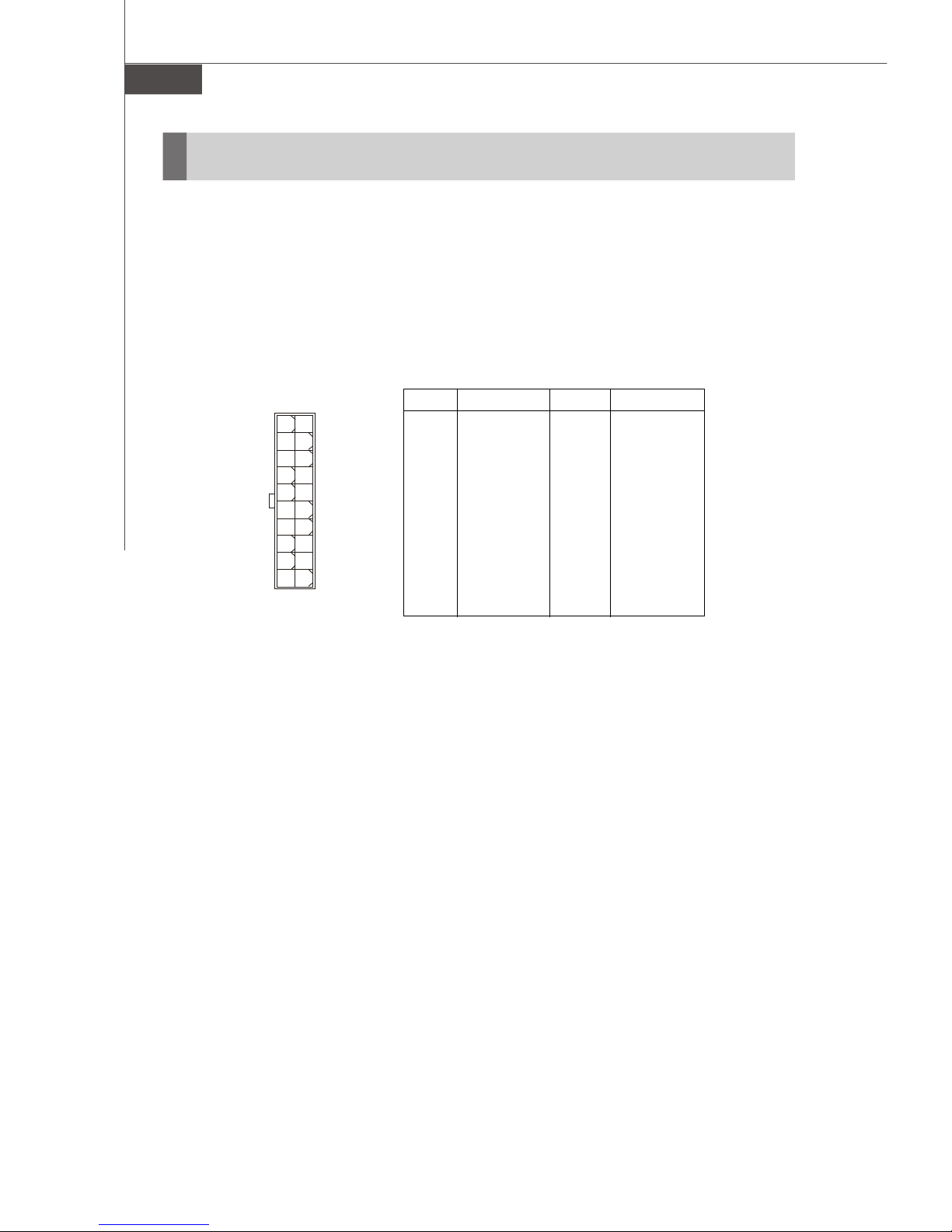

ATX 20-Pin System Power Connector: ATX1........................................4-4

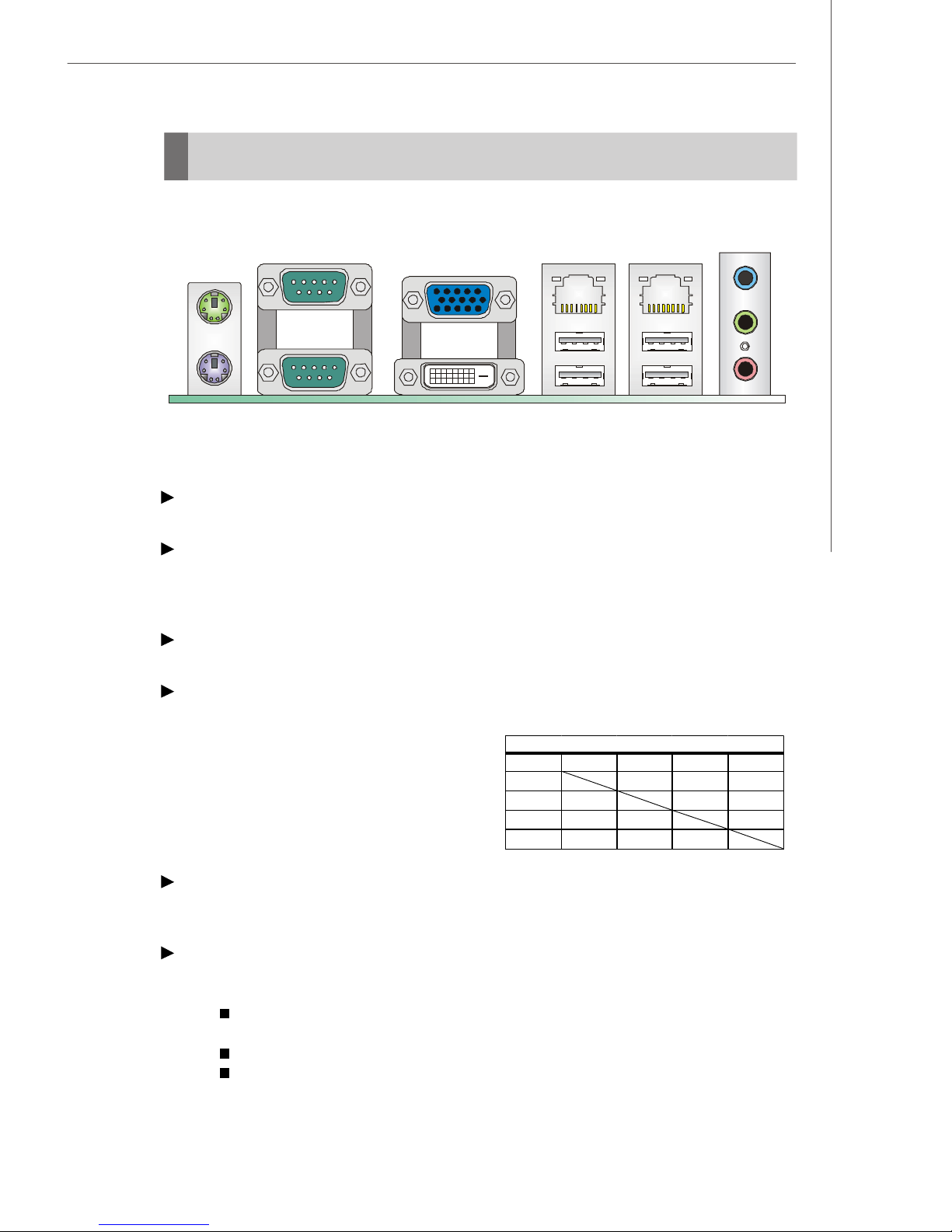

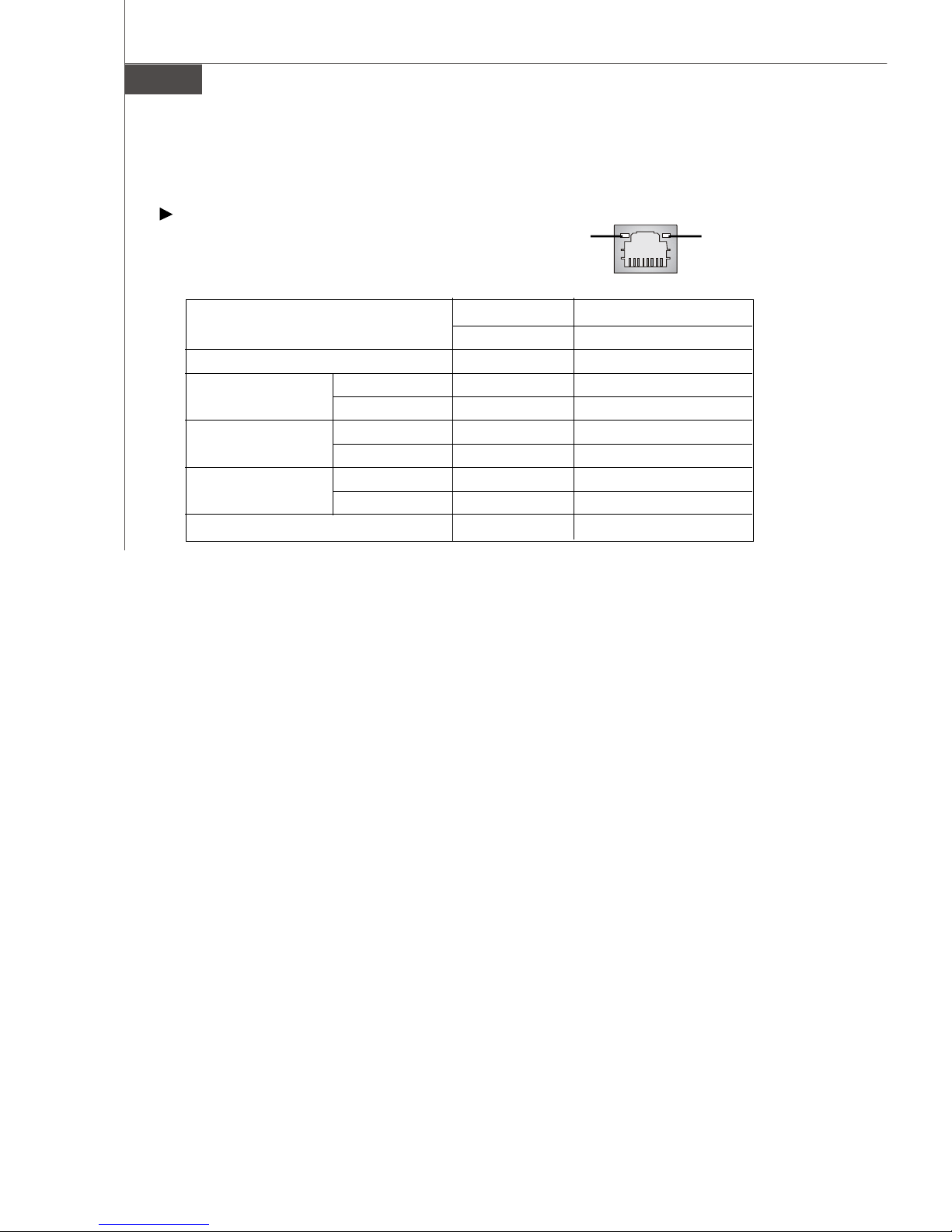

Back Panel...................................................................................................4-5

Connectors..................................................................................................4-7

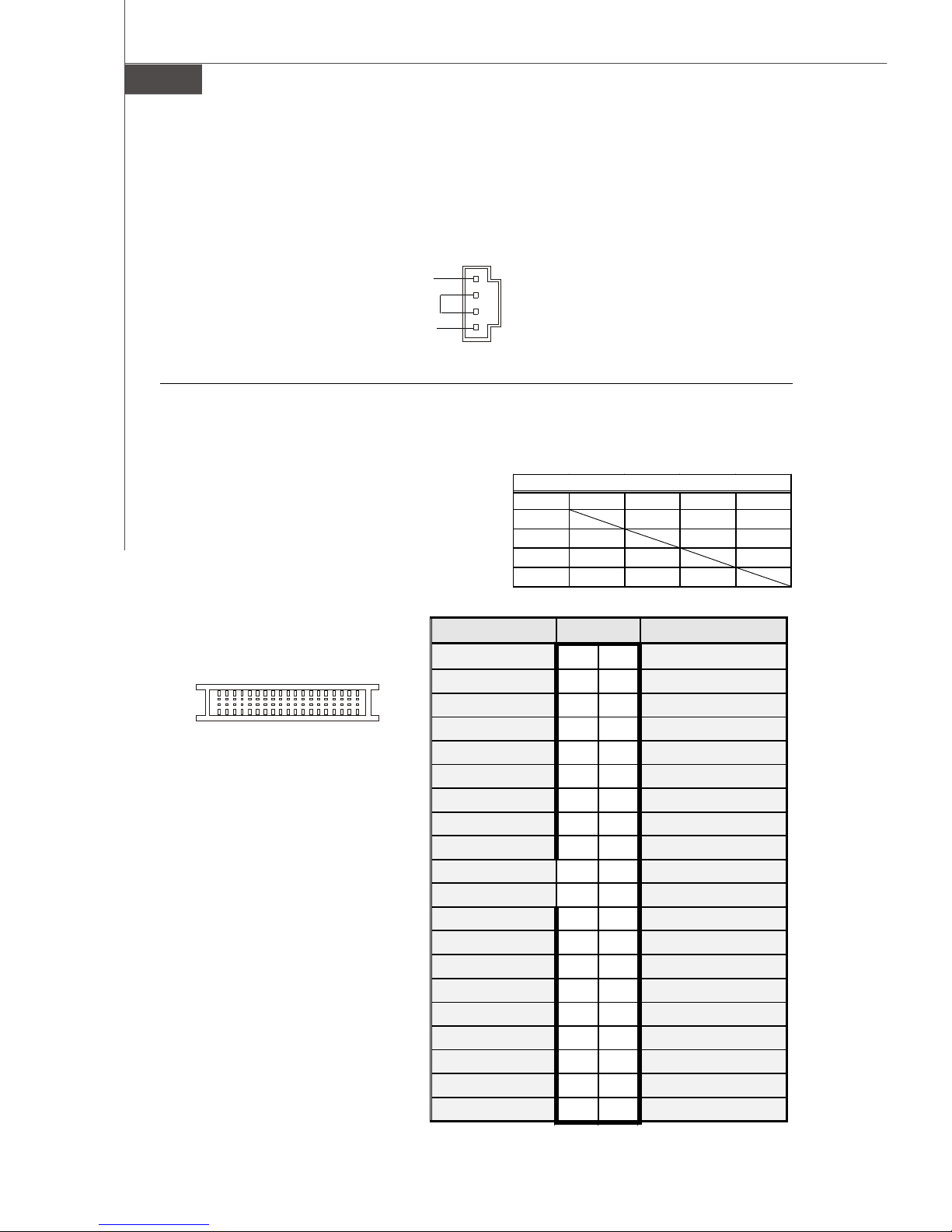

IDE Connector: IDEB1............................................................................4-7

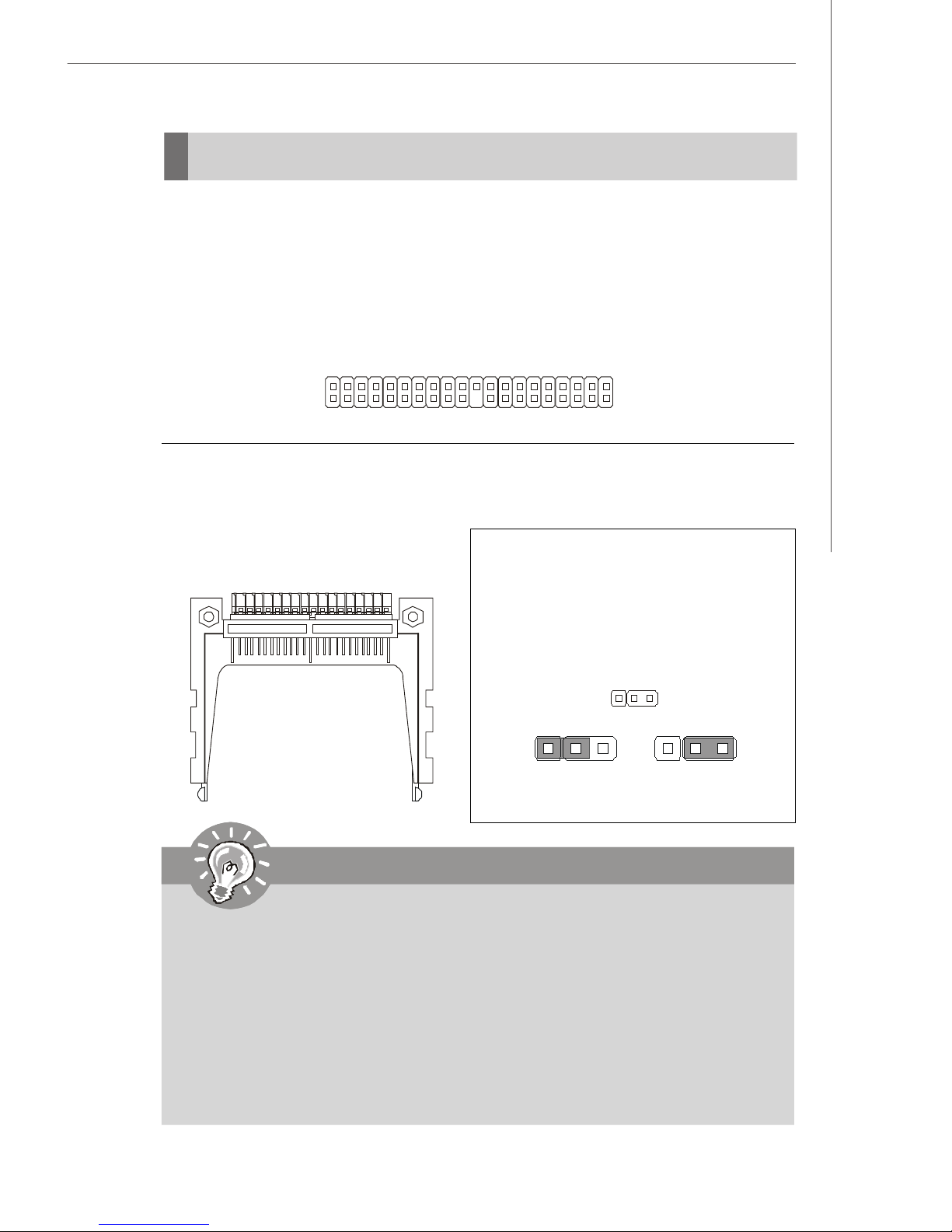

CompactFlash Card Slot: CF1................................................................4-7

CF Mode Selecting Jumper: JCF_SEL1..................................................4-7

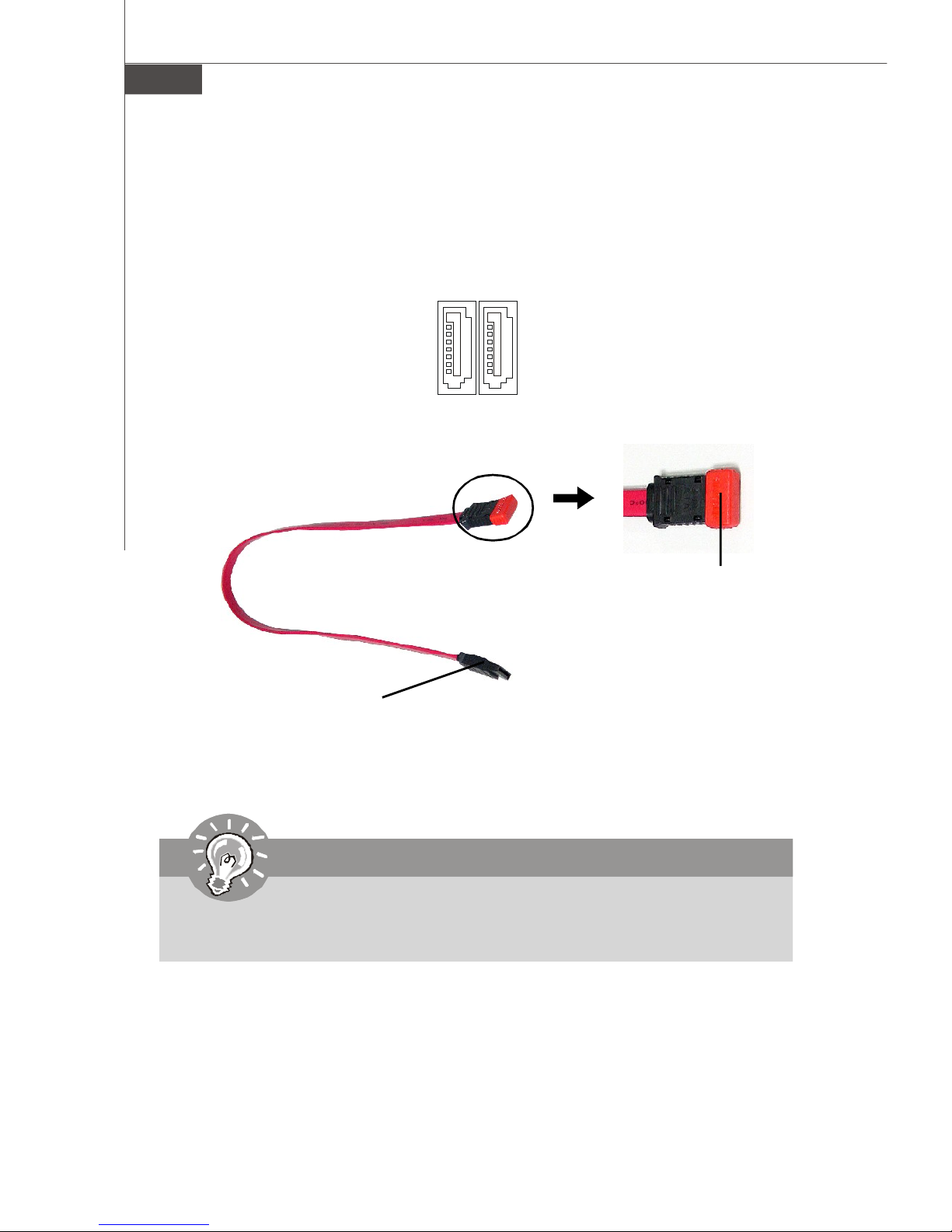

Serial ATA Connectors: SATA1, SATA2.................................................4-8

Audio Amplifier Connector: JAUD1........................................................4-9

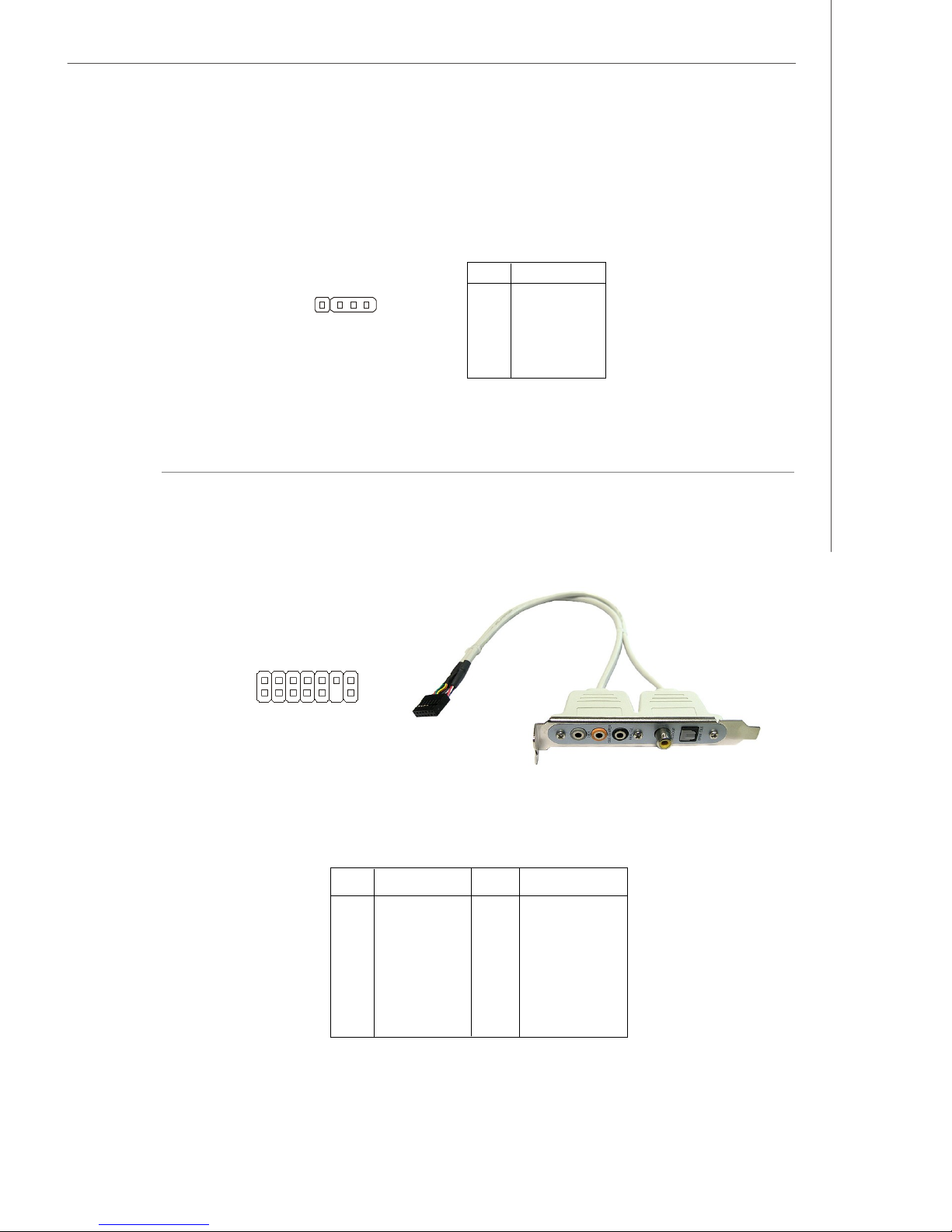

Front Audio Connector: JAUD2.............................................................4-9

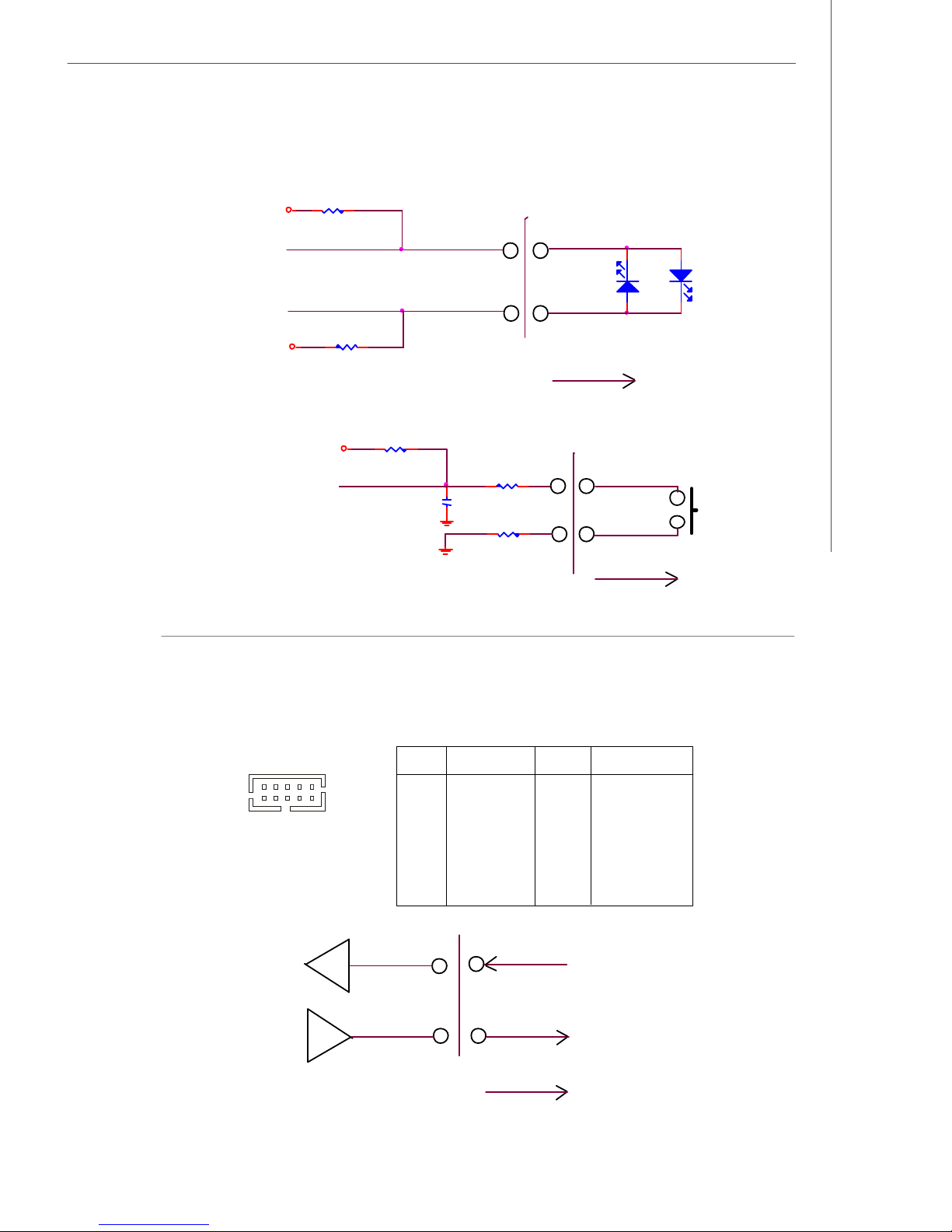

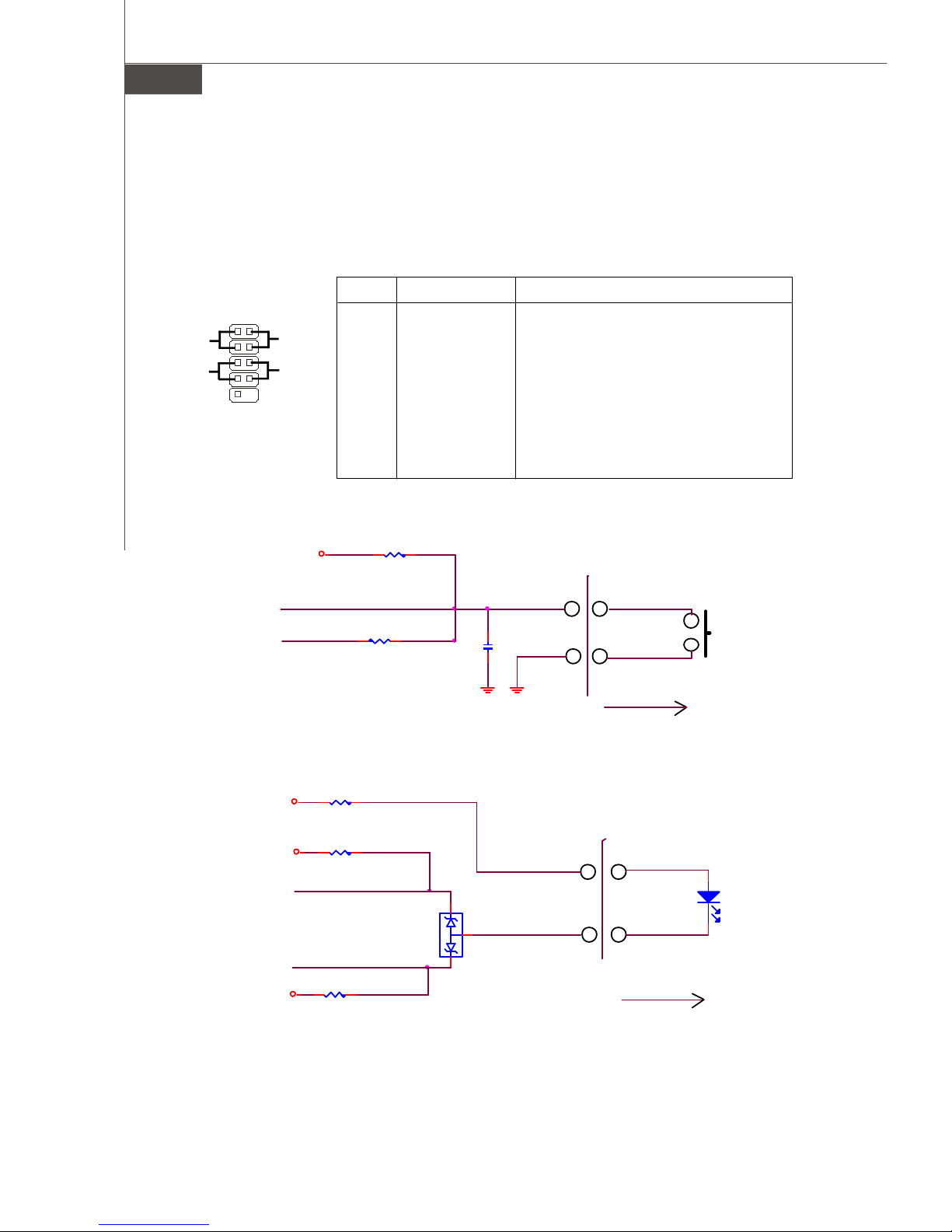

Front Panel Connector: JFP1...............................................................4-10

Digital IO Connector: J6......................................................................4-11

viii

Parallel Port Header: JLPT1.................................................................4-12

Fan Power Connectors: CPUFAN1, SYSFAN1....................................4-12

Serial Port Connector: COM3, COM4...................................................4-13

Front USB Connector: F_USB1...........................................................4-13

CD-In Connector: JCD1.......................................................................4-14

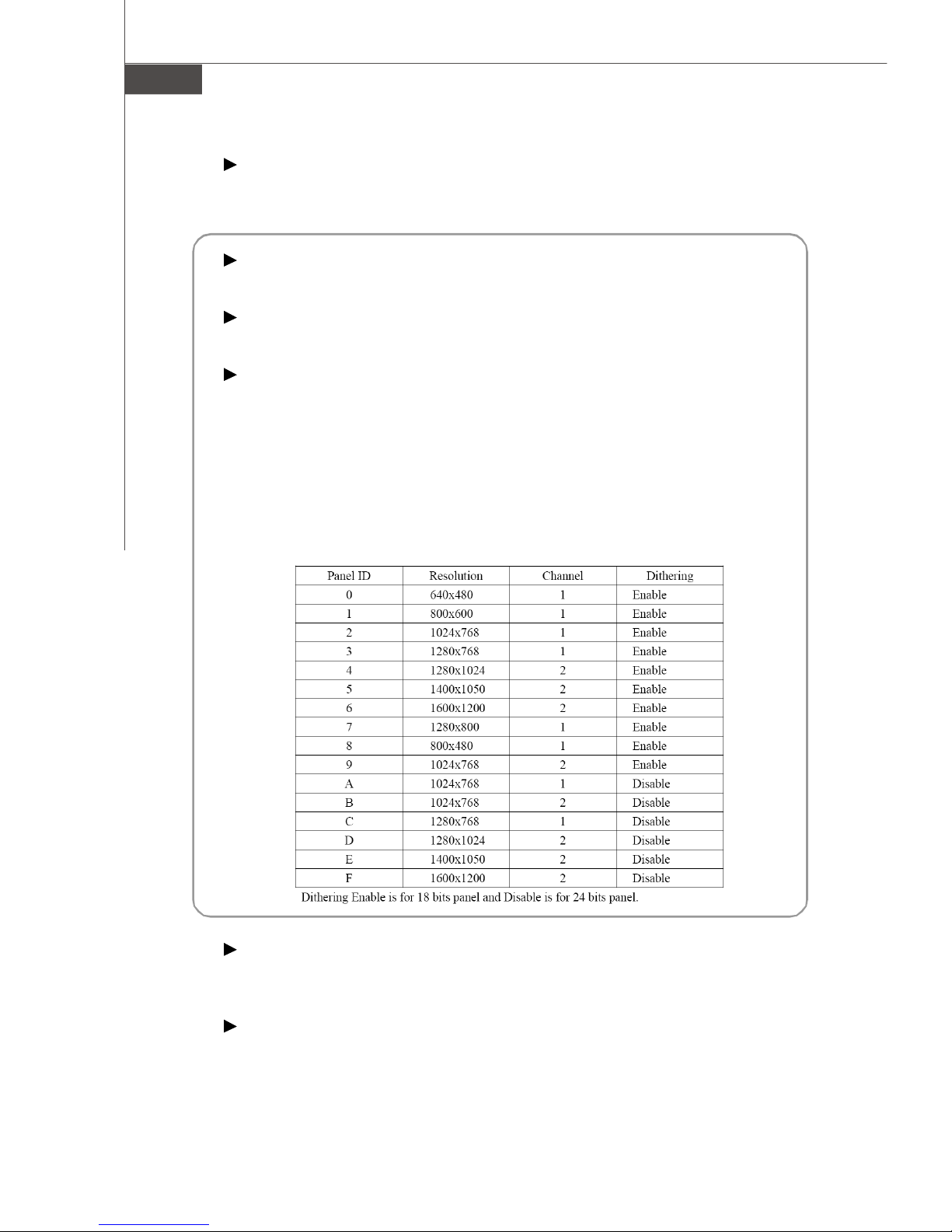

LVDS Flat Panel Connector: JLVDS1..................................................4-14

IrDA Infrared Module Header: IRDA1...................................................4-15

I2C Bus Connector: J1........................................................................4-15

TV-Out Connector: JTV1....................................................................4-15

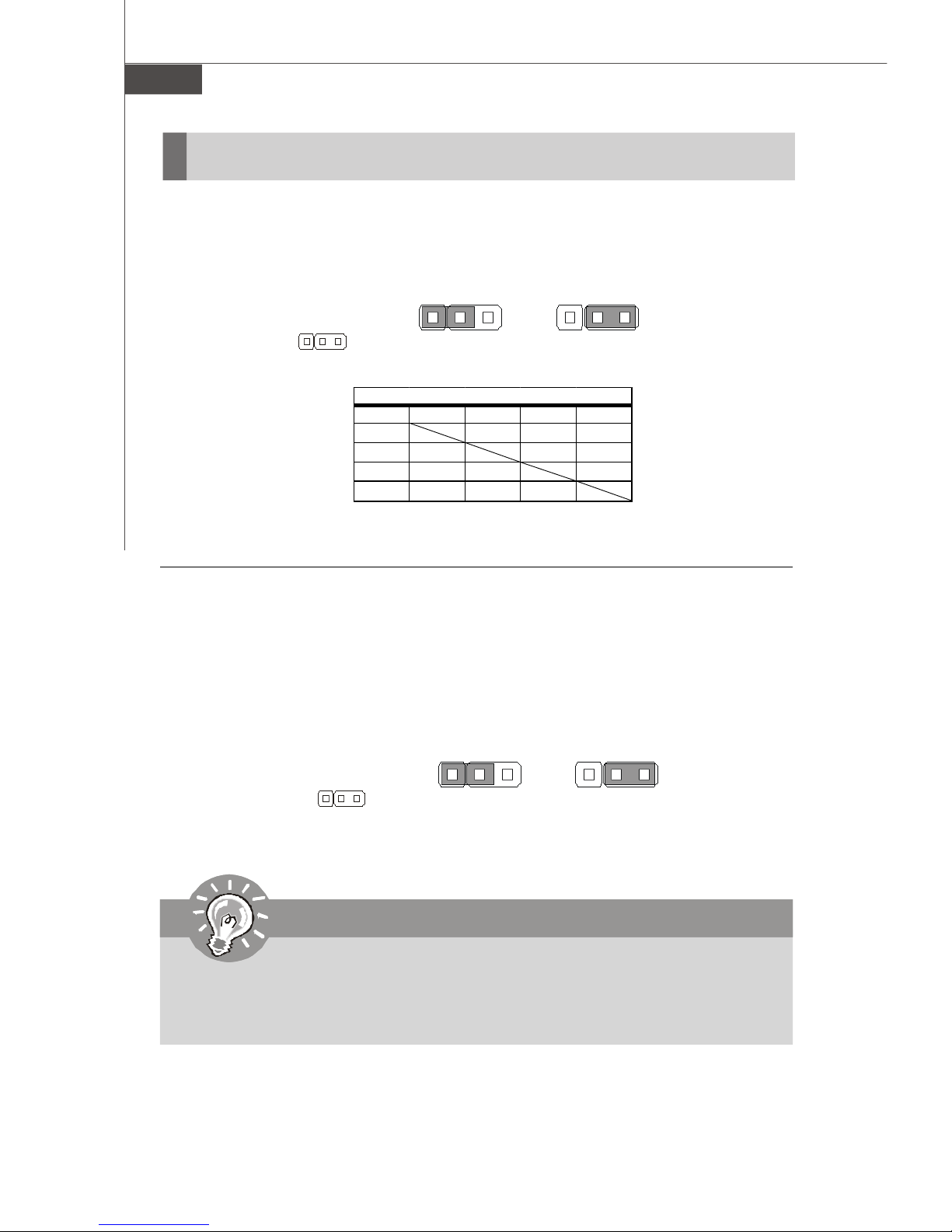

Jumpers....................................................................................................4-16

Display Jumper: TV/CRT1...................................................................4-16

Clear CMOS Jumper: CLR_CMOS1......................................................4-16

LCD Power Source Jumper: J7...........................................................4-17

COM Port Power Jumpers: J2, J3, J4, J5............................................4-17

Slots..........................................................................................................4-18

PCI (Peripheral Component Interconnect) Slot.....................................4-18

PCI Interrupt Request Routing.............................................................4-18

Mini PCI Slot........................................................................................4-19

Installing Mini PCI Cards......................................................................4-19

Removing Mini PCI Cards....................................................................4-20

Chapter 5 BIOS Setup......................................................................................5-1

Entering Setup.............................................................................................5-2

Control Keys.........................................................................................5-3

Getting Help..........................................................................................5-3

General Help <F1>................................................................................5-3

The Menu Bar..............................................................................................5-4

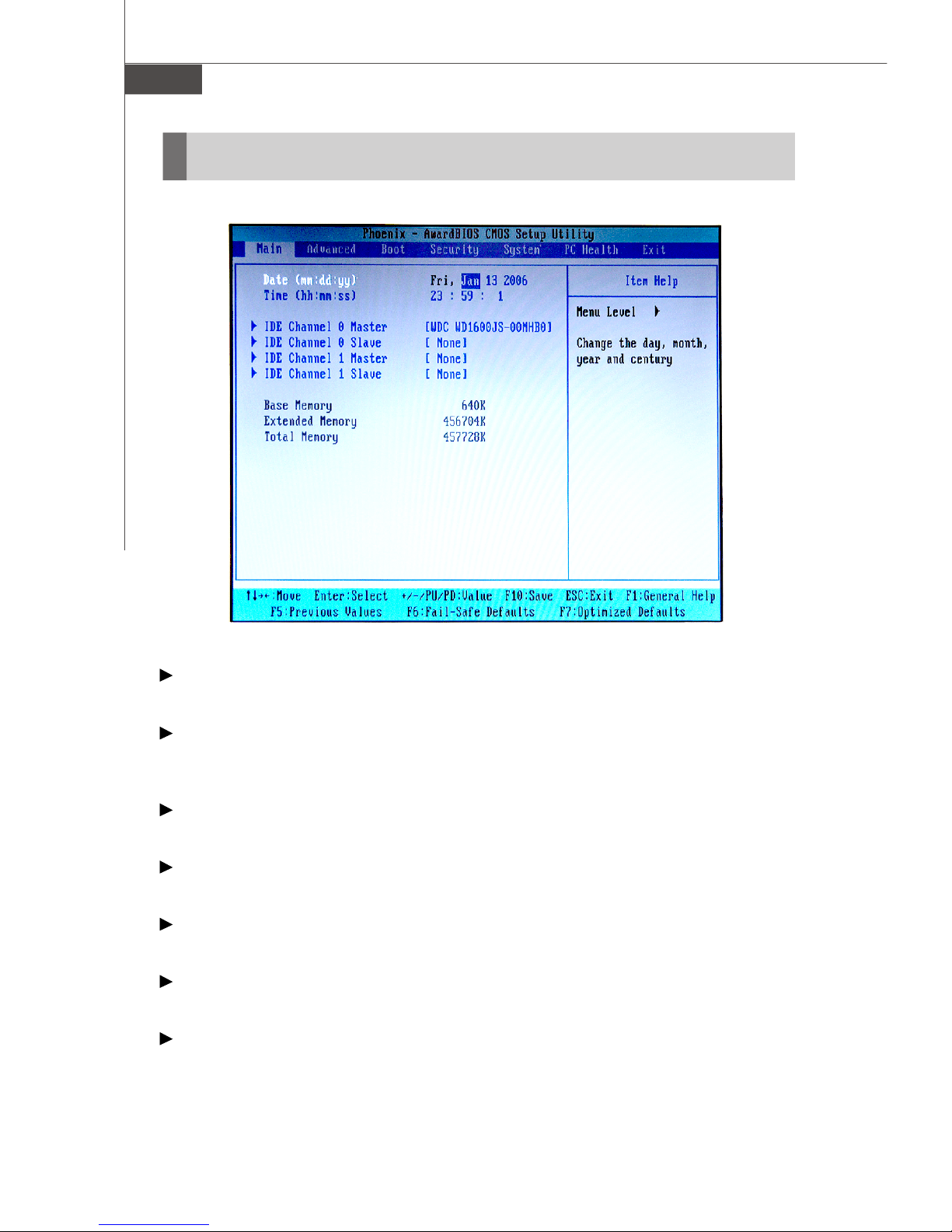

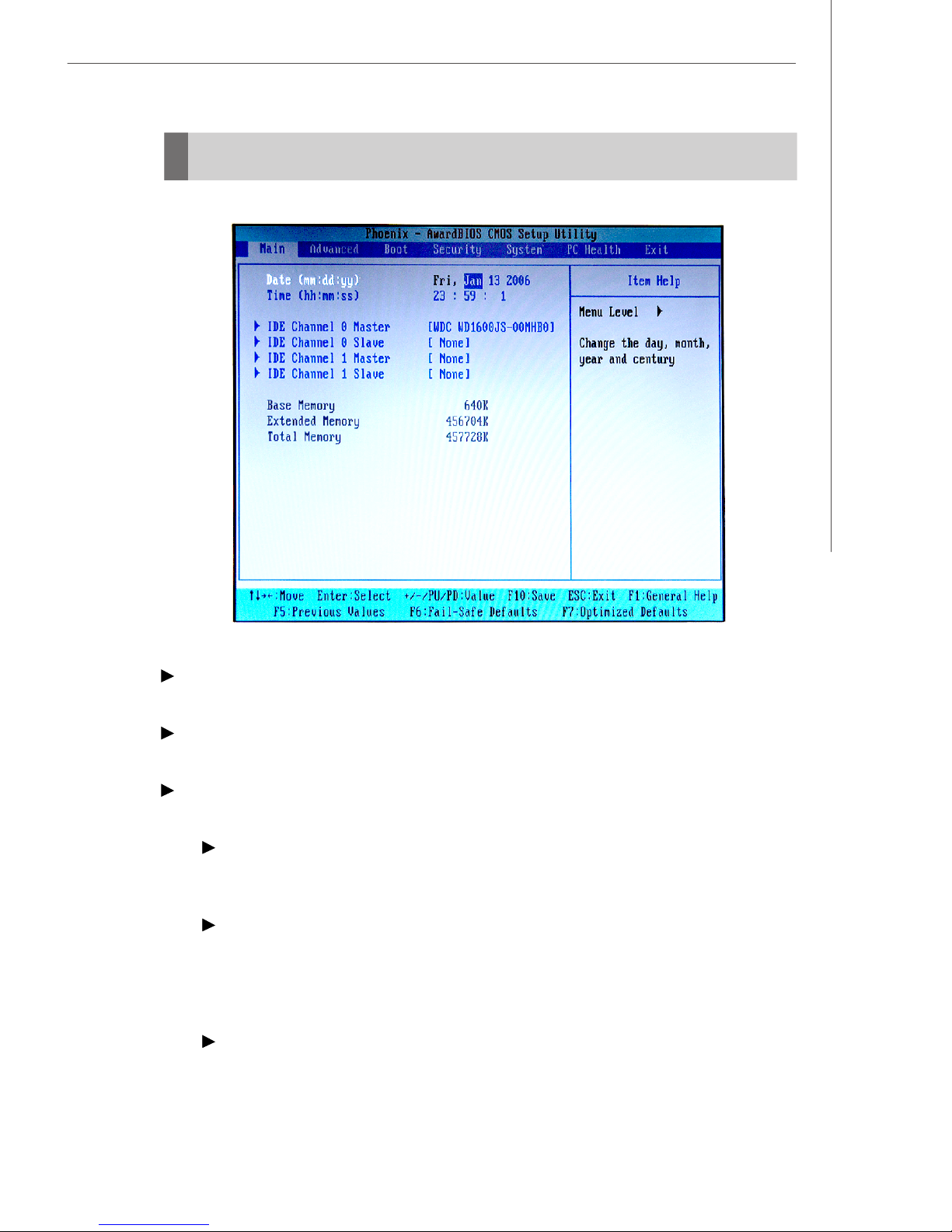

Main.............................................................................................................5-5

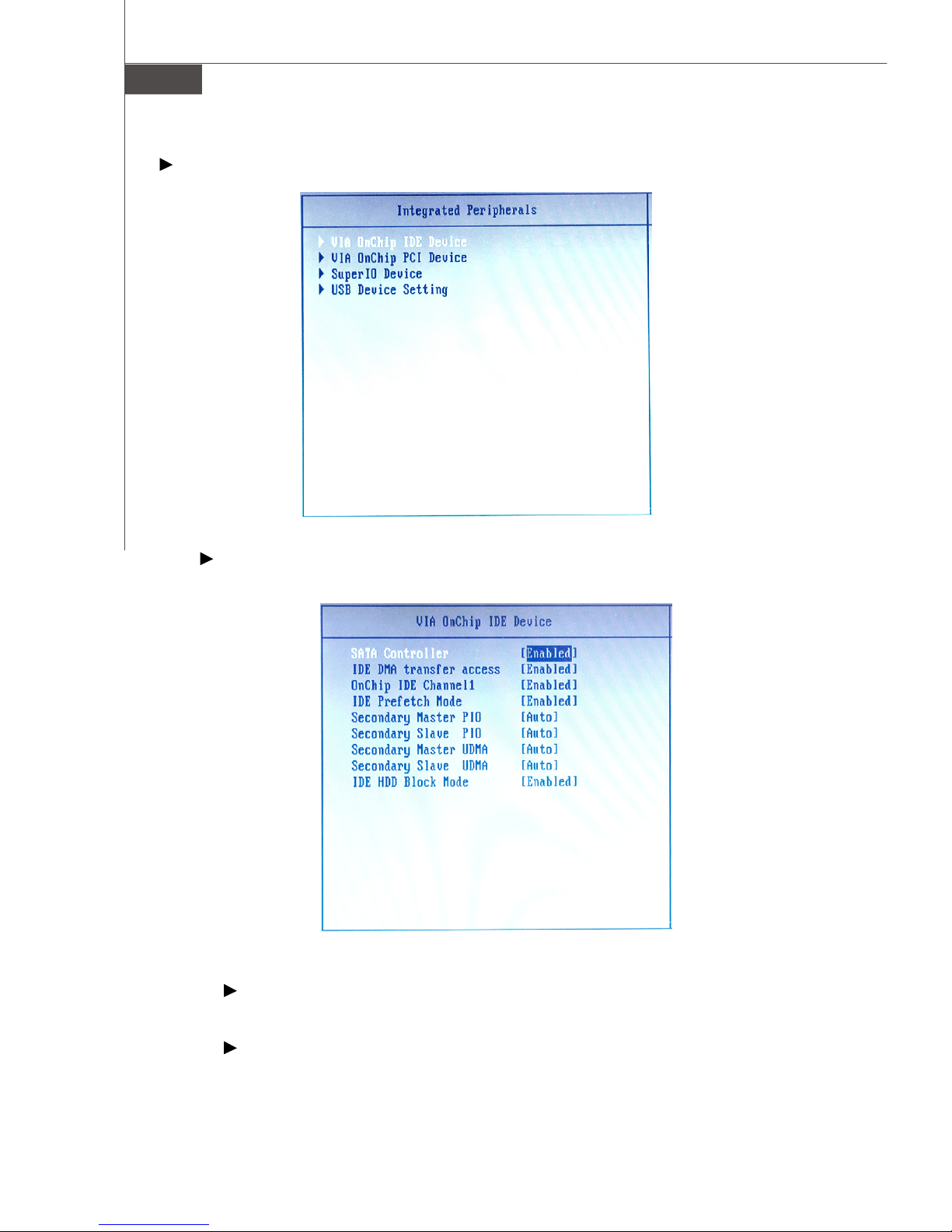

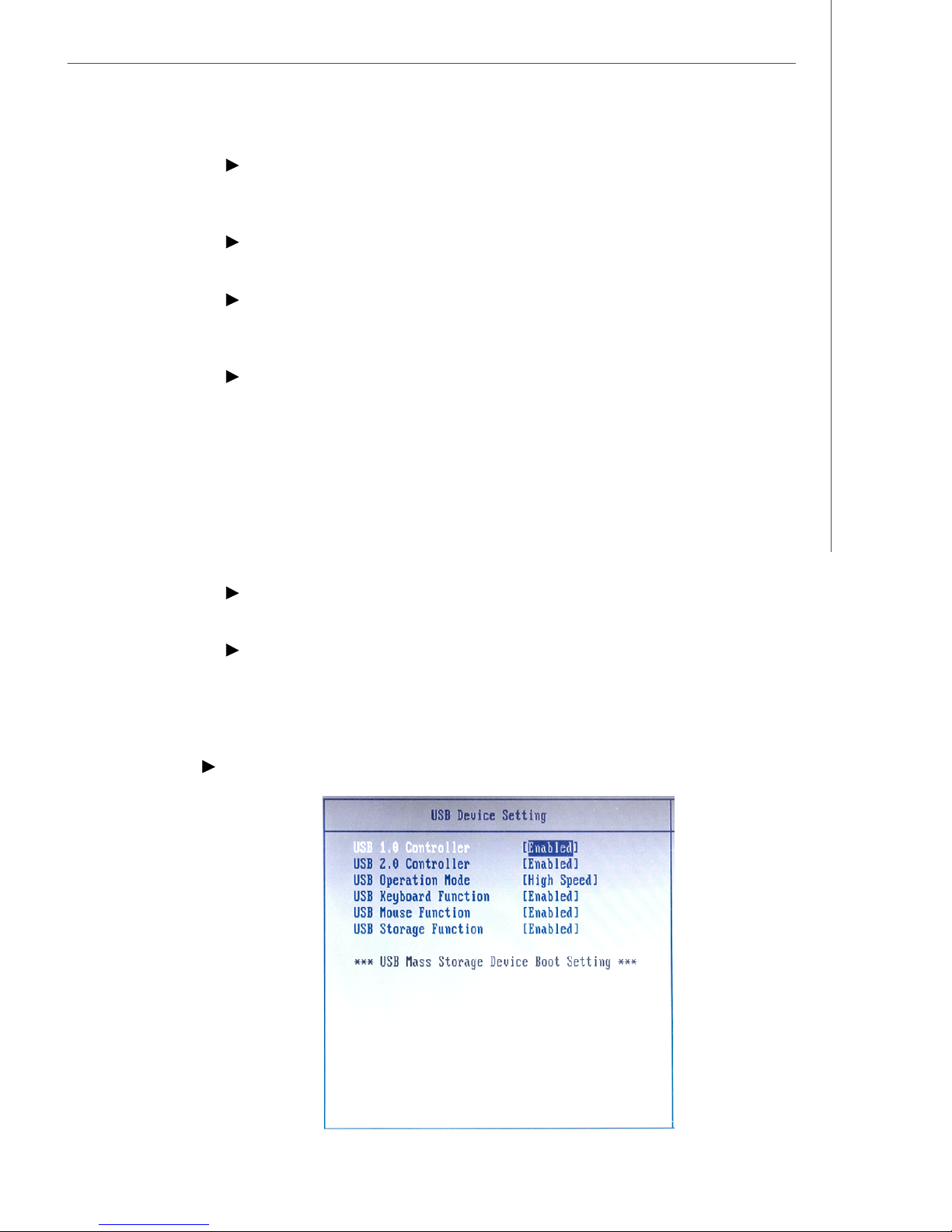

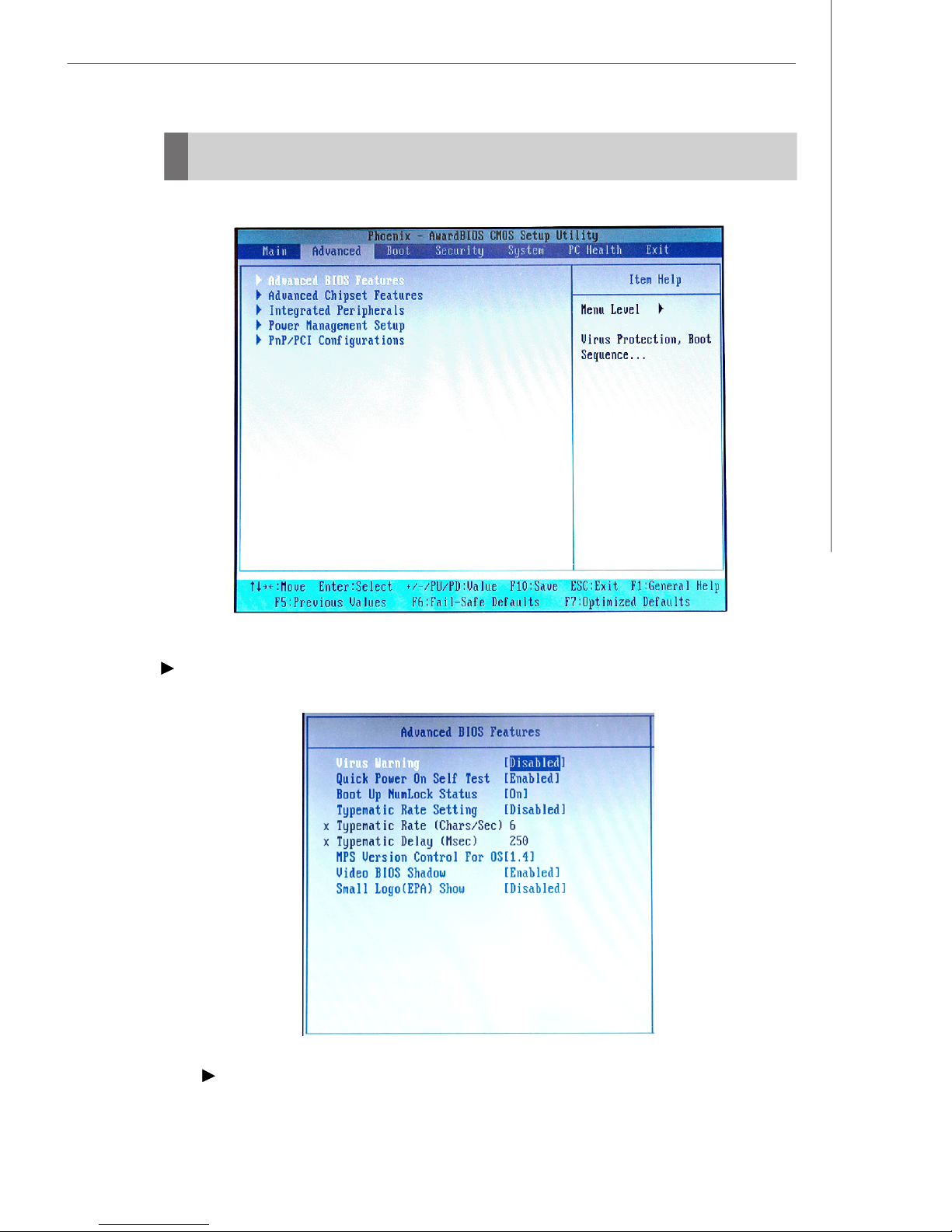

Advanced....................................................................................................5-7

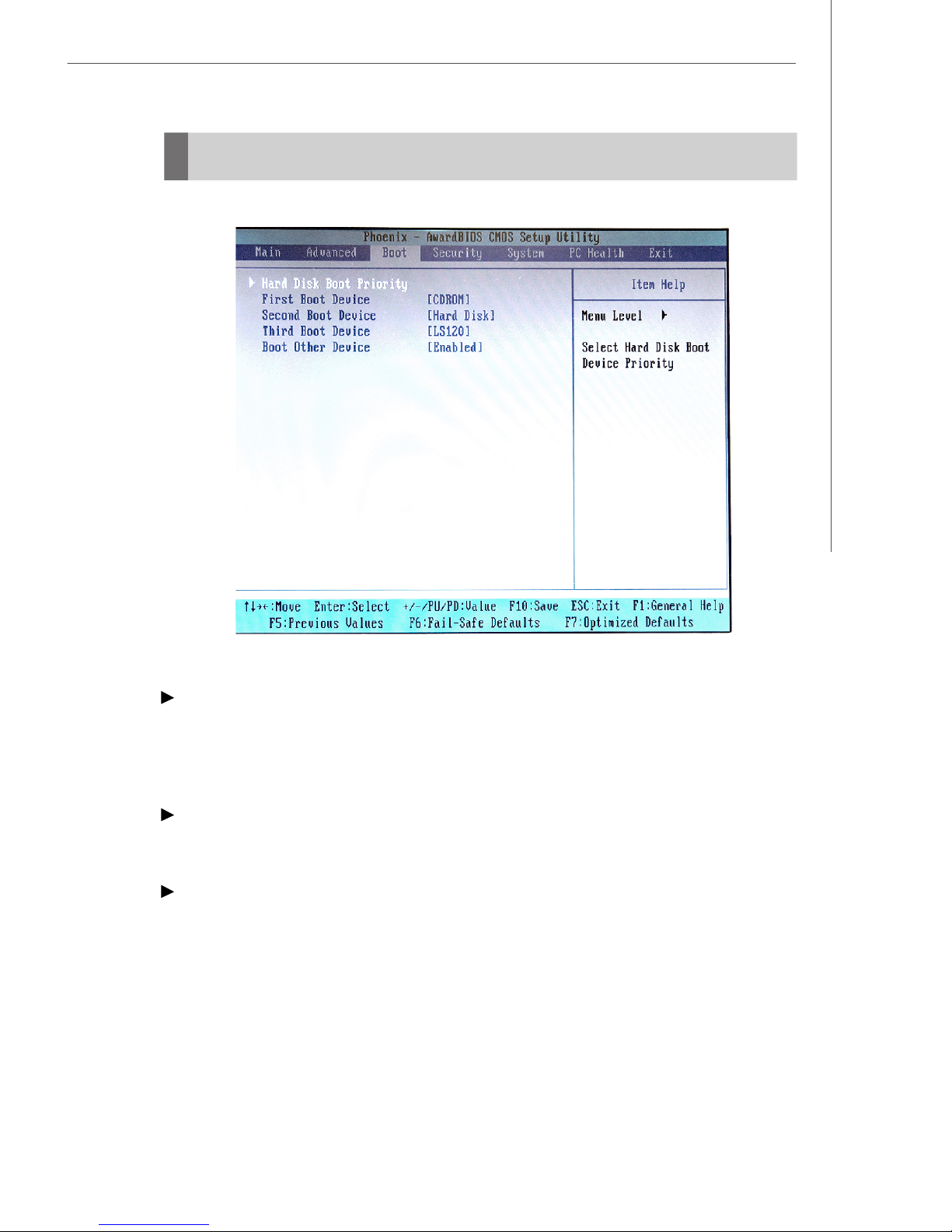

Boot...........................................................................................................5-20

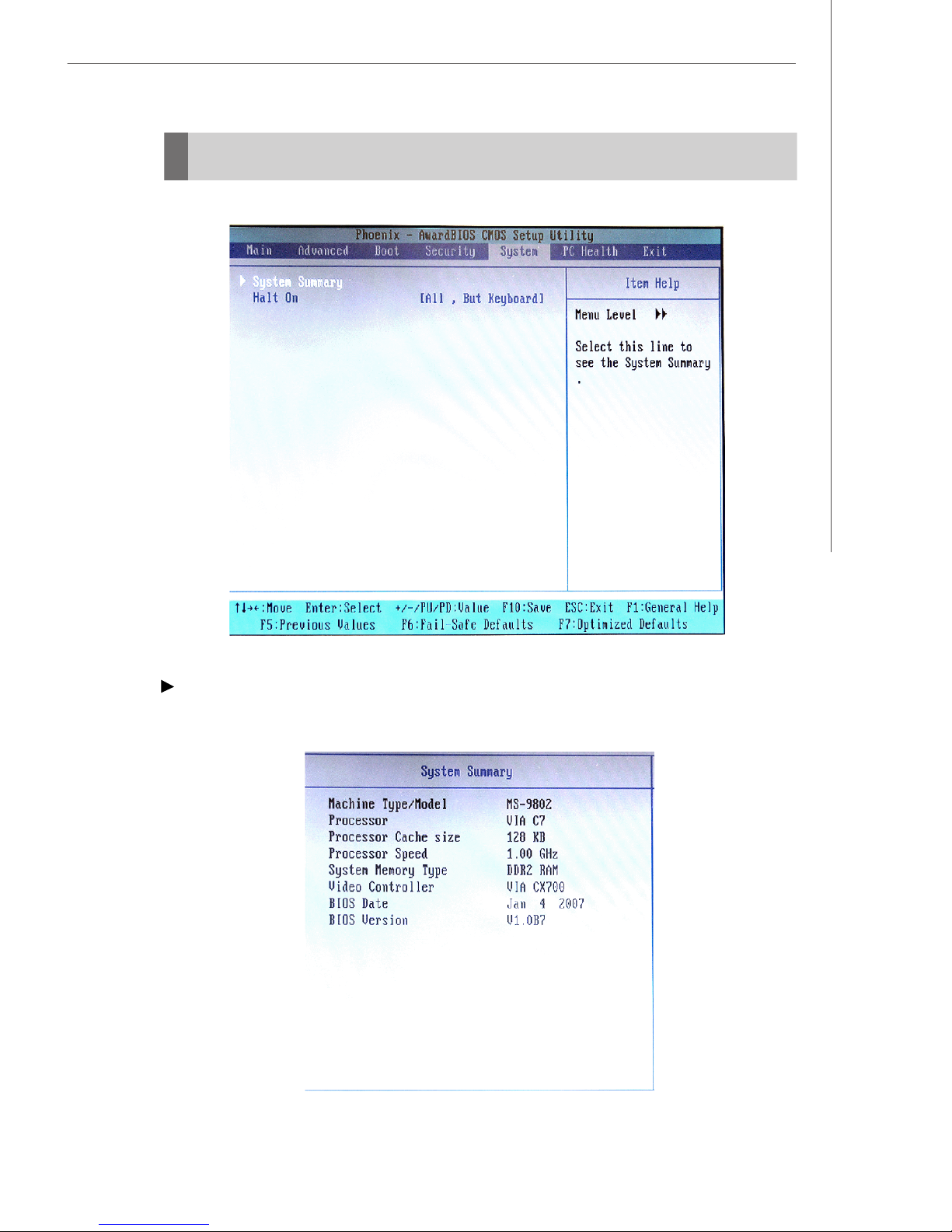

System......................................................................................................5-22

Security.....................................................................................................5-23

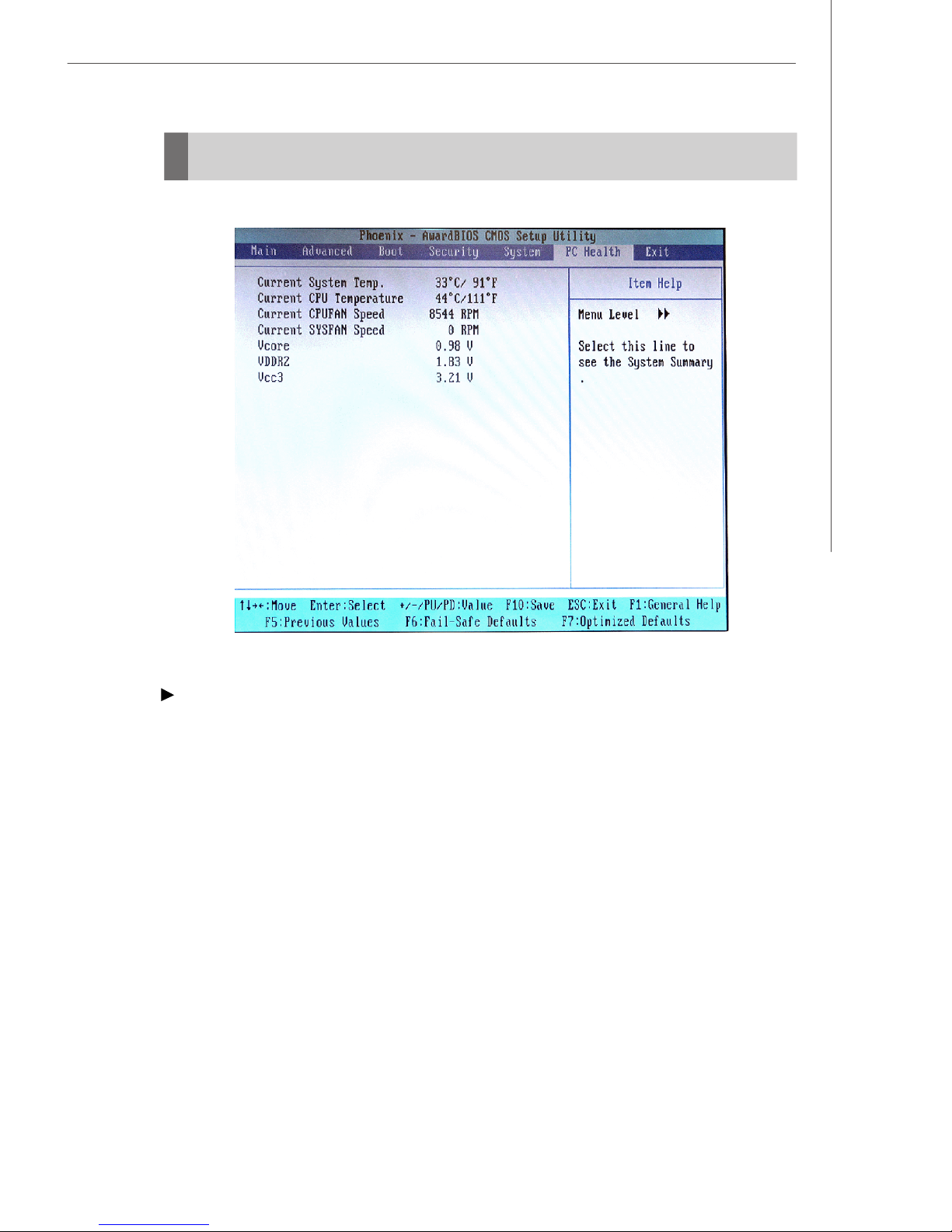

PC Health...................................................................................................5-24

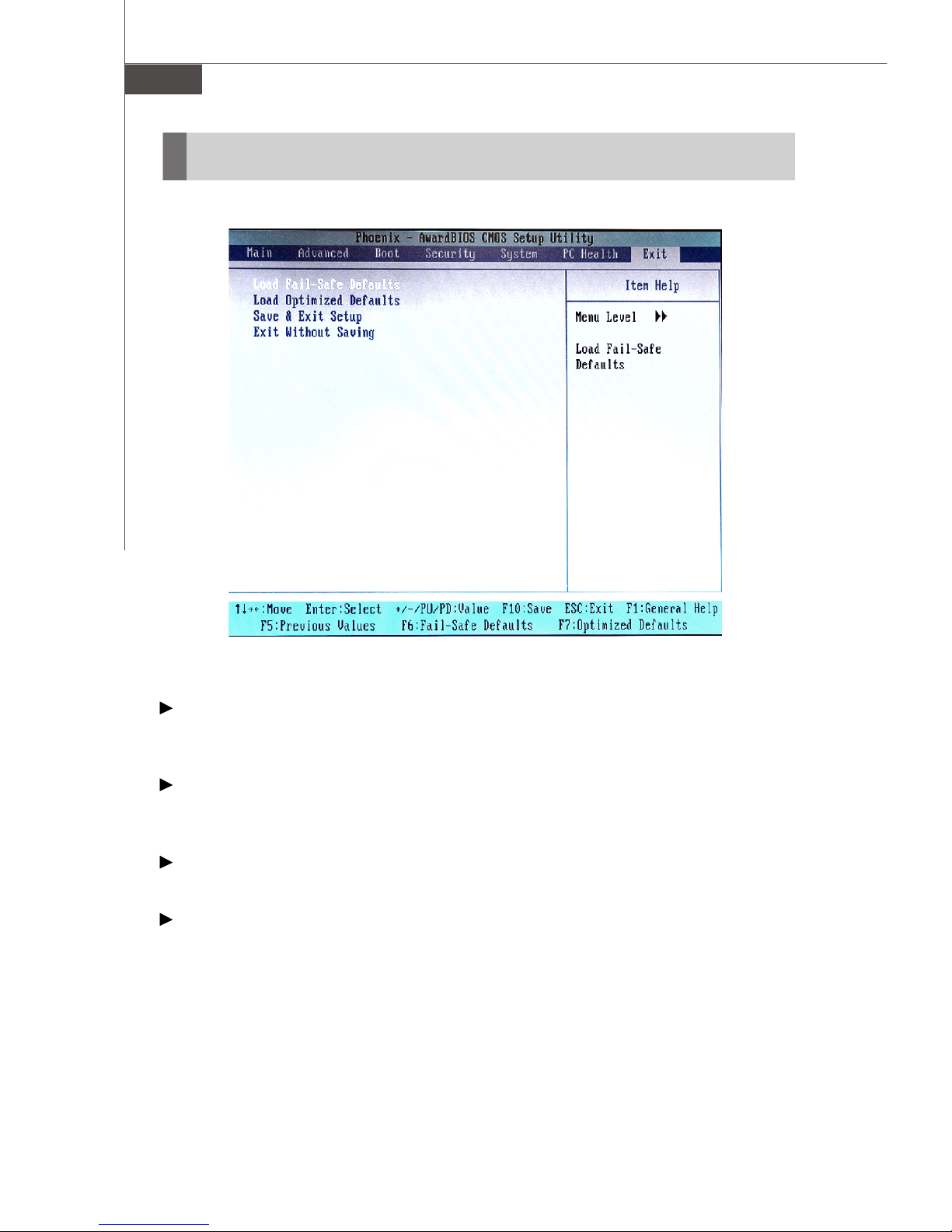

Exit............................................................................................................5-26

Chapter 6 System Resources.......................................................................6-1

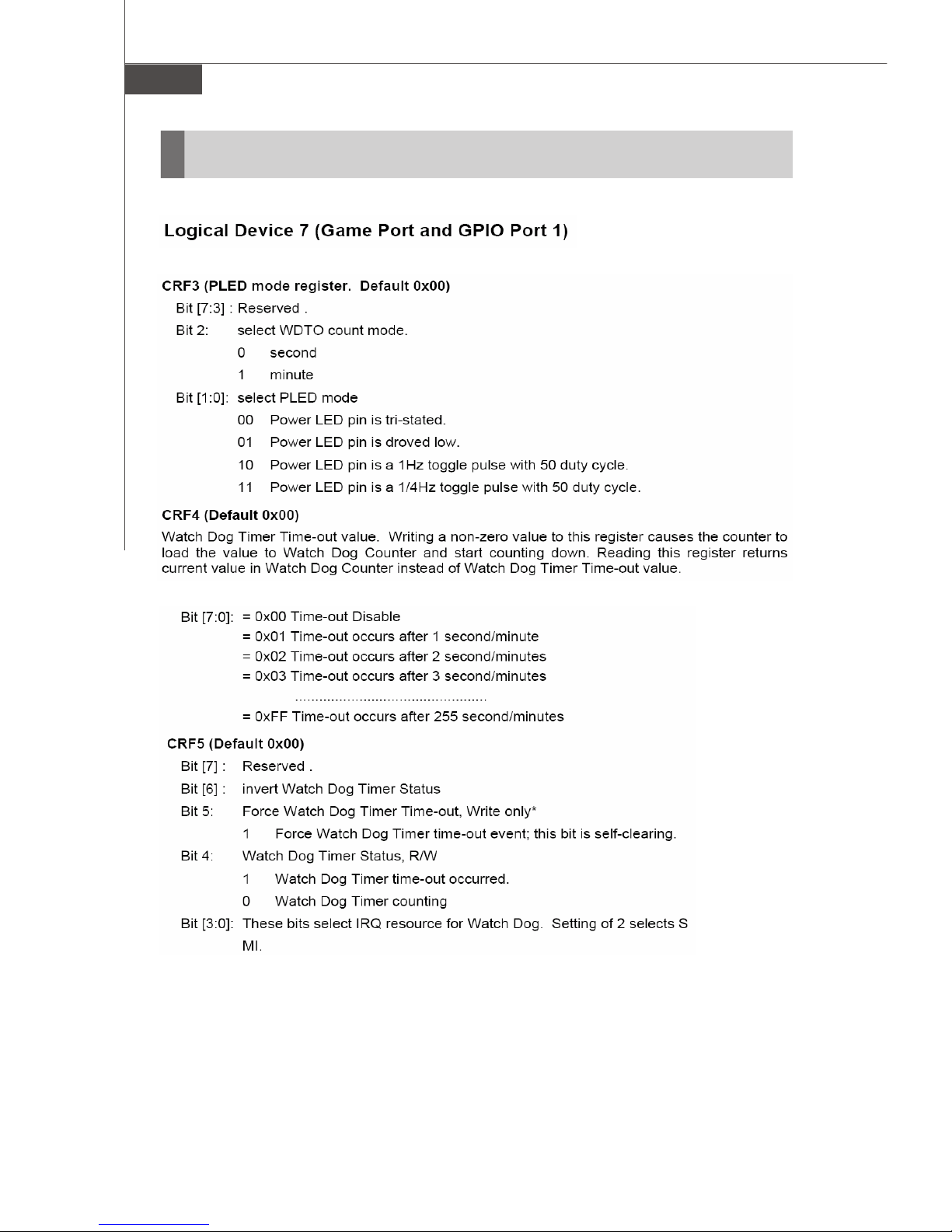

Watch Dog Timer Setting..............................................................................6-3

ix

Award POST Code......................................................................................6-4

Check Point & Beep Code List....................................................................6-10

PCI Configuration.......................................................................................6-16

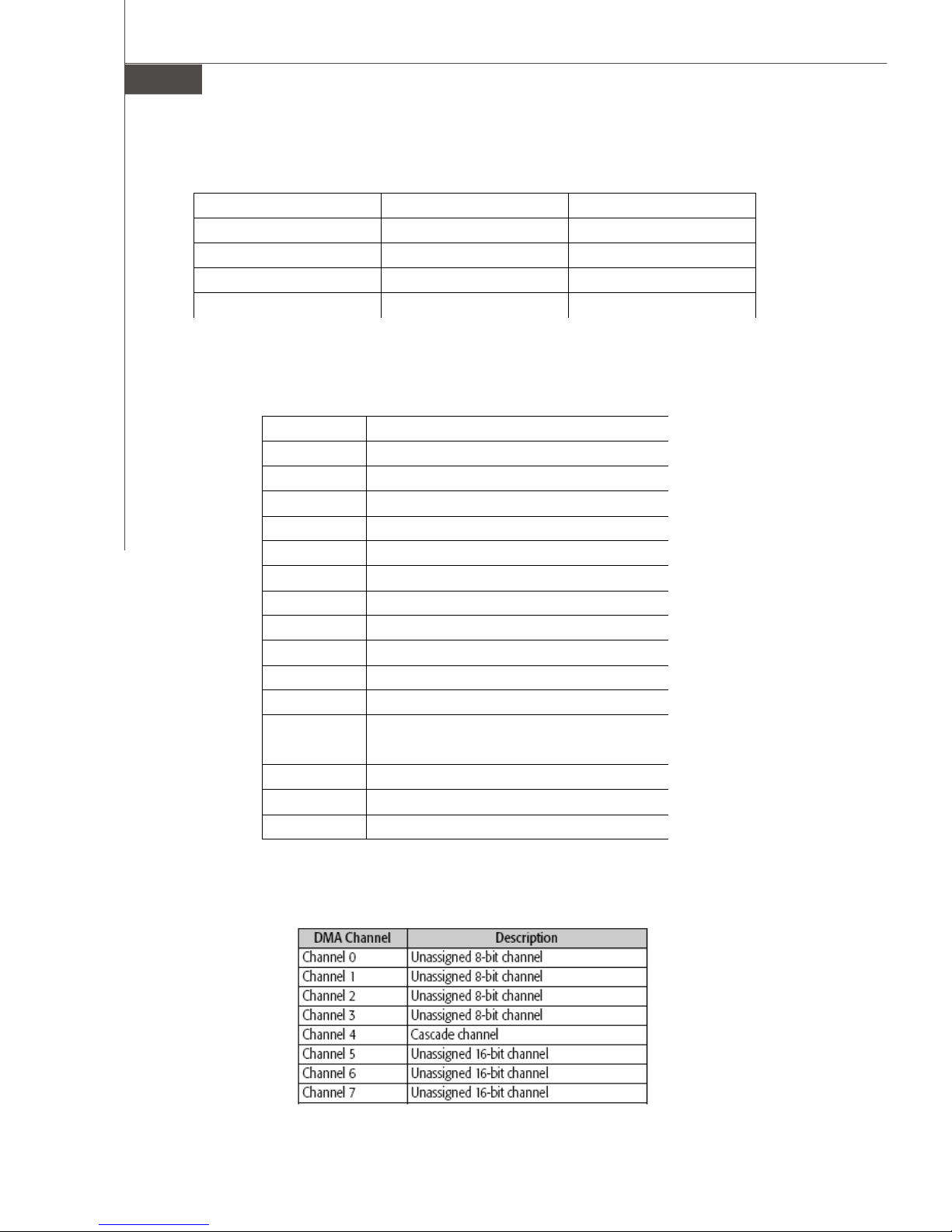

Resource List............................................................................................6-19

x

Product Overview

Chapter 1

Product Overview

Thank you for choosing the Fuzzy CX700/CX700D (MS­9802 v1.X) Mini ITX mainboard from MSI.

Noiseless, fanless and low power consumption are
the advantages of the Fuzzy CX700/CX700D, making it
an ideal choice for IPC special application.

1-1

MS-9802 Mainboard

k Panel I/O

8110SC

8110SC

BIOS

+

J6

J7

J2

J4

COM4

VT1632A

Top: LAN Jack

Bottom: USB Ports

VIA

CX700/ CX700M/ CX700M2

TV/CRT1

TPA3005

Mainboard Layout

F_USB1

CLR_CMOS1

J1

CPUFAN1

SATA2

SYSFAN1

IRDA1

JFP1

ATX1

BATT

DIMM1

JLPT1

ALC888

JAUD1

J3
J5

JLVDS1

JTV1

PCI1

VIA

MINIPCI1

JAUD2

IDEB1

JCF_SEL1

VIA

C7 CPU

SATA1

Top:

COM3

Mouse
Bottom:
Keyboard

Bac

Serial
Ports

Top:
VGA Port
Bottom:
DVI-D Port

Top: LAN Jack
Bottom: USB Ports

T: Line-In
M: Line- Out
B: Mic-In

JCD1

RTL

RTL

CF1

Fuzzy CX700/CX700D (MS-9802 v1.X) Mini ITX Mainboard

1-2

Product Specifications

Chapter 2

Product Specifications

Based on the innovative VIA CX700/ CX700M/ CX700M2
controller for optimal system efficiency, the Fuzzy
CX700/CX700D accommodates VIA C7/ Eden/ Eden ULV
processor and supports one 240-pin 400/533MHz DDR2
DIMM slot to provide the maximum of 2GB memory
capacity.

2-1

MS-9802 Mainboard

Mainboard Specifications

Processor Support

- VIA C7/ Eden/ Eden ULV processor with nanoBGA2 footprint

- 3-pin CPU fan pinheader with Smart Fan Speed Control

- Power SaverTM Technology enabled

Supported FSB

- 400/ 533 MHz

Chipset

- Single chip solution: VIA CX700/ CX700M/ CX700M2

Memory Support

- DDR2 400/533 SDRAM (2GB Max) or ECC DDR2 400 only

- 1 DDR2 DIMM slot (240pin / 1.8V)

LAN

- 2 PCI Gb LAN by Realtek RTL8110SC

Audio

- Realtek® ALC888 7.1-channel HDA codec

- 6 watt amplifier

IDE

- 1 40-pin IDE connector

- Supports 2 IDE devices

CF

- 1 CF Type II socket

SATA

- 2 SATA II ports by VIA CX700/ CX700M/ CX700M2

- Supports storage and data transfers at up to 300MB/s

Expansion Slots

- 1 PCI slot

- 1 Mini PCI socket

2-2

Connectors

Rear I/O

- 1 PS/2 mouse port

- 1 PS/2 keyboard port

- 1 COM port stack connector (2 RS-232 ports)

- 1 VGA/ DVI stack connector

- 2 RJ45/ USB stack connectors

- 1 3-jack audio connector

Onboard Connector

- 1 USB connector (2 ports)

- 1 parallel port connector (LPT)

- 2 COM port connectors (RS-232)

- 1 LVDS connector

- 1 DIO connector (4 IN/ 4 OUT)

- 1 TV-Out connector

- 1 audio connector (7.1-channel)

- 1 amplifier connector

- 1 front panel connector

- 1 SMBUS connector

- 1 CPU fan connector

- 1 system fan connector

- 2 SATA connectors

Product Specifications

Form Factor

- Mini-ITX (17.0cm X17.0cm)

Mounting

- 4 mounting holes

Environmental
Operating Temperature

- Temperature: -10oC ~ 70oC

- Humidity: 0% ~ 85% RH

Storage Temperature

- Temperature: -20oC ~ 80oC

- Humidity: 25% ~ 90% RH

For more information on compatible components, please visit

http://www.msi.com.tw/program/products/server/svr/pro_svr_qvl.php

2-3

MS-9802 Mainboard

MTBF - Reliability Prediction

Limits for harmonic current

emission

Limitation of voltage

voltage supply system

Safety Compliance & MTBF

Certification Title of standard

EN 55022:1998+A1:2000+A2:2003 Class BProduct family standard
EN 6100-3-2:2000 Class D

CE

BSMI

C-Tick

FCC

VCCI

Calculation Model Operation TemperatureOperating EnvironmentDuty Cycle MTBF
Telcordia Issue 1 35 Ground Benign 100% 186,718
MIL-HDBK-217 FN2 55 Ground Mobile 100% 3,182

RFI

EN 6100-3-3:1995+A1:2001

ImmunityEN 55024:1998+A1:2001+A2:2003 Product family standard
CNS 13438 乙類(1997年版)
AS/NZS CISPR 22:2004
FCC CFR Title 47 Part 15 Subpart B: 2005 Class B
CISPR 22: 2005
VCCI V-3:2004, Class B
VCCI V-4:2004, Class B

Standard number

fluctuation and flicker in low-

2-4

Block Diagram

Product Specifications

2-5

MS-9802 Mainboard

Board Dimension

2-6

I/O Shield Drawing

Product Specifications

2-7

MS-9802 Mainboard

2-8

Electrical Specifications

Chapter 3

Electrical Specifications

This chapter provides detailed electrical specifications
of this mainboard. For safety concern, users are ad­vised to read this chapter first before powering on the
mainboard.

3-1

MS-9802 Mainboard

System

Consumption

Power Consumption

Configuration

CPU：VIA C7 1GHz
Memory：Samsung PC2-3200 1GB
SATA HDD：HITACHI 80GB
SATA HDD：Maxtor 80GB
CDROM：Samsung CD-RW/DVD

Mainboard +3.3V Mainboard +5V Mainboard 5VSBMainboard +12V

Power Consumption

Current (A) Current (A) Current (A) Current (A)

A. Full Running (CPU /

Memory / HDD / LAN

stress & Play Audio CD)

B. Running Network

Application - Files Copy

C. Idle 11.482

D. S3 Mode 1.6345

E. Running 3D stress 16.0673

1.33

1.33

0.56
0

1.972 6.2115 0.1748 7.709

1.07

1.04

0.94
0

0.04

0.039

0.04

0.318

0.67

0.6

0.39
0

Watts

18.0773

17.0905

3-2

Electrical Specifications

General Purpose I/O Lines

General Purpose I/O Lines

Parameter Conditions Min Max

Input High Voltage (VIH) - 2V 2V
Input High Voltage (VIL) - -0.5V 0.8V
Input Current (II) - - +(-)1uA

Out High Voltage (VoH)

Out Low Voltage (VoL)

IOH = -50uA 4.4V ­IOH = -16uA 3.8V -

IOL = 50uA - 0.1V
IOH = 16uA - 0.55V

3-3

MS-9802 Mainboard

Onboard Connector Part Number

Onboard Connector Part Number Description

DC 12V power connector HORNG TONG ( E20221-222123 ) 2x2-pin, 4.2mm
AMP audio header FOXCONN ( HB1104H ) 1x4-pin, 2.54mm
GPIO box header HORNG TONG ( A10271-0A1129 ) 2x5-pin, 2mm
Parallel port box header HORNG TONG ( A26371-0A1120 ) 2x13-pin, 2mm
LVDS panel box header HORNG TONG ( B2205J-926430 ) 2x20pin, 1.25mm
RS-232 box header (internal)HORNG TONG ( A10332-A12220 ) 2x5pin, 2.54mm ( take out of 1-pin )
TV-OUT header HORNG TONG ( C2036A-21212R ) 2x3-pin, 2.54mm ( take out of 1-pin )
Front panel I/O header HORNG TONG ( C205A1-21412Z ) 2x5-pin, 2.54mm ( take out of 1-pin )
IrDA header HORNG TONG ( C2035A-21212R ) 2x3-pin, 2.54mm ( take out of 1-pin )
USB header (internal) HORNG TONG ( C2059A-21412X ) 2x5-pin, 2.54mm ( take out of 1-pin )
Front audio header HORNG TONG ( C2074A-25212R ) 2x7-pin, 2.54mm ( take out of 1-pin )

3-4

Hardware Setup

Chapter 4

Hardware Setup

This chapter provides you with the information about
hardware setup procedures. While doing the installation,
be careful in holding the components and follow the
installation procedures. For some components, if you
install in the wrong orientation, the components will not
work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the
components.

4-1

MS-9802 Mainboard

Quick Components Guide

COM4, p.4-13

COM3, p.4-13

Back Panel,

p.4-5

J2~J5,

p.4-17

J1, p.4-15

CPUFAN1, p.4-12

DIMM1,

p.4-3

JLPT1,

p.4-12

JLVDS1,

p.4-14

J7, p.4-17

JTV1, p.4-15

TV/CRT1,

p.4-16

JAUD1, p.4-9

JCD1, p.4-14

JAUD2, p.4-9

PCI1, p.4-18

MINIPCI1,

p.4-19

JCF_SEL1,

p.4-7

CLR_CMOS1,

p.4-16

J6, p.4-11

ATX1,

p.4-4

SATA1/2,

p.4-8

SYSFAN1,

p.4-12

IRDA1,

p.4-15

JFP1, p.4-10

F_USB1, p.4-13

4-2

IDEB1, p.4-7

Hardware Setup

Memory

The mainboard provides one 240-pin non-ECC DDR2 400/533 and ECC DDR2 400
DIMM slot and supports up to 2GB system memory.

For more information on compatible components, please visit http://www.msi.com.
tw/program/products/server/svr/pro_svr_qvl.php.

DDR2

240-pin, 1.8V

64x2=128 pin 56x2=112 pin

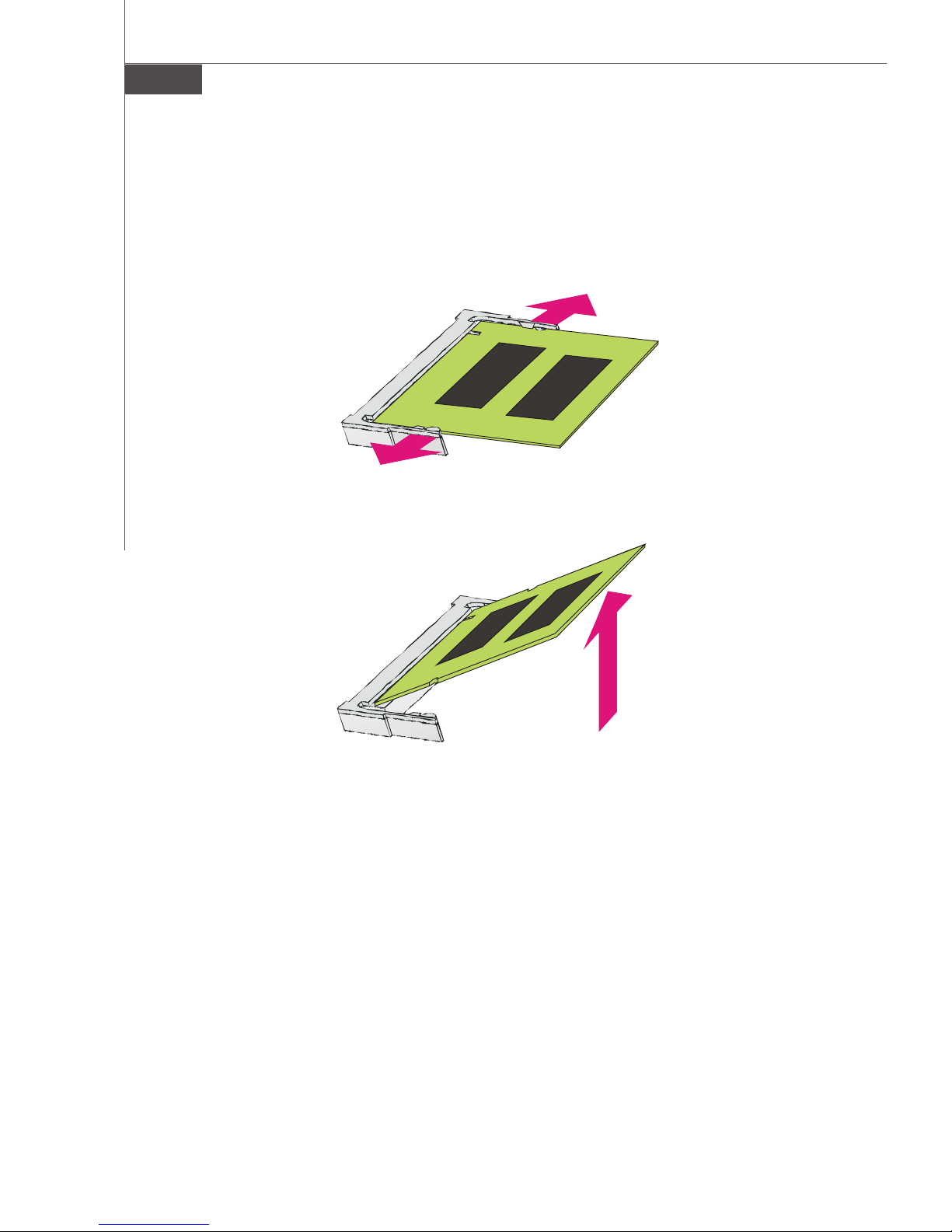

Installing DDR2 Modules

1. The memory module has only one notch on the center and will only fit in the right
orientation.

2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot.

Important

You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt

Notch

4-3
