MSI MS-96D9 User Manual

Download

MS-96D9

(v1.X) Server Board

Preface

MS-96D9

▍

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

MSI® is registered trademark of Micro-Star Int’l Co.,Ltd.

￭

NVIDIA® is registered trademark of NVIDIA Corporation.

￭

ATI® is registered trademark of ATI Technologies, Inc.

￭

AMD® is registered trademarks of AMD Corporation.

￭

Intel® is registered trademarks of Intel Corporation.

￭

Windows

￭

AMI® is registered trademark of Advanced Micro Devices, Inc.

￭

Award® is a registered trademark of Phoenix Technologies Ltd.

￭

Sound Blaster® is registered trademark of Creative Technology Ltd.

￭

Realtek® is registered trademark of Realtek Semiconductor Corporation.

￭

JMicron

￭

Netware® is a registered trademark of Novell, Inc.

￭

is registered trademarks of Microsoft Corporation.

is registered trademark of JMicron Technology Corporation.

Revision History

Revision Date

V1.1 2011/07

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS updates, driver updates

◙

and other information via http://www.msi.com/service/download/

◙

Contact our technical staff via

http://support.msi.com/

MS-96D9

Safety Instructions

Always read the safety instructions carefully.

￭

Keep this User’s Manual for future reference.

￭

Keep this equipment away from humidity.

￭

Lay this equipment on a reliable at surface before setting it up.

￭

The openings on the enclosure are for air convection hence protects the

￭

equipment from overheating. DO NOT COVER THE OPENINGS. Make sure the voltage of the power source and adjust properly 110/220V

￭

before connecting the equipment to the power inlet. Place the power cord such a way that people can not step on it. Do not place

￭

anything over the power cord. Always Unplug the Power Cord before inserting any add-on card or mod

￭

ule. All cautions and warnings on the equipment should be noted.

￭

Never pour any liquid into the opening that could damage or cause electrical

￭

shock. If any of the following situations arises, get the equipment checked by ser

￭

vice personnel:

The power cord or plug is damaged.

◯

Liquid has penetrated into the equipment.

◯

The equipment has been exposed to moisture.

◯

The equipment does not work well or you can not get it work according

◯

to User’s Manual. The equipment has dropped and damaged.

◯

The equipment has obvious sign of breakage.

◯

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDI-

￭

TIONED, STORAGE TEMPERATURE ABOVE 60oC (140oF), IT MAY DAMAGE THE EQUIPMENT.

MS-96D9

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

警告使用者: 這是甲類資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在這種情

況下，使用者會被要求採取某些適當的對策。

iii

Preface

MS-96D9

▍

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union: Batteries, battery packs, and accumulators should not be

disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan: For better environmental protection, waste batteries should

be collected separately for recycling or special disposal.

California, USA: The button cell battery may contain perchlorate material and requires special

handling when recycled or disposed of in California. For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

MS-96D9

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

Reorient or relocate the receiving antenna.

￭

Increase the separation between the equipment and receiver.

￭

Connect the equipment into an outlet on a circuit di󰘯erent from that to

￭

which the receiver is connected. Consult the dealer or an experienced radio/television technician for

￭

help.

Notice 1

The changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and

1) this device must accept any interference received, including interference that

2) may cause undesired operation.

Preface

MS-96D9

▍

WEEE Statement

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “elec trical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt Gemäß der Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte dürfen Elektro- und

Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden. MSI hat europaweit verschiedene Sammel- und Recyclingunternehmen beauftragt, die in die Europäische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer Nähe.

FRANÇAIS

En tant qu’écologiste et an de protéger l’environnement, MSI tient à rappeler ceci...

Au sujet de la directive européenne (EU) relative aux déchets des équipement électriques et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005, que les produits élec triques et électroniques ne peuvent être déposés dans les décharges ou tout simplement

mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains produits en n de vie. MSI prendra en compte cette exigence relative au retour des produits en n de vie au sein de la communauté européenne. Par conséquent vous pouvez retourner

localement ces matériels dans les points de collecte.

РУССКИЙ

Компания MSI предпринимает активные действия по защите окружающей среды,

поэтому напоминаем вам, что....

В соответствии с директивой Европейского Союза (ЕС) по предотвращению загрязнения окружающей среды использованным электрическим и электронным оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13 августа 2005 года, изделия, относящиеся к электрическому и электронному оборудованию, не могут рассматриваться как бытовой мусор, поэтому производители вышеперечисленного электронного оборудования обязаны принимать его для переработки по окончании срока службы. MSI обязуется соблюдать требования по приему продукции, проданной под маркой MSI на территории EC, в переработку по окончании срока службы. Вы можете вернуть эти изделия в специализированные пункты приема.

MS-96D9

ESPAÑOL

MSI como empresa comprometida con la protección del medio ambiente, recomienda: Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o equipos

electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasicados

como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a hacerse cargo de dichos productos al termino de su período de vida. MSI estará comprometido

con los términos de recogida de sus productos vendidos en la Unión Europea al nal de su

periodo de vida. Usted debe depositar estos productos en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una empresa autorizada para la recogida de estos residuos.

NEDERLANDS

Om het milieu te beschermen, wil MSI u eraan herinneren dat…. De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en Elec

tronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op lokale inzamelingspunten.

SRPSKI

Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj sredini,

MSI mora da vas podesti da…

Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Direktiva

2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elek-

tronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim

mestima za prikupljanje.

POLSKI

Aby chronić nasze środowisko naturalne oraz jako rma dbająca o ekologię, MSI przypomina, że...

Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w wyznaczonych punktach zbiorczych.

vii

Preface

MS-96D9

▍

TÜRKÇE

Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır: Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/EC Kara-

rnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi yerel toplama noktalarına bırakabilirsiniz.

ČESKY

Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje... Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků

2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické

výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky MSI, prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete odevzdat v místních sběrnách.

MAGYAR

Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve az

MSI emlékezteti Önt, hogy ...

Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektronikus

berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és elektroni-

kus berendezések többé nem kezelhetőek lakossági hulladékként, és az ilyen elektronikus

berendezések gyártói kötelessé válnak az ilyen termékek visszavételére azok hasznos élet tartama végén. Az MSI betartja a termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n belül értékesített termékek esetében, azok élettartamának végén. Az

ilyen termékeket a legközelebbi gyűjtőhelyre viheti.

ITALIANO

Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che…. In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici ed

Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla cat

egoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati come riuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla ne del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla ne del loro ciclo di vita. È possibile portare

i prodotti nel più vicino punto di raccolta.

viii

MS-96D9

Contents

Trademarks .....................................................................................................ii

Revision History Technical Support Safety Instructions Chemical Substances Information Battery Information CE Conformity FCC-B Radio Frequency Interference Statement

WEEE Statement ...........................................................................................vi

Chapter 1 Overview ��1-1

Mainboard Specications ............................................................................ 1-2

Mainboard Layout Watch Dog Timer Setting

Chapter 2 Hardware Setup��2-1

Quick Components Guide ........................................................................... 2-2

Memory ....................................................................................................... 2-3

Power Supply .............................................................................................. 2-4

Rear Panel I/O ............................................................................................2-6

Connector .................................................................................................. 2-11

Jumper ...................................................................................................... 2-17

Slot ............................................................................................................ 2-19

Chapter 3 BIOS Setup ��3-1

Entering Setup ............................................................................................3-2

The Menu Bar .............................................................................................3-4

Main

............................................................................................................3-5

Advanced .................................................................................................... 3-6

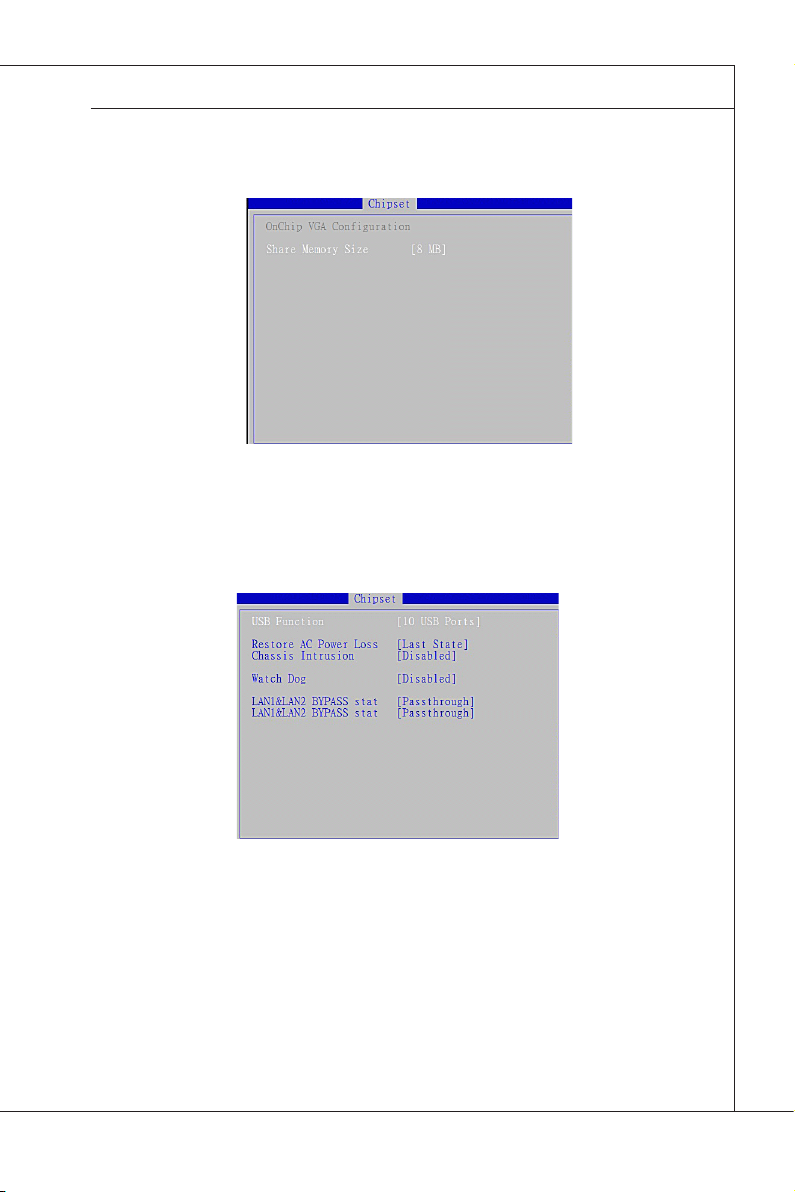

Chipset

...................................................................................................... 3-14

Boot ...........................................................................................................3-17

Security Save & Exit

..............................................................................................ii

............................................................................................ii

..........................................................................................iii

.................................................................iv

.........................................................................................iv

.................................................................................................v

...........................................v

.......................................................................................1-4

..........................................................................1-12

..................................................................................................... 3-19

................................................................................................ 3-20

Chapter 1 Overview

Thank you for choosing the MS-96D9 v1.X, an excellent server board from MSI.

Based on the Intel® ICH8M chipset for optimal system

efciency, the MS-96D9 accommodates the Intel® Pinev-

iew processor (CPU + GPU + Northbridge) and supports up to 2 SO-DIMM slots to provide the maximum of 4GB memory capacity.

In the entry-level and mid-range market segment, the MS-96D9 can provide a high-performance solution for today’s front-end and general purpose workstation, as well as in the future.

1-1-1

Overview

MS-96D9

▍

Mainboard Specications

Processor

Intel Pineview D425/D525 processor (CPU + GPU + Northbridge)

■

FSB

667MHz

■

Chipset

South Bridge: Intel ICH8M chipset

■

Memory

2 DDR3 800MHz SO-DIMM slots

■

Supports the maximum of 4GB Unbuffered / non-ECC DIMM

■

LAN

Supports Gigabit LAN by Intel 82574L Gb Ethernet controller

■

Supports Ethernet bypass function with Programming Relay (optional)

■

SATA

2 SATA 3Gb/s ports by Intel ICH8M

■

IDE

1 IDE port by Intel ICH8M

■

Supports Ultra DMA 66/100, PIO, Bus Master operation mode

■

1 CompactFlash socket by Intel ICH8M

■

Onboard Input/Output

Front Panel

■

2 or 4 or 6 Gigabit LAN ports

2 USB 2.0 ports

1 RJ-45 serial console port

Onboard Connectors

■

1 USB 2.0 pinheader (2 ports)

1 serial port connector

1 SMBus connector

1 SPI Flash ROM pinheader (for debugging)

1 chassis intrusion connector

1 TPM connector

1 VGA port

1 keyboard/mouse connector

1-2

MS-96D9

Slot

1 PCIE x4 edge-type slot (with 2 PCIE x1 signal, for 4 GbE LAN sku only)

■

1 PCIE x1 edge-type slot (optional)

■

Form Factor

Mini-ITX: 170mm x 170mm

■

Mounting

4 mounting holes

■

MS-96D9

1-3

Overview

MS-96D9

▍

Mainboard Layout

1-4

MS-96D9 v1�X Mainboard (ATX Power, 6 GbE LAN)

MS-96D9

MS-96D9 v1�X Mainboard (ATX Power, 4 GbE LAN, PCIE x4)

1-5

Overview

MS-96D9

▍

1-6

MS-96D9 v1�X Mainboard (ATX Power, 6 GbE LAN, PCIE x1)

MS-96D9

MS-96D9 v1�X Mainboard (ATX Power, 4 GbE LAN, PCIE x4, PCIE x1)

1-7

Overview

MS-96D9

▍

1-8

MS-96D9 v1�X Mainboard (DC Power, 6 GbE LAN)

MS-96D9

MS-96D9 v1�X Mainboard (DC Power, 4 GbE LAN, PCIE x4)

1-9

Overview

MS-96D9

▍

MS-96D9 v1�X Mainboard (DC Power, 4 GbE LAN, PCIE x4, PCIE x1)

1-10

MS-96D9

IDE 1

JUS B1

JP5

JP7

SATA1

SATA0

JP1

JP3

JP2

JPW R1

JVG A1

COM 2

SYS FAN1

CPU _F1

JP4

DIM M1

DIM M2

JLA N1

JLA N2

Top: LAN Ja ck Bot tom : U SB P ort s

JP8

JTP M1

JP9

Int el At om

Int el I CH8M

JCI 1

JP6

JFP 1

JSP I1

JBAT1

HDDP WR

MS-96D9

MS-96D9 v1�X Mainboard (DC Power, 2 GbE LAN)

1-11

Overview

MS-96D9

▍

Watch Dog Timer Setting

Setup procedures

A. Enter super I/O conguration mode -

mov dx, 04eh mov al, 087h out dx, al out dx, al

B. Set pin 77 to WDTO# function

mov dx,04eh mov al,02Dh;; ;Register 2Dh out dx,al inc dx in al,dx

and al,0FEh ;Cong Bit 0 As 0 out dx,al ;Cong PIN 77 as WDTO#

C. Select Logical Device 8 mov dx, 04eh mov al, 07h out dx, al ;point to Logical Device Number Register inc dx mov al, 08h ;select Logical Device 8 out dx, al

1-12

MS-96D9

D. Enable watchdog timer Activate WDTO#

mov dx, 04eh ;CR 30h: bit 0 ll in 1

mov al, 030h out dx, al inc dx mov al, 01h out dx, al

; Setup WDTO# count mode ; Set bit 4 and bit 3 by request ; Set bit 2 to 0 ; Set bit 1 to 1

MS-96D9

1-13

Overview

▍

mov dx, 04eh ;CR F7h: bit 4 ll 0 (clear event)

mov al, 0f7h out dx, al inc dx in al,dx and al, 0efh

out dx, al ;CR F6h: bit0~7 ll in counter time

E. Exit conguration mode

mov dx, 04eh mov al, 0aah out dx, al

1-14

Chapter 2 Hardware Setup

This chapter provides you with the information about hardware setup procedures. While doing the installation, be careful in holding the components and follow the installation procedures. For some components, if you install in the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static electricity may damage the compo nents.

2-2-1

Hardware Setup

MS-96D9

▍

Quick Components Guide

Rear Panel I/O, p. 2-6

JSPI1, p. 2-15

DIMM Slots, p. 2-3

JBAT1, p. 2-17

PCIE, p. 2-19

JCI1, p. 2-13

SATA0~1, p. 2-11

JVGA1, p. 2-15

IDE1, p. 2-11

JUSB1, p. 2-14

JP6, p. 2-18

JFP1, p. 2-13

JPWR1, p. 2-5

ATX2, p. 2-4

JP4, p. 2-13 ATX1, p. 2-4

JP9, p. 2-15

JTPM1, p. 2-16 SYSFAN1, p. 2-12 CPU_F1, p. 2-12 JHD DPW R1, p. 2-5 COM2, p. 2-14

CF1, p. 2-12

JP7, p. 2-18

2-2

MS-96D9

Memory

The SO-DIMM slots are intended for memory modules.

DDR3 SO-DIMM Slot

Installing Memory Modules

The memory module has only one notch on the center and will only 󰘰t in the

1. right orientation.

Insert the memory module vertically into the DIMM slot. Then push it in until

2. the golden 󰘰nger on the memory module is deeply inserted in the DIMM slot. The slot clip at each side of the DIMM slot will automatically close when the memory module is properly seated.

Manually check if the memory module has been locked in place by the DIMM

3. slot clips at the sides.

Important

You can barely see the golden nger if the memory module is properly inserted

•

in the DIMM slot.

To enable successful system boot-up, always insert the memory modules into

•

the DIMM1 rst.

MS-96D9

2-3

Hardware Setup

MS-96D9

▍

Power Supply

System Power Connector: ATX1 (Optional)

This connector allows you to connect a power supply. To connect to the power supply, make sure the plug of the power supply is inserted in the proper orienta-

tion and the pins are aligned. Then push down the power supply rmly into the

connector.

11 1

20 10

PIN SIGNAL PIN SIGNAL

+3.3V

GND

+5V

GND

+5V

GND

PWR OK

5VSB

+12V

+3.3V

-12V

GND

PS-ON#

GND

+3.3VSB

+5V

CPU/Memory Power Connector: ATX2 (Optional)

This connector provides 12V power output to the CPU & memory.

PIN SIGNAL

GND

+12V

Important

Make sure that all power connectors are connected to the power supply to ensure stable operation of the mainboard.

2-4

MS-96D9

DC Adapter Connector: JPWR1 (Optional)

This connector is used to connect DC power adapter.

HDD Power Connector: JHDDPWR1

This connector provides power to the hard disk drives.

MS-96D9

PIN SIGNAL

VCC5

GND

+12V

2-5

Hardware Setup

MS-96D9

▍

Rear Panel I/O

2-6

RJ-45 Serial

Console Port

USB Port

JLAN1 JLAN2 JLAN3 JLAN4 JLAN5

(Optional)

JLAN6

(Optional)

MS-96D9

RJ-45 Serial Console Port

▶

The RJ-45 serial console port allows direct connection to the Serial Console

Server for local access and conguration.

USB Port

▶

The USB (Universal Serial Bus) port is for attaching USB devices such as key-

board, mouse, or other USB-compatible devices.

LAN

▶

The standard RJ-45 LAN jack is for connec-

tion to the Local Area Network (LAN). You

Yellow Green/ Orange

can connect a network cable to it.

LED Color LED State Condition

Left Yellow Off LAN link is not established.

On (steady) LAN link is established.

On (blinking) The computer is communicating with another computer on the LAN.

Right Green Off 10 Mbit/sec data rate is selected.

On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

LAN Bypass Function Programming Guide

The Southbridge GPIO controls CPLD to realize LAN Bypass/PassThrough/WDT

function.

ICH8M

2-7

Hardware Setup

MS-96D9

▍

ICH8M

Programming Sequence

1. program GPO6,34,33, PAIR(3:1) to switch LAN1-2 or LAN3-4 pair

2. program GPO39,38,35 CFG(3:1) to control LAN pair behavior Bypass/

PassThrough/WDT

3. set GPO24, CPLD_SendBIT high about 150ms then set it low about 50ms to complete the LAN pair conguration progress

4. go to next programming sequence loop for the next LAN pair!

ICH8M

2-8

MS-96D9

Boolean table for CPLD behavior of Bypass/PassThrough/WDT function

LAN1-2

PAIR_3 PAIR_2 PAIR_1 CFG_3 CFG_2 CFG_1

0 0 0 0 0 0 ON PassTru

OFF PassTru

WDT Reset

0 0 0 0 0 1 ON PassTru

OFF PassTru

WDT ByPass

0 0 0 0 1 0 ON PassTru

OFF ByPass

WDT Reset

0 0 0 0 1 1 ON PassTru

OFF ByPass

WDT ByPass

0 0 0 1 0 0 ON ByPass

OFF PassTru

WDT Reset

0 0 0 1 0 1 ON ByPass

OFF PassTru

WDT ByPass

0 0 0 1 1 0 ON ByPass

OFF ByPass

WDT Reset

0 0 0 1 1 1 ON ByPass

OFF ByPass

WDT ByPass

2-9

Hardware Setup

MS-96D9

▍

LAN3-4

PAIR_3 PAIR_2 PAIR_1 CFG_3 CFG_2 CFG_1

0 0 1 0 0 0 ON PassTru

OFF PassTru

WDT Reset

0 0 1 0 0 1 ON PassTru

OFF PassTru

WDT ByPass

0 0 1 0 1 0 ON PassTru

OFF ByPass

WDT Reset

0 0 1 0 1 1 ON PassTru

OFF ByPass

WDT ByPass

0 0 1 1 0 0 ON ByPass

OFF PassTru

WDT Reset

0 0 1 1 0 1 ON ByPass

OFF PassTru

WDT ByPass

0 0 1 1 1 0 ON ByPass

OFF ByPass

WDT Reset

0 0 1 1 1 1 ON ByPass

OFF ByPass

WDT ByPass

2-10

MS-96D9

Connector

Serial ATA Connector: SATA0, SATA1

This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device.

Important

Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission.

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

Important

If you install two IDE devices on the same cable, you must congure the drives separately to master / slave mode by setting jumpers. Refer to IDE device’s documentation supplied by the vendors for jumper setting instructions.

2-11

Hardware Setup

MS-96D9

▍

CompactFlash Socket: CF1

This socket is provided for CompactFlash (CF) cards.

Fan Power Connector: CPU_F1, SYSFAN1

The fan power connectors support system cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

CPU_F1

1 3

PIN SIGNAL

GND

+12V

Sensor

SYSFAN1

PIN SIGNAL

GND

+12V

Sensor

Control

Important

Please refer to the recommended CPU fans at processor ’s ofcial website or consult the vendors for proper CPU cooling fan.

2-12

MS-96D9

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.

INTRUER_N

GND

Front Panel Connectors: JFP1

This connector is provided for electrical connection to the front panel switches and LEDs and is compliant with Intel Front Panel I/O Connectivity Design Guide.

PIN SIGNAL PIN SIGNAL

2 1

HDD+

HDD-

RESET-

RESET+

PLED

SLED

PWSW+

PWSW-

KEY

Keyboard/Mouse Connector: JP4

This connector is used to connect a mouse/keyboard.

910

PIN SIGNAL PIN SIGNAL

KBMS_Power

GND

MSCLK_PH#

MSDAT_PH#

2 4 6 8 10

KBMS_Power NC GND KBCLK_PH# KBDAT_PH#

2-13

Hardware Setup

MS-96D9

▍

Serial Port Connector: COM2

This connector is a 16550A high speed communications port that sends/receives 16 bytes FIFOs. You can attach a serial device to it through the optional serial port bracket.

PIN SIGNAL DESCRIPTION

910

DCD

SIN

SOUT

DTR

GND

DSR

RTS

CTS

Data Carry Detect Serial In or Receive Data Serial Out or Transmit Data Data Terminal Ready Ground Data Set Ready Request To Send Clear To Send Ring Indicate

Front USB Connector: JUSB1

This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

PIN SIGNAL PIN SIGNAL

1 2

VCC

USB0-

USB0+

GND

KEY

VCC

USB1-

USB1+

GND

2-14

USB 2�0 Bracket

(Optional)

MS-96D9

SMBus Connector: JP9

This connector, known as I2C, is for users to connect System Management Bus (SMBus) interface.

PIN SIGNAL

GND

VCC5

SMBCLK

SMBDATA

+12V

PWRBTN#

SPI Flash ROM Connector: JSPI1

This connector is used to ash SPI ash ROM.

PIN SIGNAL PIN SIGNAL

2 1

1 3 5 7 9

+3.3V DUAL SPI_MISO SPI_CS0#_R GND SPI_HOLD#

2 4 6 8 10

+3.3V DUAL SPI_MOSI_R SPI_CLK_R GND NC

VGA Connector: JVGA1

The DB15-pin female connector is provided for monitor.

2-15

Hardware Setup

MS-96D9

▍

TPM Connector: JTPM1 (Optional)

This connector connects to an optional TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details.

1132

PIN SIGNAL DESCRIPTION PIN SIGNAL DESCRIPTION

LCLK

LRST#

LAD0

LAD1

LAD2

LAD3

LFRAME#

LPC clock LPC reset LPC address & data pin0 LPC address & data pin1 LPC address & data pin2 LPC address & data pin3 LPC Frame

2 4 6 8 10 12 14

3V dual/3V_STB VCC3 SIRQ VCC5 KEY GND GND

3V dual or 3V standby power

3.3V power Serial IRQ 5V power No pin Ground Ground

2-16

MS-96D9

Jumper

Clear CMOS Jumper: JBAT1

There is a CMOS RAM onboard that has a power supply from an external battery

to keep the data of system conguration. With the CMOS RAM, the system can

automatically boot OS every time it is turned on. If you want to clear the system

conguration, set the jumper to clear data.

JBAT1

Normal

Clear CMOS

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.

2-17

Hardware Setup

MS-96D9

▍

CF Voltage Select Jumper: JP7

This jumper is provided for users to select CompactFlash voltage.

JP7

VCC3

VCC5

CF Mode Select Jumper: JP6

This jumper is provided for users to select CompactFlash operation mode.

Master

Slave

2-18

MS-96D9

Slot

PCI (Peripheral Component Interconnect) Express Slot

The PCI Express slot supports PCI-E interface expansion cards.

PCI Express x4 slot

(with 2 PCIE x1 signal, for 4 GbE LAN sku only)

PCI Express x1 slot

(optional)

Important

When adding or removing expansion cards, make sure that you unplug the power supply rst. Meanwhile, read the documentation for the expansion card to congure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS conguration.

2-19

Chapter 3 BIOS Setup

This chapter provides information on the BIOS Setup program and allows you to congure the system for optimum use.

You may need to run the Setup program when:

An error message appears on the screen during

■

the system booting up, and requests you to run SETUP.

You want to change the default settings for cus

■

tomized features.

2-3-1

BIOS Setup

MS-96D9

▍

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> or <F2> key to enter Setup.

Press <DEL> or <F2> to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <De lete> keys.

Important

The items under each BIOS category described in this chapter are under

• continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.

Upon boot-up, the 1st line appearing after the memory count is the BIOS ver

• sion. It is usually in the format:

A96D9IMS V1.0 063010 where:

1st digit refers to BIOS maker as A = AMI, W = AWARD, and

P = PHOENIX.

2nd - 5th digit refers to the model number.

6th digit refers to the chipset as I = Intel, N = NVIDIA, A = AMD and

V = VIA.

7th - 8th digit refers to the customer as MS = all standard customers.

V1.0 refers to the BIOS version.

063010 refers to the date this BIOS was released.

3-2

MS-96D9

Control Keys

← → Select Screen

↑ ↓ Select Item

Enter Select

+ - Change Option

F1 General Help

F2 Previous Values

F3 Optimized Defaults

F4 Save

Esc Exit

Getting Help

After entering the Setup menu, the rst menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use

the arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted

setup function is displayed at the bottom of the screen.

Sub-Menu

If you nd a right pointer symbol (as shown in the right view) appears to the left of certain elds that means a sub-menu can be launched from this eld. A sub-menu contains additional options for a eld parameter. You can use arrow keys ( ↑↓ ) to highlight the eld

and press <Enter> to call up the sub-menu. Then you can use the control keys to

enter values and move from eld to eld within a sub-menu. If you want to return

to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the ap propriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.

3-3

BIOS Setup

MS-96D9

▍

The Menu Bar

Main

▶

Use this menu for basic system congurations, such as time, date, etc.

Advanced

▶

Use this menu to set up the items of special enhanced features.

Chipset

▶

This menu controls the advanced features of the onboard Host Bridge and South Bridge.

Boot

▶

Use this menu to specify the priority of boot devices.

Security

▶

Use this menu to set supervisor and user passwords.

Save & Exit

▶

This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes.

3-4

MS-96D9

Main

BIOS Information, Access Level

▶

These items show the rmware and hardware specications of your system.

Read only.

System Date

▶

This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>.

System Time

▶

This setting allows you to set the system time. The time format is <Hour> <Min ute> <Second>.

3-5

BIOS Setup

MS-96D9

▍

Advanced

Launch PXE OpROM

▶

Use this setting to launch the PXE option ROM.

ACPI Settings

▶

Resume On RTC Alarm

▶

When [Enabled], your can set the date and time at which the RTC (real-time clock) alarm awakens the system from suspend mode.

3-6

MS-96D9

Trusted Computing

▶

TPM Support

▶

This setting controls the Trusted Platform Module (TPM) designed by the Trusted Computing Group (TCG). TPMs are special-purpose integrated cir cuits (ICs) built into a variety of platforms to enable strong user authentication and machine attestation -- essential to prevent inappropriate access to

condential and sensitive information and to protect against compromised

networks.

CPU Conguration

▶

MS-96D9

Hyper-Threading

▶

The processor uses Hyper-Threading technology to increase transaction rates and reduces end-user response times. The technology treats the two cores inside the processor as two logical processors that can execute instruc tions simultaneously. In this way, the system performance is highly improved. If you disable the function, the processor will use only one core to execute the instructions. Please disable this item if your operating system doesn’t support HT Function, or unreliability and instability may occur.

3-7

BIOS Setup

MS-96D9

▍

Execute Disable Bit

▶

Intel’s Execute Disable Bit functionality can prevent certain classes of mali

cious “buffer overow” attacks when combined with a supporting operating

system. This functionality allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation.

IDE Conguration

▶

ATA/IDE Conguration

▶

This setting species the PATA/SATA controller mode.

HDD Acoustic Power Ma

▶

This setting enables/disables the HDD acoustic power.

USB Conguration

▶

Congure SATA as

▶

This setting species the SATA operation mode.

3-8

MS-96D9

Legacy USB Support

▶

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix. Set to [Disabled] only if you want to use any USB device other than the USB mouse.

Port 60/64 Emulation

▶

This eld allows you to enable/disable the USB Port 64/60 Emulation function.

When the function is enabled, the USB keyboard is allowed to type some special combination keys.

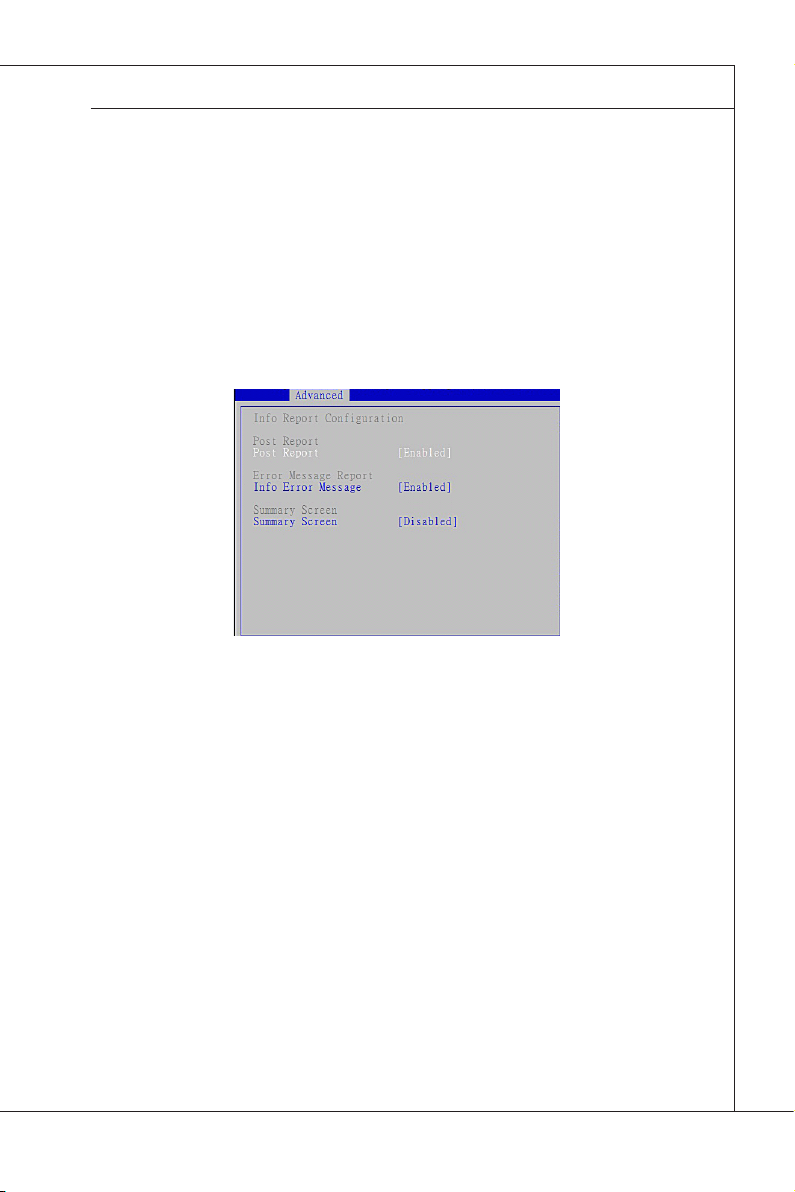

Info Report Conguration

▶

MS-96D9

Post Report

▶

This setting enables/disables the post report.

Info Error Message

▶

This setting enables/disables the error message report.

Summary Screen

▶

This setting enables/disables the system summary screen.

3-9

BIOS Setup

MS-96D9

▍

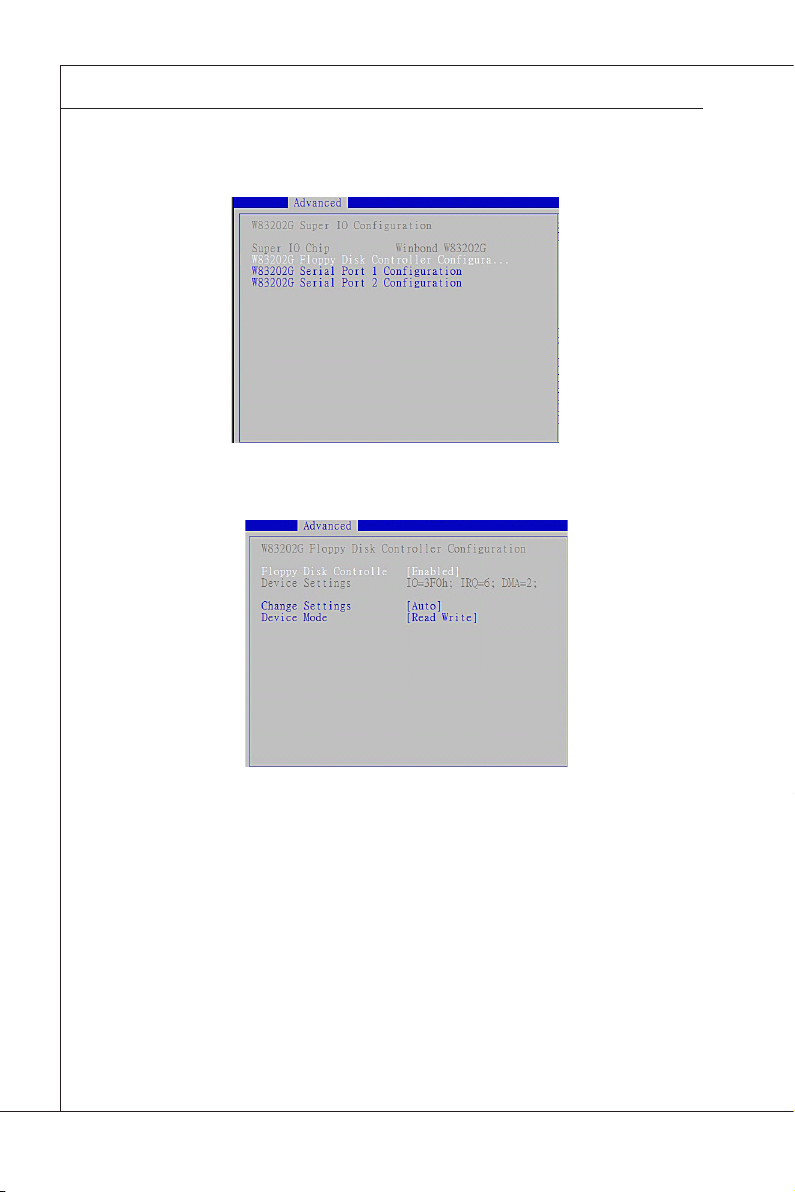

W83202G Super IO Conguration

▶

W83202G Floppy Disk Controller Conguration

▶

3-10

Floppy Disk Controller

▶

This setting enables/disables the oppy disk controller.

Change Settings

▶

This setting is used to change the settings of the oppy disk controller.

Device Mode

▶

This setting is used to change the device mode of the oppy disk drive.

MS-96D9

W83202G Serial Port 1/2 Conguration

▶

Serial Port

▶

This setting enables/disables the specied serial port.

Change Settings

▶

This setting is used to change the address & IRQ settings of the specied

serial port.

Device Mode

▶

This setting is used to change the device mode of the specied serial port.

MS-96D9

H/W Monitor

▶

CPU_F1 SMART FAN, SYSFAN1 SMART FAN

▶

This setting enables/disables the Smart Fan feature. Smart Fan is an excel lent feature which will adjust the CPU/system fan speed automatically depending on the current CPU/system temperature, avoiding the overheating to damage your system.

3-11

BIOS Setup

MS-96D9

▍

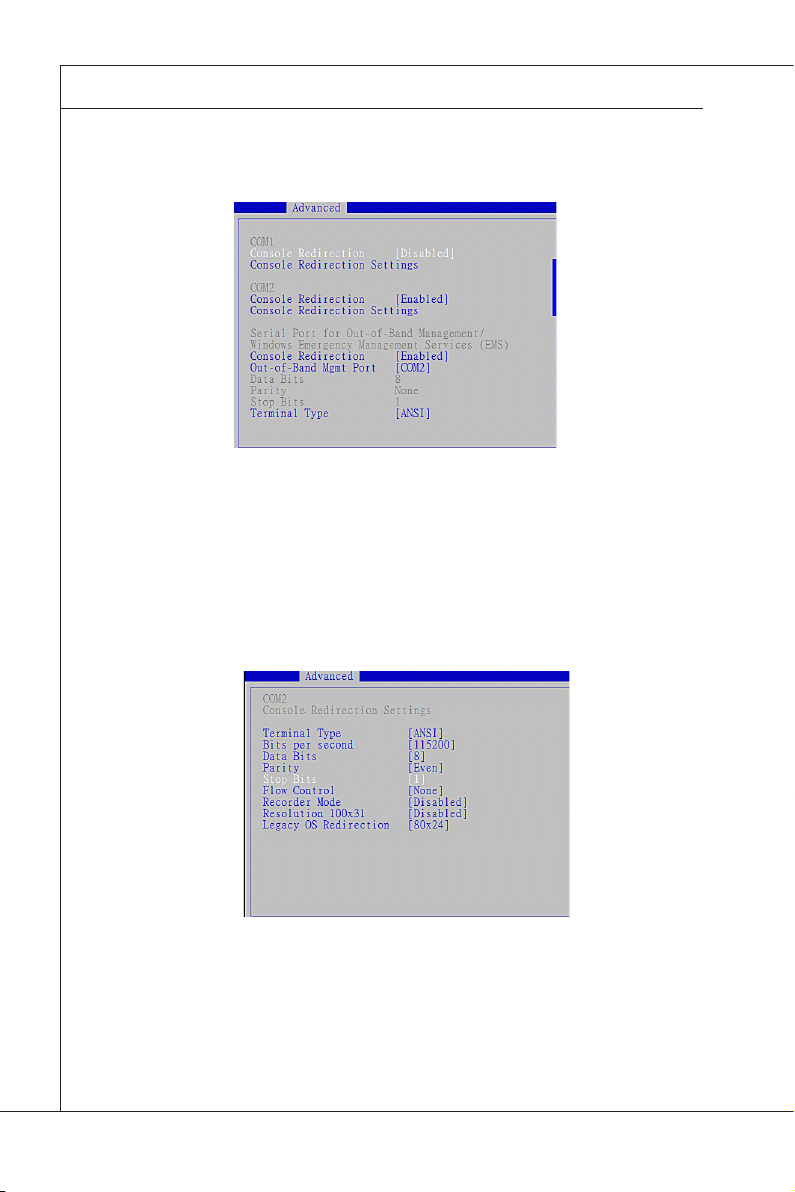

Serial Port Console Redirection

▶

Console Redirection

▶

Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables/disables the operation of console re direction. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen. Besides, all data received from the serial port is interpreted as keystrokes from a local keyboard.

Console Redirection Settings

▶

3-12

Terminal Type

▶

To operate the system’s console redirection, you need a terminal support ing ANSI terminal protocol and a RS-232 null modem cable connected be-

tween the host system and terminal(s). This setting species the type of

terminal device for console redirection.

MS-96D9

Bits per second, Data Bits, Parity, Stop Bits

▶

This setting species the transfer rate (bits per second, data bits, parity,

stop bits) of Console Redirection.

Flow Control

▶

Flow control is the process of managing the rate of data transmission be

tween two nodes. It’s the process of adjusting the ow of data from one

device to another to ensure that the receiving device can handle all of the incoming data. This is particularly important where the sending device is ca pable of sending data much faster than the receiving device can receive it.

Recorder Mode

▶

This setting enables/disables the recorder mode.

Resolution 100x31

▶

This setting enables/disables the 100x31 resolution.

Legacy OS Redirection

▶

This setting species the redirection resolution of legacy OS.

3-13

BIOS Setup

MS-96D9

▍

Chipset

Host Bridge▶

3-14

MS-96D9

OnChip VGA Conguration

▶

Share Memory Size

▶

This setting species the size of system memory allocated for video memory.

South Bridge

▶

MS-96D9

USB Function

▶

This setting species the USB controller function.

Restore AC Power Loss

▶

This setting species whether your system will reboot after a power failure or

interrupt occurs. Available settings are:

[Power Off] Leaves the computer in the power off state. [Power On] Leaves the computer in the power on state. [Last State] Restores the system to the previous status before power

failure or interrupt occurred.

3-15

BIOS Setup

MS-96D9

▍

Chassis Intrusion

▶

The eld enables or disables the feature of recording the chassis intrusion

status and issuing a warning message if the chassis is once opened. To clear the warning message, set the eld to [Reset]. The setting of the eld will automatically return to [Enable] later.

Watch Dog

▶

You can enable the system watch-dog timer, a hardware timer that generates either a LAN bypass or a system reboot when the software that it monitors does not respond as expected each time the watch dog polls it.

LAN1 & LAN2 ByPass stat (Optional)

▶

LAN Bypass removes a single point of failure so that essential business communication can continue while a network failure is diagnosed and resolved. In the event of a power, hardware or software failure, Hardware Bypass will

automatically activate, allowing network trafc to continue. Trafc between the

LAN and WAN is allowed without interruption.

3-16

MS-96D9

Boot

Quiet Boot

▶

This BIOS feature determines if the BIOS should hide the normal POST mes sages with the motherboard or system manufacturer’s full-screen logo.

When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.

When it is disabled, the BIOS will display the normal POST messages, instead of the full-screen logo.

Please note that enabling this BIOS feature often adds 2-3 seconds of delay to the booting sequence. This delay ensures that the logo is displayed for a suf

cient amount of time. Therefore, it is recommended that you disable this BIOS

feature for a faster boot-up time.

Fast Boot

▶

Enabling this setting will cause the BIOS power-on self test routine to skip some of its tests during bootup for faster system boot.

Bootup NumLock State

▶

This setting is to set the Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. Setting to [Off] will allow users to use the arrow keys on the numeric keypad.

Option ROM Messages

▶

This item is used to determine the display mode when an optional ROM is ini tialized during POST. When set to [Force BIOS], the display mode used by AMI BIOS is used. Select [Keep Current] if you want to use the display mode of optional ROM.

3-17

BIOS Setup

MS-96D9

▍

Boot Option Priorities

▶

The items allow you to set the sequence of boot devices where BIOS attempts to load the disk operating system. First press <Enter> to enter the sub-menu. Then

you may use the arrow keys ( ↑↓ ) to select the desired device, then press <+>,

<-> or <PageUp>, <PageDown> key to move it up/down in the priority list.

3-18

MS-96D9

Security

Administrator Password

▶

Administrator Password controls access to the BIOS Setup utility. Users will be prompted for Administrator password only when they enter BIOS Setup.

User Password

▶

User Password controls access to the system at boot and access to the BIOS Setup utility. Users will be prompted for User password when they power on the system or enter BIOS Setup. In BIOS Setup, users will have Administrator rights.

3-19

BIOS Setup

▍

Save & Exit

Save Changes and Exit

▶

Save changes to CMOS and exit the Setup Utility.

Discard Changes and Exit

▶

Abandon all changes and exit the Setup Utility.

▶

Save Changes and Reset

Save changes to CMOS and reset the system.

Discard Changes and Reset

▶

Abandon all changes and reset the system.

Save Changes

▶

Save all changes and continue with the Setup Utility.

Discard Changes

▶

Abandon all changes and continue with the Setup Utility.

Restore Defaults

▶

Restore the factory defaults.

Save as User Defaults

▶

Save all changes as the user defaults.

Restore User Defaults

▶

Restore the preset user defaults.

3-20

MSI MS-96D9 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright Notice

Trademarks

Revision History

Technical Support

Safety Instructions

Chemical Substances Information

Battery Information

CE Conformity

FCC-B Radio Frequency Interference Statement

WEEE Statement

Chapter 1

Overview

Mainboard Layout

Watch Dog Timer Setting

Chapter 2

Hardware Setup

Quick Components Guide

Memory

Power Supply

Rear Panel I/O

Connector

Jumper

Slot

Chapter 3

BIOS Setup

Entering Setup

The Menu Bar

Main

Advanced

Chipset

Boot

Security

Save & Exit
