Msi MS-7528 series user Manual

G31M3 series

MS-7528 (v1.X) Mainboard

G52-75281X1

i

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR

INTERNATIONAL. We take every care in the preparation of this document, but no

guarantee is given as to the correctness of its contents. Our products are under

continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trade-

marks of NVIDIA Corporation in the United States and/or other countries.

AMD, Athlon™ , Athlon™ XP, Thoroughbred™, and Duron™ are registered trade-

marks of AMD Corporation.

Intel® and Pentium® are registered trademarks of Intel Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines

Corporation.

Windows® 2000/XP/Vista are registered trademarks of Microsoft Corporation.

Netware® is a registered trademark of Novell, Inc.

Award® is a registered trademark of Phoenix Technologies Ltd.

AMI® is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

V1.0 First release January 2008

Technical Support

If a problem arises with your system and no solution can be obtained from the user’ s

manual, please contact your place of purchase or local distributor. Alternatively,

please try the following help resources for further guidance.

Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates,
and other information: http://global.msi.com.tw/index.php?

func=faqIndex

Contact our technical staff at: http://support.msi.com.tw/

ii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equip­ment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V be­fore connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical
shock.

11. If any of the following situations arises, get the equipment checked by a service
personnel:

† The power cord or plug is damaged.
† Liquid has penetrated into the equipment.
† The equipment has been exposed to moisture.
† The equipment has not work well or you can not get it work according to

User’s Manual.

† The equipment has dropped and damaged.
† The equipment has obvious sign of breakage.

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STOR­AGE TEMPERATURE ABOVE 600 C (1400F), IT MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

iii

FCC-B Radio Frequency Interference Statement

This equipment has been

tested and found to comply

with the limits for a Class B

digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the measures listed

below.

† Reorient or relocate the receiving antenna.
† Increase the separation between the equipment and receiver.
† Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

† Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D ’INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7528

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

iv

WEEE (Waste Electrical and Electronic Equipment) Statement

v

vi

vii

CONTENTS

Copyright Notice..............................................................................................................ii

Trademarks.......................................................................................................................ii

Revision History..............................................................................................................ii

Technical Support...........................................................................................................ii

Safety Instructions.........................................................................................................iii

FCC-B Radio Frequency Interference Statement........................................................iv

WEEE (Waste Electrical and Electronic Equipment) Statement....................................v

Chapter 1. Getting Started....................................................................................1-1

Mainboard Specifications...................................................................................1-2

Mainboard Layout................................................................................................1-4

Packing Checklist.................................................................................................1-5

Chapter 2. Hardware Setup..................................................................................2-1

Quick Components Guide....................................................................................2-2

CPU (Central Processing Unit)............................................................................2-3

Memory.................................................................................................................2-7

Power Supply......................................................................................................2-9

Back Panel..........................................................................................................2-10

Connectors........................................................................................................2-12

Jumpers..............................................................................................................2-19

Slots...................................................................................................................2-20

Chapter 3 BIOS Setup.............................................................................................3-1

Entering Setup.....................................................................................................3-2

The Main Menu.....................................................................................................3-4

Standard CMOS Features...................................................................................3-6

Advanced BIOS Features...................................................................................3-9

Integrated Peripherals.......................................................................................3-12

Power Management Setup...............................................................................3-14

H/W Monitor........................................................................................................3-16

Cell Menu............................................................................................................3-17

Load Fail-Safe/ Optimized Defaults.................................................................3-21

BIOS Setting Password.....................................................................................3-22

Appendix A Dual Core Center.............................................................................A-1

Activating Dual Core Center...............................................................................A-2

Main......................................................................................................................A-3

DOT (Dynamic OverClocking).............................................................................A-5

Clock.....................................................................................................................A-6

Voltage.................................................................................................................A-7

FAN Speed...........................................................................................................A-8

viii

Temperature.........................................................................................................A-9

User Profile........................................................................................................A-10

Appendix B Intel ICH7R SATA RAID......................................................................B-1

ICH7R Introduction...............................................................................................B-2

BIOS Configuration..............................................................................................B-3

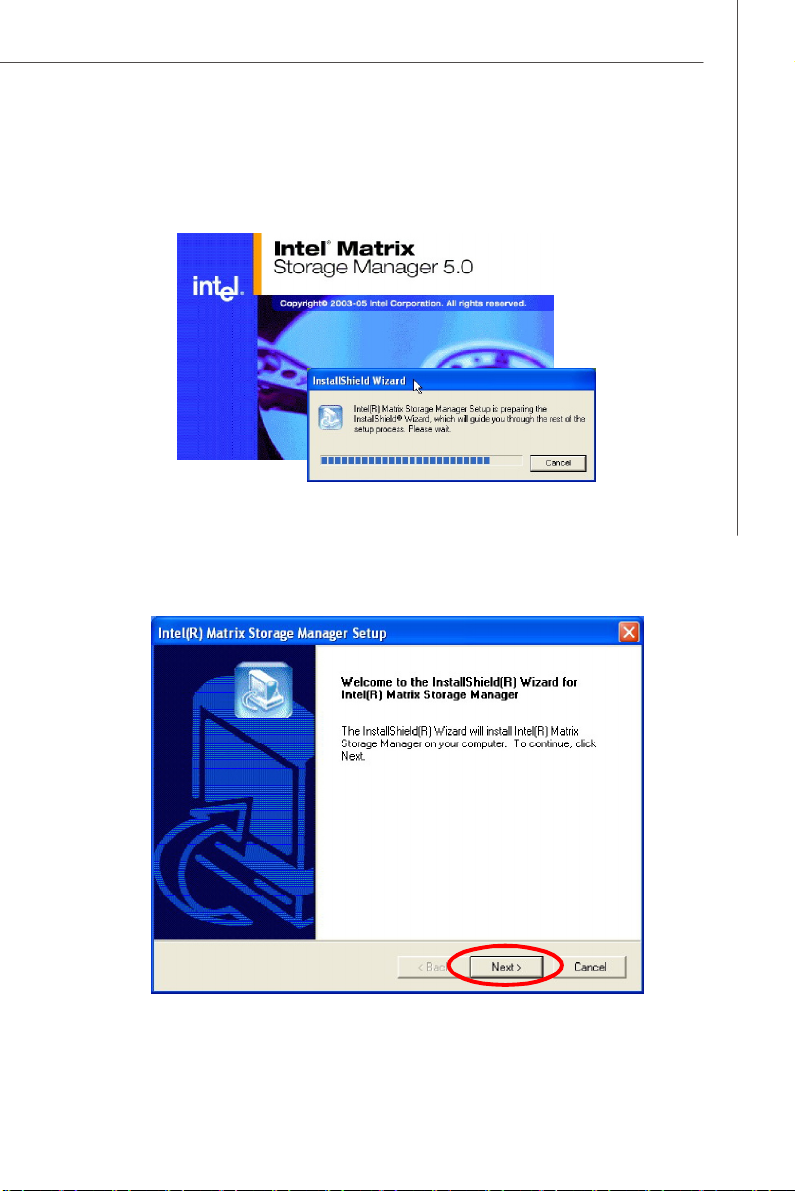

Installing Software..............................................................................................B-9

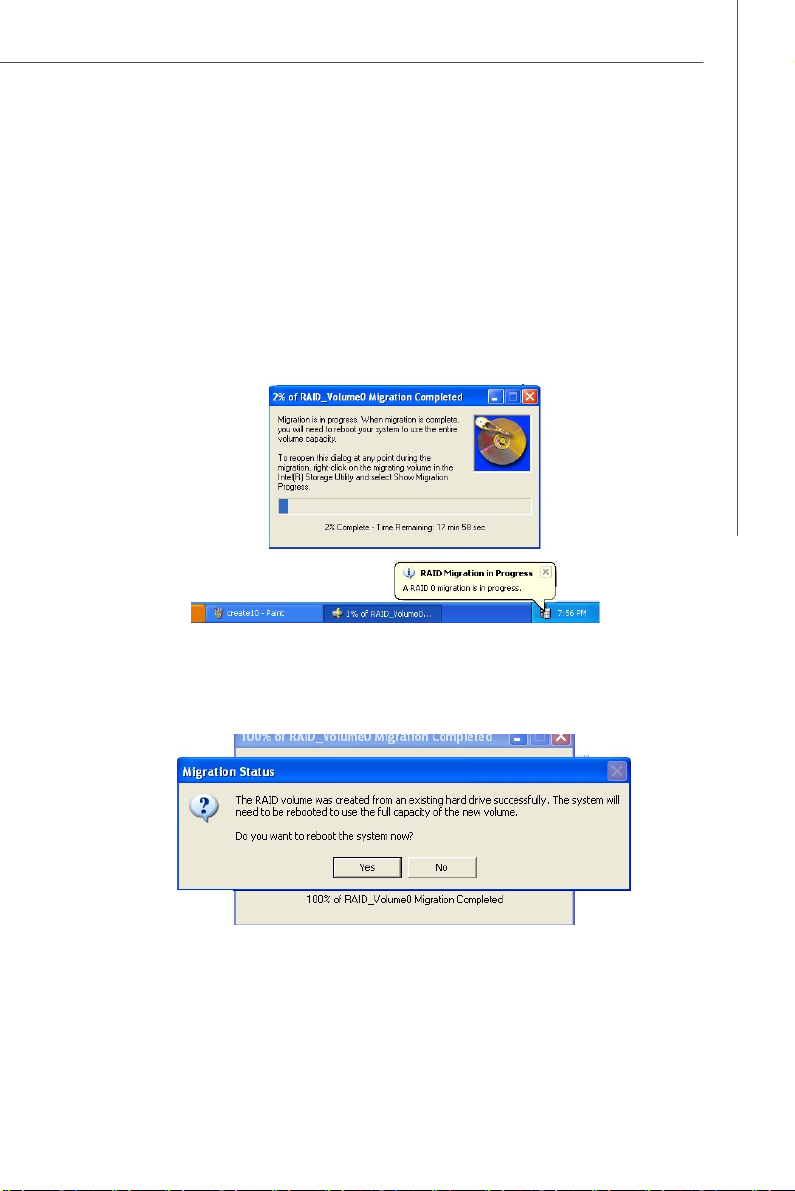

RAID Migration Instructions...............................................................................B-15

Degraded RAID Array........................................................................................B-22

ix

Getting Started

Chapter 1

Getting Started

Thank you for choosing the G31M3 Series (MS-7528 v1.X)
Micro-ATX mainboard. The G31M3 Series mainboards are
based on Intel® G31 & ICH7/ICH7R chipsets for optimal
system efficiency. Designed to fit the advanced Intel® Core
2 Duo/Quad/Pentium/Celeron LGA775 processor, the
G31M3 Series deliver a high performance and professional
desktop platform solution.

1-1

MS-7528 Mainboard

Mainboard Specifications

Processor Support

- Intel® Core™2 Duo/ Core™2 Quad/Pentium Dual-Core E2XXX and
Celeron 400 LGA775 processors in LGA775 package.

- Supports 4 pin CPU Fan Pin-Header with Fan Speed Control.
(For the latest information about CPU, please visit
http://global.msi.com.tw/index.php?func=cpuform)

Supported FSB

- 800/1066/1333 MHz

Chipset

- North Bridge: Intel® G31 chipset

- South Bridge: Intel® ICH7/ ICH7R(optional) chipset

Memory Support

- DDR2 667/800 SDRAM (4GB Max)

- 2 DDR2 DIMMs (240pin / 1.8V)
(For more information on compatible components, please visit
http://global.msi.com.tw/index.php?func=testreport)

LAN (Optional)

- Supports Realtek® RTL8111C 10/100/1000 Mb/s

- Supports Realtek® RTL8101E 10/100 Mb/s (optional)

- Compliance with PCI 2.2

- Supports ACPI Power Management

Audio

- Chip integrated by Realtek® ALC888

- Flexible 8-channel audio with jack sensing
To reach the 8-channel sound effect, the 7th and 8th channels must to
output from front panel (pinheader) if you purchase the mainboard
with 3 audio jacks.

IEEE 1394 (optional)

- Chip integrated by JMicron 381

- Transfer rate is up to 400Mbps

IDE

- 1 IDE port by ICH7/ICH7R

- Supports Ultra DMA 66/100 mode

- Supports PIO, Bus Master operation mode

SATA

- SATA II ports by ICH7/ICH7R (optional)

- Supports four SATA II devices

- Supports storage and data transfers at up to 300MB/s

- Supports RAID 0/1/0+1 (for ICH7R only)

1-2

Getting Started

Floppy

- 1 floppy port

- Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Connectors

Back panel

- 1 PS/2 mouse port

- 1 PS/2 keyboard port

- 1 serial port (COM1)

- 1 VGA port

- 1 parallel port supporting SPP/EPP/ECP mode

- 4 USB 2.0 Ports

- 1 RJ-45 LAN Jack

- 1 1394 port (optional)

- 6 flexible audio jacks/ 3 flexible audio jacks (optional)

On-Board Pinheaders/ Connectors

- 2 USB 2.0 pinheaders

- 1 CD-in pinheader

- 1 SPDIF-Out pinheader

- 1 IEEE 1394 pinheader (optional)

- 1 Front Panel Audio pinheader

- 1 serial port pinheader

- 1 TPM (optional)

- 1 Chassis Intrusion Switch pinheader

Slots

- 1 PCI Express x16 slot

- 1 PCI Express x 1 slot

- 2 PCI slots

- Support 3.3V/ 5V PCI bus Interface

Form Factor

- Micro-ATX (24.4cm X 21.8cm)

Mounting

- 6 mounting holes

1-3

MS-7528 Mainboard

BATT

Intel

Intel

ICH7/

ICH7R (optional)

Mainboard Layout

Top : mouse
Bottom:keyboard

Parallel port
Bottom:
COM portA
VGA port

T: 1394 port

(optional)

B: USB ports

Top: LAN Jack
Bottom: USB ports

T:Line-In
M:Line-Out
B:Mic
T:RS-Out (optional)
M:CS-Out (optional)
B:SS-Out (optional)

Fintek

F71882FG

ALC888

CD_IN1

RTL8111C

/RTL8101E

1
I

C
J

1
W

P
J

SYSFAN1

PCI _E1

PCI _E2

PCI 2

PCI 1

JCOM1JAUD1

)
l

a
n
o

i
t

p
o
(
1

M
P
T
J

1
D
P
S
J

RTM 876-665

G31

+

FDD 1

JMicron 381

(optional)

J1394_1(optional)

1
N
A
F
U
P
C

1

2

M

M

M

M

I

I

D

D

1
X
T
A

2
N
A
F
S
Y
S

1
E
D

I

JFP2

3

4

A

A

T

T

A

A

S

S

1

2

A

A

T

T

A

A

S

S

JBAT1

JFP1

JUSB1

JUSB2

G31M3 Series

(MS-7528 v1.X) Micro-ATX Mainboard

1-4

Packing Checklist

Getting Started

MSI motherboard

Power Cable

User’ s Guide

MSI Driver/Utility CD

Standard Cable for

IDE Devices

SATA Cable

Back IO Shield

* The pictures are for reference only and may vary from the packing contents of the
product you purchased.

1-5

Hardware Setup

Chapter 2

Hardware Setup

This chapter provides you with the information about
hardware setup procedures. While doing the installation,
be careful in holding the components and follow the
installation procedures. For some components, if you
install in the wrong orientation, the components will not
work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the
components.

2-1

MS-7528 Mainboard

BATT

Quick Components Guide

Back Panel,

p.2-10

PCIE,

p.2-20

JCI1,

p.2-14

PCI,

p.2-20

SYSFAN1,

p.2-14

JTPM1,

p.2-17

JPW1,

p.2-9

CPU,

p.2-3

+

JSPD1,

p.2-15

CPUFAN1,

p.2-14

DIMM Slots,

p.2-7

ATX1,

p.2-9

IDE1,

p.2-12

SYSFAN2,

p.2-14

JFP2,

p.2-16

SATA1~4,

p.2-13

JFP1,

p.2-16

2-2

CD_IN1,

p.2-16

JAUD1,

p.2-17

JCOM1,

p.2-18

FDD1,

p.2-12

J1394_1,

p.2-15

JUSB1~2,

p.2-18

JBAT1,

p.2-19

Hardware Setup

CPU (Central Processing Unit)

When you are installing the CPU, make sure to install the cooler to prevent
overheating. If you do not have the CPU cooler, consult your dealer before turning

on the computer.
For the latest information about CPU, please visit http://global.msi.com.tw/index.php?

func=cpuform

Important

Overheating

Overheating will seriously damage the CPU and system. Always make sure
the cooling fan can work properly to protect the CPU from overheating. Make
sure that you apply an even layer of thermal paste (or thermal tape) between
the CPU and the heatsink to enhance heat dissipation.

Replaceing the CPU

While replacing the CPU, always turn off the ATX power supply or unplug the
power supply’s power cord from the grounded outlet first to ensure the safety
of CPU.

Overclocking

This mainboard is designed to support overclocking. However, please make
sure your components are able to tolerate such abnormal setting, while
doing overclocking. Any attempt to operate beyond product specifications is
not recommended. We do not guarantee the damages or risks caused

by inadequate operation or beyond product specifications.

Introduction to LGA 775 CPU

The pin-pad side of LGA 775
CPU.

Alignment Key Alignment Key

Yellow triangle is the Pin 1 indicator

The surface of LGA 775 CPU.
Remember to apply some ther­mal paste on it for better heat
dispersion.

Yellow triangle is the Pin 1 indicator

2-3

MS-7528 Mainboard

CPU & Cooler Installation

When you are installing the CPU, make sure the CPU has a cooler attached on
the top to prevent overheating. Meanwhile, do not forget to apply some thermal

paste on CPU before installing the heat sink/cooler fan for better heat dispersion.
Follow the steps below to install the CPU & cooler correctly. Wrong installation will
cause the damage of your CPU & mainboard.

1.The CPU socket has a plastic cap on

it to protect the contact from damage.
Before you install the CPU, always
cover it to protect the socket pin.

3.The pins of socket reveal.

2.Remove the cap from lever hinge
side (as the arrow shows).

4.Open the load lever.

Important

1.Confirm if your CPU cooler is firmly installed before turning on your system.

2. Do not touch the CPU socket pins to avoid damaging.

3. The availability of the CPU land side cover depends on your CPU packing.

2-4

Hardware Setup

5.Lift the load lever up and open the
load plate.

7.Visually inspect if the CPU is
seated well into the socket. If not,
take out the CPU with pure vertical
motion and reinstall.

6.After confirming the CPU direction
for correct mating, put down the
CPU in the socket housing frame.
Be sure to grasp on the edge of
the CPU base. Note that the align­ment keys are matched.

alignment

key

8.Cover the load plate onto the
package.

2-5

MS-7528 Mainboard

9.Press down the load lever lightly
onto the load plate, and then se­cure the lever with the hook under
retention tab.

11.Press the four hooks down to fas-

ten the cooler. Then rotate the lock­ing switch (refer to the correct di­rection marked on it) to lock the
hooks.

locking

switch

10. Align the holes on the mainboard
with the heatsink. Push down the
cooler until its four clips get
wedged into the holes of the
mainboard.

12.Turn over the mainboard to con­firm that the clip-ends are cor­rectly inserted.

Important

1. Read the CPU status in BIOS (Chapter 3).

2. Whenever CPU is not installed, always protect your CPU socket pin with the
plastic cap covered (shown in Figure 1) to avoid damaging.

3. Mainboard photos shown in this section are for demonstration of the CPU/
cooler installation only. The appearance of your mainboard may vary depend­ing on the model you purchase.

2-6

Hardware Setup

Installed

1

Memory

These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit http://global.msi.com.

tw/index.php?func=testreport

DDR2

240-pin, 1.8V

64x2=128 pin56x2=112 pin

Dual-Channel Memory Population Rules

In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.

DIMM1

DIMM2

Empty

2-7

MS-7528 Mainboard

Installing Memory Modules

1. The memory module has only one notch on the center and will only fit in the right
orientation.

2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot.

Important

You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt

Notch

Important

-DDR2 memory modules are not interchangeable with DDR and the DDR2
standard is not backwards compatible. You should always install DDR2
memory modules in the DDR2 DIMM slots.

-In Dual-Channel mode, make sure that you install memory modules of the
same type and density in different channel DIMM slots.

-To enable successful system boot-up, always insert the memory modules
into the DIMM1 first.

2-8

Power Supply

Hardware Setup

ATX 24-Pin Power Connector: ATX1

This connector allows you to connect an ATX 24-pin power supply.
To connect the ATX 24-pin power supply, make sure the plug of the
power supply is inserted in the proper orientation and the pins are
aligned. Then push down the power supply firmly into the connector.

You may use the 20-pin ATX power supply as you like. If you’d like
to use the 20-pin ATX power supply, please plug your power sup­ply along with pin 1 & pin 13 (refer to the image at the right hand).

Pin Definition

PIN SIGNAL

13 +3.3V

14 -12V

15 GND

16 PS-ON#

17 GND

18 GND

19 GND

20 Res

21 +5V

22 +5V

23 +5V

24 GND

ATX1

12

1

24

13

PIN SIGNAL

1 +3.3V

2 +3.3V

3 GND

4 +5V

5 GND

6 +5V

7 GND

8 PWR OK

9 5VSB

10 +12V

11 +12V

12 +3.3V

ATX 12V Power Connector: JPW1

This 12V power connector is used to provide power to the CPU.

Pin Definition

PIN SIGNAL

1 GND

2 GND

3 12V

4 12V

JPW1

4

2

3

1

pin 13

pin 12

Important

1. Make sure that all the connectors are connected to proper ATX power sup­plies to ensure stable operation of the mainboard.

2. Power supply of 350 watts (and above) is highly recommended for system
stability.

3. ATX 12V power connection should be greater than 18A.

2-9

MS-7528 Mainboard

Back Panel

Mouse

Parallel Port

1394
Port
(optional)

LAN

Type A

L-In

RS-Out

Keyboard

VGA PortSerial Port

Mouse

Keyboard

Mouse/Keyboard

The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/keyboard.

Parallel Port
A parallel port is a standard printer port that supports Enhanced Parallel Port (EPP)
and Extended Capabilities Parallel Port (ECP) mode.

Serial Port
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.

VGA Port
The DB15-pin female connector is provided for monitor.

1394 Port (optional)
The IEEE1394 port on the back panel provides connection to IEEE1394 devices.

USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.

Parallel Port

VGA PortSerial Port

USB Ports Mic

1394
Port
(optional)

USB Ports

LAN

L-Out

CS-Out

SS-Out

Type B

L-In / RS-Out

L-Out

Mic / CS-Out

2-10

Hardware Setup

LAN
The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You
can connect a network cable to it.

Link IndicatorActivity Indicator

LED Color LED State Condition

Off LAN link is not established.

Left Orange On (steady state) LAN link is established.

On (brighter & pulsing)The computer is communicating with another computer on the LAN.

Green Off 10 Mbit/sec data rate is selected.

Right On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

Audio Ports (Type A)
These audio connectors are used for audio devices. You can differentiate the color
of the audio jacks for different audio sound effects.

Line-In (Blue) - Line In is used for external CD player, tapeplayer or other

audio devices.

Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic (Pink) - Mic, is a connector for microphones.
RS-Out (Black) - Rear-Surround Out in 4/ 5.1/ 7.1 channel mode.
CS-Out (Orange) - Center/ Subwoofer Out in 5.1/ 7.1 channel mode.
SS-Out (Gray) - Side-Surround Out 7.1 channel mode.

Audio Ports (Type B)
These audio connectors are used for audio devices. You can differentiate the color
of the audio jacks for different audio sound effects.

Line-In / RS-Out (Blue) - Line In is used for external CD player, tapeplayer

or other audio devices. Rear-Surround Out in 4/

5.1/7.1 channel mode.

Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic / CS-Out (Pink) - Mic, is a connector for microphones. Center/

Subwoofer Out in 5.1/7.1 channel mode.

Important

To reach the 8-channel sound effect, the 7th and 8th channels (Side-Surround
Out) must to output from front panel (pinheader) if you purchase the mainboard
with 3 audio jacks.

2-11

MS-7528 Mainboard

Connectors

Floppy Disk Drive Connector: FDD1

This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB floppy disk drive.

FDD1

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

IDE1

Important

If you install two IDE devices on the same cable, you must configure the
drives separately to master / slave mode by setting jumpers. Refer to IDE
device’s documentation supplied by the vendors for jumper setting
instructions.

2-12

Hardware Setup

Serial ATA Connector: SATA1 ~ SATA4

This connector is a high-speed Serial ATA interface port. Each connector can connect
to one Serial ATA device.

SATA3SATA4

SATA2 SATA1

supported by ICH7/ICH7R(optional)

Important

Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.

2-13

MS-7528 Mainboard

Fan Power Connectors: CPUFAN1, SYSFAN1~2

The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always note that the red wire is the positive and should
be connected to the +12V; the black wire is Ground and should be connected to GND.
If the mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan control.

CONTROL

SENSOR

+12V

GND

CPUFAN1

+1 2V

SE NS OR

GND

GND

+12V

SENSOR

SYSFAN2SYSFAN1

Important

1.Please refer to the recommended CPU fans at processor’s official website
or consult the vendors for proper CPU cooling fan.

2.CPUFAN1 / SYSFAN1 / SYSFAN2 supports fan control. You can adjust fan
speed in H/W Monitor menu of BIOS and install Dual Core Center utility
that will automatically control the CPU fan speed according to the actual
CPU temperature.

3. Fan cooler set with 3 or 4 pins power connector are both available for

CPUFAN.

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is
opened, the chassis intrusion mechanism will be activated. The system will record
this status and show a warning message on the screen. To clear the warning, you
must enter the BIOS utility and clear the record.

CINTRU

2-14

1

JCI1

GND

2

Hardware Setup

IEEE1394 Connector: J1394_1 (optional)

This connector allows you to connect the IEEE1394 device via an optional IEEE1394
bracket.

Pin Definition

PIN SIGNAL PIN SIGNAL

9

10

J1394_1

(optional)

1

2

1 TPA+ 2 TPA-

3 Ground 4 Ground

5 TPB+ 6 TPB-

7 Cable power 8 Cable power

9 Key (no pin) 10 Ground

IEEE1394 Bracket (Optional)

S/PDIF-Out Connector: JSPD1

This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format)
interface for digital audio transmission.

JSPD1

GND

SPDIF

VCC

S/PDIF Bracket (Optional)

2-15

MS-7528 Mainboard

Front Panel Connectors: JFP1, JFP2

These connectors are for electrical connection to the front panel switches and LEDs.
The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Power
Switch

Power
LED

10

­+

JFP1

2

9

+

Reset

-

Switch

-

HDD

+

LED

1

Speaker

+

-

JFP2

8

­+

7

Power
LED

12

JFP1 Pin Definition

PIN SIGNAL DESCRIPTION

1 HD_LED + Hard disk LED pull-up

2 FP PWR/SLP MSG LED pull-up

3 HD_LED - Hard disk active LED

4 FP PWR/SLP MSG LED pull-up

5 RST_SW - Reset Switch low reference pull-down to GND

6 PWR_SW + Power Switch high reference pull-up

7 RST_SW + Reset Switch high reference pull-up

8 PWR_SW - Power Switch low reference pull-down to GND

9 RSVD_DNU Reserved. Do not use.

JFP2 Pin Definition

PIN SIGNAL DESCRIPTION

1 GND Ground

2 SPK- Speaker-

3 SLED Suspend LED

4 BUZ+ Buzzer+

5 PLED Power LED

6 BUZ- Buzzer-

7 NC No connection

8 SPK+ Speaker+

CD-In Connector: CD_IN1

This connector is provided for external audio input.

CD_IN1

R

L

GND

2-16

Hardware Setup

Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with
Intel® Front Panel I/O Connectivity Design Guide.

2
1

10

9

JAUD1

HD Audio Pin Definition

PIN SIGNAL DESCRIPTION

1 MIC_L Microphone - Left channel

2 GND Ground

3 MIC_R Microphone - Right channel

4 PRESENCE# Active low signal-signals BIOS that a High Definition Audio dongle

5 LINE out_R Analog Port - Right channel

6 MIC_JD Jack detection return from front panel microphone JACK1

7 Front_JD Jack detection sense line from the High Definition Audio CODEC

8 NC No control

9 LINE out_L Analog Port - Left channel

10 LINEout_JD Jack detection return from front panel JACK2

is connected to the analog header. PRESENCE# = 0 when a

High Definition Audio dongle is connected

jack detection resistor network

TPM Module connector: JTPM1(optional)

This connector connects to a TPM (Trusted Platform Module) module (optional). Please
refer to the TPM security platform manual for more details and usages.

JTPM1

1

2

1413

Pin Signal Description Pin Signal Description

1 LCLK LPC clock 2 3V dual/3V_STB 3V dual or 3V standby power

3 LRST# LPC reset 4 VCC3 3.3V power

5 LAD0 LPC address & data pin0 6 SIRQ Serial IRQ

7 LAD1 LPC address & data pin1 8 VCC5 5V power

9 LAD2 LPC address & data pin2 10 KEY No pin

11 LAD3 LPC address & data pin3 12 GND Ground

13 LFRAME# LPC Frame 14 GND Ground

2-17

MS-7528 Mainboard

Front USB Connector: JUSB1 ~ 2

These connectors, compliant with Intel® I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital cameras,

MP3 players, printers, modems and the like.

Pin Definition

JUSB1~2

2
1

10

9

PIN SIGNAL PIN SIGNAL

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 GND 8 GND

9 Key (no pin) 10 USBOC

USB 2.0 Bracket

(Optional)

Important

Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.

Serial Port Connector: JCOM 1

This connector is a 16550A high speed communication port that sends/receives 16
bytes FIFOs. You can attach a serial device.

Pin Definition

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate

2-18

JCOM1

2
1 9

Hardware Setup

Jumper

Clear CMOS Jumper: JBAT1

There is a CMOS RAM onboard that has a power supply from an external battery to
keep the data of system configuration. With the CMOS RAM, the system can auto­matically boot OS every time it is turned on. If you want to clear the system configuration,
set the jumper to clear data.

JBAT1

1

1

3

Keep Data

1

3

Clear Data

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return
to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will
damage the mainboard.

2-19

MS-7528 Mainboard

Slots

PCI (Peripheral Component Interconnect) Express Slots

The PCI Express slot supports the PCI Express interface expansion card.
The PCI Express x 16 slot supports up to 4.0 GB/s transfer rate.
The PCI Express x 1 slot supports up to 250 MB/s transfer rate.

PCI Express x16 Slot

PCI Express x1 Slot

PCI (Peripheral Component Interconnect) Slots

The PCI slots support LAN cards, SCSI cards, USB cards, and other add-on cards
that comply with PCI specifications. At 32 bits and 33 MHz, it yields a throughput rate
of 133 MBps.

32-bit PCI Slot

Important

When adding or removing expansion cards, make sure that you unplug the
power supply first. Meanwhile, read the documentation for the expansion card
to configure any necessary hardware or software settings for the expansion
card, such as jumpers, switches or BIOS configuration.

2-20

Hardware Setup

PCI Interrupt Request Routing

The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines
over which devices can send interrupt signals to the microprocessor. The PCI IRQ
pins are typically connected to the PCI bus pins as follows:

Order 1 Order 2 Order 3 Order 4

PCI Slot 1 INT A# INT B# INT C# INT D#

PCI Slot 2 INT B# INT C# INT D# INT A#

2-21

Chapter 3

BIOS Setup

This chapter provides information on the BIOS Setup
program and allows you to configure the system for
optimum use.
You may need to run the Setup program when:

² An error message appears on the screen during the

system booting up, and requests you to run SETUP.

² You want to change the default settings for cus-

tomized features.

BIOS Setup

3-1

MS-7528 Mainboard

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process.
When the message below appears on the screen, press <DEL> key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup,
restart the system by turning it OFF and On or pressing the RESET button. You may
also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Important

1.The items under each BIOS category described in this chapter are under
continuous update for better system performance. Therefore, the descrip­tion may be slightly different from the latest BIOS and should be held for
reference only.

2.Upon boot-up, the 1st line appearing after the memory count is the BIOS
version. It is usually in the format:

3-2

A7528IMS V1.0 011708 where:

1st digit refers to BIOS maker as A = AMI, W = AWARD, and P =
PHOENIX.
2nd - 5th digit refers to the model number.
6th digit refers to the chipset as I = Intel, N = nVidia, and V = VIA.
7th - 8th digit refers to the customer as MS = all standard customers.
V1.0 refers to the BIOS version.
011708 refers to the date this BIOS was released.

BIOS Setup

Control Keys

<↑> Move to the previous item
<↓> Move to the next item
<←> Move to the item in the left hand
< →> Move to the item in the right hand

<Enter> Select the item

<Esc> Jumps to the Exit menu or returns to the main menu from a

submenu

<+/PU> Increase the numeric value or make changes

<-/PD> Decrease the numeric value or make changes

<F6> Load Optimized Defaults

<F8> Load Fail-Safe Defaults

<F10> Save all the CMOS changes and exit

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the
arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted setup
function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol (as shown in the right
view) appears to the left of certain fields that means a
sub-menu can be launched from this field. A sub-menu
contains additional options for a field parameter. You
can use arrow keys ( ↑↓ ) to highlight the field and
press <Enter> to call up the sub-menu. Then you can use the control keys to enter
values and move from field to field within a sub-menu. If you want to return to the
main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen
from any menu by simply pressing <F1>. The Help screen lists the appropriate keys
to use and the possible selections for the highlighted item. Press <Esc> to exit the
Help screen.

3-3

MS-7528 Mainboard

The Main Menu

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of AMI® special enhanced features.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

H/W Monitor

This entry shows your PC health status.

BIOS Setting Password

Use this menu to set the password for BIOS.

Cell Menu

Use this menu to specify your settings for frequency/voltage control and overclocking.

Load Fail-Safe Defaults

Use this menu to load the default values set by the BIOS vendor for stable system
performance.

3-4

BIOS Setup

Load Optimized Defaults

Use this menu to load the default values set by the mainboard manufacturer specifi­cally for optimal performance of the mainboard.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

3-5

MS-7528 Mainboard

Standard CMOS Features

The items in Standard CMOS Features Menu includes some basic setup items. Use
the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select
the value you want in each item.

Date (MM:DD:YY)

This allows you to set the system to the date that you want (usually the current date).
The format is <day><month> <date> <year>.

day Day of the week, from Sun to Sat, determined by

month The month from Jan. through Dec.
date The date from 1 to 31 can be keyed by numeric function keys.
year The year can be adjusted by users.

Time (HH:MM:SS)

This allows you to set the system time that you want (usually the current time). The
time format is <hour> <minute> <second>.

IDE Primary Master/ Slave, SATA 1/2/3/4 Channel

Press <Enter> to enter the sub-menu, and the following screen appears.

BIOS. Read-only.

3-6

BIOS Setup

Device / Vender / Size

It will showing the device information that you connected to the SATA connector.

LBA/Large Mode

This allows you to enable or disable the LBA Mode. Setting to Auto enables LBA
mode if the device supports it and the devices is not already formatted with LBA
mode disabled.

DMA Mode

Select DMA Mode.

Hard Disk S.M.A.R.T.

This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Reporting
Technology) capability for the hard disks. S.M.A.R.T is a utility that monitors your
disk status to predict hard disk failure. This gives you an opportunity to move
data from a hard disk that is going to fail to a safe place before the hard disk
becomes offline.

Important
Important

Primary IDE Master/ Slave, Serial-ATA 1/2/3/4 Channel are appearing
when you connect the HD devices to the IDE/ SATA connector on the
mainboard.

Floppy A

This item allows you to set the type of floppy drives installed. Available options:
[None], [360K, 5.25 in.], [1.2M, 5.25 in.], [720K, 3.5 in.], [1.44M, 3.5 in.], [2.88M, 3.5 in.].

3-7

MS-7528 Mainboard

System Information

Press <Enter> to enter the sub-menu, and the following screen appears.

This sub-menu shows the CPU information, BIOS version and memory status of your
system (read only).

3-8

BIOS Setup

Advanced BIOS Features

Full Screen LOGO Display

This item enables you to show the company logo on the bootup screen. Settings are:

[Enabled] Shows a still image (logo) on the full screen at boot.
[Disabled] Shows the POST messages at boot.

Quick Booting

Setting the item to [Enabled] allows the system to boot within 10 seconds since it will
skip some check items.

Boot Up Num-Lock LED

This setting is to set the Num Lock status when the system is powered on. Setting to
[On] will turn on the Num Lock key when the system is powered on. Setting to [Off]
will allow users to use the arrow keys on the numeric keypad.

IOAPIC Function

This field is used to enable or disable the APIC (Advanced Programmable Interrupt
Controller). Due to compliance with PC2001 design guide, the system is able to run in
APIC mode. Enabling APIC mode will expand available IRQ resources for the system.

MPS Table Version

This field allows you to select which MPS (Multi-Processor Specification) version to
be used for the operating system. You need to select the MPS version supported by
your operating system. To find out which version to use, consult the vendor of your
operating system.

Primary Graphics Adapter

This setting specifies which graphic card is your primary graphics adapter.

3-9

MS-7528 Mainboard

PCI Latency Timer

This item controls how long each PCI device can hold the bus before another takes
over. When set to higher values, every PCI device can conduct transactions for a
longer time and thus improve the effective PCI bandwidth. For better PCI performance,
you should set the item to higher values.

CPU Feature

Press <Enter> to enter the sub-menu:

Execute Disable Bit

Intel's Execute Disable Bit functionality can prevent certain classes of malicious
"buffer overflow" attacks when combined with a supporting operating system.
This functionality allows the processor to classify areas in memory by where
application code can execute and where it cannot. When a malicious worm
attempts to insert code in the buffer, the processor disables code execution,
preventing damage or worm propagation.

Set Limit CPUID MaxVal to 3

The Max CPUID Value Limit is designed to limit the listed speed of the processor
to older operating systems.

Chipset Feature

Press <Enter> to enter the sub-menu:

HPET

The HPET (High Precision Event Timers) is a component that is part of the chipset.
You can to enable it, and will provide you with the means to get to it via the
various ACPI methods.

VGA Share Memory Size

The system shares memory to the onboard VGA card. This setting controls the
exact memory size shared to the VGA card.

DVMT Mode Select

This item allows you to set the mode for the graphics core..

[Fixed] mode, a fixed-size fragment of the system memory is allocated to the

graphics core. It can only be used by the graphics core.

[DVMT] mode, the driver of the graphics core uses the system memory like

any other OS component or application does.

DVMT/FIXED Memory

Specify the size of DVMT memory to allocate for video memory.

Boot Sequence

Press <Enter> to enter the sub-menu:

1st/ 2nd/ 3rd/ 4th Boot Device

The items allow you to set the first/ second/ third boot device where BIOS
attempts to load the disk operating system.

3-10

BIOS Setup

Boot From Other Device

Setting the option to [Yes] allows the system to try to boot from other device. if
the system fails to boot from the 1st/ 2nd boot device.

Trusted Computing

Press <Enter> to enter the sub-menu:

TCG/TPM SUPPORT

This setting allows you to enable/disable the TCG/TPM.

Excute TPM Command

This item allows you to enable or disable the TPM security chip.

Clearing the TPM

This item allows you to clear the user information saved in the TPM security chip.
When you press <Enter>, a warning message will appear to ask if you want to
clear the user information in the security chip. Use the left / right arrow key to
select between [OK] and [Cancel], then press <Enter> to confirm your choice.

TPM Enable/Disable Status

This item is not configurable.

TPM Owner Status

This item is not configurable.

3-11

MS-7528 Mainboard

Integrated Peripherals

USB Controller

This setting allows you to enable/disable the onboard USB controller.

USB Device Legacy Support

Select [Enabled] if you need to use a USB-interfaced device in the operating system.

Onboard LAN Controller

This item is used to enable/disable the onboard LAN controller.

LAN Option ROM

This item is used to decide whether to invoke the Boot ROM of the LAN controller.

Onboard IEEE1394 Controller

This item allows you to enable/disable the onboard IEEE1394 controller.

Audio Controller

This setting is used to enable/disable the onboard audio controller.

On-Chip ATA Devices

Press <Enter> to enter the sub-menu:

On-Chip IDE Controller

These items allow users to enable or disable the IDE controller.

PCI IDE BusMaster

This item allows you to enable/ disable BIOS to used PCI busmastering for
reading/ writing to IDE drives.

3-12

BIOS Setup

On-Chip SATA Controller

These items allow users to enable or disable the SATA controller.

RAID Mode

This item is used to enable/disable the RAID function for SATA devices.

I/O Device Configuration

Press <Enter> to enter the sub-menu:

COM Port 1/2

Select an address and corresponding interrupt for the first serial port.

Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset that provides
Standard, ECP, and EPP features. It has the following options:

Parallel Port Mode

This item allows you to select the parallel port mode.

[Disabled]
[3BC] Line Printer port 0
[278] Line Printer port 2
[378] Line Printer port 1

3-13

MS-7528 Mainboard

Power Management Setup

Important

S3-related functions described in this section are available only when your
BIOS supports S3 sleep mode.

ACPI Function

This item is to activate the ACPI (Advanced Configuration and Power Management
Interface) Function. If your operating system is ACPI-aware, such as Windows 2000/
XP, select [Enabled].

ACPI Standby State

This item specifies the power saving modes for ACPI function. If your operating
system supports ACPI, such as Windows 2000/ XP , you can choose to enter the
Standby mode in S1(POS) or S3(STR) fashion through the setting of this field. Set­tings are:

[S1] The S1 sleep mode is a low power state. In this state, no system

[S3] The S3 sleep mode is a lower power state where the in formation of

context is lost (CPU or chipset) and hardware maintains all system
context.

system configuration and open applications/files is saved to main
memory that remains powered while most other hardware compo­nents turn off to save energy. The information stored in memory will
be used to restore the system when a “wake up” event occurs.

3-14

BIOS Setup

Power Button Function

This feature sets the function of the power button. Settings are:

[On/ Off] The power button functions as normal power off button.
[Suspend] When you press the power button, the computer enters the

Restore On AC Power Loss

This item specifies whether your system will reboot after a power failure or interrupt
occurs. Settings are:

[Off] Always leaves the computer in the power off state.
[On] Always leaves the computer in the power on state.
[Last State] Restores the system to the status before power failure

Wakeup Event Setup

Press <Enter> and the following sub-menu appears.

Resume From S3 By USB Device

The item allows the activity of the USB device to wake up the system from S3
(Suspend to RAM) sleep state.

Resume From S3 By PS/2 Keyboard

This setting determines whether the system will be awakened from what power
saving modes when input signal of the PS/2 keyboard is detected.

suspend/sleep mode, but if the button is pressed for more
than four seconds, the computer is turned off.

or interrupt occurred.

Resume From S3 By PS/2 Mouse

This setting determines whether the system will be awakened from what power
saving modes when input signal of the PS/2 mouse is detected.

Resume by PCI Device (PME#)

When set to [Enabled], the feature allows your system to be awakened from the
power saving modes through any event on PME (Power Management Event).

Resume by PCI-E Device

When set to [Enabled], the feature allows your system to be awakened from the
power saving modes through any event on PCIE device.

Resume by RTC Alarm

The field is used to enable or disable the feature of booting up the system on a
scheduled time/date.

3-15

MS-7528 Mainboard

H/W Monitor

Chassis Intrusion

The field enables or disables the feature of recording the chassis intrusion status
and issuing a warning message if the chassis is once opened. To clear the warning
message, set the field to [Reset]. The setting of the field will automatically return to
[Enabled] later.

CPU Smart FAN Target

The mainboard provides the Smart Fan function which can control the CPU fan speed
automatically depending on the current temperature to keep it with in a specific range.
You can select a fan target value here. If the current CPU fan temperature reaches to
the target value, the smart fan function will be activated. It provides several sections
to speed up for cooling down automaticlly.

PC Health Status

CPU/ System Temperature, CPU FAN/ SYS FAN1/ SYS FAN2 Speed, CPU

Vcore, 3.3V, 5V, 12V

These items display the current status of all of the monitored hardware devices/
components such as CPU voltage, temperatures and all fans’ speeds.

3-16

Cell Menu

Important

BIOS Setup

Change these settings only if you are familiar with the chipset.

Current CPU / DRAM Frequency

These items show the current clocks of CPU and Memory speed. Read-only.

Intel EIST

The Enhanced Intel SpeedStep technology allows you to set the performance level of
the microprocessor whether the computer is running on battery or AC power. This
field will appear after you installed the CPU which support speedstep technology.

Adjust CPU FSB Frequency

This item allows you to set the CPU FSB frequency (in MHz).

Adjusted CPU Frequency

It shows the adjusted CPU frequency (FSB x Ratio). Read-only.

Advance DRAM Configuration

Press <Enter> to enter the sub-menu.

DRAM Timing Mode

Setting to [Enabled] enables DRAM CAS# Latency automatically to be determined
by BIOS based on the configurations on the SPD (Serial Presence Detect) EEPROM
on the DRAM module.

3-17

MS-7528 Mainboard

CAS Latency(CL)

When the DRAM Timing Mode sets to [Manual], the field is adjustable.This
controls the CAS latency, which determines the timing delay (in clock cycles)
before SDRAM starts a read command after receiving it.

Advance DRAM Configuration -> tRCD

When the DRAM Timing Mode sets to [Manual], the field is adjustable. When
DRAM is refreshed, both rows and columns are addressed separately. This
setup item allows you to determine the timing of the transition from RAS (row
address strobe) to CAS (column address strobe). The less the clock cycles, the
faster the DRAM performance.

Advance DRAM Configuration -> tRP

When the DRAM Timing Mode sets to [Manual], this field is adjustable. This
setting controls the number of cycles for Row Address Strobe (RAS) to be
allowed to precharge. If insufficient time is allowed for the RAS to accumulate its
charge before DRAM refresh, refresh may be incomplete and DRAM may fail to
retain data. This item applies only when synchronous DRAM is installed in the
system.

Advance DRAM Configuration -> tRAS

When the DRAM Timing Mode sets to [Manual], this setting determines the
time RAS takes to read from and write to a memory cell.

Advance DRAM Configuration -> tRTP

When the DRAM Timing Mode sets to [Manual], this setting controls the time
interval between a read and a precharge command.

Advance DRAM Configuration -> tRC

When the DRAM Timing Mode sets to [Manual], the field is adjustable. The row
cycle time determines the minimum number of clock cycles a memory row takes
to complete a full cycle, from row activation up to the precharging of the active
row.

Advance DRAM Configuration -> tWR

When the DRAM Timing Mode sets to [Manual], the field is adjustable. It speci­fies the amount of delay (in clock cycles) that must elapse after the completion
of a valid write operation, before an active bank can be precharged. This delay
is required to guarantee that data in the write buffers can be written to the
memory cells before precharge occurs.

Advance DRAM Configuration -> tRRD

When the DRAM Timing Mode sets to [Manual], the field is adjustable. Speci­fies the active-to-active delay of different banks.

Advance DRAM Configuration -> tWTR

When the DRAM Timing Mode sets to [Manual], the field is adjustable. This
item controls the Write Data In to Read Command Delay memory timing. This

3-18

BIOS Setup

constitutes the minimum number of clock cycles that must occur between the
last valid write operation and the next read command to the same internal bank
of the DDR device.

Power User Mode

Press <Enter> to enter the sub-menu.

ADJUST CHANNEL 0/1 DRIVE

These two Groups are used to program RCOMP buffer strengths and slew rate
table for the various signal groups of MCH. Each channel contains seven groups
of signal ( GROUP 0 ~ GROUP 6)

ADJUST ODT Strength

This feature is designed to improve the signal integrity of the memory channel.
ODT(On-Die termination) allows a DRAM to adjust the termination resistance for
each DQ and DQS/DQS# signal.

ADJUST SCOMP Strength

SCOMP (Secure Communications Processor) hardware protections against DMA
devices that allow it to move the corresponding device drivers from the base
layer to less critical parts of the system.

FSB/Memory Ratio

This item will allow you to adjust the FSB/Ratio of the memory.

Adjusted DRAM Frequency

It shows the adjusted DDR Memory frequency. Read-only.

Adjust PCI-E Frequency(MHz)

This field allows you to select the PCIE frequency (in MHz).

Auto Disable DIMM/PCI Frequency

When set to [Enabled], the system will remove (turn off) clocks from empty DIMM and
PCI slots to minimize the electromagnetic interference (EMI).

Spread Spectrum

When the motherboard’s clock generator pulses, the extreme values (spikes) of the
pulses create EMI (Electromagnetic Interference). The Spread Spectrum function
reduces the EMI generated by modulating the pulses so that the spikes of the pulses
are reduced to flatter curves. If you do not have any EMI problem, leave the setting at
Disabled for optimal system stability and performance. But if you are plagued by EMI,
set to Enabled for EMI reduction. Remember to disable Spread Spectrum if you are
overclocking because even a slight jitter can introduce a temporary boost in clock
speed which may just cause your overclocked processor to lock up.

3-19

MS-7528 Mainboard

Important

1.If you do not have any EMI problem, leave the setting at [Disabled] for
optimal system stability and performance. But if you are plagued by EMI,
select the value of Spread Spectrum for EMI reduction.

2.The greater the Spread Spectrum value is, the greater the EMI is reduced,
and the system will become less stable. For the most suitable Spread
Spectrum value, please consult your local EMI regulation.

3.Remember to disable Spread Spectrum if you are overclocking because
even a slight jitter can introduce a temporary boost in clock speed which
may just cause your overclocked processor to lock up.

3-20

BIOS Setup

Load Fail-Safe/ Optimized Defaults

The two options on the main menu allow users to restore all of the BIOS settings to
the default Fail-Safe or Optimized values. The Optimized Defaults are the default
values set by the mainboard manufacturer specifically for optimal performance of the
mainboard. The Fail-Safe Defaults are the default values set by the BIOS vendor for
stable system performance.

When you select Load Fail-Safe Defaults, a message as below appears:

Pressing Y loads the BIOS default values for the most stable, minimal system
performance.

When you select Load Optimized Defaults, a message as below appears:

Pressing Y loads the default factory settings for optimal system performance.

3-21

MS-7528 Mainboard

BIOS Setting Password

When you select this function, a message as below will appear on the screen:

Type the password, up to six characters in length, and press <Enter>. The password
typed now will replace any previously set password from CMOS memory. You will
be prompted to confirm the password. Retype the password and press <Enter>. You
may also press <Esc> to abort the selection and not enter a password.
To clear a set password, just press <Enter> when you are prompted to enter the
password. A message will show up confirming the password will be disabled. Once
the password is disabled, the system will boot and you can enter Setup without
entering any password.
When a password has been set, you will be prompted to enter it every time you try
to enter Setup. This prevents an unauthorized person from changing any part of your
system configuration.

3-22

Dual Core Center

Appendix A

Dual Core Center

Dual CoreCenter, the most useful and powerful utility
that MSI has spent much research and efforts to
develop, helps users to monitor or configure the hard­ware status of MSI Mainboard & MSI Graphics card in
windows, such as CPU/GPU clock, voltage, fan speed
and temperature.
Before you install the Dual CoreCenter, please make
sure the system has meet the following requirements:

1. Intel Pentium4 / Celeron, AMD Athlon XP/ Sempron or
compatible CPU with PCI Express slot.

2. 256MB system memory.

3. CD-ROM drive for software installation.

4. Operation system: Windows XP.

5. DotNet Frame Work 2.0

A-1

MS-7528 Mainboard

Activating Dual Core Center

Once you have your Dual Core Center installed (locate the setup source file in the
setup CD accompanying with your mainboard, path: Utility --> MSI Utility --> Dual
Core Center), it will have an icon in the system tray, a short cut icon on the
desktop, and a short cut path in your “Start-up” menu. You may double-click on each
icon to enable Dual Core Center.

short-cut icon in the system tray

A-2

short-cut path in the start-up menu
(path: Start-->Programs-->MSI-->
DualCoreCenter-->DualCoreCenter)

Dual Core Center

Main

Before using this utility, we have to remind you: only when installing the MSI V044
(V044 has to install with the version 8.26 or newer driver)/ V046 or V060 graphics
card can activate the full function of this utility. If you install a graphics card of other
brand, only hardware status of the MSI mainboard would be available.

Introduction:

Click each button appearing above to enter sub-menu to make further configuration
or to execute the function.

MB

Click MB button to read current CPU temperature, FSB and CPU clock of
mainboard will show below.

VGA

Click VGA button to read current GPU temperature, GPU clock and memory
clock of graphics card will show below.

DOT

Click DOT button to enable or disable the Dynamic Overclocking Technology.

A-3

MS-7528 Mainboard

AV/ Game/ Office/ Silence/ Cool

MSI provides five common settings for different environments. The settings
had been set to optimal values to reach better performance in each
environment. Click the button you need.

Important

Before clicking the AV/ Game/ Office/ Silence or Cool button, select Smooth
mode or Sharp mode to decide whether you want the system to reach the
optimal values smoothly or quickly.

Sharp mode Smooth mode

Clock

In this sub-menu, you can adjust and monitor the clocks of MB and graphics
card.

Voltage

In this sub-menu, you can adjust and monitor the voltages of MB and graphics
card.

FAN Speed

In this sub-menu, you can adjust and monitor the fan speeds of MB and
graphics card.

Temperature

In this sub-menu, you can monitor the temperatures of MB and graphics card.

User Profile

In this sub-menu, you can set the values of clock, voltage and fan speed by
your need and save them in a profile. You can save 3 profiles for further use.

Important

Click on the icon , the clock, voltage, fan, and temperature buttons will
appear beside the icon.

A-4

Dual Core Center

DOT (Dynamic OverClocking)

Dynamic Overclocking Technology is an automatic overclocking function, included in
the MSITM’s newly developed Dual CoreCenter Technology. It is designed to detect the
loading of CPU/ GPU while running programs, and to over-clock automatically. When
the motherboard detects that the loading of CPU is exceed the default threshold for a
time, it will speed up the CPU and fan automatically to make the system run smoother
and faster. When the graphics card detects that the loading of GPU is exceed the
default threshold for a time, it will speed up the GPU, memory, fan and voltage
automatically to make the system run smoother and faster. When the CPU/ GPU is
temporarily suspending or staying in low loading balance, it will restore the default
settings instead. Usually the Dynamic Overclocking Technology will be powered only
when users' PC runs huge amount of data, like 3D games or video process, and the
motherboard/ graphicd card need to be boosted up to enhance the overall performance.
There will be several selections when you click the DOT rate button (include increase
rate and decrease rate buttons), to select the DOT level, then you have to
click the DOT button to apply the DOT function.

DOT FSB-UP

Rate button

DOT FSB-DOWN

Rate button

Important

Even though the Dynamic Overclocking Technology is more stable than
manual overclocking, basically, it is still risky. We suggest user to make
sure that your CPU can afford to overclock regularly first. If you find the PC
appears to be unstable or reboot incidentally, it's better to lower the level of
overclocking options. By the way, if you need to conduct overclocking
manually, please do not to apply the DOT function.

A-5

MS-7528 Mainboard

Clock

In the Clock sub-menu, you can see clock status (including FSB/ CPU clock of
mainboard and GPU/ memory clock of graphics card) of your system. And you can
select desired value for overclocking. There will be several items for you to select for
overclocking after you click button. You can click the plus sign button
to increase the clock, or click the minus sign button to decrease the clock. And
finally, click the Apply button to apply the values adjusted. If you do not want to apply
the adjustments, click the Cancel button to cancel. Or click the Default button to
restore the default values.

On the underside, it shows the graphs of the clocks. Only the curves of the item
which the button is lit up with red color will be shown.

Important

In the user profile, clicking the Save button can save the changes to it. In the
default profile, the Save button is not available.

A-6

Voltage

Dual Core Center

In the Voltage sub-menu, you can see voltage status (including Vcore, memory, GPU
voltage... etc.) of your system, and you can select desired value for overclocking. It
will show several items to select for overclocking after you click the button.
You can click the plus sign button to increase the voltage, or click the minus sign
button to decrease. And finally, click the Apply button to apply the adjustments.
If you do not want to apply the adjustments, click the Cancel button to cancel. Or click
the Default button to restore the default values.

I

On the underside, it shows the graphs of the voltages. Only the curves of the item
which the button is lit up with red color will be shown.

Important

In the user profile, clicking the Save button can save the changes to it. In the
default profile, the Save button is not available.

A-7

MS-7528 Mainboard

FAN Speed

In the FAN Speed sub-menu, you can read fan status of your system. Select higher
speed for better cooling effect. There are several sections for you to change the fan
speed to a section after clicking button. Click the plus sign button to
increase the fan speed to a section, or click the minus sign button to decrease.
Or click the Default button to restore the default values.

On the underside, it shows the graphs of the fan speed. Only the curves of the item
which the button is lit up with red color will be shown.

Important

1. When you set the fan speed manually, please make sure to disabled the
“CPU Smart FAN Target” item in the BIOS.

2. In the user profile, clicking the Save button can save the changes to it. In
the default profile, the Save button is not available.

A-8

Dual Core Center

Temperature

In the Temperature sub-menu, you can see temperature status of your system.

On the underside, it shows the graphs of the temperatures. Only the curves of the
item which the button is lit up with red color will be shown.

A-9

MS-7528 Mainboard

User Profile

In the User Profile sub-menu, click the setting button that besides the user profile
bar, and the next screen will appear.

Here you can define the clock/ fan speed/ voltage by your need, click the
button to choose a value quickly, or click the plus / minus sign button to
increase/ decrease the value.

A-10

Dual Core Center

Use the draw bar to set the max system temperature. When the system temperature
exceeds the threshold you defined, the system will pop up a warning message and
shut down the system.
Use the draw bar to set the minimal fan speed. When the fan speed is lower than the
threshold you defined, the system will pop up a warning message.

After setting all values you need, you can change the user profile name in the box
then click the save button to save all changes in a profile.

Finally, you can choose the user profile by click the button in the left side and click the
Apply button to load the user profile.

A-11

Intel ICH7R SATA RAID

Appendix B

Intel ICH7R SATA RAID

The ICH7R provides a hybrid solution that combines
four independent SATAII ports for support of up to four
Serial ATAII (Serial ATAII RAID) drives.
It offers RAID level 0 (Striping), RAID level 1 (Mirroring
and Duplexing), RAID level 5 (Block Interleaved Distrib­uted Parity), RAID level 10 (A Stripe of Mirrors) and
Intel® Martix Storage Technology.

B-1

MS-7528 Mainboard

ICH7R Introduction

The ICH7R provides a hybrid solution that combines four independent SATAII ports for
support of up to four Serial ATAII (Serial ATAII RAID) drives.

Serial ATAII (SATAII) is the latest generation of the ATA interface. SATA hard drives
deliver blistering transfer speeds up to 300MB/sec. Serial ATA uses long, thin cables,
making it easier to connect your drive and improving the airflow inside your PC. The
most outstanding features are:

1. Supports 300MB/s transfers with CRC error checking.

2. Supports Hot-plug-n-play feature.

3. Data handling optimizations including tagged command queuing, elevator
seek and packet chain command.

Intel® ICH7R offers RAID level 0 (Striping), RAID level 1 (Mirroring and Duplexing),
RAID level 5 (Block Interleaved Distributed Parity), RAID level 10 (A Stripe of Mirrors)
and Intel® Martix Storage Technology.

RAID 0 breaks the data into blocks which are written to separate hard drives. Spreading
the hard drive I/O load across independent channels greatly improves I/O performance.
RAID 1 provides data redundancy by mirroring data between the hard drives and
provides enhanced read performance. RAID 5 Provides data striping at the byte level
and also stripe error correction information. This results in excellent performance
and good fault tolerance. Level 5 is one of the most popular implementations of RAID.
RAID 10 Not one of the original RAID levels, multiple RAID 1 mirrors are created, and
a RAID 0 stripe is created over these. Intel Matrix RAID Technology is the advanced
ability for two RAID volumes to share the combined space of two hard drives being
used in unison.

Important

The least number of hard drives for RAID 0, RAID 1 or Matrix mode is 2. The
least number of hard drives for RAID 10 mode is 4. And the maximum number
of hard drives for RAID 5 mode is 3.
All the information/volumes listed in your system might differ from the illus­trations in this appendix.

B-2

Intel ICH7R SATA RAID

BIOS Configuration

The Intel Matrix Storage Manager Option ROM should be integrated with the system
BIOS on all motherboards with a supported Intel chipset. The Intel Matrix Stroage
Manager Option ROM is the Intel RAID implementation and provides BIOS and DOS
disk services. Please use <Ctrl> + <I> keys to enter the “Intel(R) RAID for Serial ATA”
status screen, which should appear early in system boot-up, during the POST
(Power-On Self Test). Also, you need to enable the RAID function in BIOS to create,
delete and reset RAID volumes.

Using the Intel Matrix Stroage Manager Option ROM

1. Creating, Deleting and Resetting RAID Volumes:

The Serial ATA RAID volume may be configured using the RAID Configuration utility
stored within the Intel RAID Option ROM. During the Power-On Self Test (POST), the
following message will appear for a few seconds:

Important

The “Driver Model”, “Serial #” and “Size” in the following example might be
different from your system.

After the above message shows, press <Ctrl> and <I> keys simultaneously to enter
the RAID Configuration Utility.

Important

The following procedure is only available with a newly-built system or if you
are reinstalling your OS. It should not be used to migrate an existing system
to RAID.

B-3

MS-7528 Mainboard

After pressing the <Ctrl> and <I> keys simultaneously, the following window will
appear:

(1) Create RAID Volume

1. Select option 1 “Create RAID Volume” and press <Enter> key. The following
screen appears. Then in the Name field, specify a RAID Volume name and
then press the <TAB> or <Enter> key to go to the next field.

2. Use the arrow keys to select the RAID level best suited to your usage model
in RAID Level.

B-4

Intel ICH7R SATA RAID

3. In the Disk field, press <Enter> key and the following screen appears. Use
<Space> key to select the disks you want to create for the RAID volume, then
click <Enter> key to finish selection.

4. Then select the strip value for the RAID array by using the “upper arrow” or
“down arrow” keys to scroll through the available values, and pressing the
<Enter> key to select and advance to the next field. The available values
range from 4KB to 128 KB in power of 2 increments. The strip value should be
chosen based on the planned drive usage. Here are some typical values:
RAID0 – 128KB
RAID10 – 128KB
RAID5 – 64KB

5. Then select the capacity of the volume in the Capacity field. The default
value is the maximum volume capacity of the selected disks.

B-5

MS-7528 Mainboard

Important

Since you want to create two volumes (Intel Matrix RAID Technology), this
default size (maximum) needs to be reduced. Type in a new size for the first
volume. As an example: if you want the first volume to span the first half of the
two disks, re-type the size to be half of what is shown by default. The second
volume, when created, will automatically span the remainder of two hard
drives.

6.Then the following screen appears for you to confirm if you are sure to
create the RAID volume. Press <Y> to continue.

7.Then the following screen appears to indicate that the creation is finished.

B-6

Intel ICH7R SATA RAID

(2) Delete RAID Volume

Here you can delete the RAID volume, but please be noted that all data on RAID
drives will be lost.

Important

If your system currently boots to RAID and you delete the RAID volume in the
Intel RAID Option ROM, your system will become unbootable.

Select option 2 Delete RAID Volume from the main menu window and press
<Enter> key to select a RAID volume for deletion. Then press <Delete> key to
delete the selected RAID volume. The following screen appears.

Press <Y> key to accept the volume deletion.

B-7

MS-7528 Mainboard

(3) Reset Disks to Non-RAID

Select option 3 Reset Disks to Non-RAID and press <Enter> to delete the RAID
volume and remove any RAID structures from the drives. The following screen
appears:

Press <Y> key to accept the selection.

Important

1. You will lose all data on the RAID drives and any internal RAID structures
when you perform this operation.

2. Possible reasons to ‘Reset Disks to Non-RAID’ could include issues such
as incompatible RAID configurations or a failed volume or failed disk.

B-8

Intel ICH7R SATA RAID

Installing Software

Install Driver in Windows XP / 2000

† New Windows XP / 2000 Installation

The following details the installation of the drivers while installing Windows XP /

2000.

1. Start the installation:
Boot from the CD-ROM. Press F6 when the message "Press F6 if you need
to install third party SCSI or RAID driver" appears.

2. When the Windows XP Setup window is generated, press S to specify an
Additional Device(s).

3. Insert the driver diskette Intel IAA RAID XP Driver For ICH7R (NH82801GR)
into drive A: and press <Enter>.

Important

Please follow the instruction below to make an “Intel IAA RAID XP Driver
For ICH7R (NH82801GR)” for yourself.

1.Insert the MSI CD into the CD-ROM drive.

2.Click the “Browse CD” on the Setup screen.

3.Copy all the contents in the: \\IDE\Intel\ICH7R\Floppy to a formatted
floppy disk.

4.The driver disk for ICH7R RAID controller is done.

4. Choose the driver Intel(R) 82801GR SATA RAID Controller from the drop­down list that appears on Windows XP Setup screen, and press the <Enter>
key.

5. Press <Enter> to continue with installation or if you need to specify any
additional devices to be installed, do so at this time. Once all devices are
specified, press <Enter> to continue with installation.

6. From the Windows XP/2000 Setup screen, press the <Enter> key. Setup will
now load all device files and then continue the Windows XP/2000 installation.

† Existing Windows XP/2000 Driver Installation

1. Insert the MSI CD into the CD-ROM drive.

2. The CD will auto-run and the setup screen will appear.

3. Under the Driver tab, click on Intel IAA RAID Edition.

4. The drivers will be automatically installed.

† Confirming Windows XP/2000 Driver Installation

1. From Windows XP/2000, open the Control Panel from My Computer fol­lowed by the System icon.

2. Choose the Hardware tab, then click the Device Manager tab.

3. Click the "+" in front of the SCSI and RAID Controllers hardware type. The
driver Intel(R) NH82801GR SATAII RAID Controller should appear.

B-9

MS-7528 Mainboard

Installation of Intel Matrix Storage Console

The Intel Application Accelerator RAID Edition driver may be used to operate the hard
drive from which the system is booting or a hard drive that contains important data.
For this reason, you cannot remove or un-install this driver from the system after
installation; however, you will have the ability to un-install all other non-driver

components.

Insert the MSI CD and click on the Intel IAA RAID Edition to install the software.

B-10

Click on this item

Intel ICH7R SATA RAID

The InstallShield Wizard will begin automatically for installation showed as following:

Click on the Next button to proceed the installation in the welcoming window.

B-11

MS-7528 Mainboard

The window shows the components to be installed. Click Next button to continue.

After reading the license agreement in the following window, click Yes button to
continue.

B-12

Intel ICH7R SATA RAID

Select the folder in which you want the program to be installed in the following
window, and click Next button to start installation.

Select a program folder in the following window where you want Setup to add the
program icon.

B-13

MS-7528 Mainboard

The following window appears to show the Intel Application Accelerator RAID Edition
Setup installation status.

Once the installation is complete, the following window appears.

B-14

Intel ICH7R SATA RAID

RAID Migration Instructions

The Intel Matrix Storage Console offers the flexibility to upgrade from a single Serial
ATA (SATA) hard drive to RAID configuration when an additional SATA hard drive is
added to the system. This process will create a new RAID volume from an existing
disk. However, several important steps must be followed at the time the system is
first configured in order to take advantage of RAID when upgrading to a second
SATA hard drive:

1.BIOS must be configured for RAID before installing Windows XP on the
single SATA hard drive. Refer to On Chip SATA Setting for properly
setting of the BIOS.

2.Install the Intel Application Accelerator RAID Driver during Windows Setup.
Refer to Installing Software for instructions on installing the driver dur­ing Windows Setup.

3.Install the Intel Matrix Storage Console after the operating system is installed.

To create a volume from an existing disk, complete the following steps:

Important

A Create from Existing Disk operation will delete all existing data from the
added disk and the data cannot be recovered. It is critical to backup all
important data on the added disk before proceeding. However, during the
migration process, the data on the source disk is preserved.

After the Intel Matrix Storage Console has been successfully installed and the sys­tem has rebooted, click on the Intel Application Accelerator shortcut link (Start --> All
Programs --> Intel Matrix Storage Manager --> Intel Matrix Storage Console)
and the following window will appear:

B-15

MS-7528 Mainboard

Create RAID Volume from Existing Disk

To create a RAID volume from an existing disk, choose Action --> Create RAID
Volume from Existing Hard Drive.

The Create RAID Volume from Existing Hard Drive Wizard pops up to lead you
for the following procedure. Click Next to continue.

B-16

Intel ICH7R SATA RAID

(1) Step 1: Configure Volume

Here you can configure the new RAID volume by entering the volume name, selecting
the RAID level and strip size.

† RAID Volume Name:

A desired RAID volume name needs to be typed in where the ‘ RAID_Volume1’ text
currently appears above. The RAID volume name has a maximum limit of 16 characters.
The RAID volume name must also be in English alphanumeric ASCII characters.

† RAID Level:

Select the desired RAID level:

RAID 0 (Performance) – A volume optimized for performance will allow you to

access your data more quickly.

RAID 1 (Redundancy) – A volume optimized for data redundancy will provide

you with a realtime duplicate copy of your data. Note:
Only half of the available volume space will be avail­able for data storage.

RAID 5 (Useful) – RAID 5 can be used on three or more disks, with zero

or more spare-disks. The resulting RAID-5 device size
will be (N-1)*S, where N is the how many drive, S is the
size of the smallest drive in the array. If one of the disks
fail, all data are still intact. It can rebuild the disk from
the parity information. If spare disks are available, re­construction will begin immediately after the device
failure. If two disks fail simultaneously, all data are lost.
RAID-5 can survive one disk failure, but not two or
more. Both read and write performance usually
increase, but can be hard to predict how much. Reads
are similar to RAID-0 reads, writes can be either rather

B-17

MS-7528 Mainboard

expensive (requiring read-in prior to write, in order to
be able to calculate the correct parity information), or
similar to RAID-1 writes. The write efficiency depends
heavily on the amount of memory in the machine, and
the usage pattern of the array. Heavily scattered writes

RAID 10 (Mirrored Stripes) – A RAID 1 array of two RAID 0 arrays.

† Strip Sizes:

Select the desired strip size setting. As indicated, the optimal setting is 128KB. Se­lecting any other option may result in performance degradation. Even though 128KB
is the recommended setting for most users, you should choose the strip size value
which is best suited to your specific RAID usage model. The most typical strip size
settings are:

4KB: For specialized usage models requiring 4KB strips
8KB: For specialized usage models requiring 8KB strips
16KB: Best for sequential transfers
32KB: Good for sequential transfers
64KB: Good general purpose strip size
128KB: Best performance for most desktops and workstations

(2) Select the source disk
Then select the source disk that you wish to use and then click “--->” to move it to the
Selected field. Then click Next to continue.

It is very important to note which disk is the source disk (the one containing all of the
information to be migrated) and which one is the target disk. On a RAID Ready
system, this can be determined by making a note during POST of which port (e.g. Port
0 or Port 1) the single disk is attached to.
You can also use the Intel Application Accelerator RAID Edition utility before the
second disk is installed to verify the Port and serial number of the drive that contains
all the data.

are bound to be more expensive.

B-18

Intel ICH7R SATA RAID

(3) Select Member Hard Drive(s)
Then select the member disk (the target disk) that you wish to use and then click “-

-->” to move it to the Selected field. Then click Next to continue.

Please note that the existing data on the selected hard drive(s) will be deleted
permanently. Do not forget to back up all the important data before continuing.

B-19

MS-7528 Mainboard

(4) Specify Volume Size

Specify the amount of available array space to be used by the new RAID volume. You
may enter the amount in the space or use the slider to specify. It is recommended you
use 100% of the available space for the optimized usage. For RAID 0 volume, if you
do not specify 100% of the hard drive space, the rest hard drive space will be
worked as RAID 1 volume, which is the new technology called Intel Matrix RAID. Then
click Next to continue.

(5) Start Creating RAID Volume from Existing Hard Drive Wizard

Before you continue the procedure of RAID volume creation from existing hard drive,
read the dialogue box below carefully. Please note that once you click Finish, the
existing data on the selected hard drive(s) will be deleted permanently and this
operation cannot be undone. It is critical that you backup all important data before
selecting Finish to start the migration process.

B-20

Intel ICH7R SATA RAID

(6) Start Migration

The migration process may take up to two hours to complete depending on the size
of the disks being used and the strip size selected. A dialogue window will appear
stating that the migration process may take considerable time to complete, meanwhile
a popup dialogue at the taskbar will also show the migration status. While you can still
continue using your computer during the migration process, once the migration proc­ess starts, it cannot be stopped. If the migration process gets interrupted and your
system is rebooted for any reason, it will pick up the migration process where it left
off. You will be provided with an estimated completion time (the remaining time will
depend on your system) once the migration process starts.

The following screen appears if the migration process is completed successfully.
Then you have to reboot your system to use the full capacity of the new volume.

B-21

MS-7528 Mainboard

Degraded RAID Array

A RAID 1, RAID 5 or RAID 10 volume is reported as degraded when one of its hard
drive members fails or is temporarily disconnected, and data mirroring is lost. As a
result, the system can only utilize theremaining functional hard drive member. To re­establish data mirroring and restore data redundancy, refer to the procedure below
that corresponds to the current situation.

Missing Hard Drive Member

1. Make sure the system is powered off.

2. Reconnect the hard drive.

3. Reboot the system to Windows; the rebuild will occur automatically.

Failed Hard Drive Member

1. Make sure the system is powered off.

2. Replace the failed hard drive with a new one that is of equal or greater
capacity.

3. Reboot the system to Intel RAID Option ROM by press <Ctrl> and <I> keys
simultaneously during the Power-On Self Test (POST).

4. Select the port of the destination disk for rebuilding, and then press ENTER.

B-22

Intel ICH7R SATA RAID

5. Exit Intel RAID Option ROM, and then reboot to Windows system.

6. When prompted to rebuild the RAID volume, click 'Yes'.

7. The Intel(R) Storage Utility will be launched. Right-click the new hard drive and
select 'Rebuild to this Disk'. The 'Rebuild Wizard' will be launched which will
guide you through the process of rebuilding to the new hard drive.

B-23
