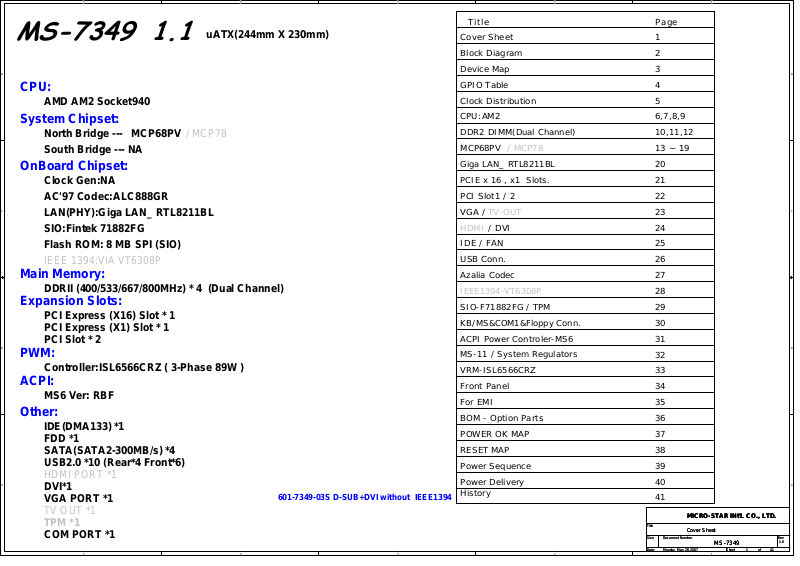

MSI MS-7349 Schematics

Download
Page 1
5
4
3
2
1
PageTitle
MS-7349
1.1
uATX(244mm X 230mm)
Cover Sheet 1 Block Diagram 2
D D
CPU:
AMD AM2 Socket940
System Chipset:
North Bridge ---
MCP68PV
South Bridge --- NA
/ MCP78
OnBoard Chipset:
Clock Gen:NA AC'97 Codec:ALC888GR
C C
LAN(PHY):Giga LAN_ RTL8211BL SIO:Fintek 71882FG Flash ROM: 8 MB SPI (SIO)
IEEE 1394:VIA VT6308P
Main Memory:
DDRII (400/533/667/800MHz) * 4 (Dual Channel)
Expansion Slots:
PCI Express (X16) Slot * 1 PCI Express (X1) Slot * 1
B B
PCI Slot * 2
PWM:
Controller:ISL6566CRZ ( 3-Phase 89W )
ACPI:
MS6 Ver: RBF
Other:
IDE(DMA133) *1 FDD *1 SATA(SATA2-300MB/s) *4 USB2.0 *10 (Rear*4 Front*6)
A A
HDMI PORT *1
DVI*1 VGA PORT *1
601-7349-03S D-SUB+DVI without IEEE1394
Device Map GPIO Table 4 Clock Distribution CPU:AM2
DDR2 DIMM(Dual Channel)
MCP68PV
/ MCP78
Giga LAN_ RTL8211BL
PCIE x 16 , x1 Slots.
PCI Slot1 / 2
TV-OUT
VGA /
/ DVI
HDMI
IDE / FAN USB Conn. Azalia Codec
IEEE1394-VT6308P
SIO-F71882FG / TPM KB/MS&COM1&Floppy Conn. ACPI Power Controler-MS6 MS-11 / System Regulators VRM-ISL6566CRZ
Front Panel For EMI BOM - Option Parts POWER OK MAP RESET MAP Power Sequence Power Delivery
History
TV OUT *1
TPM *1
COM PORT *1
5
4
3
2
3
5 6,7,8,9 10,11,12 13 ~ 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Cover Sheet
Cover Sheet
Cover Sheet
MS-7349
MS-7349
MS-7349
1
of
of
of
141Monday, May 28, 2007
141Monday, May 28, 2007
141Monday, May 28, 2007
Page 2
5
4
3
2
1
AMD
PWM VRM ISL6566CR 3-Phase 89W
D D
HyperTransport LINK0
PCIE X16
PCIE X1
PCIE X16
PCIE X1
Front port x 6
USB2.0
C C
Rear port x 4
1G
nVIDIA
AM2_940
LINK0 16x16
MCP68
MCP78
DDR400/533/667/800
DDRII
DDR400/533/667/800
CRT
AC LINK
VGA CON
TV OUT
HDMI CON
DVI
UNBUFFERED DDR CHANNEL_A DIMM2,4
240-PIN DDRII
UNBUFFERED DDR CHANNEL_B DIMM1,3
240-PIN DDRII
Azalia CODEC
ALC888GR (8CH)
Giga LAN_ RTL8211BL
SATA-II Link
SATA-II Port #1~2 #3~4
ATA 66/100/133
IDE*1
PCI BUS
B B
IEEE 1394 VIA VT6308P
Rear x1
Front x1
ACPI MS6 CONTROLLER
A A
5
PCI SLOT x2
TPM
SLB9635TT1.2
MS11 for DDR Power
Fintek 882
FLOPPY
KB & MOUSE
*1 *1 *1
4
SERIAL PORTS
FAN CONTROL
LPC
LPC Pin Header
3
SPI SPI
Header
SPI FLASH ROMSPI Pin
8M
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Block Diagram
Block Diagram
Block Diagram
MS-7349
MS-7349
MS-7349
241Monday, May 28, 2007
241Monday, May 28, 2007
241Monday, May 28, 2007
of
of
1
of
1.0
1.0
1.0
Page 3
5
4
3
2
1
DDR DIMM Config.
DEVICE
DIMM 2 CH-A
D D
DIMM 4
10100000B
10100010B
CH-A DIMM 1
CH-B
DIMM 3 CH-B
USB
C C
Rear
Front
B B
10100001B
10100011B
Port DATA +/-
LAN_USB1
I1394_USB1
JUSB1
JUSB2
JUSB3 USB8+
CLOCKADDRESS
MEM_MA0_CLK_H0/L0 MEM_MA0_CLK_H1/L1 MEM_MA0_CLK_H2/L2 MEM_MA1_CLK_H0/L0 MEM_MA1_CLK_H1/L1 MEM_MA1_CLK_H2/L2 MEM_MB0_CLK_H0/L0 MEM_MB0_CLK_H1/L1 MEM_MB0_CLK_H2/L2 MEM_MB1_CLK_H0/L0 MEM_MB1_CLK_H1/L1 MEM_MB1_CLK_H2/L2
OC#
USB0­USB0+ USB1­USB1+
USB2­USB2+ USB3­USB3+
USB4­USB4+ USB5­USB5+
USB6­USB6+ USB7­USB7+
USB8­USB9-
USB9+
USB_OC#0 ( OC#0~1 )
USB_OC#1 ( OC#2~3 )
USB_OC#3 ( OC#4 )
PCI Config.
DEVICE MCP1 INT Pin
PCI_INT#X
PCI Slot 1
PCI_INT#Y PCI_INT#Z PCI_INT#W PCI_INT#W
PCI Slot 2
PCI_INT#X PCI_INT#Y PCI_INT#Z
IEEE1394 PCI_INT#Z
TPM
Chipset
LPC
PCI RESET DEVICE
MCP68
Signals
PCI_RESET0* PCI_RESET1* PCI_RESET2* MS6 PCI_RESET3* LPC_RESET*
/ MCP78
Target
PCISLOT1 PCISLOT2
1394 LPC/SIO
REQ#/GNT#
PCI_REQ4# PCI_GNT4#
PCI_REQ3# PCI_GNT3#
PCI_GNT2#
IDSEL
AD25
AD24
AD23
CLOCK
PCI_CLKSLOT1 (PCICLK1)
PCI_CLKSLOT2 (PCICLK2)
PCICLK_1394PCI_REQ2# (PCICLK0)
PCICLK_TPM (PCICLK3) PCI_CLKIN
(PCICLK4)
LPC_PCLK
SIO_PCLKSIO
CPU VID TABLE
VID
00000 00001 00010 00011 00100 00101 00110 00111 01000 01001 01010 01011 01100 01101 01110 01111 10000 1.1500V 10001 10010 10011 1.0750V 10100 10101 10110 10111 11000 11001 11010 11011 11100 11101 11110 11111
VOLTAGE
1.5500V
1.5250V
1.5000V
1.4750V
1.4500V
1.4250V
1.4000V
1.3750V
1.3500V
1.3250V
1.3000V
1.2750V
1.2500V
1.2250V
1.2000V
1.1750V
1.1250V
1.1000V
1.0500V
1.0250V
1.0000V
0.9750V
0.9500V
0.9250V
0.9000V
0.8750V
0.8500V
0.8250V
0.8000V
0.7750V
MS6
Signals Target
HDD_RST# IDE
A A
TPM_RST# TPM
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Device Map
Device Map
Device Map
MS-7349
MS-7349
MS-7349
1
of
of
of
341Monday, May 28, 2007
341Monday, May 28, 2007
341Monday, May 28, 2007
1.0
1.0
1.0
Page 4
5
/ MCP78
MCP68 GPIO TABLE
D D
C C
B B
PIN NAME
THERMTRIP*/GPIO58 PROCHOT*/GPIO20
MII_RXER/GPIO36 MII_COL/GPIO13/MI2C_DATA MII_CRS/GPIO14/MI2C_CLK RGMII/MII_INTR*/GPIO35 RGMII/MII_PWRDWN*/GPIO37 MII_RESET*/GPIO12
DDC_CLK/GPIO17 DDC_DATA/GPIO19
PCI_REQ2*/GPIO40.RS232_DSR* PCI_REQ3*/GPIO38/RS232_CTS* PCI_REQ4*/GPIO52/RS232_SIN* PCI_REQ4*
PCI_GNT2*/GPIO41/RS232_DTR* PCI_GNT3*/GPIO39/RS232_RTS* PCI_GNT4*/GPIO53/RS232_SOUT*
PCI_PERR*/GPIO43/RS232_DCD* PCI_PME*/GPIO30 LPC_PWRDWN*/GPIO54/EXT_NMI* LPC_DRQ0*/GPIO50 LPC_DRQ1*/GPIO15/FANRPM1
CABLE_DET_P/GPIO63 SATE_LED*/GPIO57
HDA_SDATA_OUT0/GPIO45 HDA_SDATA_IN0/GPIO22 HDA_SDATA_IN1/GPIO23/MGPIO0 HDA_SDATA_IN2/GPIO24
HDA_SYNC/GPIO44 GPIO_1 GPIO_2/NMI* GPIO_3/SMI* GPIO_4/SCI_INTR GPIO_5/INIT* GPIO_6/FERR*/SYS_FERR* GPIO_7/NFERR*/SYS_PERR* GPIO_8/SPI_DI GPIO_9/SPI_DO GPIO_10/SPI_CS GPIO_11/SPI_CLK USB_OC0*/GPIO25 USB_OC1*/GPIO26 USB_OC2*/GPIO27 USB_OC3*/GPIO28/MGPIO_1 USB_OC4*/GPIO29 A20GATE/GPIO55 EXT_SMI*/GPIO32 RI*/GPIO33 SIO_PME*/GPIO31 KBRDRSTIN*/GPIO56 SUS_CLK/GPIO34 THERM*/GPIO59 FANRPM0/GPIO60 FANCTL0/GPIO61 FANCTL1/GPIO62 THERM_SIC/GPIO48 THERM_SID0/GPIO49 PE_WAKE*/GPIO21 PEA_CLKREQ*/GPIO51 PE1_PRSNT#
FUNCTION
CPU_THERMTRIP* PROCHOT*
MII_RXER MII_COL MII_CRS Pull High 10K to 3VDUAL
--
MII_RESET*
DDC_CLK DDC_DATA
PCI_REQ2* PCI_REQ3*
PCI_GNT2* PCI_GNT3* PCI_GNT4*
PCI_PERR* PCI_PME* LPC_PD# LPC_DRQ0*
-­CABLE_DET_P
SATE_LED*
HDA_SDATA_OUT HDA_SDATA_IN0
--
-­HDA_SYNC
--
--
--
--
-­DISPLAY_SEL LOAD_TEST
--
--
--
-­LAN_USB
I1394_USB JUSB1
JUSB2 JUSB3 A20GATE
--
-­SIO_PME* KBRST* TPMCLK
--
--
--
-­THERMSIC THERMSID PE_WAKE*
4
3
2
1
SIO GPIO TABLE
GROUP
UART & SIR
Hardware Monitor
ACPI Function Pins
VID Controller
PIN NAME
IRTX/GP42 IRRX/GP43 GP17
FANIN3/GP40 FAN_CTL3/GP41 PME#/GP25 GP10/SPISLK FANIN4/GP11/SPI_CS0#/FAN_CTL4 GP12/SPI_MISO FANCTL_1/GP13/SPI_MOSI/BEEP GP14/FWH_DIS_WDTRST#/SPI_CS1#
GP15/LED_VSB/ALERT# GP16/LED_VCC/Turbo2# PCIRST1#/GP20 PCIRST2#/GP21 PCIRST3#/GP22 GP23/RSTCON# ATXPG_IN/GP24 PWROK/GP32 PWSIN#/GP26 PWSOUT#/GP27 S3#/GP30 PSON#/GP31 RSMRST#/GP33
VIDOUT0/GP0 VIDOUT1/GP1 VIDOUT2/GP2 VIDOUT3/GP3 VIDOUT4/GP4 VIDOUT5/GP5/SIC SLOTOCC#/GP6 GP7/Turbo#/WDTRST#
FUNCTION
--
--
--
--
-­SIO_PME# SPI_CLK SPI_CS0# SPI_MISO SPI_MOSI
--
-­CPU_FAN_GPO
--
--
-­FP_RST# ATX_PWR_OK
-­PSIN# PWRBTN# SLP_S3# PS_ON#
Pull High 10K to 3VDUAL
--
--
--
--
--
-­SLOTOCC#_CPU
--
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
GPIO Table
GPIO Table
GPIO Table
MS-7349
MS-7349
MS-7349
441Monday, May 28, 2007
441Monday, May 28, 2007
441Monday, May 28, 2007
1
of
1.0
1.0
1.0
Page 5
5
4
3
2
1
AMD AM2
MEMORY_A0_CLK[2:0] MEMORY_A0_CLK[2:0]#
MEMORY_A1_CLK[2:0]
HT_CPU_RXCLK[1:0]#
D D
HT_CPU_RXCLK[1:0]
HT_CPU_TXCLK[1:0] HT_CPU_TXCLK[1:0]#
CPUCLK_IN CPUCLK_IN#
MEMORY_A1_CLK[2:0]#
MEMORY_B0_CLK[2:0] MEMORY_B0_CLK[2:0]#
MEMORY_B1_CLK[2:0] MEMORY_B1_CLK[2:0]#
3 PAIR MEM CLK
3 PAIR MEM CLK
Dual Chanel
3 PAIR MEM CLK
3 PAIR MEM CLK
DIMM2-CHADIMM1-CHB
DIMM4-CHA
DIMM3-CHB
NVIDIA
CLKOUT_200MHZ CLKOUT_200MHZ#
C C
HT_CPU_TXCLK[1:0] HT_CPU_TXCLK[1:0]#
HT_CPU_RXCLK[1:0] HT_CPU_RXCLK[1:0]#
MCP68
MCP78
B B
PE0_REFCLK PE0_REFCLK#
PE1_REFCLK PE1_REFCLK#
BUF_SIO_CLK
LPC_CLK0
PCI_CLK0
PCI_CLK1
PCI_CLK2
PCI_CLK3 SUS_CLK
LPC_24M
SIO_PCLK
PCICLK_1394
PCICLK_SLOT1
PCICLK_SLOT2
PCICLK_TPM TPM_CLK
PEX_X16
PEX_X1
SIO
SPI_CLK
PCICLK
1394
PCICLK
SPI_CLK
SPI ROM
#1
PCI_SLOT1
PCI_SLOT2
TPM
PCI_CLK4 PCI_CLKIN
LPC_CLK1
27 MHZ
32.768 KHZ
A A
25 MHZ
5
TV_XTALIN
TV_XTALOUT
XTALIN_RTC
XTALOUT_RTC
XTAL_IN
XTAL_OUT
4
HDA_BITCLK
MII_TXCLK
MII_RXCLK
BUF_25MHZ BUF_25MHZ
LPC_PCLK
HDA_BITCLK
MII_RXCLK
3
MII_TXCLK
LPC HEADER
HDA CODEC
HDA_BITCLK
LAN PHY
MII_TXCLK
MII_RXCLK
XTALI
XTALO
25 MHZ
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Clock Distribution
Clock Distribution
Clock Distribution
MS-7349
MS-7349
MS-7349
1
of
of
of
541Monday, May 28, 2007
541Monday, May 28, 2007
541Monday, May 28, 2007
1.0
1.0
1.0
Page 6
CTLIP1 CTLIN1
CTLIN0
CADIP15 CADIN15 CADIP14
CADIP13 CADIN13 CADIP12 CADIN12 CADIP11 CADIN11 CADIP10 CADIN10 CADIP9 CADIN9 CADIP8 CADIN8
CADIP7 CADIN7 CADIP6 CADIN6 CADIP5 CADIN5 CADIP4 CADIN4 CADIP3 CADIN3 CADIP2 CADIN2 CADIP1 CADIN1 CADIP0 CADIN0
5
R108 & R109 51 Ohm 5% MCP68_CRB_REV40.DSN AM2 51 Ohm AM2R2 24.9 Ohm
CTLIP1 CTLIN1
N6
L0_CLKIN_H(1)
P6
L0_CLKIN_L(1)
N3
L0_CLKIN_H(0)
N2
L0_CLKIN_L(0)
V4
L0_CTLIN_H(1)
V5
L0_CTLIN_L(1)
U1
L0_CTLIN_H(0)
V1
L0_CTLIN_L(0)
U6
L0_CADIN_H(15)
V6
L0_CADIN_L(15)
T4
L0_CADIN_H(14)
T5
L0_CADIN_L(14)
R6
L0_CADIN_H(13)
T6
L0_CADIN_L(13)
P4
L0_CADIN_H(12)
P5
L0_CADIN_L(12)
M4
L0_CADIN_H(11)
M5
L0_CADIN_L(11)
L6
L0_CADIN_H(10)
M6
L0_CADIN_L(10)
K4
L0_CADIN_H(9)
K5
L0_CADIN_L(9)
J6
L0_CADIN_H(8)
K6
L0_CADIN_L(8)
U3
L0_CADIN_H(7)
U2
L0_CADIN_L(7)
R1
L0_CADIN_H(6)
T1
L0_CADIN_L(6)
R3
L0_CADIN_H(5)
R2
L0_CADIN_L(5)
N1
L0_CADIN_H(4)
P1
L0_CADIN_L(4)
L1
L0_CADIN_H(3)
M1
L0_CADIN_L(3)
L3
L0_CADIN_H(2)
L2
L0_CADIN_L(2)
J1
L0_CADIN_H(1)
K1
L0_CADIN_L(1)
J3
L0_CADIN_H(0)
J2
L0_CADIN_L(0)
ZIF-SOCKET940
ZIF-SOCKET940
CPU1A
CPU1A
HYPERTRANSPORT
HYPERTRANSPORT
L0_CLKOUT_H(1)
L0_CLKOUT_L(1)
L0_CLKOUT_H(0)
L0_CLKOUT_L(0)
L0_CTLOUT_H(1)
L0_CTLOUT_L(1)
L0_CTLOUT_H(0)
L0_CTLOUT_L(0)
L0_CADOUT_H(15) L0_CADOUT_L(15) L0_CADOUT_H(14) L0_CADOUT_L(14) L0_CADOUT_H(13) L0_CADOUT_L(13) L0_CADOUT_H(12) L0_CADOUT_L(12) L0_CADOUT_H(11) L0_CADOUT_L(11) L0_CADOUT_H(10) L0_CADOUT_L(10)
L0_CADOUT_H(9) L0_CADOUT_L(9) L0_CADOUT_H(8) L0_CADOUT_L(8)
L0_CADOUT_H(7) L0_CADOUT_L(7) L0_CADOUT_H(6) L0_CADOUT_L(6) L0_CADOUT_H(5) L0_CADOUT_L(5) L0_CADOUT_H(4) L0_CADOUT_L(4) L0_CADOUT_H(3) L0_CADOUT_L(3) L0_CADOUT_H(2) L0_CADOUT_L(2) L0_CADOUT_H(1) L0_CADOUT_L(1) L0_CADOUT_H(0) L0_CADOUT_L(0)
CADOP[0..15]13
R108 & R109 MCP 68 stuff 51 Ohm MCP 68 & AM2+ NC MCP78 NC or AM2+ NC DA-02786-001_V03.PDF
VCC1_2HTC
R108 49.9R/1%/4R108 49.9R/1%/4 R109 49.9R/1%/4R109 49.9R/1%/4
D D
C C
CLKIP113
CLKIN113
CLKIP013
CLKIN013
CTLIP113 CTLOP1 13
CTLIN113
CTLIP013
CTLIN013
N12-9400050-F02
REWORK INSTRUCTION
FOR AMD FAMILY 10H PROCESSORS
B B
AM2 AM2R2
-LDT_RST
X_0.01uf/50V/X7R/6
X_0.01uf/50V/X7R/6
R642
R642
1K/6
1K/6
C764
C764
EMPTY STUFF
B
NC
VCC_DDR
CE
R640
R640
4.7K/4
4.7K/4
R639 0R/4R639 0R/4
Q43
Q43
N-2N3904_SOT23
N-2N3904_SOT23
R643
R643
X_0R/4
X_0R/4
B
VCC3
R638
R638
4.7K/4
4.7K/4
CE
J1_LDT_RST
Q41
Q41
N-2N3904_SOT23
N-2N3904_SOT23
R637
R637
1K/6
1K/6
G
Q42
Q42
2N7002_SOT23
2N7002_SOT23
MINIMIZE LENGTH OF TRACE
CADON[0..15]13
VCC5
CADIP[0..15]13
CADIN[0..15]13
4
AD5 AD4 AD1 AC1
Y6 W6 W2 W3
CADOP15
Y5
CADON15
Y4
CADOP14
AB6
CADON14CADIN14
AA6
CADOP13
AB5
CADON13
AB4
CADOP12
AD6
CADON12
AC6
CADOP11
AF6
CADON11
AE6
CADOP10
AF5
CADON10
AF4
CADOP9
AH6
CADON9
AG6
CADOP8
AH5
CADON8
AH4
CADOP7
Y1
CADON7
W1
CADOP6
AA2
CADON6
AA3
CADOP5
AB1
CADON5
AA1
CADOP4
AC2
CADON4
AC3
CADOP3
AE2
CADON3
AE3
CADOP2
AF1
CADON2
AE1
CADOP1
AG2
CADON1
AG3
CADOP0
AH1
CADON0
AG1
R58
R58
15R/1%/6
15R/1%/6
R57
R57
15R/1%/6
15R/1%/6
VCC1_2HTC
Q40 , Q42 CRB => BSS138
DS
Q40
Q40
G
2N7002_SOT23
2N7002_SOT23
DS
R641
R641
X_24.9R/4
X_24.9R/4
CTLIN0
CADIP[0..15] CADIN[0..15] CADOP[0..15] CADON[0..15]
CLKOP1 13 CLKON1 13 CLKOP0 13 CLKON0 13
CTLON1 13
CTLOP0 13 CTLON0 13
VCC_DDR
Layout : Place R63 within 0.5 inch of CPU
If SI is not used,the SID pin can be left unconnector and SIC should have a 300 ohm pulldown to VSS
15 mils
CPU_M_VREF
C63
C63
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
CPUCLKO_H13
CPUCLKO_L13
C60
C60 102pf/50V/X7R/4
102pf/50V/X7R/4
R99
R99 300R/4
300R/4
VCC_DDR
R106
R106
39.2R/1%/6
39.2R/1%/6
VCC_DDR
24.9 Ohm if need control ? ? ?
392pf/50V/X7R/6
392pf/50V/X7R/6
392pf/50V/X7R/6
392pf/50V/X7R/6
VCC_DDR
R105
R105
39.2R/1%/6
39.2R/1%/6
MEMZN MEMZP
RN7
RN7 300R_8P4R/6
300R_8P4R/6
1 3 5 7
C64
C64
R63
R63 169R/1%/6
169R/1%/6 C67
C67
R101
R101 300R/4
300R/4
VCC_DDR
2 4 6 8
VDDA_25
THERMAL_SIC THERMAL_SID
5/10/10
R98
R98 X_300R/4
X_300R/4
10/5/10
3
L1
L1
80Ohm/3A/L8
80Ohm/3A/L8
2 1
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8
5/5/20
COREFB_H33
-LDT_RST CPU_GD
-LDTSTOP
2
C57
C57 332pf/50V/X7R/4
332pf/50V/X7R/4
CPU_PRESENT_L
CPU_TDI CPU_TRST_L CPU_TCK CPU_TMS
CPU_DBREQ_L COREFB_H
COREFB_L
CPU_VTT_SENSE
CPU_M_VREF
VDDA25
CPU_GD
-LDTSTOP
-LDT_RST
AL10
AJ10
AH10
AH11
AJ11
C10 D10
A8 B8
C9 D8 C7
AL3 AL6
AK6 AL4 AK4
AL9
A5 G2
G1
E12
F12
A10 B10
F10
E9
AJ7
F6 D6
E7 F8 C5
AH9
E5
AJ5
AH7
AJ6
CPU1D
CPU1D
MISC
MISC
VDDA1 VDDA2
CLKIN_H
PLATFORM_TYPE
CLKIN_L PWROK
LDTSTOP_L RESET_L
CPU_PRESENT_L SIC
SID
THERMTRIP_L
ALERT_L SA0
TDI TRST_L TCK TMS
DBREQ_L VDD_FB_H
VDD_FB_L
VTT_SENSE M_VREF
M_ZN M_ZP
TEST25_H TEST25_L TEST19 TEST18 TEST13 TEST9
TEST17 TEST16 TEST15 TEST14 TEST12
TEST7 TEST6
TEST3 TEST2
KEY/VSS1 KEY/VSS2
CORE_TYPE
VID(5)
VID(4) SVC/VID(3) SVD/VID(2)
PVIEN/VID(1)
VID(0)
THERMDC THERMDA
PROCHOT_L
TDO
DBRDY
VDDIO_FB_H
VDDIO_FB_L VDDNB_FB_H VDDNB_FB_L
PSI_L
HTREF1 HTREF0
TEST29_H TEST29_L
TEST24 TEST23 TEST22 TEST21 TEST20
TEST28_H TEST28_L
TEST27 TEST26 TEST10
TEST8
H22 AE9
F2 G5
D2 D1 C1 E3 E2 E1
AG9 AG8 AK7 AL7
AK10
CPU_DBRDY
B6
CPU_VDDIOFB_H
AK11
CPU_VDDIOFB_L
AL11 G4 G3
CPU_PSI_L
F1 V8
V7
C11 D11
AK8 AH8 AJ9 AL8 AJ8
J10 H9 AK9 AK5 G7 D4
C59
C59
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
C53
C53
CPUCLKIN_H CPUCLKIN_L
CPU_GD13
-LDTSTOP13
VCC_DDR
COREFB_L33
R59 510R/6R59 510R/6 R62 510R/6R62 510R/6
-LDT_RST13
R107 1K/4R107 1K/4
TP9TP9
CPU_TEST25_H
CPU_TEST25_L
R50 300R/4R50 300R/4 R51 300R/4R51 300R/4
TP5TP5 TP7TP7 TP8TP8 TP4TP4 TP12TP12 TP13TP13
N12-9400050-F02
CPU_DBREQ_L CPU_DBRDY CPU_TCK CPU_TMS CPU_TDI CPU_TRST_L CPU_TDO
C487
C487
X_0.22uf/16V/X7R/6_B
X_0.22uf/16V/X7R/6_B
VCC_DDR
1 3 5 7
9 11 13 15 17 19 21 23
KEY
KEY
X_hdr_k8_hdt_B
X_hdr_k8_hdt_B
J1
J1
2 4 6 8 10 12 14 16 18 20 22 24 26
VID4 VID3 VID2 VID1 VID0
CPU_THRIP# PROCHOT#
CPU_TDO
HTREF1 HTREF0
FBCLKOUT FBCLKOUT#
8/5/20
R110 300R/4R110 300R/4
1
CPU Option
Serial VID : R635 , R636 , R685 Stuff ; R75 NC
Parallel VID : R75 Stuff ; R635 , R636 , R685 NC
VCC_DDR
TP1TP1
CPU_THRIP# 13
5/10/10
TP6TP6
R56
R56
80.6R/1%/6
80.6R/1%/6
TP20TP20 TP16TP16 TP18TP18
VCC_DDR
R565 X_0R/4R565 X_0R/4
5/10/10
VCC_DDR
R75
R75
300R/4
300R/4
R635
R635
R636
X_1K/6
X_1K/6
THERMDC_CPU 29 THERMDA_CPU 29
VCC_DDR
16 mil
Layout :
1. Place R56 within 0.5 inch
R100
R100 300R/4
300R/4
As the SIC and SID are not recommended to use for the rev. F processors.
SIO_THERM_SIC29
THERM_SID18
SIO_THERM_SID29
R636
X_1K/6
X_1K/6
R685
R685
X_300R/4
X_300R/4
C157
C157
102pf/50V/X7R/4
102pf/50V/X7R/4
for NV Stuff R557 , R559 for SIO Stuff R558 , R560
THERM_SIC18
J1_LDT_RSTJ1_LDT_RSTR
R557 0R/4R557 0R/4 R558 X_0R/4R558 X_0R/4
R559 0R/4R559 0R/4 R560 X_0R/4R560 X_0R/4
VID[0..4] 33
VCC_DDR
R102
R102 X_300R/4
X_300R/4
Layout : Place with in 1 inch
R103 44.2R/1%/6R103 44.2R/1%/6 R104 44.2R/1%/6R104 44.2R/1%/6 C158
C158 102pf/50V/X7R/4
102pf/50V/X7R/4
THERMAL_SIC
THERMAL_SID
PROCHOT# 13
5/10/10
VCC1_2HTC
Solder side
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
PU-HT & Straps
PU-HT & Straps
PU-HT & Straps
MS-7349
MS-7349
MS-7349
1
of
of
of
641Monday, May 28, 2007
641Monday, May 28, 2007
641Monday, May 28, 2007
Page 7
5
MEMORY INTERFACE A
D D
C C
B B
MEM_MA0_CLK_H210,12 MEM_MA0_CLK_L210,12 MEM_MA0_CLK_H110,12 MEM_MA0_CLK_L110,12 MEM_MA0_CLK_H010,12 MEM_MA0_CLK_L010,12
MEM_MA0_CS_L110,12 MEM_MA0_CS_L010,12
MEM_MA0_ODT010,12
MEM_MA1_CLK_H211,12 MEM_MA1_CLK_L211,12 MEM_MA1_CLK_H111,12 MEM_MA1_CLK_L111,12 MEM_MA1_CLK_H011,12 MEM_MA1_CLK_L011,12
MEM_MA1_CS_L111,12 MEM_MA1_CS_L011,12
MEM_MA1_ODT011,12
MEM_MA_CAS_L10,11,12 MEM_MA_WE_L10,11,12 MEM_MA_RAS_L10,11,12
MEM_MA_BANK210,11,12 MEM_MA_BANK110,11,12 MEM_MA_BANK010,11,12
MEM_MA_CKE111,12 MEM_MB_CKE111,12 MEM_MA_CKE010,12
MEM_MA_ADD[15..0]10,11,12
MEM_MA_DQS_H710,11 MEM_MA_DQS_L710,11 MEM_MA_DQS_H610,11 MEM_MA_DQS_L610,11 MEM_MA_DQS_H510,11 MEM_MA_DQS_L510,11 MEM_MA_DQS_H410,11 MEM_MA_DQS_L410,11 MEM_MA_DQS_H310,11 MEM_MA_DQS_L310,11 MEM_MA_DQS_H210,11 MEM_MA_DQS_L210,11 MEM_MA_DQS_H110,11 MEM_MA_DQS_L110,11 MEM_MA_DQS_H010,11 MEM_MA_DQS_L010,11
MEM_MA_DM710,11 MEM_MA_DM610,11 MEM_MA_DM510,11 MEM_MA_DM410,11 MEM_MA_DM310,11 MEM_MA_DM210,11 MEM_MA_DM110,11 MEM_MA_DM010,11
MEM_MA0_CLK_H2 MEM_MA0_CLK_L2 MEM_MA0_CLK_H1 MEM_MA0_CLK_L1 MEM_MA0_CLK_H0 MEM_MA0_CLK_L0
MEM_MA0_CS_L1 MEM_MA0_CS_L0
MEM_MA0_ODT0 MEM_MA1_CLK_H2
MEM_MA1_CLK_L2 MEM_MA1_CLK_H1 MEM_MA1_CLK_L1 MEM_MA1_CLK_H0 MEM_MA1_CLK_L0
MEM_MA1_CS_L1 MEM_MA1_CS_L0
MEM_MA1_ODT0
MEM_MA_CAS_L MEM_MA_WE_L MEM_MA_RAS_L
MEM_MA_BANK2 MEM_MA_BANK1 MEM_MA_BANK0
MEM_MA_CKE1 MEM_MB_CKE1 MEM_MA_CKE0
MEM_MA_ADD15 MEM_MA_ADD14 MEM_MA_ADD13 MEM_MA_ADD12 MEM_MA_ADD11 MEM_MA_ADD10 MEM_MA_ADD9 MEM_MA_ADD8 MEM_MA_ADD7 MEM_MA_ADD6 MEM_MA_ADD5 MEM_MA_ADD4 MEM_MA_ADD3 MEM_MA_ADD2 MEM_MA_ADD1 MEM_MA_ADD0
MEM_MA_DQS_H7 MEM_MA_DQS_L7 MEM_MA_DQS_H6 MEM_MA_DQS_L6 MEM_MA_DQS_H5 MEM_MA_DQS_L5 MEM_MA_DQS_H4 MEM_MA_DQS_L4 MEM_MA_DQS_H3 MEM_MA_DQS_L3 MEM_MA_DQS_H2 MEM_MA_DQS_L2 MEM_MA_DQS_H1 MEM_MA_DQS_L1 MEM_MA_DQS_H0 MEM_MA_DQS_L0
MEM_MA_DM7 MEM_MA_DM6 MEM_MA_DM5 MEM_MA_DM4 MEM_MA_DM3 MEM_MA_DM2 MEM_MA_DM1 MEM_MA_DM0
AG21 AG20
AC25 AA24
AC28 AE20
AE19
AD27 AA25
AC27
AB25 AB27 AA26
AA27
AC26
AD15 AE15 AG18 AG19 AG24 AG25 AG27 AG28
AF15 AF19
AJ25
AH29
G19 H19 U27 U26
G20 G21 V27 W27
N25 Y27
M25 M27
N24 N26
P25 Y25 N27 R24 P27 R25 R26 R27
U25 W24
D29 C29 C25 D25 E19
G15
B29 E24 E18 H15
L27
T25 T27
F19 F15
MEMORY INTERFACE A
MA0_CLK_H(2) MA0_CLK_L(2) MA0_CLK_H(1) MA0_CLK_L(1) MA0_CLK_H(0) MA0_CLK_L(0)
MA0_CS_L(1) MA0_CS_L(0)
MA0_ODT(0) MA1_CLK_H(2)
MA1_CLK_L(2) MA1_CLK_H(1) MA1_CLK_L(1) MA1_CLK_H(0) MA1_CLK_L(0)
MA1_CS_L(1) MA1_CS_L(0)
MA1_ODT(0)
MA_CAS_L MA_WE_L MA_RAS_L
MA_BANK(2) MA_BANK(1) MA_BANK(0)
MA_CKE(1) MA_CKE(0)
MA_ADD(15) MA_ADD(14) MA_ADD(13) MA_ADD(12) MA_ADD(11) MA_ADD(10) MA_ADD(9) MA_ADD(8) MA_ADD(7) MA_ADD(6) MA_ADD(5) MA_ADD(4) MA_ADD(3) MA_ADD(2) MA_ADD(1) MA_ADD(0)
MA_DQS_H(7) MA_DQS_L(7) MA_DQS_H(6) MA_DQS_L(6) MA_DQS_H(5) MA_DQS_L(5) MA_DQS_H(4) MA_DQS_L(4) MA_DQS_H(3) MA_DQS_L(3) MA_DQS_H(2) MA_DQS_L(2) MA_DQS_H(1) MA_DQS_L(1) MA_DQS_H(0) MA_DQS_L(0)
MA_DM(7) MA_DM(6) MA_DM(5) MA_DM(4) MA_DM(3) MA_DM(2) MA_DM(1) MA_DM(0)
CPU1B
CPU1B
4
MA_DATA(63) MA_DATA(62) MA_DATA(61) MA_DATA(60) MA_DATA(59) MA_DATA(58) MA_DATA(57) MA_DATA(56) MA_DATA(55) MA_DATA(54) MA_DATA(53) MA_DATA(52) MA_DATA(51) MA_DATA(50) MA_DATA(49) MA_DATA(48) MA_DATA(47) MA_DATA(46) MA_DATA(45) MA_DATA(44) MA_DATA(43) MA_DATA(42) MA_DATA(41) MA_DATA(40) MA_DATA(39) MA_DATA(38) MA_DATA(37) MA_DATA(36) MA_DATA(35) MA_DATA(34) MA_DATA(33) MA_DATA(32) MA_DATA(31) MA_DATA(30) MA_DATA(29) MA_DATA(28) MA_DATA(27) MA_DATA(26) MA_DATA(25) MA_DATA(24) MA_DATA(23) MA_DATA(22) MA_DATA(21) MA_DATA(20) MA_DATA(19) MA_DATA(18) MA_DATA(17) MA_DATA(16) MA_DATA(15) MA_DATA(14) MA_DATA(13) MA_DATA(12) MA_DATA(11) MA_DATA(10)
MA_DATA(9) MA_DATA(8) MA_DATA(7) MA_DATA(6) MA_DATA(5) MA_DATA(4) MA_DATA(3) MA_DATA(2) MA_DATA(1) MA_DATA(0)
MA_DQS_H(8) MA_DQS_L(8)
MA_DM(8)
MA_CHECK(7) MA_CHECK(6) MA_CHECK(5) MA_CHECK(4) MA_CHECK(3) MA_CHECK(2) MA_CHECK(1) MA_CHECK(0)
AE14 AG14 AG16 AD17 AD13 AE13 AG15 AE16 AG17 AE18 AD21 AG22 AE17 AF17 AF21 AE21 AF23 AE23 AJ26 AG26 AE22 AG23 AH25 AF25 AJ28 AJ29 AF29 AE26 AJ27 AH27 AG29 AF27 E29 E28 D27 C27 G26 F27 C28 E27 F25 E25 E23 D23 E26 C26 G23 F23 E22 E21 F17 G17 G22 F21 G18 E17 G16 E15 G13 H13 H17 E16 E14 G14
J28 J27
J25 K25
J26 G28 G27 L24 K27 H29 H27
MEM_MA_DATA63 MEM_MA_DATA62 MEM_MA_DATA61 MEM_MA_DATA60 MEM_MA_DATA59 MEM_MA_DATA58 MEM_MA_DATA57 MEM_MA_DATA56 MEM_MA_DATA55 MEM_MA_DATA54 MEM_MA_DATA53 MEM_MA_DATA52 MEM_MA_DATA51 MEM_MA_DATA50 MEM_MA_DATA49 MEM_MA_DATA48 MEM_MA_DATA47 MEM_MA_DATA46 MEM_MA_DATA45 MEM_MA_DATA44 MEM_MA_DATA43 MEM_MA_DATA42 MEM_MA_DATA41 MEM_MA_DATA40 MEM_MA_DATA39 MEM_MA_DATA38 MEM_MA_DATA37 MEM_MA_DATA36 MEM_MA_DATA35 MEM_MA_DATA34 MEM_MA_DATA33 MEM_MA_DATA32 MEM_MA_DATA31 MEM_MA_DATA30 MEM_MA_DATA29 MEM_MA_DATA28 MEM_MA_DATA27 MEM_MA_DATA26 MEM_MA_DATA25 MEM_MA_DATA24 MEM_MA_DATA23 MEM_MA_DATA22 MEM_MA_DATA21 MEM_MA_DATA20 MEM_MA_DATA19 MEM_MA_DATA18 MEM_MA_DATA17 MEM_MA_DATA16 MEM_MA_DATA15 MEM_MA_DATA14 MEM_MA_DATA13 MEM_MA_DATA12 MEM_MA_DATA11 MEM_MA_DATA10 MEM_MA_DATA9 MEM_MA_DATA8 MEM_MA_DATA7 MEM_MA_DATA6 MEM_MA_DATA5 MEM_MA_DATA4 MEM_MA_DATA3 MEM_MA_DATA2 MEM_MA_DATA1 MEM_MA_DATA0
MEM_MA_DQS_H8 MEM_MA_DQS_L8
MEM_MA_DM8 MEM_MA_CHECK7
MEM_MA_CHECK6 MEM_MA_CHECK5 MEM_MA_CHECK4 MEM_MA_CHECK3 MEM_MA_CHECK2 MEM_MA_CHECK1 MEM_MA_CHECK0
MEM_MA_DATA[63..0] 10,11
MEM_MA_DQS_H8 10,11 MEM_MA_DQS_L8 10,11
MEM_MA_DM8 10,11 MEM_MA_CHECK7 10,11
MEM_MA_CHECK6 10,11 MEM_MA_CHECK5 10,11 MEM_MA_CHECK4 10,11 MEM_MA_CHECK3 10,11 MEM_MA_CHECK2 10,11 MEM_MA_CHECK1 10,11 MEM_MA_CHECK0 10,11
3
MEM_MB0_CLK_H210,12 MEM_MB0_CLK_L210,12 MEM_MB0_CLK_H110,12 MEM_MB0_CLK_L110,12 MEM_MB0_CLK_H010,12 MEM_MB0_CLK_L010,12
MEM_MB0_CS_L110,12 MEM_MB0_CS_L010,12
MEM_MB0_ODT010,12
MEM_MB1_CLK_H211,12 MEM_MB1_CLK_L211,12 MEM_MB1_CLK_H111,12 MEM_MB1_CLK_L111,12 MEM_MB1_CLK_H011,12 MEM_MB1_CLK_L011,12
MEM_MB1_CS_L111,12 MEM_MB1_CS_L011,12
MEM_MB1_ODT011,12
MEM_MB_CAS_L10,11,12 MEM_MB_WE_L10,11,12 MEM_MB_RAS_L10,11,12
MEM_MB_BANK210,11,12 MEM_MB_BANK110,11,12 MEM_MB_BANK010,11,12
MEM_MB_CKE010,12
MEM_MB_ADD[15..0]10,11,12
MEM_MB_DQS_H710,11 MEM_MB_DQS_L710,11 MEM_MB_DQS_H610,11 MEM_MB_DQS_L610,11 MEM_MB_DQS_H510,11 MEM_MB_DQS_L510,11 MEM_MB_DQS_H410,11 MEM_MB_DQS_L410,11 MEM_MB_DQS_H310,11 MEM_MB_DQS_L310,11 MEM_MB_DQS_H210,11 MEM_MB_DQS_L210,11 MEM_MB_DQS_H110,11 MEM_MB_DQS_L110,11 MEM_MB_DQS_H010,11 MEM_MB_DQS_L010,11
MEM_MB_DM710,11 MEM_MB_DM610,11 MEM_MB_DM510,11 MEM_MB_DM410,11 MEM_MB_DM310,11 MEM_MB_DM210,11 MEM_MB_DM110,11 MEM_MB_DM010,11
MEM_MB0_CLK_H2 MEM_MB0_CLK_L2 MEM_MB0_CLK_H1 MEM_MB0_CLK_L1 MEM_MB0_CLK_H0 MEM_MB0_CLK_L0
MEM_MB0_CS_L1 MEM_MB0_CS_L0
MEM_MB0_ODT0 MEM_MB1_CLK_H2
MEM_MB1_CLK_L2 MEM_MB1_CLK_H1 MEM_MB1_CLK_L1 MEM_MB1_CLK_H0 MEM_MB1_CLK_L0
MEM_MB1_CS_L1 MEM_MB1_CS_L0
MEM_MB1_ODT0
MEM_MB_CAS_L MEM_MB_WE_L MEM_MB_RAS_L
MEM_MB_BANK2 MEM_MB_BANK1 MEM_MB_BANK0
MEM_MB_CKE0
MEM_MB_ADD15 MEM_MB_ADD14 MEM_MB_ADD13 MEM_MB_ADD12 MEM_MB_ADD11 MEM_MB_ADD10 MEM_MB_ADD9 MEM_MB_ADD8 MEM_MB_ADD7 MEM_MB_ADD6 MEM_MB_ADD5 MEM_MB_ADD4 MEM_MB_ADD3 MEM_MB_ADD2 MEM_MB_ADD1 MEM_MB_ADD0
MEM_MB_DQS_H7 MEM_MB_DQS_L7 MEM_MB_DQS_H6 MEM_MB_DQS_L6 MEM_MB_DQS_H5 MEM_MB_DQS_L5 MEM_MB_DQS_H4 MEM_MB_DQS_L4 MEM_MB_DQS_H3 MEM_MB_DQS_L3 MEM_MB_DQS_H2 MEM_MB_DQS_L2 MEM_MB_DQS_H1 MEM_MB_DQS_L1 MEM_MB_DQS_H0 MEM_MB_DQS_L0
MEM_MB_DM7 MEM_MB_DM6 MEM_MB_DM5 MEM_MB_DM4 MEM_MB_DM3 MEM_MB_DM2 MEM_MB_DM1 MEM_MB_DM0
AK19
AE30 AC31
AD29 AL19
AL18
AE29 AB31
AD31
AC29 AC30 AB29
AA31 AA28
AE31
AA29
AA30 AK13 AK17 AK23
AL23 AL28 AL29
AH17 AK29
AJ19
W29 W28
M31 M29
AJ13 AJ17
AJ14 AJ23
A18 A19 U31 U30
C19 D19
N31
N28 N29
N30 P29
P31 R29 R28 R31 R30 T31 T29 U29 U28
D31 C31 C24 C23 D17 C17 C14 C13
C30 A23 B17 B13
2
MEMORY INTERFACE B
MEMORY INTERFACE B
MB0_CLK_H(2) MB0_CLK_L(2) MB0_CLK_H(1) MB0_CLK_L(1) MB0_CLK_H(0) MB0_CLK_L(0)
MB0_CS_L(1) MB0_CS_L(0)
MB0_ODT(0) MB1_CLK_H(2)
MB1_CLK_L(2) MB1_CLK_H(1) MB1_CLK_L(1) MB1_CLK_H(0) MB1_CLK_L(0)
MB1_CS_L(1) MB1_CS_L(0)
MB1_ODT(0)
MB_CAS_L MB_WE_L MB_RAS_L
MB_BANK(2) MB_BANK(1) MB_BANK(0)
MB_CKE(1) MB_CKE(0)
MB_ADD(15) MB_ADD(14) MB_ADD(13) MB_ADD(12) MB_ADD(11) MB_ADD(10) MB_ADD(9) MB_ADD(8) MB_ADD(7) MB_ADD(6) MB_ADD(5) MB_ADD(4) MB_ADD(3) MB_ADD(2) MB_ADD(1) MB_ADD(0)
MB_DQS_H(7) MB_DQS_L(7) MB_DQS_H(6) MB_DQS_L(6) MB_DQS_H(5) MB_DQS_L(5) MB_DQS_H(4) MB_DQS_L(4) MB_DQS_H(3) MB_DQS_L(3) MB_DQS_H(2) MB_DQS_L(2) MB_DQS_H(1) MB_DQS_L(1) MB_DQS_H(0) MB_DQS_L(0)
MB_DM(7) MB_DM(6) MB_DM(5) MB_DM(4) MB_DM(3) MB_DM(2) MB_DM(1) MB_DM(0)
CPU1C
CPU1C
MB_DATA(63) MB_DATA(62) MB_DATA(61) MB_DATA(60) MB_DATA(59) MB_DATA(58) MB_DATA(57) MB_DATA(56) MB_DATA(55) MB_DATA(54) MB_DATA(53) MB_DATA(52) MB_DATA(51) MB_DATA(50) MB_DATA(49) MB_DATA(48) MB_DATA(47) MB_DATA(46) MB_DATA(45) MB_DATA(44) MB_DATA(43) MB_DATA(42) MB_DATA(41) MB_DATA(40) MB_DATA(39) MB_DATA(38) MB_DATA(37) MB_DATA(36) MB_DATA(35) MB_DATA(34) MB_DATA(33) MB_DATA(32) MB_DATA(31) MB_DATA(30) MB_DATA(29) MB_DATA(28) MB_DATA(27) MB_DATA(26) MB_DATA(25) MB_DATA(24) MB_DATA(23) MB_DATA(22) MB_DATA(21) MB_DATA(20) MB_DATA(19) MB_DATA(18) MB_DATA(17) MB_DATA(16) MB_DATA(15) MB_DATA(14) MB_DATA(13) MB_DATA(12) MB_DATA(11) MB_DATA(10)
MB_DATA(9) MB_DATA(8) MB_DATA(7) MB_DATA(6) MB_DATA(5) MB_DATA(4) MB_DATA(3) MB_DATA(2) MB_DATA(1) MB_DATA(0)
MB_DQS_H(8)
MB_DQS_L(8)
MB_DM(8)
MB_CHECK(7) MB_CHECK(6) MB_CHECK(5) MB_CHECK(4) MB_CHECK(3) MB_CHECK(2) MB_CHECK(1) MB_CHECK(0)
AH13 AL13 AL15 AJ15 AF13 AG13 AL14 AK15 AL16 AL17 AK21 AL21 AH15 AJ16 AH19 AL20 AJ22 AL22 AL24 AK25 AJ21 AH21 AH23 AJ24 AL27 AK27 AH31 AG30 AL25 AL26 AJ30 AJ31 E31 E30 B27 A27 F29 F31 A29 A28 A25 A24 C22 D21 A26 B25 B23 A22 B21 A20 C16 D15 C21 A21 A17 A16 B15 A14 E13 F13 C15 A15 A13 D13
J31 J30
J29 K29
K31 G30 G29 L29 L28 H31 G31
MEM_MB_DATA63 MEM_MB_DATA62 MEM_MB_DATA61 MEM_MB_DATA60 MEM_MB_DATA59 MEM_MB_DATA58 MEM_MB_DATA57 MEM_MB_DATA56 MEM_MB_DATA55 MEM_MB_DATA54 MEM_MB_DATA53 MEM_MB_DATA52 MEM_MB_DATA51 MEM_MB_DATA50 MEM_MB_DATA49 MEM_MB_DATA48 MEM_MB_DATA47 MEM_MB_DATA46 MEM_MB_DATA45 MEM_MB_DATA44 MEM_MB_DATA43 MEM_MB_DATA42 MEM_MB_DATA41 MEM_MB_DATA40 MEM_MB_DATA39 MEM_MB_DATA38 MEM_MB_DATA37 MEM_MB_DATA36 MEM_MB_DATA35 MEM_MB_DATA34 MEM_MB_DATA33 MEM_MB_DATA32 MEM_MB_DATA31 MEM_MB_DATA30 MEM_MB_DATA29 MEM_MB_DATA28 MEM_MB_DATA27 MEM_MB_DATA26 MEM_MB_DATA25 MEM_MB_DATA24 MEM_MB_DATA23 MEM_MB_DATA22 MEM_MB_DATA21 MEM_MB_DATA20 MEM_MB_DATA19 MEM_MB_DATA18 MEM_MB_DATA17 MEM_MB_DATA16 MEM_MB_DATA15 MEM_MB_DATA14 MEM_MB_DATA13 MEM_MB_DATA12 MEM_MB_DATA11 MEM_MB_DATA10 MEM_MB_DATA9 MEM_MB_DATA8 MEM_MB_DATA7 MEM_MB_DATA6 MEM_MB_DATA5 MEM_MB_DATA4 MEM_MB_DATA3 MEM_MB_DATA2 MEM_MB_DATA1 MEM_MB_DATA0
MEM_MB_DQS_H8 MEM_MB_DQS_L8
MEM_MB_DM8 MEM_MB_CHECK7
MEM_MB_CHECK6 MEM_MB_CHECK5 MEM_MB_CHECK4 MEM_MB_CHECK3 MEM_MB_CHECK2 MEM_MB_CHECK1 MEM_MB_CHECK0
1
MEM_MB_DATA[63..0] 10,11
MEM_MB_DQS_H8 10,11 MEM_MB_DQS_L8 10,11
MEM_MB_DM8 10,11 MEM_MB_CHECK7 10,11
MEM_MB_CHECK6 10,11 MEM_MB_CHECK5 10,11 MEM_MB_CHECK4 10,11 MEM_MB_CHECK3 10,11 MEM_MB_CHECK2 10,11 MEM_MB_CHECK1 10,11 MEM_MB_CHECK0 10,11
N12-9400050-F02 N12-9400050-F02
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
CPU-Memory
CPU-Memory
CPU-Memory
MS-7349
MS-7349
MS-7349
1
741Monday, May 28, 2007
741Monday, May 28, 2007
741Monday, May 28, 2007
of
of
of
1.0
1.0
1.0
Page 8
5
SLOTOCC#_CPU 29
VCORE
A4 A6 B5 B7
E10
G10 G12
AA8 AA10 AA12 AA14 AA16 AA18
AB7
AB9 AB11
AC4
AC5
AC8
AC10
AD2
AD3
AD7
AD9 AE10
AF7
AF9
AG4
AG5
AG7
AH2
AH3
H11
H23
K11
K13
K15
K17
K19
K21
K23
Y17
Y19
F11
J12 J14 J16 J18 J20 J22 J24
L10 L12
C6 C8 D7 D9 E8
F9
B3 C2 C4 D3 D5 E4 E6 F5 F7 G6 G8 H7
J8
K7 K9
L4
L5
L8
D D
VCORE
C C
B B
VDDNB1 VDDNB2 VDDNB3 VDDNB4 VDDNB5 VDDNB6 VDDNB7 VDDNB8 VDDNB9 VDDNB10 VDDNB11 VDDNB12 VDDNB13 VDDNB14
VDD3 VDD4 VDD5 VDD6 VDD7 VDD8 VDD9 VDD10 VDD11 VDD12 VDD13 VDD14 VDD15 VDD16 VDD17 VDD18 VDD19 VDD20 VDD21 VDD22 VDD23 VDD24 VDD25 VDD26 VDD27 VDD28 VDD31 VDD32 VDD35 VDD36 VDD39 VDD40 VDD43 VDD44 VDD47 VDD48 VDD51 VDD52 VDD53 VDD54 VDD55 VDD56 VDD57 VDD58 VDD59 VDD60 VDD61 VDD62 VDD63 VDD64 VDD65 VDD66 VDD67 VDD68 VDD69 VDD70 VDD71 VDD72 VDD73 VDD74 VDD75 VDD150 VDD151
VDD1
VDD1
CPU1F
CPU1F
VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8
VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44
VSS46 VSS47 VSS48 VSS49 VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65 VSS66 VSS67 VSS68 VSS69 VSS70 VSS71 VSS72 VSS73 VSS74
VSS240 VSS241
A3 A7 A9 A11 AA4 AA5 AA7 AA9 AA11 AA13 AA15 AA17 AA19 AA21 AA23 AB2 AB3 AB8 AB10 AB12 AB14 AB16 AB18 AB20 AB22 AC7 AC9 AC11 AC13 AC15 AC17 AC19 AC21 AC23 AD8 AD10 AD12 AD14 AD16 AD20 AD22 AD24 AE4 AE5
AE11 AF2 AF3 AF8 AF10 AF12 AF14 AF16 AF18 AF20 AF22 AF24 AF26 AF28 AG10 AG11 AH14 AH16 AH18 AH20 AH22 AH24 AH26 AH28 AH30 AK2 AK14 AK16 AK18 Y14 Y16
VCORE
L14
VDD1
L16
VDD2
L18
VDD3
M2
VDD4
M3
VDD5
M7
VDD6
M9
VDD7
M11
VDD8
M13
VDD9
M15
VDD10
M17
VDD11
M19
VDD12
N8
VDD13
N10
VDD14
N12
VDD15
N14
VDD16
N16
VDD17
N18
VDD18
P7
VDD19
P9
VDD20
P11
VDD21
P13
VDD22
P15
VDD23
P17
VDD24
P19
VDD25
R4
VDD26
R5
VDD27
R8
VDD28
R10
VDD29
R12
VDD30
R14
VDD31
R16
VDD32
R18
VDD33
R20
VDD34
T2
VDD35
T3
VDD36
T7
VDD37
T9
VDD38
T11
VDD39
T13
VDD40
T15
VDD41
T17
VDD42
T19
VDD43
T21
VDD44
U8
VDD45
U10
VDD46
U12
VDD47
U14
VDD48
U16
VDD49
U18
VDD50
U20
VDD51
V9
VDD52
V11
VDD53
V13
VDD54
V15
VDD55
V17
VDD56
V19
VDD57
V21
VDD58
W4
VDD59
W5
VDD60
W8
VDD61
W10
VDD62
W12
VDD63
W14
VDD64
W16
VDD65
W18
VDD66
W20
VDD67
Y2
VDD68
Y3
VDD69
Y7
VDD70
Y9
VDD71
Y11
VDD72
Y13
VDD73
Y15
VDD74
Y21
VDD75
N12-9400050-F02
VDD2
VDD2
CPU1G
CPU1G
4
VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8
VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47 VSS48
VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65 VSS66 VSS67 VSS68 VSS69 VSS70 VSS71 VSS72 VSS73 VSS74 VSS75
AK20 AK22 AK24 AK26 AK28 AK30 AL5 B4 B9 B11 B14 B16 B18 B20 B22 B24 B26 B28 B30 C3 D14 D16 D18 D20 D22 D24 D26 D28 D30 E11 F4 F14 F16 F18 F20 F22 F24 F26 F28 F30 G9 G11 H8 H10 H12 H14 H16 H18
H24 H26 H28 H30 J4 J5 J7 J9 J11 J13 J15 J17 J19 J21 J23 K2 K3 K8 K10 K12 K14 K16 K18 K20 K22 Y18
VCORE
AA20
VDD1
AA22
VDD2
AB13
VDD3
AB15
VDD4
AB17
VDD5
AB19
VDD6
AB21
VDD7
AB23
VDD8
AC12
VDD9
AC14
VDD10
AC16
VDD11
AC18
VDD12
AC20
VDD13
AC22
VDD14
AD11
VDD15
AD23
VDD16
AE12
VDD17
AF11
VDD18
L20
VDD19
L22
VDD20
M21
VDD21
M23
VDD22
N20
VDD23
N22
VDD24
P21
VDD25
P23
VDD26
R22
VDD27
T23
VDD28
U22
VDD29
V23
VDD30
W22
VDD31
Y23
VDD32
5
GND
6
GND
7
GND
8
GND
1
GND
2
GND
3
GND
N12-9400050-F02
CPU1H
CPU1H
VDD3
VDD3
VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8
VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47 VSS48 VSS49 VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65
3
VCC1_2HTC
N17 N19 N21 N23 P2 P3 P8 P10 P12 P14 P16 P18 P20 P22 R7 R9 R11 R13 R15 R17 R19 R21 R23 T8 T10 T12 T14 T16 T18 T20 T22 U4 U5 U7 U9 U11 U13 U15 U17 U19 U21 U23 V2 V3 V10 V12 V14 V16 V18 V20 V22 W9 W11 W13 W15 W17 W19 W21 W23 Y8 Y10 Y12 W7 Y20 Y22
VTT_DDR
VCC_DDR
AJ4
VLDT_A1
AJ3
VLDT_A2
AJ2
VLDT_A3
AJ1
VLDT_A4
D12
VTT1
C12
VTT2
B12
VTT3
A12
VTT4
AB24
VDDIO1
AB26
VDDIO2
AB28
VDDIO3
AB30
VDDIO4
AC24
VDDIO5
AD26
VDDIO6
AD28
VDDIO7
AD30
VDDIO8
AF30
VDDIO9
M24
VDDIO10
M26
VDDIO11
M28
VDDIO12
M30
VDDIO13
P24
VDDIO14
P26
VDDIO15
P28
VDDIO16
P30
VDDIO17
T24
VDDIO18
T26
VDDIO19
T28
VDDIO20
T30
VDDIO21
V25
VDDIO22
V26
VDDIO23
V28
VDDIO24
V30
VDDIO25
Y24
VDDIO26
Y26
VDDIO27
Y28
VDDIO28
Y29
VDDIO29
N12-9400050-F02
CPU1I
CPU1I
VDDIO
VDDIO
2
VLDT_B1 VLDT_B2 VLDT_B3 VLDT_B4
VTT5 VTT6 VTT7 VTT8 VTT9
VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8
VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28
H6 H5 H2 H1
AK12 AJ12 AH12 AG12 AL12
K24 K26 K28 K30 L7 L9 L11 L13 L15 L17 L19 L21 L23 M8 M10 M12 M14 M16 M18 M20 M22 N4 N5 N7 N9 N11 N13 N15
VLDT_RUN_B
VTT_DDR
X_0.01uf/25V/X7R/4
X_0.01uf/25V/X7R/4
C86
C86
4.7uf/10V/Y5V/8
4.7uf/10V/Y5V/8
C81
C81
X_0.01uf/25V/X7R/4
X_0.01uf/25V/X7R/4
C235
C235
180pf/50V/NPO/4
180pf/50V/NPO/4
X_0.01uf/25V/X7R/4
X_0.01uf/25V/X7R/4
C82
C82
C240
C240
1
C85
C85
180pf/50V/NPO/4
180pf/50V/NPO/4
N12-9400050-F02
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
CPU-Power & GND
CPU-Power & GND
CPU-Power & GND
MS-7349
MS-7349
MS-7349
841Monday, May 28, 2007
841Monday, May 28, 2007
841Monday, May 28, 2007
1
of
1.0
1.0
1.0
Page 9
5
VTT_DDR
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
C47
C47
C48
D D
X_0.22uf/16V/X7R/6
X_0.22uf/16V/X7R/6
C48
X_4.7uf/10V/Y5V/8
X_4.7uf/10V/Y5V/8
C66
C66
4.7uf/10V/Y5V/8
4.7uf/10V/Y5V/8
C58
C58
180pf/50V/NPO/4
180pf/50V/NPO/4
X_180pf/50V/NPO/4
X_180pf/50V/NPO/4
C194
C194
C259
C259
C188
C188
X_102pf/50V/X7R/6
X_102pf/50V/X7R/6
4
C55
C55 102pf/50V/X7R/6
102pf/50V/X7R/6
VCC_DDR
10uf/6.3V/X5R/1206
10uf/6.3V/X5R/1206 C456
C456
10uf/6.3V/X5R/1206_B
10uf/6.3V/X5R/1206_B
C171
C171
2.2uF/6.3V/X5R/6
2.2uF/6.3V/X5R/6
3
0.22uf/16V/X7R/6_B
0.22uf/16V/X7R/6_B C155
C155
C444
C444
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
0.01uf/50V/X7R/6
0.01uf/50V/X7R/6
C90
C90
C461
C461
C146
C146
10uf/6.3V/X5R/1206_B
10uf/6.3V/X5R/1206_B
C91
C91 180pf/50V/NPO/4
180pf/50V/NPO/4
2
VCC1_2HTC
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
C156
C156
C159
C159
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
X_0.22uf/16V/X7R/6
X_0.22uf/16V/X7R/6
1
X_0.22uf/16V/X7R/6
X_0.22uf/16V/X7R/6
C174
C174
C162
C162
C182
C182
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8
VTT_DDR
X_180pf/50V/NPO/4
4.7uf/10V/Y5V/8
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
C181
C181
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
C C
VCORE
C463
C463
X_10uf/10V/Y5V/1206_B
X_10uf/10V/Y5V/1206_B
B B
VCORE
C437
C437
0.22uf/16V/X7R/6_B
0.22uf/16V/X7R/6_B
C177
C177
X_10uf/10V/Y5V/1206_B
X_10uf/10V/Y5V/1206_B
C458
C458
X_10uf/10V/Y5V/1206_B
X_10uf/10V/Y5V/1206_B
0.22uf/16V/X7R/6_B
0.22uf/16V/X7R/6_B
C436
C436
0.22uf/16V/X7R/6_B
0.22uf/16V/X7R/6_B
4.7uf/10V/Y5V/8
C62
C62
X_4.7uf/10V/Y5V/8
X_4.7uf/10V/Y5V/8
10uf/10V/X5R/1206_B
10uf/10V/X5R/1206_B
C454
C454
0.01uf/25V/X7R/4_B
0.01uf/25V/X7R/4_B
C470
C470
C192
C192
C448
C448
10uf/10V/X5R/1206_B
10uf/10V/X5R/1206_B
C438
C438
X_180pf/50V/NPO/4
C168
C168
180pf/50V/NPO/4
180pf/50V/NPO/4
10uf/10V/X5R/1206_B
10uf/10V/X5R/1206_B
C443
C443
C93
C93 180pf/50V/NPO/4_B
180pf/50V/NPO/4_B
C189
C189
C39
C39
X_102pf/50V/X7R/6
X_102pf/50V/X7R/6
X_10uf/10V/Y5V/1206_B
X_10uf/10V/Y5V/1206_B
C466
C466
C440
C440
X_10uf/10V/Y5V/1206_B
X_10uf/10V/Y5V/1206_B
C23
C23 X_102pf/50V/X7R/6
X_102pf/50V/X7R/6
C457
C457
C462
C462
10uf/10V/X5R/1206_B
10uf/10V/X5R/1206_B
X_10uf/10V/Y5V/1206_B
X_10uf/10V/Y5V/1206_B
VCC_DDR
0.22uf/16V/X7R/6_B
0.22uf/16V/X7R/6_B
0.22uf/16V/X7R/6_B
0.22uf/16V/X7R/6_B
10uf/10V/X5R/1206_B
10uf/10V/X5R/1206_B
C453
C453
C447
C447
10uf/10V/X5R/1206_B
10uf/10V/X5R/1206_B
C469
C469
C450
C450
C442
C442
X_10uf/10V/Y5V/1206_B
X_10uf/10V/Y5V/1206_B
2.2uF/6.3V/X5R/6
2.2uF/6.3V/X5R/6
C173
C173
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
10uf/10V/Y5V/1206
10uf/10V/Y5V/1206
C439
C439
C136
C136
C97
C97
C92
C92
2.2uF/6.3V/X5R/6
2.2uF/6.3V/X5R/6
C73
C73
10uf/10V/Y5V/1206
10uf/10V/Y5V/1206
VCC_DDR
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
C485
C485
0.22uf/16V/X7R/6_B
0.22uf/16V/X7R/6_B
VCC_DDR
C608 0.1uf/25V/Y5V/6C608 0.1uf/25V/Y5V/6
C609 X_0.1uf/25V/Y5V/6C609 X_0.1uf/25V/Y5V/6
C610 4.7uf/10V/Y5V/8C610 4.7uf/10V/Y5V/8
C611 X_4.7uf/10V/Y5V/8C611 X_4.7uf/10V/Y5V/8
VCC_DDR
C613 4.7uf/10V/Y5V/8C613 4.7uf/10V/Y5V/8
C612 X_4.7uf/10V/Y5V/8C612 X_4.7uf/10V/Y5V/8
C486
C486
VCC_DDR
C201
C201 180pf/50V/NPO/4
180pf/50V/NPO/4
VCC1_2HTC
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8
C191
C191
X_10uf/6.3V/X5R/1206
X_10uf/6.3V/X5R/1206
VCC1_2HTC
X_0.22uf/16V/X7R/6
X_0.22uf/16V/X7R/6
C179
C179
C166
C166
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
C187
C187
Place close to Q22
C760 10uf/10V/Y5V/1206C760 10uf/10V/Y5V/1206 C758 4.7uf/10V/X5R/8C758 4.7uf/10V/X5R/8 C761 0.1uf/25V/Y5V/6C761 0.1uf/25V/Y5V/6
0.01uf/25V/X7R/4C759 0.01uf/25V/X7R/4C759
C185
C185 X_0.22uf/16V/X7R/6
X_0.22uf/16V/X7R/6
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
CPU-Decoupling
CPU-Decoupling
CPU-Decoupling
MS-7349
MS-7349
MS-7349
941Monday, May 28, 2007
941Monday, May 28, 2007
941Monday, May 28, 2007
of
of
1
of
1.0
1.0
1.0
Page 10
5
4
3
2
1
MEM_MA_CHECK0 MEM_MA_CHECK1 MEM_MA_CHECK2 MEM_MA_CHECK3 MEM_MA_CHECK4 MEM_MA_CHECK5 MEM_MA_CHECK6
D D
MEM_MA_DATA[63..0]7,11
C C
B B
MEM_MA_DATA0 MEM_MA_DATA1 MEM_MA_DATA2 MEM_MA_DATA3 MEM_MA_DATA4 MEM_MA_DATA5 MEM_MA_DATA6 MEM_MA_DATA7 MEM_MA_DATA8 MEM_MA_DATA9 MEM_MA_DATA10 MEM_MA_DATA11 MEM_MA_DATA12 MEM_MA_DATA13 MEM_MA_DATA14 MEM_MA_DATA15 MEM_MA_DATA16 MEM_MA_DATA17 MEM_MA_DATA18 MEM_MA_DATA19 MEM_MA_DATA20 MEM_MA_DATA21 MEM_MA_DATA22 MEM_MA_DATA23 MEM_MA_DATA24 MEM_MA_DATA25 MEM_MA_DATA26 MEM_MA_DATA27 MEM_MA_DATA28 MEM_MA_DATA29 MEM_MA_DATA30 MEM_MA_DATA31 MEM_MA_DATA32 MEM_MA_DATA33 MEM_MA_DATA34 MEM_MA_DATA35 MEM_MA_DATA36 MEM_MA_DATA37 MEM_MA_DATA38 MEM_MA_DATA39 MEM_MA_DATA40 MEM_MA_DATA41 MEM_MA_DATA42 MEM_MA_DATA43 MEM_MA_DATA44 MEM_MA_DATA45 MEM_MA_DATA46 MEM_MA_DATA47 MEM_MA_DATA48 MEM_MA_DATA49 MEM_MA_DATA50 MEM_MA_DATA51 MEM_MA_DATA52 MEM_MA_DATA53 MEM_MA_DATA54 MEM_MA_DATA55 MEM_MA_DATA56 MEM_MA_DATA57 MEM_MA_DATA58 MEM_MA_DATA59 MEM_MA_DATA60 MEM_MA_DATA61 MEM_MA_DATA62 MEM_MA_DATA63
DIMM2
DIMM2
122 123 128 129
131 132 140 141
143 144 149 150
152 153 158 159
199 200 205 206
208 209 214 215
107 108 217 218 226 227 110 111 116 117 229 230 235 236
172
187
184
178
VDDQ5
VDDQ6
VDDQ7
VDDQ469VDDQ7
VSS
VSS
VSS
VSS
163
166
169
198
201
238
189
67
CB042CB143CB248CB349CB4
VDDQ8
VDDQ9
VDDSPD
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
204
207
210
213
216
219
222
225
170
55
102
75
68
19
NC
NC
3
RC118RC0
DQ0
4
DQ1
9
DQ2
10
DQ3 DQ4 DQ5 DQ6 DQ7
12
DQ8
13
DQ9
21
DQ10
22
DQ11 DQ12 DQ13 DQ14 DQ15
24
DQ16
25
DQ17
30
DQ18
31
DQ19 DQ20 DQ21 DQ22 DQ23
33
DQ24
34
DQ25
39
DQ26
40
DQ27 DQ28 DQ29 DQ30 DQ31
80
DQ32
81
DQ33
86
DQ34
87
DQ35 DQ36 DQ37 DQ38 DQ39
89
DQ40
90
DQ41
95
DQ42
96
DQ43 DQ44 DQ45 DQ46 DQ47
98
DQ48
99
DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63
2
VSS
5
VSS
8
VSS
11
VSS
14
VSS
17
VSS
20
VSS
23
VSS
26
VSS
29
VSS
32
VSS
35
VSS
38
VSS
41
VSS
44
VSS
47
VSS
50
VSS
65
VSS
66
VSS
79
VSS
82
VSS
85
VSS
88
VSS
91
VSS
94
VSS
97
VSS
VDD051VDD156VDD262VDD372VDD478VDD5
VDD3
NC/TEST
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
100
103
106
109
VSS
112
115
118
121
124
127
130
133
197
191
194
181
175
VDD6
VDD7
VDD8
VDDQ0
VDDQ153VDDQ259VDDQ364VDDQ4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
136
VSS
139
142
145
148
151
154
157
160
N13-2400301-K06 N13-2400351-K06
161
162
A10_AP
A16/BA2
DM0/DQS9
NC/DQS9# DM1/DQS10 NC/DQS10# DM2/DQS11 NC/DQS11# DM3/DQS12 NC/DQS12# DM4/DQS13 NC/DQS13# DM5/DQS14 NC/DQS14# DM6/DQS15 NC/DQS15# DM7/DQS16 NC/DQS16# DM8/DQS17 NC/DQS17#
CK0(DU) CK0#(DU) CK1(CK0)
CK1#(CK0#)
CK2(DU) CK2#(DU)
VSS
VSS
228
231
234
MEM_MA_CHECK7
167
168
CB5
CB6
CB7
MEM_MA_DQS_H0
7
DQS0
MEM_MA_DQS_L0
6
DQS0#
MEM_MA_DQS_H1
16
DQS1
MEM_MA_DQS_L1
15
DQS1#
MEM_MA_DQS_H2
28
DQS2
MEM_MA_DQS_L2
27
DQS2#
MEM_MA_DQS_H3
37
DQS3
MEM_MA_DQS_L3
36
DQS3#
MEM_MA_DQS_H4
84
DQS4
MEM_MA_DQS_L4 MEM_MB_DATA10
83
DQS4#
MEM_MA_DQS_H5
93
DQS5
MEM_MA_DQS_L5
92
DQS5#
MEM_MA_DQS_H6
105
DQS6
MEM_MA_DQS_L6
104
DQS6#
MEM_MA_DQS_H7
114
DQS7
MEM_MA_DQS_L7
113
DQS7#
MEM_MA_DQS_H8
46
DQS8
MEM_MA_DQS_L8
45
DQS8#
MEM_MA_ADD0
188
A0
MEM_MA_ADD1
183
A1
MEM_MA_ADD2
63
A2
MEM_MA_ADD3
182
A3
MEM_MA_ADD4
61
A4
MEM_MA_ADD5
60
A5
MEM_MA_ADD6
180
A6
MEM_MA_ADD7
58
A7
MEM_MA_ADD8
179
A8
MEM_MA_ADD9
177
A9
MEM_MA_ADD10
70
MEM_MA_ADD11
57
A11
MEM_MA_ADD12
176
A12
MEM_MA_ADD13
196
A13
MEM_MA_ADD14
174
A14
MEM_MA_ADD15
173
A15
MEM_MA_BANK2
54
MEM_MA_BANK1
190
BA1
MEM_MA_BANK0
71
BA0
MEM_MA_WE_L
73
WE#
MEM_MA_CAS_L
74
CAS#
MEM_MA_RAS_L
192
RAS#
MEM_MA_DM0
125 126
MEM_MA_DM1
134 135
MEM_MA_DM2
146 147
MEM_MA_DM3
155 156
MEM_MA_DM4
202 203
MEM_MA_DM5
211 212
MEM_MA_DM6
223 224
MEM_MA_DM7
232 233
MEM_MA_DM8
164 165
MEM_MA0_ODT0
195
ODT0
77
ODT1
52
CKE0
171
CKE1
MEM_MA0_CS_L0
193
CS0#
MEM_MA0_CS_L1
76
CS1#
MEM_MA0_CLK_H0
185
MEM_MA0_CLK_L0
186
MEM_MA0_CLK_H1
137
MEM_MA0_CLK_L1
138
MEM_MA0_CLK_H2
220
MEM_MA0_CLK_L2
221
SMB_MEM_CLK
120
SCL
SMB_MEM_DATA
119
SDA
VDDR_VREF
1
VREF
239
SA0
240
SA1
101
SA2
VSS
VSS
DDRII-240_GREEN
DDRII-240_GREEN
237
ADDRESS: 1010 000
MEM_MA_CHECK0 7,11 MEM_MA_CHECK1 7,11 MEM_MA_CHECK2 7,11 MEM_MA_CHECK3 7,11 MEM_MA_CHECK4 7,11 MEM_MA_CHECK5 7,11 MEM_MA_CHECK6 7,11 MEM_MA_CHECK7 7,11
MEM_MA_DQS_H0 7,11 MEM_MA_DQS_L0 7,11 MEM_MA_DQS_H1 7,11 MEM_MA_DQS_L1 7,11 MEM_MA_DQS_H2 7,11 MEM_MA_DQS_L2 7,11 MEM_MA_DQS_H3 7,11 MEM_MA_DQS_L3 7,11 MEM_MA_DQS_H4 7,11 MEM_MA_DQS_L4 7,11 MEM_MA_DQS_H5 7,11 MEM_MA_DQS_L5 7,11 MEM_MA_DQS_H6 7,11 MEM_MA_DQS_L6 7,11 MEM_MA_DQS_H7 7,11 MEM_MA_DQS_L7 7,11 MEM_MA_DQS_H8 7,11 MEM_MA_DQS_L8 7,11
MEM_MA_ADD[15..0] 7,11,12
MEM_MA_BANK2 7,11,12 MEM_MA_BANK1 7,11,12 MEM_MA_BANK0 7,11,12
MEM_MA_WE_L 7,11,12 MEM_MA_CAS_L 7,11,12 MEM_MA_RAS_L 7,11,12
MEM_MA_DM[8..0] MEM_MB_DM[8..0]
MEM_MA0_ODT0 7,12
MEM_MA_CKE0 7,12
MEM_MA0_CS_L0 7,12 MEM_MA0_CS_L1 7,12
MEM_MA0_CLK_H0 7,12
MEM_MA0_CLK_L0 7,12
MEM_MA0_CLK_H1 7,12
MEM_MA0_CLK_L1 7,12
MEM_MA0_CLK_H2 7,12
MEM_MA0_CLK_L2 7,12
SMB_MEM_CLK 11,18
SMB_MEM_DATA 11,18
C42
C42
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
MEM_MB_DATA[63..0]7,11
MEM_MA_DM[8..0] 7,11 MEM_MB_DM[8..0] 7,11
MEM_MB_DATA0 MEM_MB_DATA1 MEM_MB_DATA2 MEM_MB_DATA3 MEM_MB_DATA4 MEM_MB_DATA5 MEM_MB_DATA6 MEM_MB_DATA7 MEM_MB_DATA8 MEM_MB_DATA9
MEM_MB_DATA11 MEM_MB_DATA12 MEM_MB_DATA13 MEM_MB_DATA14 MEM_MB_DATA15 MEM_MB_DATA16 MEM_MB_DATA17 MEM_MB_DATA18 MEM_MB_DATA19 MEM_MB_DATA20 MEM_MB_DATA21 MEM_MB_DATA22 MEM_MB_DATA23 MEM_MB_DATA24 MEM_MB_DATA25 MEM_MB_DATA26 MEM_MB_DATA27 MEM_MB_DATA28 MEM_MB_DATA29 MEM_MB_DATA30 MEM_MB_DATA31 MEM_MB_DATA32 MEM_MB_DATA33 MEM_MB_DATA34 MEM_MB_DATA35 MEM_MB_DATA36 MEM_MB_DATA37 MEM_MB_DATA38 MEM_MB_DATA39 MEM_MB_DATA40 MEM_MB_DATA41 MEM_MB_DATA42 MEM_MB_DATA43 MEM_MB_DATA44 MEM_MB_DATA45 MEM_MB_DATA46 MEM_MB_DATA47 MEM_MB_DATA48 MEM_MB_DATA49 MEM_MB_DATA50 MEM_MB_DATA51 MEM_MB_DATA52 MEM_MB_DATA53 MEM_MB_DATA54 MEM_MB_DATA55 MEM_MB_DATA56 MEM_MB_DATA57 MEM_MB_DATA58 MEM_MB_DATA59 MEM_MB_DATA60 MEM_MB_DATA61 MEM_MB_DATA62 MEM_MB_DATA63
DIMM1
DIMM1
55
102
68
19
NC
NC
3
RC118RC0
DQ0
4
DQ1
9
DQ2
10
DQ3
122
DQ4
123
DQ5
128
DQ6
129
DQ7
12
DQ8
13
DQ9
21
DQ10
22
DQ11
131
DQ12
132
DQ13
140
DQ14
141
DQ15
24
DQ16
25
DQ17
30
DQ18
31
DQ19
143
DQ20
144
DQ21
149
DQ22
150
DQ23
33
DQ24
34
DQ25
39
DQ26
40
DQ27
152
DQ28
153
DQ29
158
DQ30
159
DQ31
80
DQ32
81
DQ33
86
DQ34
87
DQ35
199
DQ36
200
DQ37
205
DQ38
206
DQ39
89
DQ40
90
DQ41
95
DQ42
96
DQ43
208
DQ44
209
DQ45
214
DQ46
215
DQ47
98
DQ48
99
DQ49
107
DQ50
108
DQ51
217
DQ52
218
DQ53
226
DQ54
227
DQ55
110
DQ56
111
DQ57
116
DQ58
117
DQ59
229
DQ60
230
DQ61
235
DQ62
236
DQ63
2
VSS
5
VSS
8
VSS
11
VSS
14
VSS
17
VSS
20
VSS
23
VSS
26
VSS
29
VSS
32
VSS
35
VSS
38
VSS
41
VSS
44
VSS
47
VSS
50
VSS
65
VSS
66
VSS
79
VSS
82
VSS
85
VSS
88
VSS
91
VSS
94
VSS
97
VSS
VDD051VDD156VDD262VDD372VDD478VDD5
NC/TEST
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
100
103
106
109
112
115
118
121
170
191
194
181
175
75
VDD6
VDD7
VDD8
VDD3
VDDQ0
VDDQ153VDDQ259VDDQ364VDDQ4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
124
127
130
133
VSS
136
139
142
145
148
151
154
157
197
172
187
VDDQ5
VDDQ6
VDDQ469VDDQ7
VSS
VSS
VSS
VSS
160
163
166
169
184
VDDQ7
VSS
198
VCC3VCC_DDRVCC3VCC_DDR
238
189
67
178
CB042CB143CB248CB349CB4
VDDQ8
VDDQ9
VDDSPD
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
201
VSS
204
207
210
213
216
219
222
225
MEM_MB_CHECK0 MEM_MB_CHECK1 MEM_MB_CHECK2 MEM_MB_CHECK3 MEM_MB_CHECK4 MEM_MB_CHECK5 MEM_MB_CHECK6 MEM_MB_CHECK7
161
162
167
168
CB5
CB6
CB7
7
DQS0
6
DQS0#
16
DQS1
15
DQS1#
28
DQS2
27
DQS2#
37
DQS3
36
DQS3#
84
DQS4
83
DQS4#
93
DQS5
92
DQS5#
105
DQS6
104
DQS6#
114
DQS7
113
DQS7#
46
DQS8
45
DQS8#
188
A0
183
A1
63
A2
182
A3
61
A4
60
A5
180
A6
58
A7
179
A8
177
A9
70
A10_AP
57
A11
176
A12
196
A13
174
A14
173
A15
54
A16/BA2
190
BA1
71
BA0
73
WE#
74
CAS#
192
RAS#
125
DM0/DQS9
126
NC/DQS9#
134
DM1/DQS10
135
NC/DQS10#
146
DM2/DQS11
147
NC/DQS11#
155
DM3/DQS12
156
NC/DQS12#
202
DM4/DQS13
203
NC/DQS13#
211
DM5/DQS14
212
NC/DQS14#
223
DM6/DQS15
224
NC/DQS15#
232
DM7/DQS16
233
NC/DQS16#
164
DM8/DQS17
165
NC/DQS17#
195
ODT0
77
ODT1
52
CKE0
171
CKE1
193
CS0#
76
CS1#
185
CK0(DU)
186
CK0#(DU)
137
CK1(CK0)
138
CK1#(CK0#)
220
CK2(DU)
221
CK2#(DU)
120
SCL
119
SDA
1
VREF
239
SA0
240
SA1
101
SA2
VSS
VSS
VSS
VSS
DDRII-240_ORANGE
DDRII-240_ORANGE
228
231
234
237
ADDRESS: 1010 001
MEM_MB_DQS_H0 MEM_MB_DQS_L0 MEM_MB_DQS_H1 MEM_MB_DQS_L1 MEM_MB_DQS_H2 MEM_MB_DQS_L2 MEM_MB_DQS_H3 MEM_MB_DQS_L3 MEM_MB_DQS_H4 MEM_MB_DQS_L4 MEM_MB_DQS_H5 MEM_MB_DQS_L5 MEM_MB_DQS_H6 MEM_MB_DQS_L6 MEM_MB_DQS_H7 MEM_MB_DQS_L7 MEM_MB_DQS_H8 MEM_MB_DQS_L8
MEM_MB_ADD0 MEM_MB_ADD1 MEM_MB_ADD2 MEM_MB_ADD3 MEM_MB_ADD4 MEM_MB_ADD5 MEM_MB_ADD6 MEM_MB_ADD7 MEM_MB_ADD8 MEM_MB_ADD9 MEM_MB_ADD10 MEM_MB_ADD11 MEM_MB_ADD12 MEM_MB_ADD13 MEM_MB_ADD14 MEM_MB_ADD15
MEM_MB_BANK2 MEM_MB_BANK1 MEM_MB_BANK0
MEM_MB_WE_L MEM_MB_CAS_L MEM_MB_RAS_L
MEM_MB_DM0 MEM_MB_DM1 MEM_MB_DM2 MEM_MB_DM3 MEM_MB_DM4 MEM_MB_DM5 MEM_MB_DM6 MEM_MB_DM7 MEM_MB_DM8
MEM_MB0_ODT0
MEM_MB0_CS_L0 MEM_MB0_CS_L1
MEM_MB0_CLK_H0 MEM_MB0_CLK_L0 MEM_MB0_CLK_H1 MEM_MB0_CLK_L1 MEM_MB0_CLK_H2 MEM_MB0_CLK_L2
SMB_MEM_CLK SMB_MEM_DATA
VDDR_VREF
VCC3
MEM_MB_CHECK0 7,11 MEM_MB_CHECK1 7,11 MEM_MB_CHECK2 7,11 MEM_MB_CHECK3 7,11 MEM_MB_CHECK4 7,11 MEM_MB_CHECK5 7,11 MEM_MB_CHECK6 7,11 MEM_MB_CHECK7 7,11
MEM_MB_DQS_H0 7,11 MEM_MB_DQS_L0 7,11 MEM_MB_DQS_H1 7,11 MEM_MB_DQS_L1 7,11 MEM_MB_DQS_H2 7,11 MEM_MB_DQS_L2 7,11 MEM_MB_DQS_H3 7,11 MEM_MB_DQS_L3 7,11 MEM_MB_DQS_H4 7,11 MEM_MB_DQS_L4 7,11 MEM_MB_DQS_H5 7,11 MEM_MB_DQS_L5 7,11 MEM_MB_DQS_H6 7,11 MEM_MB_DQS_L6 7,11 MEM_MB_DQS_H7 7,11 MEM_MB_DQS_L7 7,11 MEM_MB_DQS_H8 7,11 MEM_MB_DQS_L8 7,11
MEM_MB_BANK2 7,11,12 MEM_MB_BANK1 7,11,12 MEM_MB_BANK0 7,11,12
MEM_MB_WE_L 7,11,12 MEM_MB_CAS_L 7,11,12 MEM_MB_RAS_L 7,11,12
MEM_MB0_ODT0 7,12
MEM_MB_CKE0 7,12
MEM_MB0_CS_L0 7,12 MEM_MB0_CS_L1 7,12
MEM_MB0_CLK_H0 7,12
MEM_MB0_CLK_L0 7,12
MEM_MB0_CLK_H1 7,12
MEM_MB0_CLK_L1 7,12
MEM_MB0_CLK_H2 7,12
MEM_MB0_CLK_L2 7,12
SMB_MEM_CLK 11,18
SMB_MEM_DATA 11,18
C41
C41
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
PLACE CLOSE TO DIMM PINPLACE CLOSE TO DIMM PIN
MEM_MB_ADD[15..0] 7,11,12
R35
R35
56.2R/1%/6
56.2R/1%/6
R33
R33
56.2R/1%/6
56.2R/1%/6
VCC_DDR
C29
C29 X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
VDDR_VREF
C33
C33 X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
VDDR_VREF
C36
C36 102pf/50V/X7R/4
102pf/50V/X7R/4
4
C763
C763 X_1uf/16V/Y5V/6
X_1uf/16V/Y5V/6
VCC3 VCC3
R179
R179
2.7K/4
2.7K/4
SMB_MEM_CLK SMB_MEM_DATA
3
2
D15
D15 BAV99_SOT23
BAV99_SOT23
1
R176
R176
2.7K/4
2.7K/4
3
3VDUAL3VDUAL
3
2
D13
D13 BAV99_SOT23
BAV99_SOT23
1
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
FIRST LOGICAL DDR DIMM
FIRST LOGICAL DDR DIMM
FIRST LOGICAL DDR DIMM
MS-7349
MS-7349
MS-7349
1
of
10 41Monday, May 28, 2007
of
10 41Monday, May 28, 2007
of
10 41Monday, May 28, 2007
1.0
1.0
1.0
VCC_DDR
C549
C549
4.7uf/10V/Y5V/8
4.7uf/10V/Y5V/8
A A
5
Page 11
5
4
3
2
1
MEM_MA_CHECK0 MEM_MA_CHECK1
161
162
A10_AP
A16/BA2
DM0/DQS9
NC/DQS9# DM1/DQS10 NC/DQS10# DM2/DQS11 NC/DQS11# DM3/DQS12 NC/DQS12# DM4/DQS13 NC/DQS13# DM5/DQS14 NC/DQS14# DM6/DQS15 NC/DQS15# DM7/DQS16 NC/DQS16# DM8/DQS17 NC/DQS17#
CK0(DU) CK0#(DU) CK1(CK0)
CK1#(CK0#)
CK2(DU) CK2#(DU)
VSS
VSS
228
231
234
MEM_MA_CHECK2 MEM_MA_CHECK3 MEM_MA_CHECK4 MEM_MA_CHECK5 MEM_MA_CHECK6 MEM_MA_CHECK7
167
168
CB5
CB6
CB7
MEM_MA_DQS_H0
7
DQS0
MEM_MA_DQS_L0
6
DQS0#
MEM_MA_DQS_H1
16
DQS1
MEM_MA_DQS_L1
15
DQS1#
MEM_MA_DQS_H2
28
DQS2
MEM_MA_DQS_L2
27
DQS2#
MEM_MA_DQS_H3
37
DQS3
MEM_MA_DQS_L3
36
DQS3#
MEM_MA_DQS_H4
84
DQS4
MEM_MA_DQS_L4 MEM_MB_DATA10
83
DQS4#
MEM_MA_DQS_H5
93
DQS5
MEM_MA_DQS_L5
92
DQS5#
MEM_MA_DQS_H6
105
DQS6
MEM_MA_DQS_L6
104
DQS6#
MEM_MA_DQS_H7
114
DQS7
MEM_MA_DQS_L7
113
DQS7#
MEM_MA_DQS_H8
46
DQS8
MEM_MA_DQS_L8
45
DQS8#
MEM_MA_ADD0
188
A0
MEM_MA_ADD1
183
A1
MEM_MA_ADD2
63
A2
MEM_MA_ADD3
182
A3
MEM_MA_ADD4
61
A4
MEM_MA_ADD5
60
A5
MEM_MA_ADD6
180
A6
MEM_MA_ADD7
58
A7
MEM_MA_ADD8
179
A8
MEM_MA_ADD9
177
A9
MEM_MA_ADD10
70
MEM_MA_ADD11
57
A11
MEM_MA_ADD12
176
A12
MEM_MA_ADD13
196
A13
MEM_MA_ADD14
174
A14
MEM_MA_ADD15
173
A15
MEM_MA_BANK2
54
MEM_MA_BANK1
190
BA1
MEM_MA_BANK0
71
BA0
MEM_MA_WE_L
73
WE#
MEM_MA_CAS_L
74
CAS#
MEM_MA_RAS_L
192
RAS#
MEM_MA_DM0
125 126
MEM_MA_DM1
134 135
MEM_MA_DM2
146 147
MEM_MA_DM3
155 156
MEM_MA_DM4
202 203
MEM_MA_DM5
211 212
MEM_MA_DM6
223 224
MEM_MA_DM7
232 233
MEM_MA_DM8
164 165
MEM_MA1_ODT0
195
ODT0
77
ODT1
52
CKE0
171
CKE1
MEM_MA1_CS_L0
193
CS0#
MEM_MA1_CS_L1
76
CS1#
MEM_MA1_CLK_H0
185
MEM_MA1_CLK_L0
186
MEM_MA1_CLK_H1
137
MEM_MA1_CLK_L1
138
MEM_MA1_CLK_H2
220
MEM_MA1_CLK_L2
221
SMB_MEM_CLK
120
SCL
SMB_MEM_DATA
119
SDA
VDDR_VREF
1
VREF
VCC3 VCC3
239
SA0
240
SA1
101
SA2
VSS
VSS
DDRII-240_GREEN
DDRII-240_GREEN
237
ADDRESS: 1010 010
D D
DIMM4
DIMM4
55
102
68
MEM_MA_DATA[63..0]7,10
C C
B B
MEM_MA_DATA0 MEM_MA_DATA1 MEM_MA_DATA2 MEM_MA_DATA3 MEM_MA_DATA4 MEM_MA_DATA5 MEM_MA_DATA6 MEM_MA_DATA7 MEM_MA_DATA8 MEM_MA_DATA9 MEM_MA_DATA10 MEM_MA_DATA11 MEM_MA_DATA12 MEM_MA_DATA13 MEM_MA_DATA14 MEM_MA_DATA15 MEM_MA_DATA16 MEM_MA_DATA17 MEM_MA_DATA18 MEM_MA_DATA19 MEM_MA_DATA20 MEM_MA_DATA21 MEM_MA_DATA22 MEM_MA_DATA23 MEM_MA_DATA24 MEM_MA_DATA25 MEM_MA_DATA26 MEM_MA_DATA27 MEM_MA_DATA28 MEM_MA_DATA29 MEM_MA_DATA30 MEM_MA_DATA31 MEM_MA_DATA32 MEM_MA_DATA33 MEM_MA_DATA34 MEM_MA_DATA35 MEM_MA_DATA36 MEM_MA_DATA37 MEM_MA_DATA38 MEM_MA_DATA39 MEM_MA_DATA40 MEM_MA_DATA41 MEM_MA_DATA42 MEM_MA_DATA43 MEM_MA_DATA44 MEM_MA_DATA45 MEM_MA_DATA46 MEM_MA_DATA47 MEM_MA_DATA48 MEM_MA_DATA49 MEM_MA_DATA50 MEM_MA_DATA51 MEM_MA_DATA52 MEM_MA_DATA53 MEM_MA_DATA54 MEM_MA_DATA55 MEM_MA_DATA56 MEM_MA_DATA57 MEM_MA_DATA58 MEM_MA_DATA59 MEM_MA_DATA60 MEM_MA_DATA61 MEM_MA_DATA62 MEM_MA_DATA63
19
NC
NC
3
RC118RC0
DQ0
4
DQ1
9
DQ2
10
DQ3
122
DQ4
123
DQ5
128
DQ6
129
DQ7
12
DQ8
13
DQ9
21
DQ10
22
DQ11
131
DQ12
132
DQ13
140
DQ14
141
DQ15
24
DQ16
25
DQ17
30
DQ18
31
DQ19
143
DQ20
144
DQ21
149
DQ22
150
DQ23
33
DQ24
34
DQ25
39
DQ26
40
DQ27
152
DQ28
153
DQ29
158
DQ30
159
DQ31
80
DQ32
81
DQ33
86
DQ34
87
DQ35
199
DQ36
200
DQ37
205
DQ38
206
DQ39
89
DQ40
90
DQ41
95
DQ42
96
DQ43
208
DQ44
209
DQ45
214
DQ46
215
DQ47
98
DQ48
99
DQ49
107
DQ50
108
DQ51
217
DQ52
218
DQ53
226
DQ54
227
DQ55
110
DQ56
111
DQ57
116
DQ58
117
DQ59
229
DQ60
230
DQ61
235
DQ62
236
DQ63
2
VSS
5
VSS
8
VSS
11
VSS
14
VSS
17
VSS
20
VSS
23
VSS
26
VSS
29
VSS
32
VSS
35
VSS
38
VSS
41
VSS
44
VSS
47
VSS
50
VSS
65
VSS
66
VSS
79
VSS
82
VSS
85
VSS
88
VSS
91
VSS
94
VSS
97
VSS
VDD051VDD156VDD262VDD372VDD478VDD5
NC/TEST
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
100
103
106
109
112
115
118
121
170
197
191
194
181
175
75
VDD6
VDD7
VDD8
VDD3
VDDQ0
VDDQ153VDDQ259VDDQ364VDDQ4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
124
127
130
133
136
VSS
139
142
145
148
151
154
157
160
172
187
184
178
VDDQ5
VDDQ6
VDDQ7
VDDQ469VDDQ7
VSS
VSS
VSS
VSS
163
166
169
198
201
238
189
67
CB042CB143CB248CB349CB4
VDDQ8
VDDQ9
VDDSPD
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
204
207
210
213
216
219
222
225
N13-2400301-K06 N13-2400351-K06
MEM_MA_CHECK0 7,10 MEM_MA_CHECK1 7,10 MEM_MA_CHECK2 7,10 MEM_MA_CHECK3 7,10 MEM_MA_CHECK4 7,10 MEM_MA_CHECK5 7,10 MEM_MA_CHECK6 7,10 MEM_MA_CHECK7 7,10
MEM_MA_DQS_H0 7,10 MEM_MA_DQS_L0 7,10 MEM_MA_DQS_H1 7,10 MEM_MA_DQS_L1 7,10 MEM_MA_DQS_H2 7,10 MEM_MA_DQS_L2 7,10 MEM_MA_DQS_H3 7,10 MEM_MA_DQS_L3 7,10 MEM_MA_DQS_H4 7,10 MEM_MA_DQS_L4 7,10 MEM_MA_DQS_H5 7,10 MEM_MA_DQS_L5 7,10 MEM_MA_DQS_H6 7,10 MEM_MA_DQS_L6 7,10 MEM_MA_DQS_H7 7,10 MEM_MA_DQS_L7 7,10 MEM_MA_DQS_H8 7,10 MEM_MA_DQS_L8 7,10
MEM_MA_ADD[15..0] 7,10,12
MEM_MA_BANK2 7,10,12 MEM_MA_BANK1 7,10,12 MEM_MA_BANK0 7,10,12
MEM_MA_WE_L 7,10,12 MEM_MA_CAS_L 7,10,12 MEM_MA_RAS_L 7,10,12
MEM_MA_DM[8..0] MEM_MB_DM[8..0]
MEM_MA1_ODT0 7,12
MEM_MA_CKE1 7,12
MEM_MA1_CS_L0 7,12 MEM_MA1_CS_L1 7,12
MEM_MA1_CLK_H0 7,12
MEM_MA1_CLK_L0 7,12
MEM_MA1_CLK_H1 7,12
MEM_MA1_CLK_L1 7,12
MEM_MA1_CLK_H2 7,12
MEM_MA1_CLK_L2 7,12
SMB_MEM_CLK 10,18
SMB_MEM_DATA 10,18
C664
C664
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
MEM_MB_DATA[63..0]7,10
MEM_MA_DM[8..0] 7,10 MEM_MB_DM[8..0] 7,10
VDDR_VREF
MEM_MB_DATA0 MEM_MB_DATA1 MEM_MB_DATA2 MEM_MB_DATA3 MEM_MB_DATA4 MEM_MB_DATA5 MEM_MB_DATA6 MEM_MB_DATA7 MEM_MB_DATA8 MEM_MB_DATA9
MEM_MB_DATA11 MEM_MB_DATA12 MEM_MB_DATA13 MEM_MB_DATA14 MEM_MB_DATA15 MEM_MB_DATA16 MEM_MB_DATA17 MEM_MB_DATA18 MEM_MB_DATA19 MEM_MB_DATA20 MEM_MB_DATA21 MEM_MB_DATA22 MEM_MB_DATA23 MEM_MB_DATA24 MEM_MB_DATA25 MEM_MB_DATA26 MEM_MB_DATA27 MEM_MB_DATA28 MEM_MB_DATA29 MEM_MB_DATA30 MEM_MB_DATA31 MEM_MB_DATA32 MEM_MB_DATA33 MEM_MB_DATA34 MEM_MB_DATA35 MEM_MB_DATA36 MEM_MB_DATA37 MEM_MB_DATA38 MEM_MB_DATA39 MEM_MB_DATA40 MEM_MB_DATA41 MEM_MB_DATA42 MEM_MB_DATA43 MEM_MB_DATA44 MEM_MB_DATA45 MEM_MB_DATA46 MEM_MB_DATA47 MEM_MB_DATA48 MEM_MB_DATA49 MEM_MB_DATA50 MEM_MB_DATA51 MEM_MB_DATA52 MEM_MB_DATA53 MEM_MB_DATA54 MEM_MB_DATA55 MEM_MB_DATA56 MEM_MB_DATA57 MEM_MB_DATA58 MEM_MB_DATA59 MEM_MB_DATA60 MEM_MB_DATA61 MEM_MB_DATA62 MEM_MB_DATA63
DIMM3
DIMM3
55
102
68
19
NC
NC
3
RC118RC0
DQ0
4
DQ1
9
DQ2
10
DQ3
122
DQ4
123
DQ5
128
DQ6
129
DQ7
12
DQ8
13
DQ9
21
DQ10
22
DQ11
131
DQ12
132
DQ13
140
DQ14
141
DQ15
24
DQ16
25
DQ17
30
DQ18
31
DQ19
143
DQ20
144
DQ21
149
DQ22
150
DQ23
33
DQ24
34
DQ25
39
DQ26
40
DQ27
152
DQ28
153
DQ29
158
DQ30
159
DQ31
80
DQ32
81
DQ33
86
DQ34
87
DQ35
199
DQ36
200
DQ37
205
DQ38
206
DQ39
89
DQ40
90
DQ41
95
DQ42
96
DQ43
208
DQ44
209
DQ45
214
DQ46
215
DQ47
98
DQ48
99
DQ49
107
DQ50
108
DQ51
217
DQ52
218
DQ53
226
DQ54
227
DQ55
110
DQ56
111
DQ57
116
DQ58
117
DQ59
229
DQ60
230
DQ61
235
DQ62
236
DQ63
2
VSS
5
VSS
8
VSS
11
VSS
14
VSS
17
VSS
20
VSS
23
VSS
26
VSS
29
VSS
32
VSS
35
VSS
38
VSS
41
VSS
44
VSS
47
VSS
50
VSS
65
VSS
66
VSS
79
VSS
82
VSS
85
VSS
88
VSS
91
VSS
94
VSS
97
VSS
VDD051VDD156VDD262VDD372VDD478VDD5
NC/TEST
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
100
103
106
109
112
115
118
121
170
191
194
181
175
75
VDD6
VDD7
VDD8
VDD3
VDDQ0
VDDQ153VDDQ259VDDQ364VDDQ4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
124
127
130
133
VSS
136
139
142
145
148
151
154
157
197
172
187
VDDQ5
VDDQ6
VDDQ469VDDQ7
VSS
VSS
VSS
VSS
160
163
166
169
184
VDDQ7
VSS
198
VCC3VCC_DDRVCC3VCC_DDR
238
189
67
178
CB042CB143CB248CB349CB4
VDDQ8
VDDQ9
VDDSPD
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
201
VSS
204
207
210
213
216
219
222
225
MEM_MB_CHECK0 MEM_MB_CHECK1 MEM_MB_CHECK2 MEM_MB_CHECK3 MEM_MB_CHECK4 MEM_MB_CHECK5 MEM_MB_CHECK6 MEM_MB_CHECK7
161
162
167
168
CB5
CB6
CB7
7
DQS0
6
DQS0#
16
DQS1
15
DQS1#
28
DQS2
27
DQS2#
37
DQS3
36
DQS3#
84
DQS4
83
DQS4#
93
DQS5
92
DQS5#
105
DQS6
104
DQS6#
114
DQS7
113
DQS7#
46
DQS8
45
DQS8#
188
A0
183
A1
63
A2
182
A3
61
A4
60
A5
180
A6
58
A7
179
A8
177
A9
70
A10_AP
57
A11
176
A12
196
A13
174
A14
173
A15
54
A16/BA2
190
BA1
71
BA0
73
WE#
74
CAS#
192
RAS#
125
DM0/DQS9
126
NC/DQS9#
134
DM1/DQS10
135
NC/DQS10#
146
DM2/DQS11
147
NC/DQS11#
155
DM3/DQS12
156
NC/DQS12#
202
DM4/DQS13
203
NC/DQS13#
211
DM5/DQS14
212
NC/DQS14#
223
DM6/DQS15
224
NC/DQS15#
232
DM7/DQS16
233
NC/DQS16#
164
DM8/DQS17
165
NC/DQS17#
195
ODT0
77
ODT1
52
CKE0
171
CKE1
193
CS0#
76
CS1#
185
CK0(DU)
186
CK0#(DU)
137
CK1(CK0)
138
CK1#(CK0#)
220
CK2(DU)
221
CK2#(DU)
120
SCL
119
SDA
1
VREF
239
SA0
240
SA1
101
SA2
VSS
VSS
VSS
VSS
DDRII-240_ORANGE
DDRII-240_ORANGE
228
231
234
237
ADDRESS: 1010 011
MEM_MB_DQS_H0 MEM_MB_DQS_L0 MEM_MB_DQS_H1 MEM_MB_DQS_L1 MEM_MB_DQS_H2 MEM_MB_DQS_L2 MEM_MB_DQS_H3 MEM_MB_DQS_L3 MEM_MB_DQS_H4 MEM_MB_DQS_L4 MEM_MB_DQS_H5 MEM_MB_DQS_L5 MEM_MB_DQS_H6 MEM_MB_DQS_L6 MEM_MB_DQS_H7 MEM_MB_DQS_L7 MEM_MB_DQS_H8 MEM_MB_DQS_L8
MEM_MB_ADD0 MEM_MB_ADD1 MEM_MB_ADD2 MEM_MB_ADD3 MEM_MB_ADD4 MEM_MB_ADD5 MEM_MB_ADD6 MEM_MB_ADD7 MEM_MB_ADD8 MEM_MB_ADD9 MEM_MB_ADD10 MEM_MB_ADD11 MEM_MB_ADD12 MEM_MB_ADD13 MEM_MB_ADD14 MEM_MB_ADD15
MEM_MB_BANK2 MEM_MB_BANK1 MEM_MB_BANK0
MEM_MB_WE_L MEM_MB_CAS_L MEM_MB_RAS_L
MEM_MB_DM0 MEM_MB_DM1 MEM_MB_DM2 MEM_MB_DM3 MEM_MB_DM4 MEM_MB_DM5 MEM_MB_DM6 MEM_MB_DM7 MEM_MB_DM8
MEM_MB1_ODT0
MEM_MB1_CS_L0 MEM_MB1_CS_L1
MEM_MB1_CLK_H0 MEM_MB1_CLK_L0 MEM_MB1_CLK_H1 MEM_MB1_CLK_L1 MEM_MB1_CLK_H2 MEM_MB1_CLK_L2
SMB_MEM_CLK SMB_MEM_DATA
VDDR_VREF
MEM_MB_CHECK0 7,10 MEM_MB_CHECK1 7,10 MEM_MB_CHECK2 7,10 MEM_MB_CHECK3 7,10 MEM_MB_CHECK4 7,10 MEM_MB_CHECK5 7,10 MEM_MB_CHECK6 7,10 MEM_MB_CHECK7 7,10
MEM_MB_DQS_H0 7,10 MEM_MB_DQS_L0 7,10 MEM_MB_DQS_H1 7,10 MEM_MB_DQS_L1 7,10 MEM_MB_DQS_H2 7,10 MEM_MB_DQS_L2 7,10 MEM_MB_DQS_H3 7,10 MEM_MB_DQS_L3 7,10 MEM_MB_DQS_H4 7,10 MEM_MB_DQS_L4 7,10 MEM_MB_DQS_H5 7,10 MEM_MB_DQS_L5 7,10 MEM_MB_DQS_H6 7,10 MEM_MB_DQS_L6 7,10 MEM_MB_DQS_H7 7,10 MEM_MB_DQS_L7 7,10 MEM_MB_DQS_H8 7,10 MEM_MB_DQS_L8 7,10
MEM_MB_BANK2 7,10,12 MEM_MB_BANK1 7,10,12 MEM_MB_BANK0 7,10,12
MEM_MB_WE_L 7,10,12 MEM_MB_CAS_L 7,10,12 MEM_MB_RAS_L 7,10,12
MEM_MB1_ODT0 7,12
MEM_MB_CKE1 7,12
MEM_MB1_CS_L0 7,12 MEM_MB1_CS_L1 7,12
MEM_MB1_CLK_H0 7,12
MEM_MB1_CLK_L0 7,12
MEM_MB1_CLK_H1 7,12
MEM_MB1_CLK_L1 7,12
MEM_MB1_CLK_H2 7,12
MEM_MB1_CLK_L2 7,12
SMB_MEM_CLK 10,18
SMB_MEM_DATA 10,18
C665
C665
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
PLACE CLOSE TO DIMM PINPLACE CLOSE TO DIMM PIN
MEM_MB_ADD[15..0] 7,10,12
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
SECOND LOGICAL DDR DIMM
SECOND LOGICAL DDR DIMM
SECOND LOGICAL DDR DIMM
MS-7349
MS-7349
MS-7349
1
of
11 41Monday, May 28, 2007
of
11 41Monday, May 28, 2007
of
11 41Monday, May 28, 2007
1.0
1.0
1.0
Page 12
5
RTT:Place Behind DIMMs
VTT_DDR
RN16
RN16 47R_8P4R/4
MEM_MB_ADD147,10,11
MEM_MB_BANK27,10,11
MEM_MB_ADD127,10,11
D D
C C
MEM_MB_ADD97,10,11
MEM_MA_CKE07,10 MEM_MA_ADD157,10,11 MEM_MA_ADD147,10,11 MEM_MA_BANK27,10,11
MEM_MA_ADD87,10,11 MEM_MA_ADD67,10,11 MEM_MA_ADD57,10,11 MEM_MA_ADD47,10,11
MEM_MB_ADD37,10,11 MEM_MB_ADD17,10,11 MEM_MB_ADD27,10,11 MEM_MA_ADD27,10,11
MEM_MB_RAS_L7,10,11
MEM_MA_ADD07,10,11 MEM_MA_BANK17,10,11 MEM_MA_ADD107,10,11
MEM_MA_WE_L7,10,11
MEM_MB0_ODT07,10 MEM_MA_CAS_L7,10,11 MEM_MA0_ODT07,10
MEM_MB1_ODT07,11 MEM_MA_ADD137,10,11 MEM_MB1_CS_L17,11 MEM_MA1_CS_L17,11
MEM_MB_ADD14 MEM_MB_BANK2 MEM_MB_ADD12 MEM_MB_ADD9
MEM_MA_CKE0 MEM_MA_ADD15 MEM_MA_ADD14 MEM_MA_BANK2
MEM_MA_ADD8 MEM_MA_ADD6 MEM_MA_ADD5 MEM_MA_ADD4
MEM_MB_ADD3 MEM_MB_ADD1 MEM_MB_ADD2 MEM_MA_ADD2
MEM_MB_RAS_L MEM_MA_ADD0 MEM_MA_BANK1 MEM_MA_ADD10
MEM_MA_WE_L MEM_MB0_ODT0 MEM_MA_CAS_L MEM_MA0_ODT0
MEM_MB1_ODT0 MEM_MA_ADD13 MEM_MB1_CS_L1 MEM_MA1_CS_L1
47R_8P4R/4
1
2
3
4
5
6
7
8
RN17
RN17 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN20
RN20 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN22
RN22 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN24
RN24 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN26
RN26 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN57
RN57 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
4
3
2
1
Place Between Processor and DIMMs
VTT_DDR
RN14
RN14 47R_8P4R/4
MEM_MB_ADD117,10,11 MEM_MB_ADD77,10,11 MEM_MB_ADD87,10,11 MEM_MB_ADD67,10,11
MEM_MA_ADD127,10,11 MEM_MA_ADD97,10,11 MEM_MA_ADD117,10,11 MEM_MA_ADD77,10,11
MEM_MB_ADD57,10,11 MEM_MB_ADD47,10,11 MEM_MA_ADD37,10,11 MEM_MA_ADD17,10,11
MEM_MB_ADD07,10,11 MEM_MB_BANK17,10,11
MEM_MB_ADD107,10,11 MEM_MB_BANK07,10,11
MEM_MB1_CS_L07,11 MEM_MB0_CS_L07,10 MEM_MA_BANK07,10,11 MEM_MA_RAS_L7,10,11
MEM_MA_CKE17,11 MEM_MB_CKE17,11 MEM_MB_CKE07,10 MEM_MB_ADD157,10,11
MEM_MB_WE_L7,10,11 MEM_MB_CAS_L7,10,11
MEM_MA1_CS_L07,11 MEM_MA0_CS_L07,10
MEM_MA1_ODT07,11 MEM_MA0_CS_L17,10 MEM_MB_ADD137,10,11 MEM_MB0_CS_L17,10
MEM_MB_ADD11 MEM_MB_ADD7 MEM_MB_ADD8 MEM_MB_ADD6
MEM_MA_ADD12 MEM_MA_ADD9 MEM_MA_ADD11 MEM_MA_ADD7
MEM_MB_ADD5 MEM_MB_ADD4 MEM_MA_ADD3 MEM_MA_ADD1
MEM_MB_ADD0 MEM_MB_BANK1 MEM_MB_ADD10 MEM_MB_BANK0
MEM_MB1_CS_L0 MEM_MB0_CS_L0 MEM_MA_BANK0 MEM_MA_RAS_L
MEM_MA_CKE1 MEM_MB_CKE1 MEM_MB_CKE0 MEM_MB_ADD15
MEM_MB_WE_L MEM_MB_CAS_L MEM_MA1_CS_L0 MEM_MA0_CS_L0
MEM_MA1_ODT0 MEM_MA0_CS_L1 MEM_MB_ADD13 MEM_MB0_CS_L1
47R_8P4R/4
1
2
3
4
5
6
7
8
RN18
RN18 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN21
RN21 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN23
RN23 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN25
RN25 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN15
RN15 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN28
RN28 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
RN56
RN56 47R_8P4R/4
47R_8P4R/4
1
2
3
4
5
6
7
8
MEM_MA_ADD15 MEM_MA_ADD14 MEM_MA_ADD13 MEM_MA_ADD12 MEM_MA_ADD11 MEM_MA_ADD10 MEM_MA_ADD9 MEM_MA_ADD8 MEM_MA_ADD7 MEM_MA_ADD6 MEM_MA_ADD5 MEM_MA_ADD4 MEM_MA_ADD3 MEM_MB_ADD3 MEM_MA_ADD2 MEM_MA_ADD1 MEM_MA_ADD0
MEM_MA_CAS_L MEM_MA_WE_L MEM_MA_RAS_L
MEM_MA_BANK2 MEM_MA_BANK1 MEM_MA_BANK0
MEM_MA1_CLK_H27,11
MEM_MA1_CLK_L27,11
MEM_MA1_CLK_H17,11
MEM_MA1_CLK_L17,11
MEM_MA1_CLK_H07,11
MEM_MA1_CLK_L07,11
22pf/50V/NPO/4C446 22pf/50V/NPO/4C446 22pf/50V/NPO/4C441 22pf/50V/NPO/4C441 22pf/50V/NPO/4C479 22pf/50V/NPO/4C479 22pf/50V/NPO/4C445 22pf/50V/NPO/4C445 22pf/50V/NPO/4C449 22pf/50V/NPO/4C449 22pf/50V/NPO/4C476 22pf/50V/NPO/4C476 22pf/50V/NPO/4C455 22pf/50V/NPO/4C455 22pf/50V/NPO/4C459 22pf/50V/NPO/4C459 22pf/50V/NPO/4C452 22pf/50V/NPO/4C452 22pf/50V/NPO/4C465 22pf/50V/NPO/4C465 22pf/50V/NPO/4C460 22pf/50V/NPO/4C460 22pf/50V/NPO/4C464 22pf/50V/NPO/4C464 22pf/50V/NPO/4C467 22pf/50V/NPO/4C467 22pf/50V/NPO/4C468 22pf/50V/NPO/4C468 22pf/50V/NPO/4C471 22pf/50V/NPO/4C471 22pf/50V/NPO/4C474 22pf/50V/NPO/4C474
22pf/50V/NPO/4C475 22pf/50V/NPO/4C475 22pf/50V/NPO/4C478 22pf/50V/NPO/4C478 22pf/50V/NPO/4C477 22pf/50V/NPO/4C477
22pf/50V/NPO/4C451 22pf/50V/NPO/4C451 22pf/50V/NPO/4C472 22pf/50V/NPO/4C472 22pf/50V/NPO/4C473 22pf/50V/NPO/4C473
MEM_MA1_CLK_H2
MEM_MA1_CLK_L2
MEM_MA1_CLK_H1
MEM_MA1_CLK_L1
MEM_MA1_CLK_H0
MEM_MA1_CLK_L0
VCC_DDR
C238
C238
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
C529
C529
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
C534
C534
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
MEM_MB_ADD15 MEM_MB_ADD14 MEM_MB_ADD13 MEM_MB_ADD12 MEM_MB_ADD11 MEM_MB_ADD10 MEM_MB_ADD9 MEM_MB_ADD8 MEM_MB_ADD7 MEM_MB_ADD6 MEM_MB_ADD5 MEM_MB_ADD4
MEM_MB_ADD2 MEM_MB_ADD1 MEM_MB_ADD0
MEM_MB_CAS_L MEM_MB_WE_L MEM_MB_RAS_L
MEM_MB_BANK2 MEM_MB_BANK1 MEM_MB_BANK0
MEM_MA0_CLK_H27,10
MEM_MA0_CLK_L27,10
MEM_MA0_CLK_H17,10
MEM_MA0_CLK_L17,10
MEM_MA0_CLK_H07,10
MEM_MA0_CLK_L07,10
22pf/50V/NPO/4C101 22pf/50V/NPO/4C101 22pf/50V/NPO/4C95 22pf/50V/NPO/4C95 22pf/50V/NPO/4C160 22pf/50V/NPO/4C160 22pf/50V/NPO/4C98 22pf/50V/NPO/4C98 22pf/50V/NPO/4C100 22pf/50V/NPO/4C100 22pf/50V/NPO/4C142 22pf/50V/NPO/4C142 22pf/50V/NPO/4C109 22pf/50V/NPO/4C109 22pf/50V/NPO/4C103 22pf/50V/NPO/4C103 22pf/50V/NPO/4C107 22pf/50V/NPO/4C107 22pf/50V/NPO/4C116 22pf/50V/NPO/4C116 22pf/50V/NPO/4C105 22pf/50V/NPO/4C105 22pf/50V/NPO/4C120 22pf/50V/NPO/4C120 22pf/50V/NPO/4C111 22pf/50V/NPO/4C111 22pf/50V/NPO/4C118 22pf/50V/NPO/4C118 22pf/50V/NPO/4C124 22pf/50V/NPO/4C124 22pf/50V/NPO/4C132 22pf/50V/NPO/4C132
22pf/50V/NPO/4C133 22pf/50V/NPO/4C133 22pf/50V/NPO/4C150 22pf/50V/NPO/4C150 22pf/50V/NPO/4C147 22pf/50V/NPO/4C147
22pf/50V/NPO/4C102 22pf/50V/NPO/4C102 22pf/50V/NPO/4C125 22pf/50V/NPO/4C125 22pf/50V/NPO/4C130 22pf/50V/NPO/4C130
MEM_MA0_CLK_H2
MEM_MA0_CLK_L2
MEM_MA0_CLK_H1
MEM_MA0_CLK_L1
MEM_MA0_CLK_H0
MEM_MA0_CLK_L0
VCC_DDR
C165
C165
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
C54
C54
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
C113
C113
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
MEM_MB1_CLK_H27,11
B B
MEM_MB1_CLK_L27,11
MEM_MB1_CLK_H17,11
MEM_MB1_CLK_L17,11
MEM_MB1_CLK_H07,11
VTT_DDR
0.1uf/10V/X7R/4
C121
C121
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
5
0.1uf/10V/X7R/4 C183
C183
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C129
C129
C115
C115
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C180
C180
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C123
C123
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C110
C110
C108
C108
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C106
C106
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
VCC_DDR
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C193
C193
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
VTT_DDR
C234
C234
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C184
C184
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C228
C228
C176
C176
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C153
C153
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C233
C233
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4 C226
C226
C164
C164
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C152
C152
C231
C231
VCC_DDR
3
C131
C131
C232
C232 X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
MEM_MB1_CLK_L07,11
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4 C126
C127
C127
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
VTT_DDR
A A
C178
C178
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C126
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C172
C172
MEM_MB1_CLK_H2
MEM_MB1_CLK_L2
MEM_MB1_CLK_H1
MEM_MB1_CLK_L1
MEM_MB1_CLK_H0
MEM_MB1_CLK_L0
2
C273
C273
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
C161
C161
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
C533
C533
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
MEM_MB0_CLK_H27,10
MEM_MB0_CLK_L27,10
MEM_MB0_CLK_H17,10
MEM_MB0_CLK_L17,10
MEM_MB0_CLK_H07,10
MEM_MB0_CLK_L07,10
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
DDR II Termination
DDR II Termination
DDR II Termination
MEM_MB0_CLK_H2
MEM_MB0_CLK_L2
MEM_MB0_CLK_H1
MEM_MB0_CLK_L1
MEM_MB0_CLK_H0
MEM_MB0_CLK_L0
MS-7349
MS-7349
MS-7349
1
12 41Monday, May 28, 2007
12 41Monday, May 28, 2007
12 41Monday, May 28, 2007
C163
C163
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
C65
C65
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
C117
C117
1.5pf/50V/NPO/4
1.5pf/50V/NPO/4
of
1.0
1.0
1.0
Page 13
5
4
3
2
1
NF-7050SE-630A-A2 (MCP68PV) : B01-MCP6815-N08
NF-7025-630A-A2 (MCP68S) : B01-MCP6825-N08
NF-7050-630A-A2 (MCP68PVNT) : B01-MCP6835-N08
U14A
U14A
PBGA692
PBGA692
CADOP[0..15]6
D D
CADON[0..15]6
C C
VCC1_2HT
VCC1.2
2.2uF/6.3V/X5R/6_B
2.2uF/6.3V/X5R/6_B
R341 150R/1%/4R341 150R/1%/4 R342 150R/1%/4_BR342 150R/1%/4_B
R341 , R342 Within 600 mils of MCP68
CP37CP37
width 12 mil
C488
C488
R126
R126 300R/4
300R/4
VCC_DDR
R127
R127 300R/4
300R/4
VCC_DDR
R135
R135 0R/4
B B
PROCHOT#6
CPU_THRIP#6
0R/4
5/10/10
CADOP[0..15]
CADON[0..15]
CLKOP06
CLKON06
CLKOP16
CLKON16
CTLOP06
CTLON06
CTLOP16
CTLON16
1.2V_PLL_CPU_HT
C542
C542
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
HT_MCP_COMP_VDD HT_MCP_COMP_GND
CADOP0 CADOP1 CADOP2 CADOP3 CADOP4 CADOP5 CADOP6 CADOP7 CADOP8 CADOP9 CADOP10 CADOP11 CADOP12 CADOP13 CADOP14 CADOP15
CADON0 CADON1 CADON2 CADON3 CADON4 CADON5 CADON6 CADON7 CADON8 CADON9 CADON10 CADON11 CADON12 CADON13 CADON14 CADON15
CLKOP0 CLKON0 CLKOP1 CLKON1
CTLOP0 CTLON0 CTLOP1 CTLON1 CTLIN1
PROCHOT_SB# CPU_THRIP#
VCC3_PLL1.2V_PLL_CPU_HT
70
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
AJ10 AG12 AG13 AK13
AJ14 AB10 AD10
AF10 AC12 AB11 AB13
AF14 AE14
AH10 AH12 AH13
AJ13 AH14 AC10 AE10 AG10 AD12 AC11 AB12 AG14 AD14
AJ11 AH11 AE12
AF12
AJ15 AH15 AB14 AC14
AC15 AB15
12
C543
C543
AG8 AG9 AK9
AH8 AH9
AJ9
AB9 AB8
AD8 AE8
HT_MCP_RXD0_P HT_MCP_RXD1_P HT_MCP_RXD2_P HT_MCP_RXD3_P HT_MCP_RXD4_P HT_MCP_RXD5_P HT_MCP_RXD6_P HT_MCP_RXD7_P HT_MCP_RXD8_P HT_MCP_RXD9_P HT_MCP_RXD10_P HT_MCP_RXD11_P HT_MCP_RXD12_P HT_MCP_RXD13_P HT_MCP_RXD14_P HT_MCP_RXD15_P
HT_MCP_RXD0_N HT_MCP_RXD1_N HT_MCP_RXD2_N HT_MCP_RXD3_N HT_MCP_RXD4_N HT_MCP_RXD5_N HT_MCP_RXD6_N HT_MCP_RXD7_N HT_MCP_RXD8_N HT_MCP_RXD9_N HT_MCP_RXD10_N HT_MCP_RXD11_N HT_MCP_RXD12_N HT_MCP_RXD13_N HT_MCP_RXD14_N HT_MCP_RXD15_N
HT_MCP_RX_CLK0_P HT_MCP_RX_CLK0_N HT_MCP_RX_CLK1_P HT_MCP_RX_CLK1_N
HT_MCP_RXCTL0_P HT_MCP_RXCTL0_N RESERVED35 RESERVED36
HT_MCP_COMP_VDD
HT_MCP_COMP_GND
PROCHOT/GPIO20# THERMTRIP/GPIO58#
+1.2V_PLL_CPU_HT +3.3V_PLL_CPU
Solder Side
MCP68
MCP68
SEC 1 OF 8
SEC 1 OF 8
HT_MCP_TXD0_P HT_MCP_TXD1_P HT_MCP_TXD2_P HT_MCP_TXD3_P HT_MCP_TXD4_P HT_MCP_TXD5_P HT_MCP_TXD6_P HT_MCP_TXD7_P HT_MCP_TXD8_P HT_MCP_TXD9_P HT_MCP_TXD10_P HT_MCP_TXD11_P HT_MCP_TXD12_P HT_MCP_TXD13_P HT_MCP_TXD14_P HT_MCP_TXD15_P
HT_MCP_TXD0_N HT_MCP_TXD1_N HT_MCP_TXD2_N HT_MCP_TXD3_N HT_MCP_TXD4_N HT_MCP_TXD5_N HT_MCP_TXD6_N HT_MCP_TXD7_N HT_MCP_TXD8_N HT_MCP_TXD9_N HT_MCP_TXD10_N HT_MCP_TXD11_N HT_MCP_TXD12_N HT_MCP_TXD13_N HT_MCP_TXD14_N HT_MCP_TXD15_N
HT_MCP_TX_CLK0_P HT_MCP_TX_CLK0_N HT_MCP_TX_CLK1_P HT_MCP_TX_CLK1_N
HT_MCP_TXCTL0_P HT_MCP_TXCTL0_N
RESERVED33 RESERVED34
HT_MCP_REQ# HT_MCP_STOP# HT_MCP_RST#
HT_MCP_PWRGD
CLKOUT_200MHZ_P CLKOUT_200MHZ_N
CPU_SBVREF
CLKOUT_25MHZ
CLK200_TERM_GND
CADIP0
AH23
CADIP1
AH22
CADIP2
AJ21
CADIP3
AH21
CADIP4
AH19
CADIP5
AH18
CADIP6
AJ17
CADIP7
AH17
CADIP8
AF22
CADIP9
AB20
CADIP10
AC20
CADIP11
AE20
CADIP12
AD18
CADIP13
AF18
CADIP14
AB17
CADIP15
AC16
CADIN0
AJ23
CADIN1
AJ22
CADIN2
AK21
CADIN3
AG21
CADIN4
AJ19
CADIN5
AJ18
CADIN6
AK17
CADIN7
AG17
CADIN8
AG22
CADIN9
AB19
CADIN10
AD20
CADIN11
AF20
CADIN12
AE18
CADIN13
AG18
CADIN14
AB16
CADIN15
AD16
AH20 AG20 AC18 AB18
AH16 AG16 AE16 AF16
AH25 AH24 AG23 AG24
AK25 AJ25
AF24 AK26 AJ26
R171 Within 1000 mils of MCP68
CLKIP0 CLKIN0 CLKIP1 CLKIN1
CTLIP0 CTLIN0 CTLIP1
HT_MCP_REQ#
-LDTSTOP
-LDT_RST CPU_GD
CPUCLKO_H CPUCLKO_L
5/5/20
CLKOUT25Mhz
CLK200_TERM_GND
5/10/10
MCP68 NC MCP78
CADIP[0..15]
CADIN[0..15]
C498 Within 500 mils of MCP68
CADIP[0..15] 6
CADIN[0..15] 6
CLKIP0 6 CLKIN0 6 CLKIP1 6 CLKIN1 6
CTLIP0 6 CTLIN0 6 CTLIP1 6 CTLIN1 6
-LDTSTOP 6
-LDT_RST 6 CPU_GD 6
CPUCLKO_H 6 CPUCLKO_L 6
width 8 mil
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
R171
R171 X_2.37K/1%/4
X_2.37K/1%/4
C663
C663
4.7uf/10V/Y5V/8
4.7uf/10V/Y5V/8
MCP68 4.7u MCP78
3VDUAL
C498
C498
R167
R167
10K/4
10K/4
MCP68 10K MCP78
VCC1.2
Solder Side
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
Date: Sheet
2
MCP68PV/78-HT
MCP68PV/78-HT
MCP68PV/78-HT
MS-7349
MS-7349
MS-7349
1.0
1.0
1.0
of
13 41Monday, May 28, 2007
of
13 41Monday, May 28, 2007
of
13 41Monday, May 28, 2007
1
Page 14
5
MCP68 R535 , C540 , C661 MCP78
3.3V_HDMI +3.3V_HDMI_PLL_HVDD
R535 0R/6R535 0R/6
C540
C540
0.1uf/10V/X7R/4
3.3HDMIG
DS
0.1uf/10V/X7R/4
HDCP_ROM_SCLKR
+3.3V_HDMI
C539
C539
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
VCC3
DS
G
R644
R644
10K/4
10K/4
D D
MCP68 R521 MCP78
HDCP_ROM_SCLK19
C C
BackDrive Prevention Circuit
MCP68 Q44 , Q45 , R644 MCP78
ATX_PWR_OK18,29,31,34
N-2N7002_SOT23
N-2N7002_SOT23
PMOS of Q44
B B
D03-0230519-V02 D03-0338P09-F01 7225 D03-0230129-C38 7329
R521 X_0R/4R521 X_0R/4
MCP68 R529 , C539 MCP78
3.3V_HDMI
R529 0R/6R529 0R/6
G
Q45
Q45
4
C661
C661
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8
Q44
Q44 PA502FMG_SOT23
PA502FMG_SOT23
3.3V_HDMI
VCC1.2
5/6/20
PE0_PRSNTX16#21
CP40CP40
PE_WAKE#21
1.2V_PLL_PE
C496
C496 10uf/10V/Y5V/8_B
10uf/10V/Y5V/8_B
PE0_RX021 PE0_RX121 PE0_RX221 PE0_RX321 PE0_RX421 PE0_RX521 PE0_RX621 PE0_RX721 PE0_RX821 PE0_RX921 PE0_RX1021 PE0_RX1121 PE0_RX1221 PE0_RX1321 PE0_RX1421 PE0_RX1521
PE0_RX0#21 PE0_RX1#21 PE0_RX2#21 PE0_RX3#21 PE0_RX4#21 PE0_RX5#21 PE0_RX6#21 PE0_RX7#21 PE0_RX8#21 PE0_RX9#21 PE0_RX10#21 PE0_RX11#21 PE0_RX12#21 PE0_RX13#21 PE0_RX14#21 PE0_RX15#21
+3.3V_HDMI_PLL_HVDD
HDCP_ROM_SCLKR +3.3V_HDMI
PE0_PRSNTX16#
width 15 mil
30
160
C545
C545
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
3
AF27 AF28 AE26 AF29
W22
H23 H25
K22 K24
K26 M22 M23 M26
P22
P26
P25
T23
T26 U23
V24
V27
H24 H26
K23
K25
K27
L22 M24 M25
P23
P27
P24
T24
T25
V23
V25
V26
B22
Y22
U22
V22
U14B
U14B
PBGA692
PBGA692
PE0_RX0_P PE0_RX1_P PE0_RX2_P PE0_RX3_P PE0_RX4_P PE0_RX5_P PE0_RX6_P PE0_RX7_P PE0_RX8_P PE0_RX9_P PE0_RX10_P PE0_RX11_P PE0_RX12_P PE0_RX13_P PE0_RX14_P PE0_RX15_P
PE0_RX0_N PE0_RX1_N PE0_RX2_N PE0_RX3_N PE0_RX4_N PE0_RX5_N PE0_RX6_N PE0_RX7_N PE0_RX8_N PE0_RX9_N PE0_RX10_N PE0_RX11_N PE0_RX12_N PE0_RX13_N PE0_RX14_N PE0_RX15_N
PE_WAKE/GPIO21# +3.3V_HDMI_PLL_HVDD HDCP_ROM_SCLK +3.3V_HDMI PE0_PRSNTX16#
+1.2V_PLL_PE_SS1 +1.2V_PLL_PE_SS2
+1.2V_PLL_PE1 +1.2V_PLL_PE2
MCP68
MCP68
SEC 2 OF 8
SEC 2 OF 8
2
PE0_TX0_P PE0_TX1_P PE0_TX2_P PE0_TX3_P PE0_TX4_P PE0_TX5_P PE0_TX6_P PE0_TX7_P PE0_TX8_P PE0_TX9_P PE0_TX10_P PE0_TX11_P PE0_TX12_P PE0_TX13_P PE0_TX14_P PE0_TX15_P
PE0_TX0_N PE0_TX1_N PE0_TX2_N PE0_TX3_N PE0_TX4_N PE0_TX5_N PE0_TX6_N PE0_TX7_N PE0_TX8_N PE0_TX9_N PE0_TX10_N PE0_TX11_N PE0_TX12_N PE0_TX13_N PE0_TX14_N PE0_TX15_N
PE0_REFCLK_P PE0_REFCLK_N
HDMI_TXD0_N HDMI_TXD0_P
PE_RESET#
PE_CLK_COMP
+3.3V_PLL_PE_SS1 +3.3V_PLL_PE_SS2
G29 H27 J27 J30 K29 L29 M27 N27 N30 P29 R29 T27 U27 U30 V29 W29
G28 H28 J28 J29 K28 L28 M28 N28 N29 P28 R28 T28 U28 U29 V28 W28
Y24 Y23
AC24 AC25
AH29
PE_COMP
AJ30
30
R22 T22
C506
C506
2.2uF/6.3V/X5R/6_B
2.2uF/6.3V/X5R/6_B
PE0_TX0 21 PE0_TX1 21 PE0_TX2 21 PE0_TX3 21 PE0_TX4 21 PE0_TX5 21 PE0_TX6 21 PE0_TX7 21 PE0_TX8 21 PE0_TX9 21 PE0_TX10 21 PE0_TX11 21 PE0_TX12 21 PE0_TX13 21 PE0_TX14 21 PE0_TX15 21
PE0_TX0# 21 PE0_TX1# 21 PE0_TX2# 21 PE0_TX3# 21 PE0_TX4# 21 PE0_TX5# 21 PE0_TX6# 21 PE0_TX7# 21 PE0_TX8# 21 PE0_TX9# 21 PE0_TX10# 21 PE0_TX11# 21 PE0_TX12# 21 PE0_TX13# 21 PE0_TX14# 21 PE0_TX15# 21
PE0_CLK 21 PE0_CLK# 21
HDMI_TXD0N 24 HDMI_TXD0P 24
PE_RST# 21
R191 X_2.37K/1%/6R191 X_2.37K/1%/6
VCC3_PLL
width 25 mil
C544
C544
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
1
5/6/20
5/5/20
R191 NC DA-02811-001_v05_68.doc
R191 Within 500 mils of MCP68
Solder Side
Solder Side
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
Date: Sheet
2
MCP68PV/78-PEX X16
MCP68PV/78-PEX X16
MCP68PV/78-PEX X16
MS-7349
MS-7349
MS-7349
1.0
1.0
1.0
of
14 41Monday, May 28, 2007
of
14 41Monday, May 28, 2007
of
14 41Monday, May 28, 2007
1
Page 15
5
PE1_RX21
D D
PE1_RX#21
5/6/20
PE1_PRSNT#21
R193 Route 20 mil to R193 max length of 750 mils from MCP68
R193 MCP68 1K/1% MCP78
MCP68 R548 MCP78 R554
C C
R554
R554
X_0R/6_B
X_0R/6_B
2.2uF/6.3V/X5R/6_B
2.2uF/6.3V/X5R/6_B
Solder Side
1.2VDUAL
C551
C551
3VDUAL
R548
R548 0R/6_B
0R/6_B
C550
C550
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
3VDUAL
6
HDMI_DDC_DATA24
CRB
width 15 mil
3VDUAL
HDMI_TXD1N24 HDMI_TXD1P24
HDMI_DDC_CLK24
HPLUG_DET324
HSYNC#23
VSYNC#23
MII_RXD020 MII_RXD120 MII_RXD220 MII_RXD320 MII_RXCLK20 MII_RXDV20
MII_RX_ER20 MII_COL20 MII_CRS20
R618 10K/4R618 10K/4
R235 49.9R/1%/4R235 49.9R/1%/4 R247 49.9R/1%/4R247 49.9R/1%/4
HDMI_RSET
R193 1K/1%/4R193 1K/1%/4
HSYNC# VSYNC#
MII_RXD0 MII_RXD1 MII_RXD2 MII_RXD3 MII_RXCLK MII_RXDV
MII_RX_ER MII_COL MII_CRS
MII_INTR
+3.3V_PLL_MAC_DUAL
Please R235 , R247 within 750 mil of MCP68 and route with trace Width >7.5 mils
MII_COMP_3.3V MII_COMP_GND
4
U14C
U14C
PBGA692
AB29 AB28
AK29
AG28 AG30
AC27 AC26
AD27 AD28
AE30 AE29
AJ29 AG29 AH30
D26
C26
D24
G24
C23
PBGA692
Y28 Y27
E26 B26 B27 A26
E24 F23
M9
B23
PE1_RX_P PE1_RX_N PE2_RX_P PE2_RX_N
PEA_CLKREQ/GPIO51#
PE1_PRSNT# PE2_PRSNT#
HDMI_TXD1_N HDMI_TXD1_P
PE3_RX_P PE3_RX_N HDMI_DDC_DATA HDMI_DDC_CLK HDMI_REST PE3_PRSNT# HPLUG_DET3
RGMII_RXD0/MII_RXD0 RGMII_RXD1/MII_RXD1 RGMII_RXD2/MII_RXD2 RGMII_RXD3/MII_RXD3 RGMII_RXCLK/MII_RXCLK RGMII_RXCTL/MII_RXDV
MII_RXER/GPIO36 MII_COL/GPIO13/MI2C_DATA MII_CRS/GPIO14/MI2C_CLK
RGMII/MII_INTR/GPIO35
+3.3V_PLL_MAC_DUAL
MII_COMP_3P3V MII_COMP_GND
MCP68
MCP68
SEC 3 OF 8
SEC 3 OF 8
3
PE1_TX_P PE1_TX_N PE2_TX_P PE2_TX_N
PE1_REFCLK_P PE1_REFCLK_N PE2_REFCLK_P PE2_REFCLK_N
PE3_TX_P
PE3_TX_N HDMI_TXC0_P HDMI_TXC0_N PE3_REFCLK_P PE3_REFCLK_N HDMI_TXD2_N HDMI_TXD2_P
RGMII_TXD0/MII_TXD0 RGMII_TXD1/MII_TXD1 RGMII_TXD2/MII_TXD2
RGMII_TXD3/MII_TXD3 RGMII_TXCLK/MII_TXCLK RGMII_TXCTL/MII_TXEN
RGMII/MII_MDC RGMII/MII_MDIO
RGMII/MII_PWRDWN/GPIO37
BUF_25MHZ
MII_RESET/GPIO12#
MII_VREF
AA28 AA27 AA30 AA29
Y26 Y25 AB23 AA23
AC29 AC28 AE27 AE28 AB24 AB25 AB27 AB26
A28 B28 D28 E27 D27 E28
B25 A25
F24 C24 C25
C27
MII25MHZ
PE1_TX 21 PE1_TX# 21
5/6/20
PE1_CLK 21 PE1_CLK# 21
5/5/20
HDMI_TXC0P 24 HDMI_TXC0N 24
HDMI_TXD2N 24 HDMI_TXD2P 24
MIITXD0 MIITXD1 MIITXD2 MIITXD3 MIITXCLK MII_TXCLK MIITXEN
MII_MDC 20
MII_MDIO 20
MII_RST# 20
C304
C304
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
R246 22R/4R246 22R/4 R249 0R/4_BR249 0R/4_B
7 8 5 6 3 4 1 2
2
Close to MCP68
RN38
RN38 0R_8P4R/4
0R_8P4R/4
MII_TXD1 MII_TXD0 MII_TXD2 MII_TXD3
MII_TXEN
X_18pf/50V/NPO/4C379 X_18pf/50V/NPO/4C379
MII_VREF
MII_TXD1 20 MII_TXD0 20 MII_TXD2 20
MII_TXD3 20
MII_TXCLK 20 MII_TXEN 20
1
Must be length-matched to the clocks( MII_RXCLK , MII_TXCLK ) within 90mil instead 100 mil as stated in the design guide.
MII25MHZ
C537 X_10pf/50V/NPO/4C537 X_10pf/50V/NPO/4
3VDUAL
R245
R245
1.47K/1%/4
1.47K/1%/4
MCP68 1.47k 1% MCP78
R239
R239
1.47K/1%/4
1.47K/1%/4
Width = 10 mils / 10 milsWidth = 7.5 mils / 10 mils
R
R23
G
G23
B
B23
R229
R229 150R/1%/4
150R/1%/4
B B
R230
R230 150R/1%/4
150R/1%/4
R231
R231
C570
C570
150R/1%/4
150R/1%/4 X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
PLACE NEAR MCP68
R344 Within 750 mils of MCP68
C296 Within 500 mils of MCP68
VCC3
CP36CP36
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C556
C556
C555
C555
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
R344
R344
124R/1%/6
124R/1%/6
C296
C296
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
100
C541
C541
R586 0R/4R586 0R/4 R587 0R/4R587 0R/4 R588 0R/4R588 0R/4
R_R G_R B_R
HSYNC# VSYNC#
<750 mils
DAC_RSET DAC_VREF
<500 mils
R344 , C296 5 / 10 / 10
3.3V_DAC
width 8 mil
C662
C662
4.7uf/10V/X5R/8_B
4.7uf/10V/X5R/8_B
D30 D29 C30
C29
DAC_RED DAC_GREEN DAC_BLUE
DAC_HSYNC
B30
DAC_VSYNC
DAC_RSET
B29 A29
DAC_VREF
+3.3V_DAC
F28
Solder Side
DDC_CLK/GPIO17
DDC_DATA/GPIO19
JTAG_TCK JTAG_TDI JTAG_TDO JTAG_TMS
JTAG_TRST#
XTALIN XTALOUT
XTALIN_RTC
XTALOUT_RTC
B6 A6
M7 M5 M6 M8 L9
K7 K8
K6 K5
R161
R161 10K/4
10K/4
R373
R373
10K/4_B
10K/4_B
XTAL_IN XTAL_OUT
XTALIN_RTC
XTALOUT_RTC
Ref to GND
C261
C261
15pf/16V/NPO/6
15pf/16V/NPO/6
DDC_CLK 23 DDC_DATA 23
3 4
Y3
Y3
32.768KHZ/12.5pF
32.768KHZ/12.5pF
R373 MCP68 Stuff up MCP78
21
C262
C262
15pf/16V/NPO/6
15pf/16V/NPO/6
Y1
Y1
25MHZ/18pf/HC49S
25MHZ/18pf/HC49S C215
C215
22pf/50V/NPO/4
22pf/50V/NPO/4
Y1, Y2 Within 1000 mils of MCP68
C211
C211
22pf/50V/NPO/4
22pf/50V/NPO/4
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MCP68PV/78-PEX & MII & DAC
MCP68PV/78-PEX & MII & DAC
MCP68PV/78-PEX & MII & DAC
MS-7349
MS-7349
MS-7349
15 41Monday, May 28, 2007
15 41Monday, May 28, 2007
15 41Monday, May 28, 2007
1
1.0
1.0
1.0
of
of
of
Page 16
5
4
3
2
1
VCC3
RN46
RN46
8.2K_8P4R/4
U14D
U14D
PBGA692
PBGA692
AD[31..0]22,28
D D
C_BE#[3..0]22,28
C C
PCIRST_SLOT1#22 PCIRST_SLOT2#22
MS6_RST#31 1394_RST#28
B B
SIO_RST#29
AD[31..0]
C_BE#[3..0]
FRAME#22,28
IRDY#22,28
TRDY#22,28
STOP#22,28
DEVSEL#22,28
PAR22,28 PERR#22,28 SERR#22
PME#22
R219 33R/4R219 33R/4 R222 33R/4R222 33R/4 R215 33R/4R215 33R/4 R200 X_33R/4R200 X_33R/4 R194 33R/4R194 33R/4
FRAME# IRDY# TRDY# STOP# DEVSEL# PAR PERR# SERR# PME#
PCI_RESET1# PCI_RESET2#
MS6RST# 1394RST# SIORST#
C_BE#0 C_BE#1 C_BE#2 C_BE#3
AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD9 AD10 AD11 AD12 AD13 AD14 AD15 AD16 AD17 AD18 AD19 AD20 AD21 AD22 AD23 AD24 AD25 AD26 AD27 AD28 AD29 AD30 AD31
PCI_C/BE*0
PCI_C/BE*1
PCI_C/BE*3
PCI_AD0
D14
PCI_AD1
E14
PCI_AD2
A13
PCI_AD3
C14
PCI_AD4
A14
PCI_AD5
B14
PCI_AD6
C15
PCI_AD7
J16
PCI_AD8
G16
PCI_AD9
F16
PCI_AD10
E16
PCI_AD11
B15
PCI_AD12
D16
PCI_AD13
C16
PCI_AD14
D17
PCI_AD15
C17
PCI_AD16
J19
PCI_AD17
J20
PCI_AD18
H20
PCI_AD19
G20
PCI_AD20
F20
PCI_AD21
E20
PCI_AD22
B18
PCI_AD23
C19
PCI_AD24
D20
PCI_AD25
C20
PCI_AD26
D21
PCI_AD27
C21
PCI_AD28
B21
PCI_AD29
H22
PCI_AD30
G22
PCI_AD31
F22
PCI_CBE0#
H16
PCI_CBE1#
B17
PCI_CBE2#
A18
PCI_CBE3#
B19
PCI_FRAME#
C18
PCI_IRDY#
A17
PCI_TRDY#
D18
PCI_STOP#
F18
PCI_DEVSEL#
E18
PCI_PAR
J18
PCI_PERR/GPIO43/RS232_DCD#
G18
PCI_SERR#
H18
PCI_PME/GPIO30#
E22
PCI_RESET0#
C13
PCI_RESET1#
G14
PCI_RESET2#
B11
PCI_RESET3#
F12
LPC_RESET#
D9
Within 500 mils of MCP68
MCP68
MCP68
SEC 4 OF 8
SEC 4 OF 8
PCI_REQ2/GPIO40/RS232_DSR# PCI_REQ3/GPIO38/RS232_CTS# PCI_REQ4/GPIO52/RS232_SIN#
PCI_GNT2/GPIO41/RS232_DTR# PCI_GNT3/GPIO39/RS232_RTS# PCI_GNT4/GPIO53/RS232_SOUT#
LPC_PWRDWN#/GPIO54/EXT_NMI#
LPC_DRQ1/GPIO15/FANRPM1#
PCI_REQ0# PCI_REQ1#
PCI_GNT0# PCI_GNT1#
PCI_INTW# PCI_INTX# PCI_INTY# PCI_INTZ#
PCI_CLK0 PCI_CLK1 PCI_CLK2 PCI_CLK3 PCI_CLK4
PCI_CLKIN
LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3
LPC_FRAME#
LPC_DRQ0/GPIO50#
LPC_SERIRQ
LPC_CLK0
LPC_CLK1
G12 A10 C11 H14 D13
A9 C10 B10 J14 C12
C22 D22 A22 A21
PCICLK0
B13
PCICLK1
F14
PCICLK2
D12
PCICLK3
E12
PCICLK4
H12
PCI_CLKIN
J12
G10 F10 D10 E10
C8 H10 C9 B9 J10
SIOPCLK
E8
LPCPCLK
D8
C272
C272
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
PCI_REQ0# PCI_REQ1# PCI_REQ2# PCI_REQ3# PCI_REQ4#
PCI_GNT2# PCI_GNT3# PCI_GNT4#
PCI_INTW# PCI_INTX# PCI_INTY# PCI_INTZ#
PCI_REQ2# 28 PCI_REQ3# 22 PCI_REQ4# 22
PCI_GNT2# 28 PCI_GNT3# 22 PCI_GNT4# 22
PCI_INTW# 22 PCI_INTX# 22 PCI_INTY# 22 PCI_INTZ# 22,28
PCICLK2 PCICLK1
PCICLK0 PCICLK3
1 2 3 4 5 6 7 8
R366 22R/4R366 22R/4 R397 22R/4R397 22R/4
Length=PCI slot clock + 3 inchs
LPC length should be less than 18 inches.
LPCAD0 LPCAD1 LPCAD2 LPCAD3
R367 X_10K/4R367 X_10K/4 R188 22R/4R188 22R/4
R217 , C270 ; R218 , C272 Within 500 mils of MCP68
LPCAD1
1 2
LPCAD0
3 4
LPCAD3
5 6
LPCAD2
7 8
VCC3
LPC_PD# 29 LPC_FRAME# 29 LPC_DRQ#0 29
SERIRQ 29
R217 33R/4R217 33R/4
R218 22R/4R218 22R/4
JLPC1 Stuff => R218 , R331 , R330 Stuff JLPC1 Nc => R218 , R331 , R330 NC
C270
C270 X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
RN37
RN37 22R_8P4R/4
22R_8P4R/4
PCICLK_SLOT2 22 PCICLK_SLOT1 22
PCICLK_1394 28 PCICLK_TPM 29
LPC_AD1 LPC_AD0 LPC_AD3
RN35
RN35 22R_8P4R/4
22R_8P4R/4
LPC_AD2
TPM U22 => R367 NC if U22 NC => R367 Stuff
SIO_PCLK 29
LPC_PCLK 29
PCICLK0 PCICLK2 PCICLK1 PCICLK3 PCICLK4
RN37,R366,R397,C266,C269,C264,C535,C536 Within 500 mils of MCP68
LPC_AD[3..0] 29
8.2K_8P4R/4
R205
R205
8.2K/4
8.2K/4
R343
R343
8.2K/4
8.2K/4
RN42
RN42
8.2K_8P4R/4
8.2K_8P4R/4
12 34 56 78
12 34 56 78
PCI_REQ2# PCI_REQ1# PCI_REQ0#
PCI_REQ4#
PCI_REQ3#
PCI_INTX# PCI_INTY# PCI_INTZ# PCI_INTW#
C266 10pf/50V/NPO/4C266 10pf/50V/NPO/4 C269 10pf/50V/NPO/4C269 10pf/50V/NPO/4 C264 10pf/50V/NPO/4C264 10pf/50V/NPO/4 C535 X_10pf/50V/NPO/4C535 X_10pf/50V/NPO/4 C536 X_10pf/50V/NPO/4C536 X_10pf/50V/NPO/4
VCC3
R197
R197
X_10K/4
X_10K/4
LPC_FRAME#
R195
R195 10K/4
STRAP
HDA_SDOUT LPC_FRAME
DEFAULT*
00 = LPC BIOS* 01 = PCI BIOS 10 = SPI BIOS 11 = RESERVED
HDA_SDOUT ; LPC_FRAME MCP68 CRB : 10K pull VCC3 MCP68 Design Guide : 8.2K pull VCC3
10K/4
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MCP68PV/78-PCI & LPC
MCP68PV/78-PCI & LPC
MCP68PV/78-PCI & LPC
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
16 41Monday, May 28, 2007
of
16 41Monday, May 28, 2007
of
16 41Monday, May 28, 2007
Page 17
5
Trace lengths must be less 8 inches
Cap Near SATA CONNECTOR
GND HT+
HT-
SATA1
SATA1
SATA2
SATA2
SATA3
SATA3
SATA4
SATA4
GND
HR­HR+ GND
GND HT+
HT­GND
HR­HR+ GND
GND HT+
GND
HR­HR+ GND
GND HT+
HT­GND
HR­HR+ GND
HT-
SATA_Purple
1 Pm
4 Ss
D D
C C
2 Ps
3 Sm
SATA_Purple
SATA_Purple
SATA_Purple
SATA_Purple
SATA_Purple
SATA_Purple
SATA_Purple
N5N-07M0231-H06
4
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
TXPA0 TXNA0
RXNA0 RXPA0
TXPA1 TXNA1
RXNA1 RXPA1
TXPB0 TXNB0
RXNB0 RXPB0
TXPB1 TXNB1
RXNB1 RXPB1
C371
C371 C372
C372 C373
C373 C374
C374
C375
C375 C376
C376 C377
C377 C378
C378
C417
C417 C414
C414 C415
C415 C416
C416
C510
C510 C511
C511 C527
C527 C528
C528
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
TXP_A0 TXN_A0
RXN_A0 RXP_A0
TXP_A1 TXN_A1
RXN_A1 RXP_A1
TXP_B0 TXN_B0
RXN_B0 RXP_B0
TXP_B1 TXN_B1
RXN_B1 RXP_B1
AA4 AA3
AA2 AA1
AB1 AB2
V2 V1
W3 W2
Y8 Y7
Y5 Y6
Y4 Y3
U14E
U14E
PBGA692
PBGA692
SATA_A0_TX_P SATA_A0_TX_N
SATA_A0_RX_N SATA_A0_RX_P
SATA_A1_TX_P SATA_A1_TX_N
SATA_A1_RX_N SATA_A1_RX_P
SATA_B0_TX_P SATA_B0_TX_N
SATA_B0_RX_N SATA_B0_RX_P
SATA_B1_TX_P SATA_B1_TX_N
SATA_B1_RX_N SATA_B1_RX_P
3
MCP68
MCP68
SEC 5 OF 8
SEC 5 OF 8
IDE_DATA_P0 IDE_DATA_P1 IDE_DATA_P2 IDE_DATA_P3 IDE_DATA_P4 IDE_DATA_P5 IDE_DATA_P6 IDE_DATA_P7 IDE_DATA_P8 IDE_DATA_P9 IDE_DATA_P10 IDE_DATA_P11 IDE_DATA_P12 IDE_DATA_P13 IDE_DATA_P14 IDE_DATA_P15
IDE_ADDR_P0 IDE_ADDR_P1 IDE_ADDR_P2
IDE_CS1_P# IDE_CS3_P#
IDE_DACK_P#
IDE_IOW_P# IDE_INTR_P
IDE_DREQ_P
IDE_IOR_P# IDE_RDY_P
CABLE_DET_P/GPIO63
IDE_COMP_3P3 IDE_COMP_GND
AJ3 AJ2 AH3 AH1 AG2 AF2 AF4 AE6 AE5 AF5 AF3 AG1 AG3 AH2 AJ1 AK2
AG6 AJ5 AH6
AK6 AJ6 AG5 AH4 AH5 AK3 AJ4 AK4 AF6
AD5 AD6
PDD0 PDD1 PDD2 PDD3 PDD4 PDD5 PDD6 PDD7 PDD8 PDD9 PDD10 PDD11 PDD12 PDD13 PDD14 PDD15
PD_IOR
2
PD_A0 25 PD_A1 25 PD_A2 25
PD_CS#1 25 PD_CS#3 25 PD_DACK# 25 PD_IOW# 25 IRQ14 25 PD_DREQ 25
PD_IORDY 25 PD_DET 25
IDE_COMP_3P3V IDE_COMP_GND
PDD[15..0]
PDD[15..0] 25
VCC3
R146
R146 121R/1%/4
121R/1%/4
R134
R134 121R/1%/4_B
121R/1%/4_B
MCP68 33 Ohm MCP78
PD_IOR
R561 33R/4R561 33R/4
1
PD_IOR# 25
RESERVED20
AC3
RESERVED21
AC2
RESERVED23
1.2V_PLL_CPU_HT
VCC3VCC1.2
B B
MCP68 R380 MCP78 R381
R380
R380 0R/6_B
0R/6_B
X_0R/6_B
X_0R/6_B R381
R381
VCC3_PLL
width 25 mil
C489
C489
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B C548
C548
2.2uF/6.3V/X5R/6_B
2.2uF/6.3V/X5R/6_B
MCP78 SATA
80
8
30 18 25
C791
C791
10uf/10V/Y5V/8_B
10uf/10V/Y5V/8_B
AD4 AD3 AE4 AE3 AE1 AE2
U13 U12 V12 M12
Y9
RESERVED22 RESERVED24 RESERVED25 RESERVED27 RESERVED26
+1.2V_PLL_SP_VDD
+1.2V_PLL_SP_SS +3.3V_PLL_SP_SS +3.3V_PLL_LEG +3.3V_PLL_DISP
SATA_LED/GPIO57#
SATA_TSTCLK_P SATA_TSTCLK_N
SATA_TERMP
A5
AA6 AB6
AB5
SATA_TSTCLK_P SATA_TSTCLK_N
SATA_TERMP
R141
R141
2.49K/1%/4
2.49K/1%/4
SATA_LED 34
R137
R137 X_100R/4_B
X_100R/4_B
R141 Within500 mils of MCP68
Solder Side
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MCP68PV/78-SATA & IDE
MCP68PV/78-SATA & IDE
MCP68PV/78-SATA & IDE
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
17 41Monday, May 28, 2007
of
17 41Monday, May 28, 2007
of
17 41Monday, May 28, 2007
Page 18
5
R384 , R385 , R386 from 22 Ohm change to 27 Ohm DA-02811-001_v05_68.doc
HDA_SDOUT ; LPC_FRAME MCP68 CRB : 10K pull VCC3 MCP68 Design Guide : 8.2K pull VCC3
R402
R402
X_10K/4
X_10K/4
D D
HDA_SDOUT LPC_FRAME
00 = LPC BIOS* 01 = PCI BIOS 10 = SPI BIOS 11 = RESERVED
C C
STRAP
DEFAULT*
HDA_SDOUT27
HDA_SYNC (SIO CLK)
1 = *24MHZ 0 = 14.318MHZ * = DEFAULT
HDA_SYNC27
R186
R186 10K/4
10K/4
HDA_RST#27
HDA_RST* 1 = *RGMII 0 = MII
R393
R393
X_10K/4
X_10K/4
DISPLAY_SEL23
VCC3
LOAD_TEST23
R187
R187 10K/4
10K/4
R180
R180
X_10K/4
X_10K/4
VCC3
3VDUAL
R183
R183 10K/4
10K/4
R385
R385
27R/4
27R/4
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
HDA_BITCLK_R27
R386
R386
27R/4
27R/4
C561
C561
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
R384
R384
27R/4
27R/4
C562
C562
C563
C563 X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
POWER SEQUENCE
X_27MHZ/20pf/H49US
MEM_VLD
C247
C247
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCORE_VLD
C239
C239
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
HT_VLD
C246
C246
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VBAT1
VBAT1 Battery Socket
Battery Socket
C666
C666
3VDUAL
R166 0R/4R166 0R/4
R168 0R/4R168 0R/4
R173 0R/4R173 0R/4
C508
C508
10uf/10V/Y5V/8
10uf/10V/Y5V/8
SLP_S5#31
VCORE_EN
MCPVDD_EN
B B
HT_PWRGD31
A A
R172 1K/4R172 1K/4
R169 0R/4_BR169 0R/4_B
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
N91-01F0151-H06
5
X_27MHZ/20pf/H49US
C783
C783
X_22pf/50V/NPO/4
X_22pf/50V/NPO/4
R664
R664
X_4.7K/4
X_4.7K/4
NC
R305
R305 1K/4
1K/4
BATR1 BATR2
12
R189 1K/4R189 1K/4
DA-03005-001_v01.pdf
R311
R311 22R/4
22R/4
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
HDASDOUT
Y8
Y8
4
HDA_BITCLK
C400
C400
HDA_SDIN027
HDARST# HDASYNC
TV_XTALIN
TV_XTAOUT
C784
C784
X_22pf/50V/NPO/4
X_22pf/50V/NPO/4
TEST_MODE_EN
3VDUAL
R663
R663
1K/4
1K/4
G
DS
Q46
Q46
PA502FMG_SOT23
PA502FMG_SOT23
R665
R665
X_0R/6
X_0R/6
NC
4
TV_XTALIN TV_XTAOUT
RTC_RST# MEM_VLD
HT_VLD MCPVDD_EN VCORE_VLD VCORE_EN
D19
D19
BAT54C_SOT23
BAT54C_SOT23
BATR3
U14F
U14F
PBGA692
PBGA692
GP_REFCLK
B7
HDA_BCLK
B4
HDA_SDATA_OUT0/GPIO45
A3
HDA_SDATA_IN0/GPIO22
A2
HDA_SDATA_IN1/GPIO23/MGPIO0
B1
HDA_SDATA_IN2/GPIO24
B2
HDA_RESET#
C3
HDA_SYNC/GPIO44
B3
GPIO_1
F2
GPIO_2/NMI#
F1
GPIO_3/SMI#
F6
GPIO_4/SCI_INTR#
J8
GPIO_5/INIT#
G3
GPIO_6/FERR/SYS_SERR#
G5
GPIO_7/NFERR/SYS_PERR#
G6
GPIO_8/SPI_DI
D3
GPIO_9/SPI_DO
D4
GPIO_10/SPI_CS
E4
GPIO_11/SPI_CLK
E3
TV_XTALIN
D5
TV_XTALOUT
E5
RTC_RST#
K4
MEM_VLD
J3
MCPVDD/HT_VLD
H3
MCPVDD/HT_EN
J4
CPU_VLD
J1
CPUVDD_EN
J2
PKG_TEST
L8
TEST_MODE_EN
F8
VBAT3VDUAL
12
3
C390
C390
X_22uf/6.3V/X5R/8
X_22uf/6.3V/X5R/8
width 15 mil
R306
R306
49.9K/1%/4
49.9K/1%/4
+
+
EC63
EC63
100uf/16V/6.3X5/2.5mm
100uf/16V/6.3X5/2.5mm
C392
C392
1uf/16V/Y5V/6
1uf/16V/Y5V/6
MCP68
MCP68
SEC 6 OF 8
SEC 6 OF 8
3
USB0_P USB0_N
USB1_P USB1_N
USB2_P USB2_N
USB3_P USB3_N
USB4_P USB4_N
USB5_P USB5_N
USB6_P USB6_N
USB7_P USB7_N
USB8_P USB8_N
USB9_P USB9_N
USB_OC0/GPIO25# USB_OC1/GPIO26# USB_OC2/GPIO27#
USB_OC3/GPIO28/MGPIO1#
USB_OC4/GPIO29#
USB_RBIAS_GND
A20GATE/GPIO55
EXT_SMI/GPIO32#
SIO_PME/GPIO31#
KBRDRSTIN/GPIO56#
SMB_CLK1/MSMB_CLK
SMB_DATA1/MSMB_DATA
SUS_CLK/GPIO34 THERM/GPIO59#
FANRPM0/GPIO60 FANCTL0/GPIO61
FANCTL1/GPIO62 THERM_SIC/GPIO48 THERM_SID/GPIO49
Normal
VBATR
RTC_RST#
C395
C395
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
H1X3_black_with Jumper
H1X3_black_with Jumper
RESERVED32
USB10_P USB10_N USB11_P USB11_N
INTRUDER#
RI/GPIO33#
SPKR
PWRBTN#
SMB_CLK0 SMB_DATA0
+3.3V_VBAT
BUF_SIO_CLK
RSTBTN# SLP_S5#
SLP_S3# PWRGD_SB PS_PWRGD
JBAT1
JBAT1
THERM_SID1/GPIO47/PWR_LED#
CMOS CLEAR JUMPER
JBAT1 Clear CMOS 1 - 2 2 - 3 Clear CMOS
N41-1030141-H06
3
2
RN30
RN30
15K_8P4R/4
USBP4 USBN4 USBP5 USBN5
USBP0
M3
USBN0
M4
USBP1
N3
USBN1
N4
USBP2
N1
USBN2
N2
USBP3
P1
USBN3
P2
USBP4
R2
USBN4
R3
USBP5
P3
USBN5
P4
USBP6
T3
USBN6
T4
USBP7
U3
USBN7
U4
USBP8
T6
USBN8
T5
USBP9
T8
USBN9
T7
SVCC1
SVCC2
P7 P8 P9 P5 P6
USB_RBIAS_GND
T9
H9 AE7
USBP10
V5
USBN10
V4
USBP11
V7
USBN11
V6 F5
INTRUDER#
K2
EXT_SMI#
F3 H4
SPKR
C7
PWRBTN#
G4
SIO_PME#
F4
KBRST#
A4
SMBMEM_CLK
C2
SMBMEM_DATA
C1
SMB_CLK
D2
SMB_DATA
E2 K3
SIOCLK_24M
B5
TPMCLK
E1
THRM#
C6
FP_RST#
H5
SLP_S5#
H8
SLP_S3#
G8
RSMRST#
H6
ATX_PWR_OK
G2 E6 D6 C5
THERMSIC
AH7
THERMSID
AF8
for NV R453 , R454 Stuff for SIO R453 , R454 NC
SPKR Strapping
1 = SAFE MODE ( TCO )
1 2 3
0 = USER*(Normal)
SPKR MCP68 CRB : 1K but MCP68 Design Guide : 10K
USBP0 26 USBN0 26
USBP1 26 USBN1 26
USBP2 26 USBN2 26
USBP3 26 USBN3 26
USBP4 26 USBN4 26
USBP5 26 USBN5 26
USBP6 26 USBN6 26
USBP7 26 USBN7 26
USBP8 26 USBN8 26
USBP9 26 USBN9 26
R148 MCP68 1.1K 1% DA-02786-001_v03
SVCC3
MCP78
R148 1.1K/1%/6_BR148 1.1K/1%/6_B
R148 Within 2000 mils of MCP68 Trace width at least 8 mil
R165 49.9K/1%/4R165 49.9K/1%/4 R163 X_4.7K/4R163 X_4.7K/4
SPKR 34 PWRBTN# 29 SIO_PME# 29 KBRST# 29
R446 33R/4_BR446 33R/4_B R449 33R/4_BR449 33R/4_B
R683 33R/4R683 33R/4 R684 33R/4R684 33R/4
5
VBAT
THRM# 29 FP_RST# 29,34
SLP_S5# 31 SLP_S3# 29,31 RSMRST# 20,31 ATX_PWR_OK 14,29,31,34
R453 0R/4R453 0R/4 R454 0R/4R454 0R/4
VCC3
SPKR
SVCC1 SVCC2 SVCC3
A20GATE 29
VBAT 3VDUAL
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
THERM_SIC 6 THERM_SID 6
R212
R212 X_1K/4
X_1K/4
R203
R203 1K/4
1K/4
2
C290
C290
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
R162
R162
2.7K/4
2.7K/4
C559
C559
5/10/10
USBP1 USBN1 USBP0 USBN0
USBP3 USBN3 USBP2 USBN2
USBP7 USBN7 USBP6 USBN6
USBP8 USBN8 USBP9 USBN9
USBN10 USBP10 USBN11 USBP11
3VDUAL
R207 22R/4R207 22R/4 R383 X_22R/4R383 X_22R/4
C263
C263 X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
R207,C263,R383,C559 Within 500 mils of MCP68
THERM_SIC / THERM_SID AMP don't support
GPIO47 , GPIO32 , GPIO33 , GPIO59 GPIO8 , 9 , 10 , 11 change to GPO pin.
15K_8P4R/4
1 2 3 4 5 6 7 8
RN34
RN34
15K_8P4R/4
15K_8P4R/4
1 2 3 4 5 6 7 8
RN32
RN32
15K_8P4R/4
15K_8P4R/4
1 2 3 4 5 6 7 8
RN29
RN29
15K_8P4R/4
15K_8P4R/4
1 2 3 4 5 6 7 8
RN31
RN31
15K_8P4R/4
15K_8P4R/4
1 2 3 4 5 6 7 8
RN41
RN41
15K_8P4R/4
15K_8P4R/4
1 2 3 4 5 6 7 8
RN41 MCP68 Stuff up MCP78
Close to MCP61
C484
C484
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
C532
C532
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
Close to MCP61
R165
MCP68 49.9K
MCP78
R174
R174
2.7K/4
2.7K/4
SMB_MEM_CLK 10,11 SMB_MEM_DATA 10,11 SMBCLK 21,22,31 SMBDATA 21,22,31
SIO_24M 29 TPM_CLK 29
Y6 NC => Stuff R383 , R564
NC R562 , R563 C509 , C526
Y6 Stuff => NC R383 , R564
Stuff R562 , R563 C509 , C526
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
MCP68PV/78-HDA & USB MISC
MCP68PV/78-HDA & USB MISC
MCP68PV/78-HDA & USB MISC
1
R165 MCP68 DG 1Meg Ohm. CRB 49.9KOhm.
MCP68 CRB SIO OVT# OUTPUT USED FOR EXT_SMI*
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
18 41Monday, May 28, 2007
of
18 41Monday, May 28, 2007
of
18 41Monday, May 28, 2007
Page 19
5
U14G
U14G
PBGA692
VCC1.2
AK27
D D
C C
AH27
AJ27 AG26 AG25
U18 AE22 AE23
V19
V18
U19
W19 W18
V15
U16
T14
W14 AB21 AC21
U14 T18 U15 R15 V17 V16 R17 T16 U17 R19
AB22 AE24 AD22 AA22 AC22
VCC3
H15
400
B B
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
J15 AC6 AC5
PLACE ON BACK SIDE
VCC1.2 VCC1.2
CENTER OF MCP68
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C220
C220
C499
C499
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
1.2VDUAL
A A
C298
C298
0.1uf/16V/X7R/6
0.1uf/16V/X7R/6
5
PBGA692
+1.2V1 +1.2V2 +1.2V3 +1.2V4 +1.2V5 +1.2V6 +1.2V7 +1.2V8 +1.2V9 +1.2V10 +1.2V11 +1.2V12 +1.2V13 +1.2V14 +1.2V15 +1.2V16 +1.2V17 +1.2V18 +1.2V19 +1.2V20 +1.2V21 +1.2V22 +1.2V23 +1.2V24 +1.2V25 +1.2V26 +1.2V27 +1.2V28 +1.2V29
+1.2V_PED1 +1.2V_PED2 +1.2V_PED3 +1.2V_PED4 +1.2V_PED5
+3.3V1 +3.3V2 +3.3V3 +3.3V4
C501
C501
C493
C493
0.01uf/25V/X7R/4_B
0.01uf/25V/X7R/4_B
C297
C297
0.1uf/16V/X7R/6
0.1uf/16V/X7R/6
MCP68
MCP68
SEC 7 OF 8
SEC 7 OF 8
+1.2V_HT1 +1.2V_HT2 +1.2V_HT3
+1.2V_PEA1 +1.2V_PEA2 +1.2V_PEA3 +1.2V_PEA4 +1.2V_PEA5 +1.2V_PEA6 +1.2V_PEA7 +1.2V_PEA8
+1.2V_SP_D1 +1.2V_SP_D2 +1.2V_SP_D3 +1.2V_SP_D4
+1.2V_SP_A1 +1.2V_SP_A2 +1.2V_SP_A3 +1.2V_SP_A4 +1.2V_SP_A5
+1.2V_DUAL1 +1.2V_DUAL2
+3.3V_DUAL1 +3.3V_DUAL2
+3.3V_USB_DUAL1 +3.3V_USB_DUAL2
C254
C254
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
1P2V_PEA
C256
C256
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
700 4500
VCC1_2HT
W15 W16 W17
AK28 AJ28 AH28 AG27 AF26 AE25 AD24 AC23
VCC1.2
V13 W13 V14 W12
W9 W8 V8 V9 U9
1.2VDUAL
F26 F27
3VDUAL
L4 J22
L3 L2
C249
C249
X_1uf/6.3V/X5R/6
X_1uf/6.3V/X5R/6
C253
C253
C255
C255
X_1uf/16V/Y5V/6
X_1uf/16V/Y5V/6
4
VCC1.2
FB5
FB5 0R/8_B
0R/8_B
VCC1.2
FB6
FB6
0R/8_B
0R/8_B
225
200 350
HDCP_ROM_SCLK14
C243
C243
1uf/16V/Y5V/6_B
1uf/16V/Y5V/6_B
C245
C245
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
4
1280
1P2V_PEA
320
1P2V_SP_A
MCP68 All Stuff up MCP78
HDCP_ROM_SDATA
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C202
C202
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C250
C250
0.1uf/10V/X7R/4_B
C503
C503
C252
C252
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
VCC3
R371
R371
X_10K/4
X_10K/4
R357
R357
X_10K/4
X_10K/4
C203
C203
C494
C494
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
3
1P2V_SP_A
C483
C483
C480
C564
C564
1uf/6.3V/X5R/6_B
1uf/6.3V/X5R/6_B
C480
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
HDCP_ROM
U25
U25
3
A2
2
A1
1
A0
7
WP
5
SDA
6
SCL
X_ATMEL/AT88SC0808C-5ms/SOIC-8
X_ATMEL/AT88SC0808C-5ms/SOIC-8
GND
VCC
4
8
M33-8880823-A26
Two-wire Serial EEPROM
C236
C236
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C552
C552
C491
C491
C492
C492
3
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C482
C482
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
VCC3
C804
C804
10uf/10V/Y5V/8
10uf/10V/Y5V/8
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
VCC1_2HT
HDCP_ROM_SDATA
VCC3
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C5020.1uf/10V/X7R/4_B C5020.1uf/10V/X7R/4_B
C481
C481
3VDUAL
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C227
C227
C241
C241
VCC1.2
Place close to Q34
C750 10uf/10V/Y5V/1206C750 10uf/10V/Y5V/1206 C751 4.7uf/10V/X5R/8C751 4.7uf/10V/X5R/8 C752 0.1uf/25V/Y5V/6C752 0.1uf/25V/Y5V/6
VCC1.2
C806 10uf/10V/Y5V/8C806 10uf/10V/Y5V/8 C807 1uf/6.3V/X5R/6C807 1uf/6.3V/X5R/6
C754 4.7uf/10V/X5R/8C754 4.7uf/10V/X5R/8 C757 0.1uf/25V/Y5V/6_BC757 0.1uf/25V/Y5V/6_B
2
MCP68 R522 MCP78
R522 X_0R/4R522 X_0R/4
C216
C216
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
C507
C507
0.1uf/10V/X7R/4_B
0.1uf/10V/X7R/4_B
0.01uf/25V/X7R/4C753 0.01uf/25V/X7R/4C753
0.01uf/25V/X7R/4_BC755 0.01uf/25V/X7R/4_BC755
2
1
U14H
U14H
PBGA692
PBGA692
GND1
P19
GND2
H19
GND3
AE11
GND4
D7
GND5
G27
GND6
AB7
GND7
T15
GND8
U2
GND9
P13
GND10
AC9
GND11
N25
GND12
G26
GND13
F17
GND14
F15
GND15
F13
GND16
F11
GND17
F9
GND18
D25
GND19
H17
GND20
D19
GND21
J17
GND22
H13
GND23
AH26
GND24
AA9
GND25
AE21
GND26
AE19
GND27
AE17
GND28
AE15
GND29
AE13
GND30
AA8
HDCP_ROM_SDATA
AF30
GND32
AK22
GND33
AG19
GND34
AK18
GND35
AG15
GND36
C4
GND37
E30
GND38
D15
GND39
D11
GND40
J6
GND41
L6
GND42
N6
GND43
R6
GND44
U6
GND45
N22
GND46
R13
GND47
M19
GND48
AK1
GND49
J23
GND50
R23
GND51
M18
GND52
N18
GND53
P16
GND54
N15
GND55
R18
GND56
T13
GND57
T17
GND58
M17
GND59
L23
GND60
P17
GND61
J11
GND62
R16
GND63
A1
GND64
J13
GND65
M16
GND66
N16
GND67
N17
GND68
AG11
GND69
N23
GND70
R14
GND71
T12
GND72
R12
GND73
AC7
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
MCP68
MCP68
SEC 8 OF 8
SEC 8 OF 8
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MCP68PV/78-Power & GND
MCP68PV/78-Power & GND
MCP68PV/78-Power & GND
MS-7349
MS-7349
MS-7349
1
GND74 GND75 GND76 GND77 GND78 GND79 GND80 GND81 GND82 GND83 GND84 GND85 GND86 GND87 GND88 GND89 GND90 GND91 GND92 GND93 GND94 GND95 GND96 GND97 GND98 GND99 GND100 GND101 GND102 GND103 GND104 GND105 GND106 GND107 GND108 GND109 GND110 GND111 GND112 GND113 GND114 GND115 GND116 GND117 GND118 GND119 GND120 GND121 GND122 GND123 GND124 GND125 GND126 GND127 GND128 GND129 GND130 GND131 GND132 GND133 GND134 GND135 GND136 GND137 GND138 GND139 GND140 GND141 GND142 GND143 GND144 GND145
M15 AK14 P15 W6 N19 AC8 N12 N14 P14 M14 M13 U1 R9 N9 P12 D23 AK30 H7 A30 AB3 K9 F30 N8 F7 J21 K1 AB30 V30 P30 K30 H21 AD26 AA25 W25 U25 R25 L25 J25 W27 N13 R27 L27 W23 U8 J9 AE9 AG7 F25 P18 F21 F19 F29 AK5 R4 V3 W4 AC4 C28 T19 AC13 AK10 AF1 AG4 R8 A27 H11 D1 AC19 AC17 E29 AJ7 AB4
of
19 41Monday, May 28, 2007
19 41Monday, May 28, 2007
19 41Monday, May 28, 2007
1.0
1.0
1.0
Page 20
5
4
3
2
1
MII_CRS15 MII_COL15
MII_RX_ER15
43
4 3
43
4 3
D40
D40
MDI_C0-
L29
L29
<Priority>
<Priority>
CMC_90ohm
CMC_90ohm
MDI_C0+
MDI_C1+
L30
L30
CMC_90ohm
CMC_90ohm
<Priority>
<Priority>
MDI_C1-
MDI_C2-
L27
L27
CMC_90ohm
CMC_90ohm
<Priority>
<Priority>
MDI_C2+MDI_2+
MDI_C3+
L28
L28
CMC_90ohm
CMC_90ohm
<Priority>
<Priority>
MDI_C3-
3VDUAL
MII_CRS MII_COL MII_TXD0 MII_TXD1 MII_TXD2 MII_TXD3 MII_TXCLK MII_TXEN
MII_RXD0 MII_RXD2
MII_RXD3 MII_RXDV MII_RX_ER
3
1
2
R591
R591 10K/4
10K/4
MII_MDC MII_MDIO
R621 0R/4R621 0R/4 R620 0R/4R620 0R/4
R593 33R/4R593 33R/4 R592 33R/4R592 33R/4 R594 33R/4R594 33R/4 R596 33R/4R596 33R/4
R597 33R/4R597 33R/4 R619 0R/4R619 0R/4
MDI_0+ MDI_0­MDI_1+ MDI_1­MDI_2+ MDI_2­MDI_3+ MDI_3-
LINK_1000 LINK_100
config7
MIICRS MIICOL
TXDLY
MII_RXD0A MII_RXD1AMII_RXD1 MII_RXD2A MII_RXD3A
MIIRXCLK
MIIRXDV
RXDLY
MII_RXER
config0
config1
config2
config3
config4
config9
CTRL18
10uf/10V/Y5V/8
10uf/10V/Y5V/8
CTRL15
10uf/10V/Y5V/8
10uf/10V/Y5V/8
3
44
MDC
46
MDIO
56
INTB(config7)
68
CRS(config5)
66
COL(config6)
37
TXD0
38
TXD1
40
TXD2
41
TXD3
36
TXC
42
TX_CTL(TXEN)
78
TXDLY
27
RXD0
30
RXD1
31
RXD2
33
RXD3
34
RXC
26
RX_CTL(RXDV)
79
RXDLY
51
RX_ER(config8)
4
MDIP0
5
MDIN0
9
MDIP1
10
MDIN1
16
MDIP2
17
MDIN2
20
MDIP3
21
MDIN3
58
LED_TX
59
LED_RX
62
LED_DUPLEX
63
LED_LINK1000
70
LED_LINK100
76
LED_LINK10
85
config[0]
84
config[1]
83
config[2]
81
config[3]
80
config[4]
49
config[9]
100
NC
99
NC
98
NC
90
NC
89
NC
74
NC
73
NC
72
NC
24
NC
23
NC
7
NC
RTL8211B_100pin
RTL8211B_100pin
2
NC
3VDUAL
32
Q38
Q38
1
P-PBSS5350_SOT223
P-PBSS5350_SOT223
4
C736
C736
C767
10uf/10V/Y5V/8
10uf/10V/Y5V/8
close to Q38
3VDUAL
32
Q39
Q39 P-PBSS5350_SOT223
P-PBSS5350_SOT223
1
4
C768
C768
C739
C739
10uf/10V/Y5V/8
10uf/10V/Y5V/8
close to Q39
RTL8211BL-GR/100Pin
RTL8211BL-GR/100Pin
C732
C732
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C740
C740
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
DVDD15 DVDD15 DVDD15 DVDD15
DVDD33 DVDD33 DVDD33 DVDD33 DVDD33 DVDD33
AVDD15 AVDD18
AVDD18 AVDD18 AVDD18
AVDD33 AVDD33
RSET
PHYRSTB
CTRL18 CRTL15
CLK125
XTAL2 XTAL1
AGND AGND
AGND AGND AGND AGND AGND
GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND
C733
C733
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C741
C741
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
L26
L26 0R/8
0R/8
48 54 65 87
29 35 50 61 71 82
95 3
8 15 19
12 91
1 57 13 96
60 93 92
97 94 22 18 14 11 6
88 86 77 75 69 67 64 55 53 52 47 45 43 39 32 28 25
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C742
C742
DVDD15
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
AVDD15 AVDD18
RST MIIRST#MIIRST# CTRL18 CTRL15
XTALO XTALI
C734
C734
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C762
C762
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C745
C745
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
2
C722
C722
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C743
C743
C723
C723
C729
C729
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
2.49K/1%/4
2.49K/1%/4 R598
R598
C735
C735
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C744
C744
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
1uf/16V/Y5V/6
1uf/16V/Y5V/6
AVDD18
DVDD15
AVDD15
C724
C724
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
0.1uf/25V/Y5V/4
C725
C725
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C730
C730
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
AVDD18
C794
C794
DVDD15
C795
C795
Normal use R613, R615. Delay 2ns TX/RX use R612, R614.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
3VDUAL
C726
C726
C728
C728 1uf/16V/Y5V/6
1uf/16V/Y5V/6
3VDUAL
CP43
CP43
X_COPPER
X_COPPER
L25
L25
X_150Ohm/2.5A/L8
X_150Ohm/2.5A/L8
3VDUAL
R602 4.7K/4R602 4.7K/4 R603 4.7K/4R603 4.7K/4 R605 4.7K/4R605 4.7K/4 R606 4.7K/4R606 4.7K/4 R607 4.7K/4R607 4.7K/4
Set Address 00001h
R604 4.7K/4R604 4.7K/4
config4
R608 4.7K/4R608 4.7K/4
config3
R609 4.7K/4R609 4.7K/4
config2
R610 4.7K/4R610 4.7K/4C767
config1
R611 4.7K/4R611 4.7K/4
3VDUAL
R612 X_4.7K/4R612 X_4.7K/4 R614 X_4.7K/4R614 X_4.7K/4
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Giga LAN_ RTL8211BL
Giga LAN_ RTL8211BL
Giga LAN_ RTL8211BL
MS-7349
MS-7349
MS-7349
1
TXDLY RXDLY
MIICOL config9 MII_RXER MIICRS config7
config0
R613
R613
4.7K/4
4.7K/4 R615
R615
4.7K/4
4.7K/4
20 41Monday, May 28, 2007
20 41Monday, May 28, 2007
20 41Monday, May 28, 2007
1.0
1.0
1.0
of
of
of
3VDUAL
+
+
EC57
EC57 X_1000uf/6.3V/8X11.5/3.5mm/30mOHM
C653
C653
C654
C654
C731
C731
XTALO
Y7
Y7 25MHZ/18pf/HC49S
25MHZ/18pf/HC49S
XTALI
R599 0R/4R599 0R/4
3VDUAL
R600
R600 X_2K/1%/4
X_2K/1%/4
R368
R368 X_2M/4
X_2M/4
R601 X_0R/4R601 X_0R/4
RESERVED
MII_RXCLK15
RSMRST# 18,31
MII_RST# 15
27pf/50V/NPO/6
27pf/50V/NPO/6
D D
27pf/50V/NPO/6
27pf/50V/NPO/6
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C C
B B
N58-22F0181-S42
C737
C747
C747
C737 102pf/50V/X7R/4
102pf/50V/X7R/4
LAN_USB1B
LAN_USB1B
AMBER+
AMBER+
19
AMBER-
AMBER-
20
POWER
POWER
13
TD1+
TD1+
18
TD1-
TD1-
12
TD2+
TD2+
17
TD2-
TD2-
11
TD3+
TD3+
16
TD3-
TD3-
10
TD4+
TD4+
15
TD4-
TD4-
9
GND
GND
14
GREEN+
GREEN+
21
GREEN-
GREEN-
22
RJ45(GIGA)+USB*2
RJ45(GIGA)+USB*2
C748
C748 102pf/50V/X7R/4
102pf/50V/X7R/4
N58-22F0181-S42
3VDUAL
3VDUAL
R616
R533
R533
0R/4
0R/4
LINK_1000 LINK_100
5
R616 510R/4
510R/4
GIGA_LAN_LINK MDI_C0+
MDI_C0­MDI_C1+ MDI_C1­MDI_C2+ MDI_C2­MDI_C3+ MDI_C3-
LINK_1000 LINK_100
102pf/50V/X7R/4
102pf/50V/X7R/4
R617
R617
X_510R/4
X_510R/4
7350 NC
C738
C738
X_102pf/50V/X7R/4
X_102pf/50V/X7R/4
A A
3VDUAL
R623
R623
R622
R622 X_510R/4
X_510R/4
X_510R/4
X_510R/4
X_1000uf/6.3V/8X11.5/3.5mm/30mOHM
R619 , R620 , R621 CRB
C727
C727
X_33pf/50V/NPO/4
X_33pf/50V/NPO/4
R595 33R/4R595 33R/4
C749
C749
X_33pf/50V/NPO/4
X_33pf/50V/NPO/4
MDI_0-
MDI_0+
MDI_1+
MDI_1-
MDI_2-
MDI_3+
MDI_3-
Giga-Lan
N58-22F0181-S42 N58-22F0361-U30
Link Active22Blinking
19
20
1000 100 10
21
Green
4
Yellow
Yellow
Orange Green None
Orange
MII_MDC15 MII_MDIO15
MII_TXD015 MII_TXD115 MII_TXD215 MII_TXD315 MII_TXCLK15 MII_TXEN15
MII_RXD015 MII_RXD115 MII_RXD215 MII_RXD315
MII_RXDV15
use LL4148: D01-4148S10-F01
BAT54A_SOT23
BAT54A_SOT23
GIGA_LAN_LINK
C812100pf/50V/NPO/4 C812100pf/50V/NPO/4
12
1 2
12
1 2
Page 21
5
3VDUAL
R666
R666
X_2.7K/4
X_2.7K/4
PE_WAKE#
C557
D D
C C
B B
A A
C557
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
5/6/20
PE_WAKE#14
PE0_TX014
PE0_TX0#14
PE0_TX114
PE0_TX1#14
PE0_TX214
PE0_TX2#14
PE0_TX314
PE0_TX3#14
PE0_TX414
PE0_TX4#14
PE0_TX514
PE0_TX5#14
PE0_TX614
PE0_TX6#14
PE0_TX714
PE0_TX7#14
PE0_TX814
PE0_TX8#14
PE0_TX914
PE0_TX9#14
PE0_TX1014
PE0_TX10#14
PE0_TX1114
PE0_TX11#14
PE0_TX1214
PE0_TX12#14
PE0_TX1314
PE0_TX13#14
PE0_TX1414
PE0_TX14#14
PE0_TX1514
PE0_TX15#14
PE0_PRSNTX16#14
SMBCLK18,22,31
SMBDATA18,22,31
PE0_PRSNTX16#
PE0_PRSNTX16#
PE0_PRSNTX16#
PE0_PRSNTX16#
Series 0402 0.1uf cap on each TX line within 500 mil of connector
3VDUAL
PE_WAKE# PE_RST#
C324 0.1uf/25V/Y5V/4C324 0.1uf/25V/Y5V/4 C341 0.1uf/25V/Y5V/4C341 0.1uf/25V/Y5V/4
C321 0.1uf/25V/Y5V/4C321 0.1uf/25V/Y5V/4 C340 0.1uf/25V/Y5V/4C340 0.1uf/25V/Y5V/4
C322 0.1uf/25V/Y5V/4C322 0.1uf/25V/Y5V/4 C339 0.1uf/25V/Y5V/4C339 0.1uf/25V/Y5V/4
C327 0.1uf/25V/Y5V/4C327 0.1uf/25V/Y5V/4 C345 0.1uf/25V/Y5V/4C345 0.1uf/25V/Y5V/4
C326 0.1uf/25V/Y5V/4C326 0.1uf/25V/Y5V/4 C344 0.1uf/25V/Y5V/4C344 0.1uf/25V/Y5V/4
C328 0.1uf/25V/Y5V/4C328 0.1uf/25V/Y5V/4 C346 0.1uf/25V/Y5V/4C346 0.1uf/25V/Y5V/4
C330 0.1uf/25V/Y5V/4C330 0.1uf/25V/Y5V/4 C343 0.1uf/25V/Y5V/4C343 0.1uf/25V/Y5V/4
C329 0.1uf/25V/Y5V/4C329 0.1uf/25V/Y5V/4 C342 0.1uf/25V/Y5V/4C342 0.1uf/25V/Y5V/4
C325 0.1uf/25V/Y5V/4C325 0.1uf/25V/Y5V/4 C338 0.1uf/25V/Y5V/4C338 0.1uf/25V/Y5V/4
C311 0.1uf/25V/Y5V/4C311 0.1uf/25V/Y5V/4 C310 0.1uf/25V/Y5V/4C310 0.1uf/25V/Y5V/4
C313 0.1uf/25V/Y5V/4C313 0.1uf/25V/Y5V/4 C312 0.1uf/25V/Y5V/4C312 0.1uf/25V/Y5V/4
C320 0.1uf/25V/Y5V/4C320 0.1uf/25V/Y5V/4 C319 0.1uf/25V/Y5V/4C319 0.1uf/25V/Y5V/4
C318 0.1uf/25V/Y5V/4C318 0.1uf/25V/Y5V/4 C317 0.1uf/25V/Y5V/4C317 0.1uf/25V/Y5V/4
C336 0.1uf/25V/Y5V/4C336 0.1uf/25V/Y5V/4 C335 0.1uf/25V/Y5V/4C335 0.1uf/25V/Y5V/4
C334 0.1uf/25V/Y5V/4C334 0.1uf/25V/Y5V/4 C333 0.1uf/25V/Y5V/4C333 0.1uf/25V/Y5V/4
C332 0.1uf/25V/Y5V/4C332 0.1uf/25V/Y5V/4 C331 0.1uf/25V/Y5V/4C331 0.1uf/25V/Y5V/4
+12V
VCC3
R284 10K/4R284 10K/4
PE0_TX0C PE0_TX0C#
PE0_TX1C PE0_TX1C#
PE0_TX2C PE0_TX2C#
PE0_TX3C PE0_TX3C#
PE0_TX4C PE0_TX4C#
PE0_TX5C PE0_TX5C#
PE0_TX6C PE0_TX6C#
PE0_TX7C PE0_TX7C#
PE0_TX8C PE0_TX8C#
PE0_TX9C PE0_TX9C#
PE0_TX10C PE0_TX10C#
PE0_TX11C PE0_TX11C#
PE0_TX12C PE0_TX12C#
PE0_TX13C PE0_TX13C#
PE0_TX14C PE0_TX14C#
PE0_TX15C PE0_TX15C#
4
PCI_E2
PCI_E2
B1
12V
B2
12V
B3
RSVD
B4
GND
B5
SMCLK
B6
SMDAT
B7
GND
B8
3.3V
B9
JTAG1
B10
3.3VAUX
B11
WAKE#
B12
RSVD
B13
GND
B14
HSOP0
B15
HSON0
B16
GND
B17
PRSNT2#
B18
GND
B19
HSOP1
B20
HSON1
B21
GND
B22
GND
B23
HSOP2
B24
HSON2
B25
GND
B26
GND
B27
HSOP3
B28
HSON3
B29
GND
B30
RSVD
B31
PRSNT2#
B32
GND
B33
HSOP4
B34
HSON4
B35
GND
B36
GND
B37
HSOP5
B38
HSON5
B39
GND
B40
GND
B41
HSOP6
B42
HSON6
B43
GND
B44
GND
B45
HSOP7
B46
HSON7
B47
GND
B48
PRSNT2#
B49
GND
B50
HSOP8
B51
HSON8
B52
GND
B53
GND
B54
HSOP9
B55
HSON9
B56
GND
B57
GND
B58
HSOP10
B59
HSON10
B60
GND
B61
GND
B62
HSOP11
B63
HSON11
B64
GND
B65
GND
B66
HSOP12
B67
HSON12
B68
GND
B69
GND
B70
HSOP13
B71
HSON13
B72
GND
B73
GND
B74
HSOP14
B75
HSON14
B76
GND
B77
GND
B78
HSOP15
B79
HSON15
B80
GND
B81
PRSNT2#
B82
RSVD
PCIEX16/White
PCIEX16/White
N11-1640401-K06
PRSNT1#
GND JTAG2 JTAG3 JTAG4 JTAG5
3.3V
3.3V
PWRGD
GND
REFCLK+
REFCLK-
GND HSIP0 HSIN0
GND
RSVD
GND HSIP1 HSIN1
GND
GND HSIP2 HSIN2
GND
GND HSIP3 HSIN3
GND
RSVD
RSVD
GND HSIP4 HSIN4
GND
GND HSIP5 HSIN5
GND
GND HSIP6 HSIN6
GND
GND HSIP7 HSIN7
GND
RSVD
GND HSIP8 HSIN8
GND
GND HSIP9 HSIN9
GND
GND
HSIP10 HSIN10
GND
GND
HSIP11 HSIN11
GND
GND
HSIP12 HSIN12
GND
GND
HSIP13 HSIN13
GND
GND
HSIP14 HSIN14
GND
GND
HSIP15 HSIN15
GND
3
3VDUAL
+
+
EC28
A1 A2
12V
A3
12V
A4 A5 A6 A7 A8 A9 A10 A11
A12 A13 A14 A15 A16 A17 A18
A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32
A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49
A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 A69 A70 A71 A72 A73 A74 A75 A76 A77 A78 A79 A80 A81 A82
+12V
VCC3
EC28 1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
PE_RST# 14
5/5/20
PE0_CLK 14 PE0_CLK# 14
PE0_RX0 14 PE0_RX0# 14
5/6/20
PE0_RX1 14 PE0_RX1# 14
PE0_RX2 14 PE0_RX2# 14
PE0_RX3 14 PE0_RX3# 14
PE0_RX4 14 PE0_RX4# 14
PE0_RX5 14 PE0_RX5# 14
PE0_RX6 14 PE0_RX6# 14
PE0_RX7 14 PE0_RX7# 14
PE0_RX8 14 PE0_RX8# 14
PE0_RX9 14 PE0_RX9# 14
PE0_RX10 14 PE0_RX10# 14
PE0_RX11 14 PE0_RX11# 14
PE0_RX12 14 PE0_RX12# 14
PE0_RX13 14 PE0_RX13# 14
PE0_RX14 14 PE0_RX14# 14
PE0_RX15 14 PE0_RX15# 14
3VDUAL
SMBCLK18,22,31
SMBDATA18,22,31
PE_WAKE#14
C285 0.1uf/25V/Y5V/4C285 0.1uf/25V/Y5V/4
PE1_TX#15
5/6/20
Series 0402 0.1uf cap on each TX line within 500 mil of connector
C292 0.1uf/25V/Y5V/4C292 0.1uf/25V/Y5V/4
PE1_PRSNT#15
I2C address 0X4
R698
R698
10K/4
10K/4
SMBDATA18,22,31
SMBCLK18,22,31
R702
R702
X_10K/4
X_10K/4
VCC3
PE1_TXC PE1_TXC#
+12V
R243
R243 10K/4
10K/4
R699
R699
X_10K/4
X_10K/4
R703
R703
10K/4
10K/4
2
PCI_E1
PCI_E1
B1
12V
B2
12V
B3
12V
B4
GND
B5
SMCLK
B6
SMDAT
B7
GND
B8
3.3V
B9
JTAG1
B10
3.3VAUX
B11
WAKE#
B12
RSVD
B13
GND
B14
HSOP0
B15
HSON0
B16
GND
B17
PRSNT2#
B18
GND
PCIEX1/White
PCIEX1/White
N11-0360091-A10
3VROM
R700
R700
X_10K/4
X_10K/4
R704
R704
10K/4
10K/4
+12V
+
+
EC32
EC32 470uf/16V/8X11.5/3.5mm
470uf/16V/8X11.5/3.5mm
A1
PRSNT1#
A2
12V
A3
12V
A4
GND
A5
JTAG2
A6
JTAG3
A7
JTAG4
A8
JTAG5
A9
3.3V
A10
3.3V
PWRGD
GND
REFCLK+
REFCLK-
GND HSIP0 HSIN0
GND
PE_RST#
A11
A12 A13 A14 A15 A16 A17 A18
R701 = Write Protect R705 = Normal
R701
R701
10K/4
10K/4
U32
U32
3
A2
2
A1
1
A0
7
WP
5
SDA
6
SCL
X_ATMEL/AT24C164-10SC-2.5/SOIC-8
X_ATMEL/AT24C164-10SC-2.5/SOIC-8
R705
R705
X_10K/4
X_10K/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
GND
VCC
C813
C813
+12V
VCC3
4
8
5/5/20
PE1_CLK 15 PE1_CLK# 15PE1_TX15
PE1_RX 15 PE1_RX# 15
5/6/20
R706
R706
X_0R/8
X_0R/8
3VROM
C814
C814
10uf/10V/Y5V/8
10uf/10V/Y5V/8
1
+12V
+
+
EC62
EC62
470uf/16V/8X11.5/3.5mm
470uf/16V/8X11.5/3.5mm
+12V +12V
C785
C785
1uf/25V/X7R/8
1uf/25V/X7R/8
VCC33VDUAL
R707
R707
0R/8
0R/8
C786
C786
10uf/16V/Y5V/1206
10uf/16V/Y5V/1206
3VROM
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PCIE x 16 , x1 Slots.
PCIE x 16 , x1 Slots.
PCIE x 16 , x1 Slots.
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
21 41Monday, May 28, 2007
of
21 41Monday, May 28, 2007
of
21 41Monday, May 28, 2007
Page 22
5
4
3
2
1
PCI SLOT 2 (PCI VER: 2.2 COMPLY)
-12V
PCI2
PCI2
B1
-12V
B2
TCK
B3
GND
B4
B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49
B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62
B5 B6 B7 B8 B9
TDO +5V +5V INTB# INTD# PRSNT#1 RESERVED PRSNT#2 GND GND RESERVED GND CLK GND REQ# +5V(I/O) AD31 AD29 GND AD27 AD25 +3.3V C/BE#3 AD23 GND AD21 AD19 +3.3V AD17 C/BE#2 GND IRDY# +3.3V DEVSEL# GND LOCK# PERR# +3.3V SERR# +3.3V C/BE#1 AD14 GND AD12 AD10 GND
AD8 AD7 +3.3V AD5 AD3 GND AD1 +5V(I/O) ACK64# +5V +5V
PCI-White
PCI-White
D D
C C
B B
VCC5
PCI_INTX#16 PCI_INTZ#16,28
VCC3
PCICLK_SLOT216
PCI_REQ3#16
IRDY#16,28
DEVSEL#16,28
PERR#16,28 SERR#16
AD31 AD29
AD27 AD25
C_BE#3
AD23 AD21
AD19 AD17
C_BE#2 IRDY#
DEVSEL#
LOCK# PERR#
SERR# C_BE#1
AD14 AD12
AD10
AD8 AD7
AD5 AD3
AD1 ACK64#
TRST#
INTA# INTC#
RESERVED
+5V(I/O)
RESERVED
RESERVED
+5V(I/O)
RESERVED
IDSEL
FRAME#
TRDY# STOP#
SDONE
C/BE#0
+5V(I/O) REQ64#
+12V
TMS
+5V
+5V
GND
GND RST# GNT#
GND AD30
+3.3V AD28 AD26
GND AD24
+3.3 AD22 AD20
GND AD18 AD16 +3.3V
GND
GND +3.3V SBO#
GND
PAR AD15 +3.3V AD13 AD11
GND
AD9
+3.3V
AD6 AD4
GND
AD2 AD0
+5V +5V
+12V
A1 A2 A3 A4
TDI
A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49
A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62
VCC3
PME# AD30
AD28 AD26
AD24 ID1
AD22 AD20
AD18 AD16
FRAME# TRDY# STOP# SDONE
SBO# PAR
AD15 AD13
AD11 AD9
C_BE#0 AD6
AD4 AD2
AD0
REQ64#A
3VDUAL
R302 100R/4R302 100R/4
VCC5
PCIRST_SLOT2# 16
PCI_GNT3# 16
PME# 16
FRAME# 16,28 TRDY# 16,28 STOP# 16,28
PAR 16,28
PCI_INTW# 16 PCI_INTY# 16
AD[31..0]16,28
C_BE#[3..0]16,28
AD24
PCI PULL-UP / DOWN RESISTORS
N11-1200271-A10
MCP68 PCI SLOT2 IDSEL = AD24 PCI_REQ3# PCI_GNT3# PCI_INTW# Device # 8
PCI SLOT DECOUPLING CAPACITORS
PCIRST_SLOT2# PCICLK_SLOT2
VCC5 3VDUALVCC3
A A
C370
C370
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4 C402
C402
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4 C385
C385
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
5
C386
C386
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4 C401
C401
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4 C403
C403
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C399
C399
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4 C369
C369
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
4
DEVSEL# TRDY# IRDY# FRAME#
STOP# LOCK# PERR# SERR#
ACK64# REQ64#A REQ64#B
AD[31..0] C_BE#[3..0]
3VDUAL
R667
R667
X_2.7K/4
X_2.7K/4
C558
C558
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
RN47
RN47
8.2K_8P4R/4
8.2K_8P4R/4
RN43
RN43
8.2K_8P4R/4
8.2K_8P4R/4
R326 8.2K/4R326 8.2K/4 R303 8.2K/4R303 8.2K/4 R325 8.2K/4R325 8.2K/4
PME#
12 34 56 78
12 34 56 78
PCI SLOT 1 (PCI VER: 2.2 COMPLY)
VCC3
-12V
PCI1
PCI1
B1
-12V
B2
TCK
B3
GND
B4
TDO
B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49
B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62
B5 B6 B7 B8 B9
+5V +5V INTB# INTD# PRSNT#1 RESERVED PRSNT#2 GND GND RESERVED GND CLK GND REQ# +5V(I/O) AD31 AD29 GND AD27 AD25 +3.3V C/BE#3 AD23 GND AD21 AD19 +3.3V AD17 C/BE#2 GND IRDY# +3.3V DEVSEL# GND LOCK# PERR# +3.3V SERR# +3.3V C/BE#1 AD14 GND AD12 AD10 GND
AD8 AD7 +3.3V AD5 AD3 GND AD1 +5V(I/O) ACK64# +5V +5V
PCI-White
PCI-White
VCC5
PCI_INTY# PCI_INTW#
VCC3
PCICLK_SLOT116
PCI_REQ4#16
AD31 AD29
AD27 AD25
C_BE#3 AD23
AD21 AD19
AD17 C_BE#2
IRDY# DEVSEL# LOCK#
PERR# SERR# C_BE#1
AD14 AD12
AD10
AD8 AD7
AD5 AD3
AD1 ACK64#
TRST#
RESERVED
+5V(I/O)
RESERVED
RESERVED
+5V(I/O)
RESERVED
FRAME#
TRDY# STOP#
SDONE
C/BE#0
+5V(I/O) REQ64#
+12V
TMS
TDI
+5V INTA# INTC#
+5V
GND GND
RST#
GNT#
GND
AD30
+3.3V
AD28 AD26
GND
AD24
IDSEL
+3.3 AD22 AD20
GND AD18 AD16
+3.3V
GND
GND
+3.3V SBO#
GND
PAR
AD15
+3.3V
AD13 AD11
GND
AD9
+3.3V
AD6 AD4
GND
AD2 AD0
+5V +5V
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49
A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62
+12V
VCC3
PCI_INTX# PCI_INTZ#
VCC5
3VDUAL
PME# AD30
AD28 AD26
AD24
ID2
AD22 AD20
AD18 AD16
FRAME# TRDY# STOP# SDONE
SBO# PAR
AD15 AD13
AD11 AD9
C_BE#0 AD6
AD4 AD2
AD0
REQ64#B
PCIRST_SLOT1# 16
PCI_GNT4# 16
R250 X_0R/4R250 X_0R/4
R312 100R/4R312 100R/4
PME#_1394 28
AD25
N11-1200271-A10
MCP68 PCI SLOT1
SDONE SBO#
R309 X_0R/4R309 X_0R/4 R310 X_0R/4R310 X_0R/4
SMBCLK 18,21,31 SMBDATA 18,21,31
IDSEL = AD25 PCI_REQ4# PCI_GNT4# PCI_INTX# Device # 9
PCIRST_SLOT1#
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
VCC3 VCC5
+
+
EC36
EC36
+12V
+
+
EC37
EC37
C422
C422
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
PCICLK_SLOT1
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
3
2
Date: Sheet
PCI Slot1 / 2
PCI Slot1 / 2
PCI Slot1 / 2
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
22 41Monday, May 28, 2007
22 41Monday, May 28, 2007
22 41Monday, May 28, 2007
Page 23
5
D D
C C
4
3
VGA CONN BLOCK
D47
D47
X_BAV99/SOT23
X_BAV99/SOT23
231
D49
D49
VCC5 VCC5
X_BAV99/SOT23
X_BAV99/SOT23
231
HSYNC_A VSYNC_A
HSYNC#
HSYNC#15
VSYNC#
VSYNC#15
HSYNC# VSYNC#
5V_VSYNC 5V_HSYNC
DDC_DATA15 DDC_CLK15
VCC5VCC5
U40_1
R695 0R/4R695 0R/4 R696 0R/4R696 0R/4
R686 33R/4R686 33R/4 R687 33R/4R687 33R/4
R688 33R/4R688 33R/4 R689 33R/4R689 33R/4
R86
R86 X_10K/4
X_10K/4
231
231
VCC5
1 2
VCC5
1 2
5V_HSYNC 5V_VSYNC
DDC_SDADDC_DATA DDC_SCLDDC_CLK
D48
D48
X_BAV99/SOT23
X_BAV99/SOT23
DDC_SDADDC_SCL
D50
D50
X_BAV99/SOT23
X_BAV99/SOT23
53
4
U11
U11
X_NC7WZ08
X_NC7WZ08
53
4
U10
U10
X_NC7WZ08
X_NC7WZ08
L34
L34
27nh/600mA/L6
27nh/600mA/L6
L35
L35
27nh/600mA/L6
27nh/600mA/L6
C112
C112
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
5V_HSYNC
C138
C138
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
5V_VSYNC
VSYNC_A HSYNC_A
2
7.5 / 10 / 20
2.2K/4
2.2K/4
DDC_SCL VSYNC_A HSYNC_A DDC_SDA
5 / 5 / 20
X_470pf/50V/X7R/4
X_470pf/50V/X7R/4
1
Width = 7.5 mils
Width = 5 mils
close VGA connector
DAC_R
D51
D51 X_ESD
X_ESD
DAC_G
D52
D52 X_ESD
X_ESD
DAC_B
D53
D53 X_ESD
X_ESD
VCC5
FS1
R89
R89
2.2K/4
2.2K/4
FS1
1.1A/mSMD110F/0.21OHM
1.1A/mSMD110F/0.21OHM D5
1N5817D51N5817
C104
C104
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
VCC5
R91
R91
VGAPWR_FB
C134
C134
R694
47pf/50V/NPO/4
47pf/50V/NPO/4
X_47pf/50V/NPO/4
X_47pf/50V/NPO/4
R694
1K/6
1K/6
C792
C792
C122
C122
C135
C135
X_470pf/50V/X7R/4
X_470pf/50V/X7R/4
47pf/50V/NPO/4
47pf/50V/NPO/4
C114
C114
L4 68nh/300mA/L6L4 68nh/300mA/L6
C149
C149 X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
L3 68nh/300mA/L6L3 68nh/300mA/L6
C144
C144 X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
L2 68nh/300mA/L6L2 68nh/300mA/L6
C139
C139 X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
5 / 15 / 2 0
JVGA1
JVGA1
15 10 14
9
13
8
12
7
11
6
CONN-D-SUB15F_BLUE-RH-2
CONN-D-SUB15F_BLUE-RH-2
N51-15F0371-K06
17
5 4 3 2 1
16
C148
C148 10pf/50V/NPO/4
10pf/50V/NPO/4
C143
C143 10pf/50V/NPO/4
10pf/50V/NPO/4
C137
C137 10pf/50V/NPO/4
10pf/50V/NPO/4
VGA_B VGA_G VGA_R
X_47pf/50V/NPO/4
X_47pf/50V/NPO/4
C793
C793
TV_OUT CONNECTOR
close VGA connector
B B
7.5 / 10 / 20
R15
G15
A A
B15
R95
R95
150R1%/4
150R1%/4
R94
R94
150R1%/4
150R1%/4
R92
R92
150R1%/4
150R1%/4
5
R670 0R/4R670 0R/4
U31B
U31B
QSOP16
QSOP16
COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
I0
Y
4
I1
X_PI5C3257Q_QSOP16
X_PI5C3257Q_QSOP16
R673 0R/4R673 0R/4
U31C
U31C
QSOP16
QSOP16
COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
I0
Y
7
I1
X_PI5C3257Q_QSOP16
X_PI5C3257Q_QSOP16
R678 0R/4R678 0R/4
U31D
U31D
QSOP16
QSOP16
COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
I0
Y
9
I1
X_PI5C3257Q_QSOP16
X_PI5C3257Q_QSOP16
2 3
DAC_R C
DISPLAY_SEL18
R676
R676
X_10K/1%/6
X_10K/1%/6
R679
R679
X_10K/1%/6
X_10K/1%/6
DAC_G Y
LOAD_VIDEO LOAD_VGA
R680
R680
X_10K/1%/6
X_10K/1%/6
DAC_B
COMP
U31E
U31E
QSOP16
QSOP16 COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
I0
14
I1
13
X_PI5C3257Q_QSOP16
X_PI5C3257Q_QSOP16
Y
12
4
VCC3
R677
R677
X_100K/6
X_100K/6
C780
C780
X_0.01uf/50V/X7R/6
X_0.01uf/50V/X7R/6
R681
R681
X_10K/4
X_10K/4
5 6
11 10
DACB Multiplexer
R672
R672
X_10K/4
X_10K/4
R674
R674
R359
R359
X_10K/4
X_10K/4
X_0R/4
X_0R/4
HDMI_CEC 24
LOAD_TEST 18
U31A
U31A
QSOP16
QSOP16 COMMON
COMMON
XSOP16_SECT
XSOP16_SECT
1
SEL
15
EN
X_PI5C3257Q_QSOP16
X_PI5C3257Q_QSOP16
VCC
GND
16
8
3
VCC5VCC3
C775
C775
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
C776
C776
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8
7.5 / 10 / 20
COMP
Y
C
D54
D54 X_ESD
X_ESD
D55
D55 X_ESD
X_ESD
D56
D56 X_ESD
X_ESD
2
X_8.2pf/6C771 X_8.2pf/6C771
L31 X_0.56uH/L6L31 X_0.56uH/L6
C772
C772
X_82pf/6
X_82pf/6
X_8.2pf/6C774 X_8.2pf/6C774
L32 X_0.56uH/L6L32 X_0.56uH/L6
C777
C777
X_82pf/6
X_82pf/6
X_8.2pf/6C779 X_8.2pf/6C779
L33 X_0.56uH/L6L33 X_0.56uH/L6
C781
C781
X_82pf/6
X_82pf/6
7.5 / 10 / 20
C773
C773
X_82pf/6
X_82pf/6
JTV1
JTV1
COMP_L
2
1
2
Y_L C_L
C778
C778
X_82pf/6
X_82pf/6
C782
C782
X_82pf/6
X_82pf/6
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet of
Date: Sheet of
1
4
3
4
3
5
5
X_H2X3(6)_black-RH
X_H2X3(6)_black-RH
close VGA connector
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
VGA / TV-OUT
VGA / TV-OUT
VGA / TV-OUT
MS-7349
MS-7349
MS-7349
1
23 41Monday, May 28, 2007
23 41Monday, May 28, 2007
23 41Monday, May 28, 2007
of
1.0
1.0
1.0
Page 24
5
4
3
2
1
DVI CONNECTOR
D D
DVI_TXD2­DVI_TXD2+
DVI_DDC_CLK_R
6.5 / 10.5 / 20
HDMI_TXD0P
HDMI_TXD0P14
HDMI_TXD0N
HDMI_TXD0N14
HDMI_TXD1P
C C
B B
HDMI_TXD1P15
HDMI_TXD1N
HDMI_TXD1N15
HDMI_TXD2P15
HDMI_TXD2N
HDMI_TXD2N15
HDMI_TXC0P15
HDMI_TXC0N
HDMI_TXC0N15
12
4 3
1 2
43
12
4 3
1 2
43
L22
L22
CMC_90ohm
CMC_90ohm
<Priority>
<Priority>
L23
L23
CMC_90ohm
CMC_90ohm
<Priority>
<Priority>
L21
L21
<Priority>
<Priority>
CMC_90ohm
CMC_90ohm
L24
L24
CMC_90ohm
CMC_90ohm
<Priority>
<Priority>
R646 X_0R/4R646 X_0R/4 R648 0R/4_BR648 0R/4_B
R650 0R/4_BR650 0R/4_B R652 X_0R/4R652 X_0R/4
R653 X_0R/4R653 X_0R/4 R655 0R/4_BR655 0R/4_B
R657 0R/4_BR657 0R/4_B R659 X_0R/4R659 X_0R/4
R645 X_0R/4R645 X_0R/4 R647 0R/4_BR647 0R/4_B
R649 0R/4_BR649 0R/4_B R651 X_0R/4R651 X_0R/4
R654 X_0R/4R654 X_0R/4 R656 0R/4_BR656 0R/4_B
R658 0R/4_BR658 0R/4_B R660 X_0R/4R660 X_0R/4
HDMITXD0P DVI_TXD0+
DVI_TXD0­HDMITXD0N
HDMITXD1P DVI_TXD1+
DVI_TXD1­HDMITXD1N
HDMITXD2PHDMI_TXD2P DVI_TXD2+
DVI_TXD2­HDMITXD2N
HDMITXC0PHDMI_TXC0P DVI_TXC+
DVI_TXC­HDMITXC0N
C809
C809
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C810
C810
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C811
C811
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
VCC5
+
+
12
EC17
HDMI_DDC_VCC
R369
R369
2.2K/6
2.2K/6
R448 3.6K/4R448 3.6K/4
D34
D34
EC17
FB26 X_220ohm/2A/F6FB26 X_220ohm/2A/F6 FB27 X_220ohm/2A/F6FB27 X_220ohm/2A/F6 FB28 220ohm/2A/F6FB28 220ohm/2A/F6 FB29 220ohm/2A/F6FB29 220ohm/2A/F6
L18
L18
180Ohm/1500mA/F6
180Ohm/1500mA/F6
C538
C538
470pf/50V/X7R/4
470pf/50V/X7R/4
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
VCC3VCC3
R370
R196
R196
X_27K/4
X_27K/4
HDMI_CEC23
Q36
Q36
X_2N7002_SOT23
X_2N7002_SOT23
R382 X_33R/4R382 X_33R/4
HPLUG_DET315
HPLUG_DET3 if not use R450 Pull-down to GND with a 22k Ohm.
G
DS
HDMI_DDC_DATA15
R372
R372
X_2.2K/6
X_2.2K/6
X_600Ohm/350mA/F6
X_600Ohm/350mA/F6
HDMI_DDC_CLK15
R450
R450
6.2K/4
6.2K/4
R370
2.2K/6
2.2K/6
L16
L16
R201 33R/4R201 33R/4 R242 33R/4R242 33R/4
VCC3
231
BAV99_SOT23
BAV99_SOT23
6.5 / 10.5 / 20
FS3
FS3
1.1A/mSMD110F/0.21OHM
1.1A/mSMD110F/0.21OHM
6.5 / 10.5 / 20
DVI_DDC_CLK_R DVI_DDC_DATA_R
D33
D33 1N5817
1N5817
DVI_DDC_DATA_R DVI_TXD1-
DVI_TXD1+
HDMI5V HDMI_HOT_DET
DVI_TXD0­DVI_TXD0+
DVI_TXC+ DVI_TXC-
L17
L17
100Ohm/4000mA/F8
100Ohm/4000mA/F8
R692
R692
1K/6
1K/6
HDMITXD2P HDMITXD2N
HDMITXD1P HDMITXD1N
HDMITXD0P HDMITXD0N
HDMITXC0P HDMITXC0N
HDMI_CEC_C HDMI_DDC_CLK_R
HDMI_DDC_DATA_R
HDMI_HOT_DET
HDMI5V
HDMI5V
R693
R693
1K/6
1K/6
DVI1
DVI1
25
Shell
1
DATA2
2
DATA2
3
SHIELD24
4
DATA4
5
DATA4
6
DDCCLK
7
DDCDATA
8
NC
9
DATA1
10
DATA1
11
SHIELD13
12
DATA3
13
DATA3
14
VCC5
15
GND5
16
HPDET
17
DATA0
18
DATA0
19
SHIELD05
20
DATA5
21
DATA5
22
SHIELDCLK
23
CLK
24
CLK
26
Shell
CONN-DVI(D)24P_white
CONN-DVI(D)24P_white
N5B-24F0171-K06/F02
C808
SHELL1
SHELL1
SHELL2
SHELL2
C808
1uf/6.3V/X5R/6
1uf/6.3V/X5R/6
21
20
C413
C413
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
HDMI1
HDMI1
1
D2+
D2+
2
D2 Shield
D2 Shield
3
D2-
D2-
4
D1+
D1+
5
D1 Shield
D1 Shield
6
D1-
D1-
7
D0+
D0+
8
D0 Shield
D0 Shield
9
D0-
D0-
10
CK+
CK+
11
CK Shield
CK Shield
12
CK-
CK-
13
CE Remote
CE Remote
14
NC
NC
15
DDC CLK
DDC CLK
16
DDC DATA
DDC DATA
17
GND
GND
18
+5V
+5V
19
HP DET
HP DET
X_HDMI_CONN-19Pin_black
X_HDMI_CONN-19Pin_black
N5I-19M0161-S42
CP35CP35
MCP68 All Stuff up MCP78
A A
5
4
3
2
C628 X_0.1uf/25V/Y5V/4C628 X_0.1uf/25V/Y5V/4
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
MICRO-STAR INt'L CO., LTD.
HDMI / DVI
HDMI / DVI
HDMI / DVI
MS-7349
MS-7349
MS-7349
1
of
24 41Monday, May 28, 2007
24 41Monday, May 28, 2007
24 41Monday, May 28, 2007
1.0
1.0
1.0
Page 25
5
4
3
2
1
PRIMARY IDE BLOCK
PDD[15..0]
PDD[15..0]17
IDE1
IDE1 IDE_Yellow
HD_RST#
D D
HD_RST#31
PD_DREQ17
PD_IOW#17
PD_IOR#17 PD_IORDY17 PD_DACK#17
IRQ1417 PD_A117 PD_DET 17 PD_A017
PD_CS#117 PD_CS#3 17
PD_LED34
R225 33R/4R225 33R/4
VCC3 VCC3
R129
R129
4.7K/4
4.7K/4
R125
R125
5.6K/4
5.6K/4
HDRST#P
PDD7 PDD6 PDD5 PDD4 PDD3 PDD2 PDD1 PDD14
R124
R124 X_8.2K/4
X_8.2K/4
R121
R121 10K/4
10K/4
IDE_Yellow
1 3 4 5 6 7 8 91110
13 14 17 18
19 21 23 25 27 29 31 33 35 37
2
12 1615
22 24 26 28 30 32 34 36 38 4039
PDD8 PDD9 PDD10 PDD11 PDD12 PDD13
PDD15PDD0
PD_DET
C196
C196 X_472pf/50V/X7R/6
X_472pf/50V/X7R/6
PD_A2 17
R118
R118 15K/4
15K/4
N32-2201321-H06
PDD7
R224 10K/4R224 10K/4
C C
FAN BOLCK
U1
+12VA
C24
C24
CPU-FAN_CTL SYS-FAN_CTL
C25
C25
0.1uf/50V/X7R/6
0.1uf/50V/X7R/6
CPU-FAN_CTL29 SYS-FAN_CTL29
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
B B
System FAN
23
4
Q24
SYSFAN_DRV
C286
C286
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
SYSFAN_SEN
A A
1
APM2054NDC_SOT89
APM2054NDC_SOT89
R244
R244 10K/4
10K/4
R234
R234
3.48K/1%/6
3.48K/1%/6
Q24
5
1 2 3
FANC1
4
FANC2
5 6 7
C27
C27
0.1uf/50V/X7R/6
0.1uf/50V/X7R/6
+12V
D16 1N4148S_SOD123D16 1N4148S_SOD123
R257 4.7K/4R257 4.7K/4
R233
R233 X_0R/8
X_0R/8
SYSFAN_PWR
+
+
EC27
EC27 10uf/25V/4X7/1.5mm
10uf/25V/4X7/1.5mm
U1
FAN1_IN FAN2_IN VCC12 C1 C2 CHRPMP GND
W83391TG/SOIC14
W83391TG/SOIC14
FAN1_DRV FAN1_SEN FAN2_DRV FAN2_SEN FAN3_DRV FAN3_SEN
FAN3_IN
N32-1030451-H06
CPUFAN_DRV
14
CPUFAN_SEN
13
SYSFAN_DRV
12
SYSFAN_SEN
11 10 9 8
FAN1X3_white
FAN1X3_white
If using 4 pin fan, The GPIO must drive to high.
If using 3 pin fan, The GPIO must drive to low.
R258
R258 27K/4
27K/4
SYSFAN1
SYSFAN1
3 2 1
R259
R259 10K/4
10K/4
SYS-FAN 29
4
CPU_FAN_GPO29
CPU_FAN_GPO
CPU FAN
VCC3
R20
R20
4.7K/4
4.7K/4
N_P3055LDG_TO252
N_P3055LDG_TO252
CPUFAN_DRV
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
CPUFAN_SEN
DS
G
Q19
Q19
C213
C213
Q2
Q2 N-2N7002_SOT23
N-2N7002_SOT23
3
+12VA
DS
G
R132
R132 10K/4
10K/4
R136
R136
3.48K/1%/6
3.48K/1%/6
D10
D10
R150 4.7K/4R150 4.7K/4
R138
R138 X_0R/8
X_0R/8
CPUFAN_PWR
+
+
EC19
EC19
10uf/25V/4X7/1.5mm
10uf/25V/4X7/1.5mm
1N4148S_SOD123
1N4148S_SOD123
R147
R147 27K/4
27K/4
R160
R160
4.7K/4
4.7K/4
R159
R159 200R/1%/4
200R/1%/4
CPUFAN1
CPUFAN1
4 3 2 1
BH1X4B_white
BH1X4B_white
N32-1040731-H06
If using 3 pin fan, The Q52 will turn off to avoid the VCC5(R522) bias to CPU-FAN_CTL.
2
R149
R149 10K/4
10K/4
CPU-FAN 29
VCC5
D12
D12 1N4148S_SOD123
1N4148S_SOD123
Q21
Q21 N-2N7002_SOT23
N-2N7002_SOT23
D S
G
CPU-FAN_CTL 29
CPU_FAN_GPO
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
IDE / FAN
IDE / FAN
IDE / FAN
MS-7349
MS-7349
MS-7349
1
25 41Monday, May 28, 2007
25 41Monday, May 28, 2007
25 41Monday, May 28, 2007
1.0
1.0
1.0
of
Page 26
5
4
3
2
1
POWER CIRCUIT FOR USB PORT 0,1,2,3
100 mils
USB_REAR SVCC3
FS2
FS2
2.6A/miniSMDM260F/0.043OHM
2.6A/miniSMDM260F/0.043OHM
D D
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
EC48
EC48
SVCC1
80 mils 80 mils
+
+
C195
C195
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
REAR PANEL USB CONNECTOR FOR USB PORT 0,1
Trace lengths must be less 12 inches
USBP118
USBN118
USBP018
USBN018
Match pairs to 50 mil.
C C
USBP1 USBN1 USBP0 USBN0
L8
L8
5 6 7 8
90_Common Chock
90_Common Chock
SBD0­SBD0+
SBD1­SBD1+
SVCC1
SBD1+
1
SBD1-
2
SBD0+
3
SBD0-
4
POWER CIRCUIT FOR USB PORT 4,5,6,7
LAN_USB1A
LAN_USB1A
5 6 7 8
UP
UP
1 2 3 4
DOWN
DOWN
RJ45(GIGA)+USB*2
RJ45(GIGA)+USB*2
USB_FRONT USB_FRONT
120 mils
FS5
FS5
2.6A/miniSMDM260F/0.043OHM
2.6A/miniSMDM260F/0.043OHM
23 24 25 26 27 28 29 30
SBD1+ SBD1-
C408
C408
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
FRONT USB CONNECTOR
SVCC1
6 1
SVCC2
D11
D11
X_IP4220/SOT457
X_IP4220/SOT457
52
4 3
+
+
EC44
EC44 470uf/10V/6.3X11/2.5mm
470uf/10V/6.3X11/2.5mm
SBD0+ SBD0-
FRONT PANEL USB CONNECTOR FOR USB PORT 4,5
Trace lengths must be less 5 inches
USBP418 USBN418
USBP518 USBN518
Match pairs to 50 mil.
N58-22F0181-S42
NEAR USB CONNECTOR
POWER CIRCUIT FOR USB PORT 8,9
FS4
FS4
1.5A/SMD1812P150TF/0.11OHM
120 mils
FRONT USB CONNECTOR
USBP4
5
USBN4
6
USBP5
7
USBN5
8
90_Common Chock
90_Common Chock
1.5A/SMD1812P150TF/0.11OHM
C391
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
L11
L11
C391
SBD4+
1 2
SBD5+
3
SBD5-
4
40 mils
+
+
EC41
EC41 470uf/10V/6.3X11/2.5mm
470uf/10V/6.3X11/2.5mm
SBD4-SBD4­SBD4+
NEAR USB CONNECTOR
22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22
JUSB1
JUSB1
1 2 3 4 5 6 7 8
10
CON2X5-1_Yellow
CON2X5-1_Yellow
N31-2051581-H06
SVCC2
SBD5­SBD5+
SBD5+ SBD5-
SVCC2
6 1
D20
D20
X_IP4220/SOT457
X_IP4220/SOT457
52
4 3
SBD4+ SBD4-
22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22
REAR PANEL USB CONNECTOR FOR USB PORT 2,3
Trace lengths must be less 12 inches
L5
L5
USBP3
USBP318
USBN318
USBP218
USBN218
5
USBN3 SBD2-
6
USBP2
7
USBN2
8
90_Common Chock
90_Common Chock
Match pairs to 50 mil.
B B
SBD3+
1
SBD3-
2
SBD2+
3
SBD2-
4
SBD2+
SBD3­SBD3+
I1394_USB1A
I1394_USB1A
5 6 7 8
UP
UP
1 2 3 4
DOWN
DOWN
USBx2-D20-BK
USBx2-D20-BK
15 16 17 18 19 20 21 22
SBD3+ SBD3-
SVCC1
6 1
D8
D8
X_IP4220/SOT457
X_IP4220/SOT457
52
4 3
SBD2+ SBD2-
FRONT PANEL USB CONNECTOR FOR USB PORT 6,7
Trace lengths must be less 5 inches
L12
L12
USBP7
USBP718
USBN718 USBP618 USBN618
USBN7 USBP6 USBN6
5 6 7 8
SBD7+
1
SBD7-
2
SBD6+
3
SBD6-
4
90_Common Chock
90_Common Chock
SBD7+
Match pairs to 50 mil.
N31-2051581-H06
JUSB2
JUSB2
1 2 3 4 5 6 7 8
10
CON2X5-1_Yellow
CON2X5-1_Yellow
SVCC2
SBD6-SBD7­SBD6+
SBD6+
SVCC2SVCC1
6 1
D21
D21
X_IP4220/SOT457
X_IP4220/SOT457
52
4 3
SBD7+ SBD7-SBD6-
N58-14M0051-L06
NEAR USB CONNECTOR
NEAR USB CONNECTOR
22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22
22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22
FRONT PANEL USB CONNECTOR FOR USB PORT 8,9
Trace lengths must be less 5 inches
L14
L14
USBP8
USBP818 USBN818 USBP918 USBN918
A A
Match pairs to 50 mil.
USBN8 USBP9 USBN9
5 6 7 8
SBD8+
1
SBD8-
2
SBD9+
3
SBD9-
4
90_Common Chock
90_Common Chock
SBD8-
JUSB3
JUSB3
1 2 3 4 5 6 7 8
10
CON2X5-1_Yellow
CON2X5-1_Yellow
SBD9­SBD9+SBD8+
SBD9+ SBD9-
SVCC3SVCC3
6 1
D32
D32
X_IP4220/SOT457
X_IP4220/SOT457
52
4 3
SBD8+
SBD8-
N31-2051581-H06
NEAR USB CONNECTOR
22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22
5
4
3
2
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
USB Conn.
USB Conn.
USB Conn.
MS-7349
MS-7349
MS-7349
1
of
26 41Monday, May 28, 2007
of
26 41Monday, May 28, 2007
of
26 41Monday, May 28, 2007
1.0
1.0
1.0
Page 27
5
4
3
2
1
C396
C396
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
47
SPI/EAPD
48
SPO
5
SDATAO
8
SDATAIN
10
SYNC
11
RESET#
6
BCLK
2
GPIO0
3
GPIO1
13
SENSE A
34
SENSE B
32
MIC1-VREFO-R
30
MIC2-VREFO
28
MIC1-VREFO-L
37
LINE1-VREFO-R
29
LINE1-VREFO-L
31
LINE2-VREFO
27
VREF
33
DCVOL
40
JDREF/NC
12
PCBEEP
VCC3 +5VR
9
1
DVDD2
DVDDCORE
DVSS14DVSS2
7
C397
C397 10uf/10V/Y5V/8
10uf/10V/Y5V/8 C418
C418 10uf/10V/Y5V/8
10uf/10V/Y5V/8
38
25
U19
U19
36
FRONT-R
35
FRONT-L
AVDD2
AVDD1
41
SURR-R
39
SURR-L
43
CCEN
44
LFE
46
SIDESURR-R
45
SIDESURR-L
24
LINE1-R
23
LINE1-L
15
LINE2-R
14
LINE2-L
22
MIC1-R
21
MIC1-L
17
MIC2-R
16
MIC2-L
20
CD_R
19
CD_GND
18
CD_L
AVSS2
AVSS1
ALC888-GR
ALC888-GR
42
26
861D :B09-LC86124-R09 883 :B09-LC88304-R09 888GR :B09-LC88804-R09
SROUT_R SROUT_L
CEN_OUT
SIDE_SROUT_R
RN49
RN49 10K_8P4R/4
10K_8P4R/4
12 34 56 78
LOUT_R
LOUT_L
BASS
LINE_IN_R
LINE_IN_L
LINE2_R
LINE2_L MIC1_R
MIC1_L MIC2_R MIC2_L
EC46 10uf/16V/4X5/1.5mmEC46 10uf/16V/4X5/1.5mm
EC38 10uf/16V/4X5/1.5mmEC38 10uf/16V/4X5/1.5mm
LINE_OUT_R LINE_OUT_L
SURR_R SURR_L
SIDESURR_R SIDESURR_L SIDE_SROUT_L
EC49 10uf/16V/4X5/1.5mmEC49 10uf/16V/4X5/1.5mm EC50 10uf/16V/4X5/1.5mmEC50 10uf/16V/4X5/1.5mm
EC52 10uf/16V/4X5/1.5mmEC52 10uf/16V/4X5/1.5mm EC51 10uf/16V/4X5/1.5mmEC51 10uf/16V/4X5/1.5mm
EC53 10uf/16V/4X5/1.5mmEC53 10uf/16V/4X5/1.5mm EC54 10uf/16V/4X5/1.5mmEC54 10uf/16V/4X5/1.5mm
+
+
EC42 100uf/16V/6.3X5/2.5mm
EC42 100uf/16V/6.3X5/2.5mm
+
+
EC43 100uf/16V/6.3X5/2.5mm
EC43 100uf/16V/6.3X5/2.5mm
EC55 10uf/16V/4X5/1.5mmEC55 10uf/16V/4X5/1.5mm EC56 10uf/16V/4X5/1.5mmEC56 10uf/16V/4X5/1.5mm
C384 1uf/16V/Y5V/6C384 1uf/16V/Y5V/6 C380 1uf/16V/Y5V/6C380 1uf/16V/Y5V/6 C381 1uf/16V/Y5V/6C381 1uf/16V/Y5V/6
C721
C721
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8 C720
C720
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8
C719
C719
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8 C718
C718
4.7uf/10V/X5R/8
4.7uf/10V/X5R/8
CD-R CD-G CD-L
123456
78
RN51
RN51 47K_8P4R/4
47K_8P4R/4
JCD1
JCD1
4 3 2 1
CDin/BLACK
CDin/BLACK
SROUT_L SROUT_R
CEN_OUT BASS
SIDE_SROUT_L SIDE_SROUT_R
LINE_IN_L LINE_IN_R
LOUT_L LOUT_R
MIC1_L MIC1_R
MIC1_V_L MIC1_V_R
FB18
FB18 75R/4
75R/4
FB19
FB19 75R/4
75R/4 FB16
FB16 75R/4
75R/4
FB17
FB17 75R/4
75R/4 FB14
FB14 75R/4
75R/4
FB15
FB15 75R/4
75R/4
FB22
FB22 75R/4
75R/4
FB23
FB23 75R/4
75R/4 FB12
FB12 75R/4
75R/4
FB13
FB13 75R/4
75R/4
R221 4.7K/4R221 4.7K/4 R220 4.7K/4R220 4.7K/4
470pf/50V/X7R/4
470pf/50V/X7R/4
470pf/50V/X7R/4
470pf/50V/X7R/4
470pf/50V/X7R/4
470pf/50V/X7R/4
470pf/50V/X7R/4
470pf/50V/X7R/4
470pf/50V/X7R/4
470pf/50V/X7R/4
D22
D22 X_BAT54A_SOT23
X_BAT54A_SOT23
3
R314 0R/4R314 0R/4
C394
C394
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
1 2
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
MIC1_BIAS
D D
C567
C567
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
C C
R314, 883/888/861: _ , 885: X D22, 883/888/861: X , 885: _
HDA_SDOUT18
HDA_SDIN018
HDA_SYNC18 HDA_RST#18
HDASDIN0
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
C560
C560
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
MIC1_V_R MIC2VREFO MIC1_BIAS
LINE2_VREF
MIC1_V_L MIC1_V_R
MIC1_V_L
R308 10R/4R308 10R/4
HDA_BITCLK_R18
C393
C393 X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
R316, 883/888/861: _ , 885: X
R316 0R/4R316 0R/4
C410
C410
C405
C405
R404
R404 0R/4
0R/4
JAUD2_EN#
+5VR
C398
C398 10uf/10V/Y5V/8
10uf/10V/Y5V/8
C407
C407
10uf/10V/Y5V/8
10uf/10V/Y5V/8
SPDIFI SPDIFO
HDASDIN0
HDA_BITCLKRHDA_BITCLKR
R313 X_0R/4R313 X_0R/4
SENSE_A SENSE_B
R319 X_10K/4R319 X_10K/4 C284 R322 20K/1%/4_BR322 20K/1%/4_B
R322, 861C: 5.1K , 861D: 20K
Pin33 NC for ALC861 and ALC888
N32-1040701-H06
SENSE_A
SENSE_B
B B
R299 5.1K/1%/4R299 5.1K/1%/4
R297 10K/1%/4R297 10K/1%/4
R298 20K/1%/4R298 20K/1%/4
R296 39.2K/1%/4R296 39.2K/1%/4
R315 10K/1%/4R315 10K/1%/4
R317 0R/4R317 0R/4
R318 5.1K/1%/4R318 5.1K/1%/4
FRONT_JD
LINE1_JD
MIC1_JD
SURR_JD
CEN_JD
FR-IO-SEN
SIDESURR_JD
SPDIN1
SPDIN1
X_BH1X3_black
X_BH1X3_black
SPDIF OUT
R507
R507
X_75R/4
X_75R/4
SPDIF IN
C765
C765
X_0.01uf/25V/X7R/4
X_0.01uf/25V/X7R/4
C616
C616 X_100pf/50V/NPO/4
X_100pf/50V/NPO/4
R358
R358
X_10R/4
X_10R/4
SPDIFI
SPDIFO
R682
R682
0R/4
0R/4
Cap
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
R353 100R/4R353 100R/4
X_100pf/50V/NPO/4
X_100pf/50V/NPO/4
VCC5
1 2 3
C423
C423
C424
C424
VCC5
R661
R661
X_220R/4
X_220R/4
SPDOUT1
SPDOUT1
1 2 3
BH1X3_black
BH1X3_black
Rear audio jack
CLOSE TO CONNECTOR
C282
C282
C287
C287
C278
C278
FB24
FB24 75R/4
75R/4
FB25
FB25 75R/4
75R/4
D
E
F
C281
C281
C283
C283
100pf/50V/NPO/4
100pf/50V/NPO/4
LIN_IN
LIN_OUT
MIC1
C289
C289 470pf/50V/X7R/4
470pf/50V/X7R/4
C288
C288 470pf/50V/X7R/4
470pf/50V/X7R/4
C279
C279 470pf/50V/X7R/4
470pf/50V/X7R/4
C284 470pf/50V/X7R/4
470pf/50V/X7R/4
C280
C280 470pf/50V/X7R/4
470pf/50V/X7R/4
C277
C277
100pf/50V/NPO/4
100pf/50V/NPO/4
SURR_JD
CEN_JD
SIDESURR_JD
LINE1_JD
FRONT_JD
MIC1_JD
C276
C276
(A3) (A2) (A1) (A4)
(B3) (B2) (B1) (B4)
(C3) (C2) (C1) (C4)
(D3) (D2) (D1) (D4)
(E3) (E2) (E1) (E4)
(F3) (F2) (F1) (F4)
SURR
CEN/BAS
SIDESURR
62 63 64 61
52 53 54 51
42 43 44 41
32 33 34 31
22 23 24 21
12 13 14 11
AUDIO1
AUDIO1
SURR_JD AGND SROUT_L SROUT_R
CEN_JD AGND CEN_OUT BASS
SIDESURR_JD AGND SIDESROUT_L SIDESROUT_R
LINE_JD AGND LINE_L LINE_R
LOUT_JD AGND LOUT_L LOUT_R
MIC_JD AGND MIC_L MIC_R
Audio_Jack
Audio_Jack
GND1 GND2 GND3 GND4 GND5 GND6
N54-26F0151-S42
SROUT_R SROUT_L LOUT_L
A
B
C
LOUT_R
SIDE_SROUT_R SIDE_SROUT_L CEN_OUT BASS
JACK A BLACK
JACK B
ORANGE
JACK C
GRAY
R5 L5 G3 G4 G5 G6
JACK D
BLUE
JACK E
Green
JACK F
PINK
(C0) (C0)
RN39
RN39 22K_8P4R/6
22K_8P4R/6
1 2 3 4 5 6 7 8
RN40
RN40 22K_8P4R/6
22K_8P4R/6
1 2 3 4 5 6 7 8
CP6
D25
D25 BAT54A_SOT23
3
C406
C406 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
3
C409
C409 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
BAT54A_SOT23
1 2
D27
D27 BAT54A_SOT23
BAT54A_SOT23
1 2
1 2 3 4 5 6 7 8
RN53
RN53
4.7K_8P4R/4
4.7K_8P4R/4
MIC2_L
MIC2_R LINE2_R FR-IO-SEN LINE2_L
7 8
3 4
5 6
R335 75R/4R335 75R/4 R336 75R/4R336 75R/4 R339 75R/4R339 75R/4
R340 75R/4R340 75R/4
RN52
RN52 22K_8P4R/6
22K_8P4R/6
1 2
X_100pf/50V/NPO/4
X_100pf/50V/NPO/4
C433
C433
C432
C432
X_100pf/50V/NPO/4
X_100pf/50V/NPO/4
D23
D23 1N5817
1N5817
R323
R323 100R/1%/4
100R/1%/4
R321
R321 324R/1%/4
324R/1%/4
For Standby mode-De-pop
VCC5_SB
D18
D18 1N5817
1N5817
C420
C420 10uf/10V/Y5V/8
10uf/10V/Y5V/8
MIC2VREFO
+5VR
LINE2_VREF
AUDIO CODE REGULATORS
+12V
A A
C426
C426 10uf/16V/Y5V/1206
10uf/16V/Y5V/1206
U20
U20 L1087CG/SOT89/800mA
L1087CG/SOT89/800mA
VIN3VOUT
2
ADJ
1
Azalia Front Audio Connector
N31-2051411-H06
1
MIC MICPWR3PRESENCE#
5
FLINE OUTR
7
HPON FLINE OUTL9LINE NEXT L
JAUD1
C430
C430
X_100pf/50V/NPO/4
X_100pf/50V/NPO/4
JAUD1 JAUD_Black
JAUD_Black
C428
C428 X_100pf/50V/NPO/4
X_100pf/50V/NPO/4
GND
LINE NEXT R
2 4 6
8
8
10
39.2K/1%/4
39.2K/1%/4
R333
R333
+5VR
R334
R334 10K/4
10K/4
R332
R332 20K/1%/4
20K/1%/4
JAUD2_EN#
For EMI
5
4
3
2
For EMI
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
Azalia Codec-ALC861/883/888
Azalia Codec-ALC861/883/888
Azalia Codec-ALC861/883/888
CP6
X_COPPER
X_COPPER
CP7
CP7
X_C_B
X_C_B
CP9
CP9
X_C_B
X_C_B
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
27 41Monday, May 28, 2007
27 41Monday, May 28, 2007
27 41Monday, May 28, 2007
Page 28
5
VCC3
33
102
113
125
8
94
VCC1
VSS1
VCC2
VSS2
103
111
VCC3
VSS3
121
20
VCC4
VSS4
1
VCC5
VSS5
VDD/VCC6
VSS6
9
AD[31..0]
AD[31..0]16,22
D D
C C
B B
C_BE#[3..0]16,22
C_BE#[3..0]
DEVSEL#16,22
PCI_REQ2#16 PCI_GNT2#16
PCI_INTZ#16,22
PCICLK_139416
1394_RST#16
PME#_139422
PAR16,22
FRAME#16,22
IRDY#16,22
TRDY#16,22
STOP#16,22
PERR#16,22
C_BE#3 C_BE#2 C_BE#1 C_BE#0
AD23
R293 X_100R/4R293 X_100R/4
AD31 AD30 AD29 AD28 AD27 AD26 AD25 AD24 AD23 AD22 AD21 AD20 AD19 AD18 AD17 AD16 AD15 AD14 AD13 AD12 AD11 AD10 AD9 AD8 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0
97
AD31
98
AD30
99
AD29
100
AD28
101
AD27
104
AD26
105
AD25
106
AD24
109
AD23
110
AD22
112
AD21
116
AD20
117
AD19
118
AD18
119
AD17
120
AD16
5
AD15
6
AD14
7
AD13
10
AD12
11
AD11
12
AD10
13
AD9
14
AD8
17
AD7
18
AD6
19
AD5
21
AD4
22
AD3
23
AD2
27
AD1
28
AD0
107
CBE3#
122
CBE2#
4
CBE1#
15
CBE0#
3
PAR
123
FRAME#
124
IRDY#
126
TRDY#
128
STOP#
108
IDSEL
127
DEVSEL#
96
REQ#
95
GNT#
2
PERR#
91
INTA#
93
PCICLK
92
PCIRST#
37
PME#
PWRDET_VCC
114
35
VDD/VCC
VSS7
VSS8
16
26
34
VDD
PWRDET/VCC
VSS9
24
VDD/VCC
GNDATX0
59
4
GNDARX0
64
68
VCC3
GNDATX169GNDARX1
82
49
39
VCC
GNDATX283GNDARX2
62
VDD/VCC
VDDATX0
RAMVSS
25
65
76
VDDATX1
VDDARX0
VSSC1
VSSC2
36
115
P3VA
89
75
90
VDDATX2
VDDARX2
VDDARX1
D6/CMCJMP
CTL0/PC0JMP CTL1/PC1JMP
LINKON/TSIJMP
LREQ/TSOJMP
PGND1
PGND2
41
50
XTPBIAS0
XTPA0P XTPA0M XTPB0P XTPB0M
XTPBIAS1
XTPA1P XTPA1M XTPB1P XTPB1M
REG_FB
XCPS
XREXT
PHYRESET
D7/PC2JMP
MODE0 MODE1
SCLK
LPS/CMC
SCL/EECK
SDA/EEDI
EEDO
EECS
X_VT6308CD
X_VT6308CD
3
U16
U16
TPBIAS0
74
TPA0+
73
TPA0-
72
TPB0+
71
TPB0-
70
TPBIAS1
81
TPA1+
80
TPA1-
79
TPB1+
78
TPB1-
77 88
NC NC
NC NC
D5 D4 D3 D2 D1 D0
NC
XO
REG_FB
87 86 85 84
63
66
52 58
54 55 53
57 56 51 48 47 46 45 44 43 42 40 38 67
EECK
32
EEDI
31 30 29
60
XI
61
R236 X_11K/1%/4R236 X_11K/1%/4 R237 X_1K/4R237 X_1K/4
R251 X_6.34K/1%/4R251 X_6.34K/1%/4 C305
C305 X_47pf/50V/NPO/4
X_47pf/50V/NPO/4
C301
C301 X_1uf/16V/Y5V/6
X_1uf/16V/Y5V/6
R241 X_4.7K/4R241 X_4.7K/4
U24 Stuff => R265 NC , R241 , R356 Stuff U24 NC => R241 , R356 NC , R265 Stuff
R265 X_4.7K/4R265 X_4.7K/4
R223
R223 X_1M/6
X_1M/6
P3VA
C294 X_10pf/50V/NPO/4C294 X_10pf/50V/NPO/4
Y4
Y4 X_24MHZ/16pf/HC49S
X_24MHZ/16pf/HC49S
C291 X_10pf/50V/NPO/4C291 X_10pf/50V/NPO/4
CPWR_F
TPB0­TPA0+ TPA0-
P3VA
Use EEPROM R265 Don't Stuff
RN36
RN36
1 2 3 4 5 6 7 8
X_0R_8P4R/6
X_0R_8P4R/6
EMI request 11/28
2
D36
D36
X_1N5817
X_1N5817
D37
D37
X_1N5817
X_1N5817
TPBIAS0
C309
C309 X_0.33uf/16V/Y5V/6
X_0.33uf/16V/Y5V/6
CPWR_0
CPWR
C190
C190 X_102pf/50V/X7R/4
X_102pf/50V/X7R/4
R253
R253 X_4.99K/1%/4
X_4.99K/1%/4
C306
C306
X_270pf/50V/NPO/6
X_270pf/50V/NPO/6
C175
C175 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
PTPB0+TPB0+ PTPB0­PTPA0+ PTPA0-
+12V
1
F1
F1
X_SMDC150F/24V/3A
X_SMDC150F/24V/3A
R261 X_54.9R/1%/4R261 X_54.9R/1%/4 R260 X_54.9R/1%/4R260 X_54.9R/1%/4 R256 X_54.9R/1%/4R256 X_54.9R/1%/4 R254 X_54.9R/1%/4R254 X_54.9R/1%/4
Near Chip
PTPA0+ PTPA0­PTPB0+ PTPB0-
C186
C186 X_0.01uf/25V/X7R/4
X_0.01uf/25V/X7R/4
TPA0+ TPA0­TPB0+ TPB0-
I1394_USB1B
I1394_USB1B
9
PWR
14
TPA+
13
TPA-
12
TPB+
11
TPB-
10
GND
USBx2-D20-BK
USBx2-D20-BK
CPWR_0
N58-14M0051-L06
D38
D38
X_1N5817
+12V
X_1N5817
D39
D39
X_1N5817
X_1N5817
TPBIAS1
R267
R267 X_4.99K/1%/4
X_4.99K/1%/4
C349
C349 X_0.33uf/16V/Y5V/6
X_0.33uf/16V/Y5V/6
CPWR_F
C425
C425 X_102pf/50V/X7R/4
X_102pf/50V/X7R/4
C337
C337
X_270pf/50V/NPO/6
X_270pf/50V/NPO/6
F2
F2
X_SMDC150F/24V/3A
X_SMDC150F/24V/3A
R274 X_54.9R/1%/4R274 X_54.9R/1%/4 R272 X_54.9R/1%/4R272 X_54.9R/1%/4 R268 X_54.9R/1%/4R268 X_54.9R/1%/4 R266 X_54.9R/1%/4R266 X_54.9R/1%/4
Near Chip
CPWR_1
C427
C427 X_0.01uf/25V/X7R/4
X_0.01uf/25V/X7R/4
TPA1+ TPA1­TPB1+ TPB1-
MCP68 IDSEL = AD23 PCI_REQ2#
VDD
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C302
C302
C347
C347
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
A A
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
VCC3
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4 C348
C348
P3VA
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4 C357
C357
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C358
C358
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C303
C303
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C366
C366
C308
C308
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4 C367
C367
C365
C365
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C299
C299
C355
C355
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
5
C360
C360
C300
C300
C353
C353 X_10uf/10V/Y5V/8
X_10uf/10V/Y5V/8
C323
C323 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
VCC3
VCC3
L10
L10 X_80Ohm/3A/L8
X_80Ohm/3A/L8
CP5
CP5 X_COPPER
X_COPPER
For VT6307
R285
R285 X_0R/6
X_0R/6
P3VA
VDD
4
PCI_INTZ# Device # 7
R355
R355
X_2.7K/6
X_2.7K/6
EEDI EECK
PCI_GNT2#
1394-EEPROM 24C02 for 6307/6308
VCC3
R354
R354 X_2.7K/6
X_2.7K/6
R356
R356
X_510R/6
X_510R/6
U24
U24
3
A2
2
A1
1
A0
7
WP
5
SDA
6
SCL
X_AT24C02BN-5ms/SOIC-8
X_AT24C02BN-5ms/SOIC-8
M33-24C02J3-A26
TPA1+ TPA1-
CPWR_1 CPWR_1
For VT6308
PWRDET_VCC
VCC3
R255
R255 X_4.7K/4
X_4.7K/4
C307
C307 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
VCC3
For VT6307
R252
R252 X_0R/4
X_0R/4
For Intel 1394 pinheader
4
GND
VCC3
8
VCC
3
For VT6308
REG_FB
R278 X_0R/4R278 X_0R/4
VDD
C356
C356 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
J1394_1
J1394_1
1 2 3 4 5 6 7 8 9 10
X_J1394_Green
X_J1394_Green
N31-2051551-H06
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
IEEE1394-VT6308P
IEEE1394-VT6308P
IEEE1394-VT6308P
MS-7349
MS-7349
MS-7349
TPB1-TPB1+
1.0
1.0
1.0
of
28 41Monday, May 28, 2007
of
28 41Monday, May 28, 2007
of
1
28 41Monday, May 28, 2007
Page 29
5
LPC SUPER I/O F71882
R568 0R/4R568 0R/4
SIO_PCLK16 SIO_24M18
LPC_AD016 LPC_AD116 LPC_AD216 LPC_AD316
R569 0R/4R569 0R/4
CPU-FAN25 SYS-FAN25
SIO_PME#18
SERIRQR
SIO_RST# SERIRQR
LPC_FRAME#
LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3
D1+6
SPI_CLK SPI_CS0# MISO MOSI
R669 0R/4R669 0R/4
R345 X_0R/4R345 X_0R/4
PWRBTN# PS_ON#
IO_RSMRST# COPEN#
SERIRQ16
SIO_RST#16 LPC_DRQ#016
LPC_FRAME#16
D D
5/10/10
5/10/10
C C
B B
3VDUAL
3VDUAL
VCC5_SB
SIO_THERM_SID6
SIO_THERM_SIC6
SLOTOCC#_CPU8
CPU-FAN_CTL25 SYS-FAN_CTL25
THRM#18
CPU_FAN_GPO25
FP_RST#18,34
ATX_PWR_OK14,18,31,34
PSIN#34
PWRBTN#18
SLP_S3#18,31
PS_ON#31
R398 4.7K/4R398 4.7K/4
R2 X_4.7K/4R2 X_4.7K/4
R1 4.7K/4R1 4.7K/4
LPC length should be less than 18 inches.
U3
29
LRESET#
30
LDRQ#
31
SERIRQ
32
LFRAME#
38
PCICLK
39
CLKIN
33
LAD0
34
LAD1
35
LAD2
36
LAD3
47
VIDIN5/OUT5/SID
46
VIDIN4/OUT4
45
VIDIN3/OUT3
44
VIDIN2/OUT2
43
VIDIN1/OUT1
42
VIDIN0/OUT0
54
VIDOUT5/GP5/SIC
53
VIDOUT4/GP4
52
VIDOUT3/GP3
51
VIDOUT2/GP2
50
VIDOUT1/GP1
49
VIDOUT0/GP0
55
SLOTOCC#/GP6
56
GP7/Turbo#/WDTRST#
57
VSI/SST
58
VSO/PECI
93
VIN6
VIN5
94
VIN5
VIN4
95
VIN4
VIN3
96
VIN3
VIN2
97
VIN2
VIN1
98
Vcore(VIN1)
21
FANIN1
22
FAN_CTL1
23
FANIN2
24
FAN_CTL2
25
FANIN3/GP40
26
D3+ D2+
VREF
FAN_CTL3/GP41
89
D3+ (System)
90
D2+
91
D1+(CPU)
92
VREF
79
PME#
59
GP25/GP10/SPI_SLK
60
FANIN4/GP11/SPI_CS0#/FAN_CTL4
61
GP12/SPI_MISO
62
FANCTL1_1/GP13/SPI_MOSI/BEEP
63
GP14/FWH_DIS_WDTRST#/SPI_CSI#
67
OVT#
64
GP15/LED_VSB/ALERT#
65
GP16/LED_VCC/Turbo2#
74
PCIRST1#/GP20
75
PCIRST2#/GP21
76
PCIRST3#/GP22
77
GP23/RSTCON#
78
ATXPG_IN/GP24
84
PWROK/GP32
80
PWSIN#/GP26
81
PWSOUT#/GP27
82
S3#/GP30
83
PSON#/GP31
85
RSMRST#/GP33
87
COPEN#
F71882FGU3F71882FG
IO_RSMRST#
PWRBTN#
PS_ON#
MCP61 / 68 Internal Pull-High
DENSEL#
INDEX#
MOA#
DRVA#
DIR#
STEP#
WDATA#
WGATE#
TRK0#
WPT# RDATA# HDSEL#
DSKCHG#
SLCT
BUSY
ACK#
SLIN#
INIT#
ERR#
AFD# STB#
GP42/IRTX GP43/IRRX
DCD1#
RI1#
CTS1#
DTR1#/FAN60_100
RTS1#/VIDOUT_TRAP
DSR1#
SOUT1/Config4E_2E
SIN1
DCD2
RI2#
CTS2#
DTR2#/FWH_TRAP
RTS2#/HPWM_DC
DSR2#
SOUT2/SPI_TRAP
SIN2
GPIO17
KBRST#
AG20
KDATA
KCLK MDAT MCLK
VBAT
VCC VCC VCC
GND GND GND GND
AGND(D_)
PE
PD0 PD1 PD2 PD3 PD4 PD5 PD6 PD7
VSB
TPM 1.2
U22
U22
LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME#
TPM_RESET#31
LPC_PD#16
R348
R348
PCICLK_TPM16
X_0R/4
X_0R/4
R347
R347
X_4.7K/4
X_4.7K/4
A A
3VDUAL
JTPM1
JTPM1
3 2 1
X_H1X3_black_with Jumper
X_H1X3_black_with Jumper
VCC3
R346
R346
X_4.7K/4
X_4.7K/4
X_4.7K/4
X_4.7K/4
TPM_CLKRUN# SERIRQR
PCICLK_TPM
TPM_ADDR
R350
R350
26
LAD0
23
LAD1
20
LAD2
17
LAD3
22
LFRAME#
16
LRESET#
28
LPCPD#
15
CLKRUN#
27
SERIRQ
21
LCLK
9
TESTBI/BADD
8
TESTI
PP
7
PP
2
NC3
1
NC4
X_SLB9635TT1.2/TSSOP28
X_SLB9635TT1.2/TSSOP28
TPM_ADDR : 0x02E ( Low ) 0x04E ( High )
R349
R349
X_4.7K/4
X_4.7K/4
TPMPP1 Default 1-2 ( GND ) PP : Physical presence standard connect to GND.
5
GPIO
3V_1 3V_2 3V_3
3VSB
GND1 GND2 GND3 GND4
XTALO
XTALI/32KIN
NC1 NC2
6 19
24 10
5 18
25 11 4
14 13
12 3
VCC3
R590 X_0R/4R590 X_0R/4
R562 X_0R/4R562 X_0R/4
R563 X_0R/4R563 X_0R/4
Y6 NC => Stuff R383 , R564 , NC R562 , R563 C509 , C526 Y6 Stuff => NC R383 , R564 , Stuff R562 , R563 C509 , C526
7 17 8 9 11 12 10 14 16 18 15 13 19
100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116
27 28 118 119 120
DTRA#
121
RTSA#
122 123
SOUTA
124 125 126 127 128
DTRB#
1
RTSB#
2 3
SOUTB
5 6 66
40 41 69 70 71 72
68 86 4 37 99
20 48 73 117 88
3VDUAL
R564 X_0R/4R564 X_0R/4
4
DRVDEN0 INDEX# MOA# DSA# DIR# STEP# WRDATA# WE# TRACK0# WP# RDDATA# HEAD# DSKCHG#
DCDA# 30 RIA# 30 CTSA# 30 DTRA# 30 RTSA# 30 DSRA# 30 SOUTA 30 SINA 30
KBRST# 18
A20GATE 18
KBDATA 30 KBCLK 30 MSDATA 30 MSCLK 30
C6
C6
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCC3
D-
X_12pf/50V/NPO/6C509 X_12pf/50V/NPO/6C509
Y6
Y6
X_32.768KHZ/12.5pF
X_32.768KHZ/12.5pF
X_12pf/50V/NPO/6C526 X_12pf/50V/NPO/6C526
4
DRVDEN0 30 INDEX# 30 MOA# 30 DSA# 30 DIR# 30 STEP# 30 WRDATA# 30 WE# 30 TRACK0# 30 WP# 30 RDDATA# 30 HEAD# 30 DSKCHG# 30
VBAT
CP1
CP1 X_COPPER
X_COPPER
TPM_CLK 18
LPC DEBUG PORT
LPC_PCLK16
LPC_FRAME#16
Reserved
X_0.1uf/25V/Y5V/6
X_0.1uf/25V/Y5V/6
3VDUAL
C11
C11
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
(Place capacitor close to IC)
VOLTAGE SENSING(H/W Monitor).
The best voltage input level is about 1V.
VCORE
-12V
VCC5_SB
VCC5
+12V
R330 10R/4R330 10R/4
SIO_RST# LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME#
JLPC1 Stuff => R218 , R331 , R330 JLPC1 Nc => R218 , R331 , R330
RN48
LPC_AD3 LPC_AD2 LPC_AD1 LPC_AD0
MCP61 / 68 Internal Pull-High
VCC3
C435
C435
VCC3
C12
C12
R3 10K/1%/4R3 10K/1%/4
R4 100K/1%/4R4 100K/1%/4
R5 200K/1%/4R5 200K/1%/4
R6 200K/1%/4R6 200K/1%/4
R7 200K/1%/4R7 200K/1%/4
RN48
X_8.2K_8P4R/4
X_8.2K_8P4R/4
C434
C434
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
C10
C10
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
3
JLPC1
JLPC1
1 2 3 4 5 7 8
9 10 11 12 13 14
JLPC_Black
JLPC_Black
12
34
56
78
C49
C49
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
R15
R15 10K/1%/4
10K/1%/4
R16
R16 47K/1%/4
47K/1%/4
R17
R17 47K/1%/4
47K/1%/4
R18
R18 20K/1%/4
20K/1%/4
3
VCC3
VIN1
VIN2 VREF
VIN3
VIN4
VIN5
2
VCC3
R331
R331 10K/4
10K/4
VCC3
6
VCC5
4.7K/4
4.7K/4
SPI FLASH MEMORY
SPI DEBUG PORT
Place close to SPI ROM
SPI_CS0# SPI_HOLD0#
3VDUAL
JSPI1
JSPI1
1 2 3 4
6
5 7 8 9
H2X5(10)_black-2mm
H2X5(10)_black-2mm
MOSIMISO SPI_CLK
R627
R627
3VDUAL
Part Number : N31-2051451-H06
4.7K/4
4.7K/4
R628
R628
3VDUAL
X_10uf/10V/Y5V/8
X_10uf/10V/Y5V/8
SPI_CS0# MISO WP_SIO0#
1 2 3 4
M31-25L8013-M24 M31-25X8003-W03
C50
C50
U7
U7
CE#
VDD
SO
HOLD#
WP#
SCK
VSS
SI
SPI/8M/5mS/SOP8
SPI/8M/5mS/SOP8
SPI ROM
1
8 7 6 5
3VDUAL
C56
C56
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
SPI_HOLD0# SPI_CLK MOSI
R64
R64
4.7K/4
4.7K/4
Power On Strapping
RTSB# DTRB# DTRA#
SPI_ENABLE
2E
PIN42-47=VIDIN/OUT PIN49-54=GPIO
LINEAR FANPWM FAN
SPI as a primary BIOS FAN START DUTY 100%
2
112
JCI1
JCI1 D1x2-BK
D1x2-BK
MS-7349
MS-7349
MS-7349
1
R54 X_1K/4R54 X_1K/4 R53 1K/4R53 1K/4 R39 1K/4R39 1K/4
STUFF
CPU VID reset
SLOT_OCC#
VBAT
R19
R19 2M/4
2M/4
SLOTOCC#_CPU
of
29 41Monday, May 28, 2007
of
29 41Monday, May 28, 2007
of
29 41Monday, May 28, 2007
1.0
1.0
1.0
JBIOS1
JBIOS1
3 2 1
X_H1X3_black_with Jumper
X_H1X3_black_with Jumper
JBIOS1 ( Remove R55 ) 1 - 2 SPI ROM 2 - 3 LPC ROM
Temperature Sensing
DIODE SENSING CIRCUIT
D1+6
D1+D1+
D-
VREF
D3+
D2+
D-
R668
R668 X_1K/4
X_1K/4
SOUTB
C2
C2 222pf/16V/X7R/4
222pf/16V/X7R/4
AP note
R22 X_10K/1%/4R22 X_10K/1%/4
C8
C8 332pf/50V/X7R/4
332pf/50V/X7R/4
2
THERMDA_CPU 6
from CPU
THERMDC_CPU 6
RT1
RT1 X_YT103S-1N_B
X_YT103S-1N_B
from CPU
for SYSTEM
Q1
Q1 P-3906_SOT23
P-3906_SOT23
SOUTB
R55 1K/4R55 1K/4
SOUTA
R48 X_1K/4R48 X_1K/4
RTSA#
R47 1K/4R47 1K/4
Don't STUFF
SPI_DISABLE
SOUTB
4E
SOUTA
PIN42-47=VIDIN
RTSA#
PIN49-54=VID_OUT
RTSB# DTRB#
SPI as a backup BIOS
DTRA#
FAN START DUTY 60% PWM
CASE OPEN CIRCUIT
VBAT
R8 2M/4R82M/4
COPEN#
C1
C1
102pf/50V/X7R/4
102pf/50V/X7R/4
N31-1020151-H06
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
SIO-F71882FG / TPM
SIO-F71882FG / TPM
SIO-F71882FG / TPM
Page 30
5
PS2 KEYBOARD & MOUSE CONNECTOR
20 mils
SVCC1
C5
X_0.1uf/25V/Y5V/4
D D
1 2
3 4
5 6
MSDATA29
MSCLK29
KBDATA29
MSDAT# MSCLK#
KBDAT# KBCLK#
KBCLK29
7 8
RN1
RN1
10K_8P4R/4
10K_8P4R/4
FB3 0R/6FB3 0R/6 FB4 0R/6FB4 0R/6
FB1 0R/6FB1 0R/6 FB2 0R/6FB2 0R/6
X_0.1uf/25V/Y5V/4
C5
C15
C15
180pf/50V/NPO/4
180pf/50V/NPO/4
180pf/50V/NPO/4
180pf/50V/NPO/4
!!!Can't use Carry-Cap!!!
R690
R690
1K/4
1K/4
C13
C13
C20
C20
180pf/50V/NPO/4
180pf/50V/NPO/4
4
R691
R691
1K/4
1K/4
C18
C18 180pf/50V/NPO/4
180pf/50V/NPO/4
R14
R14
1K/4
1K/4
JKBMS1
JKBMS1
7
8 11 12
1
2
5
6
KB/MS
KB/MS
MS
MS
10
9 4
3
KB
KB
N56-12F0081-F02
3
SERIAL PORT 1
VCC5
NRIA# RIA# NCTSA# NDSRA# DSRA# NSINA NDCDA#
RTSA#
RTSA#29
DTRA#
DTRA#29
SOUTA
SOUTA29
2
U5
U5
20
VCC
2
RIN1
3
RIN2
4
RIN3
7
RIN4
9
RIN5
16
DIN1
15
DIN2
13
DIN3
11
GND
75232S_SSOP20
75232S_SSOP20
CN1
180pf/50V/NPO_8P4C/6
180pf/50V/NPO_8P4C/6
NRTSA NDSRA# NCTSA# NRIA#
180pf/50V/NPO_8P4C/6
180pf/50V/NPO_8P4C/6
NDCDA# NSOUTA NSINA NDTRA
CN1
1 3 5 7
CN2
CN2
1 3 5 7
ROUT1 ROUT2 ROUT3 ROUT4 ROUT5
DOUT1 DOUT2 DOUT3
2 4 6 8
2 4 6 8
1
C32
C32
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4 D1
+12VCOM
1
V+
19 18 17 14 12
5 6 8
-12VCOM
10
V-
D1 1N4148S_SOD123
1N4148S_SOD123
CTSA# SINA
DCDA# NRTSA
NDTRA NSOUTA
RIA# 29 CTSA# 29 DSRA# 29 SINA 29 DCDA# 29
D2
D2 1N4148S_SOD123
1N4148S_SOD123 C45
C45
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
NDCDA# NSOUTA NDTRA
NRTSA NRIA#
+12V
-12V
JCOM1
JCOM1
1 2 3 4 5 6 7 8 9
H2X5(10)_BLACK-2.54mm
H2X5(10)_BLACK-2.54mm
NSINA NDSRA#
NCTSA#
N31-2051331-H06
C C
FLOPPY CONN BOLCK
FDD1
FDD1
4 6
20
DRVDEN0
INDEX# MOA#
DSA# DIR#
STEP# WRDATA# WE# TRACK0# WP# RDDATA# HEAD# DSKCHG#
DRVDEN0 29
INDEX# 29 MOA# 29
DSA# 29 DIR# 29
STEP# 29 WRDATA# 29 WE# 29 TRACK0# 29 WP# 29 RDDATA# 29 HEAD# 29 DSKCHG# 29
1 2 5
7 8
B B
9 10 11 12 13 14 15 16 17 18 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34
CN-BH-D2x17-1:3-BK
CN-BH-D2x17-1:3-BK
N32-2173051-H06
VCC5
RN50
RN50
1K_8P4R/4
RDDATA# WP# TRACK0#
A A
5
4
3
INDEX# DSKCHG#
1K_8P4R/4
1 2 3 4 5 6 7 8
R337 1K/4R337 1K/4
2
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
KB/MS&COM1&Floppy Conn.
KB/MS&COM1&Floppy Conn.
KB/MS&COM1&Floppy Conn.
MS-7349
MS-7349
MS-7349
1
of
30 41Monday, May 28, 2007
30 41Monday, May 28, 2007
30 41Monday, May 28, 2007
1.0
1.0
1.0
Page 31
5
4
3
2
1
Pin47: AGP# be power tripping
R275 4.7K/4R275 4.7K/4
R269 4.7K/4R269 4.7K/4
R263
R263 330R/4
330R/4
VRM_GD
1.25VREF TPMRESET#
+
+
PS_ON#29
PSOUT#34
EXTRAM PULL LOW PULL HIGH
C314
C314
1uf/25V/X7R/8
1uf/25V/X7R/8
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
AGP#=0 When 5VSB>4.2 , VCC3>2.8 AGP : ON
AGP#
AGP#=1 When POK1=H, AGP: SS POK1 = PWR_OK and ~ (PSOUT# delay 20uS)
D D
PLED134
SUSLED34
C C
TPM_RESET#29
B B
VCC5_SB
R271
R271
330R/4
330R/4
R391 33R/4R391 33R/4
R280
R280 330R/4
330R/4
Q27
Q27 N-2N3904_SOT23
N-2N3904_SOT23
CE
B
Q25
Q25
CE
N-2N3904_SOT23
N-2N3904_SOT23
B
MS6_RST#16
HD_RST#25
VRM_GD33
PWM_EN33
1.25VREF32
VDDA_25
100uf/16V/6.3X5/2.5mm
100uf/16V/6.3X5/2.5mm
VCC5 VCC3
EC30
EC30
Pin18:DDR AND DDR II VOLT SELECT
DDRTYPE PULL LOW PULL HIGH
VCC3
EC58 X_470uf/10V/6.3X11/2.5mm
EC58 X_470uf/10V/6.3X11/2.5mm
EC60 X_1000uf/6.3V/8X11.5/3.5mm/30mOHM
A A
EC60 X_1000uf/6.3V/8X11.5/3.5mm/30mOHM
EC61 1000uf/6.3V/8X11.5/3.5mm/30mOHM
EC61 1000uf/6.3V/8X11.5/3.5mm/30mOHM
5
VDIMM
2.5V
1.8V
+
+
+
+
+
+
Pin48:VDIMM LINEAR OR PWM SELECT
VDIMM MODE
LINEAR REGULATOR
PWM REGULATOR
VCC5_SB
R279
R279 X_1K/4
X_1K/4
VCC3
VCC5_SB
R262
R262 330R/4
330R/4
C315
C315
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
R270
R270 1K/4
1K/4
R273
R273 X_1K/4
X_1K/4
VCC3VCC5
R264
R264
4.7K/4
4.7K/4
C316
C316
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCC5_SB
C352
C352
VCC5_SB
R277
R277 1K/4
1K/4
U17
U17
1
FP_RST#
2
PCIRST#
3
HDD_RST#
4
DEV_RST#
5
VDD_GD
6
VDD_EN
7
1.25VREF
8
VCC5
9
SLOT_RST#
10
VCC3
11
2.5VDDA
12
AGND0
MS6_SS
1uf/16V/Y5V/6
1uf/16V/Y5V/6
3VDUAL
C354
C354
R283 4.7K/4R283 4.7K/4
G
Q28
Q28 N-2N7002_SOT23
N-2N7002_SOT23
D S
R286
R286 1K/4
1K/4
4
EXTRAM PULL LOW PULL HIGH
X_330R/4
X_330R/4
47
43
44
45
48
46
I2C_CLK
CPU_PWGD
CHIP_PWGD
PLED1/EXTRAM
PLED0/3VDLDEC#
PSIN#13PSOUT#14MEMBT15SS165VSB17DDRTYPE18VDIMM_LSEN19VDIMM_LDRV20VDIMM_HSEN21VDIMM_HDRV223VSB_SEN233VSB_DRV
VDIMM_LSEN
R392
R392 X_0R/6
X_0R/6
VDIMM_LDRV
C568
C568
X_102pf/50V/X7R/6
X_102pf/50V/X7R/6
3VDUAL
R281
R281
37
38
39
41
S3#40S5#
5VSB
PWR_OK
RSMRST#42I2C_DATA
5VUSB_DRV
1.2VLDT_DRV
1.2VLDT_SEN TMP_FAULT#
24
VDIMM_HDRV
C68
C68
X_0.01uf/25V/X7R/4
X_0.01uf/25V/X7R/4
5V_DRV
C83
C83
X_102pf/50V/X7R/4
X_102pf/50V/X7R/4
3VDUAL
R282
R282 330R/4
330R/4
HT_PWRGD 18
SMBCLK 18,21,22 SMBDATA 18,21,22
RSMRST# 18,20
SLP_S5# 18 SLP_S3# 18,29 ATX_PWR_OK 14,18,29,34
VCC5_SB
GND
CHRPMP
AGND1
5V_DRV VAGP_DRV VAGP_SEN
WD_DET
C359
C359
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
36
C1
35
C2
34 33 32 31 30 29 28 27 26 25
MS-6G/RBF
MS-6G/RBF
DA-03265-001_v01.pdf
12
+
+
EC29
EC29
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
C362
C362
0.1uf/50V/X7R/6
0.1uf/50V/X7R/6
MS6C1 MS6C2
5VSB_DRV 5V_DRV
1.5VDRV
1.5VSEN
1.2VDRV
1.2VSEN
R287
R287 10K/4
10K/4
VCC3
WATCHING DOG TIMER SELECT
G
1uf/16V/Y5V/6
1uf/16V/Y5V/6
VCC5_SB
1234
TIMER
ON
C94
C94
X_102pf/50V/X7R/4
X_102pf/50V/X7R/4
Q5
Q5 N-2054/40mOhm_SOT89
N-2054/40mOhm_SOT89
D
Q6
Q6 N-20N03/20mOhm_TO-252
N-20N03/20mOhm_TO-252
VCC5
S
WD_DET PULL LOW OFF PULL HIGH
5VSB_DRV
C199
C199
5V_DRV
C200
C200
X_102pf/50V/X7R/4
X_102pf/50V/X7R/4
1.2VDRV
C573
C573
X_102pf/50V/X7R/4
X_102pf/50V/X7R/4
G
9VSB
R288
R288 10K/4
10K/4
R626
R626
10K/4
10K/4
C361
C361 1uf/25V/X7R/8
1uf/25V/X7R/8
X_222pf/16V/X7R/4
X_222pf/16V/X7R/4
X_102pf/50V/X7R/4
X_102pf/50V/X7R/4
R697 100K/1%/4R697 100K/1%/4
Layout
R626 Stuff 10k dummy load
3VSB_DRV
C363
C363
3
3VDUAL
5V_DRV
VCC3
5VDIMM
12
+
+
EC20
EC20
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
USB_FRONT
Q17
Q17
N-07D03/25mOhm_SO8
N-07D03/25mOhm_SO8
4 5
3
2
1
VCC5
C553
C553
VCC3
R390
R390 1K/4
1K/4
DS
Q33
Q33 2N7002_SOT23
2N7002_SOT23
R555
R555 X_0R/6
X_0R/6
Q32
Q32 N-07D03/25mOhm_SO8
N-07D03/25mOhm_SO8
4 5
3
2
1
USB_FRONT
VCC5_SB
6
7
8
VCC5
+
+
EC34
EC34 X_470uf/10V/6.3X11/2.5mm
X_470uf/10V/6.3X11/2.5mm
1.5VDRV
R289
R289
150R/1%/4
150R/1%/4
VCC1_2HT
1.2VSEN 32
VCC5_SB
6
7
8
120 mils
+
+
EC33
EC33 470uf/10V/6.3X11/2.5mm
470uf/10V/6.3X11/2.5mm
X_102pf/50V/X7R/4
C205
C205
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
R290
R290
30R/1%/4
30R/1%/4
X_N-20N03/20mOhm_TO-252
X_N-20N03/20mOhm_TO-252
X_102pf/50V/X7R/4
3VDUAL
DS
Q29
Q29
G
N-2N7002_SOT23
N-2N7002_SOT23
RAM_VREF1.5VSEN
R625
R625 10K/4
10K/4
R625 Stuff 10k dummy load
Q22
Q22
1.2VDRV
470uf/10V/6.3X11/2.5mm
470uf/10V/6.3X11/2.5mm
3VDUAL
3VDUAL
+
+
EC40
EC40 1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
2
USB_REAR
5VSB_DRV
C530
C530
X_222pf/16V/X7R/4
X_222pf/16V/X7R/4
5V_DRV
C531
C531
RAM_VREF( 1.8V ~ 2.2V )
BIOS : CR02 00 => 1.8 V 02 => 1.92V
Default : 1.5 [( 30 / 150 ) + 1] = 1.8 Volt MAX : 1.85 [( 30 / 150 ) + 1] = 2.22 Volt
VCC3
MCP68 Q22 , R555 = NC / Stuff Q33 , R390 MCP78 Q22 , R555 = NC / Stuff Q33 , R390
D
if current not enoug for HT3
G
VCC1_2HTC VCC1_2HT
Stuff Q22 , R555 / Q33 , R390 NC
S
VCC1_2HTC
+
+
EC23
EC23
R662 0R/1206R662 0R/1206
FB30
FB30
X_L30/F8
X_L30/F8
VCC1_2HT VCC1.2
MCP68 1.2V = 6.124A
MCP 78 ?
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Q26
Q26
N-07D03/25mOhm_SO8
N-07D03/25mOhm_SO8
4 5
3
2
1
VCC5
RAM_VREF 32
R399 0R/1206R399 0R/1206
FB31
FB31
X_L30/F8
X_L30/F8
USB_REAR
120 mils
VCC5_SB
6
7
8
VCC1_2HTC for CPU of HT Voltage
VCC1_2HT for NV Chipset of HT Voltage
VCC1.2 for NV Chipset Core Voltage
HT1 0 Ohm HT3 30 Ohm low ESR ferrite bead ( L02-3008024-T19 )
VCC5_SB
+
+
EC25
EC25 X_470uf/10V/6.3X11/2.5mm
X_470uf/10V/6.3X11/2.5mm
C429
C429
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCC3
+
+
EC22
EC22 X_470uf/10V/6.3X11/2.5mm
X_470uf/10V/6.3X11/2.5mm
DA-02786-001_V03.PDF
MCP68 R399 , R400 MCP78 R399 , R400
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
ACPI Power Controler-MS6
ACPI Power Controler-MS6
ACPI Power Controler-MS6
MS-7349
MS-7349
MS-7349
1
of
31 41Monday, May 28, 2007
of
31 41Monday, May 28, 2007
of
31 41Monday, May 28, 2007
1.0
1.0
1.0
Page 32
5
DDR II 1.8V POWER
VCC5_SB
D D
RAM_VREF31
1uf/16V/Y5V/6
1uf/16V/Y5V/6
C C
C513
C513
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
C78
C78
C80
C80 1uf/25V/X7R/8
1uf/25V/X7R/8
0.22uf/16V/X7R/6
0.22uf/16V/X7R/6
DDR VTT Power
5VDIMM
R71
R71
2.2R/8
2.2R/8
X_68K/4
X_68K/4
+12V
R66
R66 X_2.2R/8
X_2.2R/8
4
RR
16
MS11_PWR
MS11_SS
R70
R70
R69
R69
X_0R/4
X_0R/4
VCC12
1
5VSB
9
PI
11
PVCC
10
SS
2
RT
3
I_IND
17
GND
MS-11/PQV/QFN-16
MS-11/PQV/QFN-16
C72
C72
1uf/25V/X7R/8
1uf/25V/X7R/8 C69
C69 1uf/25V/X7R/8
1uf/25V/X7R/8
RAM_VREF
C79
C79
If Burn chock ( run 3D Mark ) C75 need from 102pf change to 103pf
3
R68
R68 200K/1%/4
200K/1%/4
1
D4
D4
BAT54A_SOT23
BAT54A_SOT23
2
U8
U8
BOOT
PHASE
GND
GND
CSP
CSN
COMP
4700pf/50V/X7R/4
4700pf/50V/X7R/4
4
Iripple=20*0.6*0.8/1=9.6A
5VDIMM
C84
C84
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
R90
R90 0R/8
0R/8
C76
C76
R73
R73
1uf/25V/X7R/8
1uf/25V/X7R/8
0R/8
0R/8
15
MS11_HDRV
14
UG
MS11_PHASE
13
MS11_BDRV
12
LG
R72 2K/1%/4R72 2K/1%/4
C70 1uf/25V/X7R/8C70 1uf/25V/X7R/8
6 5 8
FB
7
C75
C75
R74
R74 22K/4
22K/4
R65 2K/1%/4R65 2K/1%/4 R76 1K/1%/4R76 1K/1%/4
C77
C77
C74 33pf/50V/NPO/4C74 33pf/50V/NPO/4
R67
R67
X_0.01uf/25V/X7R/4
X_0.01uf/25V/X7R/4
X_56K/1%/4
X_56K/1%/4
R77
R77 X_1K/1%/4
X_1K/1%/4
CLOSE TO DEVICE FB
2.22*3*1.7=11.322A>9.6A
CHOKE1
CHOKE1
1.2uH/6mm/18A/4mOHM
1.2uH/6mm/18A/4mOHM
5VDIMM_IN
MS11_H_DRV
VCC_DDR
3
+
+
EC8
EC8
1 2
1500uf/6.3V/8X20/3.5mm
1500uf/6.3V/8X20/3.5mm
+
+
EC7
EC7
1 2
1500uf/6.3V/8X20/3.5mm
1500uf/6.3V/8X20/3.5mm
+
+
EC10
EC10
1 2
1500uf/6.3V/8X20/3.5mm
1500uf/6.3V/8X20/3.5mm
C99
C99 10uf/10V/Y5V/8
10uf/10V/Y5V/8
DS
Q11
Q11
G
N-06N03/5.7mOhm_TO252
N-06N03/5.7mOhm_TO252
DS
Q12
Q12
G
N-06N03/5.7mOhm_TO252
N-06N03/5.7mOhm_TO252
1.1uH/9mm/25A/1.4mOHM
1.1uH/9mm/25A/1.4mOHM R93
R93
2.2R/8
2.2R/8
C141
C141
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
CONNECT TO CHOKE OUTPUT
Irms(MAX) of VCC_DDR=18A
VCC_DDR
CHOKE2
CHOKE2
1 2
1 2
1 2
High-side MOS AVL(RoHS): D03-75N022B-N03 D03-06N030B-I14 D03-80N021B-O05
Low-side MOS AVL(RoHS): D03-75N022B-N03 D03-06N030B-I14 D03-80N021B-O05
EC11
EC11
+
+
1800uf/6.3V/8X20/3.5mm
1800uf/6.3V/8X20/3.5mm
EC16
EC16
+
+
1800uf/6.3V/8X20/3.5mm
1800uf/6.3V/8X20/3.5mm
EC13
EC13
+
+
1800uf/6.3V/8X20/3.5mm
1800uf/6.3V/8X20/3.5mm
C154
C154 1uf/16V/Y5V/6
1uf/16V/Y5V/6
2
de- VCC_DDR high frequency noise.
VCC_DDR
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C207
C207
C151
C151
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C167
C167
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C169
C169
1
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C128
C128
C87
C87
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
1.2VDUAL
225mA
3VDUAL
U9
U9
9
NC
8
VREF2
7
ENABLE
6
VCNTL
5
BOOT_SEL
W83310DG/SOP8
W83310DG/SOP8
VCC_DDR VCC_DDR
1
VIN
2
GND
VREF1
VOUT
DDRVTT_REF
3 4
DUMMY
R395
R395 1K/6
1K/6
R82
R82 1K/1%/4
1K/1%/4
470uf/10V/6.3X11/2.5mm
470uf/10V/6.3X11/2.5mm
R81
R81 1K/1%/4
1K/1%/4
VTT_DDR
+
+
+
+
EC6
EC6
EC21
EC21
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1.25Vref Always
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
Vout : 1.25 [2.4 / ( 0.1 + 2.4 )] = 1.2Volt
R291 75 Ohm 1% for MCP78
C364
C364
R291
R291 100R/1%/4
100R/1%/4
1.2VREF1.25VREF
R292
R292
2.4K/1%/4
2.4K/1%/4
9VSB
U18B
U18B LM358DR2G_SOIC8
LM358DR2G_SOIC8
5
+
+
6
-
-
4 8
7
3VDUAL
1234
Q30
Q30 N-2054/40mOhm_SOT89
N-2054/40mOhm_SOT89
+
+
EC31
EC31 470uf/10V/6.3X11/2.5mm
470uf/10V/6.3X11/2.5mm
1.2VDUAL
1.2Dual => 0.287 A
B B
+12V
VREF_SEL
C512
C512
VCC1.2
R351
R351 100R/1%/4
100R/1%/4
R352
R352 X_2.4K/1%/4
X_2.4K/1%/4
12V_R
U21A
U21A LM358DR2G_SOIC8
LM358DR2G_SOIC8
3
+
+
2
-
-
4 8
R389
R389
X_1K/1%/4
X_1K/1%/4
1
R571
R571 0R/6
0R/6
R394
R394 0R/6
0R/6
5
+
+
6
-
-
4 8
12V_R
U21B
U21B LM358DR2G_SOIC8
LM358DR2G_SOIC8
7
R294
R294 300R/1%/4
300R/1%/4
R295
R295 75R/1%/4
75R/1%/4
VCC_DDR
Q20
Q20
D
N-20N03/20mOhm_TO-252
N-20N03/20mOhm_TO-252
G
S
+
+
EC26
EC26
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
VCC1.5
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
VREF_SEL = 1.2V R352 => NC
Vout = 1.25 Volt
Vout = 1.26 ~ 1.57 Volt
Vout : 1.2 [( 49.9 / 1000 ) + 1 ] = 1.26 Volt
Vout : 1.5 [( 49.9 / 1000 ) + 1 ] = 1.57 Volt
C571
R570
R570
0R/6
1.2VSEN31
1.25VREF31
A A
0R/6
1.25VREF VREF_SEL
R556
R556 X_0R/6
X_0R/6
0.1uf/25V/Y5V/6
0.1uf/25V/Y5V/6
C571
X_0.1uf/25V/Y5V/6
X_0.1uf/25V/Y5V/6
C368
C368
MCP68 1.2V = 6.124AVout : 1.25 [( 200 / 1000 ) + 1 ] = 1.5 Volt
Vout : 1.2 [( 75 / 300 ) + 1 ] = 1.5 Volt Vout : 1.5 [( 75 / 300 ) + 1 ] = 1.875 Volt
5
4
3
VCC1.5
D
Q34
Q34 N-20N03/20mOhm_TO-252
G
2
N-20N03/20mOhm_TO-252
S
VCC1.2
R389 NC ; R571 0 Ohm.
+
+
EC24
EC24
1000uf/6.3V/8X11.5/3.5mm/30mOHM
1000uf/6.3V/8X11.5/3.5mm/30mOHM
VCC1.2 from 1.2 ~ 1.5 Volt
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
MS-11 / System Regulators
MS-11 / System Regulators
MS-11 / System Regulators
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
32 41Monday, May 28, 2007
of
32 41Monday, May 28, 2007
of
32 41Monday, May 28, 2007
Page 33
5
4
VCC5
3
2
1
DZ1
DZ1 1N5817
1N5817
VID4 VID3 VID2 VID1 VID0 DACSEL/VID5 PGOOD ENLL
COMP
FB
VDIFF
VSEN
RGND
OFST
FS REF
VRM10 OCSET
ICOMP
ISUM IREF
R45
R45
24.9K/1%/6/EM
24.9K/1%/6/EM
R44
R44
24.9K/1%/6/EM
24.9K/1%/6/EM
R42
R42
24.9K/1%/6/EM
24.9K/1%/6/EM
PWM_VCC5
C7
C7
4.7uf/10V/Y5V/8
4.7uf/10V/Y5V/8
7
PVCC1
VCC
BOOT1
UGATE1
PHASE1
ISEN1
LGATE1
PVCC2 BOOT2
UGATE2
PHASE2
ISEN2
LGATE2
PVCC3 BOOT3
UGATE3
PHASE3
ISEN3
LGATE3
GND
41
BOTTOM PAD CONNECT TO GND THROUGH 10 vias
PHASE1
PHASE2
PHASE3
12VP1
33
BOOT1
30
U_G1
31
PHASE1
29
IS1
32
L_G1
34
12VP2
24
BOOT2
26
U_G2
27
PHASE2
28
IS2
25
L_G2
23
12VP3
18
BOOT3
21
U_G3
20
PHASE3
22
IS3
19
L_G3
17
R46
R46
2.2R/8
2.2R/8
R40
R40
2.2R/8
2.2R/8
R41
R41
2.2R/8
2.2R/8
D D
U2
VCC5VCC5
R28
R28
4.7K/4
4.7K/4
VRM_GD31
PWM_EN31
C22
C22
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCORE
C C
B B
COREFB_H6
COREFB_L6
R27 51R/6R27 51R/6
COREFB_H
COREFB_L
R23 51R/6R23 51R/6
Close low side mosfet
C17
C17 X_102pf/50V/X7R/6
X_102pf/50V/X7R/6
VCC5
R25
R25
X_130K/1%/6
X_130K/1%/6
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
獨立拉 電感端
R31
R31 1K/4
1K/4
C30
C30 1uf/6.3V/X5R/6
1uf/6.3V/X5R/6
R12
R12
4.22K/1%/4/EM
4.22K/1%/4/EM
C4
C4
X_680pf/50V/X7R/6
X_680pf/50V/X7R/6
C14
C14
R24
R24 X_63.4K/1%/4
X_63.4K/1%/4
trace to
VID[0..4]6
C9
C9 220pf/50V/NPO/6
220pf/50V/NPO/6
R11
R11 1K/1%/4
1K/1%/4
C26
C26 473pf/16V/X7R/6
473pf/16V/X7R/6
R32
R32 12K/1%/6
12K/1%/6
VID4 VID3 VID2 VID1 VID0
C3
C3
472pf/50V/X7R/6
472pf/50V/X7R/6
R21
R21
X_750R/1%/6
X_750R/1%/6
C19
C19
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
OFS
R30
R30
150K/1%/4/EM
150K/1%/4/EM
R29
R29
1.5K/1%/6
1.5K/1%/6
VCORE
C16
C16
0.01uf/50V/X7R/6
0.01uf/50V/X7R/6
ISL6566CRZ_QFN40
ISL6566CRZ_QFN40
38 39 40
1 2
3 35 37
COMPCOP
8
FB
9
VDIFF
10
12
11
6
FS
36
REF
5
4 13
14
15 16
C31
C31
0.01uf/50V/X7R/6
0.01uf/50V/X7R/6
U2
C38
C38
0.1uf/50V/X7R/6
0.1uf/50V/X7R/6
R37
R37
1.69K/1%/6/EM
1.69K/1%/6/EM
C44
C44
0.1uf/50V/X7R/6
0.1uf/50V/X7R/6
R43
R43
1.8K/1%/6
1.8K/1%/6
C40
C40
0.1uf/50V/X7R/6
0.1uf/50V/X7R/6
R38
R38
2.1K/1%/6/EM
2.1K/1%/6/EM
+12VA
R34
R34
2.2R/8
2.2R/8
C34
C34 1uf/25V/X7R/8
1uf/25V/X7R/8
+12VA
R49
R49
2.2R/8
2.2R/8
C43
C43 1uf/25V/X7R/8
1uf/25V/X7R/8
+12VA
R36
R36
2.2R/8
2.2R/8
C35
C35 1uf/25V/X7R/8
1uf/25V/X7R/8
U_G1
PHASE1
L_G1
U_G2
PHASE2
U_G3
PHASE3
L_G3
L_G2
R79
R79 1R/8
1R/8
R78
R78
10K/1%/6
10K/1%/6
R87
R87 1R/8
1R/8
R88
R88
10K/1%/6
10K/1%/6
R115
R115 1R/8
1R/8
R114
R114
10K/1%/6
10K/1%/6
VIN
C71 X_4.7uf/35V/Y5V/1206C71 X_4.7uf/35V/Y5V/1206 C61 1uf/25V/X7R/8C61 1uf/25V/X7R/8
DS
Q7
UG1
UG2
N-NTD4806NT4G/9.4mOhm_TO252
N-NTD4806NT4G/9.4mOhm_TO252
UG3
Q7 N-NTD4809NT4G/14mOhm_TO252
N-NTD4809NT4G/14mOhm_TO252
G
DS
Q4
Q4
G
X_N-NTD4806NT4G/9.4mOhm_TO252
X_N-NTD4806NT4G/9.4mOhm_TO252
N-NTD4806NT4G/9.4mOhm_TO252
N-NTD4806NT4G/9.4mOhm_TO252
VIN
C119 X_4.7uf/35V/Y5V/1206C119 X_4.7uf/35V/Y5V/1206 C88 1uf/25V/X7R/8C88 1uf/25V/X7R/8
DS
Q10
Q10 N-NTD4809NT4G/14mOhm_TO252
N-NTD4809NT4G/14mOhm_TO252
G
DS
Q8
Q8
G
X_N-NTD4806NT4G/9.4mOhm_TO252
X_N-NTD4806NT4G/9.4mOhm_TO252
VIN
C170 X_4.7uf/35V/Y5V/1206C170 X_4.7uf/35V/Y5V/1206 C140 1uf/25V/X7R/8C140 1uf/25V/X7R/8
DS
Q15
Q15 N-NTD4809NT4G/14mOhm_TO252
N-NTD4809NT4G/14mOhm_TO252
G
DS
Q13
Q13
G
N-NTD4806NT4G/9.4mOhm_TO252
N-NTD4806NT4G/9.4mOhm_TO252
X_N-NTD4806NT4G/9.4mOhm_TO252
X_N-NTD4806NT4G/9.4mOhm_TO252
COIL2
COIL2
0.25uH/6mm/40A/0.65mOHM
0.25uH/6mm/40A/0.65mOHM
0.8375~1.6V / 119A
R52
R52
DS
Q3
Q3
2.2R/8
Q9
Q9
Q14
Q14
2.2R/8
C46
C46
102pf/50V/X7R/6
102pf/50V/X7R/6
COIL3
COIL3
0.25uH/6mm/40A/0.65mOHM
0.25uH/6mm/40A/0.65mOHM
R83
R83
2.2R/8
2.2R/8
C89
C89 102pf/50V/X7R/6
102pf/50V/X7R/6
COIL4
COIL4
0.25uH/6mm/40A/0.65mOHM
0.25uH/6mm/40A/0.65mOHM
R97
R97
2.2R/8
2.2R/8
C145
C145 102pf/50V/X7R/6
102pf/50V/X7R/6
1000uf/16V/8X20/3.5mm/12mOHM
1000uf/16V/8X20/3.5mm/12mOHM
G
DS
G
DS
G
VCORE
VCORE 1.3V / 1.35V / 1.4V
VCORE
VCORE
EC12
EC12
+
+
1800uf/6.3V/8X20/3.5mm
1800uf/6.3V/8X20/3.5mm
EC14
EC14
+
+
1800uf/6.3V/8X20/3.5mm
1800uf/6.3V/8X20/3.5mm
EC18
EC18
+
+
1800uf/6.3V/8X20/3.5mm
1800uf/6.3V/8X20/3.5mm
EC1
EC1
+
+
X_1800uf/6.3V/8X20/3.5mm
X_1800uf/6.3V/8X20/3.5mm
EC5
EC5
+
+
1800uf/6.3V/8X20/3.5mm
1800uf/6.3V/8X20/3.5mm
EC3
EC3
+
+
1800uf/6.3V/8X20/3.5mm
VCORE
+
+
EC15
EC15
1000uf/16V/8X20/3.5mm/12mOHM
1000uf/16V/8X20/3.5mm/12mOHM
1800uf/6.3V/8X20/3.5mm
1.2uH/7.5mm/18A/3.5mOHM
1.2uH/7.5mm/18A/3.5mOHM
+
+
EC9
EC9
+
+
+
+
EC4
EC4
EC2
EC2
1000uf/16V/8X20/3.5mm/12mOHM
1000uf/16V/8X20/3.5mm/12mOHM
1000uf/16V/8X20/3.5mm/12mOHM
1000uf/16V/8X20/3.5mm/12mOHM
COIL1
COIL1
+12VAVIN
C37
C37 X_4.7uf/35V/Y5V/1206
X_4.7uf/35V/Y5V/1206
+12VA
C28
C28
X_0.01uf/50V/X7R/6
X_0.01uf/50V/X7R/6
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
VRM-ISL6566CRZ
VRM-ISL6566CRZ
VRM-ISL6566CRZ
JPW1
JPW1
3
GND
12V
4
GND
12V
PWR-2X2M
PWR-2X2M
N93-04M0221-H06
MS-7349
MS-7349
MS-7349
1
1
2
1.0
1.0
1.0
of
33 41Monday, May 28, 2007
of
33 41Monday, May 28, 2007
of
33 41Monday, May 28, 2007
Page 34
5
Front Panel
D D
4
VCC5
ESD Protect
C421
C421 X_180pf/50V/NPO/6
X_180pf/50V/NPO/6
1
3
R329
R329
X_330R/4
X_330R/4
SATA_LED 17
D26
D26
BAT54A_SOT23
BAT54A_SOT23
3
MCP68_CRB_REV40.DSN NC
VCC5
R112
R112 X_4.7K/4
X_4.7K/4
2
1
2
C431
VCC5
X_0.1uf/25V/Y5V/6
X_0.1uf/25V/Y5V/6
R338
R338 330R/4
330R/4
C431
MCP68_CRB_REV40.DSN NC
VCC3
R324 X_10K/4R324 X_10K/4
FP_RST#18,29
C C
B B
R327 33R/4R327 33R/4 R388 33R/4R388 33R/4
C419
C419
0.1uf/25V/Y5V/4
C566
C566
X_1uf/16V/Y5V/6
X_1uf/16V/Y5V/6
0.1uf/25V/Y5V/4
SUSLED PLED1
R387
R387
100R/4
100R/4
SPKR18
For MSI / Intel Front Panel
JFP1
JFP1
PLED1HDD+
1
HDD+
3
HDD­RESET-5PWSW+
7
RESET+
9
NC
JFP1_Yellow
JFP1_Yellow JFP2
JFP2
GND1SPEAKER
3
SLED
5
PLED
JFP2_Yellow
JFP2_Yellow
R300 2.2K/4R300 2.2K/4
2
PLED
4
SLED
6 8
PWSW-
N31-2051421-H06
N31-2041151-H06
2 4
BUZ+
6
BUZ-
8
VCCSPK
Q31
Q31 N-2N3904_SOT23
N-2N3904_SOT23
SUSLED
R328 100R/4R328 100R/4
VCC5
R301
R301 220R/8
220R/8
PLED1 31 SUSLED 31
C382
C382
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
3VDUAL
R320
R320 10K/4
10K/4
C411
C411
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
PD_LED 25
D17
X_1N4148S_SOD123
X_1N4148S_SOD123
D17
C565
C565 X_1uf/16V/Y5V/6
X_1uf/16V/Y5V/6
VCC5
1 2
PSIN# 29
BUZZER
BZ1
BZ1 BUZZER
BUZZER
ATX Connector
-12V
ATX1
ATX1
C257
C257
13
3.3V
14
-12V
15
GND
16
P_ON
17
GND
18
GND
19
GND
20
-5V
21
5V
22
5V
23
5V
24
GND
<REF NAME>
<REF NAME>
PWR-2X12M
PWR-2X12M
VCC3
VCC5_SB
R170
R170 10K/4
10K/4
PSOUT#31
A A
C251
C251 102pf/50V/X7R/4
102pf/50V/X7R/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C274
C274 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
102pf/50V/X7R/4
102pf/50V/X7R/4
C230
C230
3.3V
3.3V
GND
GND
GND
POK
5VSB
+12V +12V
DET
1 2
VCC5
3 4
5V
5 6
5V
7 8 9 10 11 12
N93-24M0101-H06
5
4
VCC3
C237
C237
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C204
C204
VCC3
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C260
C260
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCC5
VCC5_SB
C198
C198
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
3
VCC3
R139
R139 10K/4
10K/4
N-2N3904_SOT23
N-2N3904_SOT23
C210
+12VVCC5
C210
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCC3
R111
R116
R116 10K/4
10K/4
B
Q16
Q16
R111 10K/4
10K/4
CE
ATX_PWR_OK 14,18,29,31
2
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Front Panel
Front Panel
Front Panel
MS-7349
MS-7349
MS-7349
1
of
34 41Monday, May 28, 2007
of
34 41Monday, May 28, 2007
of
34 41Monday, May 28, 2007
1.0
1.0
1.0
Page 35
5
VCC3
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C787
D D
C C
B B
A A
C787
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C788
C788
VTT_DDR
C5190.1uf/25V/Y5V/4 C5190.1uf/25V/Y5V/4 C523
VCC5
C206X_0.1uf/25V/Y5V/4 C206X_0.1uf/25V/Y5V/4
C218X_0.1uf/25V/Y5V/4 C218X_0.1uf/25V/Y5V/4
VCC3
C221X_0.1uf/25V/Y5V/4 C221X_0.1uf/25V/Y5V/4
C789
C789
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
102pf/50V/X7R/4
102pf/50V/X7R/4
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C520
C520
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C271
C271
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C404
C404
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C504
C504
5
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
+12V
3VDUAL
C790
C790
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C521
C521
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C21
C21
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C219
C219
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C222
C222
C350
C350 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
For IDE BUS
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C800
C800
C522
C522
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C514
C514
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C572
C572
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C579
C579
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCC5_SB
C516
C516 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C523
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C515
C515
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C574
C574
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C580
C580
C801
C801
C524
C524
C517
C517
C576
C576
C582
C582
4
C525
C525 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C518
C518
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C575
C575
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C581
C581
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
4
VCC3
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C351X_0.1uf/25V/Y5V/4 C351X_0.1uf/25V/Y5V/4
VCC_DDR
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C505X_0.1uf/25V/Y5V/4 C505X_0.1uf/25V/Y5V/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C578
C578
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C584
C584
102pf/50V/X7R/4
102pf/50V/X7R/4
C265
C265
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C267
C267
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
VCC3
C605
C605
VCC3
C607
C607
C577
C577 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C583
C583
C295
C295
C590
C590
C603
C603
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C606
C606
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C586
C586
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
3
C389
C389
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C589
C589
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C585
C585
3
C588
C588
C602
C602
C802
C802
+12VVCC5
C497
C497 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
+12VVCC3
C546
C546
102pf/50V/X7R/4
102pf/50V/X7R/4
-12V
C591
C591 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C604
C604
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C803
C803
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C587
C587 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
+12V
C547
C547
102pf/50V/X7R/4
102pf/50V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C223
C223
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C600
C600
X_0.1uf/25V/Y5V/6
X_0.1uf/25V/Y5V/6
C212
C212
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C197
C197
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C796
C796
VCC5
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
VCORE
X_0.1uf/25V/Y5V/6
X_0.1uf/25V/Y5V/6
2
VCC3
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C224
C224
C597
C597
VCC_DDR
2
1
VCC1_2HTVCC1.2
C387
C387
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCC5VCC5
C214
C214 X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C208
C208
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
VCC1.2 VCC3
C412
C412
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
C797
C797
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C225
C225
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C598
C598
X_0.1uf/25V/Y5V/6
X_0.1uf/25V/Y5V/6
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
VCC1_2HT VCC1.2
C798
C798
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
X_0.1uf/25V/Y5V/6
X_0.1uf/25V/Y5V/6
C217
C217 X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
C209
C209
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
For EMI
For EMI
For EMI
C799
C799
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C229
C229
VCC3
C599
C599
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
MS-7349
MS-7349
MS-7349
C490
C490
X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
C593
C593
C601
C601
C595
C595
1
3VDUAL
C592
C592
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
+12V
C596
C596
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
VCC5_SB
C594
C594 X_0.1uf/25V/Y5V/4
X_0.1uf/25V/Y5V/4
of
35 41Monday, May 28, 2007
of
35 41Monday, May 28, 2007
of
35 41Monday, May 28, 2007
1.0
1.0
1.0
Page 36
5
4
3
2
1
Optics Orientation Holes
FM4
FM3
FM1
FM1
X
D D
X_FM
X_FM
FM2
FM2
X
X_FM
X_FM
FM7
FM7
X
X_FM
X_FM
C C
FM3
FM5
FM5
X
X
X_FM
X_FM
X_FM
X_FM
FM4
FM6
FM6
X
X
X_FM
X_FM
X_FM
X_FM
Simulation
JS2
JS2
X_PIN1*2
X_PIN1*2
SIM1SIM2
JS1
JS1
X_PIN1*2
X_PIN1*2
Mounting Holes
MH3MH3
7
8
9 2
R226
R226 X_0R/4
X_0R/4
6
9
5
2
3
4
R248
R248 X_0R/4
X_0R/4
NB FAN/HEAT-SINK
MH6MH6
7
8
6 5
3
4
MSI
MSI
DDR
DDR
MCP68-HEATSINK
MCP68-HEATSINK
9 2
U14_H1
U14_H1
MH5MH5
8
3
MH1MH1
7
6 5
4
7
8
9 2
6 5
3
4
MH4MH4
7
8
9 2
6 5
3
4
MH2MH2
7
8
9 2
6 5
3
4
MH7MH7
7
8
9 2
6 5
3
4
MH8MH8
7
8
9 2
6 5
3
4
BATTERY CPU RM
CPU2
VBAT1-S1
1
1
2
2
VBAT1-S1
BAT_CR2032
BAT_CR2032
CPU2
CPU_RM
CPU_RM
E95-0000003-H06
E95-0000003-H06
AVL: E95-0000003-H06
PCB
B B
PCB1
PCB1
P80-0734911-G37
P80-0734911-G37
PCB : 2116
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet
BOM - Option Parts
BOM - Option Parts
BOM - Option Parts
MS-7349
MS-7349
MS-7349
1.0
1.0
1.0
of
36 41Monday, May 28, 2007
36 41Monday, May 28, 2007
36 41Monday, May 28, 2007
1
Page 37
5
4
3
2
1
PWROK MAP
VRM 10.1
D D
AMD K9 940
ISL6566CR
3-Phases PWM
PWM_EN
VRM_GD
CPU_PWRGD
HT_PWRGD
RSMRST#
HT_VLD
C C
MCPVDD_EN
VCORE_VLD
VCORE_EN
PWRBTN#
MCP68
MCP78
SLP_S3#
MEM_VLD
SLP_S5#
SLP_S3#
ATX_PWR_OK
MS6
POWER CONN
ATX_PWR_OK
PSOUT#
PSOUT#
B B
ATX_PWR_OK
SIO
F71882FG
PS_ON#
ATX_PWR_OK
PSIN#
Front Panel
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PWROK MAP
PWROK MAP
PWROK MAP
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
37 41Monday, May 28, 2007
of
37 41Monday, May 28, 2007
of
37 41Monday, May 28, 2007
Page 38
5
4
3
2
1
RESET MAP
LDT_RST#_L
AMD M2 CPU
D D
PCI_E2 PCI_E1
X16 X1
LDT_PWRGD_L
CPU_GD
-LDT_RST
MCP68
RSTBTN#
ATX_PWR_OK
FP_RST#
Reset Button
ATX Connector
TPM
TPM_RESET#
MCP78
PE_RST*
C C
RTL8211B GIGA PHY
ALC888-GR
VT6308P
PCI1
MII_RST#
HDA_RST#
1394_RST#
PCIRST_SLOT1#
PE_RST*
MII_RESET#/GPO12
HDA_RESET#
PCI_RESET3#
PCI_RESET0#
ATX_PWR_OK
RSMRST#
PWR_OKPWRDG
RSMRST#PWRGD_SB
HDD_RST#
MS6
PCIRST#
PCI2
B B
JBAT1
F71882FG
ATX_PWR_OK
JLPC1
A A
5
PCIRST_SLOT2#
RTC_RST*
SIO_RST#
SIO_RST#
4
PCI_RESET1#
RTC_RST#
LPC_RESET#
PCI_RESET2#
3
HD_RST#
MS6_RST#
2
IDE1
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
RESET MAP
RESET MAP
RESET MAP
MS-7349
MS-7349
MS-7349
1
of
38 41Monday, May 28, 2007
38 41Monday, May 28, 2007
38 41Monday, May 28, 2007
1.0
1.0
1.0
Page 39
5
D D
C C
4
3
2
1
B B
A A
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
Power Sequence
Power Sequence
Power Sequence
MS-7349
MS-7349
MS-7349
1.0
1.0
1.0
of
39 41Monday, May 28, 2007
of
39 41Monday, May 28, 2007
of
39 41Monday, May 28, 2007
1
Page 40
5
4
3
2
1
AM2 ATHLON 64
VCORE 0.8-1.55V 80A(90W)
VTT_DDR 1.75A VCC_DDR 7.2.A VCC1_2HT 1.2V 0.5A
VCC1_2HT(S0,S1)
MCP68
VCC1.2 6.124A
ATX P/S WITH 1A STBY CURRENT
VBAT
D D
5VSB +/-5%
5V +/-5%
3.3V +/-5%
12V +/-5%
-12V +/-5%
CPU PW 12V +/-5%
VRM SW REGULATOR
CPU_VCORE (S0, S1)
VDD 1.5V REGULATOR
VDD 1.2V REGULATOR
VTT_DDR(S0,S1,S3) VCC_DDR(S0,S1,S3) VCC1_2HT (S0, S1)
+3.3V (S0, S1)
VCC3 0.615A
3VDUAL 0.556A
1.2VDUAL 0.287A
VBAT 5mA(S0,S1)/ 100uA(S3,S5)/ 10uA(G3)
1.8V VCC_DDR REGULATOR
0.9V VTT_DDR REGULATOR
VTT_DDR(S0,S1,S3)
VCC_DDR(S0,S1,S3)
DDR400 DIMMs
VTT_DDR 0.3A/DIMM (0.6A)
VCC_DDR 2.6A/DIMM (5.2A)
3VDUAL (S0, S1, S3, S4, S5)
1.2VDUAL (S0, S1, S3, S4, S5)
VBAT(G3,S0,S1,S3,S4,S5)
+3.3VDUAL REGULATOR ACPI CONTROLLER
C C
+5VSB REGULATOR ACPI CONTROLLER
3VDUAL (S0, S1, S3, S4, S5)
+5V_Dual (S0, S1, S3)
1.2V STB REGULATOR
1.2VDUAL (S0, S1, S3, S4, S5)
VCC3 (S0, S1)
VT6308P 1394
VCC3
VBAT(G3,S0,S1,S3,S4,S5)
AC97 CODEC
5V LDO REGULATOR
+5VR (S0, S1)
VCC3 (S0, S1) +5VR (S0, S1)
3.3V 5V
LAN
3VDUAL (S0, S1, S3, S4, S5)
3VDUAL AVDD18 AVDD15
VBAT
SUPER I/O
3VDUAL VCC3 VBAT
B B
3VDUAL (S0, S1, S3, S4, S5)
VCC3 (S0, S1)
+5V_Dual (S0, S1, S3)
1394 FR*1
12V
1.5A
0.5A
0.1A
X16 PCIEX1 PCIE per
3.3V 12V12V
3.0A3.0A
4.4A
PCI Slot (2 slot)
2.5A
5V
3.8A
3.3V
0.25A
12V
-12V
0.1875A
0.05A
3.3Vaux
A A
3.3V
3.3Vaux
1394 RL*1
12V
1.5A
USB FR*6 USB RL*4
5VDual5VDual
3A 2A
PS/2
5VDual
0.35A
+3.3VDUAL (S0, S1, S3)
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
Power Delivery
Power Delivery
Power Delivery
MS-7349
MS-7349
MS-7349
1
1.0
1.0
1.0
of
40 41Monday, May 28, 2007
of
40 41Monday, May 28, 2007
of
40 41Monday, May 28, 2007
Page 41
5
4
3
2
1
2007/04/26 from 601-7349-01S Page 18
R664 & R665 NC & C390 from 4.7uf change to 22uf prevent VBAT droop issue.
Page 23
D D
Remove TV-OUT component.
Page 24
Remove HDMI component. Added DVI component.
Page 26
I1394_USBA change to USB only for Remove IEEE1394.
Page 28
I1394_USBA change to USB only for Remove IEEE1394. Remove IEEE1394 component.
2007/05/28 Version: 1.1 Page 15
C C
1. C662 from 2.2uf change to 4.7uf.
Page 16
1. R200 NC for remove IEEE1394.
Page 18
1. C390 NC , Add EC63 100uf/16V,avoid VBAT drop.
2. R383 NC, for remove TPM.
3. Y8, C783, C784 NC for remove TV-out.
Page 20
1. Remove EMI co-lay.Add Common choke for EMI.
2. Add C812 for EMI.
Page 21
B B
1. Add I2C ROM for HDCP key.
Page 24
1. Remove EMI co-lay.Add Common choke for EMI.
Page 26
1. Remove EMI co-lay.Add Common choke for EMI.
Page 28
1. Remove EMI co-lay.
Page 29
1. Remove TPM for PM request.
Page 31
A A
1. PWRGD_SB add 100K pull down. DA-03265-001_V01.pdf
Page 35
1. Stuff C546, C547, C583, C790 102pf for EMI request.
Page 36
1. Change PCB part number.
5
4
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
MICRO-STAR INt'L CO., LTD.
History
History
History
MS-7349
MS-7349
MS-7349
1
of
41 41Monday, May 28, 2007
of
41 41Monday, May 28, 2007
of
41 41Monday, May 28, 2007
1.0
1.0
1.0
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
