MSI MS-7347 Schematics

5

4

3

2

1

MSI

MS-7347 Ver:0A

D D

C C

B B

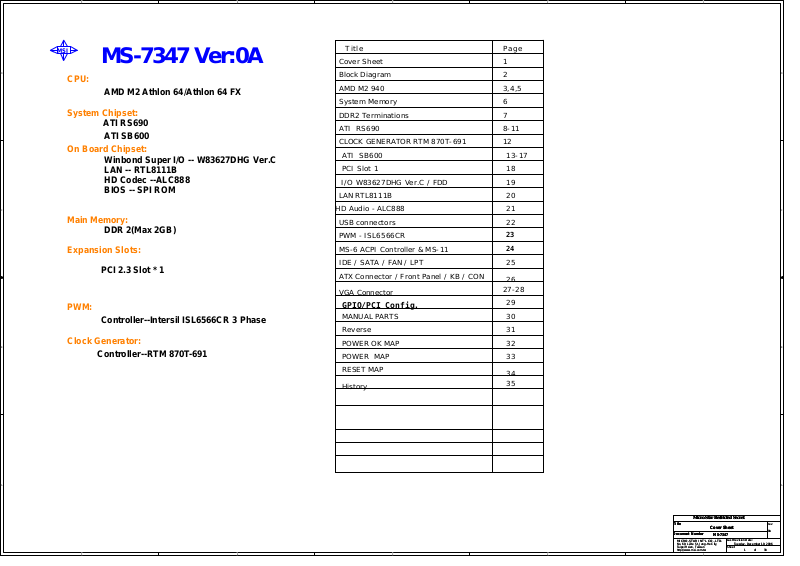

CPU:

AMD M2 Athlon 64/Athlon 64 FX

System Chipset:

ATI RS690

ATI SB600

On Board Chipset:

Winbond Super I/O -- W83627DHG Ver.C LAN -- RTL8111B HD Codec --ALC888 BIOS -- SPI ROM

Main Memory:

DDR 2(Max 2GB)

Expansion Slots:

PCI 2.3 Slot * 1

PWM:

Controller--Intersil ISL6566CR 3 Phase

Clock Generator:

Controller--RTM 870T-691

Title Page

Cover Sheet 1 Block Diagram AMD M2 940 System Memory DDR2 Terminations

2 3,4,5 6

7 ATI RS690 8-11 CLOCK GENERATOR RTM 870T-691 12

ATI SB600 13-17

PCI Slot 1 I/O W83627DHG Ver.C / FDD LAN RTL8111B

HD Audio - ALC888

USB connectors PWM - ISL6566CR MS-6 ACPI Controller & MS-11 IDE / SATA / FAN / LPT ATX Connector / Front Panel / KB / CON

VGA Connector

27-28

GPIO/PCI Config.

MANUAL PARTS

Reverse

POWER OK MAP

POWER MAP

RESET MAP

History

18 19 20 21 22

23 24

25 26

29 30 31 32 33

34 35

A A

Micro Star Restricted Secret

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

Cover Sheet

1

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

Rev

0A

of

138

5

4

3

2

1

BLOCK DIAGRAM

D D

POWER

SUPPLY

CONNECTOR

VREG

SOCKET 940

K9

DDR2 SDRAM CONN 0

128-BIT 400/533MHZ

HT 16X16 1GHZ

ATI

RS690

C C

ATA 133

PRIMARY IDE

465 BGA

ATI

SB600

HT 8X8 1GHZ

AZAILIA/AC97

VGA CONN

DVI CONN

PCI 33MHZ

Realtek ALC 888(HD, 7.1Channel)

DDR2 SDRAM CONN 1

PCI SLOT 1

564 BGA

X2 - SATA CONN

B B

PS2/KBRD CONN

PARALLEL CONN

COM1-2 CONN

INTEGRATED SATA 1/2

SIO

LPC SUPER I/O W83627DHG

LPC BUS 33MHZ

X10 USB2.0 (SB600)

BACK PANEL CONN

USB2 PORTS 0-1 DOUBLE STACK

USB2 PORTS 2-3 X2/GBIT LAN

FRONT PANEL HDR

USB2 PORTS 4-5

USB2 PORTS 6-7

SPI

A A

Micro Star Restricted Secret

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

Block Diagram

MS-7347

Last Revision Date:

Last Revision Date: Sheet

Sheet

1

Tuesday, December 19, 2006

2

Rev

0A

38

of

5

4

3

2

1

C166

HT_CADIN_H[15..0] HT_CADIN_L[15..0] HT_CADOUT_H[15..0] HT_CADOUT_L[15..0]

475P/1206

CPU1A

HYPERTRANSPORT

L0_CLKOUT_H(1)

L0_CLKOUT_L(1)

L0_CLKOUT_H(0)

L0_CLKOUT_L(0)

L0_CTLOUT_H(1)

L0_CTLOUT_L(1)

L0_CTLOUT_H(0)

L0_CTLOUT_L(0)

L0_CADOUT_H(15)

L0_CADOUT_L(15)

L0_CADOUT_H(14)

L0_CADOUT_L(14)

L0_CADOUT_H(13)

L0_CADOUT_L(13)

L0_CADOUT_H(12)

L0_CADOUT_L(12)

L0_CADOUT_H(11)

L0_CADOUT_L(11)

L0_CADOUT_H(10)

L0_CADOUT_L(10)

L0_CADOUT_H(9)

L0_CADOUT_L(9)

L0_CADOUT_H(8)

L0_CADOUT_L(8)

L0_CADOUT_H(7)

L0_CADOUT_L(7)

L0_CADOUT_H(6)

L0_CADOUT_L(6)

L0_CADOUT_H(5)

L0_CADOUT_L(5)

L0_CADOUT_H(4)

L0_CADOUT_L(4)

L0_CADOUT_H(3)

L0_CADOUT_L(3)

L0_CADOUT_H(2)

L0_CADOUT_L(2)

L0_CADOUT_H(1)

L0_CADOUT_L(1)

L0_CADOUT_H(0)

L0_CADOUT_L(0)

VCCA_1V2 VDDA25

224P/16v/6

C191

X_475P/1206

AD5 AD4 AD1 AC1

Y6 W6 W2 W3

Y5 Y4 AB6 AA6 AB5 AB4 AD6 AC6 AF6 AE6 AF5 AF4 AH6 AG6 AH5 AH4

Y1 W1 AA2 AA3 AB1 AA1 AC2 AC3 AE2 AE3 AF1 AE1 AG2 AG3 AH1 AG1

C167

475P/1206

224P/16v/6

C201

C180

HT_CLKOUT_H1 8 HT_CLKOUT_L1 8 HT_CLKOUT_H0 8 HT_CLKOUT_L0 8

HT_CTLOUT_H0 8 HT_CTLOUT_L0 8

HT_CADOUT_H15 HT_CADOUT_L15 HT_CADOUT_H14 HT_CADOUT_L14 HT_CADOUT_H13 HT_CADOUT_L13 HT_CADOUT_H12 HT_CADOUT_L12 HT_CADOUT_H11 HT_CADOUT_L11 HT_CADOUT_H10 HT_CADOUT_L10 HT_CADOUT_H9 HT_CADOUT_L9 HT_CADOUT_H8 HT_CADOUT_L8

HT_CADOUT_H7 HT_CADOUT_L7 HT_CADOUT_H6 HT_CADOUT_L6 HT_CADOUT_H5 HT_CADOUT_L5 HT_CADOUT_H4 HT_CADOUT_L4 HT_CADOUT_H3 HT_CADOUT_L3HT_CADIN_L3 HT_CADOUT_H2 HT_CADOUT_L2 HT_CADOUT_H1 HT_CADOUT_L1 HT_CADOUT_H0 HT_CADOUT_L0

C196

X_224P/16v/6

TP15TP15 TP14TP14

X_224P/16v/6

C672

C672 180P

180P

C673

C673 180P

180P

C56

VCC_DDR

R109

X_300/4

R112

39.2R1%

R113

39.2R1%

C56

C3900P25X

CPU_STRAP_HI_E11 CPU_STRAP_LO_F11

C55

R104

R104 300/4

300/4

THERM_SIC THERM_SID

169R1%

R73

CPU_CLK12

CPU_CLK#12

VCC_DDR

475P/1206

CPUCLKIN CPUCLKIN#

COREFB+23

COREFB-23

CPU_M_VREF

THERMDC_CPU19 THERMDA_CPU19

C50

224P/16v/6

C45

X_C1000P50X

TP1TP1

R43 300/4R43 300/4 R42 300/4R42 300/4

TP10TP10 TP11TP11 TP13TP13 TP8TP8 TP18TP18

3300P/50V/4

LDT_PWRGD LDT_STOP# LDT_RST#

CPU_PRESENT_L

CPU_TDI CPU_TRST_L CPU_TCK CPU_TMS

CPU_DBREQ_L COREFB+

COREFBCPU_VTT_SENSE

CPU_TEST25_H CPU_TEST25_L

C64

C50

VDDA25VDDA_25

80/0805L480/0805

L4

2 1

C58

C10 D10

A8 B8

C9 D8 C7

AL3

AL6

AK6

AL10 AJ10

AH10

AL9

A5 G2

G1

E12

F12

AH11

AJ11

A10 B10 F10

E9

AJ7

F6 D6

E7 F8 C5

AH9

E5

AJ5 AG9 AG8 AH7

AJ6

CPU1D

MISC

VDDA1 VDDA2

CLKIN_H CLKIN_L

PWROK LDTSTOP_L RESET_L

CPU_PRESENT_L

THERMTRIP_L

SIC SID

TDI TRST_L TCK TMS

DBREQ_L VDD_FB_H

VDD_FB_L VTT_SENSE

M_VREF M_ZN M_ZP

TEST25_H TEST25_L TEST19 TEST18 TEST13 TEST9

TEST17 TEST16 TEST15 TEST14 TEST12

TEST7 TEST6 TEST5 TEST4 TEST3 TEST2

VID(5) VID(4) VID(3) VID(2) VID(1) VID(0)

PROCHOT_L

DBRDY

VDDIO_FB_H

VDDIO_FB_L

PSI_L

HTREF1 HTREF0

TEST29_H

TEST29_L

TEST24 TEST23 TEST22 TEST21 TEST20

TEST28_H

TEST28_L

TEST27 TEST26 TEST10

TEST8

TDO

D2 D1 C1 E3 E2 E1

AK7 AL7

AK10

B6 AK11

AL11 F1

V8 V7

C11 D11

AK8 AH8 AJ9 AL8 AJ8

J10 H9 AK9 AK5 G7 D4

VID4 VID3 VID2 VID1 VID0

CPU_THRIP_L# PROCHOT_L#

CPU_TDO

CPU_DBRDY CPU_VDDIOFB_H

CPU_VDDIOFB_L

CPU_PSI_L

HTREF1 HTREF0

TEST29_L

R108 300/4R108 300/4

TEST29_H

VCC_DDR

TP9TP9

TP12TP12

VCC_DDR

R52

80.6R1%

TP21TP21 TP17TP17 TP20TP20

TP19TP19

R18

R18 300/4

300/4

CPU_VDDIOFB_H 24

C160

102P/50V/X7R/4

R106

R106 300/4

300/4

R510

R510 300/4

300/4

C161

102P/50V/X7R/4

VID[0..4] 23

VCC_DDRVCC_DDR

R511

4.7K/4

R111 44.2RSTR111 44.2RST R114 44.2RSTR114 44.2RST

VCC_DDR

CPU_THRIP# 24

VCCA_1V2

R105

R105 300/4

300/4

HT_CADIN_H[15..0]8

HT_CADIN_L[15..0]8

HT_CADOUT_H[15..0]8

HT_CADOUT_L[15..0]8

D D

VCCA_1V2

C C

B B

VCCA_1V2

X_224P/16v/6

C175

C186

224P/16v/6

HT_CLKIN_H18

HT_CLKIN_L18

HT_CLKIN_H08

HT_CLKIN_L08

R116 49.9/4R116 49.9/4 Q45 N-MMBT3904_NL_SOT23Q45 N-MMBT3904_NL_SOT23 R117 49.9/4R117 49.9/4

HT_CTLIN_H08

HT_CTLIN_L08

HT_CADIN_H15 HT_CADIN_L15 HT_CADIN_H14 HT_CADIN_L14 HT_CADIN_H13 HT_CADIN_L13 HT_CADIN_H12 HT_CADIN_L12 HT_CADIN_H11 HT_CADIN_L11 HT_CADIN_H10 HT_CADIN_L10 HT_CADIN_H9 HT_CADIN_L9 HT_CADIN_H8 HT_CADIN_L8

HT_CADIN_H7 HT_CADIN_L7 HT_CADIN_H6 HT_CADIN_L6 HT_CADIN_H5 HT_CADIN_L5 HT_CADIN_H4 HT_CADIN_L4 HT_CADIN_H3

HT_CADIN_H2 HT_CADIN_L2 HT_CADIN_H1 HT_CADIN_L1 HT_CADIN_H0 HT_CADIN_L0

C179

C199

X_224P/16v/6

N6

L0_CLKIN_H(1)

P6

L0_CLKIN_L(1)

N3

L0_CLKIN_H(0)

N2

L0_CLKIN_L(0)

V4

L0_CTLIN_H(1)

V5

L0_CTLIN_L(1)

U1

L0_CTLIN_H(0)

V1

L0_CTLIN_L(0)

U6

L0_CADIN_H(15)

V6

L0_CADIN_L(15)

T4

L0_CADIN_H(14)

T5

L0_CADIN_L(14)

R6

L0_CADIN_H(13)

T6

L0_CADIN_L(13)

P4

L0_CADIN_H(12)

P5

L0_CADIN_L(12)

M4

L0_CADIN_H(11)

M5

L0_CADIN_L(11)

L6

L0_CADIN_H(10)

M6

L0_CADIN_L(10)

K4

L0_CADIN_H(9)

K5

L0_CADIN_L(9)

J6

L0_CADIN_H(8)

K6

L0_CADIN_L(8)

U3

L0_CADIN_H(7)

U2

L0_CADIN_L(7)

R1

L0_CADIN_H(6)

T1

L0_CADIN_L(6)

R3

L0_CADIN_H(5)

R2

L0_CADIN_L(5)

N1

L0_CADIN_H(4)

P1

L0_CADIN_L(4)

L1

L0_CADIN_H(3)

M1

L0_CADIN_L(3)

L3

L0_CADIN_H(2)

L2

L0_CADIN_L(2)

J1

L0_CADIN_H(1)

K1

L0_CADIN_L(1)

J3

L0_CADIN_H(0)

J2

L0_CADIN_L(0)

+1.8V_S0

RN56

1

LDT_RST# LDT_PWRGD LDT_STOP#

3

5

7

X_8P4R-300R

2 4 6 8

For S3 issue(LDT RST can not still low)

NOTE: HDT termination is required

LDT_STOP#

LDT_STOP#10,13

A A

LDT_PWRGD13

LDT_RST#13

LDT_PWRGD LDT_RST#

R61 680R0402R61 680R0402 R62 680R0402R62 680R0402 R63 680R0402R63 680R0402

for Rev Ax silicon only.

For SB600 APNOT

AMD REQUEST

5

4

X_8P4R-220R

CPU_DBREQ_L CPU_DBRDY CPU_TCK CPU_TMS CPU_TDI CPU_TRST_L CPU_TDO

VCC_DDR

RN57

246

135

VCC_DDR

CPU_PRESENT_L CPU_TEST25_H

CPU_TEST25_L

Micro Star Restricted Secret

Title

ATHLON64 HT I/F CTRL & DEBUG

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

C65

+1.8V_S0

R717

R717 X_0R0402

X_0R0402

CPU_M_VREF

C59

C59 C1000P16X

C1000P16X

R54

R54 15/6/1

R57

15/6/1

X_N-2N7002_SOT23

2

15/6/1

0.1u/25V/4

LDT_RST#LDT_RST_L

8

R512

R512 X_220/4

X_220/4

7

3

J1

1 3 5 7 9

11 13 15 17 19 21 23

KEY

X_ASP-68200-07

DNI

SW1 X_SW-TACT4PSSW1 X_SW-TACT4PS

1 2

2 4 6 8 10 12 14 16 18 20 22

LDT_RST_L

24 26

R719

3 4

R719 X_100R

X_100R

R718

X_1KR0402

VCC3

Q49

HDT Connector

CPU_VDDIO_SUS

R118 1K/4R118 1K/4 R67 510RR67 510R

R72 510RR72 510R

MS-7347

1

Last Revision Date:

Last Revision Date: Sheet

Sheet

VCC_DDR

Rev

Tuesday, December 19, 2006

of

338

0A

5

4

3

2

1

MEM_MA_DQS_L[7..0]6

MEM_MA_DQS_H[7..0]6

MEM_MA_DM[7..0]6

D D

CPU1B

MEMORY INTERFACE A

MEM_MA0_CLK_H26,7 MEM_MA0_CLK_L26,7 MEM_MA0_CLK_H16,7 MEM_MA0_CLK_L16,7 MEM_MA0_CLK_H06,7 MEM_MA0_CLK_L06,7

MEM_MA0_CS_L16,7 MEM_MA0_CS_L06,7

MEM_MA0_ODT06,7

C C

MEM_MA_ADD[15..0]6,7

B B

MEM_MA_CAS_L6,7 MEM_MA_WE_L6,7 MEM_MA_RAS_L6,7

MEM_MA_BANK26,7 MEM_MA_BANK16,7 MEM_MA_BANK06,7

MEM_MA_CKE17 MEM_MA_CKE06,7

MEM_MA0_CLK_H2 MEM_MA0_CLK_L2 MEM_MA0_CLK_H1 MEM_MA0_CLK_L1 MEM_MA0_CLK_H0 MEM_MA0_CLK_L0

MEM_MA0_CS_L1 MEM_MA0_CS_L0

MEM_MA0_ODT0

MEM_MA_CAS_L MEM_MA_WE_L MEM_MA_RAS_L

MEM_MA_BANK2 MEM_MA_BANK1 MEM_MA_BANK0

MEM_MA_CKE1 MEM_MA_CKE0

MEM_MA_ADD15 MEM_MA_ADD14 MEM_MA_ADD13 MEM_MA_ADD12 MEM_MA_ADD11 MEM_MA_ADD10 MEM_MA_ADD9 MEM_MA_ADD8 MEM_MA_ADD7 MEM_MA_ADD6 MEM_MA_ADD5 MEM_MA_ADD4 MEM_MA_ADD3 MEM_MA_ADD2 MEM_MA_ADD1 MEM_MA_ADD0

MEM_MA_DQS_H7 MEM_MA_DQS_L7 MEM_MA_DQS_H6 MEM_MA_DQS_L6 MEM_MA_DQS_H5 MEM_MA_DQS_L5 MEM_MA_DQS_H4 MEM_MA_DQS_L4 MEM_MA_DQS_H3 MEM_MA_DQS_L3 MEM_MA_DQS_H2 MEM_MA_DQS_L2 MEM_MA_DQS_H1 MEM_MA_DQS_L1 MEM_MA_DQS_H0 MEM_MA_DQS_L0

MEM_MA_DM7 MEM_MA_DM6 MEM_MA_DM5 MEM_MA_DM4 MEM_MA_DM3 MEM_MA_DM2 MEM_MA_DM1 MEM_MA_DM0

AG21 AG20

G19 H19 U27 U26

AC25 AA24

AC28 AE20

AE19

G20 G21 V27

W27

AD27 AA25

AC27

AB25 AB27 AA26

N25 Y27

AA27

M25 M27

N24

AC26

N26 P25 Y25 N27 R24 P27 R25 R26 R27 T25 U25 T27

W24

AD15 AE15 AG18 AG19 AG24 AG25 AG27 AG28

D29 C29 C25 D25 E19 F19 F15

G15

AF15 AF19 AJ25 AH29

B29 E24 E18 H15

L27

MEMORY INTERFACE A

MA0_CLK_H(2) MA0_CLK_L(2) MA0_CLK_H(1) MA0_CLK_L(1) MA0_CLK_H(0) MA0_CLK_L(0)

MA0_CS_L(1) MA0_CS_L(0)

MA0_ODT(0) MA1_CLK_H(2)

MA1_CLK_L(2) MA1_CLK_H(1) MA1_CLK_L(1) MA1_CLK_H(0) MA1_CLK_L(0)

MA1_CS_L(1) MA1_CS_L(0)

MA1_ODT(0)

MA_CAS_L MA_WE_L MA_RAS_L

MA_BANK(2) MA_BANK(1) MA_BANK(0)

MA_CKE(1) MA_CKE(0)

MA_ADD(15) MA_ADD(14) MA_ADD(13) MA_ADD(12) MA_ADD(11) MA_ADD(10) MA_ADD(9) MA_ADD(8) MA_ADD(7) MA_ADD(6) MA_ADD(5) MA_ADD(4) MA_ADD(3) MA_ADD(2) MA_ADD(1) MA_ADD(0)

MA_DQS_H(7) MA_DQS_L(7) MA_DQS_H(6) MA_DQS_L(6) MA_DQS_H(5) MA_DQS_L(5) MA_DQS_H(4) MA_DQS_L(4) MA_DQS_H(3) MA_DQS_L(3) MA_DQS_H(2) MA_DQS_L(2) MA_DQS_H(1) MA_DQS_L(1) MA_DQS_H(0) MA_DQS_L(0)

MA_DM(7) MA_DM(6) MA_DM(5) MA_DM(4) MA_DM(3) MA_DM(2) MA_DM(1) MA_DM(0)

MA_DATA(63) MA_DATA(62) MA_DATA(61) MA_DATA(60) MA_DATA(59) MA_DATA(58) MA_DATA(57) MA_DATA(56) MA_DATA(55) MA_DATA(54) MA_DATA(53) MA_DATA(52) MA_DATA(51) MA_DATA(50) MA_DATA(49) MA_DATA(48) MA_DATA(47) MA_DATA(46) MA_DATA(45) MA_DATA(44) MA_DATA(43) MA_DATA(42) MA_DATA(41) MA_DATA(40) MA_DATA(39) MA_DATA(38) MA_DATA(37) MA_DATA(36) MA_DATA(35) MA_DATA(34) MA_DATA(33) MA_DATA(32) MA_DATA(31) MA_DATA(30) MA_DATA(29) MA_DATA(28) MA_DATA(27) MA_DATA(26) MA_DATA(25) MA_DATA(24) MA_DATA(23) MA_DATA(22) MA_DATA(21) MA_DATA(20) MA_DATA(19) MA_DATA(18) MA_DATA(17) MA_DATA(16) MA_DATA(15) MA_DATA(14) MA_DATA(13) MA_DATA(12) MA_DATA(11) MA_DATA(10)

MA_DATA(9) MA_DATA(8) MA_DATA(7) MA_DATA(6) MA_DATA(5) MA_DATA(4) MA_DATA(3) MA_DATA(2) MA_DATA(1) MA_DATA(0)

MA_DQS_H(8)

MA_DQS_L(8)

MA_DM(8)

MA_CHECK(7) MA_CHECK(6) MA_CHECK(5) MA_CHECK(4) MA_CHECK(3) MA_CHECK(2) MA_CHECK(1) MA_CHECK(0)

MEM_MA_DATA63

AE14

MEM_MA_DATA62

AG14

MEM_MA_DATA61

AG16

MEM_MA_DATA60

AD17

MEM_MA_DATA59

AD13

MEM_MA_DATA58

AE13

MEM_MA_DATA57

AG15

MEM_MA_DATA56

AE16

MEM_MA_DATA55

AG17

MEM_MA_DATA54

AE18

MEM_MA_DATA53

AD21

MEM_MA_DATA52

AG22

MEM_MA_DATA51

AE17

MEM_MA_DATA50

AF17

MEM_MA_DATA49

AF21

MEM_MA_DATA48

AE21

MEM_MA_DATA47

AF23

MEM_MA_DATA46

AE23

MEM_MA_DATA45

AJ26

MEM_MA_DATA44

AG26

MEM_MA_DATA43

AE22

MEM_MA_DATA42

AG23

MEM_MA_DATA41

AH25

MEM_MA_DATA40

AF25

MEM_MA_DATA39

AJ28

MEM_MA_DATA38

AJ29

MEM_MA_DATA37

AF29

MEM_MA_DATA36

AE26

MEM_MA_DATA35

AJ27

MEM_MA_DATA34

AH27

MEM_MA_DATA33

AG29

MEM_MA_DATA32

AF27

MEM_MA_DATA31

E29

MEM_MA_DATA30

E28

MEM_MA_DATA29

D27

MEM_MA_DATA28

C27

MEM_MA_DATA27

G26

MEM_MA_DATA26

F27

MEM_MA_DATA25

C28

MEM_MA_DATA24

E27

MEM_MA_DATA23

F25

MEM_MA_DATA22

E25

MEM_MA_DATA21

E23

MEM_MA_DATA20

D23

MEM_MA_DATA19

E26

MEM_MA_DATA18

C26

MEM_MA_DATA17

G23

MEM_MA_DATA16

F23

MEM_MA_DATA15

E22

MEM_MA_DATA14

E21

MEM_MA_DATA13

F17

MEM_MA_DATA12

G17

MEM_MA_DATA11

G22

MEM_MA_DATA10

F21

MEM_MA_DATA9

G18

MEM_MA_DATA8

E17

MEM_MA_DATA7

G16

MEM_MA_DATA6

E15

MEM_MA_DATA5

G13

MEM_MA_DATA4

H13

MEM_MA_DATA3

H17

MEM_MA_DATA2

E16

MEM_MA_DATA1

E14

MEM_MA_DATA0

G14 J28

J27 J25 K25

J26 G28 G27 L24 K27 H29 H27

MEM_MA_DATA[63..0] 6

MEM_MB_ADD[15..0]6,7

MEM_MB_DQS_L[7..0]6

MEM_MB_DQS_H[7..0]6

MEM_MB_DM[7..0]6

CPU1C

MEMORY INTERFACE B

MEM_MB0_CLK_H26,7 MEM_MB0_CLK_L26,7 MEM_MB0_CLK_H16,7 MEM_MB0_CLK_L16,7 MEM_MB0_CLK_H06,7 MEM_MB0_CLK_L06,7

MEM_MB0_CS_L16,7 MEM_MB0_CS_L06,7

MEM_MB0_ODT06,7

MEM_MB_CAS_L6,7 MEM_MB_WE_L6,7 MEM_MB_RAS_L6,7

MEM_MB_BANK26,7 MEM_MB_BANK16,7 MEM_MB_BANK06,7

MEM_MB_CKE17 MEM_MB_CKE06,7

MEM_MB0_CLK_H2 MEM_MB0_CLK_L2 MEM_MB0_CLK_H1 MEM_MB0_CLK_L1 MEM_MB0_CLK_H0 MEM_MB0_CLK_L0

MEM_MB0_CS_L1 MEM_MB0_CS_L0

MEM_MB0_ODT0

MEM_MB_CAS_L MEM_MB_WE_L MEM_MB_RAS_L

MEM_MB_BANK2 MEM_MB_BANK1 MEM_MB_BANK0

MEM_MB_CKE1 MEM_MB_CKE0

MEM_MB_ADD15 MEM_MB_ADD14 MEM_MB_ADD13 MEM_MB_ADD12 MEM_MB_ADD11 MEM_MB_ADD10 MEM_MB_ADD9 MEM_MB_ADD8 MEM_MB_ADD7 MEM_MB_ADD6 MEM_MB_ADD5 MEM_MB_ADD4 MEM_MB_ADD3 MEM_MB_ADD2 MEM_MB_ADD1 MEM_MB_ADD0

MEM_MB_DQS_H7 MEM_MB_DQS_L7 MEM_MB_DQS_H6 MEM_MB_DQS_L6 MEM_MB_DQS_H5 MEM_MB_DQS_L5 MEM_MB_DQS_H4 MEM_MB_DQS_L4 MEM_MB_DQS_H3 MEM_MB_DQS_L3 MEM_MB_DQS_H2 MEM_MB_DQS_L2 MEM_MB_DQS_H1 MEM_MB_DQS_L1 MEM_MB_DQS_H0 MEM_MB_DQS_L0

MEM_MB_DM7 MEM_MB_DM6 MEM_MB_DM5 MEM_MB_DM4 MEM_MB_DM3 MEM_MB_DM2 MEM_MB_DM1 MEM_MB_DM0

AJ19

AK19

AE30 AC31

AD29 AL19

AL18

W29 W28

AE29 AB31

AD31

AC29 AC30 AB29

AA31 AA28

M31 M29

AE31

AA29

AA30 AK13

AJ13

AK17

AJ17 AK23 AL23 AL28 AL29

AJ14 AH17

AJ23 AK29

A18 A19 U31 U30

C19 D19

N31

N28 N29

N30 P29

P31 R29 R28 R31 R30 T31 T29 U29 U28

D31 C31 C24 C23 D17 C17 C14 C13

C30 A23 B17 B13

MEMORY INTERFACE B

MB0_CLK_H(2) MB0_CLK_L(2) MB0_CLK_H(1) MB0_CLK_L(1) MB0_CLK_H(0) MB0_CLK_L(0)

MB0_CS_L(1) MB0_CS_L(0)

MB0_ODT(0) MB1_CLK_H(2)

MB1_CLK_L(2) MB1_CLK_H(1) MB1_CLK_L(1) MB1_CLK_H(0) MB1_CLK_L(0)

MB1_CS_L(1) MB1_CS_L(0)

MB1_ODT(0)

MB_CAS_L MB_WE_L MB_RAS_L

MB_BANK(2) MB_BANK(1) MB_BANK(0)

MB_CKE(1) MB_CKE(0)

MB_ADD(15) MB_ADD(14) MB_ADD(13) MB_ADD(12) MB_ADD(11) MB_ADD(10) MB_ADD(9) MB_ADD(8) MB_ADD(7) MB_ADD(6) MB_ADD(5) MB_ADD(4) MB_ADD(3) MB_ADD(2) MB_ADD(1) MB_ADD(0)

MB_DQS_H(7) MB_DQS_L(7) MB_DQS_H(6) MB_DQS_L(6) MB_DQS_H(5) MB_DQS_L(5) MB_DQS_H(4) MB_DQS_L(4) MB_DQS_H(3) MB_DQS_L(3) MB_DQS_H(2) MB_DQS_L(2) MB_DQS_H(1) MB_DQS_L(1) MB_DQS_H(0) MB_DQS_L(0)

MB_DM(7) MB_DM(6) MB_DM(5) MB_DM(4) MB_DM(3) MB_DM(2) MB_DM(1) MB_DM(0)

MB_DATA(63) MB_DATA(62) MB_DATA(61) MB_DATA(60) MB_DATA(59) MB_DATA(58) MB_DATA(57) MB_DATA(56) MB_DATA(55) MB_DATA(54) MB_DATA(53) MB_DATA(52) MB_DATA(51) MB_DATA(50) MB_DATA(49) MB_DATA(48) MB_DATA(47) MB_DATA(46) MB_DATA(45) MB_DATA(44) MB_DATA(43) MB_DATA(42) MB_DATA(41) MB_DATA(40) MB_DATA(39) MB_DATA(38) MB_DATA(37) MB_DATA(36) MB_DATA(35) MB_DATA(34) MB_DATA(33) MB_DATA(32) MB_DATA(31) MB_DATA(30) MB_DATA(29) MB_DATA(28) MB_DATA(27) MB_DATA(26) MB_DATA(25) MB_DATA(24) MB_DATA(23) MB_DATA(22) MB_DATA(21) MB_DATA(20) MB_DATA(19) MB_DATA(18) MB_DATA(17) MB_DATA(16) MB_DATA(15) MB_DATA(14) MB_DATA(13) MB_DATA(12) MB_DATA(11) MB_DATA(10)

MB_DATA(9) MB_DATA(8) MB_DATA(7) MB_DATA(6) MB_DATA(5) MB_DATA(4) MB_DATA(3) MB_DATA(2) MB_DATA(1) MB_DATA(0)

MB_DQS_H(8)

MB_DQS_L(8)

MB_DM(8)

MB_CHECK(7) MB_CHECK(6) MB_CHECK(5) MB_CHECK(4) MB_CHECK(3) MB_CHECK(2) MB_CHECK(1) MB_CHECK(0)

AH13 AL13 AL15 AJ15 AF13 AG13 AL14 AK15 AL16 AL17 AK21 AL21 AH15 AJ16 AH19 AL20 AJ22 AL22 AL24 AK25 AJ21 AH21 AH23 AJ24 AL27 AK27 AH31 AG30 AL25 AL26 AJ30 AJ31 E31 E30 B27 A27 F29 F31 A29 A28 A25 A24 C22 D21 A26 B25 B23 A22 B21 A20 C16 D15 C21 A21 A17 A16 B15 A14 E13 F13 C15 A15 A13 D13

J31 J30

J29 K29

K31 G30 G29 L29 L28 H31 G31

MEM_MB_DATA63 MEM_MB_DATA62 MEM_MB_DATA61 MEM_MB_DATA60 MEM_MB_DATA59 MEM_MB_DATA58 MEM_MB_DATA57 MEM_MB_DATA56 MEM_MB_DATA55 MEM_MB_DATA54 MEM_MB_DATA53 MEM_MB_DATA52 MEM_MB_DATA51 MEM_MB_DATA50 MEM_MB_DATA49 MEM_MB_DATA48 MEM_MB_DATA47 MEM_MB_DATA46 MEM_MB_DATA45 MEM_MB_DATA44 MEM_MB_DATA43 MEM_MB_DATA42 MEM_MB_DATA41 MEM_MB_DATA40 MEM_MB_DATA39 MEM_MB_DATA38 MEM_MB_DATA37 MEM_MB_DATA36 MEM_MB_DATA35 MEM_MB_DATA34 MEM_MB_DATA33 MEM_MB_DATA32 MEM_MB_DATA31 MEM_MB_DATA30 MEM_MB_DATA29 MEM_MB_DATA28 MEM_MB_DATA27 MEM_MB_DATA26 MEM_MB_DATA25 MEM_MB_DATA24 MEM_MB_DATA23 MEM_MB_DATA22 MEM_MB_DATA21 MEM_MB_DATA20

MEM_MB_DATA19 MEM_MB_DATA18 MEM_MB_DATA17 MEM_MB_DATA16 MEM_MB_DATA15 MEM_MB_DATA14 MEM_MB_DATA13 MEM_MB_DATA12 MEM_MB_DATA11 MEM_MB_DATA10

MEM_MB_DATA9

MEM_MB_DATA8

MEM_MB_DATA7

MEM_MB_DATA6

MEM_MB_DATA5

MEM_MB_DATA4

MEM_MB_DATA3

MEM_MB_DATA2

MEM_MB_DATA1

MEM_MB_DATA0

MEM_MB_DATA[63..0] 6

A A

Micro Star Restricted Secret

Title

ATHLON64 DDR MEMORY I/F

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7347

1

Last Revision Date:

Last Revision Date: Sheet

Sheet

Tuesday, December 19, 2006

438

Rev

0A

of

5

VCCP

CPU1F

VDD1

A4

VDD1

A6

VDD2

AA8

VDD3

AA10

VDD4

AA12

VDD5

AA14

VDD6

AA16

VDD7

AA18

VDD8

AB7

VDD9

D D

C C

B B

AB11

AC10

AE10

AB9 AC4

AC5 AC8

AD2 AD3 AD7 AD9

AF7 AF9 AG4 AG5 AG7 AH2 AH3

E10

F11

G10 G12

H11 H23

K11 K13 K15 K17 K19 K21 K23

Y17 Y19

VDD10 VDD11 VDD12 VDD13 VDD14 VDD15 VDD16 VDD17 VDD18 VDD19 VDD20 VDD21 VDD22 VDD23 VDD24 VDD25 VDD26 VDD27

B3

VDD28

B5

VDD29

B7

VDD30

C2

VDD31

C4

VDD32

C6

VDD33

C8

VDD34

D3

VDD35

D5

VDD36

D7

VDD37

D9

VDD38

E4

VDD39

E6

VDD40

E8

VDD41 VDD42

F5

VDD43

F7

VDD44

F9

VDD45 VDD46

G6

VDD47

G8

VDD48 VDD49 VDD50

H7

VDD51 VDD52 VDD53

J8

VDD54

J12

VDD55

J14

VDD56

J16

VDD57

J18

VDD58

J20

VDD59

J22

VDD60

J24

VDD61

K7

VDD62

K9

VDD63 VDD64 VDD65 VDD66 VDD67 VDD68 VDD69 VDD70

L4

VDD71

L5

VDD72

L8

VDD73

L10

VDD74

L12

VDD75 VDD150 VDD151

VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8

VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47 VSS48 VSS49 VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65 VSS66 VSS67 VSS68 VSS69 VSS70 VSS71 VSS72 VSS73 VSS74

VSS240 VSS241

A3 A7 A9 A11 AA4 AA5 AA7 AA9 AA11 AA13 AA15 AA17 AA19 AA21 AA23 AB2 AB3 AB8 AB10 AB12 AB14 AB16 AB18 AB20 AB22 AC7 AC9 AC11 AC13 AC15 AC17 AC19 AC21 AC23 AD8 AD10 AD12 AD14 AD16 AD20 AD22 AD24 AE4 AE5 AE9 AE11 AF2 AF3 AF8 AF10 AF12 AF14 AF16 AF18 AF20 AF22 AF24 AF26 AF28 AG10 AG11 AH14 AH16 AH18 AH20 AH22 AH24 AH26 AH28 AH30 AK2 AK14 AK16 AK18 Y14 Y16

VCCP

M11 M13 M15 M17 M19

N10 N12 N14 N16 N18

P11 P13 P15 P17 P19

R10 R12 R14 R16 R18 R20

U10 U12 U14 U16 U18 U20

V11 V13 V15 V17 V19 V21

W10 W12 W14 W16 W18 W20

Y11 Y13 Y15 Y21

L14

VDD1

L16

VDD2

L18

VDD3

M2

VDD4

M3

VDD5

M7

VDD6

M9

VDD7 VDD8 VDD9 VDD10 VDD11 VDD12

N8

VDD13 VDD14 VDD15 VDD16 VDD17 VDD18

P7

VDD19

P9

VDD20 VDD21 VDD22 VDD23 VDD24 VDD25

R4

VDD26

R5

VDD27

R8

VDD28 VDD29 VDD30 VDD31 VDD32 VDD33 VDD34

T2

VDD35

T3

VDD36

T7

VDD37

T9

VDD38

T11

VDD39

T13

VDD40

T15

VDD41

T17

VDD42

T19

VDD43

T21

VDD44

U8

VDD45 VDD46 VDD47 VDD48 VDD49 VDD50 VDD51

V9

VDD52 VDD53 VDD54 VDD55 VDD56 VDD57 VDD58

W4

VDD59

W5

VDD60

W8

VDD61 VDD62 VDD63 VDD64 VDD65 VDD66 VDD67

Y2

VDD68

Y3

VDD69

Y7

VDD70

Y9

VDD71 VDD72 VDD73 VDD74 VDD75

CPU1G

VDD2

4

VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8

VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47 VSS48 VSS49 VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65 VSS66 VSS67 VSS68 VSS69 VSS70 VSS71 VSS72 VSS73 VSS74 VSS75

AK20 AK22 AK24 AK26 AK28 AK30 AL5 B4 B9 B11 B14 B16 B18 B20 B22 B24 B26 B28 B30 C3 D14 D16 D18 D20 D22 D24 D26 D28 D30 E11 F4 F14 F16 F18 F20 F22 F24 F26 F28 F30 G9 G11 H8 H10 H12 H14 H16 H18 H22 H24 H26 H28 H30 J4 J5 J7 J9 J11 J13 J15 J17 J19 J21 J23 K2 K3 K8 K10 K12 K14 K16 K18 K20 K22 Y18

VCCP

AA20 AA22 AB13 AB15 AB17 AB19 AB21 AB23 AC12 AC14 AC16 AC18 AC20 AC22 AD11 AD23 AE12 AF11

M21 M23

W22

3

VCC_DDR

VCCA_1V2

VTT_DDR

VCCP

C645

C645 224P/16v/6

224P/16v/6

AJ4 AJ3 AJ2 AJ1

D12 C12 B12 A12

AB24 AB26 AB28 AB30 AC24 AD26 AD28 AD30 AF30

M24 M26 M28 M30 P24 P26 P28 P30

T24 T26 T28

T30 V25 V26 V28 V30 Y24 Y26 Y28 Y29

C648

224P/16v/6

CPU1H

VDD3

VDD1 VDD2 VDD3 VDD4 VDD5 VDD6 VDD7 VDD8 VDD9 VDD10 VDD11 VDD12 VDD13 VDD14 VDD15 VDD16 VDD17 VDD18

L20

VDD19

L22

VDD20 VDD21 VDD22

N20

VDD23

N22

VDD24

P21

VDD25

P23

VDD26

R22

VDD27

T23

VDD28

U22

VDD29

V23

VDD30 VDD31

Y23

VDD32

5

GND

6

GND

7

GND

8

GND

VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8

VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47 VSS48 VSS49 VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65

VCCP

N17 N19 N21 N23 P2 P3 P8 P10 P12 P14 P16 P18 P20 P22 R7 R9 R11 R13 R15 R17 R19 R21 R23 T8 T10 T12 T14 T16 T18 T20 T22 U4 U5 U7 U9 U11 U13 U15 U17 U19 U21 U23 V2 V3 V10 V12 V14 V16 V18 V20 V22 W9 W11 W13 W15 W17 W19 W21 W23 Y8 Y10 Y12 W7 Y20 Y22

VLDT_A1 VLDT_A2 VLDT_A3 VLDT_A4

VTT1 VTT2 VTT3 VTT4

VDDIO1 VDDIO2 VDDIO3 VDDIO4 VDDIO5 VDDIO6 VDDIO7 VDDIO8 VDDIO9 VDDIO10 VDDIO11 VDDIO12 VDDIO13 VDDIO14 VDDIO15 VDDIO16 VDDIO17 VDDIO18 VDDIO19 VDDIO20 VDDIO21 VDDIO22 VDDIO23 VDDIO24 VDDIO25 VDDIO26 VDDIO27 VDDIO28 VDDIO29

C647

CPU1I

VDDIO

224P/16v/6

VLDT_B1 VLDT_B2 VLDT_B3 VLDT_B4

VTT5 VTT6 VTT7 VTT8 VTT9

VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8

VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28

For EMI

C649

0.01u/50V/6/X7R

H6 H5 H2 H1

AK12 AJ12 AH12 AG12 AL12

K24 K26 K28 K30 L7 L9 L11 L13 L15 L17 L19 L21 L23 M8 M10 M12 M14 M16 M18 M20 M22 N4 N5 N7 N9 N11 N13 N15

2

VCC_DDR

VLDT_RUN_B

VTT_DDR

C678

C678 X_0.1u/25V/4

X_0.1u/25V/4

C670

C670 180P

180P

4.7u/10V/8

C73

C84

X_C10000P50Y5

C681

C681 X_0.1u/25V/4

X_0.1u/25V/4

C75

X_C10000P50Y5

C682

C682 X_0.1u/25V/4

X_0.1u/25V/4

C77

X_C10000P50Y5

C683

C683 180P

180P

1

C684

C684 X_0.1u/25V/4

X_0.1u/25V/4

C635

C640

C635

C22U6.3X1206/B

C204

C204 224P/16v/6

224P/16v/6

C263

C4.7U10Y0805

C22U6.3X1206/B

C189

C189 C4.7U10Y0805

C4.7U10Y0805

C633

C22U6.3X1206/B

VTT_DDR

C157

C274

224P/16v/6

A A

VTT_DDR

C238

C34

224P/16v/6

C207

C207 C4.7U10Y0805

C4.7U10Y0805

C213

C213 C4.7U10Y0805

C4.7U10Y0805

5

C202

C4.7U10Y0805

C291

C4.7U10Y0805

C194

C194 180P

180P

C187

C187 180P

180P

C184

C184 180P

180P

C226

C226 180P

180P

C62

C62 C1000P50X

C1000P50X

C237

C237 C1000P50X

C1000P50X

C229

C1000P50X

C51

C1000P50X

C634

C638

224P/16v/6

VCC_DDR VCC3

C671 103P/16V/4C671 103P/16V/4

4

3

C642

C627

C22U6.3X1206/B

+

EC22

EC22 1000U/6.3V

1000U/6.3V

C636

C22U6.3X1206/B

VCC_DDRVCC_DDR

C641

C22U6.3X1206/B

C646

C22U6.3X1206/B

C133

C22U6.3X1206

2

C632

C22U6.3X1206/B

C22

C4.7U10Y0805

C628

C22U6.3X1206/B

C195

224P/16v/6

C639

C22U6.3X1206/B

C631

224P/16v/6

C70

C630

C22U6.3X1206

C630

C22U6.3X1206/B

C220

C197

C22U6.3X1206/B

0.01u/50V/6/X7R

Micro Star Restricted Secret

Title

ATHLON64 PWR & GND

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

C644

C643

C22U6.3X1206/B

C669

C669 180P

180P

MS-7347

Last Revision Date:

Last Revision Date: Sheet

Sheet

1

C629

C95

C22U6.3X1206

C22U6.3X1206/B

Tuesday, December 19, 2006

of

538

Rev

0A

5

4

3

2

1

181

VDDQ3

191

VDDQ4

194

VDDQ5

72

VDDQ651VDDQ756VDDQ862VDDQ9

VCC3

78

VDDQ1075VDDQ11

238

VDDSPD

WE_L VREF

ODT0 ODT1

ERR_OUT_L

PAR_IN

DQ63 DQ62 DQ61 DQ60 DQ59 DQ58 DQ57 DQ56 DQ55 DQ54 DQ53 DQ52 DQ51 DQ50 DQ49 DQ48 DQ47 DQ46 DQ45 DQ44 DQ43 DQ42 DQ41 DQ40 DQ39 DQ38 DQ37 DQ36 DQ35 DQ34 DQ33 DQ32 DQ31 DQ30 DQ29 DQ28 DQ27 DQ26 DQ25 DQ24 DQ23 DQ22 DQ21 DQ20 DQ19 DQ18 DQ17 DQ16 DQ15 DQ14 DQ13 DQ12 DQ11 DQ10

TEST

DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0

NC1

DIMM2DIMM2

236 235 230 229 117 116 111 110 227 226 218 217 108 107 99 98 215 214 209 208 96 95 90 89 206 205 200 199 87 86 81 80 159 158 153 152 40 39 34 33 150 149 144 143 31 30 25 24 141 140 132 131 22 21 13 12 129 128 123 122 10 9 4 3

73 1 102 195

77 55

68 19

2

MEM_MB_DATA63 MEM_MB_DATA62 MEM_MB_DATA61 MEM_MB_DATA60 MEM_MB_DATA59 MEM_MB_DATA58 MEM_MB_DATA57 MEM_MB_DATA56 MEM_MB_DATA55 MEM_MB_DATA54 MEM_MB_DATA53 MEM_MB_DATA52 MEM_MB_DATA51 MEM_MB_DATA50 MEM_MB_DATA49 MEM_MB_DATA48 MEM_MB_DATA47 MEM_MB_DATA46 MEM_MB_DATA45 MEM_MB_DATA44 MEM_MB_DATA43 MEM_MB_DATA42 MEM_MB_DATA41 MEM_MB_DATA40 MEM_MB_DATA39 MEM_MB_DATA38 MEM_MB_DATA37 MEM_MB_DATA36 MEM_MB_DATA35 MEM_MB_DATA34 MEM_MB_DATA33 MEM_MB_DATA32 MEM_MB_DATA31 MEM_MB_DATA30 MEM_MB_DATA29 MEM_MB_DATA28 MEM_MB_DATA27 MEM_MB_DATA26 MEM_MB_DATA25 MEM_MB_DATA24 MEM_MB_DATA23 MEM_MB_DATA22 MEM_MB_DATA21 MEM_MB_DATA20 MEM_MB_DATA19 MEM_MB_DATA18 MEM_MB_DATA17 MEM_MB_DATA16 MEM_MB_DATA15 MEM_MB_DATA14 MEM_MB_DATA13 MEM_MB_DATA12 MEM_MB_DATA11 MEM_MB_DATA10 MEM_MB_DATA9 MEM_MB_DATA8 MEM_MB_DATA7 MEM_MB_DATA6 MEM_MB_DATA5 MEM_MB_DATA4 MEM_MB_DATA3 MEM_MB_DATA2 MEM_MB_DATA1 MEM_MB_DATA0

MEM_MB_WE_L VDDR_VREF

MEM_MB0_ODT0

MEM_MB_DATA[63..0] 4

MEM_MB_WE_L 4,7

VDDR_VREF

C619

C619 C1000P10X0402

C1000P10X0402

MEM_MB0_ODT0 4,7

SCL

SDA

VCC_DDR

C19

R24

49.9/4

0.1u/25V/4

R22

49.9/4

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

SCL 12,14 SDA 12,14

VDDR_VREF

C621

0.1u/25V/4

Micro Star Restricted Secret

FIRST LOGICAL DDR DIMM

MS-7347

1

Last Revision Date:

Tuesday, December 19, 2006

Sheet

638

Rev

0A

of

VCC3

MEM_MA_DQS_H[7..0]4 MEM_MA_DQS_L[7..0]4

D D

MEM_MA_DM[7..0]4

C C

SCL12,14

SDA12,14 MEM_MA_BANK24,7 MEM_MA_BANK14,7 MEM_MA_BANK04,7

MEM_MA_ADD[15..0]4,7

B B

MEM_MA0_CLK_H04,7 MEM_MA0_CLK_L04,7 MEM_MA0_CLK_H14,7 MEM_MA0_CLK_L14,7 MEM_MA0_CLK_H24,7 MEM_MA0_CLK_L24,7

MEM_MA_CKE04,7 MEM_MA_RAS_L4,7

MEM_MA_CAS_L4,7

A A

MEM_MA0_CS_L04,7 MEM_MA0_CS_L14,7

MEM_MA_DQS_H7 MEM_MA_DQS_L7 MEM_MA_DQS_H6 MEM_MA_DQS_L6 MEM_MA_DQS_H5 MEM_MA_DQS_L5 MEM_MA_DQS_H4 MEM_MA_DQS_L4 MEM_MA_DQS_H3 MEM_MA_DQS_L3 MEM_MA_DQS_H2 MEM_MA_DQS_L2 MEM_MA_DQS_H1 MEM_MA_DQS_L1 MEM_MA_DQS_H0 MEM_MA_DQS_L0

MEM_MA_BANK2 MEM_MA_BANK1 MEM_MA_BANK0

MEM_MA_ADD15 MEM_MA_ADD14 MEM_MA_ADD13 MEM_MA_ADD12 MEM_MA_ADD11 MEM_MA_ADD10 MEM_MA_ADD9 MEM_MA_ADD8 MEM_MA_ADD7 MEM_MA_ADD6 MEM_MA_ADD5 MEM_MA_ADD4 MEM_MA_ADD3 MEM_MA_ADD2 MEM_MA_ADD1 MEM_MA_ADD0

MEM_MA0_CLK_H0 MEM_MA0_CLK_L0 MEM_MA0_CLK_H1 MEM_MA0_CLK_L1 MEM_MA0_CLK_H2 MEM_MA0_CLK_L2

MEM_MA_CKE0 MEM_MA_RAS_L

MEM_MA_CAS_L MEM_MA0_CS_L0

MEM_MA0_CS_L1

5

MEM_MA_DM7 MEM_MA_DM6 MEM_MA_DM5 MEM_MA_DM4 MEM_MA_DM3 MEM_MA_DM2 MEM_MA_DM1 MEM_MA_DM0

SCL SDA

VCC_DDR

69

170

175

181

191

172

178

184

187

189

197

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

164

DQS17_H

165

DQS17_L

232

DQS16_H

233

DQS16_L

223

DQS15_H

224

DQS15_L

211

DQS14_H

212

DQS14_L

202

DQS13_H

203

DQS13_L

155

DQS12_H

156

DQS12_L

146

DQS11_H

147

DQS11_L

134

DQS10_H

135

DQS10_L

125

DQS9_H

126

DQS9_L

46

DQS8_H

45

DQS8_L

114

DQS7_H

113

DQS7_L

105

DQS6_H

104

DQS6_L

93

DQS5_H

92

DQS5_L

84

DQS4_H

83

DQS4_L

37

DQS3_H

36

DQS3_L

28

DQS2_H

27

DQS2_L

16

DQS1_H

15

DQS1_L

7

DQS0_H

6

DQS0_L

101

SA2

240

SA1

239

SA0

120

SCL

119

SDA

54

BA2

190

BA1

71

BA0

173

A15

174

A14

196

A13

176

A12

57

A11

70

A10

177

A9

179

A8

58

A7

180

A6

60

A5

61

A4

182

A3

63

A2

183

A1

188

A0

168

CB7

167

CB6

162

CB5

161

CB4

49

CB3

48

CB2

43

CB1

42

CB0

185

CK0_H

186

CK0_L

137

CK1_H

138

CK1_L

220

CK2_H

221

CK2_L

18

RESET_L

52

CKE0

171

CKE1

192

RAS_L

74

CAS_L

193

S0_L

76

S1_L

VDD753VDD859VDD9

194

64

VDD1067VDD11

VDDQ1

VDDQ2

VDDQ3

VDDQ4

VDDQ5

VDDQ651VDDQ756VDDQ862VDDQ9

C520

0.1u/25V/4

78

238

72

DIMM1DIMM1

VDDQ1075VDDQ11

VDDSPD

DQ63 DQ62 DQ61 DQ60 DQ59 DQ58 DQ57 DQ56 DQ55 DQ54 DQ53 DQ52 DQ51 DQ50 DQ49 DQ48 DQ47 DQ46 DQ45 DQ44 DQ43 DQ42 DQ41 DQ40 DQ39 DQ38 DQ37 DQ36 DQ35 DQ34 DQ33 DQ32 DQ31 DQ30 DQ29 DQ28 DQ27 DQ26 DQ25 DQ24 DQ23 DQ22 DQ21 DQ20 DQ19 DQ18 DQ17 DQ16 DQ15 DQ14 DQ13 DQ12 DQ11 DQ10

WE_L VREF TEST ODT0

ODT1

ERR_OUT_L

PAR_IN

DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0

NC1

236 235 230 229 117 116 111 110 227 226 218 217 108 107 99 98 215 214 209 208 96 95 90 89 206 205 200 199 87 86 81 80 159 158 153 152 40 39 34 33 150 149 144 143 31 30 25 24 141 140 132 131 22 21 13 12 129 128 123 122 10 9 4 3

73 1 102 195

77 55

68 19

4

MEM_MA_DATA63 MEM_MA_DATA62 MEM_MA_DATA61 MEM_MA_DATA60 MEM_MA_DATA59 MEM_MA_DATA58 MEM_MA_DATA57 MEM_MA_DATA56 MEM_MA_DATA55 MEM_MA_DATA54 MEM_MA_DATA53 MEM_MA_DATA52 MEM_MA_DATA51 MEM_MA_DATA50 MEM_MA_DATA49 MEM_MA_DATA48 MEM_MA_DATA47 MEM_MA_DATA46 MEM_MA_DATA45 MEM_MA_DATA44 MEM_MA_DATA43 MEM_MA_DATA42 MEM_MA_DATA41 MEM_MA_DATA40 MEM_MA_DATA39 MEM_MA_DATA38 MEM_MA_DATA37 MEM_MA_DATA36 MEM_MA_DATA35 MEM_MA_DATA34 MEM_MA_DATA33 MEM_MA_DATA32 MEM_MA_DATA31 MEM_MA_DATA30 MEM_MA_DATA29 MEM_MA_DATA28 MEM_MA_DATA27 MEM_MA_DATA26 MEM_MA_DATA25 MEM_MA_DATA24 MEM_MA_DATA23 MEM_MA_DATA22 MEM_MA_DATA21 MEM_MA_DATA20 MEM_MA_DATA19 MEM_MA_DATA18 MEM_MA_DATA17 MEM_MA_DATA16 MEM_MA_DATA15 MEM_MA_DATA14 MEM_MA_DATA13 MEM_MA_DATA12 MEM_MA_DATA11

MEM_MA_DATA10

MEM_MA_DATA9 MEM_MA_DATA8 MEM_MA_DATA7 MEM_MA_DATA6 MEM_MA_DATA5 MEM_MA_DATA4 MEM_MA_DATA3 MEM_MA_DATA2 MEM_MA_DATA1 MEM_MA_DATA0

MEM_MA_WE_L VDDR_VREF

MEM_MA0_ODT0

MEM_MA_DATA[63..0] 4

MEM_MA_WE_L 4,7

X_0.1u/25V/4

MEM_MA0_ODT0 4,7

VDDR_VREF

C618

MEM_MB_DQS_H[7..0]4 MEM_MB_DQS_L[7..0]4

MEM_MB_DM[7..0]4

MEM_MB_BANK24,7 MEM_MB_BANK14,7 MEM_MB_BANK04,7

MEM_MB_ADD[15..0]4,7

MEM_MB0_CLK_H04,7 MEM_MB0_CLK_L04,7 MEM_MB0_CLK_H14,7 MEM_MB0_CLK_L14,7 MEM_MB0_CLK_H24,7 MEM_MB0_CLK_L24,7

MEM_MB_CKE04,7 MEM_MB_RAS_L4,7

MEM_MB_CAS_L4,7 MEM_MB0_CS_L04,7

MEM_MB0_CS_L14,7

VCC3

MEM_MB_DM7 MEM_MB_DM6 MEM_MB_DM5 MEM_MB_DM4 MEM_MB_DM3 MEM_MB_DM2 MEM_MB_DM1 MEM_MB_DM0

MEM_MB_DQS_H7 MEM_MB_DQS_L7 MEM_MB_DQS_H6 MEM_MB_DQS_L6 MEM_MB_DQS_H5 MEM_MB_DQS_L5 MEM_MB_DQS_H4 MEM_MB_DQS_L4 MEM_MB_DQS_H3 MEM_MB_DQS_L3 MEM_MB_DQS_H2 MEM_MB_DQS_L2 MEM_MB_DQS_H1 MEM_MB_DQS_L1 MEM_MB_DQS_H0 MEM_MB_DQS_L0

SCL SDA MEM_MB_BANK2 MEM_MB_BANK1 MEM_MB_BANK0

MEM_MB_ADD15 MEM_MB_ADD14 MEM_MB_ADD13 MEM_MB_ADD12 MEM_MB_ADD11 MEM_MB_ADD10 MEM_MB_ADD9 MEM_MB_ADD8 MEM_MB_ADD7 MEM_MB_ADD6 MEM_MB_ADD5 MEM_MB_ADD4 MEM_MB_ADD3 MEM_MB_ADD2 MEM_MB_ADD1 MEM_MB_ADD0

MEM_MB0_CLK_H0 MEM_MB0_CLK_L0 MEM_MB0_CLK_H1 MEM_MB0_CLK_L1 MEM_MB0_CLK_H2 MEM_MB0_CLK_L2

MEM_MB_CKE0 MEM_MB_RAS_L

MEM_MB_CAS_L MEM_MB0_CS_L0

MEM_MB0_CS_L1

3

VCC_DDR

69

170

VDD5

197

VDD6

64

VDD753VDD859VDD9

175

VDD1067VDD11

VDDQ1

VDDQ2

172

178

184

187

189

VDD1

VDD2

VDD3

DQS17_H DQS17_L DQS16_H DQS16_L DQS15_H DQS15_L DQS14_H DQS14_L DQS13_H DQS13_L DQS12_H DQS12_L DQS11_H DQS11_L DQS10_H DQS10_L DQS9_H DQS9_L DQS8_H DQS8_L DQS7_H DQS7_L DQS6_H DQS6_L DQS5_H DQS5_L DQS4_H DQS4_L DQS3_H DQS3_L DQS2_H DQS2_L DQS1_H DQS1_L DQS0_H DQS0_L

SA2 SA1 SA0 SCL SDA BA2 BA1 BA0

A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

CB7 CB6 CB5 CB4 CB3 CB2 CB1 CB0

CK0_H CK0_L CK1_H CK1_L CK2_H CK2_L

RESET_L CKE0

CKE1 RAS_L CAS_L

S0_L S1_L

VDD4

164 165 232 233 223 224 211 212 202 203 155 156 146 147 134 135 125 126

46

45 114 113 105 104

93

92

84

83

37

36

28

27

16

15

7 6

101 240 239 120 119

54 190

71 173

174 196 176

57

70 177 179

58 180

60

61 182

63 183 188

168 167 162 161

49

48

43

42 185

186 137 138 220 221

18

52 171 192

74 193

76

5

4

3

2

1

VTT_DDR

MEM_MB_BANK24,6

MEM_MA_ADD74,6 MEM_MA_ADD84,6 MEM_MB_ADD124,6 MEM_MA_ADD114,6

MEM_MB_CKE04,6

D D

C C

B B

A A

MEM_MB_ADD154,6 MEM_MB_ADD144,6 MEM_MB_ADD94,6 MEM_MA_ADD64,6 MEM_MA_ADD54,6 MEM_MB_ADD114,6 MEM_MB_ADD14,6 MEM_MB_ADD24,6 MEM_MA_ADD14,6 MEM_MA_ADD24,6

MEM_MB_BANK04,6

MEM_MB_RAS_L4,6

MEM_MB0_CS_L04,6 MEM_MB_WE_L4,6

MEM_MB_ADD04,6 MEM_MB_BANK14,6 MEM_MB_ADD104,6 MEM_MA_RAS_L4,6

MEM_MA_ADD134,6 MEM_MA0_CS_L14,6

MEM_MA_CKE14 MEM_MA_CKE04,6 MEM_MA_ADD154,6 MEM_MA_ADD144,6 MEM_MB_ADD74,6 MEM_MB_ADD84,6 MEM_MB_ADD64,6 MEM_MB_ADD54,6 MEM_MA_ADD44,6 MEM_MA_ADD34,6 MEM_MB_ADD44,6 MEM_MB_ADD34,6 MEM_MA_ADD04,6 MEM_MA_BANK14,6 MEM_MA_ADD104,6 MEM_MA_BANK04,6

MEM_MB_CAS_L4,6

MEM_MB0_ODT04,6 MEM_MB_ADD134,6 MEM_MB0_CS_L14,6

MEM_MA_BANK24,6

MEM_MB_CKE14 MEM_MA_ADD124,6 MEM_MA_ADD94,6

MEM_MA0_CS_L04,6 MEM_MA_WE_L4,6 MEM_MA_CAS_L4,6 MEM_MA0_ODT04,6

MEM_MB_BANK2 MEM_MA_ADD7 MEM_MA_ADD8 MEM_MB_ADD12 MEM_MA_ADD11 MEM_MB_CKE0 MEM_MB_ADD15 MEM_MB_ADD14 MEM_MB_ADD9 MEM_MA_ADD6 MEM_MA_ADD5 MEM_MB_ADD11 MEM_MB_ADD1 MEM_MB_ADD2 MEM_MA_ADD1 MEM_MA_ADD2

MEM_MB_BANK0 MEM_MB_RAS_L MEM_MB0_CS_L0 MEM_MB_WE_L

MEM_MB_ADD0 MEM_MB_BANK1 MEM_MB_ADD10 MEM_MA_RAS_L

MEM_MA_ADD13 MEM_MA0_CS_L1

MEM_MA_CKE1 MEM_MA_CKE0 MEM_MA_ADD15 MEM_MA_ADD14 MEM_MB_ADD7 MEM_MB_ADD8 MEM_MB_ADD6 MEM_MB_ADD5 MEM_MA_ADD4 MEM_MA_ADD3 MEM_MB_ADD4 MEM_MB_ADD3 MEM_MA_ADD0 MEM_MA_BANK1 MEM_MA_ADD10 MEM_MA_BANK0

MEM_MB_CAS_L MEM_MB0_ODT0 MEM_MB_ADD13 MEM_MB0_CS_L1

MEM_MA_BANK2 MEM_MB_CKE1 MEM_MA_ADD12 MEM_MA_ADD9

MEM_MA0_CS_L0 MEM_MA_WE_L MEM_MA_CAS_L MEM_MA0_ODT0

RN15 8P4R-47R0402RN15 8P4R-47R0402

1

2

3

4

5

6

7

RN16 8P4R-47R0402RN16 8P4R-47R0402

RN18 8P4R-47R0402RN18 8P4R-47R0402

RN20 8P4R-47R0402RN20 8P4R-47R0402

RN23 8P4R-47R0402RN23 8P4R-47R0402

RN22 8P4R-47R0402RN22 8P4R-47R0402

RN14 8P4R-47R0402RN14 8P4R-47R0402

RN17 8P4R-47R0402RN17 8P4R-47R0402

RN19 8P4R-47R0402RN19 8P4R-47R0402

RN21 8P4R-47R0402RN21 8P4R-47R0402

RN24 8P4R-47R0402RN24 8P4R-47R0402

RN13 8P4R-47R0402RN13 8P4R-47R0402

RN25 8P4R-47R0402RN25 8P4R-47R0402

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

R31 47R0402R31 47R0402 R32 47R0402R32 47R0402

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

VTT_DDR

MEM_MA0_CLK_H24,6

MEM_MA0_CLK_L24,6

MEM_MA0_CLK_H14,6

MEM_MA0_CLK_L14,6

MEM_MA0_CLK_H04,6

MEM_MA0_CLK_L04,6

MEM_MB0_CLK_H24,6

MEM_MB0_CLK_L24,6

MEM_MB0_CLK_H14,6

MEM_MB0_CLK_L14,6

MEM_MB0_CLK_H04,6

MEM_MB0_CLK_L04,6

MEM_MA0_CLK_H2

MEM_MA0_CLK_L2

MEM_MA0_CLK_H1

MEM_MA0_CLK_L1

MEM_MA0_CLK_H0

MEM_MA0_CLK_L0

MEM_MB0_CLK_H2

MEM_MB0_CLK_L2

MEM_MB0_CLK_H1

MEM_MB0_CLK_L1

MEM_MB0_CLK_H0

MEM_MB0_CLK_L0

C182

C182 C1.5P/4

C1.5P/4

C63

C63 C1.5P/4

C1.5P/4

C107

C1.5P/4

C173

C173 C1.5P/4

C1.5P/4

C47

C47 C1.5P/4

C1.5P/4

C113

C113 C1.5P/4

C1.5P/4

VTT_DDR

C323

0.1u/25V/4

C198

0.1u/25V/4

VCC_DDR

X_0.1u/25V/4

0.1u/25V/4

VTT_DDR

C224

0.1u/25V/4

C324

C725

X_0.1u/25V/4

VTT_DDR

C92

C183

MEM_MA_ADD15 MEM_MA_ADD14 MEM_MA_ADD13 MEM_MA_ADD12 MEM_MA_ADD11 MEM_MA_ADD10 MEM_MA_ADD9 MEM_MA_ADD8 MEM_MA_ADD7 MEM_MA_ADD6 MEM_MA_ADD5 MEM_MA_ADD4 MEM_MA_ADD3 MEM_MA_ADD2 MEM_MA_ADD1 MEM_MA_ADD0

MEM_MA_CAS_L MEM_MA_WE_L MEM_MA_RAS_L

MEM_MA_BANK2 MEM_MA_BANK1 MEM_MA_BANK0

C165

0.1u/25V/4

X_0.1u/25V/4

C727

X_0.1u/25V/4

0.1u/25V/4

C22P50N0402C93 C22P50N0402C93 C22P50N0402C90 C22P50N0402C90 C22P50N0402C185 C22P50N0402C185 C22P50N0402C99 C22P50N0402C99 C22P50N0402C100 C22P50N0402C100 C22P50N0402C141 C22P50N0402C141 C22P50N0402C106 C22P50N0402C106 C22P50N0402C110 C22P50N0402C110 C22P50N0402C105 C22P50N0402C105 C22P50N0402C115 C22P50N0402C115 C22P50N0402C108 C22P50N0402C108 C22P50N0402C114 C22P50N0402C114 C22P50N0402C120 C22P50N0402C120 C22P50N0402C126 C22P50N0402C126 C22P50N0402C131 C22P50N0402C131 C22P50N0402C143 C22P50N0402C143

C22P50N0402C154 C22P50N0402C154 C22P50N0402C162 C22P50N0402C162 C22P50N0402C145 C22P50N0402C145

C22P50N0402C96 C22P50N0402C96 C22P50N0402C146 C22P50N0402C146 C22P50N0402C151 C22P50N0402C151

MEM_MB_ADD15 MEM_MB_ADD14 MEM_MB_ADD13 MEM_MB_ADD12 MEM_MB_ADD11 MEM_MB_ADD10 MEM_MB_ADD9 MEM_MB_ADD8 MEM_MB_ADD7 MEM_MB_ADD6 MEM_MB_ADD5 MEM_MB_ADD4 MEM_MB_ADD3 MEM_MB_ADD2 MEM_MB_ADD1 MEM_MB_ADD0

MEM_MB_CAS_L MEM_MB_WE_L MEM_MB_RAS_L

MEM_MB_BANK2 MEM_MB_BANK1 MEM_MB_BANK0

Decoupling Between Processor and DIMMs

Layout: Spread out on VTT pour

0.1u/25V/4

C223

For EMI

VTT_DDR

X_0.1u/25V/4

C726

C726 X_0.1u/25V/4

X_0.1u/25V/4

C717

C94

0.1u/25V/4

C118

0.1u/25V/4

C192

0.1u/25V/4

C685

C694

X_0.1u/25V/4

0.1u/25V/4

0.1u/25V/4 C305

C305

X_0.1u/25V/4

C723

C67

0.1u/25V/4

C130

0.1u/25V/4

C686

C709

X_0.1u/25V/4

C88

C102

X_0.1u/25V/4

C718

C66

0.1u/25V/4

C177

0.1u/25V/4

C687

C696

X_0.1u/25V/4

C221

0.1u/25V/4

X_0.1u/25V/4

C720

C273

0.1u/25V/4

C376

0.1u/25V/4

C147

C688

C698

X_0.1u/25V/4

C188

0.1u/25V/4

X_0.1u/25V/4

C722

C97

C122

C689

0.1u/25V/4

0.1u/25V/4 C232

C232

X_0.1u/25V/4

C705

X_0.1u/25V/4

C140

C216

0.1u/25V/4

C724

C690

C710

X_0.1u/25V/4

0.1u/25V/4

C22P50N0402C101 C22P50N0402C101 C22P50N0402C98 C22P50N0402C98 C22P50N0402C190 C22P50N0402C190 C22P50N0402C109 C22P50N0402C109 C22P50N0402C111 C22P50N0402C111 C22P50N0402C163 C22P50N0402C163 C22P50N0402C117 C22P50N0402C117 C22P50N0402C124 C22P50N0402C124 C22P50N0402C116 C22P50N0402C116 C22P50N0402C129 C22P50N0402C129 C22P50N0402C121 C22P50N0402C121 C22P50N0402C128 C22P50N0402C128 C22P50N0402C132 C22P50N0402C132 C22P50N0402C135 C22P50N0402C135 C22P50N0402C138 C22P50N0402C138 C22P50N0402C150 C22P50N0402C150

C22P50N0402C170 C22P50N0402C170 C22P50N0402C176 C22P50N0402C176 C22P50N0402C168 C22P50N0402C168

C22P50N0402C104 C22P50N0402C104 C22P50N0402C153 C22P50N0402C153 C22P50N0402C159 C22P50N0402C159

X_0.1u/25V/4

X_0.1u/25V/4 C85

C85

C123

X_0.1u/25V/4

C719

C155

VCC_DDRVCC_DDR

0.1u/25V/4

C691

C697

X_0.1u/25V/4

0.1u/25V/4

C144

X_0.1u/25V/4

C721

VCC_DDR

C119

C692

C700

0.1u/25V/4

Micro Star Restricted Secret

Title

DDR Terminatior

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7347

Last Revision Date:

Last Revision Date: Sheet

Sheet

Tuesday, December 19, 2006

838

1

Rev

0A

of

5

D D

C C

B B

VDDHT_PKG

HT_CADOUT_H15 HT_CADOUT_L15 HT_CADOUT_H14 HT_CADOUT_L14 HT_CADOUT_H13 HT_CADOUT_L13 HT_CADOUT_H12 HT_CADOUT_L12 HT_CADOUT_H11 HT_CADOUT_L11 HT_CADOUT_H10 HT_CADOUT_L10 HT_CADOUT_H9 HT_CADOUT_L9 HT_CADOUT_H8 HT_CADOUT_L8

HT_CADOUT_H7 HT_CADOUT_L7 HT_CADOUT_H6 HT_CADOUT_L6 HT_CADOUT_H5 HT_CADOUT_L5 HT_CADOUT_H4 HT_CADOUT_L4 HT_CADOUT_H3 HT_CADOUT_L3 HT_CADOUT_H2 HT_CADOUT_L2 HT_CADOUT_H1 HT_CADOUT_L1 HT_CADOUT_H0 HT_CADOUT_L0

HT_CLKOUT_H13 HT_CLKOUT_L13

HT_CLKOUT_H03 HT_CLKOUT_L03

HT_CTLOUT_H03 HT_CTLOUT_L03

R137 49.9/4R137 49.9/4

HT_RXCALN HT_RXCALP

4

R19 R18 R21 R22 U22 U21 U18

U19 W19 W20

AC21 AB22 AB20 AA20 AA19

Y19

R25

U25

U24

V23

U23

V24

V25

AA25 AA24 AB23 AA23 AB24 AB25 AC24 AC25

W21 W22

Y24 W25

P24

P25

A24

C24

U12A

HT_RXCAD15P HT_RXCAD15N HT_RXCAD14P HT_RXCAD14N HT_RXCAD13P HT_RXCAD13N HT_RXCAD12P HT_RXCAD12N HT_RXCAD11P HT_RXCAD11N HT_RXCAD10P HT_RXCAD10N HT_RXCAD9P HT_RXCAD9N HT_RXCAD8P HT_RXCAD8N

T24

HT_RXCAD7P HT_RXCAD7N HT_RXCAD6P HT_RXCAD6N HT_RXCAD5P HT_RXCAD5N HT_RXCAD4P HT_RXCAD4N HT_RXCAD3P HT_RXCAD3N HT_RXCAD2P HT_RXCAD2N HT_RXCAD1P HT_RXCAD1N HT_RXCAD0P HT_RXCAD0N

HT_RXCLK1P HT_RXCLK1N

HT_RXCLK0P HT_RXCLK0N

HT_RXCTLP HT_RXCTLN

HT_RXCALP HT_RXCALN

RS690

3

PART 1 OF 5

HYPER TRANSPORT I/F

HT_TXCAD15P

HT_TXCAD15N

HT_TXCAD14P

HT_TXCAD14N

HT_TXCAD13P

HT_TXCAD13N

HT_TXCAD12P

HT_TXCAD12N

HT_TXCAD11P

HT_TXCAD11N

HT_TXCAD10P

HT_TXCAD10N

HT_TXCAD9P

HT_TXCAD9N

HT_TXCAD8P

HT_TXCAD8N

HT_TXCAD7P

HT_TXCAD7N

HT_TXCAD6P

HT_TXCAD6N

HT_TXCAD5P

HT_TXCAD5N

HT_TXCAD4P

HT_TXCAD4N

HT_TXCAD3P

HT_TXCAD3N

HT_TXCAD2P

HT_TXCAD2N

HT_TXCAD1P

HT_TXCAD1N

HT_TXCAD0P

HT_TXCAD0N

HT_TXCLK1P

HT_TXCLK1N

HT_TXCLK0P

HT_TXCLK0N

HT_TXCTLP HT_TXCTLN

HT_TXCALP HT_TXCALN

P21 P22 P18 P19 M22 M21 M18 M19 L18 L19 G22 G21 J20 J21 F21 F22

N24 N25 L25 M24 K25 K24 J23 K23 G25 H24 F25 F24 E23 F23 E24 E25

L21 L22

J24 J25

N23 P23

C25 D24

HT_TXCALP HT_TXCALN

HT_CADIN_H15 HT_CADIN_L15 HT_CADIN_H14 HT_CADIN_L14 HT_CADIN_H13 HT_CADIN_L13 HT_CADIN_H12 HT_CADIN_L12 HT_CADIN_H11 HT_CADIN_L11 HT_CADIN_H10 HT_CADIN_L10 HT_CADIN_H9 HT_CADIN_L9 HT_CADIN_H8 HT_CADIN_L8

HT_CADIN_H7 HT_CADIN_L7 HT_CADIN_H6 HT_CADIN_L6 HT_CADIN_H5 HT_CADIN_L5 HT_CADIN_H4 HT_CADIN_L4 HT_CADIN_H3 HT_CADIN_L3 HT_CADIN_H2 HT_CADIN_L2 HT_CADIN_H1 HT_CADIN_L1 HT_CADIN_H0 HT_CADIN_L0

R138 100/4/1R138 100/4/1R152 49.9/4R152 49.9/4

2

HT_CLKIN_H1 3 HT_CLKIN_L1 3

HT_CLKIN_H0 3 HT_CLKIN_L0 3

HT_CTLIN_H0 3 HT_CTLIN_L0 3

1

HT_CADIN_H[15..0]3

HT_CADIN_L[15..0]3

HT_CADOUT_H[15..0]3

HT_CADOUT_L[15..0]3

A A

5

HT_CADIN_H[15..0] HT_CADIN_L[15..0] HT_CADOUT_H[15..0] HT_CADOUT_L[15..0]

Micro Star Restricted Secret

Rev

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

4

3

http://www.msi.com.tw

2

RS690-HT LINK I/F

MS-7347

Last Revision Date:

Last Revision Date: Sheet

Sheet

Tuesday, December 19, 2006

938

1

Rev

0A

of

A

4 4

3 3

2 2

B

U12B

G5

GFX_RX0P

G4

GFX_RX0N

J8

GFX_RX1P

J7

GFX_RX1N

J4

GFX_RX2P

J5

GFX_RX2N

L8

GFX_RX3P

L7

GFX_RX3N

L4

GFX_RX4P

L5

GFX_RX4N

M8

GFX_RX5P

M7

GFX_RX5N

M4

GFX_RX6P

M5

GFX_RX6N

P8

GFX_RX7P

P7

GFX_RX7N

P4

GFX_RX8P

P5

GFX_RX8N

R4

GFX_RX9P

R5

GFX_RX9N

R7

GFX_RX10P

R8

GFX_RX10N

U4

GFX_RX11P

U5

GFX_RX11N

W4

GFX_RX12P

W5

GFX_RX12N

Y4

GFX_RX13P

Y5

GFX_RX13N

V9

GFX_RX14P

W9

GFX_RX14N

AB7

GFX_RX15P

AB6

GFX_RX15N

A_RX2P13 A_RX2N13

A_RX3P13 A_RX3N13

RX_LANP020 RX_LANN020

A_RX0P13 A_RX0N13

A_RX1N13 A_RX1P13

R184 X_1.47KR1%0402R184 X_1.47KR1%0402 R189 X_8.25K/6/1R189 X_8.25K/6/1

A_RX2P A_RX2N

A_RX3P A_RX3N A_TX3N0

RX_LANP0 RX_LANN0

* *

W11 W12

AA11 AB11

AA7

AB9 AA9

W14 W15

AA12 AB12

AA14 AB14

Y7

RS690

GPP_RX0P GPP_RX0N

GPP_RX1P GPP_RX1N

GPP_RX2P GPP_RX2N

GPP_RX3P GPP_RX3N

SB_RX0P SB_RX0N

SB_RX1P SB_RX1N

PCEH_ISET PCEH_TXISET

C

PART 2 OF 5

PCIE GFX I/F

PCIE I/F GPP

PCIE I/F SB

GFX_TX0P GFX_TX0N GFX_TX1P GFX_TX1N GFX_TX2P GFX_TX2N GFX_TX3P GFX_TX3N GFX_TX4P GFX_TX4N GFX_TX5P GFX_TX5N GFX_TX6P GFX_TX6N GFX_TX7P GFX_TX7N GFX_TX8P GFX_TX8N GFX_TX9P

GFX_TX9N GFX_TX10P GFX_TX10N GFX_TX11P GFX_TX11N GFX_TX12P GFX_TX12N GFX_TX13P GFX_TX13N GFX_TX14P GFX_TX14N GFX_TX15P GFX_TX15N

GPP_TX0P

GPP_TX0N

GPP_TX1P

GPP_TX1N

GPP_TX2P

GPP_TX2N

GPP_TX3P

GPP_TX3N

SB_TX0P SB_TX0N

SB_TX1P SB_TX1N

PCEH_PCAL PCEH_NCAL

J1 H2 K2 K1 K3 L3 L1 L2 N2 N1 P2 P1 P3 R3 R1 R2 T2 U1 V2 V1 V3 W3 W1 W2 Y2 AA1 AA2 AB2 AB1 AC1 AE3 AE4

A_TX2P0

AD8

A_TX2N0

AE8

A_TX3P0

AD7 AE7

AD4 AE5

TX_LANP0

AD5

TX_LANN0

AD6

A_TX0P_C

AE9

A_TX0N_C

AD10

A_TX1P_C

AC8

A_TX1N_C

AD9

R191 562R1%0402R191 562R1%0402

AD11

R195 2KR1%0402R195 2KR1%0402

AE11

C347 0.1u/16V/4C347 0.1u/16V/4 C345 0.1u/16V/4C345 0.1u/16V/4

C354 0.1u/16V/4C354 0.1u/16V/4 C350 0.1u/16V/4C350 0.1u/16V/4

C362 0.1u/16V/4C362 0.1u/16V/4 C377 0.1u/16V/4C377 0.1u/16V/4

C322 0.1u/16V/4C322 0.1u/16V/4 C316 0.1u/16V/4C316 0.1u/16V/4

C341 0.1u/16V/4C341 0.1u/16V/4 C338 0.1u/16V/4C338 0.1u/16V/4

VDDA12_PKG2

D

A_TX2P 13 A_TX2N 13

A_TX3P 13 A_TX3N 13

TXLANP 20 TXLANN 20

A_TX0P 13 A_TX0N 13

A_TX1P 13 A_TX1N 13

E

1 1

A

B

C

D

Micro Star Restricted Secret

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

RS690-PCIE I/F

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

10 38

E

Rev

0A

of

5

4

3

2

1

1 2

CP11CP11

1 2

CP23CP23

LPVSSAVSSQ

NOTE: CONNECT TO GND CLOSE TO FIRST CAP

CP13CP13

VCC3

D D

R230-R232 PLACED WITHIN 1' OF NB

+1.8V_S0

CP25CP25

C C

LDT_STOP#3,13

VCC3

B B

RN59

78 56 34 12

4.7K/4/8P4R

+1.8V_S0

R249

4.7K/4

Q34

Q34 N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

VCCA_1V2

VCC3

I2C_DATA

DDC_DATA

I2C_CLK

1 2

L32 X_28L900m_100_0805L32 X_28L900m_100_0805

CP7CP7

1 2

L15 X_28L900m_100_0805L15 X_28L900m_100_0805

R257

R257 1K/4

1K/4

CP10CP10

1 2

L30 X_28L900m_100_0805L30 X_28L900m_100_0805

C312

_4.7u/10V/8

C246

C243

4.7u/10V/8

1u/6.3V/4

HTREFCLK12

NB_OSC_14M12

NBSRCCLK12 NBSRCCLK#12

SBLINKCLK12 SBLINKCLK#12

LOAD_ROM#:LOAD ROM STRAP ENABLE

1 2

L19 X_28L900m_100_0805L19 X_28L900m_100_0805

CP20CP20

+1.8V_S0

1 2

R181 X_0/4R181 X_0/4

CP15CP15

+1.8V_S0

1 2

L21 X_28L900m_100_0805L21 X_28L900m_100_0805

AVSSQ

C344

4.7u/10V/8

LDT_STOP_NB#

R234 X_2.7K/4R234 X_2.7K/4 R244 X_2.7K/4R244 X_2.7K/4 R259 X_2.7K/4R259 X_2.7K/4 R262 X_2.7K/4R262 X_2.7K/4

C340

C340 1u/6.3V/4

1u/6.3V/4

DFT_GPIO2 DFT_GPIO3 DFT_GPIO4 DFT_GPIO5

28

TP33TP33 TP34TP34 TP35TP35

4.7u/10V/8

C296

2.2u/6.3V/4

C252

2.2u/6.3V/4

DVI_DIGON

AVDD

C264

C260

0.1u/16V/4

AVDDDI

AVDDQ

C254

0.1u/16V/4

VSYNC#28

HSYNC#28

DAC_SCL28

DAC_SDAT28

PCI_RST1#19,24 NB_PWRGD24,25

ALLOW_LDTSTOP13

SB_OSC_INT_R

R227 X_2.7K/4R227 X_2.7K/4 R236 X_2.7K/4R236 X_2.7K/4

TP36TP36

DDC_DATA28

R28 G28 B28

R246 4.7K/4R246 4.7K/4

DFT_GPIO2 DFT_GPIO5 DFT_GPIO4 DFT_GPIO3

I2C_CLK28 I2C_DATA28

R G B

R176 715RR176 715R

PLLVDD

HTTSTCLK

R15310K/4 R15310K/4

DFT_GPIO0 LOAD_ROM#

I2C_CLK I2C_DATA

DDC_DATA

R237

4.7K/4

R264

R264 10K/4

10K/4

AA15 AB15

B22 C22 G17 H17 A20 B20

A21 A22

C21 C20 D19

E19 F19 G19

C6

B21

A10 B10

B24 B25

C10 C11

C5

C23 B23

C2

B11 A11

G1 G2

D6 D7 C8 C7

C14

C3

VCC3

U12C

AVDD1 AVDD2 AVSSN1 AVSSN2 AVDDDI AVSSDI

AVDDQ AVSSQ

C_R Y_G COMP_B

RED GREEN BLUE DACVSYNC

A5

DACHSYNC RSET

B6

DACSCL

A6

DACSDA PLLVDD

PLLVSS HTPVDD

HTPVSS SYSRESET#

POWERGOOD LDTSTOP#

B5

ALLOW_LDTSTOP HTTSTCLK

HTREFCLK TVCLKIN OSCIN

OSCOUT

F2

GFX_CLKP

E1

GFX_CLKN SB_CLKP

SB_CLKN DFT_GPIO0

DFT_GPIO1 DFT_GPIO2 DFT_GPIO3

B8

DFT_GPIO4

A8

DFT_GPIO5

B2

BMREQb

A2

I2C_CLK

B4

I2C_DATA THERMALDIODE_P THERMALDIODE_N

TMDS_HPD

B3

DDC_DATA TESTMODE

A3

STRP_DATA

RS690

PART 3 OF 5

CRT/TVOUT

PLL PWR

PM

CLOCKs

MIS.

TXOUT_L0P TXOUT_L0N TXOUT_L1P TXOUT_L1N TXOUT_L2P TXOUT_L2N TXOUT_L3P TXOUT_L3N

TXOUT_U0P TXOUT_U0N TXOUT_U1P TXOUT_U1N TXOUT_U2P TXOUT_U2N TXOUT_U3P TXOUT_U3N

TXCLK_LP TXCLK_LN

TXCLK_UP

TXCLK_UN

LVTMDVO

LPVDD LPVSS

LVDDR18D_1 LVDDR18D_2 LVDDR18A_1 LVDDR18A_2

LVSSR1 LVSSR3 LVSSR5 LVSSR6 LVSSR7 LVSSR8

LVSSR12 LVSSR13

LVDS_DIGON

LVDS_BLON LVDS_BLEN

DVO_D0 DVO_D1 DVO_D2 DVO_D3 DVO_D4 DVO_D5 DVO_D6 DVO_D7 DVO_D8

DVO_D9 DVO_D10 DVO_D11

DVO_VSYNC

DVO_DE

DVO_HSYNC

DVO_IDCKP DVO_IDCKN

B14 B15 B13 A13 H14 G14 D17 E17

A15 B16 C17 C18 B17 A17 A18 B18

E15 D15 H15 G15

D14 E14

A12 B12 C12 C13

A16 A14 D12 C19 C15 C16

F14 F15

E12 G12 F12

AD14 AD15 AE15 AD16 AE16 AC17 AD18 AE19 AD19 AE20 AD20 AE21

AD13 AC13 AE13 AE17 AD17

DVI_L0P DVI_L0N DVI_L1P DVI_L1N DVI_L2P DVI_L2N

NB_DVI_CLKP NB_DVI_CLKN

LPVDD

LVDDR18D LVDDR18AHTPVDD

R443 0RR443 0R R442 0RR442 0R

TP38TP38 TP39TP39

0.1u/16V/4

C351

0.1u/16V/4

DVI_L0P 28 DVI_L0N 28 DVI_L1P 28 DVI_L1N 28 DVI_L2P 28 DVI_L2N 28

DVI_CLKP DVI_CLKN

C321

C319

2.2u/6.3V/4

C353

C353 1u/10V/6

1u/10V/6

0.1u/16V/4

TP40TP40

C303

C310

DVI_L0P DVI_L1P DVI_L2P DVI_CLKP DVI_CLKN

DVI_CLKP 28 DVI_CLKN 28

CP22CP22

CP32CP32

LPVSS

2.2u/10V/6

CP38CP38

R424 82R0402R424 82R0402 R426 82R0402R426 82R0402 R437 82R0402R437 82R0402 R459 82R0402R459 82R0402

1 2

L29 X_28L900m_100_0805L29 X_28L900m_100_0805

1 2

L27 X_28L900m_100_0805L27 X_28L900m_100_0805

1 2

L33 X_28L900m_100_0805L33 X_28L900m_100_0805

DVI_L0N DVI_L1N DVI_L2N

+1.8V_S0

VCC3

RS690 RS690 only (NC for RS485)

DFT_GPIO1 DFT_GPIO[4:2] DFT_GPIO5

PULL HIGH

A A

5

(internally pulled high)

PULL LOW

Bypass the loading of EEPROM straps and use Hardware default values

DEFAULT

I2C Master can load strap values from EEPROM if connected, or use default values if not connected

4

DFT_GPIO0

Memory side port not available

DEFAULT

Memory side port available

These pin straps are used to configure PCI-E GPP mode: 111: register defined (register default to Config E)

110: 4-0-0-0-0 Config A 101: 4-4 Config B 100: 4-2-2 Config C 011: 4-2-1-1 Config D 010: 4-1-1-1-1 Config E others: register defined (register default to Config E)

3

Enable debug bus via the memory IO pads, if available in the package

DEFAULT

use default values

use the memory data bus to output the debug bus

DEFAULT

2

Micro Star Restricted Secret

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

RS690-SYSTEM I/F

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

11 38

1

Rev

0A

of

5

U12E

D D

VCCA_1V2

0.8A

R156

CP9CP9

C C

10u/10V/8

B B

VCCA_1V2

** *

A A

R156 X_0/6

X_0/6

1 2

C265

+1.8V_S0

1.5A

VCC3 VDDR3

+1.8V_S0

X_28L900m_100_0805

R217: RS485: 0 Ohm RESISTOR RS690: 220 Ohm 500mA FERRITE BEAD

CURRENT MEASUREMENT

C266

10u/10V/8

L26 X_28L900m_100_0805L26 X_28L900m_100_0805

CP21CP21

1 2

10u/10V/8

L41 X_28L900m_100_0805L41 X_28L900m_100_0805

CP26CP26

1 2

L22 X_28L900m_100_0805L22 X_28L900m_100_0805

CP16CP16

1 2

L45

1 2

CP17CP17

* **

5

C279

C279 X_1u/6.3V/4

X_1u/6.3V/4

C256

C256 X_1u/6.3V/4

X_1u/6.3V/4

C284

1u/6.3V/4

C370

C358

4.7u/10V/8

C280

C280 X_1u/6.3V/4

X_1u/6.3V/4

C365

4.7u/10V/8

C261

C261 X_1u/6.3V/4

X_1u/6.3V/4

10u/10V/8

C283

C283 1u/6.3V/4

1u/6.3V/4

C369

C278

C278 1u/6.3V/4

1u/6.3V/4

C363

C363 1u/10V/6

1u/10V/6

RS690

C262

C262 X_1u/6.3V/4

X_1u/6.3V/4

C368

C368 X_1u/6.3V/4

X_1u/6.3V/4

C650

0.1u/16V/6

C359

C359 1u/6.3V/4

1u/6.3V/4

VSS61

VSS62

B7

H12

璉　

C255

0.1u/25V/4

璉　

C655

0.1u/16V/6

For EMI

4

VSS59

VSS60

D4

M13

AC16

C656

0.1u/16V/6

VDDHT_PKG VDDA12_PKG1 VDDA12_PKG2

+1.8V_S0

4

M3

VSS56

VSS57

VSS55

F17

A23

AC15

DDR

C693

C693 X_0.1u/16V/4

X_0.1u/16V/4

AE6

AE10

VSSA49

VSSA50

VSSA51

VSS52

VSS54

VSS53

H23

M17

VDD_HT

VDD18

VDDA_12

10u/10V/8

AC4

P9

VSSA48

VSS51

R17

AE14

C374

Y15

VSSA46

VSSA47

VSS49

VSS50

T25

AC10

G6

VSSA44

VSSA45

VSS48

T23

AE22

AD3

AC9

VSSA42

VSSA43

VSS45

VSS46C4VSS47

R23

AE24 AD24 AD22

AB17

AE23

W17 AC18 AD21 AC19 AC20

AB19

AD23

AA17 AE25

AC3

AD2

AC12 AD12

AE12

AC11

AC7

AC22

Y17

J14 J15

AE2 AB3

W7

AB4

AE1 E11

D11

D22

U7

E7 F7 F9 G9

M1

R9

AD1

AC5

AC6

VSSA37

VSSA38

VSSA39

VSSA40

VSSA41

VSS40

VSS41

VSS42

VSS44

D25

G24

AC14

U12D

VDD_HT1 VDD_HT2 VDD_HT5 VDD_HT6 VDD_HT9 VDD_HT10 VDD_HT11 VDD_HT12 VDD_HT13 VDD_HT14 VDD_HT15 VDD_HT16 VDD_HT17 VDD_HT18 VDD_HT19

VDD18_1 VDD18_2

VDDA18_1 VDDA18_2 VDDA18_3 VDDA18_4 VDDA18_5 VDDA18_6 VDDA18_7 VDDA18_8

VDDR3_2 VDDR3_1

VDDR_1 VDDR_2 VDDR_3

VDDA12/VDDPLL_1 VDDA12/VDDPLL_2 VSSA12/VSSPLL_1 VSSA12/VSSPLL_2

VDDHT_PKG VDDA12_PKG1 VDDA12_PKG2

Y9

Y11

Y12

Y14

AA3

VSSA35

VSSA36

VSSA93

VSSA94

VSSA95

GROUND

VSS35

VSS36

VSS37

VSS38

VSS39

Y22

U20

H25

W24

AC23

PART 4 OF 5

Y1

W6

AC2

Y3

VSSA30

VSSA32

VSSA33

VSSA34

VSS30

VSS31

VSS32

VSS33

VSS34

Y25

R12

R14

R20

W23

AD25

VDDA_12_1 VDDA_12_2 VDDA_12_3 VDDA_12_4 VDDA_12_5 VDDA_12_6 VDDA_12_7 VDDA_12_8

VDDA_12_9 VDDA_12_10 VDDA_12_11 VDDA_12_12

POWER

RS690

3

U3

U6

VSSA27

VSSA28

VSS27

VSS28

VSS29

P20

P15

VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8

VDDC_9 VDDC_10 VDDC_11 VDDC_12 VDDC_13 VDDC_14 VDDC_15 VDDC_16 VDDC_17 VDDC_18 VDDC_19 VDDC_20 VDDC_21 VDDC_22 VDDC_23 VDDC_24 VDDC_25 VDDC_26 VDDC_27 VDDC_28 VDDC_29 VDDC_30 VDDC_31 VDDC_32

3

U2

T3

VSSA25

VSSA26

VSS25

VSS26

L24

P13

R6

VSSA24

N14

D1 G7 E2 C1 E3 D2 M9 F4 B1 D3 L9 E6

L11 L13 L15 M12 R15 M14 N11 N13 N15 J11 H11 P12 P14 R11 R13 A19 B19 U11 U14 P17 L17 J19 D20 G20 A9 B9 C9 D9 A7 A4 U12 U15

N3

VSSA22

VSS22

VSS23

N12

P6

T1

VSSA21

VSS21

M23

M25

M6

J3

VSSA19

VSSA20

VSS19

VSS20

M11

M20

L6

M2

VSSA17

VSSA18

VSS17

VSS18

L20

L23

0.1u/25V/4

F1

VSSA15

VSSA16

VSS15

VSS16

L12

L14

璉　

J6

VSSA13

VSS12

VSS13

VSS14

J12

G23

VDDA_12

C251

J2

H3

G3

VSSA10

VSSA11

VSS10

VSS11

J22

M15

AE18

0.1u/25V/4

VSS9

R24

C259

VSS8

P11

VSSA7A1VSSA8H1VSSA9

VSS7

V14

V15

VSSA4

VSSA5F3VSSA6

VSS4E9VSS5

VSS6

Y23

G11

0.1u/16V/6

V11

VSSA3

VSS3

D23

C653

V12

VSSA2

PAR 5 OF 5

VSS1

VSS2

F11

A25

璉　

0.1u/16V/6

2

C657

0.1u/16V/6

C652

0.1u/16V/6

2

C654

0.1u/16V/6

C651

0.1u/16V/6

C360

C360 1u/10V/6

1u/10V/6

C367

C367 10u/10V/8

10u/10V/8

VCCA_1V2

10A

C247

C674

10u/10V/8

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

VCCA_1V2

3.5A

CP54CP54

1 2

C366

C366 10u/10V/8

10u/10V/8

C244

C244 10u/10V/8

10u/10V/8

Micro Star Restricted Secret

L6

CP27CP27

X_80/0805

2 1

1 2

C379

C378

10u/10V/8

RS690-POWER

MS-7347

1

CURRENT MEASUREMENT

Last Revision Date:

Tuesday, December 19, 2006

Sheet

1

of

12 38

Rev

0A

5

ち倒

VCC3

D D

CLK_VDDVCC3

L20

200_400_0805

VCC3

C C

VCC3

B B

C281

C334

C270

0.1u/25V/4

C297

0.1u/25V/4

C269

0.1u/25V/4

C270

0.1u/25V/4

VDD48

C295

C295 C4.7U10Y0805

C4.7U10Y0805

VDDREF

C267

0.1u/25V/4

CLKGEN_RESET_IN#

X_10u/10V/8

1- PLACE ALL THE SERIES TERMINATION RESISTORS AS CLOSE AS U300 AS POSSIBLE

2- ROUTE ALL CPUCLK/#, NBSRCCLK/#, GPPCLK/# AS DIFFERENT PAIR RULE

3- PUT DECOUPLING CAPS CLOSE TO U300 POWER PIN

CP12CP12

1 2

L17

L17 X_28L900m_100_0805

X_28L900m_100_0805

CP30CP30

1 2

L18

L18 X_28L900m_100_0805

X_28L900m_100_0805

VCC3

R239 X_4.7K/4R239 X_4.7K/4

EXT CLK FREQUENCY SELECT TABLE(MHZ)

FS2

0 0 0 0 0 1

0 1 0 0 1 1 1 0 0 1 0 1 1 1 1

CPUFS1

Hi-Z X

180.00

220.00

100.00

133.33

200.00

SRCCLK

[2:1]

100.00

4

C268

C272

0.1u/25V/4

VCC3

Parallel Resonance Crystal

HTTFS0 PCI

Hi-Z Hi-Z100.00 Reserved

X/6X/3

30.0060.00

36.56 73.12

66.66 33.33

66.66 33.33 Normal HAMMER operation

0.1u/25V/4

L16

L16 X_28L900m_100_0805

X_28L900m_100_0805

USB

48.00

C333

0.1u/25V/4

1 2

VCC3

L31 X_28L900m_100_0805L31 X_28L900m_100_0805

CP8CP8

1 2

C311

12

Y1

C22P50N

C22P50N C289

C289

12

_14.318MHZ16P_D

C22P50N

FP_RST#14,24,27

COMMENT

Reserved Reserved Reserved Reserved Reserved

0.1u/25V/4

21

CP24CP24

C271

SDA6,14

C335

C335 1u/6.3V/4

1u/6.3V/4

R187

R187 X_1M/6

X_1M/6

SCL6,14

Voh = 0.71V @ 60 ohm Ioh = 5 * Iref (2.32mA)

VDDREF

CLK_VDDA

C253

C253 X_10u/10V/8

X_10u/10V/8

R245 X_4.7K/4R245 X_4.7K/4 R247 X_4.7K/4R247 X_4.7K/4 R252 X_4.7K/4R252 X_4.7K/4

CLKGEN_RESET_IN#

D10X_1N4148S D10X_1N4148S

VDD48

3

CLK_VDD

U9

14

VDDSRC

5

VDD48

36

VDDSRC

26

VDDSRC

46

VDDCPU

42

VDDA

2

VDDREF

52

VDDHTT

33

VDDATIG

23

VDDSRC

15

GNDSRC

32

GNDATIG

1

GNDREF

50

GNDHTT

8

GND48

37

GNDSRC

27

GNDSRC

22

GNDSRC

41

GNDA

45

GNDCPU

29

CLKREQC#

28

CLKREQB#

49

CLKREQA#

4

X2

3

X1

53

NC

11

RESET_IN#

9

SMBCLK

10

SMBDATA

40

IREF

R157

ICS951464AGLFT_TSSOP56-RH

475R1%

1%

OVERLAP COMMON PADS FOR DUAL-OP RESISTORS

CPUCLK8T1 CPUCLK8C1 CPUCLK8T0 CPUCLK8C0

SRCCLKT7 SRCCLKC7 SRCCLKT6 SRCCLKC6 SRCCLKT5 SRCCLKC5

SRCCLKT4 SRCCLKC4 SRCCLKT2 SRCCLKC2 SCRCLKT0 SRCCLKC0

HTTCLK0

ATIGCLKT1

ATIGCLKC1

ATIGCLKT0

ATIGCLKC0

48MHZ_0 48MHZ_1

FS0/REF0 FS1/REF1 FS2/REF2

44 43 48 47

12 13 16 17 18 19

20 21 24 25 39 38

51 31

30 35 34

6 7

56 55 54

CPUCLK_EXT_R CPUCLK#_EXT_R

LANCLK0_R LANCLK0#_R

SBSRCCLK_R SBSRCCLK#_R SBLINKCLK_R SBLINKCLK#_R

HTREFCLK_R

NBSRCCLK_R NBSRCCLK#_R

SIO_CLK_R

USBCLK_EXT_R

R167 47.5/4R167 47.5/4 R166 47.5/4R166 47.5/4

AC97_CLK_R

R161 33R0402R161 33R0402

R159 33R/4R159 33R/4 R231 33R/4R231 33R/4

2

R148

R148 261/6

261/6

C257

X_C10P50N

R149

49.9/4

C249

X_C33P50N

R165

R165 10K/4

10K/4

C258

C258 X_C10P50N

X_C10P50N

HTREFCLK 10

SIO_CLK 19 USBCLK_EXT 14

C337

C337 X_33P/50V/4

X_33P/50V/4

CLK_VDD

R164

R207

10K/4

R158 33R/4R158 33R/4

OSC14M_REFOUT

CPU_CLK 3

CPU_CLK# 3

SBSRCCLK_R SBSRCCLK#_R SBSRCCLK# SBLINKCLK_R SBLINKCLK SBLINKCLK#_R SBLINKCLK#

NBSRCCLK#_R NBSRCCLK_R

LANCLK0_R LANCLK0#_R

NBSRCCLK NBSRCCLK#

SBSRCCLK SBSRCCLK#

SBLINKCLK SBLINKCLK#

SBSRCCLK SBSRCCLK#

SBLINKCLK

SBLINKCLK#

NBSRCCLK# NBSRCCLK

R228 33R0402R228 33R0402 R229 33R0402R229 33R0402 R230 33R0402R230 33R0402 R233 33R0402R233 33R0402

R218 33R0402R218 33R0402 R219 33R0402R219 33R0402

R215 33R0402R215 33R0402

LANCLK0 LANCLK0#

CLK FREQ

R160 33R/4R160 33R/4

C248

C248 X_C33P50N

X_C33P50N

SB_OSC_14M 14

C250

C250 X_C33P50N

X_C33P50N

NB_OSC_14M 10

1

R222 49.9R0402R222 49.9R0402 R223 49.9R0402R223 49.9R0402 R225 49.9R0402R225 49.9R0402 R226 49.9R0402R226 49.9R0402

R220 49.9R0402R220 49.9R0402 R221 49.9R0402R221 49.9R0402

SBSRCCLK

NBSRCCLK# NBSRCCLK

LANCLK0

R216 49.9R0402R216 49.9R0402R213 33R0402R213 33R0402

LANCLK0#

R217 49.9R0402R217 49.9R0402

NBSRCCLK 10 NBSRCCLK# 10

SBSRCCLK 13 SBSRCCLK# 13

SBLINKCLK 10 SBLINKCLK# 10

LANCLK0 20 LANCLK0# 20

A A

Micro Star Restricted Secret

Title

Clock Generator ICS951464 RTM870T-691

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7347

1

Last Revision Date:

Tuesday, December 19, 2006

Sheet

13 38

of

Rev

0A

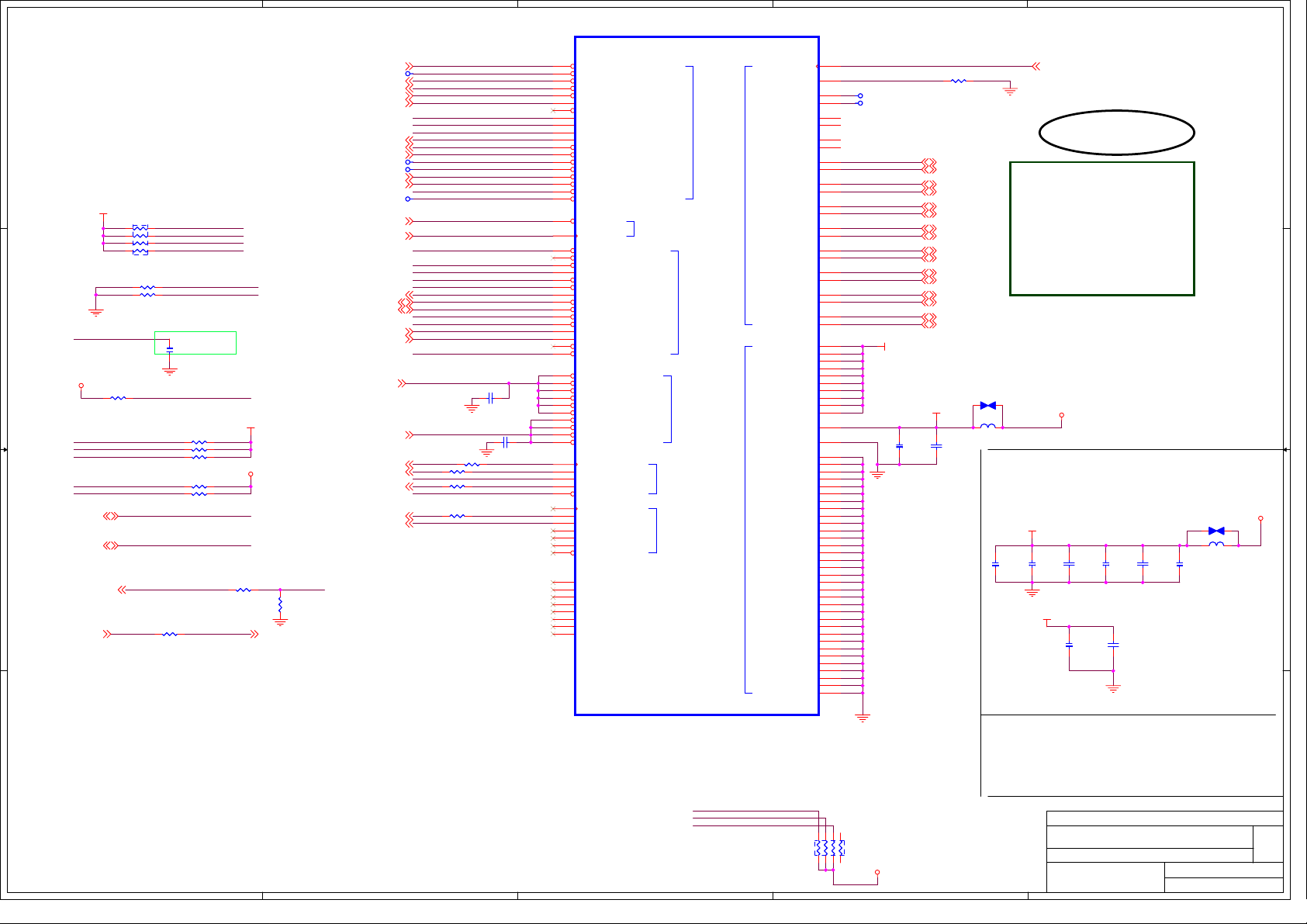

A

A_RST#24 SBSRCCLK12

SBSRCCLK#12

A_RX0P9 A_RX0N9 A_RX1P9 A_RX1N9

CP39CP39

C442

10u/10V/8

A_RX2P9 A_RX2N9 A_RX3P9 A_RX3N9

A_TX0P9 A_TX0N9 A_TX1P9 A_TX1N9 A_TX2P9 A_TX2N9 A_TX3P9 A_TX3N9

4 4

PLACE PCIE CAPS CLOSE TO U600

SB CALIBRATION RESISITOR VALUE

R276 R293 R322

SB600

562 OHM 1%

2.05K 1% 0

SB460 150 OHM 1% 150 OHM 1%

4.12K 1%

VCC_SB

1 2

L43 X_28L900m_100_0805L43 X_28L900m_100_0805

FOR SB600 VCC_SB= 1.2V

3 3

L42 X_28L900m_100_0805L42 X_28L900m_100_0805

2 2

+1.8V_S0

CP40CP40

1 2

C393

10u/10V/8

R408

R408 20M/6

20M/6

PLACE THESE COMPONENTS CLOSE TO U600, AND USE GROUND GUARD FOR 32K_X1 AND 32K_X2

R281 X_10K/4R281 X_10K/4

LDT_RST# LDT_RST#

C446

C446 1u/6.3V/4

1u/6.3V/4

R406 20MRR406 20MR

12

C541

C541 C18P50N

C18P50N

CPU_PWR_SB

3 4

C448

C448 1u/6.3V/4

1u/6.3V/4

21

Y5

32.768KHZ12.5P_D

PCIE_VDDR

32K_X1

32K_X2

12

C527

C527 C18P50N

C18P50N

LDT_PWRGD3

LDT_STOP#3,10

ALLOW_LDTSTOP10

B

A_RST#

R371 8.2K/4R371 8.2K/4

C437 0.1u/16V/4C437 0.1u/16V/4 C438 0.1u/16V/4C438 0.1u/16V/4 C452 0.1u/16V/4C452 0.1u/16V/4 C449 0.1u/16V/4C449 0.1u/16V/4 C450 0.1u/16V/4C450 0.1u/16V/4 C451 0.1u/16V/4C451 0.1u/16V/4 C440 0.1u/16V/4C440 0.1u/16V/4 C439 0.1u/16V/4C439 0.1u/16V/4

PCIE_PVDD

C453

C453 1u/6.3V/4

1u/6.3V/4

C433

C447

1u/6.3V/4

TP31TP31 TP32TP32

LDT_RST#3

SB_A_RST#

R370 33/4R370 33/4

A_RX0P_C A_RX0N_C A_RX1P_C A_RX1N_C A_RX2P_C A_RX2N_C A_RX3P_C A_RX3N_C

R276 562R/1/4R276 562R/1/4 R293 2.05K/1/4R293 2.05K/1/4

R322

0/6

PCIE_VDDRVCC_SB

C441

C441 1u/6.3V/4

1u/6.3V/4

32K_X1

32K_X2

R326 1K/4R326 1K/4

TP2TP2

U22A

AG10

A_RST#

J24

PCIE_RCLKP

J25

PCIE_RCLKN

P29

PCIE_TX0P

P28

PCIE_TX0N

M29

PCIE_TX1P

M28

PCIE_TX1N

K29

PCIE_TX2P

K28

PCIE_TX2N

H29

PCIE_TX3P

H28

PCIE_TX3N

T25

PCIE_RX0P

T26

PCIE_RX0N

T22

PCIE_RX1P

T23

PCIE_RX1N

M25

PCIE_RX2P

M26

PCIE_RX2N

M22

PCIE_RX3P

M23

PCIE_RX3N

E29

PCIE_CALRP

E28

PCIE_CALRN

E27

PCIE_CALI

U29

PCIE_PVDD

U28

PCIE_PVSS

F27

PCIE_VDDR_1

F28

PCIE_VDDR_2

F29

PCIE_VDDR_3

G26

PCIE_VDDR_4

G27

PCIE_VDDR_5

G28

PCIE_VDDR_6

G29

PCIE_VDDR_7

J27

PCIE_VDDR_8

J29

PCIE_VDDR_9

L25

PCIE_VDDR_10

L26

PCIE_VDDR_11

L29

PCIE_VDDR_12

N29

PCIE_VDDR_13

D2

X1

C1

X2

AC26

CPU_PG/LDT_PG

W26

INTR/LINT0

W24

NMI/LINT1

W25

INIT#

AA24

SMI#

AA23

SLP#/LDT_STP#

AA22

IGNNE#/SIC

AA26

A20M#/SID

Y27

FERR#

AA25

STPCLK#/ALLOW_LDTSTP

AH9

CPU_STP#/DPSLP_3V#

B24

DPSLP_OD#/GPIO37

W23

DPRSLPVR

AC25

LDT_RST#/DPRSTP#/PROCHOT#

ATI-SB600-218S6ECLA13FG-A13-RH

SB600 SB 23x23mm

Part 1 of 4

XTAL

C

PCICLK0 PCICLK1 PCICLK2 PCICLK3 PCICLK4 PCICLK5

PCI CLKS

SPDIF_OUT/PCICLK7/GPIO41

PCI EXPRESS INTERFACE

LPC

BMREQ#/REQ5#/GPIO65

CPU

PCICLK6

PCIRST#

AD0/ROMA18 AD1/ROMA17 AD2/ROMA16 AD3/ROMA15 AD4/ROMA14 AD5/ROMA13 AD6/ROMA12 AD7/ROMA11

AD8/ROMA9

AD9/ROMA8 AD10/ROMA7 AD11/ROMA6 AD12/ROMA5 AD13/ROMA4 AD14/ROMA3 AD15/ROMA2 AD16/ROMD0 AD17/ROMD1 AD18/ROMD2 AD19/ROMD3 AD20/ROMD4 AD21/ROMD5 AD22/ROMD6 AD23/ROMD7

AD24 AD25 AD26 AD27 AD28 AD29 AD30 AD31

CBE0#/ROMA10

CBE1#/ROMA1

CBE2#/ROMWE#

CBE3#

PCI INTERFACE

FRAME#

DEVSEL#/ROMA0

IRDY#

TRDY#/ROMOE#

PAR/ROMA19

STOP# PERR# SERR# REQ0# REQ1#

REQ2# REQ3#/GPIO70 REQ4#/GPIO71

GNT0#

GNT1#

GNT2# GNT3#/GPIO72 GNT4#/GPIO73

CLKRUN#

LOCK#

INTE#/GPIO33

INTF#/GPIO34 INTG#/GPIO35 INTH#/GPIO36

LAD0 LAD1 LAD2 LAD3

LFRAME#

RTC_IRQ#/GPIO69

RTC

LDRQ0#

SERIRQ

RTCCLK

VBAT

RTC_GND

LDRQ1#/GNT5#/GPIO68

RN55 33/4/8RN55 33/4/8

PCICLK5

8 6

PCICLK0 PCI_CLK1

U2

PCICLK1

T2

PCICLK2

U1

PCICLK3

V2

PCICLK4

W3

PCICLK5

U3

PCICLK6

V1 T1

SB_PCIRST#

AJ9

W7 Y1 W8 W5 AA5 Y3 AA6 AC5 AA7 AC3 AC7 AJ7 AD4 AB11 AE6 AC9 AA3 AJ4 AB1 AH4 AB2 AJ3 AB3 AH3 AC1 AH2 AC2 AH1 AD2 AG2 AD1 AG1

PCI_CBE#0

AB9

PCI_CBE#1

AF9

PCI_CBE#2

AJ5

PCI_CBE#3

AG3 AA2 AH6 AG5 AA1 AF7 Y2 AG8 AC11 AJ8 AE2 AG9 AH8 AH5 AD11 AF2 AH7 AB12 AG4 AG7 AF6

AD3 AF1 AF4 AF3

AG24 AG25 AH24 AH25 AF24 AJ24 AH26

SB600_PCI_REQ5#

W22 AF23

D3 F5

E1 D1

AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD9 AD10 AD11 AD12 AD13 AD14 AD15 AD16 AD17 AD18 AD19 AD20 AD21 AD22 AD23 AD24 AD25 AD26 AD27 AD28 AD29 AD30 AD31

C547

C547 1u/6.3V/4

1u/6.3V/4

R377 33R/4R377 33R/4

PCI_CLKRUN#

4 2

RN54 33/4/8RN54 33/4/8

8 6

PCICLK3

4 2

R504 X_8.2K/4R504 X_8.2K/4

AD[31..0]

PCI_CBE#[3..0]

TP23TP23

TP37TP37

VBAT_IN

C560

0.1u/16V/4

D

TPM_PCLK

7

PCI_CLK2

5

PCI_CLK0

3 1

7

PCI_CLK4

5

PCI_CLK3

3

PCI_CLK6

1

PCIRST# 18

AD[31..0] 18

PCI_CBE#[3..0] 18

PCI_FRAME# 18 PCI_DEVSEL# 18 PCI_IRDY# 18 PCI_TRDY# 18 PCI_PAR 18 PCI_STOP# 18 PCI_PERR# 18 PCI_SERR# 18

PCI_REQ#2 18

PCI_GNT#2 18

PCI_LOCK# 18

PCI_INTE# 18

PCI_INTF# 18 PCI_INTG# 18 PCI_INTH# 18

LPC_AD0 19 LPC_AD1 19 LPC_AD2 19 LPC_AD3 19 LPC_FRAME# 19 LPC_DRQ#0 19

SERIRQ 19

RTC_CLK 17

AUTO_ON# 17

TPM_PCLK 19 PCI_CLK2 18 PCI_CLK0 17 PCI_CLK1 17

PCI_CLK4 17 PCI_CLK3 17 PCI_CLK6 17,19

LPC_AD[3..0]19

20mil

PCI_CLK0 PCI_CLK1 PCI_CLK2

PCI_CLK3 TPM_PCLK PCI_CLK6

PCI_CLKRUN#

3VDUAL

12

R335 500R0402R335 500R0402

DUAL FOUNCTION PCI_CLK5/LPC_CLK0 PCI_CLK6/LPC_CLK1

For EMI

3

VBAT

D19

D19 S-BAT54C_SOT23

S-BAT54C_SOT23

BAT1

BAT-BCR2032P-RH

N31-1030151-H06+N33-1020271-H06

1 2 3

JBAT1

E

C580 X_33P/50V/4C580 X_33P/50V/4

12

C571 X_33P/50V/4C571 X_33P/50V/4

12

C545 X_33P/50V/4C545 X_33P/50V/4

12

C556 X_33P/50V/4C556 X_33P/50V/4

12

C530 X_33P/50V/4C530 X_33P/50V/4

12

C559 X_33P/50V/4C559 X_33P/50V/4

12

R390 X_10K/4R390 X_10K/4

VCC3

20mil

Normal --> 1-2 Clear CMOS -->2-3

1 1

Micro Star Restricted Secret

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

A

B

C

D

http://www.msi.com.tw

SB600-PCIE/PCI/CPU/LPC

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

14 38

E

Rev

0A

of

A

4 4

VCC3

RN39

X_10K/4/8P4R

78 56 34 12

R398 X_10K/4R398 X_10K/4 R399 X_10K/4R399 X_10K/4

3 3

2 2

AZ_BIT_CLK

For EMI(closed SB)

3VDUAL

R397 X_10K/4R397 X_10K/4

AZ_SDATA_IN3 SCL SDA

SCLK1 SDATA1

SCLK118,20,24

SDATA118,20,24

C570

33P/50V/4

For EMI(SB460 only) for SB600 change to 10K pull down

AZ_RST#21

TALERT#19

R465 0/4R465 0/4

GB_ENABLE

GHI# SATA_IS0# SHUTDOWN#

WD_PWRGD SMARTVOLT

SB_BLINK

R439 X_10K/4R439 X_10K/4 R314 2.2K/4R314 2.2K/4 R288 2.2K/4R288 2.2K/4

R392 2.2K/4R392 2.2K/4 R404 2.2K/4R404 2.2K/4

SCLK1

SDATA1

R405 33/4R405 33/4

VCC3

3VDUAL

SB600_TALERT# 15

SB600_AZ_RST#

R409

R409 10K/4

10K/4

B

U22D

PCI_PME#18

SLP_S3#19,24,27 SLP_S5#24

PWRBTIN19

SB_PWRGD25

A20GATE19 KBRST#19

LPC_PME#19

FP_RST#12,24,27

PCIE_WAKE_UP#20

RSMRST#24

SB_OSC_14M12

SPKR27

SCL6,12

SDA6,12

PD_DET26 SPI_WP#15

USB_OCP#222

USB_OCP#122

AZ_BIT_CLK21

AZ_SDATA_OUT21

AZ_SYNC21

AC_SDATA_OUT17 ACZ_SDATA_IN021

TP28TP28

TP25TP25 TP29TP29

TP30TP30

RI#

SB_TEST2 SB_TEST1 SB_TEST0 A20GATE KBRST# LPC_PME# LPC_SMI# S3_STATE

SB_BLINK SB_THRM#

RSMRST#

SATA_IS0#

GHI# WD_PWRGD SMARTVOLT SHUTDOWN#

SCLK1 SDATA1

GB_ENABLE

R466 0/4R466 0/4

R432 33/4R432 33/4

AZ_SDATA_IN3

R456 33/4R456 33/4

SB600_AZ_RST#

R431 33R/4R431 33R/4

C514

X_0.1u/25V/4

C511

X_0.1u/25V/4

SB_AZ_BIT_CLKR

AZ_SDATA_OUT_R SB_AZ_SYNCR

AC_DATA_OUT_R

A3

PCI_PME#/GEVENT4#

B2

RI#/EXTEVNT0#

F7

SLP_S3#

A5

SLP_S5#

E3

PWR_BTN#

B5

PWR_GOOD

B3

SUS_STAT#

F9

TEST2

E9

TEST1

G9

TEST0

AF26

GA20IN

AG26

KBRST#

D7

LPC_PME#/GEVENT3#

C25

LPC_SMI#/EXTEVNT1#

D9

S3_STATE/GEVENT5#

F4

SYS_RESET#/GPM7#

E7

WAKE#/GEVENT8#

C2

BLINK/GPM6#

G7

SMBALERT#/THRMTRIP#/GEVENT2#

E2

RSMRST#

B23

14M_OSC

C28

SATA_IS0#/GPIO10

A26

ROM_CS#/GPIO1

B29

GHI#/SATA_IS1#/GPIO6

A23

WD_PWRGD/GPIO7

B27

SMARTVOLT/SATA_IS2#/GPIO4

D23

SHUTDOWN#/GPIO5

B26

SPKR/GPIO2

C27

SCL0/GPOC0#

B28

SDA0/GPOC1#

C3

SCL1/GPOC2#

F3

SDA1/GPOC3#

D26

DDC1_SCL/GPIO9

C26

DDC1_SDA/GPIO8

A27

SSMUXSEL/SATA_IS3#/GPIO0

A4

LLB#/GPIO66

C6

USB_OC9#/SLP_S2/GPM9#

C5

USB_OC8#/AZ_DOCK_RST#/GPM8#

C4

USB_OC7#/GEVENT7#

B4

USB_OC6#/GEVENT6#

B6

USB_OC5#/DDR3_RST#/GPM5#

A6

USB_OC4#/GPM4#

C8

USB_OC3#/GPM3#

C7

USB_OC2#/GPM2#

B8

USB_OC1#/GPM1#

A8

USB_OC0#/GPM0#

N2

AZ_BITCLK

M2

AZ_SDOUT

K2

AZ_SDIN3/GPIO46

L3

AZ_SYNC

K3

AZ_RST#

L1

AC_BITCLK/GPIO38

L2

AC_SDOUT/GPIO39

L4

ACZ_SDIN0/GPIO42

J2

ACZ_SDIN1/GPIO43

J4

ACZ_SDIN2/GPIO44

M3

AC_SYNC/GPIO40

L5

AC_RST#/GPIO45

E23

NC1

AC21

NC2

AD7

NC3

AE7

NC4

AA4

NC5

T4

NC6

D4

NC7

AB19

NC8

ATI-SB600-218S6ECLA13FG-A13-RH

C

SB600 SB 23x23mm

ACPI / WAKE UP EVENTS

OSC / RST

GPIO

USB OC

AC97 AZALIA

Part 4 of 4

USBCLK

USB_RCOMP

USB_ATEST1 USB_ATEST0

USB_HSDP9+ USB_HSDM9-

USB_HSDP8+ USB_HSDM8-

USB_HSDP7+ USB_HSDM7-

USB_HSDP6+ USB_HSDM6-

USB_HSDP5+ USB_HSDM5-

USB_HSDP4+

USB INTERFACE

USB_HSDM4USB_HSDP3+

USB_HSDM3USB_HSDP2+

USB_HSDM2USB_HSDP1+

USB_HSDM1USB_HSDP0+

USB_HSDM0-

AVDDTX_0 AVDDTX_1 AVDDTX_2 AVDDTX_3 AVDDTX_4 AVDDRX_0 AVDDRX_1 AVDDRX_2 AVDDRX_3 AVDDRX_4

AVDDC

AVSSC

AVSS_USB_1 AVSS_USB_2 AVSS_USB_3 AVSS_USB_4 AVSS_USB_5 AVSS_USB_6 AVSS_USB_7 AVSS_USB_8

AVSS_USB_9 AVSS_USB_10 AVSS_USB_11

USB PWR

AVSS_USB_12 AVSS_USB_13 AVSS_USB_14 AVSS_USB_15 AVSS_USB_16 AVSS_USB_17 AVSS_USB_18 AVSS_USB_19 AVSS_USB_20 AVSS_USB_21 AVSS_USB_22 AVSS_USB_23 AVSS_USB_24 AVSS_USB_25 AVSS_USB_26 AVSS_USB_27 AVSS_USB_28 AVSS_USB_29 AVSS_USB_30 AVSS_USB_31 AVSS_USB_32 AVSS_USB_33

A17 A14 A11

A10 H12

G12 E12

D12 E14

D14 G14

H14 D16

E16 D18

E18 G16

H16 G18

H18 D19

E19 G19

H19

B9 B11 B13 B16 B18 A9 B10 B12 B14 B17

A12 A13 A16

C9 C10 C11 C12 C13 C14 C16 C17 C18 C19 C20 D11 D21 E11 E21 F11 F12 F14 F16 F18 F19 F21 G11 G21 H11 H21 J11 J12 J14 J16 J18 J19

USB_RCOMP

TP3TP3 TP4TP4

AVDD_USB

D

+3.3V_AVDDC

C497

0.1u/16V/4

R350 11.8K/4R350 11.8K/4

USBP7 22 USBN7 22

USBP6 22 USBN6 22

USBP5 22 USBN5 22

USBP4 22 USBN4 22

USBP3 22 USBN3 22

USBP2 22 USBN2 22

USBP1 22 USBN1 22

USBP0 22 USBN0 22

1 2

L51 X_28L900m_100_0805L51 X_28L900m_100_0805

C491

2.2u/6.3V/4

USBCLK_EXT 12

USB9 FRONT PANEL (SB600 ONLY) USB8 FRONT PANEL (SB600 ONLY) USB7 FRONT PANEL USB6 FRONT PANEL USB5 STACK4 USB4 USB4 STACK4 USB3 USB3 STACK4 USB2 USB2 STACK4 USB1 USB1 LAN USB BOTTOM USB0 LAN USB TOP

CP31CP31

3VDUAL

AVDD_USB

C485

C531

C531 22u/10V/8

22u/10V/8

C508

0.1u/16V/4

AVDD_USB

C505

C505 1u/6.3V/4

1u/6.3V/4

C532

0.1u/16V/4

C485

0.1u/16V/4

C533

C533 1u/6.3V/4

1u/6.3V/4

E

C476

C476 1u/6.3V/4

1u/6.3V/4

1 2

L48

L48 X_28L900m_100_0805

X_28L900m_100_0805

C480

C480 22u/10V/8

22u/10V/8

3VDUAL

CP50CP50

1 1

SB_TEST2 SB_TEST1 SB_TEST0

A

B

C

RN41

123456

78

X_10K/4/8P4R

3VDUAL

D

Micro Star Restricted Secret

Title

Document Number

SB600-ACPI/GPIO/USB/AUDIO

MS-7347

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

MS-7347

Last Revision Date:

Last Revision Date: Sheet

Sheet

E

Rev

0A

Tuesday, December 19, 2006

15 38

of

5

A

D D

SATA_TX0+_C26

SATA_TX0-_C26 SATA_RX0-_C26

SATA_RX0+_C26 SATA_TX1+_C26

SATA_TX1-_C26 SATA_RX1-_C26

SATA_RX1+_C26

SATA_TX0+_C SATA_TX0-_C

SATA_RX0-_C SATA_RX0+_C

SATA_TX1+_C SATA_TX1-_C

SATA_RX1-_C SATA_RX1+_C

C C

PLACE R665 CLOSE TO U600 BALL

R674 IS 1K 1% FOR XTAL,

4.99K 1% FOR INTERNAL CLK

SATA_X1

R334

R334 10M/6

SATA_X2

10M/6

B B

CP42CP42

1 2

L53 X_28L900m_100_0805L53 X_28L900m_100_0805

C659 & C660 CLOSE TO THE BALLS OF U600

C10U6.3

C658 CLOSE TO THE BALL OF U600

VCC3

SB600

L50 28L900m_100_0805L50 28L900m_100_0805

XTLVDD_SATA

C490

C490 1u/6.3V/4

1u/6.3V/4

VCC_SATA

4

PLACE SATA AC COUPLING CAPS CLOSE TO SB600

C500 103P/16V/4C500 103P/16V/4 C501 103P/16V/4C501 103P/16V/4

C481 103P/16V/4C481 103P/16V/4 C482 103P/16V/4C482 103P/16V/4

C506 103P/16V/4C506 103P/16V/4 C503 103P/16V/4C503 103P/16V/4

C493 103P/16V/4C493 103P/16V/4 C489 103P/16V/4C489 103P/16V/4

R284 1K/4R284 1K/4

SATA_ACT#27

PLLVDD_SATA

XTLVDD_SATA

AVDD_SATA

C462 _C10P50NC462 _C10P50N

Y3

25MHZ18P_D-1

2 1

C457

_C10P50N

PLLVDD_SATA

C499

C504

C504 1u/6.3V/4

1u/6.3V/4

SATA_TX0+ SATA_TX0-

SATA_RX0SATA_RX0+

SATA_TX1+ SATA_TX1-

SATA_RX1SATA_RX1+

SATA_X1 SATA_X2

SATA_ACT#

AH21

AJ21

AH20

AJ20

AH18

AJ18

AH17

AJ17

AH13 AH14

AH16

AJ16 AJ11

AH11 AH12

AJ13

AF12 AD16 AD18 AC12 AD14

AJ10 AC16 AE14

AE16 AE18 AE19

AF19

AF21 AG22 AG23 AH22 AH23

AJ12

AJ14

AJ19

AJ22

AJ23 AB14

AB16 AB18 AC14 AC18 AC19 AD12 AD19 AD21 AE12 AE21

AF11

AF14

AF16

AF18 AG11 AG12 AG13 AG14 AG16 AG17 AG18 AG19 AG20 AG21 AH10 AH19

U22B

SPI_WP#14

SATA_TX0+ SATA_TX0-

SATA_RX0SATA_RX0+

SATA_TX1+ SATA_TX1-

SATA_RX1SATA_RX1+

SATA_TX2+ SATA_TX2-

SATA_RX2SATA_RX2+

SATA_TX3+ SATA_TX3-

SATA_RX3SATA_RX3+

SATA_CAL SATA_X1 SATA_X2 SATA_ACT#/GPIO67 PLLVDD_SATA_1

PLLVDD_SATA_2 XTLVDD_SATA AVDD_SATA_1

AVDD_SATA_2 AVDD_SATA_3 AVDD_SATA_4 AVDD_SATA_5 AVDD_SATA_6 AVDD_SATA_7 AVDD_SATA_8 AVDD_SATA_9 AVDD_SATA_10 AVDD_SATA_11 AVDD_SATA_12 AVDD_SATA_13 AVDD_SATA_14 AVDD_SATA_15

AVSS_SATA_1 AVSS_SATA_2 AVSS_SATA_3 AVSS_SATA_4 AVSS_SATA_5 AVSS_SATA_6 AVSS_SATA_7 AVSS_SATA_8 AVSS_SATA_9 AVSS_SATA_10 AVSS_SATA_11 AVSS_SATA_12 AVSS_SATA_13 AVSS_SATA_14 AVSS_SATA_15 AVSS_SATA_16 AVSS_SATA_17 AVSS_SATA_18 AVSS_SATA_19 AVSS_SATA_20 AVSS_SATA_21 AVSS_SATA_22 AVSS_SATA_23 AVSS_SATA_24 AVSS_SATA_25 AVSS_SATA_26 AVSS_SATA_27

3

3VDUAL 3VDUAL

R289

1K/4

SPI_CS#

R558 X_0/4R558 X_0/4

SB600 SB 23x23mm

Part 2 of 4

IDE_D0/GPIO15 IDE_D1/GPIO16 IDE_D2/GPIO17 IDE_D3/GPIO18 IDE_D4/GPIO19 IDE_D5/GPIO20 IDE_D6/GPIO21

ATA 66/100

SERIAL ATA

SERIAL ATA POWER

IDE_D7/GPIO22 IDE_D8/GPIO23

IDE_D9/GPIO24 IDE_D10/GPIO25 IDE_D11/GPIO26 IDE_D12/GPIO27 IDE_D13/GPIO28 IDE_D14/GPIO29 IDE_D15/GPIO30

SPI_DI/GPIO12

SPI_DO/GPIO11

SPI_CLK/GPIO47

SPI_HOLD#/GPIO31

SPI_CS#/GPIO32

LAN_RST#/GPIO13

SPI ROMHW MONITOR

ROM_RST#/GPIO14

FANOUT0/GPIO3

FANOUT1/GPIO48 FANOUT2/GPIO49

FANIN0/GPIO50

FANIN1/GPIO51

FANIN2/GPIO52

TEMPIN0/GPIO61 TEMPIN1/GPIO62 TEMPIN2/GPIO63

TEMPIN3/TALERT#/GPIO64

R286

10K/4

IDE_IORDY

IDE_IRQ

IDE_A0 IDE_A1 IDE_A2

IDE_DACK#

IDE_DRQ

IDE_IOR# IDE_IOW# IDE_CS1# IDE_CS3#

TEMP_COMM

VIN0/GPIO53 VIN1/GPIO54 VIN2/GPIO55 VIN3/GPIO56 VIN4/GPIO57 VIN5/GPIO58 VIN6/GPIO59 VIN7/GPIO60

AVDD

AVSS

FOR SB600

SST SPI ROM

U17

1 2 3 4

_SST25LF040A-33-4C-S2A

AB29 AA28 AA29 AB27 Y28 AB28 AC27 AC29 AC28 W28 W27

AD28 AD26 AE29 AF27 AG29 AH28 AJ28 AJ27 AH27 AG27 AG28 AF28 AF29 AE28 AD25 AD29

J3 J6 G3 G2 G6

C23 G5

M4 T3 V4

N3 P2 W4

P5 P7 P8 T8 T7

V5 L7 M8 V6 M6 P4 M7 V7

N1 M1

CE#

VDD

SO

HOLD#

WP#

SCK

VSS

PDA_R0 PDA_R1 PDA_R2

SPI_DATAIN SPI_DATAOUT

SPI_CLK

SB_SPI_HOLD#

SPI_CS#

ATISB_GPIO3

HWM_AGND

SI

PDD0 PDD1 PDD2 PDD3 PDD4 PDD5 PDD6 PDD7 PDD8 PDD9 PDD10 PDD11 PDD12 PDD13 PDD14 PDD15

VCC3

8 7 6 5

3VDUAL

C546

C546 _0.1u/25V/4

_0.1u/25V/4

SPI_HOLD#SPI_DATAIN SPI_CLK SPI_DATAOUT

PD_IORDY 26 PD_SIRQ 26 PDA_R0 26 PDA_R1 26 PDA_R2 26 PD_DACK# 26 PD_DREQ 26 PD_IOR# 26 PD_IOW# 26 PD_CS#1 26 PD_CS#3 26

R538 X_0/4R538 X_0/4

R534

R534 10K/4

10K/4

Only for SB600

C529

C529 1u/10V/6

1u/10V/6

SPI_HOLD#

ATISB_GPIO3

SB600_TALERT# 14

CP44CP44

1 2

L54

L54 X_28L900m_100_0805

X_28L900m_100_0805

2

R287

10K/4

PDD[15..0] 26

R282 10K/4R282 10K/4

R283 X_10K/4R283 X_10K/4

for version selection

VCC3AVDD_HWM

VCC3

1

SPI FLASH MEMORY

SPI DEBUG PORT

Place close to SPI ROM

3VDUAL

JSPI1

SPI_DATAIN SPI_DATAOUT SPI_CS#

SPI_HOLD#

Part Number : N31-2051451-H06

1 2 3 4

6

5 7 8 9

H2X5(10)_black-RH

SPI_CLK

ATI-SB600-218S6ECLA13FG-A13-RH

1 2

VCC_SATA

5

CP41CP41

L44 X_28L900m_100_0805L44 X_28L900m_100_0805

22U6.3

C454

C465

0.1u/16V/4

C468

0.1u/16V/4

璉　

C660

1u/16V/6

AVDD_SATA

1u/16V/6

4

C663

ATI-SB600-218S6ECLA13FG-A13-RH

A

Micro Star Restricted Secret

Title

SB600-SATA/IDE/HWM/SPI

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

3

2

http://www.msi.com.tw

MS-7347

1

Last Revision Date:

Tuesday, December 19, 2006

Sheet

16 38

Rev

0A

of

5

4

3

2

1

VCC3

璉　

C658

C666

1u/10V/6

CP29CP29

C474

VCC3

1u/10V/6

1u/16V/4

C535

D D

C C

USB_PHY

1 2

R338 X_0/6R338 X_0/6

X_C22U6.3X1206

B B

C510

C510 1u/16V/4

1u/16V/4

C470

C470 1u/16V/4

1u/16V/4

VCC5

SOT23

C522

C522 1u/16V/4

1u/16V/4

VCC_SB

3VDUAL

USB_PHY

R384 1K/6R384 1K/6

231

C524

C524 1u/16V/4

1u/16V/4

1 2

R294 X_0/6R294 X_0/6

C22U6.3X1206

1 2

R434 X_0/6R434 X_0/6

C22U6.3X1206

1 2

R453 X_0/6R453 X_0/6

0.1u/16V/4

璉　

C471

C471 1u/16V/4

1u/16V/4

D20

D20 BAT54A-S-SOT23

BAT54A-S-SOT23

C554

CP28CP28

C392

CP34CP34

CP35CP35

C659

C659 1u/16V/6

1u/16V/6

C525

C525 1u/16V/4

1u/16V/4

V5_VREF

VCC_SB12

S5_3.3V

C561

0.1u/16V/4

C515

C515 1u/6.3V/4

1u/6.3V/4

C526

0.1u/16V/4

C555

1u/16V/4

S5_1.2V

VCC_SB

璉　

1u/10V/6

璉　

C562

VCC3

C661

C665

C665 1u/16V/6

1u/16V/6

C548

0.1u/16V/4

+1.8V_S0

C528

0.1u/16V/4

1u/6.3V/4

璉　

FOR SB600

璉　

C662

C388

1u/10V/6

C667

0.1u/16V/6

1 2

L46 X_28L900m_100_0805L46 X_28L900m_100_0805 L47 X_28L900m_100_0805L47 X_28L900m_100_0805

1 2

C664

1u/10V/6

C445 0.1u/16V/4C445 0.1u/16V/4

1 2

CP53CP53

CP52CP52

C466

C466 1u/6.3V/4

1u/6.3V/4

CP51CP51

CPU_PWR_SB

C461

C461 1u/6.3V/4

1u/6.3V/4

AVDDCK_3.3V(A24)

SB600:3.3V

CPU_PWR(AA27)

U22C

A25

SB600 SB 23x23mm

VDDQ_1

A28

VDDQ_2

C29

VDDQ_3

D24

VDDQ_4

L9

VDDQ_5

L21

VDDQ_6

M5

VDDQ_7

P3

VDDQ_8

P9

VDDQ_9

T5

VDDQ_10

V9

VDDQ_11

W2

VDDQ_12

W6

VDDQ_13

W21

VDDQ_14

W29

VDDQ_15

AA12

VDDQ_16

AA16

VDDQ_17

AA19

VDDQ_18

AC4

VDDQ_19

AC23

VDDQ_20

AD27

VDDQ_21

AE1

VDDQ_22

AE9

VDDQ_23

AE23

VDDQ_24

AH29

VDDQ_25

AJ2

VDDQ_26

AJ6

VDDQ_27

AJ26

VDDQ_28

M13

VDD_1

M17

VDD_2

N12

VDD_3

N15

VDD_4

N18

VDD_5

R13

VDD_6

R17

VDD_7

U12

VDD_8

U15

VDD_9

U18

VDD_10

V13

VDD_11

V17

VDD_12

A2

S5_3.3V_1

A7

S5_3.3V_2

F1

S5_3.3V_3

J5

S5_3.3V_4

J7

S5_3.3V_5

K1

S5_3.3V_6

G4

S5_1.2V_1

H1

S5_1.2V_2

H2

S5_1.2V_3

H3

S5_1.2V_4

A18

USB_PHY_1.2V_1

A19

USB_PHY_1.2V_2

B19

USB_PHY_1.2V_3

B20

USB_PHY_1.2V_4

B21

USB_PHY_1.2V_5

AA27

CPU_PWR

AE11

V5_VREF

A24

AVDDCK_3.3V

A22

AVDDCK_1.2V

B22

AVSSCK

V29

PCIE_VSS_42

V28

PCIE_VSS_41

V27

PCIE_VSS_40

V26

PCIE_VSS_39

V25

PCIE_VSS_38

V24

PCIE_VSS_37

V23

PCIE_VSS_36

V22

PCIE_VSS_35

U27

PCIE_VSS_34

T29

PCIE_VSS_33

T28

PCIE_VSS_32

T27

PCIE_VSS_31

T24

PCIE_VSS_30

T21

PCIE_VSS_29

P27

PCIE_VSS_28

SB600 IXP600 A11, LF

Part 3 of 4

POWER

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12 VSS_13 VSS_14 VSS_15 VSS_16 VSS_17 VSS_18 VSS_19 VSS_20 VSS_21 VSS_22 VSS_23 VSS_24 VSS_25 VSS_26 VSS_27 VSS_28 VSS_29 VSS_30 VSS_31 VSS_32 VSS_33 VSS_34 VSS_35 VSS_36 VSS_37 VSS_38 VSS_39 VSS_40 VSS_41 VSS_42 VSS_43 VSS_44 VSS_45 VSS_46 VSS_47 VSS_48 VSS_49 VSS_50 VSS_51 VSS_52 VSS_53 VSS_54 VSS_55 VSS_56 VSS_57

PCIE_VSS_1 PCIE_VSS_2 PCIE_VSS_3 PCIE_VSS_4 PCIE_VSS_5 PCIE_VSS_6 PCIE_VSS_7 PCIE_VSS_8

PCIE_VSS_9 PCIE_VSS_10 PCIE_VSS_11 PCIE_VSS_12 PCIE_VSS_13 PCIE_VSS_14 PCIE_VSS_15 PCIE_VSS_16 PCIE_VSS_17 PCIE_VSS_18 PCIE_VSS_19 PCIE_VSS_20 PCIE_VSS_21 PCIE_VSS_22 PCIE_VSS_23 PCIE_VSS_24 PCIE_VSS_25 PCIE_VSS_26 PCIE_VSS_27

A1 A20 A21 A29 B1 B7 B25 C21 C22 C24 D6 E24 F2 F23 G1 J1 J8 L6 L8 M9 M12 M15 M18 N13 N17 P1 P6 P21 R12 R15 R18 T6 T9 U13 U17 V3 V8 V12 V15 V18 V21 W1 W9 Y29 AA11 AA14 AA18 AC6 AC24 AD9 AD23 AE3 AE27 AG6 AJ1 AJ25 AJ29

D27 D28 D29 F26 G23 G24 G25 H27 J23 J26 J28 K27 L22 L23 L24 L27 L28 M21 M24 M27 N27 N28 P22 P23 P24 P25 P26

A A

Micro Star Restricted Secret

Title

SB600-POWER & DECOUPLING

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

17 38

1

Rev

0A

of

5

REQUIRED STRAPS

4

SB600 HAS 15K INTERNAL PD FOR AC_SDATA_OUT, 15K PU FOR RTC_CLK, EXTERNAL PU/PD IS NOT REQUIRED; FOR SB460, EXTERNAL PU/PD ARE REQUIRED

3

2

1

ADDITIONAL SB460 STRAPS

D D

NOTE: R751 PU RESISTOR FOR RTC_IRQ# IS REQUIRED FOR SB600

3VDUALVCC3 VCC3 VCC33VDUAL

TO KEEP THE INPUT FROM FLOATING.

R428

R579 10K/4R579 10K/4

ROM TYPE: H, H = PCI ROM H, L = SPI ROM L, H = LPC ROM L, L = FWH ROM

R428 10K/4

10K/4

SB600

PCI_CLK1PCI_CLK0

DEFAULT

R472

R472 _10K/4

_10K/4

R436

R436 10K/4

10K/4

R386

R386 X_10K/4

X_10K/4

AUTO_ON#13

PCIEXT_CLK1

(PCI_CLK5)

PCIE_CM_SET LOW

DEFAULT

PCIE_CM_SET HIGH

LFRAME#

ENABLE THERMTRIP#

DEFAULT

DISABLE THERMTRIP#

PULL HIGH

PULL LOW

ACPWRON

MANUAL PWR ON

DEFAULT

AUTO PWR ON

SB460 ONLY

SPDIF_OUT

SIO 24MHz

SIO 48MHz

DEFAULT

PCI_CLK2

XTAL MODE

NOT SUPPORTED

48MHZ OSC MODE

DEFAULT

PCI_CLK3

USB PHY POWERDOWN DISABLE

DEFAULT

USB PHY POWERDOWN ENABLE

SB460 ONLY SB460 ONLY SB460 ONLY SB460 ONLY SB460 ONLY

R388

R388 10K/4

10K/4

AC_SDATA_OUT14

RTC_CLK13 PCI_CLK313 PCI_CLK613,19 PCI_CLK013

PCI_CLK113

R451

PCI_CLK413

10K/4

C C

B B

PULL HIGH

PULL LOW

AC_SDOUT

USE DEBUG STRAPS

IGNORE DEBUG STRAPS

DEFAULT

RTC_CLK

INTERNAL RTC

DEFAULT

EXTERNAL RTC

PCI_CLK4 PCI_CLK6

USE INT. PLL48

USE EXT. 48MHZ

DEFAULT

PCI_CLK4

CPU IF=K8

DEFAULT

CPU IF=P4

R449

R449 X_10K/4

X_10K/4

A A

Micro Star Restricted Secret

Title

SB600-STRAPS

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7347

1

Last Revision Date:

Last Revision Date: Sheet

Sheet

Tuesday, December 19, 2006

18 38

Rev

0A

of

5

AD[31..0]

AD[31..0]13

PCI_CBE#[3..0]13

PCI_CBE#[3..0]

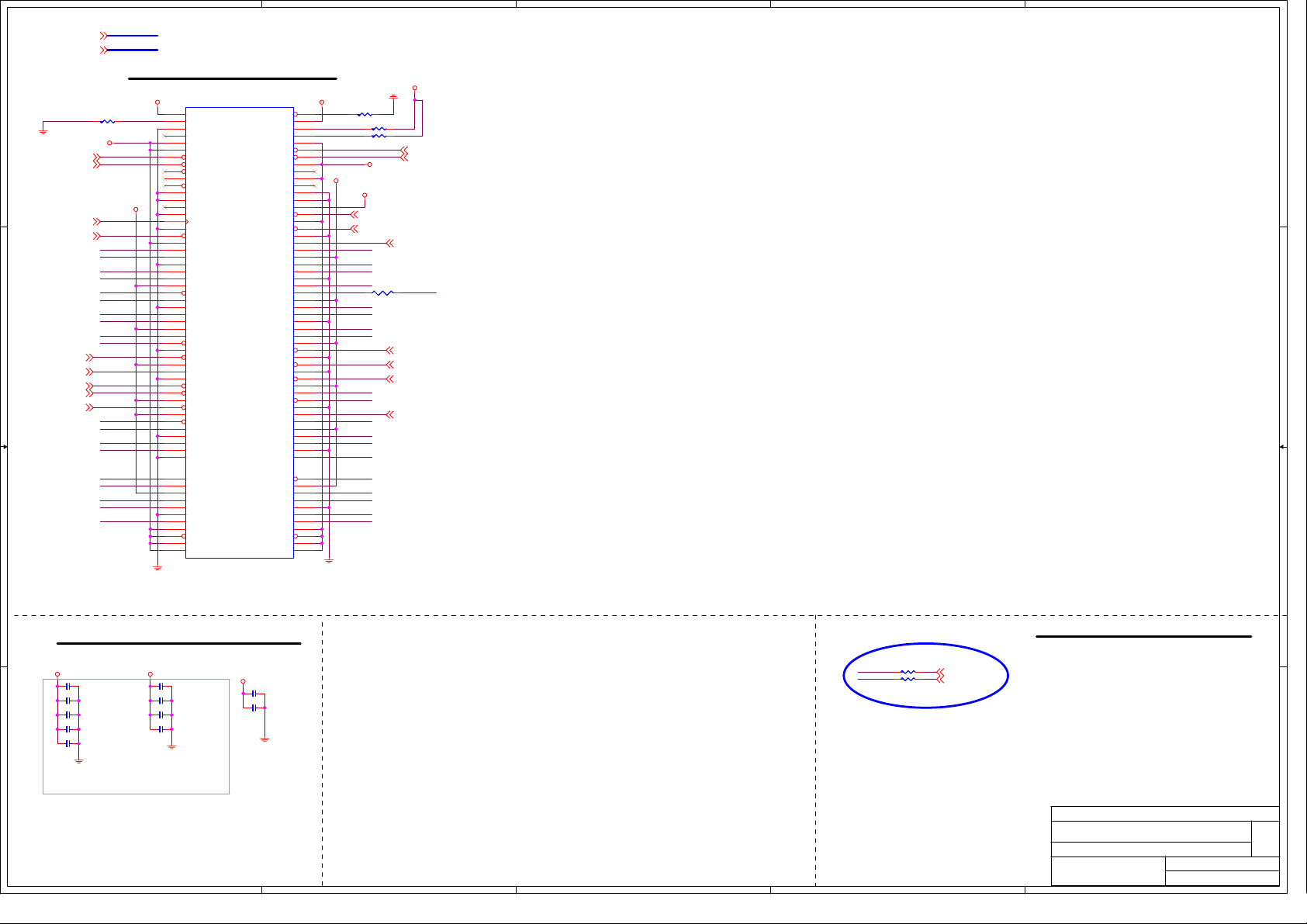

PCI SLOT 1 (PCI VER: 2.3 COMPLY)

-12V

PCI1

B1

D D

C C

B B

R533 4.7KR533 4.7K

VCC5

PCI_INTH#13

PCI_INTF#13

VCC3

PCI_CLK213

PCI_REQ#213

AD31 AD29

AD27 AD25

PCI_CBE#3 AD23

AD21 AD19

AD17 PCI_CBE#2

PCI_IRDY#13

PCI_DEVSEL#13

PCI_LOCK#13 PCI_PERR#13

PCI_SERR#13

PCI_IRDY#

PCI_DEVSEL#

PCI_LOCK# PCI_PERR#

PCI_SERR# PCI_CBE#1

AD14 AD12

AD10

AD8 AD7

AD5 AD3

AD1

B2 B3 B4 B5 B6 B7 B8

B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49

B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62

-12V TCK GND TDO +5V +5V INTB# INTD# PRSNT#1 RESERVED PRSNT#2 GND GND RESERVED GND CLK GND REQ# +5V(I/O) AD31 AD29 GND AD27 AD25 +3.3V C/BE#3 AD23 GND AD21 AD19 +3.3V AD17 C/BE#2 GND IRDY# +3.3V DEVSEL# GND LOCK# PERR# +3.3V SERR# +3.3V C/BE#1 AD14 GND AD12 AD10 GND

AD8 AD7 +3.3V AD5 AD3 GND AD1 +5V(I/O) ACK64# +5V +5V

YSLOT120

RESERVED

+5V(I/O)

RESERVED

+5V(I/O)

RESERVED

FRAME#

SDONE

C/BE#0

+5V(I/O) REQ64#

TRST#

+12V

TMS

INTA# INTC#

GND GND

RST#

GNT#

GND

AD30

+3.3V

AD28 AD26

GND

AD24

IDSEL

+3.3 AD22 AD20

GND AD18 AD16

+3.3V

GND

TRDY#

GND

STOP#

+3.3V SBO#

GND

PAR AD15

+3.3V

AD13 AD11

GND

+3.3V

GND

+5V

AD9

AD6 AD4

AD2 AD0

+5V +5V

+12V

A1 A2 A3 A4

TDI

A5 A6 A7 A8 A9

VCC3

A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49

A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62

R578 4.7KR578 4.7K

R576 4.7KR576 4.7K R577 4.7KR577 4.7K

VCC5

3VDUAL

PCIRST# 13 PCI_GNT#2 13

PCI_PME# AD30

AD28 AD26

AD24 ID1

R342 100/4/1R342 100/4/1

AD22 AD20

AD18 AD16

PCI_FRAME# PCI_TRDY# PCI_STOP# SDONE

SBO# PCI_PAR

AD15 AD13

AD11 AD9

PCI_CBE#0 AD6

AD4 AD2

AD0

4

VCC5

PCI_INTG# 13 PCI_INTE# 13

PCI_PME# 14

AD18

PCI_FRAME# 13 PCI_TRDY# 13 PCI_STOP# 13

PCI_PAR 13

3

2

1

IDSEL = AD18 MASTER = PCI_REQ#2

PCI_GNT#2

PCI SLOT DECOUPLING CAPACITORS

VCC5

C517

0.1u/25V/4

0.1u/25V/4 C544

C544

0.1u/25V/4

0.1u/25V/4 C519

C519

0.1u/25V/4

0.1u/25V/4 C181

C181

0.1u/25V/4

0.1u/25V/4 C245

C245 X_0.1u/25V/4

X_0.1u/25V/4

VCC3

C518

0.1u/25V/4

0.1u/25V/4 C551

C551

0.1u/25V/4

0.1u/25V/4 C543

C543

0.1u/25V/4

0.1u/25V/4 C434

C434

0.1u/25V/4

3VDUAL

C549

0.1u/25V/4

0.1u/25V/4 C521

C521

0.1u/25V/4

SDONE SBO#

R344

X_0/4

R345 X_0/4R345 X_0/4

SCLK1 14,20,24 SDATA1 14,20,24

PCI PULL-UP / DOWN RESISTORS

A A

Micro Star Restricted Secret

For EMI

5

4

3

2

Micro Star Restricted Secret

Title

PCI Slot 1,2

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

MS-7347

1

Last Revision Date:

Last Revision Date: Sheet

Sheet

Rev

Tuesday, December 19, 2006

of

19 38

0A

5

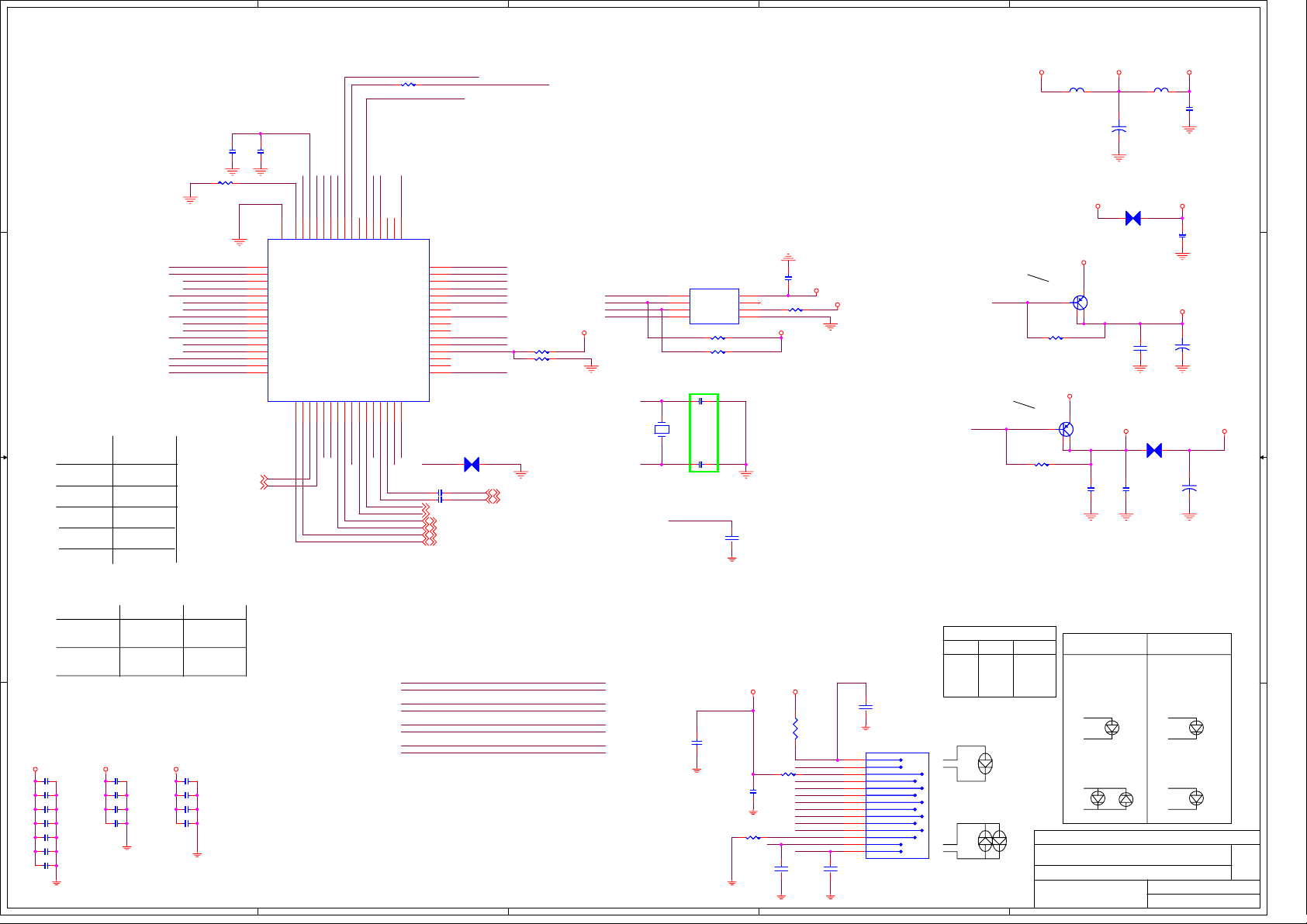

Super I/O

LPC SUPER I/O W83627DHG

U4

D D

LPC_AD[3..0]13

VCC3

PCI_RST1#10,24

PCI_CLK613,17

SERIRQ13

LPC_DRQ#013

LPC_FRAME#13

Default HIGH

R532

4.7K

IO_RST0#

C C

4.7K

R570 _0/4R570 _0/4

THERMDC_CPU3

THERMDA_CPU3

IO_RST0#_R

R527 _0/4R527 _0/4

AVCC3

R255 4.7KRR255 4.7KR

R537 _0/4R537 _0/4

PCI_RST1# PCI_CLK6

SERIRQ

LPC_DRQ#0

LPC_FRAME#

LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3

TMP_VREF

CPU_TMP

SYS_TMP

VCC_DDR

5VIN +12VIN

CPUVCORE

THERMDC_CPU_R

FANPWM2 & FANPWM3 are default PWM mode FANPWM1 & CPUFANOUT1 are default DC mode

When PSIN function is disable, set CRE7 bit 0 as 1

3VDUAL

B B

R55

4.7K/4

PWRBTIN

3VDUAL

VCC3

0.1u/25V/4

SYS-FANPWM26 SYS-FAN26

CPU-FANPWM26

CPU-FAN26

SIO_CLK12

C44

0.1u/25V/4

C20

C33

0.1u/25V/4

LPC I/O STRAPPING RESISTOR

GP50

R60 1K/4R60 1K/4

RTSA#

L: CFAD=2E H: CFAD=4E

GP50

L: TTL LEVEL H: VRM10 LEVEL

SOUTA

L: KBC DISABLE H: KBC ENABLE

DTRA#

A A

L:1K R226

Pin 117 PLED

H:1K R407 L:1K R?

Pin 83 IRTX

H:1K R?

5

L: DISABLE SPI H: DIABLE SPI

PWMOUT 50% PWMOUT100% PWMOUT 50% PWMOUT100%

SYS-FANPWM CPU-FANPWM

PWRBTIN14

VBAT

C21

SOUTA DTRA#

RTSA#

PSIN#27

PS_ON#24

SLP_S3#14,24,27

C52

0.1u/25V/4

1 2 3 4 5 6 7 8

RN5

1K/8P4R/4

CPUFAN_SET

PS_ON#

0.1u/25V/4

R535 X_1K/4R535 X_1K/4 R536 X_1K/4R536 X_1K/4

FOR CPUFANOUT 0

internal pulldown

FOR CPUFANOUT 1

internal pulldown

BEEP CHASSIS

VCC3

U4

30 21 23 22 29

27 26 25 24

125 123 128 121 126 124 127 122 120 119

101 102 103 104

93 94 95 96 97 98 99

100 105

106 107 108 109 110

116 113 115 112

7

111 118

76 19

90 89 91 92

67 68 64 72 73 18

61 74

28 12 48

GP50

77

114

W83627DHG-RH-1

R76

4.7K/4

Winbond APnote

VCC3

LRESET# LCLK SERIRQ LDRQ# LFRAME#

LAD0 LAD1 LAD2 LAD3

GPX2/GP13(VID3) GPY1/GP15(VID5) GPSA1/GP10(VID0) GPSA2/GP17(VID7) GPX1/GP12(VID2) GPY2/GP14(VID4) GPSB1/GP11(VID1) GPSB2/GP16(VID6) MSO/CPUFANOUT1/GP20 MSI/CPUFANIN1/GP21

VREF VTIN3 VTIN2 VTIN1 RSTOUT1 RSTOUT0# VIN4(AVCC) VIN3 VIN2 VIN1 VIN0 CPU_VCORE

VID5(CPUD-) VID4(PECISB) VID3(Vtt) VID2(PECI) VID1(SIC) VID0(SID)

FANPWM1 FANIN1 FANPWM2 FANIN2 FANPWM3 FANIN3

BEEP/SI CASEOPEN# SCE#/GP22/PLED/WDTO#

RSTOUT2#/GP32/SCL RSTOUT3#/GP33/SDA GP31 GP30

GP57/PSOUT# GP56/PSIN GP37 GP53/PSON# GP52/SUSB# CLKIN

3VSB VBAT

VCC3 VCC3 VCC3 WDTO#/GP50(EN_VRM10) AVCC3(SST)

4

GP65/RTSA#(HEFRAS)

GP62/SOUTA(PENKBC) GP64/DTRA#(PENROM)

CPUD-((FAN_SET)PLED)

PS_ON# GP55

GP36

CP19

X_COPPER

4

OVT#/HM_SMI#

SCK/GP23 DRVDEN0

INDEX#

MOA#

DSA#

DIR#

STEP#

WRDATA#

WE#

TRACK0#

WP#

RDDATA#

HEAD#

DSKCHG#

SLCT

BUSY

ACK#

SLIN#

INIT#

ERR#

AFD# STB#

RSTOUT4#/GP34

GP36 GP35

GP51/RSMRST#

GP61/DCDA# GP66/DSRA#

GP63/SINA

GP67/CTSA#

GP60/RIA#

GP41/DCDB# GP46/DSRB#

GP43/IRRX/SINB

GP45/RTSB#

GP42/IRTX/SOUTB

GP47/CTSB# GP44/DTRB#

GP40/RIB#

GA20M

KBRST

GP26/KBDATA

GP27/KBCLK

GP24/MSDATA

GP25/MSCLK

AUXFANIN1/SO

SUSLED/GP55 GP54/PWROK

VSS1 VSS2

PME#

RN7

VCC5_SB

78 56 34 12

4.7K/4/8P4R

THERMDC_CPU_R

R454

R454 X_0/6

X_0/6

3

VCC3

R256

4.7KR

TALERT#

PRD0 PRD1 PRD2 PRD3 PRD4 PRD5 PRD6 PRD7 RSLCT RPE RBUSY RACK# RSLIN# RINIT# RERR# RAFD# RSTB#

GP36

GP55

4.7KR

VCC5

RSLCT 26 RPE 26 RBUSY 26 RACK# 26 RSLIN# 26 RINIT# 26 RERR# 26 RAFD# 26 RSTB# 26

DCDB# 27 DSRB# 27 SINB 27 RTSB# 27 SOUTB 27 CTSB# 27 DTRB# 27 RIB# 27

A20GATE 14 KBRST# 14 KBDATA 27 KBCLK 27 MSDATA 27 MSCLK 27

LPC_PME#

BEEP

TALERT# 14

PRD[0..7] 26

VCC3

Q4

Q4 N-MMBT3904_SOT23

N-MMBT3904_SOT23

LPC_PME# 14

ALARM 27

3

VCC3

R21

4.7K/4

LPC_FRAME#

X_100p/50V/6

4.7K/4

VBAT

C54

Chasiss Intrusion

VBAT

R752MR75 2M

JCI1

CHASSIS

1

2

N31-1020011-C09

D1x2-BK

C46

C40

0.1u/25V/4

C46

2200p

CP3

R455 X_0/6R455 X_0/6

X_COPPER

CPU_TMP THERMDC_CPU_R

AVCC3

VCC3

83627DHG

5 2

1

R580 X_1K/4R580 X_1K/4

3 4 6 8 9 10 11 13 14 15 16 17

42

PD0

41

PD1

40

PD2

39

PD3

38

PD4

37

PD5

36

PD6

35

PD7

31 32

PE

33 34 43 44 45 46 47

88 69 87 75

R59 4.7K/4R59 4.7K/4

DCDA#

56

DSRA#

50

SINA

53

RTSA#

51

SOUTA

54

CTSA#

49

DTRA#

52

RIA#

57 84

79 82 80 83 78 81 85

59 60

KBDATA

63

KBCLK

62

MSDATA

66

MSCLK

65 58

70 71

20 55 86

CPUFAN_SET

117

VCC5

R115

R115 10K/4

10K/4

BEEP

R27 4.7K/4R27 4.7K/4

2

SERIAL PORT 1

C605 X_0.1u/25V/4C605 X_0.1u/25V/4

VCC5

NRTSA

C222 330PC222 330P

NDSRA#

C233 330PC233 330P

NCTSA#

C234 330PC234 330P

NRIA

C235 330PC235 330P

NDCDA#

C327 330PC327 330P

NSOUTA

C346 330PC346 330P

NSINA

C348 330PC348 330P

NDTRA

C355 330PC355 330P

TPM - Security Controller

TPM_PCLK13

R64 10K/4R64 10K/4

5VIN

CPUVCORE

VCC_DDR

TMP_VREF

R49

R49 10K/4

10K/4

SYS_TMP

RT1

YT103S-1N

THERMDC_CPU_R

2

LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3

LPC_FRAME# IO_RST0# TPMLPCPD# SERIRQ

R544 _0/4R544 _0/4

R97 X_4.7K/4R97 X_4.7K/4

VCC3

R70 22K/4R70 22K/4

R65 10K/4R65 10K/4

R125 10K/4R125 10K/4

R50

R50 X_10K/4

X_10K/4

RT2

X_YT103S-1N

THERMDC_CPU_R

NOTE: LOCATE CLOSE STATUS PANEL

VCC3

TMP_VREF

CPU_TMP

NRIA NCTSA# NDSRA# NSINA NDCDA#

RTSA# DTRA# SOUTA

R110

R110 10K/4

10K/4

TPMLPCPD#

VCC5

VCCP

U10

20

VCC

2

RIN1

ROUT1

RIN2

ROUT2

RIN3

ROUT3

RIN4

ROUT4

RIN5

ROUT5

DIN1

DOUT1

DIN2

DOUT2

DIN3

DOUT3

GND

75232S-SSOP20

VDD VDD VDD

GND GND GND GND

VSB

PP

XTALI

XTALO

TESTI

+12V

THERMDC_CPU_R

MSI

Title

Size Document Number Rev

Date: Sheet

U11

26 23 20 17 21 22 16 28 27

9

15

6 2

1 3

12

TPM SLB9635

VCC_DDR

3 4 7 9

16 15 13 11

LAD0 LAD1 LAD2 LAD3 LCLK LFRAME# LRESET# LPCPD# SERIRQ

TESTBI/BADD CLKRUN#

GPIO GPIO2

NC NC NC

1

C314 0.1u/25V/4C314 0.1u/25V/4

+12COM_1

1

V+

RIA#

19

CTSA#

18

DSRA#

17

SINA

14

DCDA#

12

NRTSA

5

NDTRA

6

NSOUTA

8

-12COM_1

10

V-

C315 0.1u/25V/4C315 0.1u/25V/4

NDCDA# NSINA NSOUTA

NRTSA

NRIA

C210

X_C0.1U16Y2

10 19 24

4 11 18 25

5

R58 X_0R/2R58 X_0R/2

7

13 14

8

C200

C12P50N2

Thermal Resistor

R74

R74 56KST

56KST

1 2

MICRO-STAR INt'L CO., LTD.

LPC SUPER I/O & LPC & CONNECTORS

JCOM1

1 2 3 4 5 6 7 8 9

H2X5(10)_white

C208

C0.1U16Y2

3VDUAL

1 2

3 4

12

R77

R77 10K/4

10K/4

MS-7347

1

VCC3

C212

C212 C0.1U16Y2

C0.1U16Y2

VCC3

Y6

32.768KHzY632.768KHz

C215

C12P50N2

D38 1N4148SD38 1N4148S

C205

C205 X_C0.1U16Y2

X_C0.1U16Y2

D371N4148S D371N4148S

NDTRA NDSRA# NCTSA#

21 38Tuesday, December 19, 2006

+12VIN

of

+12V

-12V

0A

5

4

3

2

1

CFG001 For RTL8101E CFG002 For RTL8111B

LAN_LINK_UP

R141 330/4R141 330/4

LINK_1000

D D

C435

X_0.1u/25V/4

R131 2.49KR1%0402R131 2.49KR1%0402

CTRL18 AVDD33

MDI_0+ MDI_0-

AVDD18

MDI_1+ MDI_1-

AVDD18

MDI_2+ MDI_2-

AVDD18

C C

AVDD18

DVDD15 VDD33

MDI_3+ MDI_3-

C430

0.1u/25V/4

XTAL2

AVDD33

XTAL1

CTRL15/VDD33

U20

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

GVDD

63

60

59

64

65

62

65

RSET

GVDD

VCTRL18 AVDD33 MDIP0 MDIN0 AVDD18 MDIP1 MDIN1 AVDD18#8 MDIP2 MDIN2 AVDD18#11 MDIP3 MDIN3 AVDD18#14 VDD15#15 VDD33#16

CKTAL261CKTAL1

VCTRL15

NC#1717NC#1818LANWAKEB19PERSTB20VDD15#2121EVDD1822HSIP23HSIN24EGND25REFCLK_P26REFCLK_N27EVDD1828HSOP29HSON30EGND#3131VDD15#32

DVDD15

58

VDD15#58

AVDD33#59

LED057LED156LED255LED3

VDD33

54

VDD33#5353VDD15#52

DVDD15

52

NC#5151NC#50

DVDD15

49

50

EESK

VDD15#49

EEDI/AUX

VDD33

EEDO EECS

VDD15

VDD15#41

NC#40

NC#39 VDD15#38 VDD33#37 ISOLATEB

NC#35

NC#34 VDD15#33

32

NC

RTL8111B-GR-RH

Power domain chart

EGND

AVDD33

AVDD18 EVDD18 DVDD15

RTL8111B / RTL8101E

3.3V

1.8V

1.5V

EGND

DVDD15

EVDD18

PCI_E_RST#

PCIE_WAKE_UP#

PCIE_WAKE_UP#14

PCI_E_RST#24

EVDD18

LANCLK0# LANCLK0

DVDD15

EGND

HSON

C390 0.1u/16V/4C390 0.1u/16V/4

HSOP

C391 0.1u/16V/4C391 0.1u/16V/4

LANCLK0# 12 LANCLK0 12

LINK_100_C

EESK

48

EEDI

47

VDD33

46

EEDO

45

EECS

44

DVDD15

43 42

DVDD15

41 40 39

DVDD15

38

VDD33

37

ISOLATEB

36 35 34

DVDD15

33

CP46X_COPPERCP46X_COPPER

TXLANN 9 TXLANP 9 SDATA1 14,18,24 SCLK1 14,18,24

R298 1K/4R298 1K/4 R299 15K/4R299 15K/4

RX_LANN0 9 RX_LANP0 9

VCC3

EECS EEDI

EEDO

XTAL1

XTAL2

U23

1

CS

VCC

2

SK

NC

3

DI

NC

4

DO

GND

ATL-128x8-0.5us-SOIC8

R366 X_10K/4R366 X_10K/4 R356 3.6KSTR356 3.6KST

C459

C459 27p

27p

Y2

25MHZY225MHZ

C455 27pC455 27p

LAN_LINK_UP

27p

C502

0.1u/25V/4

8 7

R355 10K/4R355 10K/4

6 5

C206

102P/50V/X7R/4

VDD33

for 8111B

VDD33

for 8111B

P-BCP69_SOT223

CTRL15/VDD33EESK

P-BCP69_SOT223

CTRL18

3VDUAL

L23 28L900m_100_0805L23 28L900m_100_0805

Q31

R574 X_0/8R574 X_0/8

VDD33

Q32

1

R573 X_0/8R573 X_0/8

X_105P/6

07/25

VDD33

1

2 3

4

C443

VL1_8

2 3

4

X_22u/1206

X_0.1u/25V/4

VDD33

L24 28L900m_100_0805L24 28L900m_100_0805

+

EC65

100UF/16V/6.3X5/2.5mm

CP48 X_COPPERCP48 X_COPPER

0.1u/25V/4

C372

VL1_8

CP45 X_COPPERCP45 X_COPPER

C444

100UF/16V/6.3X5/2.5mm

AVDD33

C460

X_0.1u/25V/4

EVDD18

C606

DVDD15

100UF/16V/6.3X5/2.5mm

EC70

+

EC67

AVDD18

+

B B

Q31

RTL8111B

RTL8101E

DVDD15

C427

C427 10U/1206

10U/1206 C463

A A

C463

0.1u/25V/4

0.1u/25V/4 C492

C492

0.1u/25V/4

0.1u/25V/4 C495

C495

0.1u/25V/4

0.1u/25V/4 C456

C456 103P/16V/4

103P/16V/4 C428

C428 103P/16V/4

103P/16V/4 C473

C473

0.1u/25V/4

AVDD18

Need Need

N/A N/A

C373

C373 X_10U/1206

X_10U/1206 C357

C357 _104P

_104P C364

C364 _104P

_104P C387

C387 _104P

_104P

5

VDD33

Q32

C496

C496 X_10U/1206

X_10U/1206 C467

C467

0.1u/25V/4

0.1u/25V/4 C429

C429

0.1u/25V/4

0.1u/25V/4 C472

C472

0.1u/25V/4

Power comsuption

1G

3.3V

MDI_0+ MDI_0-

MDI_1+ MDI_1-

MDI_2+ MDI_2-

MDI_3+ MDI_3-

4

3

C382

C382 X_C4.7U10Y0805

X_C4.7U10Y0805

C436

X_0.1u/25V/4

R143 0R0402R143 0R0402

VDD33

AVDD18

330

330 R123

R123

LAN_ACTLED

R144 X_0R0402R144 X_0R0402

LAN_LINK_UP MDI_0+

MDI_0MDI_1+ MDI_1MDI_2+ MDI_2MDI_3+ MDI_3-

LINK_1000

LINK_100_C

102P/50V/X7R/4

102P/50V/X7R/4 C211

C211

LAN_USB1B

LAN_USB1B RJ45(1000/100)+USB*2

RJ45(1000/100)+USB*2

19 20 13 18 12 17 11 16 10 15

9 14 21 22

N58-22F0181-S42

102P/50V/X7R/4

102P/50V/X7R/4 C219

C219

C203

102P/50V/X7R/4

AMBER+

AMBER+ AMBER-

AMBER-

POWER

TD1+

TD1+ TD1-

TD1TD2+

TD2+ TD2-

TD2TD3+

TD3+ TD3-

TD3TD4+

TD4+ TD4-

TD4-

GND

GREEN+

GREEN+ GREEN-

GREEN-

2

1.5V

N58-16F0031-F02

100M

103mA TBD

TBD

367mA 198mA TBD1.8V

Title

Document Number

Giga-Lan 10/100-Lan

N58-22F0081-S42 N58-22F0061-S42

Yellow

Link Active

Blinking Orange

100

Green

10

None

19

20

Yellow

21

22

Green

Micro Star Restricted Secret

Gigabit LAN

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

Orange

MS-7347

N58-22F0061-F02

Link Active 100 10

19

20

21

22

Last Revision Date:

Last Revision Date: Sheet

Sheet

1

Yellow Blinking Green1000 None

Yellow

Green

Tuesday, December 19, 2006

22 38

of

Rev

0A

ALC888 CODEC

SURRBACK_L SURRBACK_R

AUDIO CODE CD HEADERS

AZ_SDATA_OUT14 AZ_BIT_CLK14

ACZ_SDATA_IN014 AZ_SYNC14

AZ_RST#14

R470 0RR470 0R R462 0RR462 0R

C550

X_33P/50V/4

VCC3

C573 0.1u/25V/4C573 0.1u/25V/4

VCC3

C475 0.1u/25V/4C475 0.1u/25V/4

R542

R542 X_22K/4

X_22K/4

Trace Width 20mils.

X_0.1u/25V/4

2 1

SURR_BRC

R438 33/4R438 33/4

R427 22/4R427 22/4

C540

Speaker Out Decoupling

MIC2_VREFO

LINE2_VREFO

Place those component close to audio connector.

3

D28

1 2

SOT23

CD100U16EL11

+

JD0C

EC53 CD10U16EL5

EC53 CD10U16EL5 EC58 CD10U16EL5

EC58 CD10U16EL5

R543

R543 X_22K/4

X_22K/4

X_33P/50V/4

2 1

MIC2_R

MIC2_L

1 2

SOT23

BAT54A-S-SOT23

LINE2_R

LINE2_L

12

+

12

VCC3

C553

0.1u/25V/4

AUDIO_AZ_BIT_CLKR AUDIO_ACZ_SDATA_IN0R

C537

2 1

SENSE_A LINE2_L

LINE2_R MIC2_L

MIC2_R

C572 4.7u/16V/4C572 4.7u/16V/4

1 2

C574 4.7u/16V/4C574 4.7u/16V/4

1 2

D29

D29 BAT54A-S-SOT23

BAT54A-S-SOT23

EC60

1 2

+

EC59

1 2

+

R530

R530 22K/4

22K/4

1

DVDD1

2

XTL_IN

3

XTL_OUT

4

DVSS1

5

SDATA_OUT

6

BIT_CLK

7

DVSS2

8

SDATA_IN

9

DVDD2

10

SYNC

11

RESET#

12

PC_BEEP

C565

0.1u/25V/4

ALC888-LF-A2-RH

R555

22K/4

RN53

4.7K/4/8P4R

R531

R531 22K/4

22K/4

JD0

SURR_BR

47

46

41

45

48

SPDIFI

SPDIFO

SURR_BL

SURR_BR

SENSEA13LINE2L/AUXL14LINE2R/AUXR15MIC2L/JD216MIC2R/JD117CD-L18CD-GND19CD-R20MIC1L21MIC2R22LIN1L23LIN1R

39

42

43

44

40

AVSS2

LFE-OUT

CEN-OUT

JDREF/JD3

SURR-OUTL

SURR-OUT-R

MIC1_REFR/FMIC2

Closer to Codec.

R575 75/4/1R575 75/4/1

R581 75/4/1R581 75/4/1

R556

R556 22K/4

22K/4

78 56 34 12

R560 75/4/1R560 75/4/1

R561 75/4/1R561 75/4/1

C470P16X0402-RH

C715

EC68

EC68 CD10U16EL5

CD10U16EL5

LINE_OUT_R

LINE_OUT_L

C601

C716

R479 20K/4/1R479 20K/4/1

37

38

U25

FR-OUTR FR-OUTL

AVDD2

L1_REFR

SENSEB/FMIC1

VREFOUT2

L2_REF/JD4

MIC2_REF/AFILT2

L1_REFL/AFILT1

MIC1_REFL

VREF

AVSS1 AVDD1

24

LIN1R

LIN1L MIC1_IN_R MIC1_IN_L

+12V

+

FRONT_MIC

MIC_VREF

AZ_FRONT_JD

C470P16X0402-RH

+5VR

12

C579

0.1u/25V/4

0.1u/25V/4 EC51 CD10U16EL5

EC51 CD10U16EL5

FR_OUTR

36

FR_OUTL

EC52 CD10U16EL5

CB3

1 2

0.1u/25V/4

1 2 1 2 1 2 1 2

AUX_JD

+5VR

C566

X_10u/10V/8

MIC1_VREFO_L MIC1_VREFO_R

EC52 CD10U16EL5

R382 0RR382 0R

R452 X_10K/4/1R452 X_10K/4/1

MIC1_VREFO_R LINE2_VREFO

MIC2_VREFO

MIC1_VREFO_L

R379 5.1K/4/1R379 5.1K/4/1 R374 10K/4/1R374 10K/4/1 R372 20K/4/1R372 20K/4/1

35 34

33 32

31 30

29 28 27 26

25

C563 4.7u/16V/4C563 4.7u/16V/4 C564 4.7u/16V/4C564 4.7u/16V/4 C568 4.7u/16V/4C568 4.7u/16V/4 C569 4.7u/16V/4C569 4.7u/16V/4

SENSE_A

AUDIO CODE REGULATORS

Trace Width 30mils.

LT1087S_SOT89

LT1087S_SOT89 U26

U26

VIN3VOUT

ADJ

12

C582

C582 1u/16V/8

1u/16V/8

1

Azalia Front Audio Connector

1

MIC MICPWR3PRESENCE#

5 7

JAUD1

JAUD1 YJ205-IA

YJ205-IA C602 C470P16X0402-RH

C470P16X0402-RH

LINE NEXT R

FLINE OUTR HPON FLINE OUTL9LINE NEXT L

1 2

+

1 2

+

12

C558

0.1u/25V/4

R485

200R1%

AZ_FRONT_JD

R550

R550 22K/4

22K/4

2

GND

+5VR

R445 4.7K/4R445 4.7K/4 R468 4.7K/4R468 4.7K/4

R488

R488 680R1%

680R1%

2 4

MIC2_JD

6

8

LINE2_JD

10

LINE_FOUTR LINE_FOUTL

LINE_FOUTL

R548

R549

22K/4

R452 FOR ALC883

R551

R552

22K/4

R553

R553 22K/4

22K/4

LINE1_1R LINE1_1L

MIC1_R MIC1_L

FRONT_JD LINE1_JD MIC1_JD

D23 1N4148SD23 1N4148S

D22

1N5817S

39.2K/4/1

R498

12

+

EC69

EC69 CD10U16EL5

CD10U16EL5

R497

R497 20K/4/1

20K/4/1

+5VR

VCC5_SB

12

CB4

0.1u/25V/4

+5VR

R446

BH2X3(6)_green-2.6mm-RH

33/4

Rear audio jack

LINE1_1R

LINE1_1L

R567 75R0402R567 75R0402

R568 75R0402R568 75R0402

LINE_FOUTR

LINE_FOUTL

MIC1_R

MIC1_L

EMI Solution

VCC5

C708 X_0.1u/16V/4C708 X_0.1u/16V/4

R447 X_0RR447 X_0R

R429 75R0402R429 75R0402

R430 75R0402R430 75R0402

R440 75R0402R440 75R0402

R441 75R0402R441 75R0402

C100P50N0402

ALC883 JACK DETECT

JSPK_OUT

1

3

5

C100P50N0402

R444 X_0RR444 X_0R

SURRBACK_RSURRBACK_L

2

4

for NEC request

C336

C332

C100P50N0402

C711 X_0.1u/16V/4C711 X_0.1u/16V/4

CP37 X_COPPERCP37 X_COPPERC602

C712 X_0.1u/16V/4C712 X_0.1u/16V/4

C328

CLOSE TO

ALC888 JACK

CONNECTOR

LINE1_JD

FRONT_JD

MIC1_JD

C329

C331

C330

C100P50N0402

MICRO-STAR INt'L CO., LTD.

MSI

Title

Size Document Number Rev

Date: Sheet

MICRO-STAR INt'L CO., LTD.

Azalia & Interanl SPK

MS-7347

10 11 12 13 18

JACK-EARX3-13P-RH-5

1 2 4 5 3

JACK-EARX3-13P-RH-5

(Upper)

AUDIO1A

(Middle)

AUDIO1B

6 7 8 9

17

JACK-EARX3-13P-RH-5

(Down)

AUDIO1C

23 38Tuesday, December 19, 2006

of

14 15 16

0A

E

POWER CIRCUIT FOR USB PORT 0,1

C32

0.1u/25V/4

SVCC1

+

EC18

EC18 1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

+5VUSB_REAR

120 mils

4 4

USB_OCP#114

FS3

2.6A_miniSMDM260

R121

5.1K/6

C193

X_0.1u/25V/4

R124

10K/4

For EMI

C178

C87

0.1u/25V/4

0.1u/25V/4 X_0.1u/25V/4

X_0.1u/25V/4

NEAR USB CONNECTOR

D

C

B

A

POWER CIRCUIT FOR USB PORT 4,5,6,7

+5VUSB_FRONT1

60 mils

USB_OCP#214

FS5

2.6A_miniSMDM260

R491

5.1K/6

FRONT USB CONNECTOR

R359

10K/4

C595

X_0.1u/25V/4

SVCC2

+

EC46

EC46 1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

REAR PANEL USB CONNECTOR FOR USB PORT 0,1

SVCC1

ESD Protection

L58

USBP3

USBP314 USBP214

USBP3 USBN3 USBP2 USBN2

USBN3 USBP2 USBN2

RN27

1 2 3 4 5 6 7 8

0/6/8P4R

3 3

ESD Protection

SVCC1

SBD1+ SBD1-

6 1

52

4 3

D15

D15 X_ESD-IP4220

X_ESD-IP4220

SBD0+

SBD0-

USBN314 USBN214

NEAR USB CONNECTOR

L58

5 6 7 8

X_Common Chock

SBD3+ SBD3SBD2+ SBD2-

1 2 3 4

SBD2SBD2+

SBD3SBD3+

LAN_USB1A

5 6 7 8

UP

1 2 3 4

DOWN

RJ45(10/100)+USB*2

23 24 25 26 27 28 29 30

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

REAR PANEL USB CONNECTOR FOR USB PORT 2,3

SBD0SBD0+ SBD1-

SBD1+

SVCC1

5 6 7 8

1 2 3 4

USB1

5 6 7

UP

8 1

2 3

DOWN

4

9

10

11

12

_CONN-USBX2_black-LF

FOR EMI

C706 X_0.1u/25V/4C706 X_0.1u/25V/4

6 1

SVCC1

52

4 3

D13

D13 X_ESD-IP4220

X_ESD-IP4220

SBD2+

SBD2-

L59

USBP1

USBP114

USBN1

USBN114

USBP0

USBP014

USBN0

USBN014

USBP1 USBN1 USBP0 USBN0

L59

5 6 7 8

X_Common Chock

X_Common Chock RN28

RN28

1 2 3 4 5 6 7 8

0/6/8P4R

1 2 3 4

SBD1+ SBD1SBD0+ SBD0-

2 2

ESD Protection

SBD3+ SBD3-

SBD5+ SBD5-

ESD Protection

SBD7+ SBD7-

6 1

USBGND

SVCC2

52

CP61CP61

CP62CP62

52

4 3

D24

D24 X_ESD-IP4220

X_ESD-IP4220

4 3

D26

D26 X_ESD-IP4220

X_ESD-IP4220

12

CP5CP5

12

SBD4+

SBD4-

SBD6+

SBD6-

Reserved, can be taken off riser card within bead

L60

USBP414 USBN414

USBP514 USBN514

USBP4 USBN4 USBP5 USBN5

L60

5 6 7 8

X_Common Chock

RN50

1 2 3 4 5 6 7 8

0/6/8P4R

SBD4+

1

SBD4-

2

SBD5+

3

SBD5-

4

SBD4- SBD5-

SBD4+

SBD4-

SBD5+

SBD5-

SBD4+ SBD5+

JUSB1

1 2 3 4 5 6 7 8

CON2X5-1_W

10

FRONT PANEL USB CONNECTOR FOR USB PORT 6,7

L61

USBP6

USBP614 USBN614 USBP714 USBN714

USBN6 USBP7

USBP6 USBN6 USBP7

5 6 7 8

1 2 3 4 5 6 7 8

1 2 3 4

X_Common Chock

RN49

0/6/8P4R

SBD6+ SBD6SBD7+ SBD7-USBN7

JUSB2

SBD6- SBD7SBD6+

1 2 3 4 5 6 7 8

CON2X5-1_W

10

SVCC2SVCC2

SVCC2

SBD7+

FRONT PANEL USB CONNECTOR FOR USB PORT 4,5

1 1

EMI TEST

<OrgAddr1> Title

Title

Size Document Number Rev

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

E

D

C

B

Size Document Number Rev

Date: Sheet

MSI

MICRO-STAR INt'L CO., LTD.

USB CONNECTORS

MS-7347

A

of

25 38Tuesday, December 19, 2006

0A

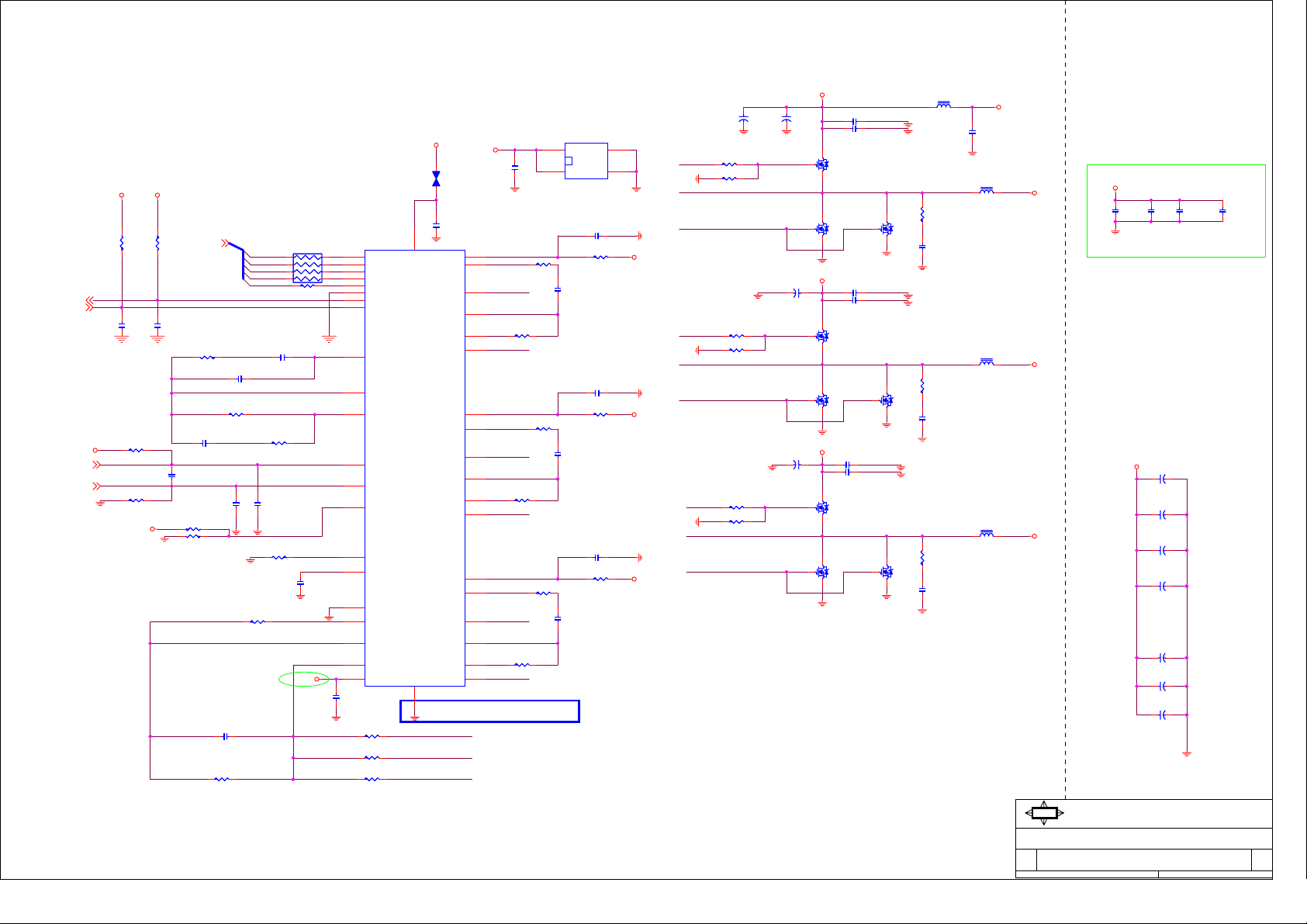

Voltage Regular Module

VCC5 VCC5

R11

4.7K/4

VRM_GD24

PWM_EN24

C9

0.1u/25V/4

R8 51R8 51

VCCP

COREFB+3

COREFB-3

CHECK THIS! CONNECT TO BULK CAPACITOR

R9 51R9 51

Close low side mosfet

VCC5

R12

VID[0..4]3

1KR1%

C8

0.1u/25V/4

R6 5.1KR6 5.1K

C11

C11 X_C1000P50X

X_C1000P50X

103P/16V/4

R10 75K1%R10 75K1% R17 X_63.4K/4R17 X_63.4K/4

縒ミ┰ 筿稰狠

R28 10K/1%R28 10K/1%

IPF06N03LA C100U2SP .CD3300U6.3EL25 ESR<12m ,Ripplecur.<2800mA,105C,longlife3000hrs,KZGSeries 560u_2.5V 1800UF/6.3V ESR<12m , Ripplecur<2350mA,105C, longlife change from 2000hrs to 3000hrs ,KZJ

Rds(on)=8.7m (@4.5V,30A),Vgs(on)=1.2~2V,Id=50A,Ciss=3110pf,Qg=10nC,Vds=25V,Vgs= 20V ESR<13m ,Ripple

cur.<2.7A,LC<12uA,105C ESR=6m ,Ripplecur.=4400mA,Lc.<500uA,105C/2000hrs

series

0.6u/20%, Isat=40A,Rdc=1.2m ohm,PEW wire0.6uH/40A

CH-1.2U18A 1.2u/20%,Dip-2/vertical7.5mm,1.2 /5.5turns,18A

change one RN

1K/6/8P4R

1K/6/8P4R RN32

RN32

VID4

1 2

VID3

3 4

VID2

5 6

VID1

7 8

VID0

R66 1KR5%R66 1KR5%

COP

R16 1K/4R16 1K/4 R47 2.2/8R47 2.2/8

X_680p/50V/6C6 X_680p/50V/6C6

C18

R29 1K1%R29 1K1%

trace to

C29 47000p/16V/6C29 47000p/16V/6

200p/50V/6C12 200p/50V/6C12

R7 X_750/6/1R7 X_750/6/1

C17

C17 103P/16V/4

103P/16V/4

R19 120KR1%R19 120KR1%

4700P/6C7 4700P/6C7

VCCP

COMP

FB

VDIFF

OFS

FS REF

C15

C15 C10000P50Y5

C10000P50Y5

ISL6566CRZ_QFN40

38 39 40

35 37

10

12

11

36

13

14

15 16

C30

0.01u/50V/6/X7R

R44 49.9K1%R44 49.9K1%

R46 49.9K1%R46 49.9K1%

R45 49.9K1%R45 49.9K1%

　 ∮

U3

VID4 VID3 VID2

1

VID1

2

VID0

3

DACSEL/VID5 PGOOD ENLL

8

COMP

9

FB

VDIFF

VSEN

RGND

6

OFST

FS

5

REF

4

VRM10 OCSET

ICOMP

ISUM IREF

VCC5

+12VA

C174

CP49CP49

X_C10000P50Y5

1 2

C16

4.7u/10V/8

7

PVCC1 BOOT1

VCC

UGATE1

PHASE1

ISEN1

LGATE1

PVCC2 BOOT2

UGATE2

PHASE2

ISEN2

LGATE2

PVCC3 BOOT3

UGATE3

PHASE3

ISEN3

LGATE3

GND

41

BOTTOM PAD CONNECT TO GND THROUGH 10 vias

PHASE1

PHASE2

PHASE3

33 30

31

29

32 34

24 26

27

28

25 23

18 21

20

22

19 17

12VP1 BOOT1

U_G1

PHASE1

R34 2.8K/4/1R34 2.8K/4/1

L_G1

12VP2 BOOT2

U_G2

PHASE2

R39 2.8K/4/1R39 2.8K/4/1

L_G2

12VP3 BOOT3

U_G3

PHASE3

R38 2.8K/4/1R38 2.8K/4/1

L_G3

3

4

R35 2.2/8R35 2.2/8

R37 2.2/8R37 2.2/8

R40 2.2/8R40 2.2/8

JPW1

GND

12V

GND

12V

PWR-2X2M

C36 1u/16V/8C36 1u/16V/8

R36 2.2/8R36 2.2/8

C41

0.1u/25V/X7R/6

C37 1u/16V/8C37 1u/16V/8

C42

0.1u/25V/X7R/6

C35 1u/16V/8C35 1u/16V/8

R30 2.2/8R30 2.2/8

C43

0.1u/25V/X7R/6

1

2

+12VA

U_G1

PHASE1

L_G1

U_G2

PHASE2

U_G3

PHASE3

L_G3

R68 1/8R68 1/8

R71 10K/6R71 10K/6

R93 10K/6R93 10K/6

L_G2

R98 1/8R98 1/8

R99 10K/6R99 10K/6

R92 1/8R92 1/8

+

EC8

EC8 1000U/16V

1000U/16V

UG1

+

EC6

1000U/16V

UG2

EC4

1000U/16V

UG3

+12VP_FET

EC13

EC13 1000U/16V

1000U/16V

G

+12VP_FET

+

G

+12VP_FET

+

G

TDP = 115 W VR_TDC = 101 A Icc(max) = 119 A Tejas Tcase = [P x 0.213] + 43.3 Prescott Tcase = [P x 0.25] +

43.3

C38 X_C4.7U35Y1206C38 X_C4.7U35Y1206

C39 1u/16V/8C39 1u/16V/8

DS

Q6

09N03Q609N03

DS

Q5

G

06N03Q506N03

C78 X_C4.7U35Y1206C78 X_C4.7U35Y1206

C91 1u/16V/8C91 1u/16V/8

DS

Q12

09N03

DS

Q9

G

06N03Q906N03

C127 C4.7U35Y1206C127 C4.7U35Y1206

C136 1u/16V/8C136 1u/16V/8

DS

Q17

09N03

DS

Q14

G

06N03

DS

Q3 06N03Q306N03

DS

Q11

Q11 06N03

06N03

DS

Q15

Q15 06N03

06N03

X_C4.7U35Y1206

R23

C14

C1000P50X

R69

2.2/8

C61

C61 C1000P50X

C1000P50X

R91

2.2/8

C86

C86 C1000P50X

C1000P50X

COIL4CH-1.2U18A COIL4CH-1.2U18A

C172

COIL1

0.25uH/40A

0.8375~1.6V / 119A

2.2/8

COIL2

0.25uH/40A

COIL3

0.25uH/40A

+12VA

VCCP

MOSFET Heatsinks

+12VP_FET

C626

0.1u/25V/X7R/6

EL Capacitors

VCCP

For EMI

C637

0.1u/25V/X7R/6

EC5

+

820UF/6.3V

EC3

+

820UF/6.3V

EC16

+

820UF/6.3V

EC12

+

820UF/6.3V

EC7

+

820UF/6.3V

EC9

+

820UF/6.3V

EC2

+

820UF/6.3V

C625

0.1u/25V/X7R/6

C675

X_0.1u/25V/X7R/6

MSI

MICRO-STAR INt'L CO., LTD.

Title

Size Document Number Rev

Date: Sheet

MICRO-STAR INt'L CO., LTD.

Intersil 6565ACV 3 Phase

MS-7347

26 38Tuesday, December 19, 2006

of

0A

5

4

3

2

1

PWM MODE

R253

X_330R

37

GND

CHRPMP

AGND1

5VUSB_DRV

5V_DRV VAGP_DRV VAGP_SEN

WD_DET

24

MS-6G-RBF-RH

VCC5_SB

G

3VDUAL

RSMRST# SLP_S5# SLP_S3# ATX_PWROK

R267

X_330R

U14

36

C1

35

C2

34 33 32 31 30 29 28 27 26 25

4.7K/4/8P4R

VCC5_SB

1234

D

S

VCC5

THESE OUTPUT AND INPUT PIN MUST BE PULL HIGH

R192

R192 1K/4

1K/4

CPU PWR_GD OUTPUT

NB_PWRGD 10,25 SCLK1 14,18,20 SDATA1 14,18,20

SLP_S5# 14 SLP_S3# 14,19,27 ATX_PWROK 27

C317

C317 X_C1000P50X

X_C1000P50X

VCC5_SB

C292

0.1u/25V/4

9VSB

CHARGE PUMP VOLTAGE

C285 0.1u/25V/X7R/6C285 0.1u/25V/X7R/6

5VSB_DRV 5V_DRV

WD_DET

R179

R179 1K/4

1K/4

VCC3

RN35

WD_DET

78 56

ATX_PSON#

34

DDRTYPE VCCA_1V2_DRV

12

OUTPUT

C282

1u/10V/6

CPU_THRIP# 3

C294

C294 X_102P/50V/X7R/4

X_102P/50V/X7R/4

3VSB REGULATE BY 5VSB AND VCC3

3VDUAL

5V_DRV

C299

Q8

Q8 N-APM2054N_SOT89

N-APM2054N_SOT89

5VDIMM

Q10

Q10 N-P45N02LD_TO252

N-P45N02LD_TO252

C299 X_1000u/6.3V/8*11.5

X_1000u/6.3V/8*11.5

X_C1000P50X

EC33

12

+

1000u/6.3V/8*11.5

+

1000u/6.3V/8*11.5

+

EC37

CHIP PWR_GD OUTPUT I2C BUS I2C BUS CONNECT TO SOUTH BRIDGE RSMRST# SIGNAL SOUTH BRIDGE POWER CONTROL(SLP_S4# OR SUSB#) SIGNAL SOUTH BRIDGE POWER CONTROL(SLP_S3# OR SUSC#) SIGNAL ATX POWER OK INPUT

C288

C288 X_C1000P50X

X_C1000P50X

C326

X_C1000P50X

VCC3

Q35

1 2 3 4 5

NN-P07D03LV_SO8

NEED CLOSE TO MS6

NN-P07D03LV_SO8

4 5 3 2 1

VCC5

Q22

NN-P07D03LV_SO8

18A

4 5 3 2 1

VCC5

Q44

C286 X__C2200P50X/20%C286 X__C2200P50X/20% C287 X__C2200P50X/20%C287 X__C2200P50X/20%

VCC18_G1

C325

VCC18_FB1

R266

R266 X_2.4K/4/1

X_2.4K/4/1

8 7 6

X_C1000P50X

+

R178 200R 1%R178 200R 1%

1K/41K/4

N-P45N02LD_TO252

R265 0R1%R265 0R1%

X_.CD1800U6.3EL20

VCC5_SB

EC32

EC32 1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

R186

3VDUAL

D D

C C

THE TWO BLOCK CHOICE ONE SUPPORT SYSTEM POWER CONTROL

B B

VDIMM LINEAR OR PWM SELECT

A A

R186

10K/4

3VSB MODE SELECT

3VSB MODE DUAL MOSFET

SINGLE MOSFET

VDIMM MODE

LINEAR REGULATOR

PWM REGULATOR

HD_RST#

C361

C361 X_C22P50N

X_C22P50N

3VDLDEC# PULL LOW PULL HIGH

RSMRST#

C300

C300 X_1u/10V/6

X_1u/10V/6

EXTRAM PULL LOW PULL HIGH

RSMRST# 14

PWR_LED27

N-MMBT3904_NL_SOT23

SUS_LED27

Q33

3VDUAL

R235 22R/4R235 22R/4

R505 22R/4R505 22R/4

VCC3

_CD100U16EL11

ATX_PSON#

C342

C342 X_0.1u/25V/4

X_0.1u/25V/4

C313

C313 C1000P16X

C1000P16X

Q33

R241

4.7K/4

1.25VREF

EC26

R194 33/4R194 33/4

N-MMBT3904_NL_SOT23

FP_RST#12,14,27

A_RST#13

HD_RST#26

PCI_RST1#10,19

VRM_GD23

PWM_EN23

1.25VREF

PCI_E_RST#20

VDDA_25

CLOSE TO CPU SECKET CONNECT TO CPU

PS_ON#19

ATX_PSON#27

RAM_VREF

RAM_VREF25

VCC5_SB

R251

R251 330R

330R

R232

VCC5_SB

R240

4.7K/4

R242

R242 330R

330R

C352 0.1u/25V/4C352 0.1u/25V/4

C356 X_0.1u/25V/4C356 X_0.1u/25V/4

VCC5_SB

S

D

R211

R211 1K/4

1K/4

R232

4.7K/4

R238

R238 1K/4

1K/4

1

FP_RST#

2

PCIRST#

3

HDD_RST#

4

DEV_RST#

5

VDD_GD

6

VDD_EN

7

1.25VREF

8

VCC5

9

SLOT_RST#

10

VCC3

11

2.5VDDA

12

AGND0

C343 224P/16v/6C343 224P/16v/6

C339

0.1u/25V/4

VDIMM

2.5V

1.8V

RAM_REFR

Q27

Q27 N-2N7002_SOT23

N-2N7002_SOT23

G

Q28

VCC5_SB

R250

R250 330R

330R

VCC3

VCC5

R243

R243 330R

330R

VCC5

C349 C4.7U10Y0805C349 C4.7U10Y0805

12

+

DDR AND DDR II VOLT SELECT

DDRTYPE PULL LOW PULL HIGH

3VDUAL

R224

R224 1KR

1KR

R193

R193 X_1K/4

X_1K/4

45

46

48

47

CPU_PWGD

CHIP_PWGD

PLED1/EXTRAM

PLED0/3VDLDEC#

PSIN#13PSOUT#14MEMBT15SS165VSB17DDRTYPE18VDIMM_LSEN19VDIMM_LDRV20VDIMM_HSEN21VDIMM_HDRV223VSB_SEN233VSB_DRV

DDRTYPE

C307

X_C1000P16X

44

43

I2C_CLK

41

S3#40S5#

RSMRST#42I2C_DATA

38

39

5VSB

PWR_OK

1.2VLDT_DRV

1.2VLDT_SEN TMP_FAULT#

C304

X_0.01u/50V/6/X7R

5V_DRV

FOR SB600 VCC_SB= 1.2V R258 100 OHM

1.25VREF

R260

2.4K/4/1

VCC5_SB

G

6 7 8

VCC3

D

S

VCC5_SB

+5VUSB_FRONT1

Q37

Q37 N-P45N02LD_TO252

N-P45N02LD_TO252

+5VUSB_REAR

+

EC27

EC27 X_1000u/6.3V/8*11.5

X_1000u/6.3V/8*11.5

1.5A

VCC_DDR

Q41

D

VCCA_1V2

G

S

+

EC34

CB1

0.1u/25V/4

VCC3

+

EC29

EC29 X_1000u/6.3V/8*11.5

X_1000u/6.3V/8*11.5

+

EC31

.CD1800U6.3EL20

VCC5

R258

R258 100R1%

100R1%

X_C1000P50X

C385

C385 X_0.1u/25V/4

X_0.1u/25V/4

+

EC28

EC28 1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

1.25VREF

+

EC30

EC30 X_1000u/6.3V/8*11.5

X_1000u/6.3V/8*11.5

+1.8V_S0

R263

R263 0R/4/1

0R/4/1

C380

9VSB

3VDUAL

G

C386

C386 X_0.1u/25V/4

X_0.1u/25V/4

DS

Q36

USB_PHY

+

EC39

EC39 _CD100U16EL11

_CD100U16EL11

_N-NDS351AN_SOT23

3

+

2

-

84

U15A

U15A LM358MX_SOIC8

LM358MX_SOIC8

1

C523

0.1u/25V/4

SB600=1.2V

VCC_SB

VCC3 VCC_SATA

C713

C0.1uF/25V/4

LT1087S_SOT89

LT1087S_SOT89 U27

U27

VIN3VOUT

9VSB

84

5

+

6

-

R268

R268 X_2.4K/4/1

X_2.4K/4/1

ADJ

1

7

U15B

U15B LM358MX_SOIC8

LM358MX_SOIC8

2

VCC_SB_G1

R261 0RR261 0R

R565

R565 100R/4/1

100R/4/1

R566

R566 0R0402

0R0402

G

R564

R564 X_0R/8

X_0R/8

+1.8V_S0

C714

C0.1uF/25V/4

D

Q40

Q40 N-P45N02LD_TO252

N-P45N02LD_TO252

S

FOR SB600 VCC_SB= 1.2V

12

EC66

+

CD10U16EL5

C458

0.1u/25V/4

+

EC36

EC36 1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

0.6A

VCC_SB

WATCHING DOG TIMER SELECT

WD_DET

PULL HIGH

TIMER

OFFPULL LOW ON

5

THE VDIMM_HSEN IN LINEAR MODE

DDRTYPE

DDR DDR II

VDIMM_HSEN VREF

2.0V

1.7V

THE TWO MODE ONLY ONE MODE PRESENT

SINGLE MODE DUAL MODE

THIS MODE SELECT BY PIN 47 PULL HIGH 5VSB

4

THIS MODE SELECT BY PIN 47 PULL LOW

Micro Star Restricted Secret

Title

MS-6 ACPI Controller

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

3

2

http://www.msi.com.tw

MS-7347

1

Last Revision Date:

Tuesday, December 19, 2006

Sheet

of

27 38

Rev

0A

5

4

3

2

1

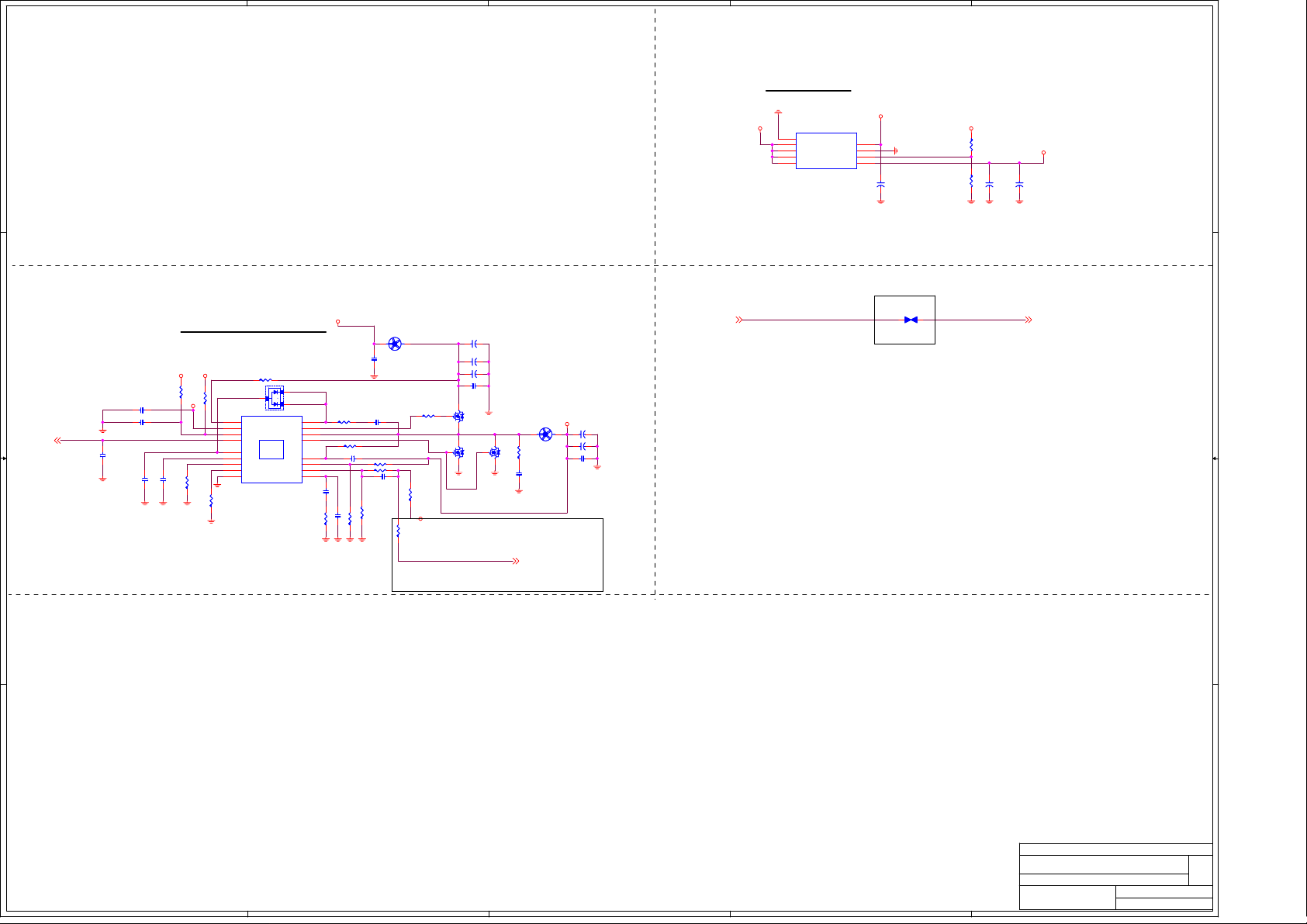

DDR VTT Power

D D

Iripple=20*0.6*0.8/1=9.6A

2.22*3*1.7=11.322A>9.6A

DDR II 1.8V POWER

5VDIMM

C C

VCC5_SB

5VDIMM

R78

2.2/8

C83

+12V

RAM_VREF

224P/16v/6

R82

X_68KR0402

C71 1u/16V/8C71 1u/16V/8 C69 1u/16V/8C69 1u/16V/8

RAM_VREF24

C81

C81 103P/25V/4

103P/25V/4

1u/16V/8

C82

R83

R83 X_2.2KR0805

X_2.2KR0805

16

11 10

17

R81

R81 X_0R0402

X_0R0402

4

RR VCC12

1

5VSB

9

PI PVCC

SS

2

RT

3

I_IND GND

MS-11

R79 200KR0402R79 200KR0402

BAT54A-S-SOT23D33

3

U5

SOT23

BOOT

PHASE

GND

COMP

102P/50V/X7R/4

1 2

UG

CSP CSN

LG

FB

22K/4

15 14 13 12

6 5 8 7

C76

R87

0R0805

R85 2KR1%0402R85 2KR1%0402

C72 1u/16V/8C72 1u/16V/8

C79

R86

1u/16V/8

R80 2KR1%0402R80 2KR1%0402 R88 1KR1%0402R88 1KR1%0402

C80

C80 X_103P/25V/4

X_103P/25V/4

CLOSE TO DEVICE FB

R89

R89 1KR1%0402

1KR1%0402

C74 C33P50N0402C74 C33P50N0402

R84 X_56KR1%0402R84 X_56KR1%0402

CHOKE1

CH-1.2U18A

C68

C68 103P/16V/4

103P/16V/4

5VDIMM_IN

G

R102

0R0805

G

R713

R713 X_51R1%0402

X_51R1%0402

CONNECT TO CHOKE OUTPUT

VCC_DDR

R94

R94 0R0402

0R0402

EC15

CD1000U16EL20-2

+

1 2

+

1 2

+

1 2

DS

Q20

Q20 N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

DS

Q19

G

N-IPD06N03LA_TO252

EC10

EC10 CD1000U16EL20-2

CD1000U16EL20-2 EC14

EC14 CD1000U16EL20-2

CD1000U16EL20-2 C89

C89 10u/10V/8

10u/10V/8

DS

Q25

R107

2.2/8

2.2/8 C171

C171 103P/16V/4

103P/16V/4

N-IPD06N03LA_TO252

Irms(MAX) of VCC_DDR=20A

VCC_DDR

CHOKE2

+

1 2

+

CH-1.1U25A

1 2

EC19

EC19 .CD1800U6.3EL20

.CD1800U6.3EL20 EC17

EC17 .CD1800U6.3EL20

.CD1800U6.3EL20 C241

C241 1u/10V/6

1u/10V/6

NB_PWRGD10,24

3VDUAL

U8

9

NC

8

VREF2

7

ENABLE

6

VCNTL

5

BOOT_SEL

W83310DG_SOP8-RH

1.25V/2.9A

VREF1

VOUT

VIN

GND

To CPU Copper trace width > 250mils , Fill island behind DIMM > 400mils .

1 2 3 4

VCC_DDR

12

+

EC11

EC11 X_1000u/6.3V/6.3*11

X_1000u/6.3V/6.3*11

1 2

CP33CP33

R146

R146 1K/4

1K/4

VCC_DDR

R142

R142 1K/4

1K/4

+

EC24

CD1000U6.3VL11-2

VTT_DDR

+

EC20

1000u/6.3V/8*11.5

SB_PWRGD 14

B B

A A

5

4

for AMD request

CPU_VDDIOFB_H 14

Micro Star Restricted Secret

Title

MS-11&MISDC-DC

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

3

2

http://www.msi.com.tw

MS-7347

1

Last Revision Date:

Tuesday, December 19, 2006

Sheet

of

28 38

Rev

0A

5

IDE 1

IDE1

IDE1 YJ220-CB-1

D D

VCC3

C C

HD_RST#24

PDD[15..0]15 PDD[15..0] 15

PD_DREQ15

PD_IOW#15

PD_IORDY15 PD_DACK#15

PD_CS#115 PD_CS#3 15

R130

R130 X_8.2K/4

X_8.2K/4

PD_SIRQ

FAN CONTROL

B B

CPU-FANPWM19

SYS-FANPWM19

A A

+12V

X_0.1u/25V/4

HD_RST# HDRST#P PDD7 PDD6 PDD5 PDD4 PDD3 PDD2

PD_IOR#15

PD_SIRQ15 PDA_R115 PDA_R015

PD_LED27

R150

X_5.6K/4

C3

5

R248 33/4R248 33/4

R126

4.7K/4

VCC5

C2

C2 X_0.1u/25V/4

X_0.1u/25V/4

C1

C1 X_0.1u/50V/6

X_0.1u/50V/6

R129

R129 X_10K/4

X_10K/4

CPU FAN

U1

1

FAN1_IN

2

FAN2_IN

3

VCC12

4

C1

5

C2

6

CHRPMP

7

GND

YJ220-CB-1

1 3 4 5 6 7 8 91110

13 14 17 18

19 21 23 25 27 29 31 33 35 37

FAN1_DRV FAN1_SEN FAN2_DRV FAN2_SEN FAN3_DRV FAN3_SEN

FAN3_IN

X_W83391TS

2

PDD8 PDD9 PDD10 PDD11 PDD12

12

PDD13 PDD14PDD1

1615

PDD15PDD0

22 24 26 28 30 32 34 36 38 4039

C225

C225 X_4700p/50V/6

X_4700p/50V/6

14 13 12 11 10 9 8

R128

R128 100K/4

100K/4

1

C24

X_0.1u/25V/4

4

PD_DET 14 PDA_R2 15

23

4

Q1

Q1 X_N-APM2054N_SOT89

X_N-APM2054N_SOT89

R53 0R0805R53 0R0805

R26

R26 X_10K/4

X_10K/4

R25

R25 X_3.48KR1%

X_3.48KR1%

C25

X_0.1u/25V/4

4

1

+12V

23

4

R41

R41 X_10K/4

X_10K/4

R48

R48 X_3.48KR1%

X_3.48KR1%

D3 X_1N4148_SOD123D3 X_1N4148_SOD123

R3 4.7K/4R3 4.7K/4

Q24

Q24 X_N-APM2054N_SOT89

X_N-APM2054N_SOT89

R1 27KRR1 27KR

12

+

+12V

SATA1

GND

HT+

HT-

GND

HRHR+ GND

SATA_H

SATA2

GND

HT+

HTGND

HRHR+ GND

SATA_H

EC1

10u/25V

+12V

R33 X_0R0805R33 X_0R0805

3

SATA CONNECTOR

1 2 3 4 5 6 7

R2 10K/4R210K/4

4 3 2 1

FAN1*4/WHITE

SATA_TX0+_C

SATA_TX0-_C SATA_RX0-_C

SATA_RX0+_C

SATA_TX1+_C SATA_TX1-_C

SATA_RX1-_C SATA_RX1+_C

If using 3 pin fan, The Q49 will turn off to avoid the VCC5(R458) bias to CPU-FANPWM.

CPU-FAN 19

R523 200R 1%R523 200R 1%

CPUFAN1

If using 3 pin fan, The Q50 will turn off to avoid the VCC5(R417) bias to CPU-FANPWM.

R522

4.7K/4

SATA_TX0+_C 15 SATA_TX0-_C 15

SATA_RX0-_C 15 SATA_RX0+_C 15

SATA_TX1+_C 15 SATA_TX1-_C 15

SATA_RX1-_C 15 SATA_RX1+_C 15

VCC5

D32

D32 1N4148_SOD123

1N4148_SOD123

SYS FAN

D34 X_1N4148_SOD123D34 X_1N4148_SOD123 R13 X_4.7K/4R13 X_4.7K/4

VCC5

3

R5 X_27KRR5 X_27KR

D35 X_1N4148_SOD123D35 X_1N4148_SOD123 R51 X_4.7K/4R51 X_4.7K/4 R539 X_200R 1%R539 X_200R 1%

4 3 2 1

X_FAN1*4/WHITE

+

12

X_10u/25V

EC38

SYS-FANPWM 19

SYSFAN1_

2

CPU-FANPWM 19

R4

X_10K/4R4X_10K/4

2

SYS-FAN 19

PRD[0..7]19

PRD4 PRD5 PRD6 PRD7

RSTB#

RSTB#19

PRD0 RAFD#

RAFD#19

PRD1

PRD2 PRD3 RINIT#

RINIT#19

RSLIN#

RSLIN#19

SLIN#

RACK#

C479 330PC479 330P

RBUSY

C483 330PC483 330P

RPE

C484 330PC484 330P

RSLCT

C486 330PC486 330P

PRND7

C464 330PC464 330P

PRND6

C469 330PC469 330P

PRND5

C477 330PC477 330P

PRND4

C478 330PC478 330P

PRND1

C371 330PC371 330P

AFD#

C389 330PC389 330P

PRND0

C431 330PC431 330P

STB#

C432 330PC432 330P

SLIN#

C209 330PC209 330P

PINIT#

C214 330PC214 330P

PRND3

C217 330PC217 330P

PRND2

C218 330PC218 330P

RERR#

CP60CP60

DVIGND PGND

12

C375

X_0.1u/25V/4

PRD[0..7]

For EMI

RN9RN9

1 2 3 4 5 6 7 8

RN12RN12

1 2 3 4 5 6 7 8

RN10

1 2 3 4 5 6 7 8

47/6/8P4R

R90 60L500m100-1R90 60L500m100-1

RSLCT19

RERR#19 RACK#19

RBUSY19

RPE19

C103

C103 330P

330P

+12V

FAN2

X_FAN1X3_white

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

1

D4 1N4148SD4 1N4148S

VCC5

RN11RN11

PRND7 PRND4 PRND5 PRND6 PRND7

STB# PRND0 AFD# PRND1

PRND2 PRND3 PINIT# SLIN#

PSLIN#

RSLCT RERR# RACK# RBUSY RPE

PRND6

PRND5

PRND4

RSLCT

RPE

RBUSY

RACK#

SLIN#

PINIT#

PRND3

PRND2

PRND1

AFD#

PRND0

STB#

RERR#

1 2 3 4 5 6

RN33RN33

7 8 1 2 3 4 5 6 7 8

RN34RN34

1 2 3 4 5 6

RN36RN36

7 8 1 2 3 4 5 6 7 8

R95 2.7K/4R95 2.7K/4

VCC5

PARALLAL PORT

26

LPT1

CP59CP59

CP14CP14

LPT1

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 252728

VGAGND

12

STB# PRND0 PRND1 PRND2 PRND3 PRND4 PRND5 PRND6 PRND7 RACK# RBUSY RPE RSLCT

FAN1

3 2 1

Micro Star Restricted Secret

IDE Conn/FAN/LPT/SATA

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

1

D4

For EMI

C707 X_0.1u/25V/4C707 X_0.1u/25V/4

C695 X_0.1u/25V/4C695 X_0.1u/25V/4

AFD# RERR# PINIT# PSLIN#

CONN-D-SUB25F-RH-2

of

29 38

Rev

0A

5

4

3

2

1

ATX connector / Front Panel

Intel Front Panel

D D

C589

R494 33/4R494 33/4

C594

0.1u/25V/4

C589

X_0.1u/25V/4

HDD+

RESET+

ALARM19 SPKR14

VCC5

R492 330/6R492 330/6

FP_RST#12,14,24

C C

ESD Protect

C593

X_181P

EMI

For MSI / Intel Front Panel

JFP1

1

HDD-

3

RESET-

7 9

R501 2.2K/4R501 2.2K/4

JFP1

HDD+ HDDRESET-5PWSW+ RESET+ NC

JFP1

Q43

N-MMBT3904_NL_SOT23

PLED SLED

PWSW-

2 4 6 8

PWR_LED

SUS_LED

PWSW+ PWSW-

R495

220/8

D21

D21 BAT54A-S-SOT23

BAT54A-S-SOT23

2

3

PWR_LED 24 SUS_LED 24

C596

0.1u/25V/4

VCC5

1

VCC3

C591

X_0.1u/25V/4

D27

X_1N4148S

SATA_ACT# 15

PD_LED 26

R285 330/4R285 330/4

3VDUAL

R526

4.7K/4

EMI

SATA_ACT#

R56 100/4/1R56 100/4/1

VCC5

PWR_LED SUS_LED

C613

X_0.1u/25V/4

Near Super I/O

BUZZER

1 2

BZ1

BUZZER

C597

X_0.1u/25V/4

EMI

PSIN# 19

MSDATA19

MSCLK19

KBDATA19

KBCLK19

KBGND

MSDATA MSCLK

KBDATA KBCLK

CP56CP56

CP57CP57

NDCDB# NSOUTB

NRTSB NRIB#

12

VCC5

SVCC1

RN4

2.2K/4/8P4R

1 2

3 4

5 6

7 8

PS2 KEYBOARD & MOUSE CONNECTOR

FB1 300-600mAFB1 300-600mA FB2 300-600mAFB2 300-600mA

FB3 300-600mAFB3 300-600mA FB4 300-600mAFB4 300-600mA

SERIAL PORT 2

U2

20

VCC

NRIB# RIB#

2

RIN1

NCTSB#

3

RIN2

NDSRB# DSRB#

4

RIN3

NSINB

7

RIN4

NDCDB#

9

RIN5

RTSB# DTRB# SOUTB

JCOM2

1 2 3 4 5 6 7 8 9

H2X5(10)_white

16

DIN1

15

DIN2

13

DIN3

11

GND

75232S-SSOP20

NSINB NDTRB NDSRB# NCTSB#

RTSB#19 DTRB#19

SOUTB19

X_0.1u/25V/4

V+ ROUT1 ROUT2 ROUT3 ROUT4 ROUT5

DOUT1 DOUT2 DOUT3

C10

C28

C28 180P

180P

+12VCOM

1 19 18 17 14 12

5 6 8 10

V-

KBGND

-12VCOM

C27

C27 180P

180P

CTSB# SINB

DCDB# NRTSB

NDTRB NSOUTB

R14

R14 X_1K/4

X_1K/4

KBGND

16

17

JKBMS1 CONN-KB-R

7

8 11 12

MS

1

2

5

6

KB

131415

C13

C13 180P

180P

C23

C23 180P

180P

KBGND KBGND

C5 X_0.1u/25V/4C5 X_0.1u/25V/4 D2 1N4148SD2 1N4148S

RIB# 19 CTSB# 19 DSRB# 19 SINB 19 DCDB# 19

D1 1N4148SD1 1N4148S

X_0.1u/25V/4

C26

NCTSB#

C509 330PC509 330P

NDSRB#

C513 330PC513 330P

NRTSB

C507 330PC507 330P

NRIB#

C512 330PC512 330P

NDCDB#

C494 330PC494 330P

NSOUTB

C498 330PC498 330P

NSINB

C487 330PC487 330P

NDTRB

C488 330PC488 330P

10

9 4

3

+12V

-12V

B B

VCC3

C230

C230 X_0.1u/25V/4

X_0.1u/25V/4

ATX_PSON#24

X_N-2N7002_SOT23

A A

SLP_S3#14,19,24

ATX Connector

VCC5_SB

R528

X_4.7K/4

R519 _0/4R519 _0/4

X_Q30

G

VCC5

C239

D

102P/50V/X7R/4

S

5

-12V

C228

102P/50V/X7R/4

C298

C298 X_0.1u/25V/4

X_0.1u/25V/4

ATX1

13

3.3V

14

-12V

15

GND

16

P_ON

17

GND

18

GND

19

GND

20

-5V

21

5V

22

5V

23

5V GND243.3V

2X12 POWER

PWRCONN2*12

C516

C516 X_0.1u/25V/4

X_0.1u/25V/4

3.3V

GND

GND POK

5VSB

+12V +12V

1 2 3 4

5V

5 6

5V

7 8 9 10 11

C309

0.1u/25V/4

12

VCC3

C240

0.1u/25V/4

VCC5

C308

0.1u/25V/4

VCC5_SB +12V

C318

0.1u/25V/4

B

4

C290

0.1u/25V/4

VCC5

3VDUAL

+1.8V_S0

R174

10K/4

ATX_PWROK 24

C301

C301 X_0.1u/16V/4

X_0.1u/16V/4

C306

C306 X_0.1u/16V/4

X_0.1u/16V/4

3

VCCP

VCC3

C578

0.1u/16V/4

VCC5

C57

C57 X_0.1u/16V/4

X_0.1u/16V/4

VCC3

C583

C583 X_0.1u/16V/4

X_0.1u/16V/4

C534

0.1u/16V/4

C383

C383 X_0.1u/16V/4

X_0.1u/16V/4

C293

X_0.1u/25V/4

C575

C575 X_0.1u/16V/4

X_0.1u/16V/4

C617

0.1u/16V/4

C277

X_0.1u/25V/4

C542

0.1u/16V/4

EMI solution

C384

C668

C668 X_0.1u/16V/4

X_0.1u/16V/4

C31

C31 X_0.1u/16V/4

X_0.1u/16V/4

C48

X_0.1u/25V/4

C614

C614 X_0.1u/16V/4

X_0.1u/16V/4

+12V

C320

C320 X_0.1u/16V/4

X_0.1u/16V/4

C699

C699 X_0.1u/16V/4

X_0.1u/16V/4

C4

C4 X_0.1u/25V/4

X_0.1u/25V/4

C384

0.1u/16V/4

2

C242

0.1u/25V/4

C701

C701 X_0.1u/16V/4

X_0.1u/16V/4

C231

0.1u/16V/4

VCC5

-12V

C227

C227 X_0.1u/16V/4

X_0.1u/16V/4

-12V VCC5_SB VCC5_SB

C302

C60

X_0.1u/16V/4

Title

ATX connector / Front Panel/COM1/KB

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

C603

C604

C567

X_0.1u/25V/4

C275

C275 X_0.1u/16V/4

X_0.1u/16V/4

Micro Star Restricted Secret

MS-7347

C604

X_0.1u/25V/4

C276

C276 X_0.1u/16V/4

X_0.1u/16V/4

Last Revision Date:

Tuesday, December 19, 2006

Sheet

1

30 38

of

Rev

0A

5

4

3

2

1

VCC3

R214

4.7K/4

VCC5

C134 X_0.1u/25V/4C134 X_0.1u/25V/4

1 2

D D

C C

HSYNC#

HSYNC#10

VSYNC#

VSYNC#10

VGA CONNECTOR

VCC3

Q30

N-2N7002_SOT23

DVI_L0P DVI_L0N DVI_L2P DVI_L2N

DVI_L1P DVI_L1N DVI_CLKP

DVI_CLKN DVI_DDC_CLK DVI_DDC_DATA

C584

0.1u/16V/4

R410 33/4R410 33/4

R376 100K/4/1R376 100K/4/1

DVI1

1

DATA2

2

DATA2

3

SHIELD24

4

DATA4

5

DATA4

6

DDCCLK

7

DDCDATA

8

NC

9

DATA1

10

DATA1

11

SHIELD13

12

DATA3

CONN-DVI24P_white-RH

I2C_CLK10

DVI_L0P10

FS4

2.6A_miniSMDM260

6.8K/6

DVI_DDC_CLK DVI_DDC_DATA

DVI_L0N10 DVI_L2P10 DVI_L2N10

DVI_L1P10 DVI_L1N10 DVI_CLKP10 DVI_CLKN10

C585

C585 1u/16V/8

1u/16V/8

VCC5

R151

R254

6.8K/6

VCCDVI_14

DVI_L2NO DVI_L2PO

DVI_L1NO DVI_L1PO

5

B B

VCC5

A A

1

SHIELDCLK

DVI_DDC_CLK

D39

3

2

Z-MMBZ5222BLT1_SOT23

13

DATA3

14

VCC5

15

GND5

16

HPDET

17

DATA0

18

DATA0

19

SHIELD05

20

DATA5

21

DATA5

22 23

CLK

24

CLK

25

Shell

26

Shell

R521 0R0402R521 0R0402

I2C_DATA10

DDC_DATA10

R520 X_0R0402R520 X_0R0402 R169

R411 33/4R411 33/4

VCCDVI_14

DVI_L0NO DVI_L0PO

DVI_CLKPO DVI_CLKNO

VCC3

Q39

R311 33/4R311 33/4

N-2N7002_SOT23

DVI_L2PO

DVI_L2NO DVI_L1PO

DVI_DIGON10

DVI_L1NO DVI_L0PO

DVI_L0NO DVI_CLKPO

DVI_CLKNO

4

DVI_DDC_DATA

R545 18.2R0402R545 18.2R0402

R546 18.2R0402R546 18.2R0402 R569 18.2R0402R569 18.2R0402

R547 18.2R0402R547 18.2R0402 R557 18.2R0402R557 18.2R0402

R559 18.2R0402R559 18.2R0402 R562 18.2R0402R562 18.2R0402

R563 18.2R0402R563 18.2R0402

DVI_L2P

L1 X_CMC-L02-9008014-T34L1 X_CMC-L02-9008014-T34

4 3

1 2

DVI_L2N DVI_L1P

L2 X_CMC-L02-9008014-T34L2 X_CMC-L02-9008014-T34

4 3

1 2

L3 X_CMC-L02-9008014-T34L3 X_CMC-L02-9008014-T34

1 2

L5

1 2

CP55CP55

12

CP18CP18

12

DVI_L1N

DVI_L0P

4 3

DVI_L0N

DVI_CLKP

X_CMC-L02-9008014-T34

4 3

DVI_CLKN

3

5VDDCCL 5VDDCDA 5V_HSYNC 5V_VSYNC

Closed NB

R10

R540 0/6R540 0/6

G10

R541 0/6R541 0/6

B10

R554 0/6R554 0/6

R96 33/4R96 33/4 R103 33/4R103 33/4 R101 47R0402R101 47R0402 R100 47R0402R100 47R0402

53

1 2

U7

NC7WZ08U7NC7WZ08

VCC5

C139 X_0.1u/25V/4C139 X_0.1u/25V/4

53

1 2

U6

NC7WZ08U6NC7WZ08

150R/1/4

2

3

D5 BAV99D5BAV99

1

4

1 2

4

R170

R168

R163

5V_HSYNC

5V_VSYNC

VCC5VCC5

2

3

1

2

For EMI

C702

C702 10P/4

10P/4

1 2

C703

C703 10P/4

10P/4

1 2

C704

C704 10P/4

10P/4

1 2

D7 BAV99D7BAV99

150R/1/4

R171

R169

R172

47p 470p

C137

C137 X_22P/4

X_22P/4

R525 0R0402R525 0R0402

DAC_SCL10

I2C_CLK10

DAC_SDAT10

close VGA connector

RR

GR

BR

VCCDVI_14

C142

C169

X_22P/4

22P/4

4.7K/4

R524 X_0R0402R524 X_0R0402

VCC3

L9 120nH/300mAL9 120nH/300mA

C158

C158 X_10P/4

X_10P/4

1 2

L8 120nH/300mAL8 120nH/300mA

C152

C152 X_10P/4

X_10P/4

1 2

L7 120nH/300mAL7 120nH/300mA

C148

C148 X_10P/4

X_10P/4

1 2

C125

0.1u/25V/4

VGA_15

VGA_14

VGA_12

C112

22P/4

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

VCC5

VCC3

R571

6.8KR0402

Q16

5VDDCCL

N-2N7002_SOT23

VCC3

VCC5

R212

4.7K/4

N-2N7002_SOT23

1 2

JVGA1

15 10 14

9

13

8

12

7

11

6

VGA-D15-BL-B-SC

Micro Star Restricted Secret

DCI/VGA CONNECTOR

Q21

C164

10P/4

C156

10P/4

C149

10P/4

MS-7347

1

R572

6.8KR0402

5VDDCDA

3

17

5 4 3 2 1

16

VGAGND

Last Revision Date:

Tuesday, December 19, 2006

Sheet

2

3

D8 BAV99D8BAV99

1

2

3

D6 BAV99D6BAV99

1

VCC5

2

D9 BAV99D9BAV99

1

VGA_BVGA_13 VGA_G VGA_R

31 38

VCC5

of

Rev

0A

5

4

3

2

1

SB600 GPIO Config.

GPIO Pin

SATA_IS3#/GPIO0 ROM_CS#/GPIO1 SPKR/GPIO2

D D

FANOUT0/GPIO3 SATA_IS2#/GPIO4 SHUTDOWN#/GPIO5 GHI#/SATA_IS1#/GPIO6 WD_PWRGD/GPIO7 DDC1_SDA/GPIO8 DDC1_SCL/GPIO9 SATA_IS0#/GPIO10 SPI_DO/GPIO11 SPI_DI/GPIO12 LAN_RST#/GPIO13 ROM_RST#/GPIO14 IDE_D[0..15]/GPIO[15..30] SPI_HOLD#/GPIO31

C C

SPI_CS#/GPIO32 INTE#/GPIO33 INTF#/GPIO34 INTG#/GPIO35 INTH#/GPIO36 DPSLP_OD#/GPIO37 AC_BITCLK/GPIO38 AC_SDOUT/GPIO39 AC_SYNC/GPIO40 SPDIF_OUT/PCICLK7/GPIO41 ACZ_SDIN0/GPIO42 ACZ_SDIN1/GPIO43 ACZ_SDIN2/GPIO44 AC_RST#/GPIO45

B B

AC_SDIN3/GPIO46 SPI_CLK/GPIO47 FANOUT1/GPIO48 FANOUT2/GPIO49 FANIN0/GPIO50 FANIN1/GPIO51 FANIN2/GPIO52 VIN[0..7]/GPIO[53..60] TEMPIN0/GPIO61 TEMPIN1/GPIO62 TEMPIN2/GPIO63 TEMPIN3/TALERT#/GPIO64 BMREQ#/REQ5#/GPIO65 LLB#/GPIO66

A A

SATA_ACT#/GPIO67 LDRQ1#/GNT5#/GPIO68 RTC_IRQ#/GPIO69 REQ3#/GPIO70 REQ4#/GPIO71 GNT3#/GPIO72 GNT4#/GPIO73

5

Type

I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(S5_3.3V) OD(3.3V) I/O(3.3V) I/O(S5_3.3V)/VBAT I/O(3.3V) I/O(3.3V) I/O(3.3V) I/O(3.3V)

Unused

Function

Unused

SPKR

Unused Unused Unused Unused Unused

SPI_WP# ATADET0

Unused

SPI_DO SPI_DI

Unused Unused

PDD[0..15] SPI_HOLD# SPI_CS# PCI_INTA# PCI_INTB# PCI_INTC# PCI_INTD#

Unused Unused

STRAP PIN PULL LOW

Unused Unused Unused Unused Unused Unused Unused

SPI_CLK

Unused Unused Unused Unused Unused Unused Unused Unused Unused

SB600_TALERT# BMREQ# GB_ENABLE# SATALED#

Unused Unused

PREQ#3 PREQ#4 PGNT#3

Unused

4

USB_OC0#/GPM#0 USB_OC1#/GPM#1 USB_OC2#/GPM#2 USB_OC3#/GPM#3 USB_OC4#/GPM#4 USB_OC5#/DDR3_RST#/GPM#5 BLINK/GPM#6 SYS_RESET#/GPM#7 USB_OC8#/AZ_DOCK_RST#/GPM#8 USB_OC9#/SLP_S2#/GPM#9

SB600 GPOC Config.

SCL0/GPOC0# SDA0/GPOC1# SCL1/GPOC2# SDA1/GPOC3#

SB600 EXTEVENT & GEVENT Config.

RI#/EXTEVENT0# LPC_SMI#/EXTEVENT1# SMBALERT#/THRMTRIP#/GEVENT2# LPC_PME#/GEVENT3# PCI_PME#/GEVENT4# S3_STATE/GEVENT5# USB_OC6#/GEVENT6# USB_OC7#GEVENT7# WAKE#/GEVENT8#

PCI Config.

IEEE 1394

GIGA LAN

PCI1

PCI2

Super I/O

3

GPM Pin Type Function

I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V)

OC#1 OC#1 OC#2 OC#2 OC#3 OC#3

Unused

FP_RST# OC#2 OC#2

GPOC Pin Type Function

I/O(3.3V) I/O(3.3V) I/O(S5_3.3V) I/O(S5_3.3V)

SCLK SDATA SMB_CLK SMB_DATA

GPM Pin Type Function

I/O(S5_3.3V) I/O(3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V) I/O(S5_3.3V)

CLOCK

PCICLK0 REQ#0 GNT#0 AD16 INT#E N/A N/A N/A

PCICLK2 REQ#2 GNT#2 AD18 INT#G INT#H INT#E INT#F

PCICLK4 REQ#3 GNT#3 AD19 INT#H INT#E INT#F INT#G

PCICLK6 N/A N/A N/A N/A N/A N/A N/A

REQ# GNT# INTA# INTB# INTC# INTD#

IDSEL

2

Unused

LPC_SMI# H_THERMTRIP#

Unused

PCI_PME#

Unused

OC#3 OC#3 WAKE#

N/A N/A N/AINT#FAD17PCICLK1 REQ#1 GNT#1

Micro Star Restricted Secret

Title

GPIO

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

MS-7347

1

Last Revision Date:

Last Revision Date: Sheet

Sheet

Tuesday, December 19, 2006

32 38

of

Rev

0A

SB600 GPM Config.

5

D D

U32_X1

MSI

DDR

NB_HEATSINK

12

U29

MSI

DDR

SB_HEATSINK

12

4

PCB1

P30-0732720-E48

P30-0732720-E48,

PCB

膙地

3

VBAT1-S1

YSKTBT

2

CPU2

X_E91-0000076

1

Optics Orientation Holes

FM2

C C

B B

FM2

FM6

FM10

X

X_FM

FM13

FM4

FM12

X

X_FM

FM7

X

FM11

X

X_FM

FM1

FM9

X

X_FM

FM3

FM8

X

X_FM

FM5

X

X_FM

Mounting Holes

8

9 2

MH4MH4

3

KBGND

Simulation

7

8

9 2

MH7MH7

7

6 5

4

7

8

9 2

MH5MH5

R381

R381 0/4

0/4

6 5

3

4

R380

R380 0/4

0/4

7

8

9 2

MH6MH6

6 5

3

4

6 5

3

4

X_JS2

X_PIN1*2

VCC5

SIM1SIM2

X_PIN1*2

X_JS1

Model option table

Model type Function BOM Config ERP BOM No.

MS-7347

RS690+SB600RTL8111B+ALC888+2PCI+BTX +2PS2+8USB+2COM+DVI/VGA+1Audio+LPT+RJ45

Cfg-7347VOA

A A

Micro Star Restricted Secret

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MANUAL PARTS

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

1

33 38

Rev

0A

of

5

4

3

2

1

MS7347-0A

D D

C C

B B

A A

Micro Star Restricted Secret

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

HISTORY

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

34 38

1

Title

Micro Star Restricted Secret

Title

Rev

0A

of

5

D D

C C

4

3

2

1

B B

A A

Micro Star Restricted Secret

Title

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

Option Part

MS-7347

1

Last Revision Date:

Last Revision Date: Sheet

Sheet

Rev

0A

Tuesday, December 19, 2006

of

35 38

1

A

2

3

4

5

6

7

8

9

10

DDR DIMM & TERMINATOR

AM2

0.8V - 1.55V Core

VLDT 1.2V

B B

RS690

+1.2V REGULATOR

+1.2V_HT REGULATOR

+2.5V REGULATOR

- 95A

- 0.5A

- 10A

-850mA

- 500 mA

C C

ISL6566

VCCP

0.8375V-1.6000V 3-Phase Switch

VRM 10.1

95A

W83310DS

VTT_DDR

0.9V 1.5A

Linear

MS6 Regulator

V_FSB_VTT

V_1P5_CORE

(S0,S1)

1.5V

5.0A1.2V Linear

14A

1.8V VCC_DDR -9.4A

1.8V VCC_DDR

(S0,S1) (S3)

PCI Express x16 slot

+12V

+3.3Vaux +3.3Vaux

(wake) (no wake)

+3.3V

PCI Express x1 slot

+12V

Linear

V_2P5_MCH

(S3)

100mA

1.5A

22mA

20ASwitch

425mA

Linear2.5V

SB600

D D

+1.2V REGULATOR - TBD A

+1.5V REGULATOR

+3.3V DUAL

RTC

- 1 A

- TBD A

- 5uA(G3)

VCC3_SB

Linear3.3V

5VDUAL1,2

MS11 Regulator

VCC_DDR

1.8V Linear

E E

5V

- TBD A

+3.3Vaux

+3.3V - 3.0A

PCI slot x2

+3.3Vaux +3.3Vaux

+3.3V

+5V

+12V

(wake) (no wake)+3.3Vaux

(wake) (no wake)

- 200 mA1.2V DUAL

- 1.2A0.9V VTT_DDR

-400mA

- 5.5 A

- 375mA

- 20mA

- 3.0A

- 0.5 A

- 375mA

- 20mA

- 375mALinear5V

- 20mA

- 7.6A

- 5.0A

- 0.5A

USB

(S0,S1) - 4.0A+5V

- 20mA(S3)+5V

A

F F

PS2

(S0,S1)+5V - 345mA

- 2.0mA(S3)+5V

3V

+5VSB+12V +5V +3.3V

Battery

G G

H H

1

2

3

4

ATX POWER

5

Micro Star Restricted Secret

Title

POWER MAP

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

6

7

8

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

9

36 38

of

10

Rev

0A

5

4

3

2

1

VRM 10.1 ISL6566CR

D D

AMD K9 940

HT_CPU_PWRGD

RS690

C C

HT_VLD

MEM_VLD

HTVDD_EN

CPU_VLD

SB600

CPUVDD_EN

HT_PWRGD

RSMRST#HT_MCP_PWRGD

SLP_S5#

SLP_S3#

3-Phases PWM

PWM_EN

VRM_GD

MS6

PSIN#

PWROK MAP

B B

PWRBTN#

ATX_PWR_OK

Front Panel

A A

5

4

3

POWER CONN

2

PS_ON#

ATX_PWR_OK

MICRO-STAR INt'L CO., LTD.

MSI

Title

Size Document Number Rev

Date: Sheet

MICRO-STAR INt'L CO., LTD.

PWROK MAP

MS-7347

37 38Tuesday, December 19, 2006

of

1

of

0A

5

4

3

2

1

K9 SKT 940

D D

CPU RST*

CPU PWRGD

RS690

PE_RST*

PEX X1

C C

PEX X16

PE_RESET*

HT CPU PWRGD HT CPU RST*

HT MCP PWRGD HT MCP RST*

RESET SWITCH

CPU_PWRGD CPU_RST#

HT_MCP_PWRGD HT_MCP_RST*

RESET MAP

MS6

SB600

PWR CONN

PS ON

B B

PWR GOOD

FPRST#

POWER_GOOD

RSMRST#

RSTBTN

PWRGD

PWRGD_SB

GPIO_AUX*

HT MCP RST*

HT MCP PWRGD

PCI RST0* PCI RST1* PCI RST2* PCI RST3*

SLP S3*

LPC_RST*

AC_RESET*

HT_MCP_RST* HT_MCP_PWRGD

PCIRST_SLOT0*

PCIRST_SLOT1* MS6_RST*

SLP S3*

SIO_RST*

HD_RST#

IDE

SIO

PCI SLOT 2

PCI SLOT 1

HD Audio

RESET*

A A

Micro Star Restricted Secret

Title

Micro Star Restricted Secret

Title

RESET MAP

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City, Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7347

Last Revision Date:

Tuesday, December 19, 2006

Sheet

38 38

1

Rev

0A

of

MSI MS-7347 Schematics

Specifications and Main Features

Frequently Asked Questions

User Manual
